The document discusses processor registers, which are small blocks of fast memory built into the CPU. There are several types of registers that perform different functions like storing instructions (Instruction Register), addresses (Program Counter), or data (Accumulator). Registers provide quicker access than main memory and are used to temporarily store data and instructions during processing. Common registers include the Program Counter, Accumulator, Memory Address Register, and Instruction Register. Registers allow for faster operations but are limited in number.

1. Topic:
Processor Registers

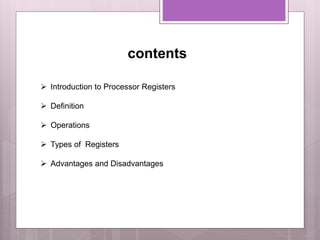

2. contents
 Introduction to Processor Registers
 Definition
 Operations
 Types of Registers
 Advantages and Disadvantages

3.  Register are used to quickly accept, store, and transfer data and
instructions that are being used immediately by the CPU
Introduction to Registers
 In a computer, a register is one of a small set of data holding
places that are part of a computer processor . A register may hold
a computer instruction , a storage address, or any kind of data
(such as a bit sequence or individual characters).
 Registers are used to store data temporarily during program
execution .some of the registers are accessible to the users
through instructions.

4. Definition:-
 A register is a very small amount of very fast
memory that is built in the CPU(central processing unit) in order to
speed up its operation by providing quick access to commonly used
values.
 Registers are the top of memory hierarchy and are the fastest way
for the system to manipulate data.
 Registers are normally measured by the number of bits they can
hold, for example an 8 bit register mean it can store 8 bit of data
and 32-bit register mean it can store 32 bits of data.

5. Storage-Device Hierarchy

6.  Various types of Registers are used for various purpose.
 These Registers are used for performing the various Operations.
 While we are working on the System then these Registers are
used by the CPU for Performing the Operations.
 When We Gives Some Input to the System then the Input will be
Stored into the Registers and When the System will gives us the
Results after Processing then the Result will also be from the
Registers. So that they are used by the CPU for Processing the
Data which is given by the User.

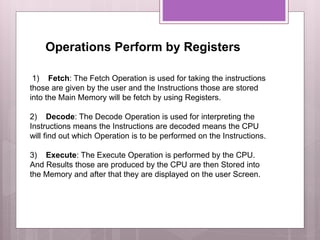

8. Operations Perform by Registers
1) Fetch: The Fetch Operation is used for taking the instructions
those are given by the user and the Instructions those are stored
into the Main Memory will be fetch by using Registers.
2) Decode: The Decode Operation is used for interpreting the
Instructions means the Instructions are decoded means the CPU
will find out which Operation is to be performed on the Instructions.
3) Execute: The Execute Operation is performed by the CPU.
And Results those are produced by the CPU are then Stored into
the Memory and after that they are displayed on the user Screen.

9. Types of Processor Registers:-
1. Memory Address Register (MAR):
2. Memory Buffer Register (MBR):
3. I/O Address Register (I/O AR):
6. Instruction Register (IR):
7. Accumulator Register:
4. I/O Buffer Register (I/O I3R):
5. Program Counter (PC):
8. Stack Control Register:
9. Flag Register:

10. 1. Memory Address Register (MAR):
This register holds the address of memory where CPU wants to read or
write data. When CPU wants to store some data in the memory or
reads the data from the memory, it places the address of the required
memory location in the MAR.
2. Memory Buffer Register (MBR):
This register holds the contents of data or instruction read from, or
written in memory. The contents of instruction placed in this register are
transferred to the Instruction Register, while the contents of data are
transferred to the accumulator or I/O register.
In other words you can say that this register is used to store
data/instruction coming from the memory or going to the memory.

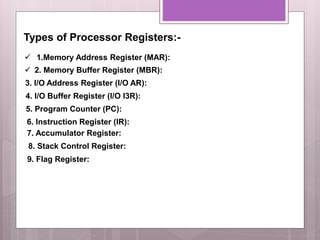

11. Types of Processor Registers:-
 1.Memory Address Register (MAR):
 2. Memory Buffer Register (MBR):
3. I/O Address Register (I/O AR):
6. Instruction Register (IR):
7. Accumulator Register:
4. I/O Buffer Register (I/O I3R):
5. Program Counter (PC):
8. Stack Control Register:
9. Flag Register:

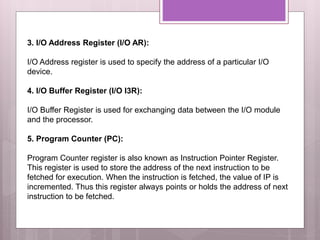

12. 3. I/O Address Register (I/O AR):
I/O Address register is used to specify the address of a particular I/O
device.
4. I/O Buffer Register (I/O I3R):
I/O Buffer Register is used for exchanging data between the I/O module
and the processor.
5. Program Counter (PC):
Program Counter register is also known as Instruction Pointer Register.
This register is used to store the address of the next instruction to be
fetched for execution. When the instruction is fetched, the value of IP is
incremented. Thus this register always points or holds the address of next
instruction to be fetched.

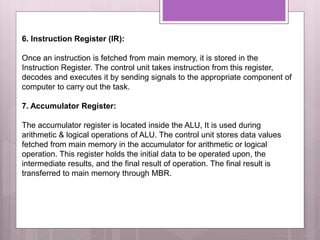

13. 6. Instruction Register (IR):
Once an instruction is fetched from main memory, it is stored in the
Instruction Register. The control unit takes instruction from this register,
decodes and executes it by sending signals to the appropriate component of
computer to carry out the task.
7. Accumulator Register:
The accumulator register is located inside the ALU, It is used during
arithmetic & logical operations of ALU. The control unit stores data values
fetched from main memory in the accumulator for arithmetic or logical
operation. This register holds the initial data to be operated upon, the
intermediate results, and the final result of operation. The final result is
transferred to main memory through MBR.

14. Types of Processor Registers:-
 1.Memory Address Register (MAR):
 2. Memory Buffer Register (MBR):
 3. I/O Address Register (I/O AR):
 6. Instruction Register (IR):
 7. Accumulator Register:
 4. I/O Buffer Register :
 5. Program Counter (PC):
8. Stack Control Register:
9. Flag Register:

15. 8. Stack Control Register:
A stack represents a set of memory blocks; the data is stored in and retrieved
from these blocks in an order, i.e. First In and Last Out (FILO). The Stack
Control Register is used to manage the stacks in memory. The size of this
register is 2 or 4 bytes.
9. Flag Register:
The Flag register is used to indicate occurrence of a certain condition during
an operation of the CPU. It is a special purpose register with size one byte or
two bytes. Each bit of the flag register constitutes a flag (or alarm), such that
the bit value indicates if a specified condition was encountered while
executing an instruction.
For example, if zero value is put into an arithmetic register (accumulator) as
a result of an arithmetic operation or a comparison, then the zero flag will be
raised by the CPU. Thus, the subsequent instruction can check this flag and
when a zero flag is "ON" it can take, an appropriate route in the algorithm.

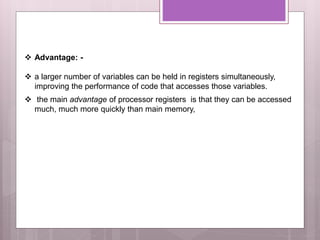

16.  Advantage: -
 a larger number of variables can be held in registers simultaneously,
improving the performance of code that accesses those variables.
 the main advantage of processor registers is that they can be accessed
much, much more quickly than main memory,

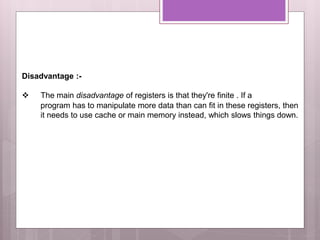

17. Disadvantage :-
 The main disadvantage of registers is that they're finite . If a
program has to manipulate more data than can fit in these registers, then
it needs to use cache or main memory instead, which slows things down.
