1. Presentation On:
“ Fabric Analysis ”
Course: Product Development & Re-Engineering
Code: GMM-260
Date of Submission: 24-04-2015

2. Submitted to
Md. Tanjibul Hasan Sajib
Lecturer
BGMEA University of Fashion and
Technology
BUFT

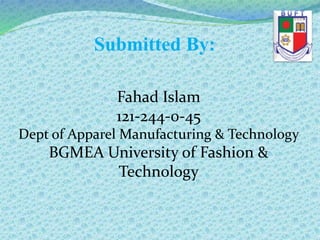

3. Submitted By:
Fahad Islam
121-244-0-45
Dept of Apparel Manufacturing & Technology
BGMEA University of Fashion &
Technology

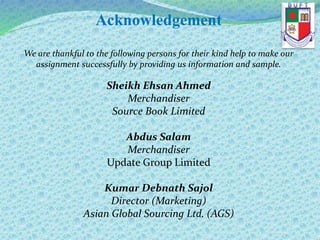

4. Acknowledgement
We are thankful to the following persons for their kind help to make our
assignment successfully by providing us information and sample.
Sheikh Ehsan Ahmed
Merchandiser
Source Book Limited
Abdus Salam
Merchandiser
Update Group Limited
Kumar Debnath Sajol
Director (Marketing)
Asian Global Sourcing Ltd. (AGS)

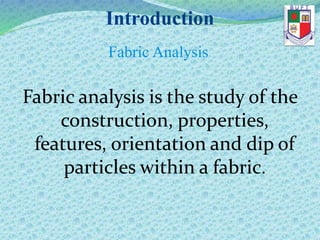

5. Introduction
Fabric Analysis
Fabric analysis is the study of the
construction, properties,
features, orientation and dip of
particles within a fabric.

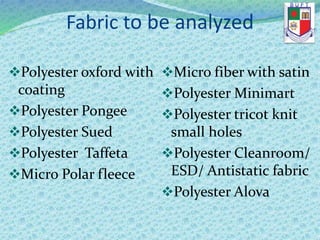

6. Fabric to be analyzed
Polyester oxford with
coating
Polyester Pongee
Polyester Sued
Polyester Taffeta
Micro Polar fleece
Micro fiber with satin
Polyester Minimart
Polyester tricot knit
small holes
Polyester Cleanroom/
ESD/ Antistatic fabric
Polyester Alova

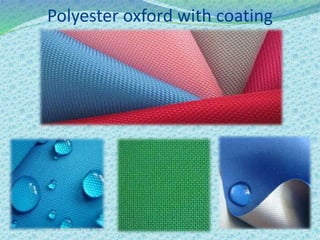

7. Polyester oxford with coating

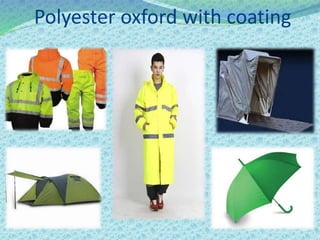

8. Polyester oxford with coating

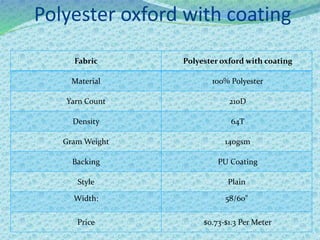

9. Polyester oxford with coating
Fabric Polyester oxford with coating
Material 100% Polyester
Yarn Count 210D
Density 64T
Gram Weight 140gsm
Backing PU Coating
Style Plain
Width: 58/60"
Price $0.73-$1.3 Per Meter

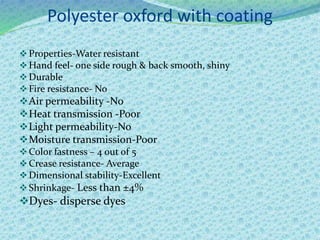

10. Polyester oxford with coating
Properties-Water resistant
Hand feel- one side rough & back smooth, shiny
Durable
Fire resistance- No
Air permeability -No
Heat transmission -Poor
Light permeability-No
Moisture transmission-Poor
Color fastness – 4 out of 5
Crease resistance- Average
Dimensional stability-Excellent
Shrinkage- Less than ±4%
Dyes- disperse dyes

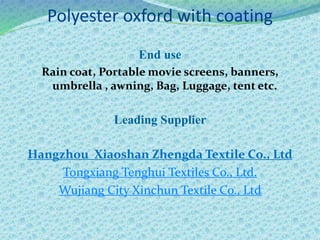

11. Polyester oxford with coating
End use
Rain coat, Portable movie screens, banners,
umbrella , awning, Bag, Luggage, tent etc.
Leading Supplier
Hangzhou Xiaoshan Zhengda Textile Co., Ltd
Tongxiang Tenghui Textiles Co., Ltd.
Wujiang City Xinchun Textile Co., Ltd

12. Polyester Pongee

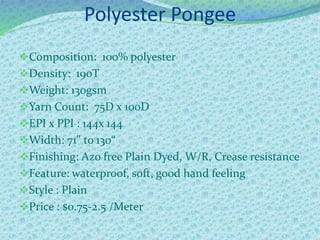

13. Polyester Pongee
Composition: 100% polyester
Density: 190T
Weight: 130gsm
Yarn Count: 75D x 100D
EPI x PPI : 144x 144
Width: 71" to 130“
Finishing: Azo free Plain Dyed, W/R, Crease resistance
Feature: waterproof, soft, good hand feeling
Style : Plain
Price : $0.75-2.5 /Meter

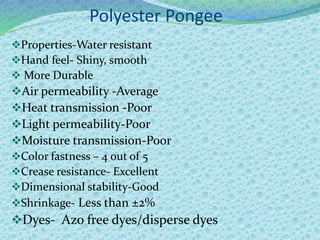

14. Polyester Pongee
Properties-Water resistant
Hand feel- Shiny, smooth
 More Durable
Air permeability -Average
Heat transmission -Poor
Light permeability-Poor
Moisture transmission-Poor
Color fastness – 4 out of 5
Crease resistance- Excellent
Dimensional stability-Good
Shrinkage- Less than ±2%
Dyes- Azo free dyes/disperse dyes

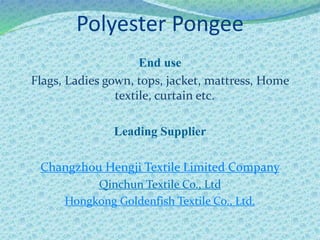

15. Polyester Pongee
End use
Flags, Ladies gown, tops, jacket, mattress, Home
textile, curtain etc.
Leading Supplier
Changzhou Hengji Textile Limited Company
Qinchun Textile Co., Ltd
Hongkong Goldenfish Textile Co., Ltd.

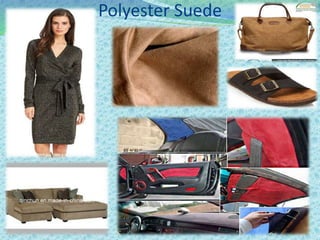

16. Polyester Suede

17. Polyester Suede
Material 100% Polyester
EPI x PPI
144x 144
Yarn Count 75D*225D
Weight 120GSM
Width 150cm
Techniques woven
Style satin
Color Golden
Feature Anti-Static, Shrink-resistant
Feature 1 side brushed
dry clean:
petroleum-based cleaning agent
Price $0.50-2.8/ miter

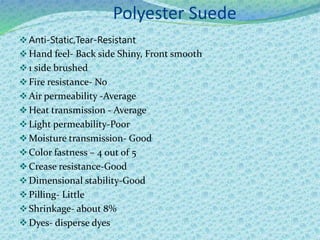

18. Polyester Suede
Anti-Static,Tear-Resistant
Hand feel- Back side Shiny, Front smooth
1 side brushed
Fire resistance- No
Air permeability -Average
Heat transmission - Average
Light permeability-Poor
Moisture transmission- Good
Color fastness – 4 out of 5
Crease resistance-Good
Dimensional stability-Good
Pilling- Little
Shrinkage- about 8%
Dyes- disperse dyes

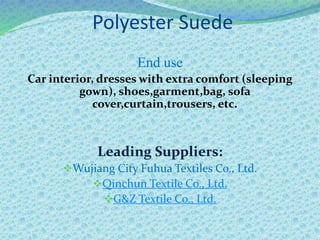

19. Polyester Suede
End use
Car interior, dresses with extra comfort (sleeping
gown), shoes,garment,bag, sofa
cover,curtain,trousers, etc.
Leading Suppliers:
Wujiang City Fuhua Textiles Co., Ltd.
Qinchun Textile Co., Ltd.
G&Z Textile Co., Ltd.

20. Polyester Taffeta

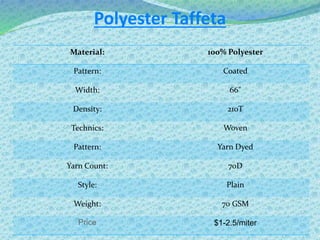

21. Polyester Taffeta
Material: 100% Polyester
Pattern: Coated
Width: 66"
Density: 210T
Technics: Woven
Pattern: Yarn Dyed
Yarn Count: 70D
Style: Plain
Weight: 70 GSM
Price $1-2.5/miter

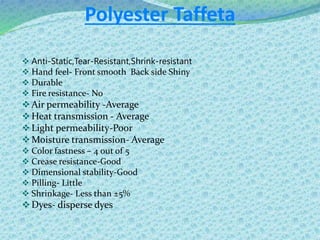

22. Polyester Taffeta
 Anti-Static,Tear-Resistant,Shrink-resistant
 Hand feel- Front smooth Back side Shiny
 Durable
 Fire resistance- No
Air permeability -Average
Heat transmission - Average
Light permeability-Poor
Moisture transmission- Average
 Color fastness – 4 out of 5
 Crease resistance-Good
 Dimensional stability-Good
 Pilling- Little
 Shrinkage- Less than ±5%
Dyes- disperse dyes

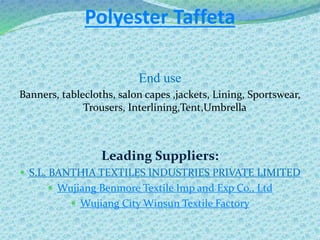

23. Polyester Taffeta
End use
Banners, tablecloths, salon capes ,jackets, Lining, Sportswear,
Trousers, Interlining,Tent,Umbrella
Leading Suppliers:
 S.L. BANTHIA TEXTILES INDUSTRIES PRIVATE LIMITED
 Wujiang Benmore Textile Imp and Exp Co., Ltd
 Wujiang City Winsun Textile Factory

24. Micro polar fleece fabric

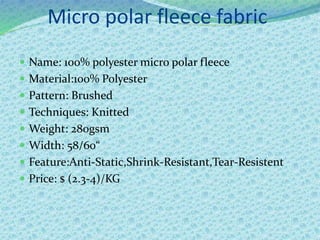

25. Micro polar fleece fabric
 Name: 100% polyester micro polar fleece
 Material:100% Polyester
 Pattern: Brushed
 Techniques: Knitted
 Weight: 280gsm
 Width: 58/60“
 Feature:Anti-Static,Shrink-Resistant,Tear-Resistent
 Price: $ (2.3-4)/KG

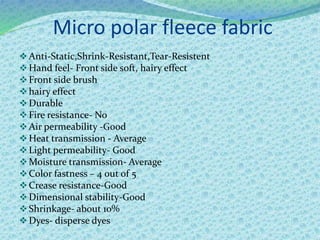

26. Micro polar fleece fabric
Anti-Static,Shrink-Resistant,Tear-Resistent
Hand feel- Front side soft, hairy effect
Front side brush
hairy effect
Durable
Fire resistance- No
Air permeability -Good
Heat transmission - Average
Light permeability- Good
Moisture transmission- Average
Color fastness – 4 out of 5
Crease resistance-Good
Dimensional stability-Good
Shrinkage- about 10%
Dyes- disperse dyes

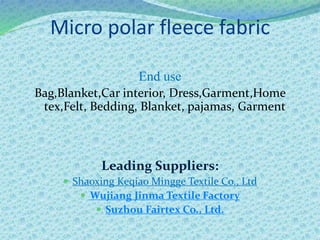

27. Micro polar fleece fabric
End use
Bag,Blanket,Car interior, Dress,Garment,Home
tex,Felt, Bedding, Blanket, pajamas, Garment
Leading Suppliers:
 Shaoxing Keqiao Mingge Textile Co., Ltd
 Wujiang Jinma Textile Factory
 Suzhou Fairtex Co., Ltd.

28. Micro fiber with satin

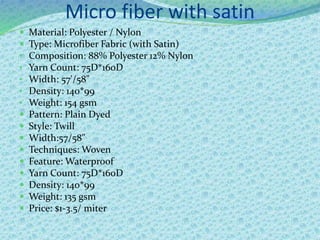

29. Micro fiber with satin
 Material: Polyester / Nylon
 Type: Microfiber Fabric (with Satin)
• Composition: 88% Polyester 12% Nylon
• Yarn Count: 75D*160D
• Width: 57'/58"
• Density: 140*99
• Weight: 154 gsm
 Pattern: Plain Dyed
 Style: Twill
 Width:57/58"
 Techniques: Woven
 Feature: Waterproof
 Yarn Count: 75D*160D
 Density: 140*99
 Weight: 135 gsm
 Price: $1-3.5/ miter

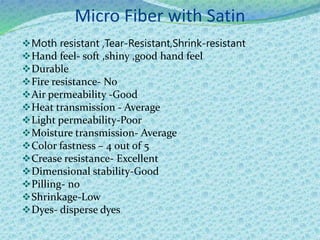

30. Micro Fiber with Satin
Moth resistant ,Tear-Resistant,Shrink-resistant
Hand feel- soft ,shiny ,good hand feel
Durable
Fire resistance- No
Air permeability -Good
Heat transmission - Average
Light permeability-Poor
Moisture transmission- Average
Color fastness – 4 out of 5
Crease resistance- Excellent
Dimensional stability-Good
Pilling- no
Shrinkage-Low
Dyes- disperse dyes

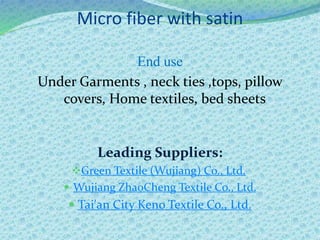

31. Micro fiber with satin
End use
Under Garments , neck ties ,tops, pillow
covers, Home textiles, bed sheets
Leading Suppliers:
Green Textile (Wujiang) Co., Ltd.
 Wujiang ZhaoCheng Textile Co., Ltd.
 Tai'an City Keno Textile Co., Ltd.

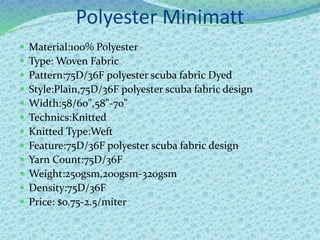

32. Polyester Minimatt

33. Polyester Minimatt
 Material:100% Polyester
 Type: Woven Fabric
 Pattern:75D/36F polyester scuba fabric Dyed
 Style:Plain,75D/36F polyester scuba fabric design
 Width:58/60",58"-70"
 Technics:Knitted
 Knitted Type:Weft
 Feature:75D/36F polyester scuba fabric design
 Yarn Count:75D/36F
 Weight:250gsm,200gsm-320gsm
 Density:75D/36F
 Price: $o.75-2.5/miter

34. Polyester Minimatt
Hand feel- Front & Back side Rough, Shiny
Anti-Static,Tear-Resistant,
Durable
Fire resistance- No
Air permeability -Good
Heat transmission - Good
Light permeability- Average
Moisture transmission- Good
Color fastness-Good
Crease resistance-Good
Dimensional stability-Good
Pilling-no
Shrinkage-8%
Dyes- disperse dyes

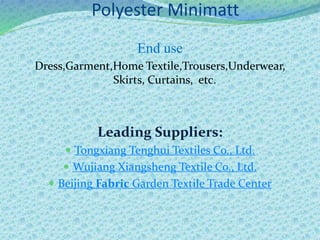

35. Polyester Minimatt
End use
Dress,Garment,Home Textile,Trousers,Underwear,
Skirts, Curtains, etc.
Leading Suppliers:
 Tongxiang Tenghui Textiles Co., Ltd.
 Wujiang Xiangsheng Textile Co., Ltd.
 Beijing Fabric Garden Textile Trade Center

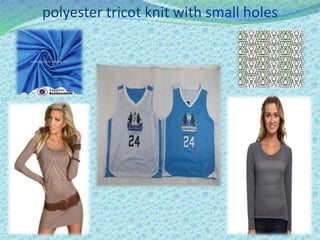

36. polyester tricot knit with small holes

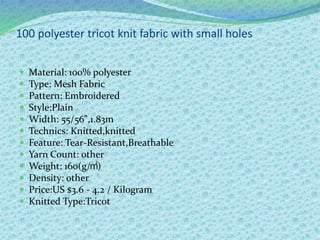

37. 100 polyester tricot knit fabric with small holes
 Material: 100% polyester
 Type: Mesh Fabric
 Pattern: Embroidered
 Style:Plain
 Width: 55/56",1.83m
 Technics: Knitted,knitted
 Feature: Tear-Resistant,Breathable
 Yarn Count: other
 Weight: 160(g/㎡)
 Density: other
 Price:US $3.6 - 4.2 / Kilogram
 Knitted Type:Tricot

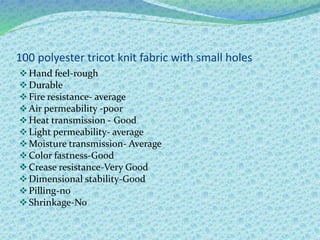

38. 100 polyester tricot knit fabric with small holes
Hand feel-rough
Durable
Fire resistance- average
Air permeability -poor
Heat transmission - Good
Light permeability- average
Moisture transmission- Average
Color fastness-Good
Crease resistance-Very Good
Dimensional stability-Good
Pilling-no
Shrinkage-No

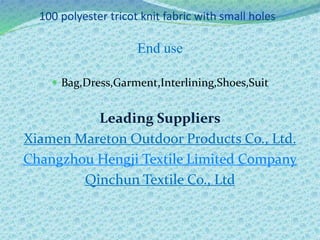

39. 100 polyester tricot knit fabric with small holes
End use
 Bag,Dress,Garment,Interlining,Shoes,Suit
Leading Suppliers
Xiamen Mareton Outdoor Products Co., Ltd.
Changzhou Hengji Textile Limited Company
Qinchun Textile Co., Ltd

40. POLYESTER ALOVA

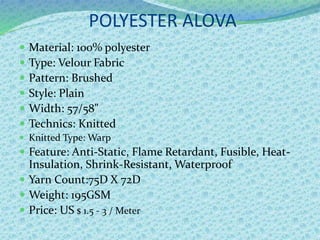

41. POLYESTER ALOVA
 Material: 100% polyester
 Type: Velour Fabric
 Pattern: Brushed
 Style: Plain
 Width: 57/58"
 Technics: Knitted
 Knitted Type: Warp
 Feature: Anti-Static, Flame Retardant, Fusible, Heat-
Insulation, Shrink-Resistant, Waterproof
 Yarn Count:75D X 72D
 Weight: 195GSM
 Price: US $ 1.5 - 3 / Meter

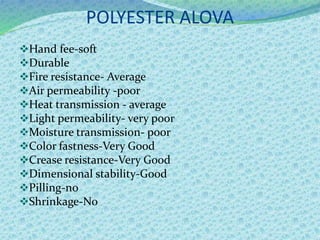

42. POLYESTER ALOVA
Hand fee-soft
Durable
Fire resistance- Average
Air permeability -poor
Heat transmission - average
Light permeability- very poor
Moisture transmission- poor
Color fastness-Very Good
Crease resistance-Very Good
Dimensional stability-Good
Pilling-no
Shrinkage-No

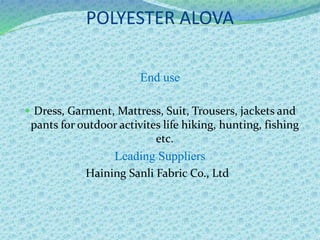

43. POLYESTER ALOVA
End use
 Dress, Garment, Mattress, Suit, Trousers, jackets and
pants for outdoor activites life hiking, hunting, fishing
etc.
Leading Suppliers
Haining Sanli Fabric Co., Ltd

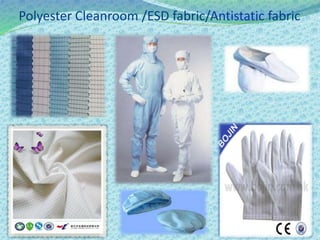

44. Polyester Cleanroom /ESD fabric/Antistatic fabric

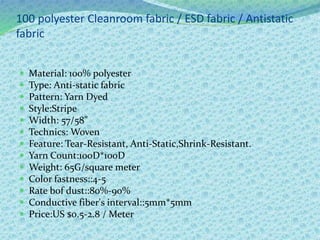

45. 100 polyester Cleanroom fabric / ESD fabric / Antistatic
fabric
 Material: 100% polyester
 Type: Anti-static fabric
 Pattern: Yarn Dyed
 Style:Stripe
 Width: 57/58"
 Technics: Woven
 Feature: Tear-Resistant, Anti-Static,Shrink-Resistant.
 Yarn Count:100D*100D
 Weight: 65G/square meter
 Color fastness::4-5
 Rate bof dust::80%-90%
 Conductive fiber's interval::5mm*5mm
 Price:US $0.5-2.8 / Meter

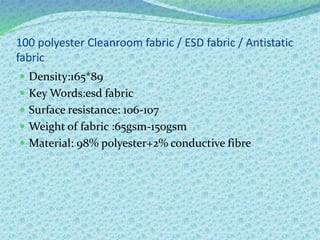

46. 100 polyester Cleanroom fabric / ESD fabric / Antistatic
fabric
 Density:165*89
 Key Words:esd fabric
 Surface resistance: 106-107
 Weight of fabric :65gsm-150gsm
 Material: 98% polyester+2% conductive fibre

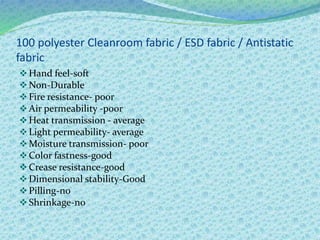

47. 100 polyester Cleanroom fabric / ESD fabric / Antistatic
fabric
Hand feel-soft
Non-Durable
Fire resistance- poor
Air permeability -poor
Heat transmission - average
Light permeability- average
Moisture transmission- poor
Color fastness-good
Crease resistance-good
Dimensional stability-Good
Pilling-no
Shrinkage-no

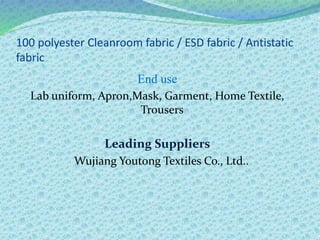

48. 100 polyester Cleanroom fabric / ESD fabric / Antistatic
fabric
End use
Lab uniform, Apron,Mask, Garment, Home Textile,
Trousers
Leading Suppliers
Wujiang Youtong Textiles Co., Ltd..

49. Stretch Cotton Poplin

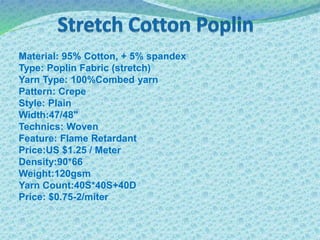

50. Material: 95% Cotton, + 5% spandex
Type: Poplin Fabric (stretch)
Yarn Type: 100%Combed yarn
Pattern: Crepe
Style: Plain
Width:47/48"
Technics: Woven
Feature: Flame Retardant
Price:US $1.25 / Meter
Density:90*66
Weight:120gsm
Yarn Count:40S*40S+40D
Price: $0.75-2/miter

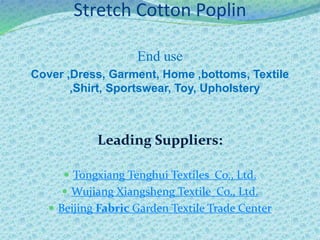

51. Stretch Cotton Poplin
End use
Cover ,Dress, Garment, Home ,bottoms, Textile
,Shirt, Sportswear, Toy, Upholstery
Leading Suppliers:
 Tongxiang Tenghui Textiles Co., Ltd.
 Wujiang Xiangsheng Textile Co., Ltd.
 Beijing Fabric Garden Textile Trade Center

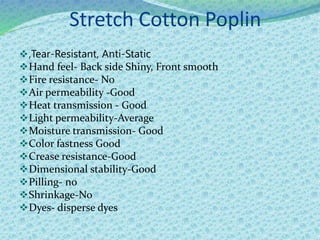

52. Stretch Cotton Poplin
,Tear-Resistant, Anti-Static
Hand feel- Back side Shiny, Front smooth
Fire resistance- No
Air permeability -Good
Heat transmission - Good
Light permeability-Average
Moisture transmission- Good
Color fastness Good
Crease resistance-Good
Dimensional stability-Good
Pilling- no
Shrinkage-No
Dyes- disperse dyes

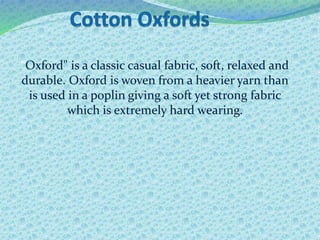

53. "Oxford" is a classic casual fabric, soft, relaxed and
durable. Oxford is woven from a heavier yarn than
is used in a poplin giving a soft yet strong fabric
which is extremely hard wearing.

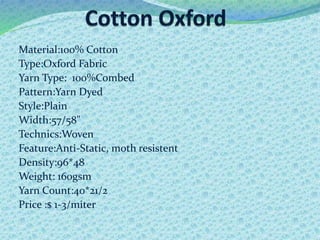

54. Cotton Oxford

55. Material:100% Cotton
Type:Oxford Fabric
Yarn Type: 100%Combed
Pattern:Yarn Dyed
Style:Plain
Width:57/58"
Technics:Woven
Feature:Anti-Static, moth resistent
Density:96*48
Weight: 160gsm
Yarn Count:40*21/2
Price :$ 1-3/miter

56. Cotton Oxford
End use
Shirts, Suit, casual wear, Bottom , Skirt
Leading Suppliers:
 Changzhou Hengji Textile Limited Company
 Guoyao Technology Co., Ltd.
 Wuxi Hengyang Weave Co., Ltd.

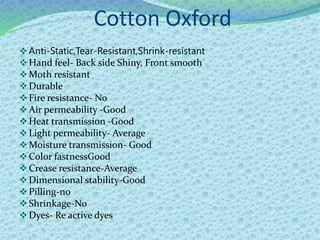

57. Cotton Oxford
Anti-Static,Tear-Resistant,Shrink-resistant
Hand feel- Back side Shiny, Front smooth
Moth resistant
Durable
Fire resistance- No
Air permeability -Good
Heat transmission -Good
Light permeability- Average
Moisture transmission- Good
Color fastnessGood
Crease resistance-Average
Dimensional stability-Good
Pilling-no
Shrinkage-No
Dyes- Re active dyes

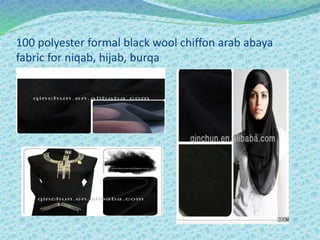

58. 100 polyester formal black wool chiffon arab abaya
fabric for niqab, hijab, burqa

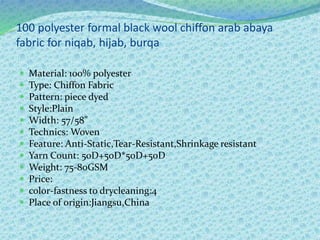

59. 100 polyester formal black wool chiffon arab abaya
fabric for niqab, hijab, burqa
 Material: 100% polyester
 Type: Chiffon Fabric
 Pattern: piece dyed
 Style:Plain
 Width: 57/58"
 Technics: Woven
 Feature: Anti-Static,Tear-Resistant,Shrinkage resistant
 Yarn Count: 50D+50D*50D+50D
 Weight: 75-80GSM
 Price:
 color-fastness to drycleaning:4
 Place of origin:Jiangsu,China

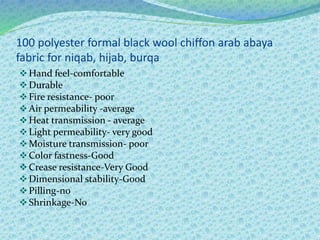

60. 100 polyester formal black wool chiffon arab abaya
fabric for niqab, hijab, burqa
Hand feel-comfortable
Durable
Fire resistance- poor
Air permeability -average
Heat transmission - average
Light permeability- very good
Moisture transmission- poor
Color fastness-Good
Crease resistance-Very Good
Dimensional stability-Good
Pilling-no
Shrinkage-No

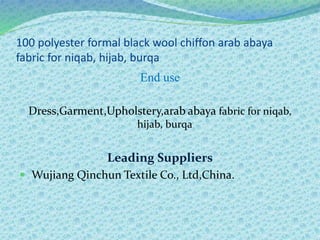

61. 100 polyester formal black wool chiffon arab abaya
fabric for niqab, hijab, burqa
End use
Dress,Garment,Upholstery,arab abaya fabric for niqab,
hijab, burqa
Leading Suppliers
 Wujiang Qinchun Textile Co., Ltd,China.

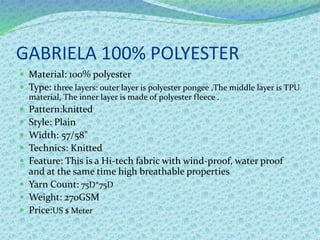

62. GABRIELA 100% POLYESTER
 Material: 100% polyester
 Type: three layers: outer layer is polyester pongee ,The middle layer is TPU
material, The inner layer is made of polyester fleece .
 Pattern:knitted
 Style: Plain
 Width: 57/58"
 Technics: Knitted
 Feature: This is a Hi-tech fabric with wind-proof, water proof
and at the same time high breathable properties
 Yarn Count: 75D*75D
 Weight: 270GSM
 Price:US $ Meter

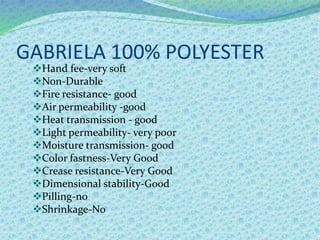

63. GABRIELA 100% POLYESTER
Hand fee-very soft
Non-Durable
Fire resistance- good
Air permeability -good
Heat transmission - good
Light permeability- very poor
Moisture transmission- good
Color fastness-Very Good
Crease resistance-Very Good
Dimensional stability-Good
Pilling-no
Shrinkage-No

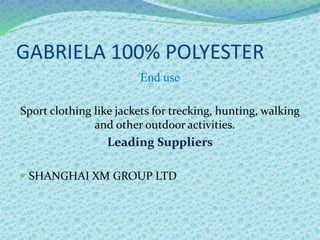

64. GABRIELA 100% POLYESTER
End use
Sport clothing like jackets for trecking, hunting, walking
and other outdoor activities.
Leading Suppliers
 SHANGHAI XM GROUP LTD

65. GABRIELA 100% POLYESTER

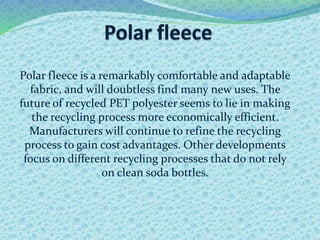

66. Polar fleece is a remarkably comfortable and adaptable
fabric, and will doubtless find many new uses. The
future of recycled PET polyester seems to lie in making
the recycling process more economically efficient.
Manufacturers will continue to refine the recycling
process to gain cost advantages. Other developments
focus on different recycling processes that do not rely
on clean soda bottles.

67. Polar fleece

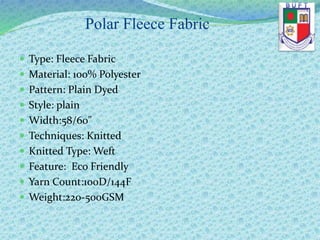

68. Polar Fleece Fabric
 Type: Fleece Fabric
 Material: 100% Polyester
 Pattern: Plain Dyed
 Style: plain
 Width:58/60"
 Techniques: Knitted
 Knitted Type: Weft
 Feature: Eco Friendly
 Yarn Count:100D/144F
 Weight:220-500GSM

69. Polar fleece
Anti-Static,Shrink-Resistant,Tear-Resistent
Hand feel- Front side soft, hairy effect
Front side brush
hairy effect
Fire resistance- No
Air permeability -Good
Heat transmission - Average
Light permeability- Average
Moisture transmission- Average
Color fastness – 4 out of 5
Crease resistance-Good
Dimensional stability-Good
Shrinkage- about 8%
Dyes- disperse dyes

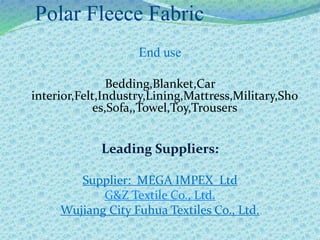

70. Polar Fleece Fabric
End use
Bedding,Blanket,Car
interior,Felt,Industry,Lining,Mattress,Military,Sho
es,Sofa,,Towel,Toy,Trousers
Leading Suppliers:
Supplier: MEGA IMPEX Ltd
G&Z Textile Co., Ltd.
Wujiang City Fuhua Textiles Co., Ltd.

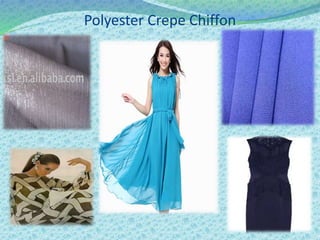

71. Polyester Crepe Chiffon

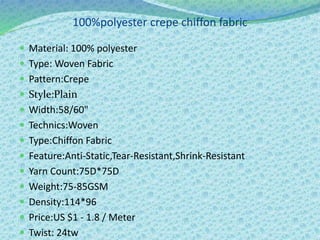

72. 100%polyester crepe chiffon fabric
 Material: 100% polyester
 Type: Woven Fabric
 Pattern:Crepe
 Style:Plain
 Width:58/60"
 Technics:Woven
 Type:Chiffon Fabric
 Feature:Anti-Static,Tear-Resistant,Shrink-Resistant
 Yarn Count:75D*75D
 Weight:75-85GSM
 Density:114*96
 Price:US $1 - 1.8 / Meter
 Twist: 24tw

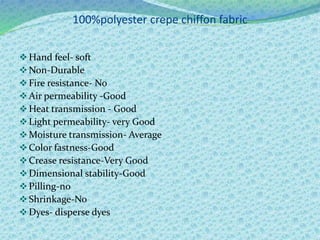

73. 100%polyester crepe chiffon fabric
Hand feel- soft
Non-Durable
Fire resistance- No
Air permeability -Good
Heat transmission - Good
Light permeability- very Good
Moisture transmission- Average
Color fastness-Good
Crease resistance-Very Good
Dimensional stability-Good
Pilling-no
Shrinkage-No
Dyes- disperse dyes

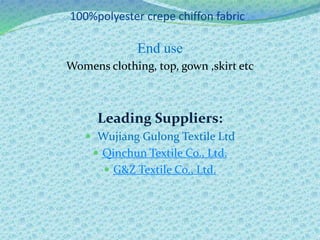

74. 100%polyester crepe chiffon fabric
End use
Womens clothing, top, gown ,skirt etc
Leading Suppliers:
 Wujiang Gulong Textile Ltd
 Qinchun Textile Co., Ltd.
 G&Z Textile Co., Ltd.

75. polyester micro fiber peach skin fabric

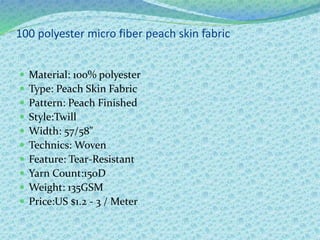

76. 100 polyester micro fiber peach skin fabric
 Material: 100% polyester
 Type: Peach Skin Fabric
 Pattern: Peach Finished
 Style:Twill
 Width: 57/58"
 Technics: Woven
 Feature: Tear-Resistant
 Yarn Count:150D
 Weight: 135GSM
 Price:US $1.2 - 3 / Meter

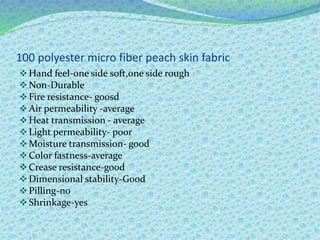

77. 100 polyester micro fiber peach skin fabric
Hand feel-one side soft,one side rough
Non-Durable
Fire resistance- goosd
Air permeability -average
Heat transmission - average
Light permeability- poor
Moisture transmission- good
Color fastness-average
Crease resistance-good
Dimensional stability-Good
Pilling-no
Shrinkage-yes

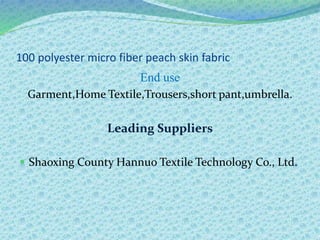

78. 100 polyester micro fiber peach skin fabric
End use
Garment,Home Textile,Trousers,short pant,umbrella.
Leading Suppliers
 Shaoxing County Hannuo Textile Technology Co., Ltd.

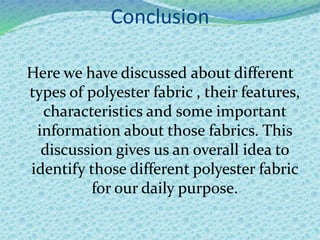

79. Conclusion
Here we have discussed about different
types of polyester fabric , their features,
characteristics and some important
information about those fabrics. This
discussion gives us an overall idea to
identify those different polyester fabric
for our daily purpose.

80. Thank You
