M K BANSAL
NITRA TECHNICAL CAMPUS
Ghaziabad
Basic Weaves
In representing
weave on graph paper
each distance between
the two vertical lines
represents one warp
thread and the distance
between two horizontal
lines represents one
weft thread.
Small squares illustrates the place
where certain warp threads meets with
certain weft thread. Thus the square
marked ‘a’ will indicate the interlacement
of warp thread no.1 with 1st pick, mark
‘b’ will indicate the interlacement of warp
thread no. 2 with 1st pick. like wise mark
‘g’ will indicate the interlacement of warp
thread no. 3 with 2nd pick and so on.
Representation of woven structure on graph paper:
Different kinds of graph paper used in designing
The proper selection of graph paper is ascertained by the no. of warp and
weft threads required per inch in the finished fabric. For example a fabric
of 80 EPI and 120 PPI will require a graph of corresponding proportion or
as 80 is to 120 = 8x12, similarly EPI= 80 & PPI= 60 will require a 8x6 graph
paper.
Indication of any kind in a certain
square inside the repeat of the
weave upon the graph paper mean
warp up , and squares left empty
inside the repeat of the weave on
graph paper mean weft up in its
corresponding position in the
fabric.
Warp up
Weft up
Basic Fabric Structure ( Weaves)
There are three basic weaves.
Plain Weave
Twill Weave
Satin Weave
All other Structures are a variation or a combination of these weaves.
Plain weave is the most basic of three fundamental types of weaves.It is strong
and hard-wearing, used for fashion and furnishing fabrics.
In plain weave, the warp and weft are aligned so they form a simple criss-cross
pattern. Each weft thread crosses the warp threads by going over one, then under
the next, and so on. The next weft thread goes under the warp threads that its
neighbor went over, and vice versa.
Terms as tabby, Calico, alpaca, and taffeta are
applied to plain cloth.

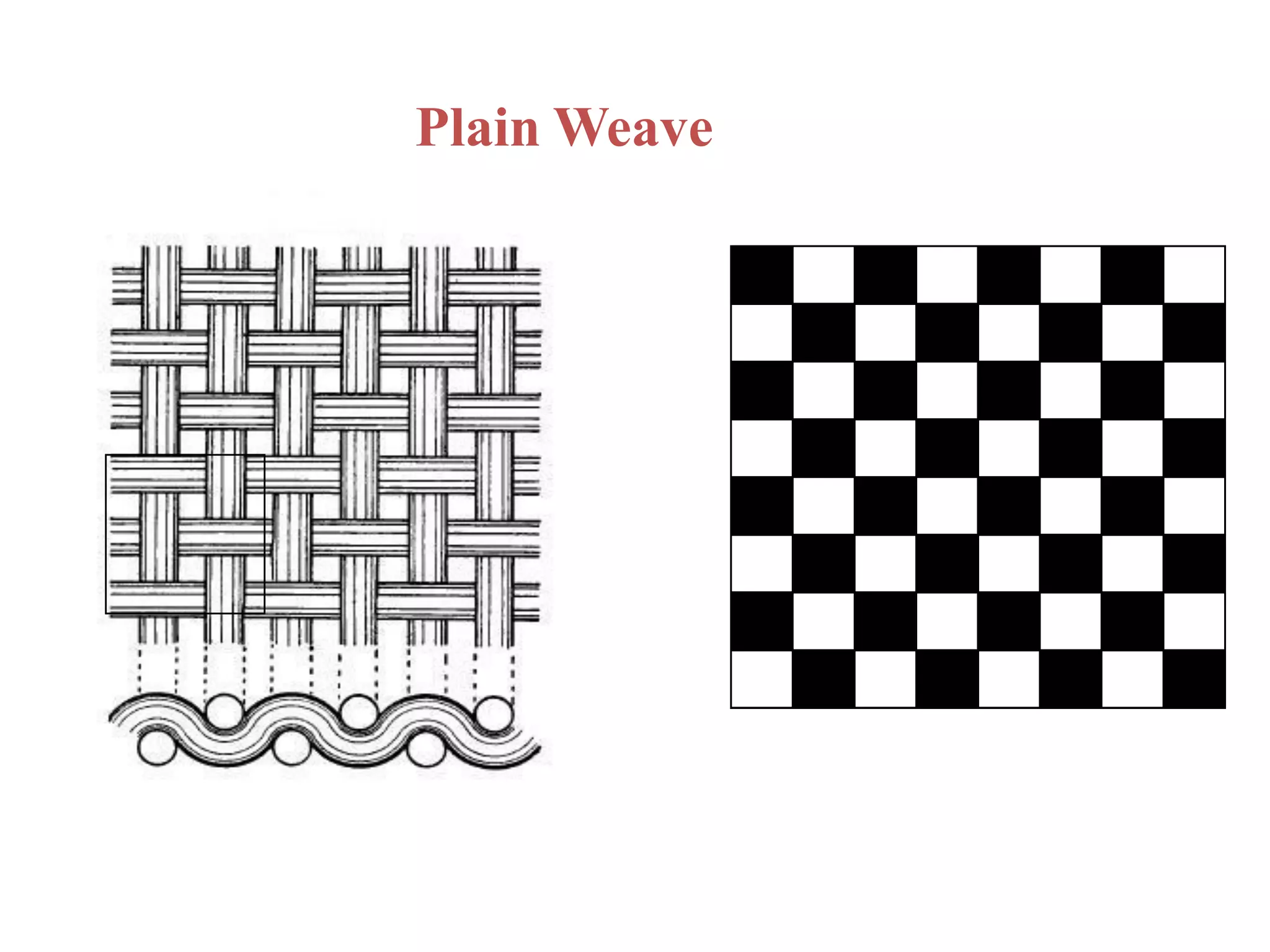

Plain WeaveDescription:
Plain Weave
Fabrics produced on plain weave base
Some examples of plain weave fabrics with different textures are
Chiffon
Taffeta
Organdy
Lawn
Voile
Muslin
Plain sheeting
Plaids
Seersuckers
fill-a fill
Cotton Checks

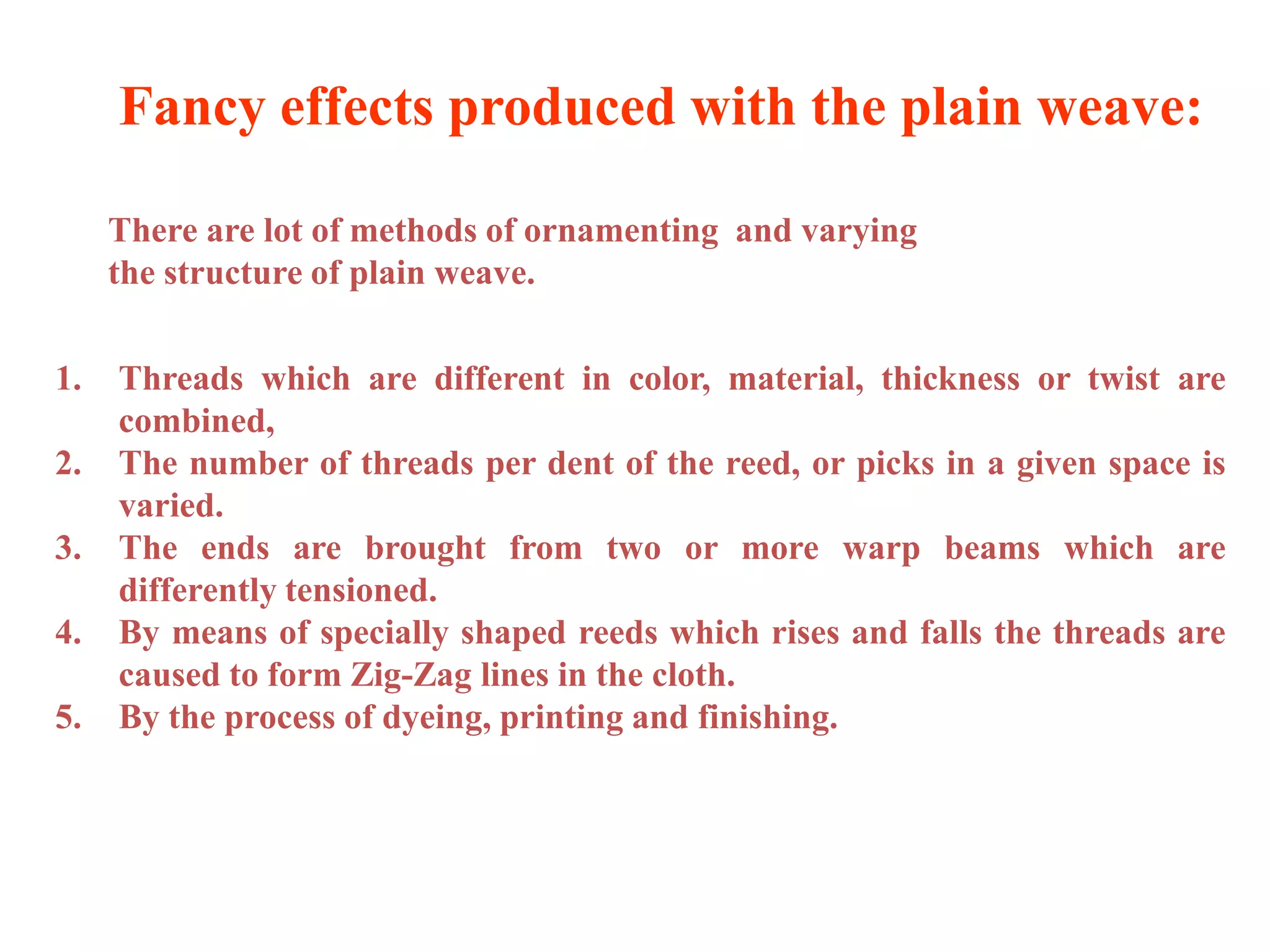

1. Threads which are different in color, material, thickness or twist are
combined,
2. The number of threads per dent of the reed, or picks in a given space is
varied.
3. The ends are brought from two or more warp beams which are
differently tensioned.
4. By means of specially shaped reeds which rises and falls the threads are
caused to form Zig-Zag lines in the cloth.
5. By the process of dyeing, printing and finishing.
Fancy effects produced with the plain weave:
There are lot of methods of ornamenting and varying
the structure of plain weave.
Plain Check & Stripes
Twill weave
Twill weave produce diagonal lines in
the cloth. In simple twills point of
intersection move one out ward and
one upward on succeeding picks.
Twill weave can be made on any
number of threads that exceeds two.
Twill lines are formed on both sides
of the cloth and direction of the lines
may be right or left.
Twill weaves enables greater weight,
closer setting, and better draping
quality than plain weave in the cloth.
2 by 1 twill
Popular Twill fabrics
Cashmere
Denim
Serge
blanket
Gabardine
Drill

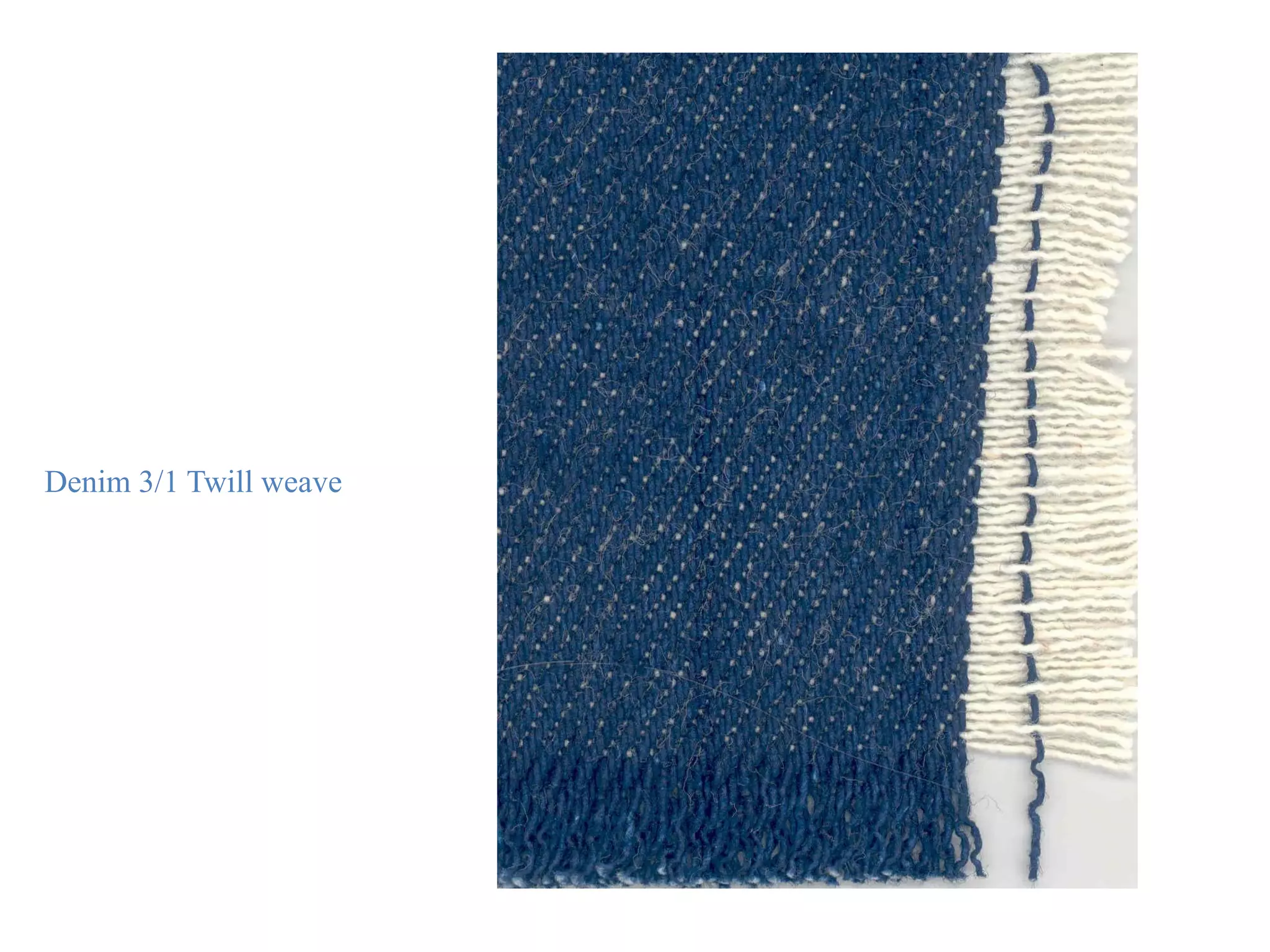

Denim 3/1 Twill weave

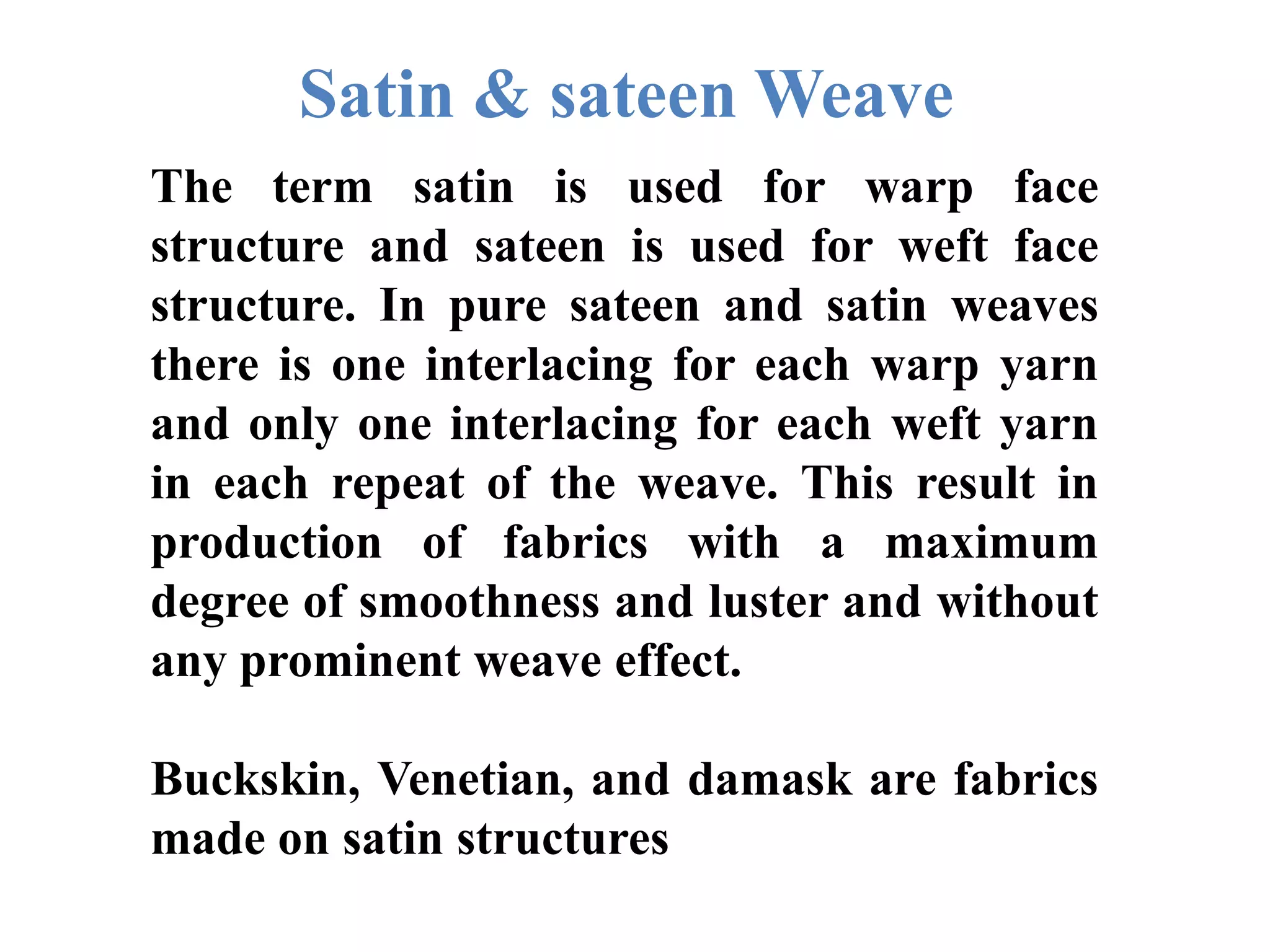

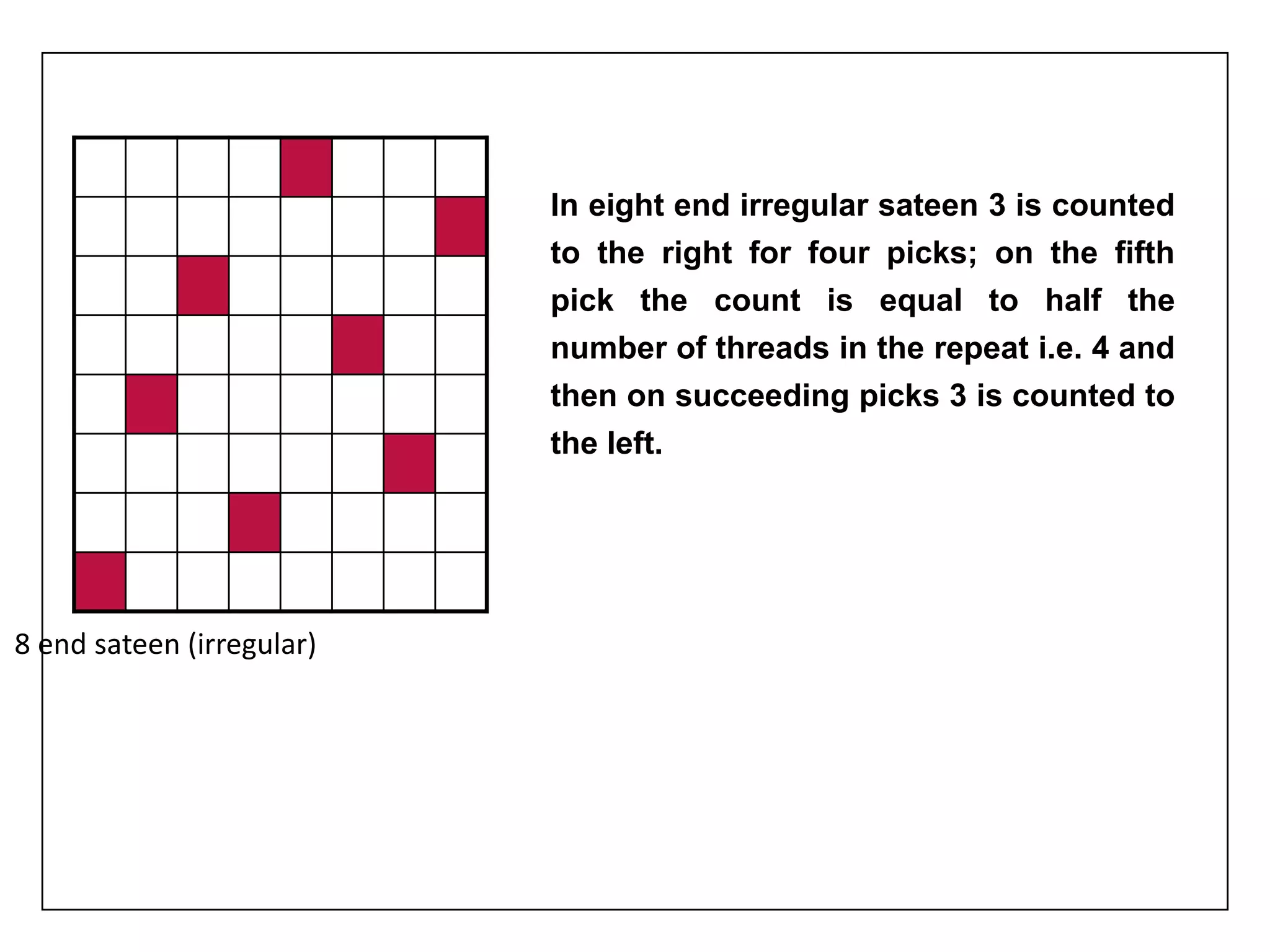

Satin & sateen Weave
The term satin is used for warp face
structure and sateen is used for weft face
structure. In pure sateen and satin weaves
there is one interlacing for each warp yarn
and only one interlacing for each weft yarn
in each repeat of the weave. This result in
production of fabrics with a maximum
degree of smoothness and luster and without
any prominent weave effect.
Buckskin, Venetian, and damask are fabrics
made on satin structures
satin thread interlacement 5 shaft Warp face
satin Weave
5 shaft Weft face
sateen Weave
sateen thread interlacement

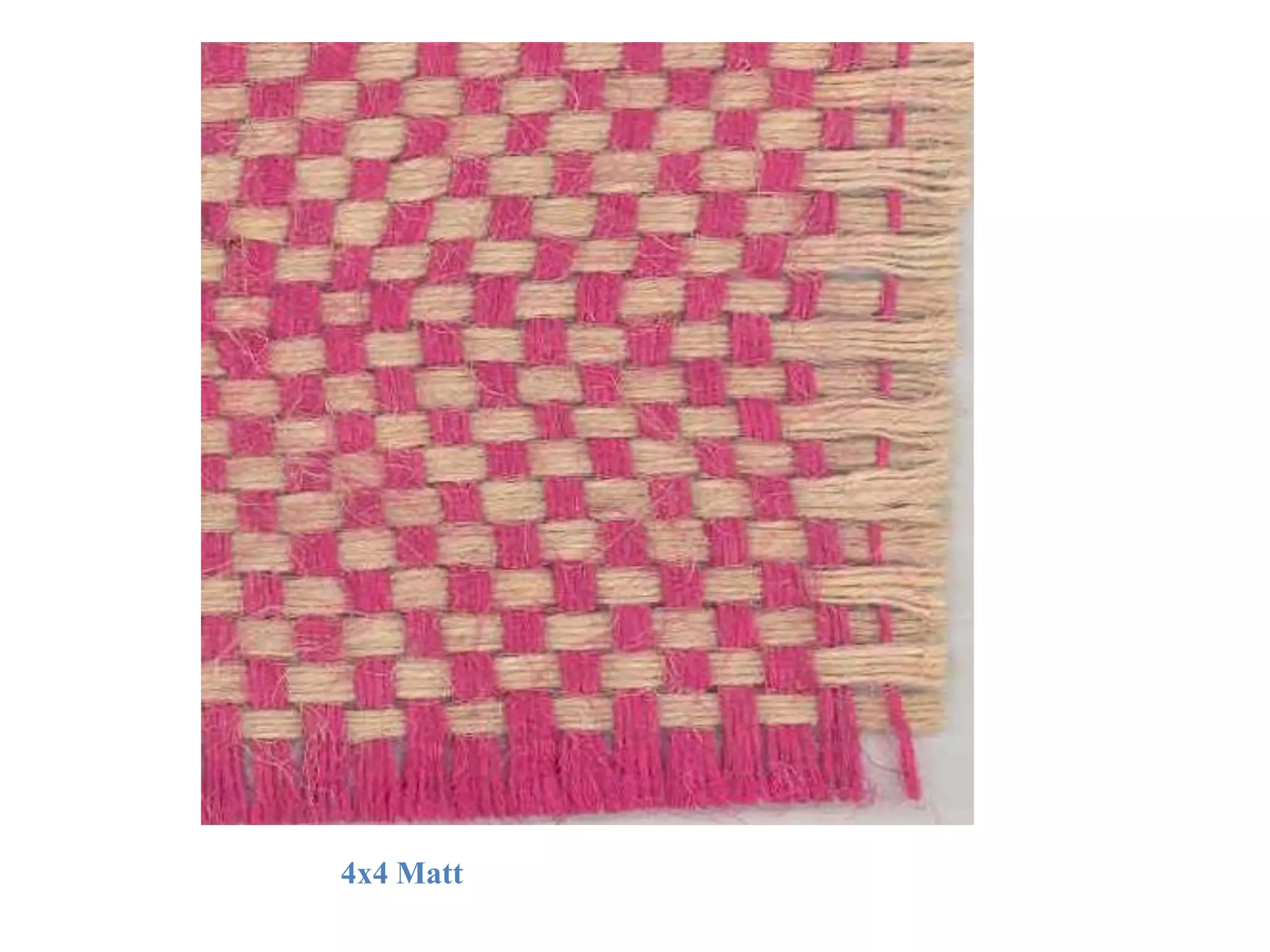

4x4 Matt
Plain weave derivative
Matt, basket or Hopsack weave:
Basket weave is made by extending the plain
weave both vertically and horizontally so that in
both directions there are two or more threads
working together in the same order. When the
groups of yarns are equal, the basket weave is
termed regular, otherwise it is termed irregular.
The two by two (2x2) basket weave is the most
common. In this weave as given below the warp
yarns in pairs interlace in plain weave order with
the weft yarns in pairs. The weave repeats on
four ends and four picks, and require only two
heald frames to make.

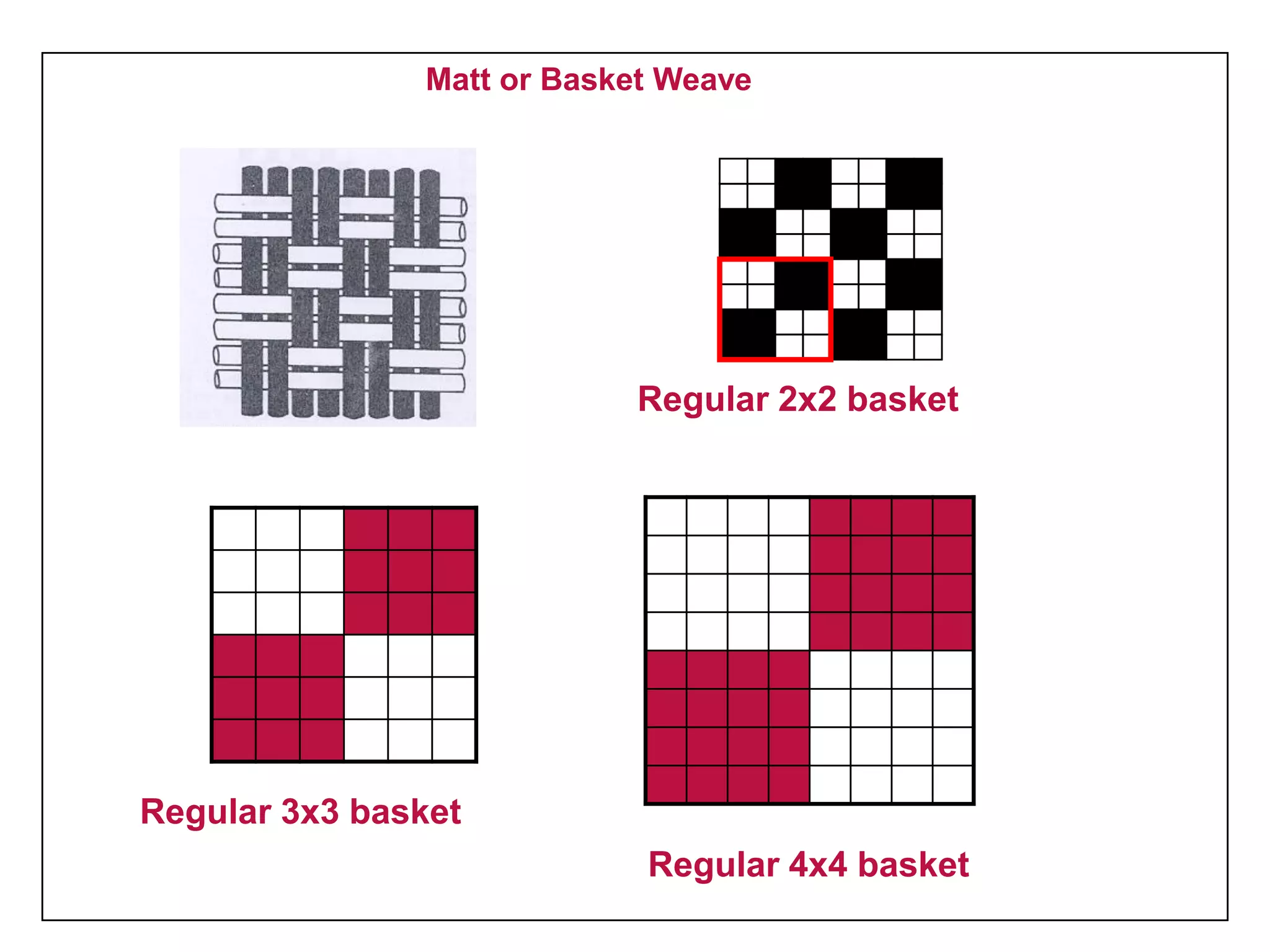

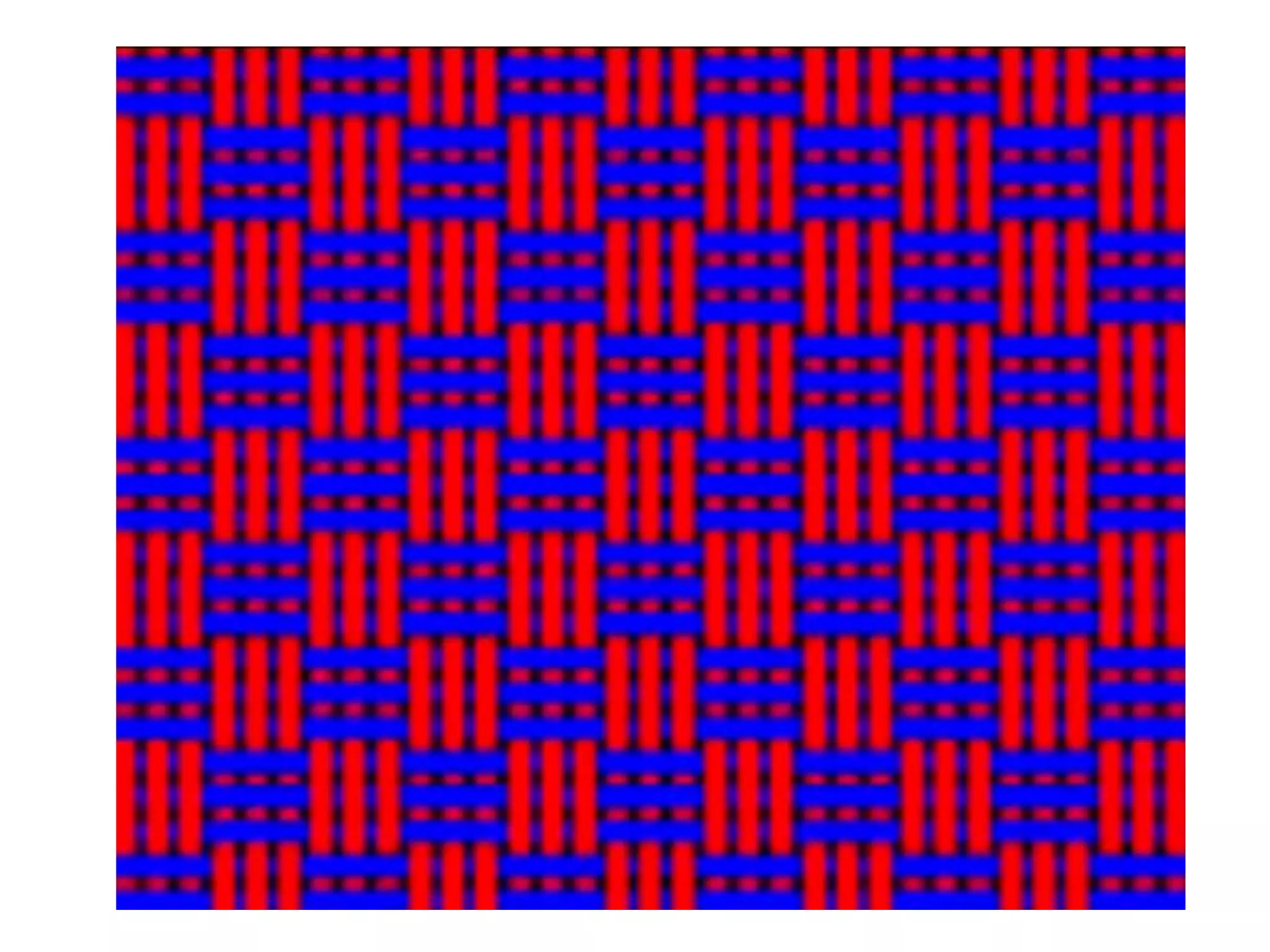

Matt or Basket Weave
Regular 2x2 basket
Regular 3x3 basket
Regular 4x4 basket

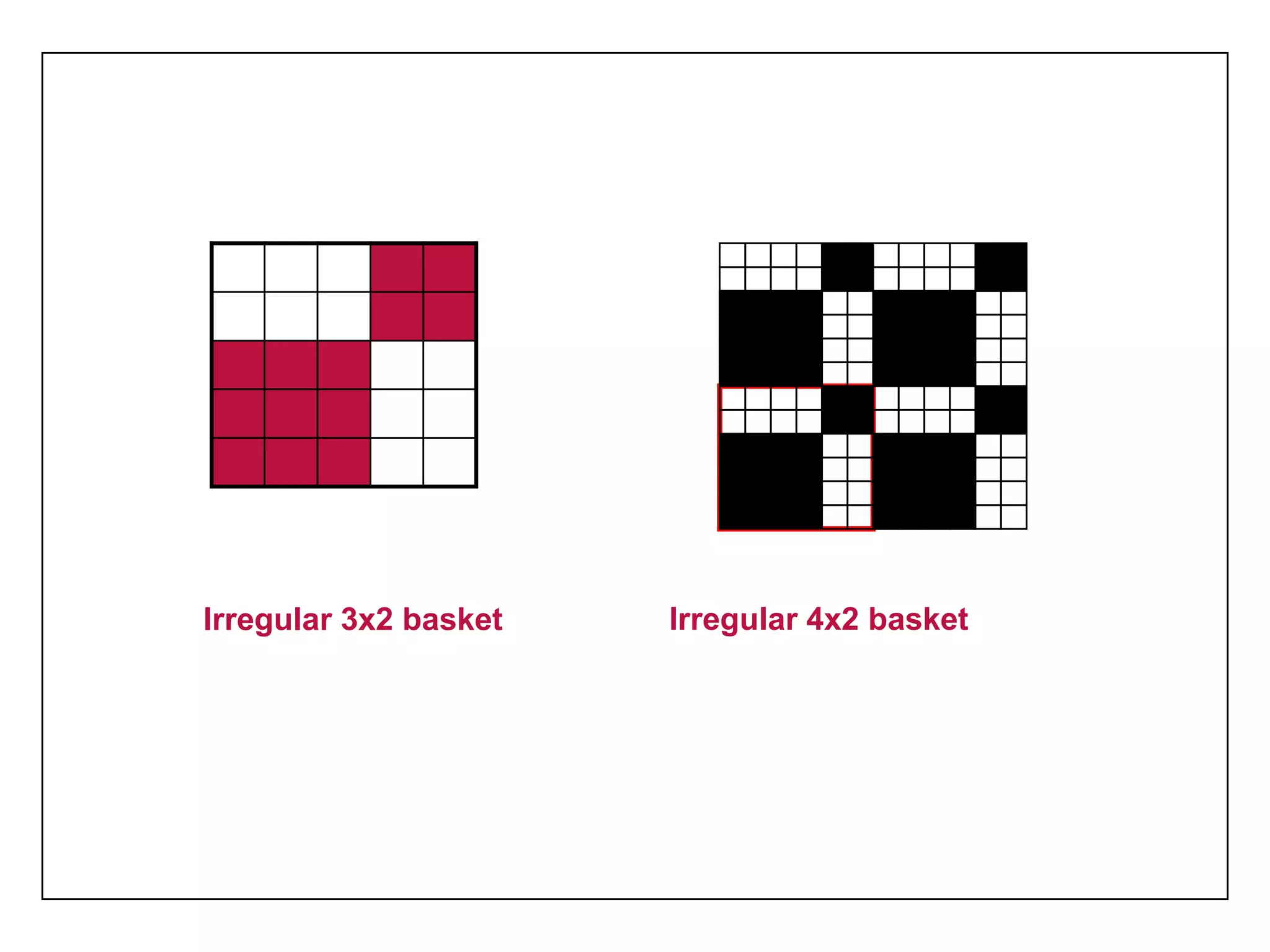

Irregular 4x2 basketIrregular 3x2 basket

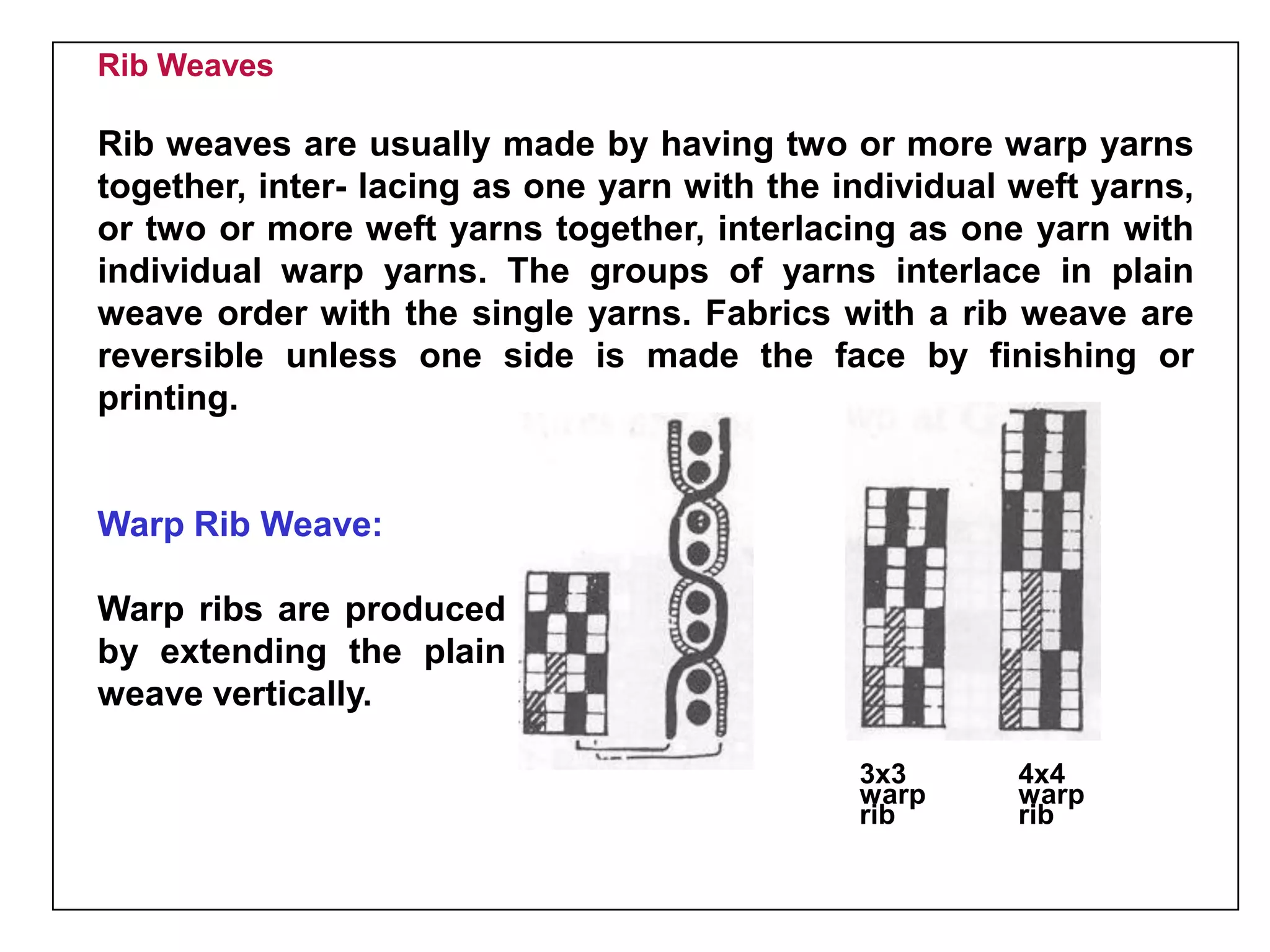

Rib Weaves
Rib weaves are usually made by having two or more warp yarns
together, inter- lacing as one yarn with the individual weft yarns,
or two or more weft yarns together, interlacing as one yarn with
individual warp yarns. The groups of yarns interlace in plain
weave order with the single yarns. Fabrics with a rib weave are
reversible unless one side is made the face by finishing or
printing.
Warp Rib Weave:
Warp ribs are produced
by extending the plain
weave vertically.
3x3
warp
rib
4x4
warp
rib

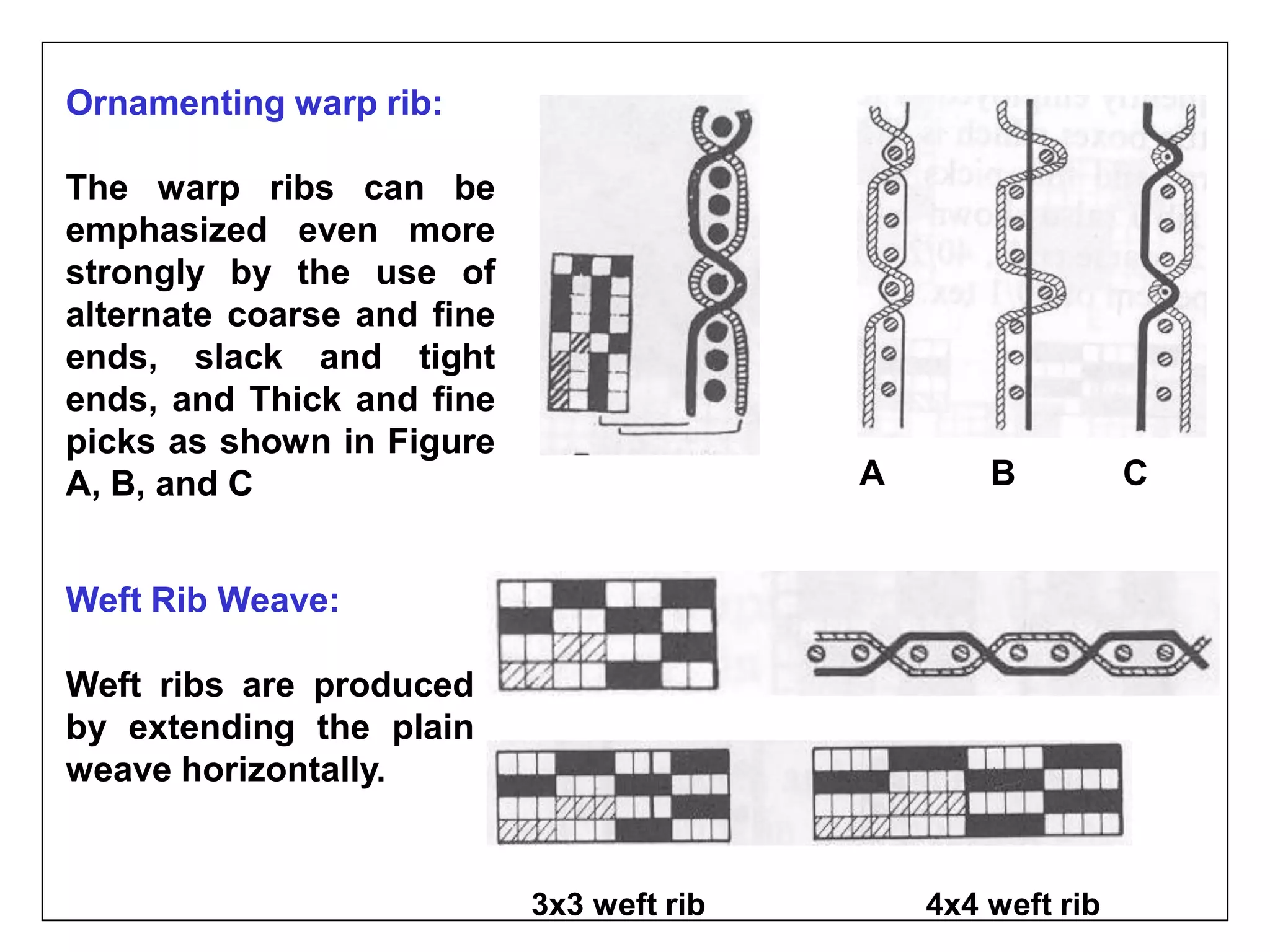

Ornamenting warp rib:
The warp ribs can be
emphasized even more
strongly by the use of
alternate coarse and fine
ends, slack and tight
ends, and Thick and fine
picks as shown in Figure
A, B, and C A B C
Weft Rib Weave:
Weft ribs are produced
by extending the plain
weave horizontally.
3x3 weft rib 4x4 weft rib

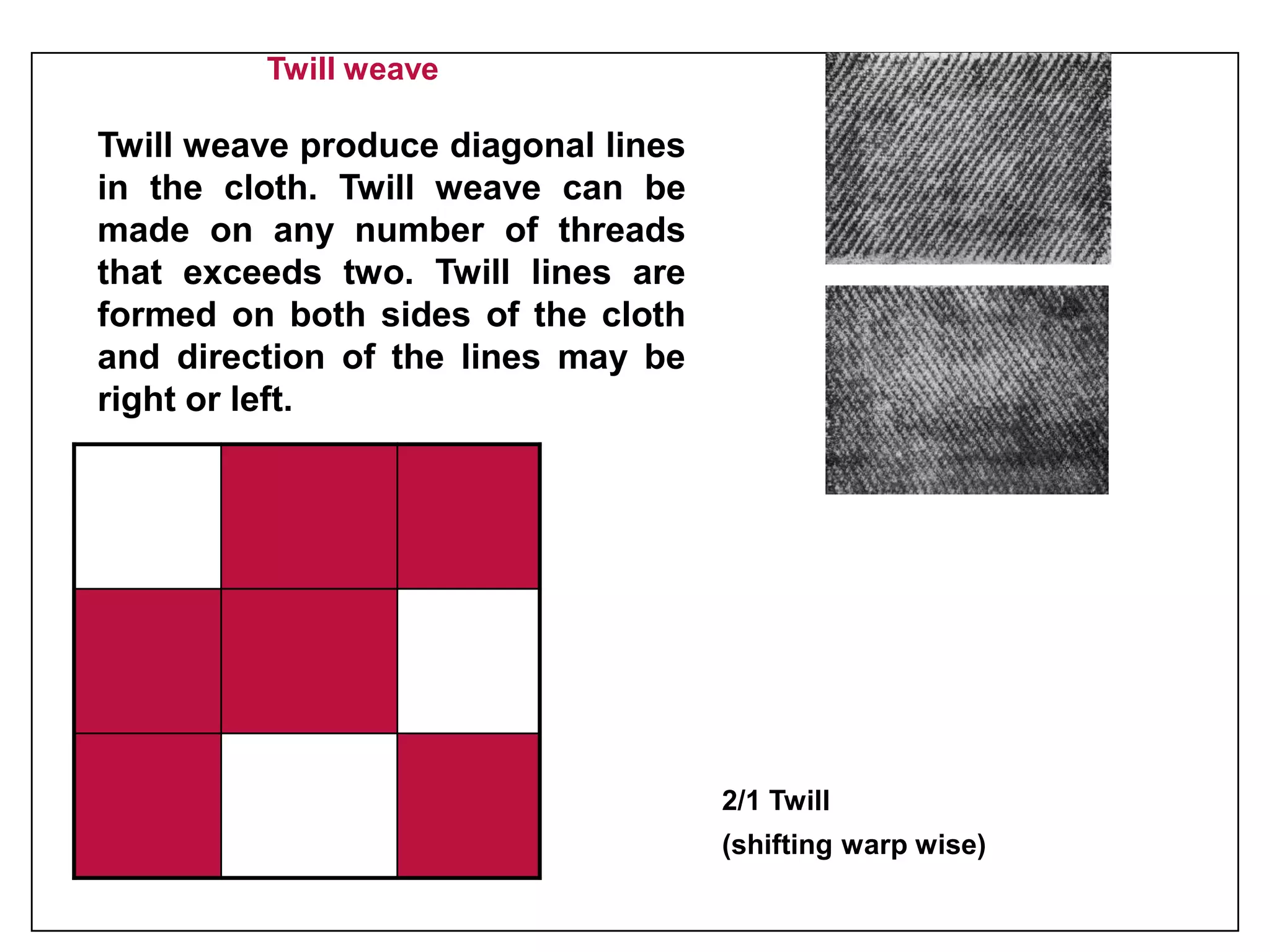

Twill weave
Twill weave produce diagonal lines
in the cloth. Twill weave can be
made on any number of threads
that exceeds two. Twill lines are
formed on both sides of the cloth
and direction of the lines may be
right or left.
2/1 Twill
(shifting warp wise)
Angle of inclination of twill weaves
Twill Angle:
Twill angle is the angle which is produced by twill
line with respect to the horizontal line.
This twill angle depends on following factors.
1. Ratio between EPI and PPI.
2. Difference between warp and weft count.
3. Rate of advancement it interlacement warp and
weft.
In simple twills point of intersection move one out ward and one
upward on succeeding picks. Twill weaves enables greater
weight, closer setting, and better draping quality than plain
weave in the cloth. Denim, blanket and Gabardine fabrics are
made of twill weave basis.
2/2 Twill
Shifting warp wise
4/4 Right hand Twill 4/4 Left hand Twill
4/1 warp face Twill 4/1 weft face Twill
Mixing of two Twill weaves
4/2 & 3/1 Twill
Mixing of three Twill weaves
4/4, 3/3, 2/2 Twill

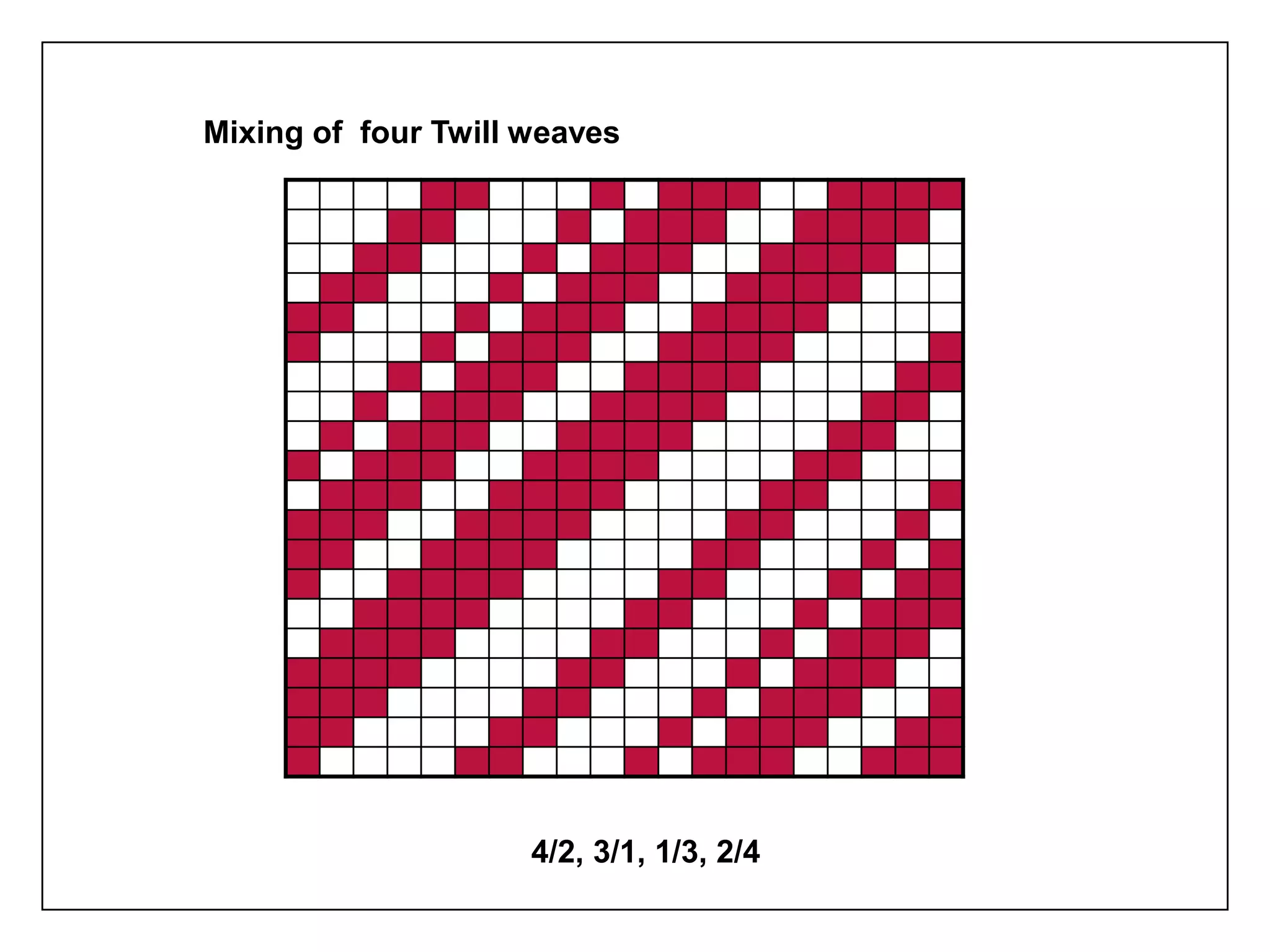

Mixing of four Twill weaves
4/2, 3/1, 1/3, 2/4

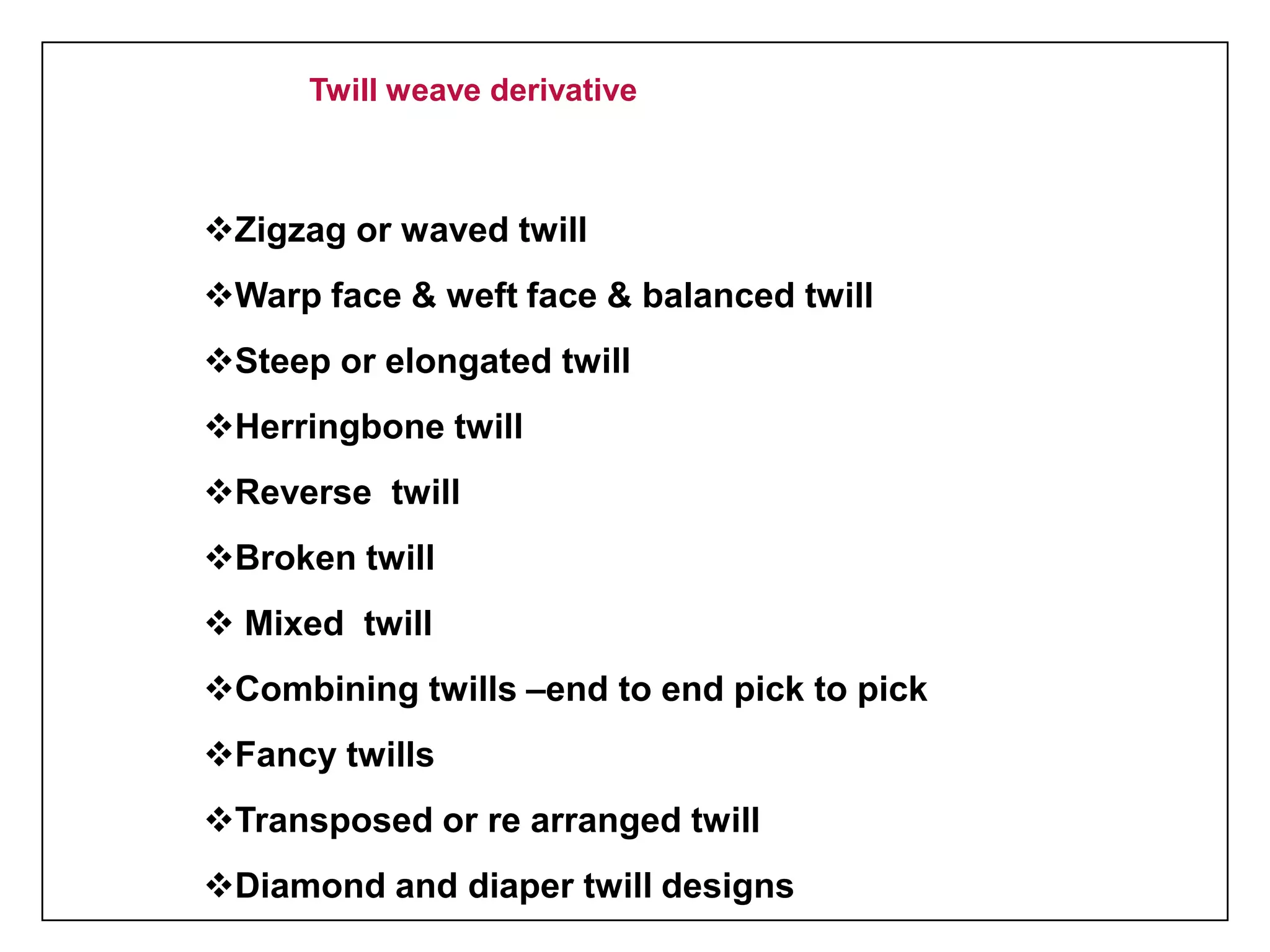

Twill weave derivative
Zigzag or waved twill
Warp face & weft face & balanced twill
Steep or elongated twill
Herringbone twill
Reverse twill
Broken twill
 Mixed twill
Combining twills –end to end pick to pick
Fancy twills

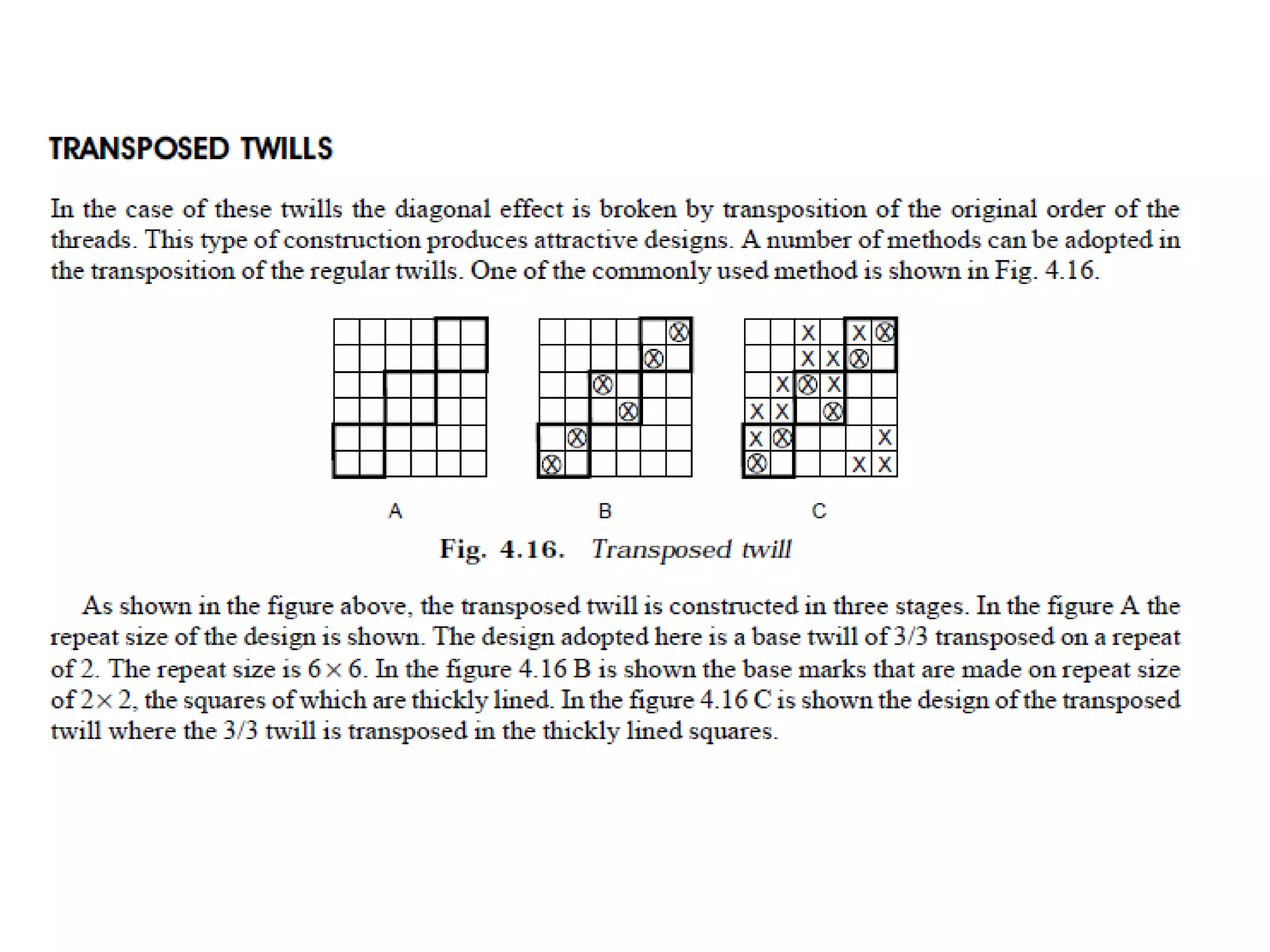

Transposed or re arranged twill
Diamond and diaper twill designs
Zigzag or waved twill –
The simplest forms of modified twill is the waved twill
achieved by reversing the direction of the twill at suitable intervals.
The reversal can occur either upon a warp direction in which case
horizontal wave is produced , or upon a weft pick which results in
a vertical weave or a zig-zag effect .
The horizontal wave effects are economically produced in
point drafts and good styles may be woven on few healds. The
vertical line effects, however mostly require dobby shedding motion,
because of comparatively large number of picks in the lifting plan.
Method-I Converting 3/3 Twill into zig-zag twill
1 2 3 4 5 6 5 4 3 2
In Horizontal direction In Vertical direction
2
3
4
5
6
5
4
3
2
1

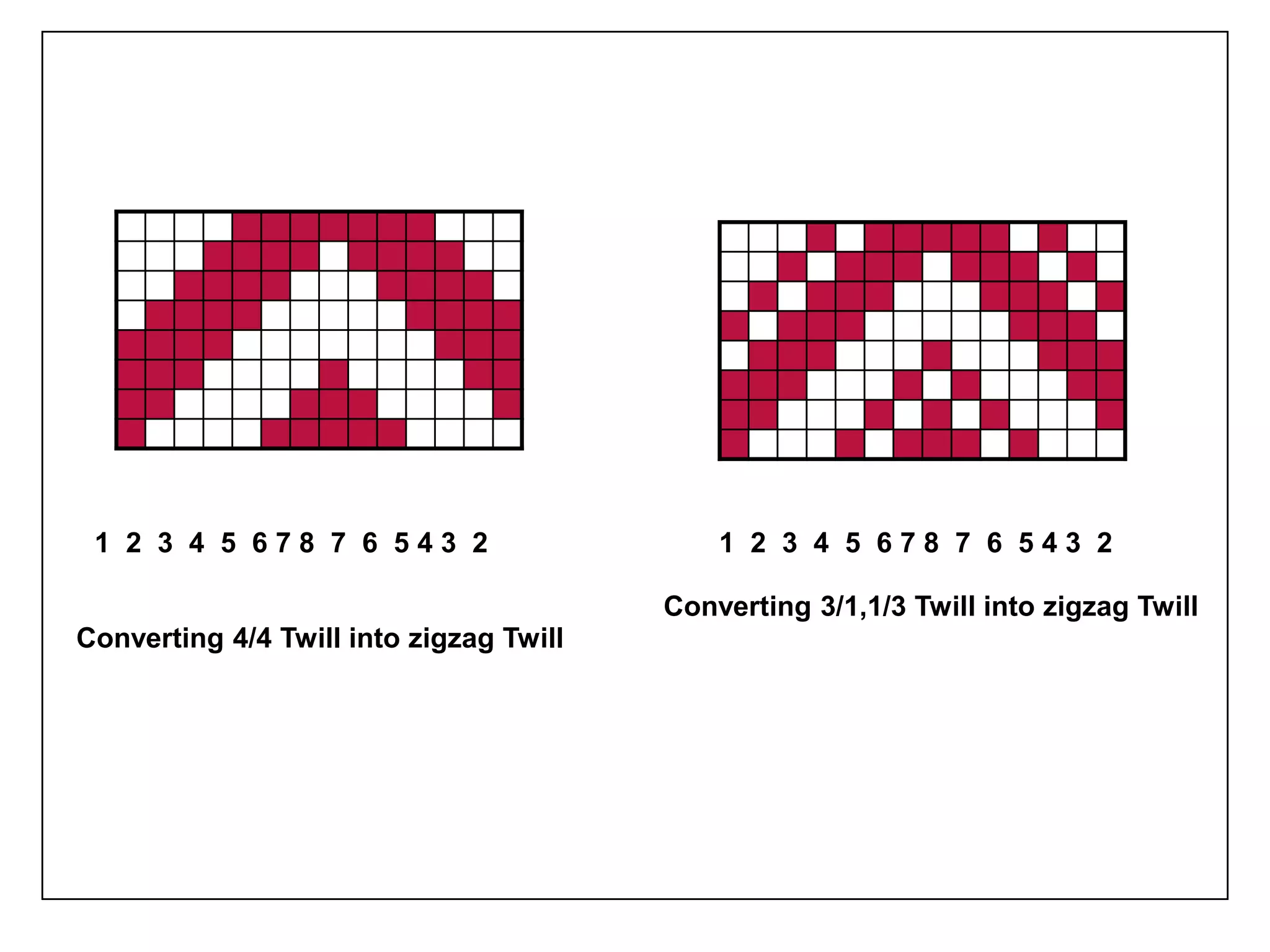

Converting 4/4 Twill into zigzag Twill
Converting 3/1,1/3 Twill into zigzag Twill
1 2 3 4 5 6 7 8 7 6 5 4 3 2 1 2 3 4 5 6 7 8 7 6 5 4 3 2
Small zigzag of 2/2 twill
(one repeat)
Medium zigzag of 2/2 Twill
1 2 3 4 3 2
1 2 3 4 5 6 7 8 7 6 5 4 3 2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15161514 13 12 11 10 9 8 7 6 5 4 3 2
Large zigzag of 2/2 Twill
Herringbone Twill -
These twills, also depend upon the reversal of the
direction to achieve the desired effect . The twill does not
come to a point where it changes the direction but instead
one twill line is said to cut into the other at the point of
reversal . The following design shows construction of 2 and 2
herringbone twill which runs from left to right for the desired
number of ends (8) where upon the reversal of direction takes
place by introducing on the 9th end, the mark which are exactly
opposite to those of the 8th end .
1 2 3 4 5 6 7 8 910111213141516
Herringbone twill of 2/2 Twill Herringbone twill of 3/3 Twill
(16x4) (12x6)
1 2 3 4 5 6 7 8 9 10 11 12

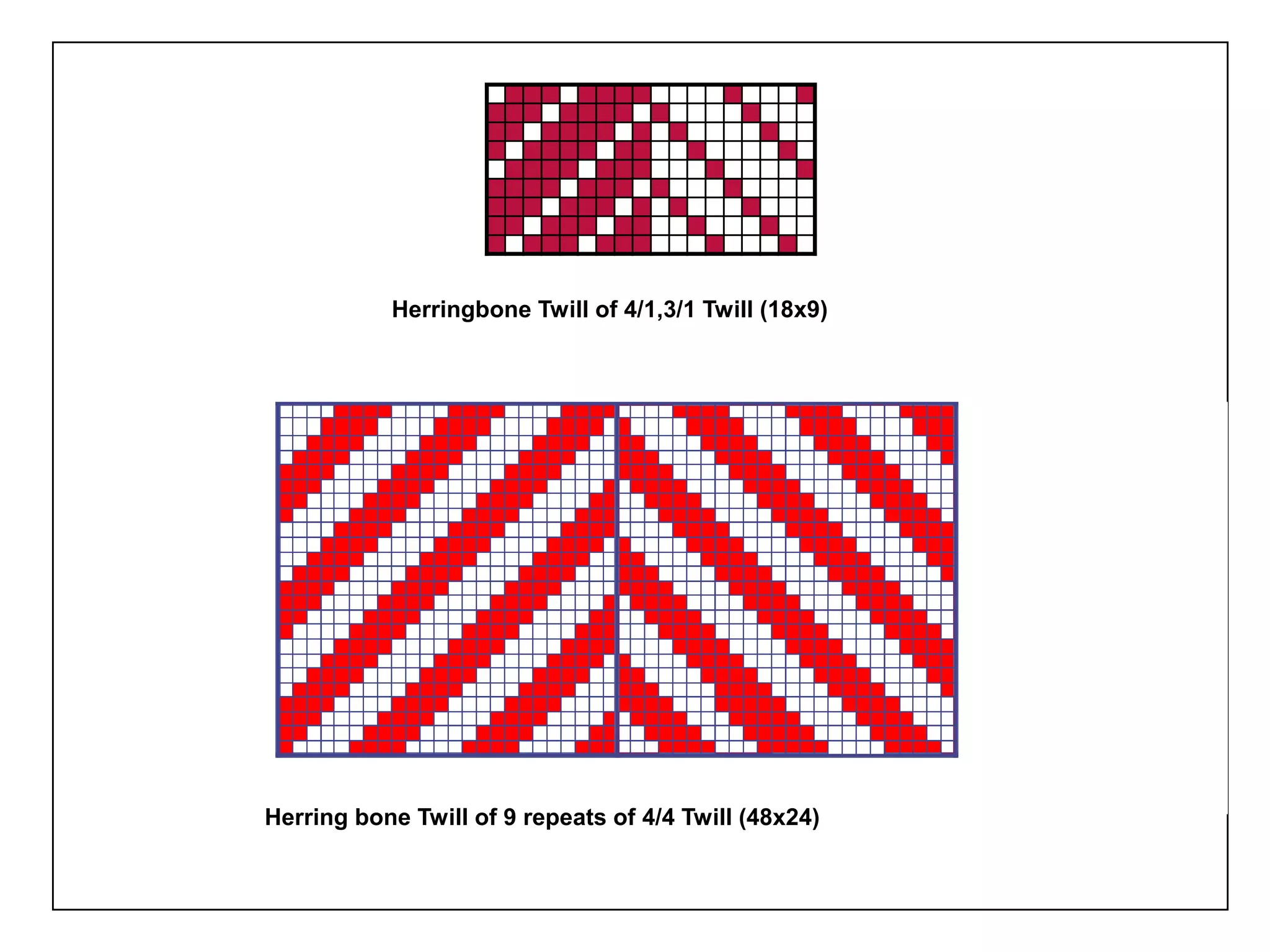

Herring bone Twill of 9 repeats of 4/4 Twill (48x24)
Herringbone Twill of 4/1,3/1 Twill (18x9)
Herring bone Zig-Zag
(b) Reverse Twill –
In this weave the number of threads in warp & weft of one
repeat remains same in the design . In the following design
one repeat of design has 8 threads in warp & weft. Reverse
twill design should have same number of threads in face &
back i.e. 2/2 ,3/3 , 4/4 etc.
2/2Reverse Twill 3/3 Reverse Twill 4/4 Reverse twill
(4x4)
(6x6)
(8x8)
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 10 9 8 7 6
5x5 Regular Twill 5/5 Reverse Twill
(10x10) (10x10)

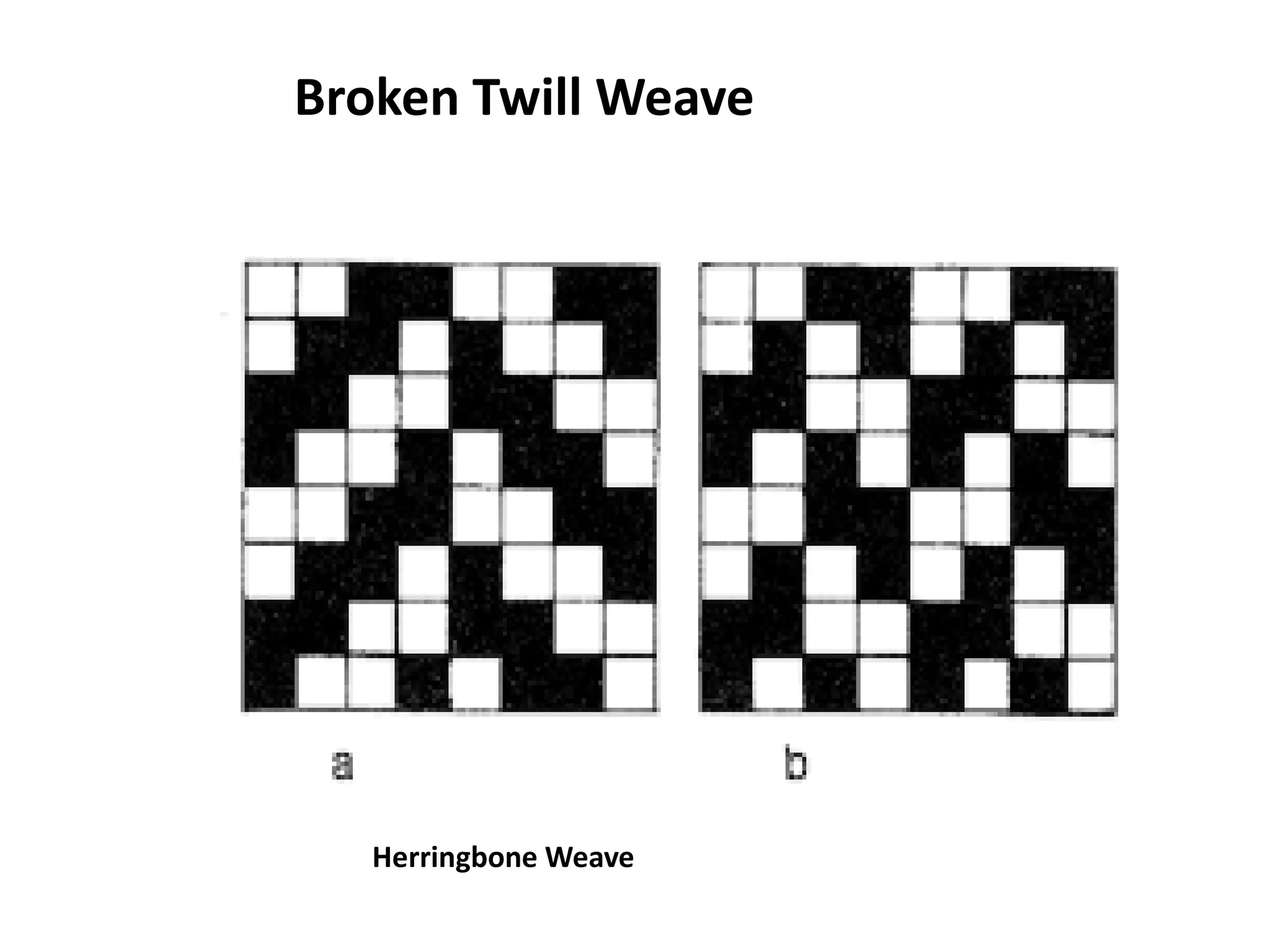

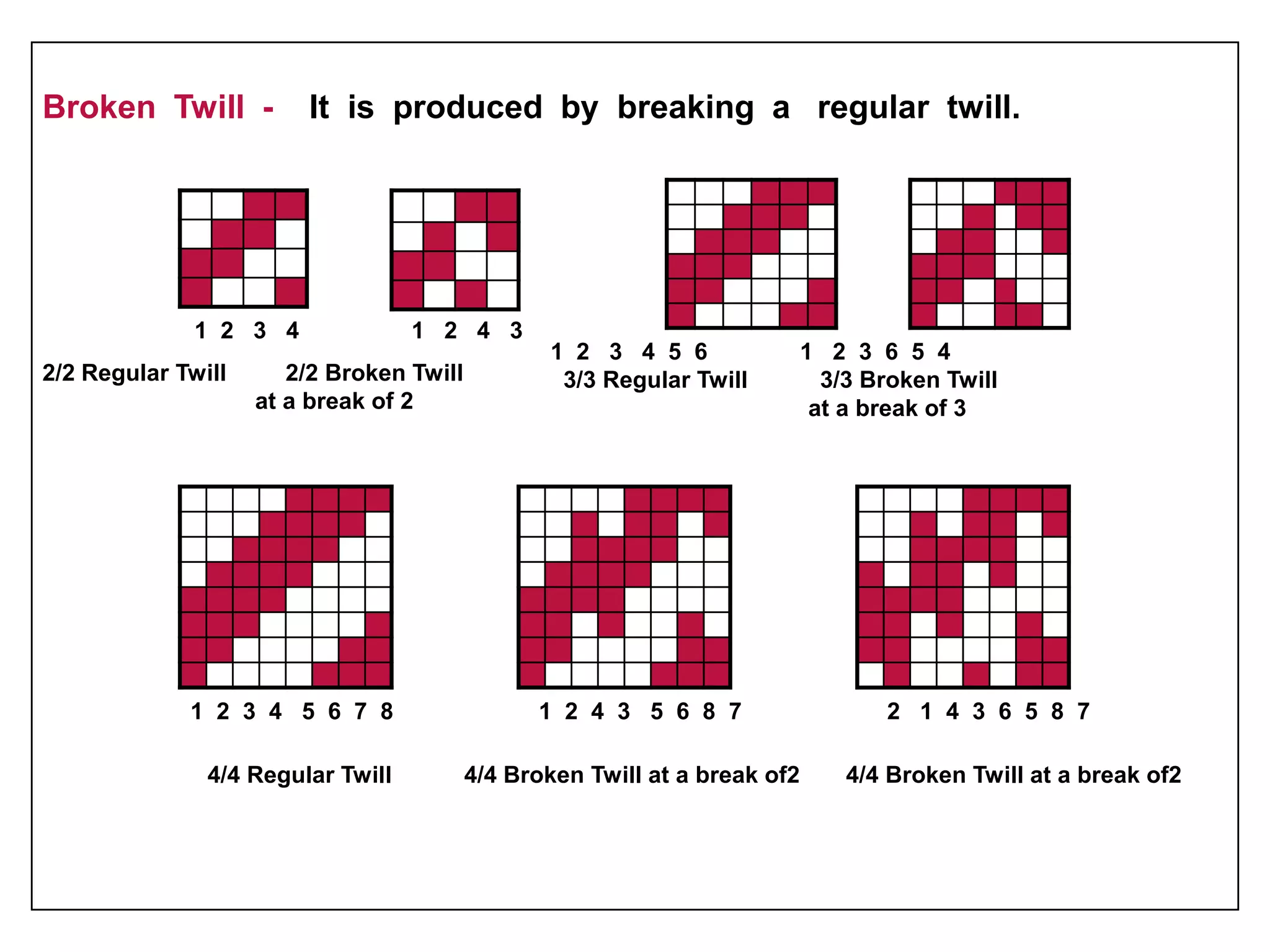

Broken Twill - It is produced by breaking a regular twill.
1 2 3 4 1 2 4 3
2/2 Regular Twill 2/2 Broken Twill
at a break of 2
1 2 3 4 5 6 1 2 3 6 5 4
3/3 Regular Twill 3/3 Broken Twill
at a break of 3
1 2 3 4 5 6 7 8 1 2 4 3 5 6 8 7 2 1 4 3 6 5 8 7
4/4 Regular Twill 4/4 Broken Twill at a break of2 4/4 Broken Twill at a break of2
1 2 3 6 5 4 7 8 1 4 3 2 5 6 7 2 1 8 3 4 5 8 7 6
4/4 Broken Twill at a Break of 3 (24x8)
1 2 3 4 5 2 1 8 7 6 3 4 5 6 7 4 3 2 1 8 5 6 7 8 1 6 5 4 3 2 7 8 1 2 3 8 7 6 5 4
4/4 Broken Twill at a Break of 5 (40x8)
Mixed Twill –
This has been developed by combining the two regular twill designs.
This can be of two types. The first is warp mixed twill weave and
second is weft mixed twill weave. One twill say ‘A’ is first indicated
on the odd vertical spaces and to complete the design, twill ‘B’ is
indicated on the even vertical spaces . Each twill must be carried
out on 6 ends and picks and hence the design ‘C’ consist of 6
threads of ‘A’ and 6 threads of ‘B’ and thus repeats on 12 ends and
6 picks .
A B
C

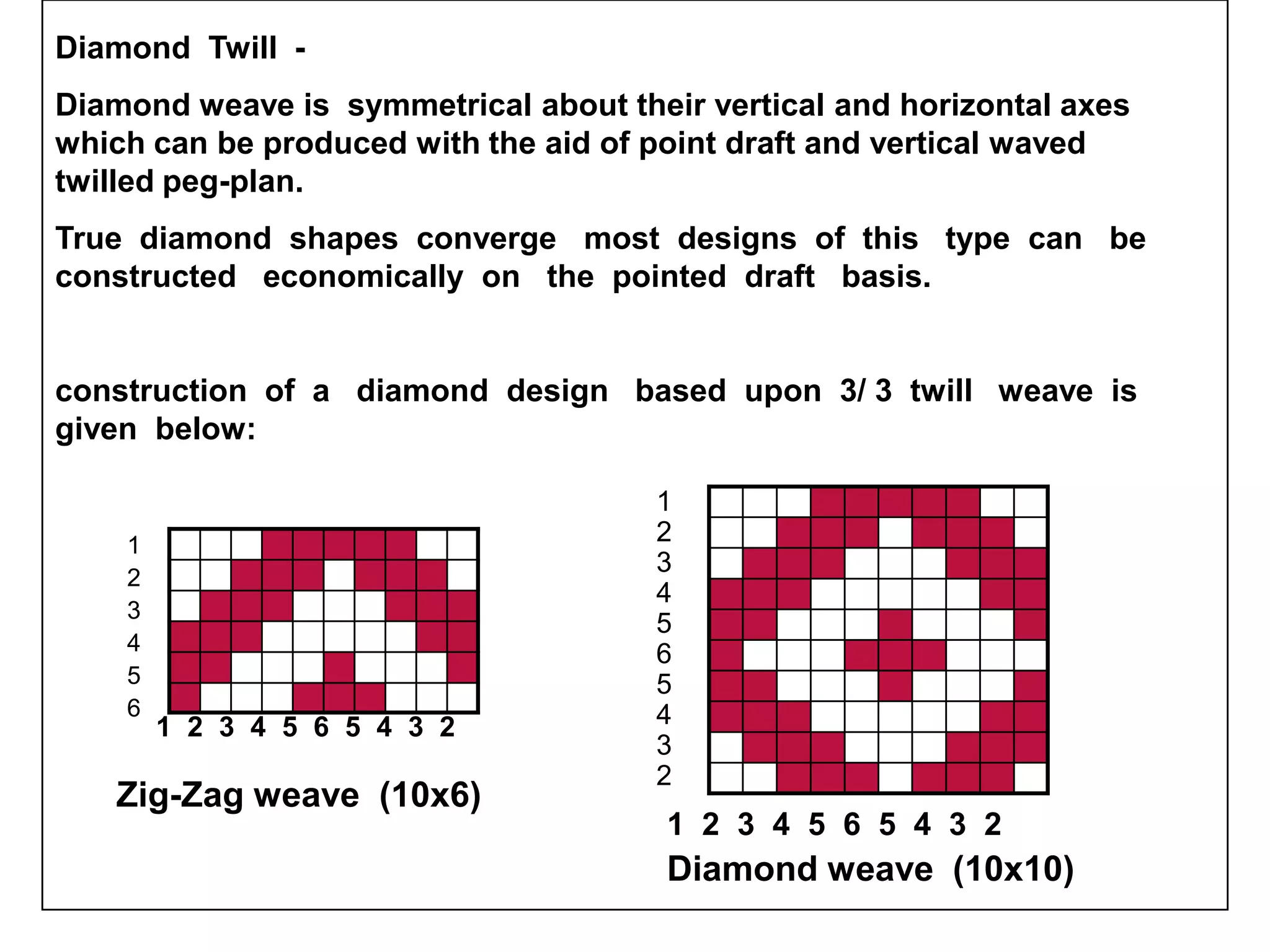

Diamond Twill -
Diamond weave is symmetrical about their vertical and horizontal axes
which can be produced with the aid of point draft and vertical waved
twilled peg-plan.
True diamond shapes converge most designs of this type can be
constructed economically on the pointed draft basis.
construction of a diamond design based upon 3/ 3 twill weave is
given below:
1 2 3 4 5 6 5 4 3 2
1 2 3 4 5 6 5 4 3 2
1
2
3
4
5
6
5
4
3
2
Diamond weave (10x10)
1
2
3
4
5
6
Zig-Zag weave (10x6)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1
2
3
4
5
6
7
8
9
10
11
12
11
10
9
8
7
6
5
4
3
2

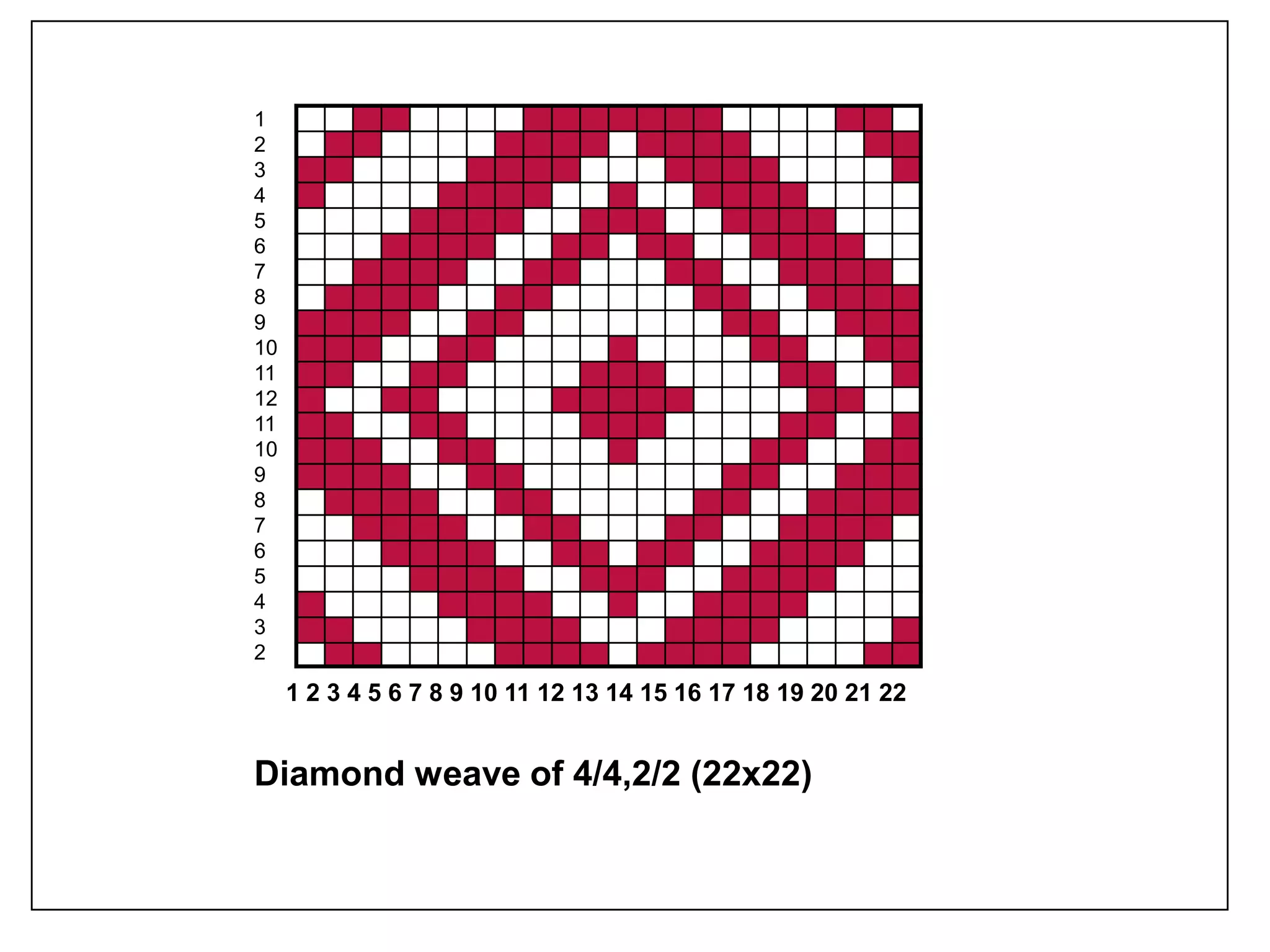

Diamond weave of 4/4,2/2 (22x22)

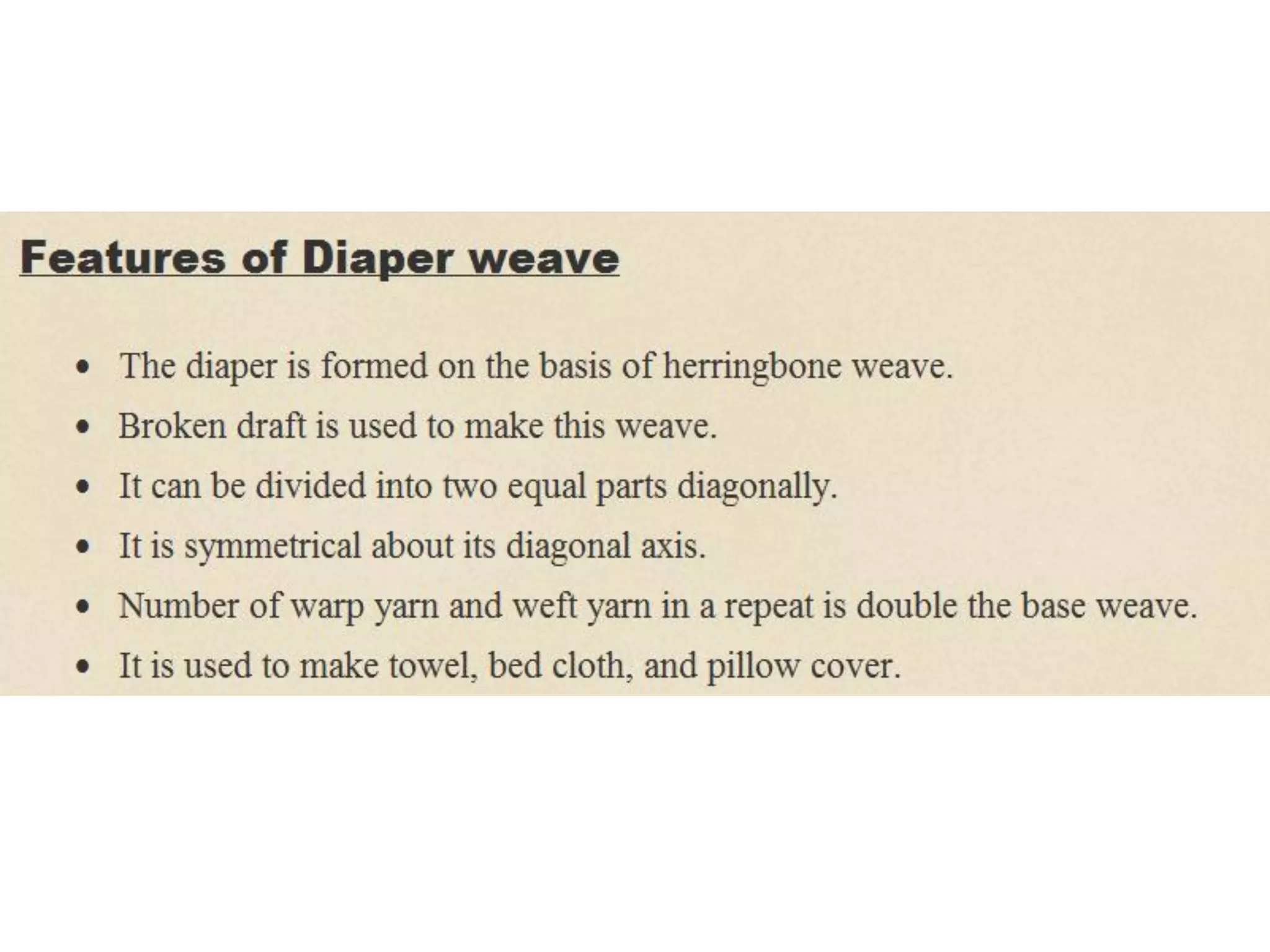

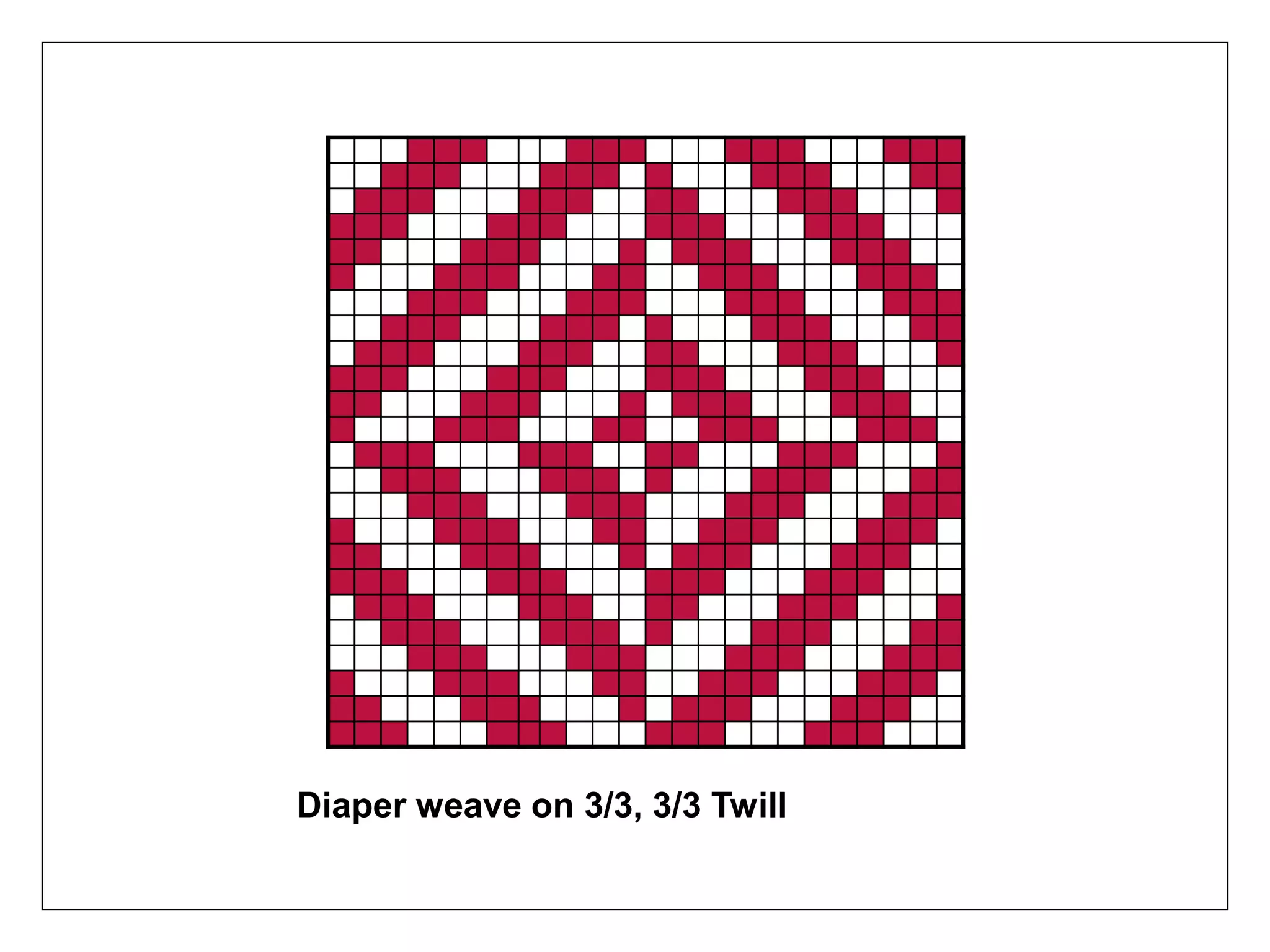

Diaper Weave
Diaper weaves are symmetrical about their diagonal axes, these are based
on herringbone draft and vertical waved twilled peg-plan.
Diaper weave based on 2/2 Twill weave
Diaper weave on 3/3, 3/3 Twill
Uses of Twill Weave:
Twill weave are extensively used in manufacturing cloth for
garments household cloth and industrial cloth.
•Generally dimond,diaper and zigzag twill are used for making
pillow,cover,screen,unpholstery,bed sheet,towel etc.
•Continious twill are used for making fabric for shirting,suiting and
pantin(denim,gaverdine).
•For making various type of ornamental cloth,other derivatives of
twill weave are used.
•Herring bone twill are used in the cloth of suiting and overcoats.
Satin & sateen Weave
The term satin is used
for warp face structure
and sateen is used for
weft face structure. In
pure sateen and satin
weaves there is one
interlacing for each
warp yarn and only
one interlacing for
each weft yarn in each
repeat of the weave.
This will result in
production of fabrics
with a maximum
degree of smoothness
and luster and without
any prominent weave
effect.

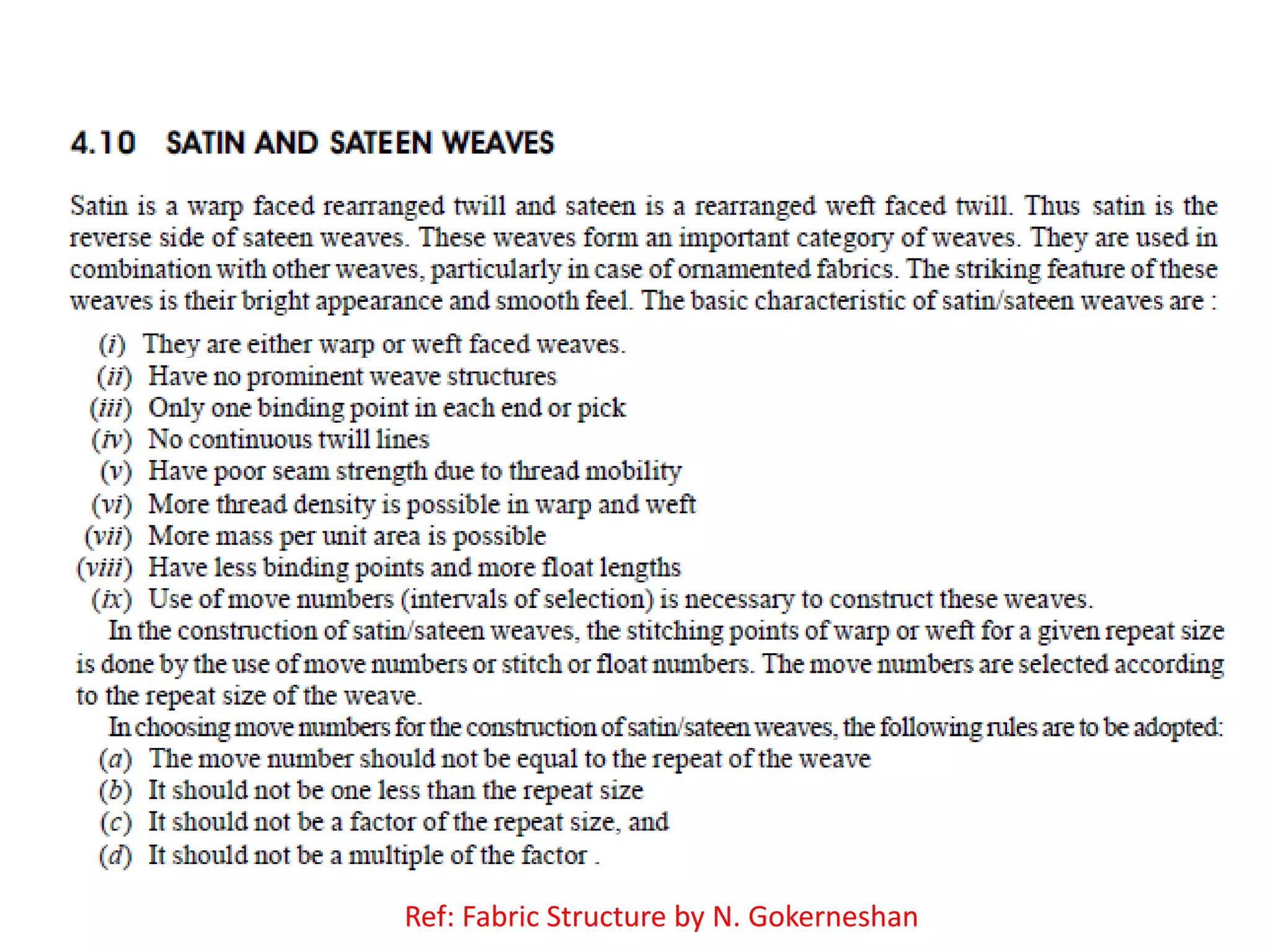

Ref: Fabric Structure by N. Gokerneshan

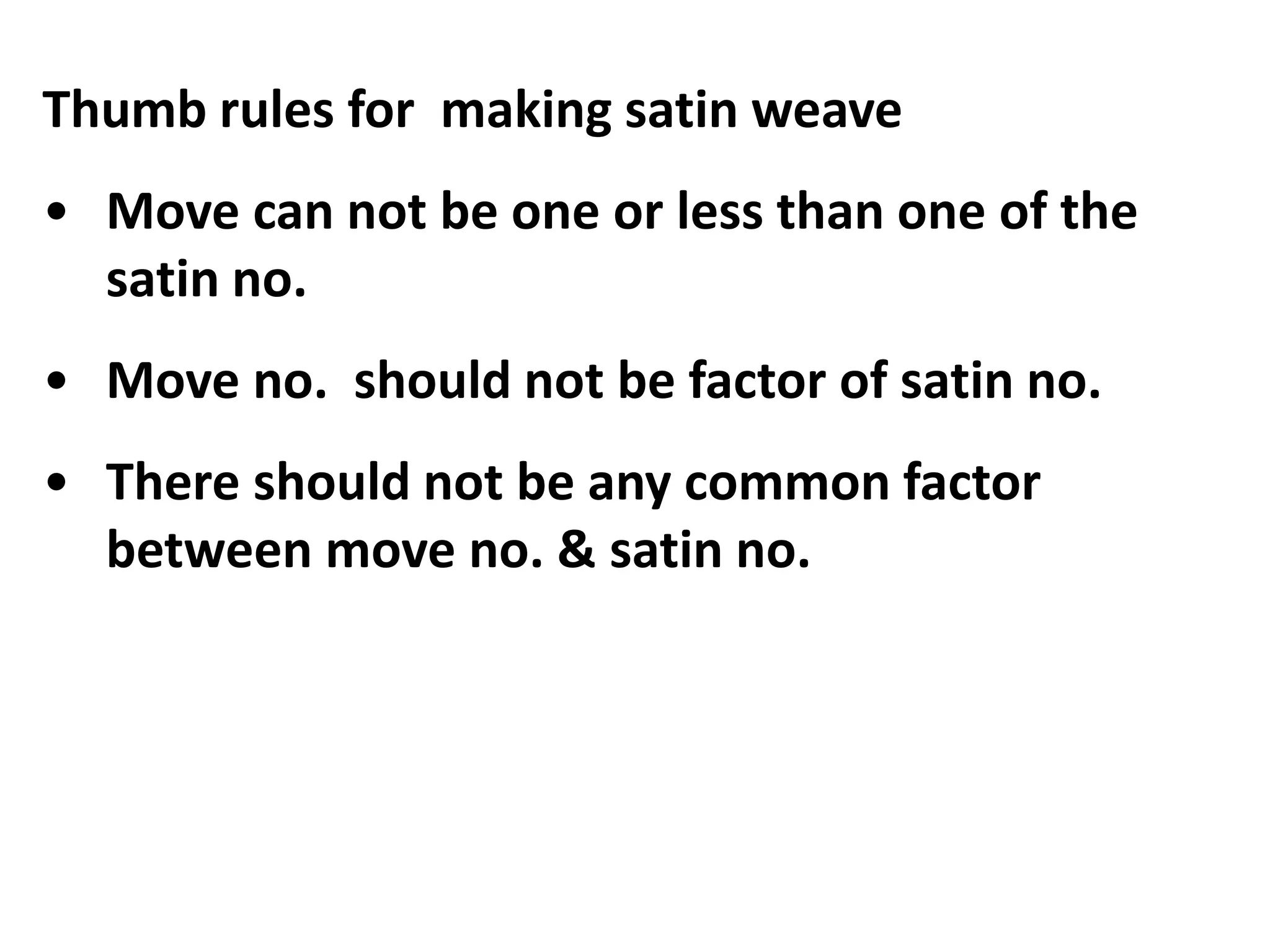

Thumb rules for making satin weave
• Move can not be one or less than one of the
satin no.
• Move no. should not be factor of satin no.
• There should not be any common factor
between move no. & satin no.
Regular Satin and Sateen weave Possible moves
5 end satin/sateen 2,3
7 end satin/sateen 2,3,4,5
8 end satin/sateen 3,5
9 end satin/sateen 2,4,5,7
10 end satin/sateen 3,7
11 end satin/sateen 2,3,4,5,6,7,8,9
12 end satin/sateen 5,7

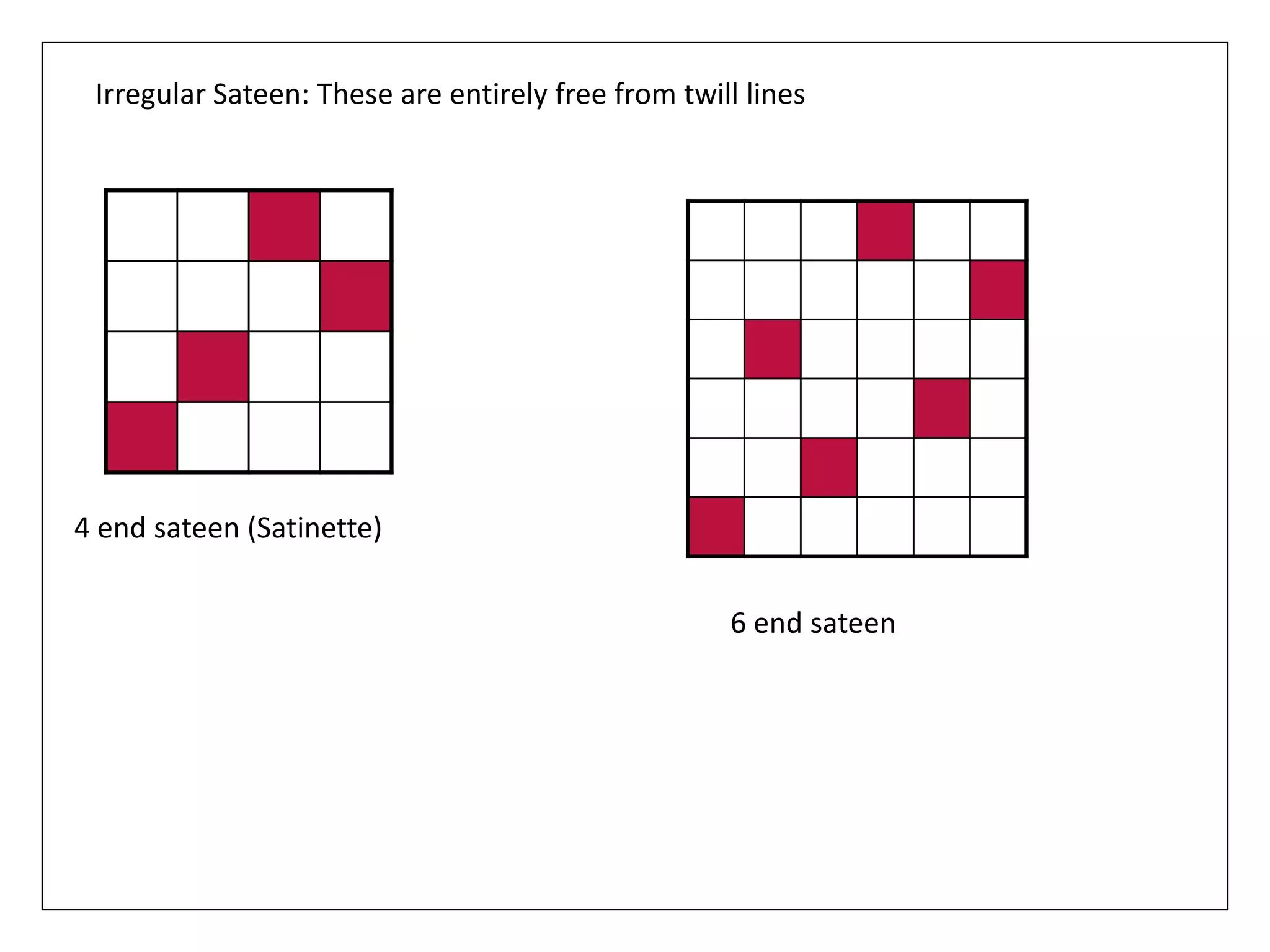

4 end sateen (Satinette)
6 end sateen

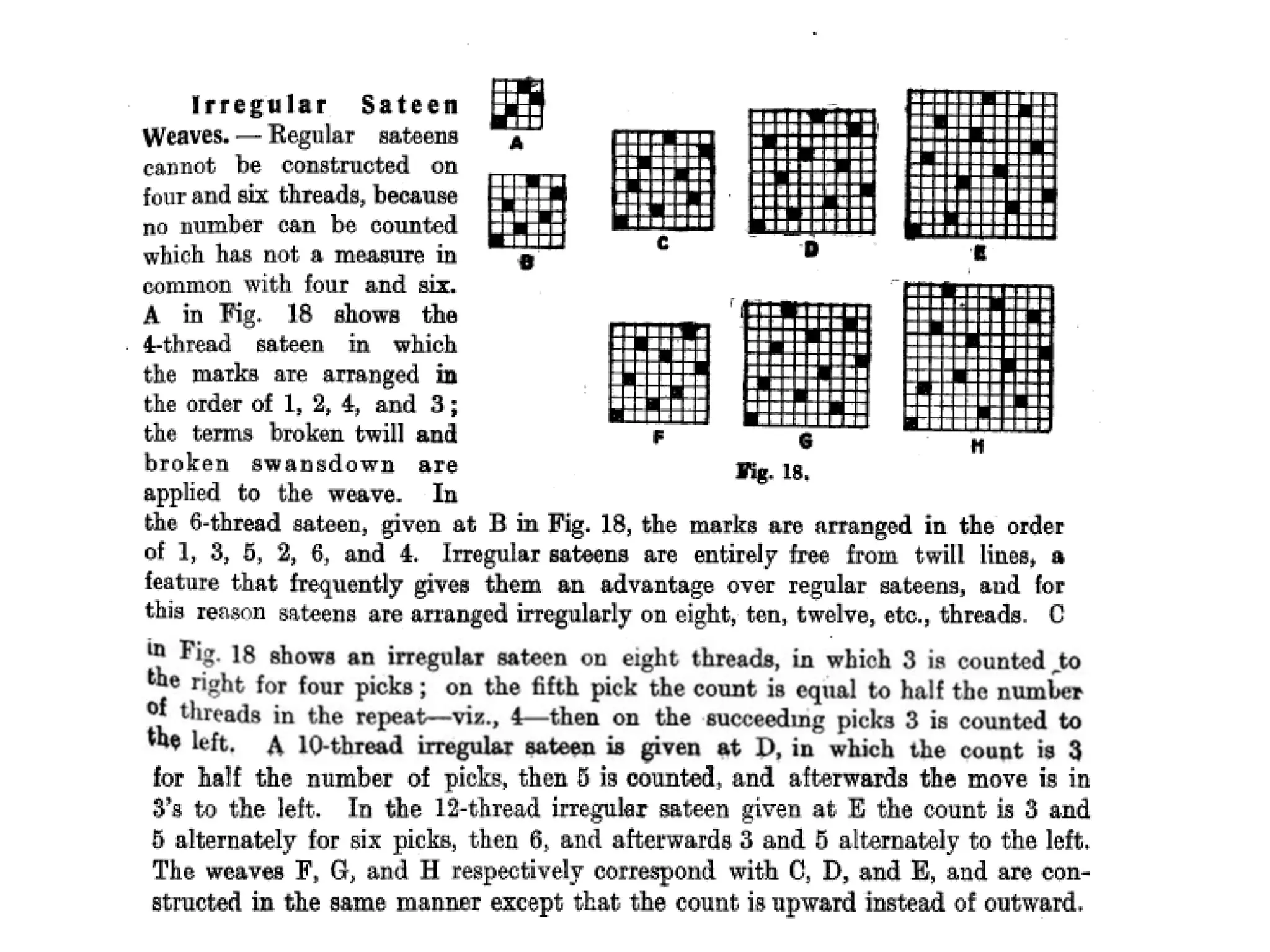

Irregular Sateen: These are entirely free from twill lines
8 end sateen (irregular)
In eight end irregular sateen 3 is counted
to the right for four picks; on the fifth
pick the count is equal to half the
number of threads in the repeat i.e. 4 and
then on succeeding picks 3 is counted to
the left.
10 end irregular sateen
In ten end irregular sateen 3 is
counted to the right for half the
number of picks; then 5 is counted
and afterwards on succeeding picks
3 is counted to the left.

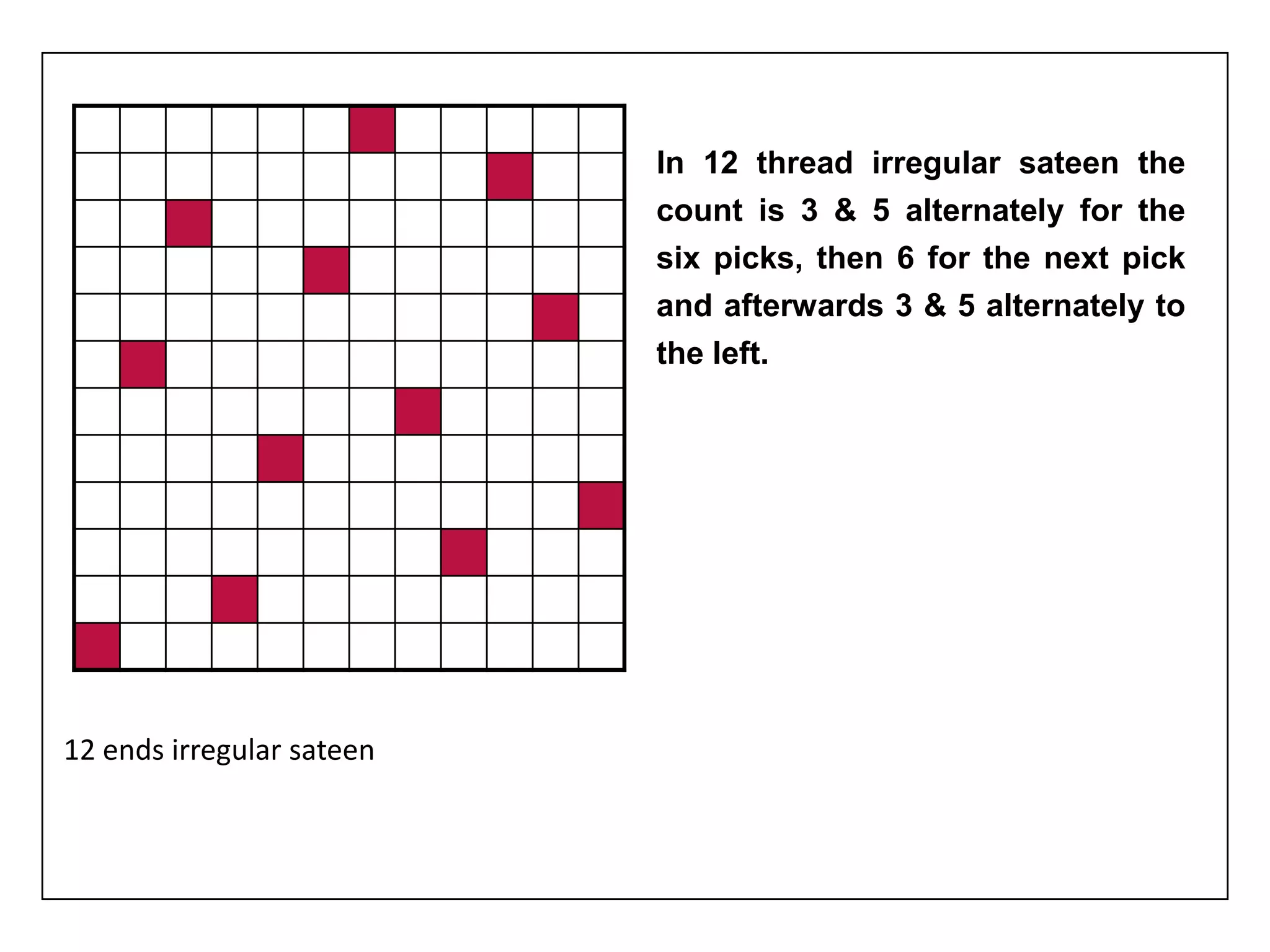

12 ends irregular sateen
In 12 thread irregular sateen the
count is 3 & 5 alternately for the
six picks, then 6 for the next pick
and afterwards 3 & 5 alternately to
the left.
Satin weave derivative
In simple derivatives the new
design is built up by using the
original satin or sateen as base,
and subtracting or adding marks
as required in the same relative
position to each base marks.
5 end sateen Derivative
5 end satin Venetian weave
8 end satin Buckskin weave
8 end satin
derivative
Crepe or oatmeal weave
The term crepe is applied to weaves, which
gives the appearance of being covered by
minute spots or seeds. Crepe weave is different
from crepe cloth in which broken surface effect
is due to entirely to the use of high twist yarns
which, upon controlled shrinkage in the
finishing, produce a highly irregular texture
although woven in the plain weave.
Construction of crepe weave on satin basis
The crepe weaves can be constructed by adding
marks in certain order to some of the sateen base.
Thumb rule to make crepe weave on this principle is
that warp floats & weft float should not be more than
three in both side. In the example given at right
marks are added in Two up one down, One up one
down, one up one down order
Crepe weave on 8 end
satin base (move 3)
[2/1,1/1,1/1]

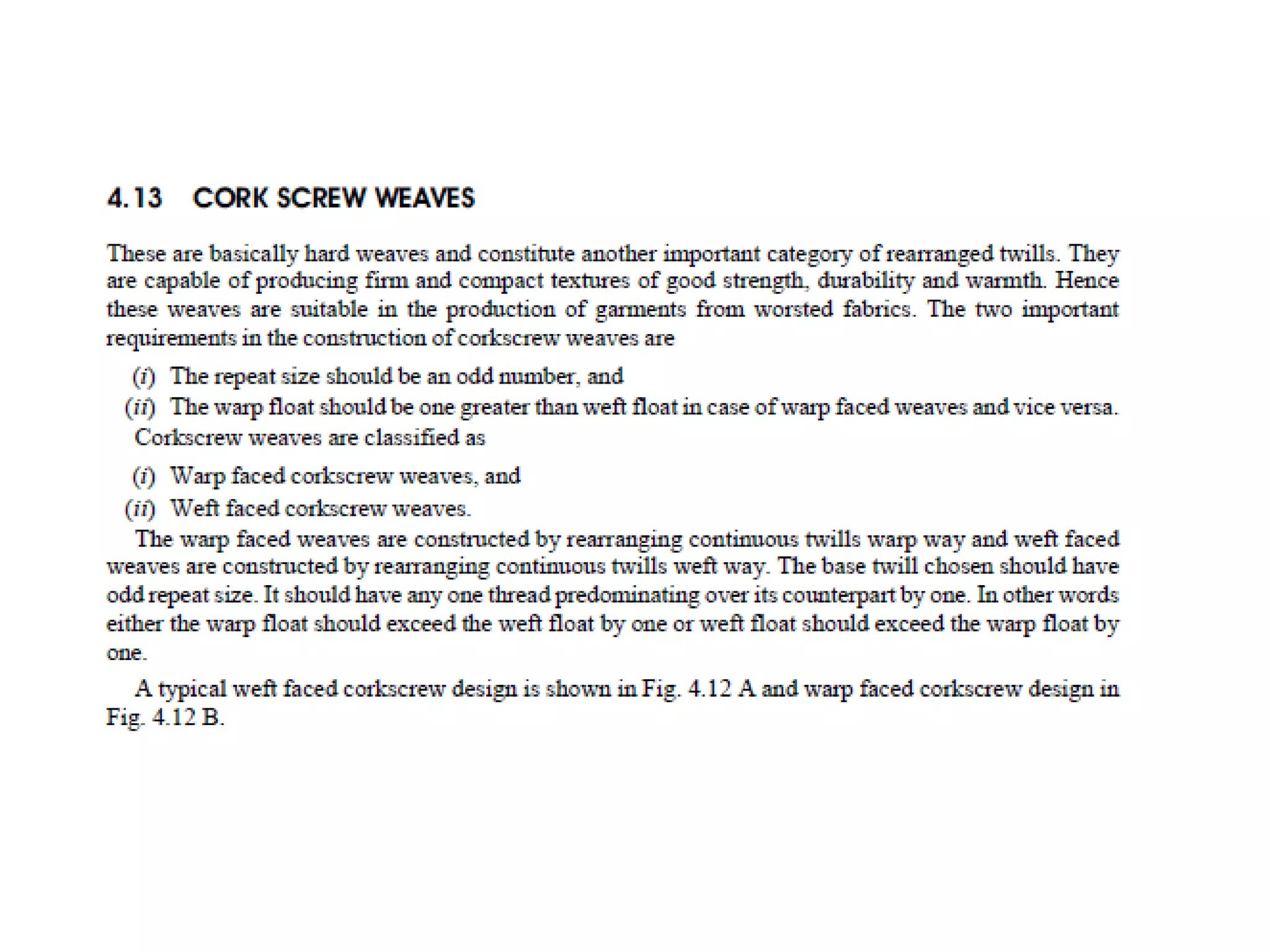

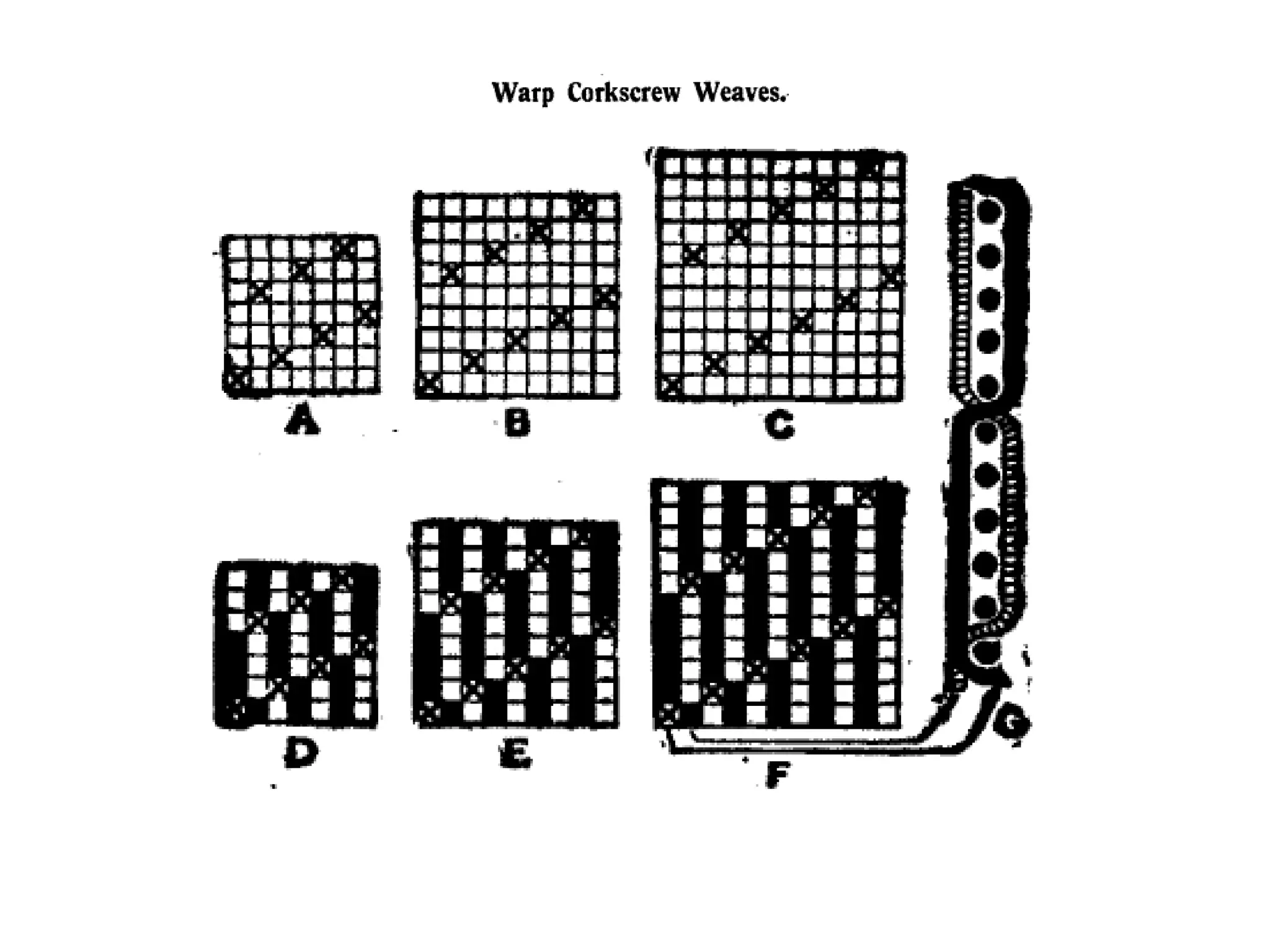

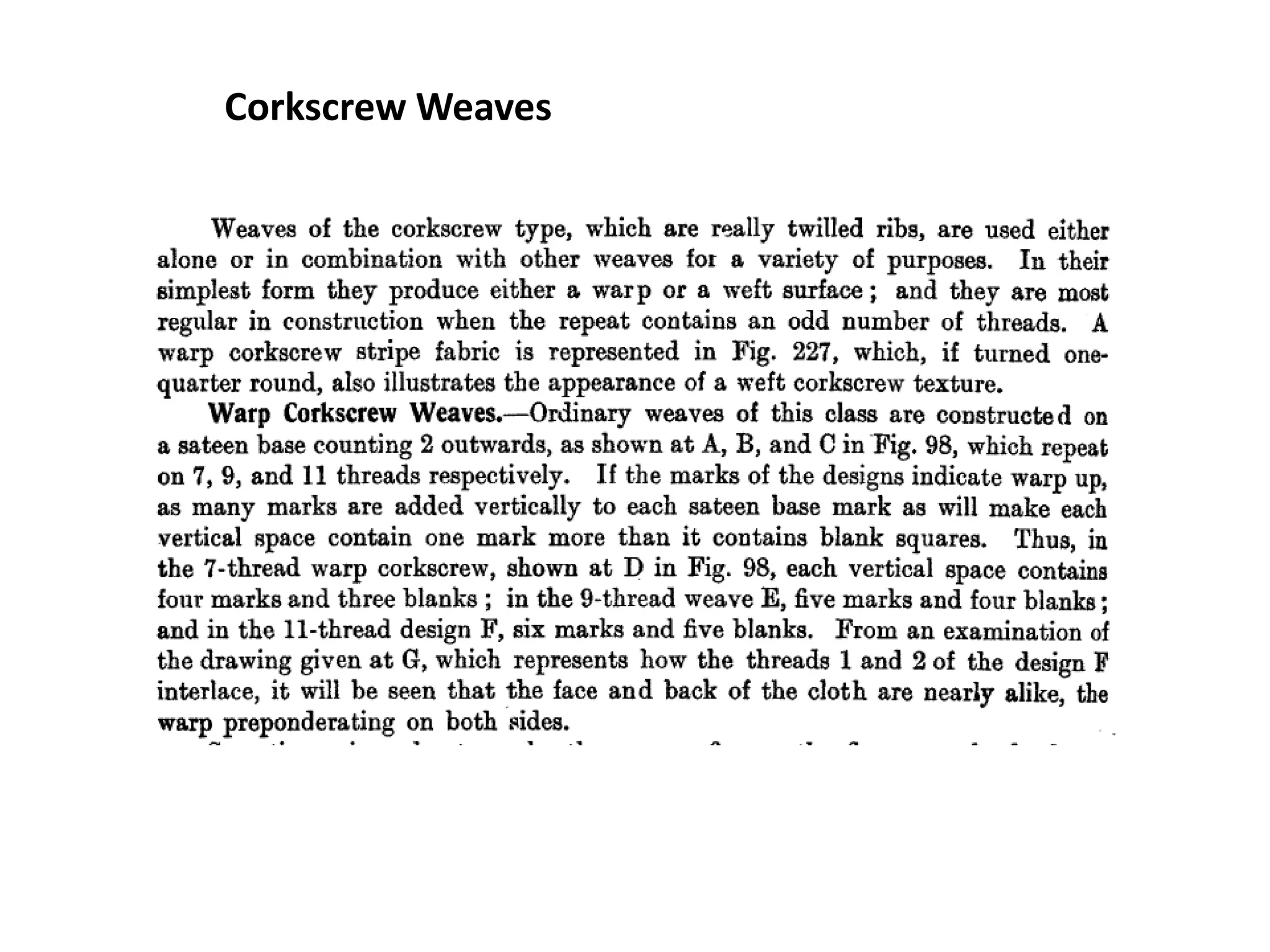

Corkscrew Weaves
Twill Weave
Fabric Characteristics
Twill Weave
Characteristics (I)
• The values of the twill weave include its strength and
drapability
• The diagonally arranged interlacing of the warp and
weft provide greater pliability and resilience than the
plain weave.
• Twill weave fabrics are more tightly weave and will
not get dirty as quickly as the plain weave.
• The yarns are usually closely beaten, making
especially durable fabric.
• Twill weave are commonly used in men’s suits and
coats.
Twill Weave (II)
Characteristics
• Twill line can be made more pominent by
using:
• Plied yarns; high twist yarns; twill weaves with longer
floats; higher number of yarns per inch; and yarn
twist opposite to the twill-line direction.
• Fabric with these lines may become flattened
by wear and pressure, and thus become shiny.
Twill Derivates
Broken Twill Weave
• Many combinations and variation of twill
constructions are possible.
• These produce interesting effect.
• The most well-known are herringbone (broken
twill), gabardine and corkscrew twill.
Broken Twill Weave
Herringbone Weave
Broken Twill Weave
Gabardine Weave Corkscrew Weave
Herringbone twill on point paper
3) Satin Weave
Satin Weave (I)
• Similar to twill weave but the diagonal line of the
satin weave is not visible.
• It is purposely interrupted in order to contribute to
the flat, smooth, lustrous surface desired.
• There is no visible design on the face of the fabric.
• In a true satin weave, each warp and weft yarn only
interlace once in each repeat of weave.
• Thus, satin weave fabrics have relatively long floats.
Satin Weave
5 shaft warp face
satin
5 shaft weft face
satin
Warp face satin
On graph paper
Weft face
Satin on
graph paper
Satin Weave (II)
• In a warp face satin, the face is predominantly
warp yarn, while for a weft face satin, the weft
yarns are predominant on the face.
• Satin weave may be designated by the
number of harnesses they require in weaving,
such as five-harness satin.
Satin-weave Fabric
• Satin fabric is made from filament yarns, with the
warp yarns predominant on the face.
• Satin fabrics are smooth and lustrous because
lustrous filament yarns are used; there are few
interlacing points, that gives long floats; and the face
yarns are fine and closely packed.
• Since the greatest lustre is in the lengthwise (warp)
direction, garments using this fabric in warp direction
show lustre effect.
Sateen Fabric
• Sateen fabric is a durable cotton fabric, usually
with weft face satin weave.
• It is not lustrous as satin fabric as spun yarns
are used.
• Since it is also heavier, with thicker yarns, it is
not as drapable as satin fabric.

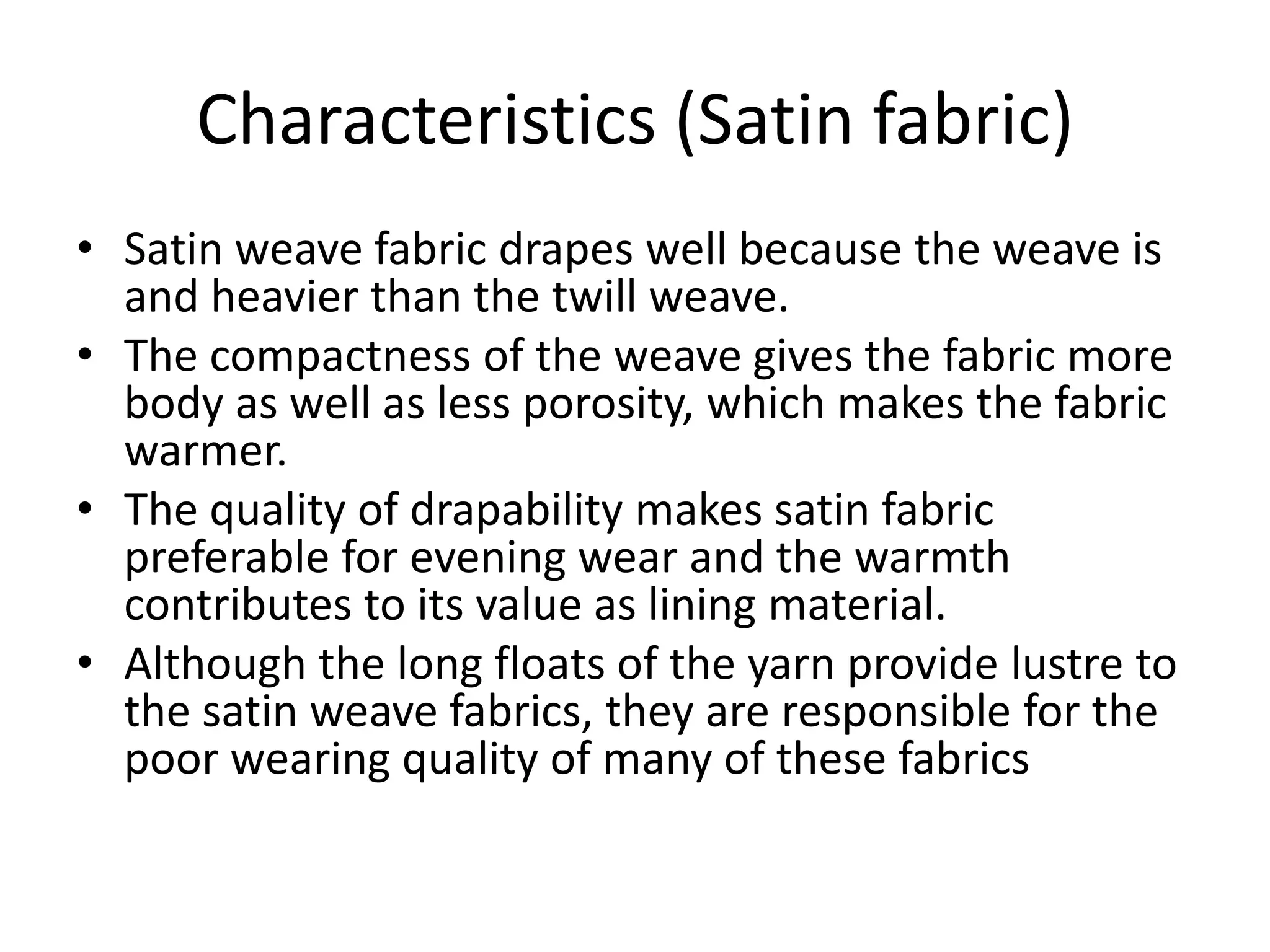

Characteristics (Satin fabric)
• Satin weave fabric drapes well because the weave is
and heavier than the twill weave.
• The compactness of the weave gives the fabric more
body as well as less porosity, which makes the fabric
warmer.
• The quality of drapability makes satin fabric
preferable for evening wear and the warmth
contributes to its value as lining material.
• Although the long floats of the yarn provide lustre to
the satin weave fabrics, they are responsible for the
poor wearing quality of many of these fabrics
Comparison of Basic Weave Properties

More Related Content

What's hot

stitch classification
stitch classificationstitch classification
Sewing thread
Sewing threadSewing thread
Sewing thread
Mahmud Hossain Sakib

SATIN / SATEEN WEAVE
SATIN / SATEEN WEAVE SATIN / SATEEN WEAVE
SATIN / SATEEN WEAVE
Robiul Islam

Weaving, loom
Weaving, loomWeaving, loom
Weaving, loom
srsujandiu

KNITTING - Rib structure
KNITTING - Rib structureKNITTING - Rib structure
KNITTING - Rib structure
PSG college of technology

Satin and sateen weaves
Satin and sateen weavesSatin and sateen weaves
Satin and sateen weaves
Md Vaseem Chavhan

Basic weaves and their characteristics
Basic weaves and their characteristicsBasic weaves and their characteristics
Basic weaves and their characteristics
Bannari Amman Institute of Technology

Fancy Yarns
Fancy YarnsFancy Yarns
Fancy Yarns
Azmir Latif Beg

Warp knitting design
Warp knitting designWarp knitting design
Warp knitting design
Azmir Latif Beg

Yarn Count
Yarn CountYarn Count
Diamond & diaper design
Diamond &  diaper design Diamond &  diaper design
Diamond & diaper design
Asif Ahmed TONMOY

Fancy Yarns Final
Fancy Yarns FinalFancy Yarns Final
Fancy Yarns Final
Akasj Poddar

Jacquad shedding
Jacquad sheddingJacquad shedding
Jacquad shedding
Nafiz Antu

plain weave and its derivative
plain weave and its derivativeplain weave and its derivative
plain weave and its derivative
ARAINALISHA

Knitting
KnittingKnitting
Knitting
Nikita Garg

Weaving process in textile
Weaving process in textileWeaving process in textile
Weaving process in textile
Mdibrahimkhalil31

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design
AbdulAziz1282

Twill weave fabric structre
Twill weave fabric structreTwill weave fabric structre
Twill weave fabric structre
Md Vaseem Chavhan

Raising Finishing
Raising FinishingRaising Finishing
Raising Finishing
Ahmad Sakib

Weft knitting
Weft knittingWeft knitting
Weft knitting
RasminThahaniZ


What's hot (20)

stitch classification
stitch classificationstitch classification
stitch classification

Sewing thread
Sewing threadSewing thread
Sewing thread

SATIN / SATEEN WEAVE
SATIN / SATEEN WEAVE SATIN / SATEEN WEAVE
SATIN / SATEEN WEAVE

Weaving, loom
Weaving, loomWeaving, loom
Weaving, loom

KNITTING - Rib structure
KNITTING - Rib structureKNITTING - Rib structure
KNITTING - Rib structure

Satin and sateen weaves
Satin and sateen weavesSatin and sateen weaves
Satin and sateen weaves

Basic weaves and their characteristics
Basic weaves and their characteristicsBasic weaves and their characteristics
Basic weaves and their characteristics

Fancy Yarns
Fancy YarnsFancy Yarns
Fancy Yarns

Warp knitting design
Warp knitting designWarp knitting design
Warp knitting design

Yarn Count
Yarn CountYarn Count
Yarn Count

Diamond & diaper design
Diamond &  diaper design Diamond &  diaper design
Diamond & diaper design

Fancy Yarns Final
Fancy Yarns FinalFancy Yarns Final
Fancy Yarns Final

Jacquad shedding
Jacquad sheddingJacquad shedding
Jacquad shedding

plain weave and its derivative
plain weave and its derivativeplain weave and its derivative
plain weave and its derivative

Knitting
KnittingKnitting
Knitting

Weaving process in textile
Weaving process in textileWeaving process in textile
Weaving process in textile

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design

Twill weave fabric structre
Twill weave fabric structreTwill weave fabric structre
Twill weave fabric structre

Raising Finishing
Raising FinishingRaising Finishing
Raising Finishing

Weft knitting
Weft knittingWeft knitting
Weft knitting


Similar to FABRIC STRUCTURE

Basic weaves
Basic weavesBasic weaves
Basic weaves
devisweety

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design
MdGolamMortuzaLimon

FABRIC STRUCTURE - TWILL AND DERIVATIVES
FABRIC STRUCTURE - TWILL AND DERIVATIVESFABRIC STRUCTURE - TWILL AND DERIVATIVES
FABRIC STRUCTURE - TWILL AND DERIVATIVES
PARANTHAMAN RAMAMOORTHY

FYS UNIT 5 basicweaves.pptx
FYS UNIT 5 basicweaves.pptxFYS UNIT 5 basicweaves.pptx
FYS UNIT 5 basicweaves.pptx
Malathypriya

Basic weaves and_their_characteristics
Basic weaves and_their_characteristicsBasic weaves and_their_characteristics
Basic weaves and_their_characteristics
ABU TALEB TARAQUE

Diferent wave analize of woven fabric
Diferent wave analize of woven fabricDiferent wave analize of woven fabric
Diferent wave analize of woven fabric
Amiyo Roy

weaves
weavesweaves
What is tartan
What is tartanWhat is tartan
What is tartan
Ziaul Haque Aupo

FABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGNFABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGN
Kathiroli Raja

Presentation on plain weave or fabric structure & design
Presentation on plain weave or fabric structure & designPresentation on plain weave or fabric structure & design
Presentation on plain weave or fabric structure & design
JashiarRahman

General knwledge on woven fabric
General knwledge on woven fabricGeneral knwledge on woven fabric
General knwledge on woven fabric
mamilamuhye

Woven structure and design
Woven structure and designWoven structure and design
Woven structure and design
Azmir Latif Beg

FSD Lecture 05 (1).pptx
FSD Lecture 05 (1).pptxFSD Lecture 05 (1).pptx
FSD Lecture 05 (1).pptx
MsNazninAkter

Presentation on Fabric structure & design & Plain weave
Presentation on Fabric structure & design & Plain weavePresentation on Fabric structure & design & Plain weave
Presentation on Fabric structure & design & Plain weave
ImamHossain91

Plain, Twill and Sateen Weave
Plain, Twill and Sateen WeavePlain, Twill and Sateen Weave
Plain, Twill and Sateen Weave
Nafiz Antu

3-1 Derivatives of Elementary Weaves.ppt
3-1 Derivatives of Elementary Weaves.ppt3-1 Derivatives of Elementary Weaves.ppt
3-1 Derivatives of Elementary Weaves.ppt
JASWANT SINGH GILL

fabric structure .pptx
fabric structure .pptxfabric structure .pptx
fabric structure .pptx
ssusere85189

Woven Fabric Design: Fabric Design
Woven Fabric Design: Fabric DesignWoven Fabric Design: Fabric Design
Woven Fabric Design: Fabric Design
Mohd Pahmi

Chapter 3
Chapter 3Chapter 3
Chapter 3
Mohd Pahmi

Derivatives_of_Elementary_Weaves.ppt
Derivatives_of_Elementary_Weaves.pptDerivatives_of_Elementary_Weaves.ppt
Derivatives_of_Elementary_Weaves.ppt
PrakashKhude3


Similar to FABRIC STRUCTURE (20)

Basic weaves
Basic weavesBasic weaves
Basic weaves

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design

FABRIC STRUCTURE - TWILL AND DERIVATIVES
FABRIC STRUCTURE - TWILL AND DERIVATIVESFABRIC STRUCTURE - TWILL AND DERIVATIVES
FABRIC STRUCTURE - TWILL AND DERIVATIVES

FYS UNIT 5 basicweaves.pptx
FYS UNIT 5 basicweaves.pptxFYS UNIT 5 basicweaves.pptx
FYS UNIT 5 basicweaves.pptx

Basic weaves and_their_characteristics
Basic weaves and_their_characteristicsBasic weaves and_their_characteristics
Basic weaves and_their_characteristics

Diferent wave analize of woven fabric
Diferent wave analize of woven fabricDiferent wave analize of woven fabric
Diferent wave analize of woven fabric

weaves
weavesweaves
weaves

What is tartan
What is tartanWhat is tartan
What is tartan

FABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGNFABRIC STRUCTURE & DESIGN
FABRIC STRUCTURE & DESIGN

Presentation on plain weave or fabric structure & design
Presentation on plain weave or fabric structure & designPresentation on plain weave or fabric structure & design
Presentation on plain weave or fabric structure & design

General knwledge on woven fabric
General knwledge on woven fabricGeneral knwledge on woven fabric
General knwledge on woven fabric

Woven structure and design
Woven structure and designWoven structure and design
Woven structure and design

FSD Lecture 05 (1).pptx
FSD Lecture 05 (1).pptxFSD Lecture 05 (1).pptx
FSD Lecture 05 (1).pptx

Presentation on Fabric structure & design & Plain weave
Presentation on Fabric structure & design & Plain weavePresentation on Fabric structure & design & Plain weave
Presentation on Fabric structure & design & Plain weave

Plain, Twill and Sateen Weave
Plain, Twill and Sateen WeavePlain, Twill and Sateen Weave
Plain, Twill and Sateen Weave

3-1 Derivatives of Elementary Weaves.ppt
3-1 Derivatives of Elementary Weaves.ppt3-1 Derivatives of Elementary Weaves.ppt
3-1 Derivatives of Elementary Weaves.ppt

fabric structure .pptx
fabric structure .pptxfabric structure .pptx
fabric structure .pptx

Woven Fabric Design: Fabric Design
Woven Fabric Design: Fabric DesignWoven Fabric Design: Fabric Design
Woven Fabric Design: Fabric Design

Chapter 3
Chapter 3Chapter 3
Chapter 3

Derivatives_of_Elementary_Weaves.ppt
Derivatives_of_Elementary_Weaves.pptDerivatives_of_Elementary_Weaves.ppt
Derivatives_of_Elementary_Weaves.ppt


More from Amit kumar

Function of Management
Function of ManagementFunction of Management
Function of Management
Amit kumar

Propertiesof fibers
Propertiesof fibersPropertiesof fibers
Propertiesof fibers
Amit kumar

Technical textile 2
Technical textile 2Technical textile 2
Technical textile 2
Amit kumar

Printing
Printing  Printing
Printing
Amit kumar

textile warping
textile warpingtextile warping
textile warping
Amit kumar

All steps of preparation of fabric for dyeing.
All steps of preparation of fabric for dyeing.All steps of preparation of fabric for dyeing.
All steps of preparation of fabric for dyeing.
Amit kumar

TEXTILE TESTING
TEXTILE TESTINGTEXTILE TESTING
TEXTILE TESTING
Amit kumar

LECTURE OF printing
LECTURE OF  printingLECTURE OF  printing
LECTURE OF printing
Amit kumar

Melting point of polymer
Melting point  of polymerMelting point  of polymer
Melting point of polymer
Amit kumar

polymer
polymerpolymer
polymer
Amit kumar

prepration of fabric
prepration of fabricprepration of fabric
prepration of fabric
Amit kumar

mass colaration
mass colarationmass colaration
mass colaration
Amit kumar


More from Amit kumar (12)

Function of Management
Function of ManagementFunction of Management
Function of Management

Propertiesof fibers
Propertiesof fibersPropertiesof fibers
Propertiesof fibers

Technical textile 2
Technical textile 2Technical textile 2
Technical textile 2

Printing
Printing  Printing
Printing

textile warping
textile warpingtextile warping
textile warping

All steps of preparation of fabric for dyeing.
All steps of preparation of fabric for dyeing.All steps of preparation of fabric for dyeing.
All steps of preparation of fabric for dyeing.

TEXTILE TESTING
TEXTILE TESTINGTEXTILE TESTING
TEXTILE TESTING

LECTURE OF printing
LECTURE OF  printingLECTURE OF  printing
LECTURE OF printing

Melting point of polymer
Melting point  of polymerMelting point  of polymer
Melting point of polymer

polymer
polymerpolymer
polymer

prepration of fabric
prepration of fabricprepration of fabric
prepration of fabric

mass colaration
mass colarationmass colaration
mass colaration


Recently uploaded

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
TechSoup

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor
JomonJoseph58

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17
Celine George

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx
HajraNaeem15

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
Himanshu Rai

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...
PsychoTech Services

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used
ssuser13ffe4

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
imrankhan141184

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
RidwanHassanYusuf

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"
National Information Standards Organization (NISO)

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
zuzanka

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
EduSkills OECD

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
EduSkills OECD

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10
nitinpv4ai

Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.pptLevel 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Henry Hollis


Recently uploaded (20)

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10

Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.pptLevel 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt


FABRIC STRUCTURE

  • 1. M K BANSAL NITRA TECHNICAL CAMPUS Ghaziabad Basic Weaves
  • 2. In representing weave on graph paper each distance between the two vertical lines represents one warp thread and the distance between two horizontal lines represents one weft thread. Small squares illustrates the place where certain warp threads meets with certain weft thread. Thus the square marked ‘a’ will indicate the interlacement of warp thread no.1 with 1st pick, mark ‘b’ will indicate the interlacement of warp thread no. 2 with 1st pick. like wise mark ‘g’ will indicate the interlacement of warp thread no. 3 with 2nd pick and so on. Representation of woven structure on graph paper:
  • 3. Different kinds of graph paper used in designing The proper selection of graph paper is ascertained by the no. of warp and weft threads required per inch in the finished fabric. For example a fabric of 80 EPI and 120 PPI will require a graph of corresponding proportion or as 80 is to 120 = 8x12, similarly EPI= 80 & PPI= 60 will require a 8x6 graph paper.
  • 4. Indication of any kind in a certain square inside the repeat of the weave upon the graph paper mean warp up , and squares left empty inside the repeat of the weave on graph paper mean weft up in its corresponding position in the fabric. Warp up Weft up
  • 5. Basic Fabric Structure ( Weaves) There are three basic weaves. Plain Weave Twill Weave Satin Weave All other Structures are a variation or a combination of these weaves.
  • 6. Plain weave is the most basic of three fundamental types of weaves.It is strong and hard-wearing, used for fashion and furnishing fabrics. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa. Terms as tabby, Calico, alpaca, and taffeta are applied to plain cloth. Plain WeaveDescription:

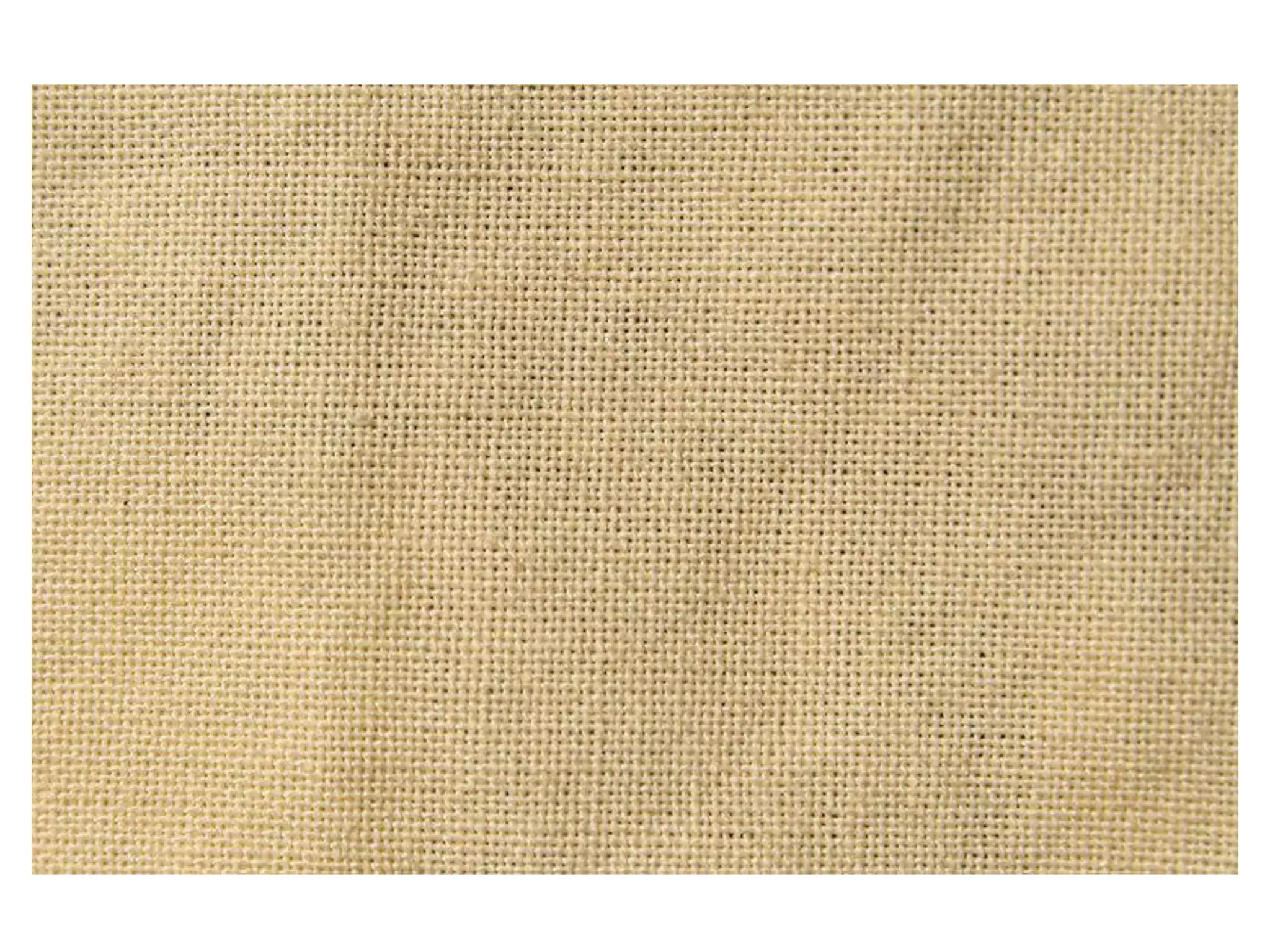

  • 8.
  • 9. Fabrics produced on plain weave base Some examples of plain weave fabrics with different textures are Chiffon Taffeta Organdy Lawn Voile Muslin Plain sheeting Plaids Seersuckers fill-a fill Cotton Checks
  • 10. 1. Threads which are different in color, material, thickness or twist are combined, 2. The number of threads per dent of the reed, or picks in a given space is varied. 3. The ends are brought from two or more warp beams which are differently tensioned. 4. By means of specially shaped reeds which rises and falls the threads are caused to form Zig-Zag lines in the cloth. 5. By the process of dyeing, printing and finishing. Fancy effects produced with the plain weave: There are lot of methods of ornamenting and varying the structure of plain weave.
  • 11. Plain Check & Stripes
  • 12. Twill weave Twill weave produce diagonal lines in the cloth. In simple twills point of intersection move one out ward and one upward on succeeding picks. Twill weave can be made on any number of threads that exceeds two. Twill lines are formed on both sides of the cloth and direction of the lines may be right or left. Twill weaves enables greater weight, closer setting, and better draping quality than plain weave in the cloth.
  • 13. 2 by 1 twill
  • 16. Satin & sateen Weave The term satin is used for warp face structure and sateen is used for weft face structure. In pure sateen and satin weaves there is one interlacing for each warp yarn and only one interlacing for each weft yarn in each repeat of the weave. This result in production of fabrics with a maximum degree of smoothness and luster and without any prominent weave effect. Buckskin, Venetian, and damask are fabrics made on satin structures
  • 17. satin thread interlacement 5 shaft Warp face satin Weave
  • 18. 5 shaft Weft face sateen Weave sateen thread interlacement
  • 20. Plain weave derivative Matt, basket or Hopsack weave: Basket weave is made by extending the plain weave both vertically and horizontally so that in both directions there are two or more threads working together in the same order. When the groups of yarns are equal, the basket weave is termed regular, otherwise it is termed irregular. The two by two (2x2) basket weave is the most common. In this weave as given below the warp yarns in pairs interlace in plain weave order with the weft yarns in pairs. The weave repeats on four ends and four picks, and require only two heald frames to make.
  • 21.
  • 22.
  • 23.
  • 24. Matt or Basket Weave Regular 2x2 basket Regular 3x3 basket Regular 4x4 basket
  • 26. Rib Weaves Rib weaves are usually made by having two or more warp yarns together, inter- lacing as one yarn with the individual weft yarns, or two or more weft yarns together, interlacing as one yarn with individual warp yarns. The groups of yarns interlace in plain weave order with the single yarns. Fabrics with a rib weave are reversible unless one side is made the face by finishing or printing. Warp Rib Weave: Warp ribs are produced by extending the plain weave vertically. 3x3 warp rib 4x4 warp rib
  • 27.
  • 28. Ornamenting warp rib: The warp ribs can be emphasized even more strongly by the use of alternate coarse and fine ends, slack and tight ends, and Thick and fine picks as shown in Figure A, B, and C A B C Weft Rib Weave: Weft ribs are produced by extending the plain weave horizontally. 3x3 weft rib 4x4 weft rib
  • 29. Twill weave Twill weave produce diagonal lines in the cloth. Twill weave can be made on any number of threads that exceeds two. Twill lines are formed on both sides of the cloth and direction of the lines may be right or left. 2/1 Twill (shifting warp wise)
  • 30. Angle of inclination of twill weaves
  • 31.
  • 32. Twill Angle: Twill angle is the angle which is produced by twill line with respect to the horizontal line. This twill angle depends on following factors. 1. Ratio between EPI and PPI. 2. Difference between warp and weft count. 3. Rate of advancement it interlacement warp and weft.
  • 33.
  • 34. In simple twills point of intersection move one out ward and one upward on succeeding picks. Twill weaves enables greater weight, closer setting, and better draping quality than plain weave in the cloth. Denim, blanket and Gabardine fabrics are made of twill weave basis. 2/2 Twill Shifting warp wise
  • 35. 4/4 Right hand Twill 4/4 Left hand Twill 4/1 warp face Twill 4/1 weft face Twill
  • 36. Mixing of two Twill weaves 4/2 & 3/1 Twill Mixing of three Twill weaves 4/4, 3/3, 2/2 Twill
  • 37. Mixing of four Twill weaves 4/2, 3/1, 1/3, 2/4
  • 38. Twill weave derivative Zigzag or waved twill Warp face & weft face & balanced twill Steep or elongated twill Herringbone twill Reverse twill Broken twill  Mixed twill Combining twills –end to end pick to pick Fancy twills Transposed or re arranged twill Diamond and diaper twill designs
  • 39. Zigzag or waved twill – The simplest forms of modified twill is the waved twill achieved by reversing the direction of the twill at suitable intervals. The reversal can occur either upon a warp direction in which case horizontal wave is produced , or upon a weft pick which results in a vertical weave or a zig-zag effect . The horizontal wave effects are economically produced in point drafts and good styles may be woven on few healds. The vertical line effects, however mostly require dobby shedding motion, because of comparatively large number of picks in the lifting plan. Method-I Converting 3/3 Twill into zig-zag twill 1 2 3 4 5 6 5 4 3 2 In Horizontal direction In Vertical direction 2 3 4 5 6 5 4 3 2 1
  • 40. Converting 4/4 Twill into zigzag Twill Converting 3/1,1/3 Twill into zigzag Twill 1 2 3 4 5 6 7 8 7 6 5 4 3 2 1 2 3 4 5 6 7 8 7 6 5 4 3 2
  • 41. Small zigzag of 2/2 twill (one repeat) Medium zigzag of 2/2 Twill 1 2 3 4 3 2 1 2 3 4 5 6 7 8 7 6 5 4 3 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15161514 13 12 11 10 9 8 7 6 5 4 3 2 Large zigzag of 2/2 Twill
  • 42. Herringbone Twill - These twills, also depend upon the reversal of the direction to achieve the desired effect . The twill does not come to a point where it changes the direction but instead one twill line is said to cut into the other at the point of reversal . The following design shows construction of 2 and 2 herringbone twill which runs from left to right for the desired number of ends (8) where upon the reversal of direction takes place by introducing on the 9th end, the mark which are exactly opposite to those of the 8th end . 1 2 3 4 5 6 7 8 910111213141516 Herringbone twill of 2/2 Twill Herringbone twill of 3/3 Twill (16x4) (12x6) 1 2 3 4 5 6 7 8 9 10 11 12
  • 43. Herring bone Twill of 9 repeats of 4/4 Twill (48x24) Herringbone Twill of 4/1,3/1 Twill (18x9)
  • 45. (b) Reverse Twill – In this weave the number of threads in warp & weft of one repeat remains same in the design . In the following design one repeat of design has 8 threads in warp & weft. Reverse twill design should have same number of threads in face & back i.e. 2/2 ,3/3 , 4/4 etc. 2/2Reverse Twill 3/3 Reverse Twill 4/4 Reverse twill (4x4) (6x6) (8x8) 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 10 9 8 7 6 5x5 Regular Twill 5/5 Reverse Twill (10x10) (10x10)
  • 46. Broken Twill - It is produced by breaking a regular twill. 1 2 3 4 1 2 4 3 2/2 Regular Twill 2/2 Broken Twill at a break of 2 1 2 3 4 5 6 1 2 3 6 5 4 3/3 Regular Twill 3/3 Broken Twill at a break of 3 1 2 3 4 5 6 7 8 1 2 4 3 5 6 8 7 2 1 4 3 6 5 8 7 4/4 Regular Twill 4/4 Broken Twill at a break of2 4/4 Broken Twill at a break of2
  • 47. 1 2 3 6 5 4 7 8 1 4 3 2 5 6 7 2 1 8 3 4 5 8 7 6 4/4 Broken Twill at a Break of 3 (24x8) 1 2 3 4 5 2 1 8 7 6 3 4 5 6 7 4 3 2 1 8 5 6 7 8 1 6 5 4 3 2 7 8 1 2 3 8 7 6 5 4 4/4 Broken Twill at a Break of 5 (40x8)
  • 48. Mixed Twill – This has been developed by combining the two regular twill designs. This can be of two types. The first is warp mixed twill weave and second is weft mixed twill weave. One twill say ‘A’ is first indicated on the odd vertical spaces and to complete the design, twill ‘B’ is indicated on the even vertical spaces . Each twill must be carried out on 6 ends and picks and hence the design ‘C’ consist of 6 threads of ‘A’ and 6 threads of ‘B’ and thus repeats on 12 ends and 6 picks . A B C

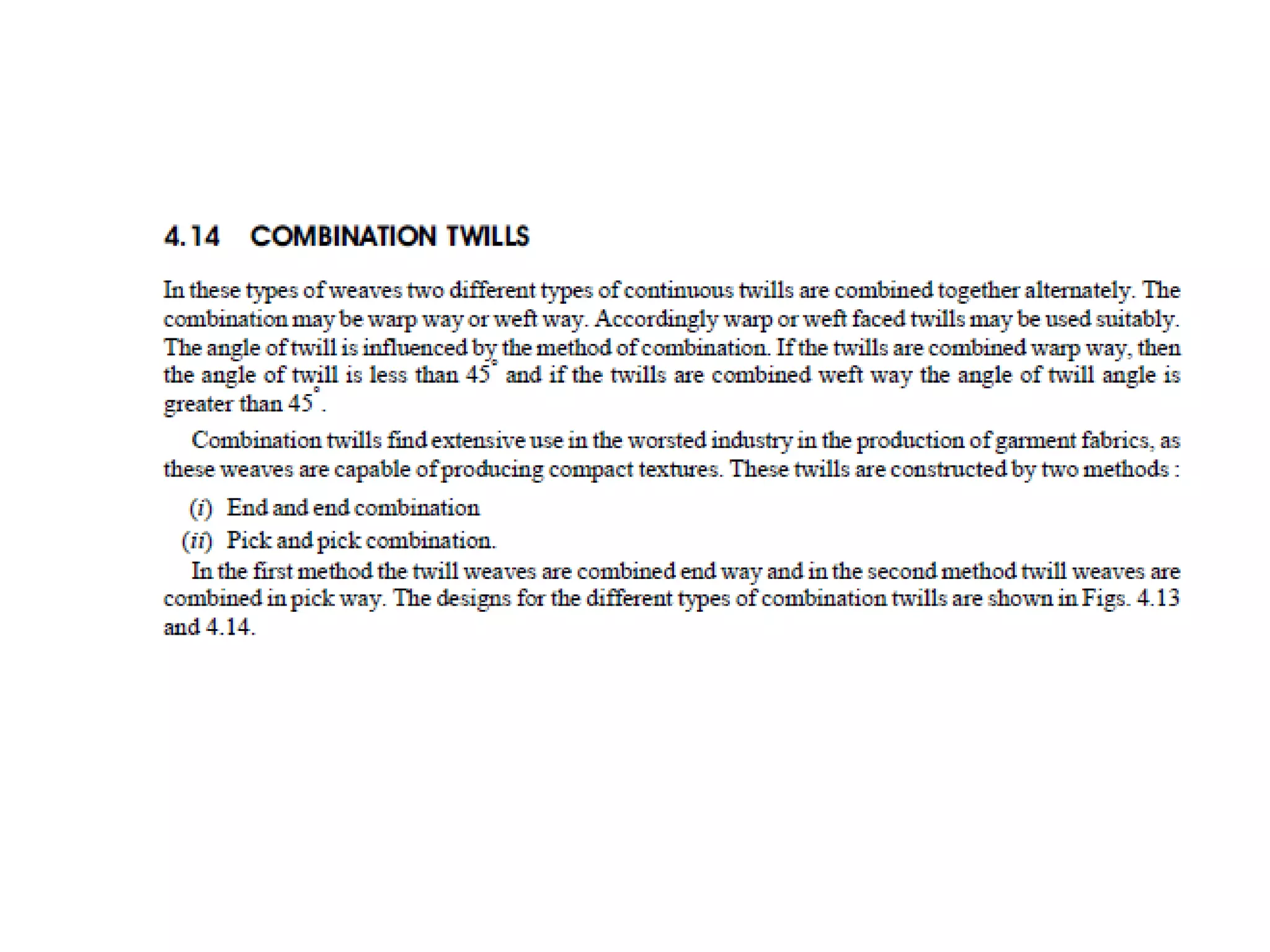

  • 49.
  • 50.
  • 51.
  • 52.
  • 53. Diamond Twill - Diamond weave is symmetrical about their vertical and horizontal axes which can be produced with the aid of point draft and vertical waved twilled peg-plan. True diamond shapes converge most designs of this type can be constructed economically on the pointed draft basis. construction of a diamond design based upon 3/ 3 twill weave is given below: 1 2 3 4 5 6 5 4 3 2 1 2 3 4 5 6 5 4 3 2 1 2 3 4 5 6 5 4 3 2 Diamond weave (10x10) 1 2 3 4 5 6 Zig-Zag weave (10x6)
  • 54.
  • 55.
  • 56.
  • 57. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2 3 4 5 6 7 8 9 10 11 12 11 10 9 8 7 6 5 4 3 2 Diamond weave of 4/4,2/2 (22x22)
  • 58. Diaper Weave Diaper weaves are symmetrical about their diagonal axes, these are based on herringbone draft and vertical waved twilled peg-plan. Diaper weave based on 2/2 Twill weave
  • 59.
  • 60.
  • 61. Diaper weave on 3/3, 3/3 Twill
  • 62. Uses of Twill Weave: Twill weave are extensively used in manufacturing cloth for garments household cloth and industrial cloth. •Generally dimond,diaper and zigzag twill are used for making pillow,cover,screen,unpholstery,bed sheet,towel etc. •Continious twill are used for making fabric for shirting,suiting and pantin(denim,gaverdine). •For making various type of ornamental cloth,other derivatives of twill weave are used. •Herring bone twill are used in the cloth of suiting and overcoats.
  • 63. Satin & sateen Weave The term satin is used for warp face structure and sateen is used for weft face structure. In pure sateen and satin weaves there is one interlacing for each warp yarn and only one interlacing for each weft yarn in each repeat of the weave. This will result in production of fabrics with a maximum degree of smoothness and luster and without any prominent weave effect.
  • 64. Ref: Fabric Structure by N. Gokerneshan
  • 65. Thumb rules for making satin weave • Move can not be one or less than one of the satin no. • Move no. should not be factor of satin no. • There should not be any common factor between move no. & satin no.
  • 66. Regular Satin and Sateen weave Possible moves 5 end satin/sateen 2,3 7 end satin/sateen 2,3,4,5 8 end satin/sateen 3,5 9 end satin/sateen 2,4,5,7 10 end satin/sateen 3,7 11 end satin/sateen 2,3,4,5,6,7,8,9 12 end satin/sateen 5,7
  • 67.
  • 68. 4 end sateen (Satinette) 6 end sateen Irregular Sateen: These are entirely free from twill lines
  • 69. 8 end sateen (irregular) In eight end irregular sateen 3 is counted to the right for four picks; on the fifth pick the count is equal to half the number of threads in the repeat i.e. 4 and then on succeeding picks 3 is counted to the left.
  • 70. 10 end irregular sateen In ten end irregular sateen 3 is counted to the right for half the number of picks; then 5 is counted and afterwards on succeeding picks 3 is counted to the left.
  • 71. 12 ends irregular sateen In 12 thread irregular sateen the count is 3 & 5 alternately for the six picks, then 6 for the next pick and afterwards 3 & 5 alternately to the left.
  • 72. Satin weave derivative In simple derivatives the new design is built up by using the original satin or sateen as base, and subtracting or adding marks as required in the same relative position to each base marks. 5 end sateen Derivative 5 end satin Venetian weave 8 end satin Buckskin weave 8 end satin derivative
  • 73. Crepe or oatmeal weave The term crepe is applied to weaves, which gives the appearance of being covered by minute spots or seeds. Crepe weave is different from crepe cloth in which broken surface effect is due to entirely to the use of high twist yarns which, upon controlled shrinkage in the finishing, produce a highly irregular texture although woven in the plain weave. Construction of crepe weave on satin basis The crepe weaves can be constructed by adding marks in certain order to some of the sateen base. Thumb rule to make crepe weave on this principle is that warp floats & weft float should not be more than three in both side. In the example given at right marks are added in Two up one down, One up one down, one up one down order Crepe weave on 8 end satin base (move 3) [2/1,1/1,1/1]
  • 74.
  • 75.
  • 77.
  • 78.
  • 80. Twill Weave Characteristics (I) • The values of the twill weave include its strength and drapability • The diagonally arranged interlacing of the warp and weft provide greater pliability and resilience than the plain weave. • Twill weave fabrics are more tightly weave and will not get dirty as quickly as the plain weave. • The yarns are usually closely beaten, making especially durable fabric. • Twill weave are commonly used in men’s suits and coats.
  • 81. Twill Weave (II) Characteristics • Twill line can be made more pominent by using: • Plied yarns; high twist yarns; twill weaves with longer floats; higher number of yarns per inch; and yarn twist opposite to the twill-line direction. • Fabric with these lines may become flattened by wear and pressure, and thus become shiny.
  • 82. Twill Derivates Broken Twill Weave • Many combinations and variation of twill constructions are possible. • These produce interesting effect. • The most well-known are herringbone (broken twill), gabardine and corkscrew twill.
  • 84. Broken Twill Weave Gabardine Weave Corkscrew Weave
  • 85. Herringbone twill on point paper
  • 87. Satin Weave (I) • Similar to twill weave but the diagonal line of the satin weave is not visible. • It is purposely interrupted in order to contribute to the flat, smooth, lustrous surface desired. • There is no visible design on the face of the fabric. • In a true satin weave, each warp and weft yarn only interlace once in each repeat of weave. • Thus, satin weave fabrics have relatively long floats.
  • 88. Satin Weave 5 shaft warp face satin 5 shaft weft face satin Warp face satin On graph paper Weft face Satin on graph paper
  • 89. Satin Weave (II) • In a warp face satin, the face is predominantly warp yarn, while for a weft face satin, the weft yarns are predominant on the face. • Satin weave may be designated by the number of harnesses they require in weaving, such as five-harness satin.
  • 90. Satin-weave Fabric • Satin fabric is made from filament yarns, with the warp yarns predominant on the face. • Satin fabrics are smooth and lustrous because lustrous filament yarns are used; there are few interlacing points, that gives long floats; and the face yarns are fine and closely packed. • Since the greatest lustre is in the lengthwise (warp) direction, garments using this fabric in warp direction show lustre effect.
  • 91. Sateen Fabric • Sateen fabric is a durable cotton fabric, usually with weft face satin weave. • It is not lustrous as satin fabric as spun yarns are used. • Since it is also heavier, with thicker yarns, it is not as drapable as satin fabric.
  • 92. Characteristics (Satin fabric) • Satin weave fabric drapes well because the weave is and heavier than the twill weave. • The compactness of the weave gives the fabric more body as well as less porosity, which makes the fabric warmer. • The quality of drapability makes satin fabric preferable for evening wear and the warmth contributes to its value as lining material. • Although the long floats of the yarn provide lustre to the satin weave fabrics, they are responsible for the poor wearing quality of many of these fabrics
  • 93. Comparison of Basic Weave Properties
