Presentedby

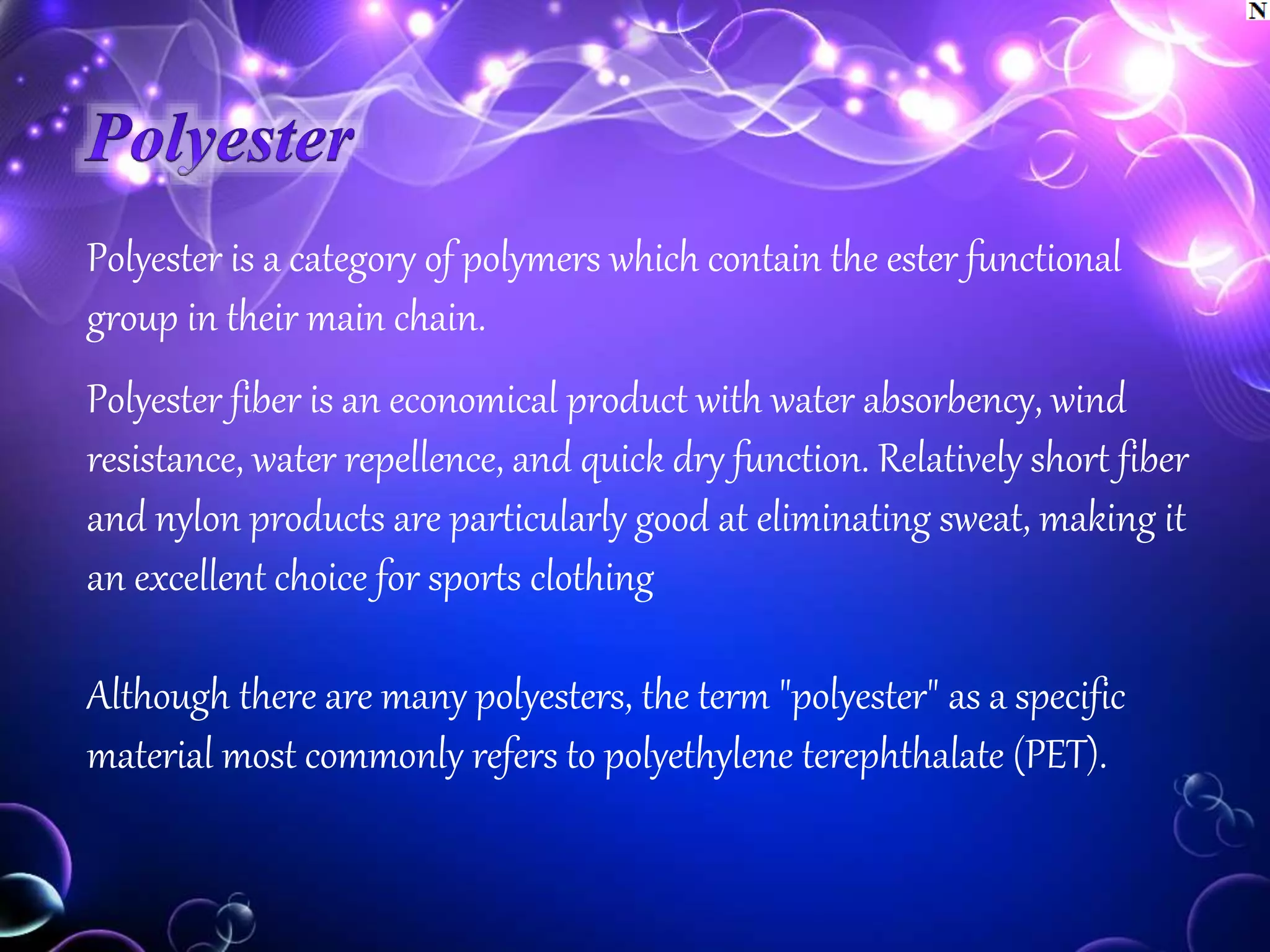

Polyester is a category of polymers which contain the ester functional
group in their main chain.
Polyester fiber is an economical product with water absorbency, wind
resistance, water repellence, and quick dry function. Relatively short fiber
and nylon products are particularly good at eliminating sweat, making it
an excellent choice for sports clothing
Although there are many polyesters, the term "polyester" as a specific
material most commonly refers to polyethylene terephthalate (PET).

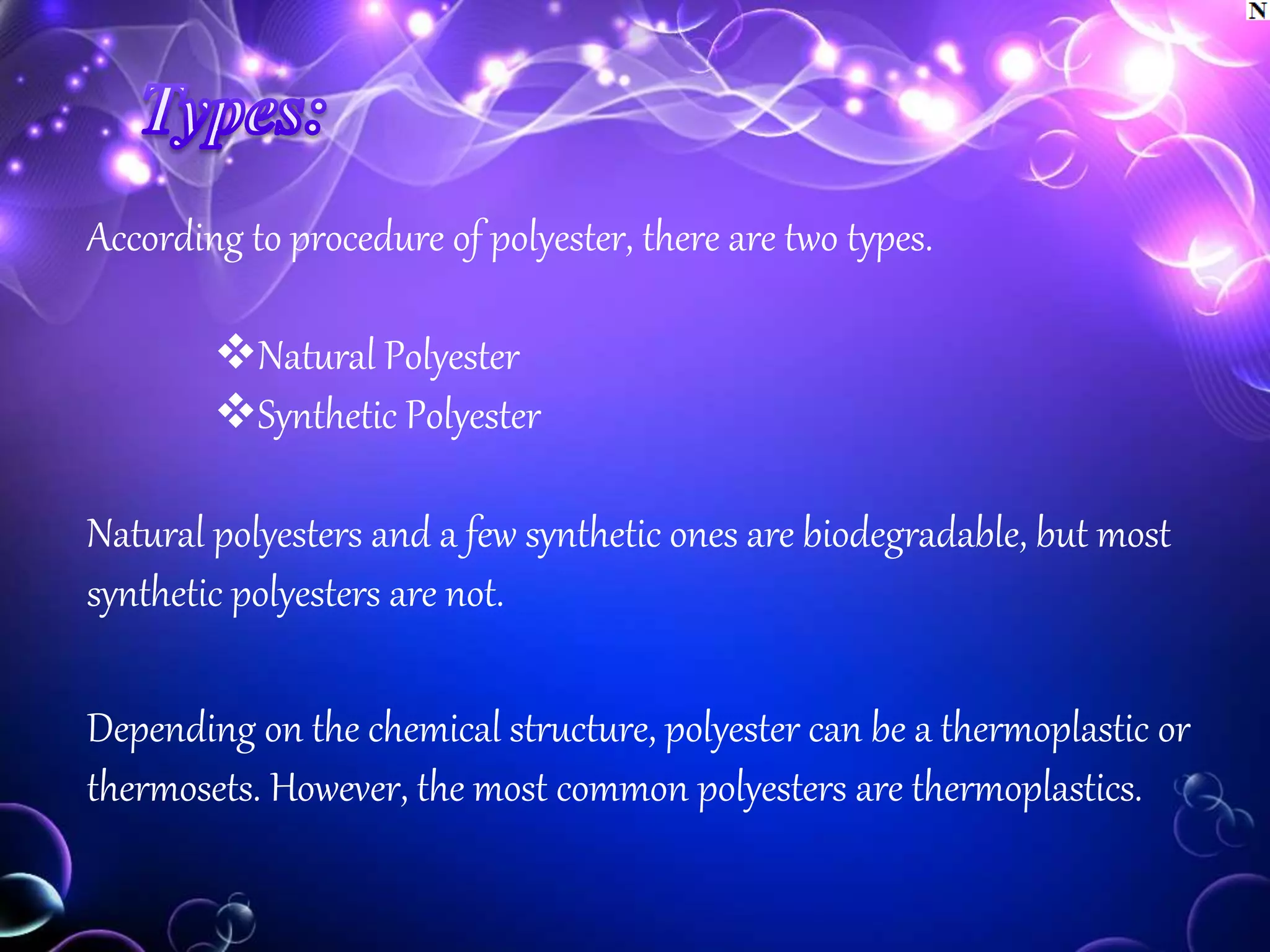

Depending on the chemical structure, polyester can be a thermoplastic or
thermosets. However, the most common polyesters are thermoplastics.
According to procedure of polyester, there are two types.
Natural Polyester
Synthetic Polyester
Natural polyesters and a few synthetic ones are biodegradable, but most
synthetic polyesters are not.
For the synthetic polyesters, a di-carboxyilic acid reacts with an alcohol (di-
alcohol) and makes polyester.

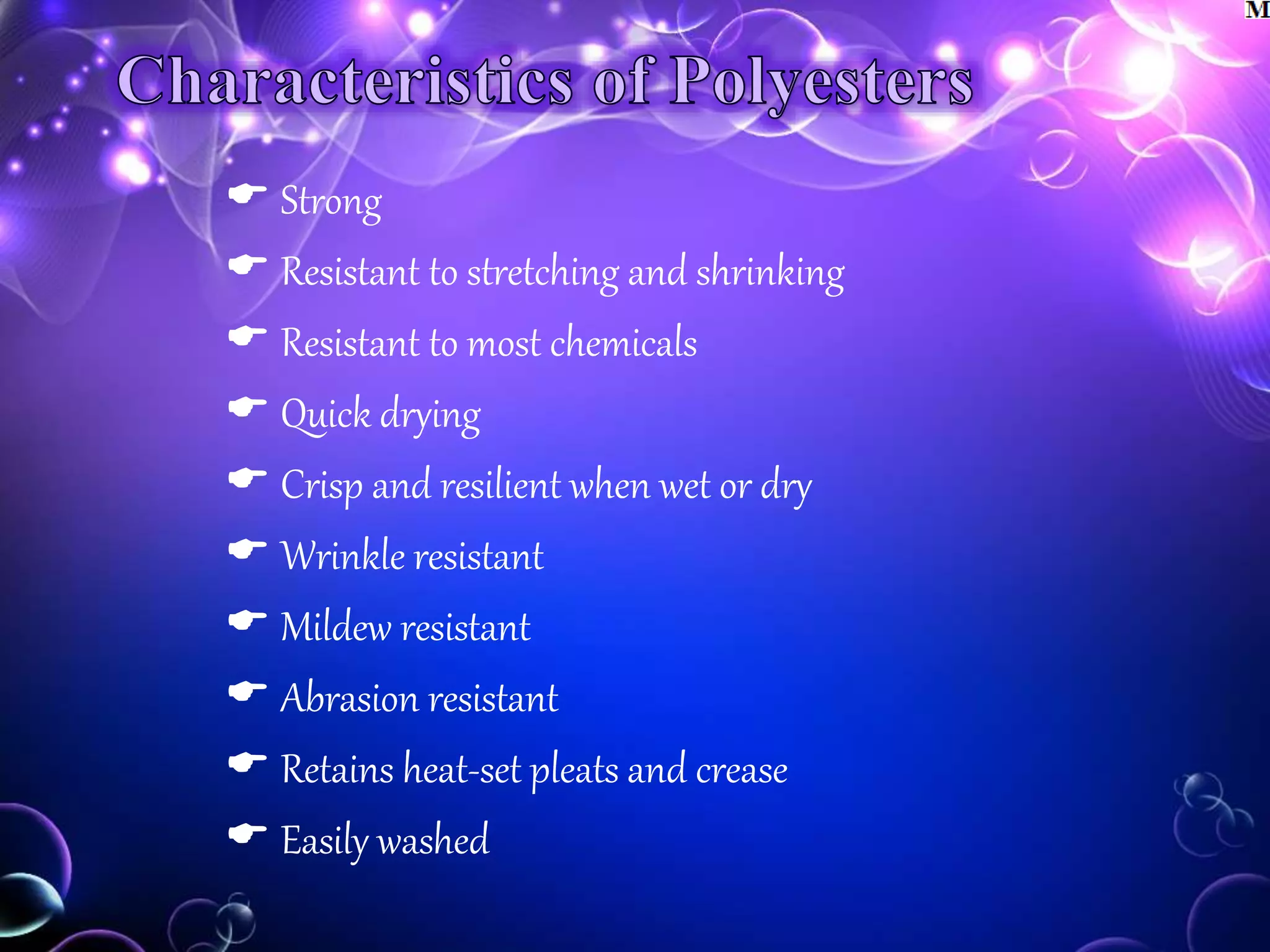

 Strong
 Resistant to stretching and shrinking
 Resistant to most chemicals
 Quick drying
 Crisp and resilient when wet or dry
 Wrinkle resistant
 Mildew resistant
 Abrasion resistant
 Retains heat-set pleats and crease
 Easily washed

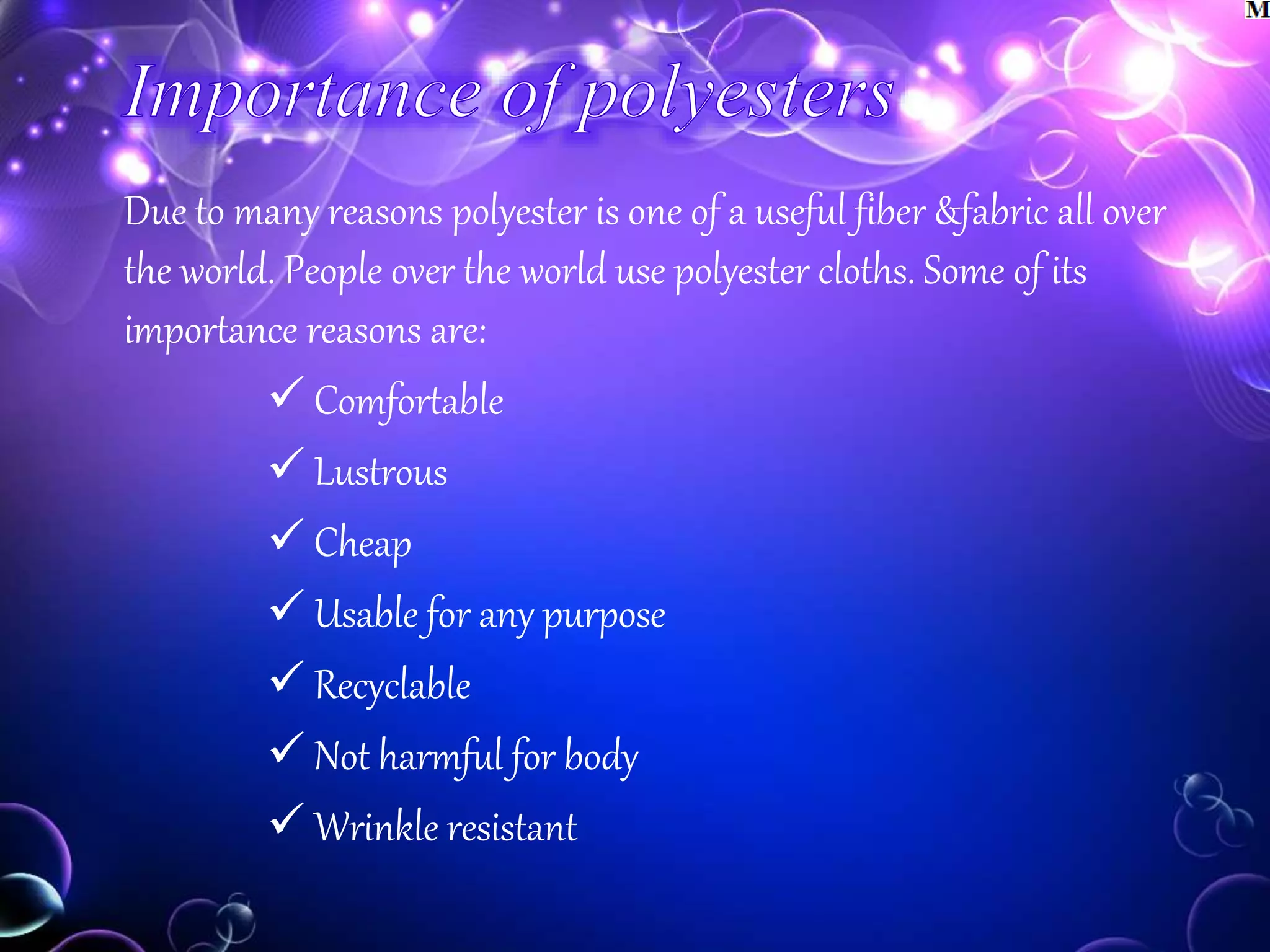

Due to many reasons polyester is one of a useful fiber &fabric all over
the world. People over the world use polyester cloths. Some of its
importance reasons are:
 Comfortable
 Lustrous
 Cheap
 Usable for any purpose
 Recyclable
 Not harmful for body
 Wrinkle resistant

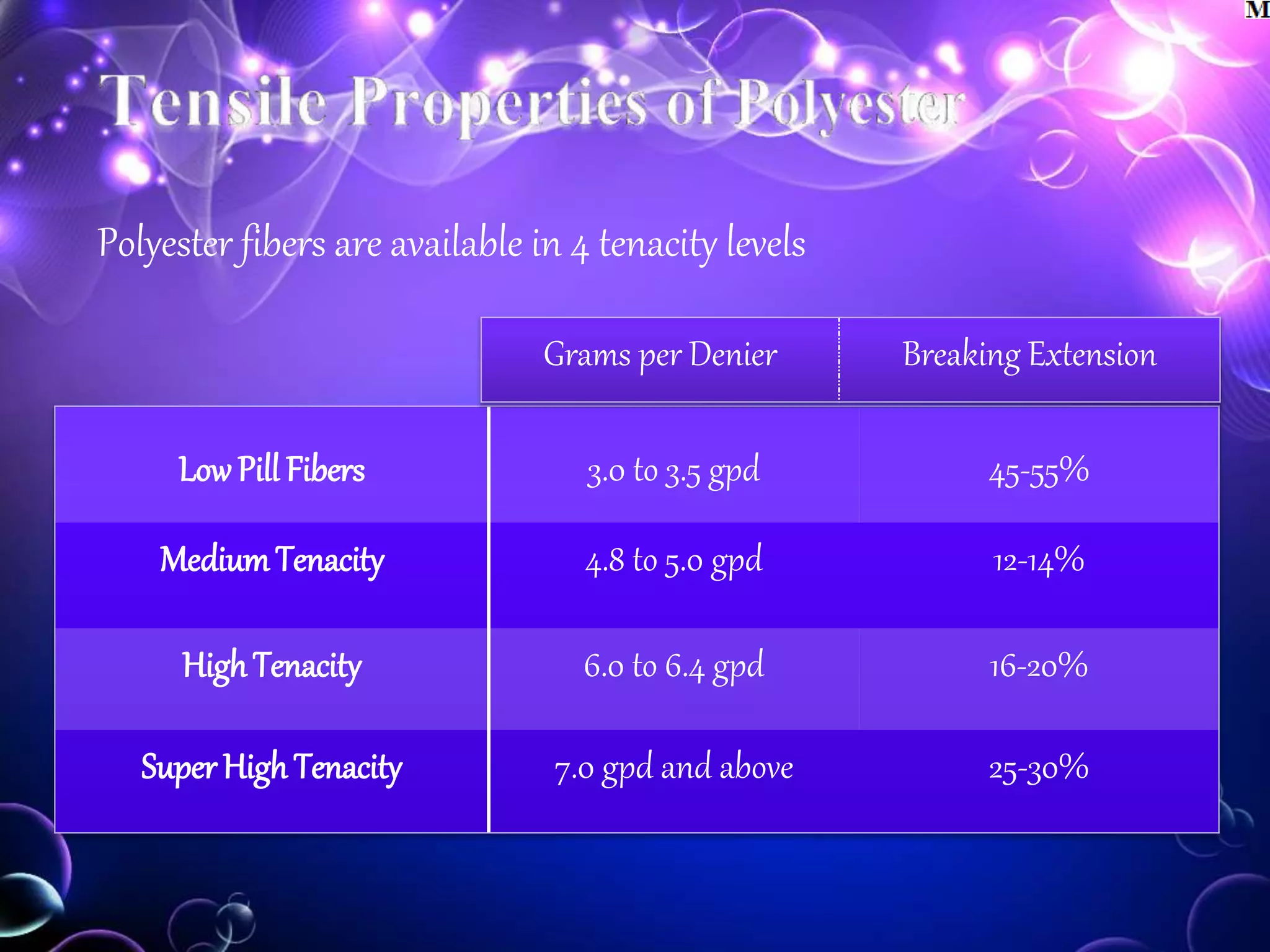

Polyester fibers are available in 4 tenacity levels
LowPill Fibers 3.0 to 3.5 gpd 45-55%
MediumTenacity 4.8 to 5.0 gpd 12-14%
HighTenacity 6.0 to 6.4 gpd 16-20%
SuperHighTenacity 7.0 gpd and above 25-30%
Grams per Denier Breaking Extension

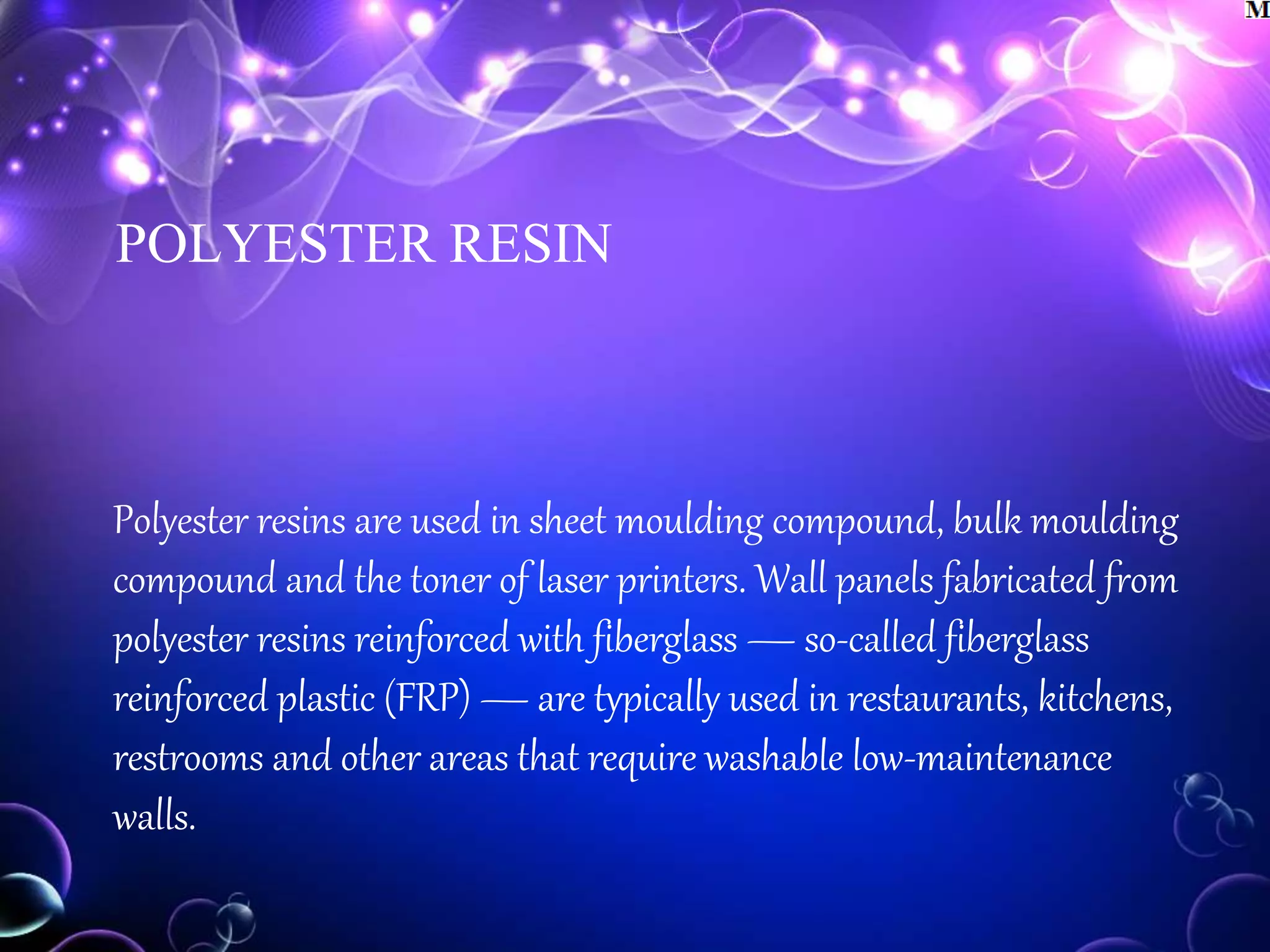

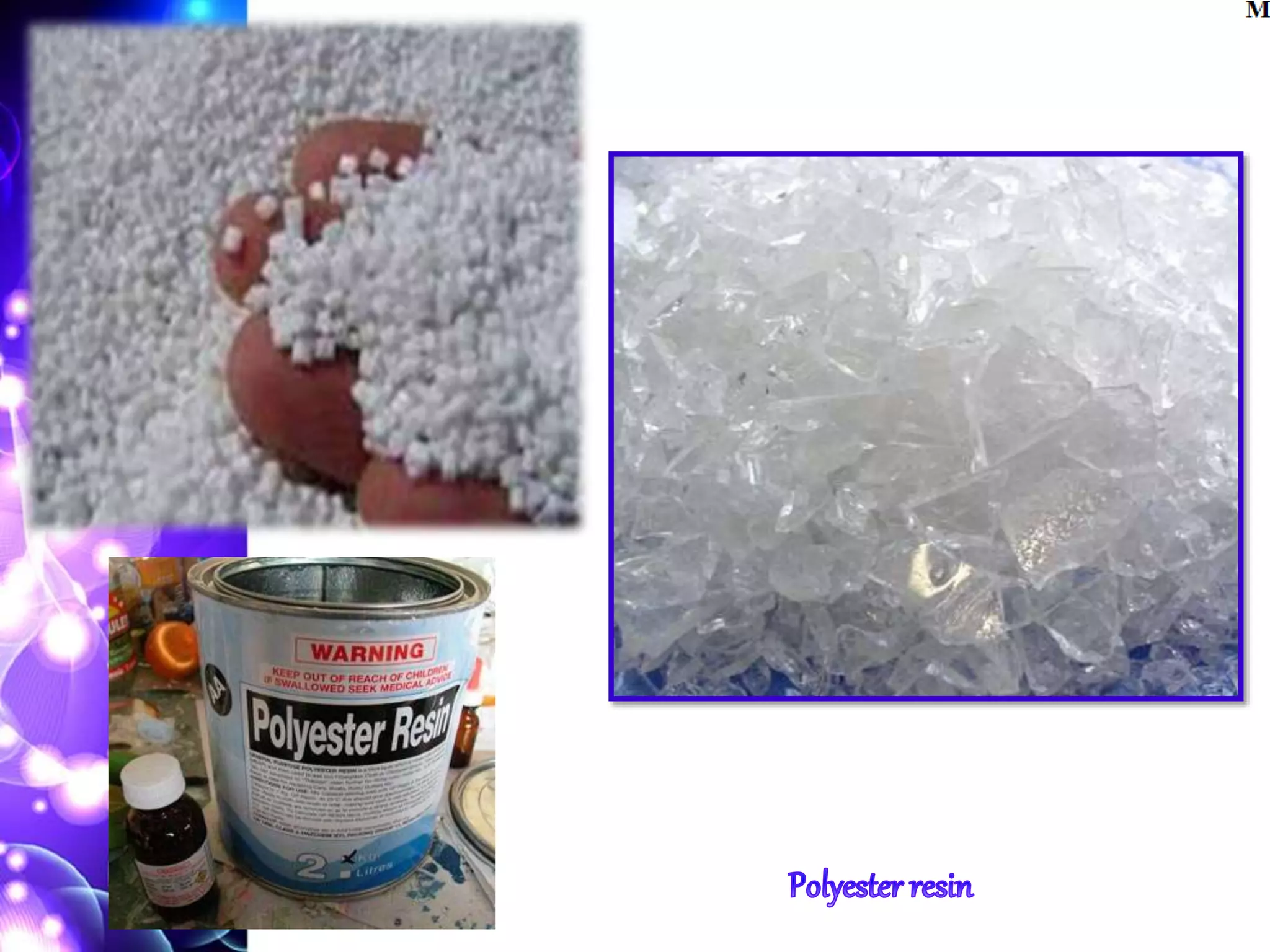

POLYESTER RESIN
Polyester resins are used in sheet moulding compound, bulk moulding
compound and the toner of laser printers. Wall panels fabricated from
polyester resins reinforced with fiberglass — so-called fiberglass
reinforced plastic (FRP) — are typically used in restaurants, kitchens,
restrooms and other areas that require washable low-maintenance
walls.
Ever QuickDry / UV Cut/Anti Chlorine
This type of fabric absorbs moisture and is sweat conductive, making it
suitable for making sports jerseys and shorts; anti-UV fabric allows the wearer
to relax even on hot sunny days; anti chlorine fabric also removes the need for
concern for color migration when playing on the beach.

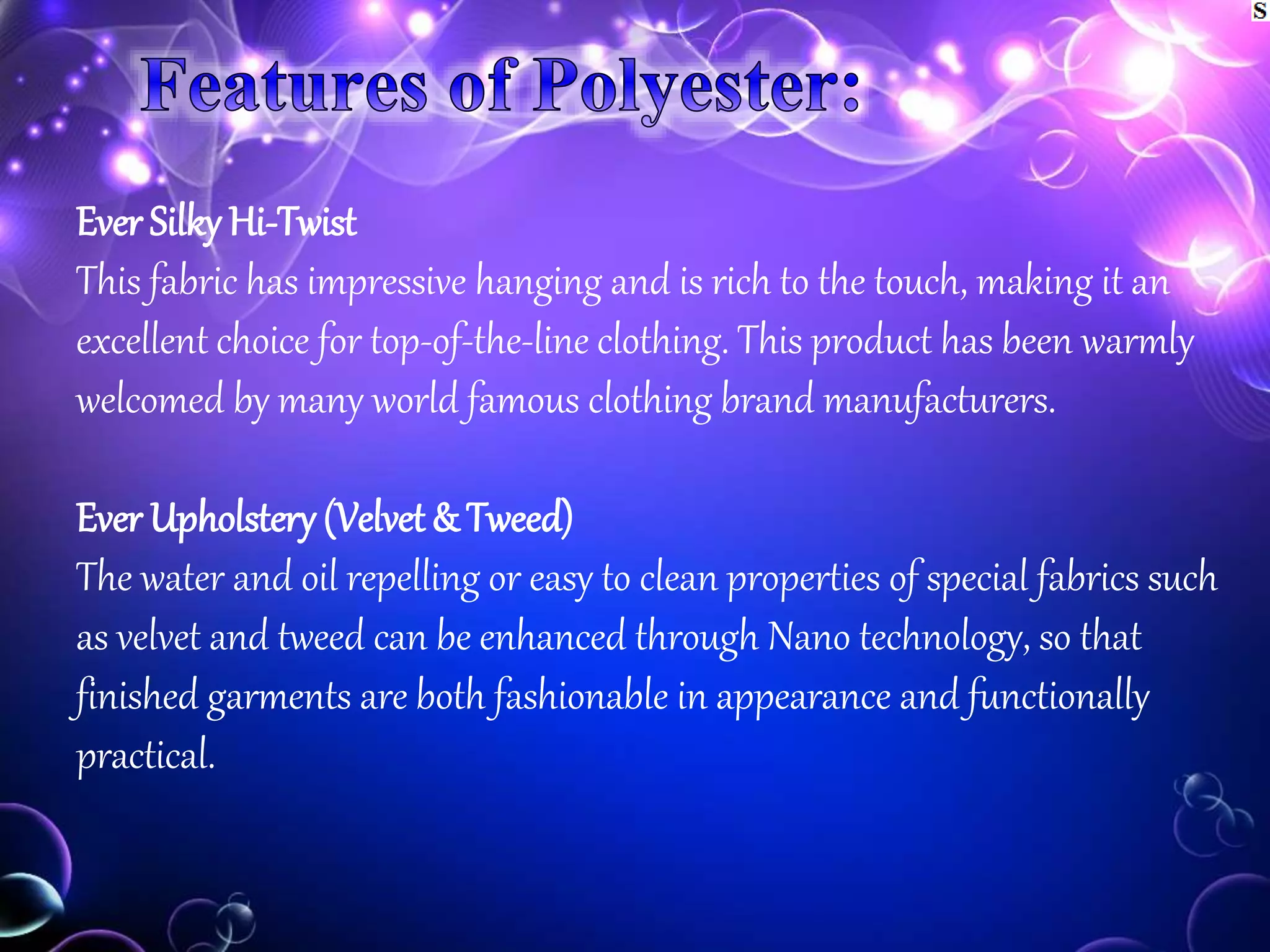

Ever Silky Hi-Twist
This fabric has impressive hanging and is rich to the touch, making it an
excellent choice for top-of-the-line clothing. This product has been warmly
welcomed by many world famous clothing brand manufacturers.
Ever Upholstery (Velvet& Tweed)
The water and oil repelling or easy to clean properties of special fabrics such
as velvet and tweed can be enhanced through Nano technology, so that
finished garments are both fashionable in appearance and functionally
practical.

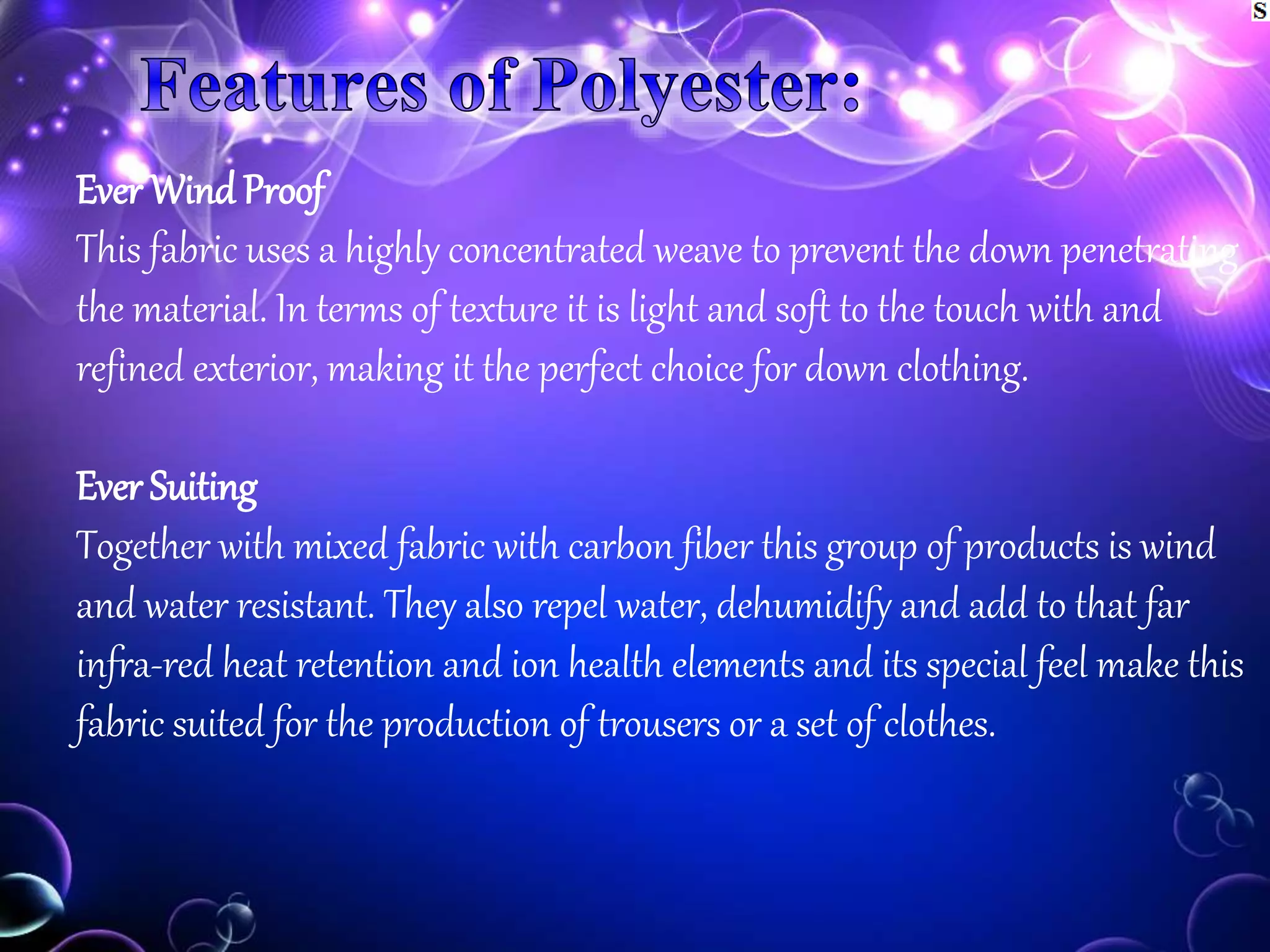

Ever Wind Proof
This fabric uses a highly concentrated weave to prevent the down penetrating
the material. In terms of texture it is light and soft to the touch with and
refined exterior, making it the perfect choice for down clothing.
Ever Suiting
Together with mixed fabric with carbon fiber this group of products is wind
and water resistant. They also repel water, dehumidify and add to that far
infra-red heat retention and ion health elements and its special feel make this
fabric suited for the production of trousers or a set of clothes.

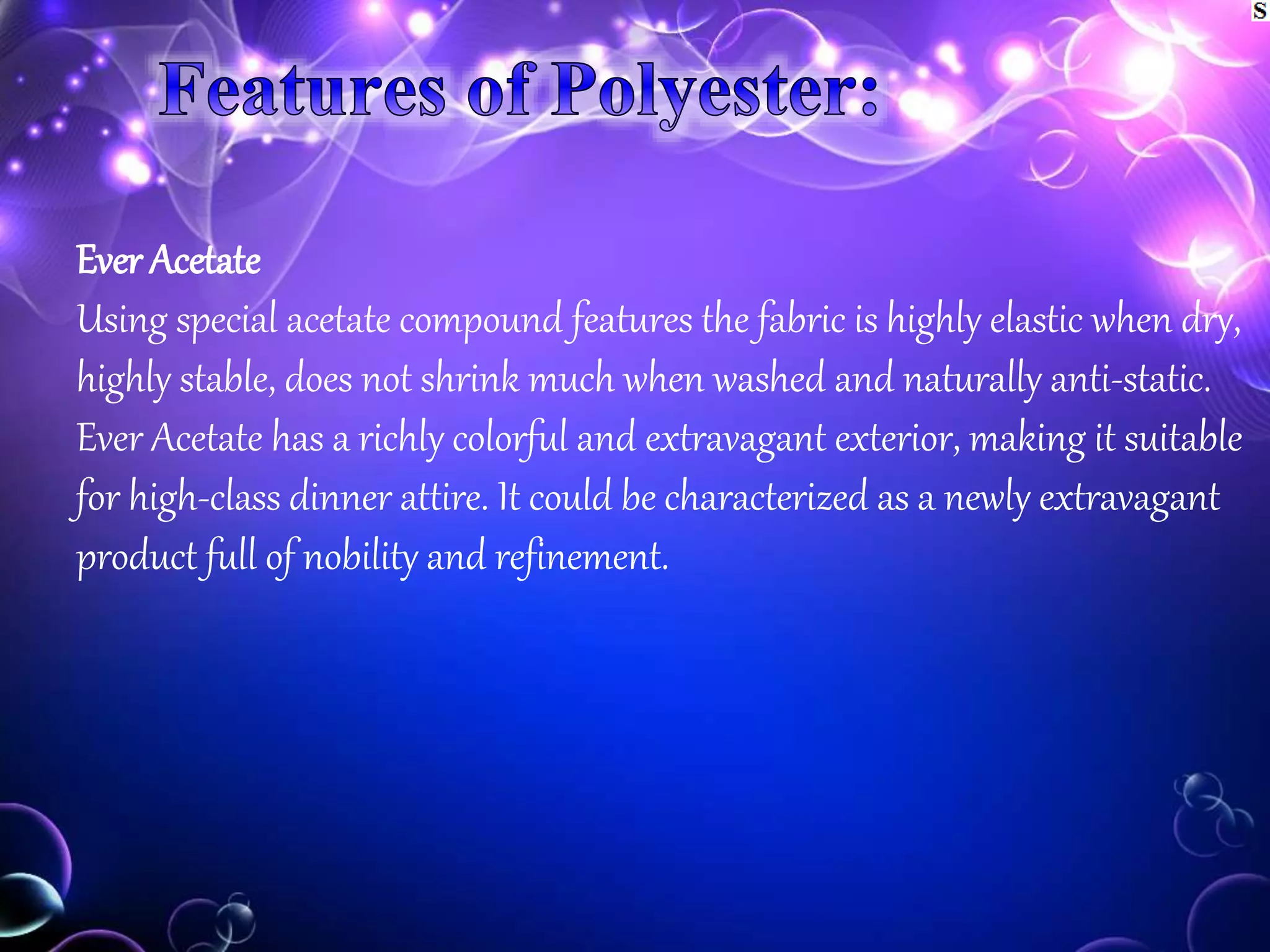

Ever Acetate
Using special acetate compound features the fabric is highly elastic when dry,
highly stable, does not shrink much when washed and naturally anti-static.
Ever Acetate has a richly colorful and extravagant exterior, making it suitable
for high-class dinner attire. It could be characterized as a newly extravagant
product full of nobility and refinement.

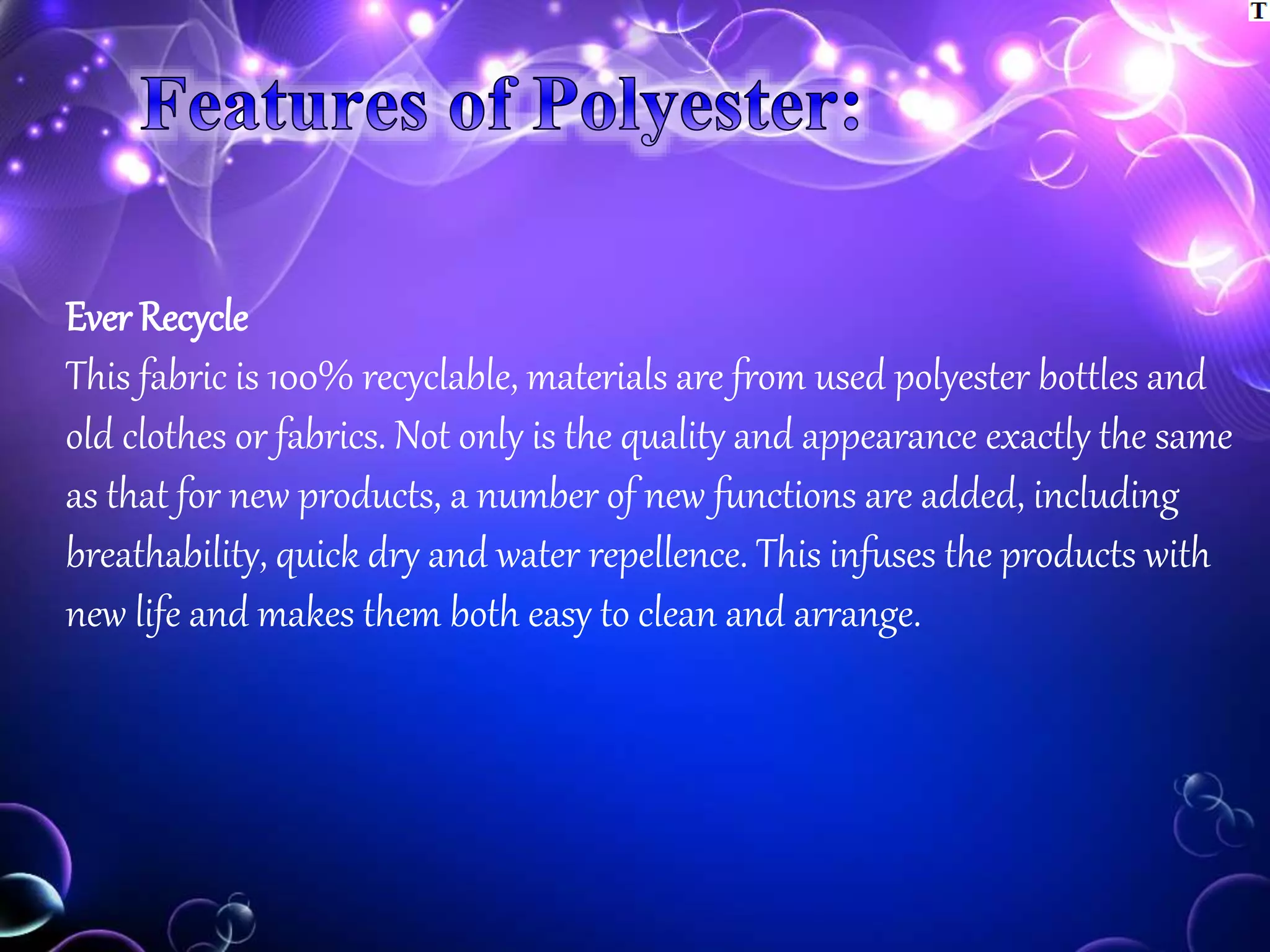

Ever Recycle
This fabric is 100% recyclable, materials are from used polyester bottles and
old clothes or fabrics. Not only is the quality and appearance exactly the same
as that for new products, a number of new functions are added, including
breathability, quick dry and water repellence. This infuses the products with
new life and makes them both easy to clean and arrange.

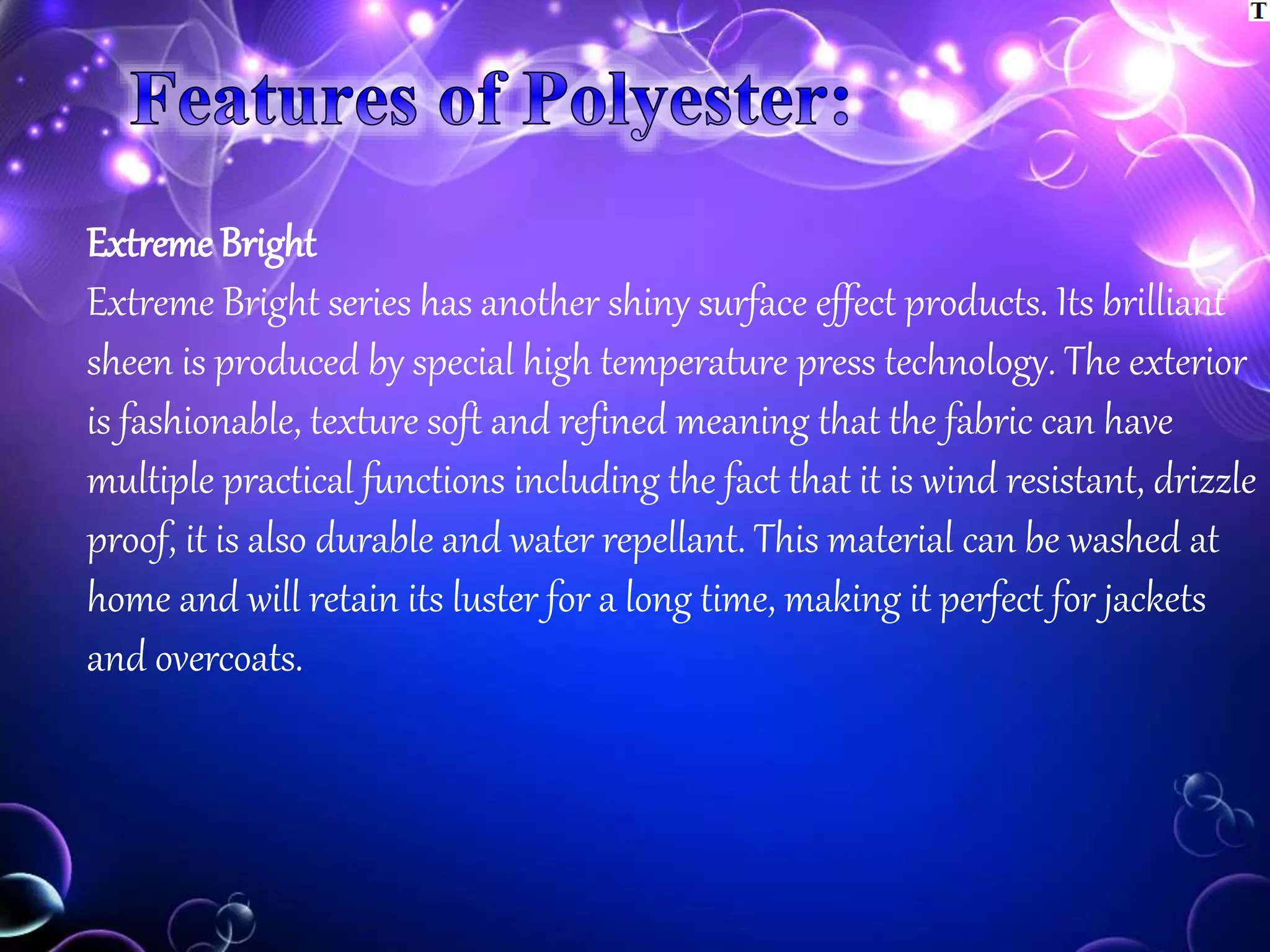

Extreme Bright
Extreme Bright series has another shiny surface effect products. Its brilliant
sheen is produced by special high temperature press technology. The exterior
is fashionable, texture soft and refined meaning that the fabric can have
multiple practical functions including the fact that it is wind resistant, drizzle
proof, it is also durable and water repellant. This material can be washed at
home and will retain its luster for a long time, making it perfect for jackets
and overcoats.

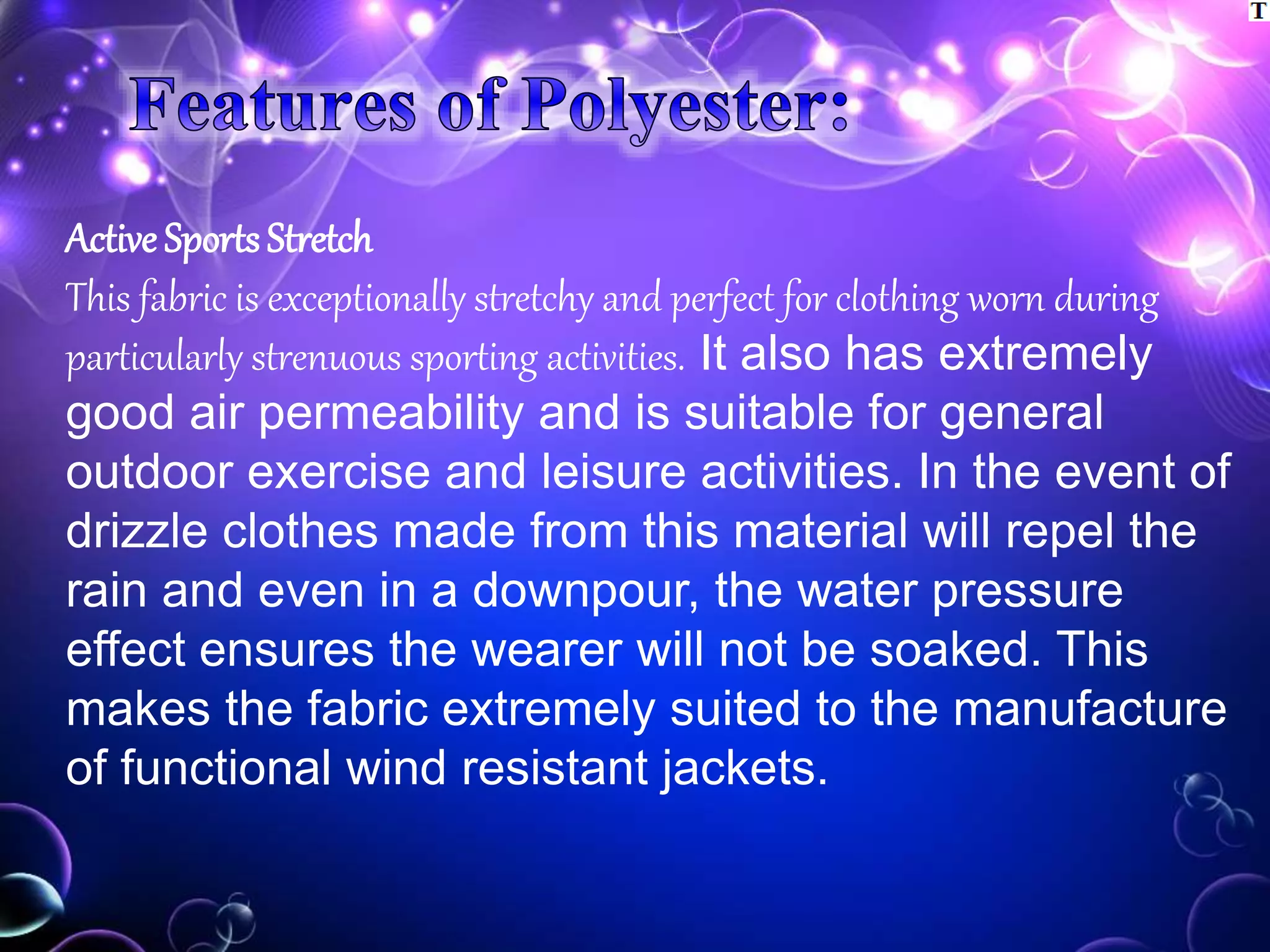

Active Sports Stretch
This fabric is exceptionally stretchy and perfect for clothing worn during
particularly strenuous sporting activities. It also has extremely
good air permeability and is suitable for general
outdoor exercise and leisure activities. In the event of
drizzle clothes made from this material will repel the
rain and even in a downpour, the water pressure
effect ensures the wearer will not be soaked. This
makes the fabric extremely suited to the manufacture
of functional wind resistant jackets.

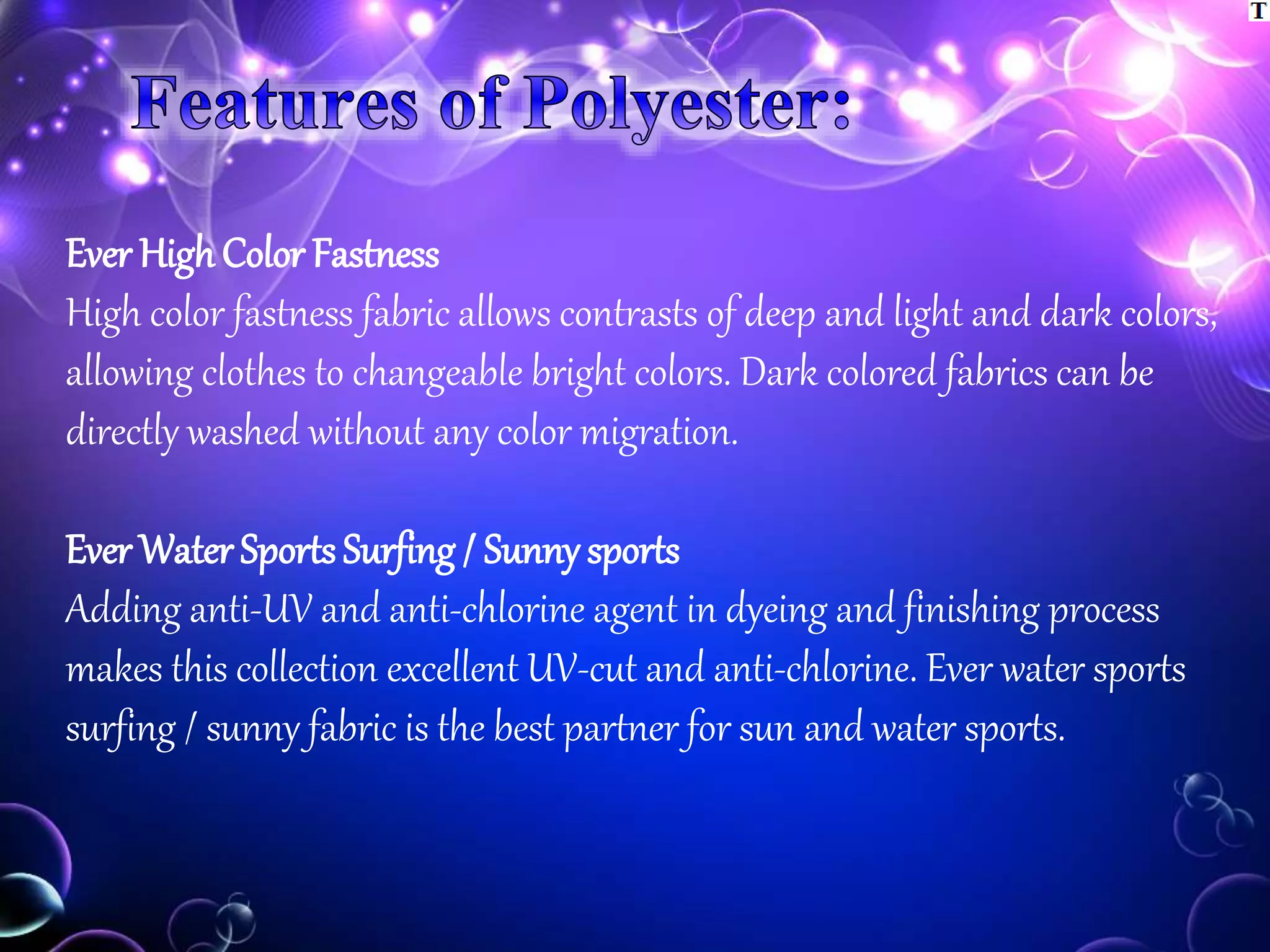

Ever HighColor Fastness
High color fastness fabric allows contrasts of deep and light and dark colors,
allowing clothes to changeable bright colors. Dark colored fabrics can be
directly washed without any color migration.
Ever Water Sports Surfing / Sunny sports
Adding anti-UV and anti-chlorine agent in dyeing and finishing process
makes this collection excellent UV-cut and anti-chlorine. Ever water sports
surfing / sunny fabric is the best partner for sun and water sports.

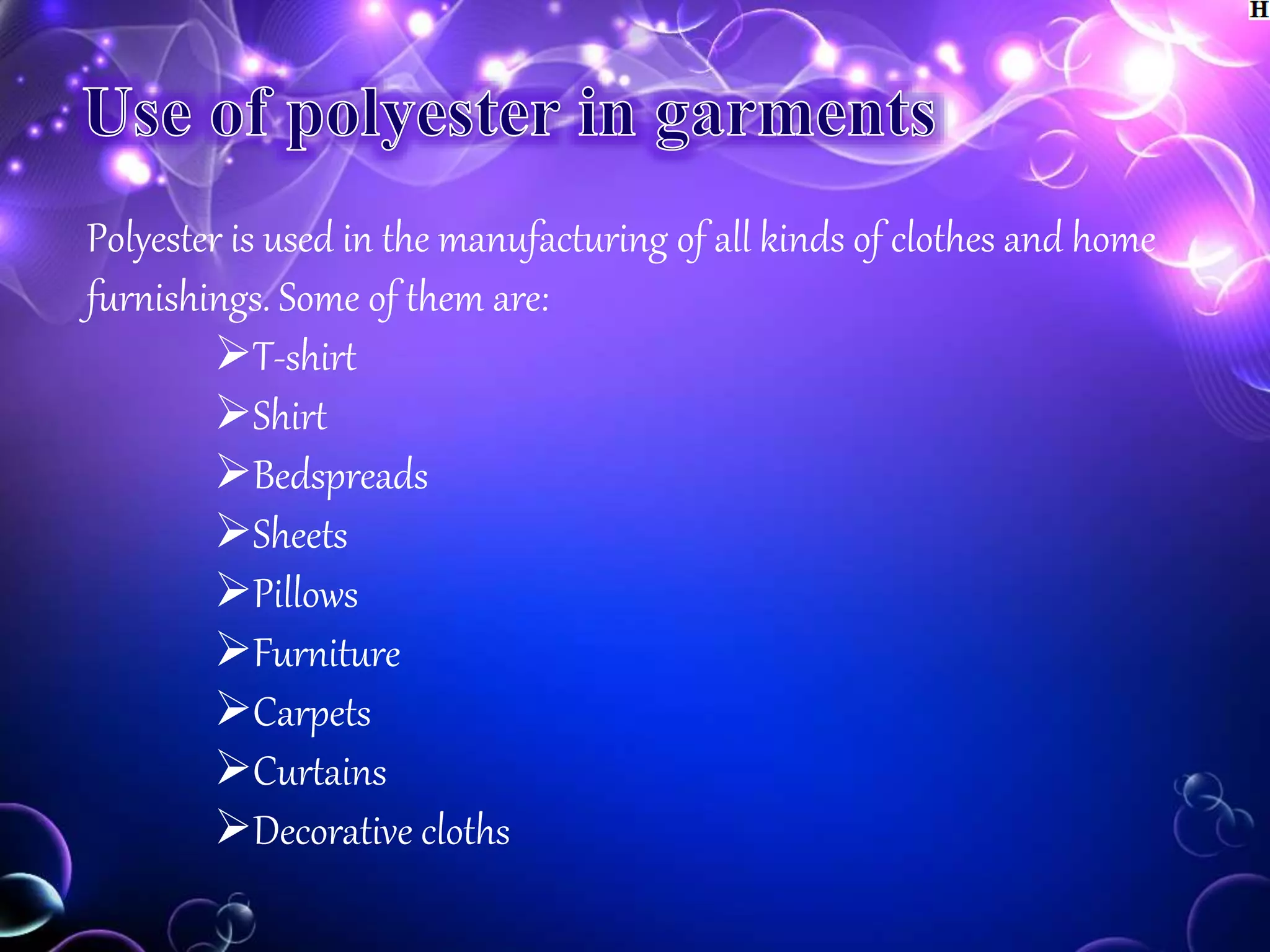

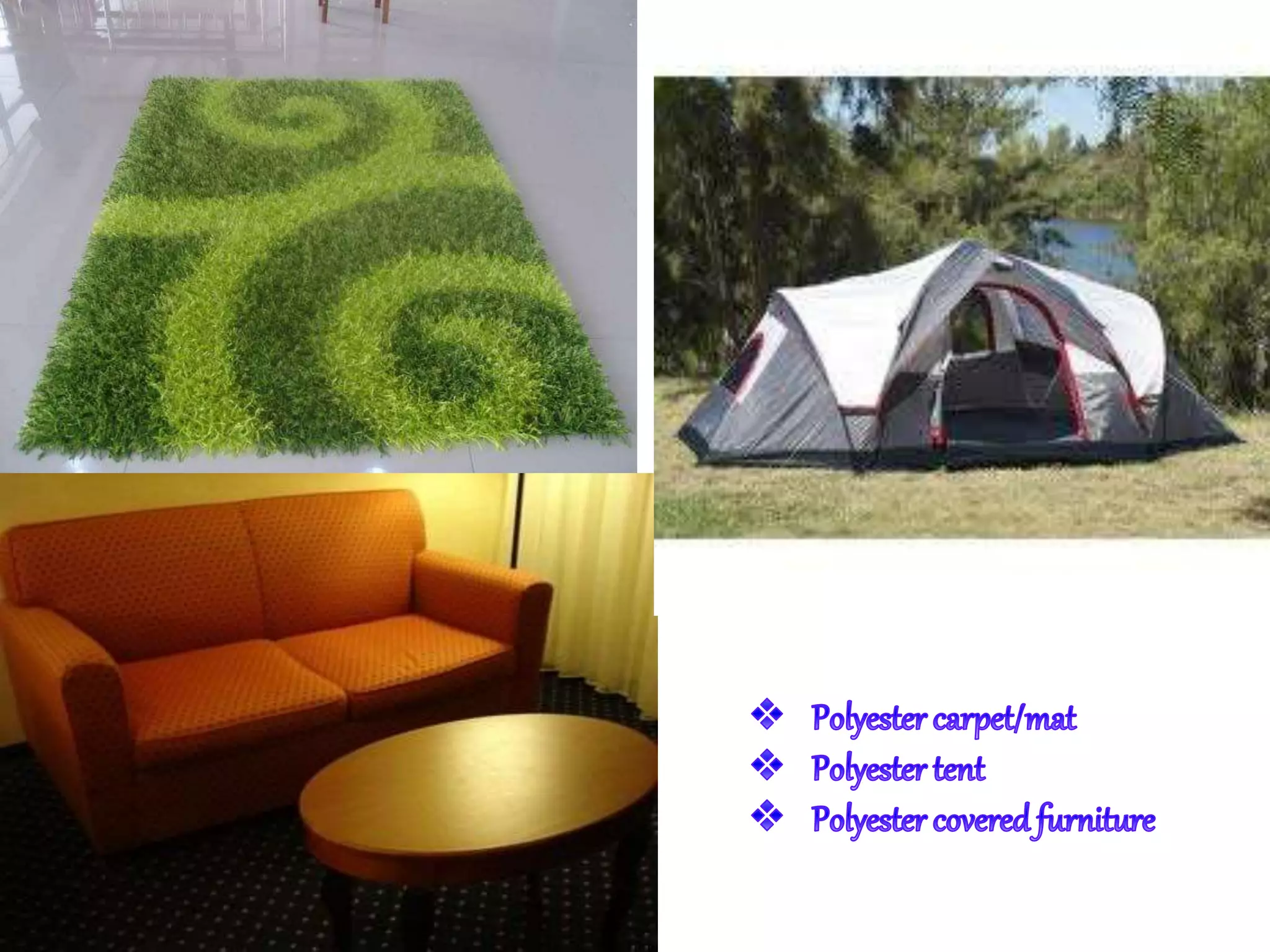

Polyester is used in the manufacturing of all kinds of clothes and home
furnishings. Some of them are:
T-shirt
Shirt
Bedspreads
Sheets
Pillows
Furniture
Carpets
Curtains
Decorative cloths

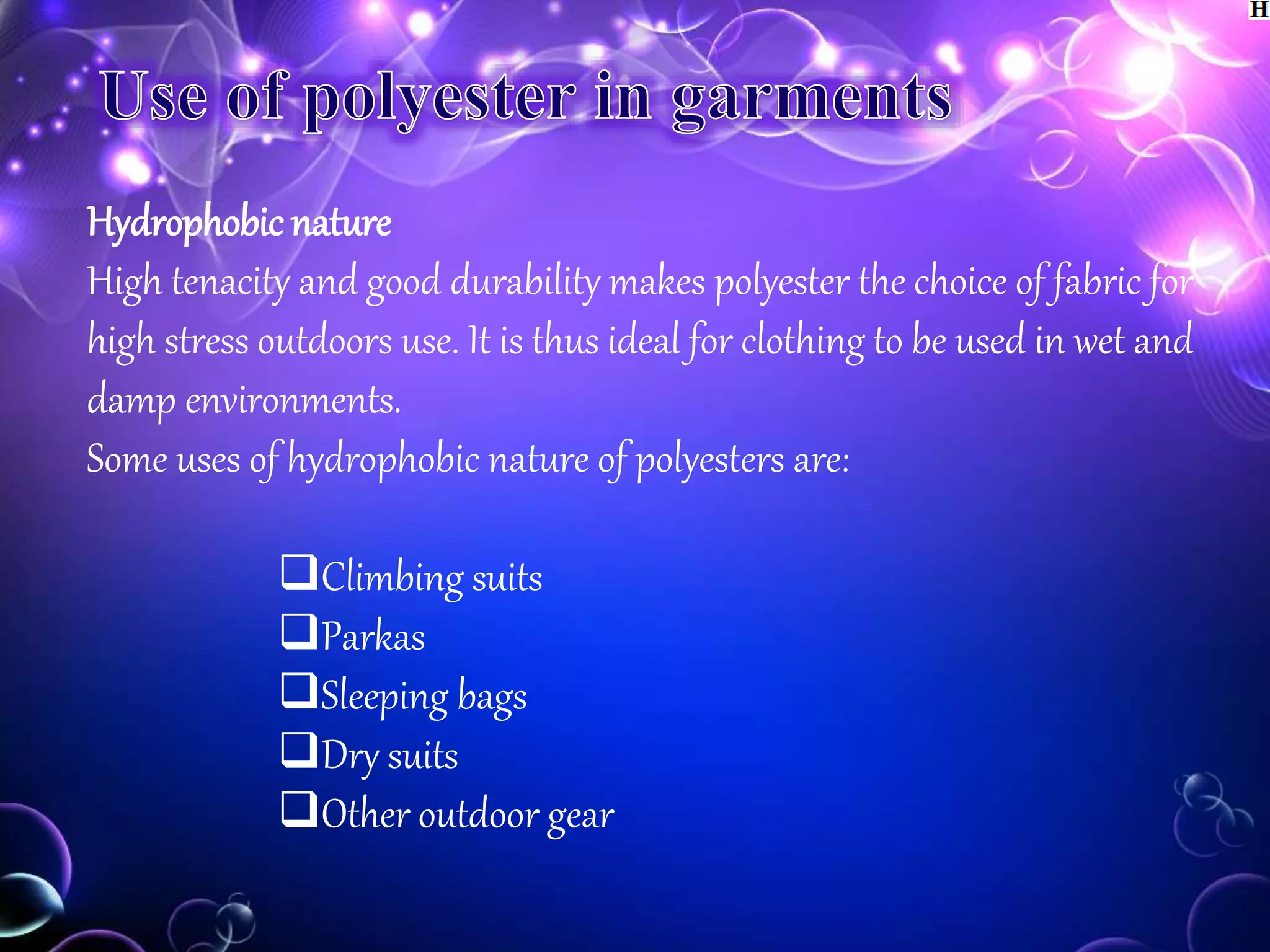

Hydrophobic nature
High tenacity and good durability makes polyester the choice of fabric for
high stress outdoors use. It is thus ideal for clothing to be used in wet and
damp environments.
Some uses of hydrophobic nature of polyesters are:
Climbing suits
Parkas
Sleeping bags
Dry suits
Other outdoor gear

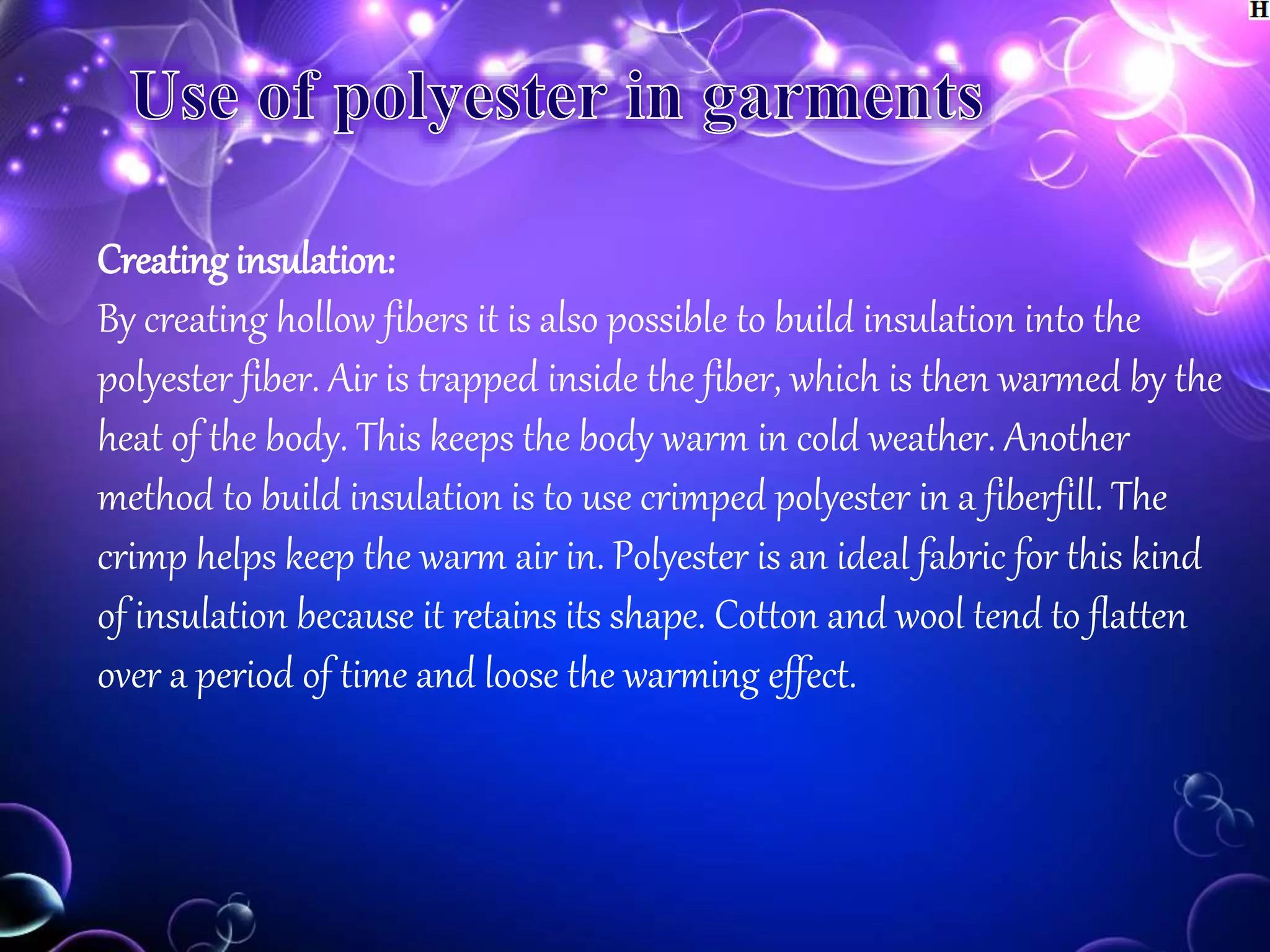

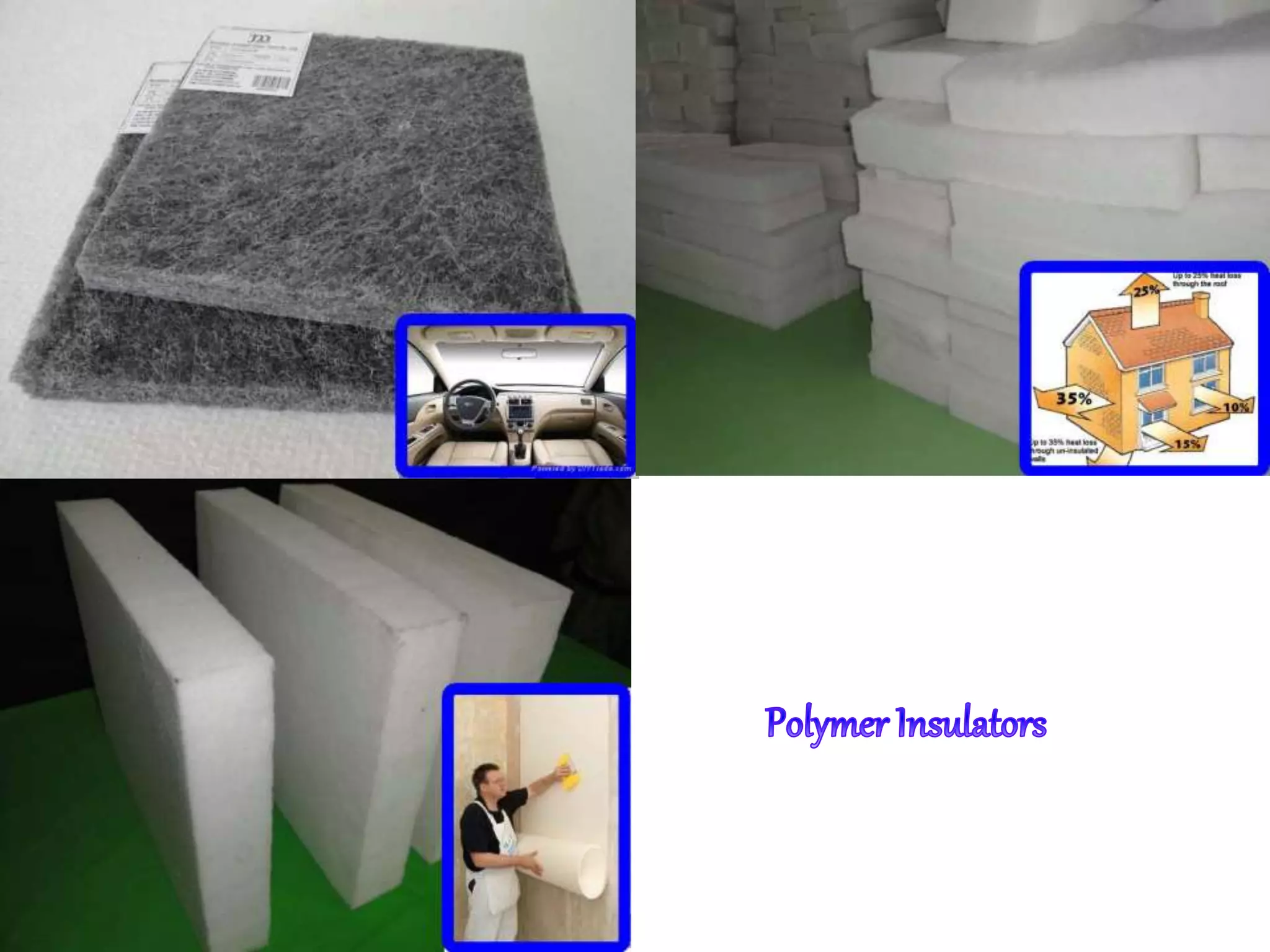

Creating insulation:
By creating hollow fibers it is also possible to build insulation into the
polyester fiber. Air is trapped inside the fiber, which is then warmed by the
heat of the body. This keeps the body warm in cold weather. Another
method to build insulation is to use crimped polyester in a fiberfill. The
crimp helps keep the warm air in. Polyester is an ideal fabric for this kind
of insulation because it retains its shape. Cotton and wool tend to flatten
over a period of time and loose the warming effect.

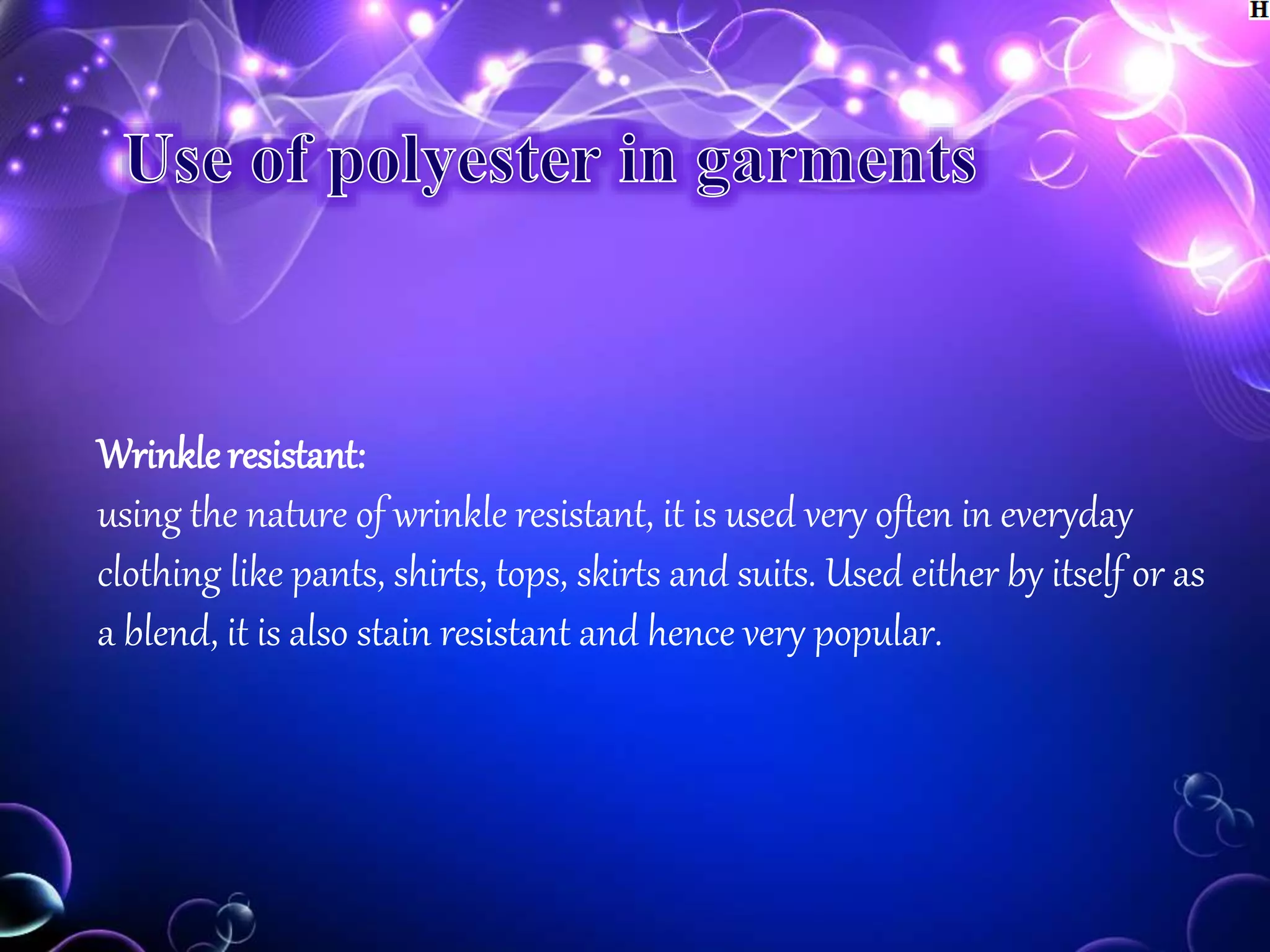

Wrinkle resistant:
using the nature of wrinkle resistant, it is used very often in everyday
clothing like pants, shirts, tops, skirts and suits. Used either by itself or as
a blend, it is also stain resistant and hence very popular.

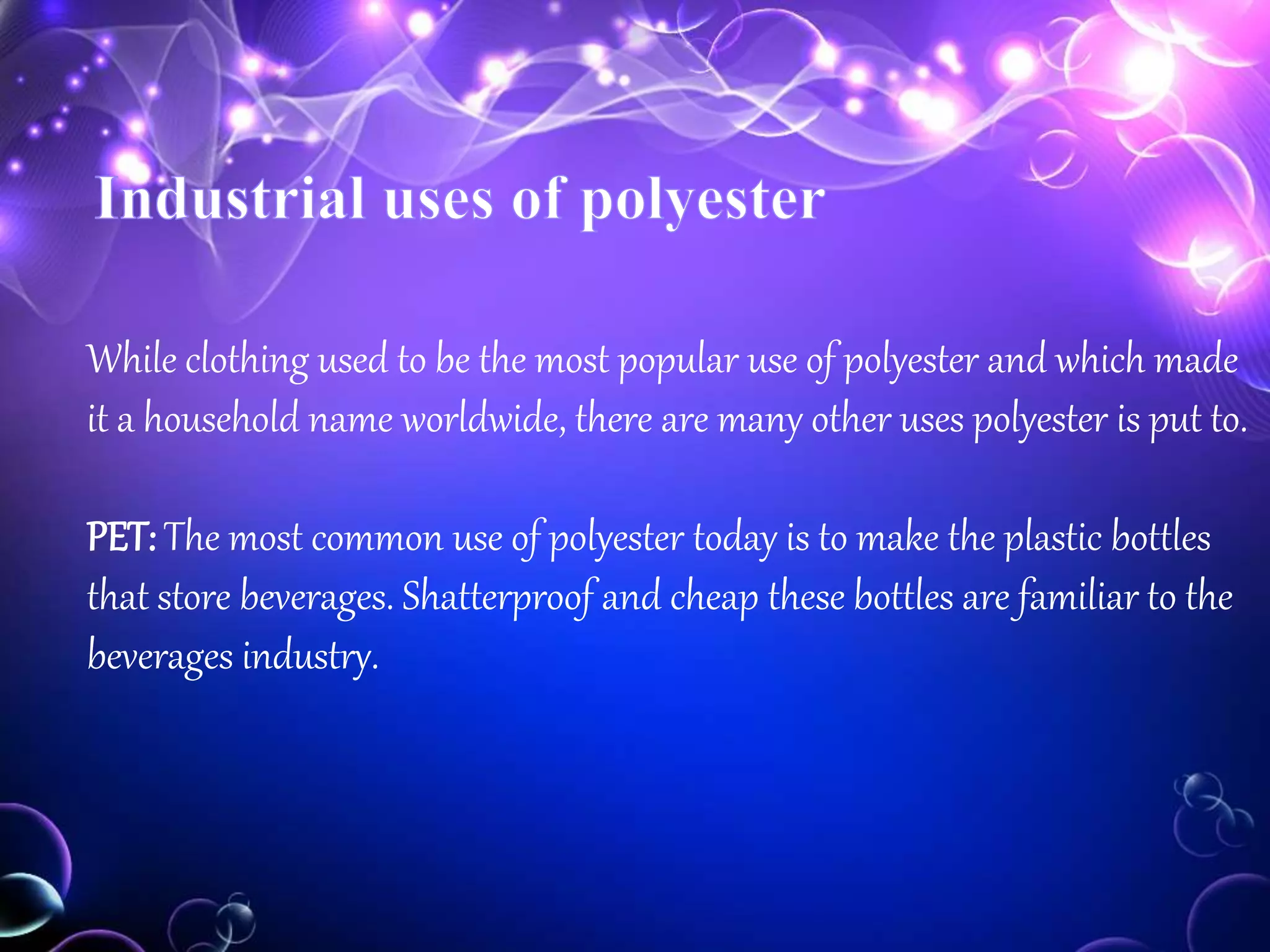

While clothing used to be the most popular use of polyester and which made
it a household name worldwide, there are many other uses polyester is put to.

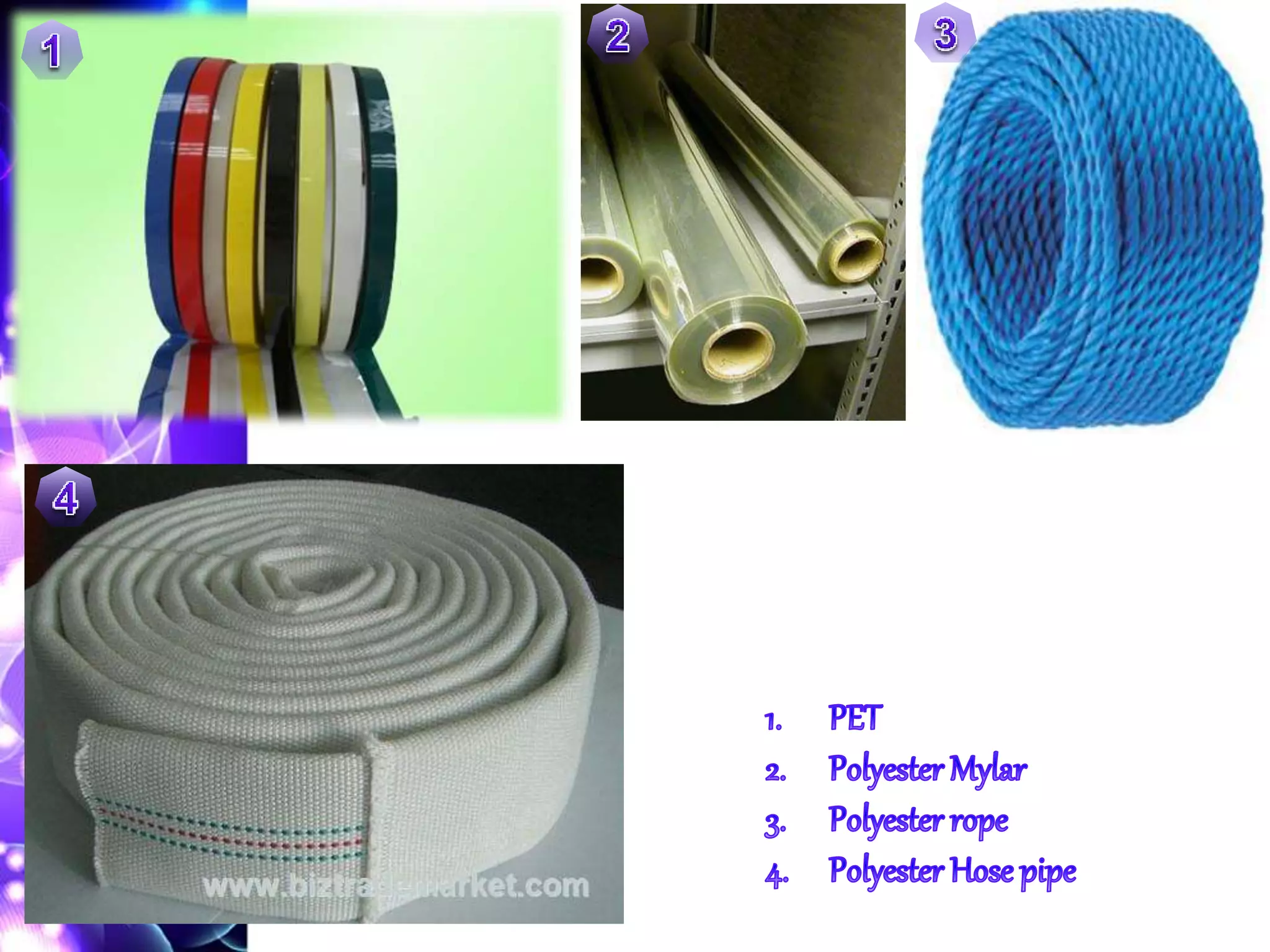

PET: The most common use of polyester today is to make the plastic bottles
that store beverages. Shatterproof and cheap these bottles are familiar to the
beverages industry.

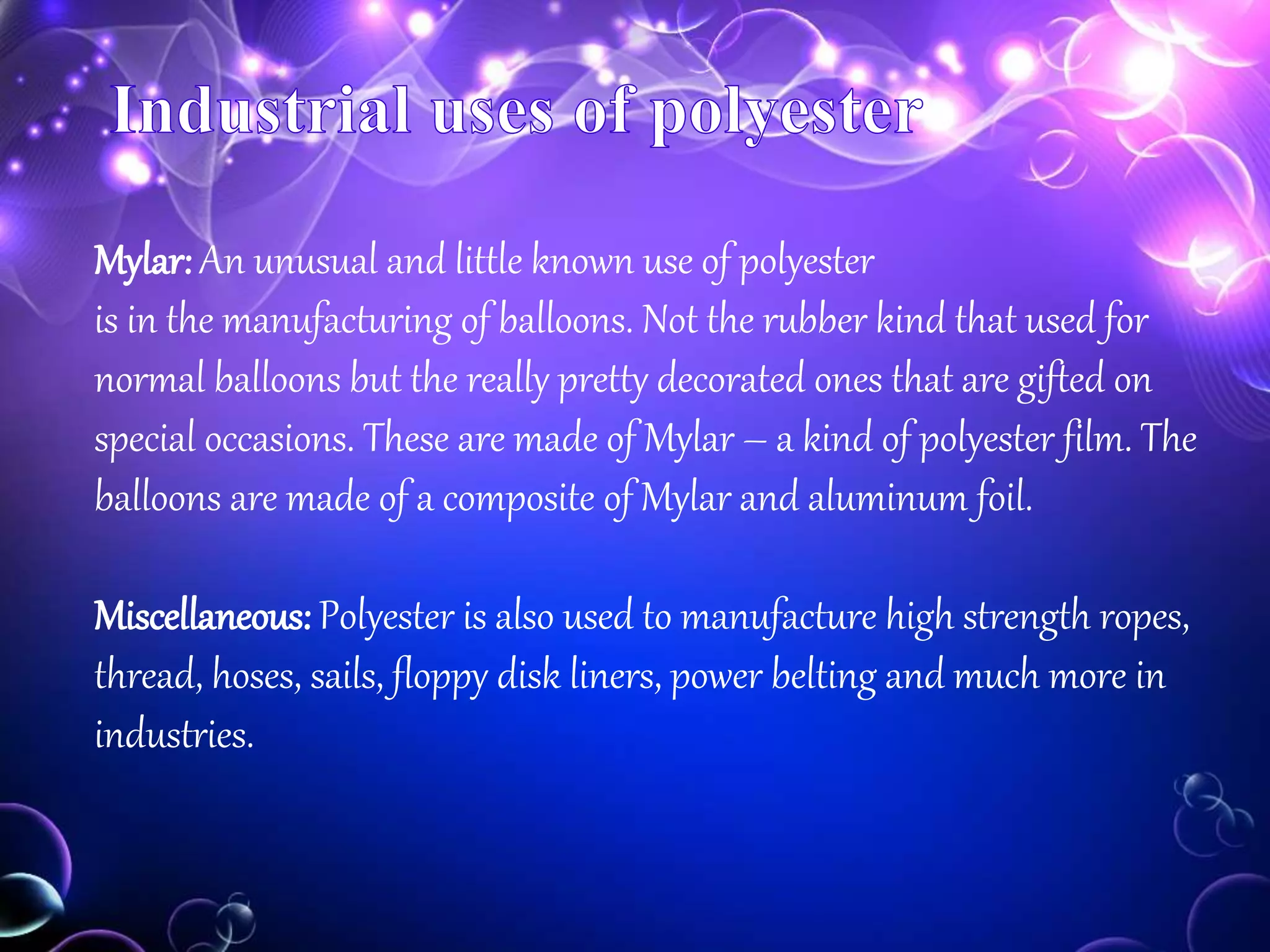

Mylar: An unusual and little known use of polyester
is in the manufacturing of balloons. Not the rubber kind that used for
normal balloons but the really pretty decorated ones that are gifted on
special occasions. These are made of Mylar – a kind of polyester film. The
balloons are made of a composite of Mylar and aluminum foil.
Miscellaneous: Polyester is also used to manufacture high strength ropes,
thread, hoses, sails, floppy disk liners, power belting and much more in
industries.

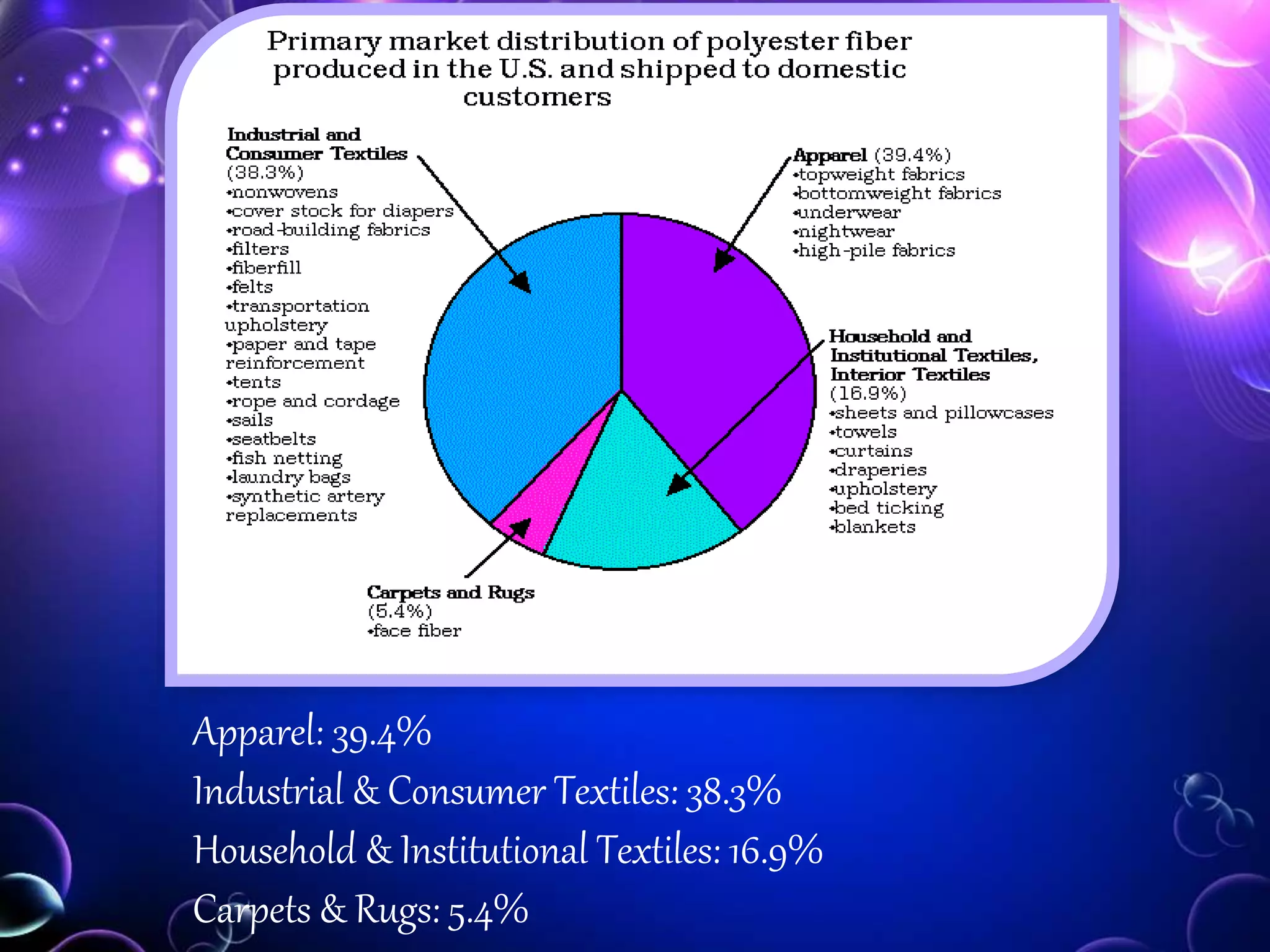

Apparel: 39.4%
Industrial & Consumer Textiles: 38.3%
Household & Institutional Textiles: 16.9%
Carpets & Rugs: 5.4%
Polyester & uses of polyester

More Related Content

What's hot

Dyeing presentation
Dyeing presentationDyeing presentation
Dyeing presentation
Kathiroli Raja

Tex,5 fibers
Tex,5 fibersTex,5 fibers
Tex,5 fibers
importerss

Properties of fibers
Properties of  fibersProperties of  fibers
Properties of fibersLily Bhagat

Optical brightening Agent
Optical brightening Agent Optical brightening Agent
Optical brightening Agent
Md. Mazadul Hasan Shishir

Textile Fiber ppt by B.A
Textile Fiber ppt by B.ATextile Fiber ppt by B.A
Textile Fiber ppt by B.A
Bademaw Abate

Textile fibres
Textile fibresTextile fibres
Textile fibres
Amit Kumar Das

Man made fibers
Man made fibersMan made fibers
Man made fibers
BILAL ABDULLAH

Wrinkle resistant finishes in textiles
Wrinkle resistant finishes in textilesWrinkle resistant finishes in textiles
Wrinkle resistant finishes in textiles
Shubham Singh

Chemical finishing in technical textile
Chemical finishing in technical textileChemical finishing in technical textile
Chemical finishing in technical textile
Universal institute of fashion technology

Yarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabricYarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabric
hema upadhayay

Flame retardant finishes
Flame retardant finishesFlame retardant finishes
Flame retardant finishestanveersahb

Acrylic fibre_Assignment
Acrylic fibre_AssignmentAcrylic fibre_Assignment
Acrylic fibre_Assignment
Amit Biswas

Properties of Fibers
Properties of FibersProperties of Fibers
Properties of Fibers
Chamal Jayasinghe

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre
Today Fasion ware

Nylon fibre
Nylon fibre Nylon fibre
Nylon fibre
Manjinder Singh


What's hot (20)

High performance fibres
High performance fibresHigh performance fibres
High performance fibres

Dyeing presentation
Dyeing presentationDyeing presentation
Dyeing presentation

Tex,5 fibers
Tex,5 fibersTex,5 fibers
Tex,5 fibers

Properties of fibers
Properties of  fibersProperties of  fibers
Properties of fibers

Fiber Science - Basics
Fiber Science - BasicsFiber Science - Basics
Fiber Science - Basics

Optical brightening Agent
Optical brightening Agent Optical brightening Agent
Optical brightening Agent

Textile Fiber ppt by B.A
Textile Fiber ppt by B.ATextile Fiber ppt by B.A
Textile Fiber ppt by B.A

Textile fibres
Textile fibresTextile fibres
Textile fibres

Man made fibers
Man made fibersMan made fibers
Man made fibers

Wrinkle resistant finishes in textiles
Wrinkle resistant finishes in textilesWrinkle resistant finishes in textiles
Wrinkle resistant finishes in textiles

Drawing man made fiber
Drawing man made fiberDrawing man made fiber
Drawing man made fiber

Chemical finishing in technical textile
Chemical finishing in technical textileChemical finishing in technical textile
Chemical finishing in technical textile

Yarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabricYarn properties effecting comfort of the fabric
Yarn properties effecting comfort of the fabric

Flame retardant finishes
Flame retardant finishesFlame retardant finishes
Flame retardant finishes

Acrylic fibre_Assignment
Acrylic fibre_AssignmentAcrylic fibre_Assignment
Acrylic fibre_Assignment

Properties of Fibers
Properties of FibersProperties of Fibers
Properties of Fibers

Textile chemical Dictionary
Textile chemical Dictionary Textile chemical Dictionary
Textile chemical Dictionary

Polyester fibre
Polyester fibrePolyester fibre
Polyester fibre

Nylon fibre
Nylon fibre Nylon fibre
Nylon fibre

Fibre science ppt by b.a
Fibre science ppt by b.aFibre science ppt by b.a
Fibre science ppt by b.a


Viewers also liked

Cotton fibre dyeing in textile
Cotton fibre dyeing in textileCotton fibre dyeing in textile
Cotton fibre dyeing in textile
Sazed Salman

Cyber Crime and Cyber Security
Cyber Crime and Cyber SecurityCyber Crime and Cyber Security
Cyber Crime and Cyber Security
Sazed Salman

Viscose Rayon (Cotton Modification)
Viscose Rayon (Cotton Modification)Viscose Rayon (Cotton Modification)
Viscose Rayon (Cotton Modification)
Sazed Salman

Steam boiler & its use in Textile
Steam boiler & its use in TextileSteam boiler & its use in Textile
Steam boiler & its use in Textile
Sazed Salman

Recycling & Waste Management
Recycling & Waste ManagementRecycling & Waste Management
Recycling & Waste Management
Sazed Salman

Metal Alloys
Metal AlloysMetal Alloys
Metal Alloys
Sazed Salman

Balaka Blade (Bangladesh)
Balaka Blade (Bangladesh)Balaka Blade (Bangladesh)
Balaka Blade (Bangladesh)
Sazed Salman

Factors of production
Factors of productionFactors of production
Factors of production
Sazed Salman

Mosque architecture of Bangladesh
Mosque architecture of BangladeshMosque architecture of Bangladesh
Mosque architecture of Bangladesh
Sazed Salman

Nanotechnology in textile
Nanotechnology in textileNanotechnology in textile
Nanotechnology in textile
Sazed Salman

Springs & uses of springs
Springs & uses of springsSprings & uses of springs
Springs & uses of springs
Sazed Salman

Benefits And Applications of PET Plastic Packaging
Benefits And Applications of PET Plastic PackagingBenefits And Applications of PET Plastic Packaging
Benefits And Applications of PET Plastic Packaging
plasticingenuity

Partially Oriented Yarn, Supplier of Polyester Yarn
Partially Oriented Yarn, Supplier of Polyester YarnPartially Oriented Yarn, Supplier of Polyester Yarn
Partially Oriented Yarn, Supplier of Polyester Yarn
Alliance Filaments

Speech / Reported Speech / Narration
Speech / Reported Speech / NarrationSpeech / Reported Speech / Narration
Speech / Reported Speech / Narration
Sazed Salman

Microfiber Technology
Microfiber Technology Microfiber Technology
Microfiber Technology
Azmir Latif Beg

Silk Manufacturing
Silk ManufacturingSilk Manufacturing
Silk Manufacturing
Sazed Salman

Polimer PET Polyethylene Terephthalate
Polimer PET Polyethylene TerephthalatePolimer PET Polyethylene Terephthalate
Polimer PET Polyethylene TerephthalateAkhmad Kautsar

Polyester - A Speciality Polymer
Polyester - A Speciality PolymerPolyester - A Speciality Polymer
Polyester - A Speciality Polymer
Romaan Sheikh


Viewers also liked (20)

Cotton fibre dyeing in textile
Cotton fibre dyeing in textileCotton fibre dyeing in textile
Cotton fibre dyeing in textile

Cyber Crime and Cyber Security
Cyber Crime and Cyber SecurityCyber Crime and Cyber Security
Cyber Crime and Cyber Security

Viscose Rayon (Cotton Modification)
Viscose Rayon (Cotton Modification)Viscose Rayon (Cotton Modification)
Viscose Rayon (Cotton Modification)

Steam boiler & its use in Textile
Steam boiler & its use in TextileSteam boiler & its use in Textile
Steam boiler & its use in Textile

Recycling & Waste Management
Recycling & Waste ManagementRecycling & Waste Management
Recycling & Waste Management

Metal Alloys
Metal AlloysMetal Alloys
Metal Alloys

Balaka Blade (Bangladesh)
Balaka Blade (Bangladesh)Balaka Blade (Bangladesh)
Balaka Blade (Bangladesh)

Factors of production
Factors of productionFactors of production
Factors of production

Mosque architecture of Bangladesh
Mosque architecture of BangladeshMosque architecture of Bangladesh
Mosque architecture of Bangladesh

Nanotechnology in textile
Nanotechnology in textileNanotechnology in textile
Nanotechnology in textile

Springs & uses of springs
Springs & uses of springsSprings & uses of springs
Springs & uses of springs

Benefits And Applications of PET Plastic Packaging
Benefits And Applications of PET Plastic PackagingBenefits And Applications of PET Plastic Packaging
Benefits And Applications of PET Plastic Packaging

Microfiber 19.03.13
Microfiber 19.03.13Microfiber 19.03.13
Microfiber 19.03.13

Partially Oriented Yarn, Supplier of Polyester Yarn
Partially Oriented Yarn, Supplier of Polyester YarnPartially Oriented Yarn, Supplier of Polyester Yarn
Partially Oriented Yarn, Supplier of Polyester Yarn

Textile dictionary
Textile dictionaryTextile dictionary
Textile dictionary

Speech / Reported Speech / Narration
Speech / Reported Speech / NarrationSpeech / Reported Speech / Narration
Speech / Reported Speech / Narration

Microfiber Technology
Microfiber Technology Microfiber Technology
Microfiber Technology

Silk Manufacturing
Silk ManufacturingSilk Manufacturing
Silk Manufacturing

Polimer PET Polyethylene Terephthalate
Polimer PET Polyethylene TerephthalatePolimer PET Polyethylene Terephthalate
Polimer PET Polyethylene Terephthalate

Polyester - A Speciality Polymer
Polyester - A Speciality PolymerPolyester - A Speciality Polymer
Polyester - A Speciality Polymer


Similar to Polyester & uses of polyester

The Uses for Nylon and Polyester.pdf
The Uses for Nylon and Polyester.pdfThe Uses for Nylon and Polyester.pdf
The Uses for Nylon and Polyester.pdf
Blogger

Polyester
Polyester Polyester
Polyester
Shahid Malik

Manufacturing of Recycled Polyester Fiber from used PET Bottles
Manufacturing of Recycled Polyester Fiber from used PET BottlesManufacturing of Recycled Polyester Fiber from used PET Bottles
Manufacturing of Recycled Polyester Fiber from used PET Bottles
Ajjay Kumar Gupta

Polyester fabric
Polyester fabricPolyester fabric
Polyester fabric
ShafiulArefinPial

class-8 science Chapter-1 synthetic fibers and plastics
class-8 science Chapter-1 synthetic fibers and plasticsclass-8 science Chapter-1 synthetic fibers and plastics
class-8 science Chapter-1 synthetic fibers and plastics
HrushikeshReddy14

garments---Effect of blent ratio on quality of polyester/cotton yarns
garments---Effect of blent ratio on quality of polyester/cotton yarnsgarments---Effect of blent ratio on quality of polyester/cotton yarns
garments---Effect of blent ratio on quality of polyester/cotton yarns
Apurba Adhikary

Synthetic fibres
Synthetic fibresSynthetic fibres
Synthetic fibres
Dr. Meeta Goklani

home textile
 home textile  home textile
home textile
akash gurle

Fiber properties & uses
Fiber properties & usesFiber properties & uses
Fiber properties & uses
Shoaib hasan

Textile scieces
Textile sciecesTextile scieces
Textile scieces
srsuganthifbs

Fibre,yarn,fabric
Fibre,yarn,fabricFibre,yarn,fabric
Polyester presentation
Polyester presentationPolyester presentation
Polyester presentation
krisha9002

Recycled Fabric From Pet Bottles
Recycled Fabric From Pet BottlesRecycled Fabric From Pet Bottles
Recycled Fabric From Pet Bottles
ConbelloTextile

Synthetic Fibres and Plants
Synthetic Fibres and PlantsSynthetic Fibres and Plants
Synthetic Fibres and Plants
Shyam Kumar Singh

Man Made Non Cellulosic Fiber - Polyester
Man Made Non Cellulosic Fiber - PolyesterMan Made Non Cellulosic Fiber - Polyester
Man Made Non Cellulosic Fiber - Polyester
Biniya Arakkal

Clothes fiber.pptx
Clothes fiber.pptxClothes fiber.pptx
Clothes fiber.pptx
AhmadHashlamon

understand fabric finishes ppt for students.pptx
understand fabric finishes ppt for students.pptxunderstand fabric finishes ppt for students.pptx
understand fabric finishes ppt for students.pptx
laboratoriumpencelup

Different Types of Tarpaulin Material.pdf
Different Types of Tarpaulin Material.pdfDifferent Types of Tarpaulin Material.pdf
Different Types of Tarpaulin Material.pdf
Buy Tarpaulins UK

Man made fiber spinnning technology and commonly used man made fiber producti...
Man made fiber spinnning technology and commonly used man made fiber producti...Man made fiber spinnning technology and commonly used man made fiber producti...
Man made fiber spinnning technology and commonly used man made fiber producti...
Bademaw Abate

Agrotextile
AgrotextileAgrotextile
Agrotextile
Azmir Latif Beg


Similar to Polyester & uses of polyester (20)

The Uses for Nylon and Polyester.pdf
The Uses for Nylon and Polyester.pdfThe Uses for Nylon and Polyester.pdf
The Uses for Nylon and Polyester.pdf

Polyester
Polyester Polyester
Polyester

Manufacturing of Recycled Polyester Fiber from used PET Bottles
Manufacturing of Recycled Polyester Fiber from used PET BottlesManufacturing of Recycled Polyester Fiber from used PET Bottles
Manufacturing of Recycled Polyester Fiber from used PET Bottles

Polyester fabric
Polyester fabricPolyester fabric
Polyester fabric

class-8 science Chapter-1 synthetic fibers and plastics
class-8 science Chapter-1 synthetic fibers and plasticsclass-8 science Chapter-1 synthetic fibers and plastics
class-8 science Chapter-1 synthetic fibers and plastics

garments---Effect of blent ratio on quality of polyester/cotton yarns
garments---Effect of blent ratio on quality of polyester/cotton yarnsgarments---Effect of blent ratio on quality of polyester/cotton yarns
garments---Effect of blent ratio on quality of polyester/cotton yarns

Synthetic fibres
Synthetic fibresSynthetic fibres
Synthetic fibres

home textile
 home textile  home textile
home textile

Fiber properties & uses
Fiber properties & usesFiber properties & uses
Fiber properties & uses

Textile scieces
Textile sciecesTextile scieces
Textile scieces

Fibre,yarn,fabric
Fibre,yarn,fabricFibre,yarn,fabric
Fibre,yarn,fabric

Polyester presentation
Polyester presentationPolyester presentation
Polyester presentation

Recycled Fabric From Pet Bottles
Recycled Fabric From Pet BottlesRecycled Fabric From Pet Bottles
Recycled Fabric From Pet Bottles

Synthetic Fibres and Plants
Synthetic Fibres and PlantsSynthetic Fibres and Plants
Synthetic Fibres and Plants

Man Made Non Cellulosic Fiber - Polyester
Man Made Non Cellulosic Fiber - PolyesterMan Made Non Cellulosic Fiber - Polyester
Man Made Non Cellulosic Fiber - Polyester

Clothes fiber.pptx
Clothes fiber.pptxClothes fiber.pptx
Clothes fiber.pptx

understand fabric finishes ppt for students.pptx
understand fabric finishes ppt for students.pptxunderstand fabric finishes ppt for students.pptx
understand fabric finishes ppt for students.pptx

Different Types of Tarpaulin Material.pdf
Different Types of Tarpaulin Material.pdfDifferent Types of Tarpaulin Material.pdf
Different Types of Tarpaulin Material.pdf

Man made fiber spinnning technology and commonly used man made fiber producti...
Man made fiber spinnning technology and commonly used man made fiber producti...Man made fiber spinnning technology and commonly used man made fiber producti...
Man made fiber spinnning technology and commonly used man made fiber producti...

Agrotextile
AgrotextileAgrotextile
Agrotextile


Recently uploaded

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Dr.Costas Sachpazis

Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.
PrashantGoswami42

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Teleport Manpower Consultant

Halogenation process of chemical process industries
Halogenation process of chemical process industriesHalogenation process of chemical process industries
Halogenation process of chemical process industries
MuhammadTufail242431

J.Yang, ICLR 2024, MLILAB, KAIST AI.pdf
J.Yang,  ICLR 2024, MLILAB, KAIST AI.pdfJ.Yang,  ICLR 2024, MLILAB, KAIST AI.pdf
J.Yang, ICLR 2024, MLILAB, KAIST AI.pdf
MLILAB

TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSE
TECHNICAL TRAINING MANUAL   GENERAL FAMILIARIZATION COURSETECHNICAL TRAINING MANUAL   GENERAL FAMILIARIZATION COURSE
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSE
DuvanRamosGarzon1

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf
gdsczhcet

COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfCOLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
Kamal Acharya

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective
karthi keyan

ethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.pptethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.ppt
Jayaprasanna4

Railway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdfRailway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdf
TeeVichai

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.
ankuprajapati0525

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf
Kamal Acharya

road safety engineering r s e unit 3.pdf
road safety engineering  r s e unit 3.pdfroad safety engineering  r s e unit 3.pdf
road safety engineering r s e unit 3.pdf
VENKATESHvenky89705

Democratizing Fuzzing at Scale by Abhishek Arya
Democratizing Fuzzing at Scale by Abhishek AryaDemocratizing Fuzzing at Scale by Abhishek Arya
Democratizing Fuzzing at Scale by Abhishek Arya
abh.arya

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Sreedhar Chowdam

addressing modes in computer architecture
addressing modes  in computer architectureaddressing modes  in computer architecture
addressing modes in computer architecture
ShahidSultan24

LIGA(E)11111111111111111111111111111111111111111.ppt
LIGA(E)11111111111111111111111111111111111111111.pptLIGA(E)11111111111111111111111111111111111111111.ppt
LIGA(E)11111111111111111111111111111111111111111.ppt
ssuser9bd3ba

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx
ViniHema

HYDROPOWER - Hydroelectric power generation
HYDROPOWER - Hydroelectric power generationHYDROPOWER - Hydroelectric power generation
HYDROPOWER - Hydroelectric power generation
Robbie Edward Sayers


Recently uploaded (20)

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...

Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf

Halogenation process of chemical process industries
Halogenation process of chemical process industriesHalogenation process of chemical process industries
Halogenation process of chemical process industries

J.Yang, ICLR 2024, MLILAB, KAIST AI.pdf
J.Yang,  ICLR 2024, MLILAB, KAIST AI.pdfJ.Yang,  ICLR 2024, MLILAB, KAIST AI.pdf
J.Yang, ICLR 2024, MLILAB, KAIST AI.pdf

TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSE
TECHNICAL TRAINING MANUAL   GENERAL FAMILIARIZATION COURSETECHNICAL TRAINING MANUAL   GENERAL FAMILIARIZATION COURSE
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSE

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf

COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfCOLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective

ethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.pptethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.ppt

Railway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdfRailway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdf

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf

road safety engineering r s e unit 3.pdf
road safety engineering  r s e unit 3.pdfroad safety engineering  r s e unit 3.pdf
road safety engineering r s e unit 3.pdf

Democratizing Fuzzing at Scale by Abhishek Arya
Democratizing Fuzzing at Scale by Abhishek AryaDemocratizing Fuzzing at Scale by Abhishek Arya
Democratizing Fuzzing at Scale by Abhishek Arya

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B

addressing modes in computer architecture
addressing modes  in computer architectureaddressing modes  in computer architecture
addressing modes in computer architecture

LIGA(E)11111111111111111111111111111111111111111.ppt
LIGA(E)11111111111111111111111111111111111111111.pptLIGA(E)11111111111111111111111111111111111111111.ppt
LIGA(E)11111111111111111111111111111111111111111.ppt

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx

HYDROPOWER - Hydroelectric power generation
HYDROPOWER - Hydroelectric power generationHYDROPOWER - Hydroelectric power generation
HYDROPOWER - Hydroelectric power generation


Polyester & uses of polyester

  • 2. Polyester is a category of polymers which contain the ester functional group in their main chain. Polyester fiber is an economical product with water absorbency, wind resistance, water repellence, and quick dry function. Relatively short fiber and nylon products are particularly good at eliminating sweat, making it an excellent choice for sports clothing Although there are many polyesters, the term "polyester" as a specific material most commonly refers to polyethylene terephthalate (PET).
  • 3. Depending on the chemical structure, polyester can be a thermoplastic or thermosets. However, the most common polyesters are thermoplastics. According to procedure of polyester, there are two types. Natural Polyester Synthetic Polyester Natural polyesters and a few synthetic ones are biodegradable, but most synthetic polyesters are not.
  • 4. For the synthetic polyesters, a di-carboxyilic acid reacts with an alcohol (di- alcohol) and makes polyester.

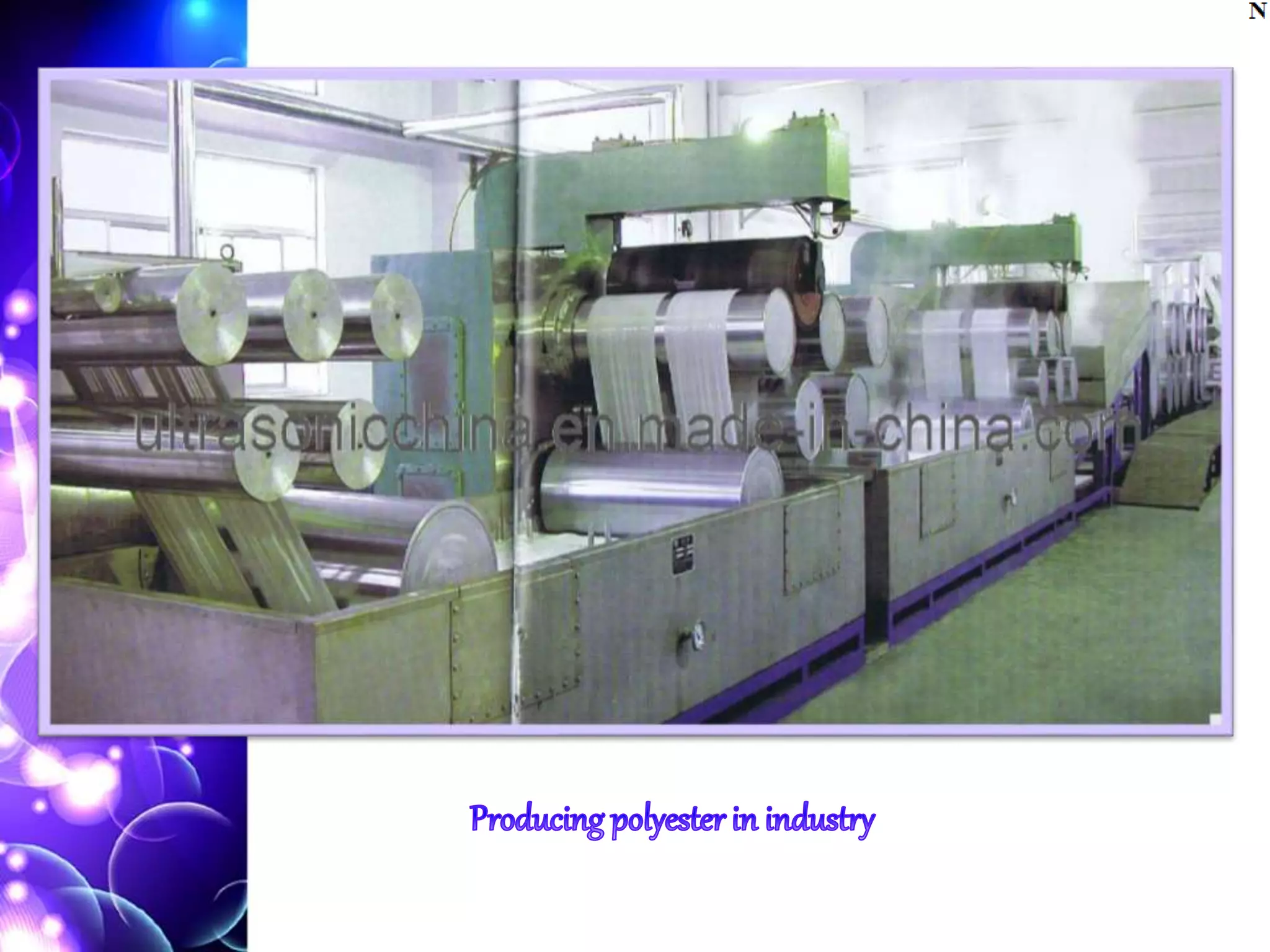

  • 5.

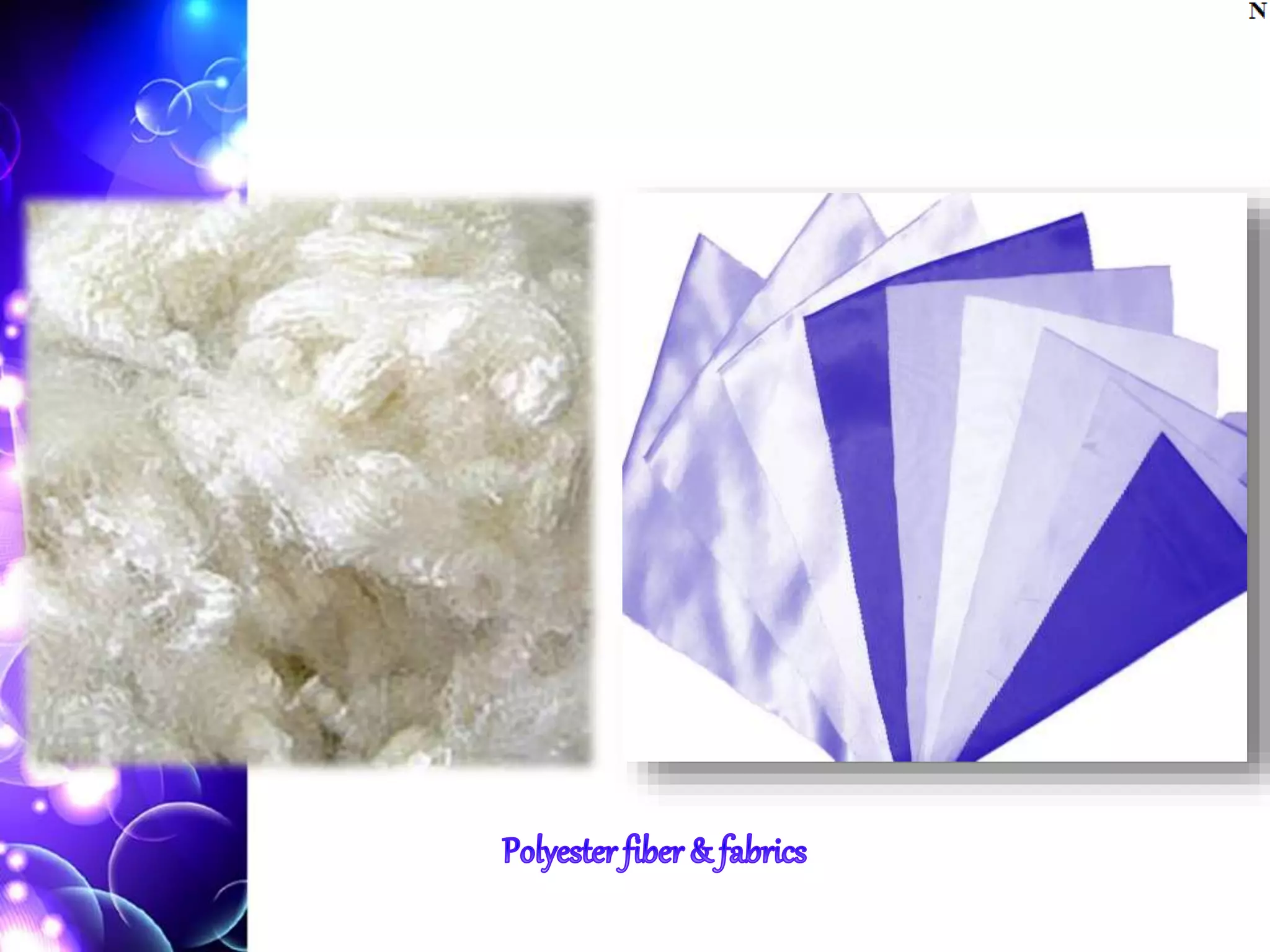

  • 6.
  • 7.
  • 8.  Strong  Resistant to stretching and shrinking  Resistant to most chemicals  Quick drying  Crisp and resilient when wet or dry  Wrinkle resistant  Mildew resistant  Abrasion resistant  Retains heat-set pleats and crease  Easily washed
  • 9. Due to many reasons polyester is one of a useful fiber &fabric all over the world. People over the world use polyester cloths. Some of its importance reasons are:  Comfortable  Lustrous  Cheap  Usable for any purpose  Recyclable  Not harmful for body  Wrinkle resistant
  • 10. Polyester fibers are available in 4 tenacity levels LowPill Fibers 3.0 to 3.5 gpd 45-55% MediumTenacity 4.8 to 5.0 gpd 12-14% HighTenacity 6.0 to 6.4 gpd 16-20% SuperHighTenacity 7.0 gpd and above 25-30% Grams per Denier Breaking Extension
  • 11. POLYESTER RESIN Polyester resins are used in sheet moulding compound, bulk moulding compound and the toner of laser printers. Wall panels fabricated from polyester resins reinforced with fiberglass — so-called fiberglass reinforced plastic (FRP) — are typically used in restaurants, kitchens, restrooms and other areas that require washable low-maintenance walls.
  • 12.
  • 13. Ever QuickDry / UV Cut/Anti Chlorine This type of fabric absorbs moisture and is sweat conductive, making it suitable for making sports jerseys and shorts; anti-UV fabric allows the wearer to relax even on hot sunny days; anti chlorine fabric also removes the need for concern for color migration when playing on the beach.
  • 14. Ever Silky Hi-Twist This fabric has impressive hanging and is rich to the touch, making it an excellent choice for top-of-the-line clothing. This product has been warmly welcomed by many world famous clothing brand manufacturers. Ever Upholstery (Velvet& Tweed) The water and oil repelling or easy to clean properties of special fabrics such as velvet and tweed can be enhanced through Nano technology, so that finished garments are both fashionable in appearance and functionally practical.
  • 15.
  • 16. Ever Wind Proof This fabric uses a highly concentrated weave to prevent the down penetrating the material. In terms of texture it is light and soft to the touch with and refined exterior, making it the perfect choice for down clothing. Ever Suiting Together with mixed fabric with carbon fiber this group of products is wind and water resistant. They also repel water, dehumidify and add to that far infra-red heat retention and ion health elements and its special feel make this fabric suited for the production of trousers or a set of clothes.
  • 17. Ever Acetate Using special acetate compound features the fabric is highly elastic when dry, highly stable, does not shrink much when washed and naturally anti-static. Ever Acetate has a richly colorful and extravagant exterior, making it suitable for high-class dinner attire. It could be characterized as a newly extravagant product full of nobility and refinement.

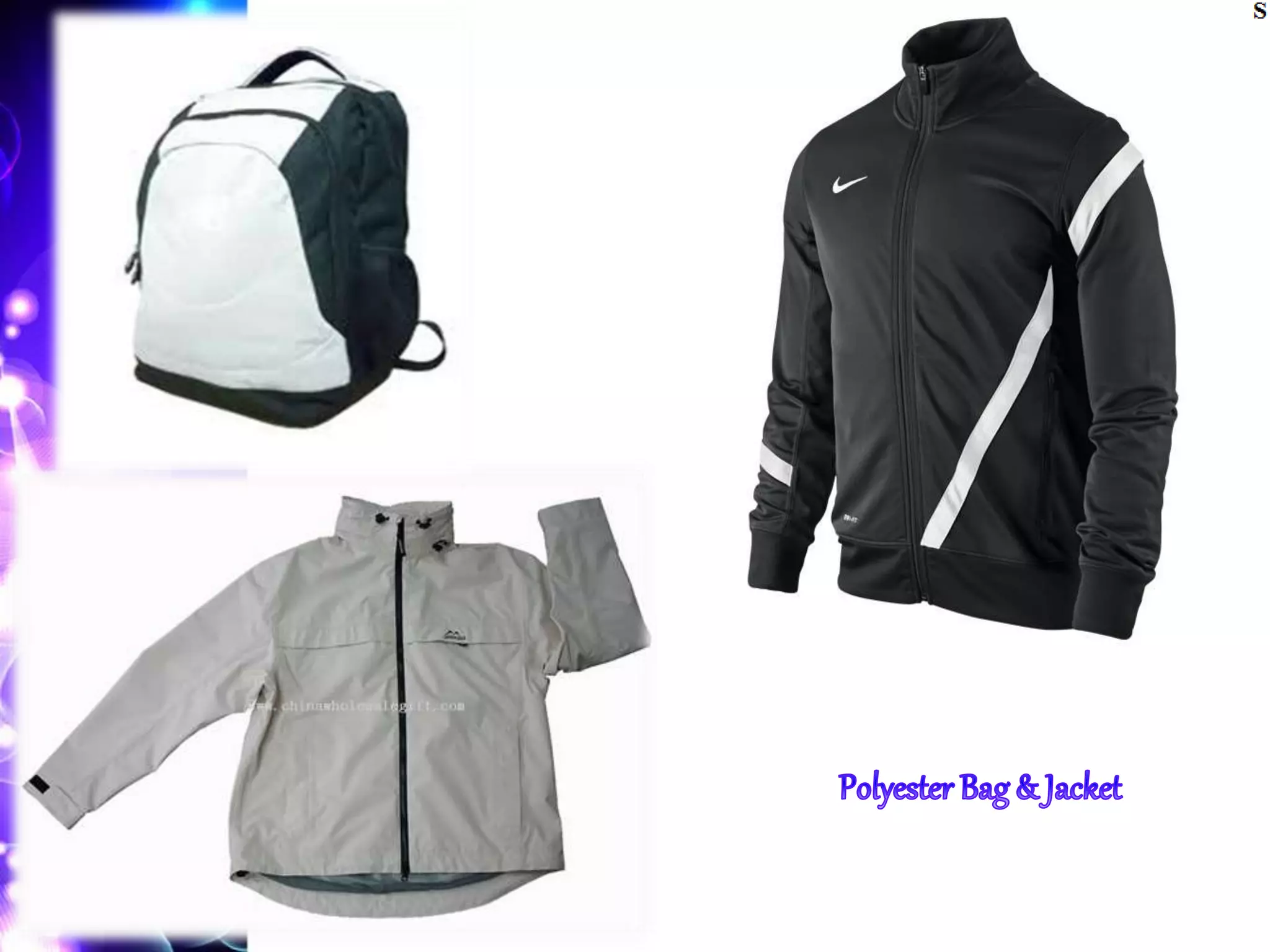

  • 18.
  • 19. Ever Recycle This fabric is 100% recyclable, materials are from used polyester bottles and old clothes or fabrics. Not only is the quality and appearance exactly the same as that for new products, a number of new functions are added, including breathability, quick dry and water repellence. This infuses the products with new life and makes them both easy to clean and arrange.
  • 20. Extreme Bright Extreme Bright series has another shiny surface effect products. Its brilliant sheen is produced by special high temperature press technology. The exterior is fashionable, texture soft and refined meaning that the fabric can have multiple practical functions including the fact that it is wind resistant, drizzle proof, it is also durable and water repellant. This material can be washed at home and will retain its luster for a long time, making it perfect for jackets and overcoats.

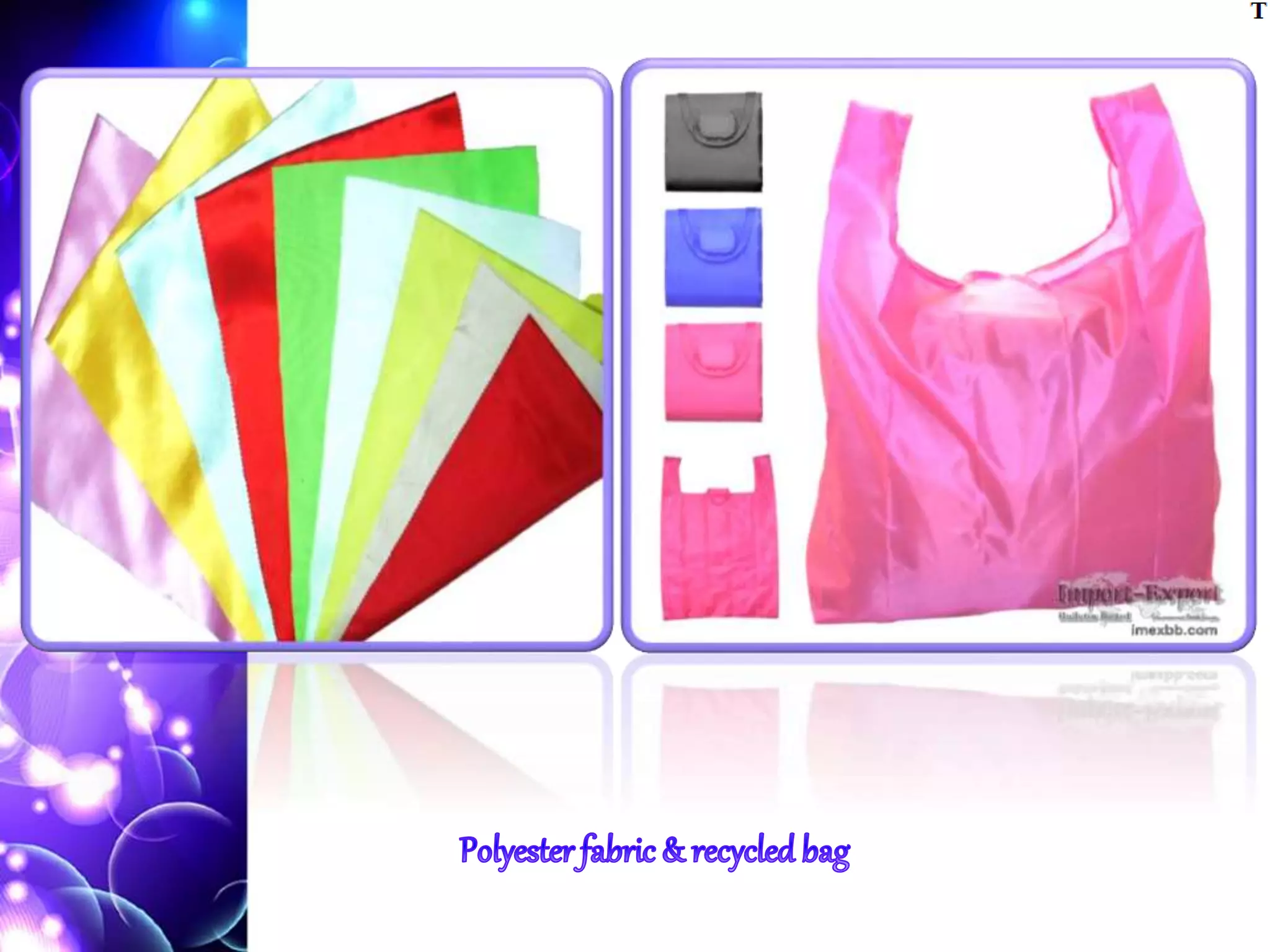

  • 21.
  • 22. Active Sports Stretch This fabric is exceptionally stretchy and perfect for clothing worn during particularly strenuous sporting activities. It also has extremely good air permeability and is suitable for general outdoor exercise and leisure activities. In the event of drizzle clothes made from this material will repel the rain and even in a downpour, the water pressure effect ensures the wearer will not be soaked. This makes the fabric extremely suited to the manufacture of functional wind resistant jackets.
  • 23. Ever HighColor Fastness High color fastness fabric allows contrasts of deep and light and dark colors, allowing clothes to changeable bright colors. Dark colored fabrics can be directly washed without any color migration. Ever Water Sports Surfing / Sunny sports Adding anti-UV and anti-chlorine agent in dyeing and finishing process makes this collection excellent UV-cut and anti-chlorine. Ever water sports surfing / sunny fabric is the best partner for sun and water sports.
  • 24.
  • 25. Polyester is used in the manufacturing of all kinds of clothes and home furnishings. Some of them are: T-shirt Shirt Bedspreads Sheets Pillows Furniture Carpets Curtains Decorative cloths
  • 26. Hydrophobic nature High tenacity and good durability makes polyester the choice of fabric for high stress outdoors use. It is thus ideal for clothing to be used in wet and damp environments. Some uses of hydrophobic nature of polyesters are: Climbing suits Parkas Sleeping bags Dry suits Other outdoor gear

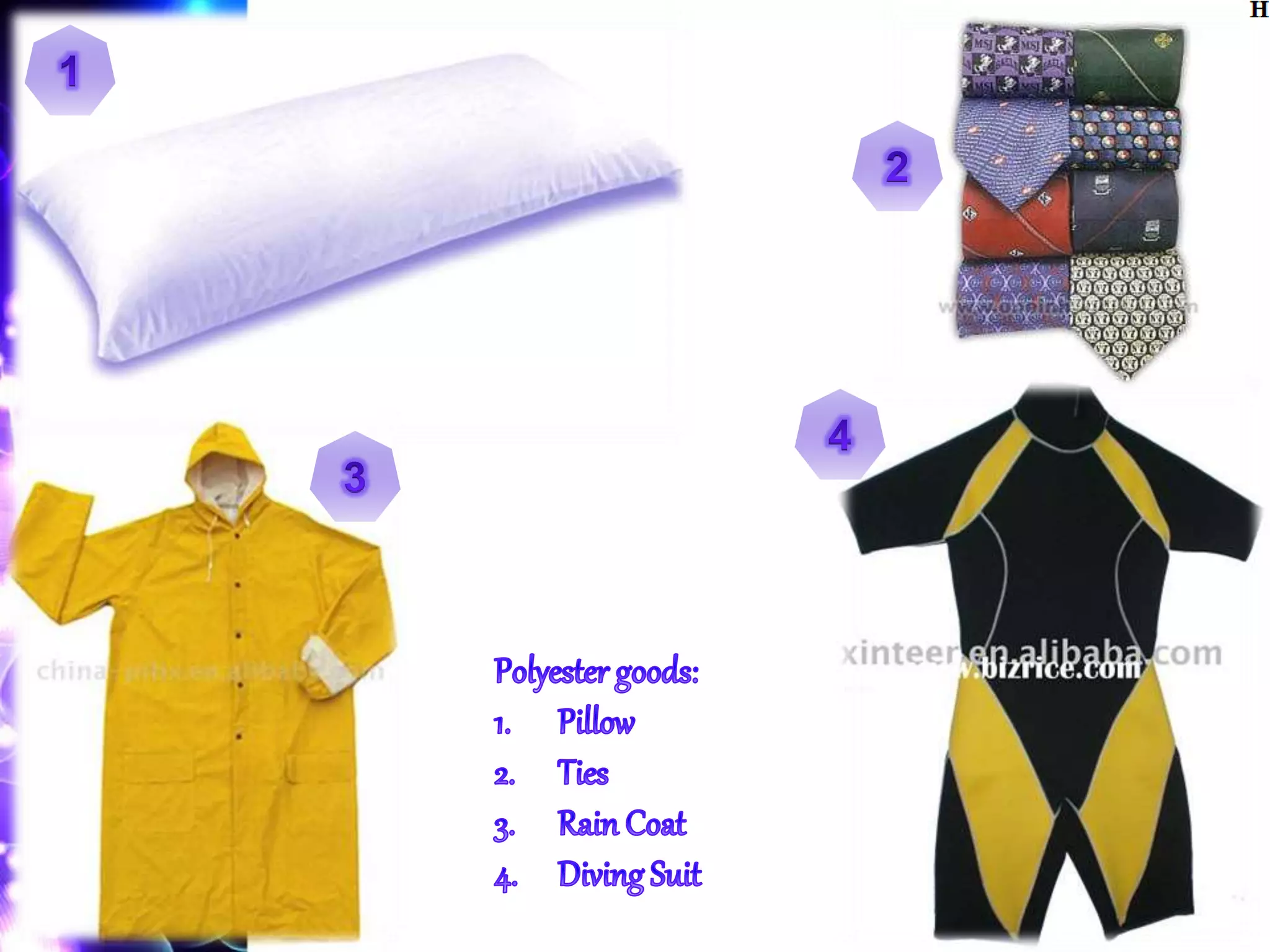

  • 27.
  • 28. Creating insulation: By creating hollow fibers it is also possible to build insulation into the polyester fiber. Air is trapped inside the fiber, which is then warmed by the heat of the body. This keeps the body warm in cold weather. Another method to build insulation is to use crimped polyester in a fiberfill. The crimp helps keep the warm air in. Polyester is an ideal fabric for this kind of insulation because it retains its shape. Cotton and wool tend to flatten over a period of time and loose the warming effect.
  • 29. Wrinkle resistant: using the nature of wrinkle resistant, it is used very often in everyday clothing like pants, shirts, tops, skirts and suits. Used either by itself or as a blend, it is also stain resistant and hence very popular.
  • 30.
  • 31. While clothing used to be the most popular use of polyester and which made it a household name worldwide, there are many other uses polyester is put to. PET: The most common use of polyester today is to make the plastic bottles that store beverages. Shatterproof and cheap these bottles are familiar to the beverages industry.
  • 32. Mylar: An unusual and little known use of polyester is in the manufacturing of balloons. Not the rubber kind that used for normal balloons but the really pretty decorated ones that are gifted on special occasions. These are made of Mylar – a kind of polyester film. The balloons are made of a composite of Mylar and aluminum foil. Miscellaneous: Polyester is also used to manufacture high strength ropes, thread, hoses, sails, floppy disk liners, power belting and much more in industries.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37. Apparel: 39.4% Industrial & Consumer Textiles: 38.3% Household & Institutional Textiles: 16.9% Carpets & Rugs: 5.4%
