The musculoskeletal system consists of bones, joints, and muscles that work together to enable movement and protect internal organs. The skeleton provides structure and support, while joints allow bones to articulate and muscles to contract, producing movement. There are over 200 bones in the human body that form the framework for this system. Joints are where two or more bones connect, and can be immovable or freely movable. Muscles make up 40-50% of body weight and attach to bones via tendons, allowing motions like flexion, extension, and rotation when contracted. Landmarks, range of motion, and strength are assessed during a physical exam of this complex anatomical system.

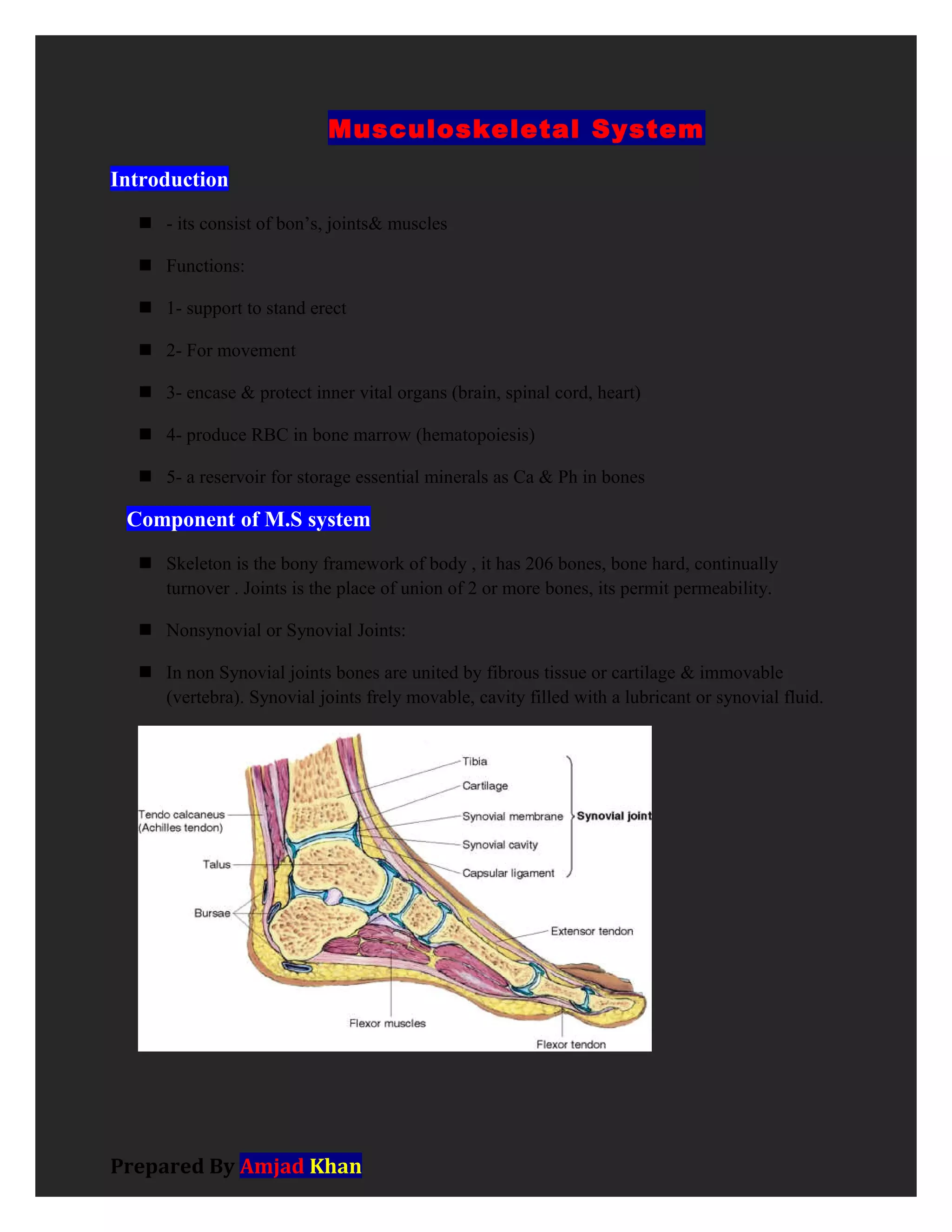

1. Musculoskeletal System
Introduction
 - its consist of bon’s, joints& muscles
 Functions:
 1- support to stand erect
 2- For movement
 3- encase & protect inner vital organs (brain, spinal cord, heart)
 4- produce RBC in bone marrow (hematopoiesis)
 5- a reservoir for storage essential minerals as Ca & Ph in bones
Component of M.S system
 Skeleton is the bony framework of body , it has 206 bones, bone hard, continually
turnover . Joints is the place of union of 2 or more bones, its permit permeability.
 Nonsynovial or Synovial Joints:
 In non Synovial joints bones are united by fibrous tissue or cartilage & immovable
(vertebra). Synovial joints frely movable, cavity filled with a lubricant or synovial fluid.
Prepared By Amjad Khan

2.  It has a layer of cartilage covers the surface of opposing bones, cushions the bones &
gives a smooth surface to facilitate movement.
 Joints surrounded by ligaments.
 Muscles: 40-50% of body weight, when they contract produce movement.
 3 types: skeletal, smooth, cardiac .skeletal is voluntary muscles.
Skeletal muscles are attached to bones by a tendon: producing the following
movements:
1- flexion: bending a limb at a joint
2- Extension: straightening a limb at a joint
3- Abduction: moving a limb away from midline
4- Adduction: moving a limb toward midline.
 5- pronation: turning the forearm so that palm is down
Prepared By Amjad Khan

3.  6- Supination: turning forearm so palm up.
 7- Circumduction: moving arm in a circle around the shoulder
 8- Inversion: moving sole of foot inward at ankle
 9- Eversion: moving sole of foot outward at ankle
10- Rotation: moving head around a central axis
11- protraction: moving a body part forward & parallel to ground.
12- Retraction: moving a body part backward& parallel to ground.
13- Elevation: raising a body part
14- Depression: lowering a body part.
Landmarks
 Temporomandibular joint: articulation of mandible & temporal bone
 Spine:
 1- C7& T1 prominent
 2- inferior angle of scapula between T7& T8.
 3- line of iliac crest crosses L4
 4- line of posterior iliac spines crosses sacrum
Prepared By Amjad Khan

4.  Shoulder: 1- acromion process; at the top of shoulder 2- greater tubercle of humerus
 Elbow: 1- medial & lateral epicondyles of humerus 2- olecranon process of ulna
 Wrist & carpals:
 1- radiocarpal joint: articulation of radius & a row of carpal bones permit flexion&
extension& side to side deviation
 2- midcarpal joint : between 2 rows of carpal bones. Allows flexion , extension & rotation
Prepared By Amjad Khan

5.  3- metacarpophalangeal & interphalangeal joints permit finger flexion & extension
Prepared By Amjad Khan

6.  Hip: 1-anterior superior iliac spine 2- ischial tuberosity. 3- greater trochanter of femur
 Knee: 1-quadriceps muscle 2- tibial tuberosity
 Ankle & Foot: medial & lateral malleolus
Prepared By Amjad Khan

7. Subjective Data:
 1) Joints: pain-stiffness-swelling-heat-redness-limitation of movement
 2)muscles: pain (cramps)- weakness
 3) bones: pain- deformity- trauma
 4) functional assessment (ADL): bathing- toileting -grooming-eating…..etc
 5) self care behaviors
 * preparation: 1- make him comfortable before & throughout exam
 2- take an orderly approach _head to toe, proximal to distal
 3- joints examined should be supported at rest
 4- use firm support gentle movement & return to a relaxed
 5- compare corresponding paired joints (symmetry)
Order of exam
 *Inspection; note the size& contour of joint, inspect skin for color, swelling, masses or
deformity
 * Palpation: palpate each joint, skin, muscles, note the heat, tenderness, swelling or
masses
 * ROM: range of motion:
 Ask for active ROM if you see a limitation attempt passive motion.
Prepared By Amjad Khan

8. Muscle testing
 Test the strength of muscle for each joint ask person to flex& hold as you apply opposing
force.
Temporomandibular joint:
 Inspect area anterior to ear, place tips of your first 2 fingers in front of each ear & ask
person to open & close mouth. an audible & palpable click occur normally.
 Palpate contracted temporalis & masseter muscles as person clenches teeth. Compare Rt
& Lt for size, strength. Ask him to move the jaw forward & laterally against your
resistance & to open mouth against your resistance (CN V)
Cervical spine:
 Inspect alignment of head & neck .should be straight & head erect
 Palpate spinous processes & sternomastoid, trapezius& paravertebral muscles, should feel
firm, no spasm or tenderness, ask him to follow the motions:
 Extension -flexion
 Lateral bending
 Rotation
Repeat motions while applying opposing force( CN XI)
Upper Extremities: shoulder
Prepared By Amjad Khan

9.  Inspect & compare both shoulders post &ant.
 Check size & contour of joint & compare shoulders for equality of bony landmarks,
normally no redness, muscular atrophy, deformity or swelling.
 If reports pain, ask to point spot, it may from local causes or referred pain to hiatal hernia
or cardiac or pleural condition
 Palpate both shoulders noting any muscular spasm or atrophy, swelling, heat, or
tenderness.
Shoulders
 Start at clavicle then acromioclavicular joint, scapula, greater tubercle of humerus&
glenohumeral joint.
 Palpate axilla no adenopathy or masses .
 Test ROM;
 Forward flexion -hyperextension
 Abduction-adduction
 Internal rotation
 External rotation
 Test the strength of shoulder muscles, ask him to shrug shoulders flex forward &up.
abduct against your resistance (CN XI)
Elbow
Prepared By Amjad Khan

10.  Inspect size & contour of elbow in both flexed & extended positions. Look for deformity,
redness or swelling. Check olecranon bursa
 Palpate with elbow flexed about 70 degrees & relaxed as possible, use Lt hand to support
Lt forearm & palpate olecranon process & medial & lateral epicondyles of humerus, with
Rt thumb& fingers in medial groove, normally feel fairly solid, check for synovial
thickening, swelling, nodules or tenderness.
 Palpate for heat, swelling, tenderness or nodules.
ROM
 Flexion -extension
 Pronation - supination
 Test muscle strength: flex elbow against your resistance, then ask him to extend elbow
against your resistance.
Wrist & hand:
Prepared By Amjad Khan

11.  Inspect on dorsal & palmar sides, noting position, contour& shape. Normal position
shows wrist in slight extension. Fingers lie straight in same axis a forearm, no swelling or
redness, deformity or nodules.
 Skin smooth with knuckle wrinkle present & no swelling or lesions.
 Palpate joint in wrist & hands, support hand with your fingers under it & palpate the wrist
firmly with both your thumbs on its dorsum. Move your palpating thumbs side to side to
identify the normal depressed areas that overlie the joint space normally feel smooth, no
swelling, nodules or tenderness
 Palpate metacarpopharyngeal joints with your thumbs. use your thumb& index finger in a
pinching motion to palpate the sides of interphangeal joints. Normally no synovial
thickening, tenderness, warmth, or nodules
 ROM: Extension -flexion
 Hyperextension- flexion
 Ulnar deviation- radial deviation
Test muscle strength: position forearm supinated on table, stabilize by holding your hand at
the person’s midforarm. ask to flex wrist against your resistance at the palm
Knee: inspection
Prepared By Amjad Khan

12.  Remain Supine with leg extended, or flex knee & dangling for inspection, skin normally
looks smooth, even , no lesions.
 Lower leg should extend in same axis as thigh.
 Inspect knee’s shape & contour. Normally hollows present on either side of patella, check
for swelling, check quadriceps muscle in anterior thigh for atrophy its important for joint
stability during weight –bearing.
Palpation
 (supine position), start on anterior thigh,10 cm above patella, palpate with your Lt thumb
& fingers in a grasping fashion, exploring supra patellar pouch. Note consistency of
tissues. Muscles & soft tissues feel solid& joint should feel smooth, no warmth,
tenderness, thickening, or nodularity. When swelling occurs, to distinguish between
tissues swellings or fluids in joints, use the 2 tests:
THE END
