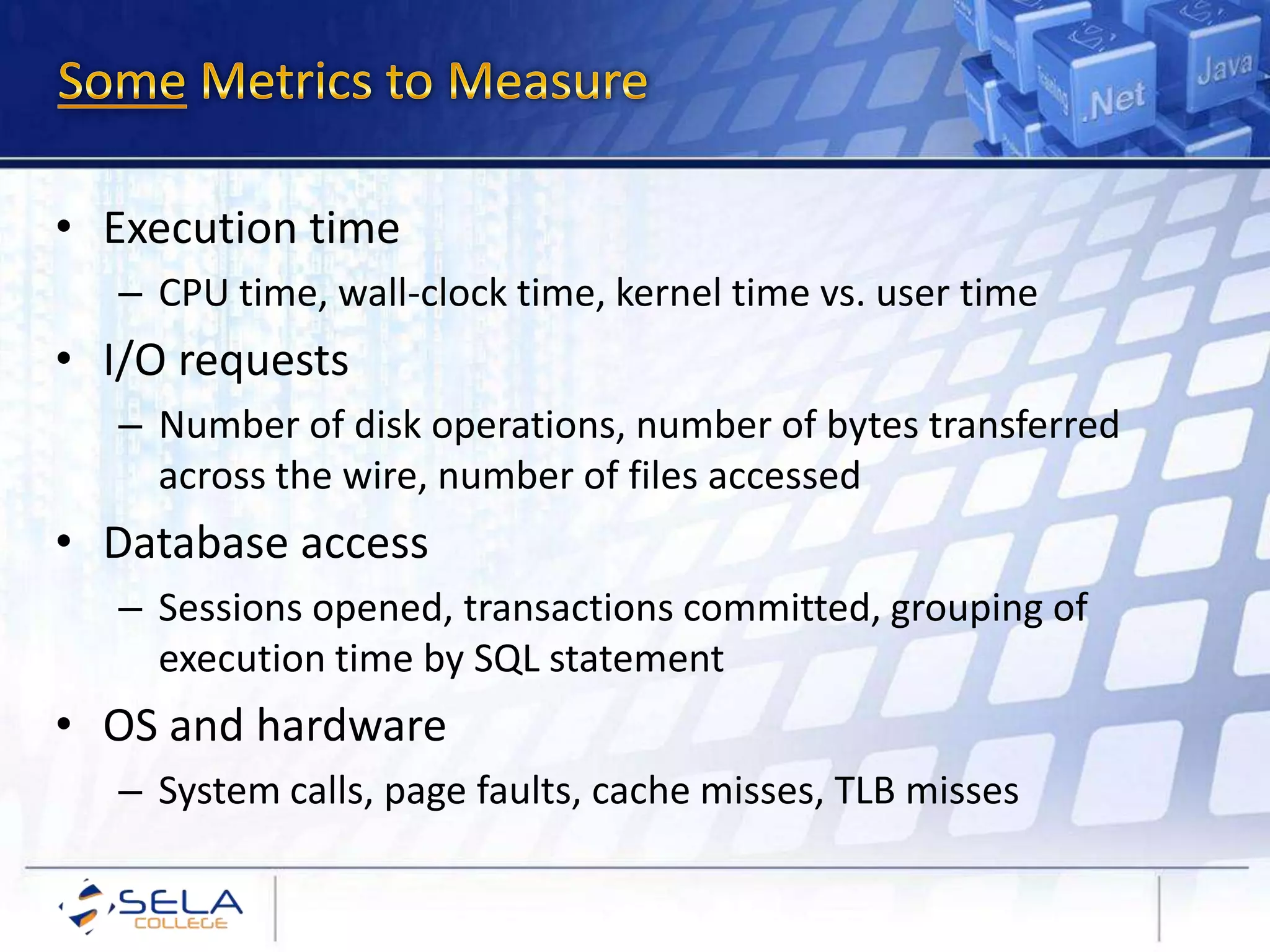

2. • Execution time
– CPU time, wall-clock time, kernel time vs. user time
• I/O requests
– Number of disk operations, number of bytes transferred
across the wire, number of files accessed
• Database access
– Sessions opened, transactions committed, grouping of
execution time by SQL statement
• OS and hardware
– System calls, page faults, cache misses, TLB misses

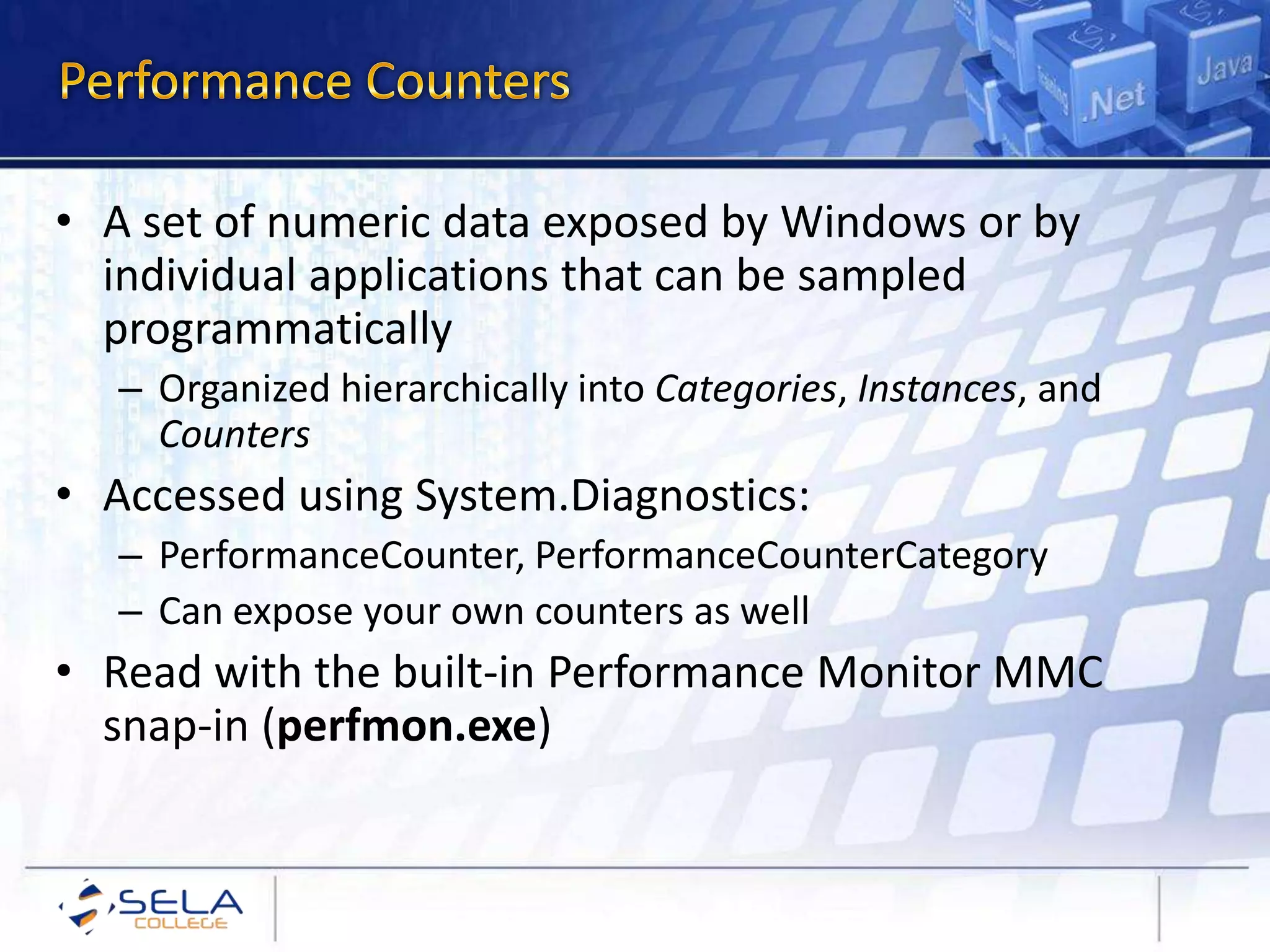

3. • A set of numeric data exposed by Windows or by
individual applications that can be sampled
programmatically
– Organized hierarchically into Categories, Instances, and
Counters
• Accessed using System.Diagnostics:
– PerformanceCounter, PerformanceCounterCategory
– Can expose your own counters as well

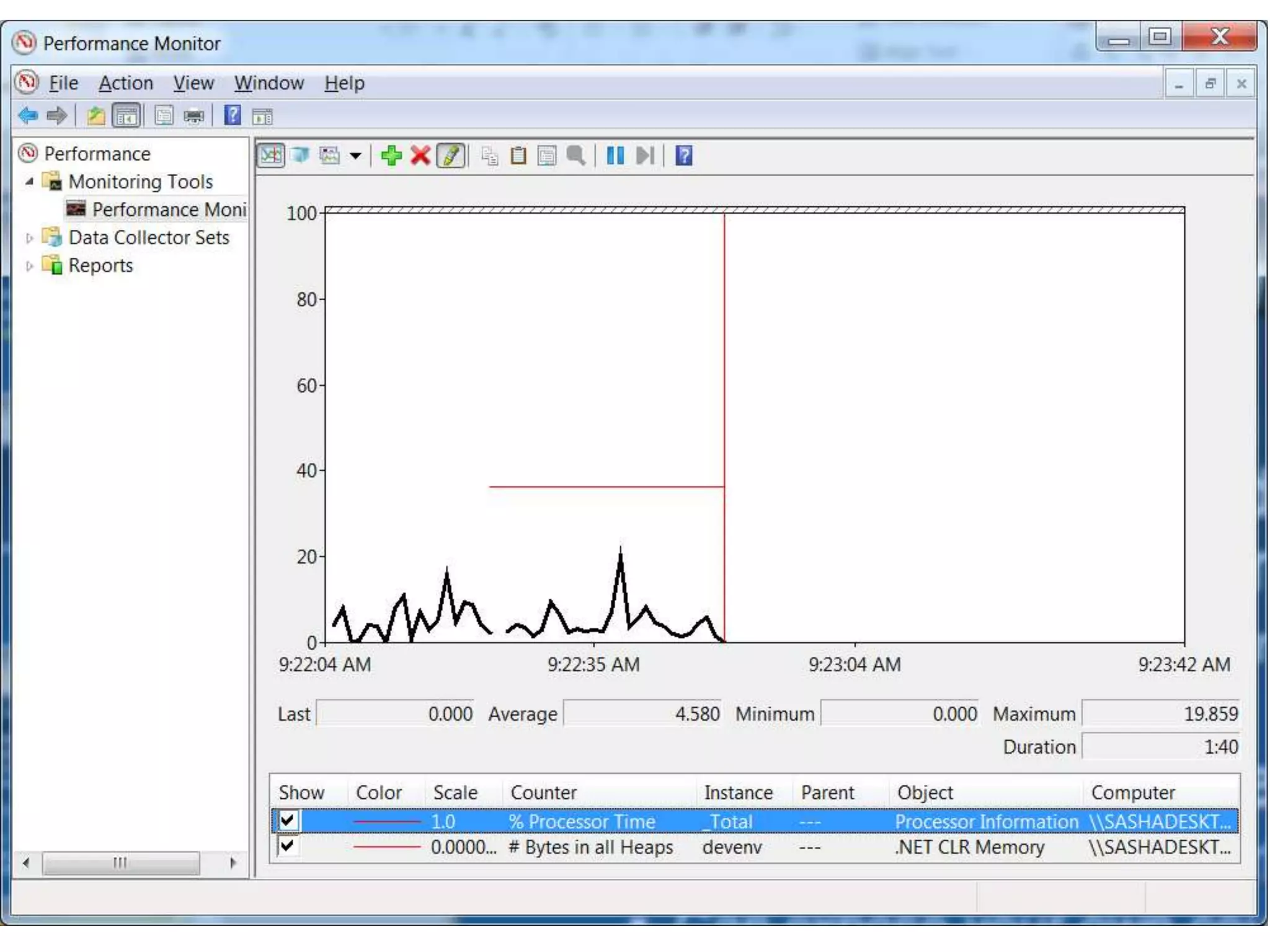

• Read with the built-in Performance Monitor MMC
snap-in (perfmon.exe)

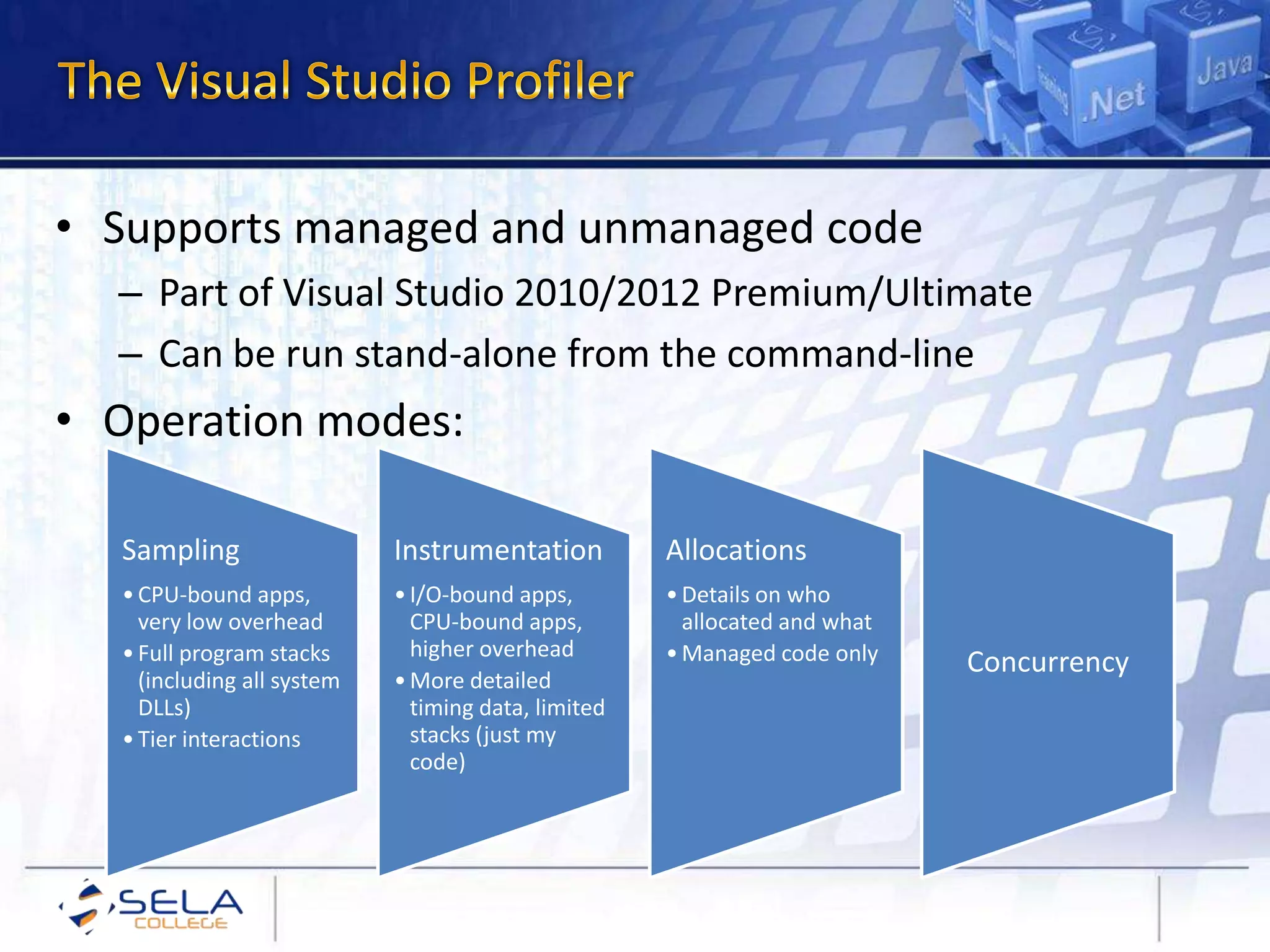

5. • Supports managed and unmanaged code
– Part of Visual Studio 2010/2012 Premium/Ultimate
– Can be run stand-alone from the command-line
• Operation modes:
Sampling
•CPU-bound apps,
very low overhead
•Full program stacks
(including all system
DLLs)
•Tier interactions
Instrumentation
•I/O-bound apps,
CPU-bound apps,
higher overhead
•More detailed
timing data, limited
stacks (just my
code)
Allocations
•Details on who
allocated and what
•Managed code only Concurrency

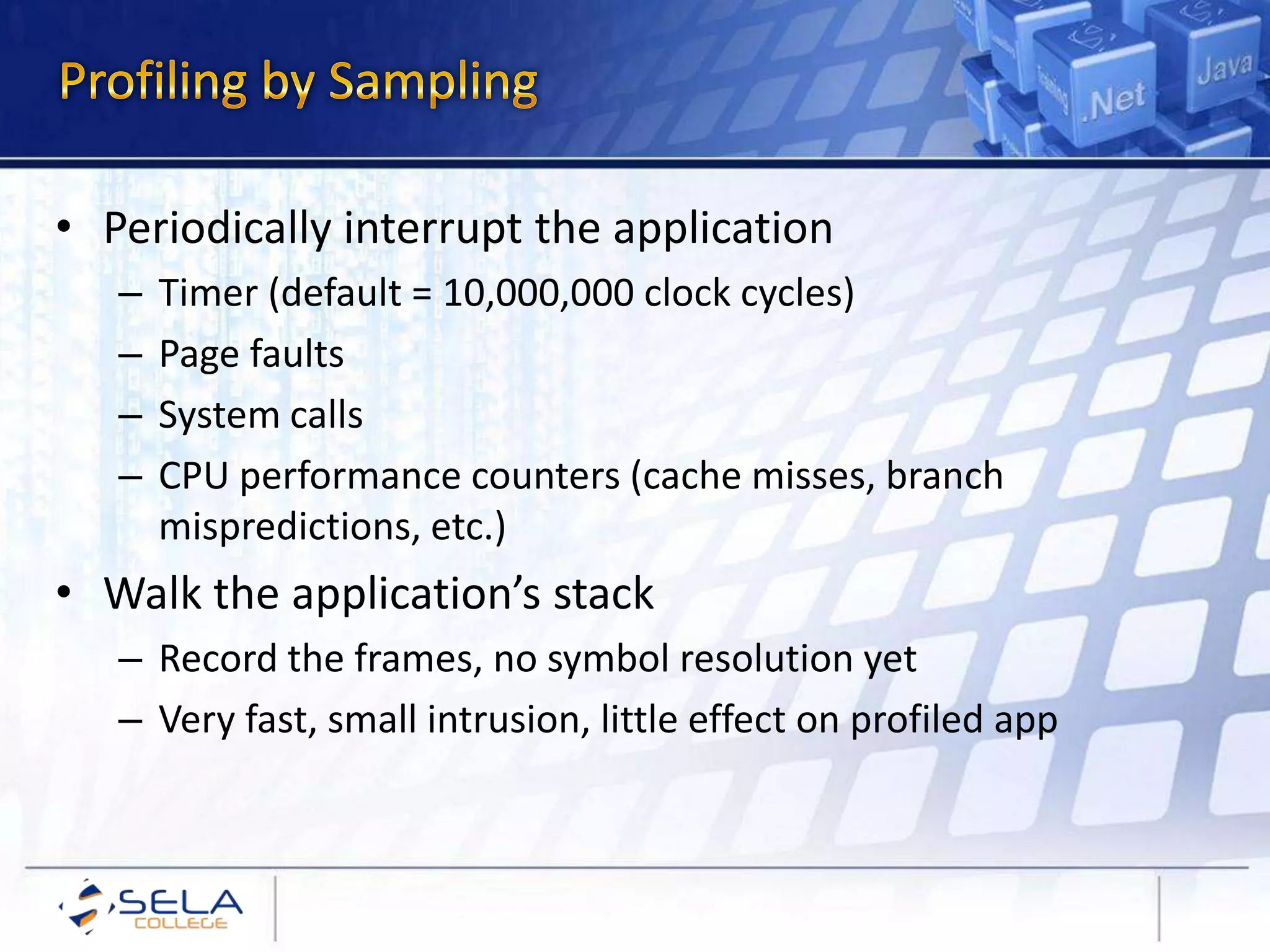

6. • Periodically interrupt the application
– Timer (default = 10,000,000 clock cycles)
– Page faults
– System calls
– CPU performance counters (cache misses, branch
mispredictions, etc.)
• Walk the application’s stack
– Record the frames, no symbol resolution yet
– Very fast, small intrusion, little effect on profiled app

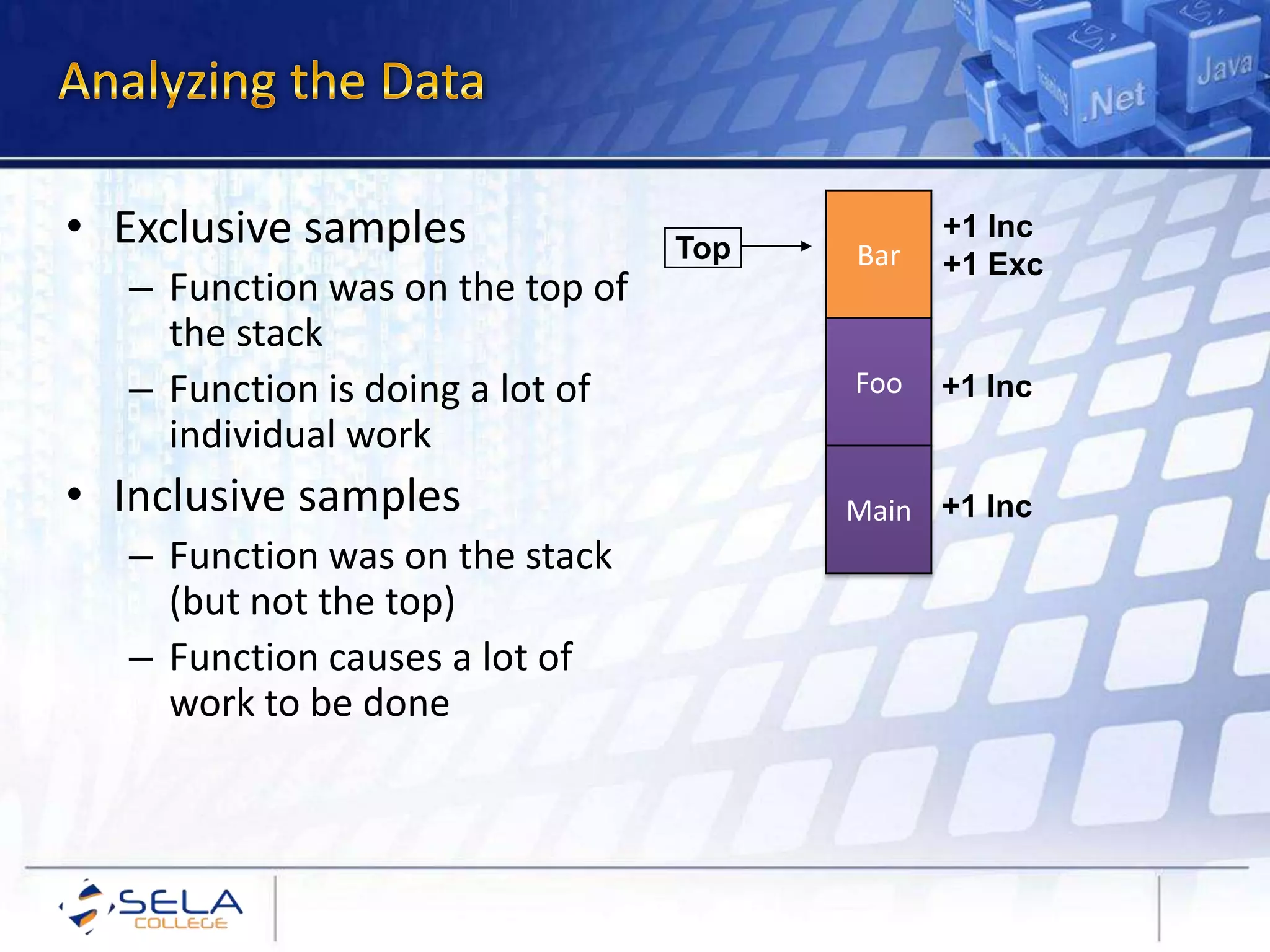

7. • Exclusive samples
– Function was on the top of
the stack
– Function is doing a lot of
individual work
• Inclusive samples
– Function was on the stack
(but not the top)
– Function causes a lot of
work to be done
Bar
Foo
Main
Top
+1 Inc
+1 Exc
+1 Inc
+1 Inc

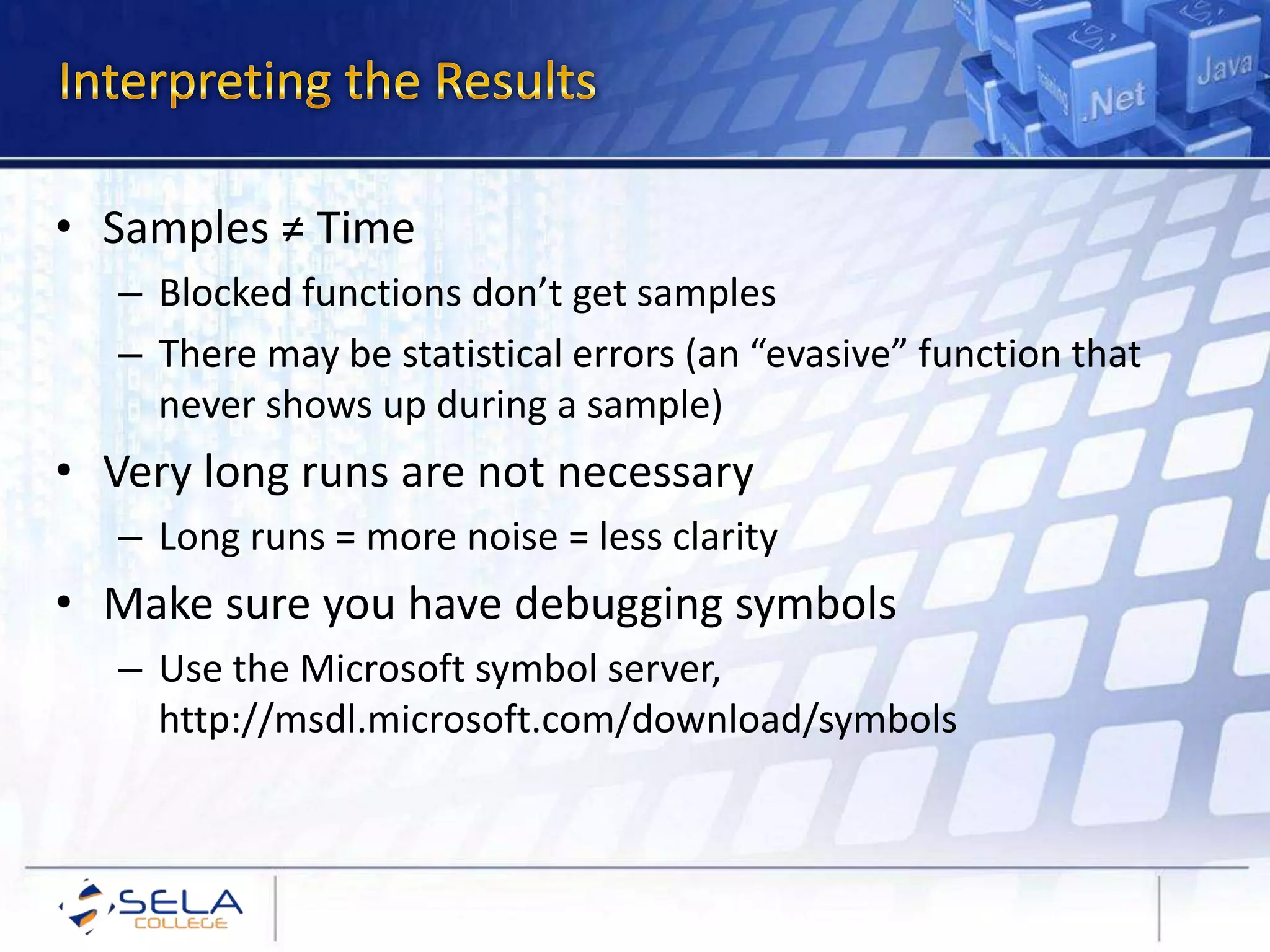

9. • Samples ≠ Time
– Blocked functions don’t get samples
– There may be statistical errors (an “evasive” function that
never shows up during a sample)
• Very long runs are not necessary
– Long runs = more noise = less clarity
• Make sure you have debugging symbols
– Use the Microsoft symbol server,
http://msdl.microsoft.com/download/symbols

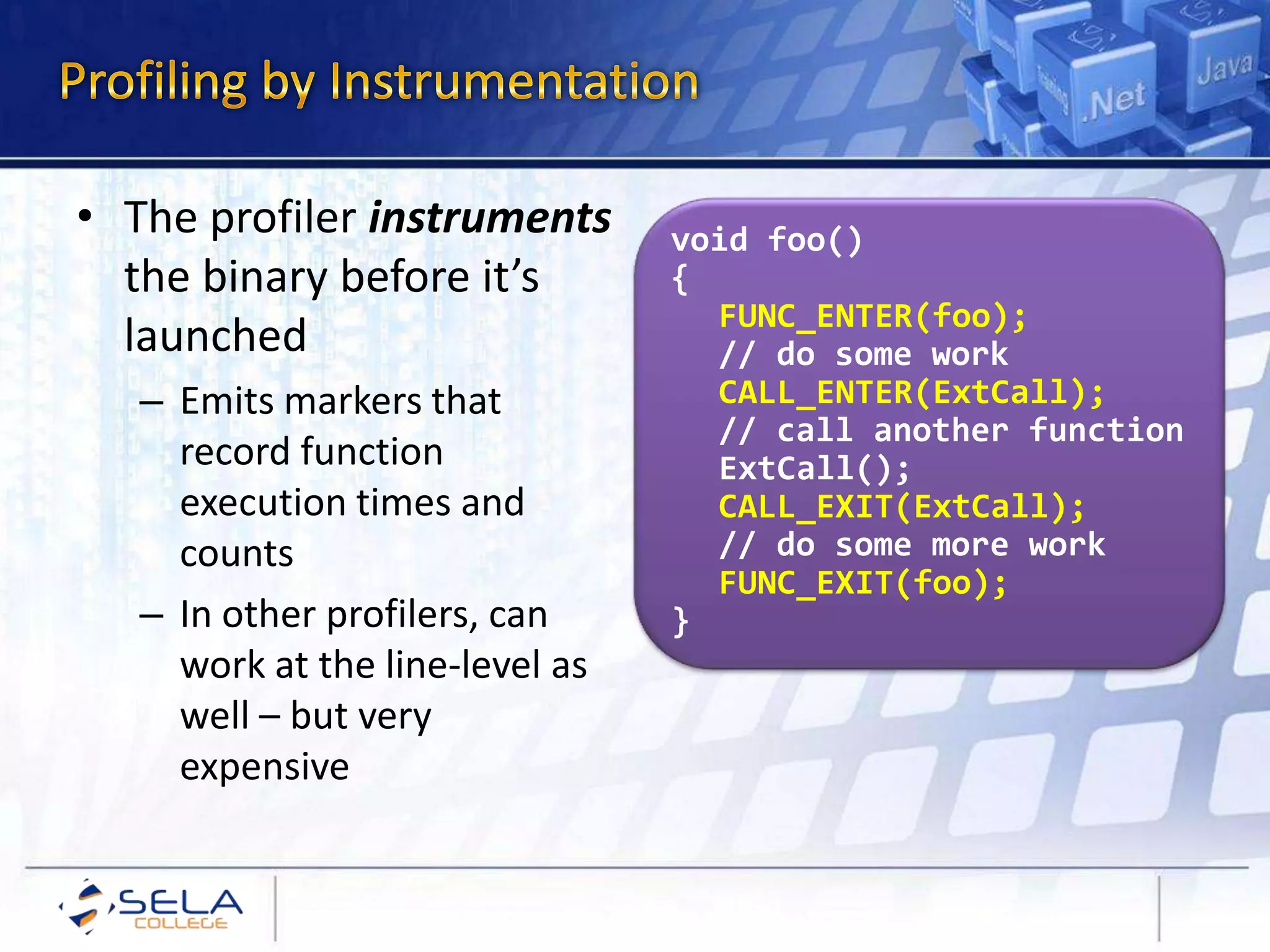

10. • The profiler instruments
the binary before it’s
launched
– Emits markers that
record function
execution times and
counts
– In other profilers, can
work at the line-level as
well – but very
expensive
void foo()
{
FUNC_ENTER(foo);
// do some work
CALL_ENTER(ExtCall);
// call another function
ExtCall();
CALL_EXIT(ExtCall);
// do some more work
FUNC_EXIT(foo);
}

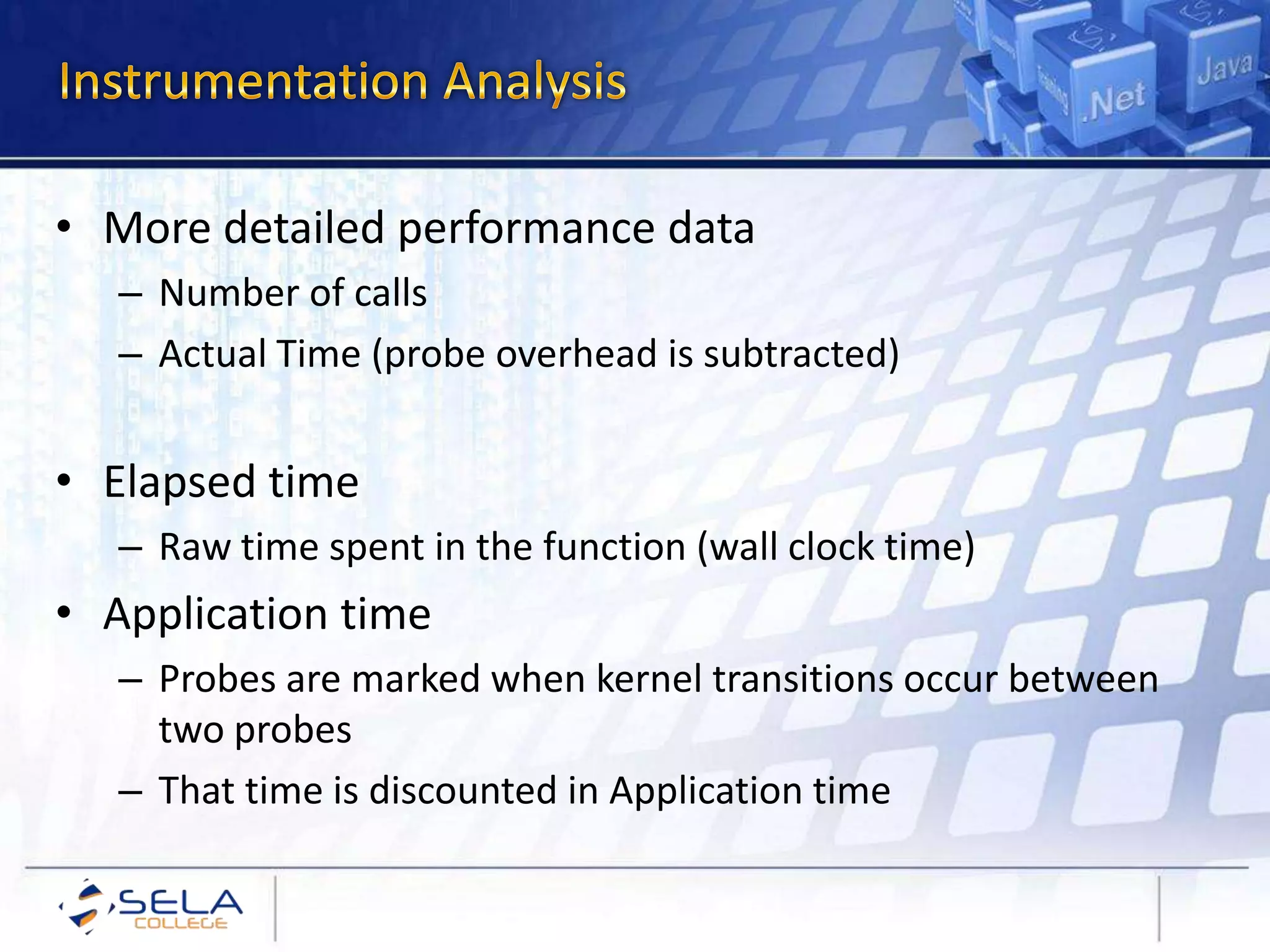

11. • More detailed performance data
– Number of calls
– Actual Time (probe overhead is subtracted)
• Elapsed time
– Raw time spent in the function (wall clock time)
• Application time
– Probes are marked when kernel transitions occur between
two probes
– That time is discounted in Application time

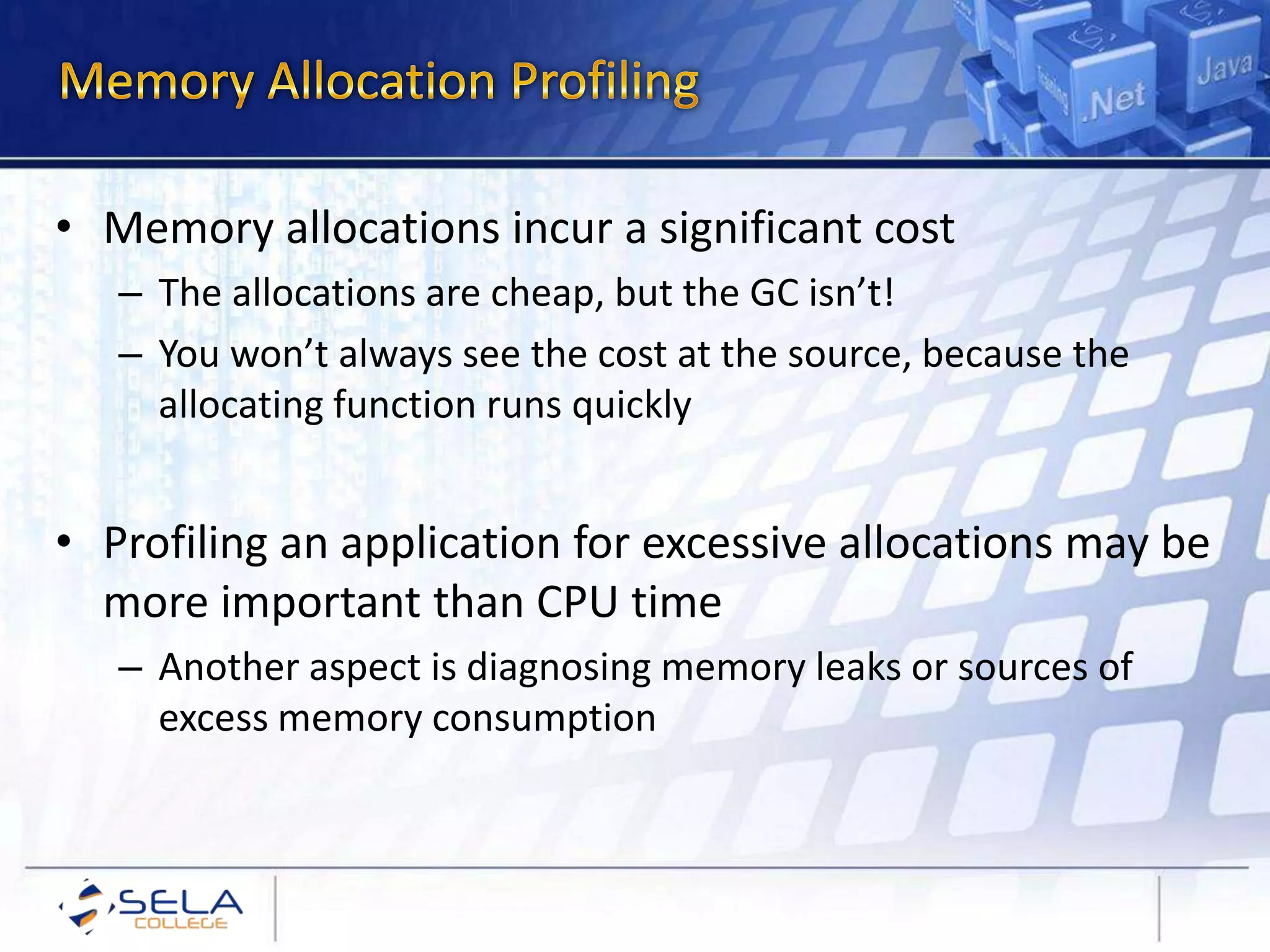

12. • Memory allocations incur a significant cost
– The allocations are cheap, but the GC isn’t!
– You won’t always see the cost at the source, because the
allocating function runs quickly
• Profiling an application for excessive allocations may be
more important than CPU time
– Another aspect is diagnosing memory leaks or sources of
excess memory consumption

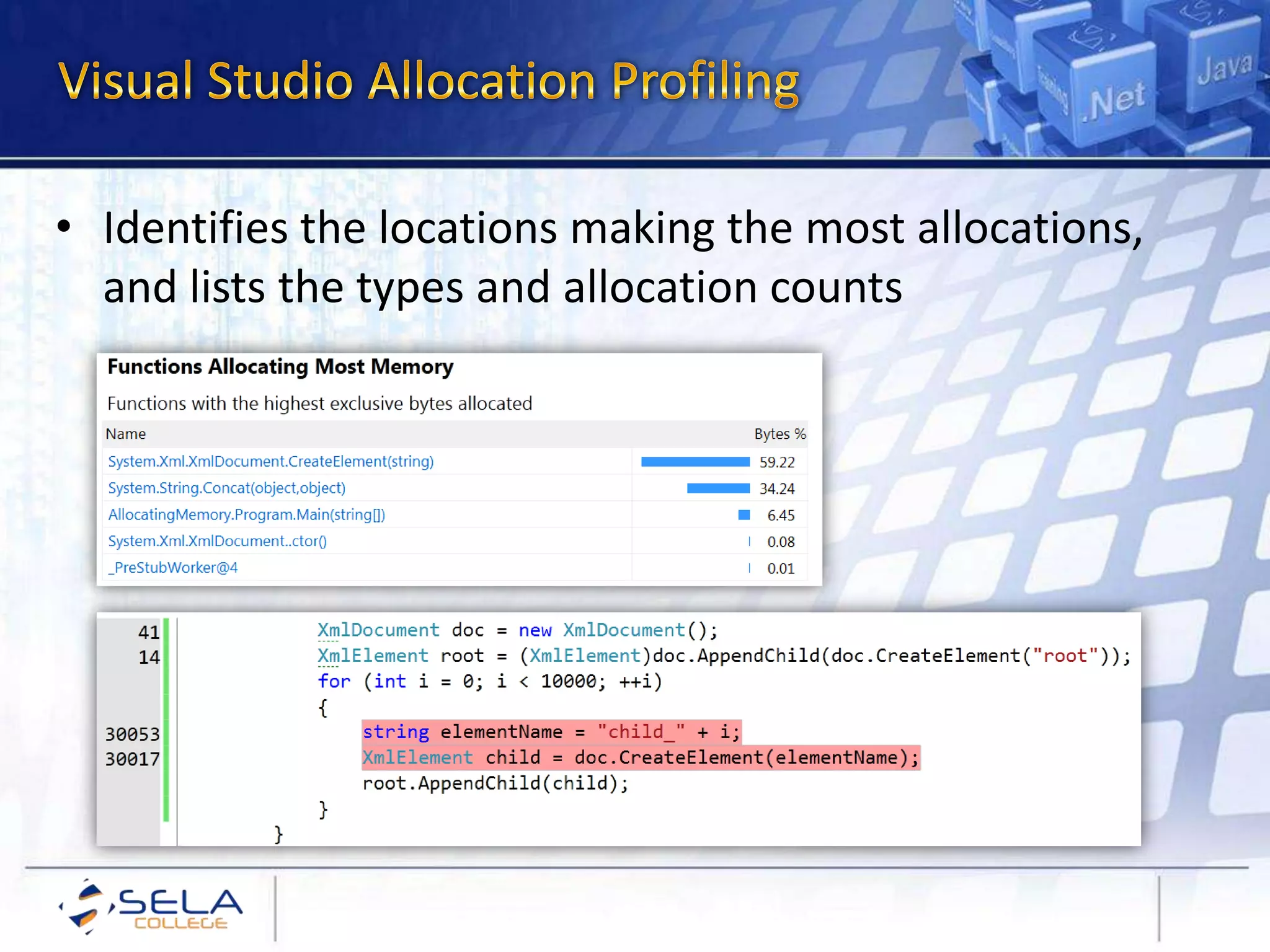

13. • Identifies the locations making the most allocations,
and lists the types and allocation counts

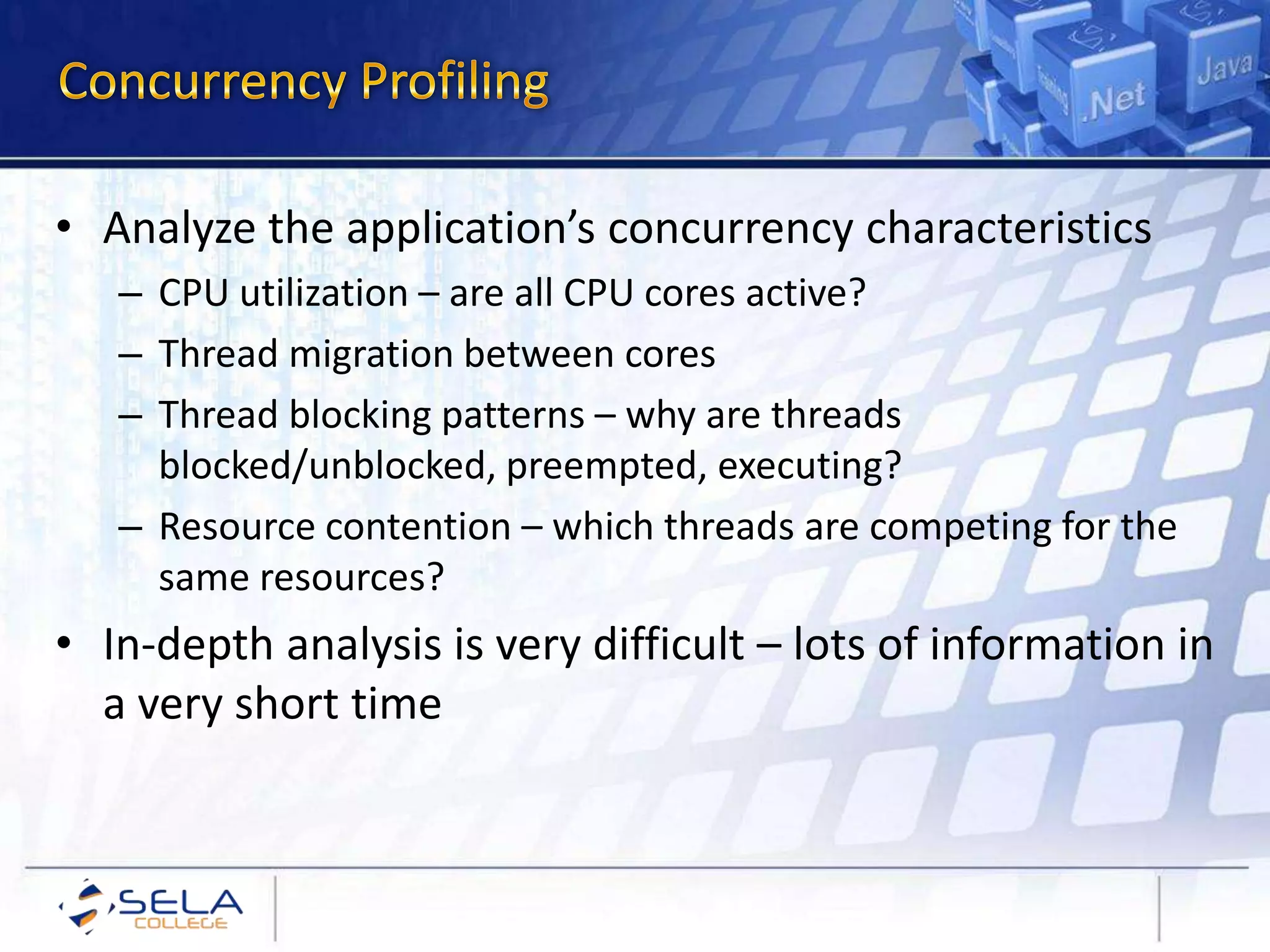

14. • Analyze the application’s concurrency characteristics
– CPU utilization – are all CPU cores active?
– Thread migration between cores
– Thread blocking patterns – why are threads
blocked/unblocked, preempted, executing?
– Resource contention – which threads are competing for the
same resources?
• In-depth analysis is very difficult – lots of information in
a very short time

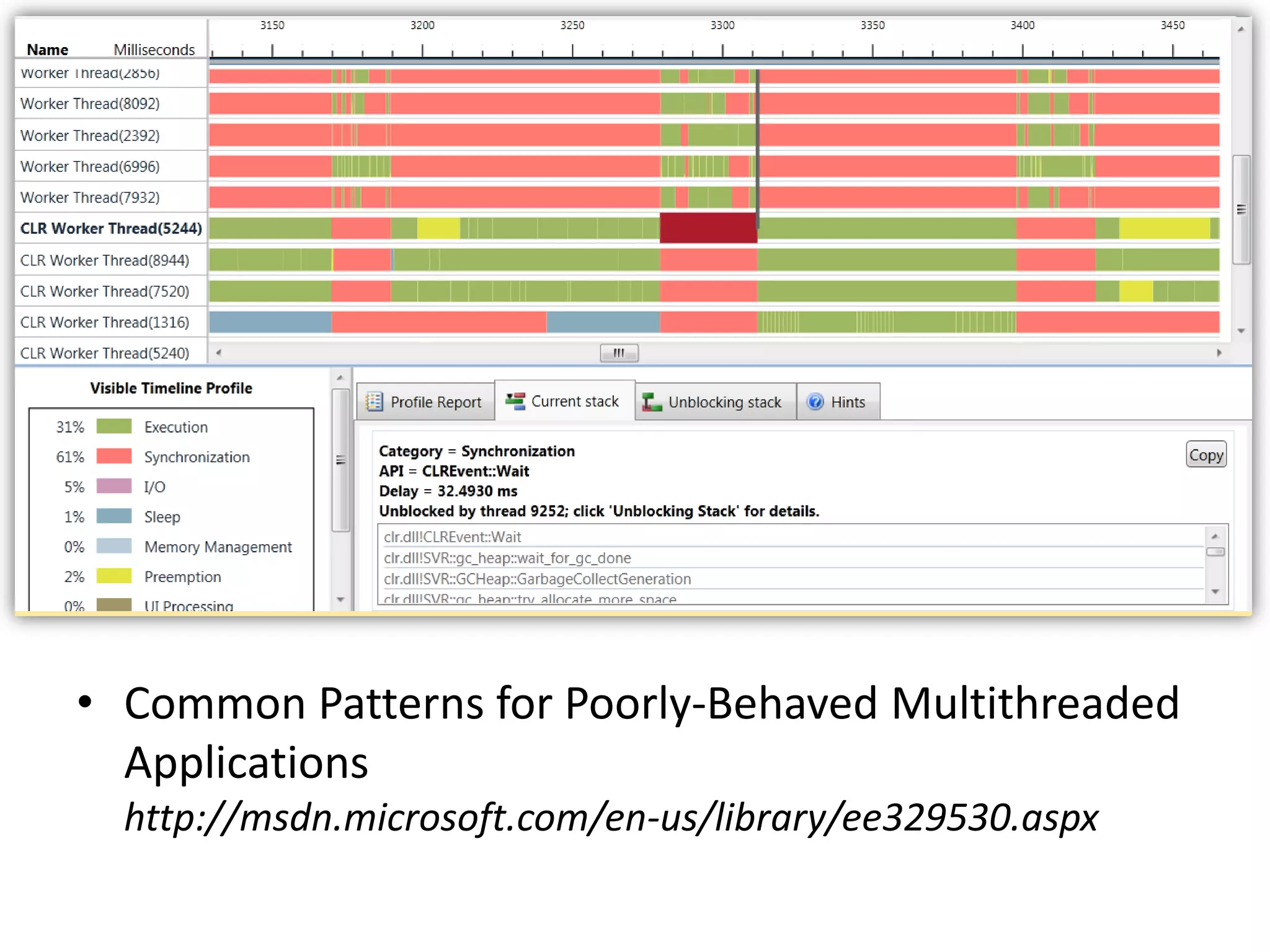

15. • Common Patterns for Poorly-Behaved Multithreaded
Applications
http://msdn.microsoft.com/en-us/library/ee329530.aspx

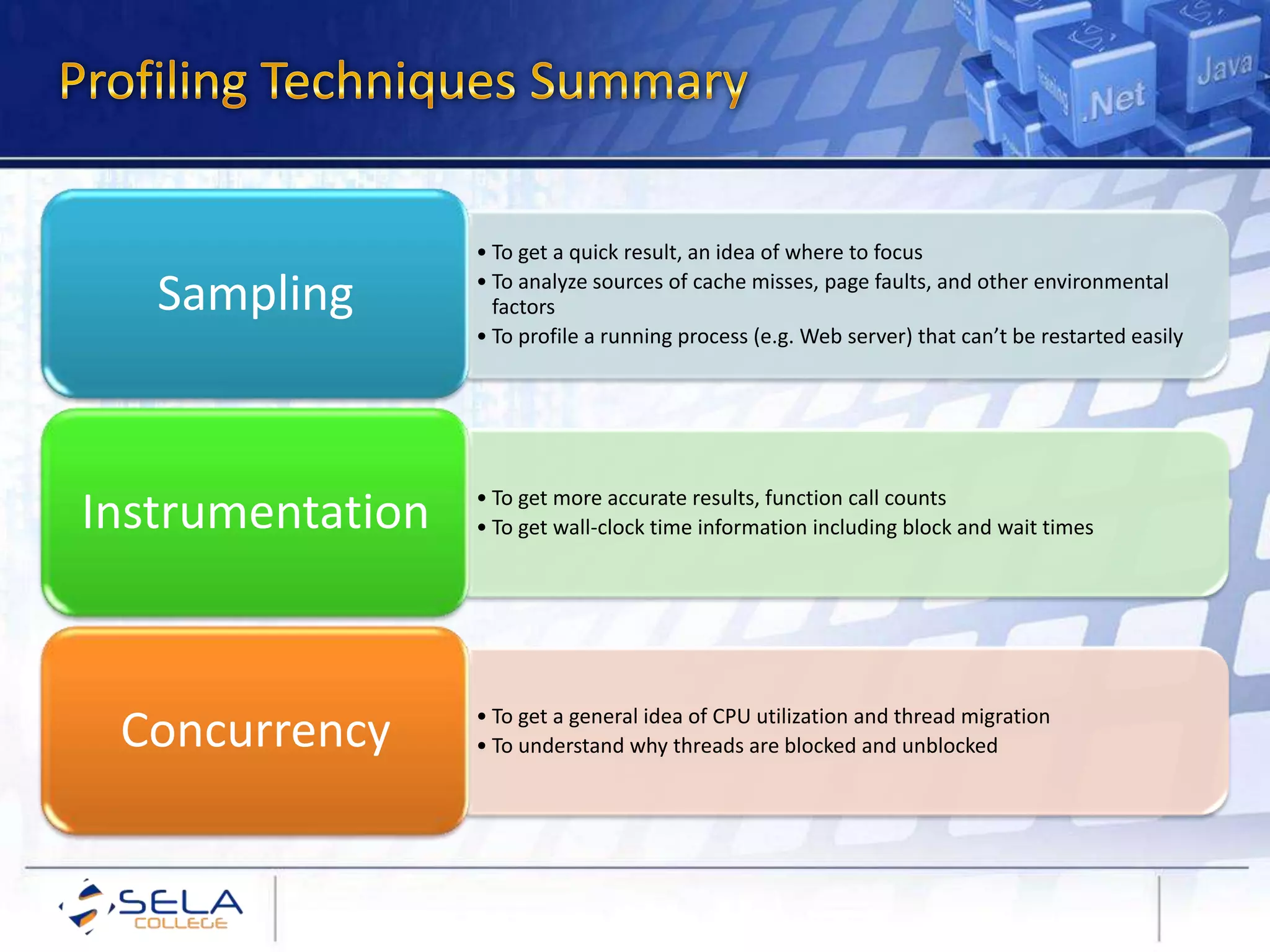

16. • To get a quick result, an idea of where to focus
• To analyze sources of cache misses, page faults, and other environmental
factors
• To profile a running process (e.g. Web server) that can’t be restarted easily
Sampling
• To get more accurate results, function call counts
• To get wall-clock time information including block and wait timesInstrumentation
• To get a general idea of CPU utilization and thread migration
• To understand why threads are blocked and unblockedConcurrency

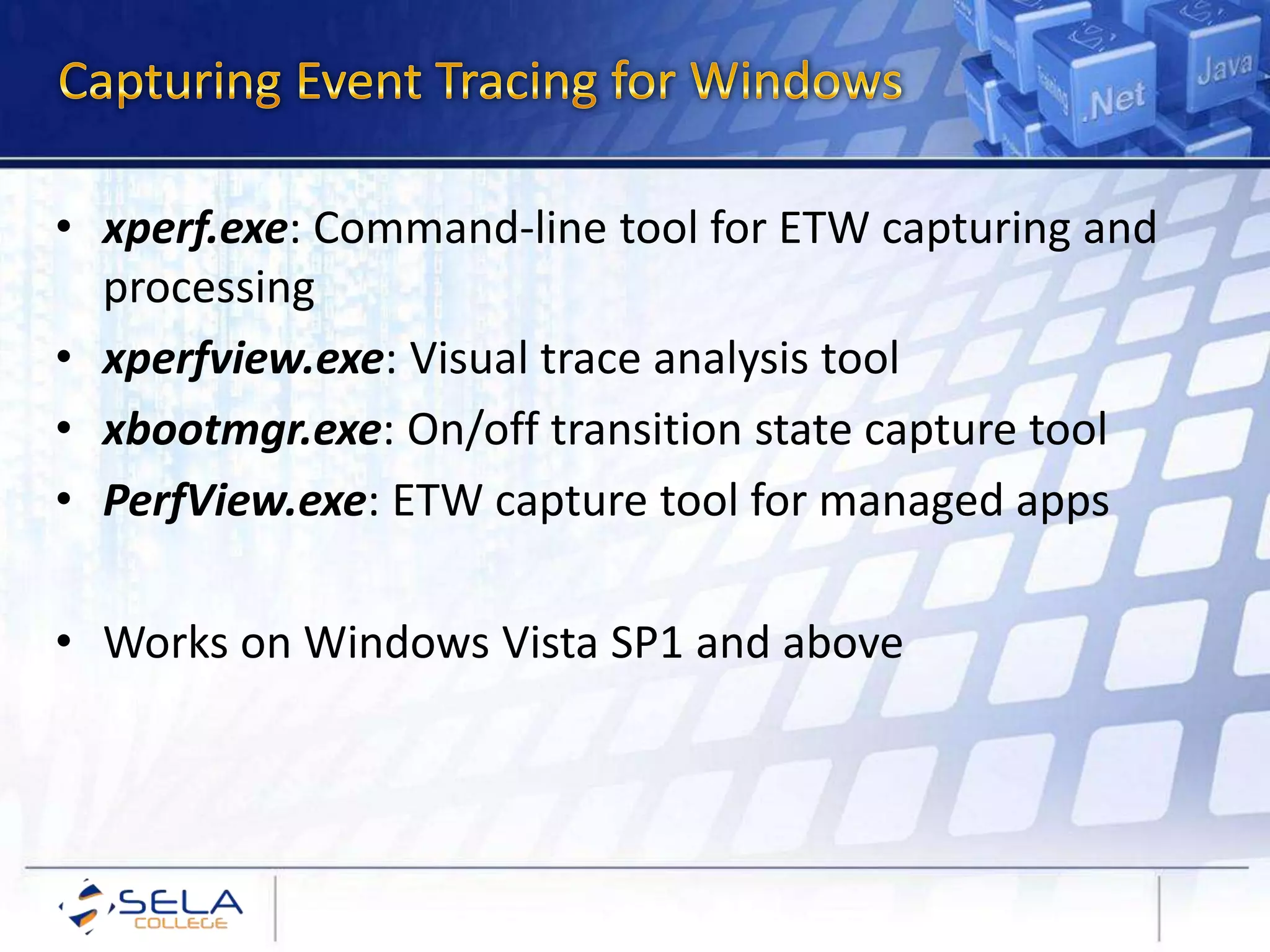

17. • xperf.exe: Command-line tool for ETW capturing and
processing
• xperfview.exe: Visual trace analysis tool
• xbootmgr.exe: On/off transition state capture tool
• PerfView.exe: ETW capture tool for managed apps
• Works on Windows Vista SP1 and above

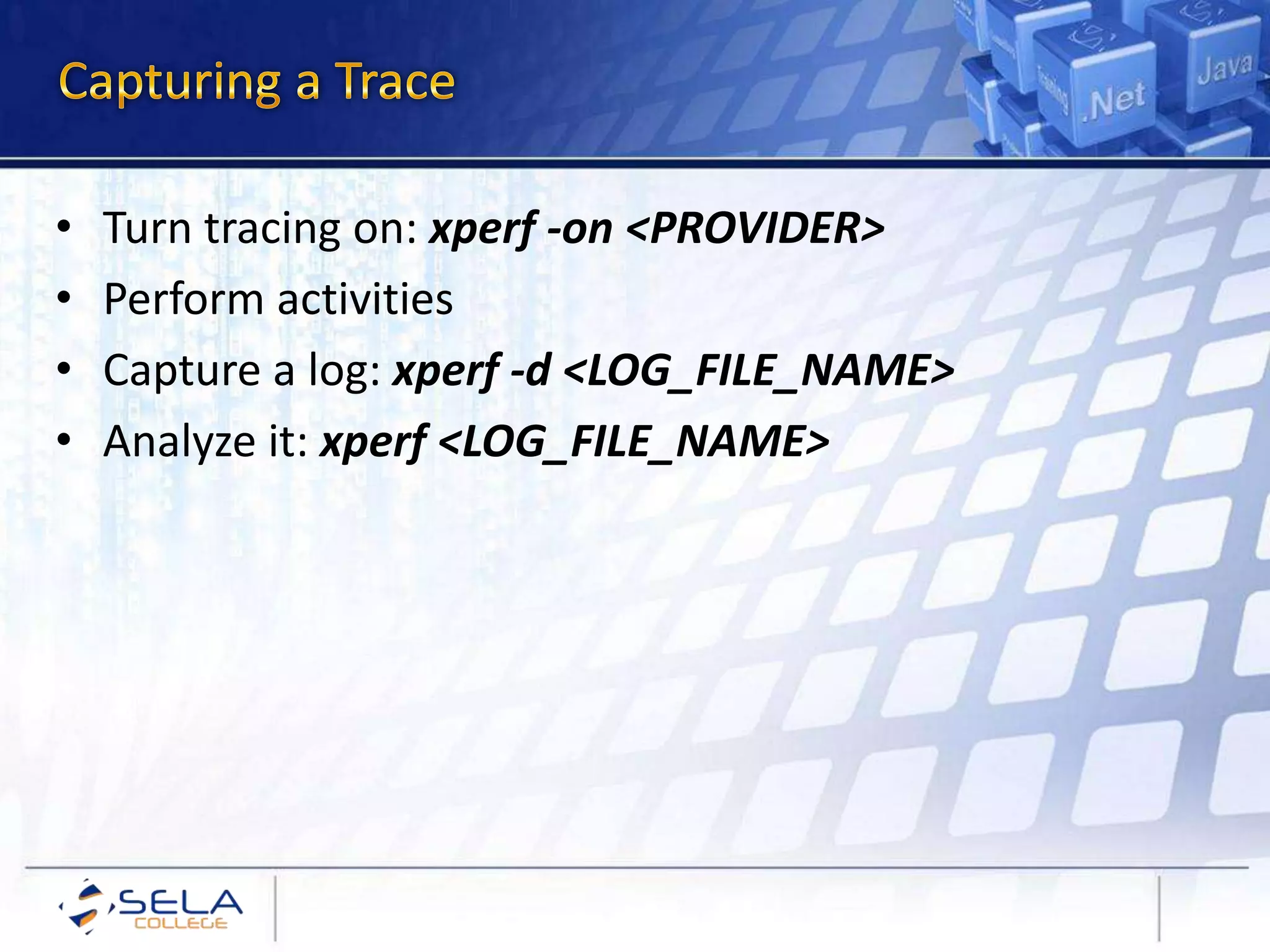

18. • Turn tracing on: xperf -on <PROVIDER>
• Perform activities
• Capture a log: xperf -d <LOG_FILE_NAME>
• Analyze it: xperf <LOG_FILE_NAME>

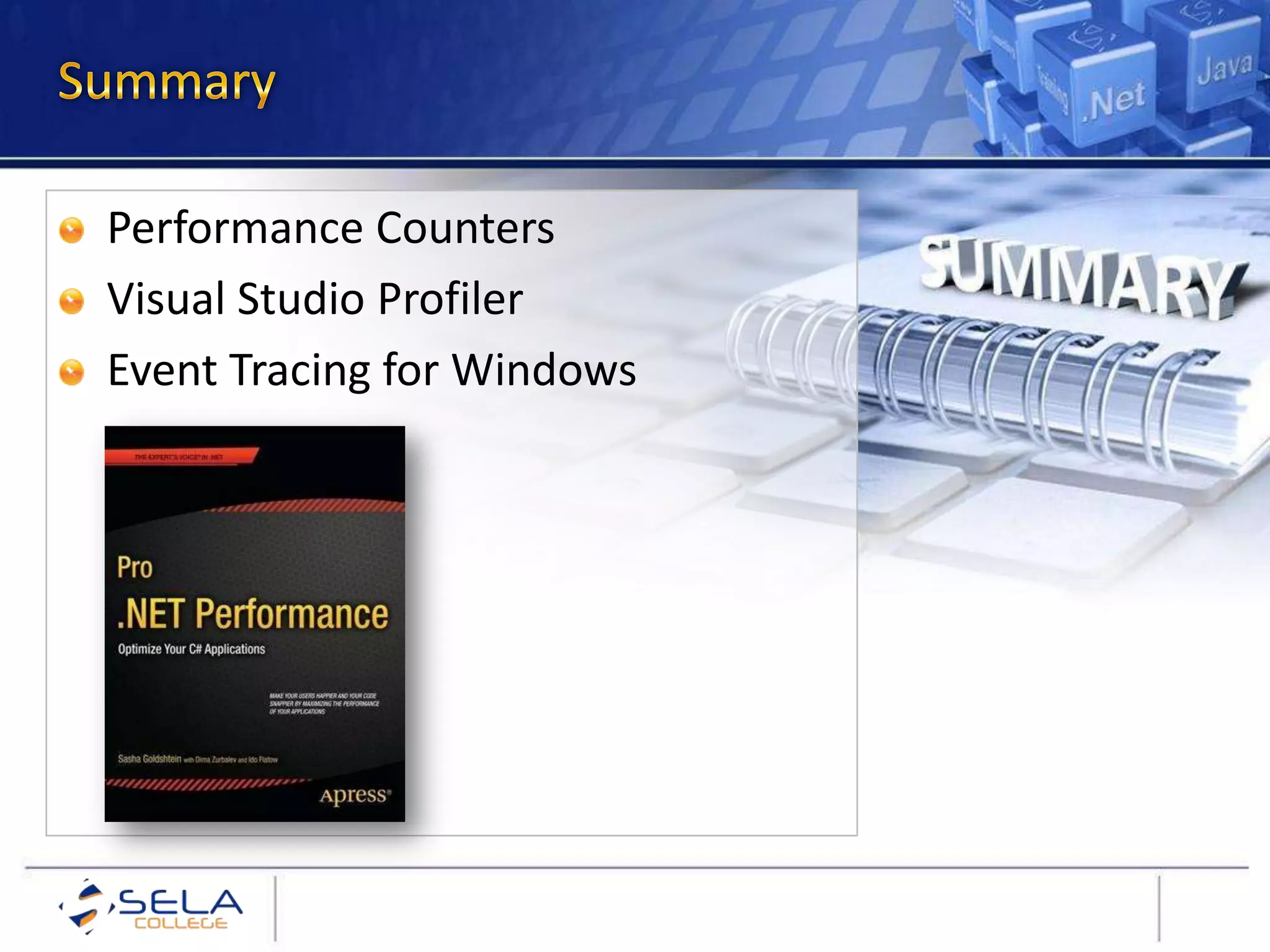

19. Performance Counters
Visual Studio Profiler
Event Tracing for Windows
