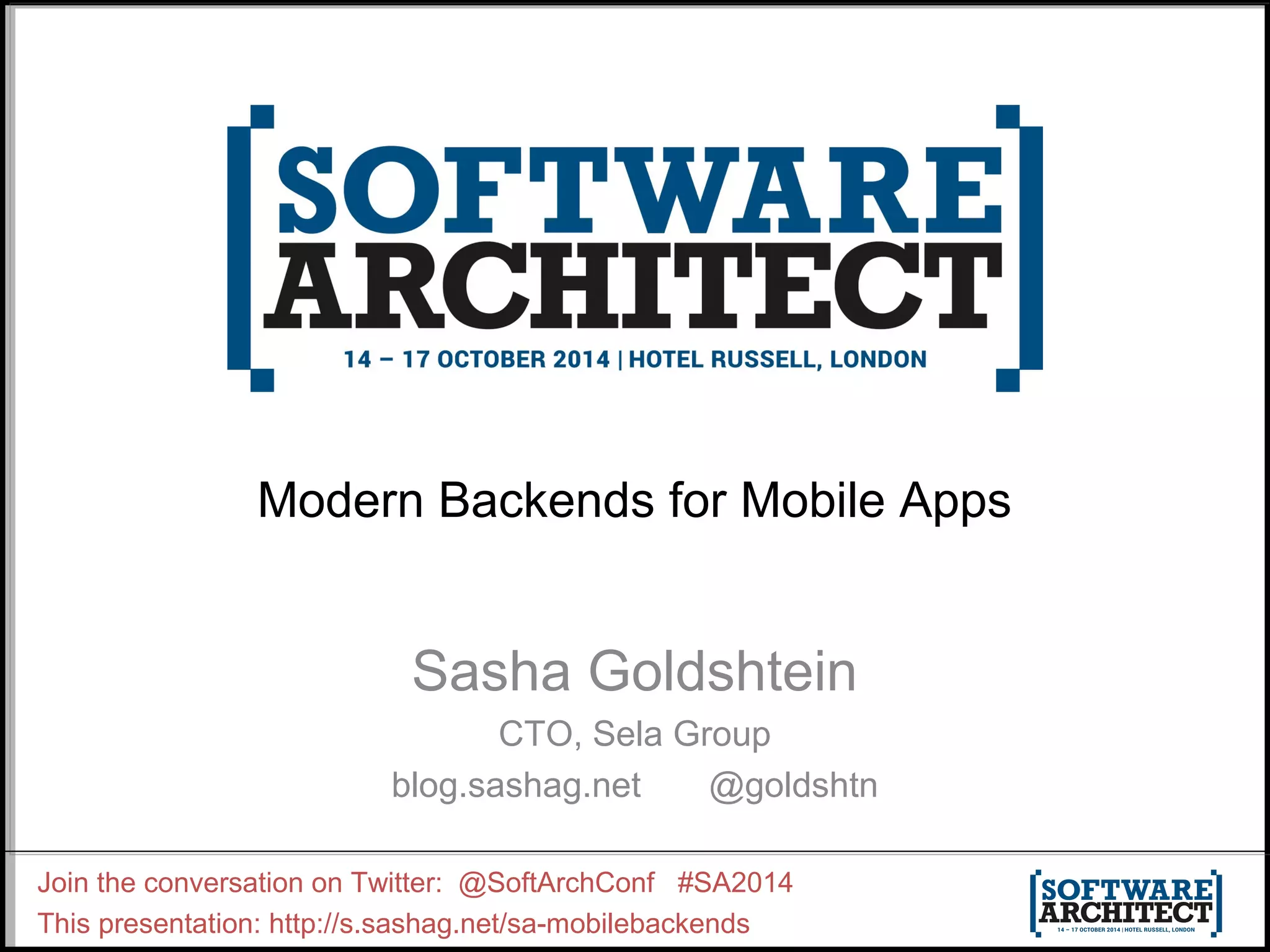

Modern Backends for Mobile Apps
Sasha Goldshtein
CTO, Sela Group
blog.sashag.net @goldshtn
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

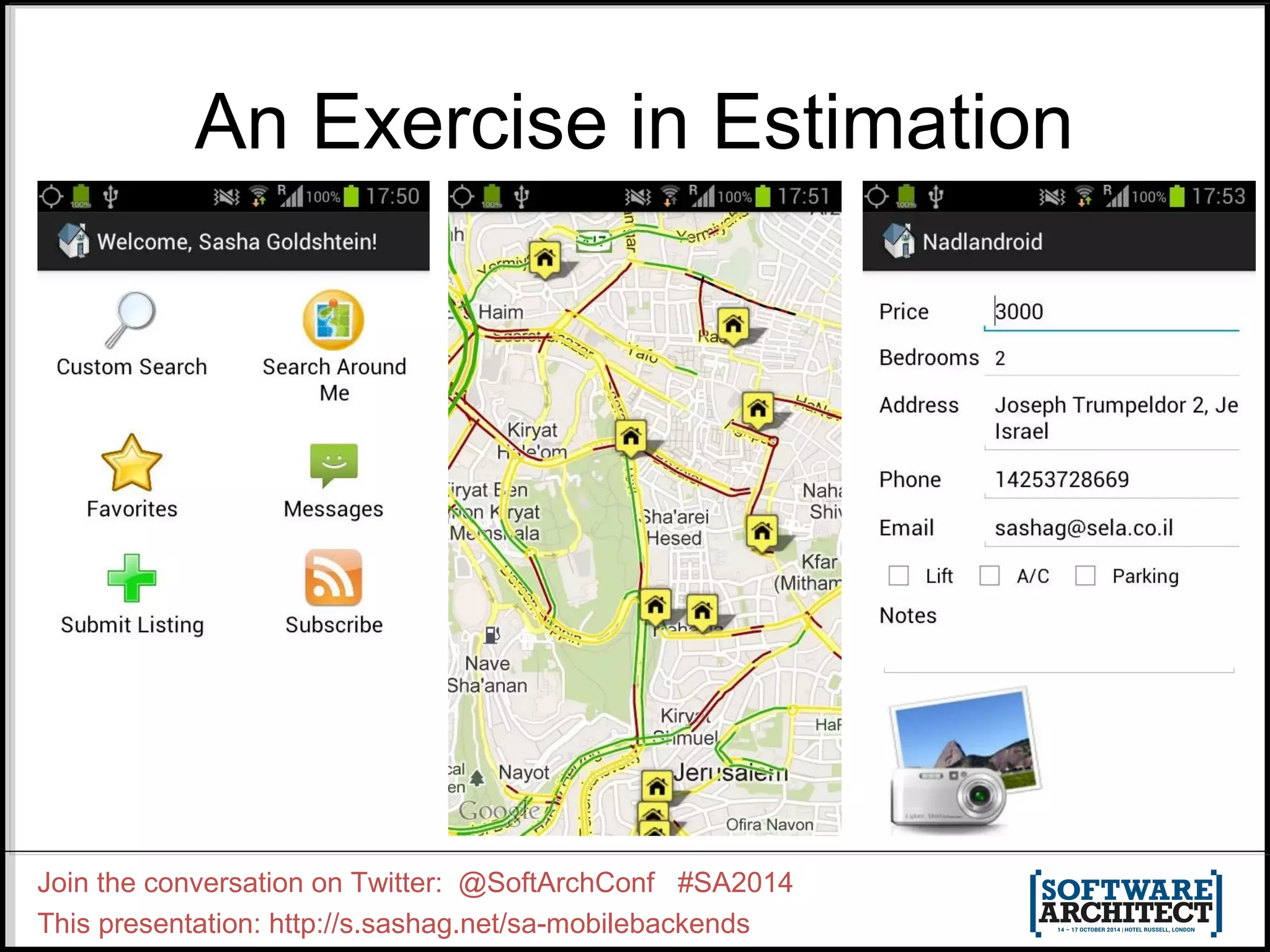

An Exercise in Estimation
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

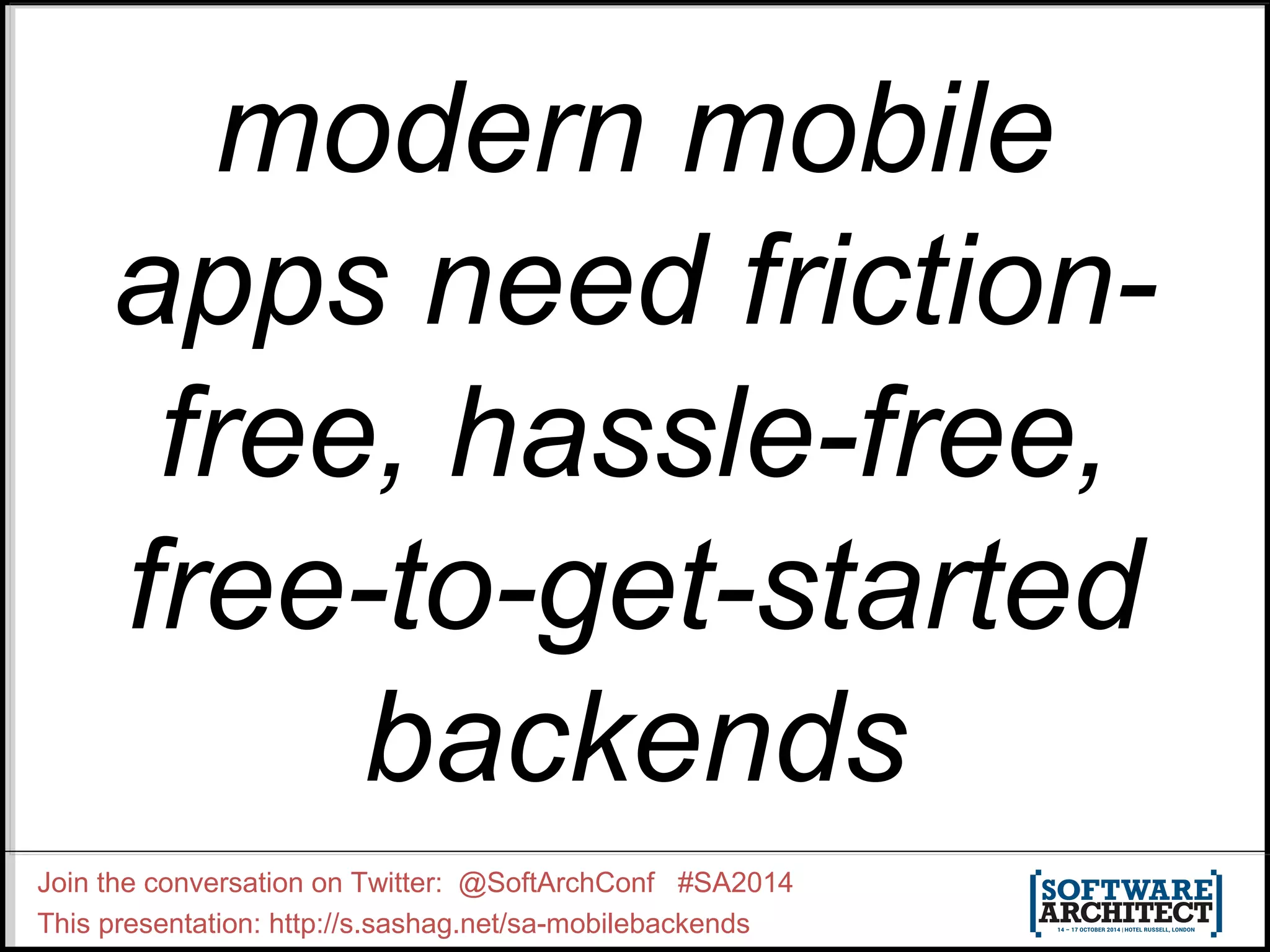

modern mobile
apps need friction-free,
hassle-free,
free-to-get-started
backends
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

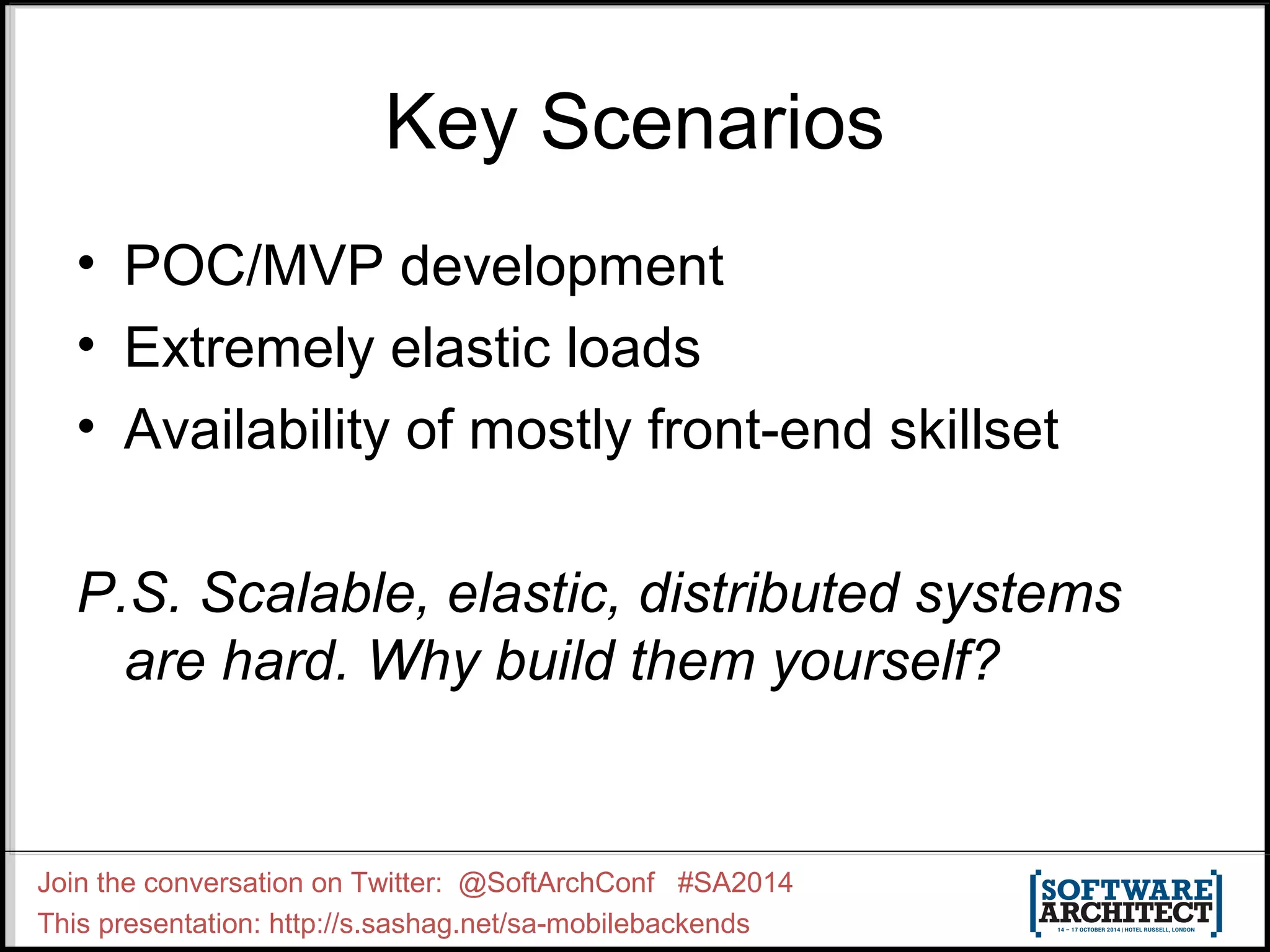

Key Scenarios
• POC/MVP development
• Extremely elastic loads
• Availability of mostly front-end skillset
P.S. Scalable, elastic, distributed systems
are hard. Why build them yourself?
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

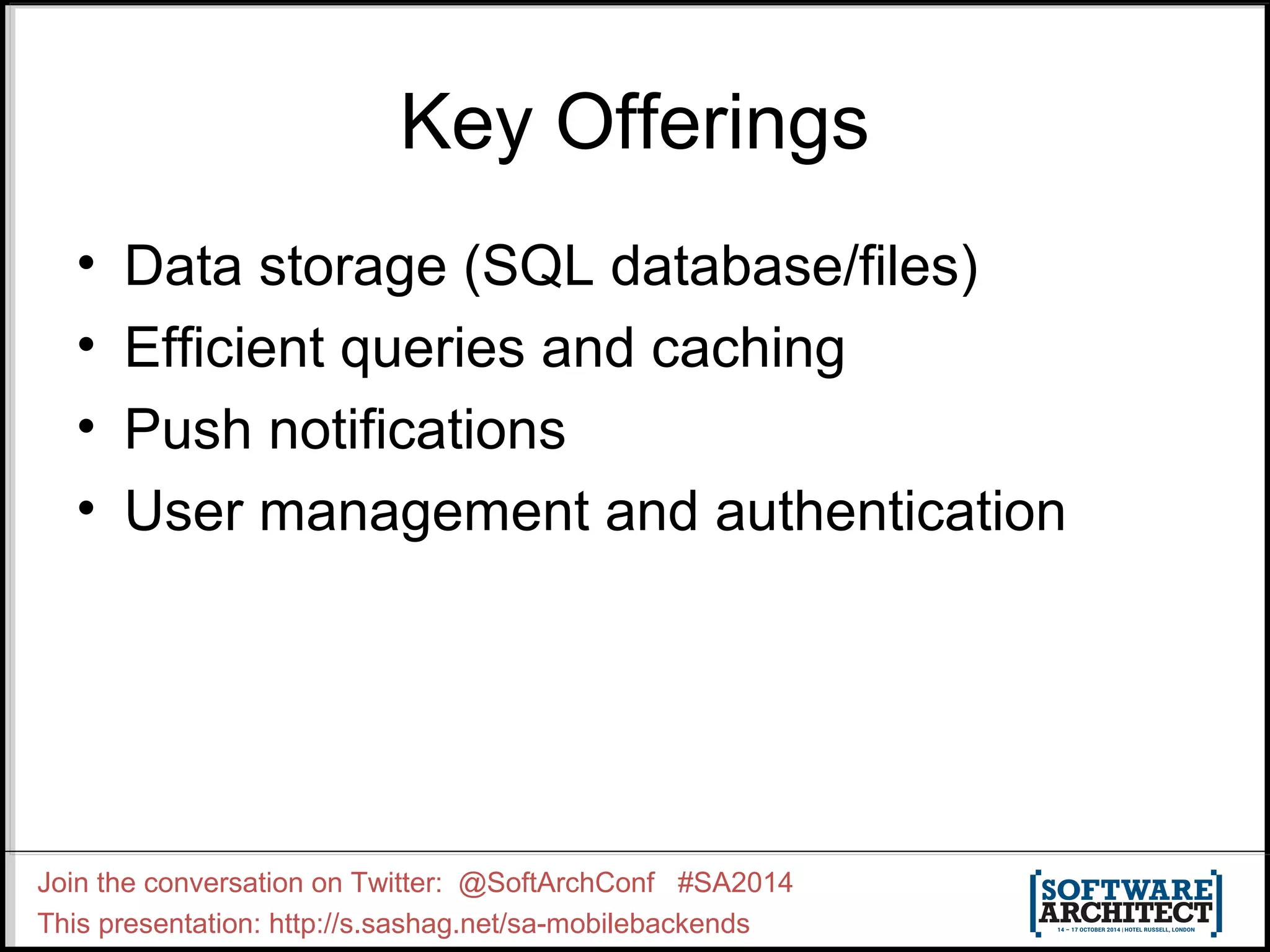

Key Offerings
• Data storage (SQL database/files)
• Efficient queries and caching
• Push notifications
• User management and authentication
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

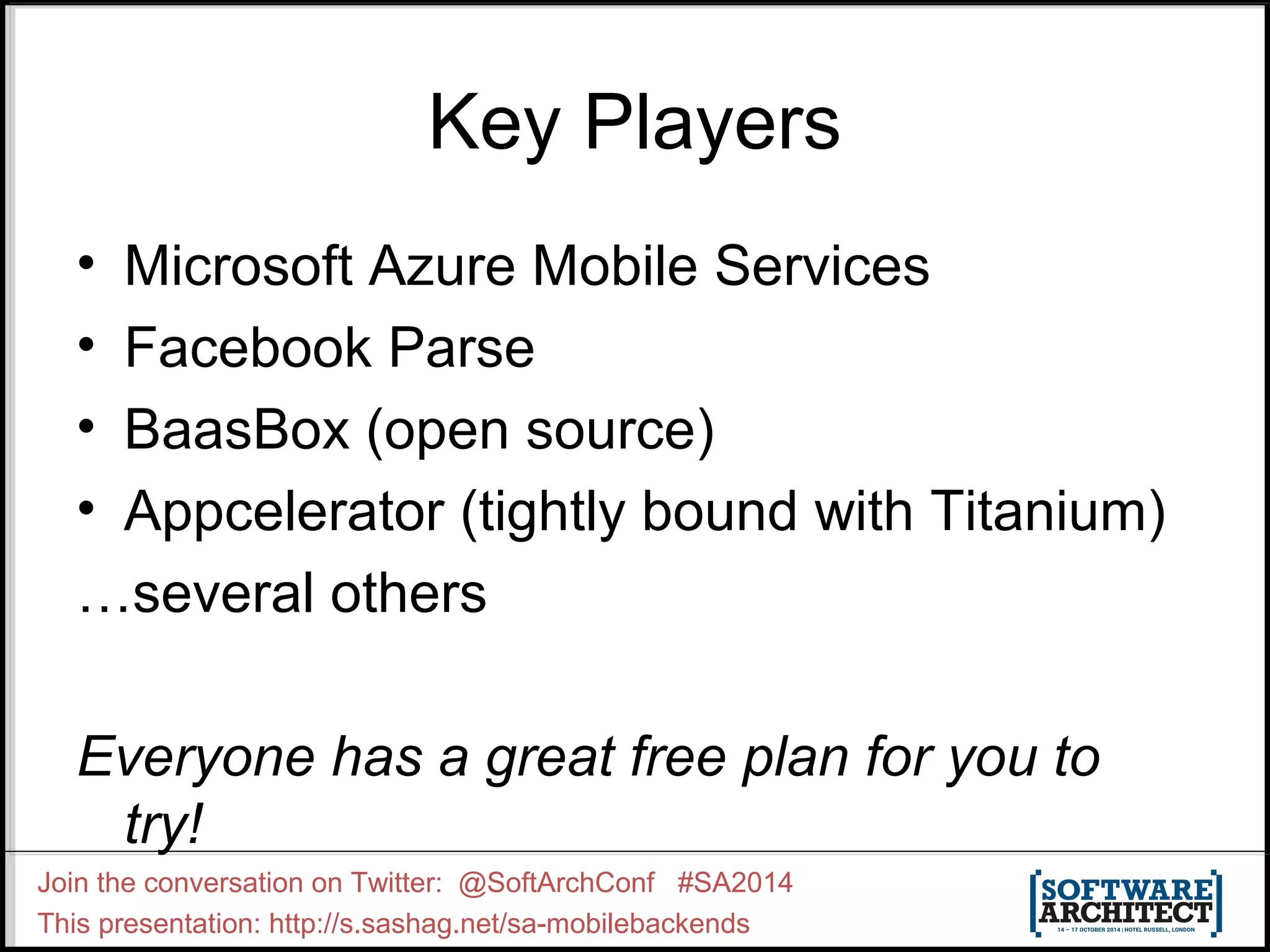

Key Players
• Microsoft Azure Mobile Services
• Facebook Parse
• BaasBox (open source)
• Appcelerator (tightly bound with Titanium)
…several others
Everyone has a great free plan for you to
try!
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

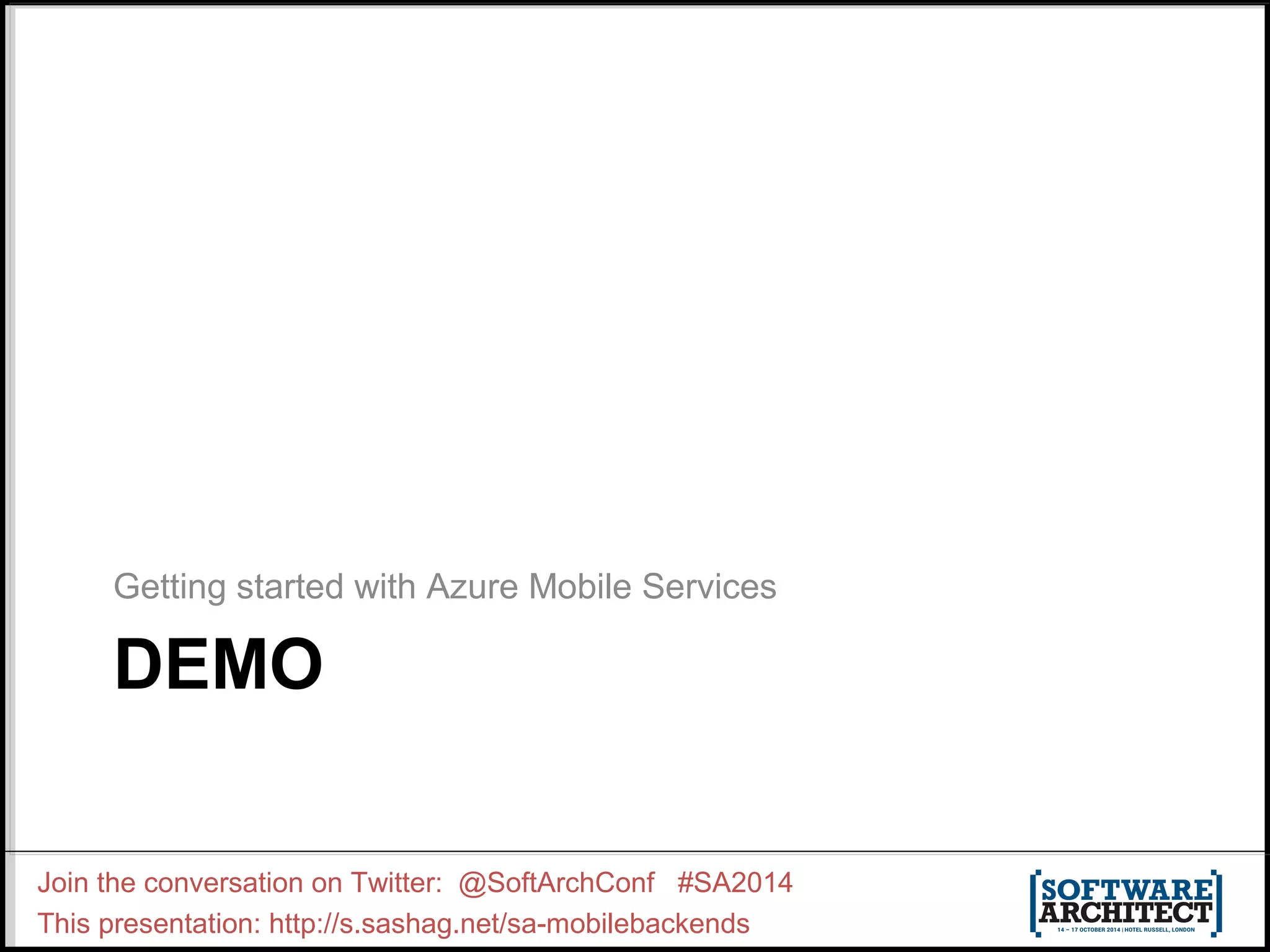

Getting started with Azure Mobile Services
DEMO
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

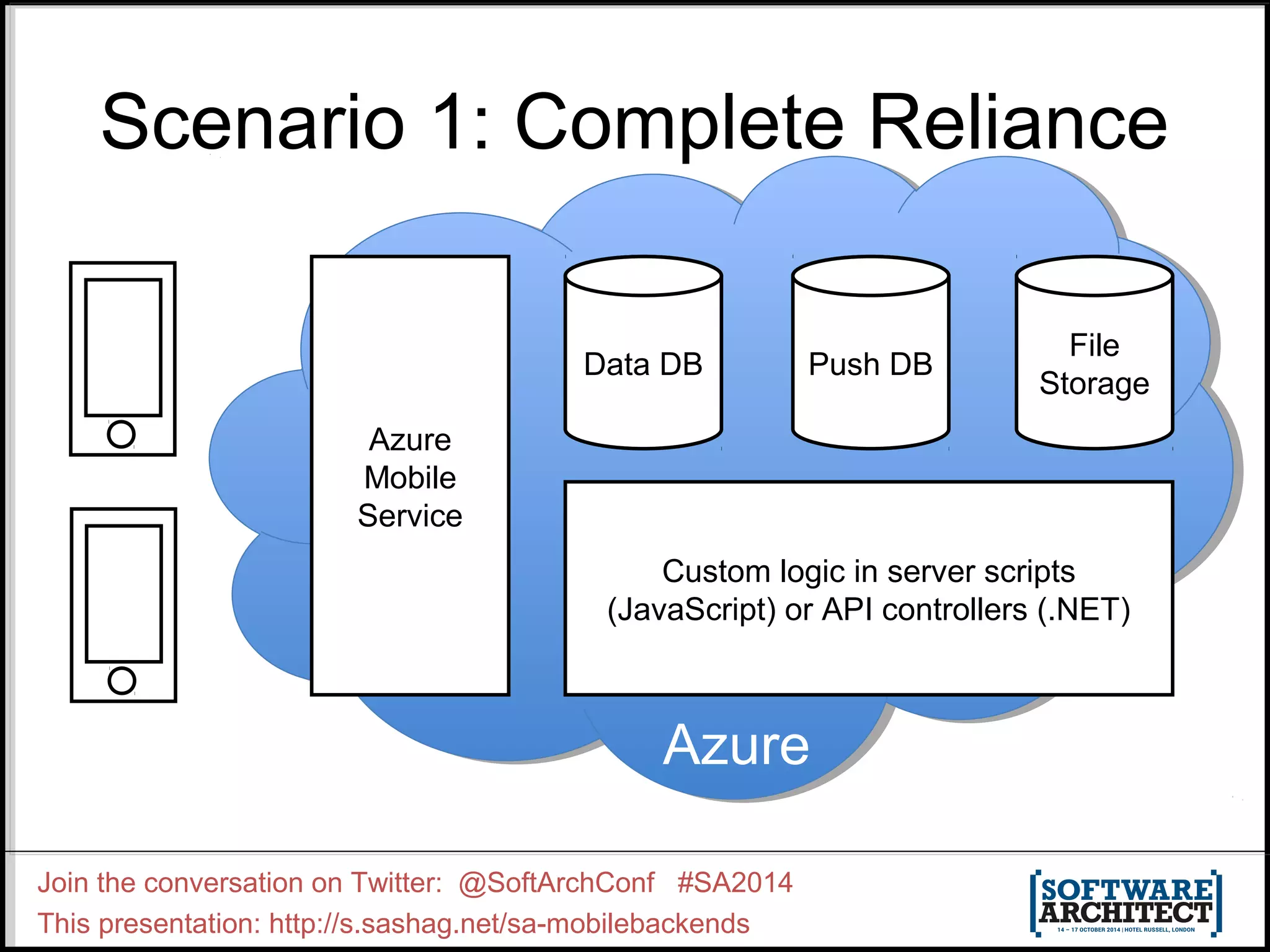

Scenario 1: Complete Reliance
Azure
Mobile
Service
Data DB Push DB File
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends
Storage
Custom logic in server scripts
(JavaScript) or API controllers (.NET)
Azure

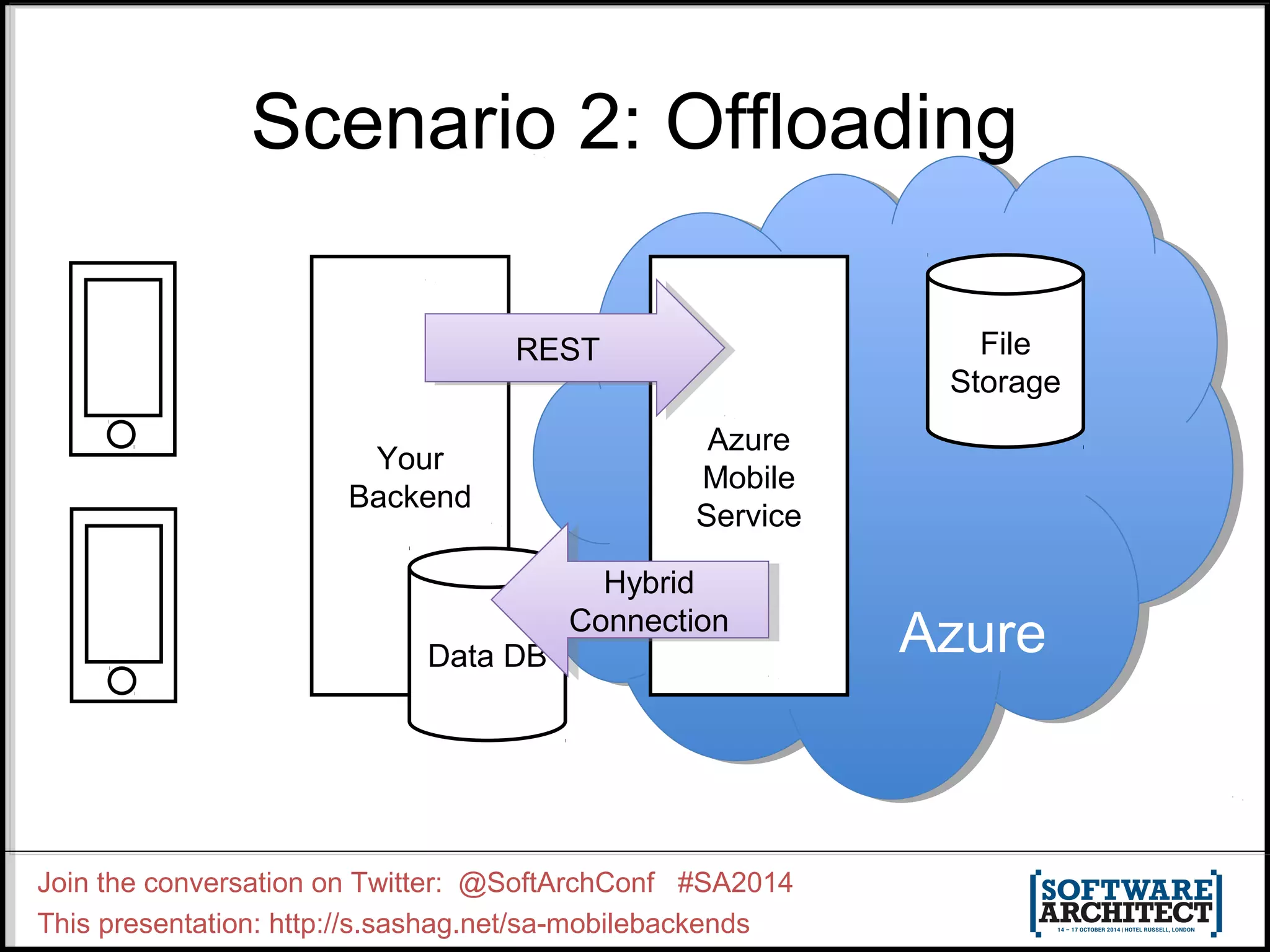

Scenario 2: Offloading
Your
Backend
Data DB
Hybrid
Connection
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends
File
Storage
Azure
Azure
Mobile
Service
RREESSTT
Hybrid
Connection

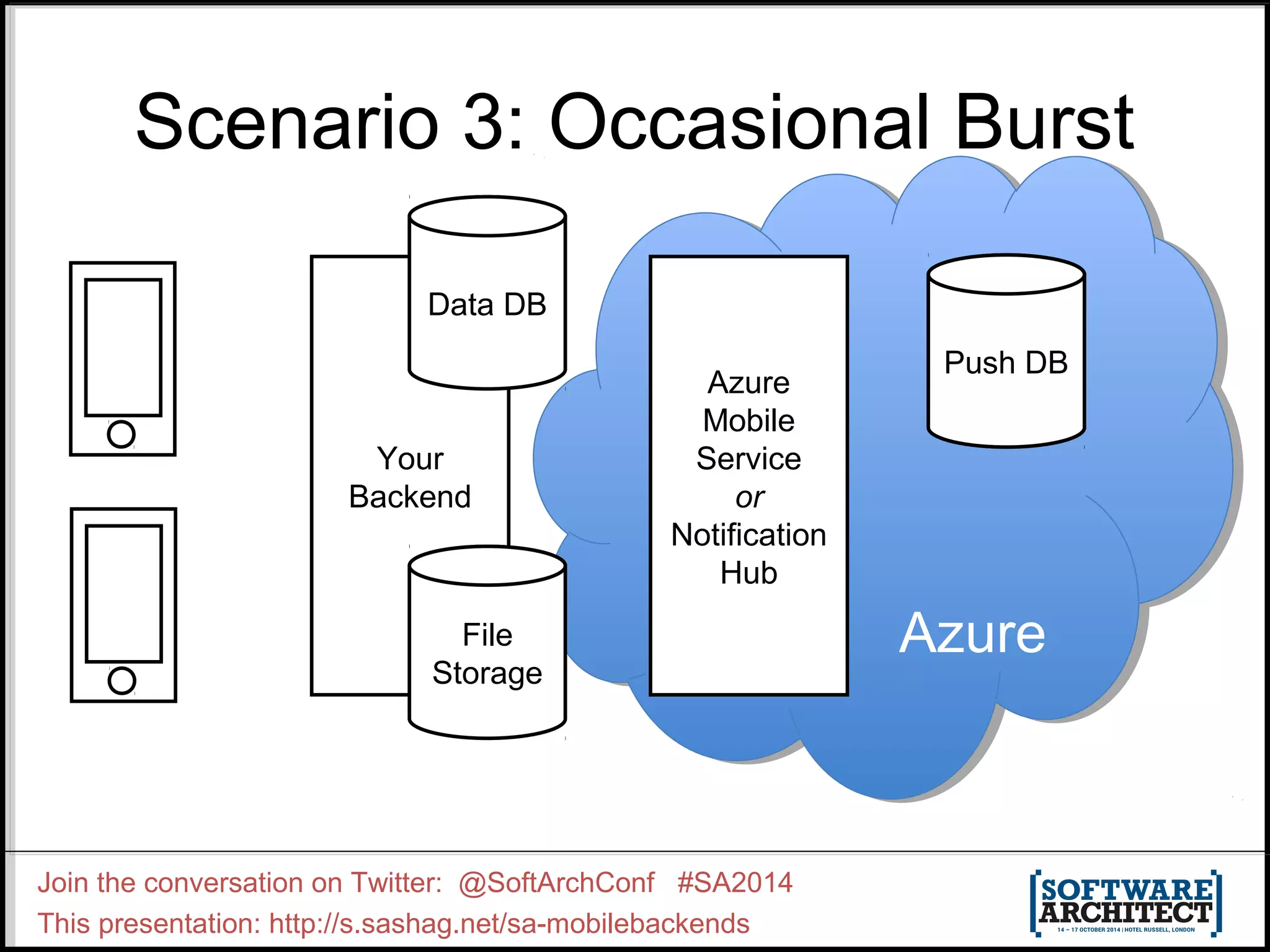

Scenario 3: Occasional Burst
Data DB
Your
Backend
File
Storage
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends
Azure
Azure
Mobile
Service
or
Notification
Hub
Push DB

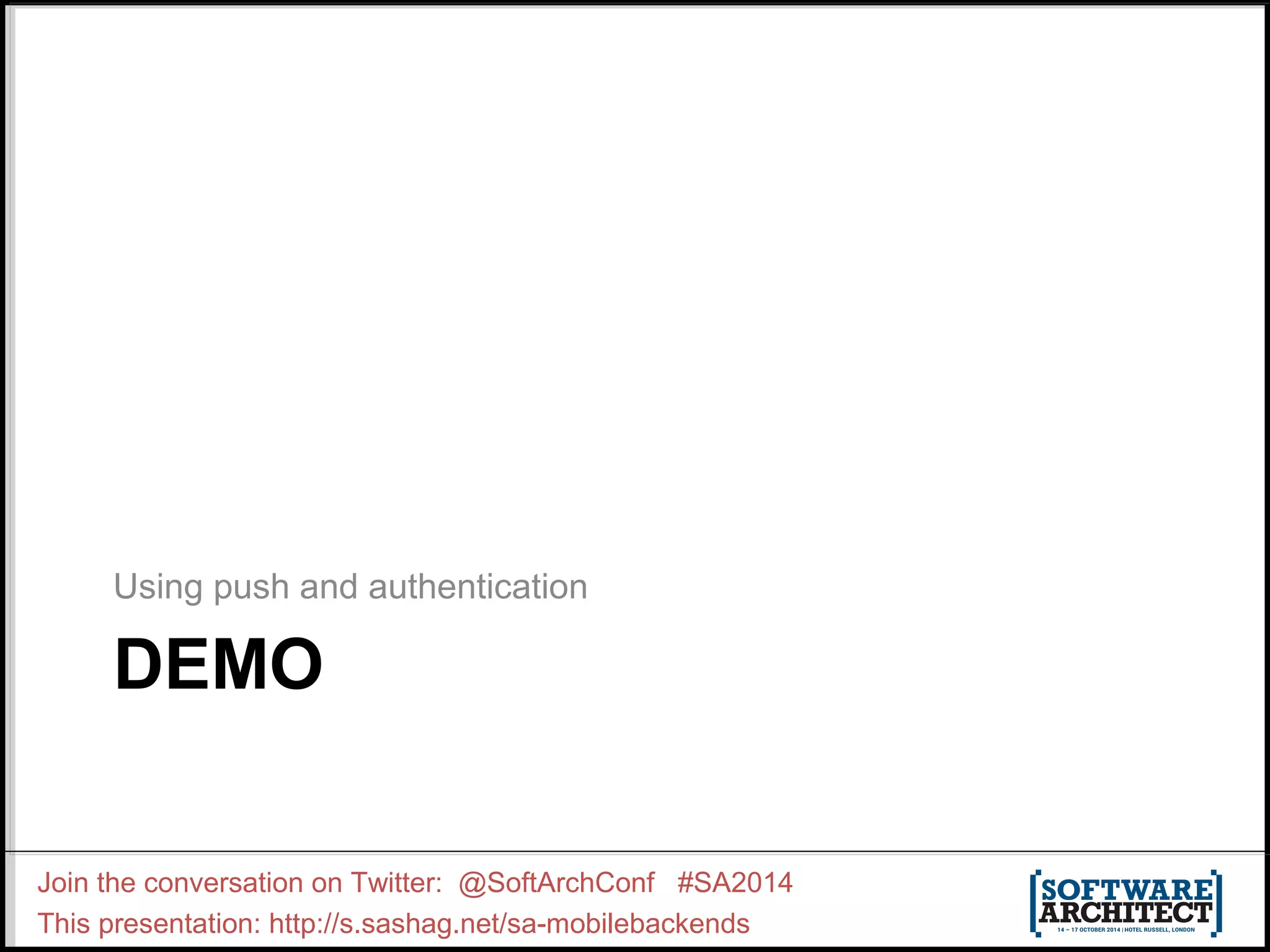

Using push and authentication
DEMO
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

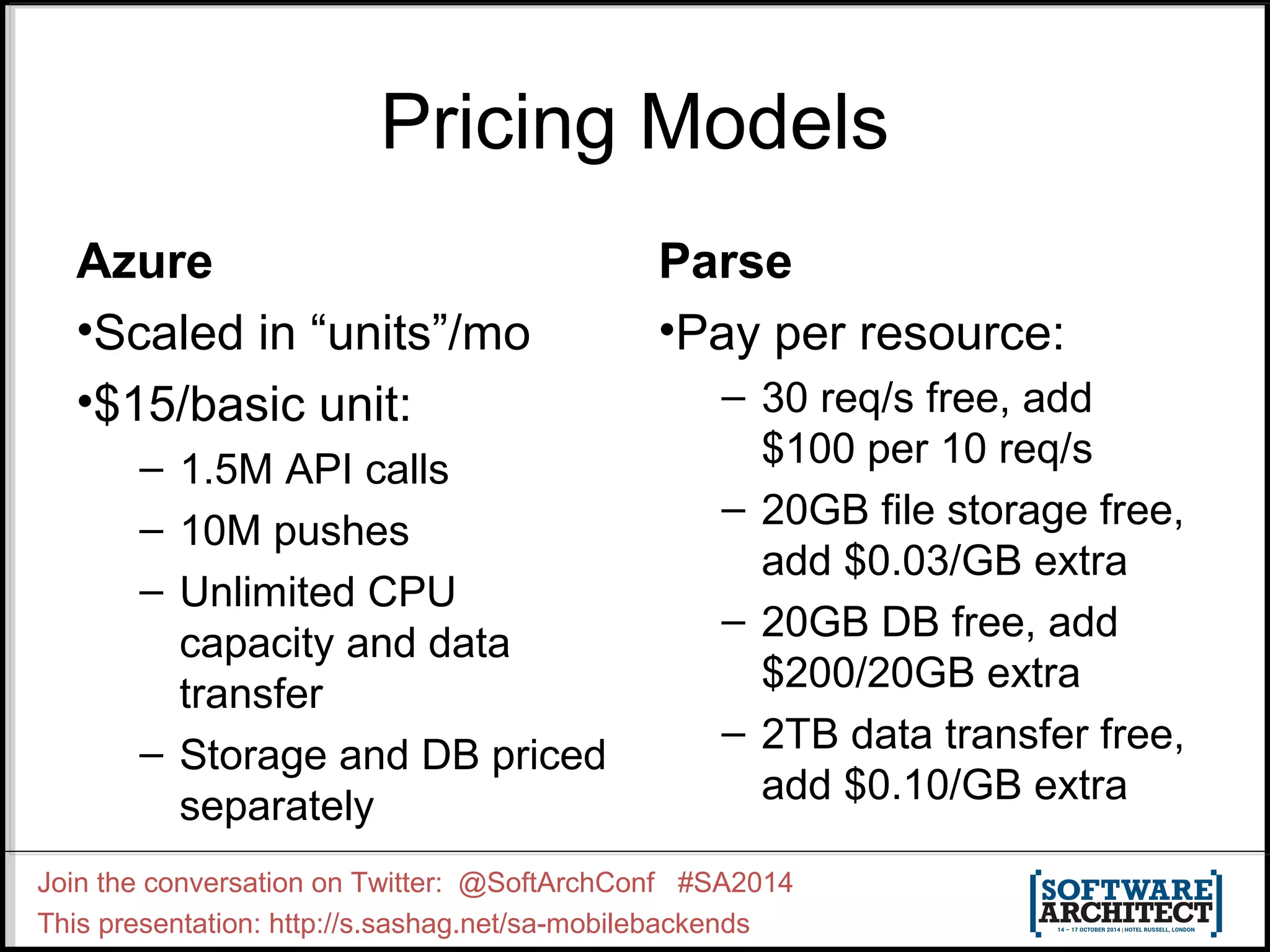

Pricing Models
Azure
•Scaled in “units”/mo
•$15/basic unit:
– 1.5M API calls
– 10M pushes
– Unlimited CPU
capacity and data
transfer
– Storage and DB priced
separately
Parse
•Pay per resource:
– 30 req/s free, add
$100 per 10 req/s
– 20GB file storage free,
add $0.03/GB extra
– 20GB DB free, add
$200/20GB extra
– 2TB data transfer free,
add $0.10/GB extra
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

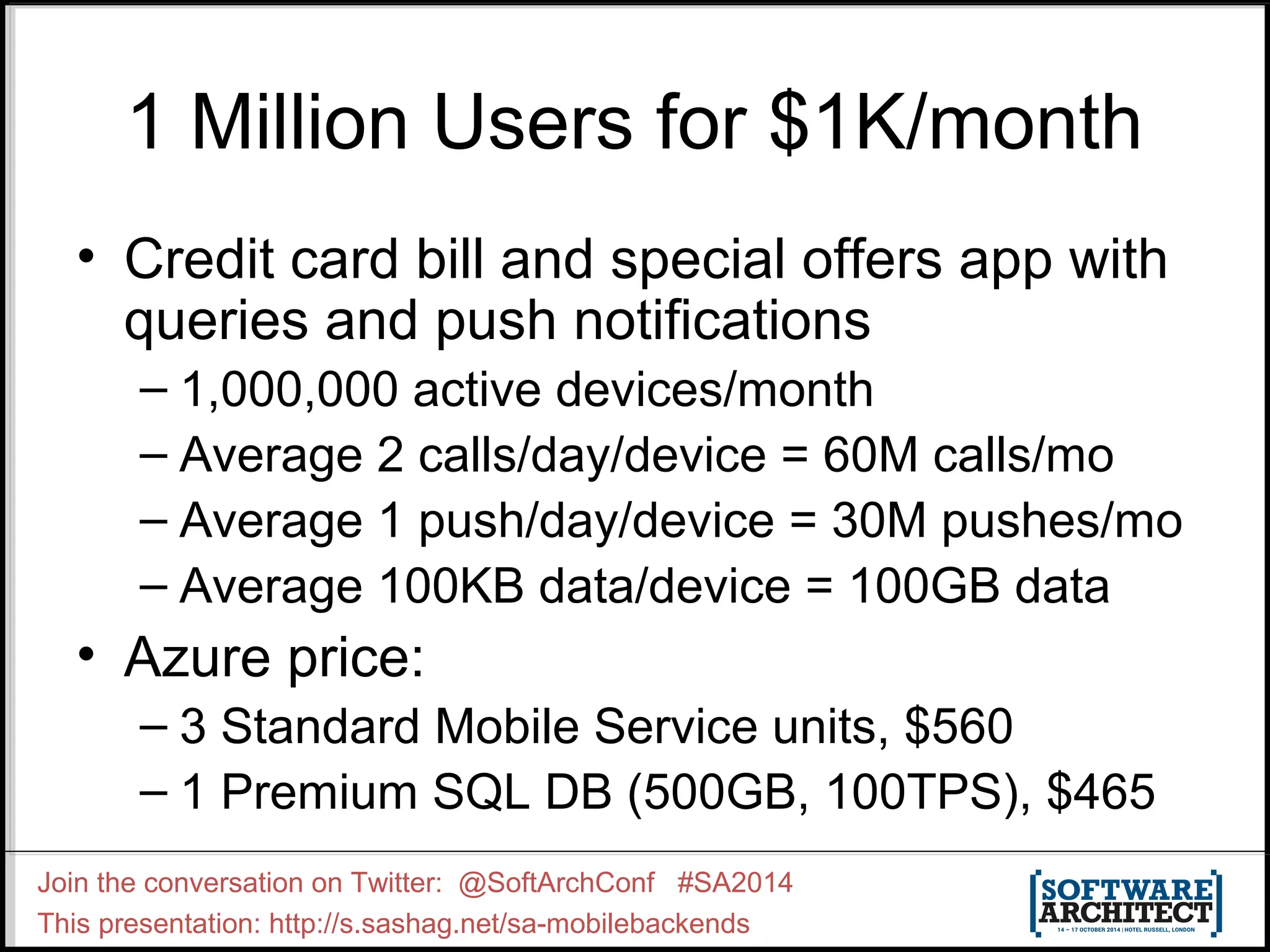

1 Million Users for $1K/month
• Credit card bill and special offers app with
queries and push notifications
– 1,000,000 active devices/month
– Average 2 calls/day/device = 60M calls/mo
– Average 1 push/day/device = 30M pushes/mo
– Average 100KB data/device = 100GB data
• Azure price:
– 3 Standard Mobile Service units, $560
– 1 Premium SQL DB (500GB, 100TPS), $465
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends

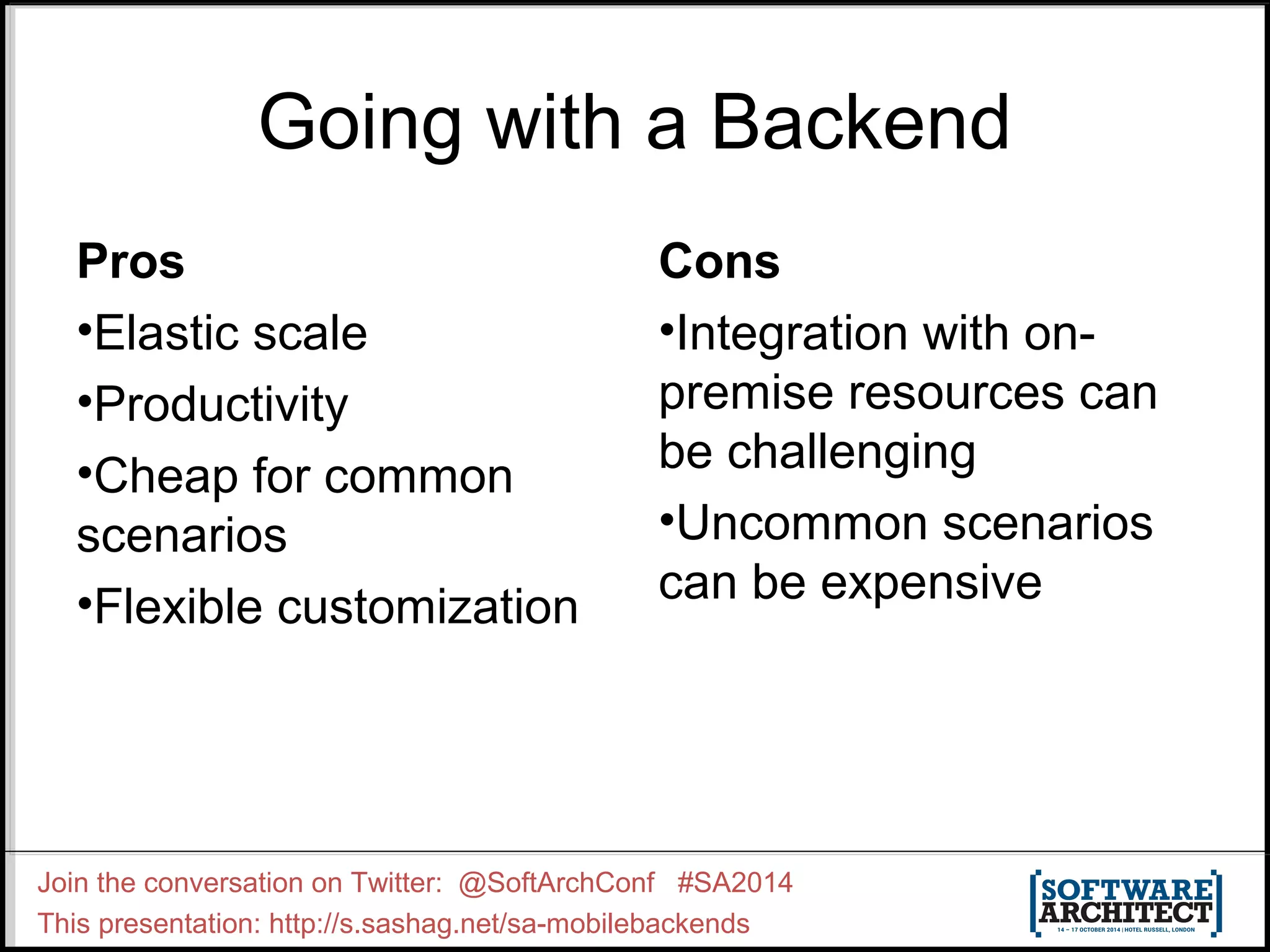

Going with a Backend
Pros
•Elastic scale
•Productivity
•Cheap for common
scenarios
•Flexible customization
Cons
•Integration with on-premise
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends
resources can
be challenging
•Uncommon scenarios
can be expensive

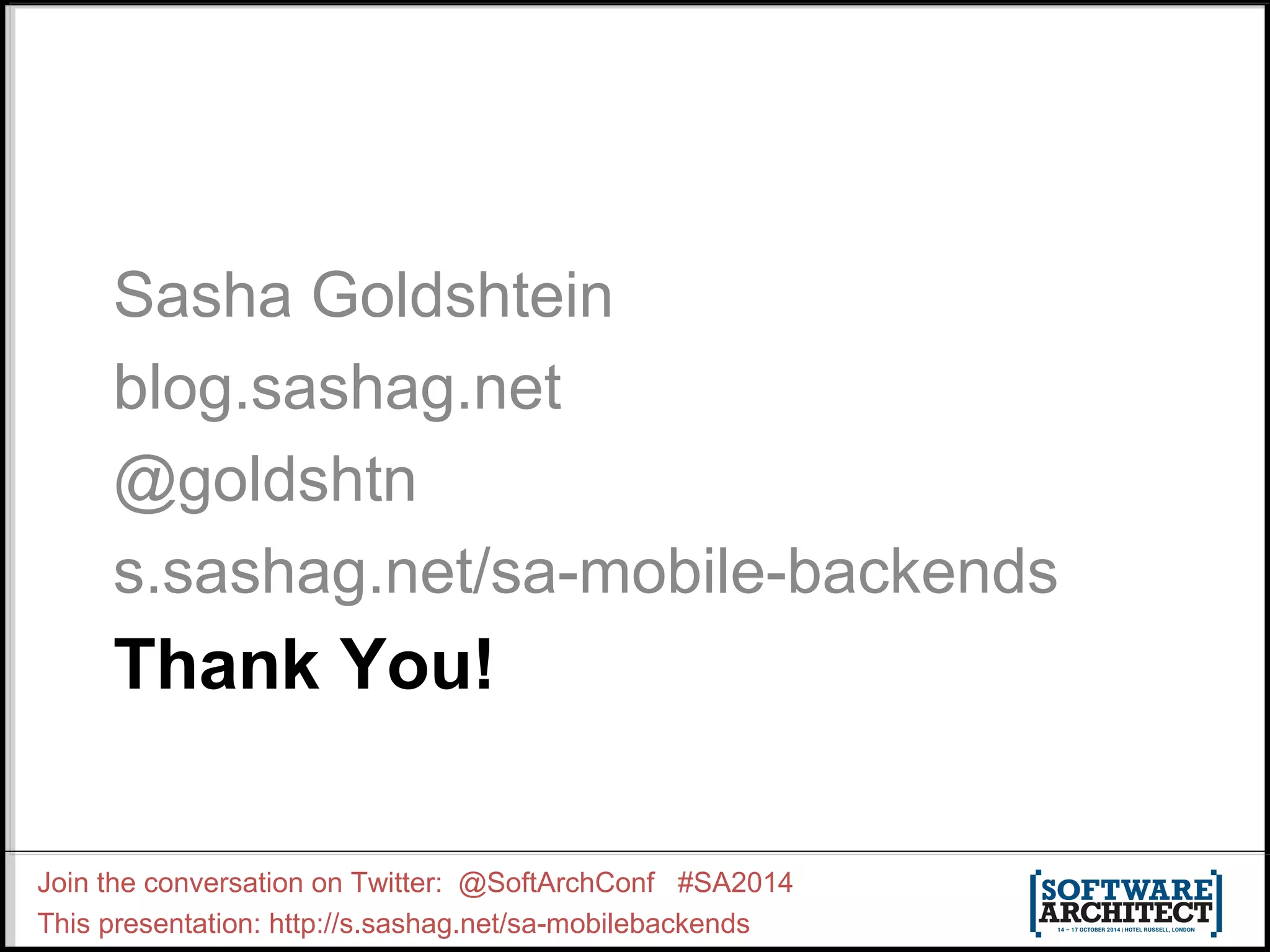

Sasha Goldshtein
blog.sashag.net
@goldshtn
s.sashag.net/sa-mobile-backends
Thank You!
Join the conversation on Twitter: @SoftArchConf #SA2014
This presentation: http://s.sashag.net/sa-mobilebackends
