VS Debugging Tricks
This document provides a summary of little known native debugging tricks in Visual Studio. It discusses using the expression evaluator for evaluating expressions in different scopes. It also covers using Edit and Continue, setting breakpoints on specific errors, breaking on all methods of a class, naming native threads, and searching through memory. The document provides code examples and links to blog posts with more details on these techniques.
More Related Content
VS Debugging Tricks

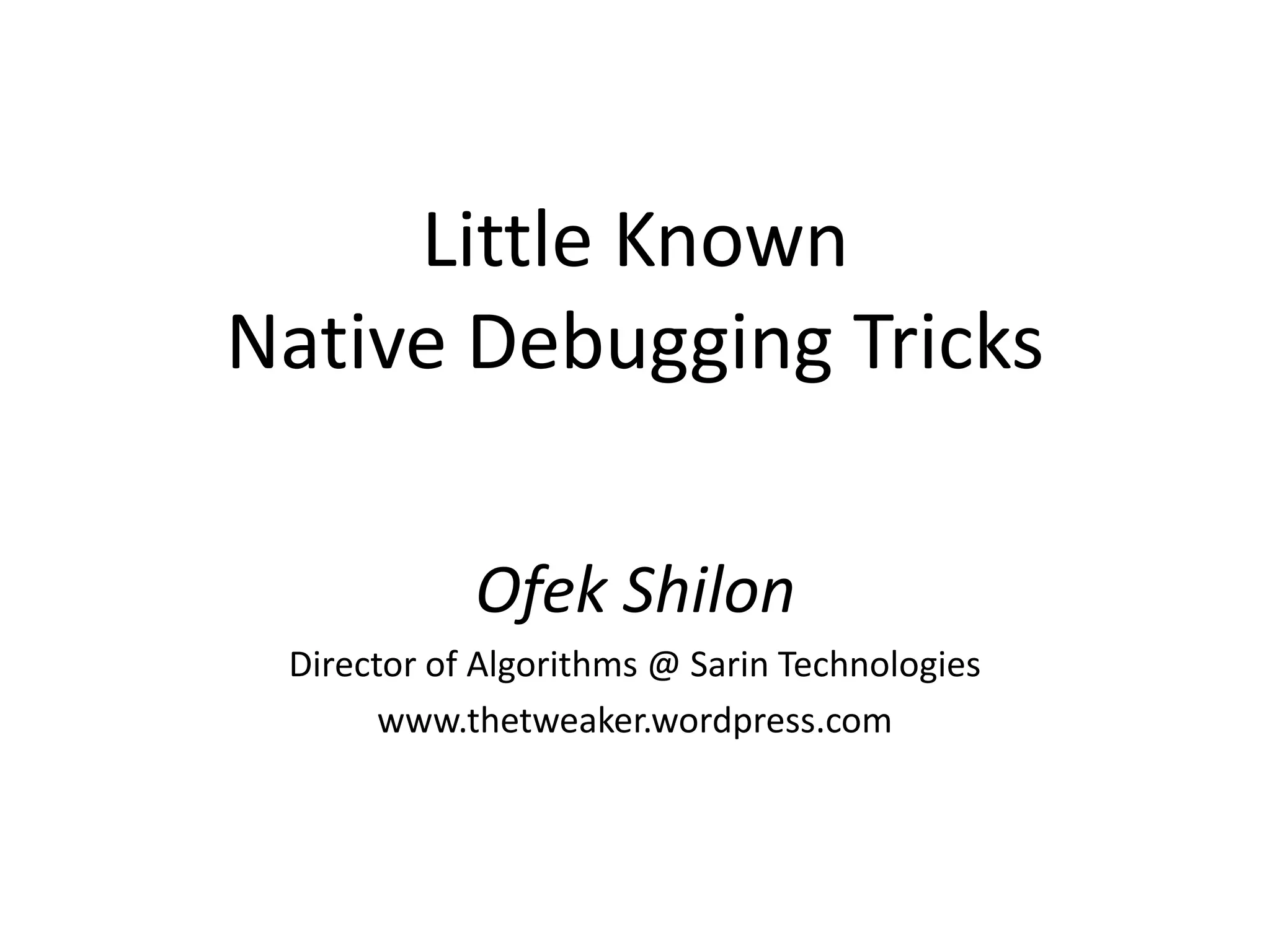

- 1. Little Known Native DebuggingTricks Ofek Shilon Director of Algorithms @ Sarin Technologies www.thetweaker.wordpress.com
- 3.
- 4. VS AS ANINTERPRETER

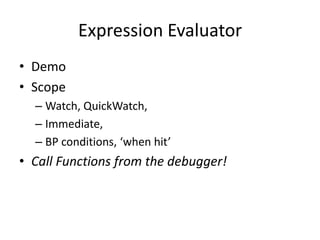

- 5. Expression Evaluator • Demo •Scope – Watch, QuickWatch, – Immediate, – BP conditions, ‘when hit’ • Call Functions from the debugger!

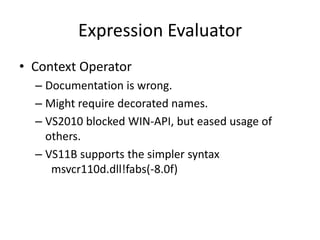

- 6. Expression Evaluator • ContextOperator – Documentation is wrong. – Might require decorated names. – VS2010 blocked WIN-API, but eased usage of others. – VS11B supports the simpler syntax msvcr110d.dll!fabs(-8.0f)

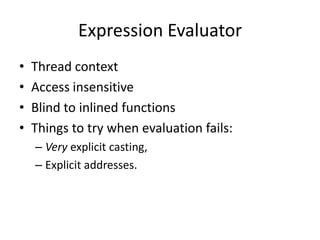

- 7. Expression Evaluator • Thread context • Access insensitive • Blind to inlined functions • Things to try when evaluation fails: – Very explicit casting, – Explicit addresses.

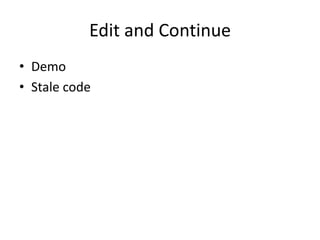

- 8. Edit and Continue •Demo • Stale code

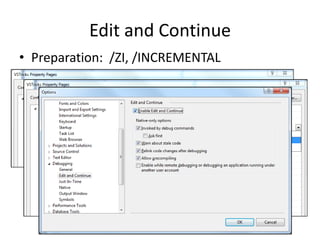

- 9. Edit and Continue •Preparation: /ZI, /INCREMENTAL
- 10. Edit and Continue •Limitations: – Inconsistent with /RELEASE, /OPT:REF, /OPT:ICF, /ORDER, /FORCE, – Does not invoke custom build steps, – Isn’t supported on attached processes, – Can’t change object layout, – Doesn’t regenerate IDL files, – Can’t change resource files, – Does not build static libs.
- 11.
- 12.

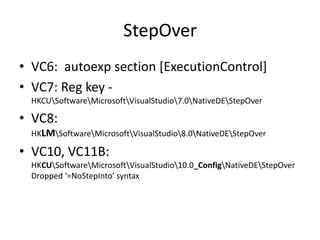

- 13. StepOver • VC6: autoexpsection [ExecutionControl] • VC7: Reg key - HKCUSoftwareMicrosoftVisualStudio7.0NativeDEStepOver • VC8: HKLMSoftwareMicrosoftVisualStudio8.0NativeDEStepOver • VC10, VC11B: HKCUSoftwareMicrosoftVisualStudio10.0_ConfigNativeDEStepOver Dropped ‘=NoStepInto’ syntax
- 14. StepOver • Warning! When 2 or more instances of VS are active, occasionally it would create and use a duplicate reg key … and all ’10.0_Config’ modifications would have no effect !

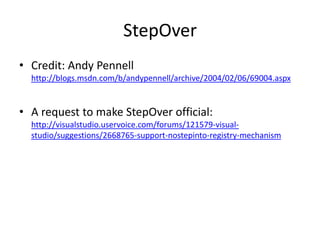

- 15. StepOver • Credit: AndyPennell http://blogs.msdn.com/b/andypennell/archive/2004/02/06/69004.aspx • A request to make StepOver official: http://visualstudio.uservoice.com/forums/121579-visual- studio/suggestions/2668765-support-nostepinto-registry-mechanism
- 16. autoexp • How’s thedebugger ‘aware’ of STL containers? • autoexp.dat – By default at %VS folder %Common7PackagesDebugger
- 17. autoexp • Demo • Specializedsyntax for common containers: Array, List, Map, Tree. • Re-parsed on every debugging session • Extremely fragile, yet excellent investment

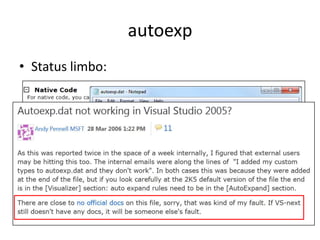

- 18.
- 19. autoexp • Bypass filepath via env var: _vcee_autoexp • Bypass visualizer locally: xxx,! • Bypass globally in Tools/Options:

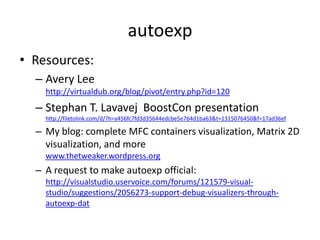

- 20. autoexp • Resources: – Avery Lee http://virtualdub.org/blog/pivot/entry.php?id=120 – Stephan T. Lavavej BoostCon presentation http://filetolink.com/d/?h=a456fc7fd3d35644edcbe5e764d1ba63&t=1315076450&f=17ad36ef – My blog: complete MFC containers visualization, Matrix 2D visualization, and more www.thetweaker.wordpress.org – A request to make autoexp official: http://visualstudio.uservoice.com/forums/121579-visual- studio/suggestions/2056273-support-debug-visualizers-through- autoexp-dat

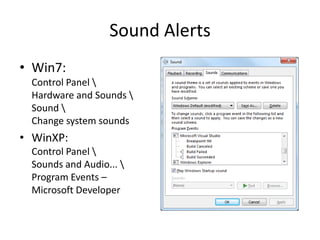

- 21. Sound Alerts • Win7: Control Panel Hardware and Sounds Sound Change system sounds • WinXP: Control Panel Sounds and Audio... Program Events – Microsoft Developer
- 22.

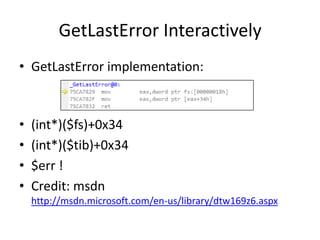

- 23. GetLastError Interactively • GetLastErrorimplementation: • (int*)($fs)+0x34 • (int*)($tib)+0x34 • $err ! • Credit: msdn http://msdn.microsoft.com/en-us/library/dtw169z6.aspx

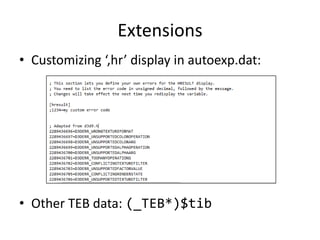

- 24. Extensions • Customizing ‘,hr’display in autoexp.dat: • Other TEB data: (_TEB*)$tib

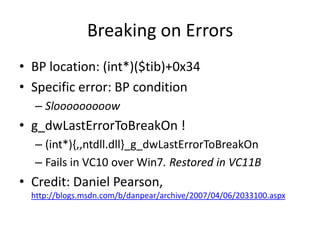

- 25. Breaking on Errors •BP location: (int*)($tib)+0x34 • Specific error: BP condition – Slooooooooow • g_dwLastErrorToBreakOn ! – (int*){,,ntdll.dll}_g_dwLastErrorToBreakOn – Fails in VC10 over Win7. Restored in VC11B • Credit: Daniel Pearson, http://blogs.msdn.com/b/danpear/archive/2007/04/06/2033100.aspx
- 26.

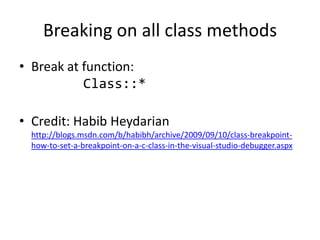

- 27. Breaking on allclass methods • Break at function: Class::* • Credit: Habib Heydarian http://blogs.msdn.com/b/habibh/archive/2009/09/10/class-breakpoint- how-to-set-a-breakpoint-on-a-c-class-in-the-visual-studio-debugger.aspx

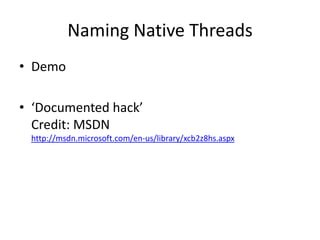

- 28. Naming Native Threads •Demo • ‘Documented hack’ Credit: MSDN http://msdn.microsoft.com/en-us/library/xcb2z8hs.aspx
- 29. Breaking on DataRead • Some code required. • Links to 4 implementations: http://thetweaker.wordpress.com/2011/05/22/breaking-on-data-read/ • Request to make it official: http://visualstudio.uservoice.com/forums/121579-visual- studio/suggestions/2668700-expose-break-on-read-breakpoints

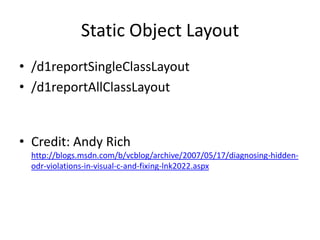

- 30. Static Object Layout •/d1reportSingleClassLayout • /d1reportAllClassLayout • Credit: Andy Rich http://blogs.msdn.com/b/vcblog/archive/2007/05/17/diagnosing-hidden- odr-violations-in-visual-c-and-fixing-lnk2022.aspx
- 31.
- 32. Useful Pseudo-registers • $tid -> very useful as a BP condition. • $env=0 -> view debugee environment variables – In VC11: just $env in watch • $cmdline = 0 -> view launching command line Credit: John Cunningham, http://blogs.msdn.com/b/ms_joc/archive/2004/08/23/218912.aspx
- 33. Useful Pseudo-registers • $handles -> narrows down handle leaks • $clk -> rough profiling • $user -> view permissions info • Credits: Steve Steiner, Gregg Miskelly, et. al. http://blogs.msdn.com/b/stevejs/ http://blogs.msdn.com/b/greggm/

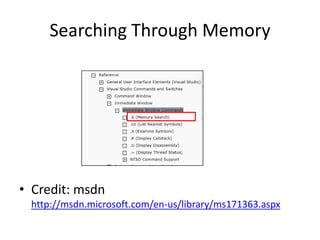

- 34. Searching Through Memory •Credit: msdn http://msdn.microsoft.com/en-us/library/ms171363.aspx
- 35.
Editor's Notes
- #3 C++התחלות שלא הבשילו בזמןמקור עיקרי – בלוגים של מפתחי VSדברים מאד שימושיים – לחלק שמתי בקשות להפוך לפיצ'רים רשמייםVS2010 / VS2011B
- #5 Many people think that editing variables is the most they can intervene with the debugeeEdit variables, move execution around
- #7 אינליין – רלבנטי בRELEASE
- #9 Break *before* code change, greatly reduces the chance of stale codeUse directX sample!
- #10 Incremental linking: pads functions code, contains jump thunks to handle function relocationInconsistent with /OPT:REF, /OPT:ICF, /ORDER, /RELEASE, /FORCESome changes are too great, full linking occurs.All options are on by default in debug
- #14 2005: for all users
- #18 comment std::vector רפרוף בסיסי על הסינטקס, רפרנסים טובים בסוףInsert carray childrenCarray previewVect3d preview
- #20 טוב גם לבדוק שם אם נדמה שלא פועל
- #21 כשיודעים מה לחפש – מוצאים המון
- #22 לא מוחבא ברג'יסטרי, יש UI, אבל במקום ממש לא סביר ורחוק מאד מVS עצמוהועף ב2005, הוחזר ב2008 לקול מחאות הציבור
- #24 Code: ::DeleteFile, GetLastError$fs fakes it...(int*)($fs)+0x18(int*)($tib)+0x34$errFormatting strings:12.3412.34,g$err,hr(_TEB*)$tib
- #25 HRESULT customization doesn’t even require debugger restart!!_TEB is not defined publically, but the debugger is aware of it. Contains much useful data for advanced scenarios (fiber-specific data, etc)
- #28 Doesn’t work for templated classes/methodsDoesn’t extend to wildcards/regexGood way to find entry points
- #29 No ‘name’ slot in TEB
- #30 Write-to BPs are implemented in hardware – dedicated x86 debug registers.Read-from debugs registers are available too, but were never exposed in VS.Some code required Maybe historical portability constraints? Dunno4 very similar implementations
- #31 Not investigating code *flow* - static feature.After /d1reportSingleClassLayout, type immediatelly your classTest: /d1reportSingleClassLayoutCDialog . show vftable, alignment, adjustorsDebug ODR violationsOptimize storageGain deep insightSince VS2010, collides with /showIncludes (?)Watch out for PCH – if your class definition isn’t compiled, its layout won’t be shown
- #33 $cmdline credit: John Cunningham, http://blogs.msdn.com/b/ms_joc/archive/2004/08/23/218912.aspx$env=0 no longer works in VS2010
- #35 Demo – on envvars.S -U 0x006fdad0 60 "ALLUSERSPROFILE"שימושי בדיבוג של דמפים מלאים
