This document discusses various performance analysis tools for Visual Studio including trace analysis, event tracing for Windows (ETW), performance counters, and profiling. It provides information on how these tools can be used to measure code and system performance, gather debugging information like call stacks and symbols, and identify bottlenecks and resource contention. Examples are given of the types of data and events that can be captured from the operating system, .NET framework, and applications to help optimize performance.

1. Demystifying Visual Studio
2012 Performance Tools
Martin Kulov | kulov.net
www.devreach.com

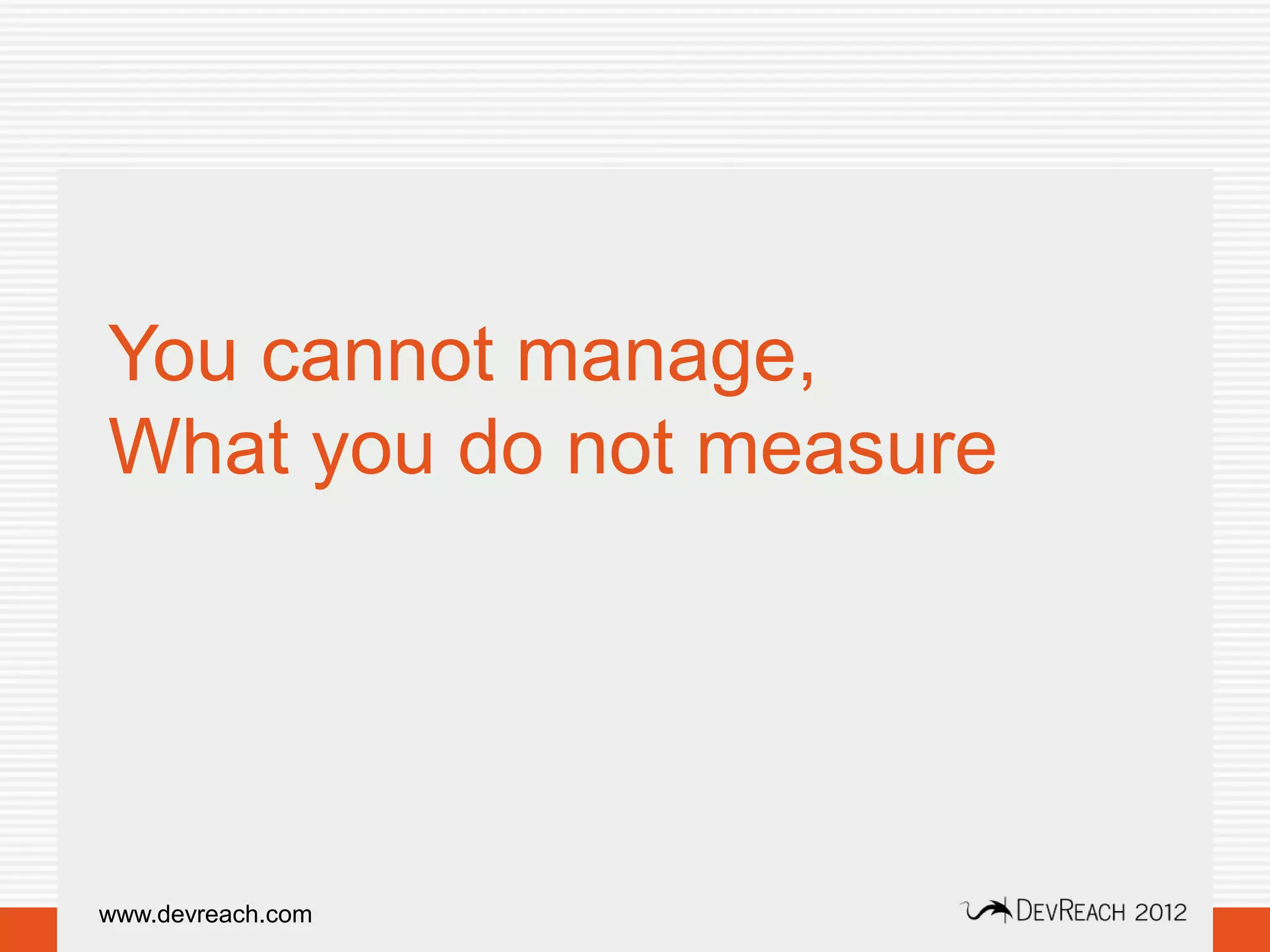

2. You cannot manage,
What you do not measure
www.devreach.com

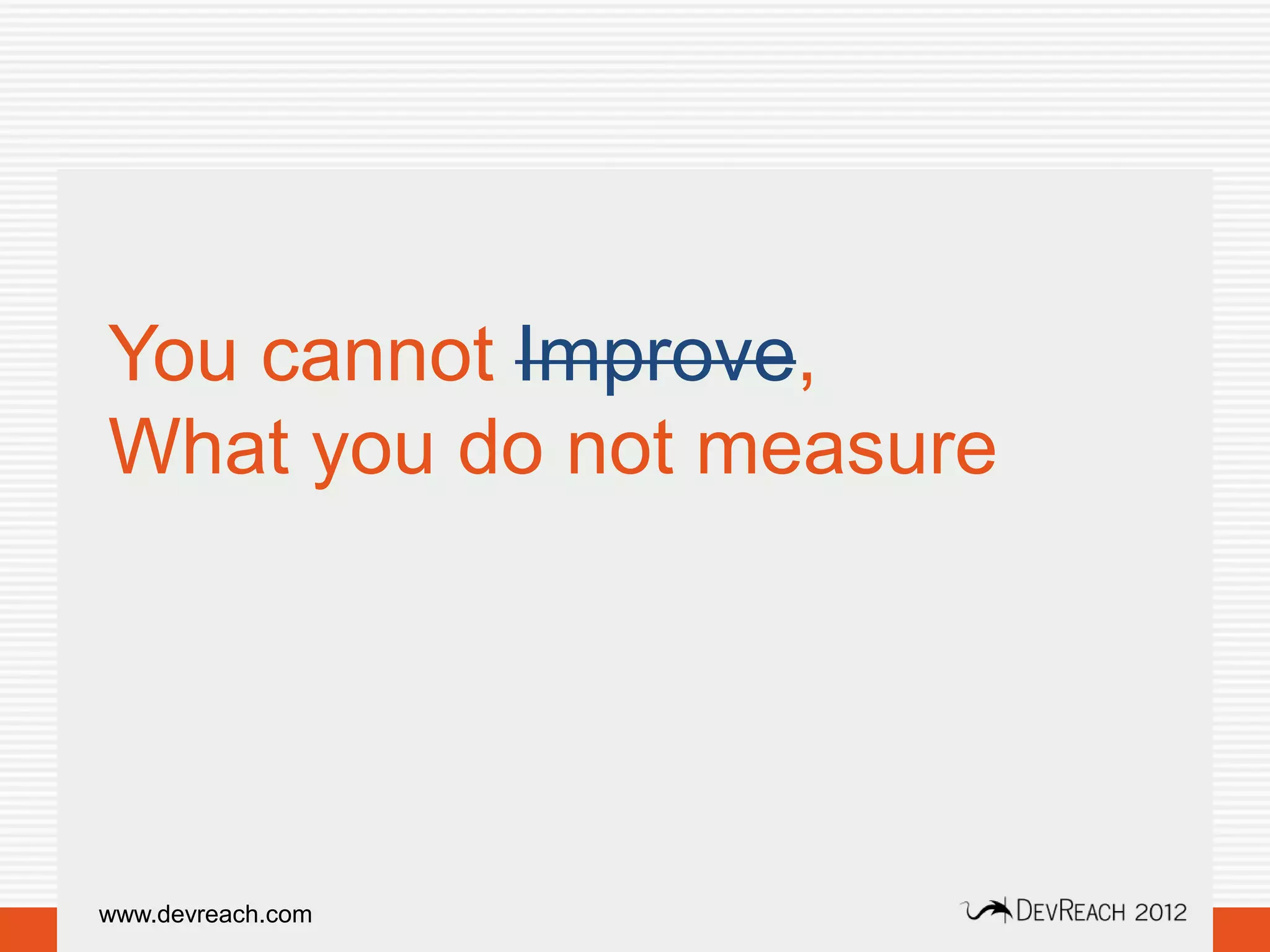

3. You cannot Improve,
What you do not measure
www.devreach.com

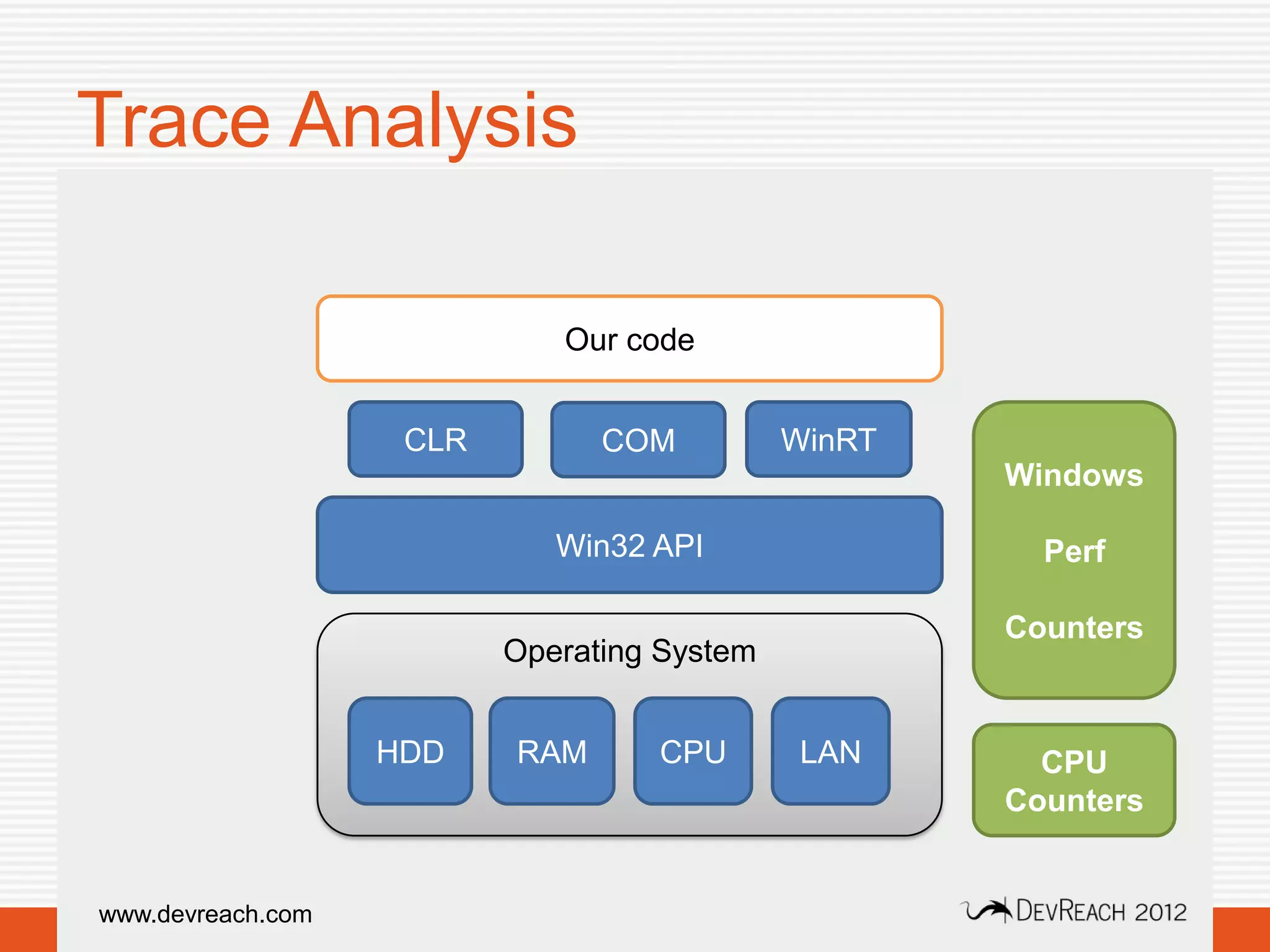

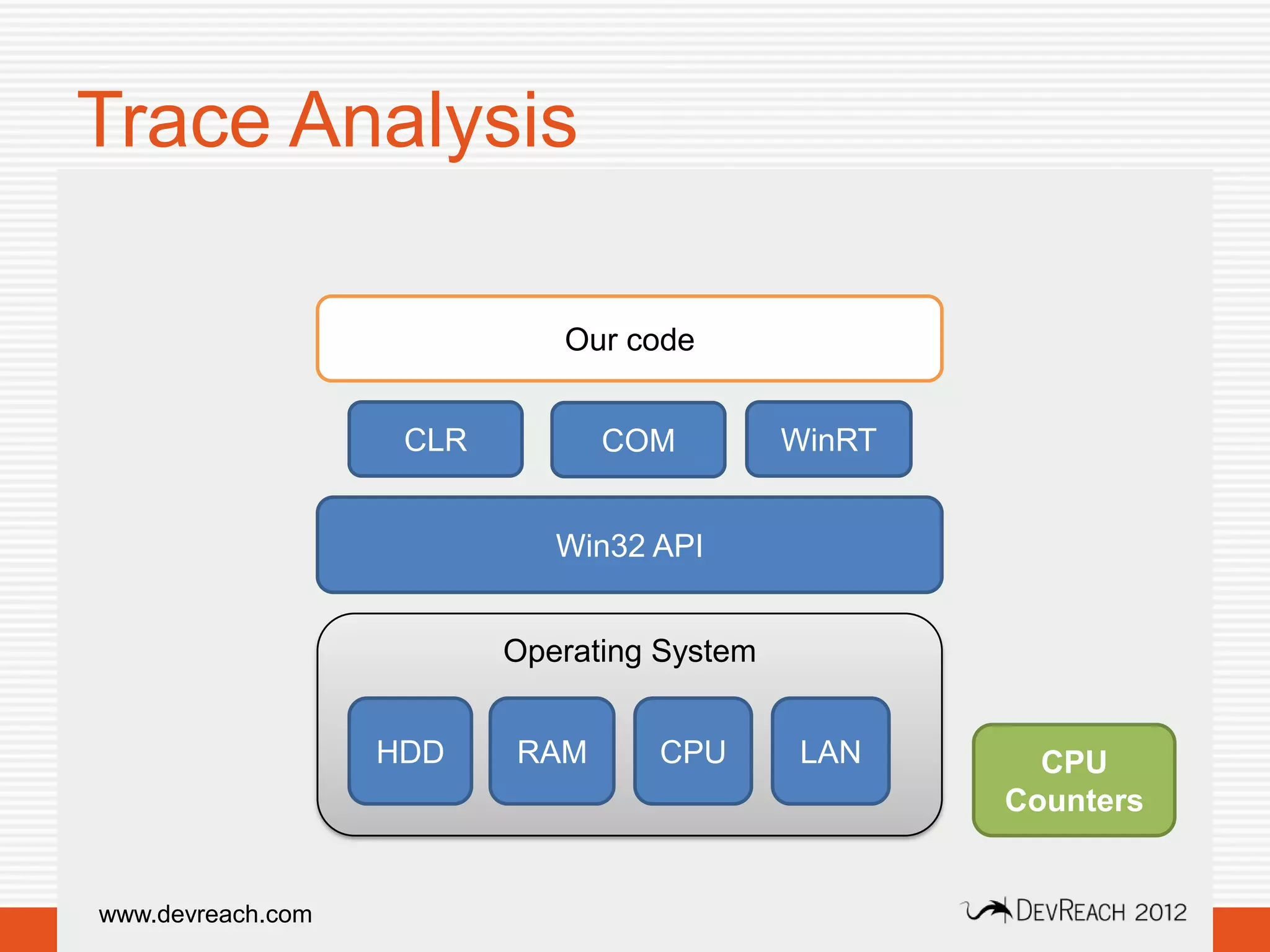

4. Trace Analysis
Our code
CLR COM WinRT
Win32 API
Operating System
HDD RAM CPU LAN CPU
Counters
www.devreach.com

5. CPU Counters
• Hardware events – portable and platform
– Instructions Retired
– Non Halted Cycles
– ITLB Misses
– Branches Retired
– Mis-predicted Branches
– L2 Cache Read Misses
– L2 Cache Read References
www.devreach.com

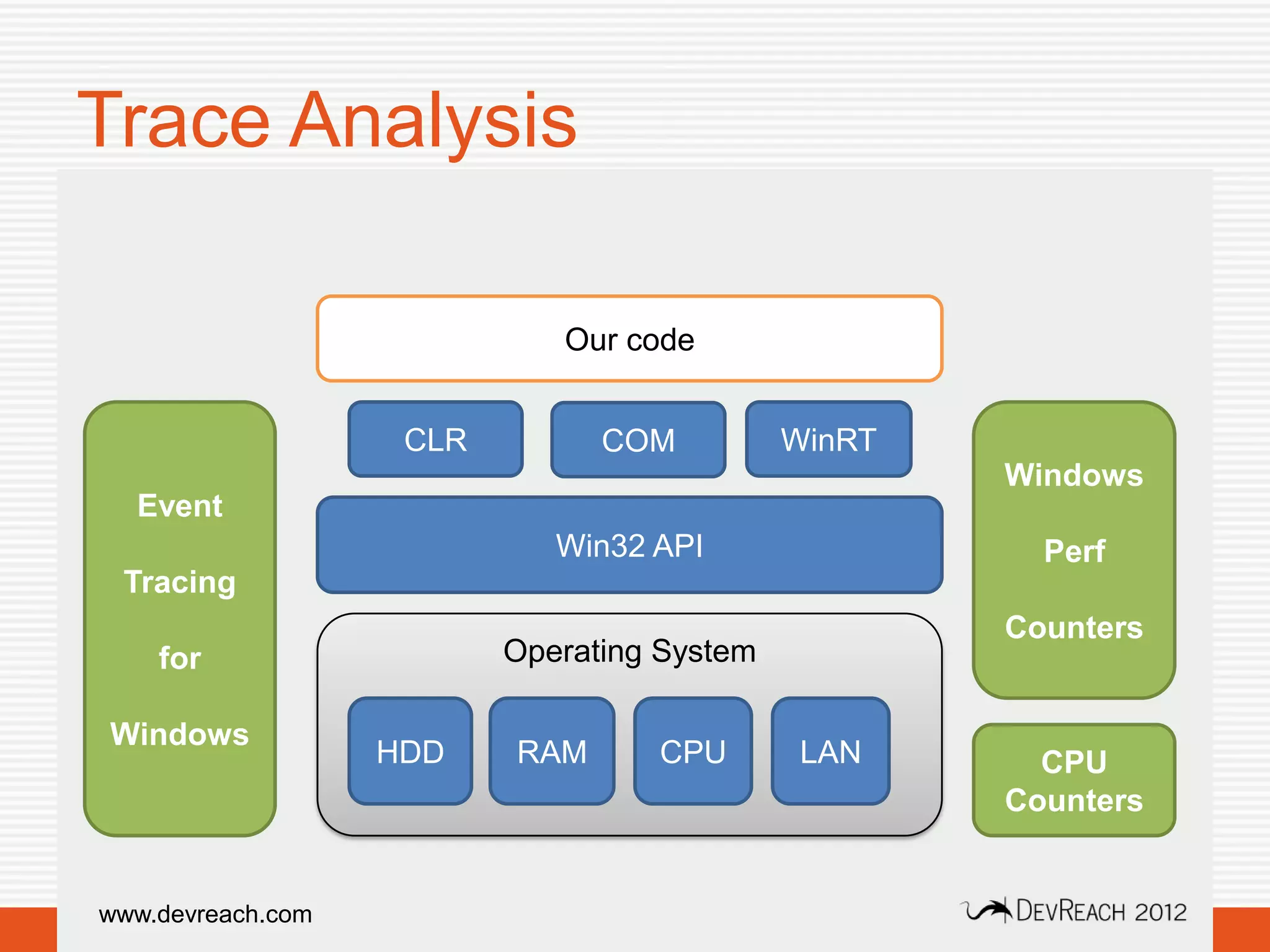

6. Trace Analysis
Our code
CLR COM WinRT
Windows
Win32 API Perf
Counters
Operating System
HDD RAM CPU LAN CPU
Counters
www.devreach.com

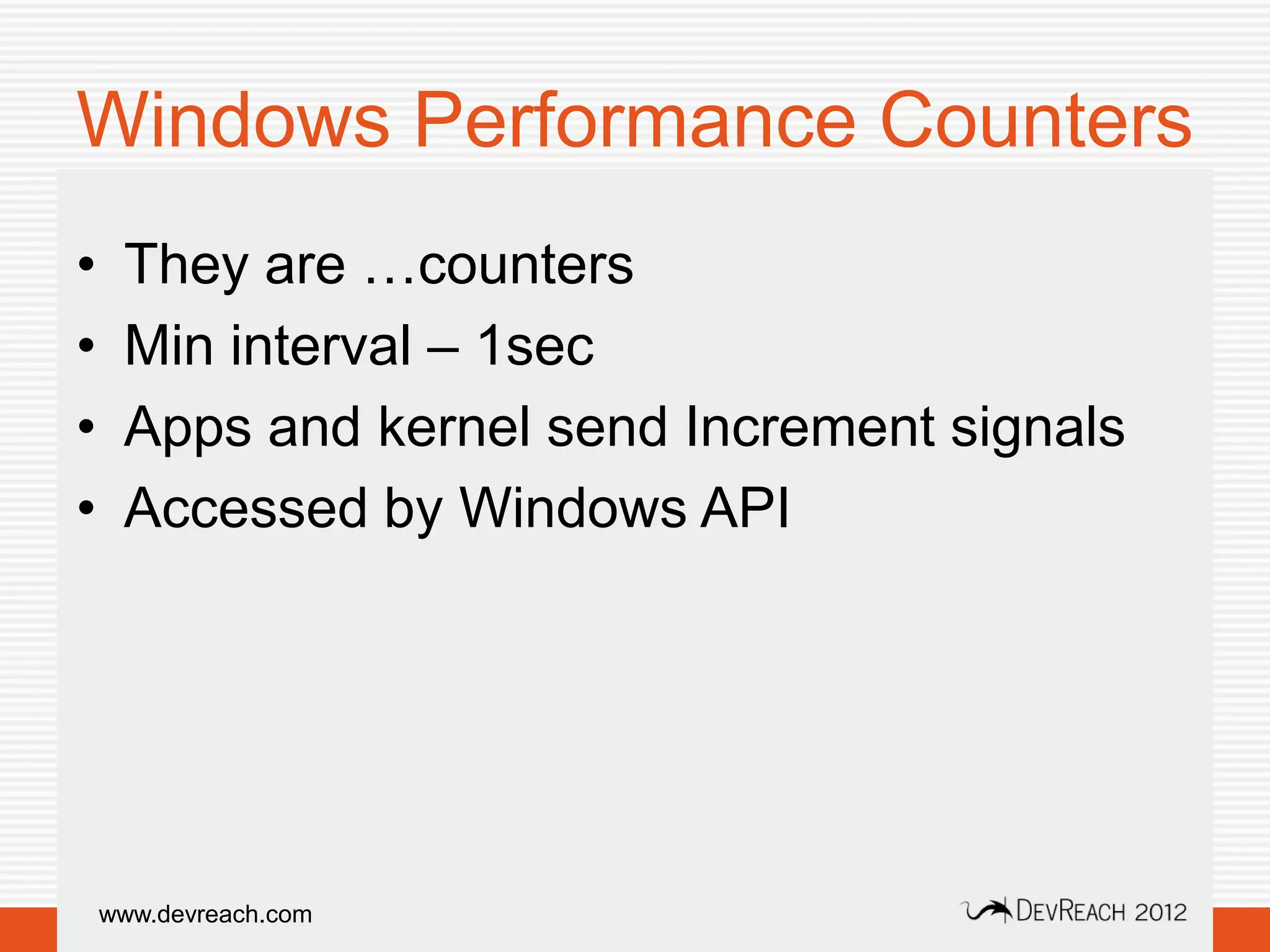

7. Windows Performance Counters
• They are …counters
• Min interval – 1sec
• Apps and kernel send Increment signals
• Accessed by Windows API
www.devreach.com

8. Perf Counters Demo
www.devreach.com

9. Trace Analysis
Our code
CLR COM WinRT
Windows
Event
Win32 API Perf
Tracing
Counters
for Operating System
Windows
HDD RAM CPU LAN CPU
Counters
www.devreach.com

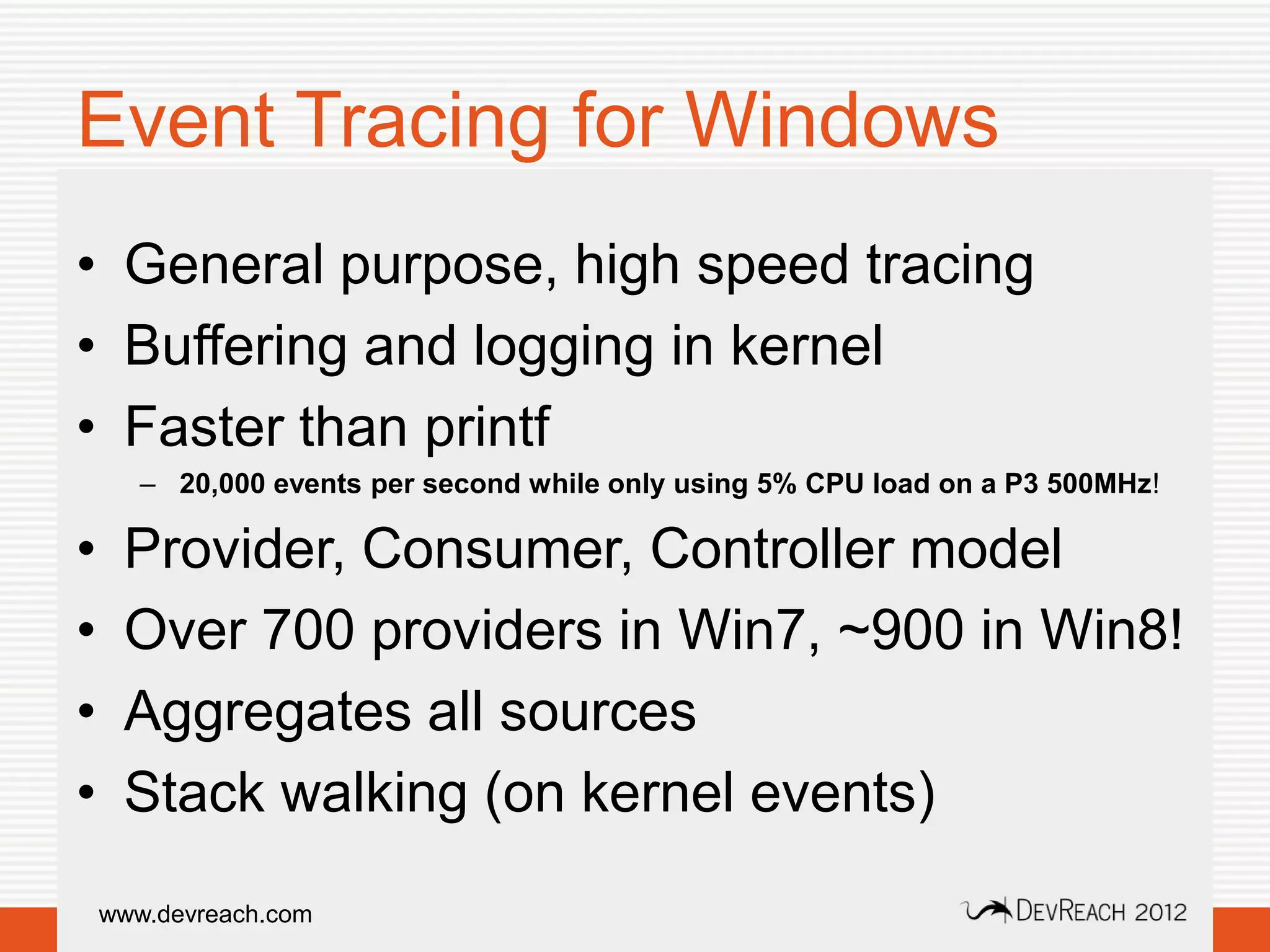

10. Event Tracing for Windows
• General purpose, high speed tracing
• Buffering and logging in kernel
• Faster than printf
– 20,000 events per second while only using 5% CPU load on a P3 500MHz!
• Provider, Consumer, Controller model
• Over 700 providers in Win7, ~900 in Win8!
• Aggregates all sources
• Stack walking (on kernel events)
www.devreach.com

11. ETW Kernel Providers
• Hardware Configuration Events
• Disk-level I/O
• File-level I/O
• Image Layouts
• Page Faults
• Network I/O
• Registry I/O
• Process and Thread info
www.devreach.com

12. ETW Application Providers
• Windows Firewall
• WLAN, LAN
• USB, Bluetooth
• IIS, ASP.NET, CLR, HTTP.SYS
• Security
• … many more
www.devreach.com

13. ETW Demo
www.devreach.com

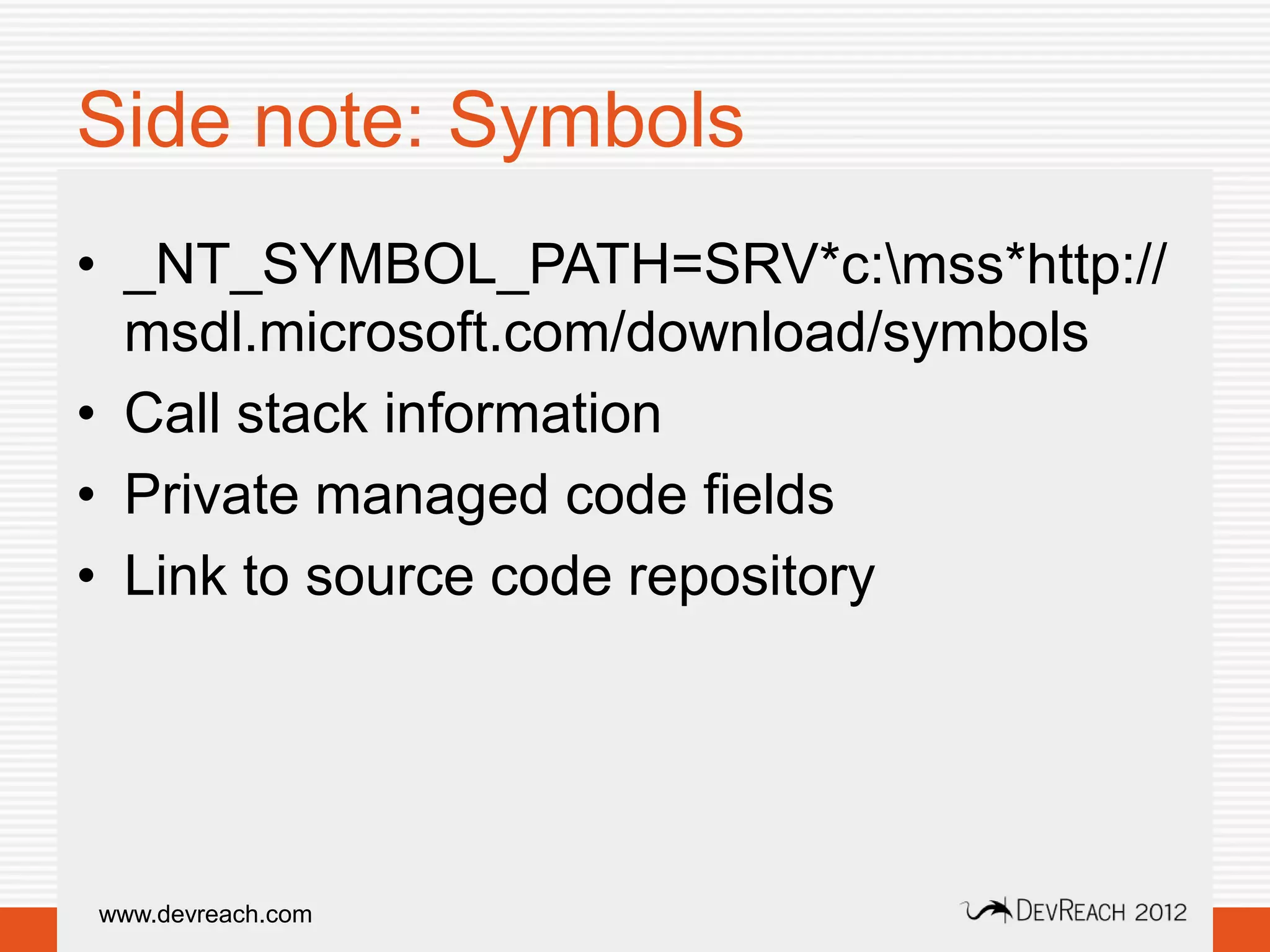

14. Side note: Symbols
• _NT_SYMBOL_PATH=SRV*c:mss*http://
msdl.microsoft.com/download/symbols
• Call stack information
• Private managed code fields
• Link to source code repository
www.devreach.com

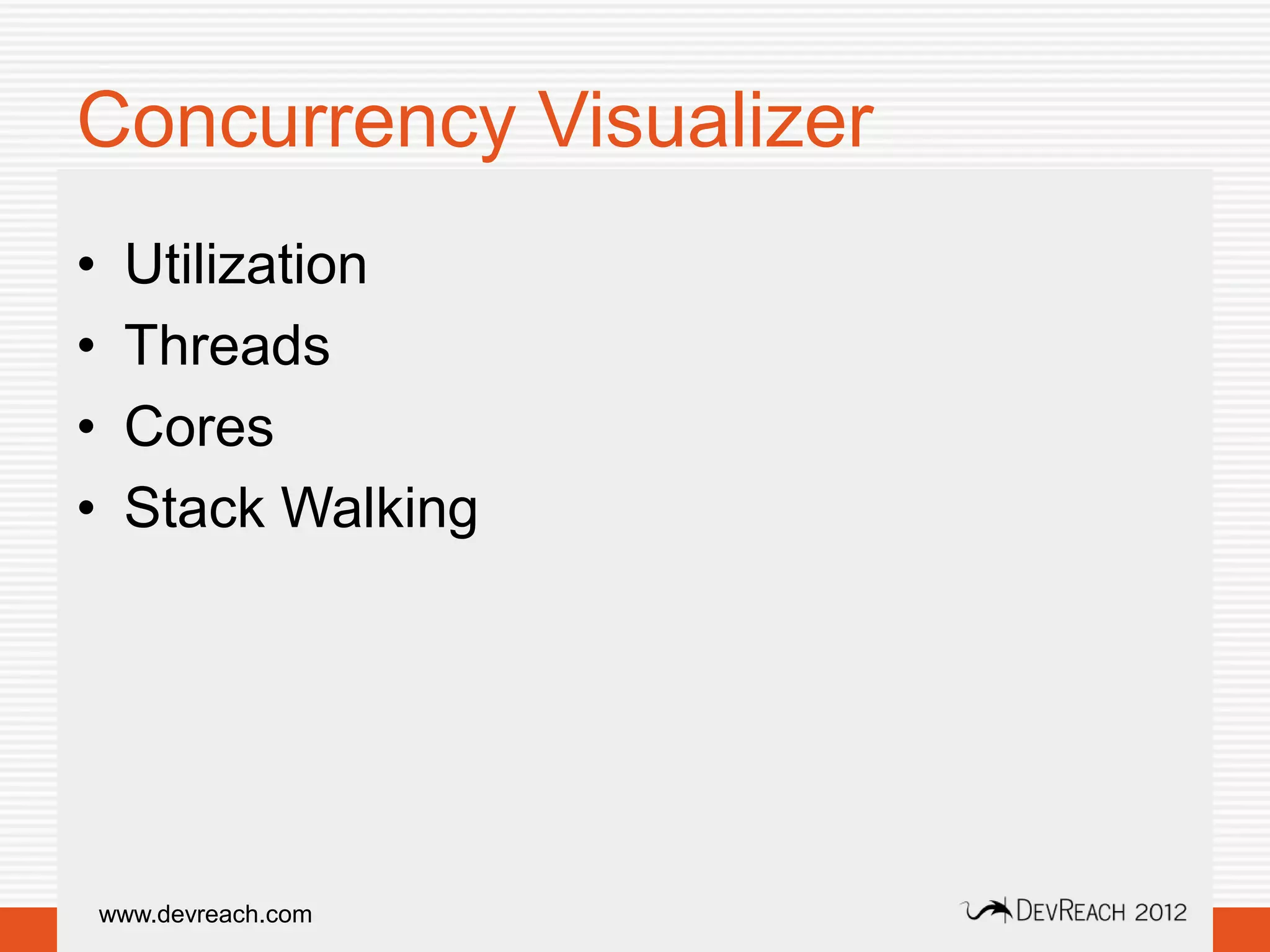

15. Concurrency Visualizer
• Utilization
• Threads
• Cores
• Stack Walking
www.devreach.com

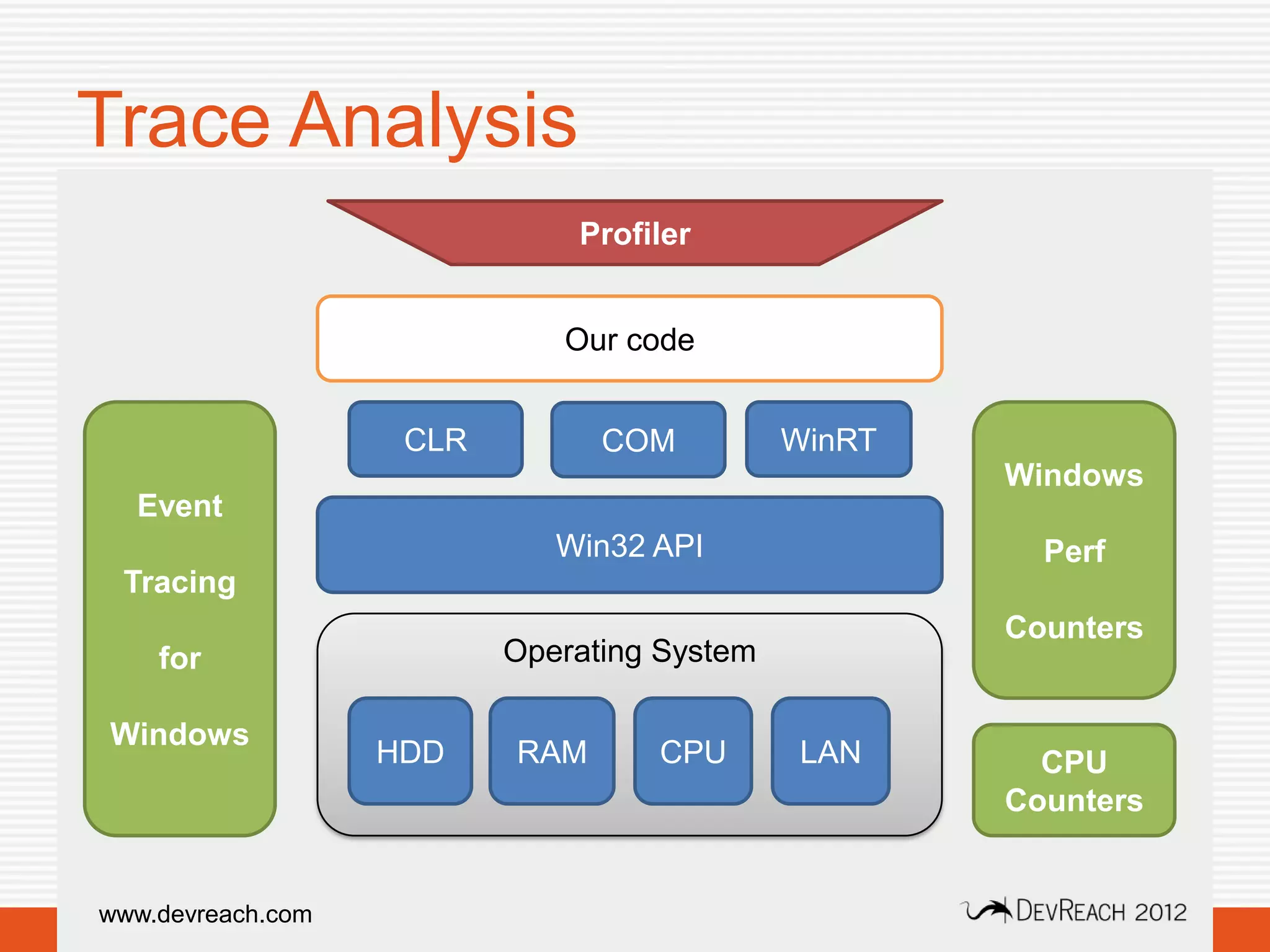

16. Trace Analysis
Profiler
Our code
CLR COM WinRT
Windows
Event
Win32 API Perf
Tracing
Counters
for Operating System
Windows
HDD RAM CPU LAN CPU
Counters
www.devreach.com

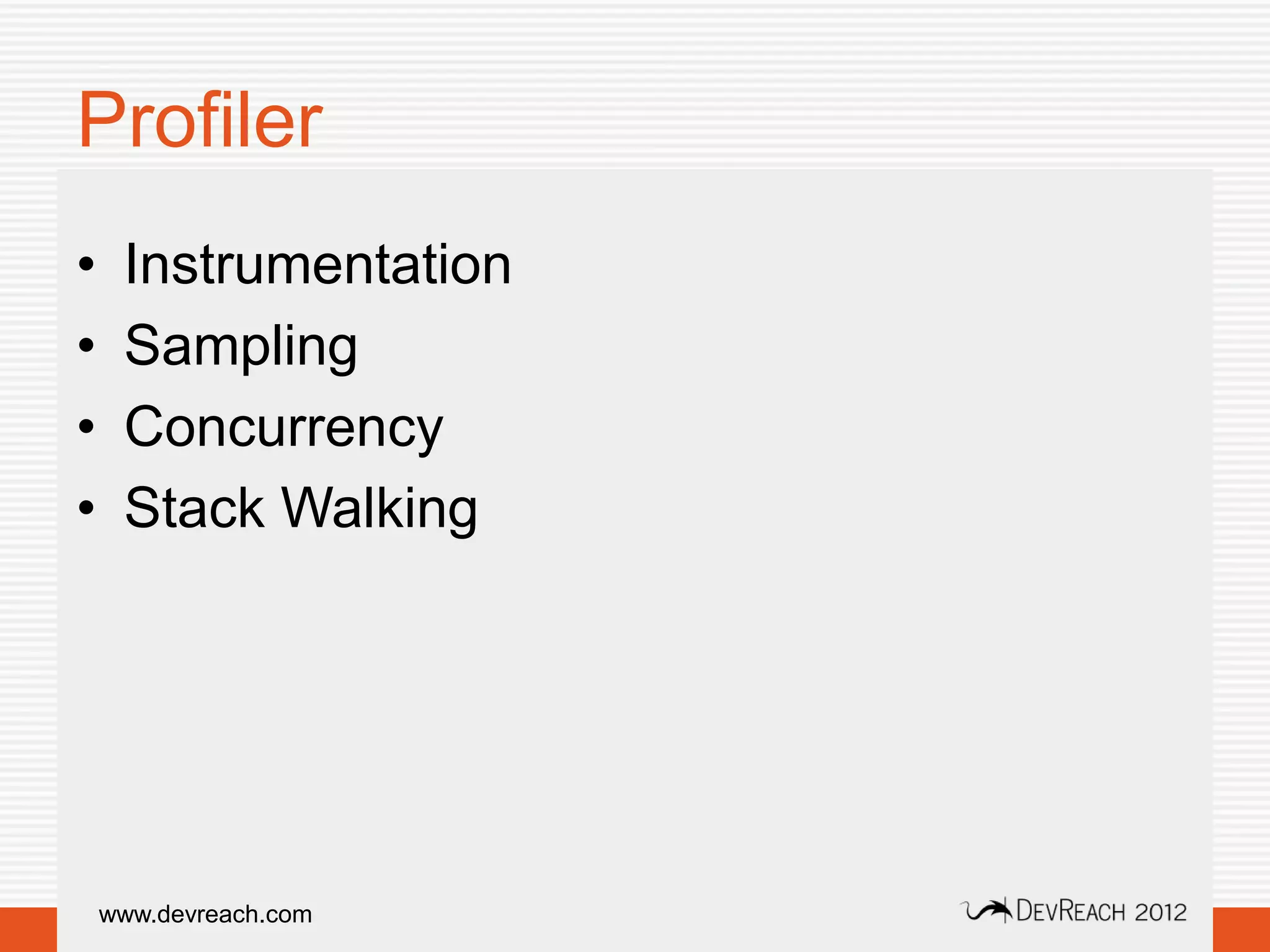

17. Profiler
• Instrumentation
• Sampling
• Concurrency
• Stack Walking
www.devreach.com

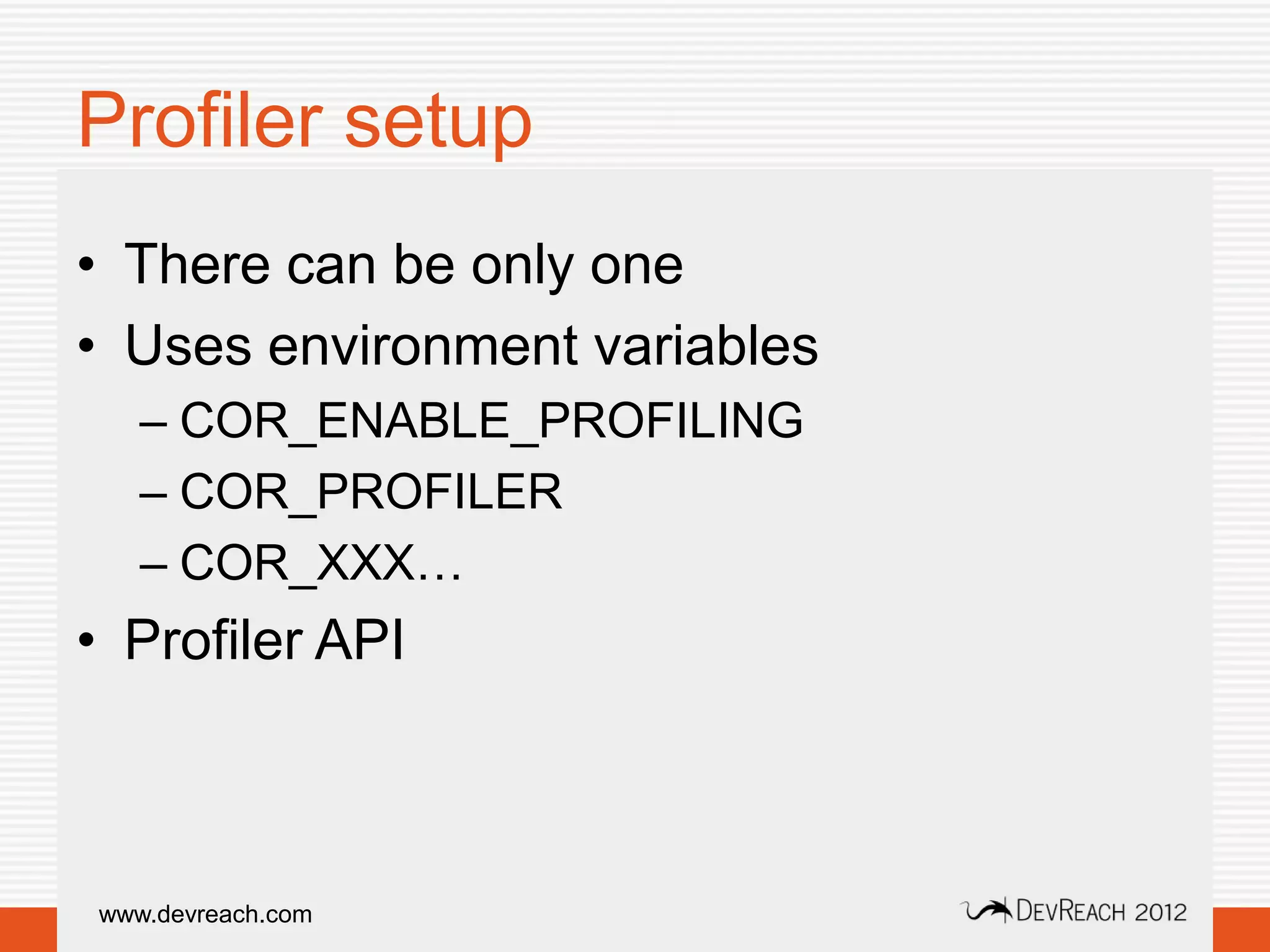

18. Profiler setup
• There can be only one
• Uses environment variables
– COR_ENABLE_PROFILING
– COR_PROFILER
– COR_XXX…
• Profiler API
www.devreach.com

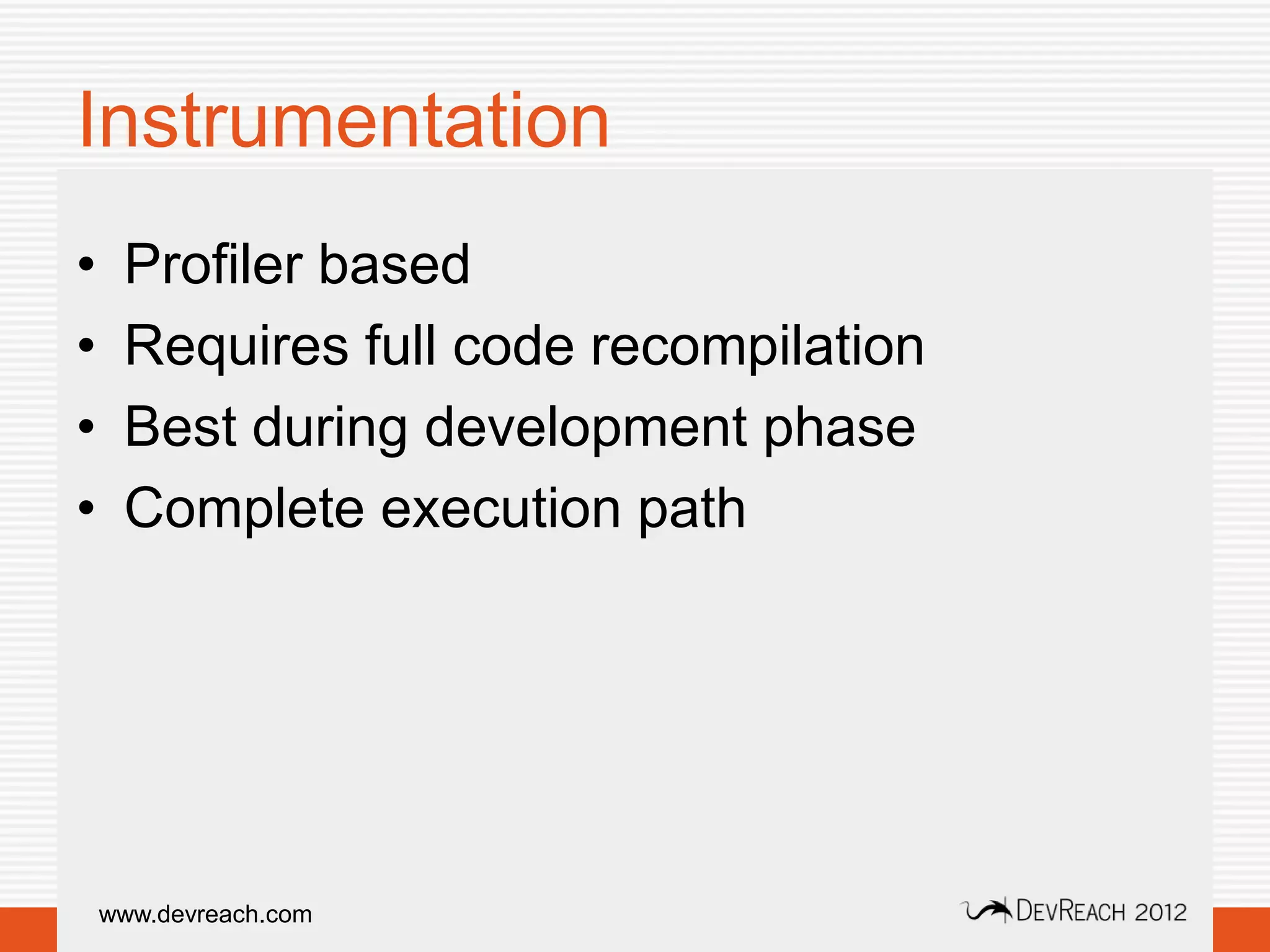

19. Instrumentation
• Profiler based
• Requires full code recompilation
• Best during development phase
• Complete execution path
www.devreach.com

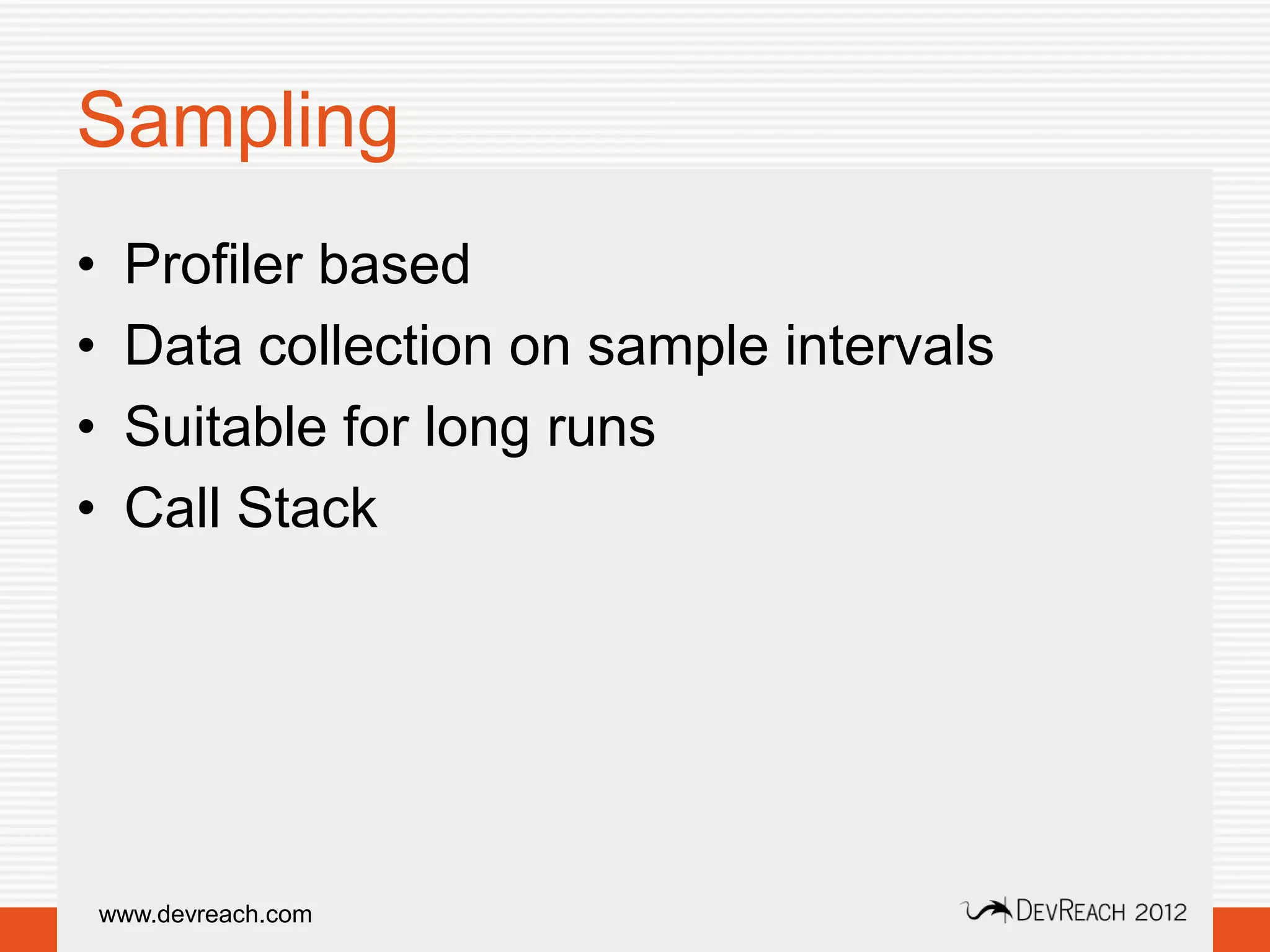

20. Sampling
• Profiler based
• Data collection on sample intervals
• Suitable for long runs
• Call Stack
www.devreach.com

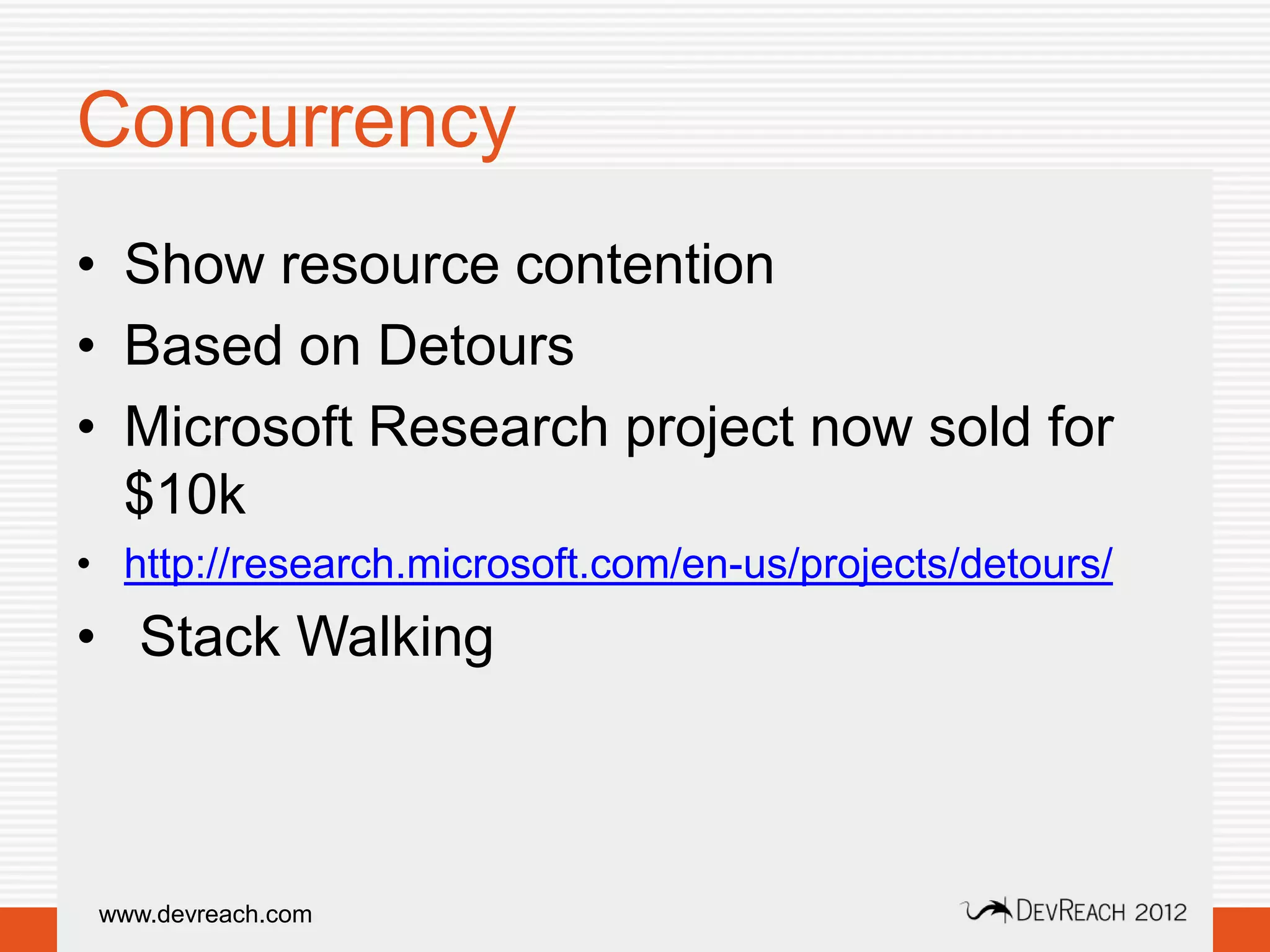

21. Concurrency
• Show resource contention
• Based on Detours
• Microsoft Research project now sold for
$10k
• http://research.microsoft.com/en-us/projects/detours/
• Stack Walking
www.devreach.com

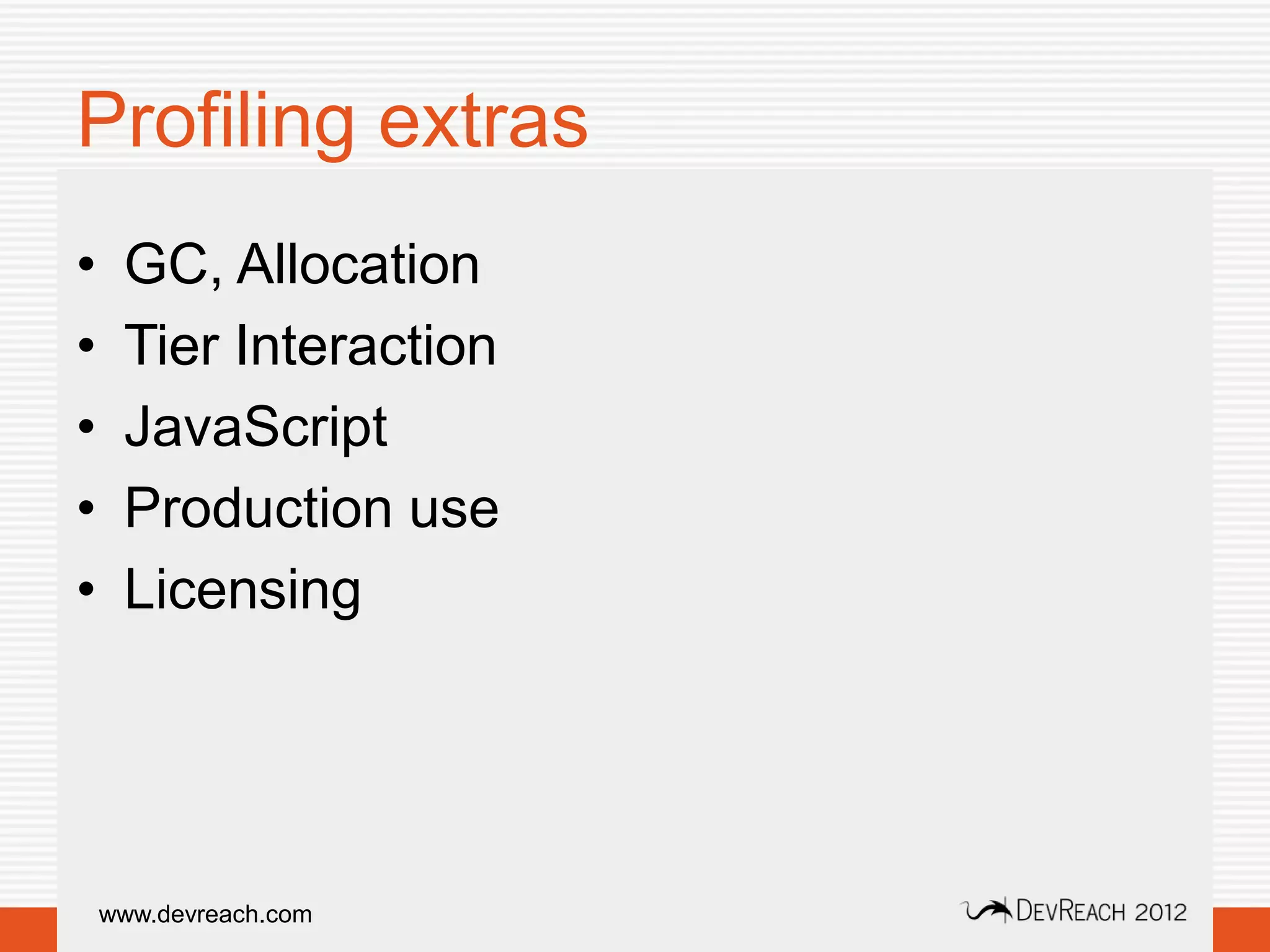

22. Profiling extras
• GC, Allocation
• Tier Interaction
• JavaScript
• Production use
• Licensing
www.devreach.com

23. Profiler Demo
www.devreach.com

24. Thank you!
@kulov
www.kulov.net
www.linkedin.com/in/kulov
Martin Kulov | kulov.net
