Delivering Millions of
Push Notifications in
Minutes
Sasha Goldshtein
CTO, Sela Group
Microsoft C# MVP, Azure MRS, Azure Insider
blog.sashag.net
@goldshtn

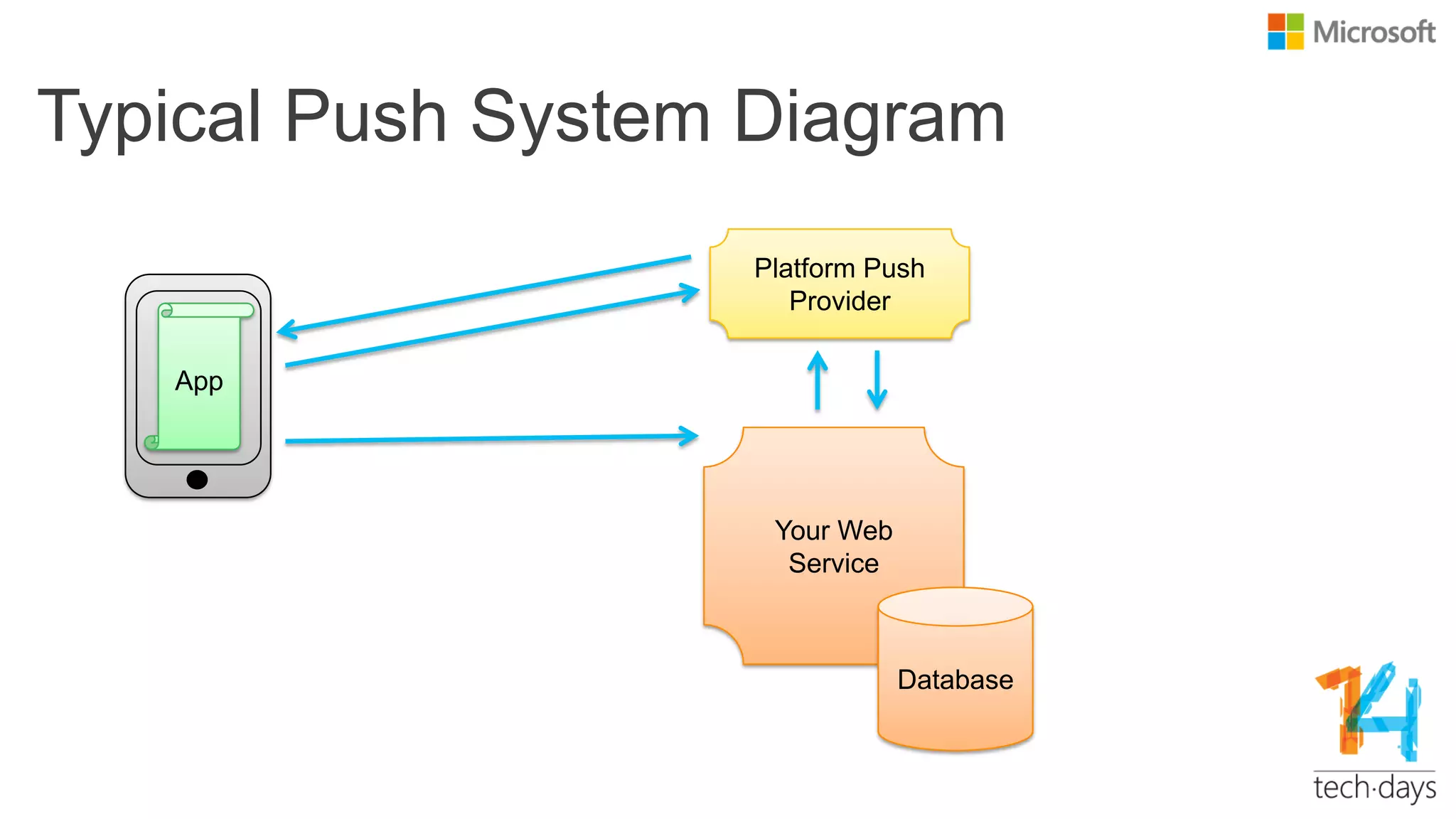

Typical Push System Diagram
Platform Push
Provider
Your Web
Service
Database
App

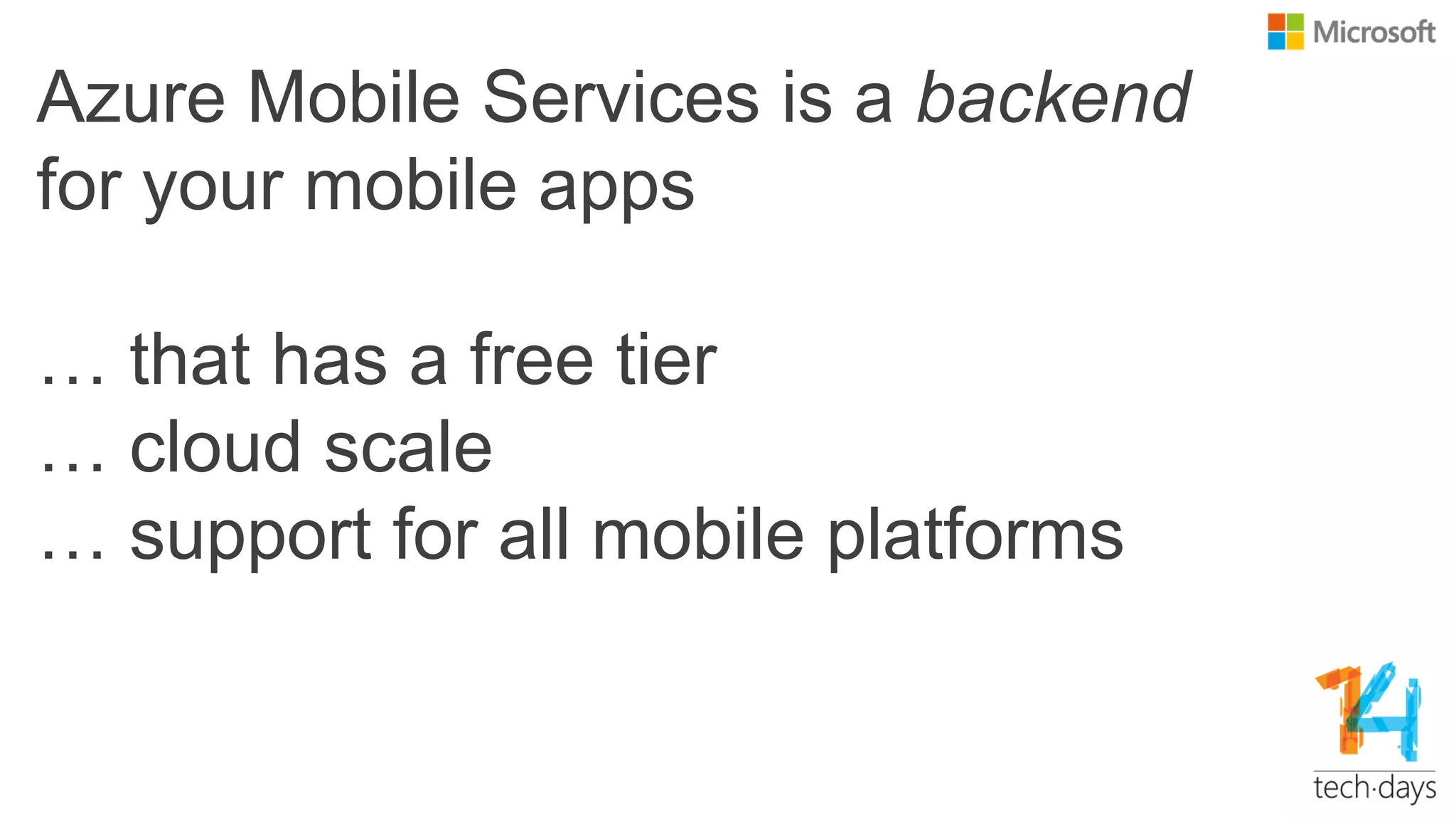

Azure Mobile Services is a backend
for your mobile apps
… that has a free tier
… cloud scale
… support for all mobile platforms

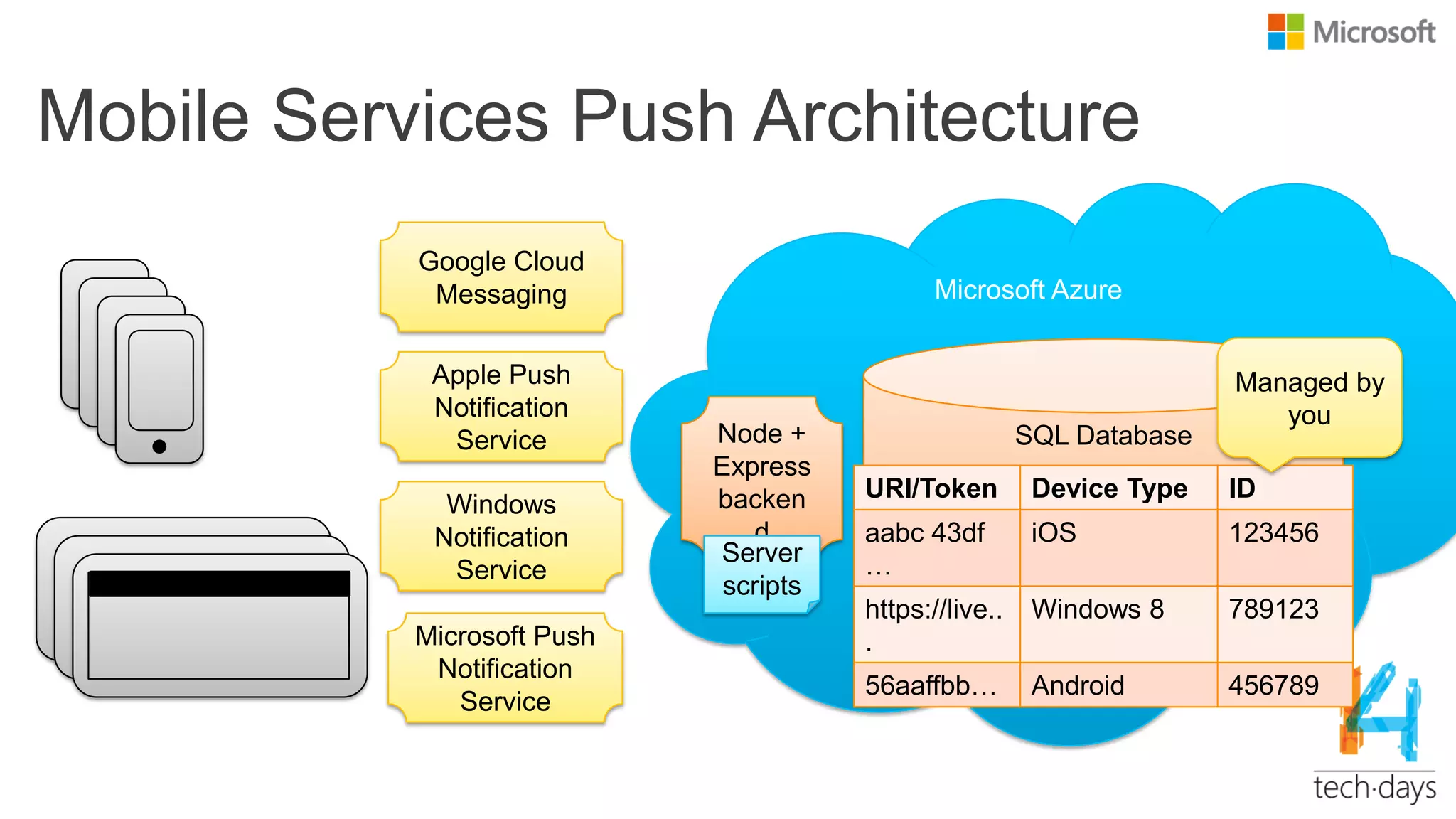

Mobile Services Push Architecture
Microsoft Azure
SQL DatabaseNode +
Express
backen
d
Apple Push
Notification
Service
Windows
Notification
Service
Google Cloud
Messaging
Microsoft Push
Notification
Service
URI/Token Device Type ID
aabc 43df
…
iOS 123456
https://live..
.
Windows 8 789123
56aaffbb… Android 456789
Server
scripts
Managed by
you

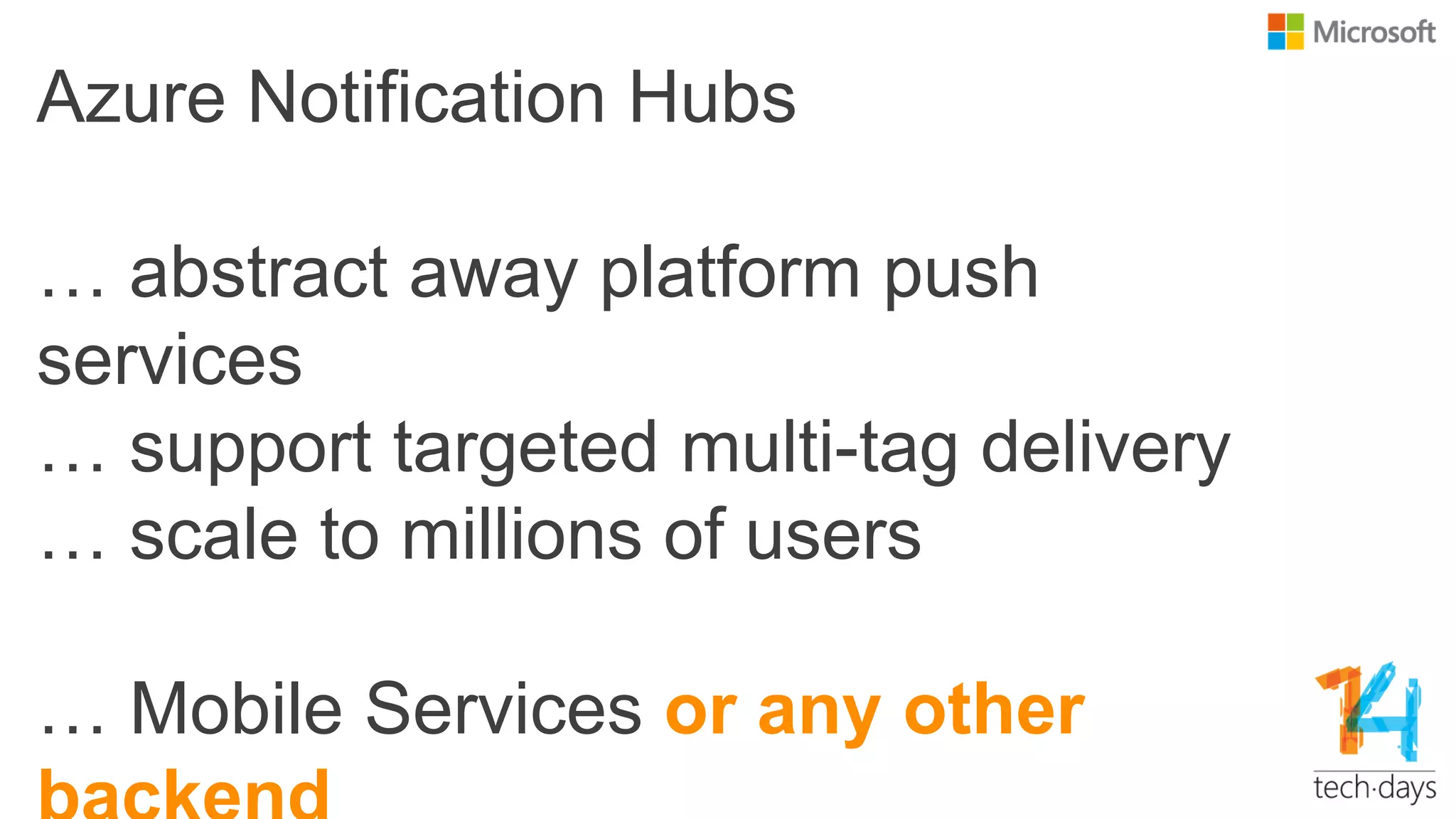

Azure Notification Hubs
… abstract away platform push
services
… support targeted multi-tag delivery
… scale to millions of users
… Mobile Services or any other

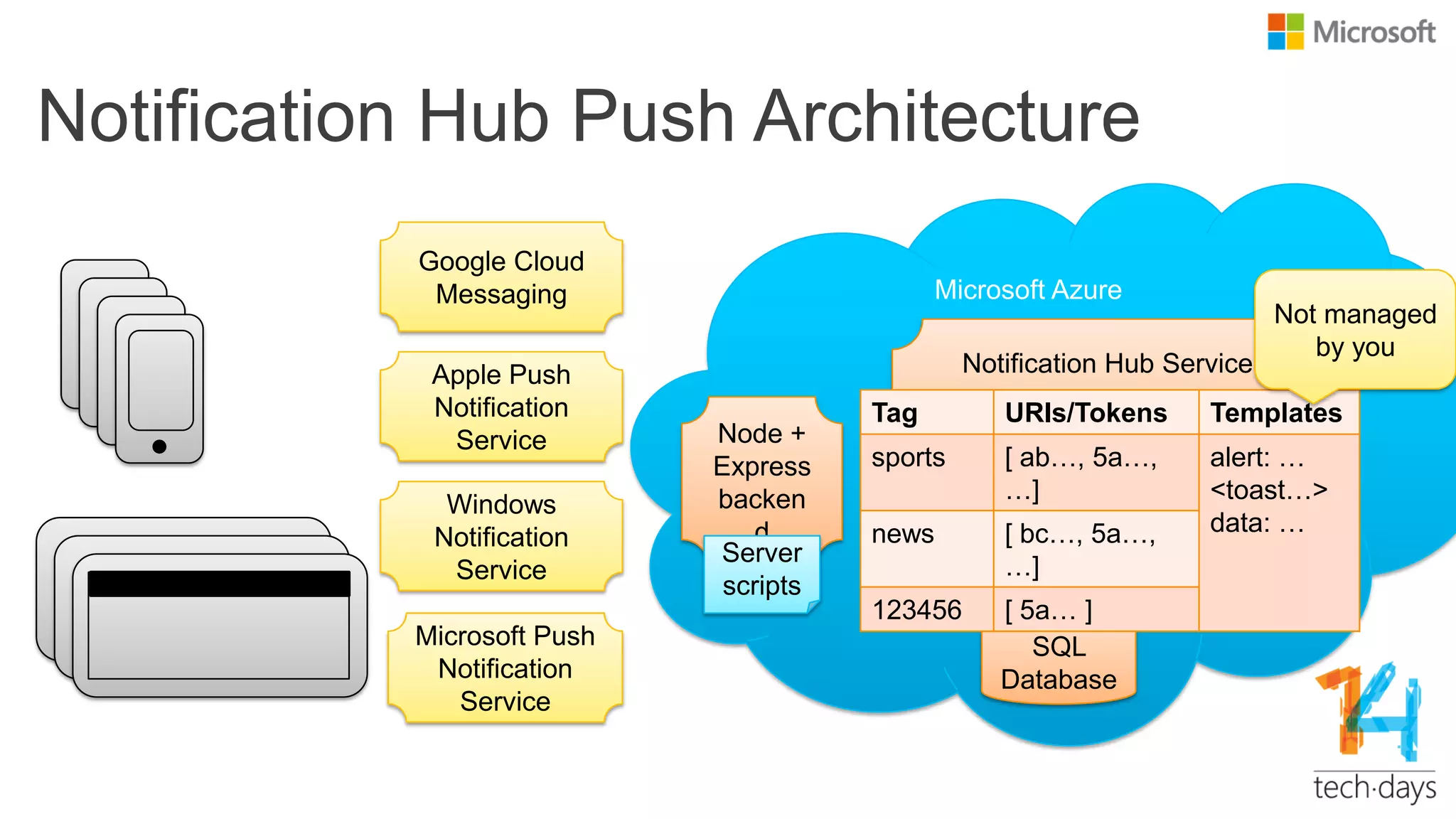

Notification Hub Push Architecture
Microsoft Azure
Node +
Express
backen
d
Apple Push
Notification
Service
Windows
Notification
Service
Google Cloud
Messaging
Microsoft Push
Notification
Service
Server
scripts
Notification Hub Service
SQL
Database
Tag URIs/Tokens Templates
sports [ ab…, 5a…,
…]
alert: …
<toast…>
data: …news [ bc…, 5a…,
…]
123456 [ 5a… ]
Not managed
by you

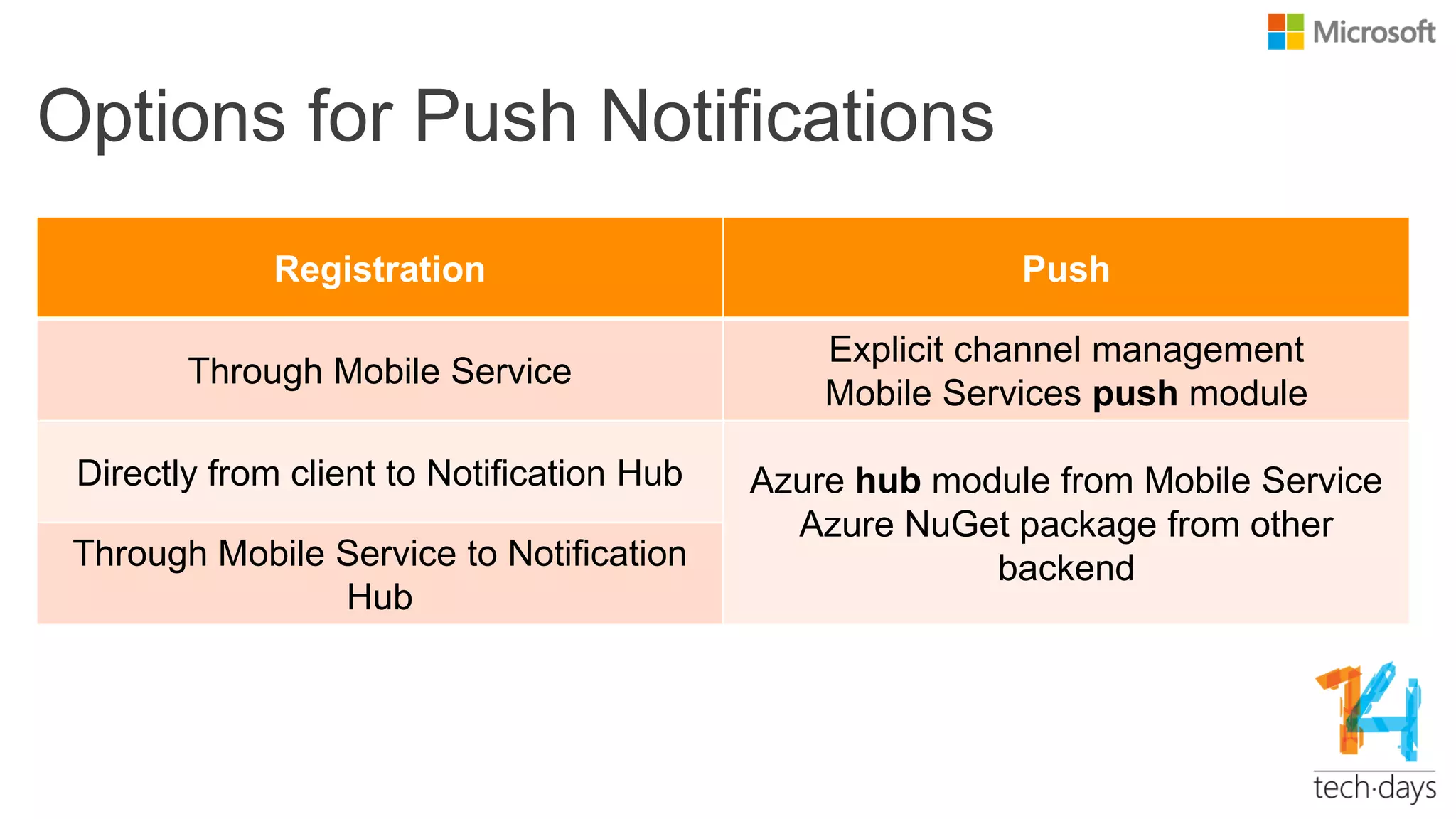

Options for Push Notifications
Registration Push
Through Mobile Service
Explicit channel management
Mobile Services push module
Directly from client to Notification Hub Azure hub module from Mobile Service
Azure NuGet package from other
backendThrough Mobile Service to Notification
Hub

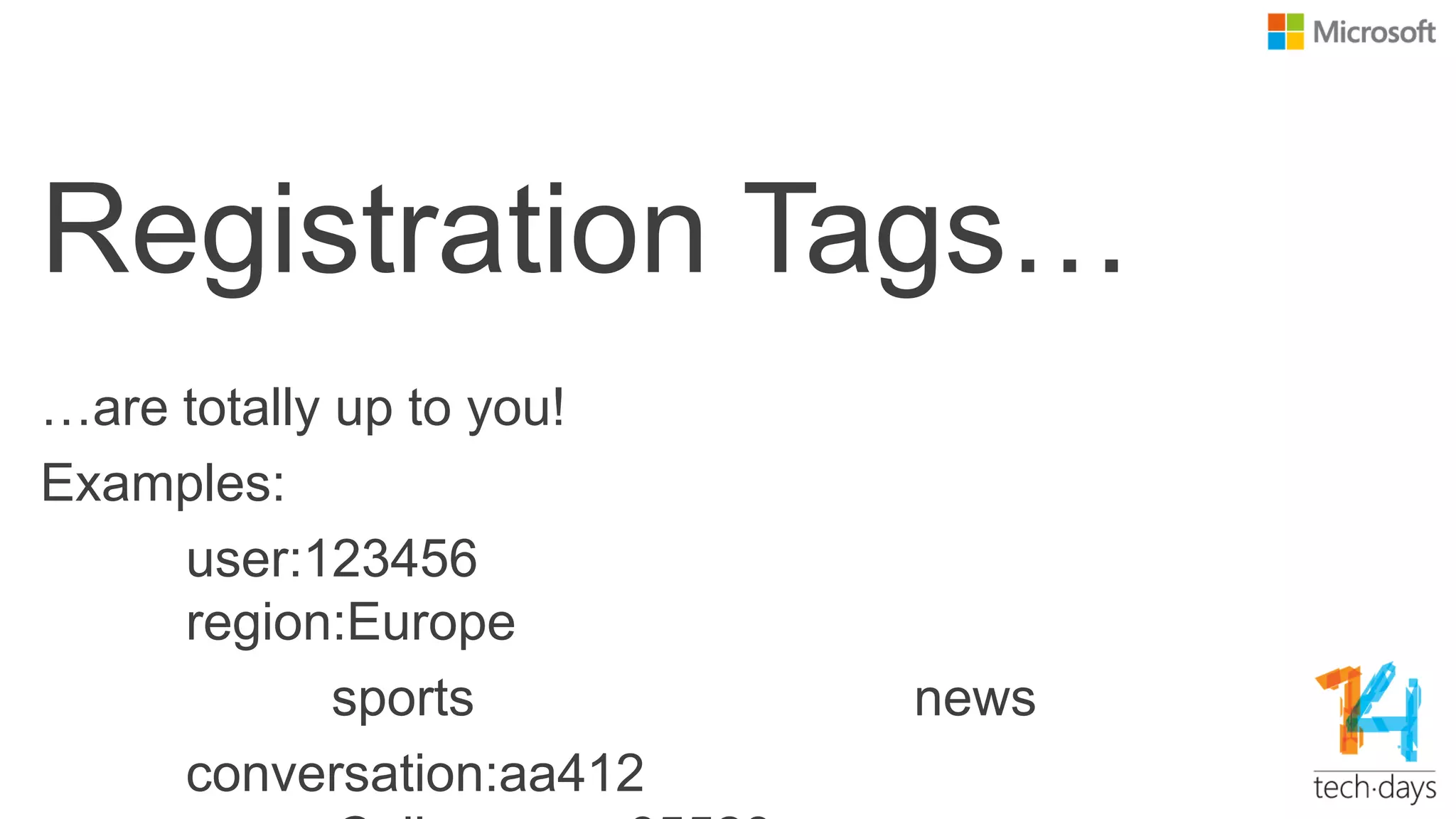

Registration Tags…
…are totally up to you!
Examples:
user:123456
region:Europe
sports news
conversation:aa412

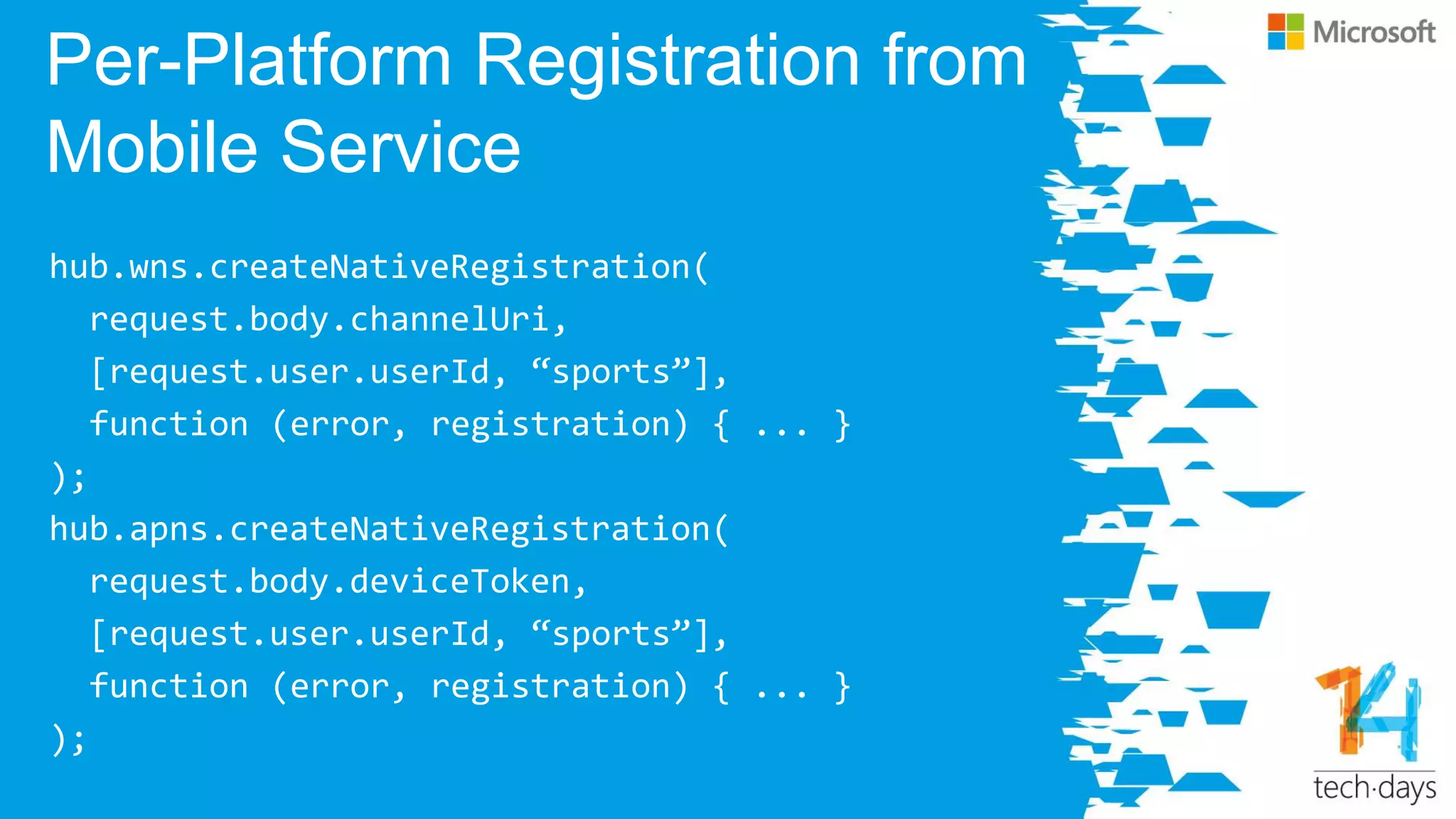

Per-Platform Registration from
Mobile Service
hub.wns.createNativeRegistration(
request.body.channelUri,
[request.user.userId, ‚sports‛],
function (error, registration) { ... }
);
hub.apns.createNativeRegistration(
request.body.deviceToken,
[request.user.userId, ‚sports‛],
function (error, registration) { ... }
);

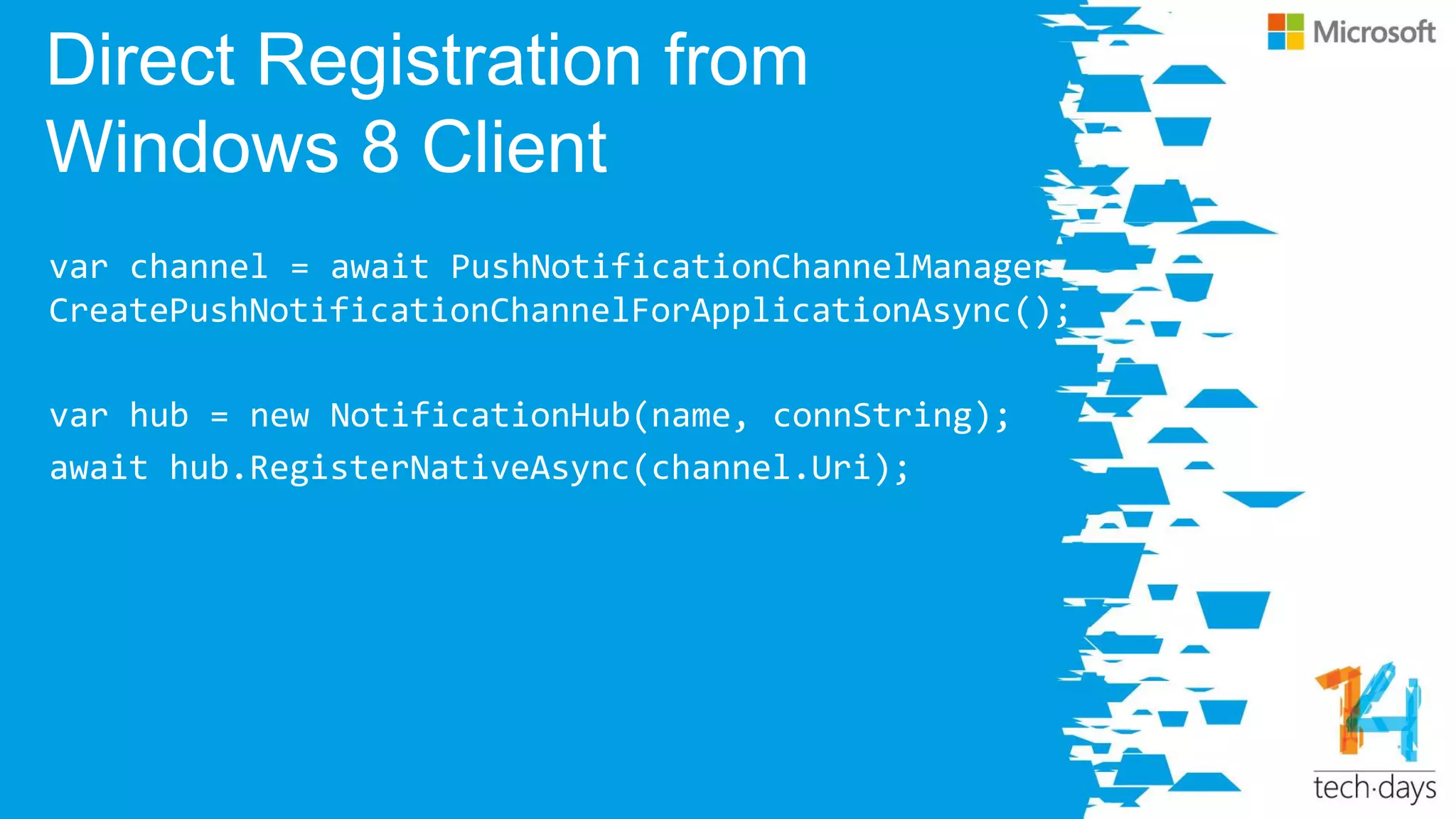

Direct Registration from
Windows 8 Client
var channel = await PushNotificationChannelManager.
CreatePushNotificationChannelForApplicationAsync();
var hub = new NotificationHub(name, connString);
await hub.RegisterNativeAsync(channel.Uri);

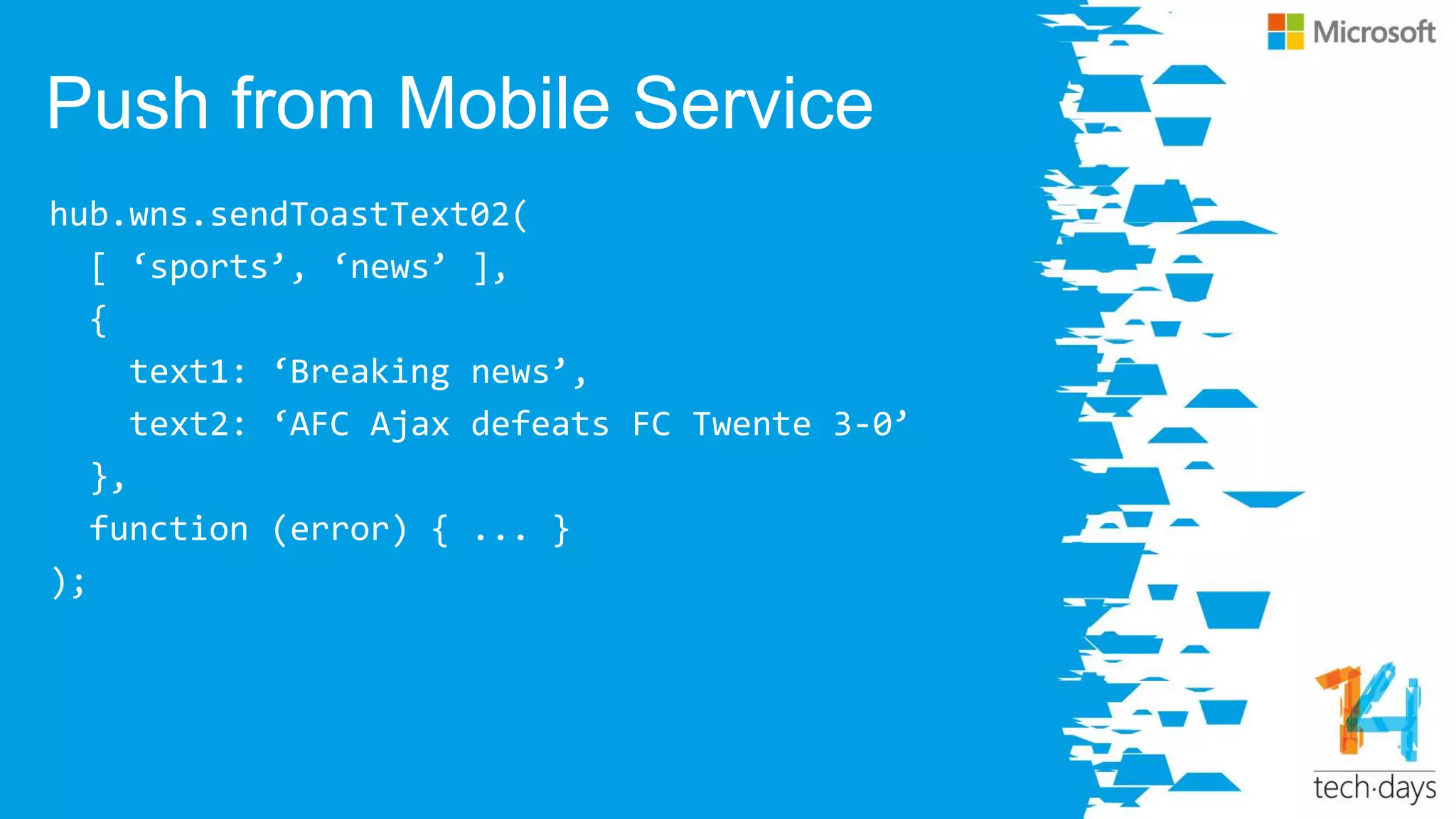

Push from Mobile Service
hub.wns.sendToastText02(
[ ‘sports’, ‘news’ ],
{
text1: ‘Breaking news’,
text2: ‘AFC Ajax defeats FC Twente 3-0’
},
function (error) { ... }
);

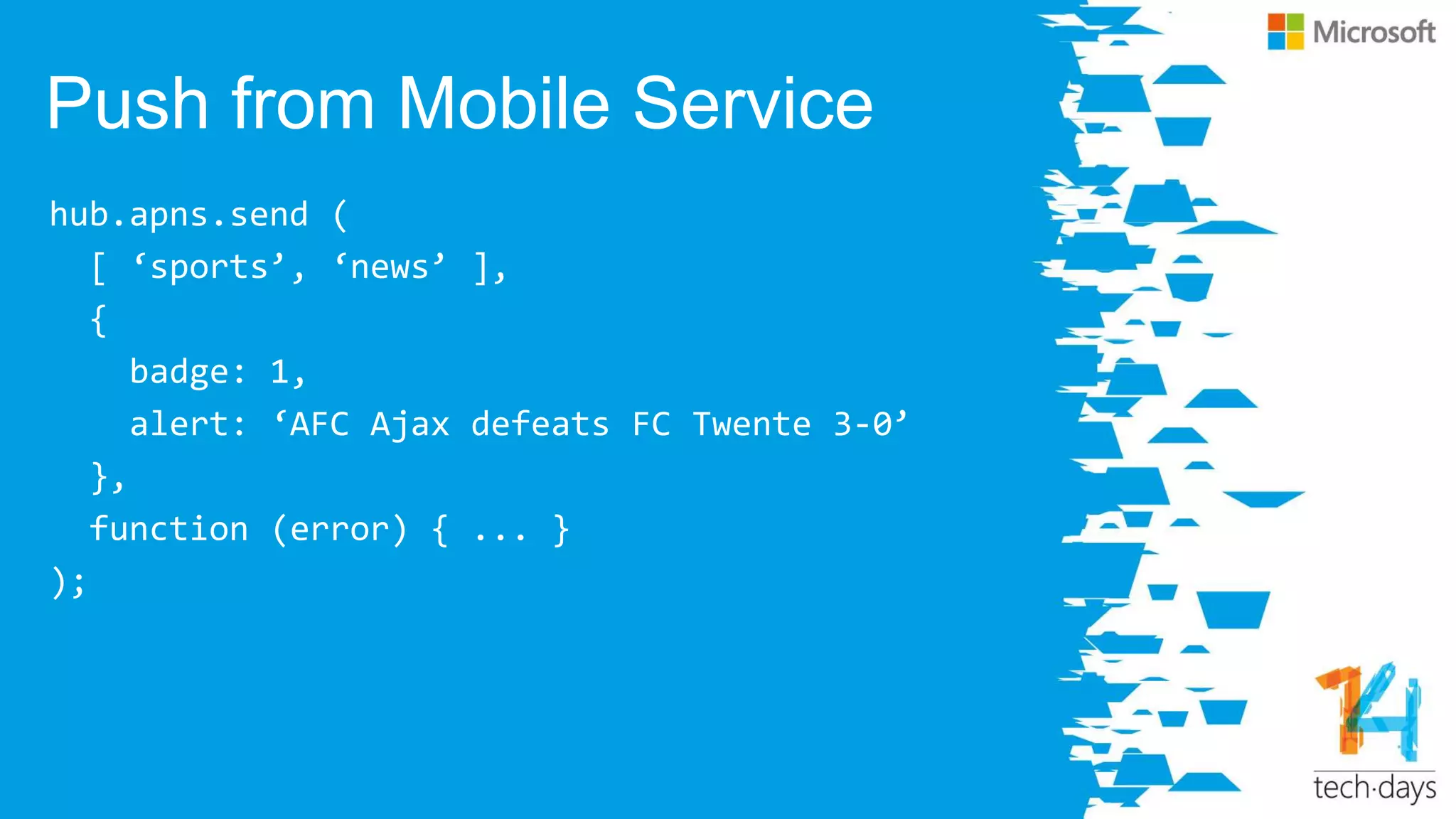

Push from Mobile Service
hub.apns.send (
[ ‘sports’, ‘news’ ],
{
badge: 1,
alert: ‘AFC Ajax defeats FC Twente 3-0’
},
function (error) { ... }
);

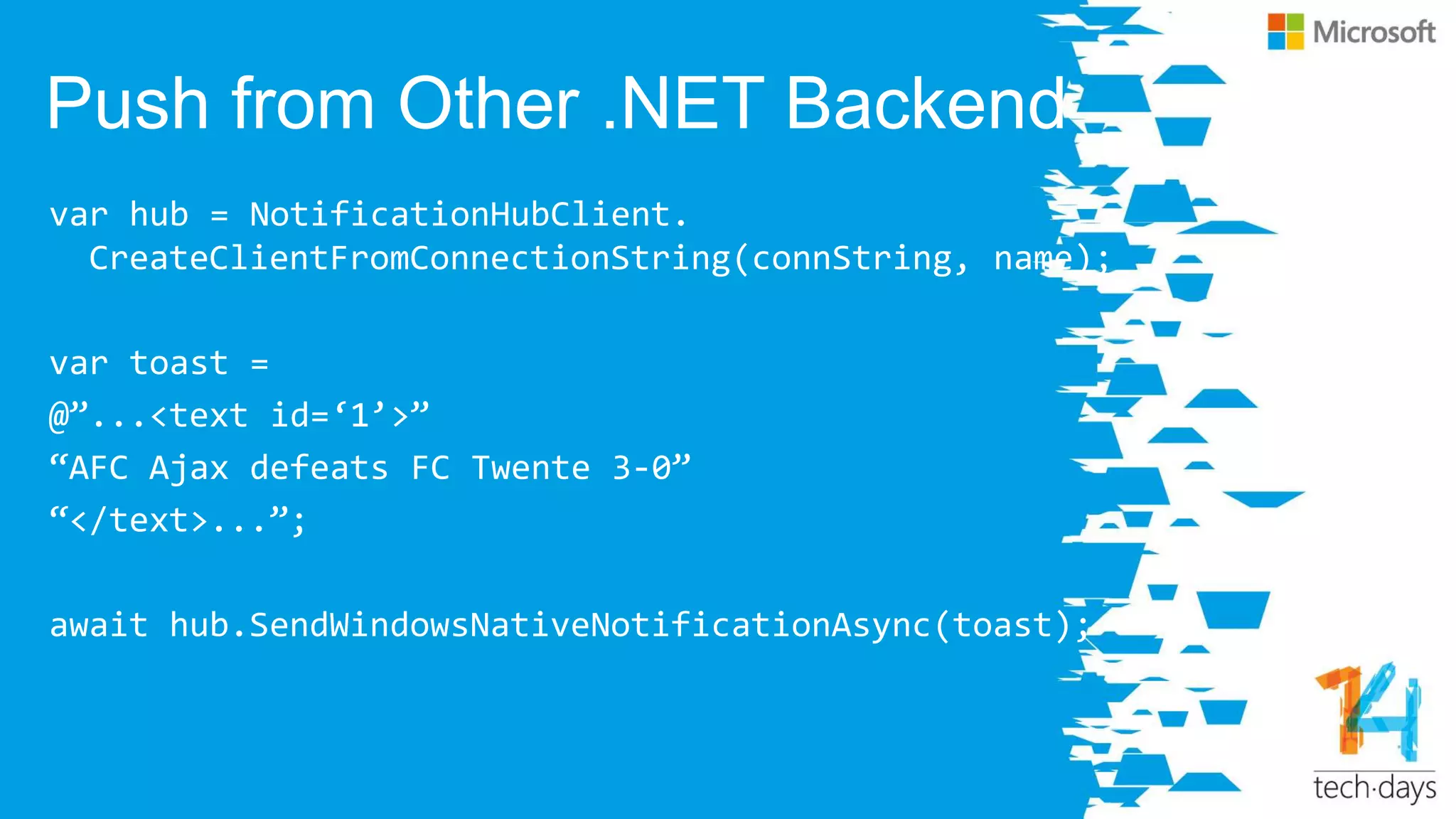

Push from Other .NET Backend
var hub = NotificationHubClient.
CreateClientFromConnectionString(connString, name);
var toast =
@‛...<text id=‘1’>‛
‚AFC Ajax defeats FC Twente 3-0‛
‚</text>...‛;
await hub.SendWindowsNativeNotificationAsync(toast);

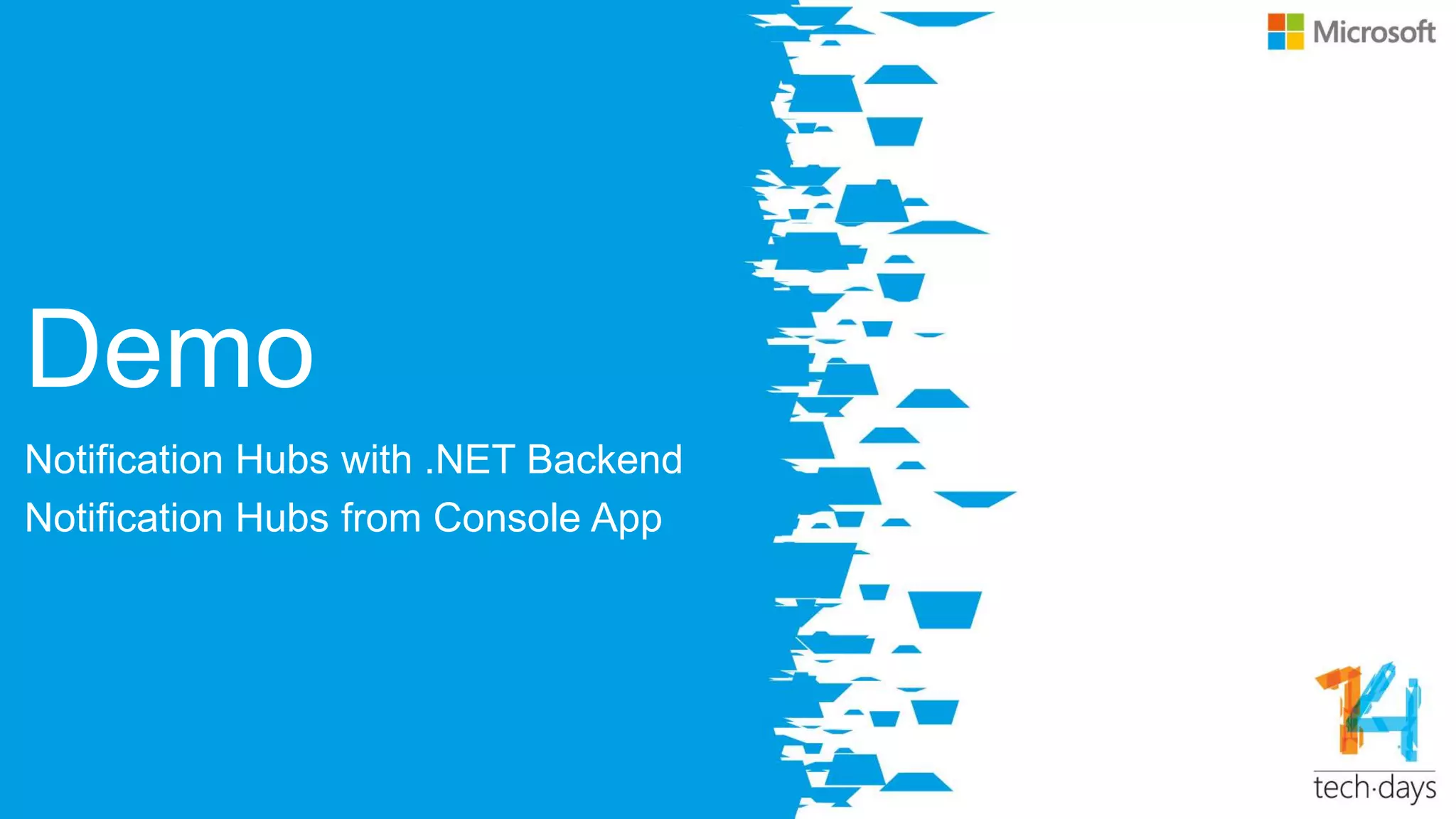

Demo
Notification Hubs with .NET Backend
Notification Hubs from Console App

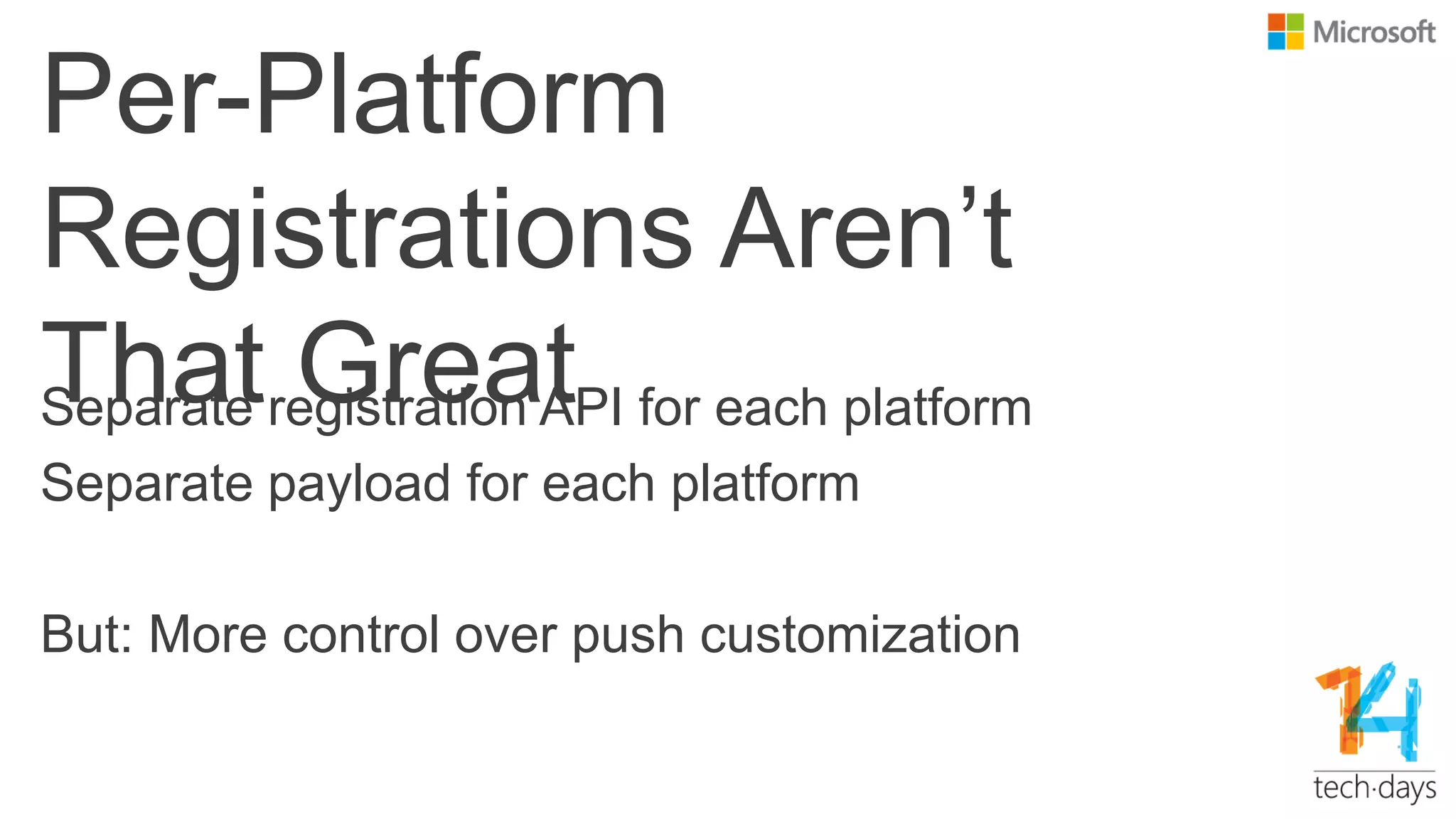

Per-Platform
Registrations Aren’t
That GreatSeparate registration API for each platform
Separate payload for each platform
But: More control over push customization

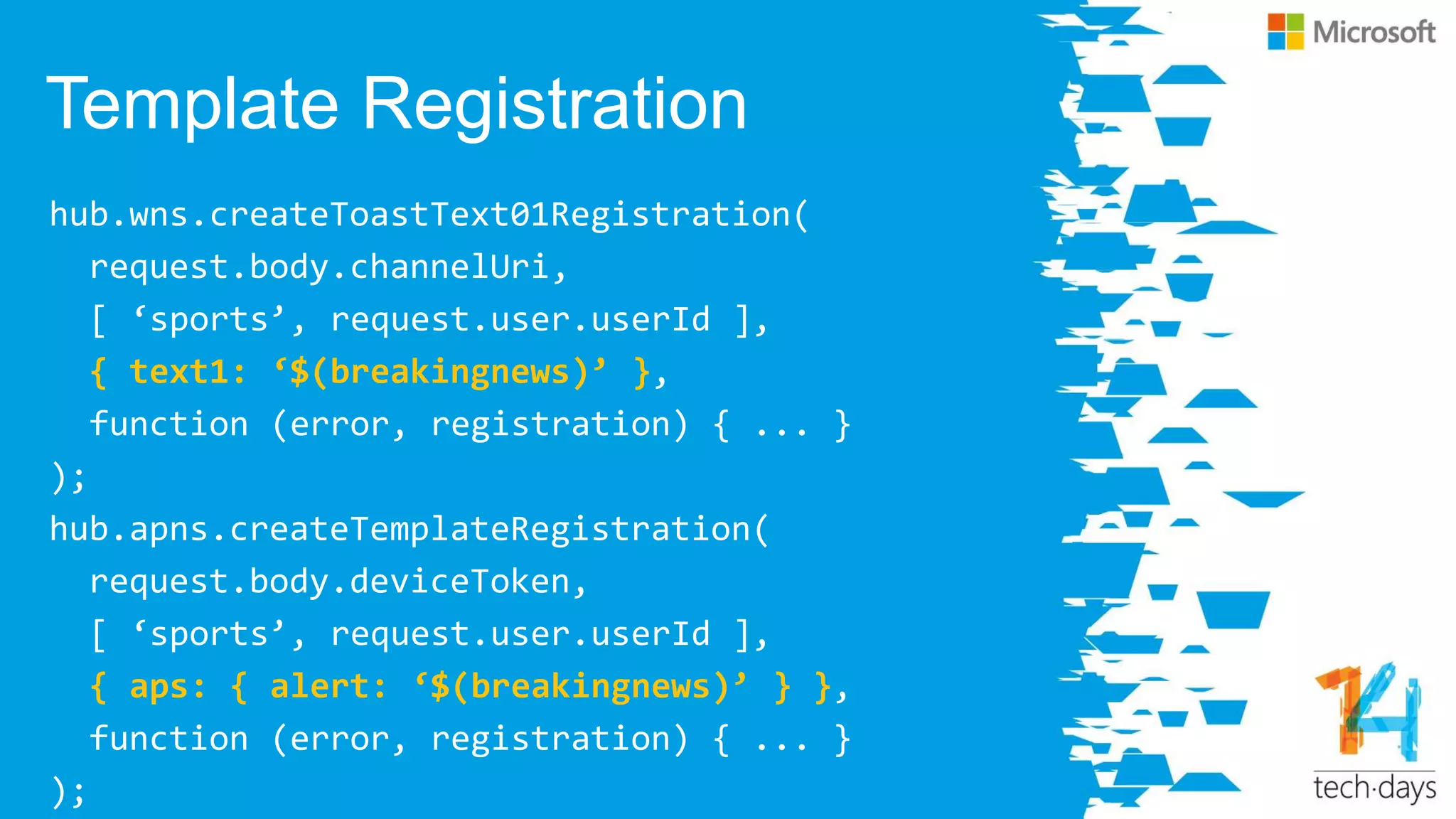

Template Registration
hub.wns.createToastText01Registration(
request.body.channelUri,
[ ‘sports’, request.user.userId ],
{ text1: ‘$(breakingnews)’ },
function (error, registration) { ... }
);
hub.apns.createTemplateRegistration(
request.body.deviceToken,
[ ‘sports’, request.user.userId ],
{ aps: { alert: ‘$(breakingnews)’ } },
function (error, registration) { ... }
);

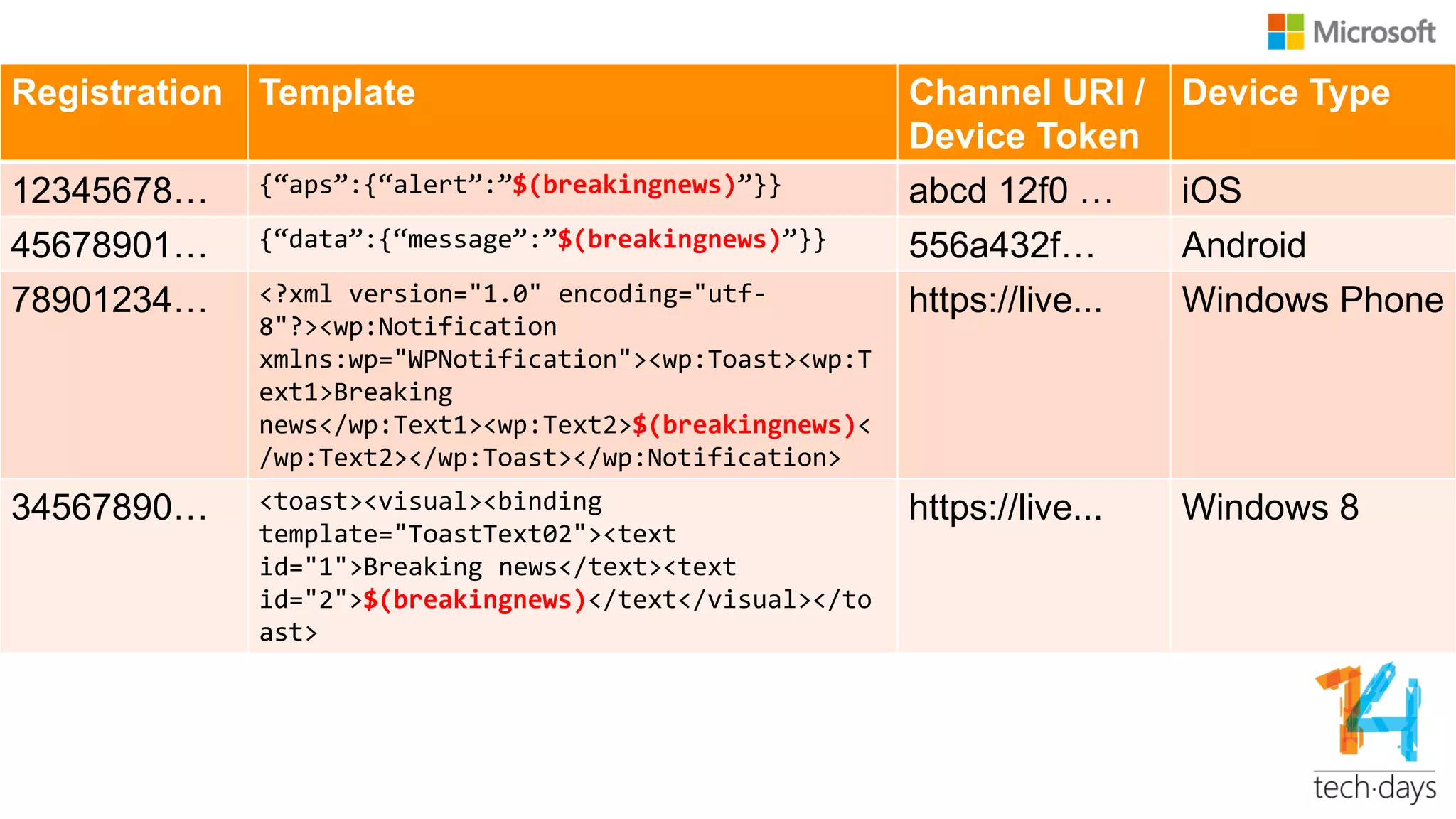

Registration Template Channel URI /
Device Token
Device Type
12345678… {‚aps‛:{‚alert‛:‛$(breakingnews)‛}} abcd 12f0 … iOS
45678901… {‚data‛:{‚message‛:‛$(breakingnews)‛}} 556a432f… Android
78901234… <?xml version="1.0" encoding="utf-
8"?><wp:Notification
xmlns:wp="WPNotification"><wp:Toast><wp:T
ext1>Breaking
news</wp:Text1><wp:Text2>$(breakingnews)<
/wp:Text2></wp:Toast></wp:Notification>
https://live... Windows Phone
34567890… <toast><visual><binding
template="ToastText02"><text
id="1">Breaking news</text><text
id="2">$(breakingnews)</text</visual></to
ast>
https://live... Windows 8

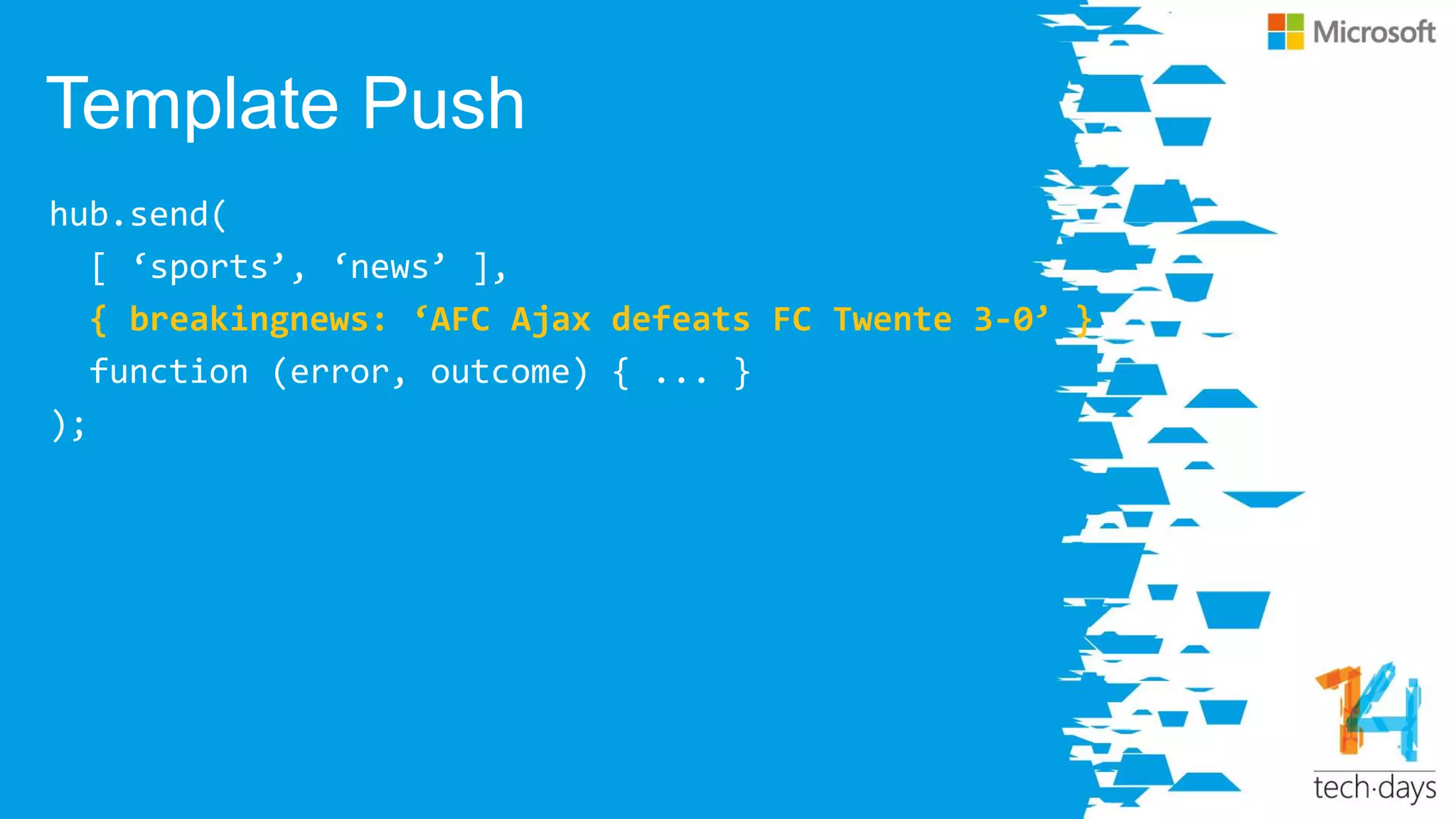

Template Push
hub.send(
[ ‘sports’, ‘news’ ],
{ breakingnews: ‘AFC Ajax defeats FC Twente 3-0’ },
function (error, outcome) { ... }
);
Demo
Template Registrations
Questions?
Sasha Goldshtein
blog.sashag.net
@goldshtn
