This document discusses pelvic injuries, which involve fractures of the pelvis bone. Pelvic fractures can be life-threatening due to the risk of severe bleeding, with mortality rates as high as 20% for unstable fractures. The most important concern in pelvic fractures is hypovolemic shock from massive blood loss, as disrupted pelvic fractures can tear venous structures and allow blood to accumulate in the retroperitoneum in volumes of up to 5-6 liters. Initial management of pelvic fractures focuses on fluid resuscitation and blood transfusion according to ATLS protocols, as well as application of a pelvic binder or C-clamp to stabilize the pelvis and reduce bleeding. Definitive treatment may involve external

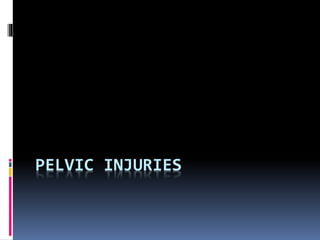

1. PELVIC INJURIES

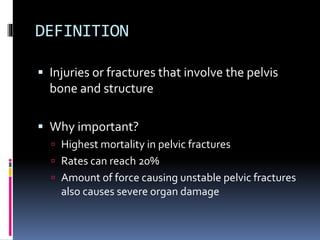

2. DEFINITION
 Injuries or fractures that involve the pelvis
bone and structure
 Why important?
 Highest mortality in pelvic fractures
 Rates can reach 20%
 Amount of force causing unstable pelvic fractures
also causes severe organ damage

3. When to suspect…
High velocity MVA (eg…)

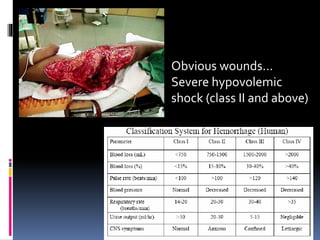

4. Obvious wounds…
Severe hypovolemic
shock (class II and above)

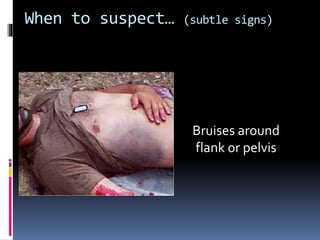

5. When to suspect… (subtle signs)
Bruises around
flank or pelvis

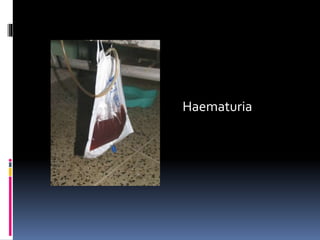

6. Haematuria

7. If suspect pelvic injury…
Disrupts
pelvic ring
Not disrupting
pelvic ring

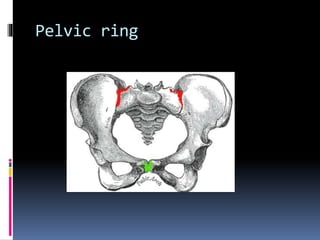

8. Pelvic ring

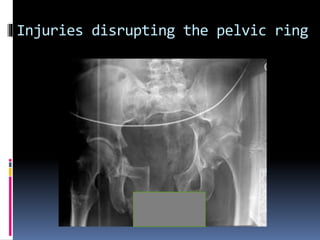

9. Injuries disrupting the pelvic ring

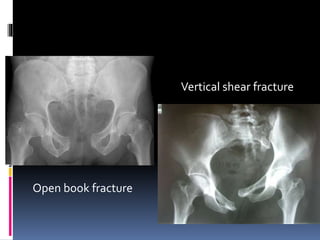

10. Open book fracture
Vertical shear fracture

11. Injuries not disrupting pelvic
ring
Pubic rami fractures
Iliac wing fractures

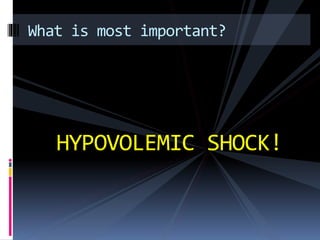

12. What is most important?
HYPOVOLEMIC SHOCK!

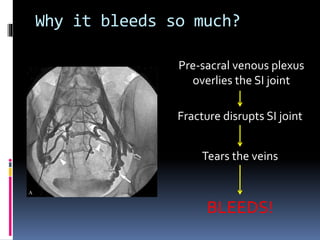

13. Why it bleeds so much?
Pre-sacral venous plexus
overlies the SI joint
Fracture disrupts SI joint
Tears the veins
BLEEDS!

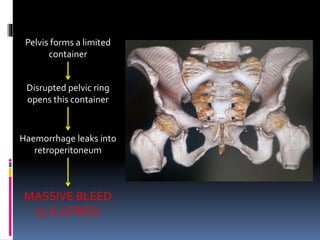

14. Pelvis forms a limited
container
Disrupted pelvic ring
opens this container
Haemorrhage leaks into
retroperitoneum
MASSIVE BLEED
(5-6 LITRES)

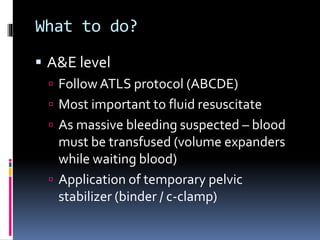

15. What to do?
 A&E level
 Follow ATLS protocol (ABCDE)
 Most important to fluid resuscitate
 As massive bleeding suspected – blood
must be transfused (volume expanders
while waiting blood)
 Application of temporary pelvic
stabilizer (binder / c-clamp)

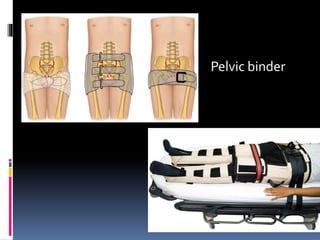

16. Pelvic binder

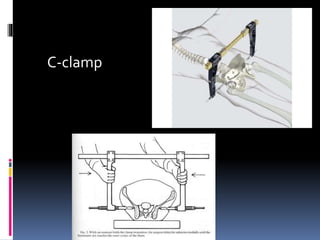

17. C-clamp

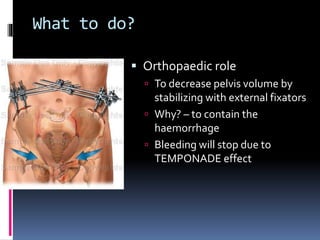

18. What to do?
 Orthopaedic role
 To decrease pelvis volume by
stabilizing with external fixators
 Why? – to contain the
haemorrhage
 Bleeding will stop due to
TEMPONADE effect

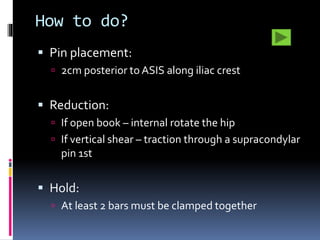

19. How to do?
 Pin placement:
 2cm posterior to ASIS along iliac crest
 Reduction:
 If open book – internal rotate the hip
 If vertical shear – traction through a supracondylar
pin 1st
 Hold:
 At least 2 bars must be clamped together

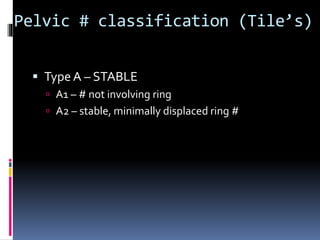

20. Pelvic # classification (Tile’s)
 Type A – STABLE
 A1 – # not involving ring
 A2 – stable, minimally displaced ring #

21.  Type B – Rotation unstable, Vertical stable
 B1 – open book
 B2 – lateral compression: ipsilateral
 B3 – lateral compression: contralateral
B1 B2

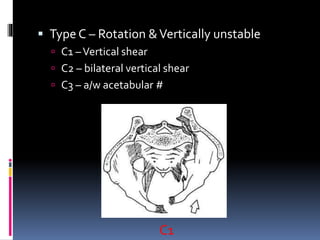

22.  Type C – Rotation & Vertically unstable
 C1 –Vertical shear
 C2 – bilateral vertical shear
 C3 – a/w acetabular #
C1
