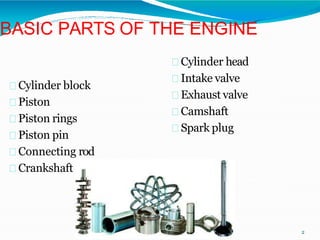

2. BASIC PARTS OF THE ENGINE
Cylinder block
Piston

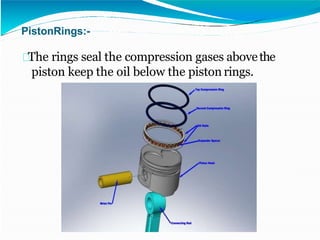

Piston rings
Piston pin
Connecting rod
Crankshaft
Cylinder head

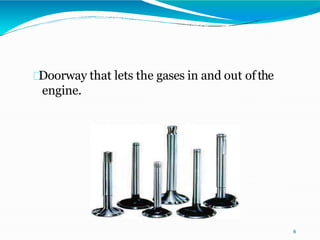

Intake valve
Exhaust valve
Camshaft
Spark plug
2

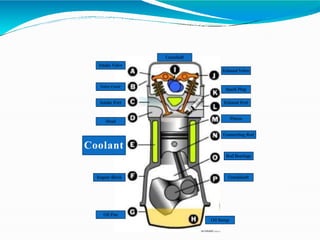

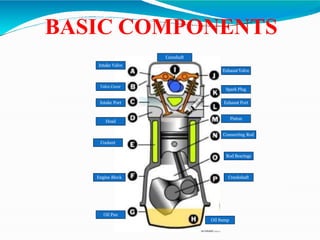

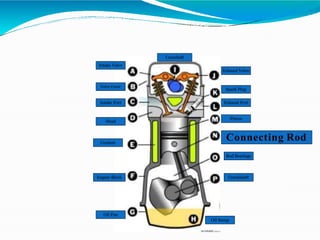

3. BASIC COMPONENTS

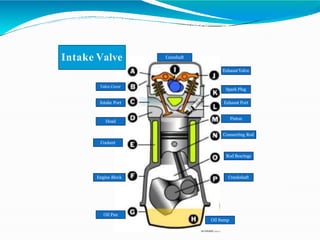

Intake Valve

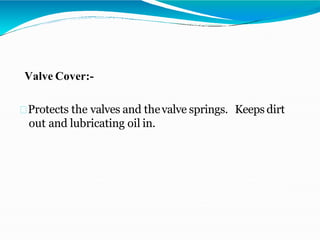

Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings
5. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

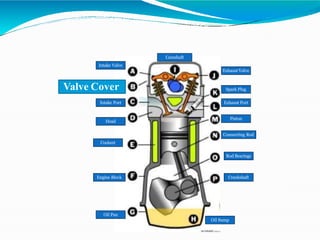

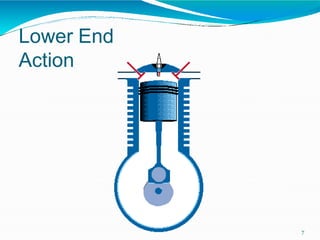

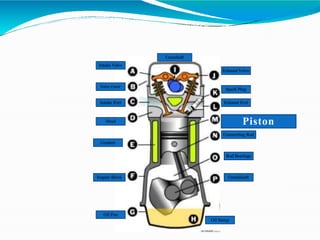

9. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

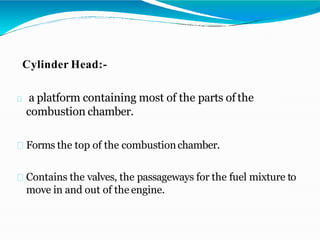

10. Cylinder Head:-
a platform containing most of the parts of the
combustion chamber.
Forms the top of the combustionchamber.
Contains the valves, the passageways for the fuel mixture to
move in and out of the engine.
11.
12. BASIC COMPONENTS
Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

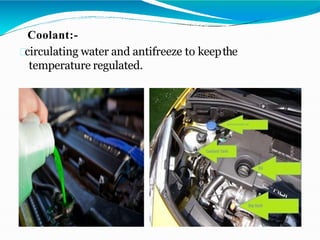

14. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

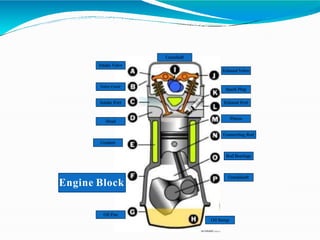

15. Engine Block- cast in one piece. The basis for most
of the parts of the engine.
16. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings
18. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

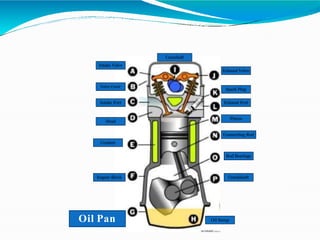

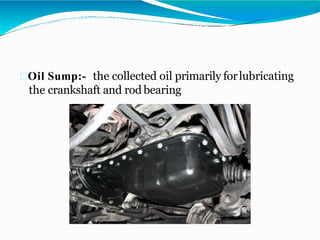

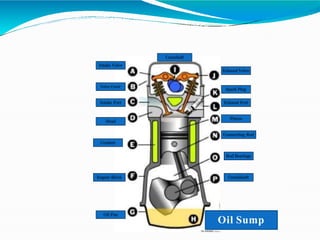

19. Oil Sump:- the collected oil primarily forlubricating
the crankshaft and rod bearing
20. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

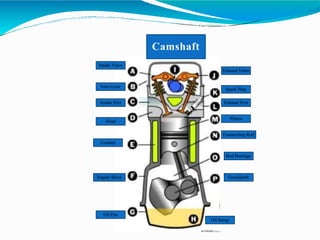

21. Camshaft:-
a round shaft with lobes, that rotates to open and close
the fuel and exhaust valves.
Through the use of an eccentric the cam lobes push the
valves open.
The valve springs closethem.
23. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

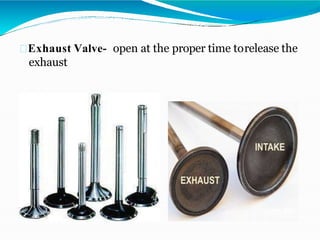

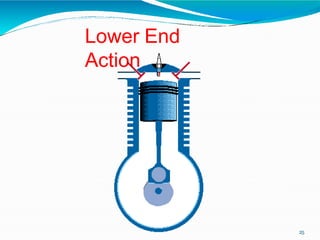

26. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings
27. Spark Plug a device, inserted into the combustion
chamber for firing an electrical spark to igniteair-fuel
mixture
SPARK PLUG ( PETROLENGINE )
28. Electric match used to
begin the combustion
process of burning air
and gasoline to create
heat.
28

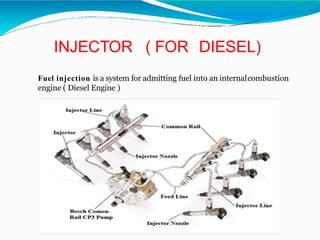

29. INJECTOR ( FOR DIESEL)
Fuel injection is a system for admitting fuel into an internalcombustion
engine ( Diesel Engine )
30. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

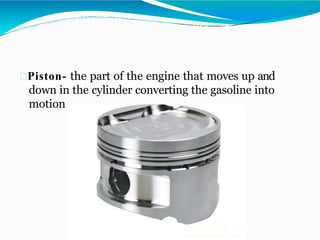

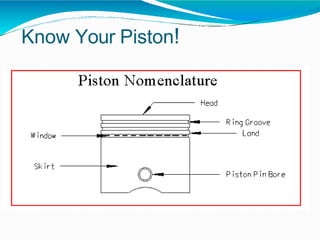

31. Piston- the part of the engine that moves up and
down in the cylinder converting the gasoline into
motion

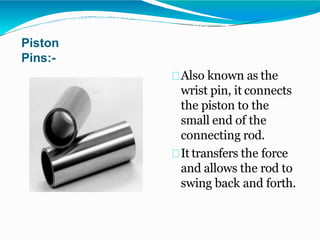

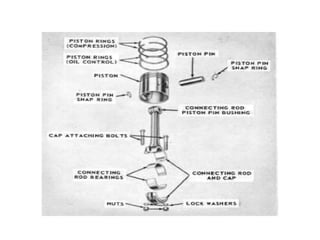

35. Piston
Pins:-
Also known as the
wrist pin, it connects
the piston to the
small end of the
connecting rod.
It transfers the force
and allows the rod to
swing back and forth.
36. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings
38. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

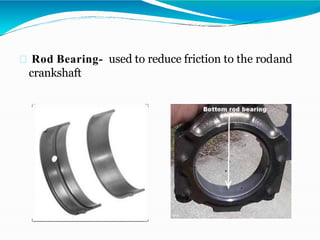

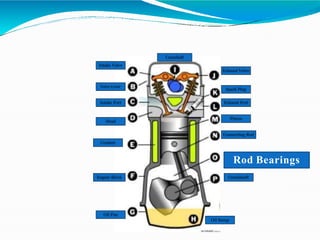

40. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

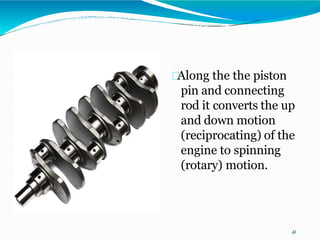

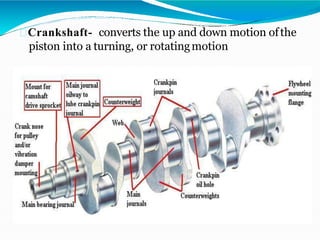

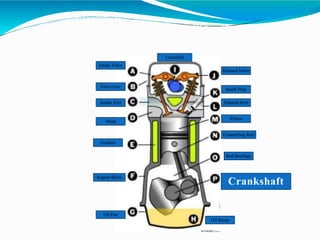

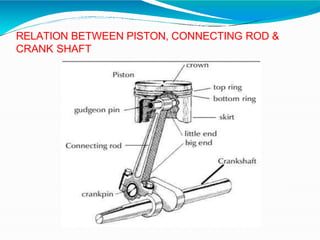

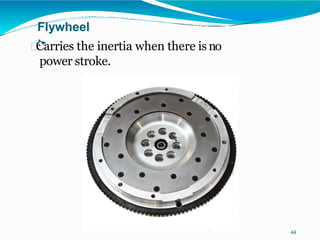

44. Intake Valve
Valve Cover
Intake Port
Head
Coolant
Engine Block
Oil Pan
Oil Sump
Crankshaft
Camshaft
Exhaust Valve
Spark Plug
Exhaust Port
Piston
Connecting Rod
Rod Bearings

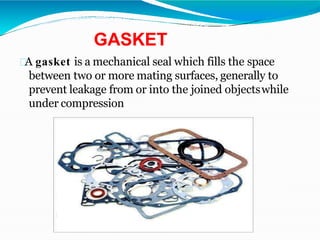

46. GASKET
A gasket is a mechanical seal which fills the space
between two or more mating surfaces, generally to
prevent leakage from or into the joined objectswhile
under compression

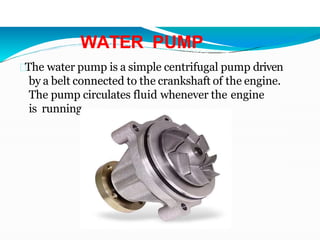

47. WATER PUMP
The water pump is a simple centrifugal pump driven
by a belt connected to the crankshaft of the engine.
The pump circulates fluid whenever the engine
is running.
