Learn how RageDB leveraged the Seastar framework to build an outrageously fast graph database. Understand the right way to embrace the triple digit multi-core future by scaling up and not out. Sacrifice everything for speed and get out of the way of your users. No drivers, no custom protocols, no query languages, no GraphQL, just code in and JSON out. Exploit the built in Seastar HTTP server to tie it all together.

1. Brought to you by
Outrageous Performance
Max De Marzi
RageDB

2. Max De Marzi
Developing RageDB
■ maxdemarzi.com and ragedb.com
■ @maxdemarzi and @rage_database
■ github.com/maxdemarzi and github.com/ragedb
■ I am a graph addict and RageDB is a Graph Database

3. A Sad Story

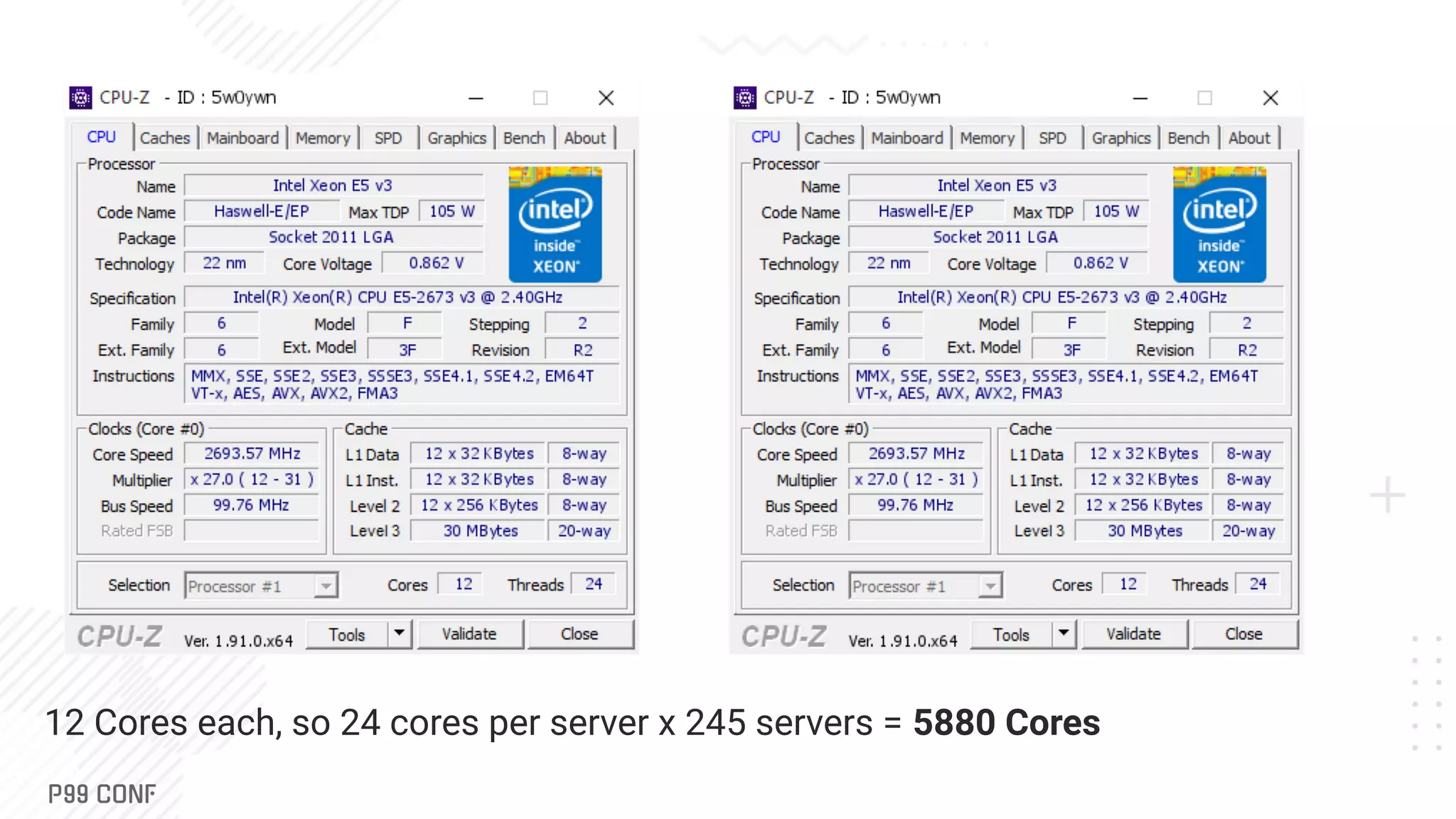

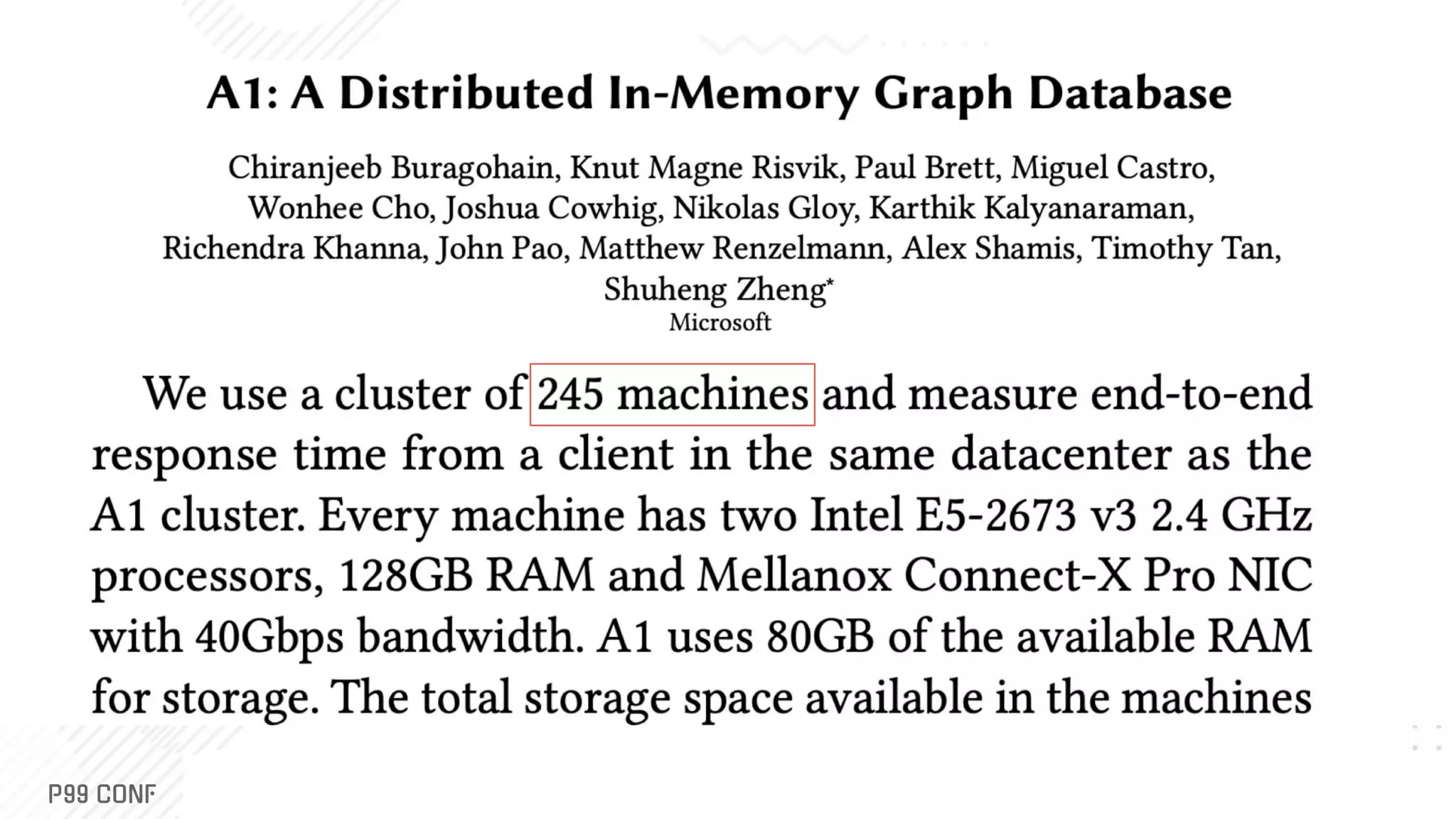

5. 12 Cores each, so 24 cores per server x 245 servers = 5880 Cores

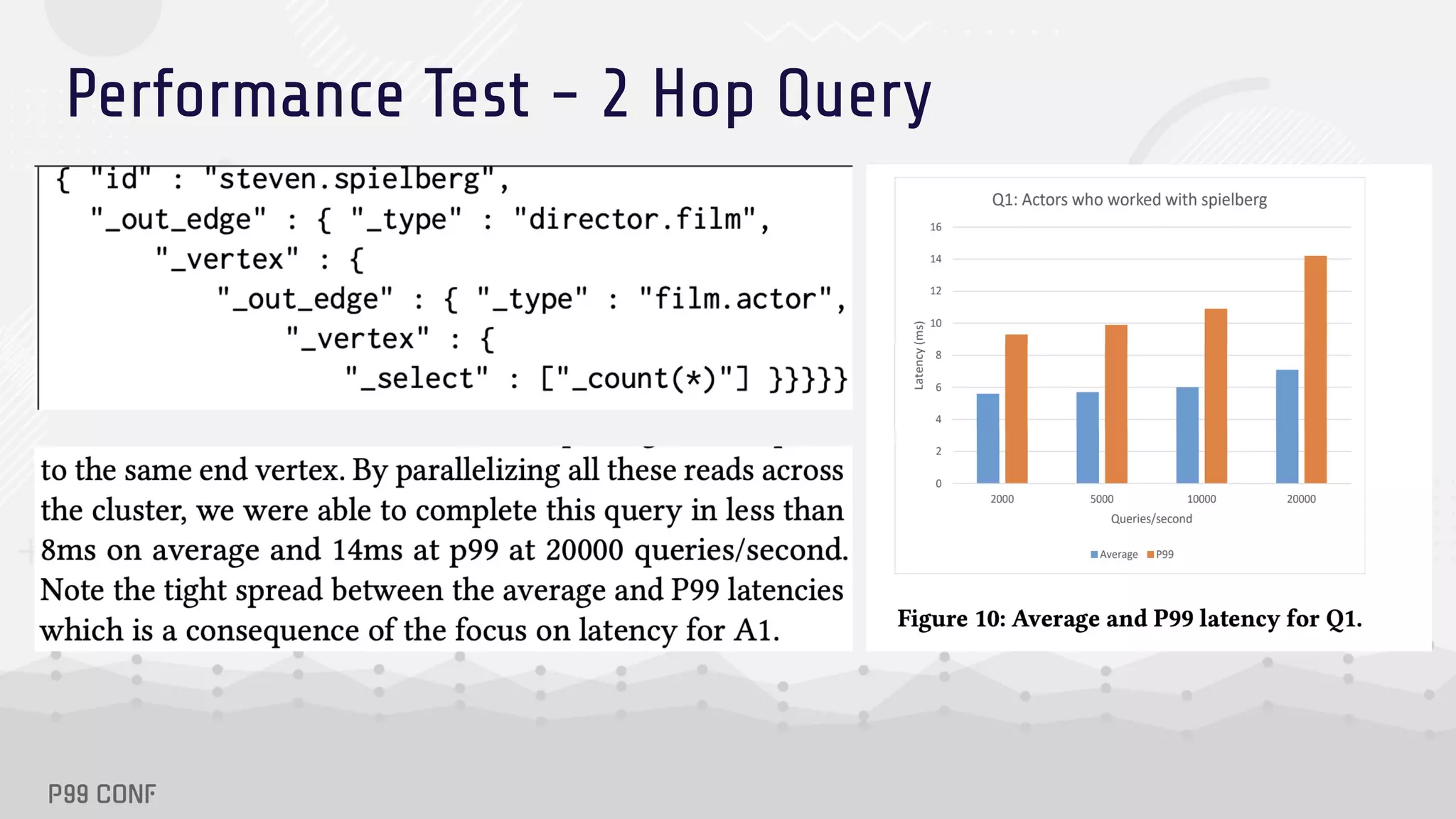

6. Performance Test - 2 Hop Query

7. 20,000 queries per second with almost 6000 cores.
20k queries, almost 6000 cores!!!

8. 3.5 Queries per Second per Core

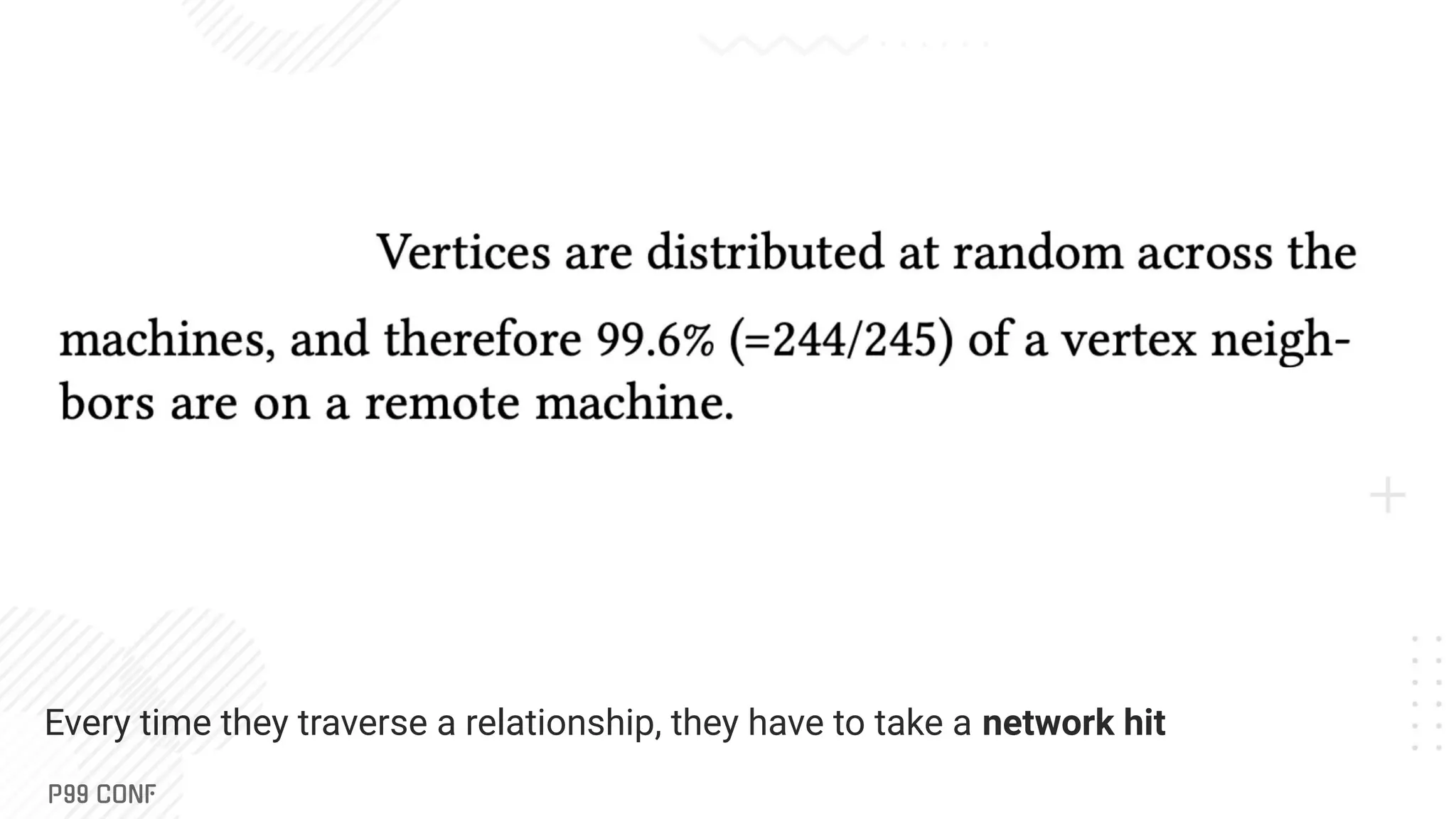

9. Every time they traverse a relationship, they have to take a network hit

10. I’ll tell you why…

11. I’ll tell you why…

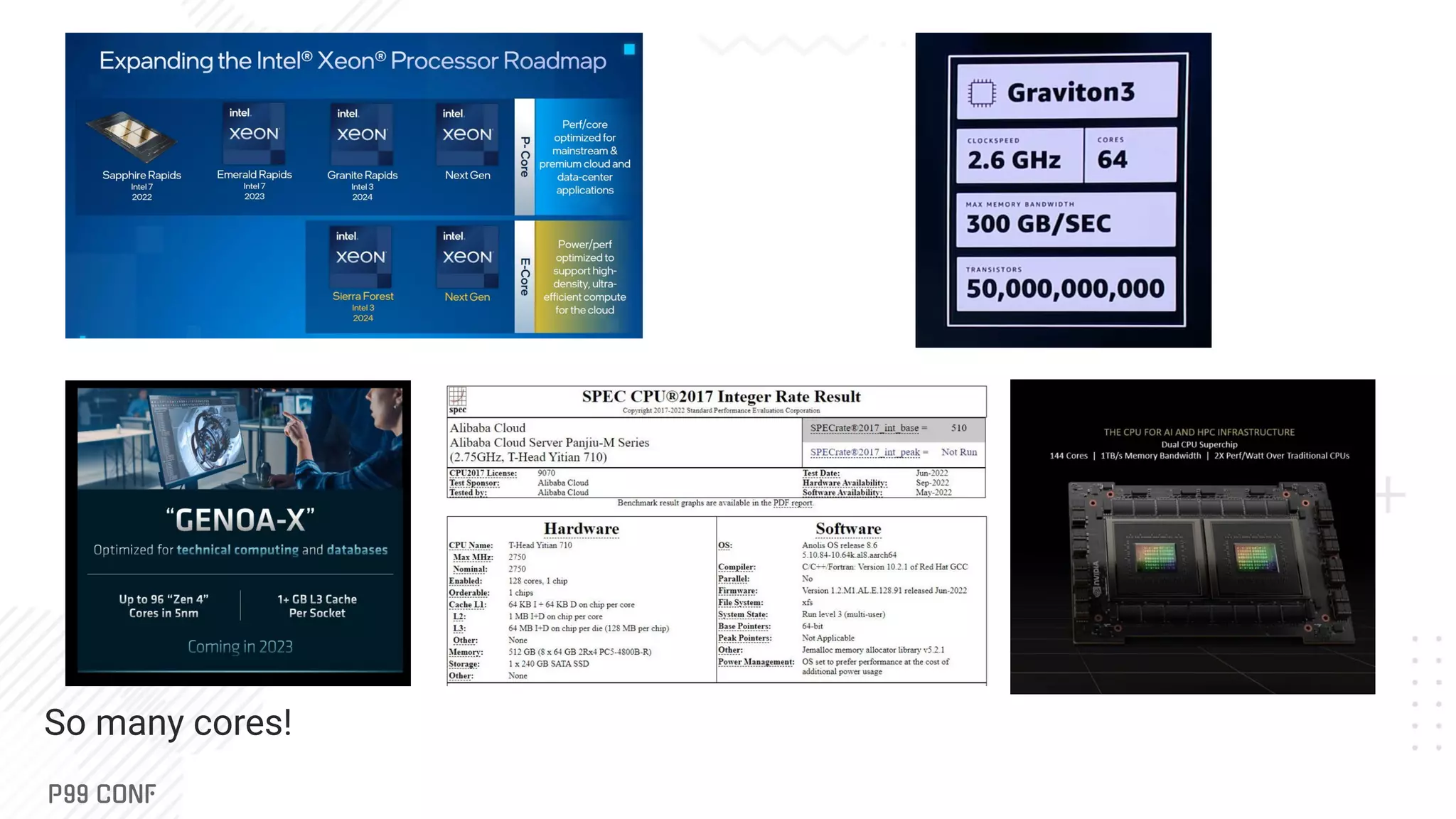

12. So many cores!

13. Seastar

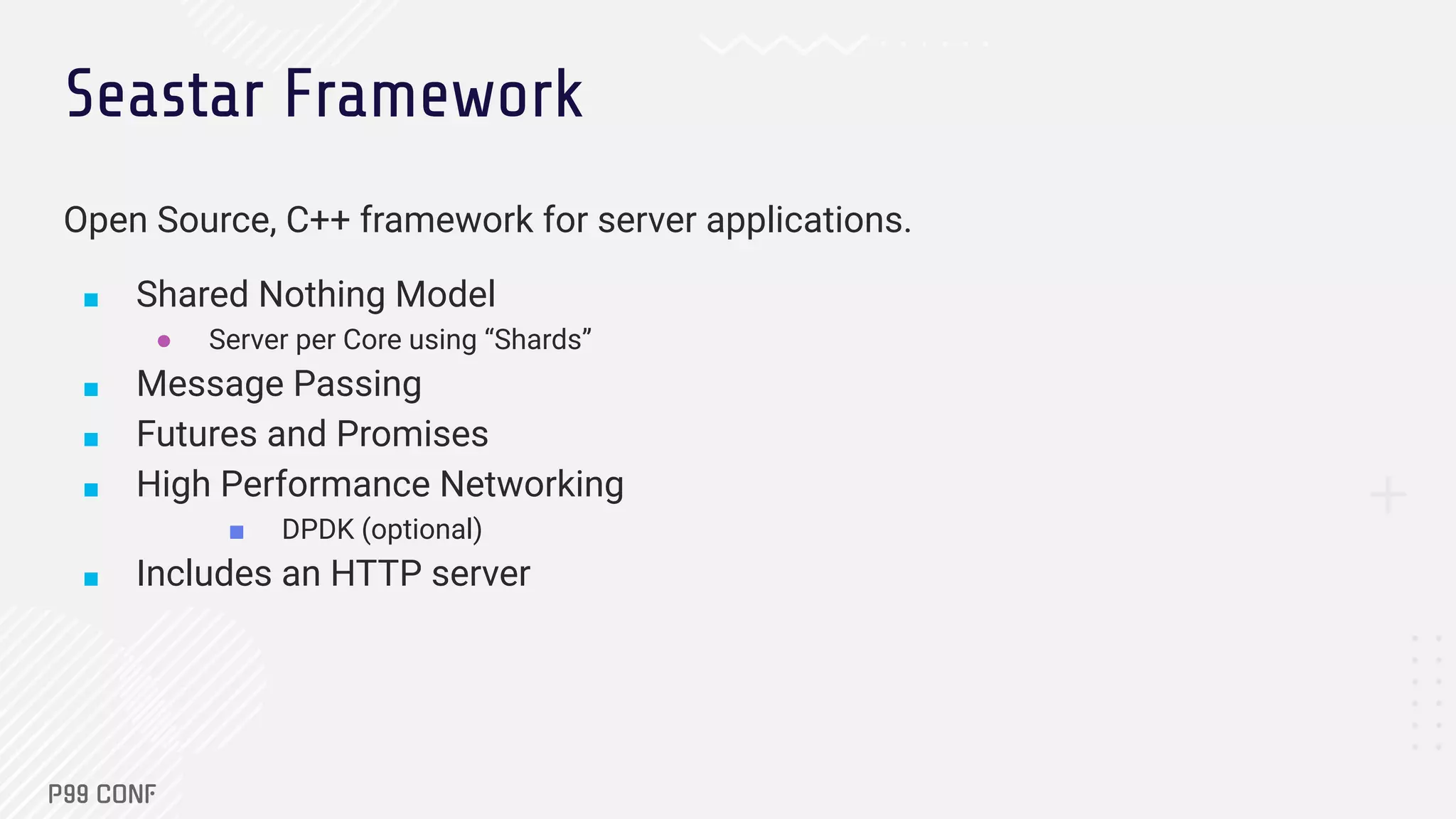

14. Seastar Framework
Open Source, C++ framework for server applications.
■ Shared Nothing Model
● Server per Core using “Shards”
■ Message Passing
■ Futures and Promises
■ High Performance Networking
■ DPDK (optional)
■ Includes an HTTP server

15. Distribute on Cores
Not on Servers

16. Distributing Graphs is Hard….NP-Hard
NP-

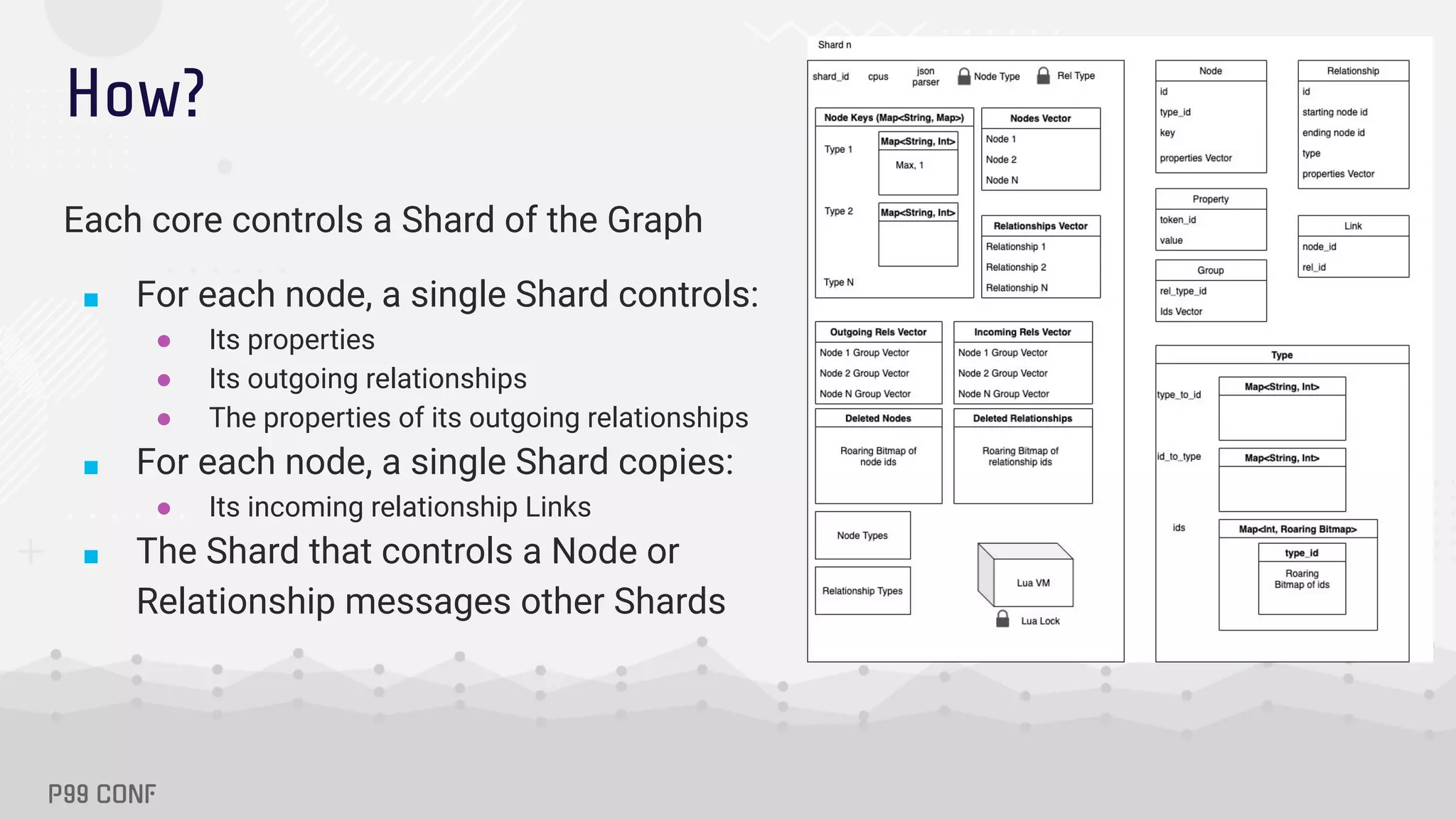

17. How?
Each core controls a Shard of the Graph
■ For each node, a single Shard controls:
● Its properties
● Its outgoing relationships
● The properties of its outgoing relationships
■ For each node, a single Shard copies:
● Its incoming relationship Links
■ The Shard that controls a Node or
Relationship messages other Shards

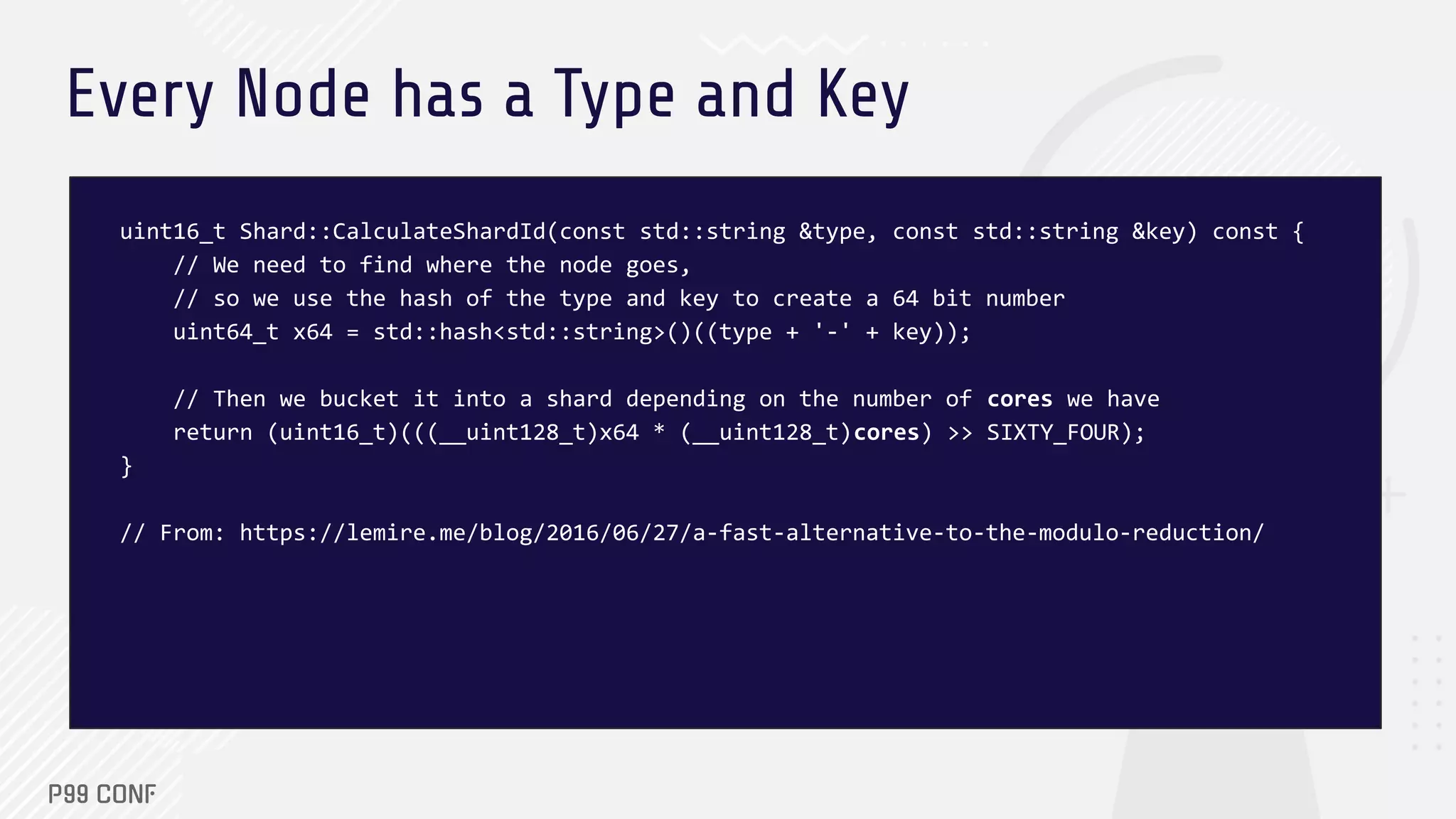

18. Every Node has a Type and Key
uint16_t Shard::CalculateShardId(const std::string &type, const std::string &key) const {
// We need to find where the node goes,
// so we use the hash of the type and key to create a 64 bit number
uint64_t x64 = std::hash<std::string>()((type + '-' + key));
// Then we bucket it into a shard depending on the number of cores we have
return (uint16_t)(((__uint128_t)x64 * (__uint128_t)cores) >> SIXTY_FOUR);
}
// From: https://lemire.me/blog/2016/06/27/a-fast-alternative-to-the-modulo-reduction/

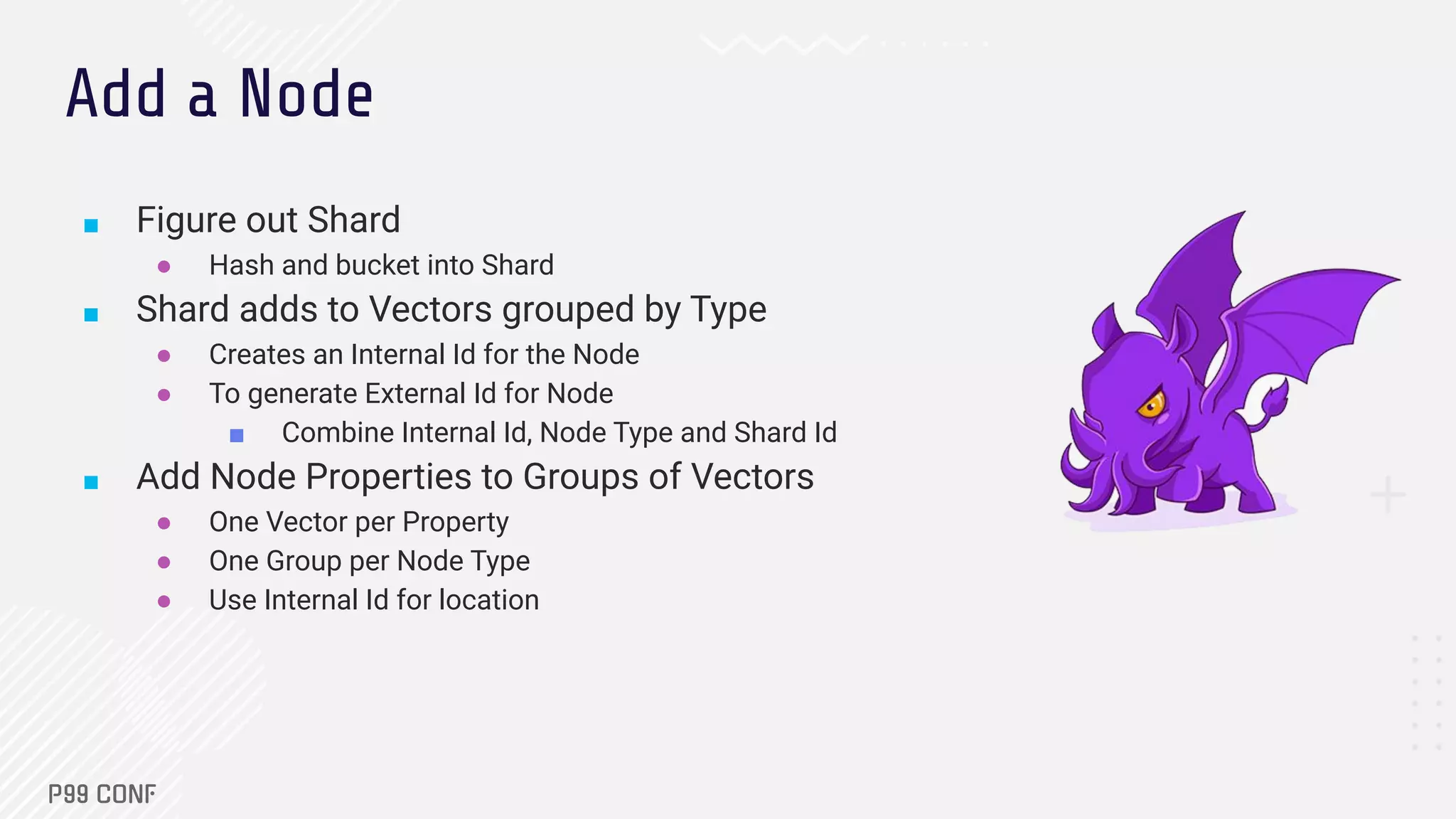

19. ■ Figure out Shard
● Hash and bucket into Shard
■ Shard adds to Vectors grouped by Type
● Creates an Internal Id for the Node
● To generate External Id for Node
■ Combine Internal Id, Node Type and Shard Id
■ Add Node Properties to Groups of Vectors
● One Vector per Property
● One Group per Node Type
● Use Internal Id for location
Add a Node

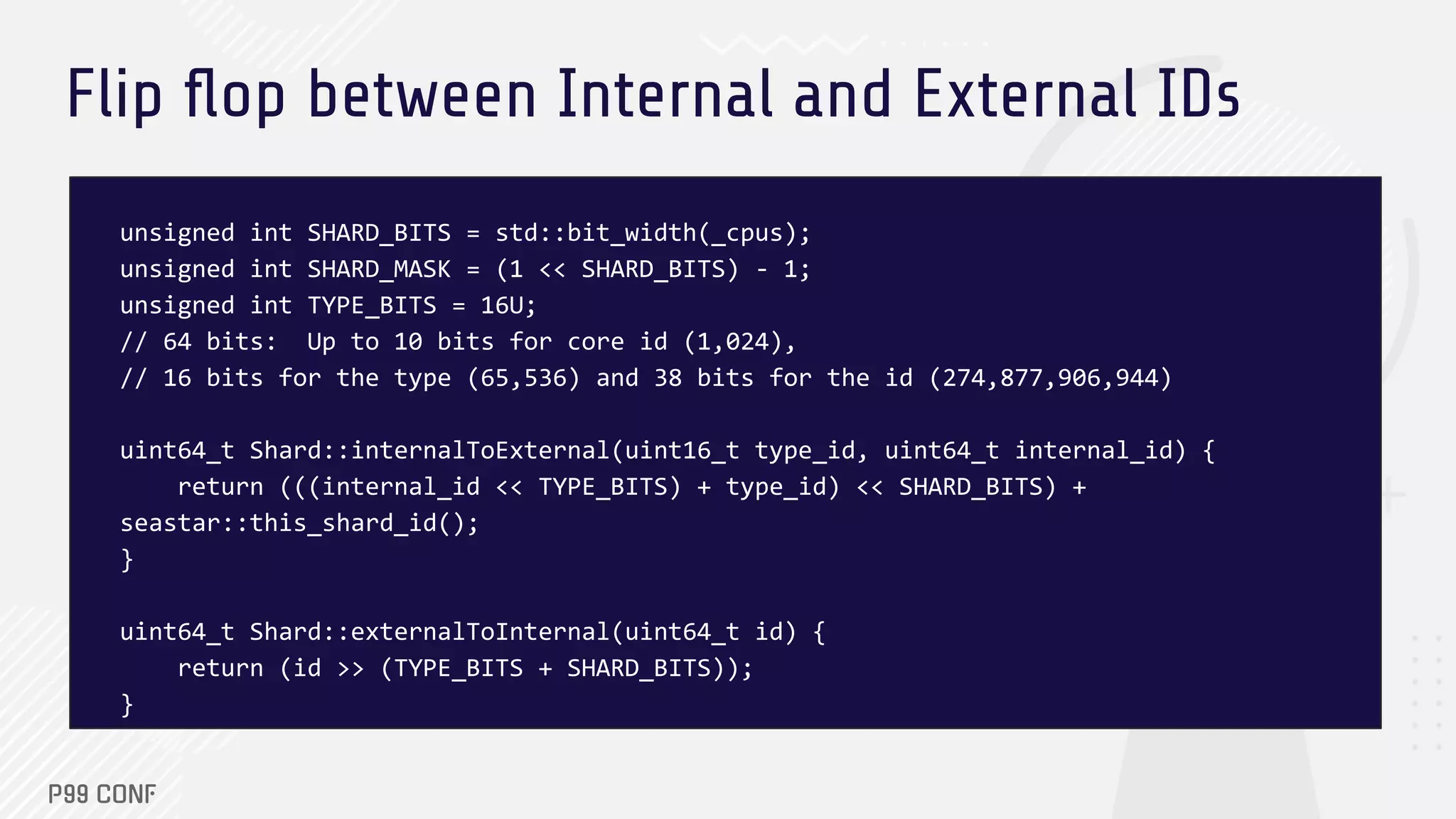

20. Flip flop between Internal and External IDs
unsigned int SHARD_BITS = std::bit_width(_cpus);
unsigned int SHARD_MASK = (1 << SHARD_BITS) - 1;
unsigned int TYPE_BITS = 16U;
// 64 bits: Up to 10 bits for core id (1,024),
// 16 bits for the type (65,536) and 38 bits for the id (274,877,906,944)
uint64_t Shard::internalToExternal(uint16_t type_id, uint64_t internal_id) {
return (((internal_id << TYPE_BITS) + type_id) << SHARD_BITS) +
seastar::this_shard_id();
}
uint64_t Shard::externalToInternal(uint64_t id) {
return (id >> (TYPE_BITS + SHARD_BITS));
}

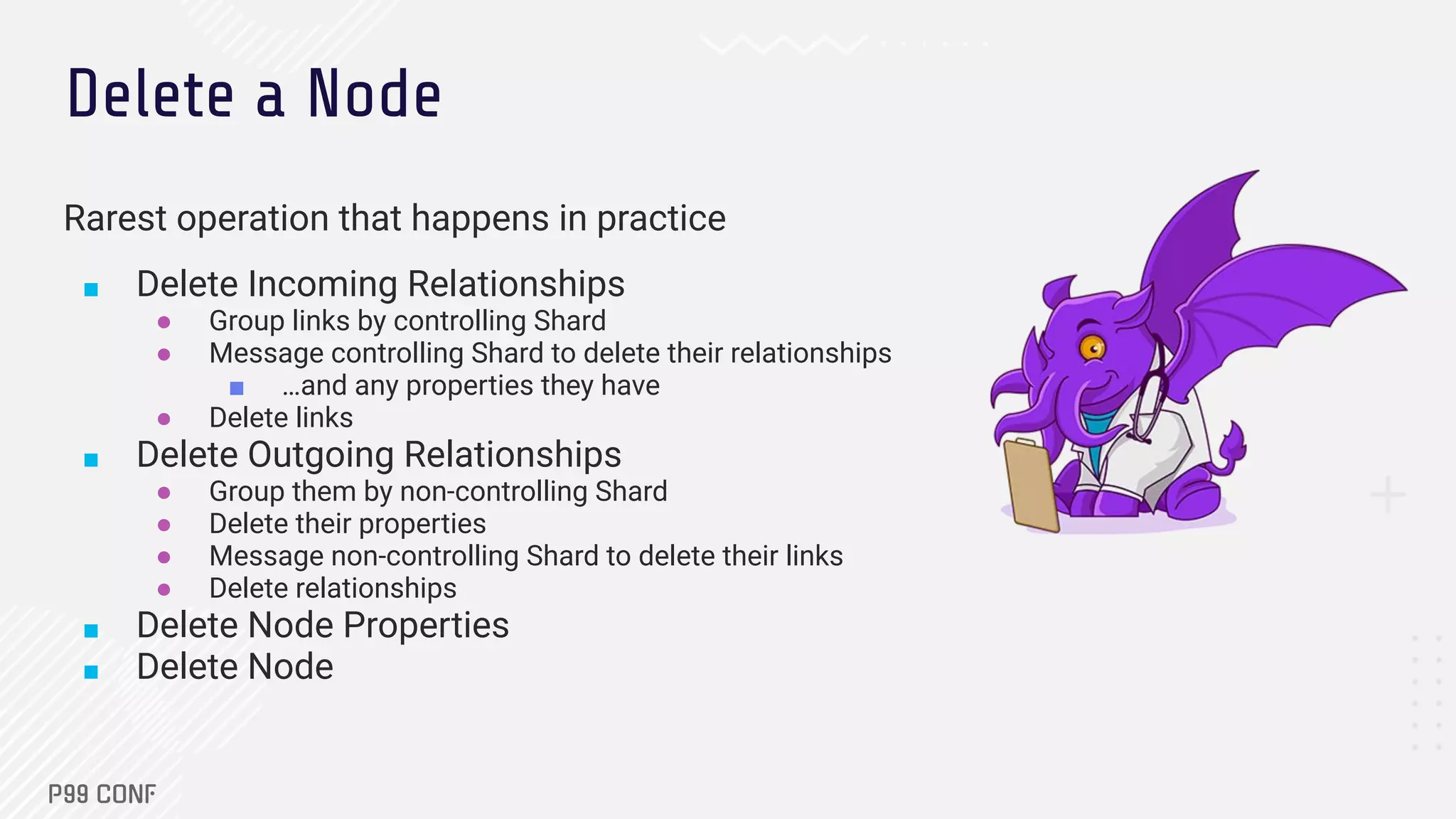

21. Delete a Node
Rarest operation that happens in practice
■ Delete Incoming Relationships
● Group links by controlling Shard
● Message controlling Shard to delete their relationships
■ …and any properties they have
● Delete links
■ Delete Outgoing Relationships
● Group them by non-controlling Shard
● Delete their properties
● Message non-controlling Shard to delete their links
● Delete relationships
■ Delete Node Properties
■ Delete Node

22. 4 Layer Design
■ HTTP + JSON Layer
● Provided by Seastar
■ Lua Layer
● In Thread
● Optional
■ Peered Layer
● Coordinates between Shards
■ Shard Layer
● Controls Data

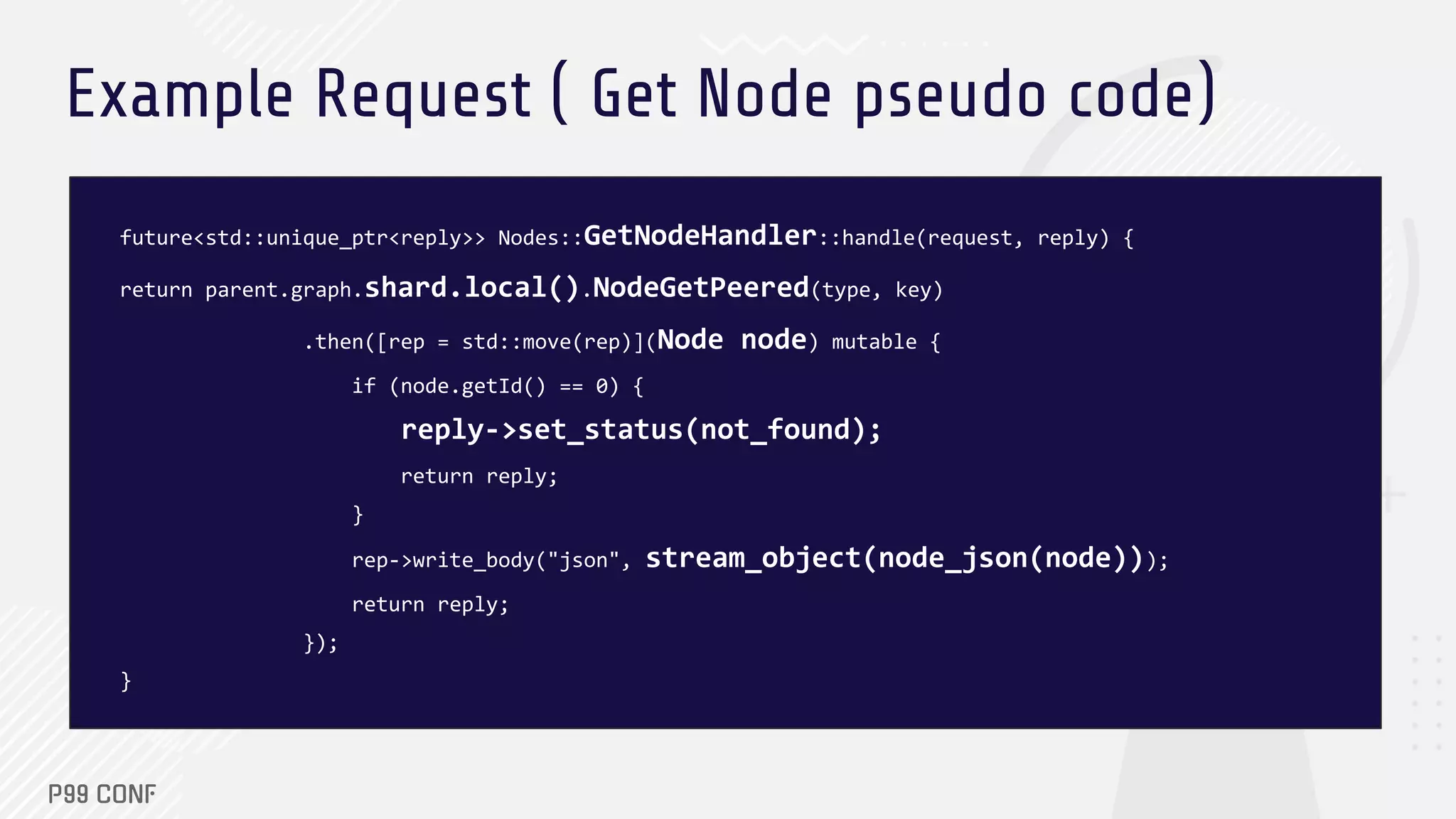

23. Example Request ( Get Node pseudo code)
future<std::unique_ptr<reply>> Nodes::GetNodeHandler::handle(request, reply) {
return parent.graph.shard.local().NodeGetPeered(type, key)
.then([rep = std::move(rep)](Node node) mutable {
if (node.getId() == 0) {
reply->set_status(not_found);
return reply;
}
rep->write_body("json", stream_object(node_json(node)));
return reply;
});
}

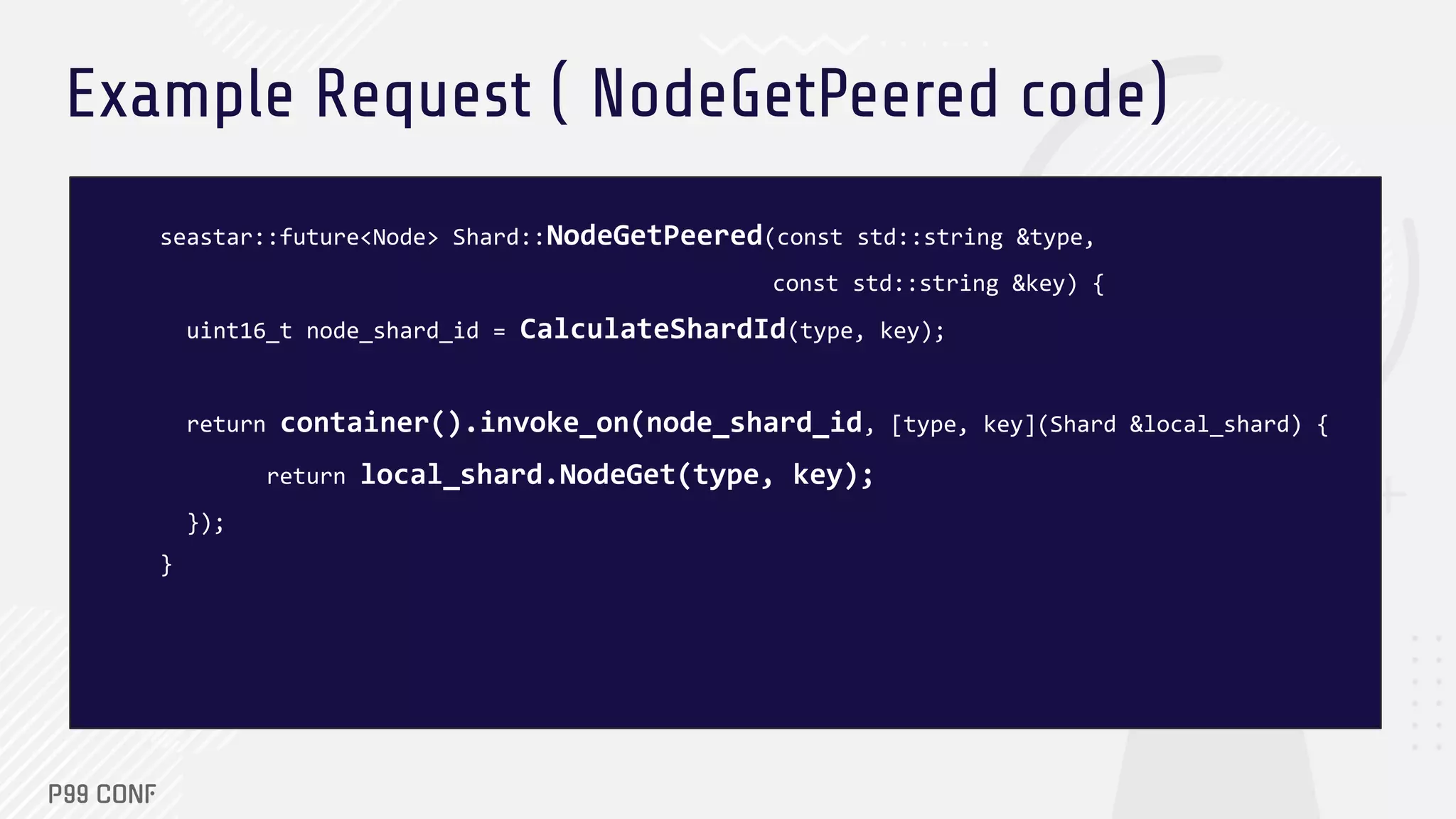

24. Example Request ( NodeGetPeered code)
seastar::future<Node> Shard::NodeGetPeered(const std::string &type,
const std::string &key) {
uint16_t node_shard_id = CalculateShardId(type, key);
return container().invoke_on(node_shard_id, [type, key](Shard &local_shard) {
return local_shard.NodeGet(type, key);
});
}

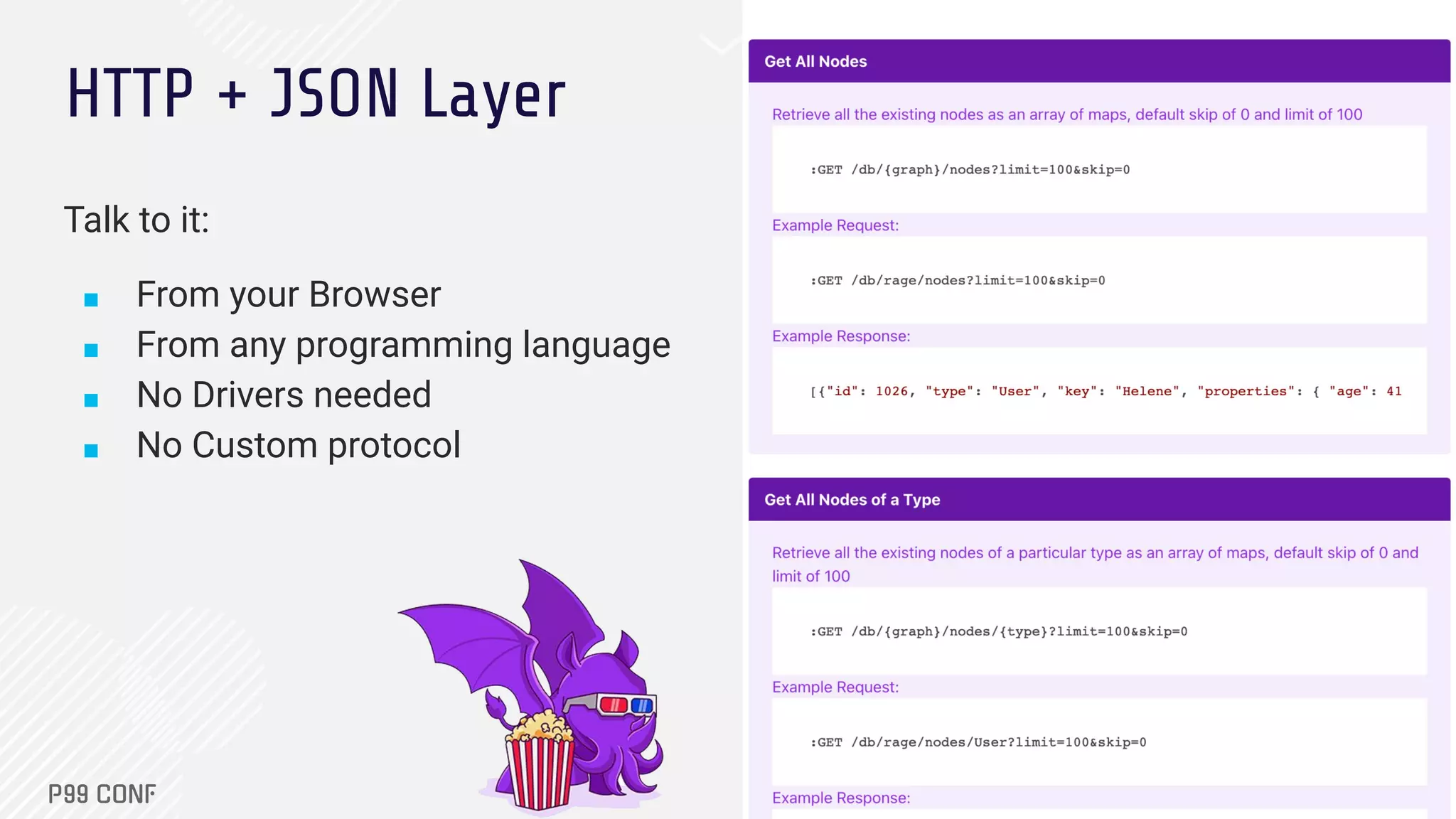

25. HTTP + JSON Layer
Talk to it:
■ From your Browser
■ From any programming language
■ No Drivers needed
■ No Custom protocol

26. Lua Layer
“Moon” in Portuguese:
■ Proven Language
● Used in games
● Used in embedded systems
■ Fast
● Fastest embeddable scripting language
● Using LuaJIT
■ Powerful but Small
● Learn it faster than C++
■ Roblox
● Millions of Kids learning Lua

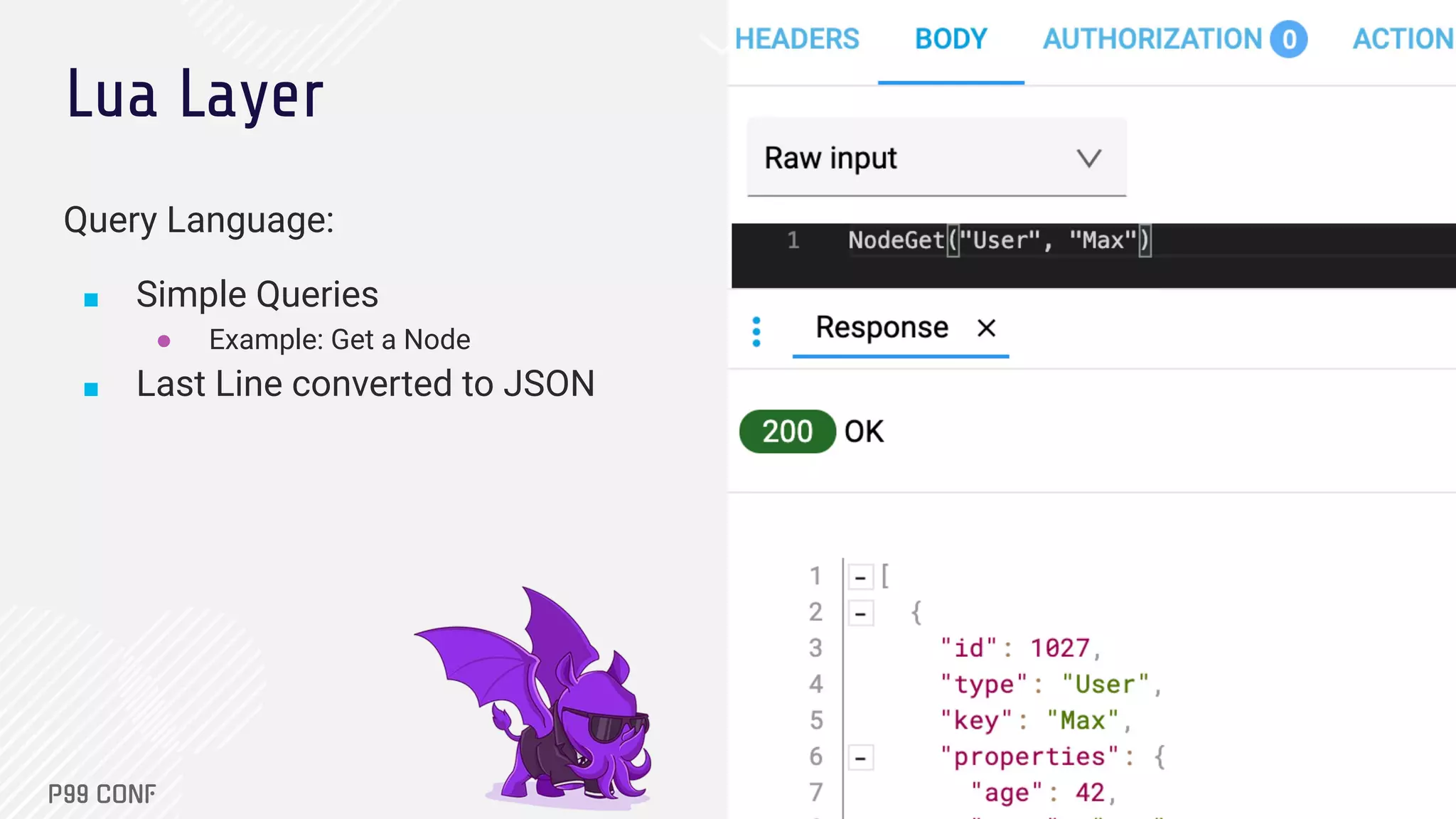

27. Lua Layer
Query Language:
■ Simple Queries
● Example: Get a Node
■ Last Line converted to JSON

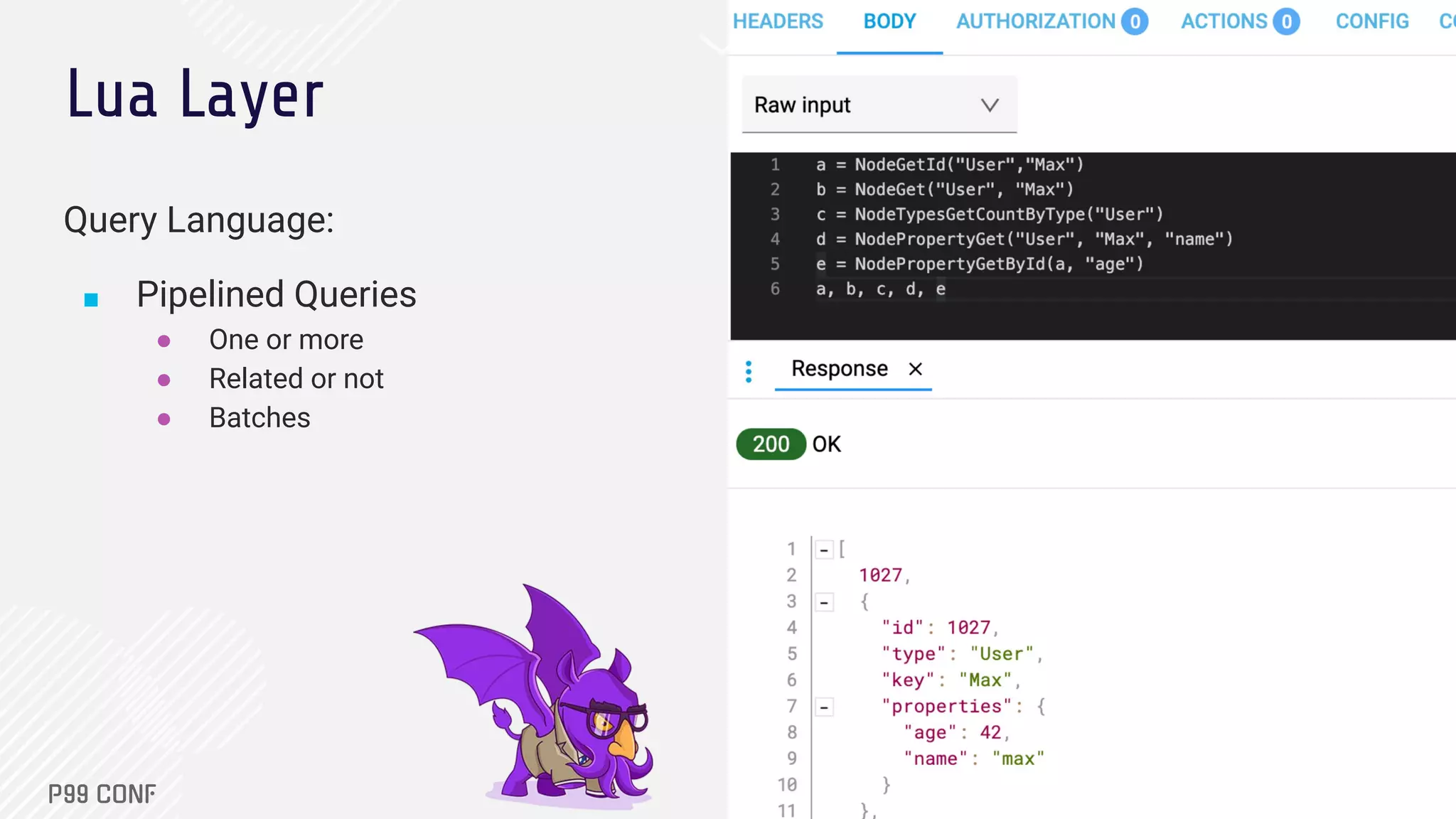

28. Lua Layer
Query Language:
■ Pipelined Queries
● One or more
● Related or not
● Batches

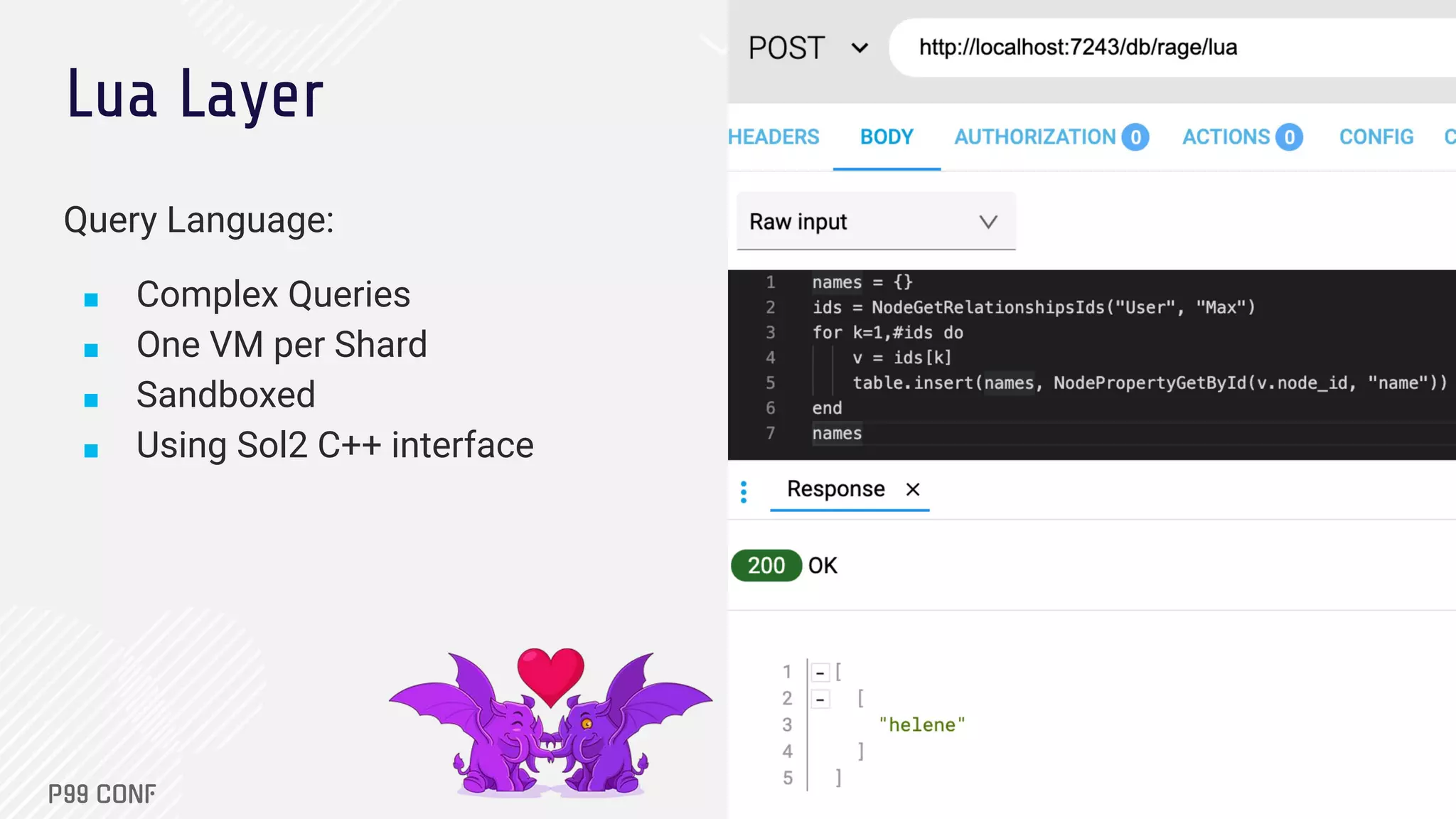

29. Lua Layer
Query Language:
■ Complex Queries
■ One VM per Shard
■ Sandboxed
■ Using Sol2 C++ interface

30. Clear slide for diagram with caption

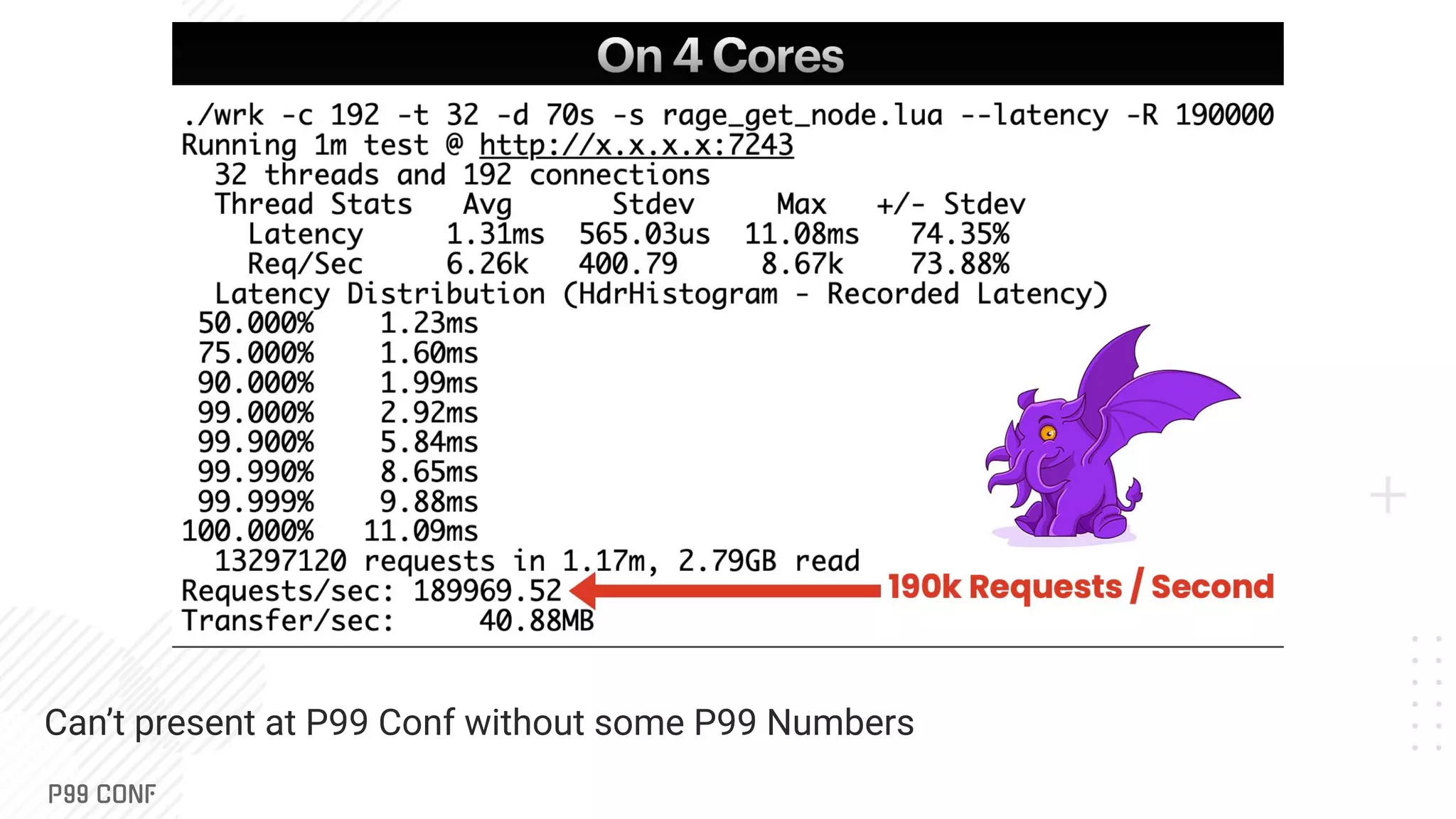

31. Can’t present at P99 Conf without some P99 Numbers

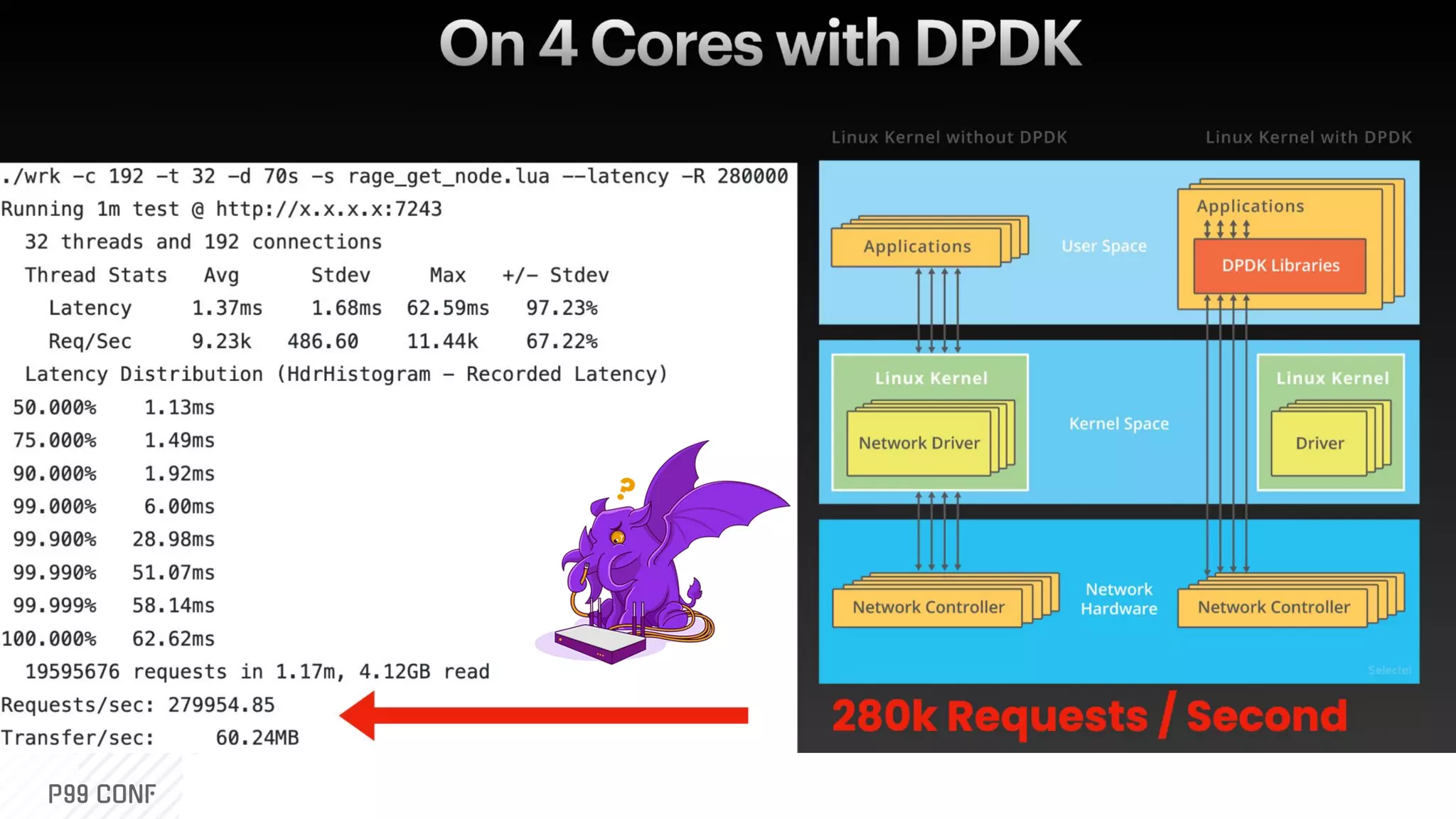

32. Can’t present at P99 Conf without some P99 Numbers

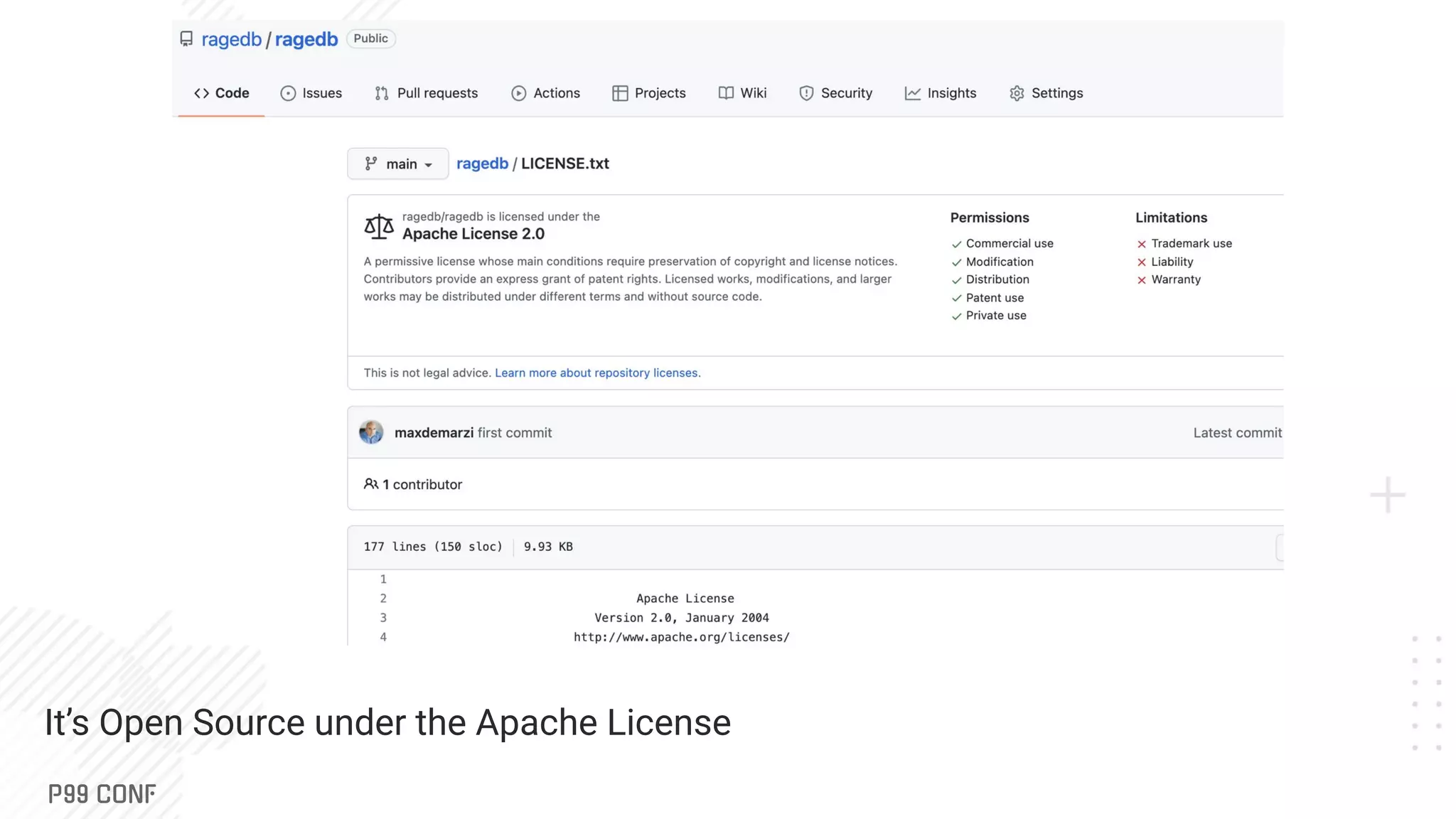

33. It’s Open Source under the Apache License

34. Brought to you by
Max De Marzi
max@ragedb.com
@maxdemarzi
