Chris Jones
Director Product Management
BrainChip Inc.
Temporal Event Neural
Networks: A More Efficient
Alternative to the Transformer

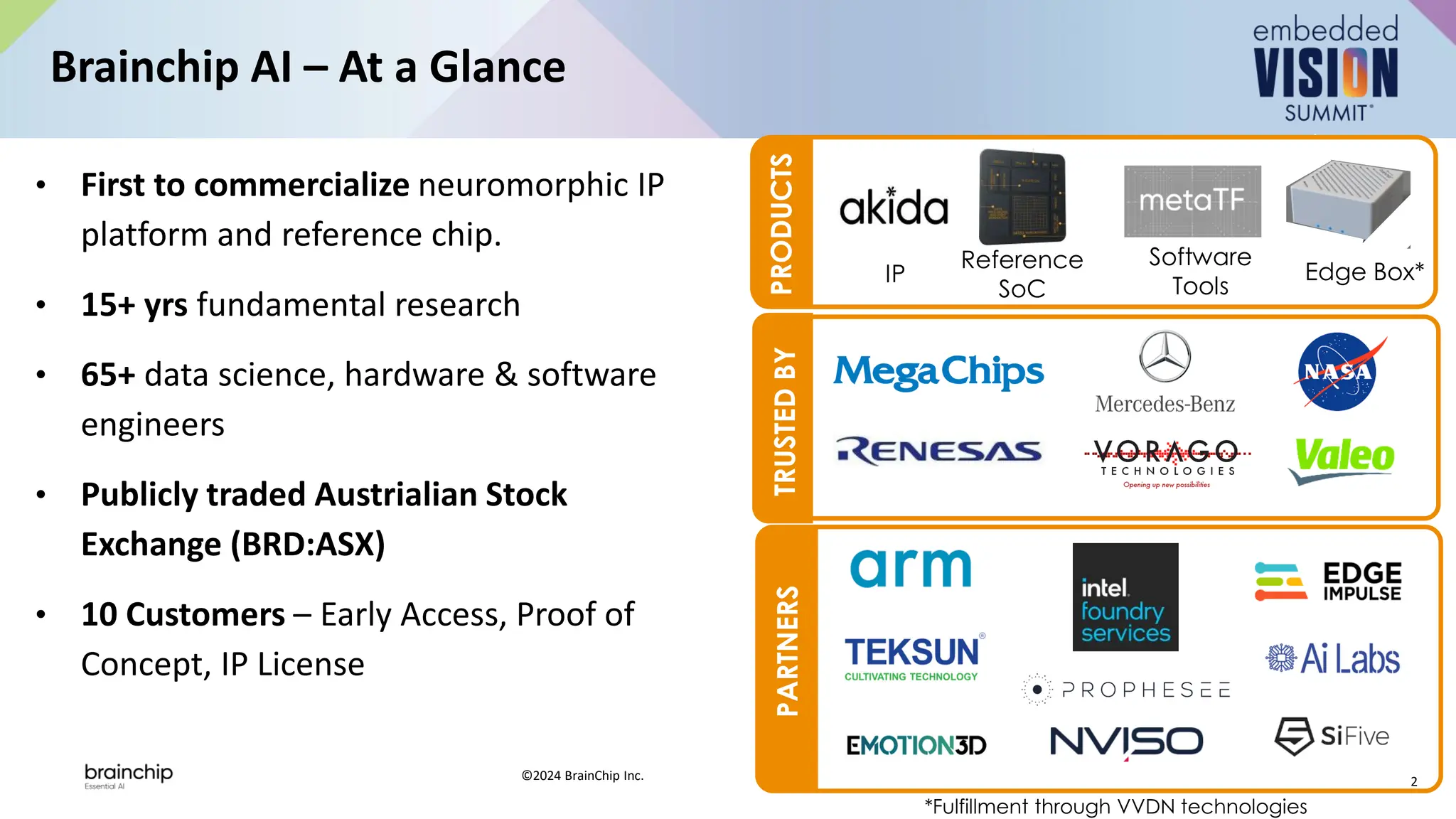

Brainchip AI – At a Glance
• First to commercialize neuromorphic IP
platform and reference chip.
• 15+ yrs fundamental research
• 65+ data science, hardware & software
engineers
• Publicly traded Austrialian Stock
Exchange (BRD:ASX)
• 10 Customers – Early Access, Proof of
Concept, IP License
*Fulfillment through VVDN technologies
©2024 BrainChip Inc.
PRODUCTS
IP
Reference
SoC
Software
Tools
TRUSTED
BY
PARTNERS
Edge Box*
2
• Provide path to run complex models on the Edge
• Reduce cost of training
• Reduce cost of inference
Key Focal Areas
©2024 BrainChip Inc.
©2024 BrainChip Inc. 3
Temporal Event Neural Networks (TENNs)
©2024 BrainChip Inc. 4
Change the Game
©2024 BrainChip Inc.
Unleash Unprecedented Edge Devices
ONE DIMENSIONAL
STREAMING DATA
Up to 5000X
More Energy Efficient
Up to 50X
Fewer Parameters
Same Or Better
Accuracy
10-30X
Lower Training cost vs. GPT-2
5
TENNs Application Areas
©2024 BrainChip Inc.
1. Multi-dimensional streaming requiring spatiotemporal integration
(3D)
• Video object detection – frames are correlated in time.
• Action recognition – classifying an action across many frames
• Video frame prediction – path prediction & planning
2. Sequence classification and generation in time:
• Raw audio classification: keyword spotting without MFCC preprocessing
• Audio denoising: generate contextual denoising
• ASR and GenAI: compressing LLMs
3. Any other sequence classification or prediction algorithms
• Healthcare: vital signs estimation
• Anything that can be transformed into a time-series/sequence prediction
problem
Spatiotemporal Integration
Kinetics400 KITT
I
Sequence classification & generation
BIDMC Vital Signs SC10 Raw Audio
Microsoft DNS Challenge
6
Improve Video Object Detection
©2024 BrainChip Inc.
Frame Based Camera Comparison
(vs SimCLR + ResNet50 using Kitti2D Dataset**)
Network mAP
(%)
Parameters
(millions)
MACs / sec
(Billions)
Akida TENN* +
CenterNet
57.6 0.57 18
Equivalent
precision
50x fewer
parameters
5x fewer
operations
< 20 mW
For 30 FPS in 7 nm***
Resolution
1382 x 512
Event Based Camera Comparison
(vs Gray Retinanet + Prophesee Road Object Dataset*)
Network mAP
(%)
Parameters
(millions)
MACs / sec
(Billions)
Akida TENN* +
CenterNet
56 0.57 94
30% better
precision
50x fewer
parameters
30x fewer
operations
Resolution
1280 x 720
* Gray Retinanet is the latest state of art in event-camera
object detection
** SimCLR with a RESNET50 backbone is the benchmark in
object detection -- Source: SiMCLR Review
*** Estimates for Akida neural processing scaled from 28 nm
7
TENN Can Be Extended to Spatio-Temporal Data
©2024 BrainChip Inc.
DVS Hand Gesture Recognition: IBM DVS128 Dataset
State of the Art
Network Accuracy
(%)
Parameters MACs (billion) /
sec
Latency*
(ms)
TrueNorth-CNN 96.5 18 M - 155
Loihi-Slayer 93.6 - - 1450
ANN-Rollouts 97.0 500 k 10.4 1500
TA-SNN 98.6 - - 1500
Akida-CNN 95.2 138 k 0.12 200
TENN-Fast 97.6 192 k 0.429 105
TENN 100.0 192 k 0.499 510
8
Enhance Raw Audio and Speech Processing
©2024 BrainChip Inc. 9
Task: Audio Denoising
Comparison of TENN Versus SoTA
Model Deep Filter
Net V1
TENN Deep Filter
Net V2
Deep Filter
Net V3
PESQ 2.49 2.61 2.67 2.68
Params
(relative
to TENN)
2.98 1 3.86 3.56
MACs
(relative
to TENN)
11.7 1 12.1 11.5
BRAINCHIP | TENN
STFT iSTFT
Conv1D/LSTM/
GRU
Traditional Denoising Model Approach
TENNs
TENNs Model Approach
Potentially consume 50%+ of
total power
STFT/iSTFT overhead and BOM not
needed with TENNs
• Audio denoising isolates a voice signal obscured by background noise
• Traditional approach employs computationally intensive time domain to
frequency domain transform and the inverse transform
• TENNs approach avoids expensive data transformations
©2024 BrainChip Inc. 10
TENN vs GPT2
Single thread CPU performance, 11th Gen Intel i7 - 3.00 GHz
Both models were prompted with the first 1024 words of the Harry Potter 1st novel
> 2100 tokens/minute < 10 tokens/minute
©2024 BrainChip Inc.
©2024 BrainChip Inc. 11
Task: Sentence Generation
Model GPT2
Small
GPT2
Medium
TENN Mamba
130M
GPT2 large GPT2 full Mamba
370M
Train_size 13 GB 13GB 0.1 GB 836GB 13GB 13GB 836GB
Score 9.7 10.2 10.3 10.4 10.4 10.8 10.9
Params
(relative to TENN)
1.35 4.8 1 2.06 10.4 21.7 5.9
Energy
(relative to TENN)
1700 5700 1 2.06 13000 27000 5.9
Training Time
(relative to TENN)
~768 GPU
hours
21x
~2264 GPU
hours
62.8x
35 GPU hours
1. TENN trained on WikiText-103. 100M tokens
2. GPT models trained on open_web_text, Mamba trained on the Pile
3. TENN training time: ~1.5 days on (1) A100 (35 GPU hours)
4. GPT-2 Small training time: 4 days on (8) A100 (768 hours)
5. GPT-2 Medium estimated training time
6. Scores reported as negative entropy:−𝑙𝑜𝑔2 1/𝑉𝑜𝑐𝑎𝑏𝑆𝑖𝑧𝑒 − 𝑙𝑜𝑔2 𝑝𝑒𝑟𝑝𝑙𝑒𝑥𝑖𝑡𝑦 (higher better)
7. Input (context) was 1024 tokens ©2024 BrainChip Inc.
©2024 BrainChip Inc. 12
Technical Details
©2024 BrainChip Inc. 13
• Colored plane represents the continuous
kernel we’re trying to learn
• Red arrows represent the individual weights
in a 7x7 filter
• A large number of weights requires a large
amount of computation
• Results in slow training and large memory
bottlenecks
Learning Continuous Convolution Kernels
©2024 BrainChip Inc. 14
Representing Convolution Kernels with Orthogonal
Polynomials
©2024 BrainChip Inc.
Chebyshev polynomial basis can lead to exponential
convergence for a wide range of functions, including
those with singularities or discontinuities.*
*Lloyd N. Trefethen. 2019. Approximation Theory and Approximation Practice, Extended Edition. SIAM-
Society for Industrial and Applied Mathematics, Philadelphia, PA, USA.
• TENNs learns the continuous kernel directly
through polynomial expansion.
• Learn coefficients for polynomials through
backpropagation.
• Training is much faster because the polynomial
coefficients (weights) converge independently and
do not affect each other due to polynomials being
orthogonal to each other.
Chebyshev polynomial
15
Visualizing the Computation
©2024 BrainChip Inc.
22 23 24 25
Polynomials
Coefficients
𝐶1−12 ∙
𝑎𝑙
Input Buffer 𝐼(𝑡)
h(t − τ) =෍
𝑙=0
𝐿
𝑎𝑙 𝐶𝑙 𝑡 − τ
Kernel
𝜒 𝑡 = h ∗ 𝐼 𝑡 = න
𝑡−𝐷
𝑡
h t − τ 𝐼 𝜏 𝑑𝜏 ≈ ෍
𝑘=22
25
h t − 𝑘 𝐼 𝑘
Time (𝑡)
Convolution
Convolution:
ℎ
[0.011, 0.871, 0.235, 0.678, 0.547, 0.298, 0.045, 0.945, 0.478, 0.284, 0.765, 0.199]
h ∙ = 𝑎1 𝐶1 ∙ + 𝑎2 𝐶2 ∙ + 𝑎3 𝐶3 ∙ + 𝑎4 𝐶4 ∙ + 𝑎5 𝐶5 ∙ + 𝑎6 𝐶6 ∙ + 𝑎𝑛 𝐶𝑛 ∙
𝜒 𝑡 = 25 = σ𝑘=22
25
h 25 − 𝑘 𝐼 𝑘 = ℎ(3) 𝐼(22) + ℎ(2) 𝐼(23) + ℎ(1) 𝐼(24) + ℎ(0) 𝐼(25)
𝜒
Nonlinear Output: 𝑜 𝑡 = 𝑓 𝜒 𝑡 𝑓 ∙ : nonlinear activation function:
16
Buffer Mode vs Recurrent Mode
©2024 BrainChip Inc.
Recurrence: Chebyshev polynomials have a recurrence relationship.
Duality: This particular recurrence imputes duality to buffer mode as well as
recurrent mode.
Buffer (Convolutional) Mode
Overview
Buffering inputs over time
Benefit
Speed up training by reading the
memory buffer in parallel
Training stability improved by
orthogonality
Drawbacks
Higher memory usage
Recurrent Mode
Overview
Update previous state over time
Benefit
Save memory by generating polynomials
recurrently, timestep-by-timestep
Lower memory usage benefits inference
Drawback
Training has to be done sequentially
17
Getting It to Market
©2024 BrainChip Inc. 18
©2024 BrainChip Inc.
Key Hardware Features
• Digital, event-based, at memory compute
• Highly scalable
• Each node connected by mesh network
• Inside each node is an event-based TENN
processing unit
Hardware IP to Run TENNs on the Edge
19
Fundamentally different. Extremely efficient.
Brainchip’s Differentiation: Akida Technology Foundations
©2024 BrainChip Inc. 20
BrainChip Resources
©2024 BrainChip Inc.
TENNs Paper “Building Temporal Kernels with Orthogonal Polynomials
https://bit.ly/brainchip_tenns
TENNs White Paper
https://brainchip.com/temporal-event-based-neural-networks-a-new-approach-to-temporal-processing/
Akida 2nd Generation
https://brainchip.com/wp-content/uploads/2023/03/BrainChip_second_generation_Platform_Brief.pdf
BrainChip Enablement Platforms
https://brainchip.com/akida-enablement-platforms/
Visit Us @ Booth #618
21
©2024 BrainChip Inc.
Backup Slides
22
Improve Efficiency Without Compromising Accuracy
©2024 BrainChip Inc.
Simplifies solution to complex problems
Reduces model size and footprint without loss in
accuracy
Easy to train (CNN-like pipeline)
Supports longer range dependencies than RNNs
Temporal Event Based Neural Nets (TENNs)
23
Principles:
1. Recurrence: Chebyshev and Legendre polynomials
have recurrence relationship.
2. Duality: Recurrence imputes duality: Buffer mode
as well as recurrent mode.
3. Stable training: Train in buffer mode
4. Fast Running: Run in recurrent mode. Small foot-
print
5. Insight: TENNs and SSM are a stack of generalized
Fourier filters running in a recurrent mode, with
non-linearities between layers.
TENN Has Two Modes: Buffer and Recurrent Modes
©2024 BrainChip Inc.
Recurrent Mode
24
TENN Has Two Modes: Buffer and Recurrent Modes
©2024 BrainChip Inc.
h 𝑡 = σ𝑙=0
𝐿
𝑎𝑙 𝐶𝑙 𝑡
kernel
convolution
Buffer mode:
buffer for h(t) & buffer for I(t)
convolution: dot product over 2 buffers
Recurrent mode:
h 𝑡 = σ𝑙=0
𝐿
𝑎𝑙 𝐶𝑙 𝑡
kernel
L convolutions
over polynomials
𝜒𝑙 = 𝐶𝑙 ∗ 𝐼(𝑡)
kernel convolution 𝜒 = σ𝑙=0
𝐿
𝑎𝑙 𝜒𝑙
𝜒 = h ∗ 𝐼(𝑡)
𝜒 = ෩
𝒉 ∙ 𝑰 = σ𝑘
෩
𝒉𝑘𝐼𝑘
Entire kernel is stored in a memory buffer accessible at
once
Convolution is computed in conventional way
Polynomials generated recurrently, timestep by timestep &
not stored in memory
Convolution of input over L polynomials computed timestep
by timestep, accumulated over time; L separate convolutions
Kernel convolution is L polynomial convolutions weighted
by the polynomial coefficients & summed
Buffer mode for fast parallel training:
Recurrent mode saves memory :
25

More Related Content

Similar to “Temporal Event Neural Networks: A More Efficient Alternative to the Transformer,” a Presentation from BrainChip

No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
Databricks

No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
Databricks

Deep Learning Initiative @ NECSTLab
Deep Learning Initiative @ NECSTLabDeep Learning Initiative @ NECSTLab
Deep Learning Initiative @ NECSTLab
NECST Lab @ Politecnico di Milano

"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...
"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P..."Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...
"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...
Edge AI and Vision Alliance

Flink Forward San Francisco 2018: David Reniz & Dahyr Vergara - "Real-time m...
Flink Forward San Francisco 2018:  David Reniz & Dahyr Vergara - "Real-time m...Flink Forward San Francisco 2018:  David Reniz & Dahyr Vergara - "Real-time m...
Flink Forward San Francisco 2018: David Reniz & Dahyr Vergara - "Real-time m...
Flink Forward

Accelerate Machine Learning on Google Cloud
Accelerate Machine Learning on Google CloudAccelerate Machine Learning on Google Cloud
Accelerate Machine Learning on Google Cloud
Samantha Guerriero

Harnessing the virtual realm for successful real world artificial intelligence
Harnessing the virtual realm for successful real world artificial intelligenceHarnessing the virtual realm for successful real world artificial intelligence
Harnessing the virtual realm for successful real world artificial intelligence
Alison B. Lowndes

09 accelerators
09 accelerators09 accelerators
09 accelerators
Murali M

TMT SequenceL customer use cases and results
TMT SequenceL customer use cases and resultsTMT SequenceL customer use cases and results
TMT SequenceL customer use cases and results
Doug Norton

Talk on commercialising space data
Talk on commercialising space data Talk on commercialising space data
Talk on commercialising space data
Alison B. Lowndes

Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情
Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情
Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情
NVIDIA Japan

Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML
Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud MLScaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML
Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML
Seldon

Application Optimisation using OpenPOWER and Power 9 systems
Application Optimisation using OpenPOWER and Power 9 systemsApplication Optimisation using OpenPOWER and Power 9 systems
Application Optimisation using OpenPOWER and Power 9 systems
Ganesan Narayanasamy

High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...
High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...
High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...
EUDAT

Large-Scale Optimization Strategies for Typical HPC Workloads
Large-Scale Optimization Strategies for Typical HPC WorkloadsLarge-Scale Optimization Strategies for Typical HPC Workloads
Large-Scale Optimization Strategies for Typical HPC Workloads
inside-BigData.com

SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
Amazon Web Services

SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
Amazon Web Services

Smallsat 2021
Smallsat 2021Smallsat 2021
Smallsat 2021
klepsydratechnologie

Trends in Systems and How to Get Efficient Performance
Trends in Systems and How to Get Efficient PerformanceTrends in Systems and How to Get Efficient Performance
Trends in Systems and How to Get Efficient Performance
inside-BigData.com

Introduction to SeqAn, an Open-source C++ Template Library
Introduction to SeqAn, an Open-source C++ Template LibraryIntroduction to SeqAn, an Open-source C++ Template Library
Introduction to SeqAn, an Open-source C++ Template Library
Can Ozdoruk


Similar to “Temporal Event Neural Networks: A More Efficient Alternative to the Transformer,” a Presentation from BrainChip (20)

No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...

No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...

Deep Learning Initiative @ NECSTLab
Deep Learning Initiative @ NECSTLabDeep Learning Initiative @ NECSTLab
Deep Learning Initiative @ NECSTLab

"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...
"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P..."Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...
"Approaches for Energy Efficient Implementation of Deep Neural Networks," a P...

Flink Forward San Francisco 2018: David Reniz & Dahyr Vergara - "Real-time m...
Flink Forward San Francisco 2018:  David Reniz & Dahyr Vergara - "Real-time m...Flink Forward San Francisco 2018:  David Reniz & Dahyr Vergara - "Real-time m...
Flink Forward San Francisco 2018: David Reniz & Dahyr Vergara - "Real-time m...

Accelerate Machine Learning on Google Cloud
Accelerate Machine Learning on Google CloudAccelerate Machine Learning on Google Cloud
Accelerate Machine Learning on Google Cloud

Harnessing the virtual realm for successful real world artificial intelligence
Harnessing the virtual realm for successful real world artificial intelligenceHarnessing the virtual realm for successful real world artificial intelligence
Harnessing the virtual realm for successful real world artificial intelligence

09 accelerators
09 accelerators09 accelerators
09 accelerators

TMT SequenceL customer use cases and results
TMT SequenceL customer use cases and resultsTMT SequenceL customer use cases and results
TMT SequenceL customer use cases and results

Talk on commercialising space data
Talk on commercialising space data Talk on commercialising space data
Talk on commercialising space data

Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情
Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情
Physics-ML のためのフレームワーク NVIDIA Modulus 最新事情

Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML
Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud MLScaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML
Scaling TensorFlow Models for Training using multi-GPUs & Google Cloud ML

Application Optimisation using OpenPOWER and Power 9 systems
Application Optimisation using OpenPOWER and Power 9 systemsApplication Optimisation using OpenPOWER and Power 9 systems
Application Optimisation using OpenPOWER and Power 9 systems

High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...
High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...
High Performance & High Throughput Computing - EUDAT Summer School (Giuseppe ...

Large-Scale Optimization Strategies for Typical HPC Workloads
Large-Scale Optimization Strategies for Typical HPC WorkloadsLarge-Scale Optimization Strategies for Typical HPC Workloads
Large-Scale Optimization Strategies for Typical HPC Workloads

SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...

SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...
SRV402 Deep Dive on Amazon EC2 Instances, Featuring Performance Optimization ...

Smallsat 2021
Smallsat 2021Smallsat 2021
Smallsat 2021

Trends in Systems and How to Get Efficient Performance
Trends in Systems and How to Get Efficient PerformanceTrends in Systems and How to Get Efficient Performance
Trends in Systems and How to Get Efficient Performance

Introduction to SeqAn, an Open-source C++ Template Library
Introduction to SeqAn, an Open-source C++ Template LibraryIntroduction to SeqAn, an Open-source C++ Template Library
Introduction to SeqAn, an Open-source C++ Template Library


More from Edge AI and Vision Alliance

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance

“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...
“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...
“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...
Edge AI and Vision Alliance

“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...
“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...
“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...
Edge AI and Vision Alliance

“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...
“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...
“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...
Edge AI and Vision Alliance

“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...
“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...
“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...
Edge AI and Vision Alliance

“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...
“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...
“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...
Edge AI and Vision Alliance

“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...
“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...
“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...
Edge AI and Vision Alliance

“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...
“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...
“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...
Edge AI and Vision Alliance

“Implementing Transformer Neural Networks for Visual Perception on Embedded D...
“Implementing Transformer Neural Networks for Visual Perception on Embedded D...“Implementing Transformer Neural Networks for Visual Perception on Embedded D...
“Implementing Transformer Neural Networks for Visual Perception on Embedded D...
Edge AI and Vision Alliance

“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...
“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...
“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...
Edge AI and Vision Alliance

“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...
“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...
“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...
Edge AI and Vision Alliance

“Optimized Vision Language Models for Intelligent Transportation System Appli...
“Optimized Vision Language Models for Intelligent Transportation System Appli...“Optimized Vision Language Models for Intelligent Transportation System Appli...
“Optimized Vision Language Models for Intelligent Transportation System Appli...
Edge AI and Vision Alliance

“Image Signal Processing Optimization for Object Detection,” a Presentation f...
“Image Signal Processing Optimization for Object Detection,” a Presentation f...“Image Signal Processing Optimization for Object Detection,” a Presentation f...
“Image Signal Processing Optimization for Object Detection,” a Presentation f...
Edge AI and Vision Alliance

“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...
“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...
“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...
Edge AI and Vision Alliance

"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...
"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr..."Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...
"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...
Edge AI and Vision Alliance

“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...
“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...
“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...
Edge AI and Vision Alliance

“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...
“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...
“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...
Edge AI and Vision Alliance

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
Edge AI and Vision Alliance

“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...
“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...
“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...
Edge AI and Vision Alliance

“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...
“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...
“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...
Edge AI and Vision Alliance


More from Edge AI and Vision Alliance (20)

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...

“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...
“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...
“How to Run Audio and Vision AI Algorithms at Ultra-low Power,” a Presentatio...

“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...
“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...
“Meeting the Critical Needs of Accuracy, Performance and Adaptability in Embe...

“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...
“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...
“Build a Tiny Vision Application in Minutes with the Edge App SDK,” a Present...

“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...
“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...
“The Importance of Memory for Breaking the Edge AI Performance Bottleneck,” a...

“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...
“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...
“Intel’s Approach to Operationalizing AI in the Manufacturing Sector,” a Pres...

“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...
“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...
“Transforming Enterprise Intelligence: The Power of Computer Vision and Gen A...

“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...
“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...
“Challenges and Solutions of Moving Vision LLMs to the Edge,” a Presentation ...

“Implementing Transformer Neural Networks for Visual Perception on Embedded D...
“Implementing Transformer Neural Networks for Visual Perception on Embedded D...“Implementing Transformer Neural Networks for Visual Perception on Embedded D...
“Implementing Transformer Neural Networks for Visual Perception on Embedded D...

“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...
“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...
“A Cutting-edge Memory Optimization Method for Embedded AI Accelerators,” a P...

“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...
“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...
“Efficiency Unleashed: The Next-gen NXP i.MX 95 Applications Processor for Em...

“Optimized Vision Language Models for Intelligent Transportation System Appli...
“Optimized Vision Language Models for Intelligent Transportation System Appli...“Optimized Vision Language Models for Intelligent Transportation System Appli...
“Optimized Vision Language Models for Intelligent Transportation System Appli...

“Image Signal Processing Optimization for Object Detection,” a Presentation f...
“Image Signal Processing Optimization for Object Detection,” a Presentation f...“Image Signal Processing Optimization for Object Detection,” a Presentation f...
“Image Signal Processing Optimization for Object Detection,” a Presentation f...

“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...
“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...
“Squeezing the Last Milliwatt and Cubic Millimeter from Smart Cameras Using t...

"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...
"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr..."Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...
"Maximize Your AI Compatibility with Flexible Pre- and Post-processing," a Pr...

“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...
“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...
“Addressing Tomorrow’s Sensor Fusion and Processing Needs with Cadence’s Newe...

“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...
“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...
“Silicon Slip-ups: The Ten Most Common Errors Processor Suppliers Make (Numbe...

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...

“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...
“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...
“How Arm’s Machine Learning Solution Enables Vision Transformers at the Edge,...

“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...
“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...
“Nx EVOS: A New Enterprise Operating System for Video and Visual AI,” a Prese...


Recently uploaded

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content
Enterprise Knowledge

Accelerating Migrations = Recommendations
Accelerating Migrations = RecommendationsAccelerating Migrations = Recommendations
Accelerating Migrations = Recommendations
isBullShit

Keynote : Presentation on SASE Technology
Keynote : Presentation on SASE TechnologyKeynote : Presentation on SASE Technology
Keynote : Presentation on SASE Technology
Priyanka Aash

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf
AmandaCheung15

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
SelfMade bd

UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
FIDO Alliance

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development
Baishakhi Ray

Demystifying Neural Networks And Building Cybersecurity Applications
Demystifying Neural Networks And Building Cybersecurity ApplicationsDemystifying Neural Networks And Building Cybersecurity Applications
Demystifying Neural Networks And Building Cybersecurity Applications
Priyanka Aash

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities
Priyanka Aash

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
bellared2

Keynote : AI & Future Of Offensive Security
Keynote : AI & Future Of Offensive SecurityKeynote : AI & Future Of Offensive Security
Keynote : AI & Future Of Offensive Security
Priyanka Aash

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
DianaGray10

History and Introduction for Generative AI ( GenAI )
History and Introduction for Generative AI ( GenAI )History and Introduction for Generative AI ( GenAI )
History and Introduction for Generative AI ( GenAI )
Badri_Bady

Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...
Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...
Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...
OnBoard

Discovery Series - Zero to Hero - Task Mining Session 1
Discovery Series - Zero to Hero - Task Mining Session 1Discovery Series - Zero to Hero - Task Mining Session 1
Discovery Series - Zero to Hero - Task Mining Session 1
DianaGray10

The History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal EmbeddingsThe History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal Embeddings
Zilliz

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
FIDO Alliance

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
SAI KAILASH R

CheckPoint Firewall Presentation CCSA.pdf
CheckPoint Firewall Presentation CCSA.pdfCheckPoint Firewall Presentation CCSA.pdf
CheckPoint Firewall Presentation CCSA.pdf
ssuser137992

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely


Recently uploaded (20)

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content

Accelerating Migrations = Recommendations
Accelerating Migrations = RecommendationsAccelerating Migrations = Recommendations
Accelerating Migrations = Recommendations

Keynote : Presentation on SASE Technology
Keynote : Presentation on SASE TechnologyKeynote : Presentation on SASE Technology
Keynote : Presentation on SASE Technology

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf

UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development

Demystifying Neural Networks And Building Cybersecurity Applications
Demystifying Neural Networks And Building Cybersecurity ApplicationsDemystifying Neural Networks And Building Cybersecurity Applications
Demystifying Neural Networks And Building Cybersecurity Applications

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...

Keynote : AI & Future Of Offensive Security
Keynote : AI & Future Of Offensive SecurityKeynote : AI & Future Of Offensive Security
Keynote : AI & Future Of Offensive Security

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making

History and Introduction for Generative AI ( GenAI )
History and Introduction for Generative AI ( GenAI )History and Introduction for Generative AI ( GenAI )
History and Introduction for Generative AI ( GenAI )

Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...
Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...
Mastering Board Best Practices: Essential Skills for Effective Non-profit Lea...

Discovery Series - Zero to Hero - Task Mining Session 1
Discovery Series - Zero to Hero - Task Mining Session 1Discovery Series - Zero to Hero - Task Mining Session 1
Discovery Series - Zero to Hero - Task Mining Session 1

The History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal EmbeddingsThe History of Embeddings & Multimodal Embeddings
The History of Embeddings & Multimodal Embeddings

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages

CheckPoint Firewall Presentation CCSA.pdf
CheckPoint Firewall Presentation CCSA.pdfCheckPoint Firewall Presentation CCSA.pdf
CheckPoint Firewall Presentation CCSA.pdf

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...


“Temporal Event Neural Networks: A More Efficient Alternative to the Transformer,” a Presentation from BrainChip

  • 1. Chris Jones Director Product Management BrainChip Inc. Temporal Event Neural Networks: A More Efficient Alternative to the Transformer
  • 2. Brainchip AI – At a Glance • First to commercialize neuromorphic IP platform and reference chip. • 15+ yrs fundamental research • 65+ data science, hardware & software engineers • Publicly traded Austrialian Stock Exchange (BRD:ASX) • 10 Customers – Early Access, Proof of Concept, IP License *Fulfillment through VVDN technologies ©2024 BrainChip Inc. PRODUCTS IP Reference SoC Software Tools TRUSTED BY PARTNERS Edge Box* 2
  • 3. • Provide path to run complex models on the Edge • Reduce cost of training • Reduce cost of inference Key Focal Areas ©2024 BrainChip Inc. ©2024 BrainChip Inc. 3
  • 4. Temporal Event Neural Networks (TENNs) ©2024 BrainChip Inc. 4
  • 5. Change the Game ©2024 BrainChip Inc. Unleash Unprecedented Edge Devices ONE DIMENSIONAL STREAMING DATA Up to 5000X More Energy Efficient Up to 50X Fewer Parameters Same Or Better Accuracy 10-30X Lower Training cost vs. GPT-2 5
  • 6. TENNs Application Areas ©2024 BrainChip Inc. 1. Multi-dimensional streaming requiring spatiotemporal integration (3D) • Video object detection – frames are correlated in time. • Action recognition – classifying an action across many frames • Video frame prediction – path prediction & planning 2. Sequence classification and generation in time: • Raw audio classification: keyword spotting without MFCC preprocessing • Audio denoising: generate contextual denoising • ASR and GenAI: compressing LLMs 3. Any other sequence classification or prediction algorithms • Healthcare: vital signs estimation • Anything that can be transformed into a time-series/sequence prediction problem Spatiotemporal Integration Kinetics400 KITT I Sequence classification & generation BIDMC Vital Signs SC10 Raw Audio Microsoft DNS Challenge 6
  • 7. Improve Video Object Detection ©2024 BrainChip Inc. Frame Based Camera Comparison (vs SimCLR + ResNet50 using Kitti2D Dataset**) Network mAP (%) Parameters (millions) MACs / sec (Billions) Akida TENN* + CenterNet 57.6 0.57 18 Equivalent precision 50x fewer parameters 5x fewer operations < 20 mW For 30 FPS in 7 nm*** Resolution 1382 x 512 Event Based Camera Comparison (vs Gray Retinanet + Prophesee Road Object Dataset*) Network mAP (%) Parameters (millions) MACs / sec (Billions) Akida TENN* + CenterNet 56 0.57 94 30% better precision 50x fewer parameters 30x fewer operations Resolution 1280 x 720 * Gray Retinanet is the latest state of art in event-camera object detection ** SimCLR with a RESNET50 backbone is the benchmark in object detection -- Source: SiMCLR Review *** Estimates for Akida neural processing scaled from 28 nm 7
  • 8. TENN Can Be Extended to Spatio-Temporal Data ©2024 BrainChip Inc. DVS Hand Gesture Recognition: IBM DVS128 Dataset State of the Art Network Accuracy (%) Parameters MACs (billion) / sec Latency* (ms) TrueNorth-CNN 96.5 18 M - 155 Loihi-Slayer 93.6 - - 1450 ANN-Rollouts 97.0 500 k 10.4 1500 TA-SNN 98.6 - - 1500 Akida-CNN 95.2 138 k 0.12 200 TENN-Fast 97.6 192 k 0.429 105 TENN 100.0 192 k 0.499 510 8
  • 9. Enhance Raw Audio and Speech Processing ©2024 BrainChip Inc. 9
  • 10. Task: Audio Denoising Comparison of TENN Versus SoTA Model Deep Filter Net V1 TENN Deep Filter Net V2 Deep Filter Net V3 PESQ 2.49 2.61 2.67 2.68 Params (relative to TENN) 2.98 1 3.86 3.56 MACs (relative to TENN) 11.7 1 12.1 11.5 BRAINCHIP | TENN STFT iSTFT Conv1D/LSTM/ GRU Traditional Denoising Model Approach TENNs TENNs Model Approach Potentially consume 50%+ of total power STFT/iSTFT overhead and BOM not needed with TENNs • Audio denoising isolates a voice signal obscured by background noise • Traditional approach employs computationally intensive time domain to frequency domain transform and the inverse transform • TENNs approach avoids expensive data transformations ©2024 BrainChip Inc. 10
  • 11. TENN vs GPT2 Single thread CPU performance, 11th Gen Intel i7 - 3.00 GHz Both models were prompted with the first 1024 words of the Harry Potter 1st novel > 2100 tokens/minute < 10 tokens/minute ©2024 BrainChip Inc. ©2024 BrainChip Inc. 11
  • 12. Task: Sentence Generation Model GPT2 Small GPT2 Medium TENN Mamba 130M GPT2 large GPT2 full Mamba 370M Train_size 13 GB 13GB 0.1 GB 836GB 13GB 13GB 836GB Score 9.7 10.2 10.3 10.4 10.4 10.8 10.9 Params (relative to TENN) 1.35 4.8 1 2.06 10.4 21.7 5.9 Energy (relative to TENN) 1700 5700 1 2.06 13000 27000 5.9 Training Time (relative to TENN) ~768 GPU hours 21x ~2264 GPU hours 62.8x 35 GPU hours 1. TENN trained on WikiText-103. 100M tokens 2. GPT models trained on open_web_text, Mamba trained on the Pile 3. TENN training time: ~1.5 days on (1) A100 (35 GPU hours) 4. GPT-2 Small training time: 4 days on (8) A100 (768 hours) 5. GPT-2 Medium estimated training time 6. Scores reported as negative entropy:−𝑙𝑜𝑔2 1/𝑉𝑜𝑐𝑎𝑏𝑆𝑖𝑧𝑒 − 𝑙𝑜𝑔2 𝑝𝑒𝑟𝑝𝑙𝑒𝑥𝑖𝑡𝑦 (higher better) 7. Input (context) was 1024 tokens ©2024 BrainChip Inc. ©2024 BrainChip Inc. 12
  • 14. • Colored plane represents the continuous kernel we’re trying to learn • Red arrows represent the individual weights in a 7x7 filter • A large number of weights requires a large amount of computation • Results in slow training and large memory bottlenecks Learning Continuous Convolution Kernels ©2024 BrainChip Inc. 14
  • 15. Representing Convolution Kernels with Orthogonal Polynomials ©2024 BrainChip Inc. Chebyshev polynomial basis can lead to exponential convergence for a wide range of functions, including those with singularities or discontinuities.* *Lloyd N. Trefethen. 2019. Approximation Theory and Approximation Practice, Extended Edition. SIAM- Society for Industrial and Applied Mathematics, Philadelphia, PA, USA. • TENNs learns the continuous kernel directly through polynomial expansion. • Learn coefficients for polynomials through backpropagation. • Training is much faster because the polynomial coefficients (weights) converge independently and do not affect each other due to polynomials being orthogonal to each other. Chebyshev polynomial 15
  • 16. Visualizing the Computation ©2024 BrainChip Inc. 22 23 24 25 Polynomials Coefficients 𝐶1−12 ∙ 𝑎𝑙 Input Buffer 𝐼(𝑡) h(t − τ) =෍ 𝑙=0 𝐿 𝑎𝑙 𝐶𝑙 𝑡 − τ Kernel 𝜒 𝑡 = h ∗ 𝐼 𝑡 = න 𝑡−𝐷 𝑡 h t − τ 𝐼 𝜏 𝑑𝜏 ≈ ෍ 𝑘=22 25 h t − 𝑘 𝐼 𝑘 Time (𝑡) Convolution Convolution: ℎ [0.011, 0.871, 0.235, 0.678, 0.547, 0.298, 0.045, 0.945, 0.478, 0.284, 0.765, 0.199] h ∙ = 𝑎1 𝐶1 ∙ + 𝑎2 𝐶2 ∙ + 𝑎3 𝐶3 ∙ + 𝑎4 𝐶4 ∙ + 𝑎5 𝐶5 ∙ + 𝑎6 𝐶6 ∙ + 𝑎𝑛 𝐶𝑛 ∙ 𝜒 𝑡 = 25 = σ𝑘=22 25 h 25 − 𝑘 𝐼 𝑘 = ℎ(3) 𝐼(22) + ℎ(2) 𝐼(23) + ℎ(1) 𝐼(24) + ℎ(0) 𝐼(25) 𝜒 Nonlinear Output: 𝑜 𝑡 = 𝑓 𝜒 𝑡 𝑓 ∙ : nonlinear activation function: 16
  • 17. Buffer Mode vs Recurrent Mode ©2024 BrainChip Inc. Recurrence: Chebyshev polynomials have a recurrence relationship. Duality: This particular recurrence imputes duality to buffer mode as well as recurrent mode. Buffer (Convolutional) Mode Overview Buffering inputs over time Benefit Speed up training by reading the memory buffer in parallel Training stability improved by orthogonality Drawbacks Higher memory usage Recurrent Mode Overview Update previous state over time Benefit Save memory by generating polynomials recurrently, timestep-by-timestep Lower memory usage benefits inference Drawback Training has to be done sequentially 17
  • 18. Getting It to Market ©2024 BrainChip Inc. 18
  • 19. ©2024 BrainChip Inc. Key Hardware Features • Digital, event-based, at memory compute • Highly scalable • Each node connected by mesh network • Inside each node is an event-based TENN processing unit Hardware IP to Run TENNs on the Edge 19
  • 20. Fundamentally different. Extremely efficient. Brainchip’s Differentiation: Akida Technology Foundations ©2024 BrainChip Inc. 20
  • 21. BrainChip Resources ©2024 BrainChip Inc. TENNs Paper “Building Temporal Kernels with Orthogonal Polynomials https://bit.ly/brainchip_tenns TENNs White Paper https://brainchip.com/temporal-event-based-neural-networks-a-new-approach-to-temporal-processing/ Akida 2nd Generation https://brainchip.com/wp-content/uploads/2023/03/BrainChip_second_generation_Platform_Brief.pdf BrainChip Enablement Platforms https://brainchip.com/akida-enablement-platforms/ Visit Us @ Booth #618 21
  • 23. Improve Efficiency Without Compromising Accuracy ©2024 BrainChip Inc. Simplifies solution to complex problems Reduces model size and footprint without loss in accuracy Easy to train (CNN-like pipeline) Supports longer range dependencies than RNNs Temporal Event Based Neural Nets (TENNs) 23
  • 24. Principles: 1. Recurrence: Chebyshev and Legendre polynomials have recurrence relationship. 2. Duality: Recurrence imputes duality: Buffer mode as well as recurrent mode. 3. Stable training: Train in buffer mode 4. Fast Running: Run in recurrent mode. Small foot- print 5. Insight: TENNs and SSM are a stack of generalized Fourier filters running in a recurrent mode, with non-linearities between layers. TENN Has Two Modes: Buffer and Recurrent Modes ©2024 BrainChip Inc. Recurrent Mode 24
  • 25. TENN Has Two Modes: Buffer and Recurrent Modes ©2024 BrainChip Inc. h 𝑡 = σ𝑙=0 𝐿 𝑎𝑙 𝐶𝑙 𝑡 kernel convolution Buffer mode: buffer for h(t) & buffer for I(t) convolution: dot product over 2 buffers Recurrent mode: h 𝑡 = σ𝑙=0 𝐿 𝑎𝑙 𝐶𝑙 𝑡 kernel L convolutions over polynomials 𝜒𝑙 = 𝐶𝑙 ∗ 𝐼(𝑡) kernel convolution 𝜒 = σ𝑙=0 𝐿 𝑎𝑙 𝜒𝑙 𝜒 = h ∗ 𝐼(𝑡) 𝜒 = ෩ 𝒉 ∙ 𝑰 = σ𝑘 ෩ 𝒉𝑘𝐼𝑘 Entire kernel is stored in a memory buffer accessible at once Convolution is computed in conventional way Polynomials generated recurrently, timestep by timestep & not stored in memory Convolution of input over L polynomials computed timestep by timestep, accumulated over time; L separate convolutions Kernel convolution is L polynomial convolutions weighted by the polynomial coefficients & summed Buffer mode for fast parallel training: Recurrent mode saves memory : 25
