Vertex Shader Tricks
New Ways to Use the Vertex Shader to Improve
Performance
Bill Bilodeau
Developer Technology Engineer, AMD

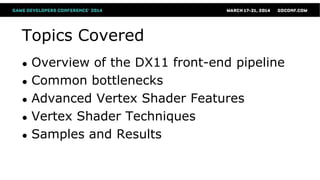

Topics Covered
● Overview of the DX11 front-end pipeline
● Common bottlenecks

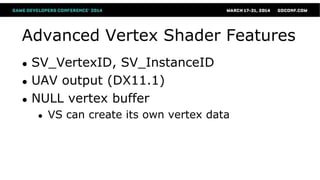

● Advanced Vertex Shader Features
● Vertex Shader Techniques
● Samples and Results
Graphics Hardware

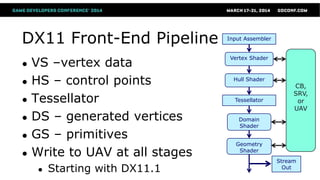

DX11 Front-End Pipeline
● VS –vertex data
● HS – control points
● Tessellator
● DS – generated vertices
● GS – primitives
● Write to UAV at all stages
● Starting with DX11.1
Vector GPR’s
(256 2048-bit registers)
Vector ALU
(1 64-way single precision operation every 4 clocks)
Scalar ALU
(1 operation every 4 clocks)
Scalar GPR’s
(256 64-bit registers)
Vector/Scalar cross communication bus
Vector GPR’s
(256 2048-bit registers)
Vector ALU
(1 64-way single precision operation every 4 clocks)
Scalar ALU
(1 operation every 4 clocks)
Scalar GPR’s
(256 64-bit registers)
Vector/Scalar cross communication bus
Vector GPR’s
(256 2048-bit registers)
Vector ALU
(1 64-way single precision operation every 4 clocks)
Scalar ALU
(1 operation every 4 clocks)
Scalar GPR’s
(256 64-bit registers)
Vector/Scalar cross communication bus
.
.
.
Input Assembler
Hull Shader
Domain
Shader
Tessellator
Geometry
Shader
Stream
Out
CB,
SRV,
or
UAV
Vertex Shader

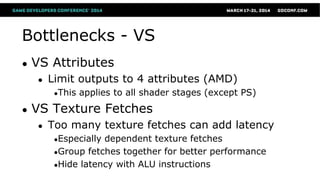

Bottlenecks - VS
● VS Attributes
● Limit outputs to 4 attributes (AMD)
●This applies to all shader stages (except PS)
● VS Texture Fetches
● Too many texture fetches can add latency
●Especially dependent texture fetches
●Group fetches together for better performance
●Hide latency with ALU instructions
Bottlenecks - VS

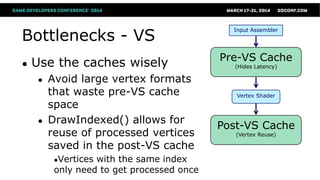

● Use the caches wisely
● Avoid large vertex formats
that waste pre-VS cache
space
● DrawIndexed() allows for
reuse of processed vertices
saved in the post-VS cache
●Vertices with the same index
only need to get processed once
Vertex Shader
Pre-VS Cache
(Hides Latency)
Input Assembler
Post-VS Cache
(Vertex Reuse)

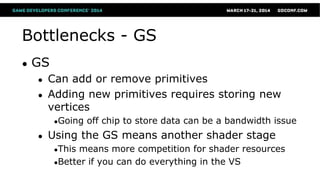

Bottlenecks - GS
● GS
● Can add or remove primitives
● Adding new primitives requires storing new
vertices
●Going off chip to store data can be a bandwidth issue
● Using the GS means another shader stage
●This means more competition for shader resources
●Better if you can do everything in the VS

Recommended

Low-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonLow-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonAMD Developer Central

Optimizing the Graphics Pipeline with Compute, GDC 2016
Optimizing the Graphics Pipeline with Compute, GDC 2016Optimizing the Graphics Pipeline with Compute, GDC 2016
Optimizing the Graphics Pipeline with Compute, GDC 2016Graham Wihlidal

A Bit More Deferred Cry Engine3
A Bit More Deferred   Cry Engine3A Bit More Deferred   Cry Engine3
A Bit More Deferred Cry Engine3guest11b095

Screen Space Reflections in The Surge
Screen Space Reflections in The SurgeScreen Space Reflections in The Surge
Screen Space Reflections in The SurgeMichele Giacalone

SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3Electronic Arts / DICE

Triangle Visibility buffer
Triangle Visibility bufferTriangle Visibility buffer
Triangle Visibility bufferWolfgang Engel

Dx11 performancereloaded
Dx11 performancereloadedDx11 performancereloaded
Dx11 performancereloadedmistercteam

Five Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The RunFive Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The RunElectronic Arts / DICE


More Related Content

What's hot

Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...
Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...
Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...Johan Andersson

Physically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in FrostbitePhysically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in FrostbiteElectronic Arts / DICE

Siggraph2016 - The Devil is in the Details: idTech 666
Siggraph2016 - The Devil is in the Details: idTech 666Siggraph2016 - The Devil is in the Details: idTech 666
Siggraph2016 - The Devil is in the Details: idTech 666Tiago Sousa

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologyTiago Sousa

Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Tiago Sousa

OpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering TechniquesOpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering TechniquesNarann29

Dissecting the Rendering of The Surge
Dissecting the Rendering of The SurgeDissecting the Rendering of The Surge
Dissecting the Rendering of The SurgePhilip Hammer

Hable John Uncharted2 Hdr Lighting
Hable John Uncharted2 Hdr LightingHable John Uncharted2 Hdr Lighting
Hable John Uncharted2 Hdr Lightingozlael ozlael

Checkerboard Rendering in Dark Souls: Remastered by QLOC
Checkerboard Rendering in Dark Souls: Remastered by QLOCCheckerboard Rendering in Dark Souls: Remastered by QLOC
Checkerboard Rendering in Dark Souls: Remastered by QLOCQLOC

Future Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsFuture Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsElectronic Arts / DICE

Physically Based Sky, Atmosphere and Cloud Rendering in Frostbite
Physically Based Sky, Atmosphere and Cloud Rendering in FrostbitePhysically Based Sky, Atmosphere and Cloud Rendering in Frostbite
Physically Based Sky, Atmosphere and Cloud Rendering in FrostbiteElectronic Arts / DICE

Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Johan Andersson

Z Buffer Optimizations
Z Buffer OptimizationsZ Buffer Optimizations
Z Buffer Optimizationspjcozzi

Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barré-Brisebois

Rendering Technologies from Crysis 3 (GDC 2013)
Rendering Technologies from Crysis 3 (GDC 2013)Rendering Technologies from Crysis 3 (GDC 2013)
Rendering Technologies from Crysis 3 (GDC 2013)Tiago Sousa

Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3stevemcauley

Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...
Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...
Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...Takahiro Harada


What's hot (20)

Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...
Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...
Frostbite Rendering Architecture and Real-time Procedural Shading & Texturing...

Physically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in FrostbitePhysically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in Frostbite

Siggraph2016 - The Devil is in the Details: idTech 666
Siggraph2016 - The Devil is in the Details: idTech 666Siggraph2016 - The Devil is in the Details: idTech 666
Siggraph2016 - The Devil is in the Details: idTech 666

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics Technology

Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)

OpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering TechniquesOpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering Techniques

Dissecting the Rendering of The Surge
Dissecting the Rendering of The SurgeDissecting the Rendering of The Surge
Dissecting the Rendering of The Surge

Hable John Uncharted2 Hdr Lighting
Hable John Uncharted2 Hdr LightingHable John Uncharted2 Hdr Lighting
Hable John Uncharted2 Hdr Lighting

Stochastic Screen-Space Reflections
Stochastic Screen-Space ReflectionsStochastic Screen-Space Reflections
Stochastic Screen-Space Reflections

DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3

Checkerboard Rendering in Dark Souls: Remastered by QLOC
Checkerboard Rendering in Dark Souls: Remastered by QLOCCheckerboard Rendering in Dark Souls: Remastered by QLOC
Checkerboard Rendering in Dark Souls: Remastered by QLOC

Future Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsFuture Directions for Compute-for-Graphics
Future Directions for Compute-for-Graphics

Physically Based Sky, Atmosphere and Cloud Rendering in Frostbite
Physically Based Sky, Atmosphere and Cloud Rendering in FrostbitePhysically Based Sky, Atmosphere and Cloud Rendering in Frostbite
Physically Based Sky, Atmosphere and Cloud Rendering in Frostbite

Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)

Frostbite on Mobile
Frostbite on MobileFrostbite on Mobile
Frostbite on Mobile

Z Buffer Optimizations
Z Buffer OptimizationsZ Buffer Optimizations
Z Buffer Optimizations

Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...

Rendering Technologies from Crysis 3 (GDC 2013)
Rendering Technologies from Crysis 3 (GDC 2013)Rendering Technologies from Crysis 3 (GDC 2013)
Rendering Technologies from Crysis 3 (GDC 2013)

Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3

Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...
Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...
Introduction to Bidirectional Path Tracing (BDPT) & Implementation using Open...


Similar to Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14

Дмитрий Вовк: Векторизация кода под мобильные платформы
Дмитрий Вовк: Векторизация кода под мобильные платформыДмитрий Вовк: Векторизация кода под мобильные платформы
Дмитрий Вовк: Векторизация кода под мобильные платформыDevGAMM Conference

NIR on the Mesa i965 backend (FOSDEM 2016)
NIR on the Mesa i965 backend (FOSDEM 2016)NIR on the Mesa i965 backend (FOSDEM 2016)
NIR on the Mesa i965 backend (FOSDEM 2016)Igalia

Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeks
Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeksBeginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeks
Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeksJinTaek Seo

Your Game Needs Direct3D 11, So Get Started Now!
Your Game Needs Direct3D 11, So Get Started Now!Your Game Needs Direct3D 11, So Get Started Now!
Your Game Needs Direct3D 11, So Get Started Now!Johan Andersson

Shadow Volumes on Programmable Graphics Hardware
Shadow Volumes on Programmable Graphics HardwareShadow Volumes on Programmable Graphics Hardware
Shadow Volumes on Programmable Graphics Hardwarestefan_b

Vectorization on x86: all you need to know
Vectorization on x86: all you need to knowVectorization on x86: all you need to know
Vectorization on x86: all you need to knowRoberto Agostino Vitillo

Shader model 5 0 and compute shader
Shader model 5 0 and compute shaderShader model 5 0 and compute shader
Shader model 5 0 and compute shaderzaywalker

OpenGL ES 3.0 2013
OpenGL ES 3.0 2013OpenGL ES 3.0 2013
OpenGL ES 3.0 2013Mindos Cheng

Advanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering PipelineAdvanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering PipelineNarann29

Computer Graphics - Lecture 01 - 3D Programming I
Computer Graphics - Lecture 01 - 3D Programming IComputer Graphics - Lecture 01 - 3D Programming I
Computer Graphics - Lecture 01 - 3D Programming I💻 Anton Gerdelan

02 direct3 d_pipeline
02 direct3 d_pipeline02 direct3 d_pipeline
02 direct3 d_pipelineGirish Ghate

GBM in H2O with Cliff Click: H2O API
GBM in H2O with Cliff Click: H2O APIGBM in H2O with Cliff Click: H2O API
GBM in H2O with Cliff Click: H2O APISri Ambati

GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11smashflt

OpenGLES Android Graphics
OpenGLES Android GraphicsOpenGLES Android Graphics
OpenGLES Android GraphicsArvind Devaraj

Instancing
InstancingInstancing
Instancingacbess

Hpg2011 papers kazakov
Hpg2011 papers kazakovHpg2011 papers kazakov
Hpg2011 papers kazakovmistercteam

Trident International Graphics Workshop 2014 1/5
Trident International Graphics Workshop 2014 1/5Trident International Graphics Workshop 2014 1/5
Trident International Graphics Workshop 2014 1/5Takao Wada

Code vectorization for mobile devices
Code vectorization for mobile devicesCode vectorization for mobile devices
Code vectorization for mobile devicesSt1X

Introduction to open gl in android droidcon - slides
Introduction to open gl in android   droidcon - slidesIntroduction to open gl in android   droidcon - slides
Introduction to open gl in android droidcon - slidestamillarasan


Similar to Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14 (20)

Дмитрий Вовк: Векторизация кода под мобильные платформы
Дмитрий Вовк: Векторизация кода под мобильные платформыДмитрий Вовк: Векторизация кода под мобильные платформы
Дмитрий Вовк: Векторизация кода под мобильные платформы

NIR on the Mesa i965 backend (FOSDEM 2016)
NIR on the Mesa i965 backend (FOSDEM 2016)NIR on the Mesa i965 backend (FOSDEM 2016)
NIR on the Mesa i965 backend (FOSDEM 2016)

Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeks
Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeksBeginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeks
Beginning direct3d gameprogramming09_shaderprogramming_20160505_jintaeks

Your Game Needs Direct3D 11, So Get Started Now!
Your Game Needs Direct3D 11, So Get Started Now!Your Game Needs Direct3D 11, So Get Started Now!
Your Game Needs Direct3D 11, So Get Started Now!

Shadow Volumes on Programmable Graphics Hardware
Shadow Volumes on Programmable Graphics HardwareShadow Volumes on Programmable Graphics Hardware
Shadow Volumes on Programmable Graphics Hardware

Vectorization on x86: all you need to know
Vectorization on x86: all you need to knowVectorization on x86: all you need to know
Vectorization on x86: all you need to know

Shader model 5 0 and compute shader
Shader model 5 0 and compute shaderShader model 5 0 and compute shader
Shader model 5 0 and compute shader

OpenGL ES 3.0 2013
OpenGL ES 3.0 2013OpenGL ES 3.0 2013
OpenGL ES 3.0 2013

Advanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering PipelineAdvanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering Pipeline

Computer Graphics - Lecture 01 - 3D Programming I
Computer Graphics - Lecture 01 - 3D Programming IComputer Graphics - Lecture 01 - 3D Programming I
Computer Graphics - Lecture 01 - 3D Programming I

02 direct3 d_pipeline
02 direct3 d_pipeline02 direct3 d_pipeline
02 direct3 d_pipeline

GBM in H2O with Cliff Click: H2O API
GBM in H2O with Cliff Click: H2O APIGBM in H2O with Cliff Click: H2O API
GBM in H2O with Cliff Click: H2O API

Andes open cl for RISC-V
Andes open cl for RISC-VAndes open cl for RISC-V
Andes open cl for RISC-V

GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11

OpenGLES Android Graphics
OpenGLES Android GraphicsOpenGLES Android Graphics
OpenGLES Android Graphics

Instancing
InstancingInstancing
Instancing

Hpg2011 papers kazakov
Hpg2011 papers kazakovHpg2011 papers kazakov
Hpg2011 papers kazakov

Trident International Graphics Workshop 2014 1/5
Trident International Graphics Workshop 2014 1/5Trident International Graphics Workshop 2014 1/5
Trident International Graphics Workshop 2014 1/5

Code vectorization for mobile devices
Code vectorization for mobile devicesCode vectorization for mobile devices
Code vectorization for mobile devices

Introduction to open gl in android droidcon - slides
Introduction to open gl in android   droidcon - slidesIntroduction to open gl in android   droidcon - slides
Introduction to open gl in android droidcon - slides


More from AMD Developer Central

DX12 & Vulkan: Dawn of a New Generation of Graphics APIs
DX12 & Vulkan: Dawn of a New Generation of Graphics APIsDX12 & Vulkan: Dawn of a New Generation of Graphics APIs
DX12 & Vulkan: Dawn of a New Generation of Graphics APIsAMD Developer Central

Leverage the Speed of OpenCL™ with AMD Math Libraries
Leverage the Speed of OpenCL™ with AMD Math LibrariesLeverage the Speed of OpenCL™ with AMD Math Libraries
Leverage the Speed of OpenCL™ with AMD Math LibrariesAMD Developer Central

An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware Webinar
An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware WebinarAn Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware Webinar
An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware WebinarAMD Developer Central

Webinar: Whats New in Java 8 with Develop Intelligence
Webinar: Whats New in Java 8 with Develop IntelligenceWebinar: Whats New in Java 8 with Develop Intelligence
Webinar: Whats New in Java 8 with Develop IntelligenceAMD Developer Central

The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...
The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...
The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...AMD Developer Central

TressFX The Fast and The Furry by Nicolas Thibieroz
TressFX The Fast and The Furry by Nicolas ThibierozTressFX The Fast and The Furry by Nicolas Thibieroz
TressFX The Fast and The Furry by Nicolas ThibierozAMD Developer Central

Rendering Battlefield 4 with Mantle by Yuriy ODonnell
Rendering Battlefield 4 with Mantle by Yuriy ODonnellRendering Battlefield 4 with Mantle by Yuriy ODonnell
Rendering Battlefield 4 with Mantle by Yuriy ODonnellAMD Developer Central

Direct3D12 and the Future of Graphics APIs by Dave Oldcorn
Direct3D12 and the Future of Graphics APIs by Dave OldcornDirect3D12 and the Future of Graphics APIs by Dave Oldcorn
Direct3D12 and the Future of Graphics APIs by Dave OldcornAMD Developer Central

Introduction to Direct 3D 12 by Ivan Nevraev
Introduction to Direct 3D 12 by Ivan NevraevIntroduction to Direct 3D 12 by Ivan Nevraev
Introduction to Direct 3D 12 by Ivan NevraevAMD Developer Central

Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth ThomasHoly smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth ThomasAMD Developer Central

Computer Vision Powered by Heterogeneous System Architecture (HSA) by Dr. Ha...
Computer Vision Powered by Heterogeneous System Architecture (HSA) by  Dr. Ha...Computer Vision Powered by Heterogeneous System Architecture (HSA) by  Dr. Ha...
Computer Vision Powered by Heterogeneous System Architecture (HSA) by Dr. Ha...AMD Developer Central

Productive OpenCL Programming An Introduction to OpenCL Libraries with Array...
Productive OpenCL Programming An Introduction to OpenCL Libraries  with Array...Productive OpenCL Programming An Introduction to OpenCL Libraries  with Array...
Productive OpenCL Programming An Introduction to OpenCL Libraries with Array...AMD Developer Central

Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14
Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14
Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14AMD Developer Central

RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14
RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14
RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14AMD Developer Central


More from AMD Developer Central (20)

DX12 & Vulkan: Dawn of a New Generation of Graphics APIs
DX12 & Vulkan: Dawn of a New Generation of Graphics APIsDX12 & Vulkan: Dawn of a New Generation of Graphics APIs
DX12 & Vulkan: Dawn of a New Generation of Graphics APIs

Leverage the Speed of OpenCL™ with AMD Math Libraries
Leverage the Speed of OpenCL™ with AMD Math LibrariesLeverage the Speed of OpenCL™ with AMD Math Libraries
Leverage the Speed of OpenCL™ with AMD Math Libraries

Introduction to Node.js
Introduction to Node.jsIntroduction to Node.js
Introduction to Node.js

Media SDK Webinar 2014
Media SDK Webinar 2014Media SDK Webinar 2014
Media SDK Webinar 2014

An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware Webinar
An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware WebinarAn Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware Webinar
An Introduction to OpenCL™ Programming with AMD GPUs - AMD & Acceleware Webinar

DirectGMA on AMD’S FirePro™ GPUS
DirectGMA on AMD’S  FirePro™ GPUSDirectGMA on AMD’S  FirePro™ GPUS
DirectGMA on AMD’S FirePro™ GPUS

Webinar: Whats New in Java 8 with Develop Intelligence
Webinar: Whats New in Java 8 with Develop IntelligenceWebinar: Whats New in Java 8 with Develop Intelligence
Webinar: Whats New in Java 8 with Develop Intelligence

The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...
The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...
The Small Batch (and other) solutions in Mantle API, by Guennadi Riguer, Mant...

Inside XBox- One, by Martin Fuller
Inside XBox- One, by Martin FullerInside XBox- One, by Martin Fuller
Inside XBox- One, by Martin Fuller

TressFX The Fast and The Furry by Nicolas Thibieroz
TressFX The Fast and The Furry by Nicolas ThibierozTressFX The Fast and The Furry by Nicolas Thibieroz
TressFX The Fast and The Furry by Nicolas Thibieroz

Rendering Battlefield 4 with Mantle by Yuriy ODonnell
Rendering Battlefield 4 with Mantle by Yuriy ODonnellRendering Battlefield 4 with Mantle by Yuriy ODonnell
Rendering Battlefield 4 with Mantle by Yuriy ODonnell

Gcn performance ftw by stephan hodes
Gcn performance ftw by stephan hodesGcn performance ftw by stephan hodes
Gcn performance ftw by stephan hodes

Inside XBOX ONE by Martin Fuller
Inside XBOX ONE by Martin FullerInside XBOX ONE by Martin Fuller
Inside XBOX ONE by Martin Fuller

Direct3D12 and the Future of Graphics APIs by Dave Oldcorn
Direct3D12 and the Future of Graphics APIs by Dave OldcornDirect3D12 and the Future of Graphics APIs by Dave Oldcorn
Direct3D12 and the Future of Graphics APIs by Dave Oldcorn

Introduction to Direct 3D 12 by Ivan Nevraev
Introduction to Direct 3D 12 by Ivan NevraevIntroduction to Direct 3D 12 by Ivan Nevraev
Introduction to Direct 3D 12 by Ivan Nevraev

Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth ThomasHoly smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas

Computer Vision Powered by Heterogeneous System Architecture (HSA) by Dr. Ha...
Computer Vision Powered by Heterogeneous System Architecture (HSA) by  Dr. Ha...Computer Vision Powered by Heterogeneous System Architecture (HSA) by  Dr. Ha...
Computer Vision Powered by Heterogeneous System Architecture (HSA) by Dr. Ha...

Productive OpenCL Programming An Introduction to OpenCL Libraries with Array...
Productive OpenCL Programming An Introduction to OpenCL Libraries  with Array...Productive OpenCL Programming An Introduction to OpenCL Libraries  with Array...
Productive OpenCL Programming An Introduction to OpenCL Libraries with Array...

Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14
Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14
Rendering Battlefield 4 with Mantle by Johan Andersson - AMD at GDC14

RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14
RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14
RapidFire - the Easy Route to low Latency Cloud Gaming Solutions - AMD at GDC14


Recently uploaded

Breaking Barriers & Leveraging the Latest Developments in AI Technology
Breaking Barriers & Leveraging the Latest Developments in AI TechnologyBreaking Barriers & Leveraging the Latest Developments in AI Technology
Breaking Barriers & Leveraging the Latest Developments in AI TechnologySafe Software

Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...
Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...
Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...Adrian Sanabria

LF Energy Webinar: Introduction to TROLIE
LF Energy Webinar: Introduction to TROLIELF Energy Webinar: Introduction to TROLIE
LF Energy Webinar: Introduction to TROLIEDanBrown980551

"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...
"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre..."Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...
"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...shaiyuvasv

Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...
Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...
Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...UiPathCommunity

Enhancing Productivity and Insight A Tour of JDK Tools Progress Beyond Java 17
Enhancing Productivity and Insight  A Tour of JDK Tools Progress Beyond Java 17Enhancing Productivity and Insight  A Tour of JDK Tools Progress Beyond Java 17
Enhancing Productivity and Insight A Tour of JDK Tools Progress Beyond Java 17Ana-Maria Mihalceanu

Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docx
Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docxLeveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docx
Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docxVotarikari Shravan

Automate Your Master Data Processes for Shared Service Center Excellence
Automate Your Master Data Processes for Shared Service Center ExcellenceAutomate Your Master Data Processes for Shared Service Center Excellence
Automate Your Master Data Processes for Shared Service Center ExcellencePrecisely

Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...
Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...
Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...DianaGray10

Bit N Build Poland
Bit N Build PolandBit N Build Poland
Bit N Build PolandGDSC PJATK

How we think about an advisor tech stack
How we think about an advisor tech stackHow we think about an advisor tech stack
How we think about an advisor tech stackSummit

Introduction to Multimodal LLMs with LLaVA
Introduction to Multimodal LLMs with LLaVAIntroduction to Multimodal LLMs with LLaVA
Introduction to Multimodal LLMs with LLaVARobert McDermott

Importance of magazines in education ppt
Importance of magazines in education pptImportance of magazines in education ppt
Importance of magazines in education pptsafnarafeek2002

Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdf
Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdfIntroducing the New FME Community Webinar - Feb 21, 2024 (2).pdf
Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdfSafe Software

Power of 2024 - WITforce Odyssey.pptx.pdf
Power of 2024 - WITforce Odyssey.pptx.pdfPower of 2024 - WITforce Odyssey.pptx.pdf
Power of 2024 - WITforce Odyssey.pptx.pdfkatalinjordans1

Dynamical systems simulation in Python for science and engineering
Dynamical systems simulation in Python for science and engineeringDynamical systems simulation in Python for science and engineering
Dynamical systems simulation in Python for science and engineeringMassimo Talia

My sample product research idea for you!
My sample product research idea for you!My sample product research idea for you!
My sample product research idea for you!KivenRaySarsaba

"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google
"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google
"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, GoogleISPMAIndia

Are Human-generated Demonstrations Necessary for In-context Learning?
Are Human-generated Demonstrations Necessary for In-context Learning?Are Human-generated Demonstrations Necessary for In-context Learning?
Are Human-generated Demonstrations Necessary for In-context Learning?MENGSAYLOEM1

Campotel: Telecommunications Infra and Network Builder - Company Profile
Campotel: Telecommunications Infra and Network Builder - Company ProfileCampotel: Telecommunications Infra and Network Builder - Company Profile
Campotel: Telecommunications Infra and Network Builder - Company ProfileCampotelPhilippines


Recently uploaded (20)

Breaking Barriers & Leveraging the Latest Developments in AI Technology
Breaking Barriers & Leveraging the Latest Developments in AI TechnologyBreaking Barriers & Leveraging the Latest Developments in AI Technology
Breaking Barriers & Leveraging the Latest Developments in AI Technology

Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...
Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...
Early Tech Adoption: Foolish or Pragmatic? - 17th ISACA South Florida WOW Con...

LF Energy Webinar: Introduction to TROLIE
LF Energy Webinar: Introduction to TROLIELF Energy Webinar: Introduction to TROLIE
LF Energy Webinar: Introduction to TROLIE

"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...
"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre..."Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...
"Journey of Aspiration: Unveiling the Path to Becoming a Technocrat and Entre...

Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...
Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...
Dev Dives: Leverage APIs and Gen AI to power automations for RPA and software...

Enhancing Productivity and Insight A Tour of JDK Tools Progress Beyond Java 17
Enhancing Productivity and Insight  A Tour of JDK Tools Progress Beyond Java 17Enhancing Productivity and Insight  A Tour of JDK Tools Progress Beyond Java 17
Enhancing Productivity and Insight A Tour of JDK Tools Progress Beyond Java 17

Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docx
Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docxLeveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docx
Leveraging SLF4j for Effective Logging in IBM App Connect Enterprise.docx

Automate Your Master Data Processes for Shared Service Center Excellence
Automate Your Master Data Processes for Shared Service Center ExcellenceAutomate Your Master Data Processes for Shared Service Center Excellence
Automate Your Master Data Processes for Shared Service Center Excellence

Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...
Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...
Automation Ops Series: Session 1 - Introduction and setup DevOps for UiPath p...

Bit N Build Poland
Bit N Build PolandBit N Build Poland
Bit N Build Poland

How we think about an advisor tech stack
How we think about an advisor tech stackHow we think about an advisor tech stack
How we think about an advisor tech stack

Introduction to Multimodal LLMs with LLaVA
Introduction to Multimodal LLMs with LLaVAIntroduction to Multimodal LLMs with LLaVA
Introduction to Multimodal LLMs with LLaVA

Importance of magazines in education ppt
Importance of magazines in education pptImportance of magazines in education ppt
Importance of magazines in education ppt

Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdf
Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdfIntroducing the New FME Community Webinar - Feb 21, 2024 (2).pdf
Introducing the New FME Community Webinar - Feb 21, 2024 (2).pdf

Power of 2024 - WITforce Odyssey.pptx.pdf
Power of 2024 - WITforce Odyssey.pptx.pdfPower of 2024 - WITforce Odyssey.pptx.pdf
Power of 2024 - WITforce Odyssey.pptx.pdf

Dynamical systems simulation in Python for science and engineering
Dynamical systems simulation in Python for science and engineeringDynamical systems simulation in Python for science and engineering
Dynamical systems simulation in Python for science and engineering

My sample product research idea for you!
My sample product research idea for you!My sample product research idea for you!
My sample product research idea for you!

"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google
"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google
"The Transformative Power of AI and Open Challenges" by Dr. Manish Gupta, Google

Are Human-generated Demonstrations Necessary for In-context Learning?
Are Human-generated Demonstrations Necessary for In-context Learning?Are Human-generated Demonstrations Necessary for In-context Learning?
Are Human-generated Demonstrations Necessary for In-context Learning?

Campotel: Telecommunications Infra and Network Builder - Company Profile
Campotel: Telecommunications Infra and Network Builder - Company ProfileCampotel: Telecommunications Infra and Network Builder - Company Profile
Campotel: Telecommunications Infra and Network Builder - Company Profile


Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14

  • 1. Vertex Shader Tricks New Ways to Use the Vertex Shader to Improve Performance Bill Bilodeau Developer Technology Engineer, AMD
  • 2. Topics Covered ● Overview of the DX11 front-end pipeline ● Common bottlenecks ● Advanced Vertex Shader Features ● Vertex Shader Techniques ● Samples and Results
  • 3. Graphics Hardware DX11 Front-End Pipeline ● VS –vertex data ● HS – control points ● Tessellator ● DS – generated vertices ● GS – primitives ● Write to UAV at all stages ● Starting with DX11.1 Vector GPR’s (256 2048-bit registers) Vector ALU (1 64-way single precision operation every 4 clocks) Scalar ALU (1 operation every 4 clocks) Scalar GPR’s (256 64-bit registers) Vector/Scalar cross communication bus Vector GPR’s (256 2048-bit registers) Vector ALU (1 64-way single precision operation every 4 clocks) Scalar ALU (1 operation every 4 clocks) Scalar GPR’s (256 64-bit registers) Vector/Scalar cross communication bus Vector GPR’s (256 2048-bit registers) Vector ALU (1 64-way single precision operation every 4 clocks) Scalar ALU (1 operation every 4 clocks) Scalar GPR’s (256 64-bit registers) Vector/Scalar cross communication bus . . . Input Assembler Hull Shader Domain Shader Tessellator Geometry Shader Stream Out CB, SRV, or UAV Vertex Shader
  • 4. Bottlenecks - VS ● VS Attributes ● Limit outputs to 4 attributes (AMD) ●This applies to all shader stages (except PS) ● VS Texture Fetches ● Too many texture fetches can add latency ●Especially dependent texture fetches ●Group fetches together for better performance ●Hide latency with ALU instructions
  • 5. Bottlenecks - VS ● Use the caches wisely ● Avoid large vertex formats that waste pre-VS cache space ● DrawIndexed() allows for reuse of processed vertices saved in the post-VS cache ●Vertices with the same index only need to get processed once Vertex Shader Pre-VS Cache (Hides Latency) Input Assembler Post-VS Cache (Vertex Reuse)
  • 6. Bottlenecks - GS ● GS ● Can add or remove primitives ● Adding new primitives requires storing new vertices ●Going off chip to store data can be a bandwidth issue ● Using the GS means another shader stage ●This means more competition for shader resources ●Better if you can do everything in the VS
  • 7. Advanced Vertex Shader Features ● SV_VertexID, SV_InstanceID ● UAV output (DX11.1) ● NULL vertex buffer ● VS can create its own vertex data
  • 8. SV_VertexID ● Can use the vertex id to decide what vertex data to fetch ● Fetch from SRV, or procedurally create a vertex VSOut VertexShader(SV_VertexID id) { float3 vertex = g_VertexBuffer[id]; … }

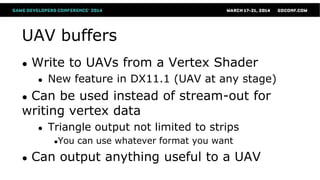

  • 9. UAV buffers ● Write to UAVs from a Vertex Shader ● New feature in DX11.1 (UAV at any stage) ● Can be used instead of stream-out for writing vertex data ● Triangle output not limited to strips ●You can use whatever format you want ● Can output anything useful to a UAV

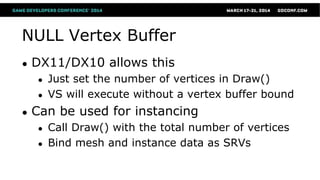

  • 10. NULL Vertex Buffer ● DX11/DX10 allows this ● Just set the number of vertices in Draw() ● VS will execute without a vertex buffer bound ● Can be used for instancing ● Call Draw() with the total number of vertices ● Bind mesh and instance data as SRVs

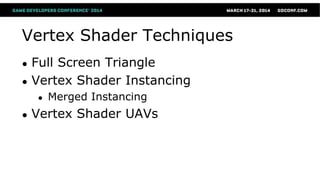

  • 11. Vertex Shader Techniques ● Full Screen Triangle ● Vertex Shader Instancing ● Merged Instancing ● Vertex Shader UAVs

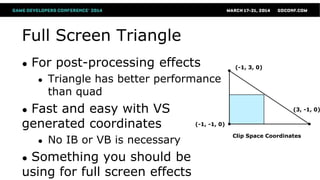

  • 12. Full Screen Triangle ● For post-processing effects ● Triangle has better performance than quad ● Fast and easy with VS generated coordinates ● No IB or VB is necessary ● Something you should be using for full screen effects Clip Space Coordinates (-1, -1, 0) (-1, 3, 0) (3, -1, 0)

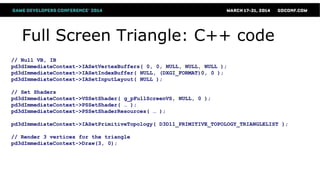

  • 13. Full Screen Triangle: C++ code // Null VB, IB pd3dImmediateContext->IASetVertexBuffers( 0, 0, NULL, NULL, NULL ); pd3dImmediateContext->IASetIndexBuffer( NULL, (DXGI_FORMAT)0, 0 ); pd3dImmediateContext->IASetInputLayout( NULL ); // Set Shaders pd3dImmediateContext->VSSetShader( g_pFullScreenVS, NULL, 0 ); pd3dImmediateContext->PSSetShader( … ); pd3dImmediateContext->PSSetShaderResources( … ); pd3dImmediateContext->IASetPrimitiveTopology( D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST ); // Render 3 vertices for the triangle pd3dImmediateContext->Draw(3, 0);

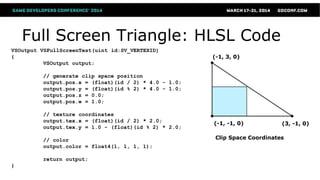

  • 14. Full Screen Triangle: HLSL Code VSOutput VSFullScreenTest(uint id:SV_VERTEXID) { VSOutput output; // generate clip space position output.pos.x = (float)(id / 2) * 4.0 - 1.0; output.pos.y = (float)(id % 2) * 4.0 - 1.0; output.pos.z = 0.0; output.pos.w = 1.0; // texture coordinates output.tex.x = (float)(id / 2) * 2.0; output.tex.y = 1.0 - (float)(id % 2) * 2.0; // color output.color = float4(1, 1, 1, 1); return output; } Clip Space Coordinates (-1, -1, 0) (-1, 3, 0) (3, -1, 0)

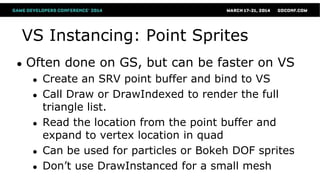

  • 15. VS Instancing: Point Sprites ● Often done on GS, but can be faster on VS ● Create an SRV point buffer and bind to VS ● Call Draw or DrawIndexed to render the full triangle list. ● Read the location from the point buffer and expand to vertex location in quad ● Can be used for particles or Bokeh DOF sprites ● Don’t use DrawInstanced for a small mesh

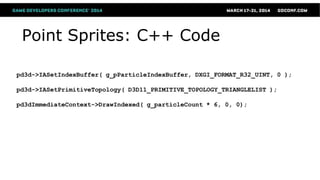

  • 16. Point Sprites: C++ Code pd3d->IASetIndexBuffer( g_pParticleIndexBuffer, DXGI_FORMAT_R32_UINT, 0 ); pd3d->IASetPrimitiveTopology( D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST ); pd3dImmediateContext->DrawIndexed( g_particleCount * 6, 0, 0);

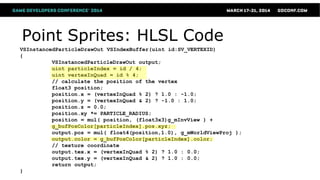

  • 17. Point Sprites: HLSL Code VSInstancedParticleDrawOut VSIndexBuffer(uint id:SV_VERTEXID) { VSInstancedParticleDrawOut output; uint particleIndex = id / 4; uint vertexInQuad = id % 4; // calculate the position of the vertex float3 position; position.x = (vertexInQuad % 2) ? 1.0 : -1.0; position.y = (vertexInQuad & 2) ? -1.0 : 1.0; position.z = 0.0; position.xy *= PARTICLE_RADIUS; position = mul( position, (float3x3)g_mInvView ) + g_bufPosColor[particleIndex].pos.xyz; output.pos = mul( float4(position,1.0), g_mWorldViewProj ); output.color = g_bufPosColor[particleIndex].color; // texture coordinate output.tex.x = (vertexInQuad % 2) ? 1.0 : 0.0; output.tex.y = (vertexInQuad & 2) ? 1.0 : 0.0; return output; }

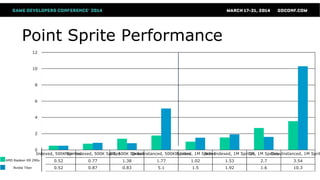

  • 18. Point Sprite Performance Indexed, 500K SpritesNon-Indexed, 500K SpritesGS, 500K SpritesDrawInstanced, 500K SpritesIndexed, 1M SpritesNon-Indexed, 1M SpritesGS, 1M SpritesDrawInstanced, 1M Sprit R9 290x (ms) 0.52 0.77 1.38 1.77 1.02 1.53 2.7 3.54 Titan (ms) 0.52 0.87 0.83 5.1 1.5 1.92 1.6 10.3 0 2 4 6 8 10 12 AMD Radeon R9 290x Nvidia Titan

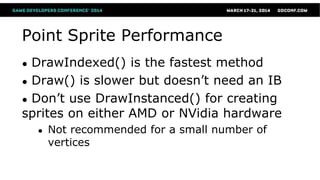

  • 19. Point Sprite Performance ● DrawIndexed() is the fastest method ● Draw() is slower but doesn’t need an IB ● Don’t use DrawInstanced() for creating sprites on either AMD or NVidia hardware ● Not recommended for a small number of vertices

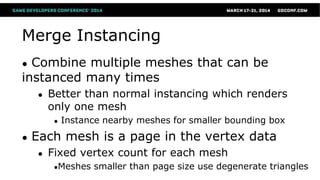

  • 20. Merge Instancing ● Combine multiple meshes that can be instanced many times ● Better than normal instancing which renders only one mesh ● Instance nearby meshes for smaller bounding box ● Each mesh is a page in the vertex data ● Fixed vertex count for each mesh ●Meshes smaller than page size use degenerate triangles
  • 21. Merge Instancing Mesh Vertex Data Mesh Data 0 Mesh Data 1 Mesh Data 2 . . . Mesh Instance Data Instance 0 Mesh Index 2 Instance 1 Mesh Index 0 . . . Degenerate Triangle Vertex 0 Vertex 1 Vertex 2 Vertex 3 . . . 0 0 0 Fixed Length Page

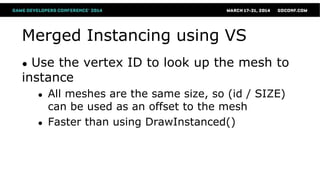

  • 22. Merged Instancing using VS ● Use the vertex ID to look up the mesh to instance ● All meshes are the same size, so (id / SIZE) can be used as an offset to the mesh ● Faster than using DrawInstanced()

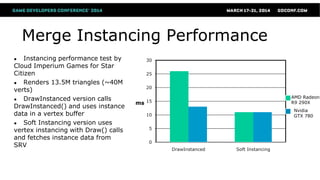

  • 23. Merge Instancing Performance 0 5 10 15 20 25 30 DrawInstanced Soft Instancing R9 290x GTX 780 ● Instancing performance test by Cloud Imperium Games for Star Citizen ● Renders 13.5M triangles (~40M verts) ● DrawInstanced version calls DrawInstanced() and uses instance data in a vertex buffer ● Soft Instancing version uses vertex instancing with Draw() calls and fetches instance data from SRV AMD Radeon R9 290X Nvidia GTX 780 ms

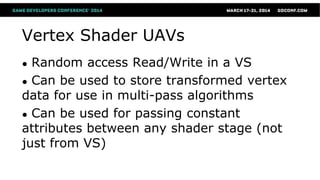

  • 24. Vertex Shader UAVs ● Random access Read/Write in a VS ● Can be used to store transformed vertex data for use in multi-pass algorithms ● Can be used for passing constant attributes between any shader stage (not just from VS)

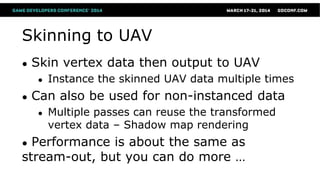

  • 25. Skinning to UAV ● Skin vertex data then output to UAV ● Instance the skinned UAV data multiple times ● Can also be used for non-instanced data ● Multiple passes can reuse the transformed vertex data – Shadow map rendering ● Performance is about the same as stream-out, but you can do more …

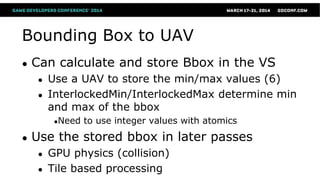

  • 26. Bounding Box to UAV ● Can calculate and store Bbox in the VS ● Use a UAV to store the min/max values (6) ● InterlockedMin/InterlockedMax determine min and max of the bbox ●Need to use integer values with atomics ● Use the stored bbox in later passes ● GPU physics (collision) ● Tile based processing

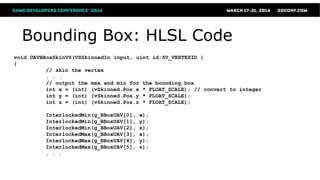

  • 27. Bounding Box: HLSL Code void UAVBBoxSkinVS(VSSkinnedIn input, uint id:SV_VERTEXID ) { // skin the vertex . . . // output the max and min for the bounding box int x = (int) (vSkinned.Pos.x * FLOAT_SCALE); // convert to integer int y = (int) (vSkinned.Pos.y * FLOAT_SCALE); int z = (int) (vSkinned.Pos.z * FLOAT_SCALE); InterlockedMin(g_BBoxUAV[0], x); InterlockedMin(g_BBoxUAV[1], y); InterlockedMin(g_BBoxUAV[2], z); InterlockedMax(g_BBoxUAV[3], x); InterlockedMax(g_BBoxUAV[4], y); InterlockedMax(g_BBoxUAV[5], z); . . .

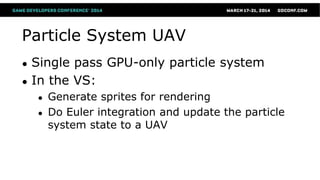

  • 28. Particle System UAV ● Single pass GPU-only particle system ● In the VS: ● Generate sprites for rendering ● Do Euler integration and update the particle system state to a UAV

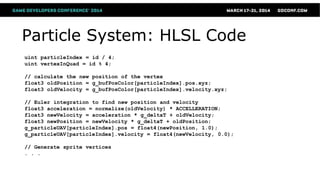

  • 29. Particle System: HLSL Code uint particleIndex = id / 4; uint vertexInQuad = id % 4; // calculate the new position of the vertex float3 oldPosition = g_bufPosColor[particleIndex].pos.xyz; float3 oldVelocity = g_bufPosColor[particleIndex].velocity.xyz; // Euler integration to find new position and velocity float3 acceleration = normalize(oldVelocity) * ACCELLERATION; float3 newVelocity = acceleration * g_deltaT + oldVelocity; float3 newPosition = newVelocity * g_deltaT + oldPosition; g_particleUAV[particleIndex].pos = float4(newPosition, 1.0); g_particleUAV[particleIndex].velocity = float4(newVelocity, 0.0); // Generate sprite vertices . . .

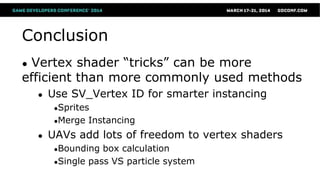

  • 30. Conclusion ● Vertex shader “tricks” can be more efficient than more commonly used methods ● Use SV_Vertex ID for smarter instancing ●Sprites ●Merge Instancing ● UAVs add lots of freedom to vertex shaders ●Bounding box calculation ●Single pass VS particle system
  • 31. Demos ● Particle System ● UAV Skinning ● Bbox
  • 32. Acknowledgements ● Merge Instancing ● Emil Person, “Graphics Gems for Games” SIGGRAPH 2011 ● Brendan Jackson, Cloud Imperium ● Thanks to ● Nick Thibieroz, AMD ● Raul Aguaviva (particle system UAV), AMD ● Alex Kharlamov, AMD

Editor's Notes

  1. The value of SV_VertexID depends on the draw call. For non-indexed Draw, the vertex ID starts with 0 and increments by 1 for every vertex processed by the shader. For DrawIndexed(), the vertexID is the value of the index in the index buffer for that vertex.
  2. For indexed Draw calls, create an index buffer which contains (index location + index number). That way you can calculate (vertexID/vertsPerMesh) to get the instance index, and (vertexID % vertsPerMesh) to get the index value which you can use to look up the vertex.
  3. - If the mesh is being reused many times, then calculating the bounding box has little overhead.Bounding box can be used for collision detection
  4. Could read and write from the UAV instead of binding an input SRV
