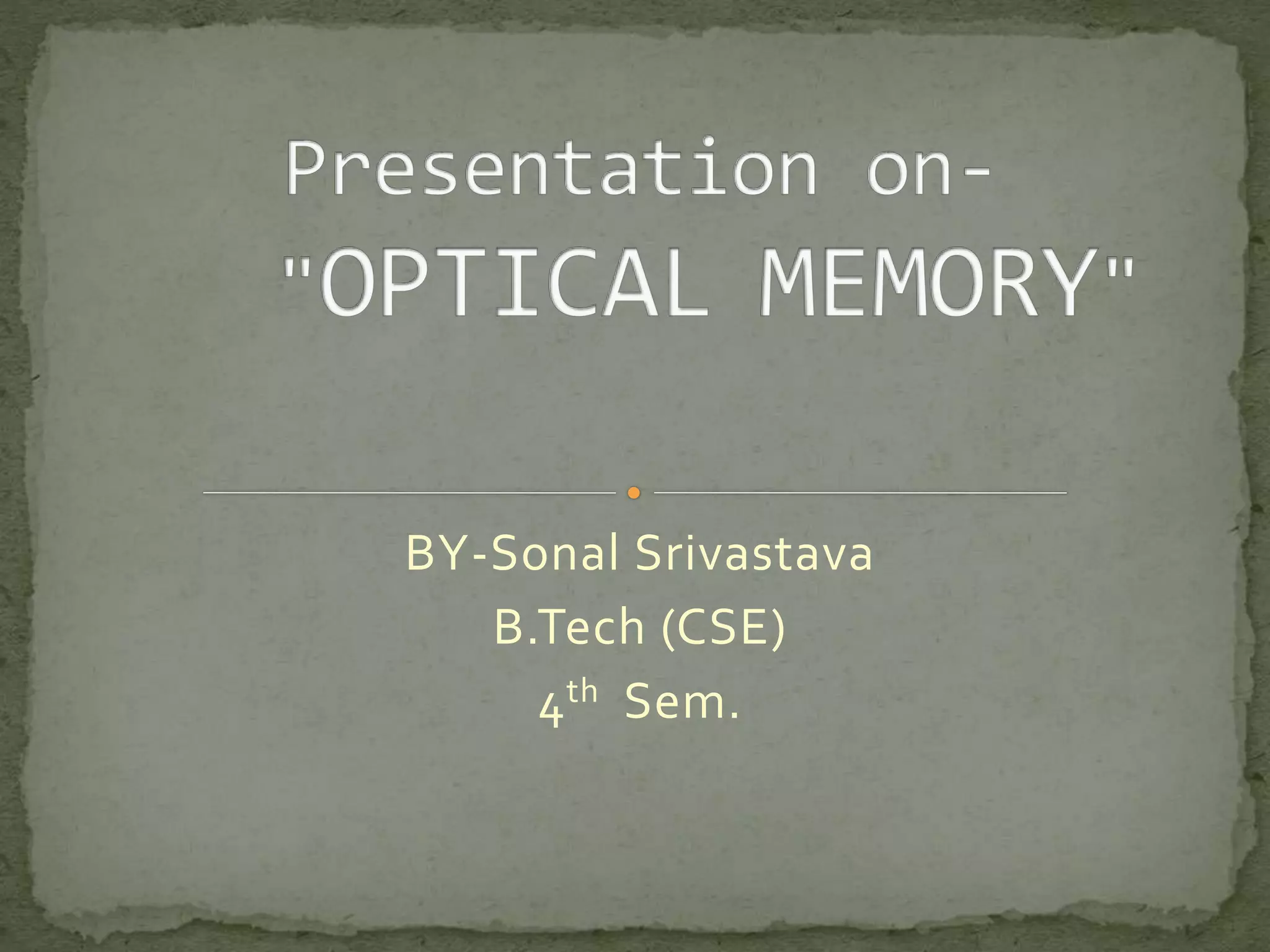

1. BY-Sonal Srivastava
B.Tech (CSE)
4th Sem.

2. • Memory is a storing device.
• It is used to store data and information.
• It is an essential component of a digital
computer.

3. There are three types of memory-
 SEMICONDUCTOR MEMORY
 Ram
 Rom
MAGNETIC MEMORY
OPTICAL MEMORY

4.  Laser beam is used to write or read
information.
 It has a very high storage density and data
integrity.
 It is relatively inexpensive and has a long
life.
 Optical disk is removable from the
computer.

5. 1. CD-ROM(Compact disk read only memory)
2. WORM(write once read many)
3. MAGNETO-OPTICAL DISKS
4. DVD-ROM,DVD-R & DVD-RAM
5. FLOPTICAL DISKS

6.  It is Compact Disk Read only memory.
 Information is written to the disk by burning
pits on the disk surface with controlled laser
beam.
 The disk is made of resin,such as
polycarbonate.
 It is coated with a highly reflective surface
,usually aluminium.
 CD-ROMs do not use concentric tracks .
 They use single spiral tracks .

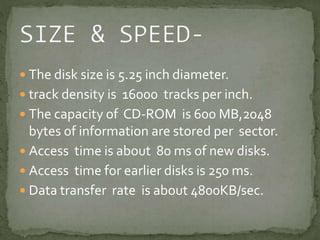

7.  The disk size is 5.25 inch diameter.
 track density is 16000 tracks per inch.
 The capacity of CD-ROM is 600 MB,2048
bytes of information are stored per sector.
 Access time is about 80 ms of new disks.
 Access time for earlier disks is 250 ms.
 Data transfer rate is about 4800KB/sec.

8. • The user can write data only once.
• A laser beam is used to write information on
the disk.
• The written data can be read as many times
as desired.
• They store permanent information for record.
• One can rewrite modified or some new
information to another portion of the disk.
• One can not modify data which has already
been written.

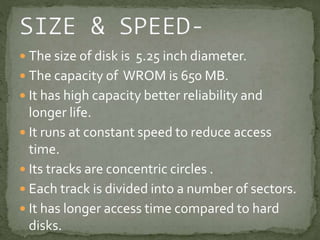

9.  The size of disk is 5.25 inch diameter.
 The capacity of WROM is 650 MB.
 It has high capacity better reliability and
longer life.
 It runs at constant speed to reduce access
time.
 Its tracks are concentric circles .
 Each track is divided into a number of sectors.
 It has longer access time compared to hard
disks.

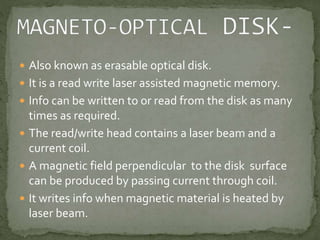

10.  Also known as erasable optical disk.
 It is a read write laser assisted magnetic memory.
 Info can be written to or read from the disk as many
times as required.
 The read/write head contains a laser beam and a
current coil.
 A magnetic field perpendicular to the disk surface
can be produced by passing current through coil.
 It writes info when magnetic material is heated by
laser beam.

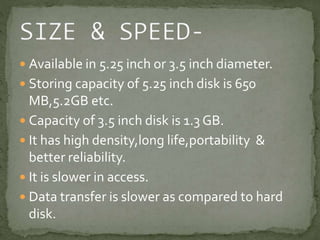

11.  Available in 5.25 inch or 3.5 inch diameter.
 Storing capacity of 5.25 inch disk is 650
MB,5.2GB etc.
 Capacity of 3.5 inch disk is 1.3 GB.
 It has high density,long life,portability &
better reliability.
 It is slower in access.
 Data transfer is slower as compared to hard
disk.

12.  These are high capacity floppies.
 They use laser beam to mark tracks and sectors.
 They have more tracks & sectors than ordinary
floppies.
 Read/write operation is done as in ordinary
floppies.
 These are removable.
 It uses surface coating of barium ferrite.

13.  It is a kind of magneto-optical disk.
 Its speed is same as magneto-optical disk.
 It uses a 3.5 inch disk shell.
 Its capacity is about 120 MB.
 A floptical drive can also read/write standard
3.5 inch floppies..

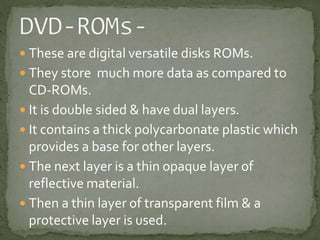

14.  These are digital versatile disks ROMs.
 They store much more data as compared to
CD-ROMs.
 It is double sided & have dual layers.
 It contains a thick polycarbonate plastic which
provides a base for other layers.
 The next layer is a thin opaque layer of
reflective material.
 Then a thin layer of transparent film & a
protective layer is used.

15.  It is a read/write optical memory.
 It uses phase change technology to read,write
and erase data.
 The laser beam is focussed on a reflective
layer made of silver ,indium & tellurium
embedded in a plastic base.
 In the normal state the reflective layer has
crystalline structure.
 To erase the data low energy laser beam is
used.

16. DVD-R is once writable optical disk.
 It is a recordable DVD.
 It is similar to WORM.
 Its size,capacity & speed is same as
WROM.
DVDs use shorter wavelength of light
than CD does.
The capacity of DVD-ROMs is 4.7 to 17
GB.
