Observer Pattern

M. S. Ramaiah School of Advanced Studies
1
CSN2504 Principles of Programming Presentation
Observer design pattern
Anshuman Biswal
PT 2012 Batch, Reg. No.: CJB0412001
M. Sc. (Engg.) in Computer Science and Networking
Module Leader: Dr. PVR Murthy Module Name: Principles of Programming Module Code : CSN2504

2

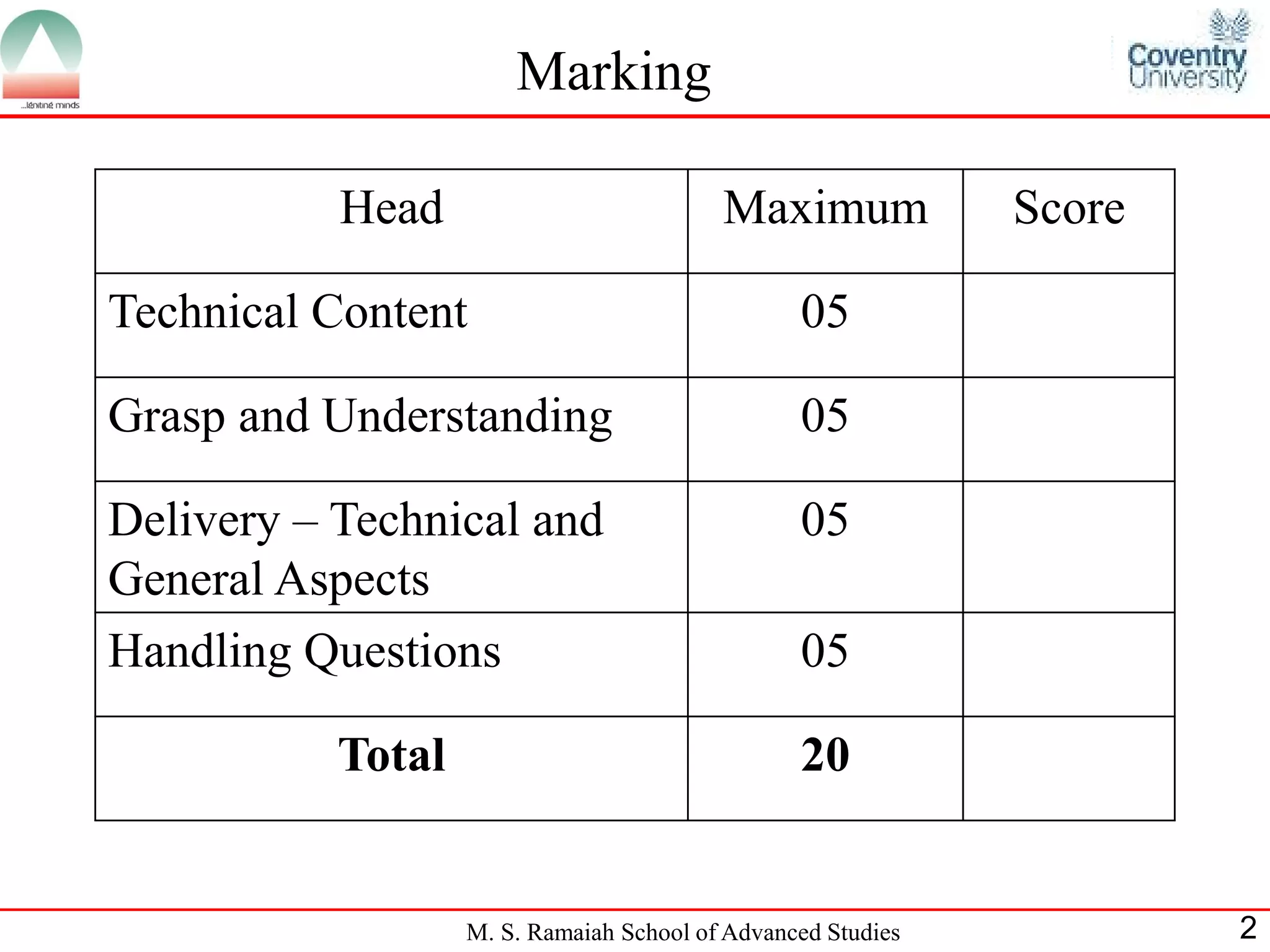

Marking
Head
Maximum
Score
Technical Content
05
Grasp and Understanding
05
Delivery – Technical and General Aspects
05
Handling Questions
05
Total
20

3

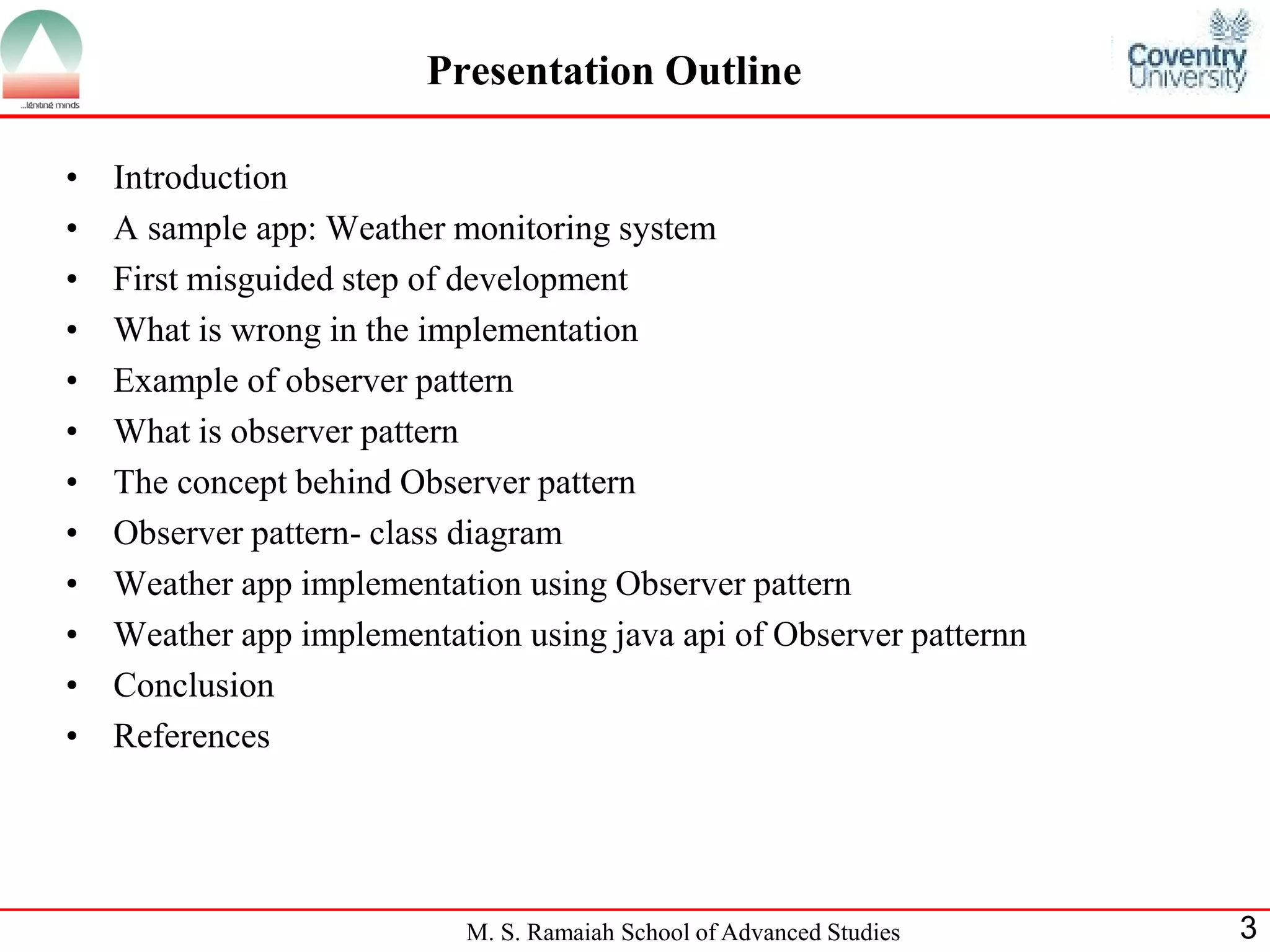

Presentation Outline
•Introduction
•A sample app: Weather monitoring system
•First misguided step of development
•What is wrong in the implementation
•Example of observer pattern
•What is observer pattern
•The concept behind Observer pattern
•Observer pattern- class diagram
•Weather app implementation using Observer pattern
•Weather app implementation using java api of Observer patternn
•Conclusion
•References

4

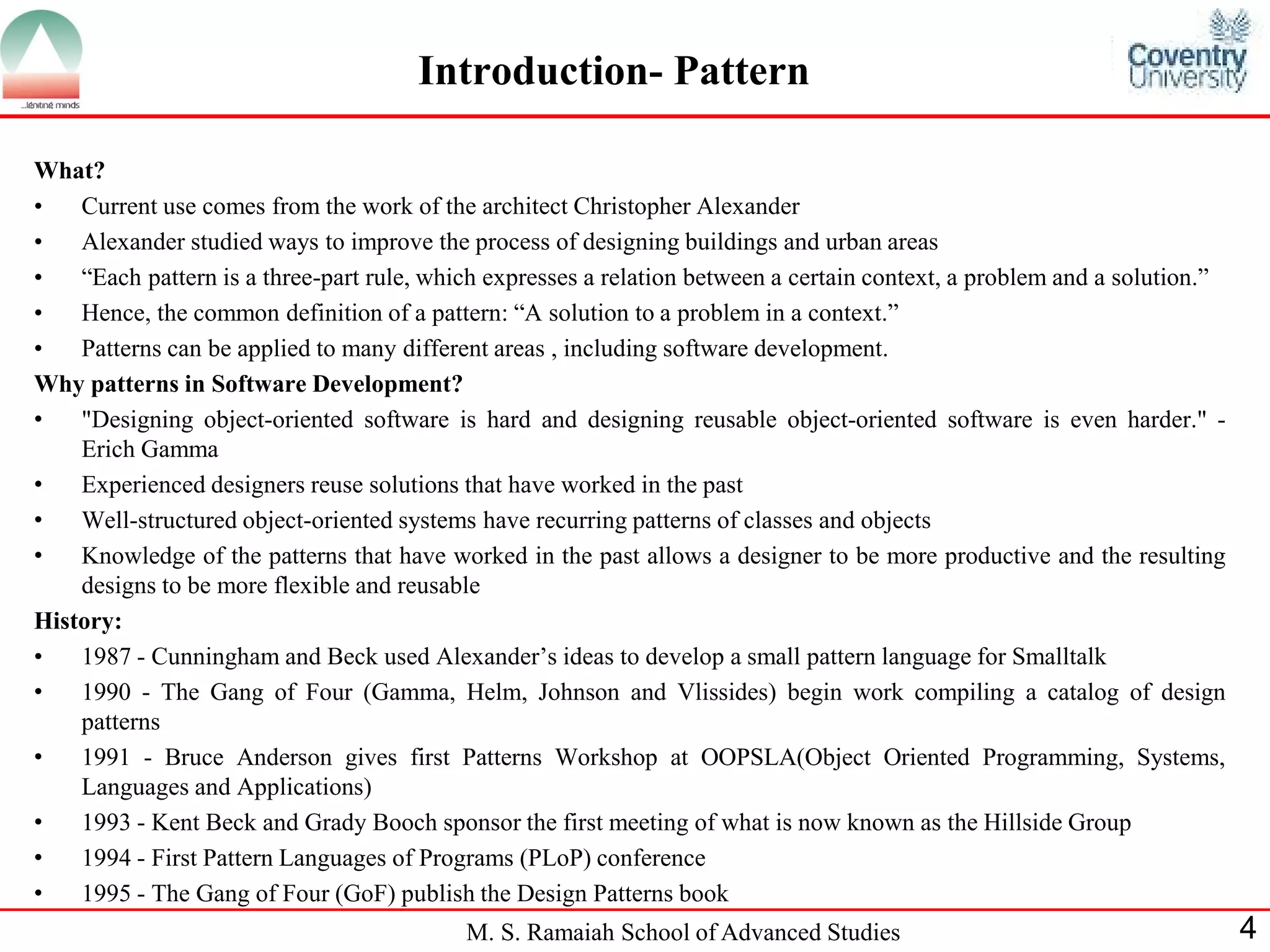

Introduction- Pattern
What?
•Current use comes from the work of the architect Christopher Alexander
•Alexander studied ways to improve the process of designing buildings and urban areas
•“Each pattern is a three-part rule, which expresses a relation between a certain context, a problem and a solution.”
•Hence, the common definition of a pattern: “A solution to a problem in a context.”
•Patterns can be applied to many different areas , including software development.
Why patterns in Software Development?
•"Designing object-oriented software is hard and designing reusable object-oriented software is even harder." - Erich Gamma
•Experienced designers reuse solutions that have worked in the past
•Well-structured object-oriented systems have recurring patterns of classes and objects
•Knowledge of the patterns that have worked in the past allows a designer to be more productive and the resulting designs to be more flexible and reusable
History:
•1987 - Cunningham and Beck used Alexander’s ideas to develop a small pattern language for Smalltalk
•1990 - The Gang of Four (Gamma, Helm, Johnson and Vlissides) begin work compiling a catalog of design patterns
•1991 - Bruce Anderson gives first Patterns Workshop at OOPSLA(Object Oriented Programming, Systems, Languages and Applications)
•1993 - Kent Beck and Grady Booch sponsor the first meeting of what is now known as the Hillside Group
•1994 - First Pattern Languages of Programs (PLoP) conference
•1995 - The Gang of Four (GoF) publish the Design Patterns book

5

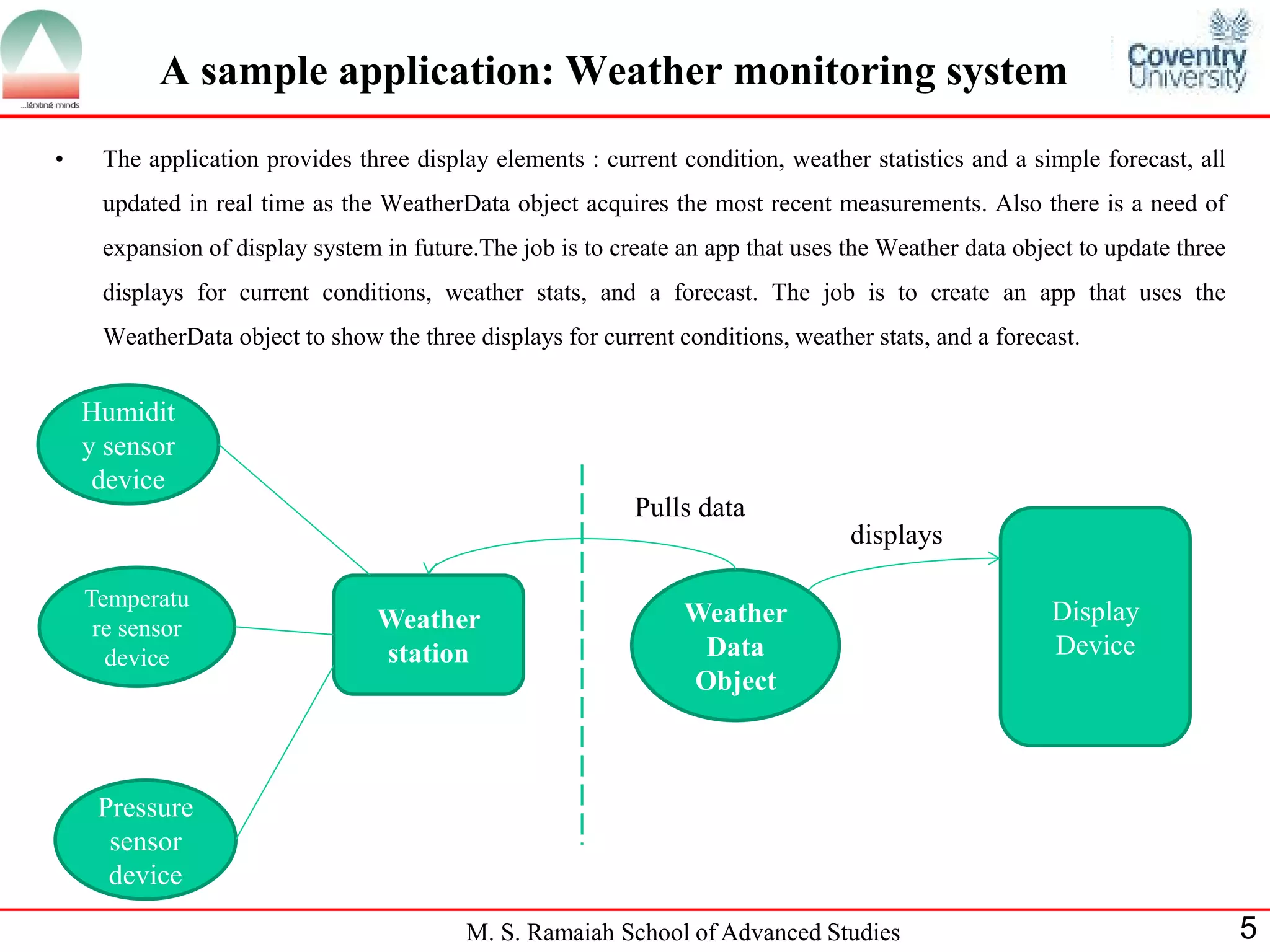

A sample application: Weather monitoring system
•The application provides three display elements : current condition, weather statistics and a simple forecast, all updated in real time as the WeatherData object acquires the most recent measurements. Also there is a need of expansion of display system in future.The job is to create an app that uses the Weather data object to update three displays for current conditions, weather stats, and a forecast. The job is to create an app that uses the WeatherData object to show the three displays for current conditions, weather stats, and a forecast.
Weather station
Weather Data Object
Display Device
Humidity sensor device
Temperature sensor device
Pressure sensor device
Pulls data
displays

M. S. Ramaiah School of Advanced Studies 6

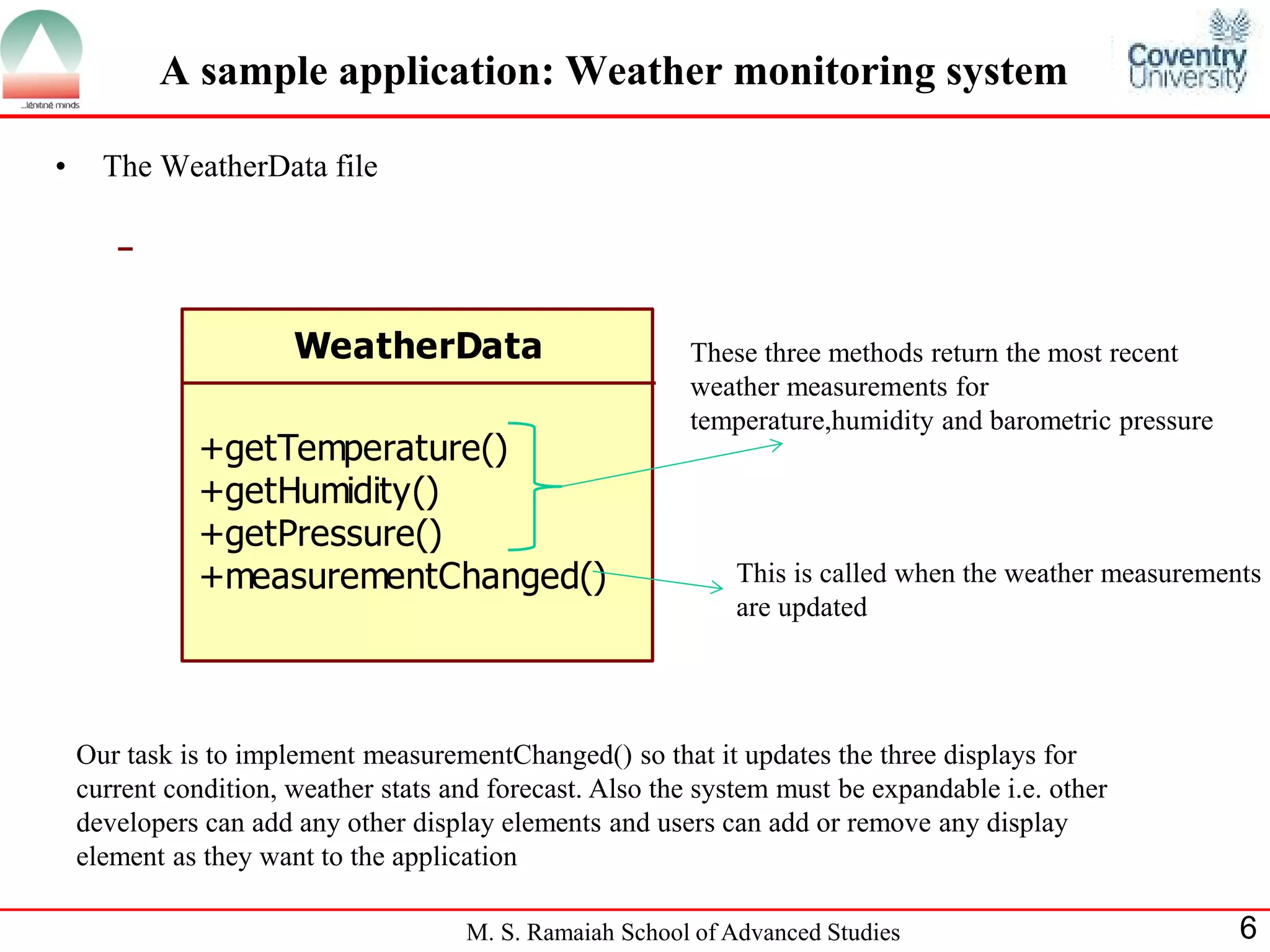

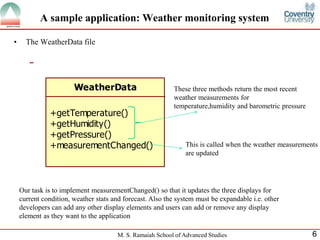

A sample application: Weather monitoring system
• The WeatherData file
WeatherData
+getTemperature()
+getHumidity()
+getPressure()
+measurementChanged()
These three methods return the most recent
weather measurements for
temperature,humidity and barometric pressure
This is called when the weather measurements
are updated
Our task is to implement measurementChanged() so that it updates the three displays for
current condition, weather stats and forecast. Also the system must be expandable i.e. other
developers can add any other display elements and users can add or remove any display
element as they want to the application

7

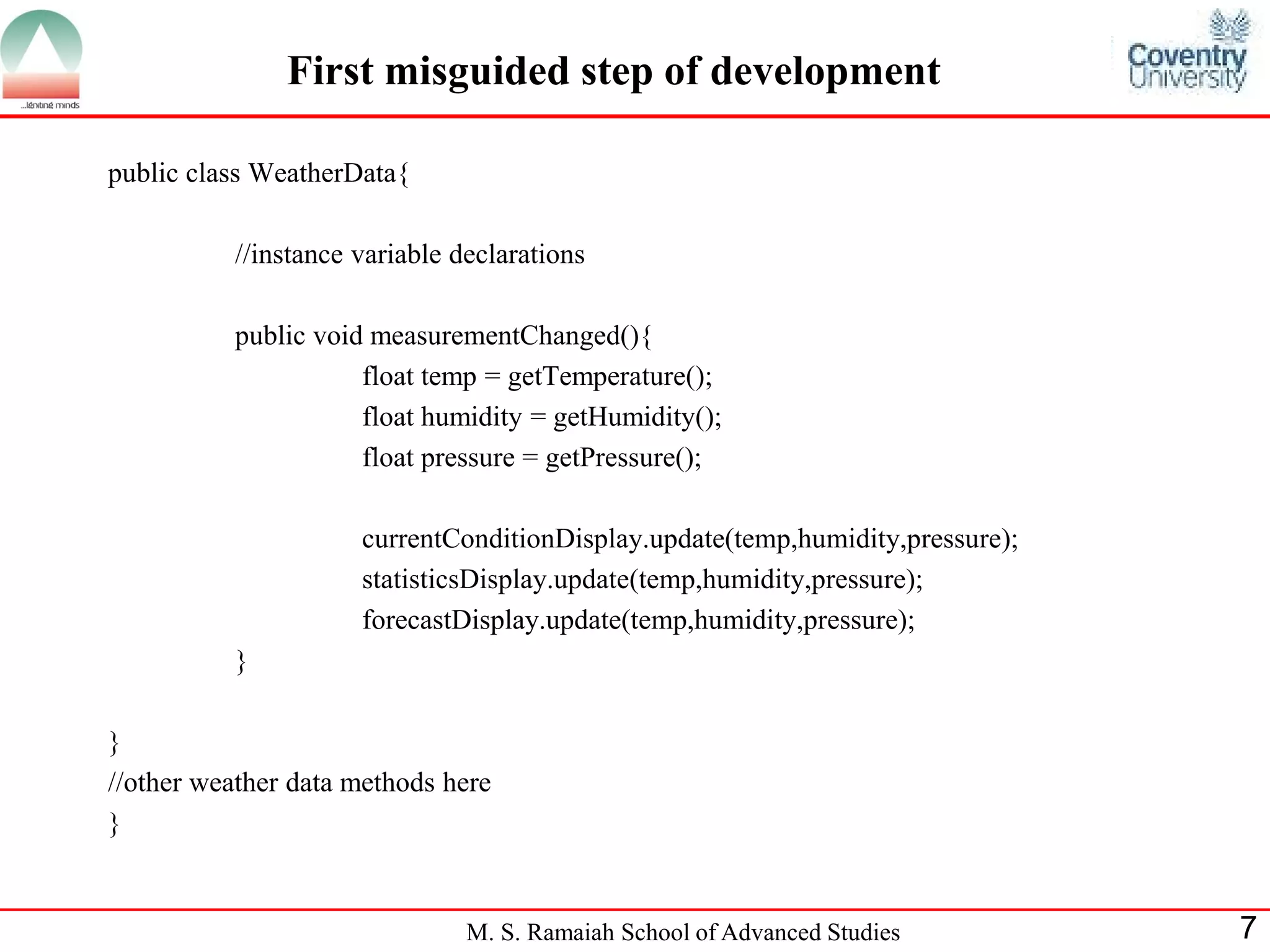

First misguided step of development
public class WeatherData{
//instance variable declarations
public void measurementChanged(){
float temp = getTemperature();
float humidity = getHumidity();
float pressure = getPressure();
currentConditionDisplay.update(temp,humidity,pressure);
statisticsDisplay.update(temp,humidity,pressure);
forecastDisplay.update(temp,humidity,pressure);
}
}
//other weather data methods here
}

8

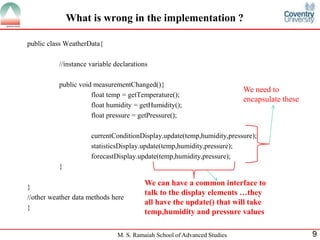

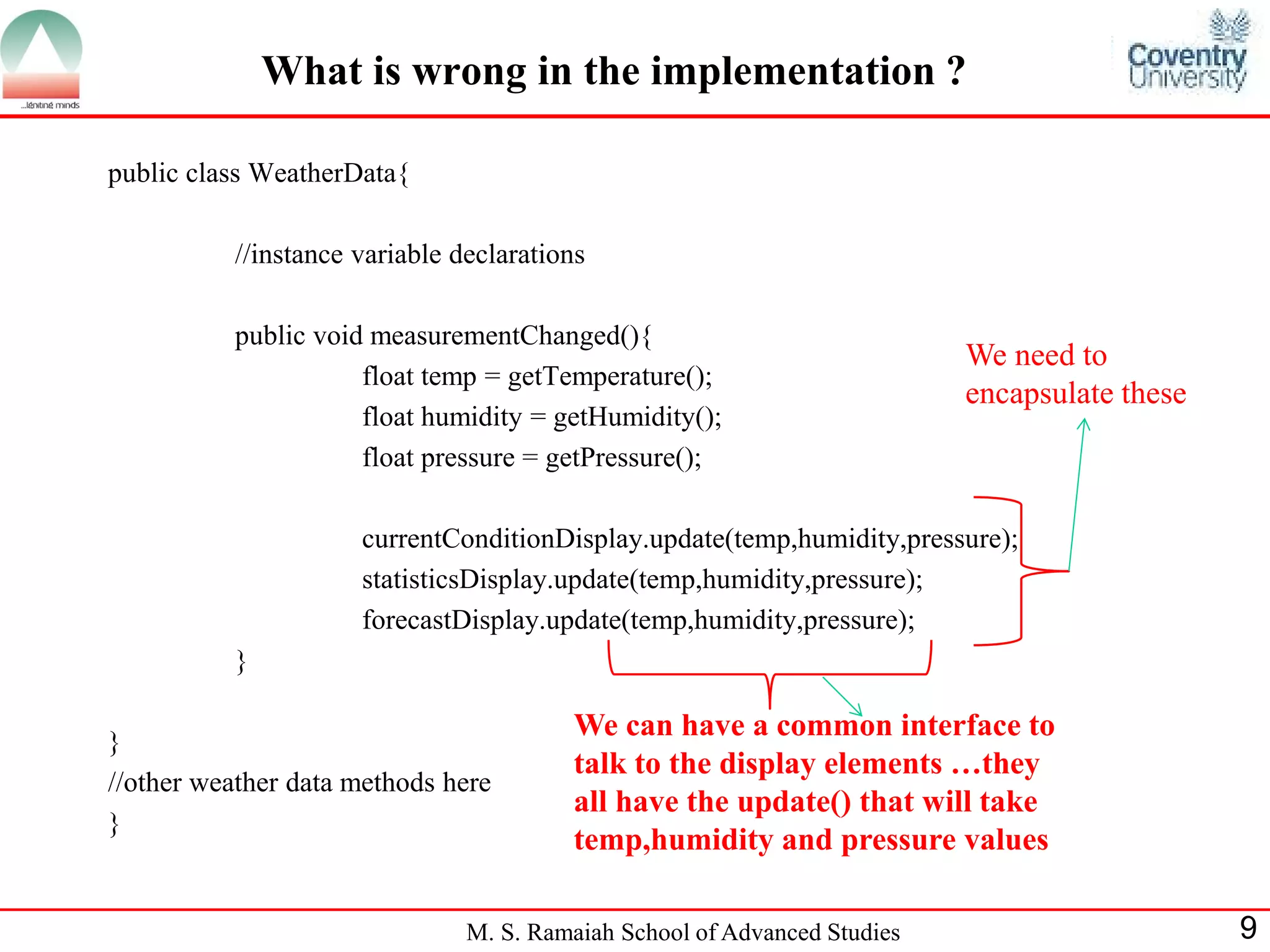

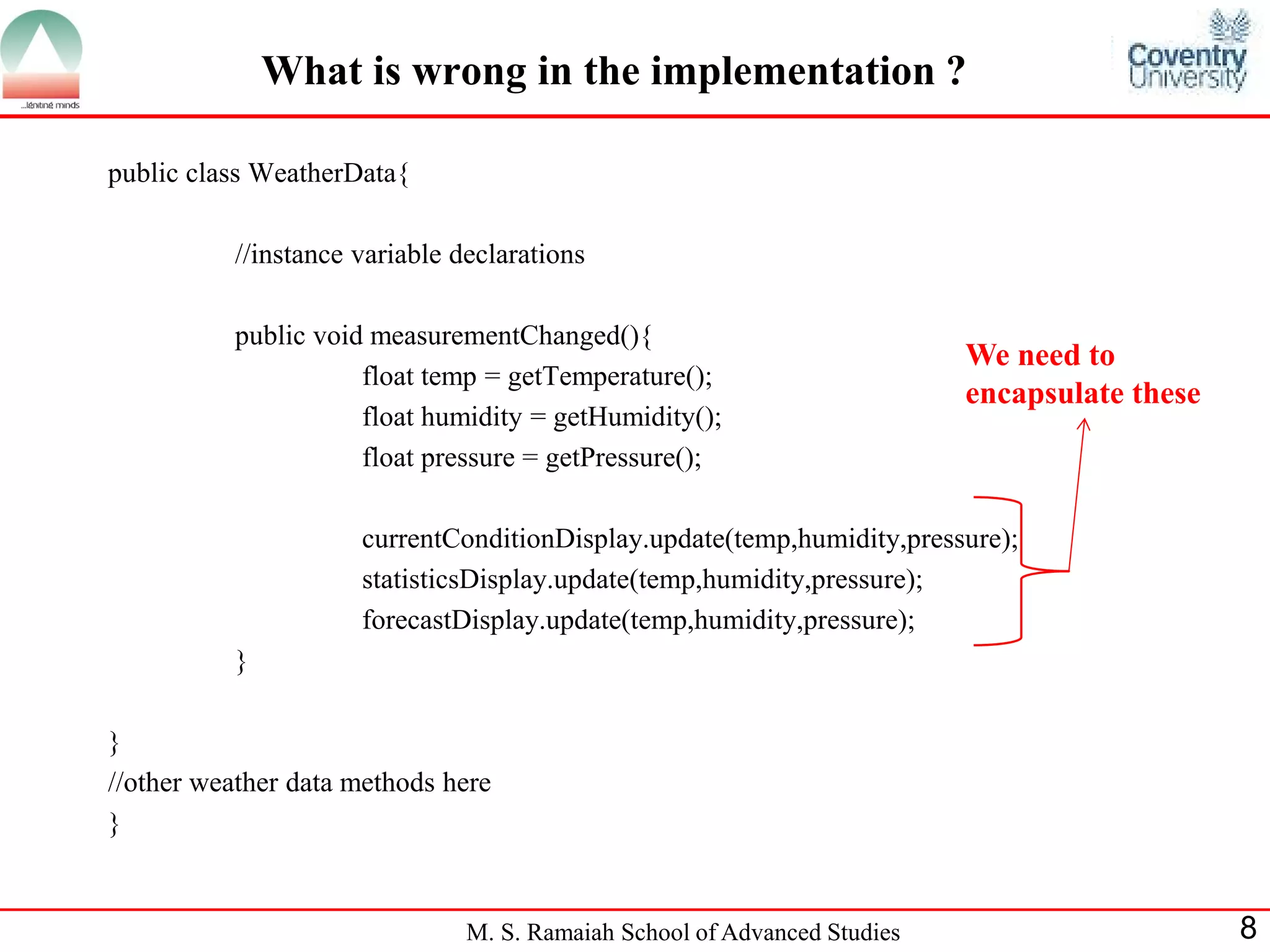

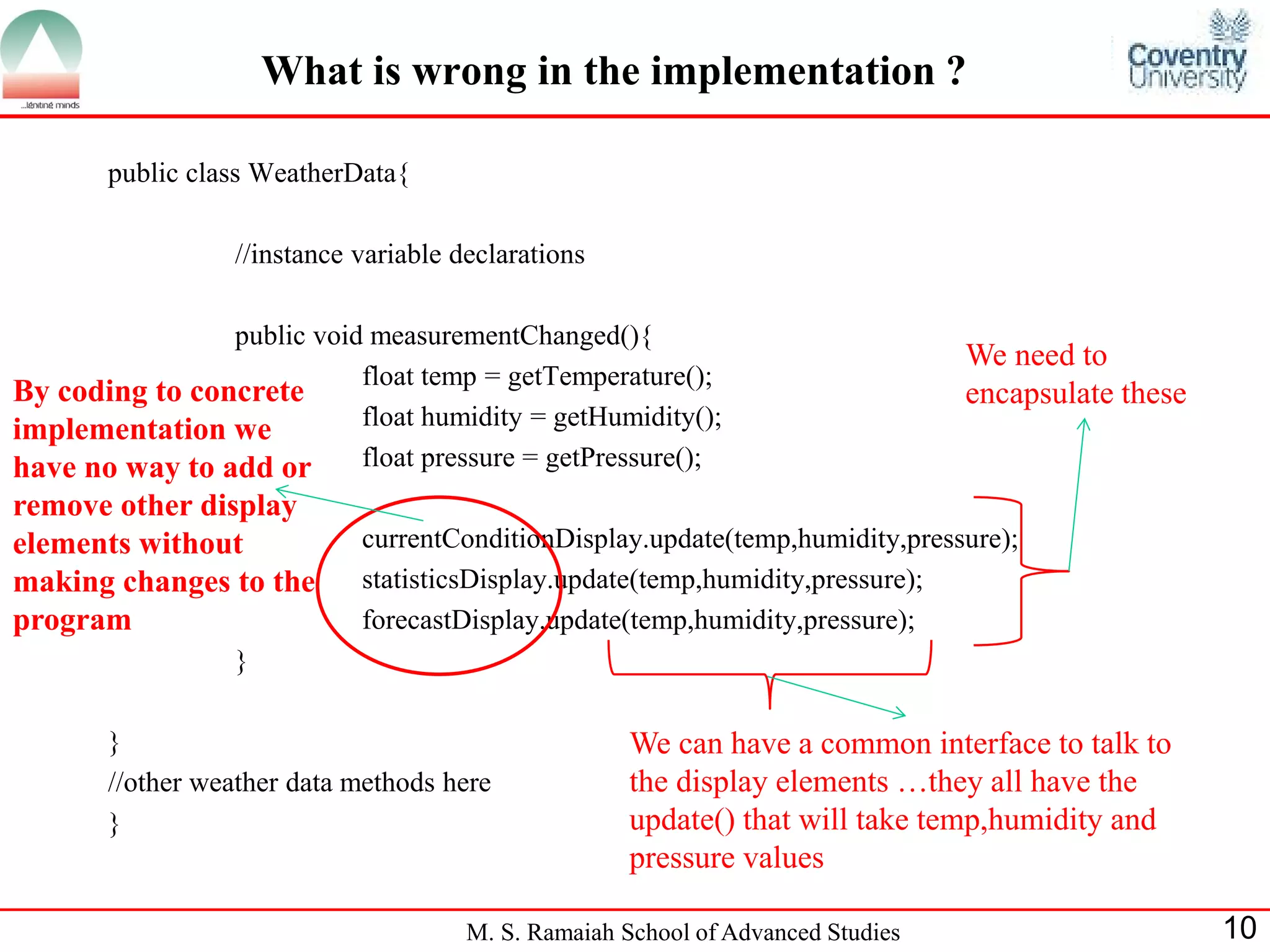

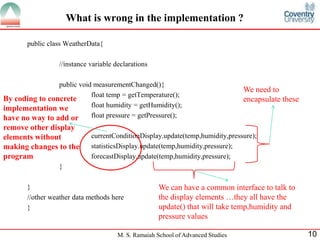

What is wrong in the implementation ?
}
}
}
We need to encapsulate these

9
}
}
}
We can have a common interface to talk to the display elements …they all have the update() that will take temp,humidity and pressure values

10
}
}
}
We can have a common interface to talk to the display elements …they all have the update() that will take temp,humidity and pressure values
By coding to concrete implementation we have no way to add or remove other display elements without making changes to the program

11

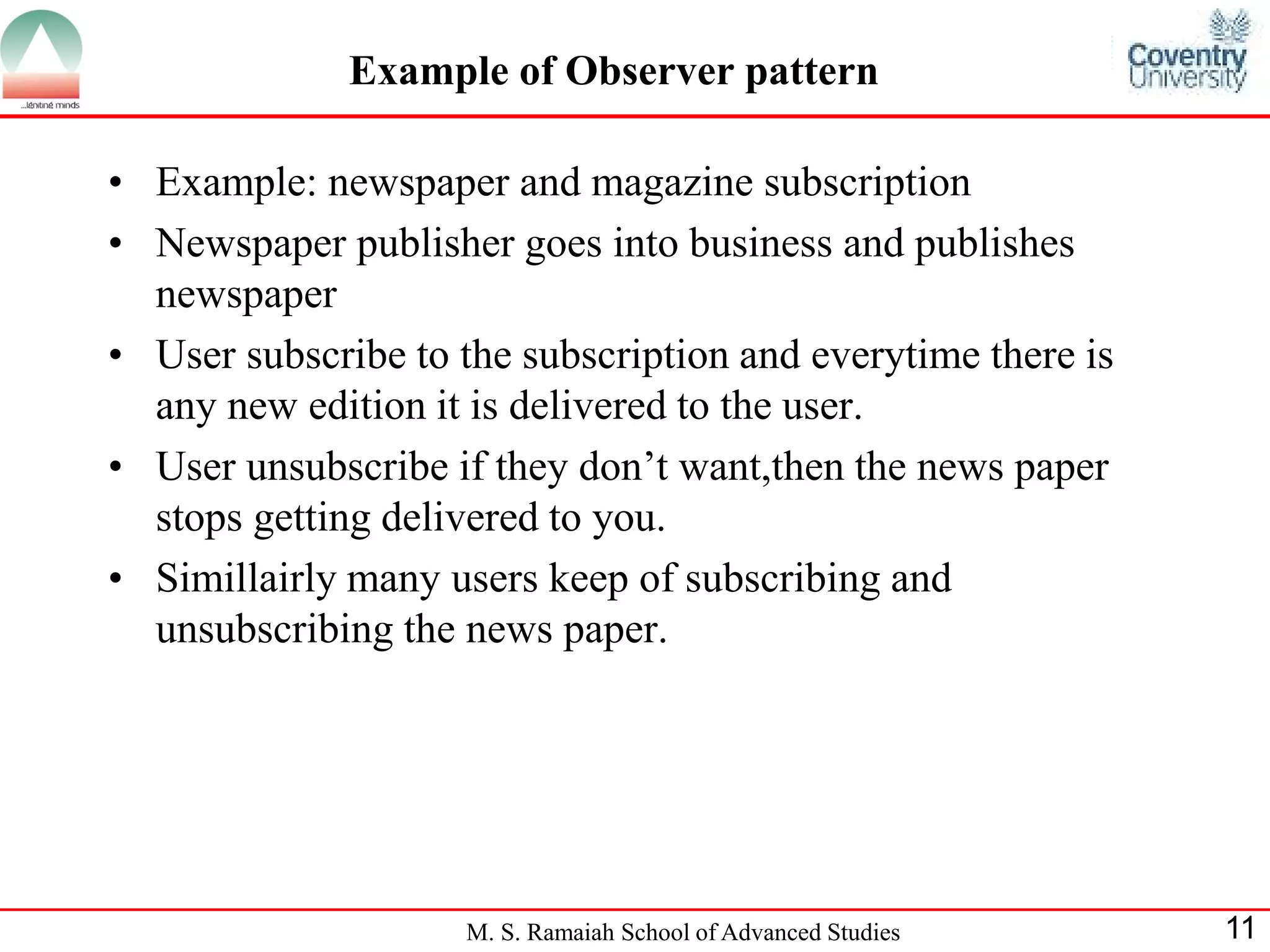

Example of Observer pattern
•Example: newspaper and magazine subscription
•Newspaper publisher goes into business and publishes newspaper
•User subscribe to the subscription and everytime there is any new edition it is delivered to the user.
•User unsubscribe if they don’t want,then the news paper stops getting delivered to you.
•Simillairly many users keep of subscribing and unsubscribing the news paper.

12

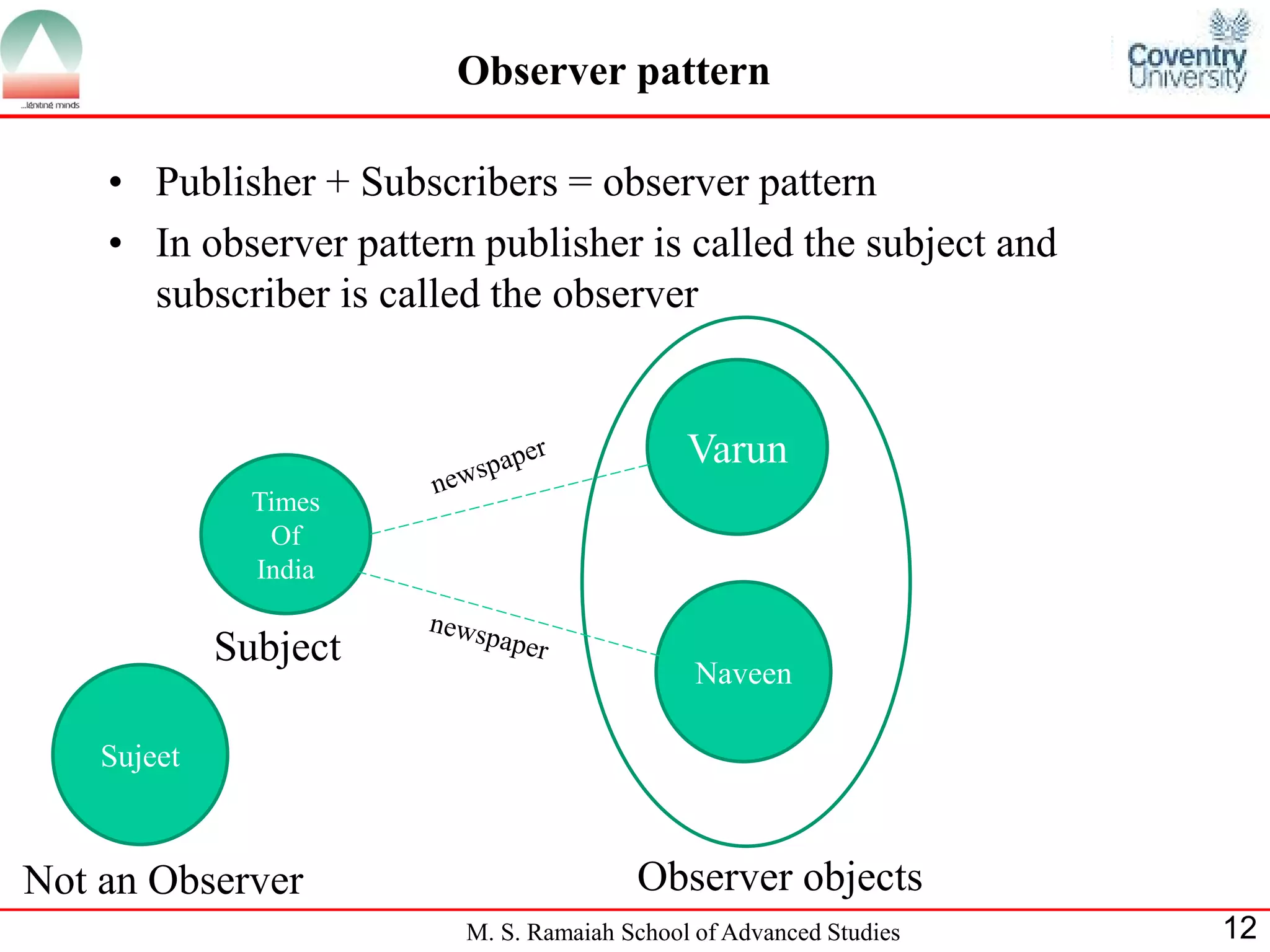

Observer pattern
•Publisher + Subscribers = observer pattern
•In observer pattern publisher is called the subject and subscriber is called the observer
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects
Not an Observer

13

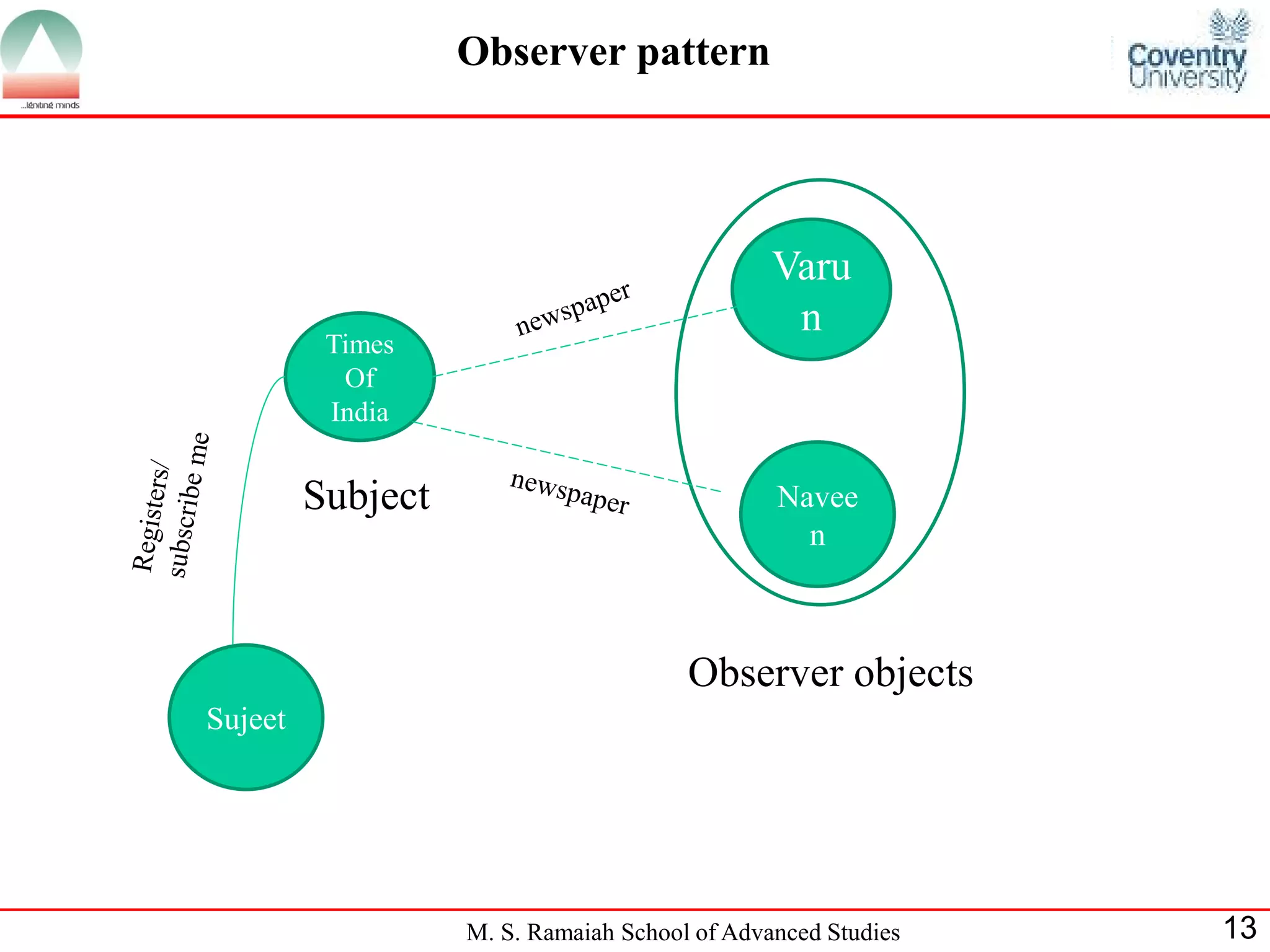

Observer pattern
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects

14

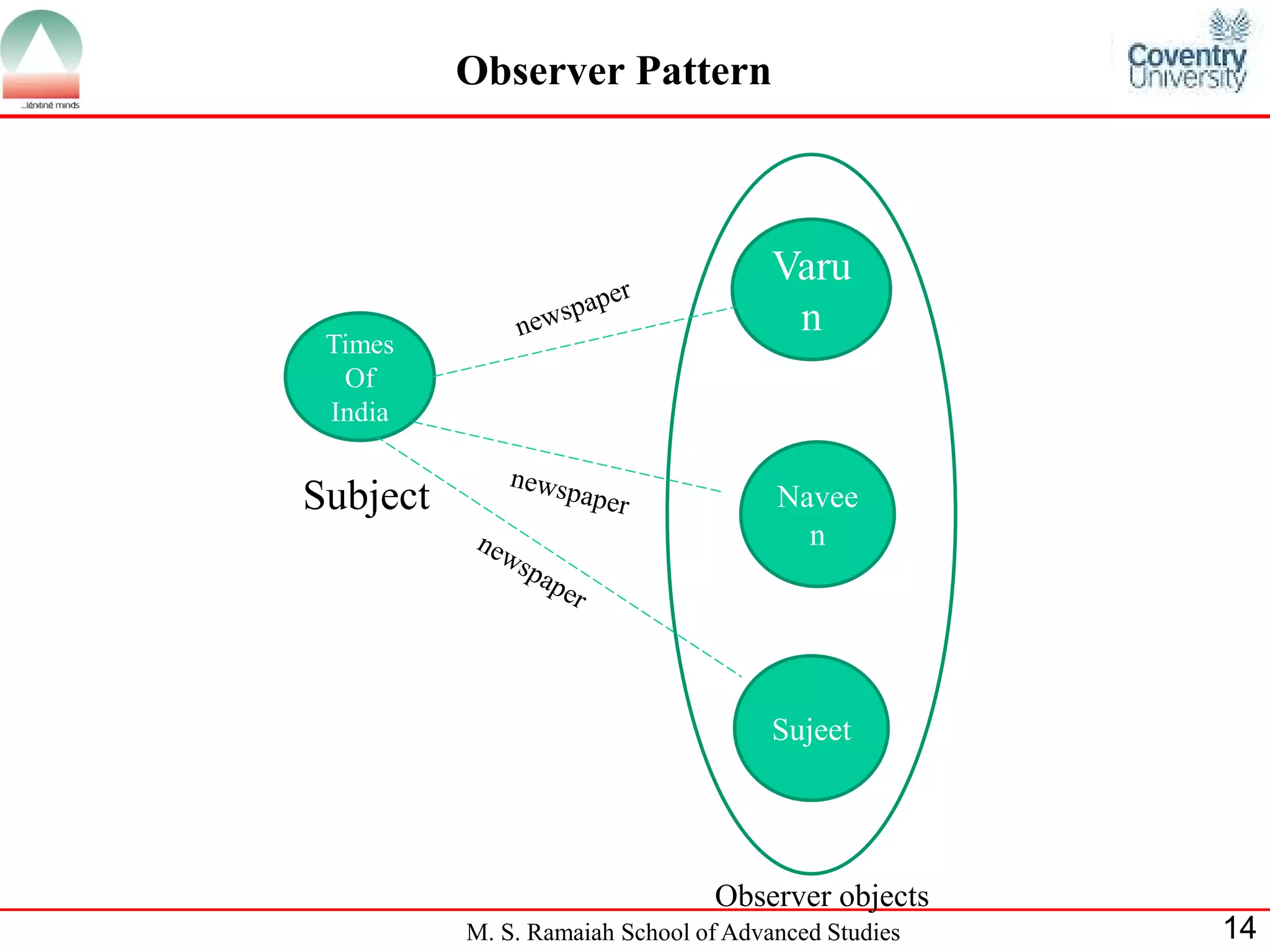

Observer Pattern
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects

15

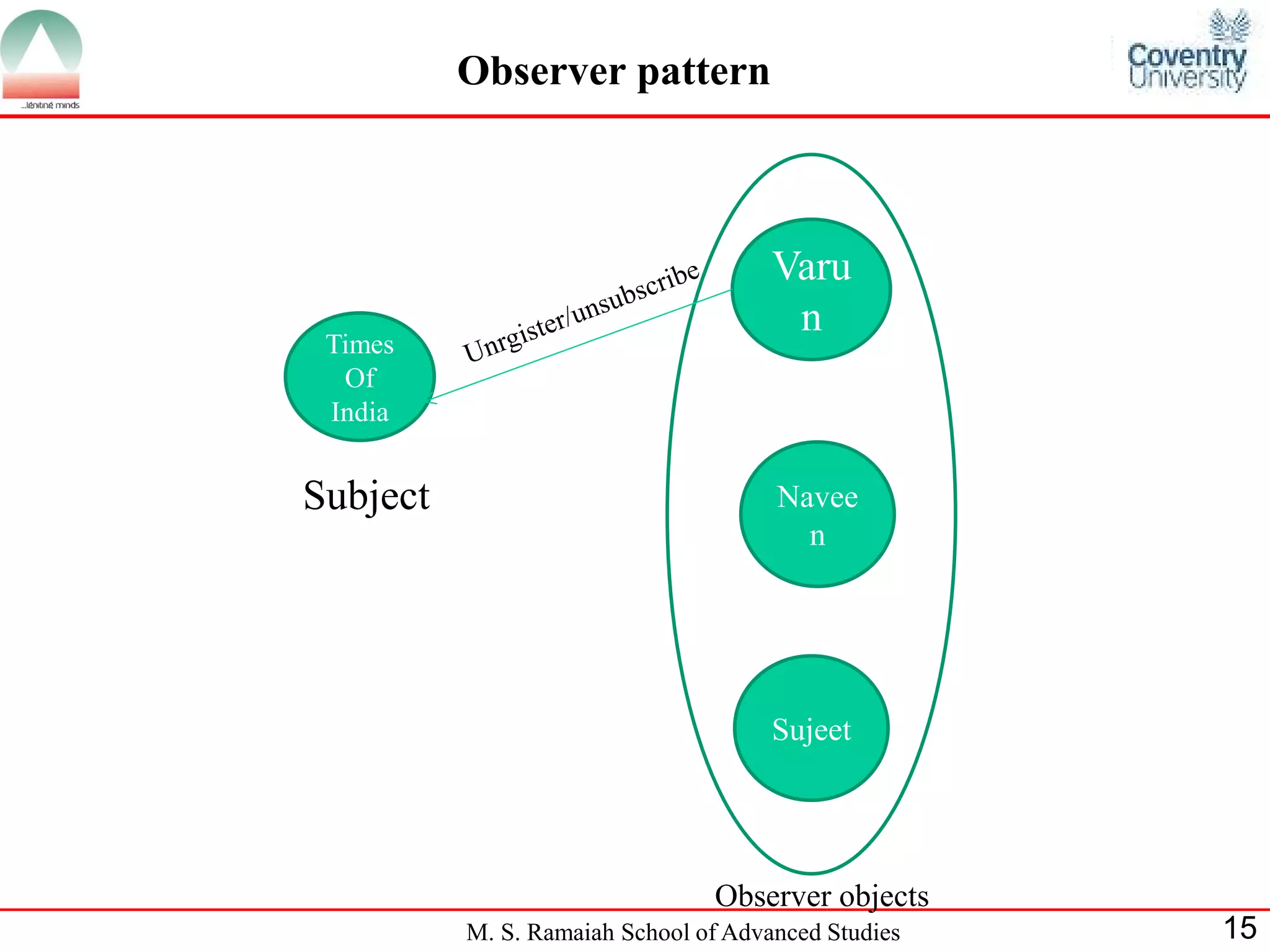

Observer pattern
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects

16

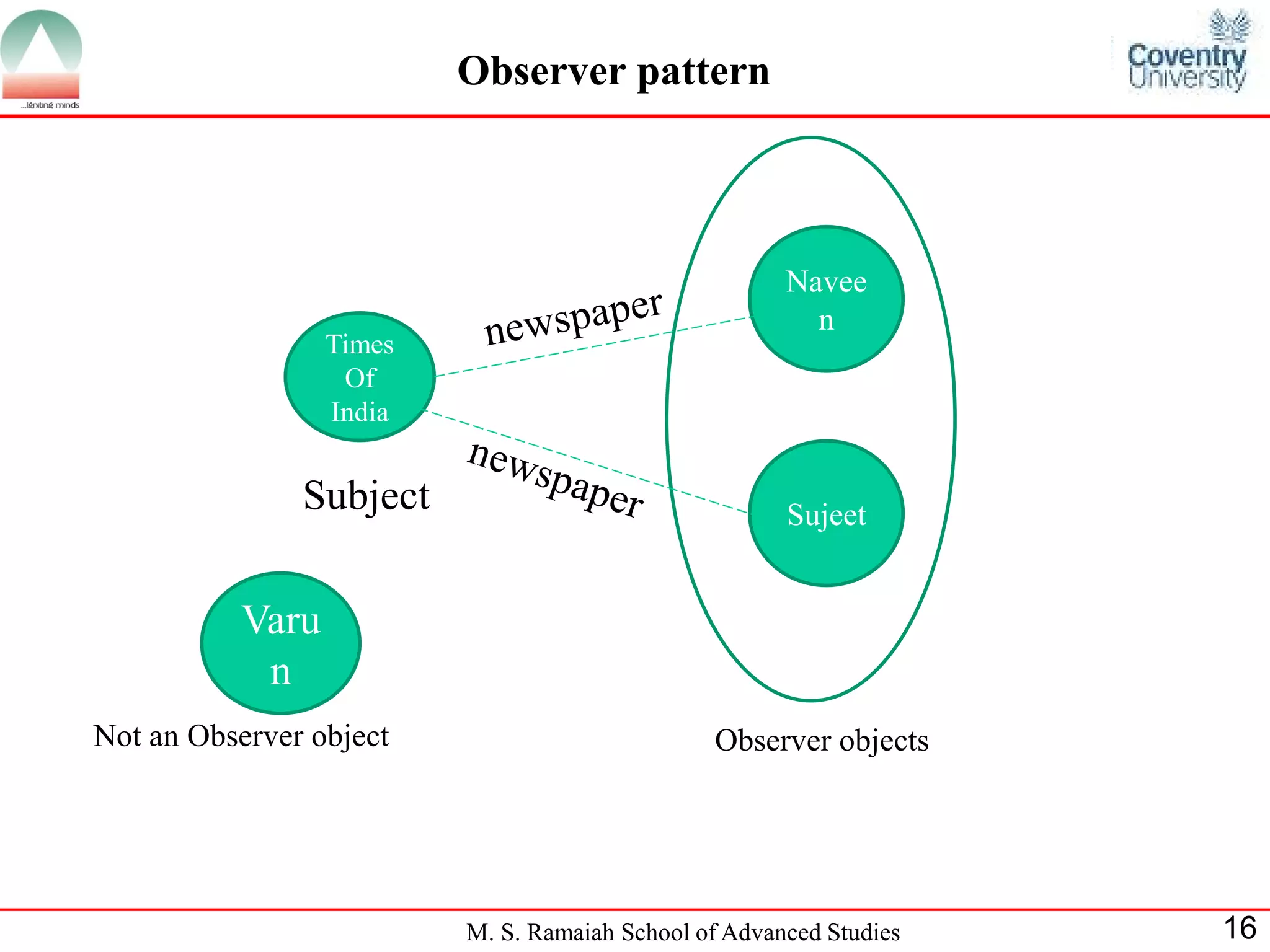

Observer pattern
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects
Not an Observer object

17

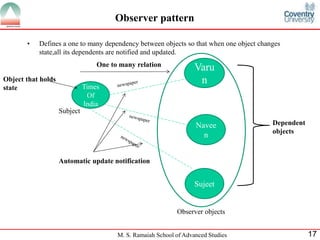

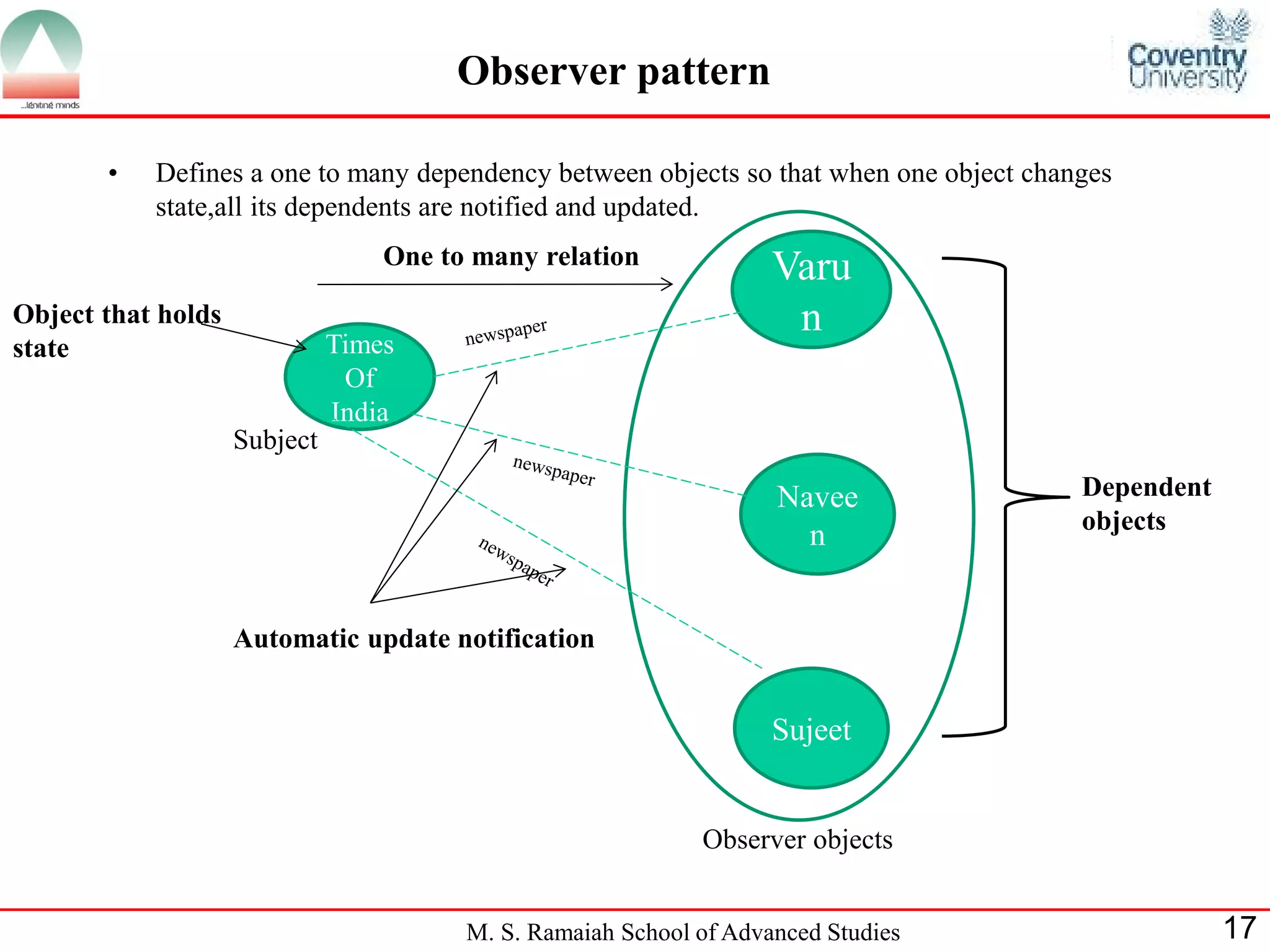

Observer pattern
•Defines a one to many dependency between objects so that when one object changes state,all its dependents are notified and updated.
Times Of India
Subject
Varun
Naveen
Sujeet
Observer objects
Dependent objects
Automatic update notification
Object that holds state
One to many relation

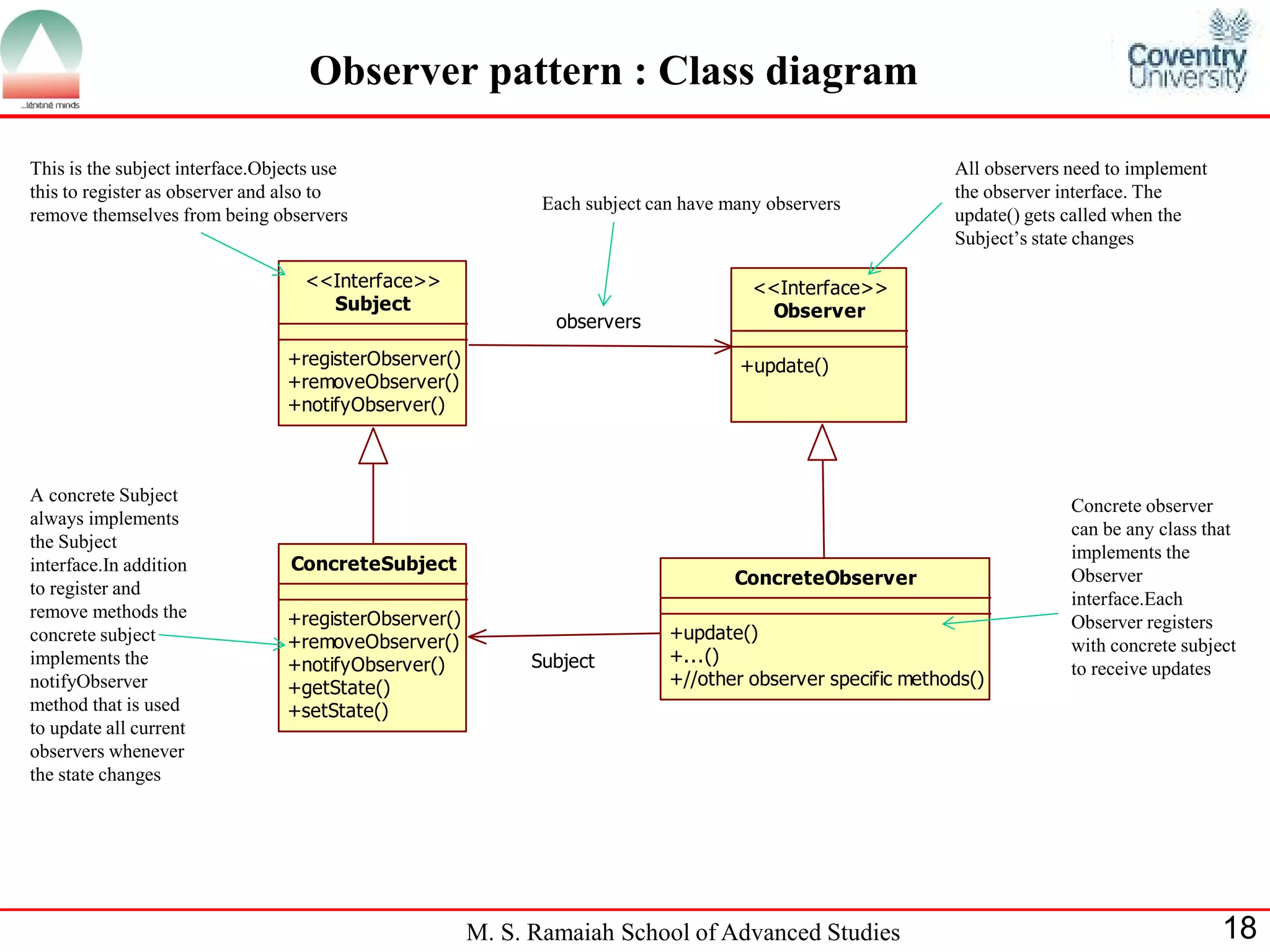

Observer pattern : Class diagram
Subject
<<Interface>>
+registerObserver()
+removeObserver()
+notifyObserver()
Observer
<<Interface>>
+update()
observers
ConcreteSubject
+registerObserver()
+removeObserver()
+notifyObserver()
+getState()
+setState()
ConcreteObserver
+update()
+...()
+//other observer specific methods()
Subject
This is the subject interface.Objects use
this to register as observer and also to
remove themselves from being observers
Each subject can have many observers
All observers need to implement
the observer interface. The
update() gets called when the
Subject’s state changes
Concrete observer
can be any class that
implements the
Observer
interface.Each
Observer registers
with concrete subject
to receive updates
A concrete Subject
always implements
the Subject
interface.In addition
to register and
remove methods the
concrete subject
implements the
notifyObserver
method that is used
to update all current
observers whenever
the state changes

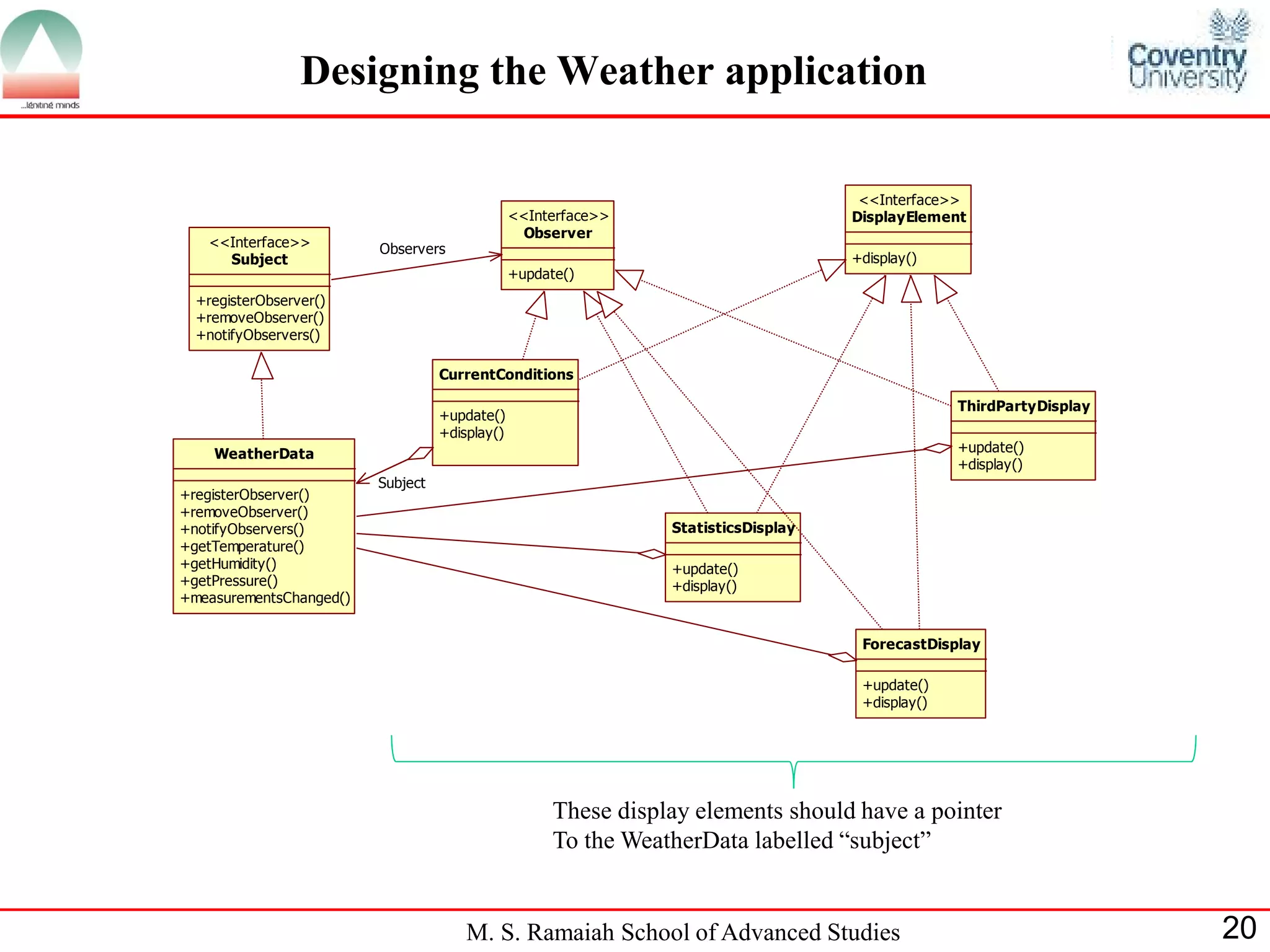

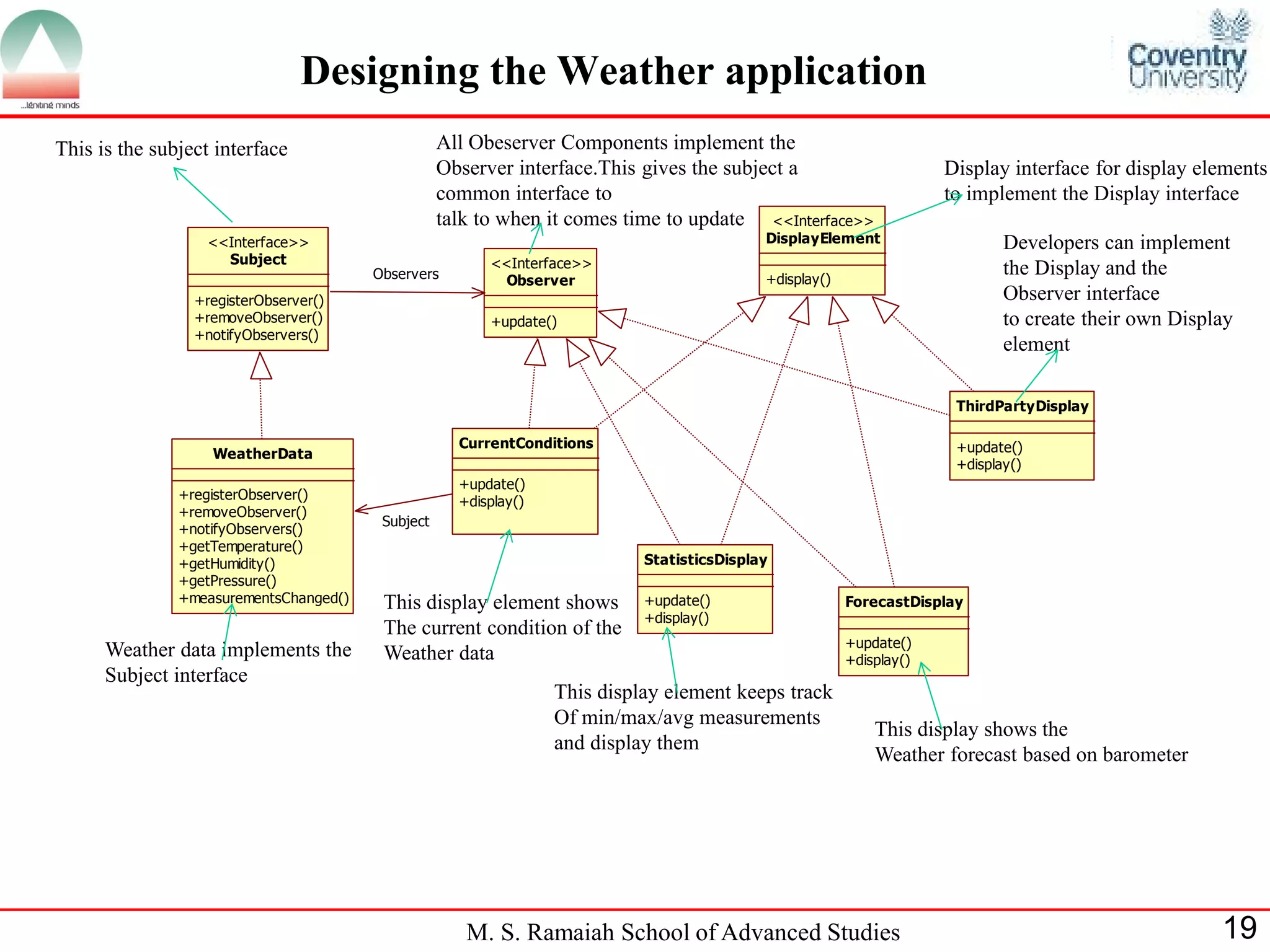

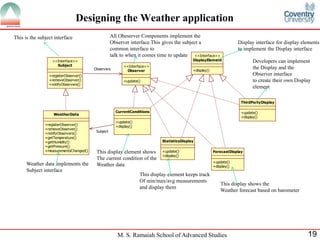

Designing the Weather application
Subject
<<Interface>>
+registerObserver()
+removeObserver()
+notifyObservers()
Observer
<<Interface>>
+update()
WeatherData
+registerObserver()
+removeObserver()
+notifyObservers()
+getTemperature()
+getHumidity()
+getPressure()
+measurementsChanged()
CurrentConditions
+update()
+display()
StatisticsDisplay
+update()
+display()
ForecastDisplay
+update()
+display()
DisplayElement
<<Interface>>
+display()
ThirdPartyDisplay
+update()
+display()
Observers
Subject
All Obeserver Components implement the
Observer interface.This gives the subject a
common interface to
talk to when it comes time to update
Display interface for display elements
to implement the Display interface
Developers can implement
the Display and the
Observer interface
to create their own Display
element
This display element shows
The current condition of the
Weather data
This display element keeps track
Of min/max/avg measurements
and display them
This display shows the
Weather forecast based on barometer
Weather data implements the
Subject interface
This is the subject interface

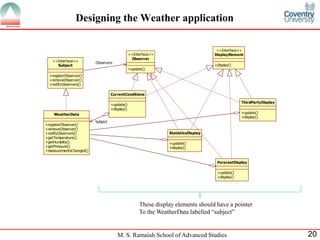

Designing the Weather application
Subject
<<Interface>>
+registerObserver()
+removeObserver()
+notifyObservers()
Observer
<<Interface>>
+update()
WeatherData
+registerObserver()
+removeObserver()
+notifyObservers()
+getTemperature()
+getHumidity()
+getPressure()
+measurementsChanged()
CurrentConditions
+update()
+display()
StatisticsDisplay
+update()
+display()
ForecastDisplay
+update()
+display()
DisplayElement
<<Interface>>
+display()
ThirdPartyDisplay
+update()
+display()
Observers
Subject
These display elements should have a pointer
To the WeatherData labelled “subject”

21

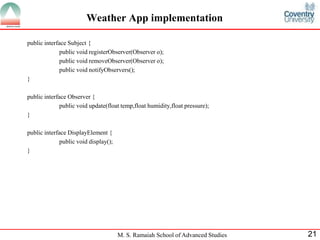

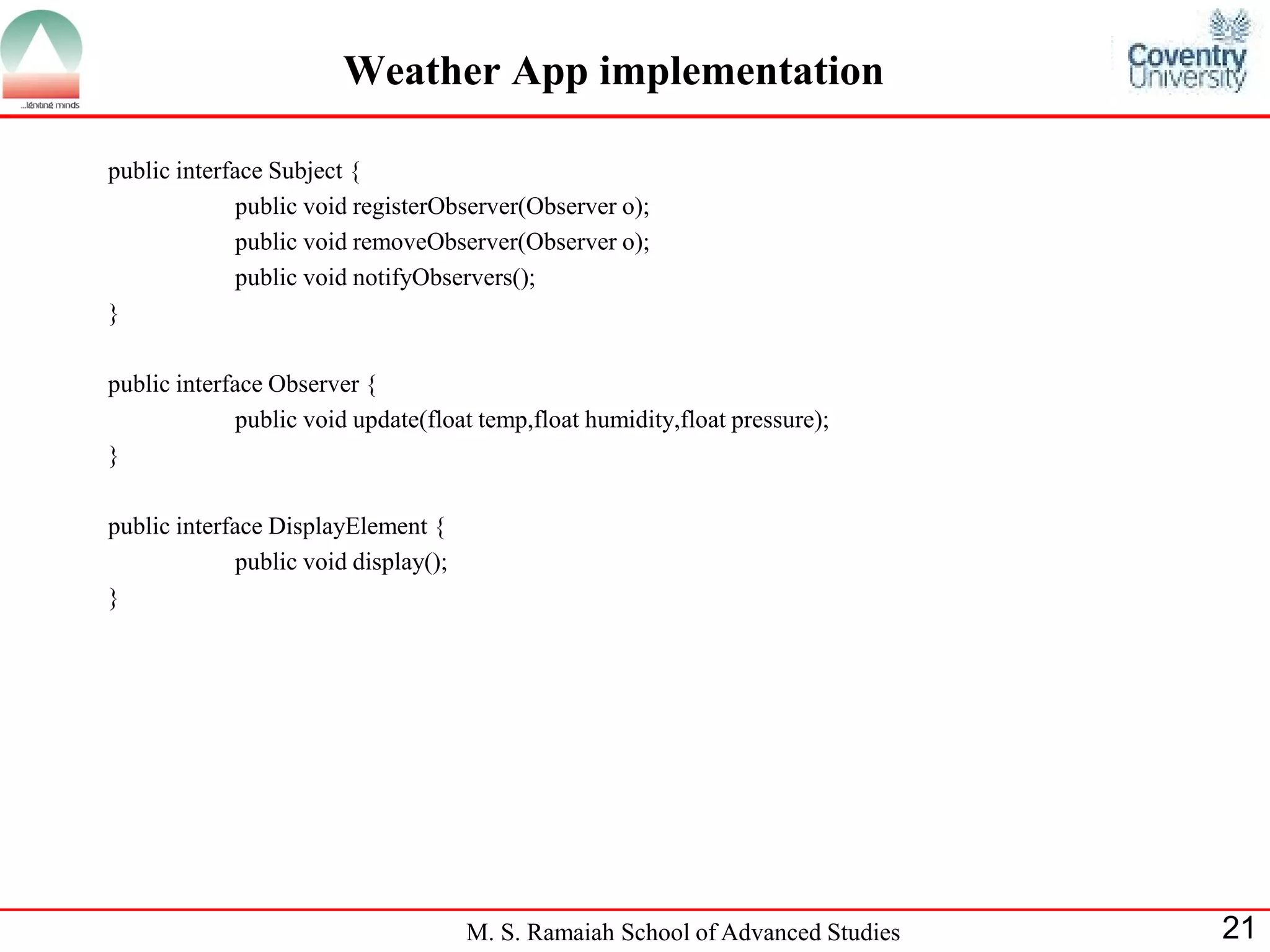

Weather App implementation
public interface Subject {
public void registerObserver(Observer o);
public void removeObserver(Observer o);
public void notifyObservers();
}
public interface Observer {
public void update(float temp,float humidity,float pressure);
}
public interface DisplayElement {
public void display();
}

22

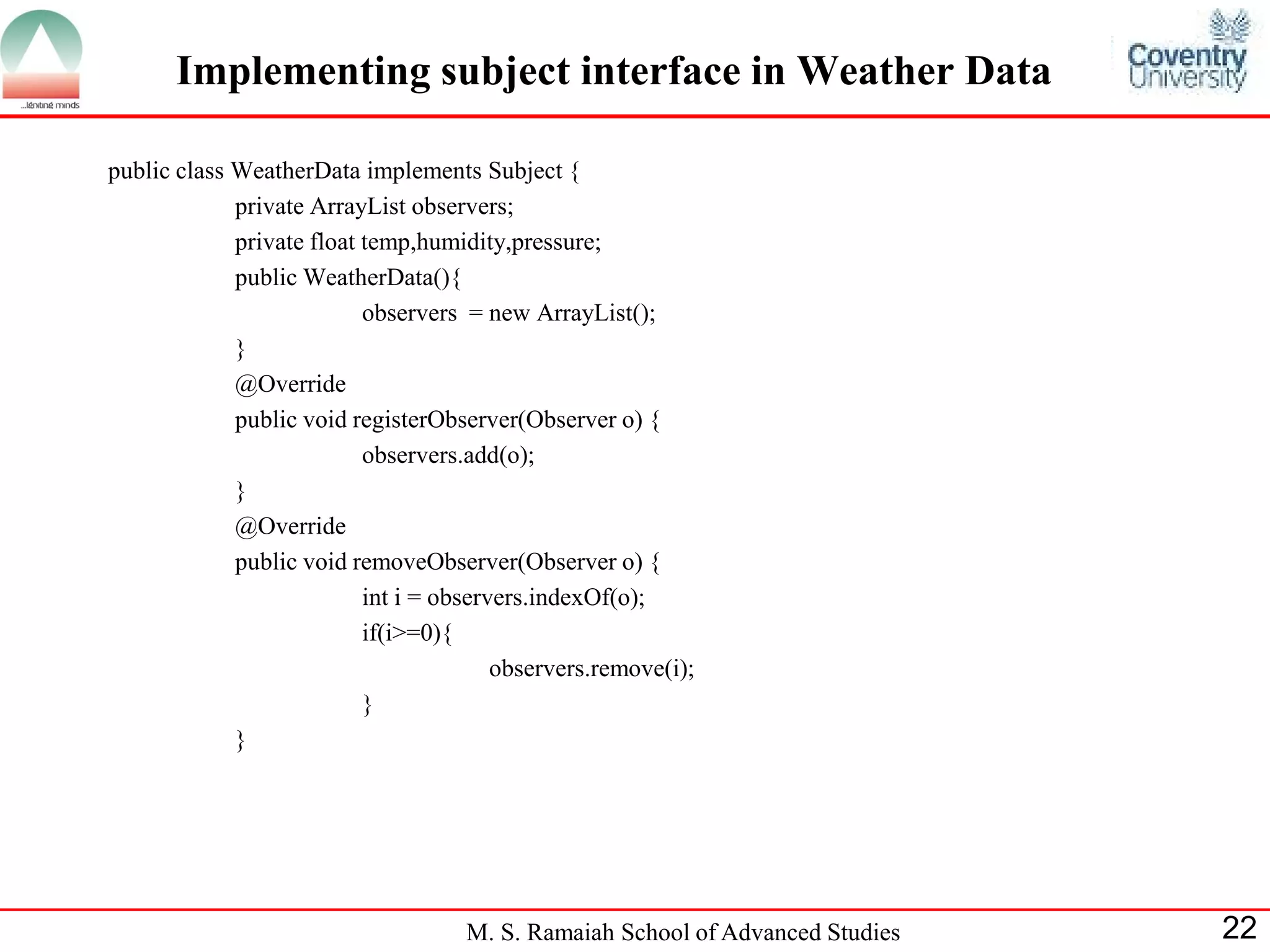

Implementing subject interface in Weather Data
public class WeatherData implements Subject {
private ArrayList observers;
private float temp,humidity,pressure;
public WeatherData(){
observers = new ArrayList();
}
@Override
public void registerObserver(Observer o) {
observers.add(o);
}
@Override
public void removeObserver(Observer o) {
int i = observers.indexOf(o);
if(i>=0){
observers.remove(i);
}
}

23

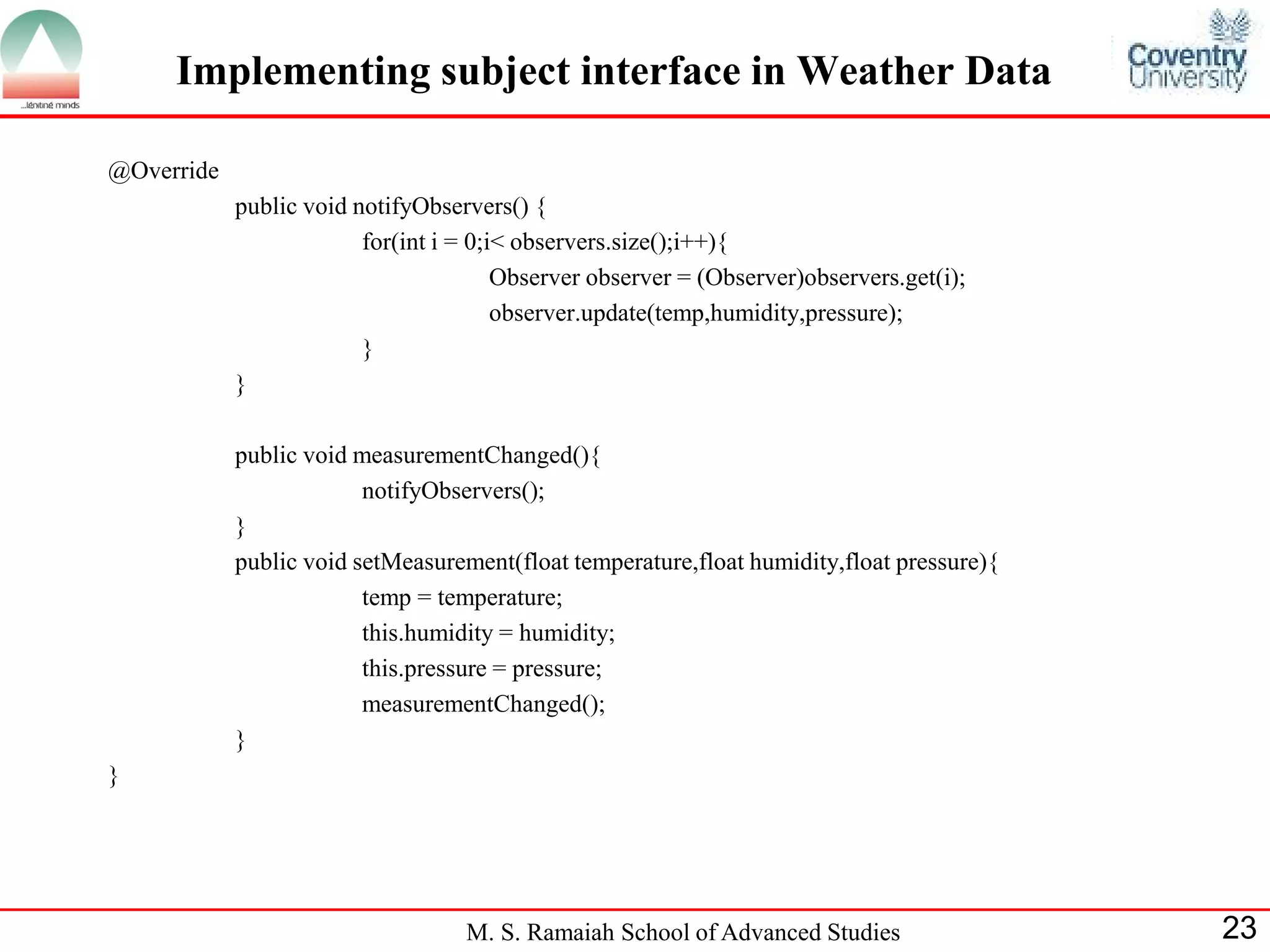

@Override
public void notifyObservers() {
for(int i = 0;i< observers.size();i++){
Observer observer = (Observer)observers.get(i);
observer.update(temp,humidity,pressure);
}
}
notifyObservers();
}
public void setMeasurement(float temperature,float humidity,float pressure){
temp = temperature;
this.humidity = humidity;
this.pressure = pressure;
measurementChanged();
}
}
Implementing subject interface in Weather Data

24

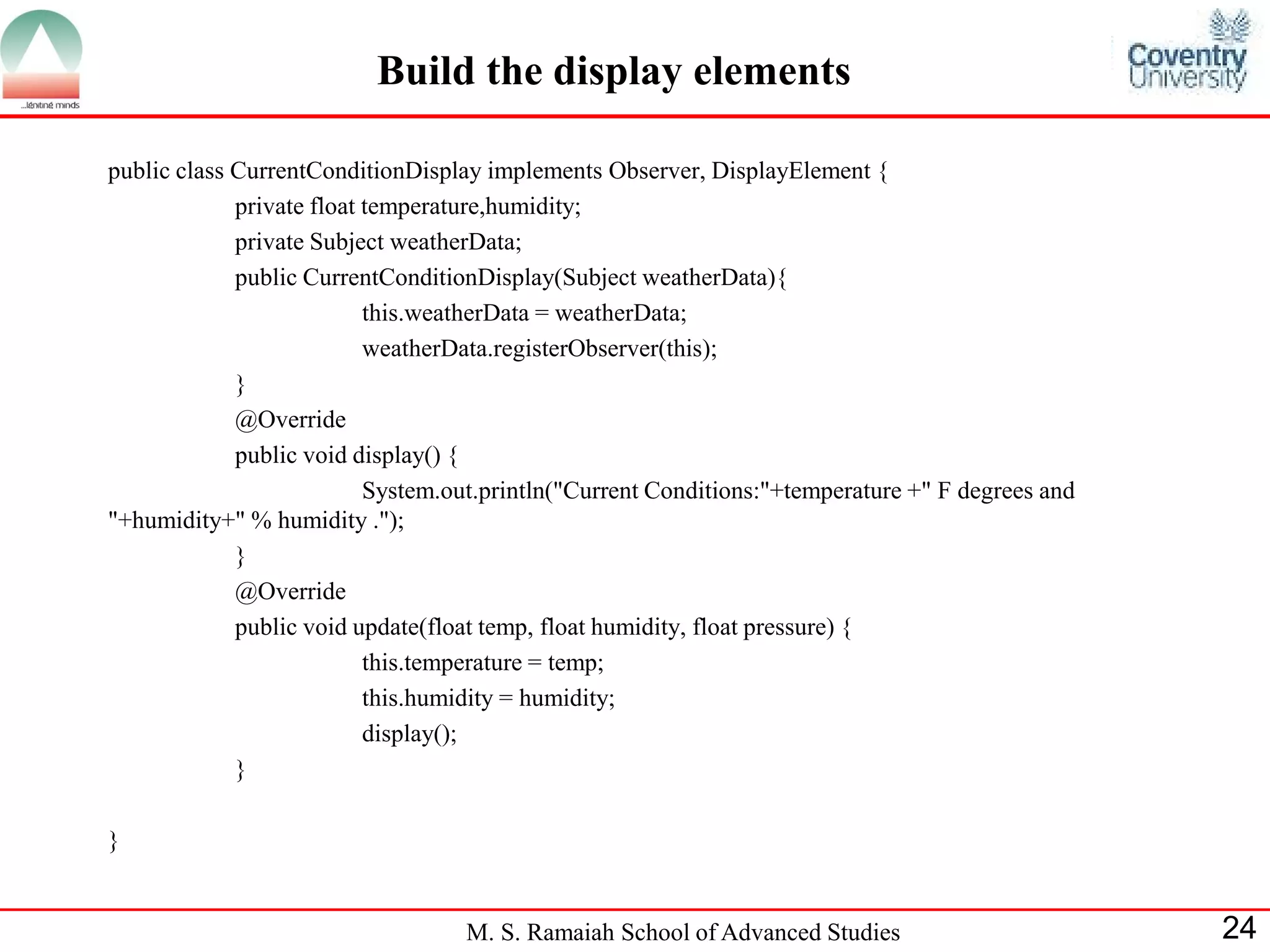

Build the display elements
public class CurrentConditionDisplay implements Observer, DisplayElement {
private float temperature,humidity;
private Subject weatherData;
public CurrentConditionDisplay(Subject weatherData){
this.weatherData = weatherData;
weatherData.registerObserver(this);
}
@Override
public void display() {
System.out.println("Current Conditions:"+temperature +" F degrees and "+humidity+" % humidity .");
}
@Override
public void update(float temp, float humidity, float pressure) {
this.temperature = temp;
display();
}
}

25

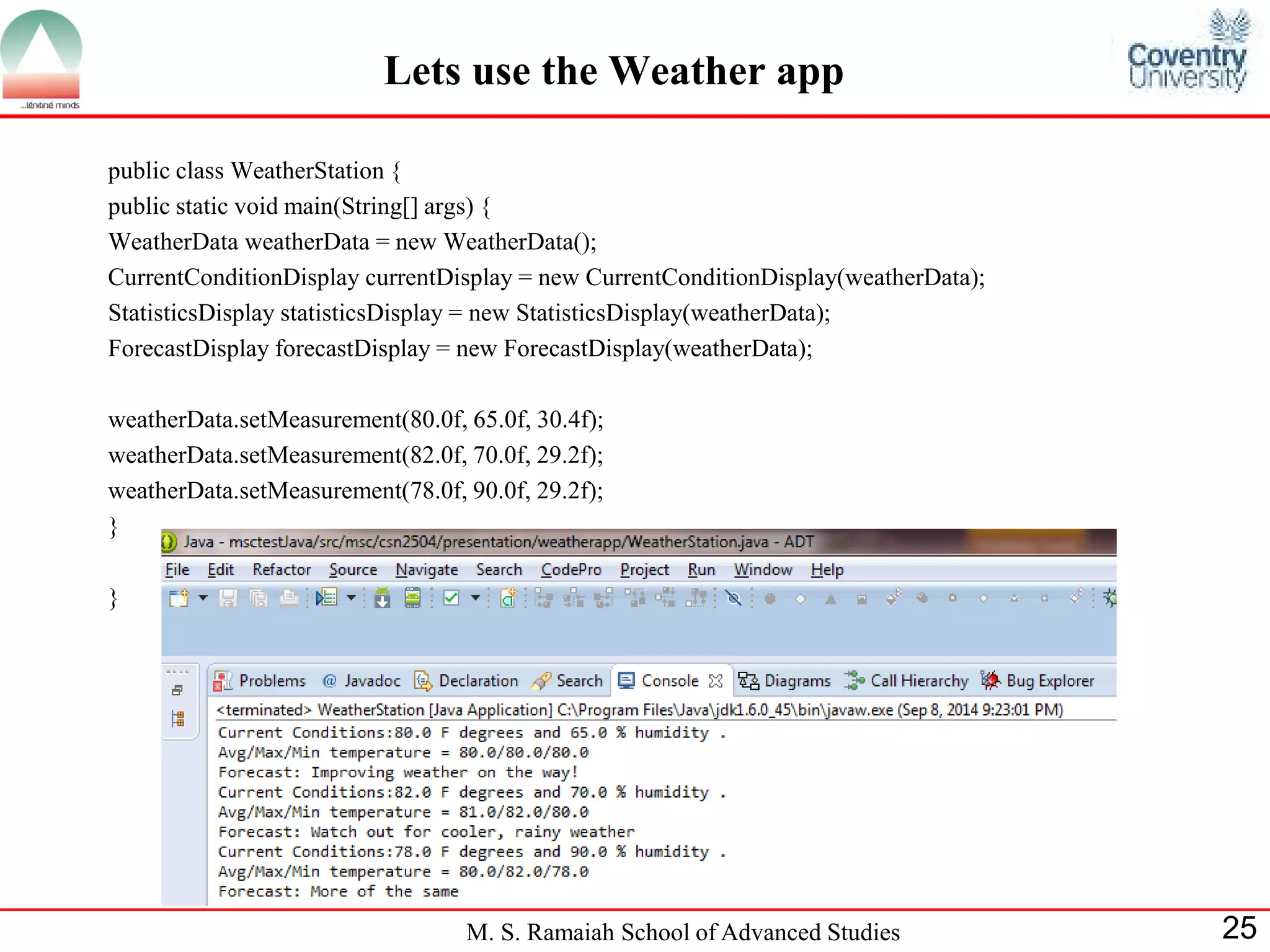

Lets use the Weather app
public class WeatherStation {
public static void main(String[] args) {
WeatherData weatherData = new WeatherData();
CurrentConditionDisplay currentDisplay = new CurrentConditionDisplay(weatherData);
StatisticsDisplay statisticsDisplay = new StatisticsDisplay(weatherData);
ForecastDisplay forecastDisplay = new ForecastDisplay(weatherData);
weatherData.setMeasurement(80.0f, 65.0f, 30.4f);
}
}

26

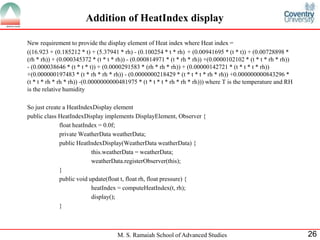

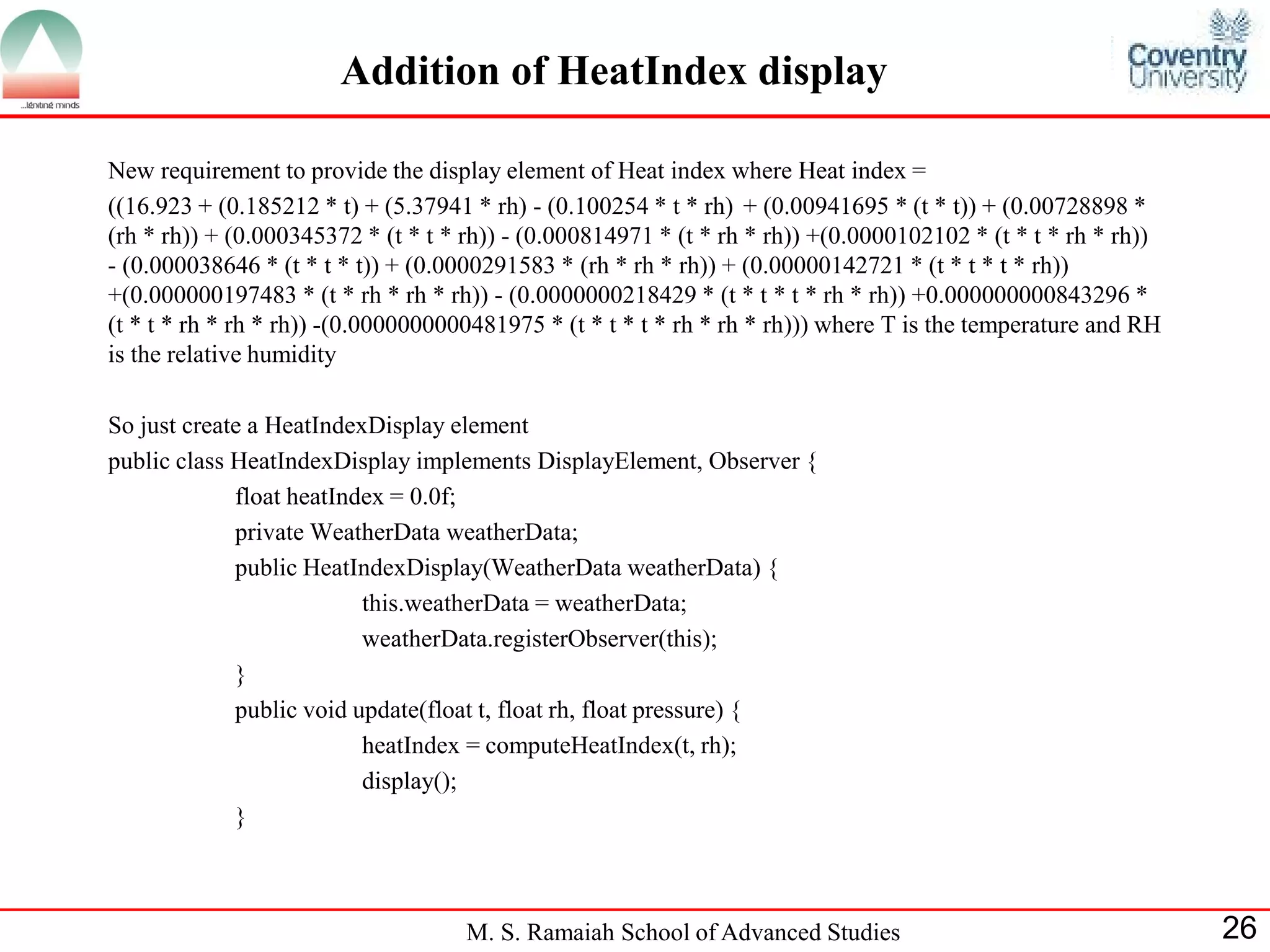

Addition of HeatIndex display
New requirement to provide the display element of Heat index where Heat index =
((16.923 + (0.185212 * t) + (5.37941 * rh) - (0.100254 * t * rh) + (0.00941695 * (t * t)) + (0.00728898 * (rh * rh)) + (0.000345372 * (t * t * rh)) - (0.000814971 * (t * rh * rh)) +(0.0000102102 * (t * t * rh * rh)) - (0.000038646 * (t * t * t)) + (0.0000291583 * (rh * rh * rh)) + (0.00000142721 * (t * t * t * rh)) +(0.000000197483 * (t * rh * rh * rh)) - (0.0000000218429 * (t * t * t * rh * rh)) +0.000000000843296 * (t * t * rh * rh * rh)) -(0.0000000000481975 * (t * t * t * rh * rh * rh))) where T is the temperature and RH is the relative humidity
So just create a HeatIndexDisplay element
public class HeatIndexDisplay implements DisplayElement, Observer {
float heatIndex = 0.0f;
private WeatherData weatherData;
public HeatIndexDisplay(WeatherData weatherData) {
this.weatherData = weatherData;
weatherData.registerObserver(this);
}
public void update(float t, float rh, float pressure) {
heatIndex = computeHeatIndex(t, rh);
display();
}

27

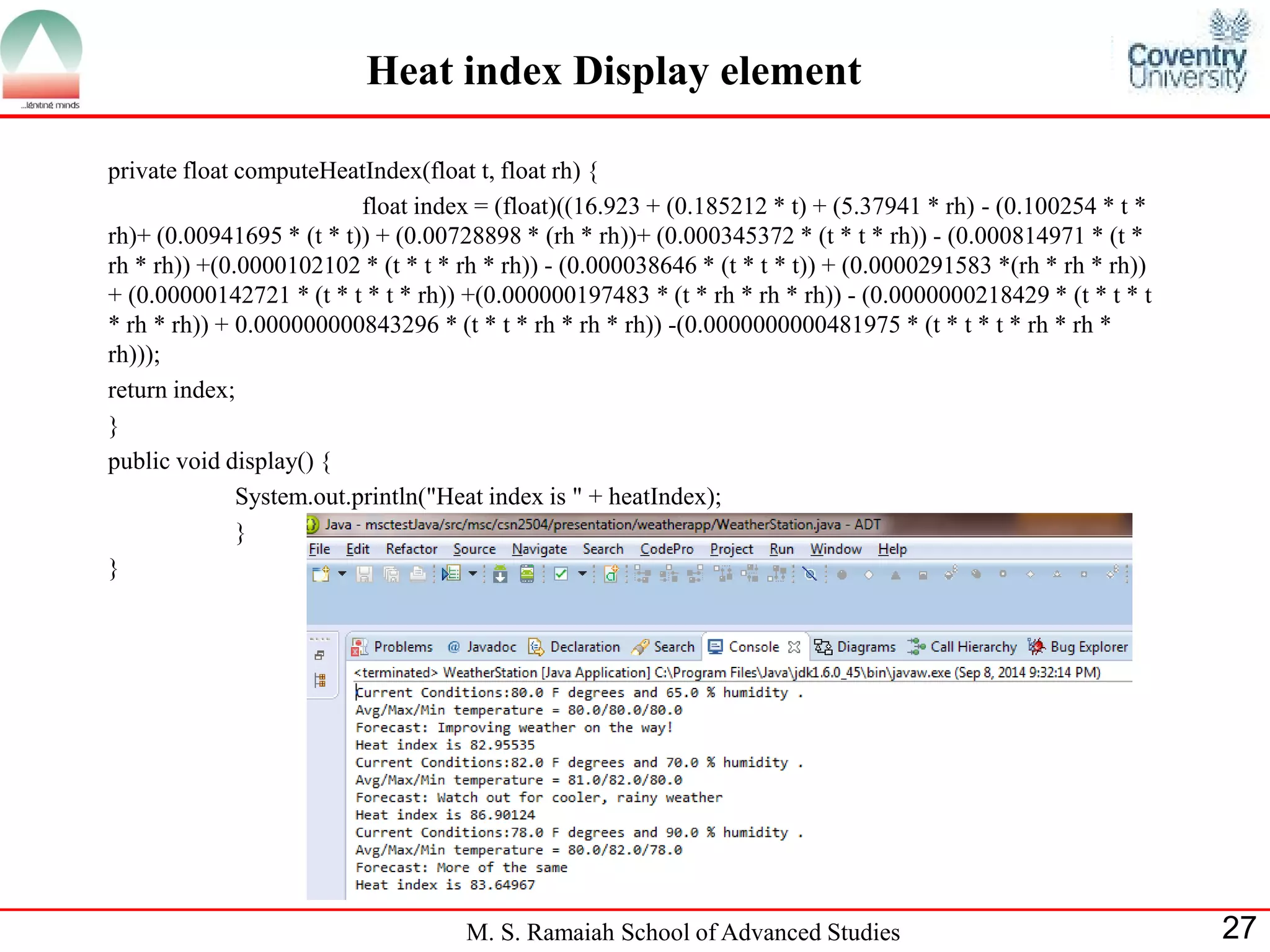

Heat index Display element
private float computeHeatIndex(float t, float rh) {
float index = (float)((16.923 + (0.185212 * t) + (5.37941 * rh) - (0.100254 * t * rh)+ (0.00941695 * (t * t)) + (0.00728898 * (rh * rh))+ (0.000345372 * (t * t * rh)) - (0.000814971 * (t * rh * rh)) +(0.0000102102 * (t * t * rh * rh)) - (0.000038646 * (t * t * t)) + (0.0000291583 *(rh * rh * rh)) + (0.00000142721 * (t * t * t * rh)) +(0.000000197483 * (t * rh * rh * rh)) - (0.0000000218429 * (t * t * t * rh * rh)) + 0.000000000843296 * (t * t * rh * rh * rh)) -(0.0000000000481975 * (t * t * t * rh * rh * rh)));
return index;
}
System.out.println("Heat index is " + heatIndex);
}
}

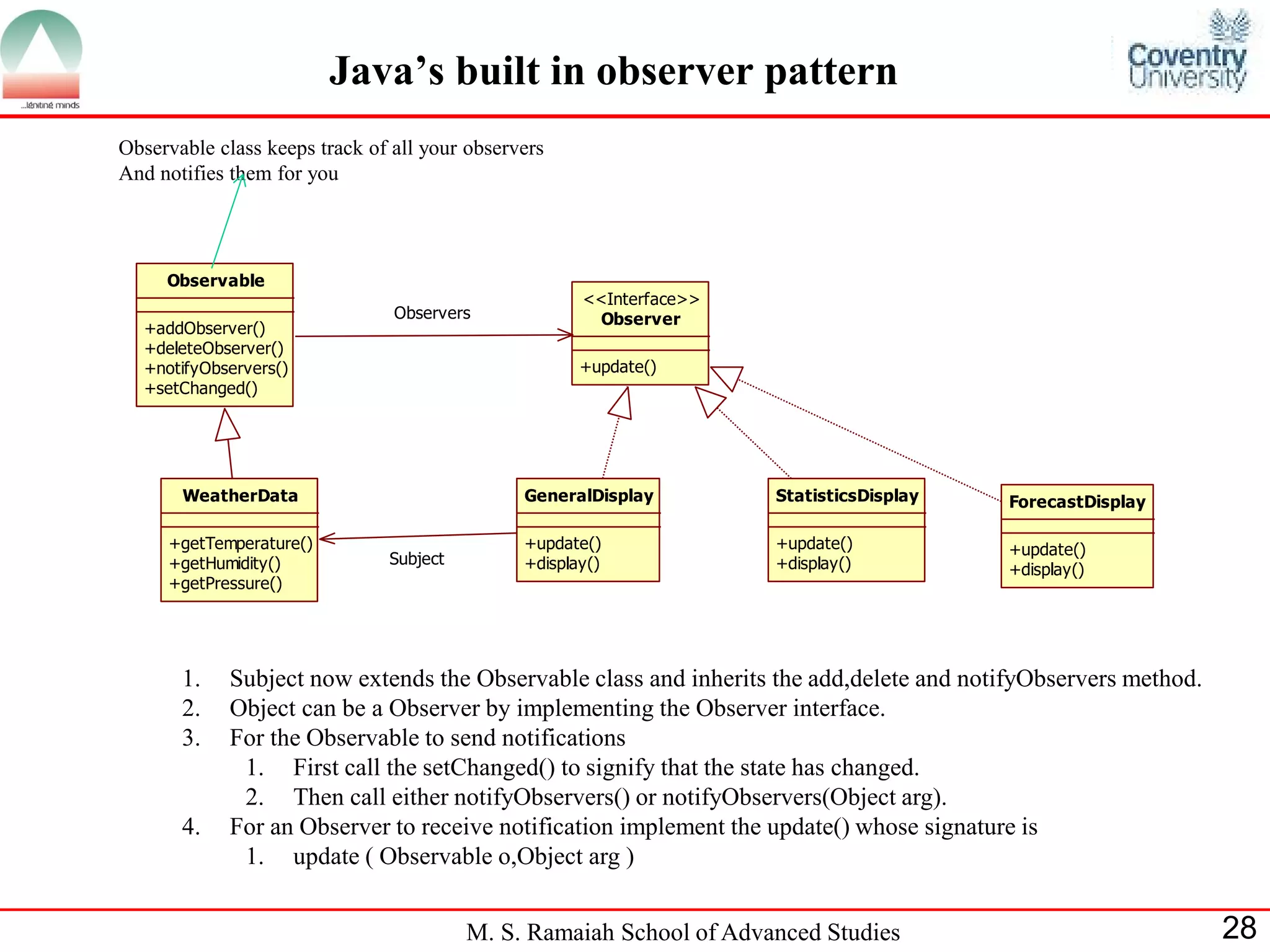

Java’s built in observer pattern
Observable
+addObserver()
+deleteObserver()
+notifyObservers()
+setChanged()
Observer
<<Interface>>
+update()
WeatherData
+getTemperature()
+getHumidity()
+getPressure()
Observers
GeneralDisplay
+update()
+display()
StatisticsDisplay
+update()
+display()
ForecastDisplay
+update()
+display()
Subject
Observable class keeps track of all your observers
And notifies them for you
1. Subject now extends the Observable class and inherits the add,delete and notifyObservers method.
2. Object can be a Observer by implementing the Observer interface.
3. For the Observable to send notifications
1. First call the setChanged() to signify that the state has changed.
2. Then call either notifyObservers() or notifyObservers(Object arg).
4. For an Observer to receive notification implement the update() whose signature is
1. update ( Observable o,Object arg )

29

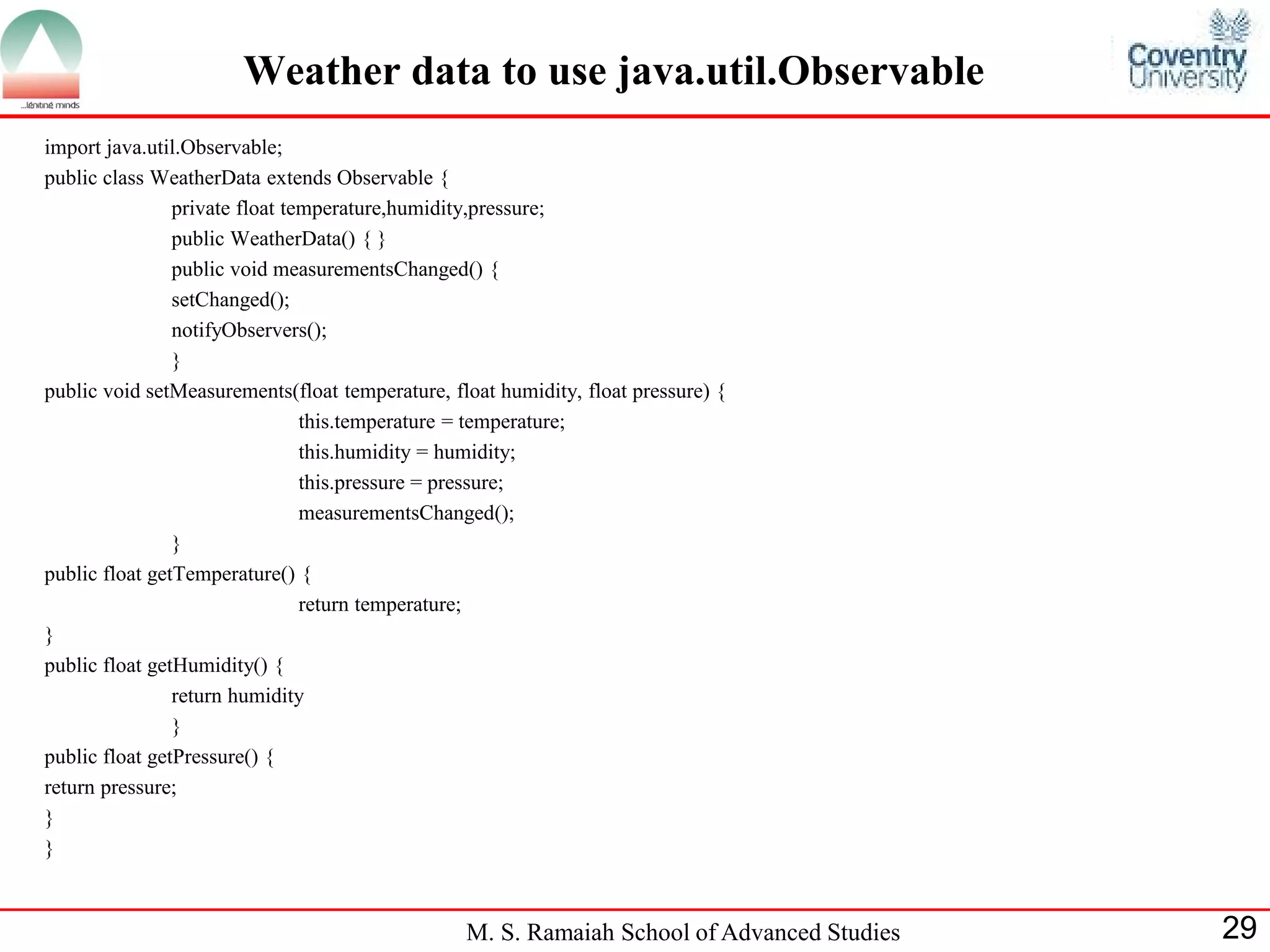

Weather data to use java.util.Observable
import java.util.Observable;
public class WeatherData extends Observable {
private float temperature,humidity,pressure;
public WeatherData() { }
public void measurementsChanged() {
setChanged();
notifyObservers();
}
public void setMeasurements(float temperature, float humidity, float pressure) {
this.temperature = temperature;
this.pressure = pressure;
measurementsChanged();
}
public float getTemperature() {
return temperature;
}
public float getHumidity() {
return humidity
}
public float getPressure() {
return pressure;
}
}

30

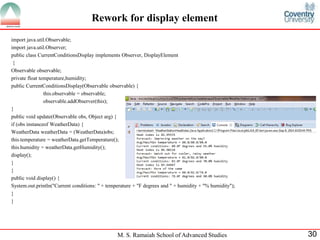

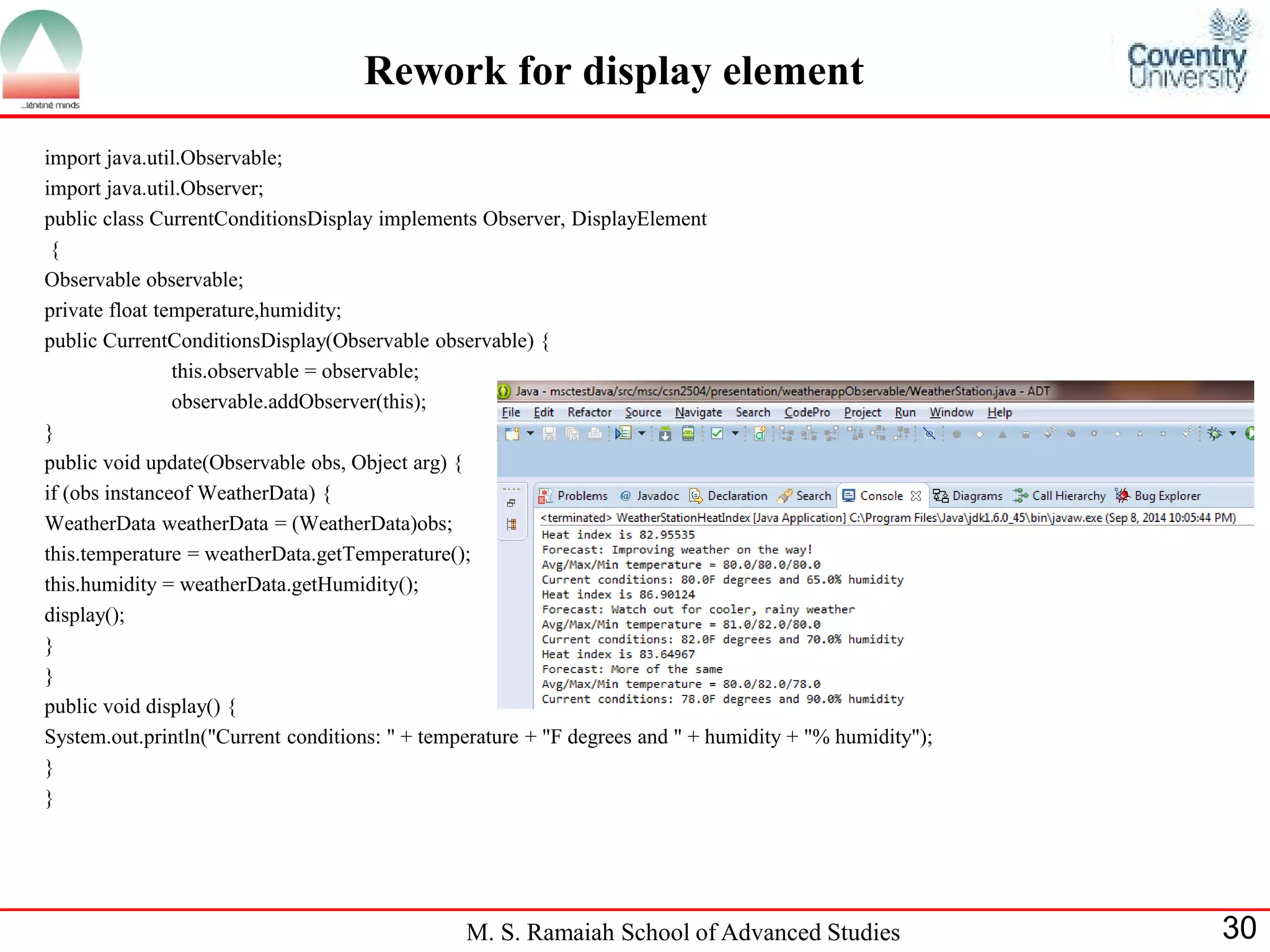

Rework for display element
import java.util.Observable;
import java.util.Observer;
public class CurrentConditionsDisplay implements Observer, DisplayElement
{
Observable observable;
private float temperature,humidity;
public CurrentConditionsDisplay(Observable observable) {
this.observable = observable;
observable.addObserver(this);
}
public void update(Observable obs, Object arg) {
if (obs instanceof WeatherData) {
WeatherData weatherData = (WeatherData)obs;
this.temperature = weatherData.getTemperature();
this.humidity = weatherData.getHumidity();
display();
}
}
System.out.println("Current conditions: " + temperature + "F degrees and " + humidity + "% humidity");
}
}

31

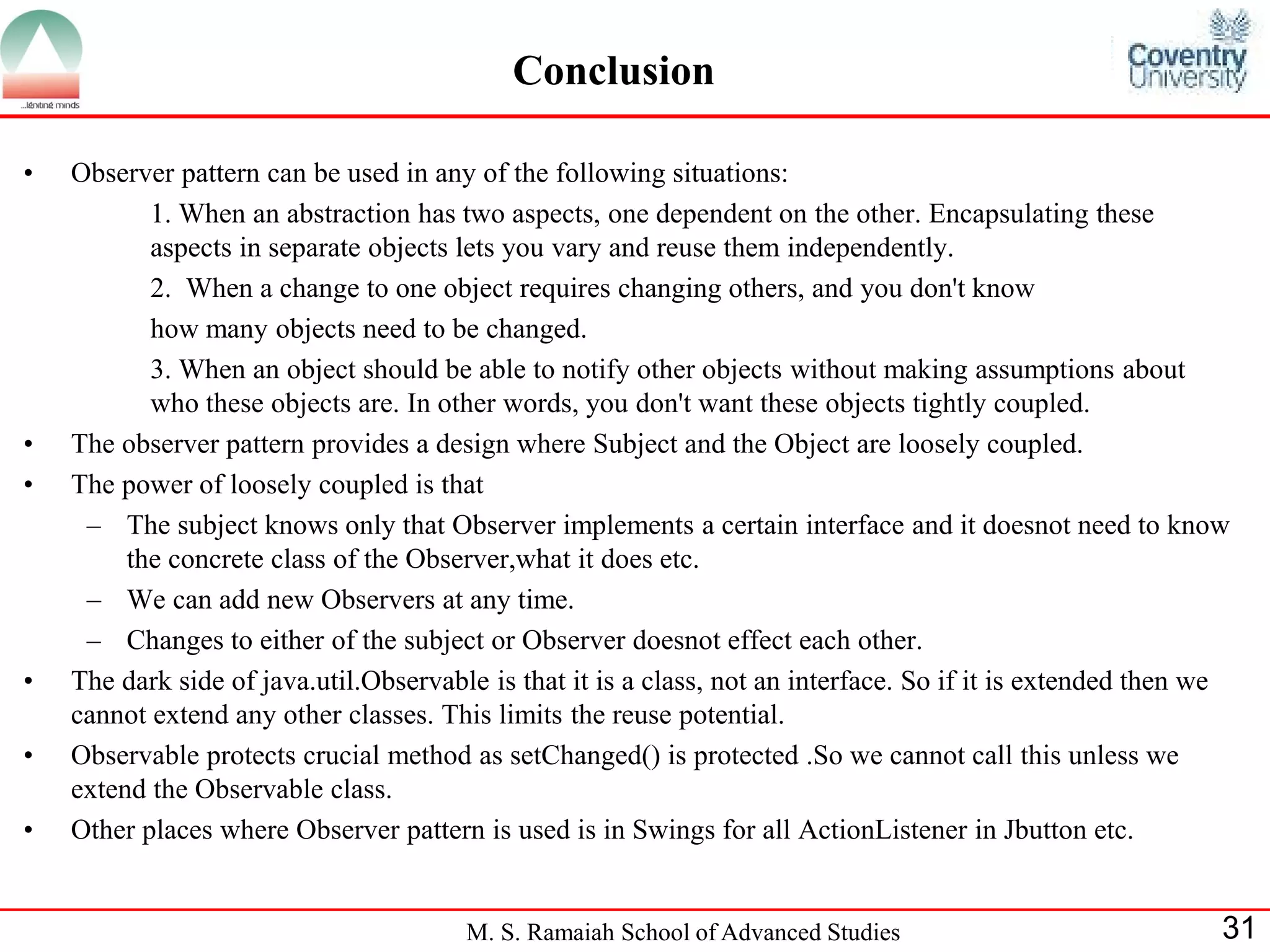

•Observer pattern can be used in any of the following situations:
1. When an abstraction has two aspects, one dependent on the other. Encapsulating these aspects in separate objects lets you vary and reuse them independently.
2. When a change to one object requires changing others, and you don't know
how many objects need to be changed.
3. When an object should be able to notify other objects without making assumptions about who these objects are. In other words, you don't want these objects tightly coupled.
•The observer pattern provides a design where Subject and the Object are loosely coupled.
•The power of loosely coupled is that
–The subject knows only that Observer implements a certain interface and it doesnot need to know the concrete class of the Observer,what it does etc.
–We can add new Observers at any time.
–Changes to either of the subject or Observer doesnot effect each other.
•The dark side of java.util.Observable is that it is a class, not an interface. So if it is extended then we cannot extend any other classes. This limits the reuse potential.
•Observable protects crucial method as setChanged() is protected .So we cannot call this unless we extend the Observable class.
•Other places where Observer pattern is used is in Swings for all ActionListener in Jbutton etc.
Conclusion

32

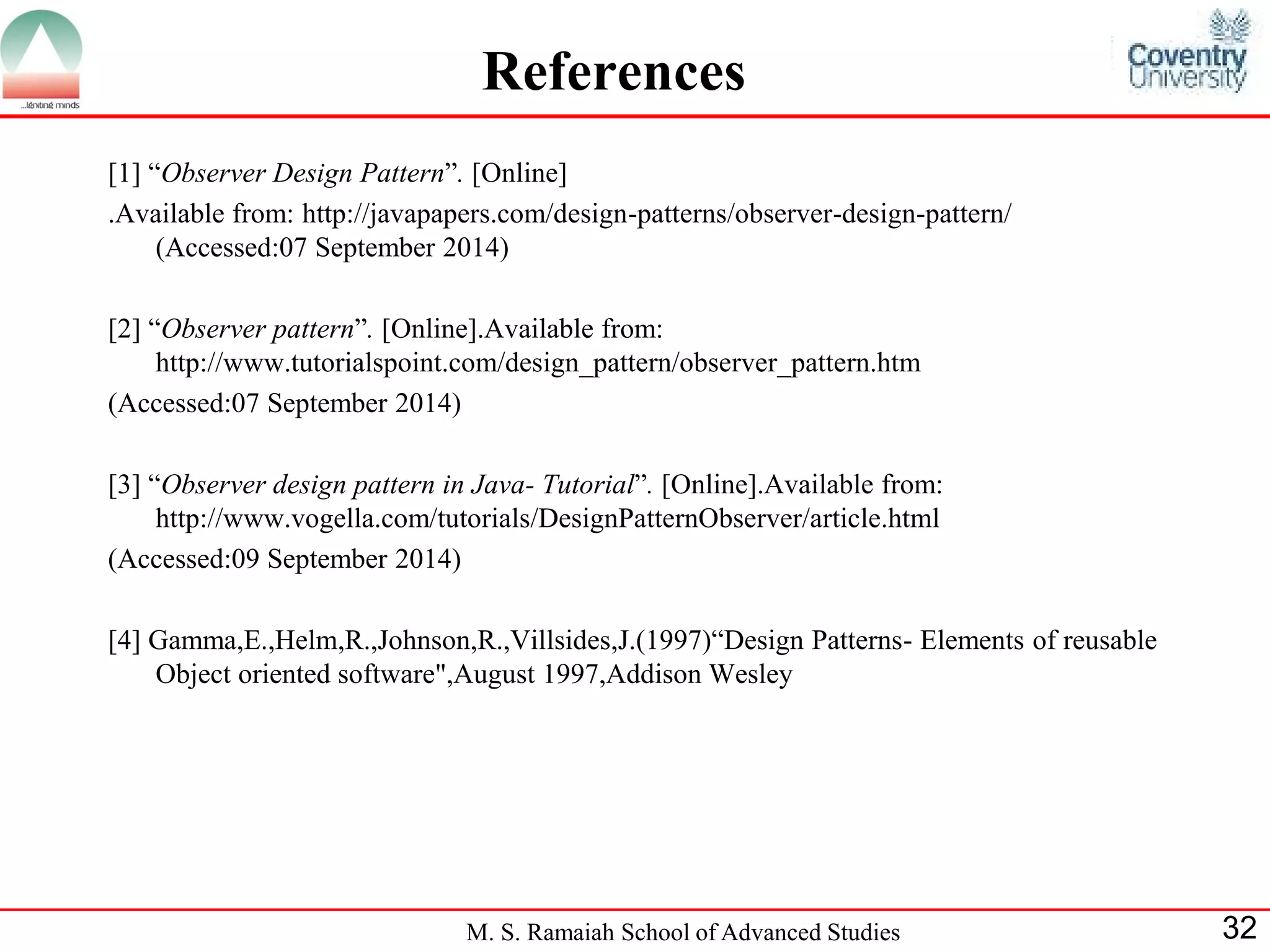

References
[1] “Observer Design Pattern”. [Online]
.Available from: http://javapapers.com/design-patterns/observer-design-pattern/ (Accessed:07 September 2014)
[2] “Observer pattern”. [Online].Available from: http://www.tutorialspoint.com/design_pattern/observer_pattern.htm
(Accessed:07 September 2014)
[3] “Observer design pattern in Java- Tutorial”. [Online].Available from: http://www.vogella.com/tutorials/DesignPatternObserver/article.html
(Accessed:09 September 2014)
[4] Gamma,E.,Helm,R.,Johnson,R.,Villsides,J.(1997)“Design Patterns- Elements of reusable Object oriented software",August 1997,Addison Wesley

Observer Pattern

More Related Content

What's hot

Viewers also liked

Similar to Observer Pattern

More from Anshuman Biswal

Recently uploaded

Observer Pattern
