The document discusses features for adding alarm functionality to the TakeNotes app, including: 1) Associating alarms with to-do items that have a deadline so the user is notified. 2) Implementing date and time pickers to set the alarm in the add note activity. 3) Storing the selected alarm date in the database along with the note. 4) Retrieving the alarm date from the database to notify the user when the deadline arrives.

1. Broadcast receivers
Ilio Catallo, Eleonora Ciceri – Politecnico di Milano
ilio.catallo@polimi.it, eleonora.ciceri@polimi.it

2. TakeNotes v4: features
2
Study Android
Delete an existing note
Listeners
Insert text here
Create a new note
Intents
Store existing notes
Persistence

3. TakeNotes: functionalities we are
adding today
¤ Some to-dos require to perform the associated tasks
before a given deadline
3
Deliver my Mobile
Applications project
Deliver: today

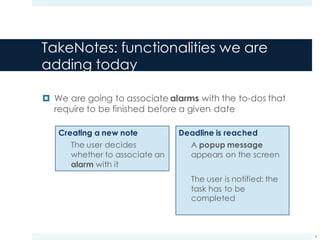

4. TakeNotes: functionalities we are
adding today
¤ We are going to associate alarms with the to-dos that
require to be finished before a given date
4
Creating a new note
The user decides
whether to associate an
alarm with it
Deadline is reached
A popup message
appears on the screen
The user is notified: the
task has to be
completed

5. TakeNotes: add an alarm
5
Insert text here
Add alarm
Set alarm
To do

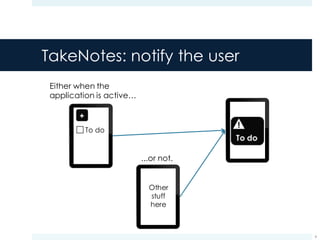

6. TakeNotes: notify the user
6
Either when the
application is active…
To do
...or not.
Other
stuff
here
!

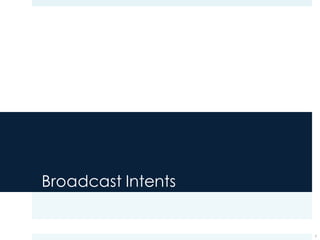

7. Broadcast Intents
7

8. Using Intents to broadcast events
¤ Intents are able to send messages across process
boundaries
¤ You can implement a Broadcast Receiver to listen for
(and respond to) these broadcast messages
8
Application 1
Application 2
System
My application

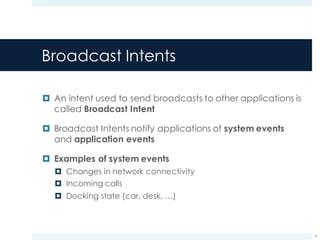

9. Broadcast Intents
¤ An intent used to send broadcasts to other applications is
called Broadcast Intent
¤ Broadcast Intents notify applications of system events
and application events
¤ Examples of system events
¤ Changes in network connectivity
¤ Incoming calls
¤ Docking state (car, desk, …)
9

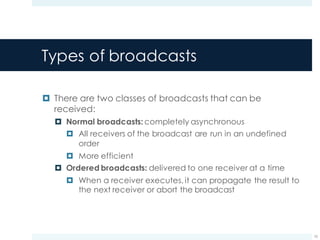

10. Types of broadcasts
¤ There are two classes of broadcasts that can be
received:
¤ Normal broadcasts: completely asynchronous
¤ All receivers of the broadcast are run in an undefined
order
¤ More efficient
¤ Ordered broadcasts: delivered to one receiver at a time
¤ When a receiver executes, it can propagate the result to
the next receiver or abort the broadcast
10

11. Normal broadcasts
¤ The method Context.sendBroadcast(Intent)
broadcasts the given intent to all interested receivers
¤ Asynchronous call
¤ It returns immediately
11
Execution flow
Send broadcast

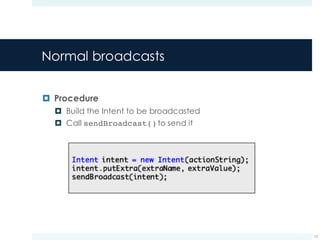

12. Normal broadcasts
¤ Procedure
¤ Build the Intent to be broadcasted
¤ Call sendBroadcast()to send it
12

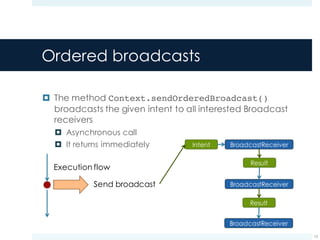

13. Ordered broadcasts
¤ The method Context.sendOrderedBroadcast()
broadcasts the given intent to all interested Broadcast
receivers
¤ Asynchronous call
¤ It returns immediately
13
Execution flow
Send broadcast

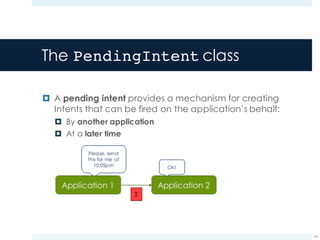

14. The PendingIntent class
¤ A pending intent provides a mechanism for creating
Intents that can be fired on the application’s behalf:
¤ By another application
¤ At a later time
14
I

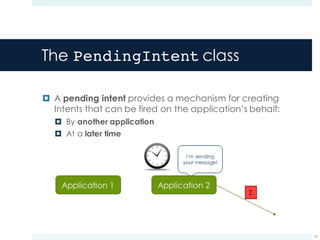

15. The PendingIntent class
¤ A pending intent provides a mechanism for creating
Intents that can be fired on the application’s behalf:
¤ By another application
¤ At a later time
15
I

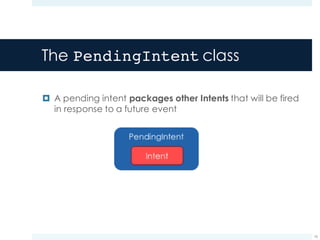

16. The PendingIntent class
¤ A pending intent packages other Intents that will be fired
in response to a future event
16

17. Pending intent: start an Activity
¤ A pending intent can start an Activity
17
If the pending intent already exists,
update it with the new content

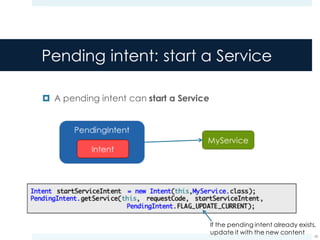

18. Pending intent: start a Service
¤ A pending intent can start a Service
18
If the pending intent already exists,
update it with the new content

19. Pending intent: broadcast an Intent
¤ A pending intent can broadcast an Intent
19
If the pending intent already exists,
update it with the new content

20. Broadcast receivers
20

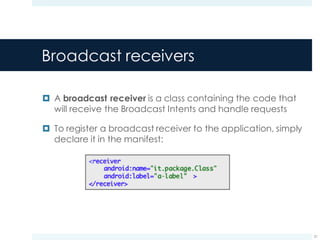

21. Broadcast receivers
¤ A broadcast receiver is a class containing the code that
will receive the Broadcast Intents and handle requests
¤ To register a broadcast receiver to the application, simply
declare it in the manifest:
21

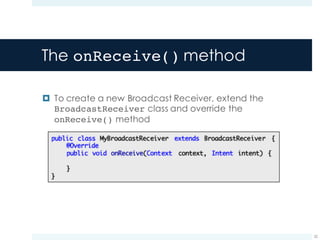

22. The onReceive() method
¤ To create a new Broadcast Receiver, extend the
BroadcastReceiver class and override the
onReceive() method
22

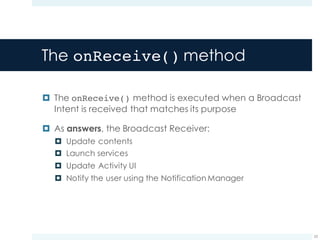

23. The onReceive() method
¤ The onReceive() method is executed when a Broadcast
Intent is received that matches its purpose
¤ As answers, the Broadcast Receiver:
¤ Update contents
¤ Launch services
¤ Update Activity UI
¤ Notify the user using the Notification Manager
23

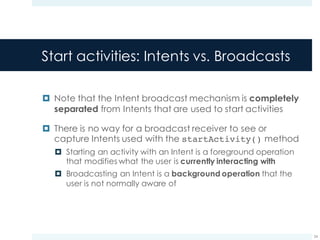

24. Start activities: Intents vs. Broadcasts
¤ Note that the Intent broadcast mechanism is completely
separated from Intents that are used to start activities
¤ There is no way for a broadcast receiver to see or
capture Intents used with the startActivity() method
¤ Starting an activity with an Intent is a foreground operation
that modifies what the user is currently interacting with
¤ Broadcasting an Intent is a background operation that the
user is not normally aware of
24

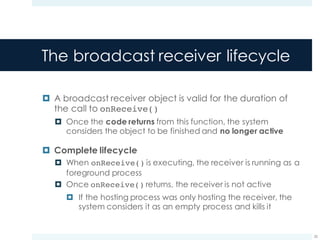

25. The broadcast receiver lifecycle
¤ A broadcast receiver object is valid for the duration of
the call to onReceive()
¤ Once the code returns from this function, the system
considers the object to be finished and no longer active
¤ Complete lifecycle
¤ When onReceive() is executing, the receiver is running as a
foreground process
¤ Once onReceive() returns, the receiver is not active
¤ If the hosting process was only hosting the receiver, the
system considers it as an empty process and kills it
25

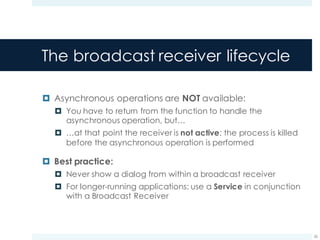

26. The broadcast receiver lifecycle
¤ Asynchronous operations are NOT available:
¤ You have to return from the function to handle the
asynchronous operation, but…
¤ …at that point the receiver is not active: the process is killed
before the asynchronous operation is performed
¤ Best practice:
¤ Never show a dialog from within a broadcast receiver
¤ For longer-running applications: use a Service in conjunction
with a Broadcast Receiver
26

27. Delaying actions
27

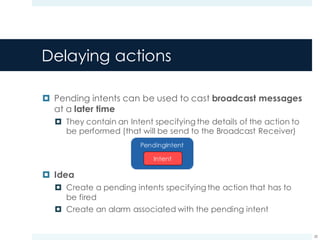

28. Delaying actions
¤ Pending intents can be used to cast broadcast messages
at a later time
¤ They contain an Intent specifying the details of the action to
be performed (that will be send to the Broadcast Receiver)
¤ Idea
¤ Create a pending intents specifying the action that has to
be fired
¤ Create an alarm associated with the pending intent
28

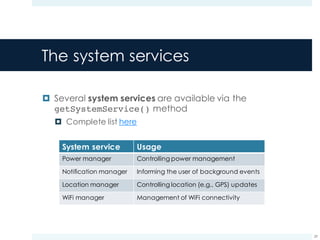

29. The system services
¤ Several system services are available via the
getSystemService() method
¤ Complete list here
29
System service Usage
Power manager Controlling power management
Notification manager Informing the user of background events
Location manager Controlling location (e.g., GPS) updates
WiFi manager Management of WiFi connectivity

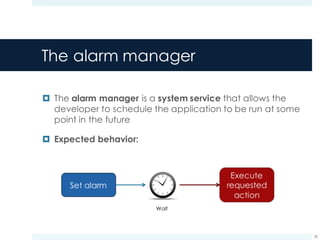

30. The alarm manager
¤ The alarm manager is a system service that allows the
developer to schedule the application to be run at some
point in the future
¤ Expected behavior:
30
Wait

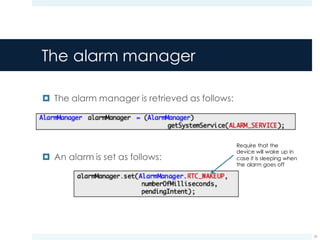

31. The alarm manager
¤ The alarm manager is retrieved as follows:
¤ An alarm is set as follows:
31
Require that the
device will wake up in
case it is sleeping when
the alarm goes off

32. Delaying actions
32
ü Define the action
ü Include extras (e.g.,
messages)

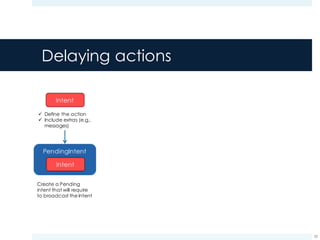

33. Delaying actions
33
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent

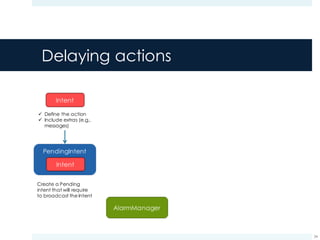

34. Delaying actions
34
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent

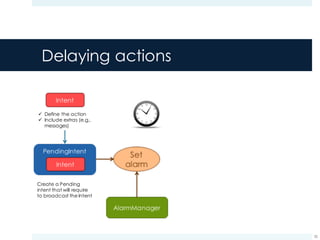

35. Delaying actions
35
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent

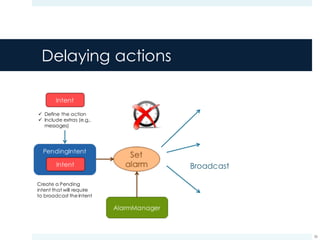

36. Delaying actions
36
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent
Broadcast

37. Delaying actions
37
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent
The broadcast receiver
that was meant to receive
the intent captures the
message

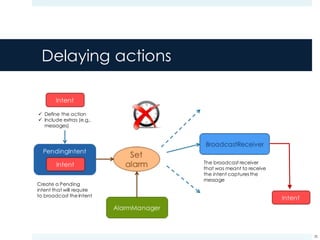

38. Delaying actions
38
ü Define the action
ü Include extras (e.g.,
messages)
Create a Pending
intent that will require
to broadcast the Intent
The broadcast receiver
that was meant to receive
the intent captures the
message

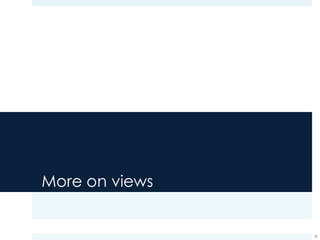

39. More on views
39

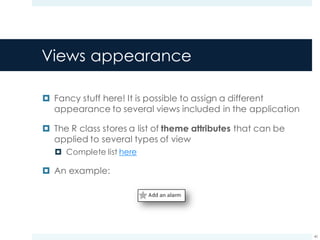

40. Views appearance
¤ Fancy stuff here! It is possible to assign a different
appearance to several views included in the application
¤ The R class stores a list of theme attributes that can be
applied to several types of view
¤ Complete list here
¤ An example:
40

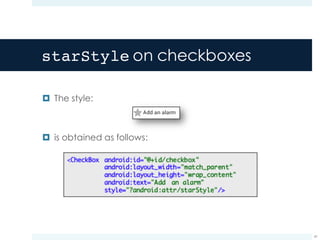

41. starStyle on checkboxes
¤ The style:
¤ is obtained as follows:
41

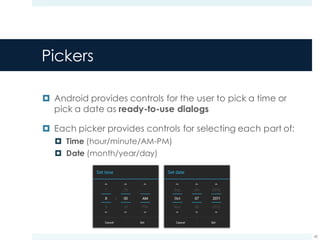

42. Pickers
¤ Android provides controls for the user to pick a time or
pick a date as ready-to-use dialogs
¤ Each picker provides controls for selecting each part of:
¤ Time (hour/minute/AM-PM)
¤ Date (month/year/day)
42

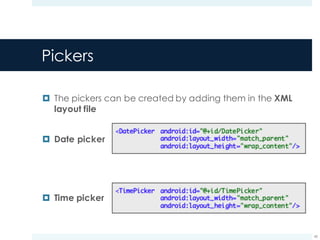

43. Pickers
¤ The pickers can be created by adding them in the XML
layout file
¤ Date picker
¤ Time picker
43

44. TakeNotes v5
Adding alarms and displaying them
44

45. Prepare the setting: the pickers
¤ In the layout file of AddToDoActivity we add two pickers:
45

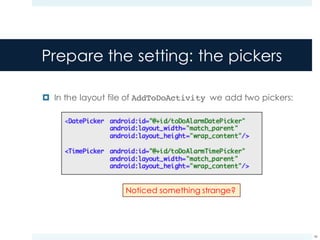

46. Prepare the setting: the pickers
¤ In the layout file of AddToDoActivity we add two pickers:
46
Noticed something strange?

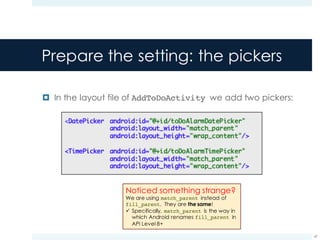

47. Prepare the setting: the pickers
¤ In the layout file of AddToDoActivity we add two pickers:
47
Noticed something strange?
We are using match_parent instead of
fill_parent. They are the same!
ü Specifically, match_parent is the way in
which Android renames fill_parent in
API Level 8+

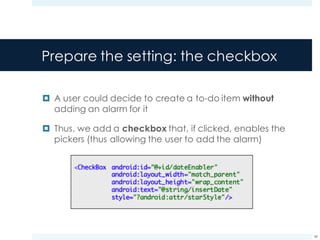

48. Prepare the setting: the checkbox
¤ A user could decide to create a to-do item without
adding an alarm for it
¤ Thus, we add a checkbox that, if clicked, enables the
pickers (thus allowing the user to add the alarm)
48

49. A new version for the TakeNotes
database
¤ In the new TakeNotes version, the date is stored in the
database together with the to-do message
¤ The database handler is thus modified, adding new fields
to the to-do table:
49

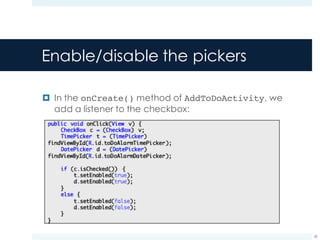

50. Enable/disable the pickers
¤ In the onCreate() method of AddToDoActivity, we
add a listener to the checkbox:
50

51. Save the alarm date

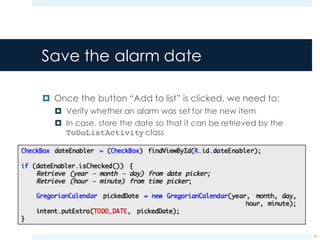

¤ Once the button “Add to list” is clicked, we need to:
¤ Verify whether an alarm was set for the new item
¤ In case, store the date so that it can be retrieved by the
ToDoListActivity class
51

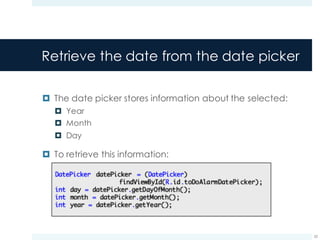

52. Retrieve the date from the date picker
¤ The date picker stores information about the selected:
¤ Year
¤ Month
¤ Day
¤ To retrieve this information:
52

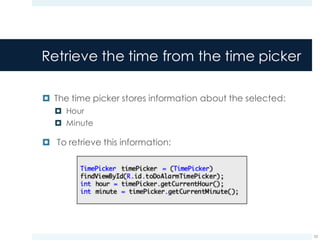

53. Retrieve the time from the time picker
¤ The time picker stores information about the selected:
¤ Hour
¤ Minute
¤ To retrieve this information:
53

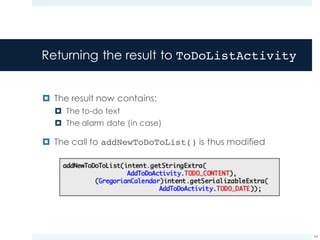

54. Returning the result to ToDoListActivity
¤ The result now contains:
¤ The to-do text
¤ The alarm date (in case)
¤ The call to addNewToDoToList() is thus modified
54

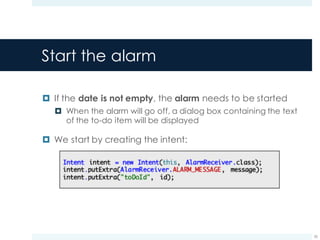

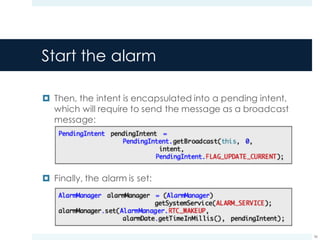

55. Start the alarm
¤ If the date is not empty, the alarm needs to be started
¤ When the alarm will go off, a dialog box containing the text
of the to-do item will be displayed
¤ We start by creating the intent:
55

56. Start the alarm
¤ Then, the intent is encapsulated into a pending intent,
which will require to send the message as a broadcast
message:
¤ Finally, the alarm is set:
56

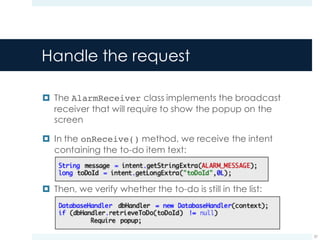

57. Handle the request
¤ The AlarmReceiver class implements the broadcast
receiver that will require to show the popup on the
screen
¤ In the onReceive() method, we receive the intent
containing the to-do item text:
¤ Then, we verify whether the to-do is still in the list:
57

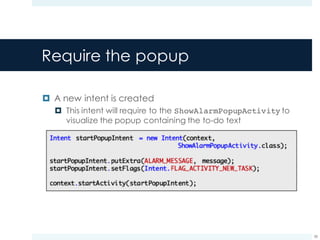

58. Require the popup
¤ A new intent is created
¤ This intent will require to the ShowAlarmPopupActivity to
visualize the popup containing the to-do text
58

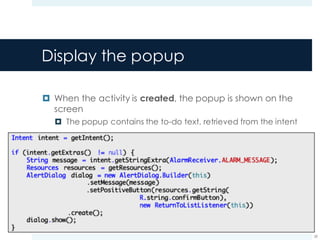

59. Display the popup
¤ When the activity is created, the popup is shown on the
screen
¤ The popup contains the to-do text, retrieved from the intent
59

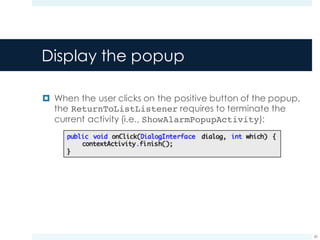

60. Display the popup
¤ When the user clicks on the positive button of the popup,
the ReturnToListListener requires to terminate the
current activity (i.e., ShowAlarmPopupActivity):
60

61. References
61

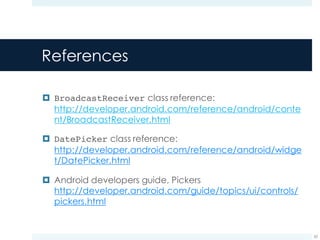

62. References
¤ BroadcastReceiver class reference:
http://developer.android.com/reference/android/conte
nt/BroadcastReceiver.html
¤ DatePicker class reference:
http://developer.android.com/reference/android/widge
t/DatePicker.html
¤ Android developers guide, Pickers
http://developer.android.com/guide/topics/ui/controls/
pickers.html
62
