Nomex is a synthetic aromatic polyamide fiber created by DuPont in the 1960s. It is heat and flame resistant and will not melt or burn. Nomex is used in protective clothing for firefighters, race car drivers, and military personnel. It has excellent chemical resistance, temperature resistance, and strength. However, it is not biodegradable and can cause lung damage or eye irritation if mishandled.

1. ID-
191-090-801
191-091-801
191-093-801
191-097-801
191-098-801
Group-08
Section- TE-02

2.  Nomex is an inherently flame-resistant, high-temperature resistant fiber that will not
melt, drip, or support combustion in air. Nomex is a one kind of high-performance fiber.
 Nomex is the brand name of a heat and flame resistant textile made by the DuPont
Chemical Company.
Fiber type: Synthetic fiber
Source: Aramid
Characteristics: Chemical resistant, Electrical resistant, Fire resistant
Typically used in: Glove, Trousers, Shoe, Shirt, Hood, Balaclava
Parent company: DuPont

3.  Nomex was first created back in the early 1960s but would be marketed in 1967. Dr. Wilfred
Sweeney created it in the now world-renowned DuPont laboratory. Nomex’s technical name
is ‘Synthetic Aromatic Polyamide Polymer’.
 In early 1966 Competition Press and Auto week reported: "During the past season, experimental
driving suits were worn by Walt Hansgen, Masten Gregory, Marvin Panch and Group 44's Bob Tullius.

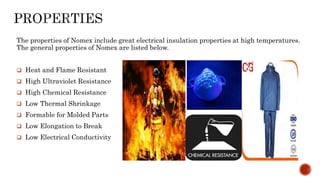

4. The properties of Nomex include great electrical insulation properties at high temperatures.
The general properties of Nomex are listed below.
 Heat and Flame Resistant
 High Ultraviolet Resistance
 High Chemical Resistance
 Low Thermal Shrinkage
 Formable for Molded Parts
 Low Elongation to Break
 Low Electrical Conductivity

5. Here is a list of Nomex fabric types
 Type 430 Nomex
 Type 450 Nomex
 Type 455 Nomex (Nomex III)
 Type 462 Nomex (Nomex IIIA)
 Type N101 and N102 filament yarn
 Type N104 dyeable filament yarn
 Type N300
 Proterra
 Nomex MHP

6.  The chemical name of Nomex is poly (m-phenylenediamine isophthalamide), which is
produced from the reaction of m-phenylenediamine and isophthaloyl chloride whose
structures are shown below :

7. Nomex Fiber Under the Microscope Cross sectional view of Nomex Fiber

8.  Abrasion
 Chemical resistance
 Acid resistance
 Temperature resistance
 Vapors
 UV light
 Radiation

9. Because of Nomex's excellent physical and thermal properties, Nomex fiber is used in a
wide variety of applications.
 Firefighters
 Race Car Drivers
 Electric Conductive Suit
 Aerospace Application
 Military use
 Industrial Applications

10. As well as the advantages of Nomex, it also has some disadvantage-
 Non-biodegradable
 Harmful in contact with skin
 Cause lung damage
 Eye irritant
 Difficult to cut and grind
 More expensive
