Power quality is certainly a major concern in the present era. This paper proposes a flexible D-STATCOM with a new controller scheme. And it supplies power to sensitive loads under Islanding conditions. This paper introduces the performance of FD-STATCOM system to mitigate power quality problems under all types of system related disturbances such as L-L &DLG faults. A 12 pulse IGBT based D-STATCOM is designed using MATLAB. Here the super capacitor is used as the storage device. The realibility of the control scheme in the system response to the voltage disturbances caused by LL&DLG faults and Islanded operating conditions are obviously proved in the simulation results.
International Journal of Engineering Research and Development is an international premier peer reviewed open access engineering and technology journal promoting the discovery, innovation, advancement and dissemination of basic and transitional knowledge in engineering, technology and related disciplines.
We follow "Rigorous Publication" model - means that all articles appear on IJERD after full appraisal, effectiveness, legitimacy and reliability of research content. International Journal of Engineering Research and Development publishes papers online as well as provide hard copy of Journal to authors after publication of paper. It is intended to serve as a forum for researchers, practitioners and developers to exchange ideas and results for the advancement of Engineering & Technology.
International Journal of Engineering Research and Development is an international premier peer reviewed open access engineering and technology journal promoting the discovery, innovation, advancement and dissemination of basic and transitional knowledge in engineering, technology and related disciplines.
We follow "Rigorous Publication" model - means that all articles appear on IJERD after full appraisal, effectiveness, legitimacy and reliability of research content. International Journal of Engineering Research and Development publishes papers online as well as provide hard copy of Journal to authors after publication of paper. It is intended to serve as a forum for researchers, practitioners and developers to exchange ideas and results for the advancement of Engineering & Technology.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Performance Comparison of VSI Based DSTATCOM and ZSI Based DSTATCOM in A Dist...ruban8
Performance Comparison of VSI Based DSTATCOM and ZSI Based DSTATCOM in A Distribution System Network---D-STATCOM (Distribution Static Compensator) is a shunt device which is generally used to improve power quality of distribution systems. It is a device applied for correcting power factor, maintaining constant distribution voltage and mitigating current harmonics in a distribution network. In this paper, effort has been made to use ZSI based D-STATCOM in distribution system and its performance has been compared to VSI based DSTATCOM. The MATLAB/SIMULINK models have been developed to draw the conclusions.
http://www.iosrjournals.org/iosr-jeee/Papers/Vol9-issue6/Version-3/E09633035.pdf
Grid Interconnection of Renewable Energy Sources at the Distribution Level Wi...Pradeep Avanigadda
Renewable energy resources (RES) are being increasingly connected in distribution systems utilizing power electronic converters.
This project presents a novel control strategy for achieving maximum benefits from these grid-interfacing inverters when installed in 3-phase 4-wire distribution systems.
The inverter can thus be utilized as:
1) power converter to inject power generated from RES to the grid &
2) shunt APF to compensate current unbalance, load current harmonics, load reactive power demand and load neutral current.
A Voltage Controlled Dstatcom for Power Quality Improvementiosrjce
Due to increasing complexity in the power system, voltage sag is becoming one of the most significant
power quality problems. Voltage sag is a short reduction voltage from nominal voltage, occurs in a short time.
If the voltage sags exceed two to three cycles, then manufacturing systems making use of sensitive electronic
equipments are likely to be affected leading to major problems. It ultimately leads to wastage of resources (both
material and human) as well as financial losses. This is possible only by ensuring that uninterrupted flow of
power is maintained at proper voltage levels. This project tends look at the solving the sag problems by using
custom power devices such as Distribution Static compensator (D-STATCOM).Proposed scheme follows a new
algorithm to generate reference voltage for a distribution static compensator (DSTATCOM) operating in
voltage-control mode. The proposed scheme ensures that unity power factor (UPF) is achieved at the load
terminal during nominal operation, which is not possible in the traditional method. Also, the compensator
injects lower currents therefore, reduces losses in the feeder and voltage-source inverter. Further, a saving in
the rating of DSTATCOM is achieved which increases its capacity to mitigate voltage sag. Nearly UPF is
maintained, while regulating voltage at the load terminal, during load change. The state-space model of
DSTATCOM is incorporated with the deadbeat predictive controller for fast load voltage regulation during
voltage disturbances. With these features, this scheme allows DSTATCOM to tackle power-quality issues by
providing power factor correction, harmonic elimination, load balancing, and voltage regulation based on the
load requirement.
Simulation and Analysis of a D-STATCOM for Load Compensation and Power Facto...IJMER
Power Generation and Transmission is a complex process, requiring the working of many
components of the power system in tandem to maximize the output. One of the main components to form
a major part is the reactive power in the system. It is required to maintain the voltage to deliver the
active power through the lines. Loads like motor loads and other loads require reactive power for their
operation. To improve the performance of ac power systems, we need to manage this reactive power in
an efficient way and this is known as reactive power compensation. In developing countries like India,
where the variation of power frequency and many such other determinants of power quality are
themselves a serious question, it is very vital to take positive steps in this direction.
The work presented here illustrates a method to compensate for the load reactive power using a
DSTATCOM
A DSTATCOM injects a current into the system to provide for the reactive component of the load
current. The validity of proposed method and achievement of desired compensation are confirmed by
the results of the simulation in MATLAB/ Simulink.
SRF CONTROLLED DVR FOR COMPENSATION OF BALANCED AND UNBALANCED VOLTAGE DISTUR...IAEME Publication
The growth of power electronictechnology in the field of electric power sector has caused a greater awarenesson the power quality of distribution systems. With the re-structuring of powersystems and with shifting trend towards distributed and dispersed generation,the issue of power quality is going to take newer dimensions. The presentresearch is to identify the prominent concerns in this area and hence themeasures that can enhance the quality of power. This paper investigates theproblems of voltage sag, swell and its severe impact on nonlinear loads,sensitive loads.
Analysis of power quality improvement in grid connected wind driven induction...eSAT Journals
Abstract As a promising renewable alternative, the wind power is one of the significant sources of generation. Reactive power compensation and harmonic reduction in a low voltage distribution networks for integration of wind power to the grid are the main issues addressed in this paper. This paper proposes a control scheme based on instaneous Pq theory for compensating the reactive power requirement of a three phase grid connected wind driven induction generator as well as the harmonics produced by the non linear load connected to the PCC using STATCOM. The proposed control scheme is simulated using MATLAB/SIMULINK. The Simulation results are presented in this paper. Keywords- wind power, distribution network, induction generator, STATCOM, reactive power.
International Journal of Engineering Research and DevelopmentIJERD Editor
Electrical, Electronics and Computer Engineering,
Information Engineering and Technology,
Mechanical, Industrial and Manufacturing Engineering,
Automation and Mechatronics Engineering,
Material and Chemical Engineering,
Civil and Architecture Engineering,
Biotechnology and Bio Engineering,
Environmental Engineering,
Petroleum and Mining Engineering,
Marine and Agriculture engineering,
Aerospace Engineering.
Optimization Technique for Power Quality Improvement using DSTATCOM Neural Ne...ijtsrd
As the power demand has been increasing rapidly, power generation and transmission are being affected due to limited resources, environmental restrictions and other losses. soft computing the techniques of correcting the supply voltage sag, swell and interruption in a distributed system. At present, a wide range of very flexible controllers, which capitalize on newly available power electronics components, are emerging for custom power applications. Power electronic based equipment aimed at enhancing the reliability and quality of power flows in low voltage distribution networks. A control algorithm is used for the extraction of the fundamental weighted value of active and reactive power components. Using digital signal processor the DSTATCOM is developed and its performance of DSTATCOM is found to be satisfactory for various types of loads. Hareram Mishra | Manju Gupta | Dr. Anuprita Mishra "Optimization Technique for Power Quality Improvement using DSTATCOM (Neural Network Approach) – A Review" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-5 | Issue-5 , August 2021, URL: https://www.ijtsrd.com/papers/ijtsrd45219.pdf Paper URL: https://www.ijtsrd.com/engineering/other/45219/optimization-technique-for-power-quality-improvement-using-dstatcom-neural-network-approach- – -a-review/hareram-mishra
1.compensation of reactive power using d statcom in grid interfaced pv systemEditorJST
This paper displays the upgrade of voltage droops, Harmonic mutilation and low power figure utilizing Distribution Static Compensator (D-STATCOM) with LCL Passive Filter in Distribution Framework. At whatever point there is an entrance of photovoltaic cell energy to the low voltage appropriated matrix, there happen the issue of confuse in voltage and recurrence in the system, maybe brought on by non-direct loads, creating music. The model depends on the Voltage Source Converter (VSC) guideline. The D-STATCOM infuses a current into the framework to alleviate the voltage lists. LCL Passive Filter Was then added to D-STATCOM to enhance symphonies bending and low power figure. The reproductions were performed utilizing MATLAB SIMULINK.
Power Quality Improvement of Grid Interconnection of renewable Energy Based D...IJERA Editor
This paper presents a grid interfacing inverter which compensates power quality problems and also interface Renewable Energy Sources with the help of electric grid. Renewable Energy Sources are being increasingly connected in distribution system utilizing power electronic converters. Grid interfacing inverter can be used: 1) To improve the transfer of active power harvested from RES; 2) To meet load reactive power demand support ; 3) To reduce current harmonics by incorporating the current harmonic compensator at point of common coupling(PCC) ; 4) current unbalance and neutral current compensation in case of 3-phase 4-wire system. The fuzzy logic can be used in many applications especially, when the process/models are complex to analyse by using classical methods. Mainly fuzzy logic controller is used to control DC capacitor voltage. Simulations are carried out using MATLAB/SIMULINK to verify the performance of the controller. The output shows the controller has fast dynamic response high accuracy of tracking DC voltage reference and robust to load parameters variations.
International Journal of Engineering Research and Development is an international premier peer reviewed open access engineering and technology journal promoting the discovery, innovation, advancement and dissemination of basic and transitional knowledge in engineering, technology and related disciplines.
We follow "Rigorous Publication" model - means that all articles appear on IJERD after full appraisal, effectiveness, legitimacy and reliability of research content. International Journal of Engineering Research and Development publishes papers online as well as provide hard copy of Journal to authors after publication of paper. It is intended to serve as a forum for researchers, practitioners and developers to exchange ideas and results for the advancement of Engineering & Technology.
Mitigation of Fault in the Distribution System by using Flexible Distributed ...IJMER
International Journal of Modern Engineering Research (IJMER) is Peer reviewed, online Journal. It serves as an international archival forum of scholarly research related to engineering and science education.
International Journal of Modern Engineering Research (IJMER) covers all the fields of engineering and science: Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Computer Engineering, Agricultural Engineering, Aerospace Engineering, Thermodynamics, Structural Engineering, Control Engineering, Robotics, Mechatronics, Fluid Mechanics, Nanotechnology, Simulators, Web-based Learning, Remote Laboratories, Engineering Design Methods, Education Research, Students' Satisfaction and Motivation, Global Projects, and Assessment…. And many more.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Performance Comparison of VSI Based DSTATCOM and ZSI Based DSTATCOM in A Dist...ruban8
Performance Comparison of VSI Based DSTATCOM and ZSI Based DSTATCOM in A Distribution System Network---D-STATCOM (Distribution Static Compensator) is a shunt device which is generally used to improve power quality of distribution systems. It is a device applied for correcting power factor, maintaining constant distribution voltage and mitigating current harmonics in a distribution network. In this paper, effort has been made to use ZSI based D-STATCOM in distribution system and its performance has been compared to VSI based DSTATCOM. The MATLAB/SIMULINK models have been developed to draw the conclusions.
http://www.iosrjournals.org/iosr-jeee/Papers/Vol9-issue6/Version-3/E09633035.pdf
Grid Interconnection of Renewable Energy Sources at the Distribution Level Wi...Pradeep Avanigadda
Renewable energy resources (RES) are being increasingly connected in distribution systems utilizing power electronic converters.
This project presents a novel control strategy for achieving maximum benefits from these grid-interfacing inverters when installed in 3-phase 4-wire distribution systems.
The inverter can thus be utilized as:
1) power converter to inject power generated from RES to the grid &
2) shunt APF to compensate current unbalance, load current harmonics, load reactive power demand and load neutral current.
A Voltage Controlled Dstatcom for Power Quality Improvementiosrjce
Due to increasing complexity in the power system, voltage sag is becoming one of the most significant
power quality problems. Voltage sag is a short reduction voltage from nominal voltage, occurs in a short time.
If the voltage sags exceed two to three cycles, then manufacturing systems making use of sensitive electronic
equipments are likely to be affected leading to major problems. It ultimately leads to wastage of resources (both
material and human) as well as financial losses. This is possible only by ensuring that uninterrupted flow of
power is maintained at proper voltage levels. This project tends look at the solving the sag problems by using
custom power devices such as Distribution Static compensator (D-STATCOM).Proposed scheme follows a new
algorithm to generate reference voltage for a distribution static compensator (DSTATCOM) operating in
voltage-control mode. The proposed scheme ensures that unity power factor (UPF) is achieved at the load
terminal during nominal operation, which is not possible in the traditional method. Also, the compensator
injects lower currents therefore, reduces losses in the feeder and voltage-source inverter. Further, a saving in
the rating of DSTATCOM is achieved which increases its capacity to mitigate voltage sag. Nearly UPF is
maintained, while regulating voltage at the load terminal, during load change. The state-space model of
DSTATCOM is incorporated with the deadbeat predictive controller for fast load voltage regulation during
voltage disturbances. With these features, this scheme allows DSTATCOM to tackle power-quality issues by
providing power factor correction, harmonic elimination, load balancing, and voltage regulation based on the
load requirement.
Simulation and Analysis of a D-STATCOM for Load Compensation and Power Facto...IJMER
Power Generation and Transmission is a complex process, requiring the working of many
components of the power system in tandem to maximize the output. One of the main components to form
a major part is the reactive power in the system. It is required to maintain the voltage to deliver the
active power through the lines. Loads like motor loads and other loads require reactive power for their
operation. To improve the performance of ac power systems, we need to manage this reactive power in
an efficient way and this is known as reactive power compensation. In developing countries like India,
where the variation of power frequency and many such other determinants of power quality are
themselves a serious question, it is very vital to take positive steps in this direction.
The work presented here illustrates a method to compensate for the load reactive power using a
DSTATCOM
A DSTATCOM injects a current into the system to provide for the reactive component of the load
current. The validity of proposed method and achievement of desired compensation are confirmed by
the results of the simulation in MATLAB/ Simulink.
SRF CONTROLLED DVR FOR COMPENSATION OF BALANCED AND UNBALANCED VOLTAGE DISTUR...IAEME Publication
The growth of power electronictechnology in the field of electric power sector has caused a greater awarenesson the power quality of distribution systems. With the re-structuring of powersystems and with shifting trend towards distributed and dispersed generation,the issue of power quality is going to take newer dimensions. The presentresearch is to identify the prominent concerns in this area and hence themeasures that can enhance the quality of power. This paper investigates theproblems of voltage sag, swell and its severe impact on nonlinear loads,sensitive loads.
Analysis of power quality improvement in grid connected wind driven induction...eSAT Journals
Abstract As a promising renewable alternative, the wind power is one of the significant sources of generation. Reactive power compensation and harmonic reduction in a low voltage distribution networks for integration of wind power to the grid are the main issues addressed in this paper. This paper proposes a control scheme based on instaneous Pq theory for compensating the reactive power requirement of a three phase grid connected wind driven induction generator as well as the harmonics produced by the non linear load connected to the PCC using STATCOM. The proposed control scheme is simulated using MATLAB/SIMULINK. The Simulation results are presented in this paper. Keywords- wind power, distribution network, induction generator, STATCOM, reactive power.
International Journal of Engineering Research and DevelopmentIJERD Editor
Electrical, Electronics and Computer Engineering,
Information Engineering and Technology,
Mechanical, Industrial and Manufacturing Engineering,
Automation and Mechatronics Engineering,
Material and Chemical Engineering,
Civil and Architecture Engineering,
Biotechnology and Bio Engineering,
Environmental Engineering,
Petroleum and Mining Engineering,
Marine and Agriculture engineering,
Aerospace Engineering.
Optimization Technique for Power Quality Improvement using DSTATCOM Neural Ne...ijtsrd
As the power demand has been increasing rapidly, power generation and transmission are being affected due to limited resources, environmental restrictions and other losses. soft computing the techniques of correcting the supply voltage sag, swell and interruption in a distributed system. At present, a wide range of very flexible controllers, which capitalize on newly available power electronics components, are emerging for custom power applications. Power electronic based equipment aimed at enhancing the reliability and quality of power flows in low voltage distribution networks. A control algorithm is used for the extraction of the fundamental weighted value of active and reactive power components. Using digital signal processor the DSTATCOM is developed and its performance of DSTATCOM is found to be satisfactory for various types of loads. Hareram Mishra | Manju Gupta | Dr. Anuprita Mishra "Optimization Technique for Power Quality Improvement using DSTATCOM (Neural Network Approach) – A Review" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-5 | Issue-5 , August 2021, URL: https://www.ijtsrd.com/papers/ijtsrd45219.pdf Paper URL: https://www.ijtsrd.com/engineering/other/45219/optimization-technique-for-power-quality-improvement-using-dstatcom-neural-network-approach- – -a-review/hareram-mishra
1.compensation of reactive power using d statcom in grid interfaced pv systemEditorJST
This paper displays the upgrade of voltage droops, Harmonic mutilation and low power figure utilizing Distribution Static Compensator (D-STATCOM) with LCL Passive Filter in Distribution Framework. At whatever point there is an entrance of photovoltaic cell energy to the low voltage appropriated matrix, there happen the issue of confuse in voltage and recurrence in the system, maybe brought on by non-direct loads, creating music. The model depends on the Voltage Source Converter (VSC) guideline. The D-STATCOM infuses a current into the framework to alleviate the voltage lists. LCL Passive Filter Was then added to D-STATCOM to enhance symphonies bending and low power figure. The reproductions were performed utilizing MATLAB SIMULINK.
Power Quality Improvement of Grid Interconnection of renewable Energy Based D...IJERA Editor
This paper presents a grid interfacing inverter which compensates power quality problems and also interface Renewable Energy Sources with the help of electric grid. Renewable Energy Sources are being increasingly connected in distribution system utilizing power electronic converters. Grid interfacing inverter can be used: 1) To improve the transfer of active power harvested from RES; 2) To meet load reactive power demand support ; 3) To reduce current harmonics by incorporating the current harmonic compensator at point of common coupling(PCC) ; 4) current unbalance and neutral current compensation in case of 3-phase 4-wire system. The fuzzy logic can be used in many applications especially, when the process/models are complex to analyse by using classical methods. Mainly fuzzy logic controller is used to control DC capacitor voltage. Simulations are carried out using MATLAB/SIMULINK to verify the performance of the controller. The output shows the controller has fast dynamic response high accuracy of tracking DC voltage reference and robust to load parameters variations.
International Journal of Engineering Research and Development is an international premier peer reviewed open access engineering and technology journal promoting the discovery, innovation, advancement and dissemination of basic and transitional knowledge in engineering, technology and related disciplines.
We follow "Rigorous Publication" model - means that all articles appear on IJERD after full appraisal, effectiveness, legitimacy and reliability of research content. International Journal of Engineering Research and Development publishes papers online as well as provide hard copy of Journal to authors after publication of paper. It is intended to serve as a forum for researchers, practitioners and developers to exchange ideas and results for the advancement of Engineering & Technology.
Mitigation of Fault in the Distribution System by using Flexible Distributed ...IJMER
International Journal of Modern Engineering Research (IJMER) is Peer reviewed, online Journal. It serves as an international archival forum of scholarly research related to engineering and science education.
International Journal of Modern Engineering Research (IJMER) covers all the fields of engineering and science: Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Computer Engineering, Agricultural Engineering, Aerospace Engineering, Thermodynamics, Structural Engineering, Control Engineering, Robotics, Mechatronics, Fluid Mechanics, Nanotechnology, Simulators, Web-based Learning, Remote Laboratories, Engineering Design Methods, Education Research, Students' Satisfaction and Motivation, Global Projects, and Assessment…. And many more.
A Review on Optimization Techniques for Power Quality Improvement using DSTAT...ijtsrd
As demand for electricity has risen exponentially, power production and transmission are affected by scarce energy, environmental constraints and other losses. Soft computing methods to fix the sag, swell and disruption of the supply voltage in the distributed device. At present, a broad variety of highly versatile controls that leverage on newly available power electronics components are evolving for custom power applications. Control electronic equipment intended to improve the stability and efficiency of electricity flows in low voltage distribution networks. The control algorithm is used to derive the fundamental weighted value of the active and reactive power components. Using a digital signal processor, DSTATCOM is built and its output as a DSTATCOM is found to be satisfactory for different types of loads. Amit Radhakrishna Parhad | Pramod Kumar Rathore "A Review on Optimization Techniques for Power Quality Improvement using DSTATCOM (Neural Network Approach)" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-5 | Issue-4 , June 2021, URL: https://www.ijtsrd.compapers/ijtsrd42403.pdf Paper URL: https://www.ijtsrd.comengineering/electrical-engineering/42403/a-review-on-optimization-techniques-for-power-quality-improvement-using-dstatcom-neural-network-approach/amit-radhakrishna-parhad
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Stability Enhancement of Pleiku Power System using a Distribution Static Sync...IJAEMSJORNAL
This paper presents the simulation results of using a static synchronous compensator (D-STATCOM) based on voltage source converter (VSC) to enhance voltage stability and improve the stability of the actual Pleiku Power System. The PI controller based D-STATCOM is applied to stabilize and improve voltage waveforms at load buses in the studied power system under three-phase short circuit fault. Simulation results in a time domain are presented to show effectiveness of using the D-STATCOM for stability and improvement of voltage quality when small disturbances occur, and of enhancing voltage magnitude, mitigating voltage oscillation in transient conditions under a severe disturbance in the power system.
REDUCING SOURCE CURRENT HARMONICS DUE TO BALANCED AND UN-BALANCED VOLTAGE VAR...IJCI JOURNAL
Electricity demand has been increasing due to the increase of population and industries. Hence it is very
important to feed the demand with quality of generation. Improvement of power quality is the greater
concern in advanced power system element, it is essential to congregate the need of energy by employ the
renewable energy generating sources like pv, fuel cell, biomass, wind, etc and utilizing many more
applications like grid interconnected systems, power quality improvement. The situations like harmonic,
reactive power exchanging, power factor correction, balanced and un-balanced voltage variations & so on,
due to greater effect on highly susceptible loads are to be encouraged in power distribution system. To
enhance these circumstances, custom power appliances are used to achieve high grid voltage stability. In
this paper, a voltage distortions controlled D-STATCOM based on fuzzy controller is a meticulous power
appliance for enhancing harmonic distortions from high power semiconductor switching device,
exchanging the both active & reactive power, defend the gird stability by implementing DG technology, to
regulate the power quality issues in power distribution network. This paper implements the comparative
analysis of PI and Fuzzy controlled DSTATCOM with energy backup scheme, controlled by pwm control
technique and founded that fuzzy based IPQ theory for generation of reference current signals improves the
power quality than PI based IPQ theory and this analysis is dynamically evaluated with Matlab/Simulink.
Simulation and Comparison of DVR and DSTATCOM Used for voltage sag mitigation...paperpublications3
Abstract: Power Quality problem in a system leads to various disturbances such as voltage fluctuations, transients and waveform distortions that results in a mis-operation or a failure of end user equipment. There are different types of custom power devices like Distribution Static Compensator (D-STATCOM) and Dynamic Voltage Restorer (DVR) which can effectively use for mitigation of different type of power quality problems. This paper describes the technique of correcting the supply voltage sag distributed system and also describes performance comparison are presented between DVR and DSTATCOM to know how both the devices successfully been applied to power system for regulating system voltage effectively. DSTATCOM and DVR both of them based on VSI principle. A DVR is a series compensation device which injects a voltage in series with system and a DSTATCOM is a shunt compensation device which injects a current into the system to correct the power quality problems. This paper presents a power system operation with PI controller with abc to dq0 convertor approach. Total Harmonics Distortion (THD) is also calculated for the system with and without compensation. Results are presented to assess the performance of devices as a potential custom power solution. Improve dynamic voltage control and thus increase system load ability. This paper presents modeling and simulation of DVR & DSTATCOM in MATLAB/Simulink.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Seamless Transitions between Grid-Connected and Stand-Alone Operations of Dis...IJERD Editor
Control of the Distributed Generation (DG) system is important in both grid-connected and standalone
modes and the system stability becomes very crucial during the transfer between these two modes. If the
system does not have a proper transfer procedure, severe transient voltages or currents will occur, which may
damage the entire system. A seamless transfer can ensure smooth operation and quick attainment of steady state.
In order to solve these transition problems, this paper presents the development and test of a control strategy for
DG capable of working in grid-connected and intentional islanding connection modes with seamless transitions
from both operational modes.
Improved Power Quality by using STATCOM Under Various Loading ConditionsIJMTST Journal
A Power quality problem is an occurrence manifested as a nonstandard voltage, current or frequency that
results in a failure or a mis-operation of end user equipment’s. Utility distribution networks, sensitive
industrial loads and critical commercial operations suffer from various types of outages and service
interruptions which can cost significant financial losses. With the restructuring of power systems and with
shifting trend towards distributed and dispersed generation, the issue of power quality is going to take
newer dimensions. Injection of the wind power into an electric grid affects the power quality. The
performance of the wind turbine and thereby power quality are determined on the basis of measurements
and the norms followed according to the guideline specified in International Electro-technical Commission
standard, IEC-61400. The influence of the wind turbine in the grid system concerning the power quality
measurements are-the active power, reactive power, variation of voltage, flicker, harmonics, and electrical
behavior of switching operation and these are measured according to national/international guidelines.
Static Compensator (STATCOM) is connected at a point of common coupling with a battery energy storage
system (BESS) to mitigate the power quality issues. The battery energy storage is integrated to sustain the
real power source under fluctuating wind power. Here two control schemes for STATCOM are Fuzzy logic
controller and hybrid Fuzzy logic controller. We can better response for hybrid fuzzy compare to fuzzy logic
controller. The STATCOM control scheme for the grid connected wind energy generation system for power
quality improvement is simulated using MATLAB/SIMULINK in power system block set. Finally the proposed
scheme is applied for both balanced and unbalanced linear nonlinear loads.
Power Quality Enhancement using DSTATCOM by Immune Feedback Control Algorithmijtsrd
This paper proposes an immune feedback control algorithm for a three phase distribution static compensator DSTATCOM to mitigate several power quality problems such as harmonics, reactive power, and load unbalancing at distribution level. This control algorithm proposed for DSTATCOM, is validated for maintaining power factor to unity, load balancing, and harmonics reduction of supply currents. In this application, the proposed control algorithm on a DSTATCOM is implemented for the compensation of nonlinear loads. The simulations were performed in the environment of MATLAB SIMULINK. P. Thirumala | K. Mahesh "Power Quality Enhancement using DSTATCOM by Immune Feedback Control Algorithm" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-4 | Issue-1 , December 2019, URL: https://www.ijtsrd.com/papers/ijtsrd29812.pdf Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/29812/power-quality-enhancement-using-dstatcom-by-immune-feedback-control-algorithm/p-thirumala
Similar to MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS (20)
IMPROVED SWARM INTELLIGENCE APPROACH TO MULTI OBJECTIVE ED PROBLEMSSuganthi Thangaraj
Electrical power industry restructuring has created highly vibrant and competitive market that altered many aspects of the power industry. In this changed scenario, scarcity of energy resources, increasing power generation cost, environment concern, ever growing demand for electrical energy necessitate optimal economic dispatch. Practical economic dispatch (ED) problems have nonlinear, non-convex type objective function with intense equality and inequality constraints. The conventional optimization methods are not able to solve such problems as due to local optimum solution convergence. Metaheuristic optimization techniques especially Improved Particle Swarm Optimization (IPSO) has gained an incredible recognition as the solution algorithm for such type of ED problems in last decade. The application of IPSO in ED problem, which is considered as one of the most complex optimization problem has been summarized in present paper. This paper illustrates successful implementation of the Improved Particle Swarm Optimization (IPSO) to Economic Load Dispatch Problem (ELD). Power output of each generating unit and optimum fuel cost obtained using IPSO algorithm has been compared with conventional techniques. The results obtained shows that IPSO algorithm converges to optimal fuel cost with reduced computational time when compared to PSO and GA for the three, six and IEEE 30 bus system.
A Hybrid Control Scheme for Fault Ride-Through Capability using Line-Side Con...Suganthi Thangaraj
As the wind power installations are increasing in number, Wind Turbine Generators (WTG) are required to have Fault Ride-Through (FRT) capabilities. Lately developed grid operating codes demand the WTGs to stay connected during fault conditions, supporting the grid to recover faster back to its normal state. In this paper, the generator side converter incorporates the maximum power point tracking algorithm to extract maximum energy from wind turbine system. A hybrid control scheme for energy storage systems (ESS) and braking choppers for fault ride-through capability and a suppression of the output power fluctuation is proposed for permanent-magnet synchronous generator (PMSG) wind turbine systems. During grid faults, the dc-link voltage is controlled by the ESS instead of the line-side converter (LSC), whereas the LSC is exploited as a STATCOM to inject reactive current into the grid for assisting in the grid voltage recovery. A simple model of the proposed system is developed and simulated in MATLAB environment. The effectiveness of the system is validated through extensive simulation results
ENHANCING RELIABILITY BY RECONFIGURATION OF POWER DISTRIBUTION SYSTEMS CONSID...Suganthi Thangaraj
The paper describes an effective method to reconfigure a power distribution system using optimization techniques. Here genetic algorithm is used for the reconfiguration to enhance reliability and to reduce losses. The reliability at the load points is evaluated using probabilistic reliability approach. For finding minimal cut sets and losses different algorithms are used. To maximise the reliability and to reduce the losses, the status of the switch is controlled using genetic algorithm. The effectiveness of the system is tested in 33 bus distribution system.
An Improved Differential Evolution Algorithm for Congestion Management Consid...Suganthi Thangaraj
In deregulated electricity market, Congestion Management (CM) is one of the most significant issues in order to maintain
the system in secure state and to get the reliable system operation. While addressing Congestion Management voltage
stability should also be taken into account. This paper elucidates an Improved Differential Evolution (IDE) algorithm to
alleviate Congestion in transmission line by rescheduling of generators while considering voltage stability. Differential
Evolution (DE) is one of the heuristic, population based algorithm which is well suited for solving complex and non-linear
optimization problems. A Double Best Mutation Operator (DBMO) is proposed to improve DE algorithm’s convergence
rate. In order to validate suitability of the suggested approach, it has been evaluated on the IEEE-30 bus test system on
both base case loading as well as 10% increased load. The test system has been also examined under critical line outages.
The results and discussions clearly depicts the effectiveness of the projected approach in solving Congestion Management
Problem.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

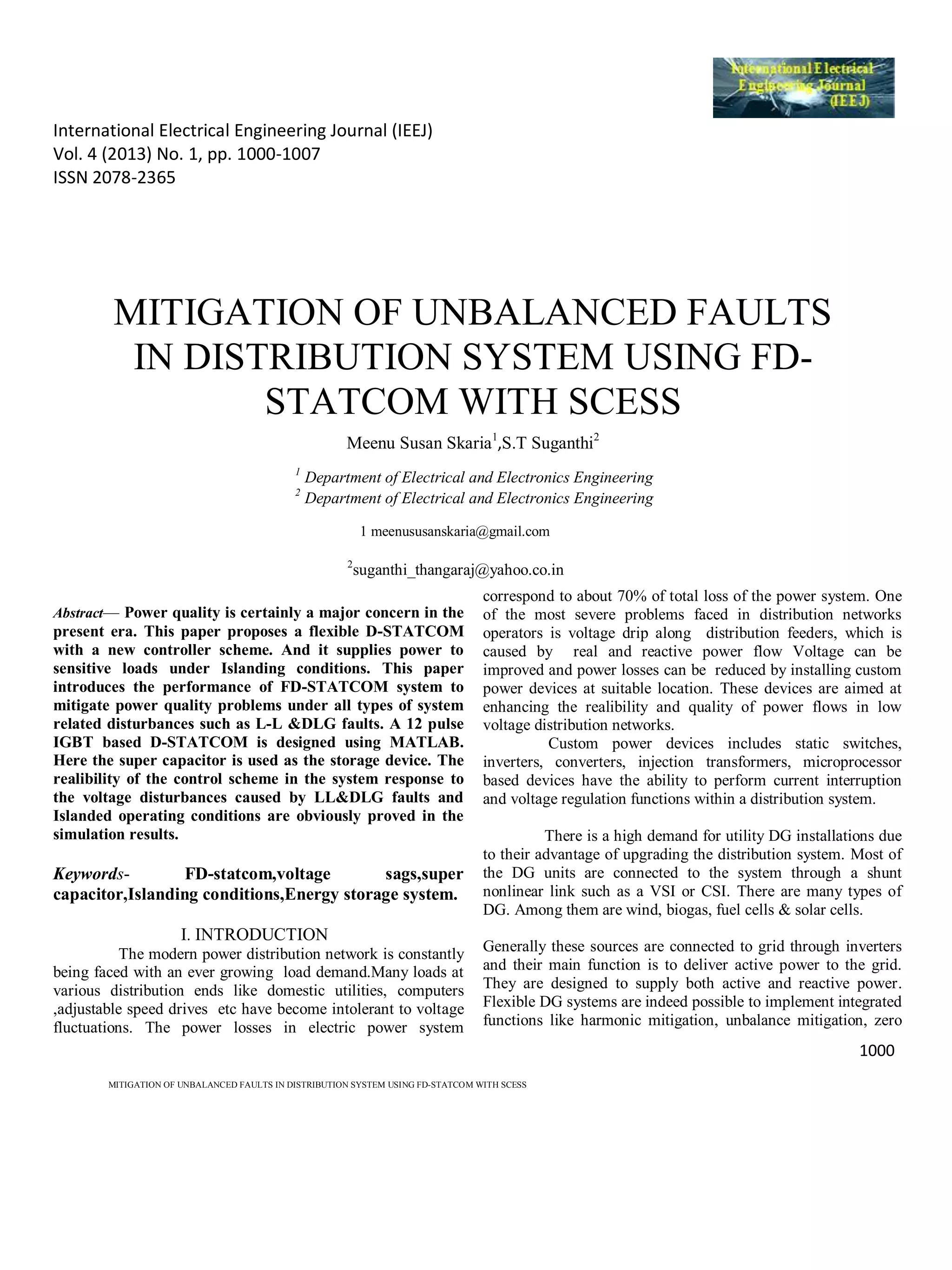

1. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1000
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS
MITIGATION OF UNBALANCED FAULTS
IN DISTRIBUTION SYSTEM USING FD-
STATCOM WITH SCESS
Meenu Susan Skaria1
,S.T Suganthi2
1
Department of Electrical and Electronics Engineering
2
Department of Electrical and Electronics Engineering
1 meenususanskaria@gmail.com
2
suganthi_thangaraj@yahoo.co.in
Abstract— Power quality is certainly a major concern in the
present era. This paper proposes a flexible D-STATCOM
with a new controller scheme. And it supplies power to
sensitive loads under Islanding conditions. This paper
introduces the performance of FD-STATCOM system to
mitigate power quality problems under all types of system
related disturbances such as L-L &DLG faults. A 12 pulse
IGBT based D-STATCOM is designed using MATLAB.
Here the super capacitor is used as the storage device. The
realibility of the control scheme in the system response to
the voltage disturbances caused by LL&DLG faults and
Islanded operating conditions are obviously proved in the
simulation results.
Keywords- FD-statcom,voltage sags,super
capacitor,Islanding conditions,Energy storage system.
I. INTRODUCTION
The modern power distribution network is constantly
being faced with an ever growing load demand.Many loads at
various distribution ends like domestic utilities, computers
,adjustable speed drives etc have become intolerant to voltage
fluctuations. The power losses in electric power system
correspond to about 70% of total loss of the power system. One
of the most severe problems faced in distribution networks
operators is voltage drip along distribution feeders, which is
caused by real and reactive power flow Voltage can be
improved and power losses can be reduced by installing custom
power devices at suitable location. These devices are aimed at
enhancing the realibility and quality of power flows in low
voltage distribution networks.
Custom power devices includes static switches,
inverters, converters, injection transformers, microprocessor
based devices have the ability to perform current interruption
and voltage regulation functions within a distribution system.
There is a high demand for utility DG installations due
to their advantage of upgrading the distribution system. Most of
the DG units are connected to the system through a shunt
nonlinear link such as a VSI or CSI. There are many types of
DG. Among them are wind, biogas, fuel cells & solar cells.
Generally these sources are connected to grid through inverters
and their main function is to deliver active power to the grid.
They are designed to supply both active and reactive power.
Flexible DG systems are indeed possible to implement integrated
functions like harmonic mitigation, unbalance mitigation, zero

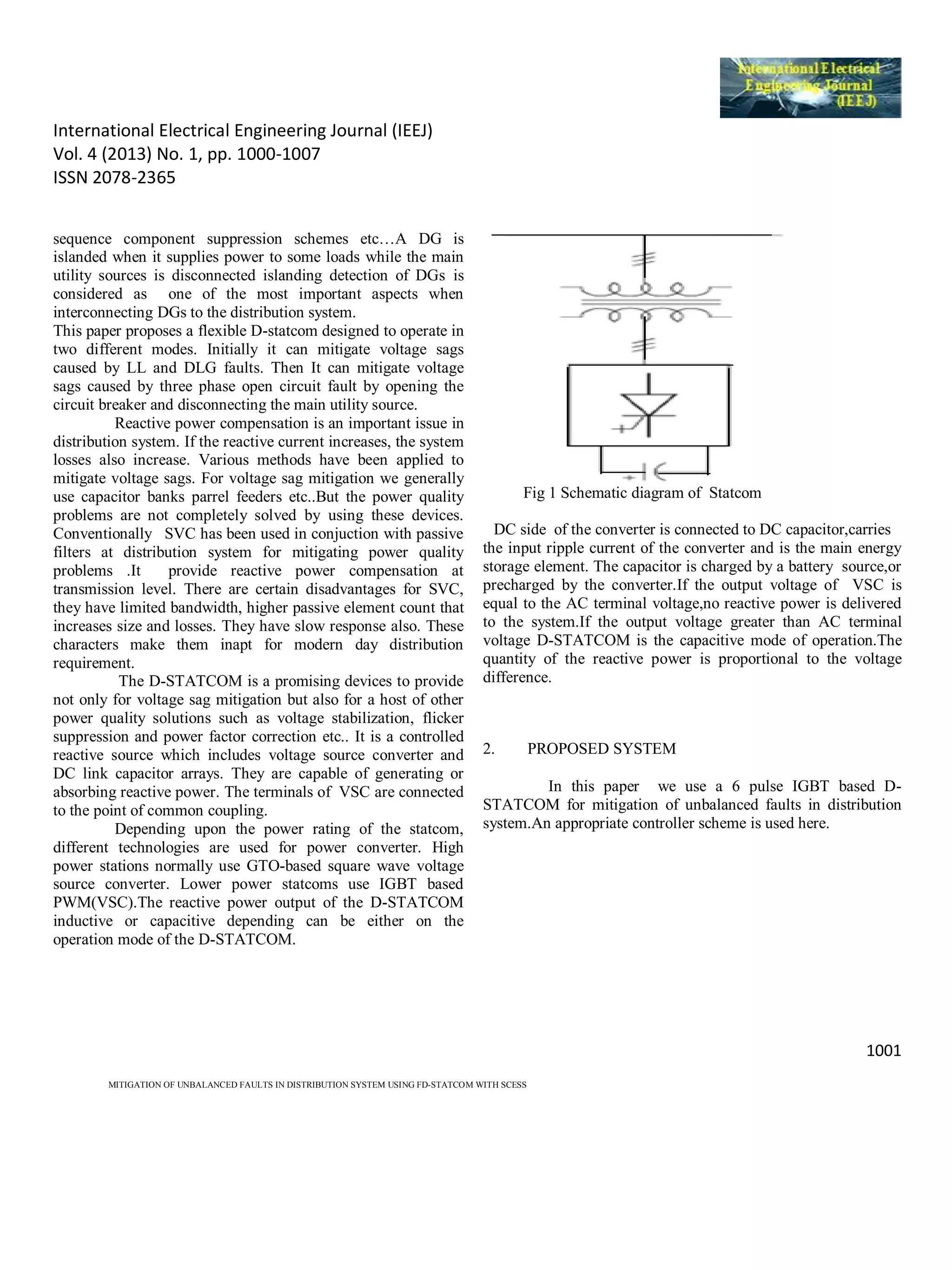

2. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1001
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS
sequence component suppression schemes etc…A DG is
islanded when it supplies power to some loads while the main
utility sources is disconnected islanding detection of DGs is
considered as one of the most important aspects when
interconnecting DGs to the distribution system.
This paper proposes a flexible D-statcom designed to operate in
two different modes. Initially it can mitigate voltage sags
caused by LL and DLG faults. Then It can mitigate voltage
sags caused by three phase open circuit fault by opening the
circuit breaker and disconnecting the main utility source.
Reactive power compensation is an important issue in
distribution system. If the reactive current increases, the system
losses also increase. Various methods have been applied to
mitigate voltage sags. For voltage sag mitigation we generally
use capacitor banks parrel feeders etc..But the power quality
problems are not completely solved by using these devices.
Conventionally SVC has been used in conjuction with passive
filters at distribution system for mitigating power quality
problems .It provide reactive power compensation at
transmission level. There are certain disadvantages for SVC,
they have limited bandwidth, higher passive element count that
increases size and losses. They have slow response also. These
characters make them inapt for modern day distribution
requirement.
The D-STATCOM is a promising devices to provide
not only for voltage sag mitigation but also for a host of other
power quality solutions such as voltage stabilization, flicker
suppression and power factor correction etc.. It is a controlled
reactive source which includes voltage source converter and
DC link capacitor arrays. They are capable of generating or
absorbing reactive power. The terminals of VSC are connected
to the point of common coupling.
Depending upon the power rating of the statcom,
different technologies are used for power converter. High
power stations normally use GTO-based square wave voltage
source converter. Lower power statcoms use IGBT based
PWM(VSC).The reactive power output of the D-STATCOM
inductive or capacitive depending can be either on the
operation mode of the D-STATCOM.
Fig 1 Schematic diagram of Statcom
DC side of the converter is connected to DC capacitor,carries
the input ripple current of the converter and is the main energy
storage element. The capacitor is charged by a battery source,or
precharged by the converter.If the output voltage of VSC is
equal to the AC terminal voltage,no reactive power is delivered
to the system.If the output voltage greater than AC terminal
voltage D-STATCOM is the capacitive mode of operation.The
quantity of the reactive power is proportional to the voltage
difference.
2. PROPOSED SYSTEM
In this paper we use a 6 pulse IGBT based D-
STATCOM for mitigation of unbalanced faults in distribution
system.An appropriate controller scheme is used here.
3. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1002
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

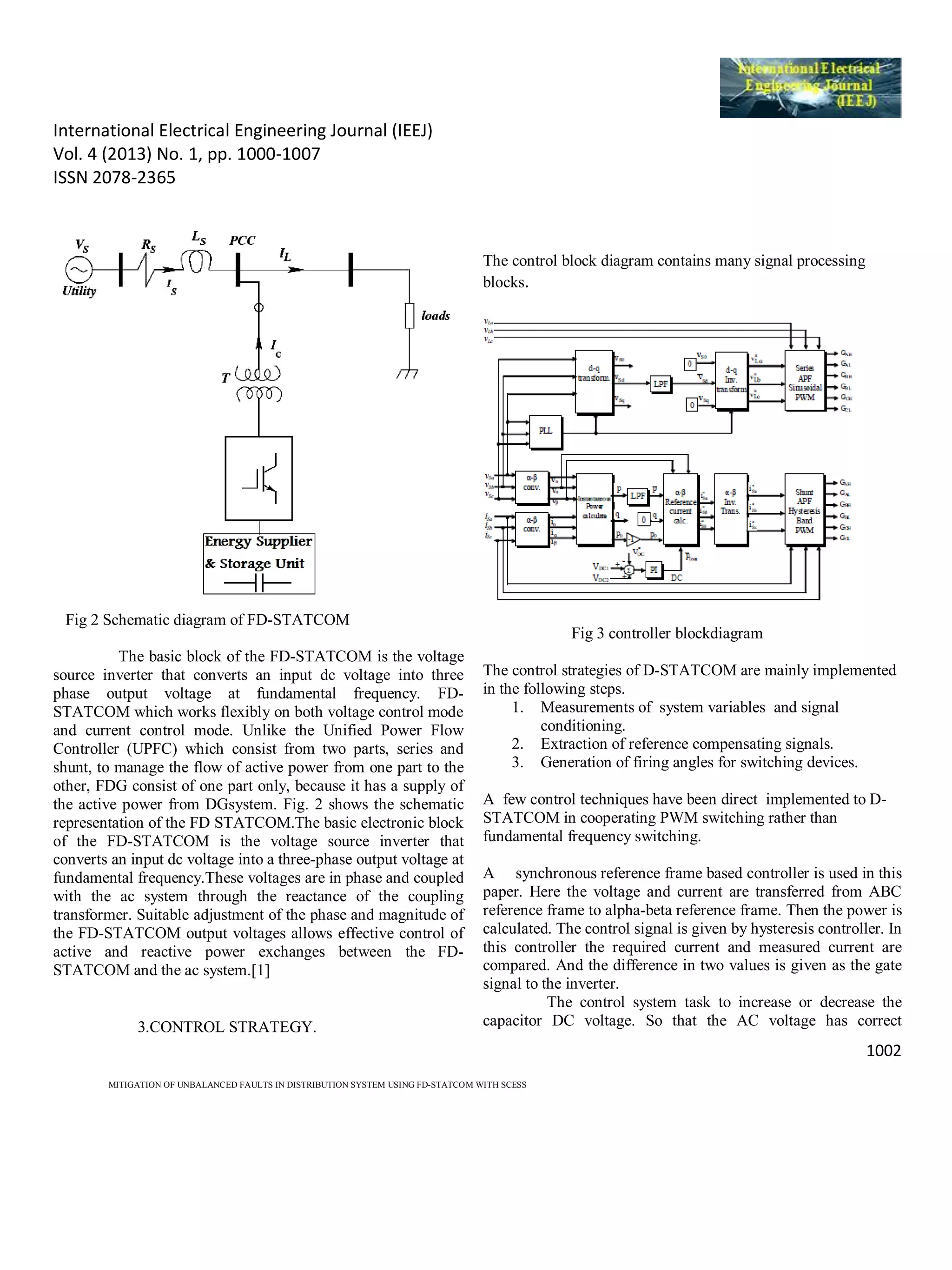

Fig 2 Schematic diagram of FD-STATCOM
The basic block of the FD-STATCOM is the voltage
source inverter that converts an input dc voltage into three
phase output voltage at fundamental frequency. FD-
STATCOM which works flexibly on both voltage control mode
and current control mode. Unlike the Unified Power Flow
Controller (UPFC) which consist from two parts, series and
shunt, to manage the flow of active power from one part to the
other, FDG consist of one part only, because it has a supply of
the active power from DGsystem. Fig. 2 shows the schematic
representation of the FD STATCOM.The basic electronic block
of the FD-STATCOM is the voltage source inverter that
converts an input dc voltage into a three-phase output voltage at
fundamental frequency.These voltages are in phase and coupled
with the ac system through the reactance of the coupling
transformer. Suitable adjustment of the phase and magnitude of
the FD-STATCOM output voltages allows effective control of
active and reactive power exchanges between the FD-
STATCOM and the ac system.[1]
3.CONTROL STRATEGY.
The control block diagram contains many signal processing
blocks.
Fig 3 controller blockdiagram
The control strategies of D-STATCOM are mainly implemented
in the following steps.
1. Measurements of system variables and signal
conditioning.
2. Extraction of reference compensating signals.
3. Generation of firing angles for switching devices.
A few control techniques have been direct implemented to D-
STATCOM in cooperating PWM switching rather than
fundamental frequency switching.
A synchronous reference frame based controller is used in this
paper. Here the voltage and current are transferred from ABC
reference frame to alpha-beta reference frame. Then the power is
calculated. The control signal is given by hysteresis controller. In
this controller the required current and measured current are
compared. And the difference in two values is given as the gate
signal to the inverter.
The control system task to increase or decrease the
capacitor DC voltage. So that the AC voltage has correct
4. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1003
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

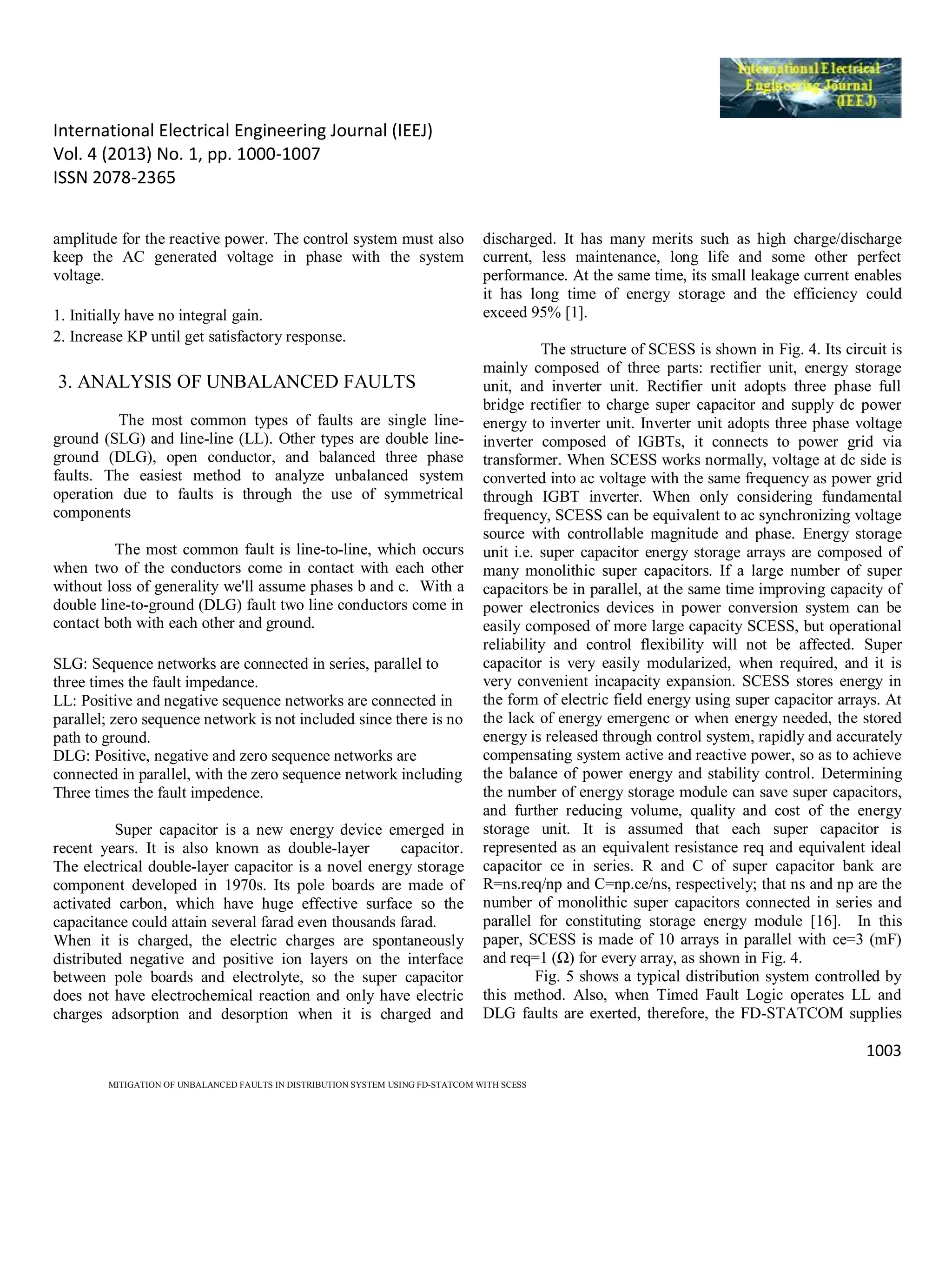

amplitude for the reactive power. The control system must also
keep the AC generated voltage in phase with the system
voltage.
1. Initially have no integral gain.
2. Increase KP until get satisfactory response.
3. ANALYSIS OF UNBALANCED FAULTS
The most common types of faults are single line-
ground (SLG) and line-line (LL). Other types are double line-
ground (DLG), open conductor, and balanced three phase
faults. The easiest method to analyze unbalanced system
operation due to faults is through the use of symmetrical
components
The most common fault is line-to-line, which occurs
when two of the conductors come in contact with each other
without loss of generality we'll assume phases b and c. With a
double line-to-ground (DLG) fault two line conductors come in
contact both with each other and ground.
SLG: Sequence networks are connected in series, parallel to
three times the fault impedance.
LL: Positive and negative sequence networks are connected in
parallel; zero sequence network is not included since there is no
path to ground.
DLG: Positive, negative and zero sequence networks are
connected in parallel, with the zero sequence network including
Three times the fault impedence.
Super capacitor is a new energy device emerged in
recent years. It is also known as double-layer capacitor.
The electrical double-layer capacitor is a novel energy storage
component developed in 1970s. Its pole boards are made of
activated carbon, which have huge effective surface so the
capacitance could attain several farad even thousands farad.
When it is charged, the electric charges are spontaneously
distributed negative and positive ion layers on the interface
between pole boards and electrolyte, so the super capacitor
does not have electrochemical reaction and only have electric
charges adsorption and desorption when it is charged and
discharged. It has many merits such as high charge/discharge
current, less maintenance, long life and some other perfect
performance. At the same time, its small leakage current enables
it has long time of energy storage and the efficiency could
exceed 95% [1].
The structure of SCESS is shown in Fig. 4. Its circuit is
mainly composed of three parts: rectifier unit, energy storage
unit, and inverter unit. Rectifier unit adopts three phase full
bridge rectifier to charge super capacitor and supply dc power
energy to inverter unit. Inverter unit adopts three phase voltage
inverter composed of IGBTs, it connects to power grid via
transformer. When SCESS works normally, voltage at dc side is
converted into ac voltage with the same frequency as power grid
through IGBT inverter. When only considering fundamental
frequency, SCESS can be equivalent to ac synchronizing voltage
source with controllable magnitude and phase. Energy storage
unit i.e. super capacitor energy storage arrays are composed of
many monolithic super capacitors. If a large number of super
capacitors be in parallel, at the same time improving capacity of
power electronics devices in power conversion system can be
easily composed of more large capacity SCESS, but operational
reliability and control flexibility will not be affected. Super
capacitor is very easily modularized, when required, and it is
very convenient incapacity expansion. SCESS stores energy in
the form of electric field energy using super capacitor arrays. At
the lack of energy emergenc or when energy needed, the stored
energy is released through control system, rapidly and accurately
compensating system active and reactive power, so as to achieve
the balance of power energy and stability control. Determining
the number of energy storage module can save super capacitors,
and further reducing volume, quality and cost of the energy
storage unit. It is assumed that each super capacitor is
represented as an equivalent resistance req and equivalent ideal
capacitor ce in series. R and C of super capacitor bank are
R=ns.req/np and C=np.ce/ns, respectively; that ns and np are the
number of monolithic super capacitors connected in series and
parallel for constituting storage energy module [16]. In this
paper, SCESS is made of 10 arrays in parallel with ce=3 (mF)
and req=1 (Ω) for every array, as shown in Fig. 4.
Fig. 5 shows a typical distribution system controlled by
this method. Also, when Timed Fault Logic operates LL and
DLG faults are exerted, therefore, the FD-STATCOM supplies
5. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1004
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

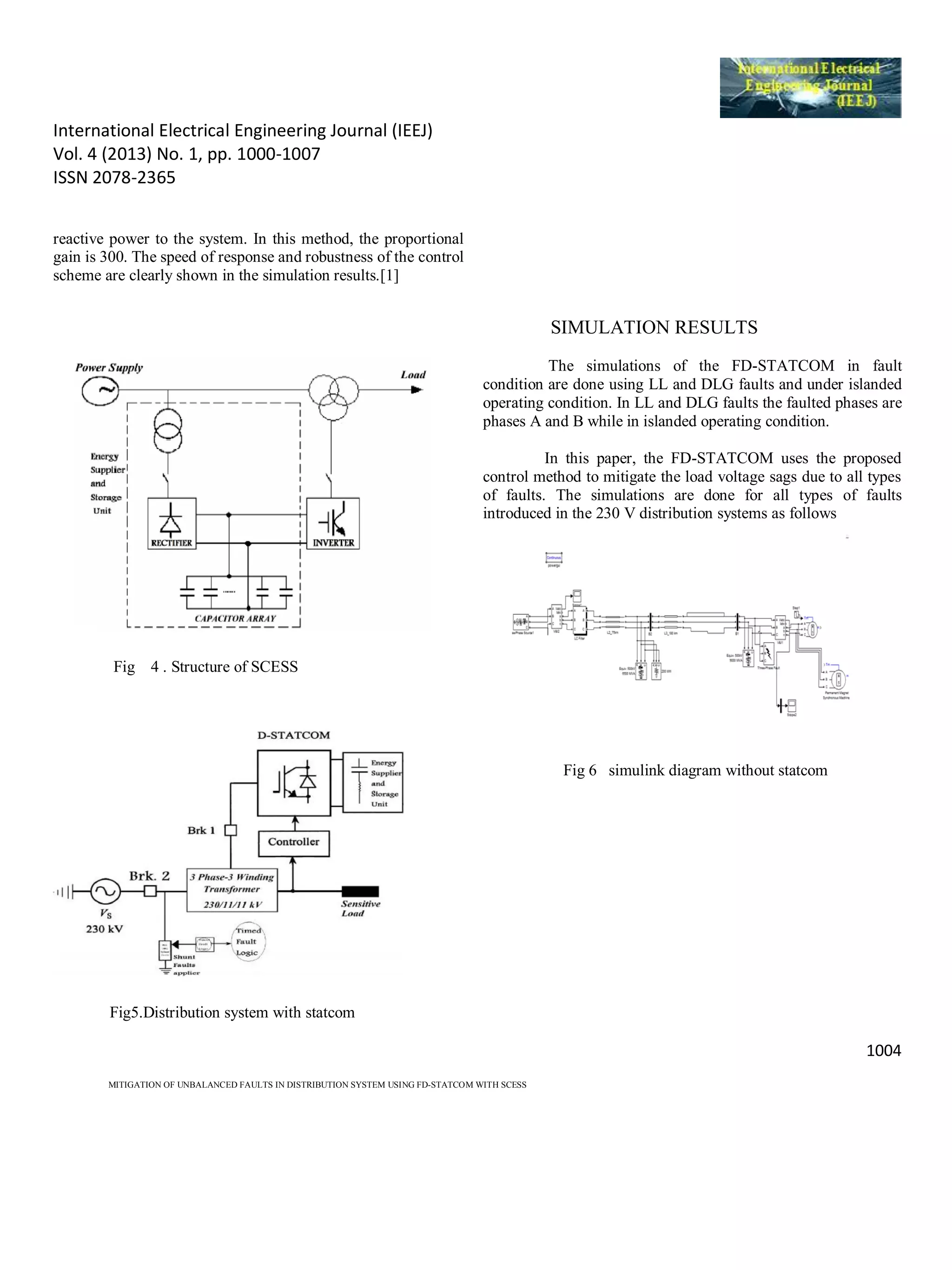

reactive power to the system. In this method, the proportional
gain is 300. The speed of response and robustness of the control
scheme are clearly shown in the simulation results.[1]
Fig 4 . Structure of SCESS
Fig5.Distribution system with statcom
SIMULATION RESULTS
The simulations of the FD-STATCOM in fault
condition are done using LL and DLG faults and under islanded
operating condition. In LL and DLG faults the faulted phases are
phases A and B while in islanded operating condition.
In this paper, the FD-STATCOM uses the proposed
control method to mitigate the load voltage sags due to all types
of faults. The simulations are done for all types of faults
introduced in the 230 V distribution systems as follows
Fig 6 simulink diagram without statcom
6. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1005
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

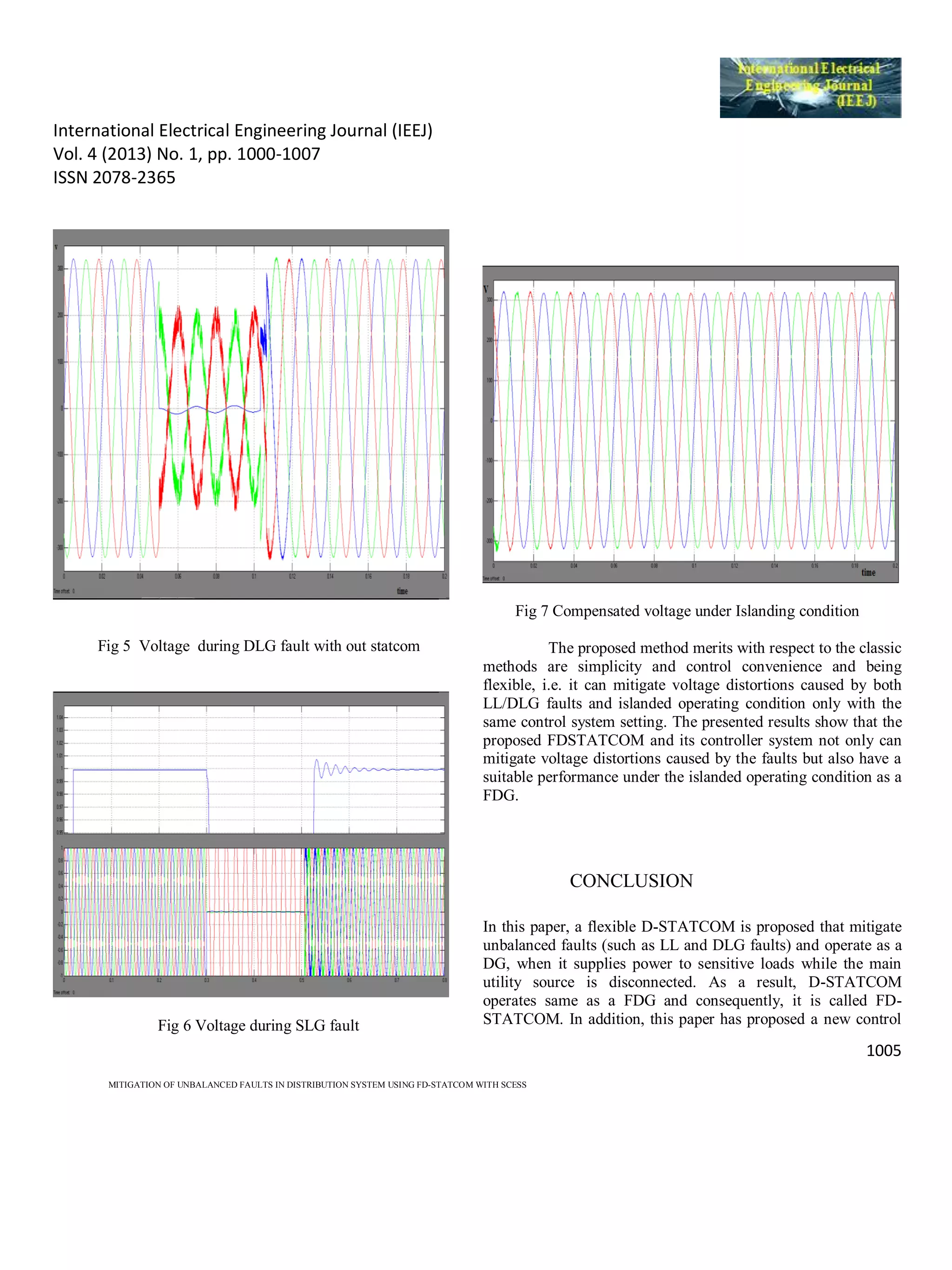

Fig 5 Voltage during DLG fault with out statcom
Fig 6 Voltage during SLG fault
Fig 7 Compensated voltage under Islanding condition
The proposed method merits with respect to the classic
methods are simplicity and control convenience and being
flexible, i.e. it can mitigate voltage distortions caused by both
LL/DLG faults and islanded operating condition only with the
same control system setting. The presented results show that the
proposed FDSTATCOM and its controller system not only can
mitigate voltage distortions caused by the faults but also have a
suitable performance under the islanded operating condition as a
FDG.
CONCLUSION
In this paper, a flexible D-STATCOM is proposed that mitigate
unbalanced faults (such as LL and DLG faults) and operate as a
DG, when it supplies power to sensitive loads while the main
utility source is disconnected. As a result, D-STATCOM
operates same as a FDG and consequently, it is called FD-
STATCOM. In addition, this paper has proposed a new control
7. International Electrical Engineering Journal (IEEJ)
Vol. 4 (2013) No. 1, pp. 1000-1007
ISSN 2078-2365
1006
MITIGATION OF UNBALANCED FAULTS IN DISTRIBUTION SYSTEM USING FD-STATCOM WITH SCESS

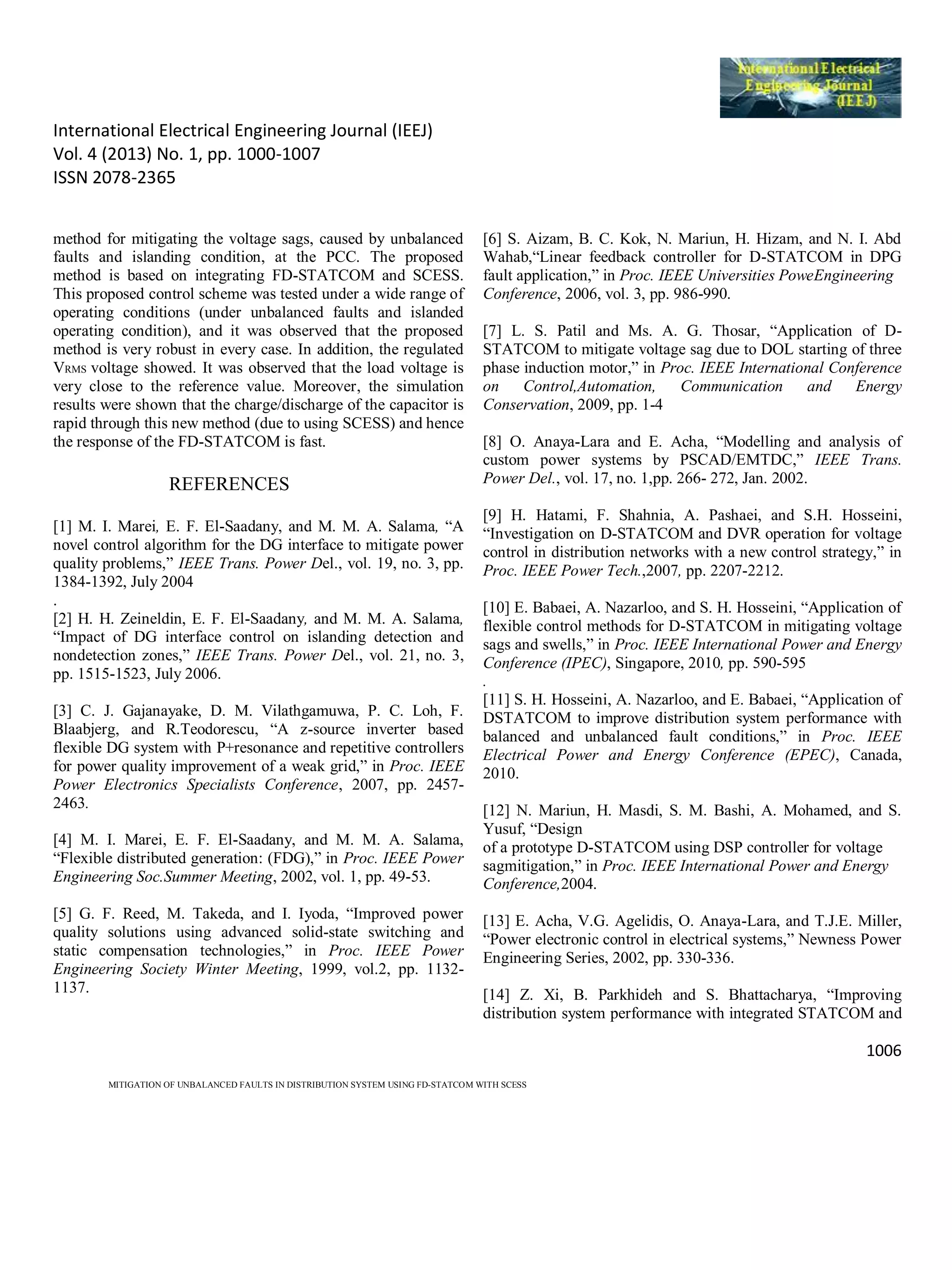

method for mitigating the voltage sags, caused by unbalanced
faults and islanding condition, at the PCC. The proposed
method is based on integrating FD-STATCOM and SCESS.
This proposed control scheme was tested under a wide range of
operating conditions (under unbalanced faults and islanded
operating condition), and it was observed that the proposed
method is very robust in every case. In addition, the regulated
VRMS voltage showed. It was observed that the load voltage is
very close to the reference value. Moreover, the simulation
results were shown that the charge/discharge of the capacitor is
rapid through this new method (due to using SCESS) and hence
the response of the FD-STATCOM is fast.
REFERENCES
[1] M. I. Marei, E. F. El-Saadany, and M. M. A. Salama, “A
novel control algorithm for the DG interface to mitigate power
quality problems,” IEEE Trans. Power Del., vol. 19, no. 3, pp.
1384-1392, July 2004
.
[2] H. H. Zeineldin, E. F. El-Saadany, and M. M. A. Salama,
“Impact of DG interface control on islanding detection and
nondetection zones,” IEEE Trans. Power Del., vol. 21, no. 3,
pp. 1515-1523, July 2006.
[3] C. J. Gajanayake, D. M. Vilathgamuwa, P. C. Loh, F.
Blaabjerg, and R.Teodorescu, “A z-source inverter based
flexible DG system with P+resonance and repetitive controllers
for power quality improvement of a weak grid,” in Proc. IEEE
Power Electronics Specialists Conference, 2007, pp. 2457-
2463.
[4] M. I. Marei, E. F. El-Saadany, and M. M. A. Salama,
“Flexible distributed generation: (FDG),” in Proc. IEEE Power
Engineering Soc.Summer Meeting, 2002, vol. 1, pp. 49-53.
[5] G. F. Reed, M. Takeda, and I. Iyoda, “Improved power
quality solutions using advanced solid-state switching and
static compensation technologies,” in Proc. IEEE Power
Engineering Society Winter Meeting, 1999, vol.2, pp. 1132-
1137.
[6] S. Aizam, B. C. Kok, N. Mariun, H. Hizam, and N. I. Abd
Wahab,“Linear feedback controller for D-STATCOM in DPG
fault application,” in Proc. IEEE Universities PoweEngineering
Conference, 2006, vol. 3, pp. 986-990.
