This project aims to improve power quality for a grid-connected wind energy system using a STATCOM. The objectives are to maintain unity power factor at the source, meet reactive power needs of the wind generator and non-linear load, and provide fast response using hysteresis current control for the STATCOM. MATLAB/Simulink software is used to simulate the system both with and without STATCOM. The simulation results show that with STATCOM, harmonic distortion is eliminated in the load current and power quality is maintained at the point of common coupling.
As the fifth in a series of tutorials on the power system, Leonardo ENERGY introduces its minute lecture on voltage and frequency control, using the analogy of a metal/rubber plate to demonstrate the centralised nature of frequency control, whereas voltage control is more a local matter.

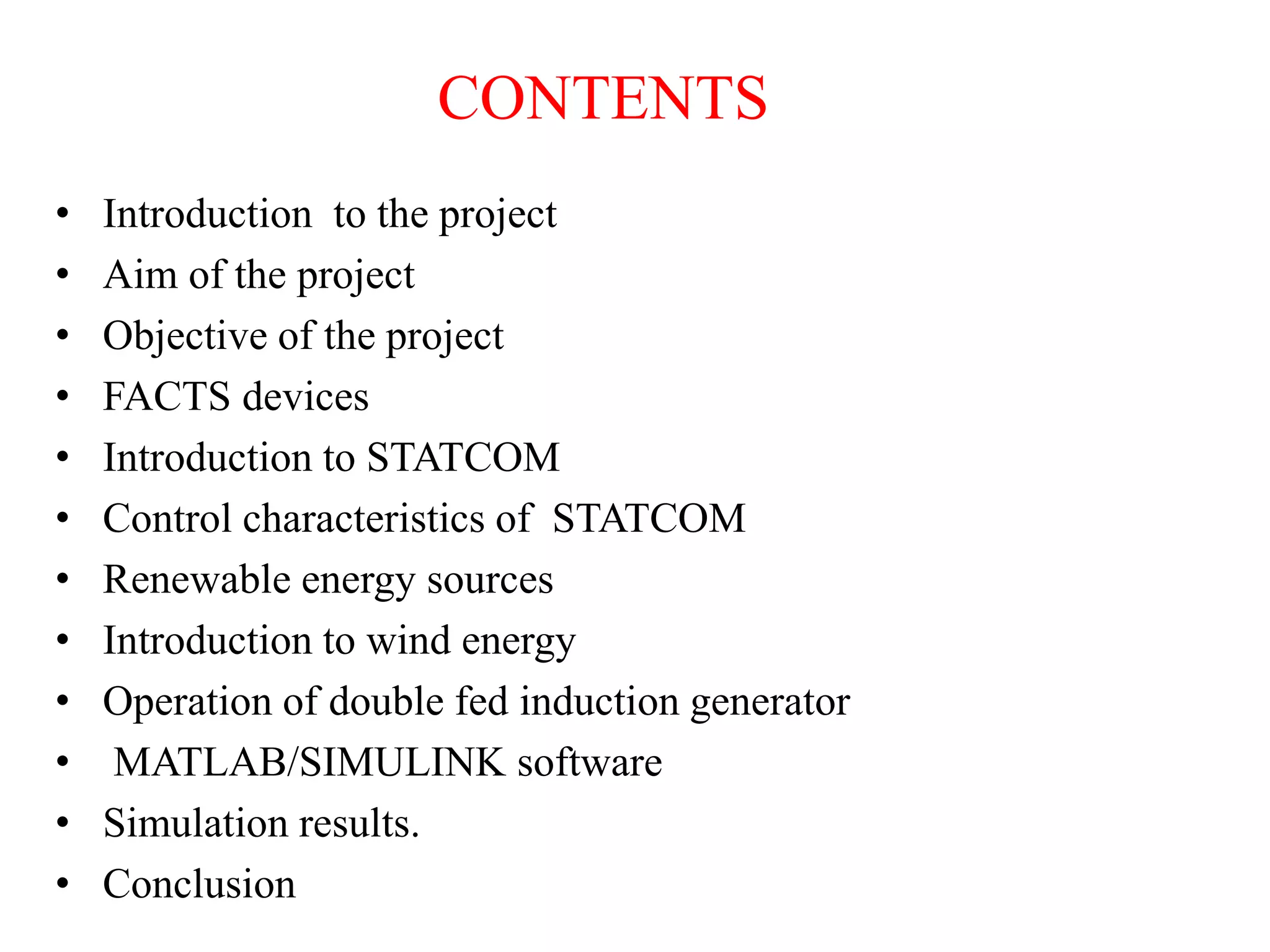

A STATCOM CONTROL SCHEME FOR POWER QUALITY IMPROVEMENT OF GRID CONNECTED TO W...Power System Operation
Introduction to the project
Aim of the project
Objective of the project
FACTS devices
Introduction to STATCOM
Control characteristics of STATCOM
Renewable energy sources
Introduction to wind energy
Operation of double fed induction generator
MATLAB/SIMULINK software
Simulation results.
Conclusion
Injection of the wind power into an electric grid affects the power quality. The performance of the wind turbine and thereby power quality are determined on the basis of measurements and the norms followed according to the guideline specified in International Electro-technical Commission standard, IEC-61400. The influence of the wind turbine in the grid system concerning the power quality measurements are-the active power, reactive power, variation of voltage, flicker, harmonics, and electrical behavior of switching operation and these are measured according to national/international guidelines. The paper study demonstrates the power quality problem due to installation of wind turbine with the grid. In this proposed scheme STATic COMpensator (STATCOM) is connected at a point of common coupling with a battery energy storage system (BESS) to mitigate the power quality issues. The battery energy storage is integrated to sustain the real power source under fluctuating wind power. The STATCOM control scheme for the grid connected wind energy generation system for power quality improvement is simulated using MATLAB/SIMULINK in power system block set. The effectiveness of the proposed scheme relives the main supply source from the reactive power demand of the load and the induction generator. The development of the grid co-ordination rule and the scheme for improvement in power quality norms as per IEC-standard on the grid has been presented.
High Voltage Direct Current technology has certain characteristics which
make it especially attractive for transmission system applications. HVDC
transmission system is useful for long-distance transmission, bulk power delivery and
long submarine cable crossings and asynchronous interconnections. The study of
faults is essential for reasonable protection design because the faults will induce a
significant influence on operation of HVDC transmission system. This paper provides
the most dominant and frequent faults on the HVDC systems such as DC Line-to-
Ground fault and Line-to-Line fault on DC link and some common types of AC faults
occurs in overhead transmission system such as Line-to-Ground fault, Line-to-Line
fault and L-L-L fault. In HVDC system, faults on rectifier side or inverter side have
major affects on system stability. The various types of faults are considered in the
HVDC system which causes due to malfunctions of valves and controllers, misfire
and short circuit across the inverter station, flashover and three phase short circuit.
The various faults occurs at the converter station of a HVDC system and
Controlling action for those faults. Most of the studies have been conducted on line
faults. But faults on rectifier or inverter side of a HVDC system have great impact on
system stability. Faults considered are fire-through, misfire, and short circuit across
the inverter station, flashover, and a three-phase short circuit in the ac system. These
investigations are studied using matlab simulink models and the result represented in
the form of typical time responses.
