This document summarizes the specifications of a mini paper plant that converts waste into paper products. The plant can produce tissue paper, towel paper, and napkins with a basis weight between 13 to 30 g/m2 and a trim width of 600mm or 787mm. It has a production capacity of 0.5 to 1 ton and can operate at speeds between 10 to 30 meters per minute. The total cost of investment for a plant that converts waste paper into finished tissue paper through the entire production process is USD 43,500.

1. PROFESSIONAL
MINI PAPER PLANT
CONVERTING WASTE TO TREASURE

2. From waste to tissue Napkin

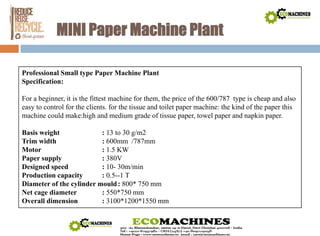

3. MINI PaperMachine Plant
Professional Small type PaperMachine Plant
Specification:
For a beginner, it is the fittest machine for them, the price of the 600/787 type is cheap and also
easy to control for the clients. for the tissue and toilet paper machine: the kind of the paper this
machine could make:high and medium grade of tissue paper, towel paper and napkin paper.
Basis weight : 13 to 30 g/m2
Trim width : 600mm /787mm
Motor : 1.5 KW
Paper supply : 380V
Designed speed : 10- 30m/min
Production capacity : 0.5--1 T
Diameter of the cylinder mould : 800* 750 mm
Net cage diameter : 550*750 mm
Overall dimension : 3100*1200*1550 mm

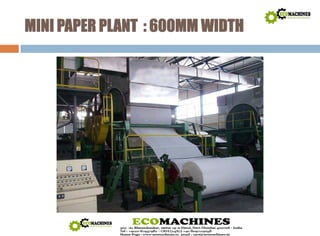

4. MINI PAPER PLANT : 600MM WIDTH

5. MINI PAPER PLANT : 600MM WIDTH

6. PROCESSING WITH FEEDSTOCKS
→ → → →
WOOD CHIPPING DIGESTOR WASHING SCREENING
→
CAUSTICING
→
RECOVERY
BOILERS EVAPORATORS BLEACHING → →
BAGASSE FIBER PREPN DIGESTOR WASHING
BLEACHING
SCREENING
CLEANING
→ → → →
WASTE PAPER
WASTE PAPER
→ PROCESSING
STOCK PREPARATION
WASTE PAPER
WASTE PAPER
→ PROCESSING

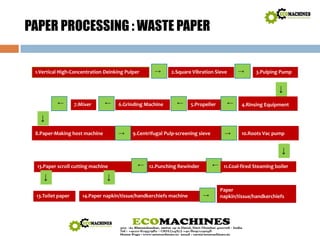

7. PAPER PROCESSING : WASTE PAPER
1.Vertical High‐Concentration Deinking Pulper → 2.Square Vibration Sieve → 3.Pulping Pump
↓
i i i P ll → 6 G i di M hi → Mi → →
4.Rinsing Equipment 5.Propeller 6.Grinding Machine 7.Mixer ↓
8.Paper‐Making host machine
→ 9.Centrifugal Pulp‐screening sieve → 10.Roots Vac pump
→
↓
11.Coal‐fired Steaming boiler 12.Punching Rewinder → 13.Paper scroll cutting machine
↓ ↓
13.Toilet paper
14.Paper napkin/tissue/handkerchiefs machine →
Paper
napkin/tissue/handkerchiefs

8. The whole line:

9. THE PLANT

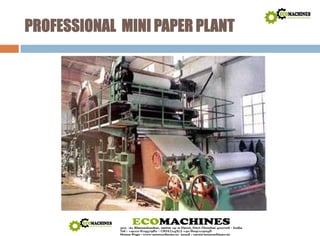

10. PROFESSIONAL MINI PAPER PLANT

11. General Product size :
200/220/230/240/250/275/ mm

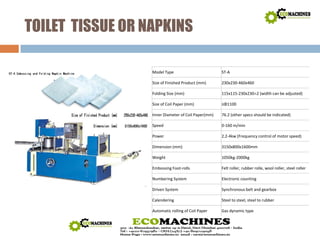

12. TOILET TISSUE OR NAPKINS
Model Type ST‐A
Size of Finished Product (mm) 230x230‐460x460
Folding Size (mm) 115x115‐230x230±2 (width can be adjusted)
Size of Coil Paper (mm) ≤ΦΦ1100
Inner Diameter of Coil Paper(mm) 76.2 (other specs should be indicated)
Speed 0‐160 m/min
Power 2.2‐4kw (Frequency control of motor speed)
Dimension (mm) 3150x800x1600mm
Weight 1050kg‐2000kg
Embossing Foot‐rolls Felt roller, rubber rolle, wool roller, steel roller
Numbering System Electronic counting
Driven System Synchronous belt and gearbox
Calendering Steel to steel, steel to rubber
Automatic rolling of Coil Paper Gas dynamic type

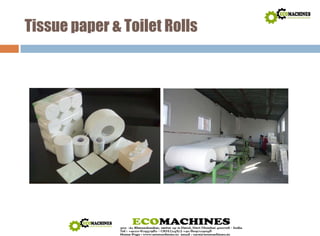

13. Tissue paper & Toilet Rolls

14. Cost of Investment
Plant PAPER PROCESSING
From Waste paper to finished tissue paper machinery
U$D 43500
` 24 Lakhs
@
53/- to a Dollar
Includes all machinery except that what is need at the site

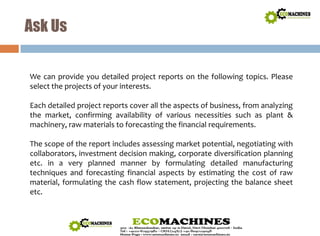

16. Ask Us
We can provide you detailed project reports on the following topics. Please
select the projects of your interests.
Each detailed project reports cover all the aspects of business, from analyzing
the market, confirming availability of various necessities such as plant &
machinery, raw materials to forecasting the financial requirements.
The scope of the report includes assessing market potential, negotiating with
collaborators, investment decision making, corporate diversification planning
etc. in a very planned manner by formulating detailed manufacturing
techniques and forecasting financial aspects by estimating the cost of raw
material, formulating the cash flow statement, projecting the balance sheet
etc.

17. THANK YOU
THANK YOU FOR THE PATIENCE TO READ, SHOULD,
YOU NEED ADDITIONAL INPUTS. DO GET IN TOUCH
Visit our slideshare for Paper Mill details
http://www.slideshare.net/careindia/going-green-for-green-paper-processing
