Microarrays allow researchers to study gene expression across thousands of genes simultaneously. They work by hybridizing labeled cDNA or cRNA to probes attached to a solid surface, then detecting and quantifying the hybridized genes. The document outlines the history and development of microarray technology. It describes the key steps in a DNA microarray experiment including tissue collection, RNA isolation, cDNA synthesis, hybridization to the array, scanning, and data analysis. Applications include studying gene expression in health and disease, drug development, and pharmacogenomics. Advantages are the ability to study many genes at once, while limitations include expense and complexity of data analysis.

1. Microarray
Dr. Swarnendu Pal

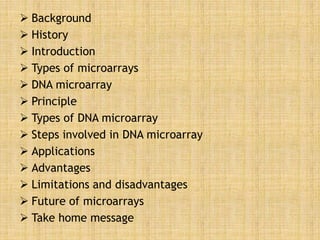

2.  Background
 History
 Introduction
 Types of microarrays
 DNA microarray
 Principle
 Types of DNA microarray
 Steps involved in DNA microarray
 Applications
 Advantages
 Limitations and disadvantages
 Future of microarrays
 Take home message

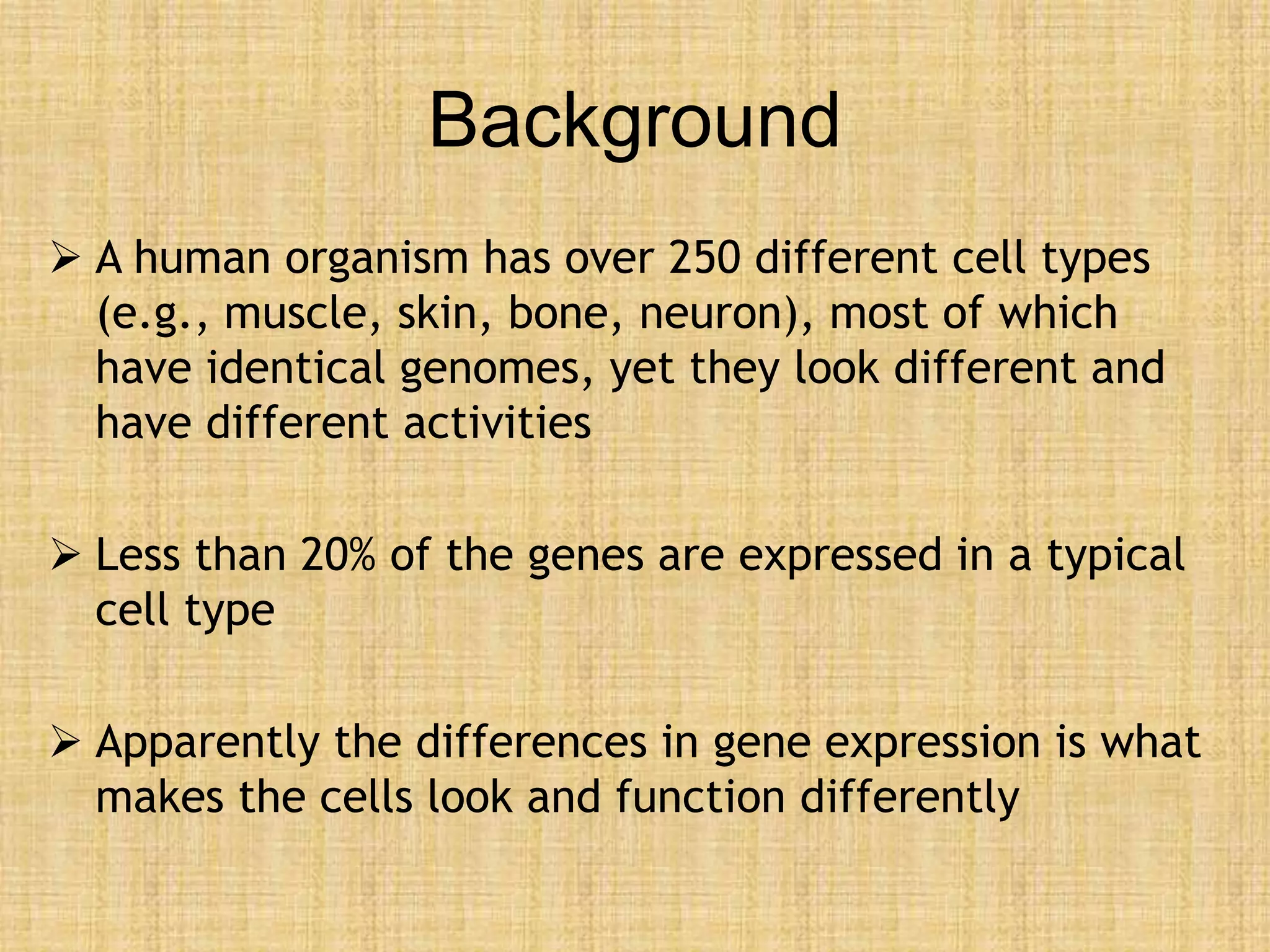

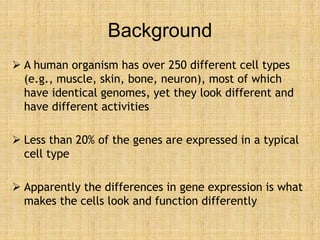

3. Background

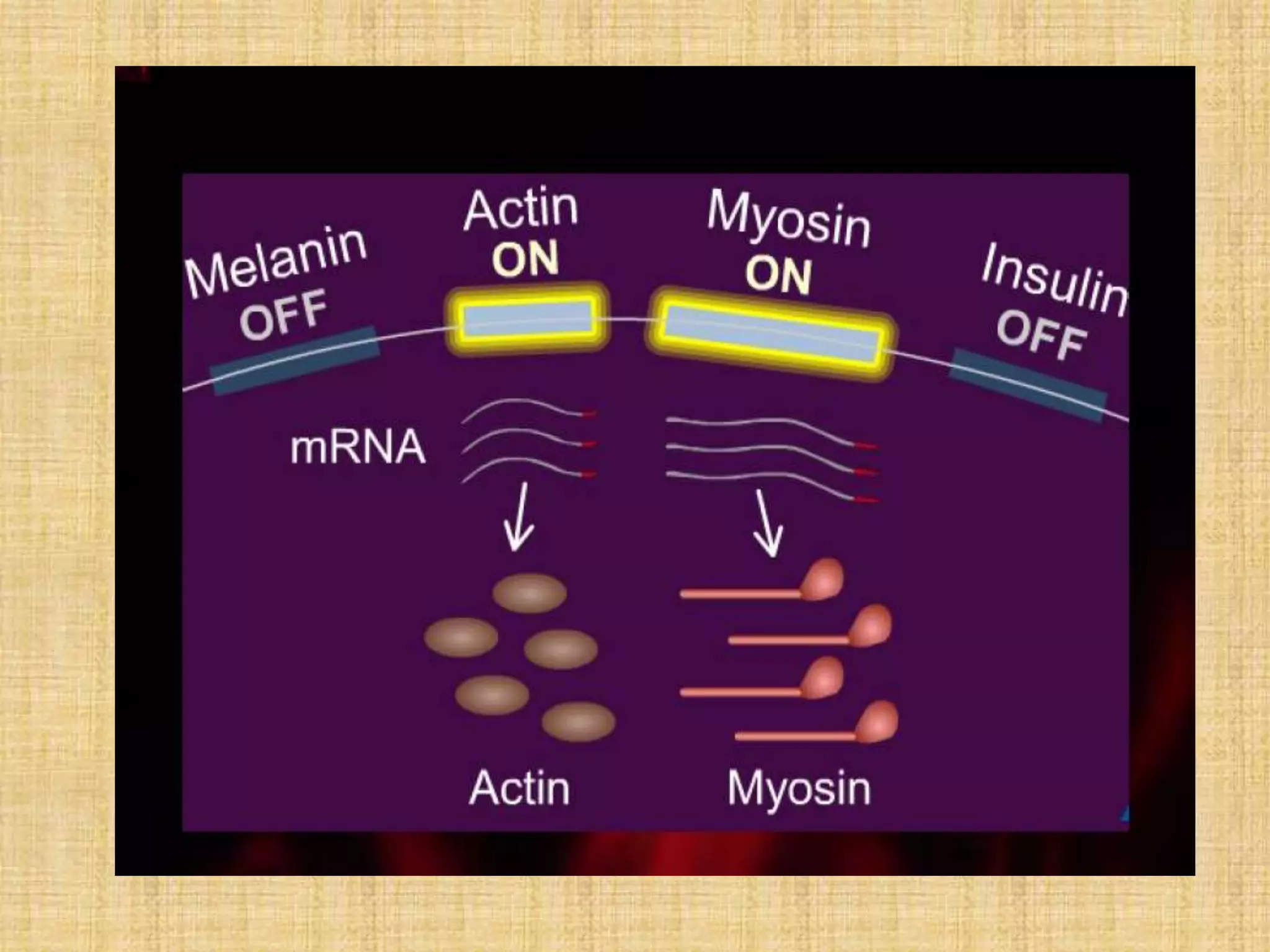

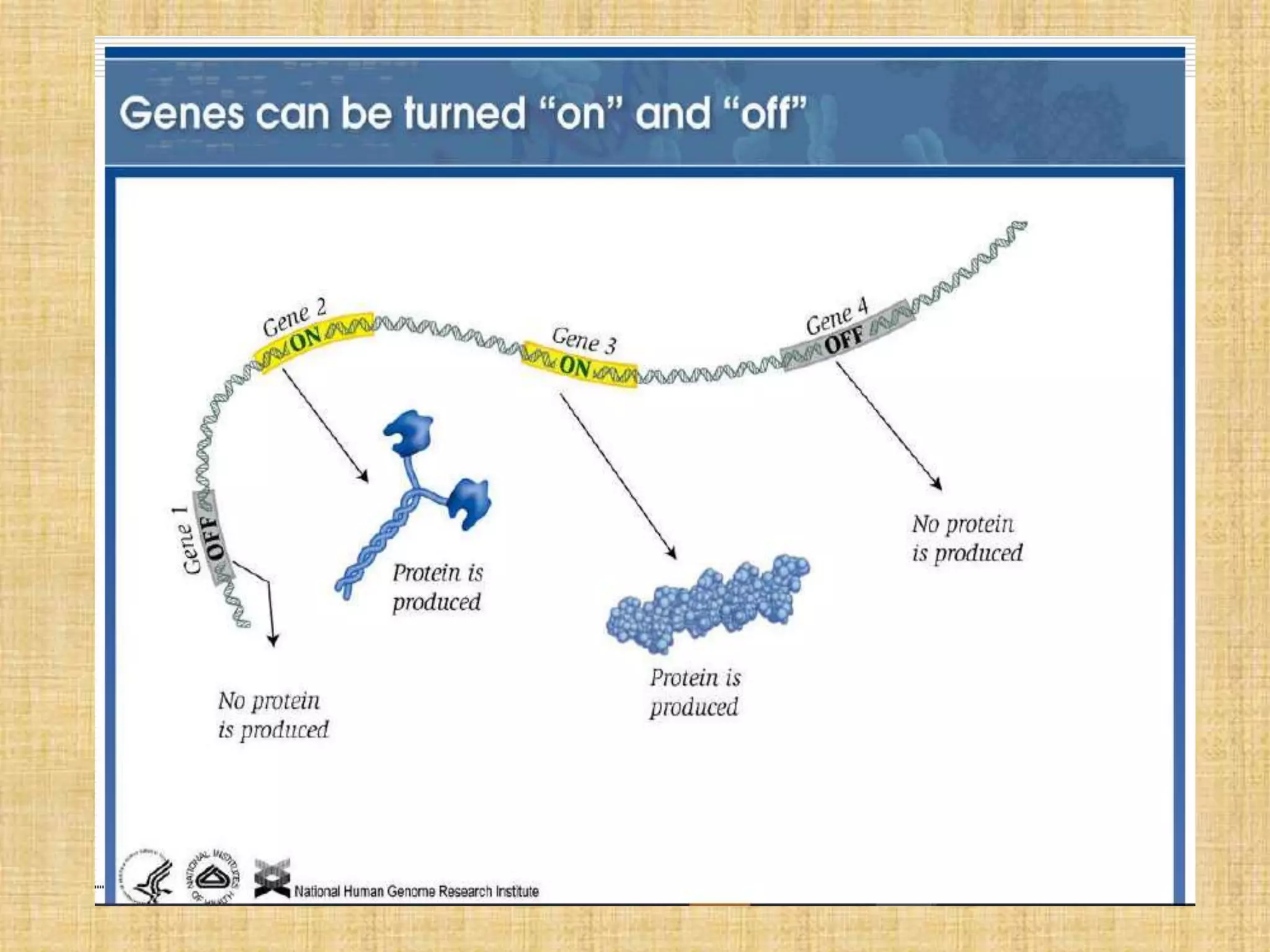

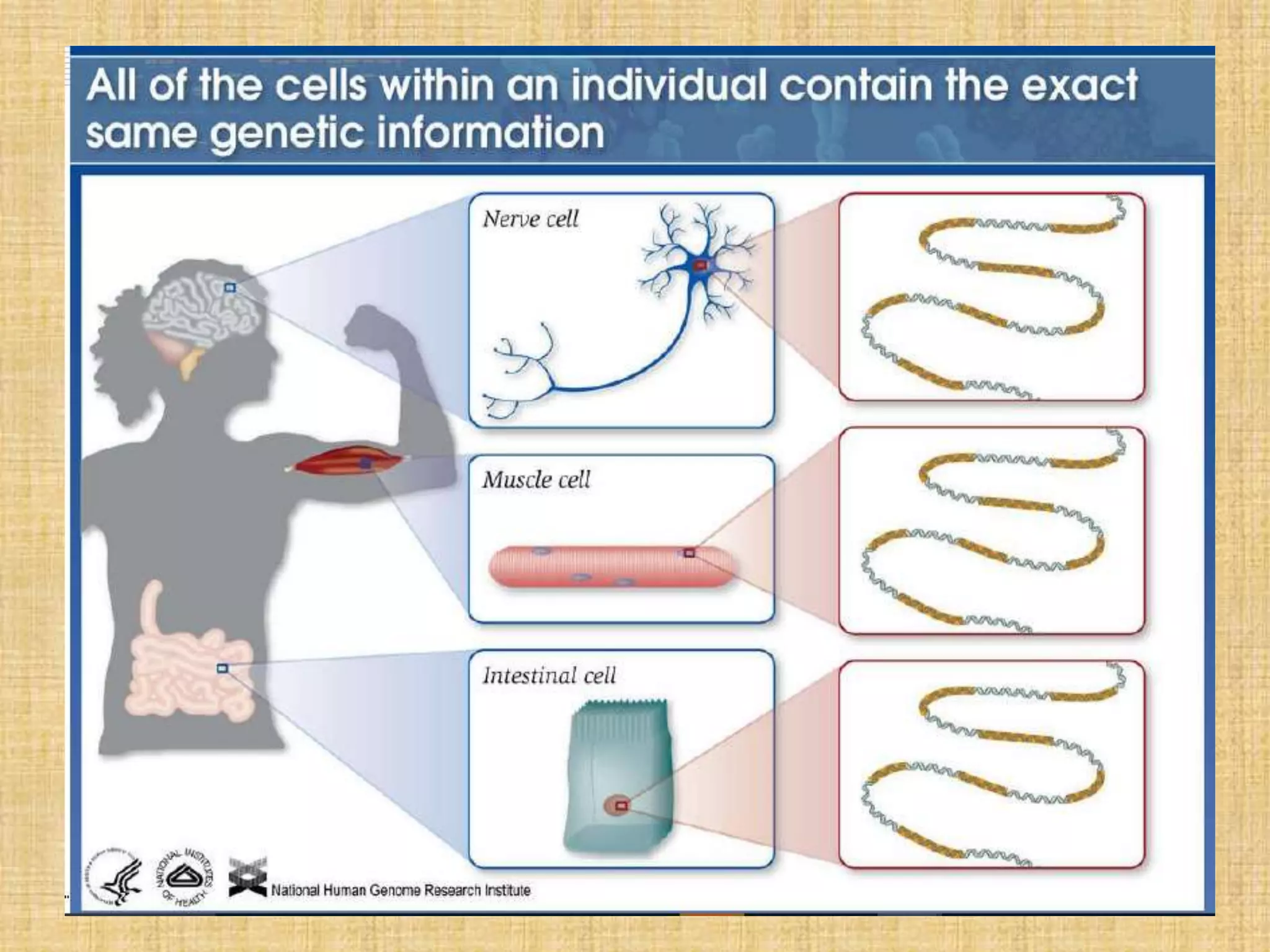

 A human organism has over 250 different cell types
(e.g., muscle, skin, bone, neuron), most of which
have identical genomes, yet they look different and
have different activities
 Less than 20% of the genes are expressed in a typical
cell type
 Apparently the differences in gene expression is what
makes the cells look and function differently

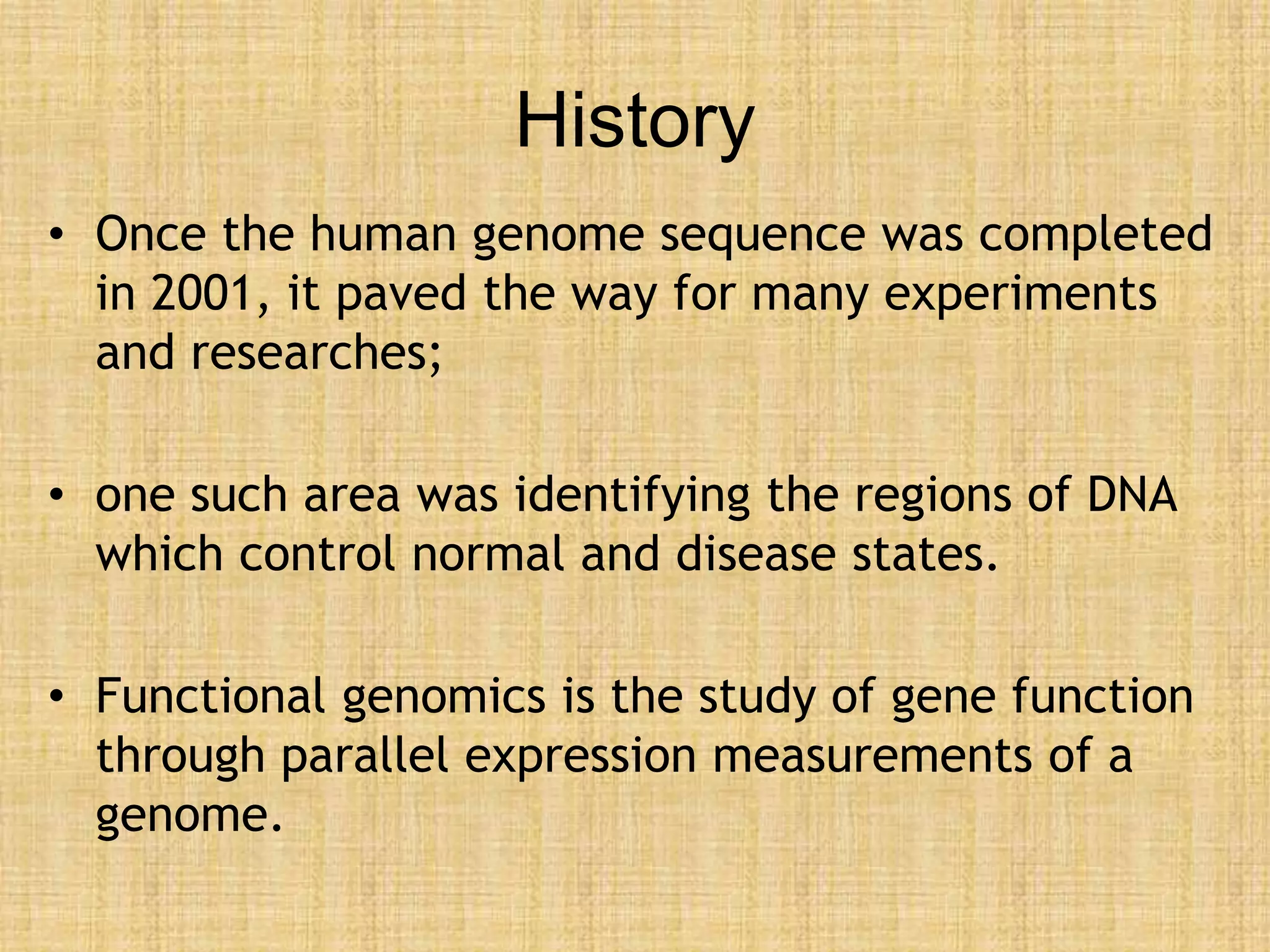

7. History
• Once the human genome sequence was completed
in 2001, it paved the way for many experiments
and researches;
• one such area was identifying the regions of DNA
which control normal and disease states.
• Functional genomics is the study of gene function
through parallel expression measurements of a
genome.

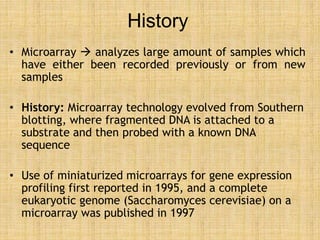

8. History
• Microarray  analyzes large amount of samples which
have either been recorded previously or from new
samples
• History: Microarray technology evolved from Southern
blotting, where fragmented DNA is attached to a
substrate and then probed with a known DNA
sequence
• Use of miniaturized microarrays for gene expression
profiling first reported in 1995, and a complete
eukaryotic genome (Saccharomyces cerevisiae) on a
microarray was published in 1997

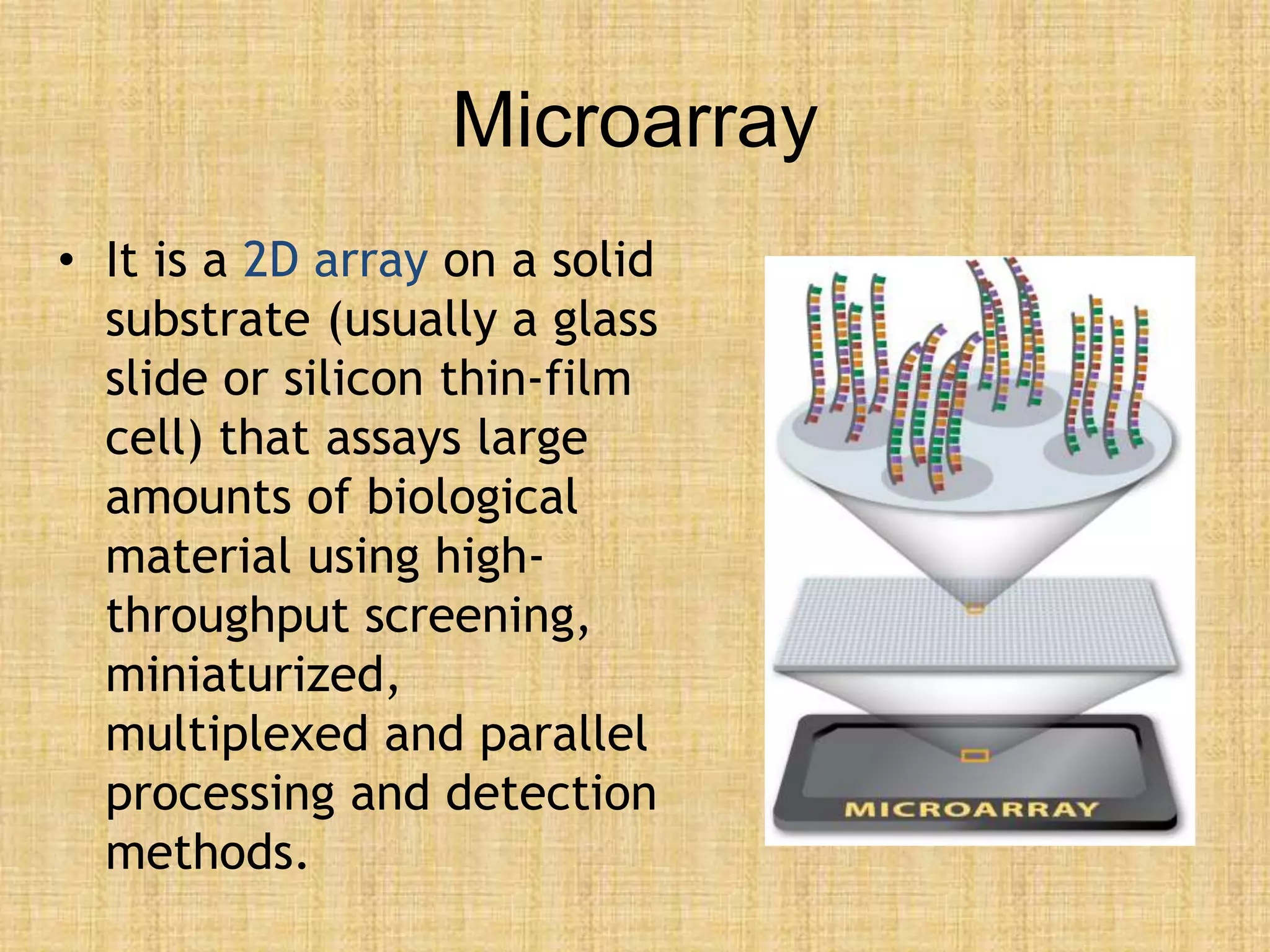

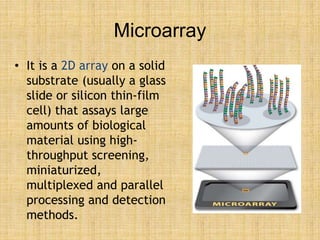

9. Microarray
• It is a 2D array on a solid
substrate (usually a glass
slide or silicon thin-film
cell) that assays large
amounts of biological
material using high-
throughput screening,
miniaturized,
multiplexed and parallel
processing and detection
methods.

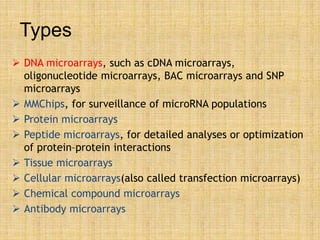

10. Types
 DNA microarrays, such as cDNA microarrays,
oligonucleotide microarrays, BAC microarrays and SNP
microarrays
 MMChips, for surveillance of microRNA populations
 Protein microarrays
 Peptide microarrays, for detailed analyses or optimization
of protein–protein interactions
 Tissue microarrays
 Cellular microarrays(also called transfection microarrays)
 Chemical compound microarrays
 Antibody microarrays

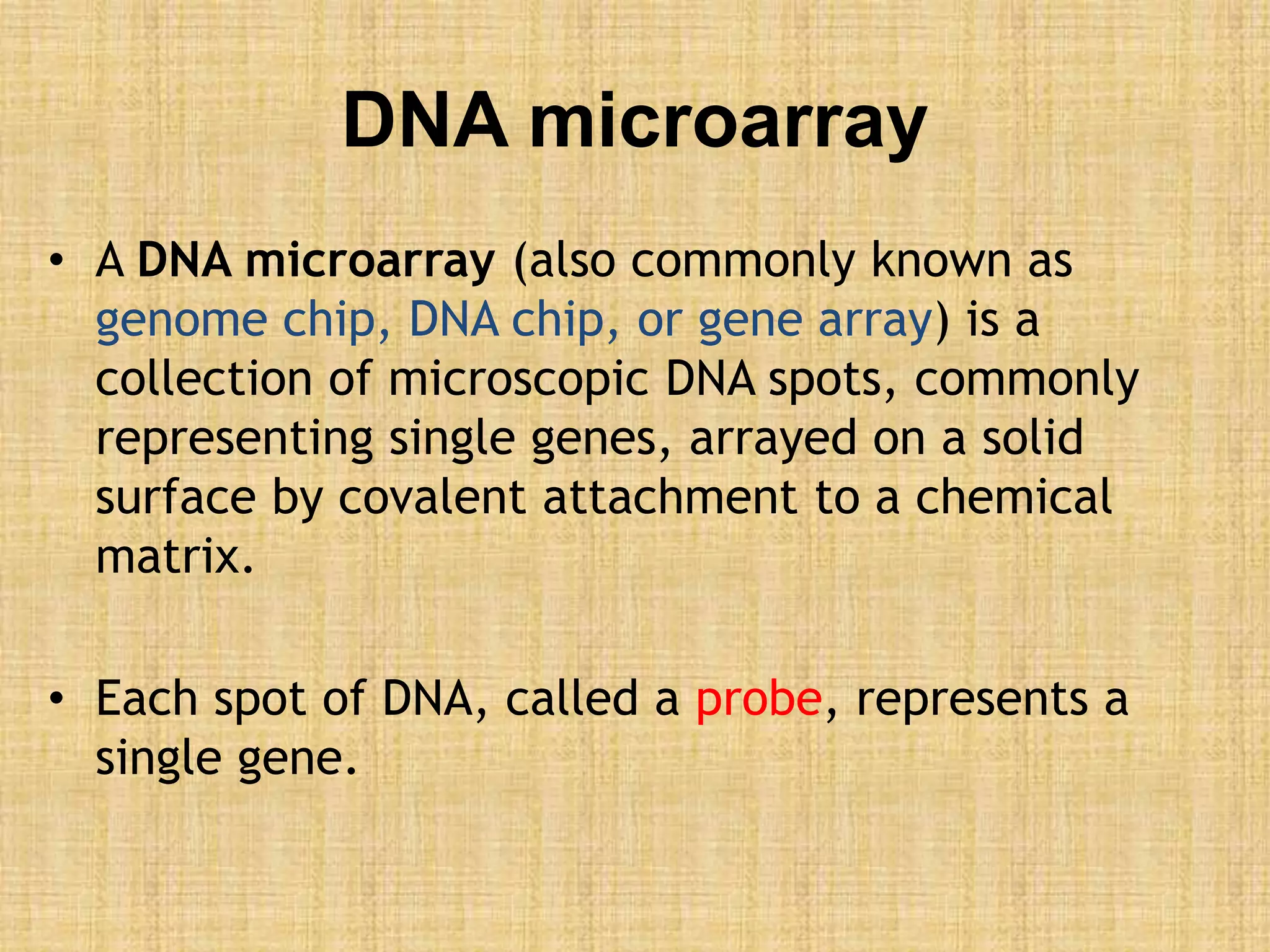

11. DNA microarray
• A DNA microarray (also commonly known as
genome chip, DNA chip, or gene array) is a
collection of microscopic DNA spots, commonly
representing single genes, arrayed on a solid
surface by covalent attachment to a chemical
matrix.
• Each spot of DNA, called a probe, represents a
single gene.

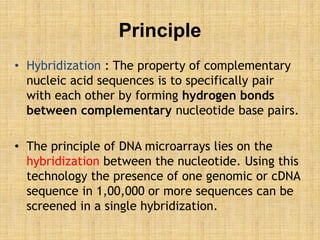

12. Principle
• Hybridization : The property of complementary
nucleic acid sequences is to specifically pair
with each other by forming hydrogen bonds
between complementary nucleotide base pairs.
• The principle of DNA microarrays lies on the
hybridization between the nucleotide. Using this
technology the presence of one genomic or cDNA
sequence in 1,00,000 or more sequences can be
screened in a single hybridization.

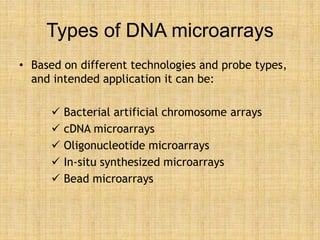

13. Types of DNA microarrays
• Based on different technologies and probe types,
and intended application it can be:
 Bacterial artificial chromosome arrays
 cDNA microarrays
 Oligonucleotide microarrays
 In-situ synthesized microarrays
 Bead microarrays

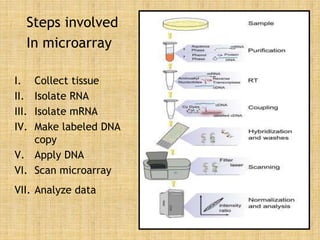

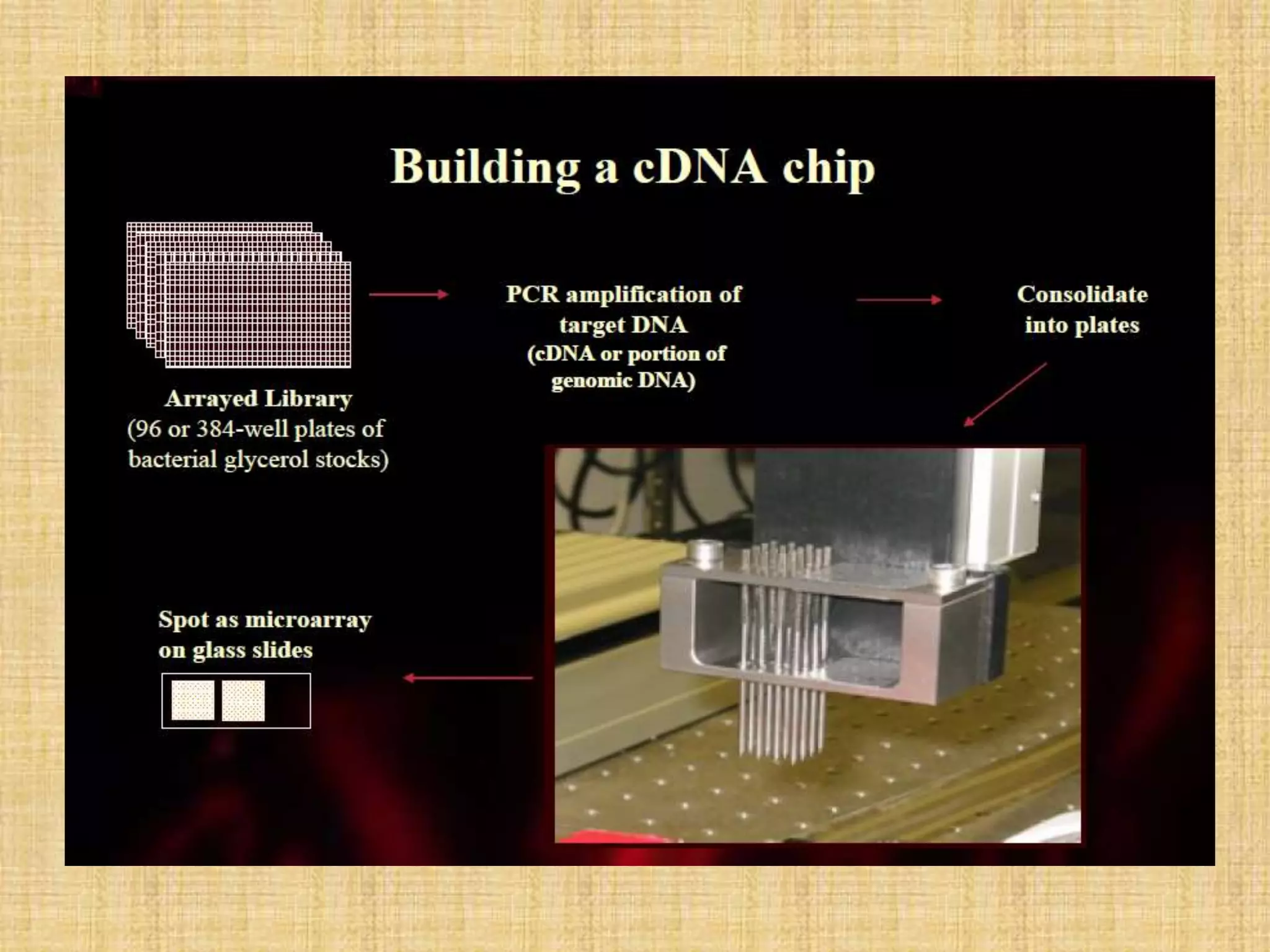

15. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

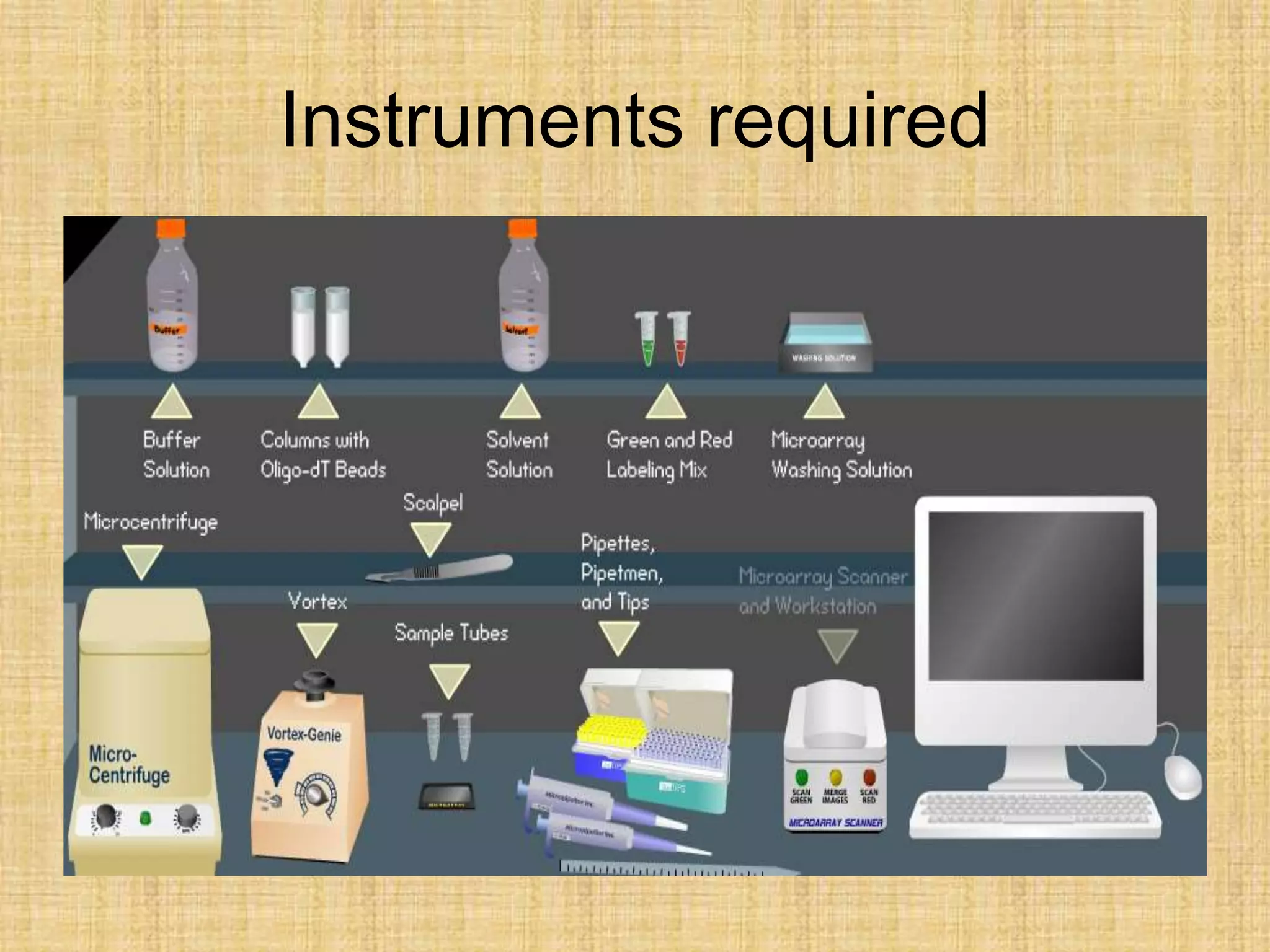

16. Instruments required

17. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

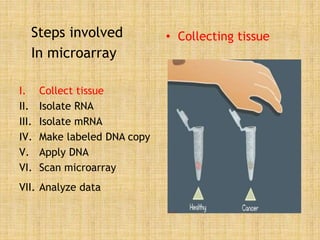

• Collecting tissue

18. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

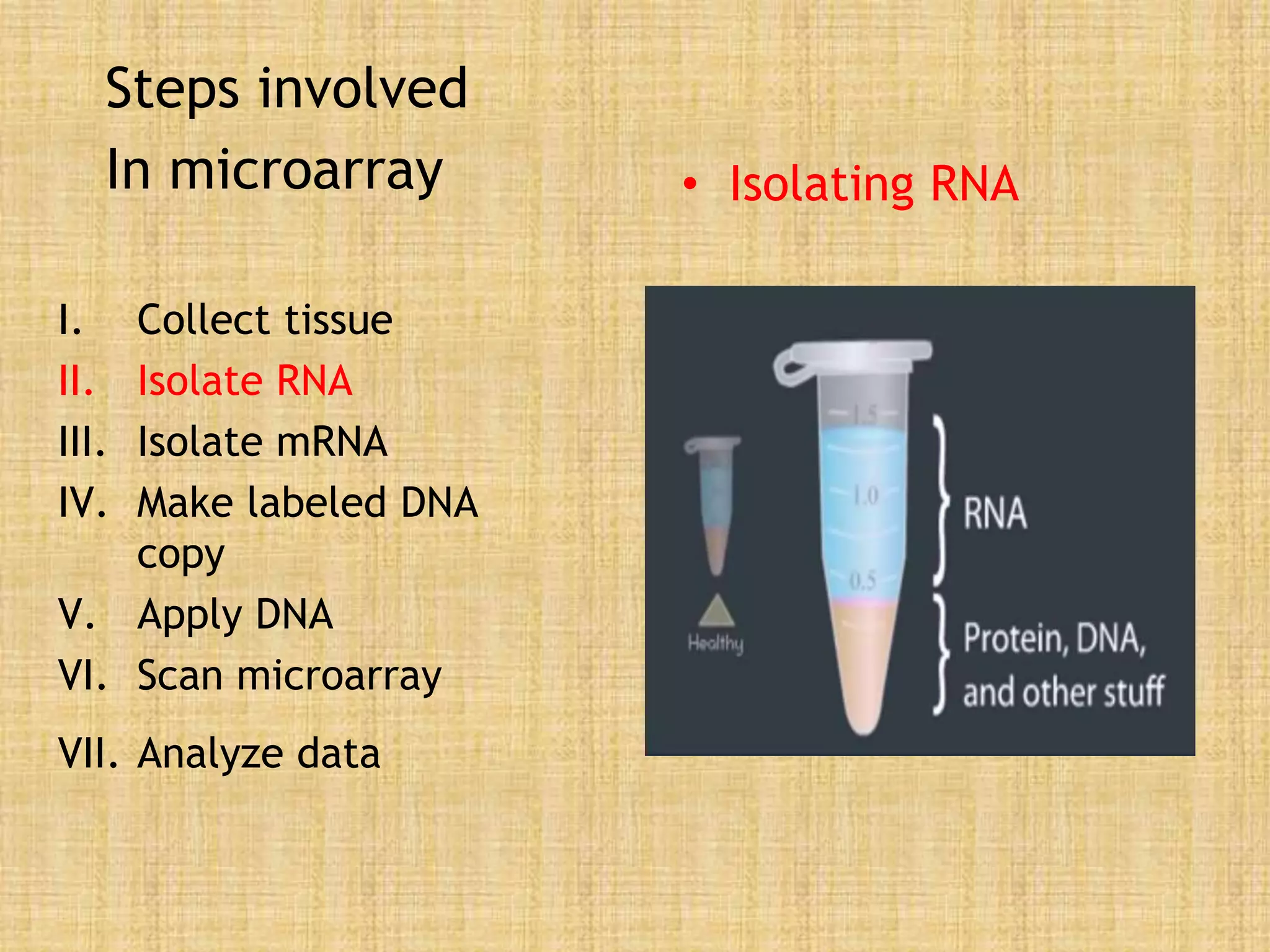

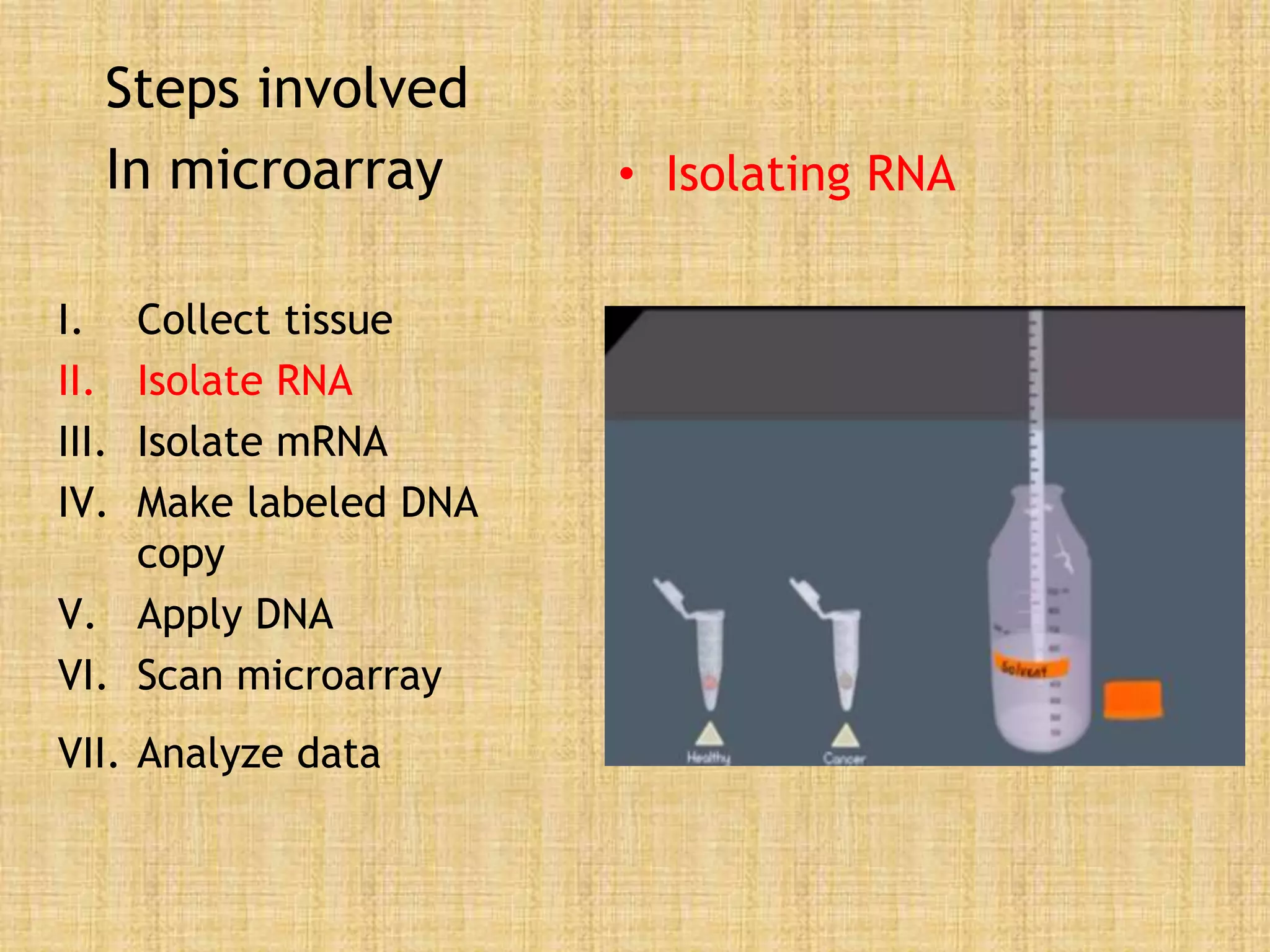

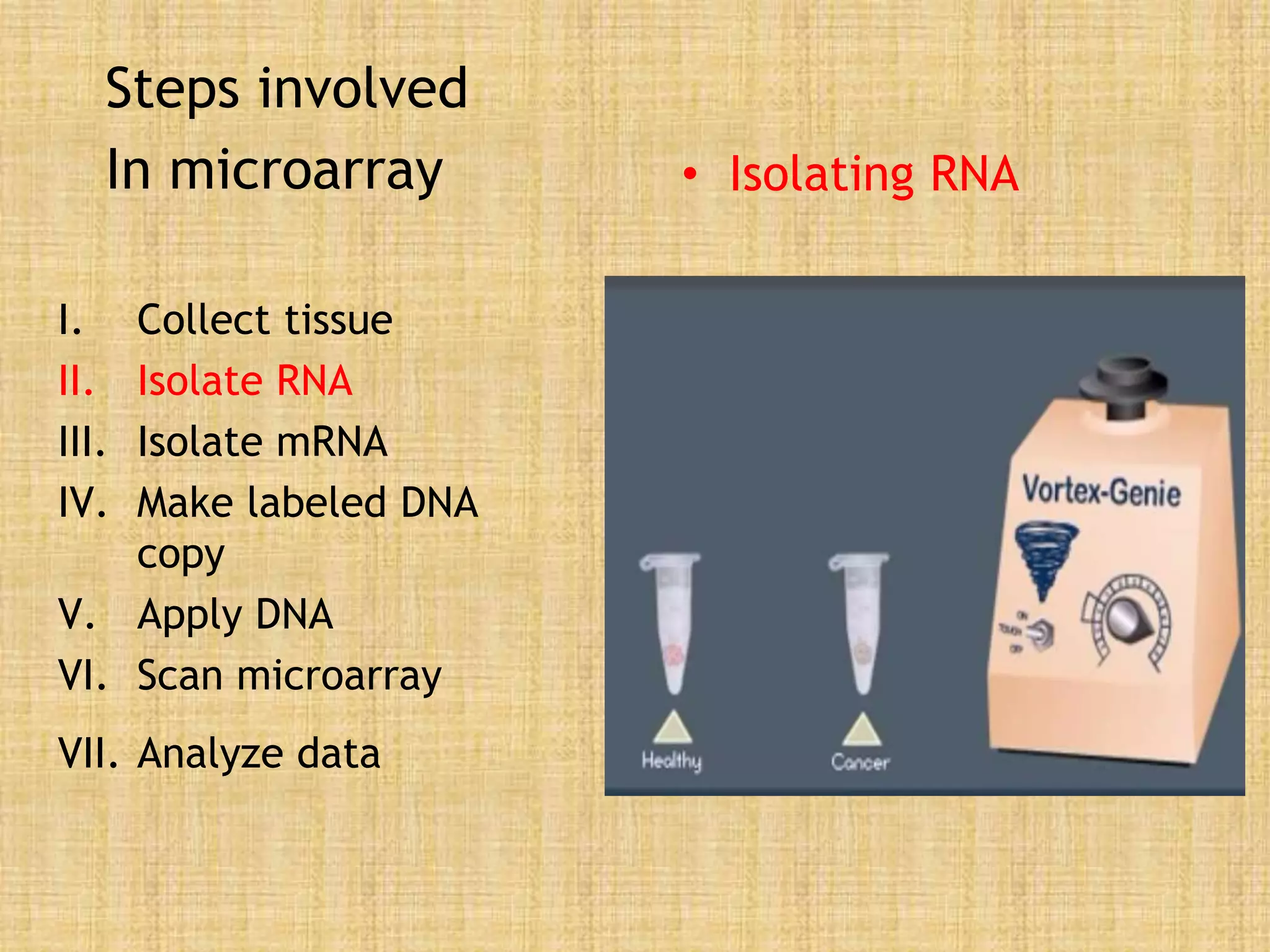

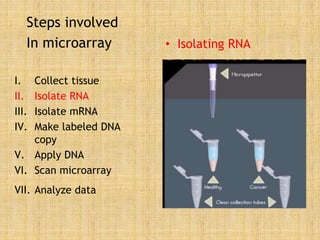

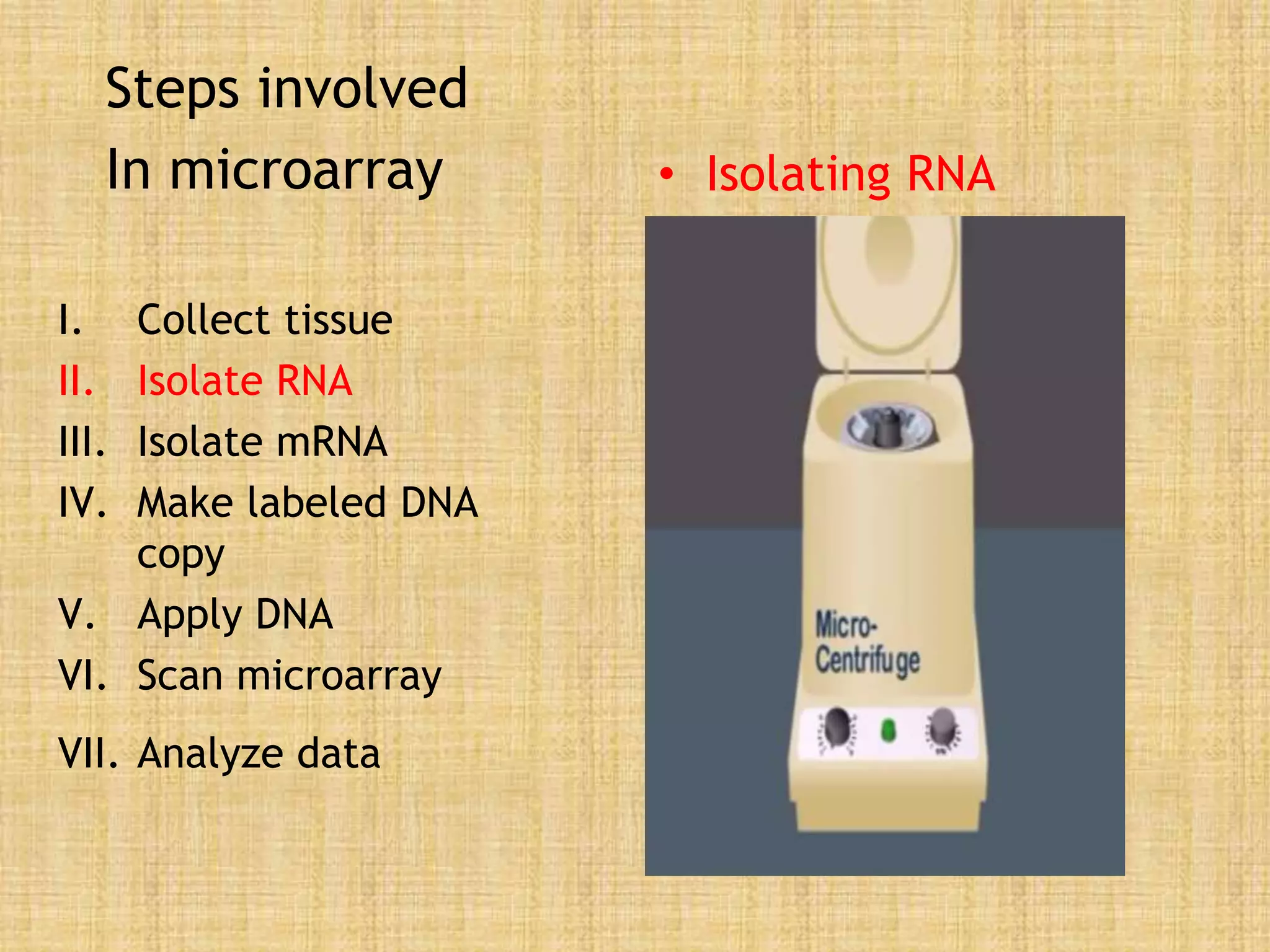

• Isolating RNA

19. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating RNA

20. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating RNA

21. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating RNA

22. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating RNA

23. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

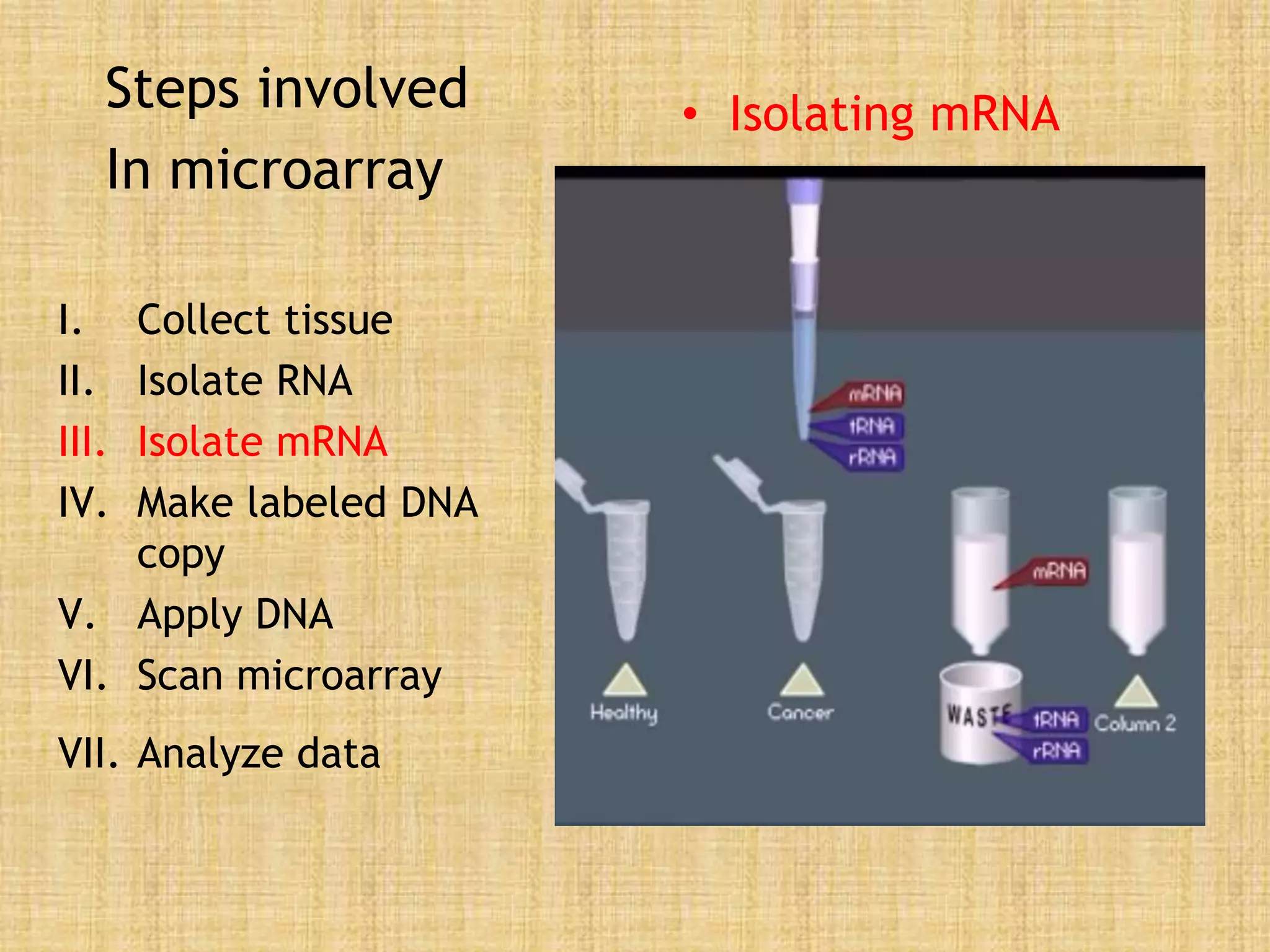

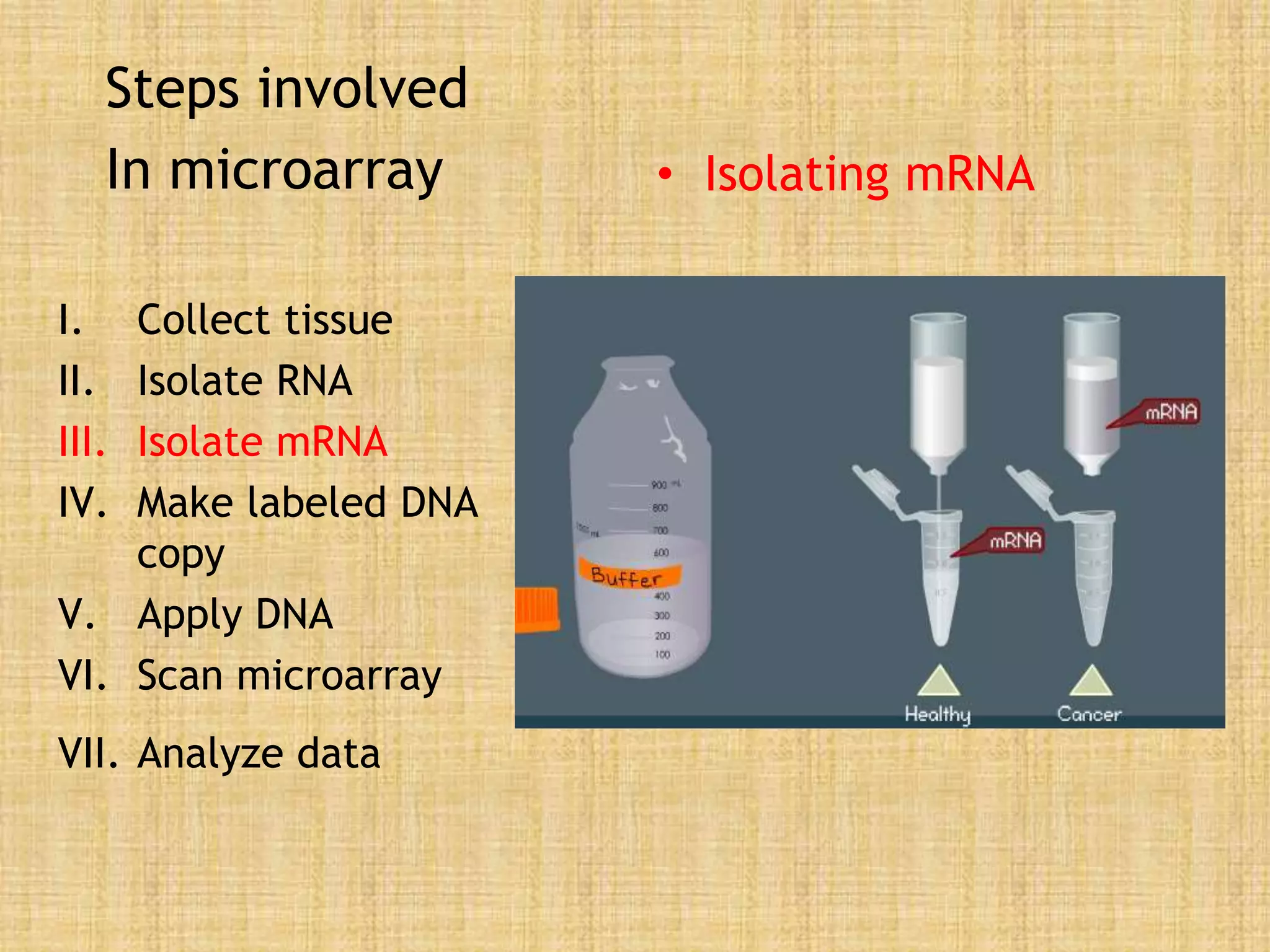

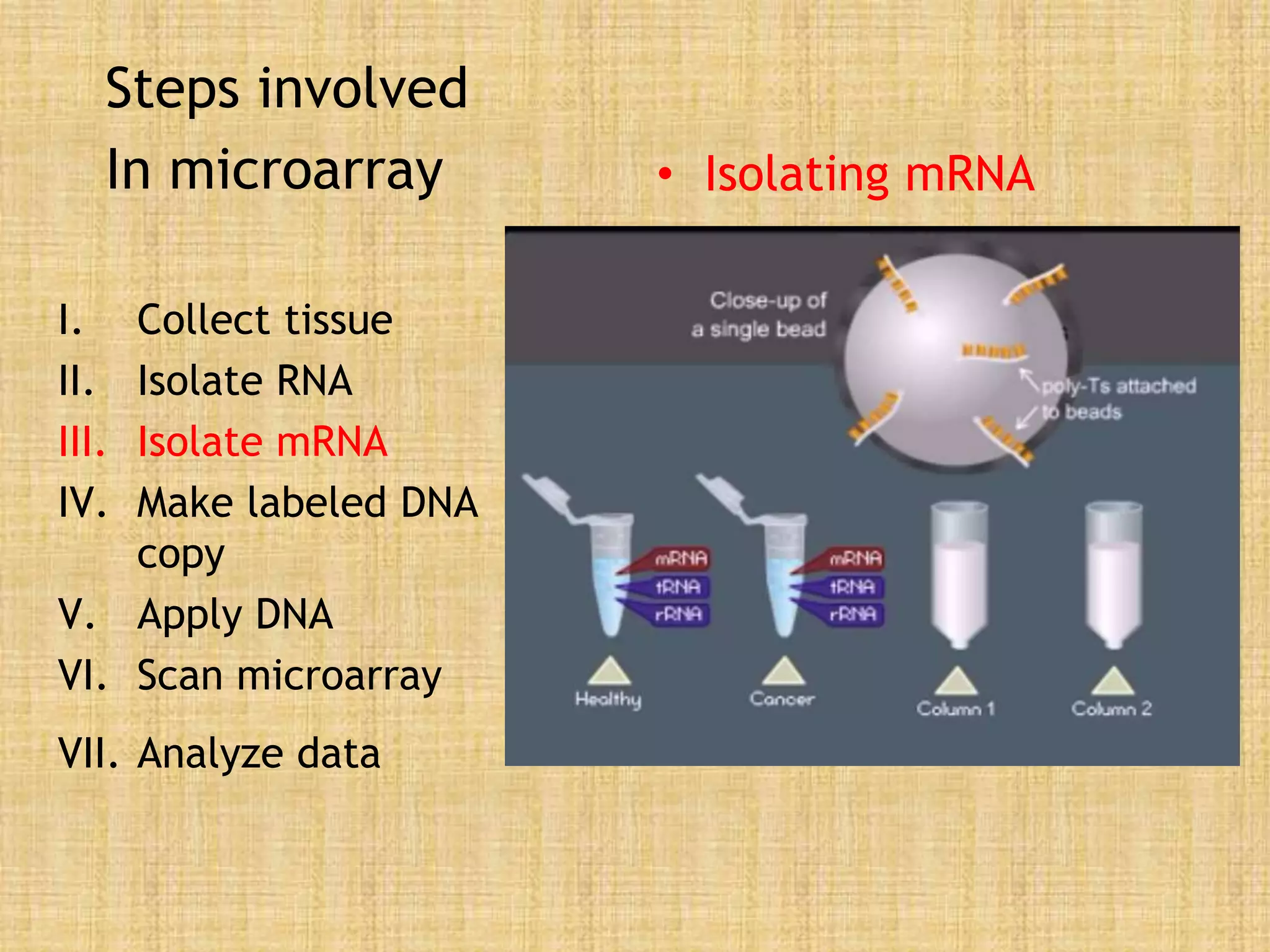

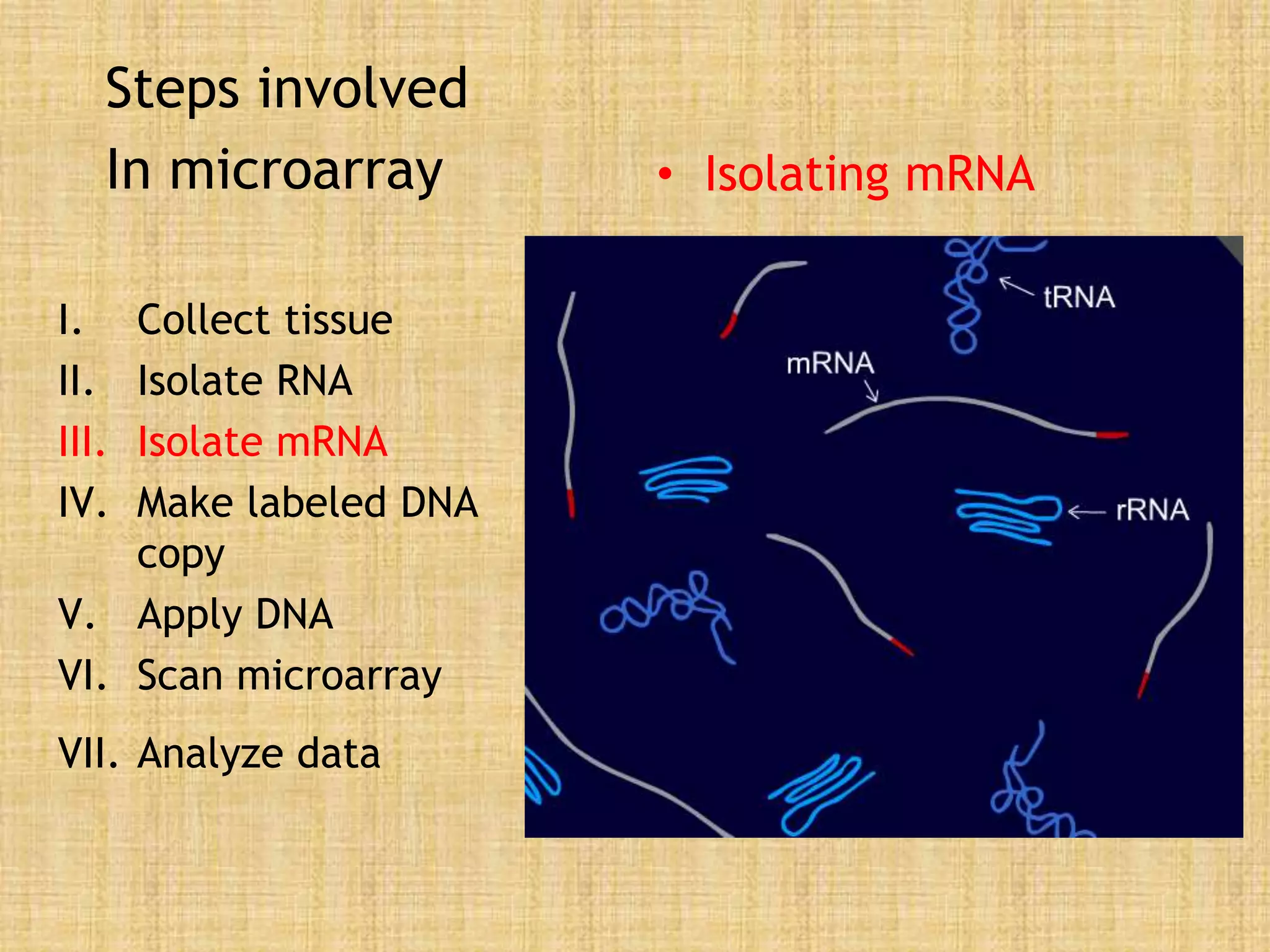

• Isolating mRNA

24. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating mRNA

25. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating mRNA

26. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
• Isolating mRNA

27. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

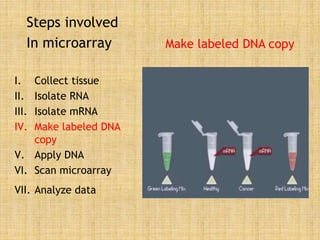

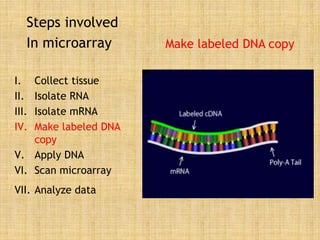

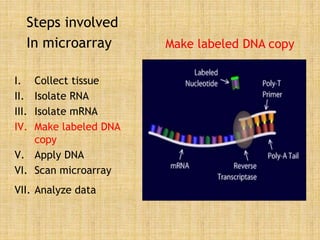

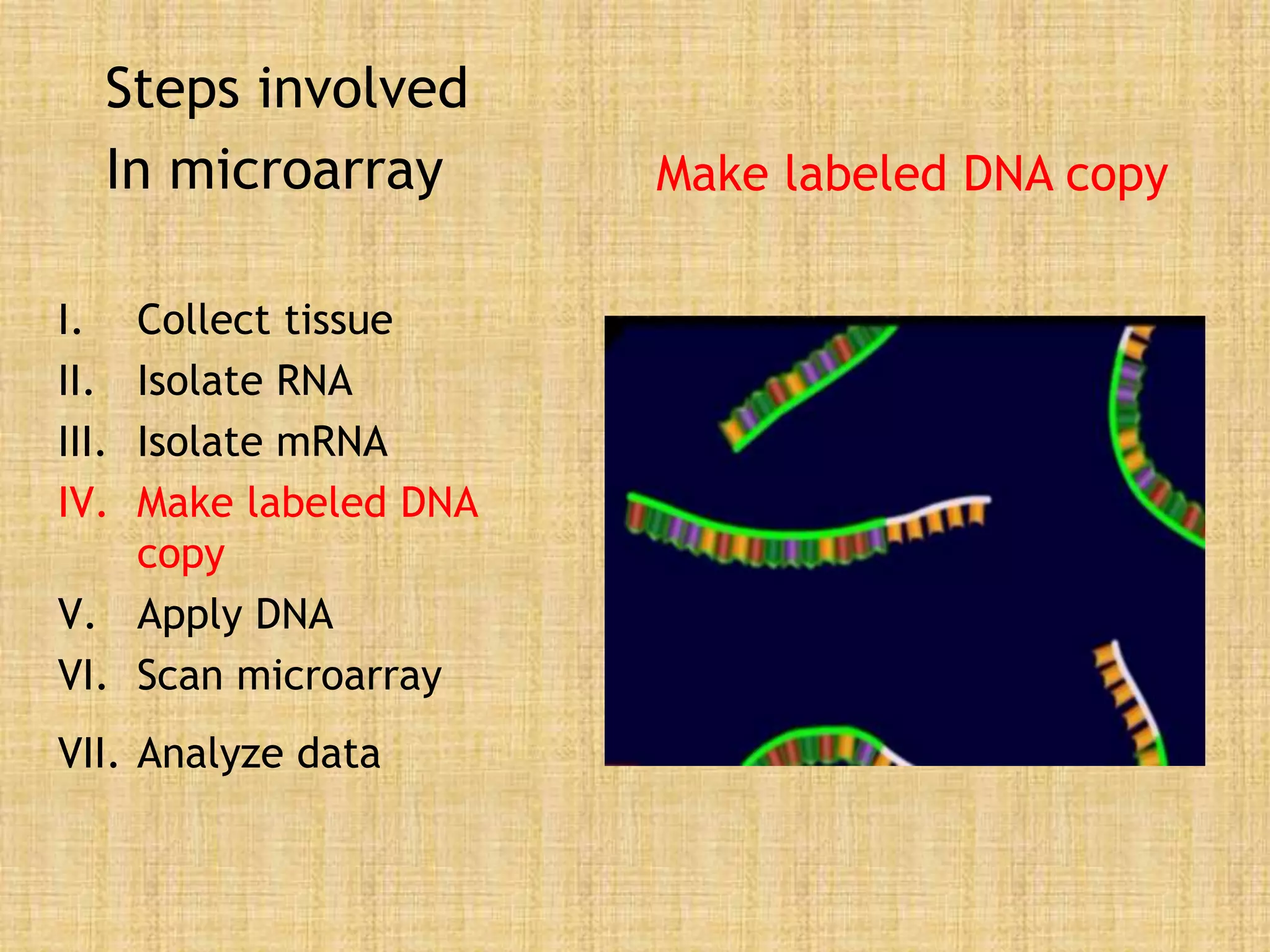

Make labeled DNA copy

28. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Make labeled DNA copy

29. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Make labeled DNA copy

30. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Make labeled DNA copy

32. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

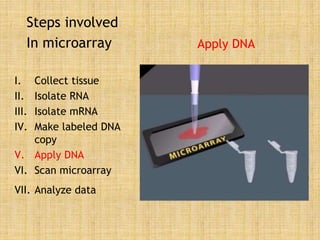

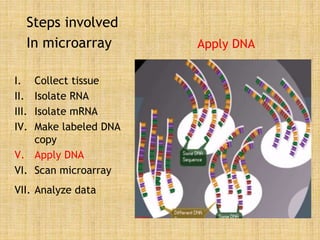

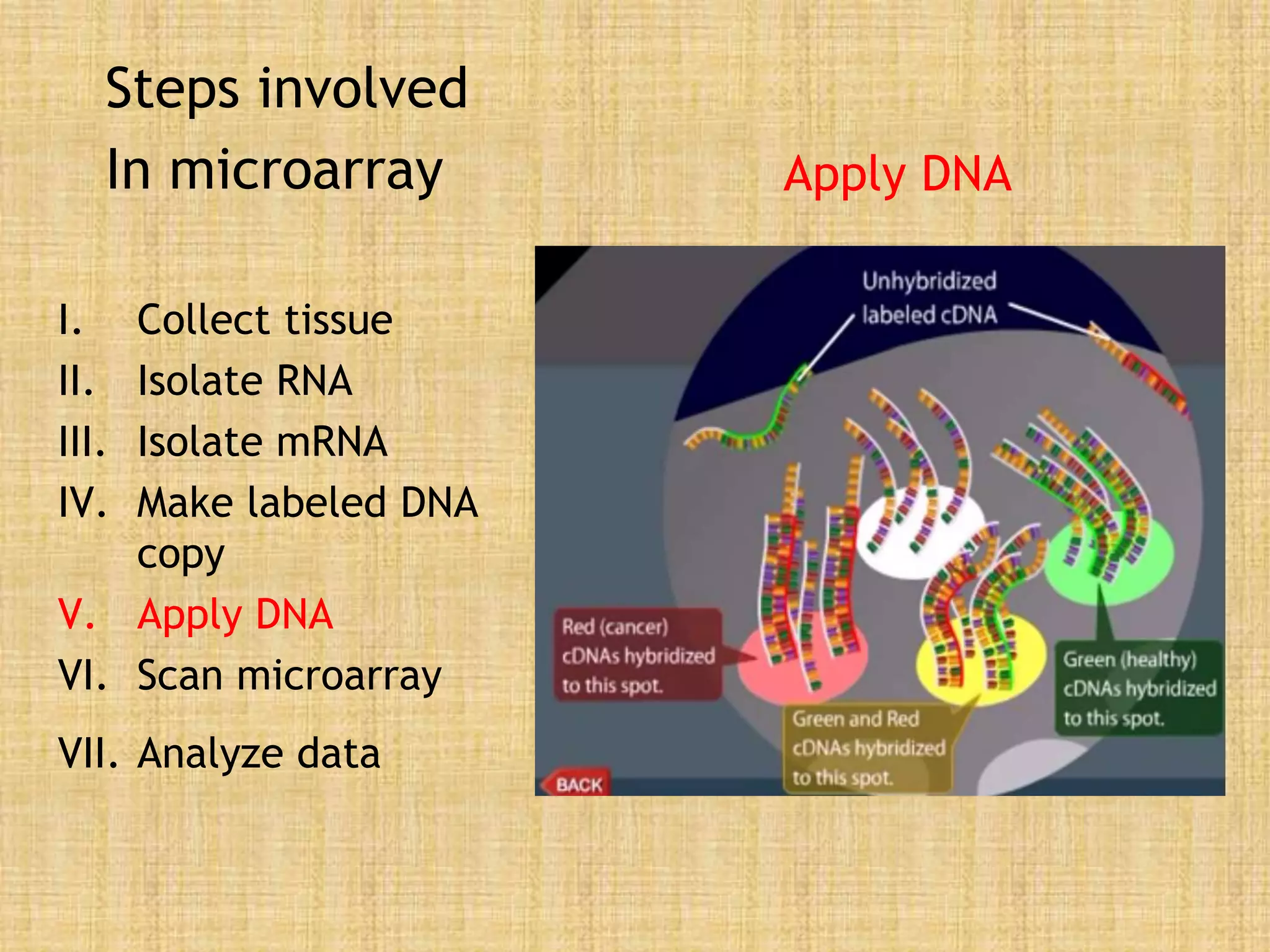

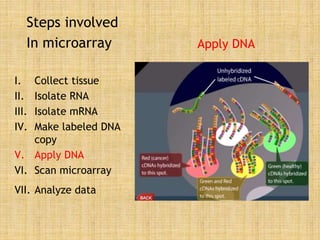

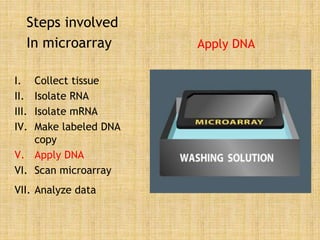

Apply DNA

33. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Apply DNA

34. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Apply DNA

35. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data
Apply DNA

36. Steps involved
In microarray
I. Collect tissue
II. Isolate RNA
III. Isolate mRNA
IV. Make labeled DNA
copy
V. Apply DNA
VI. Scan microarray
VII. Analyze data

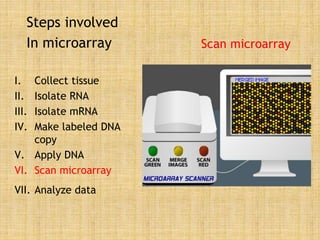

Scan microarray

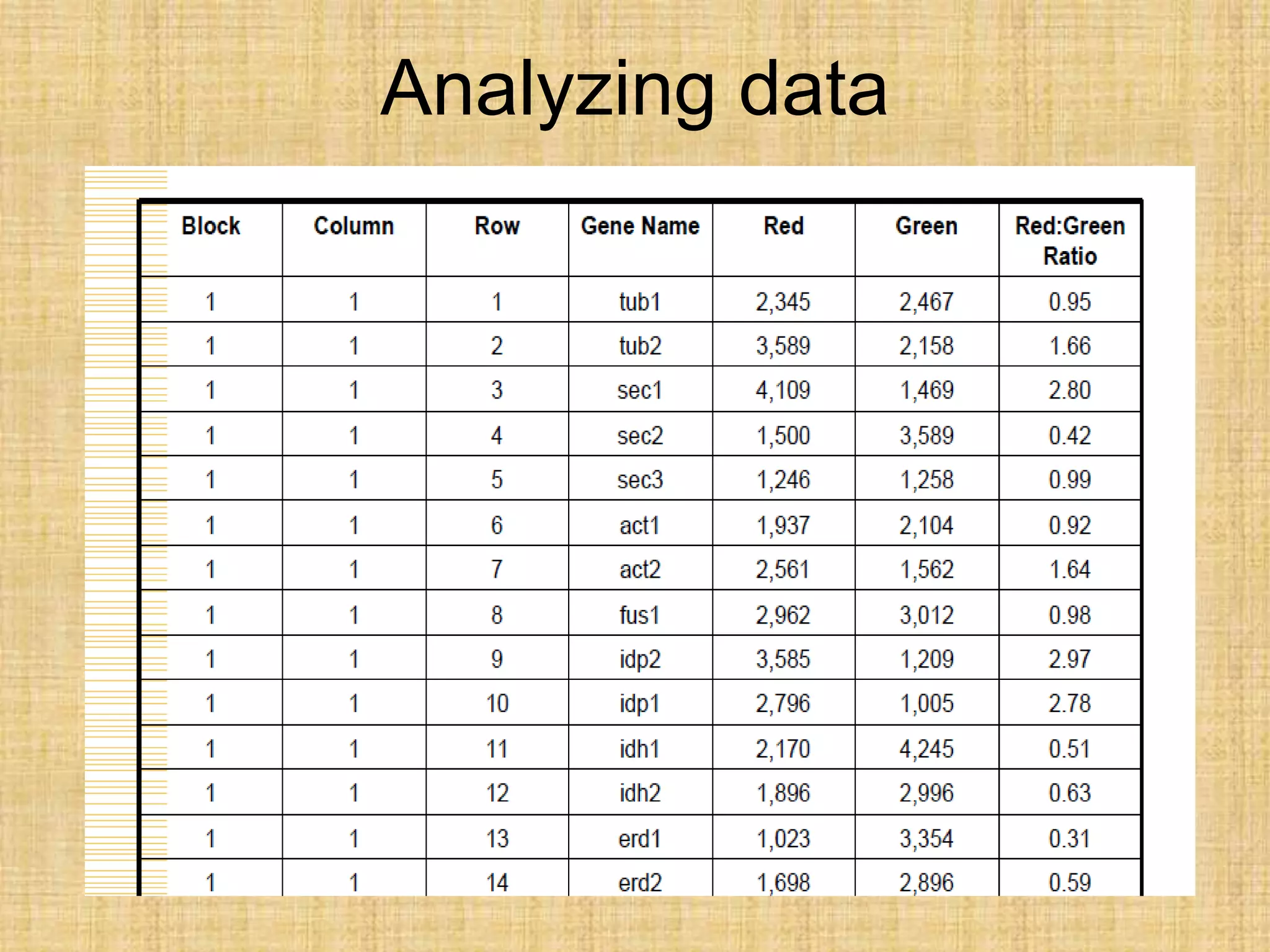

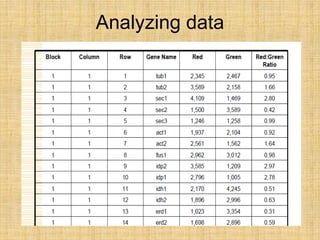

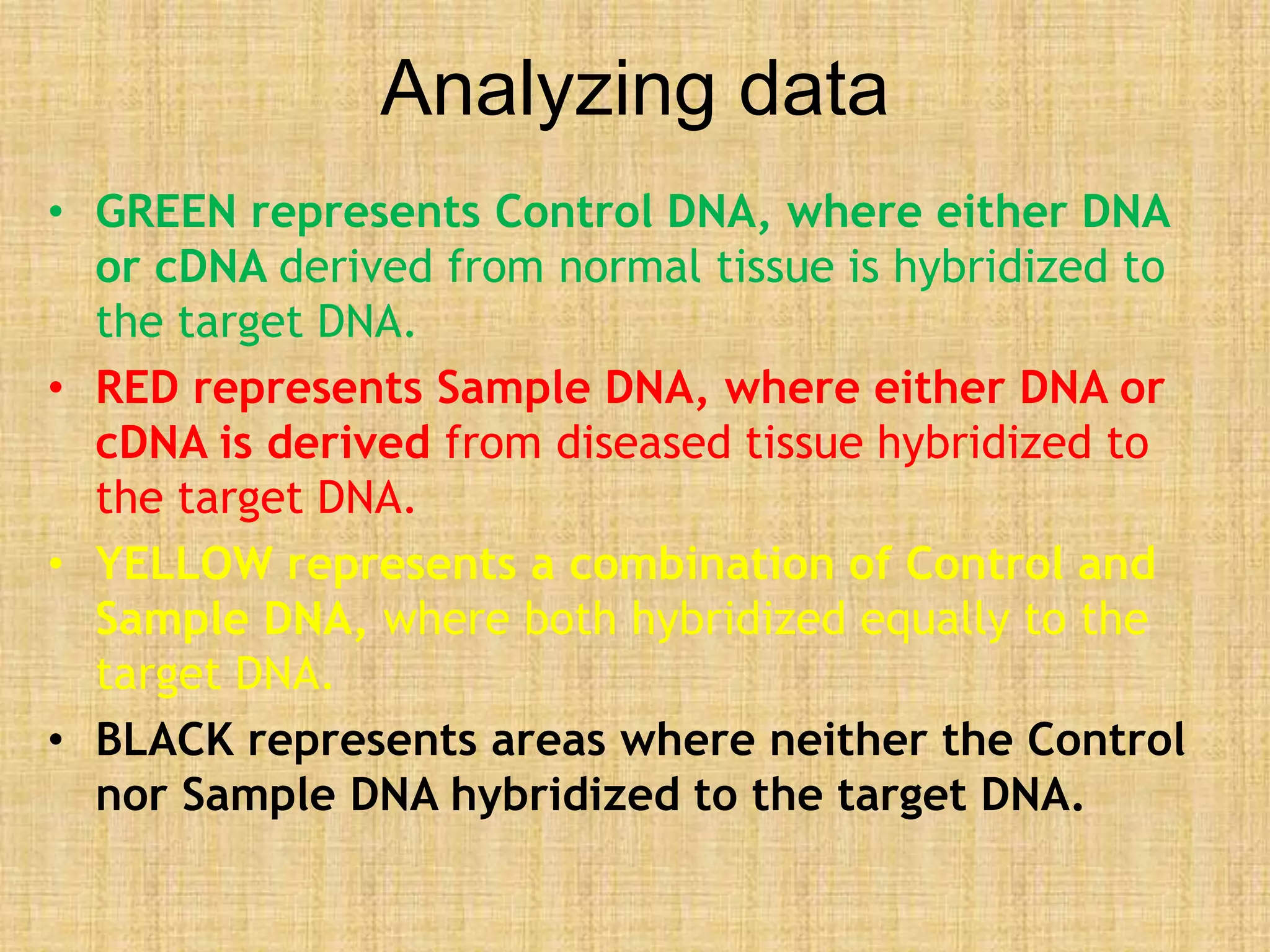

37. Analyzing data
• GREEN represents Control DNA, where either DNA
or cDNA derived from normal tissue is hybridized to
the target DNA.
• RED represents Sample DNA, where either DNA or
cDNA is derived from diseased tissue hybridized to
the target DNA.
• YELLOW represents a combination of Control and
Sample DNA, where both hybridized equally to the
target DNA.
• BLACK represents areas where neither the Control
nor Sample DNA hybridized to the target DNA.

38. Analyzing data

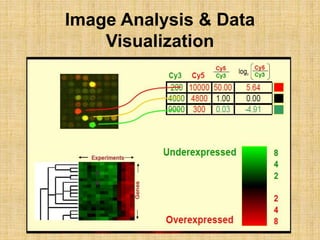

39. Image Analysis & Data
Visualization

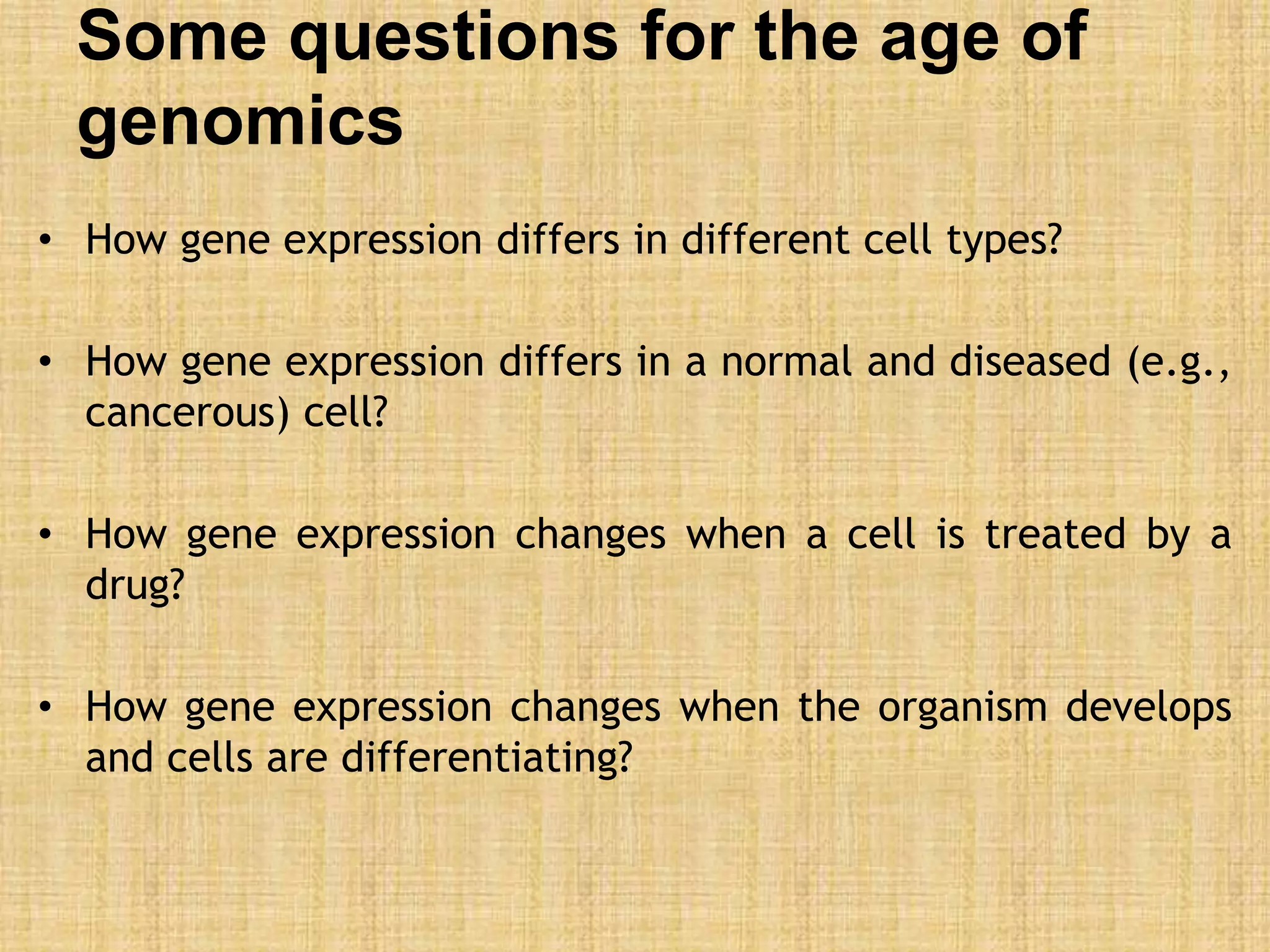

40. Some questions for the age of
genomics
• How gene expression differs in different cell types?
• How gene expression differs in a normal and diseased (e.g.,
cancerous) cell?
• How gene expression changes when a cell is treated by a
drug?
• How gene expression changes when the organism develops
and cells are differentiating?

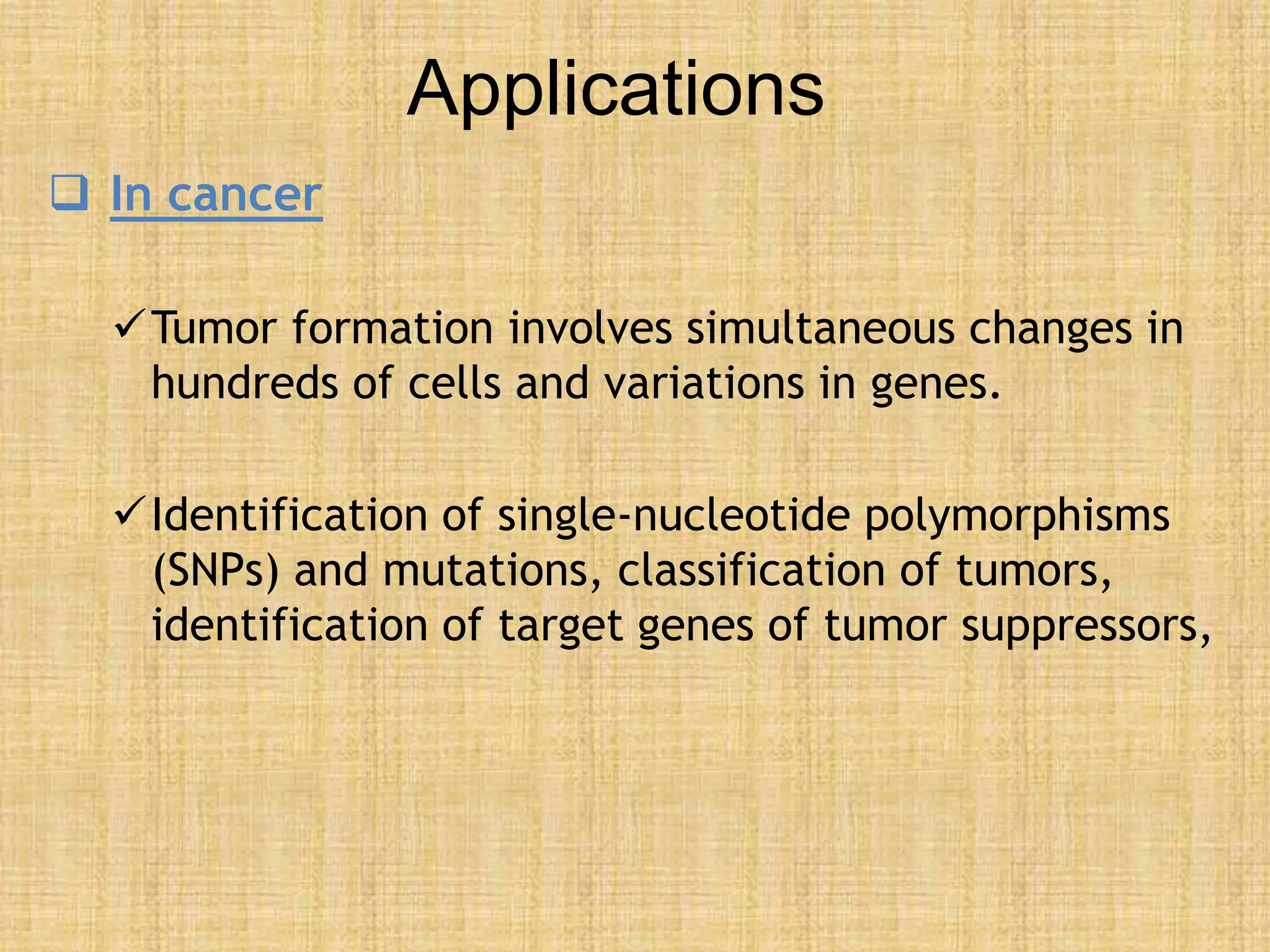

41. Applications
 In cancer
Tumor formation involves simultaneous changes in
hundreds of cells and variations in genes.
Identification of single-nucleotide polymorphisms
(SNPs) and mutations, classification of tumors,
identification of target genes of tumor suppressors,

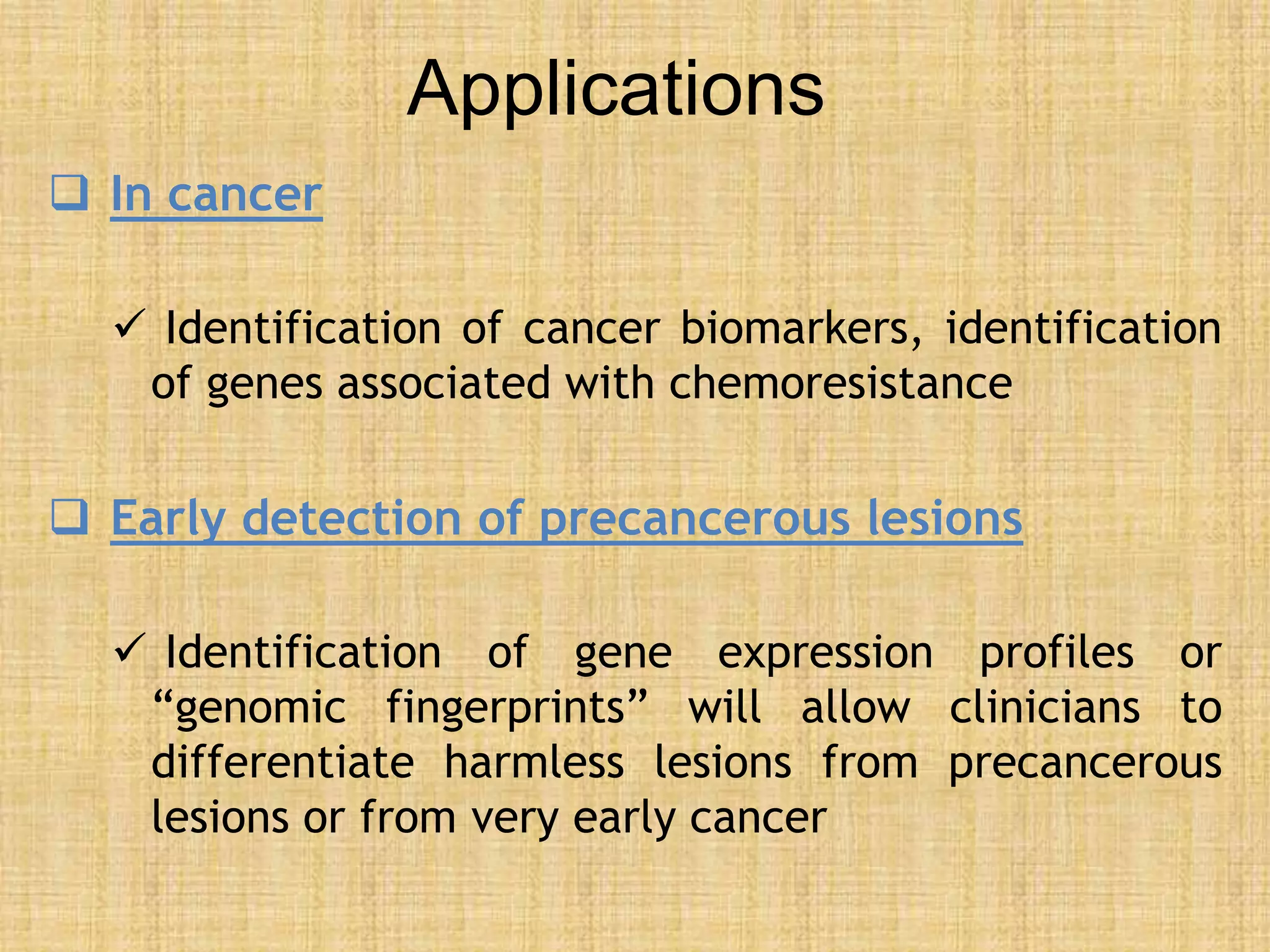

42. Applications
 In cancer
 Identification of cancer biomarkers, identification
of genes associated with chemoresistance
 Early detection of precancerous lesions
 Identification of gene expression profiles or
“genomic fingerprints” will allow clinicians to
differentiate harmless lesions from precancerous
lesions or from very early cancer

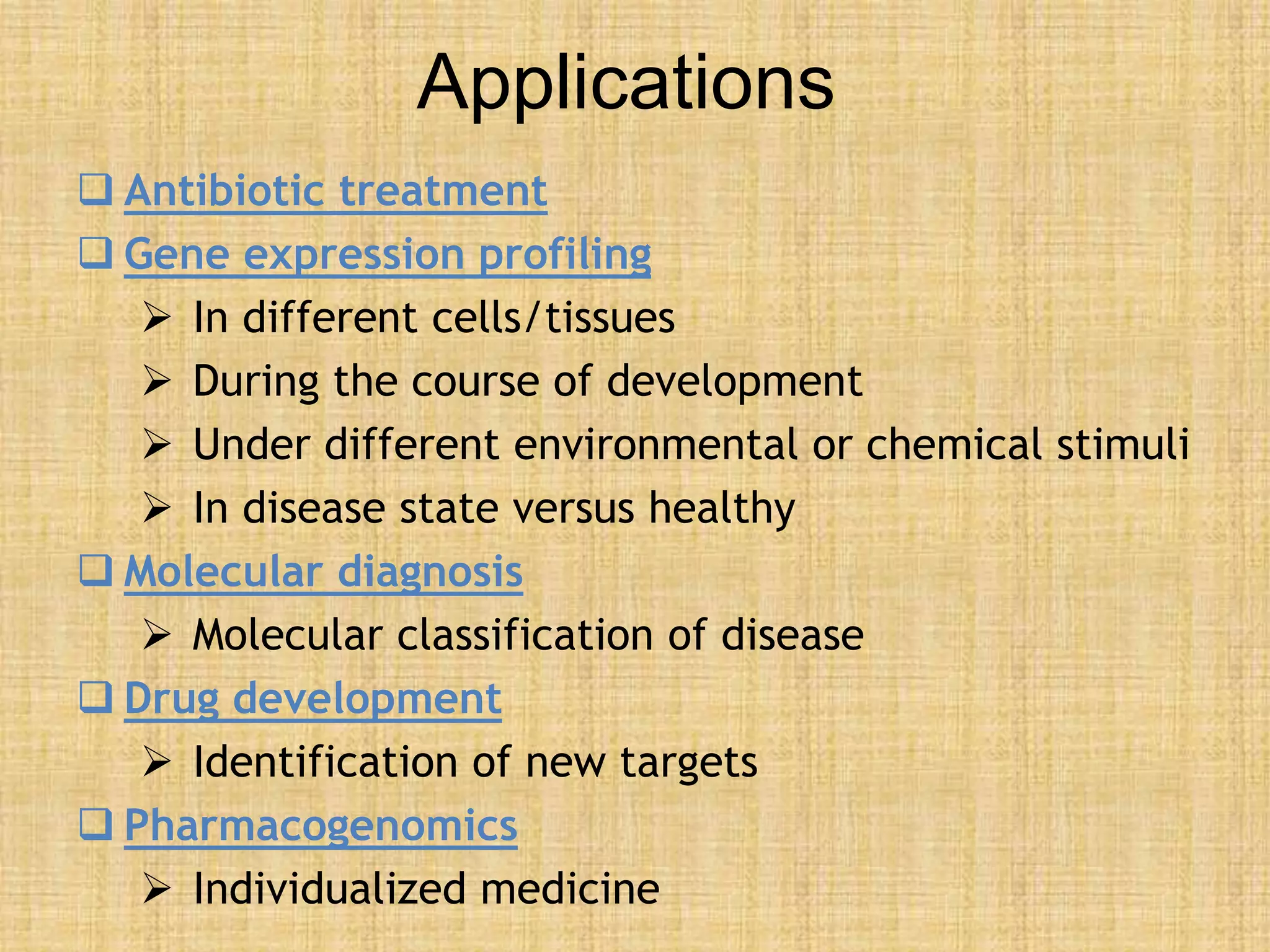

43. Applications
 Antibiotic treatment
 Gene expression profiling
 In different cells/tissues
 During the course of development
 Under different environmental or chemical stimuli
 In disease state versus healthy
 Molecular diagnosis
 Molecular classification of disease
 Drug development
 Identification of new targets
 Pharmacogenomics
 Individualized medicine

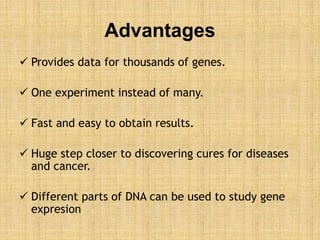

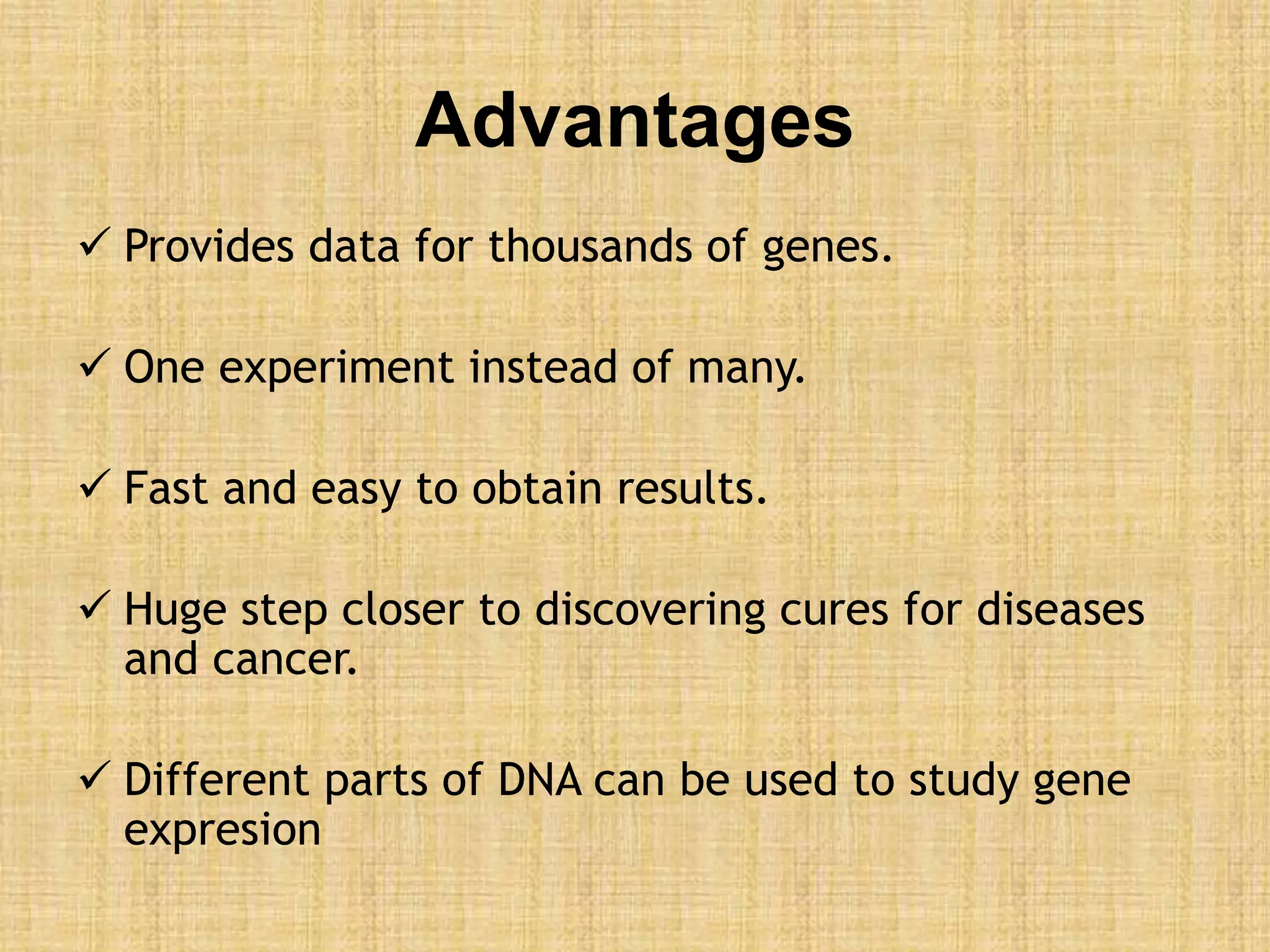

44. Advantages
 Provides data for thousands of genes.
 One experiment instead of many.
 Fast and easy to obtain results.
 Huge step closer to discovering cures for diseases
and cancer.
 Different parts of DNA can be used to study gene
expresion

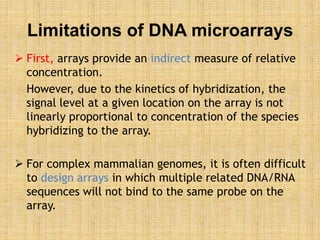

45. Limitations of DNA microarrays
 First, arrays provide an indirect measure of relative
concentration.
However, due to the kinetics of hybridization, the
signal level at a given location on the array is not
linearly proportional to concentration of the species
hybridizing to the array.
 For complex mammalian genomes, it is often difficult
to design arrays in which multiple related DNA/RNA
sequences will not bind to the same probe on the
array.

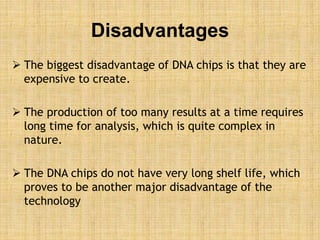

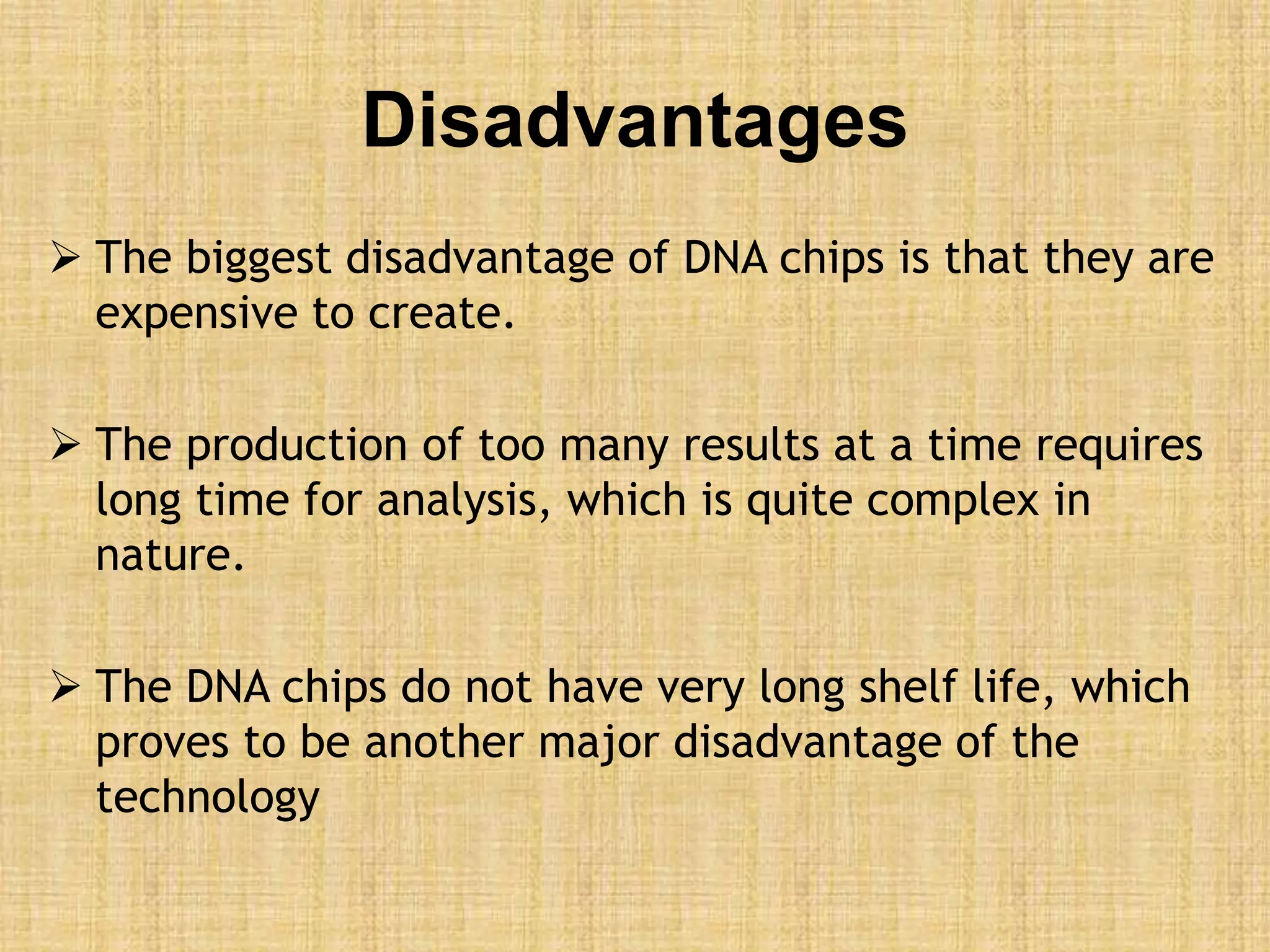

46. Disadvantages
 The biggest disadvantage of DNA chips is that they are
expensive to create.
 The production of too many results at a time requires
long time for analysis, which is quite complex in
nature.
 The DNA chips do not have very long shelf life, which
proves to be another major disadvantage of the
technology

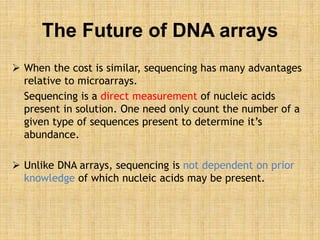

47. The Future of DNA arrays
 When the cost is similar, sequencing has many advantages
relative to microarrays.
Sequencing is a direct measurement of nucleic acids
present in solution. One need only count the number of a
given type of sequences present to determine it’s
abundance.
 Unlike DNA arrays, sequencing is not dependent on prior
knowledge of which nucleic acids may be present.

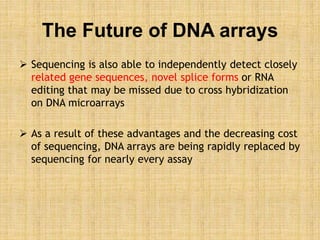

48. The Future of DNA arrays
 Sequencing is also able to independently detect closely
related gene sequences, novel splice forms or RNA
editing that may be missed due to cross hybridization
on DNA microarrays
 As a result of these advantages and the decreasing cost
of sequencing, DNA arrays are being rapidly replaced by
sequencing for nearly every assay

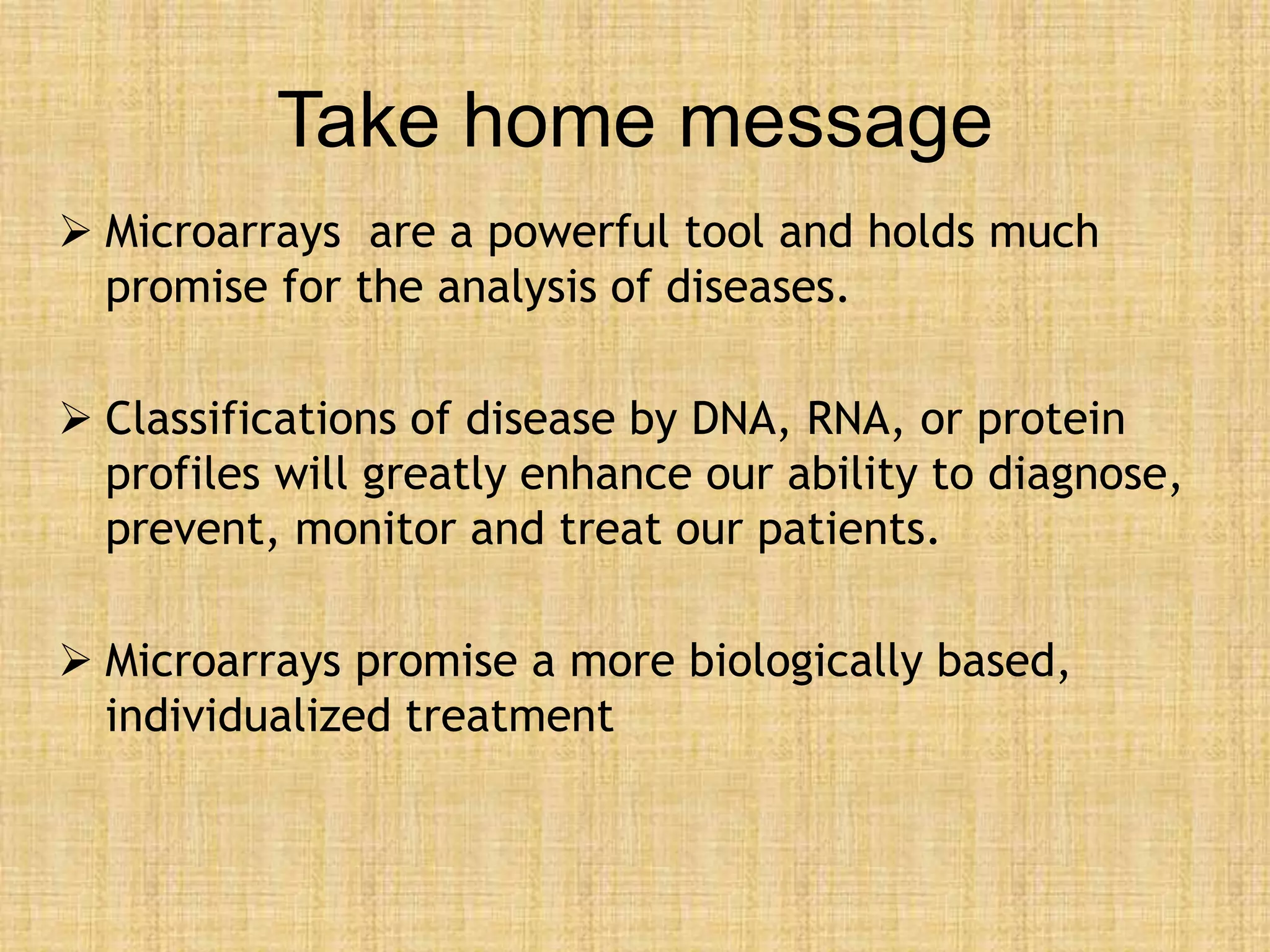

49. Take home message
 Microarrays are a powerful tool and holds much
promise for the analysis of diseases.
 Classifications of disease by DNA, RNA, or protein
profiles will greatly enhance our ability to diagnose,
prevent, monitor and treat our patients.
 Microarrays promise a more biologically based,
individualized treatment

50. Thank You
