Mesos and Kubernetes ecosystem overview

HUAWEI TECHNOLOGIES CO., LTD.
www.huawei.comEco System Overview
Mesos & CNCF Meetup @Huawei, Bangalore, 6
th
August 2016
Compiled by Krishna Kumar, CNCF Ambassador, Lead Architect & Delivery Head Huawei India Cloud/PaaS

HUAWEI TECHNOLOGIES CO., LTD. 2

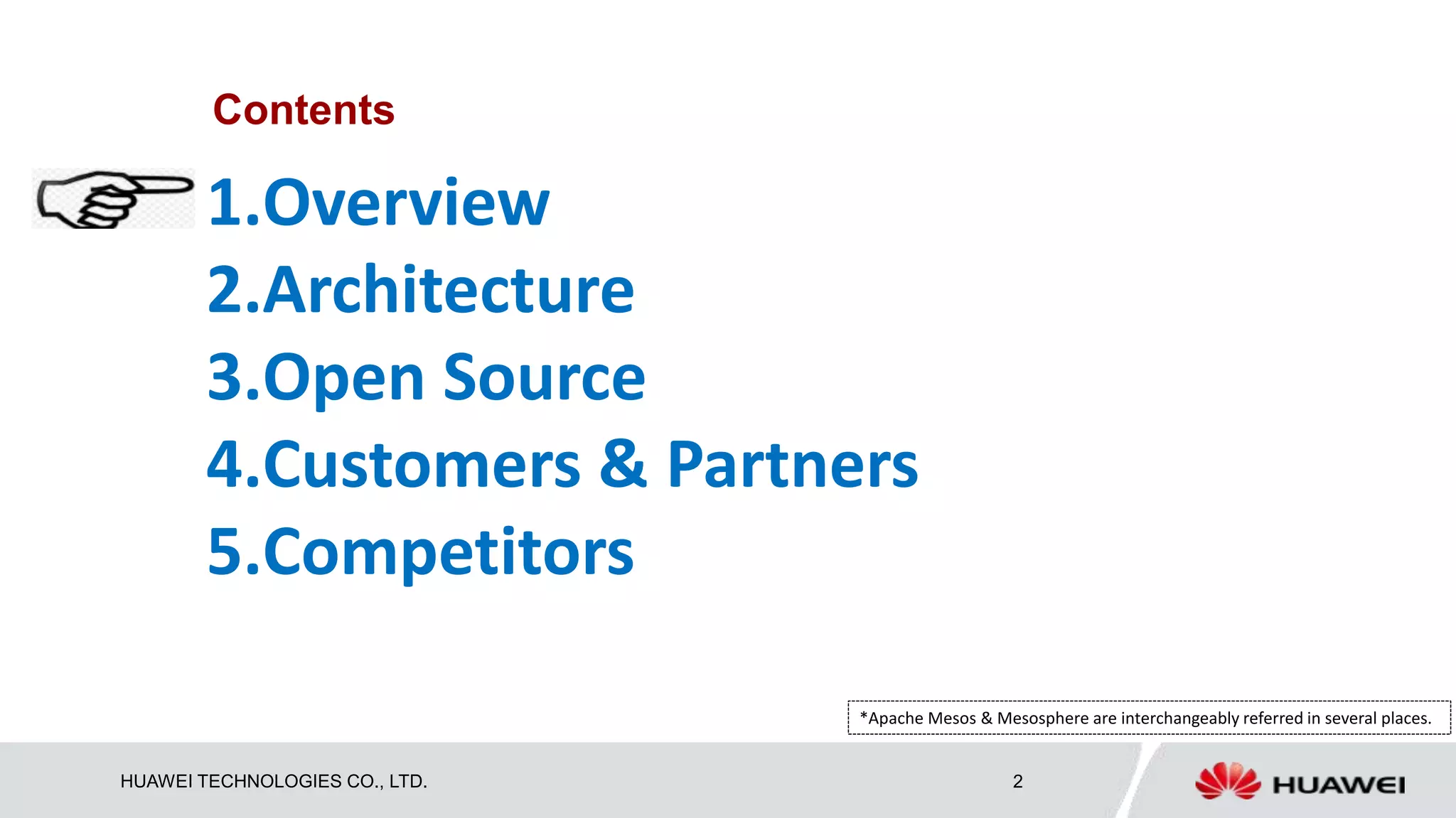

Contents
1.Overview
2.Architecture
3.Open Source
4.Customers & Partners
5.Competitors
*Apache Mesos & Mesosphere are interchangeably referred in several places.

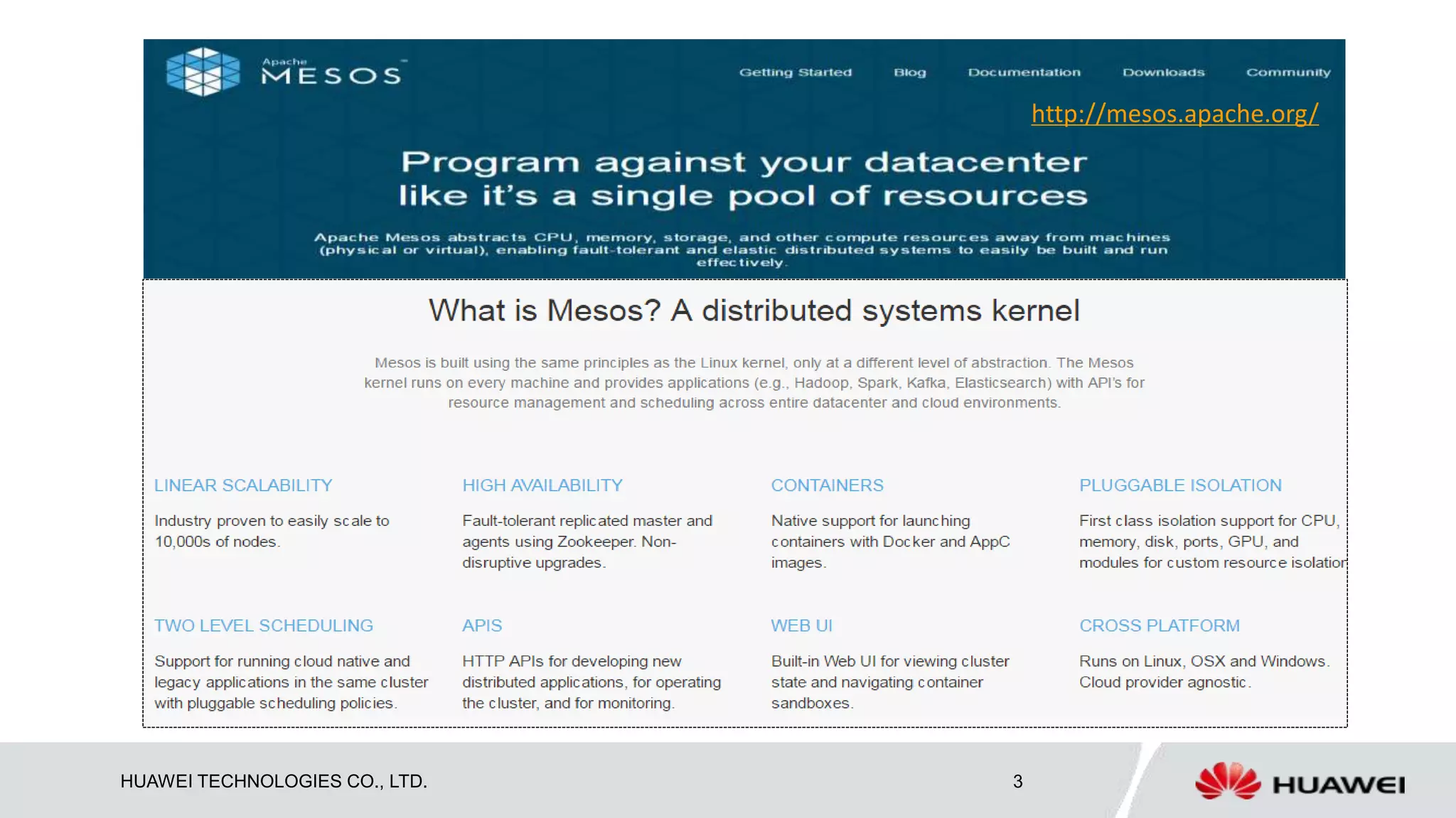

http://mesos.apache.org/

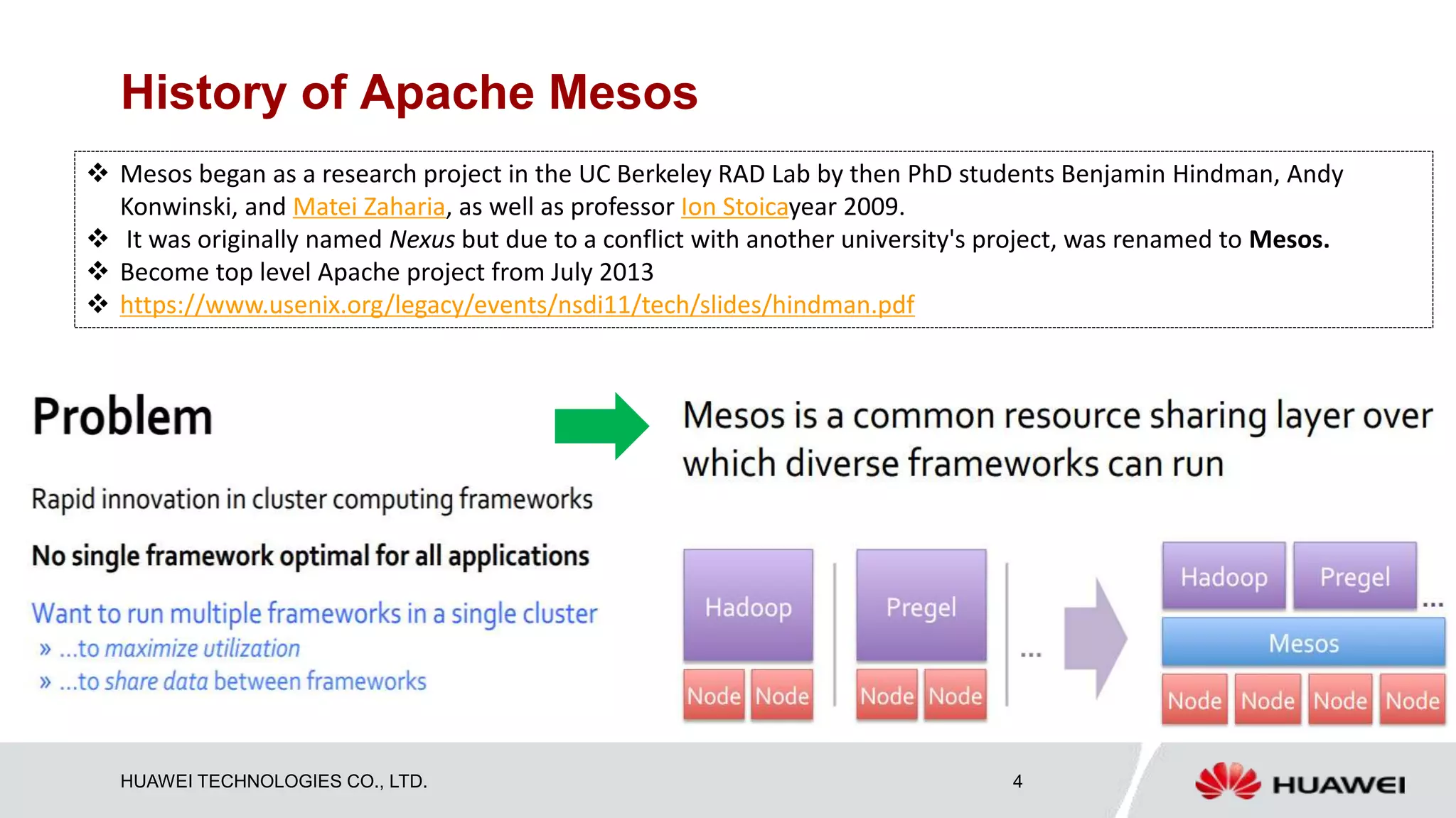

History of Apache Mesos
 Mesos began as a research project in the UC Berkeley RAD Lab by then PhD students Benjamin Hindman, Andy
Konwinski, and Matei Zaharia, as well as professor Ion Stoicayear 2009.
 It was originally named Nexus but due to a conflict with another university's project, was renamed to Mesos.
 Become top level Apache project from July 2013
 https://www.usenix.org/legacy/events/nsdi11/tech/slides/hindman.pdf

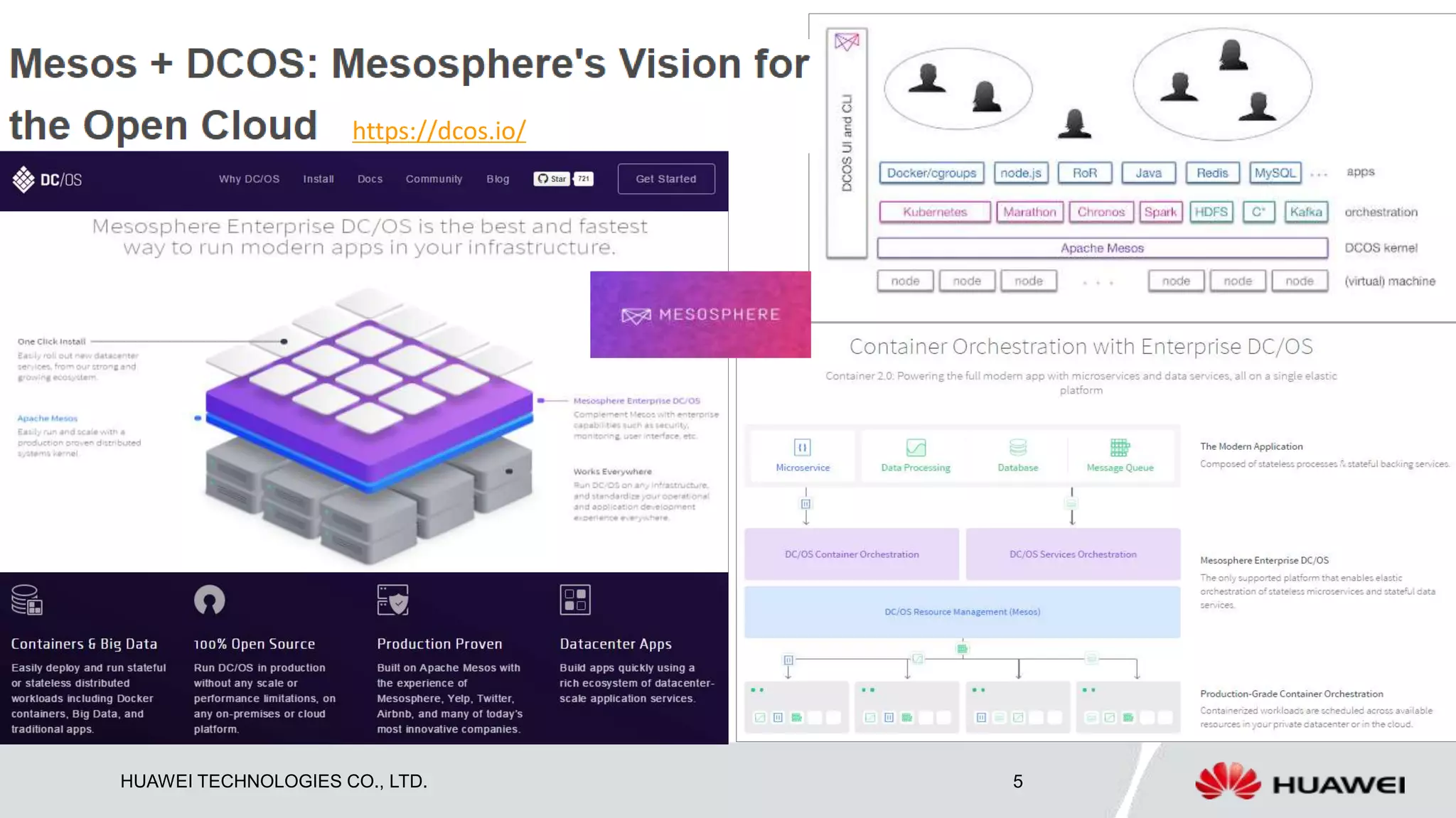

https://dcos.io/

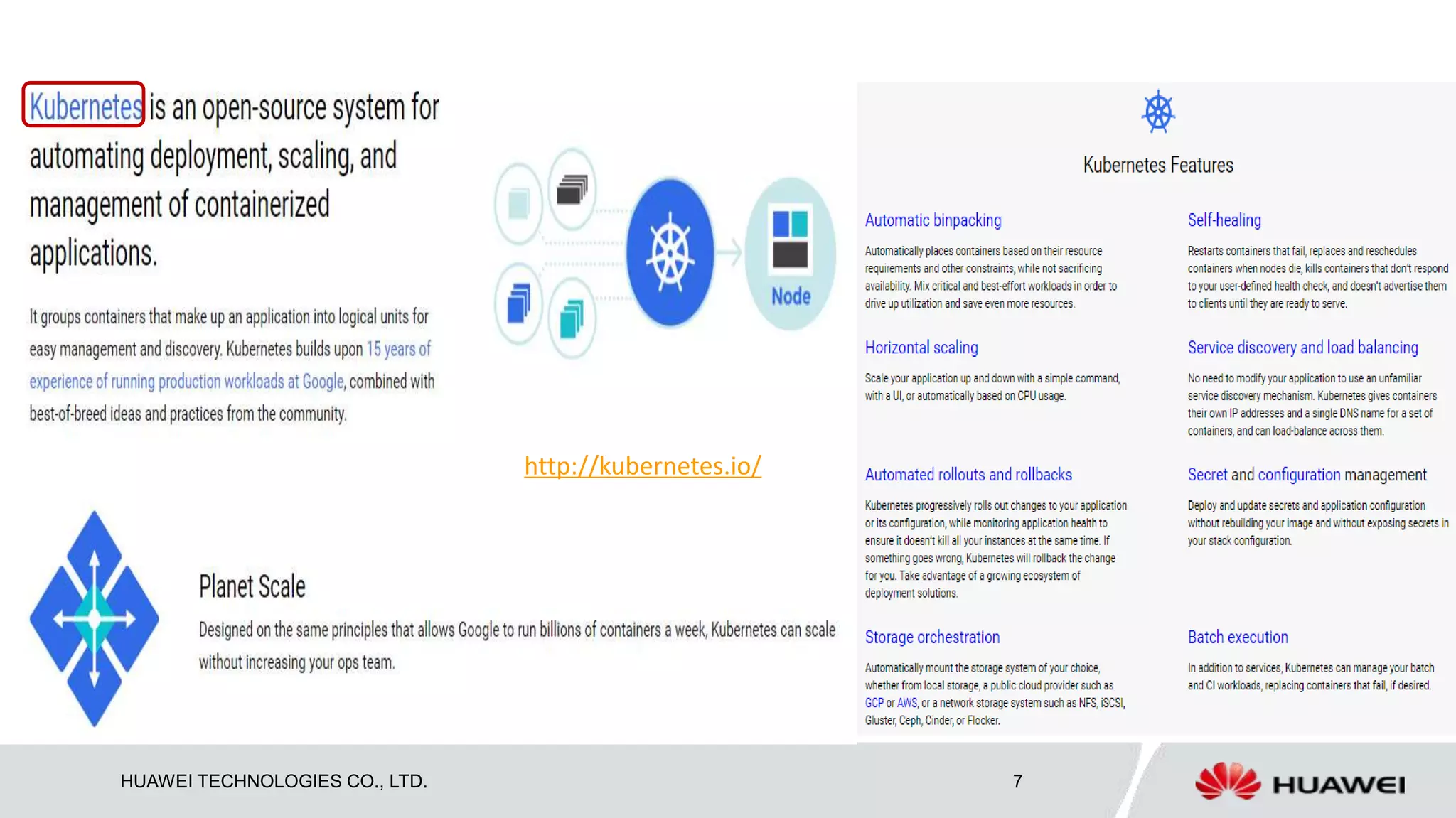

http://kubernetes.io/

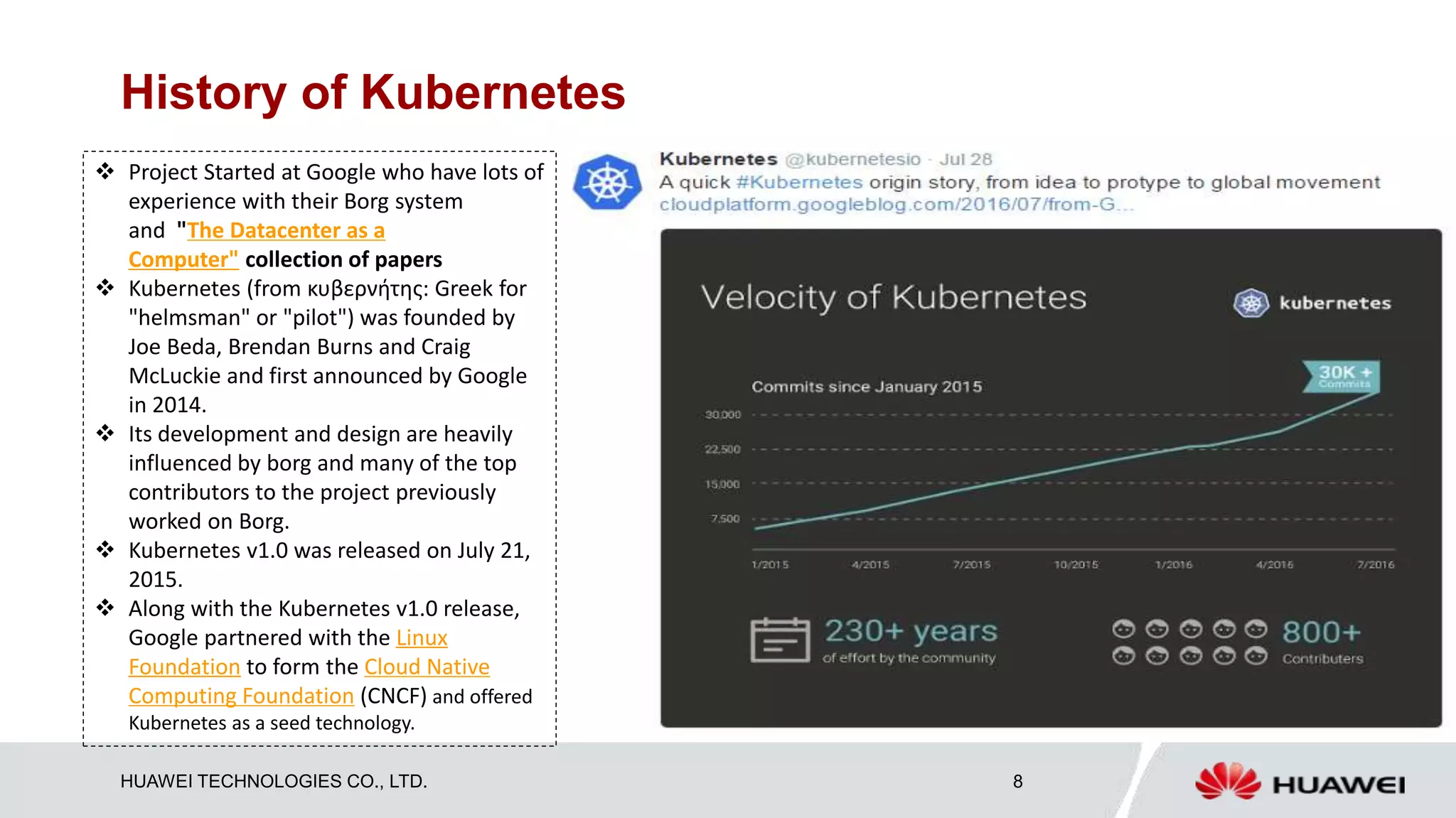

History of Kubernetes
 Project Started at Google who have lots of
experience with their Borg system
and "The Datacenter as a
Computer" collection of papers
 Kubernetes (from κυβερνήτης: Greek for
"helmsman" or "pilot") was founded by
Joe Beda, Brendan Burns and Craig
McLuckie and first announced by Google
in 2014.
 Its development and design are heavily
influenced by borg and many of the top
contributors to the project previously
worked on Borg.
 Kubernetes v1.0 was released on July 21,
2015.
 Along with the Kubernetes v1.0 release,
Google partnered with the Linux
Foundation to form the Cloud Native
Computing Foundation (CNCF) and offered
Kubernetes as a seed technology.

Contents
1.Overview
2.Architecture
3.Open Source
5.Competitors

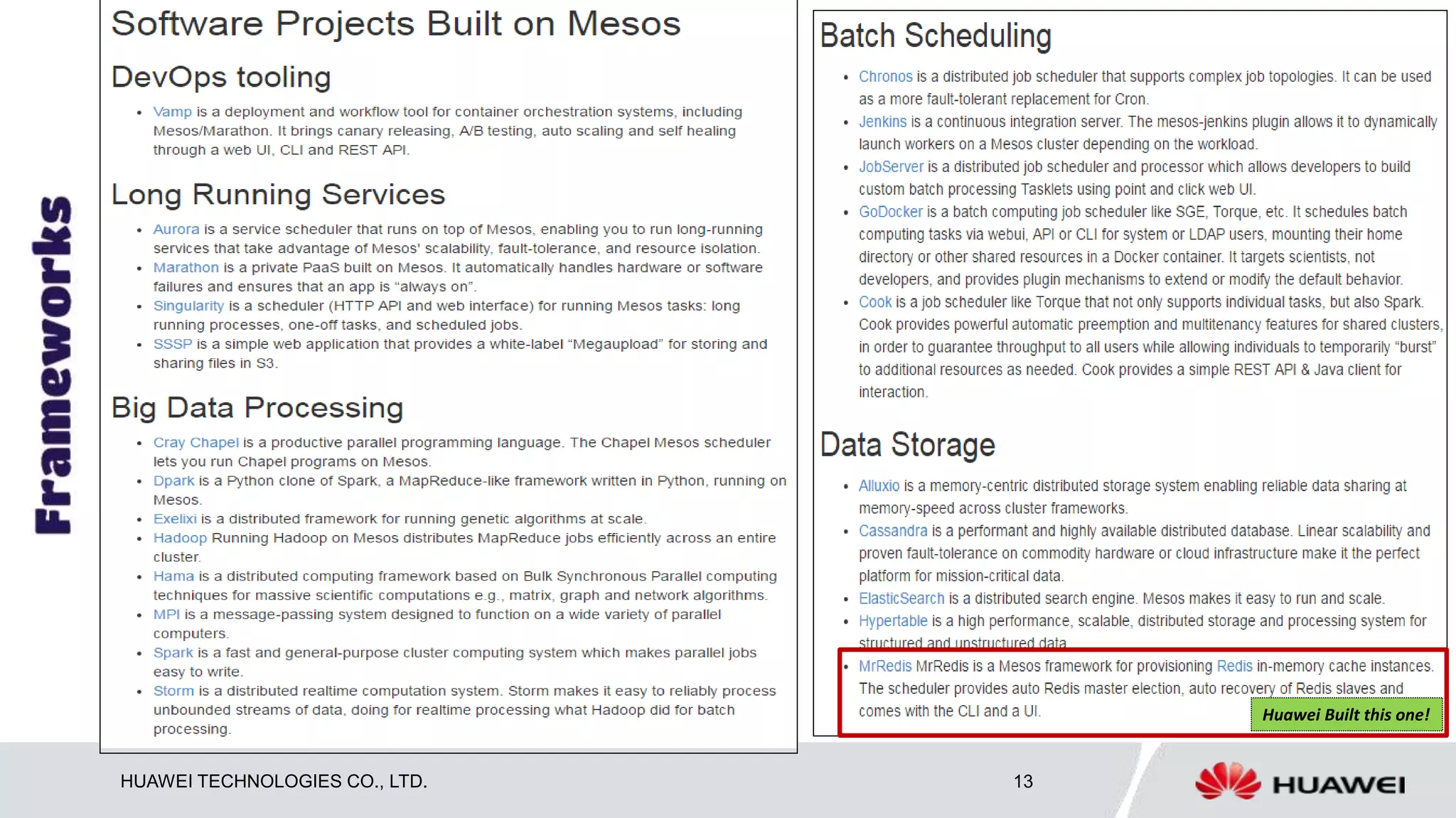

Huawei Built this one!

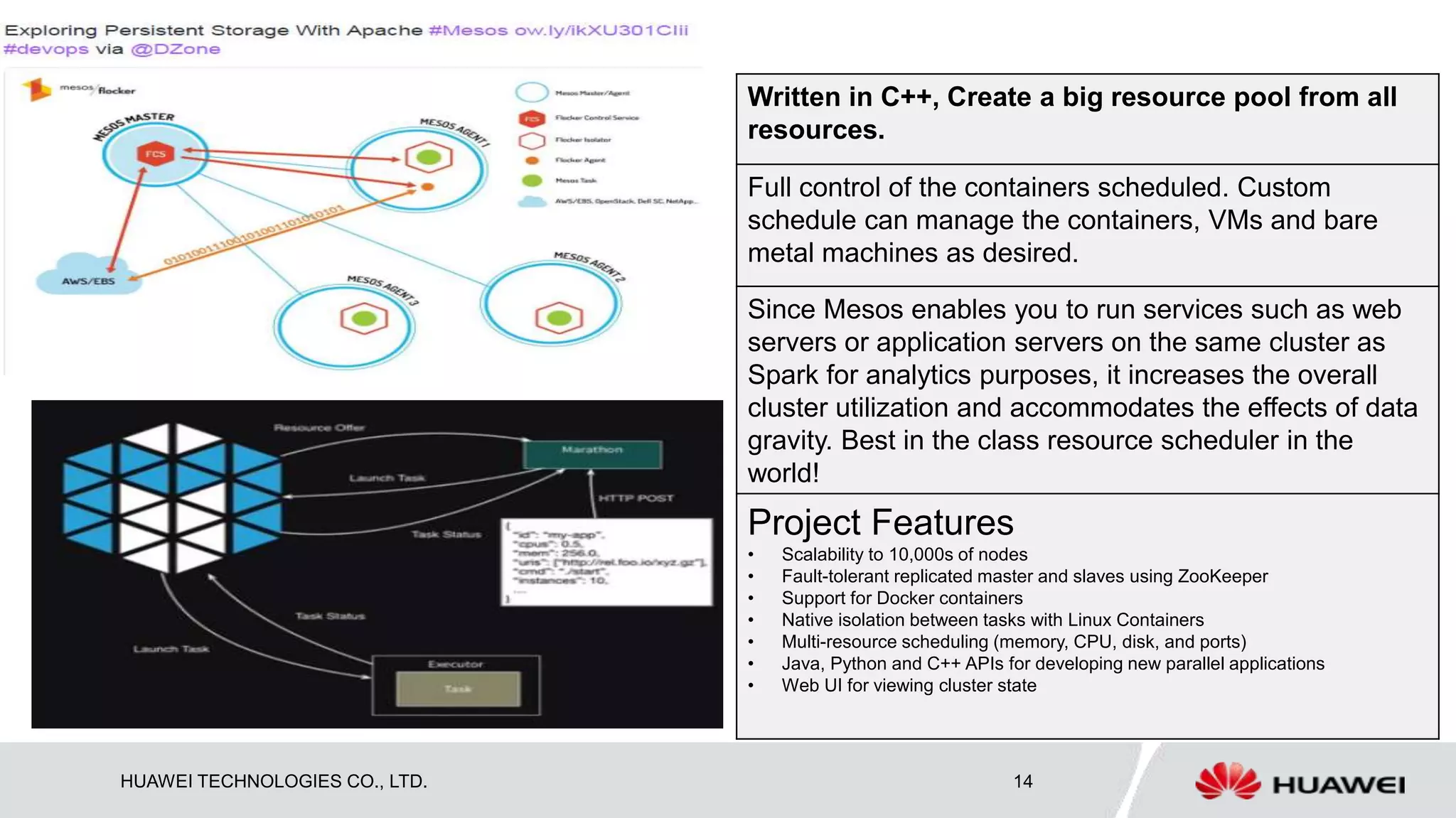

Written in C++, Create a big resource pool from all
resources.
Full control of the containers scheduled. Custom
schedule can manage the containers, VMs and bare
metal machines as desired.
Since Mesos enables you to run services such as web
servers or application servers on the same cluster as
Spark for analytics purposes, it increases the overall
cluster utilization and accommodates the effects of data
gravity. Best in the class resource scheduler in the
world!
Project Features
• Scalability to 10,000s of nodes
• Fault-tolerant replicated master and slaves using ZooKeeper
• Support for Docker containers
• Native isolation between tasks with Linux Containers
• Multi-resource scheduling (memory, CPU, disk, and ports)
• Java, Python and C++ APIs for developing new parallel applications
• Web UI for viewing cluster state

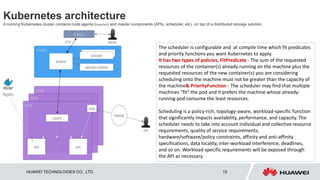

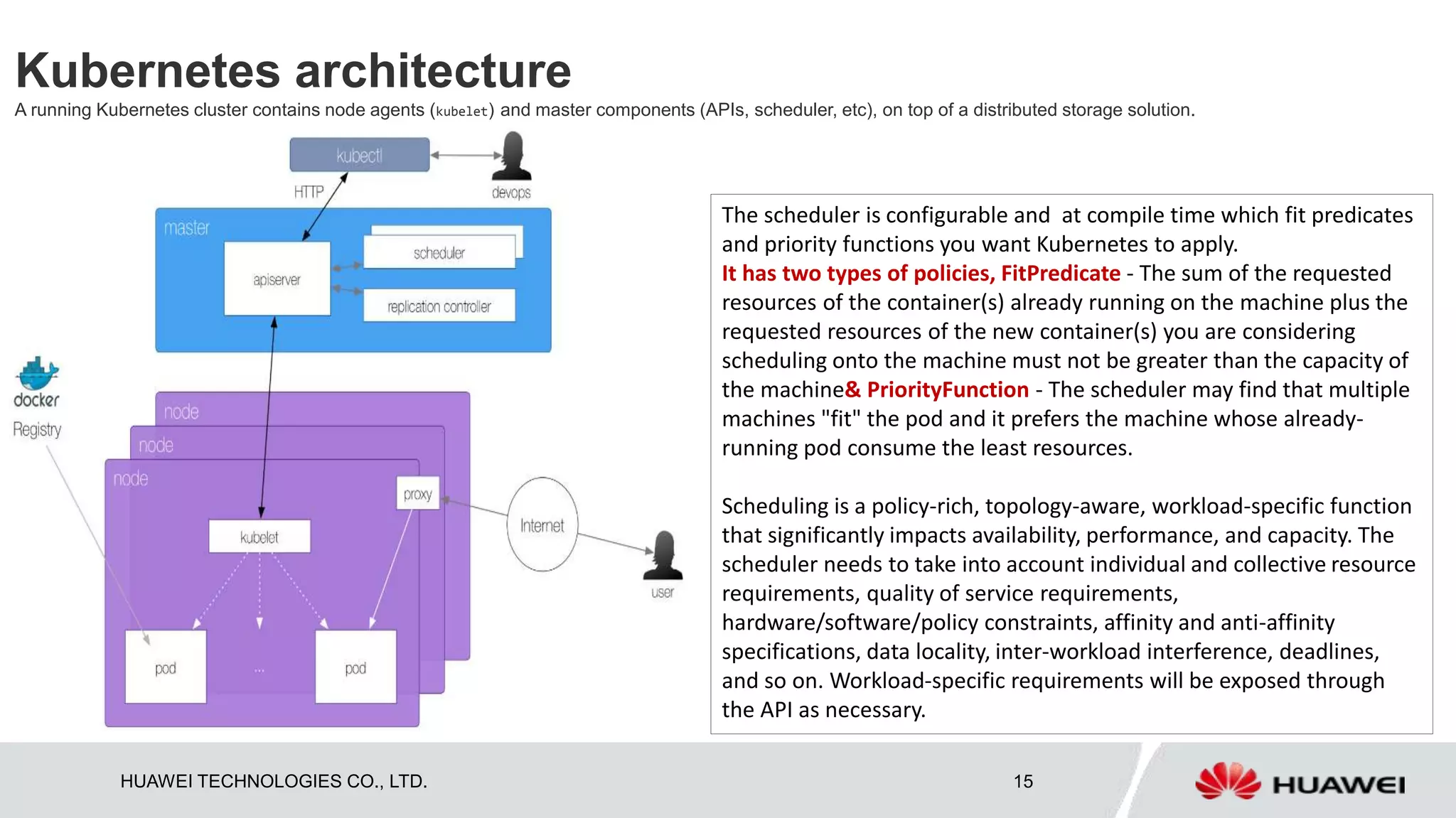

Kubernetes architecture
A running Kubernetes cluster contains node agents (kubelet) and master components (APIs, scheduler, etc), on top of a distributed storage solution.
The scheduler is configurable and at compile time which fit predicates
and priority functions you want Kubernetes to apply.
It has two types of policies, FitPredicate - The sum of the requested
resources of the container(s) already running on the machine plus the
requested resources of the new container(s) you are considering
scheduling onto the machine must not be greater than the capacity of
the machine& PriorityFunction - The scheduler may find that multiple
machines "fit" the pod and it prefers the machine whose already-
running pod consume the least resources.
Scheduling is a policy-rich, topology-aware, workload-specific function
that significantly impacts availability, performance, and capacity. The
scheduler needs to take into account individual and collective resource
requirements, quality of service requirements,
hardware/software/policy constraints, affinity and anti-affinity
specifications, data locality, inter-workload interference, deadlines,
and so on. Workload-specific requirements will be exposed through
the API as necessary.

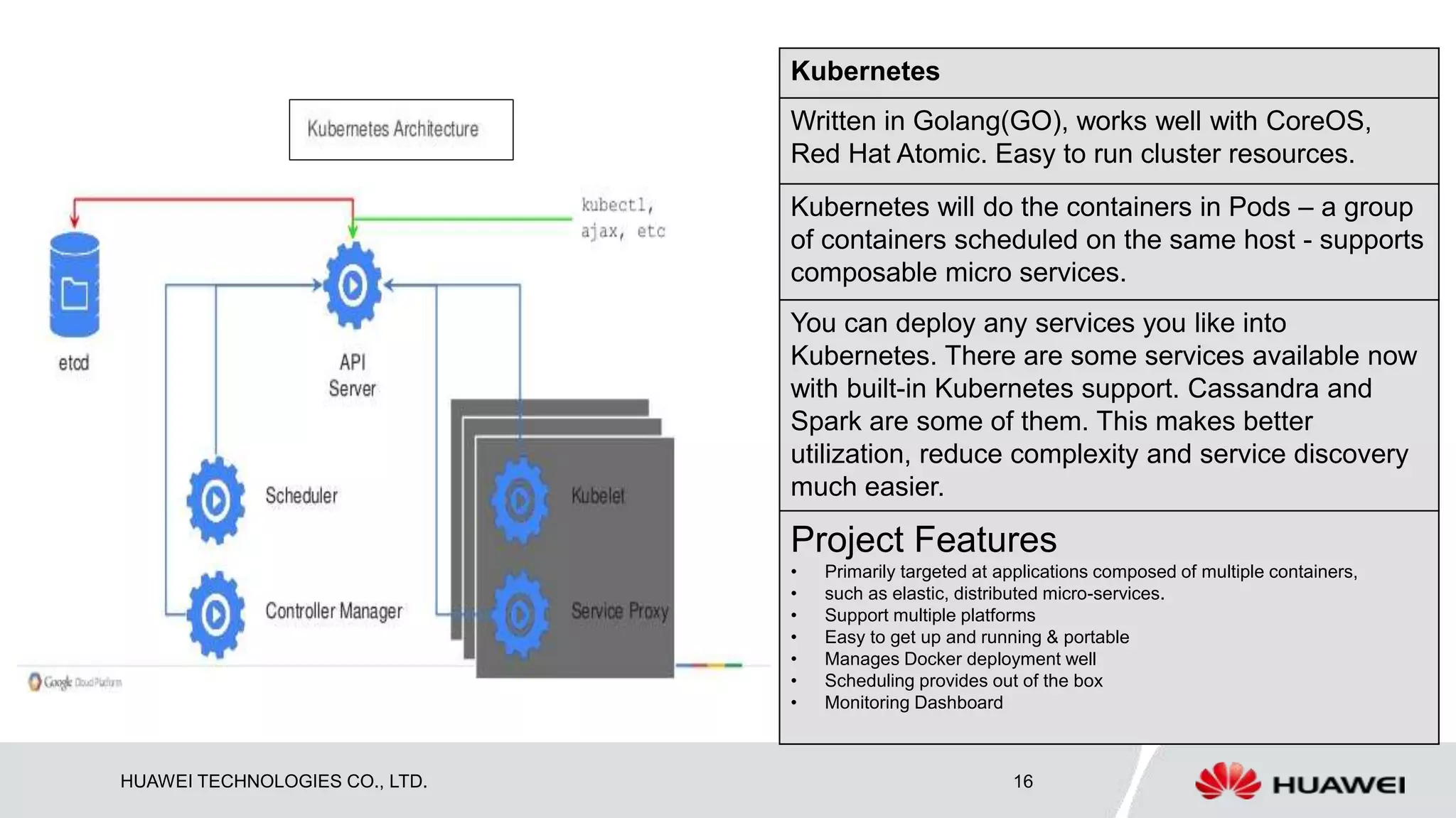

Kubernetes
Written in Golang(GO), works well with CoreOS,
Red Hat Atomic. Easy to run cluster resources.
Kubernetes will do the containers in Pods – a group
of containers scheduled on the same host - supports
composable micro services.
You can deploy any services you like into
Kubernetes. There are some services available now
with built-in Kubernetes support. Cassandra and
Spark are some of them. This makes better
utilization, reduce complexity and service discovery
much easier.
Project Features
• Primarily targeted at applications composed of multiple containers,
• such as elastic, distributed micro-services.
• Support multiple platforms
• Easy to get up and running & portable
• Manages Docker deployment well
• Scheduling provides out of the box
• Monitoring Dashboard

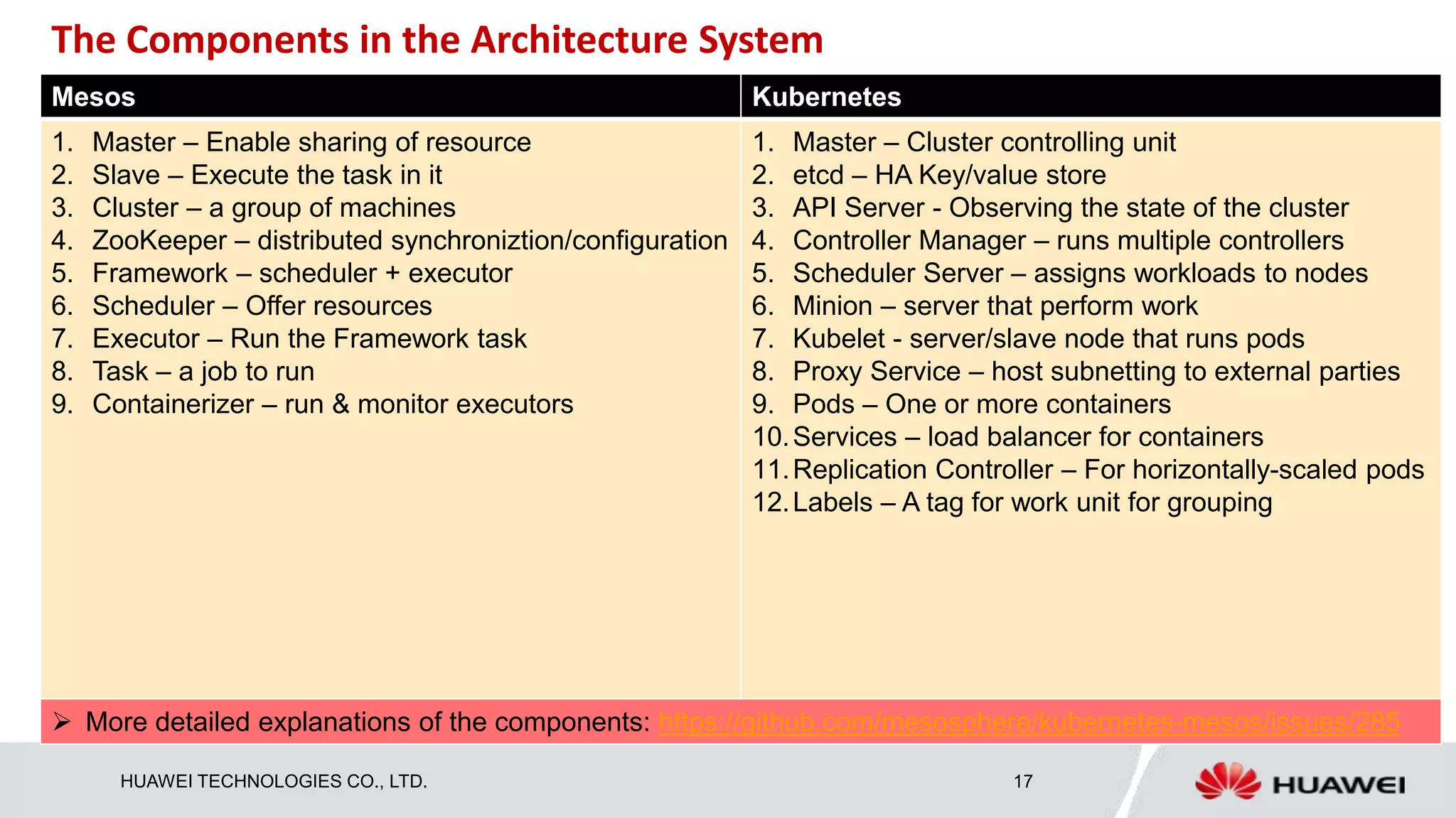

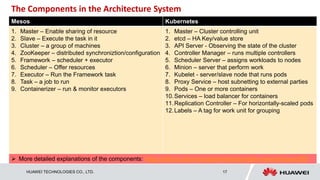

Mesos Kubernetes
1. Master – Enable sharing of resource
2. Slave – Execute the task in it
3. Cluster – a group of machines
4. ZooKeeper – distributed synchroniztion/configuration
5. Framework – scheduler + executor
6. Scheduler – Offer resources
7. Executor – Run the Framework task
8. Task – a job to run
9. Containerizer – run & monitor executors
1. Master – Cluster controlling unit
2. etcd – HA Key/value store
3. API Server - Observing the state of the cluster
4. Controller Manager – runs multiple controllers
5. Scheduler Server – assigns workloads to nodes
6. Minion – server that perform work
7. Kubelet - server/slave node that runs pods
8. Proxy Service – host subnetting to external parties
9. Pods – One or more containers
10.Services – load balancer for containers
11.Replication Controller – For horizontally-scaled pods
12.Labels – A tag for work unit for grouping
 More detailed explanations of the components: https://github.com/mesosphere/kubernetes-mesos/issues/285

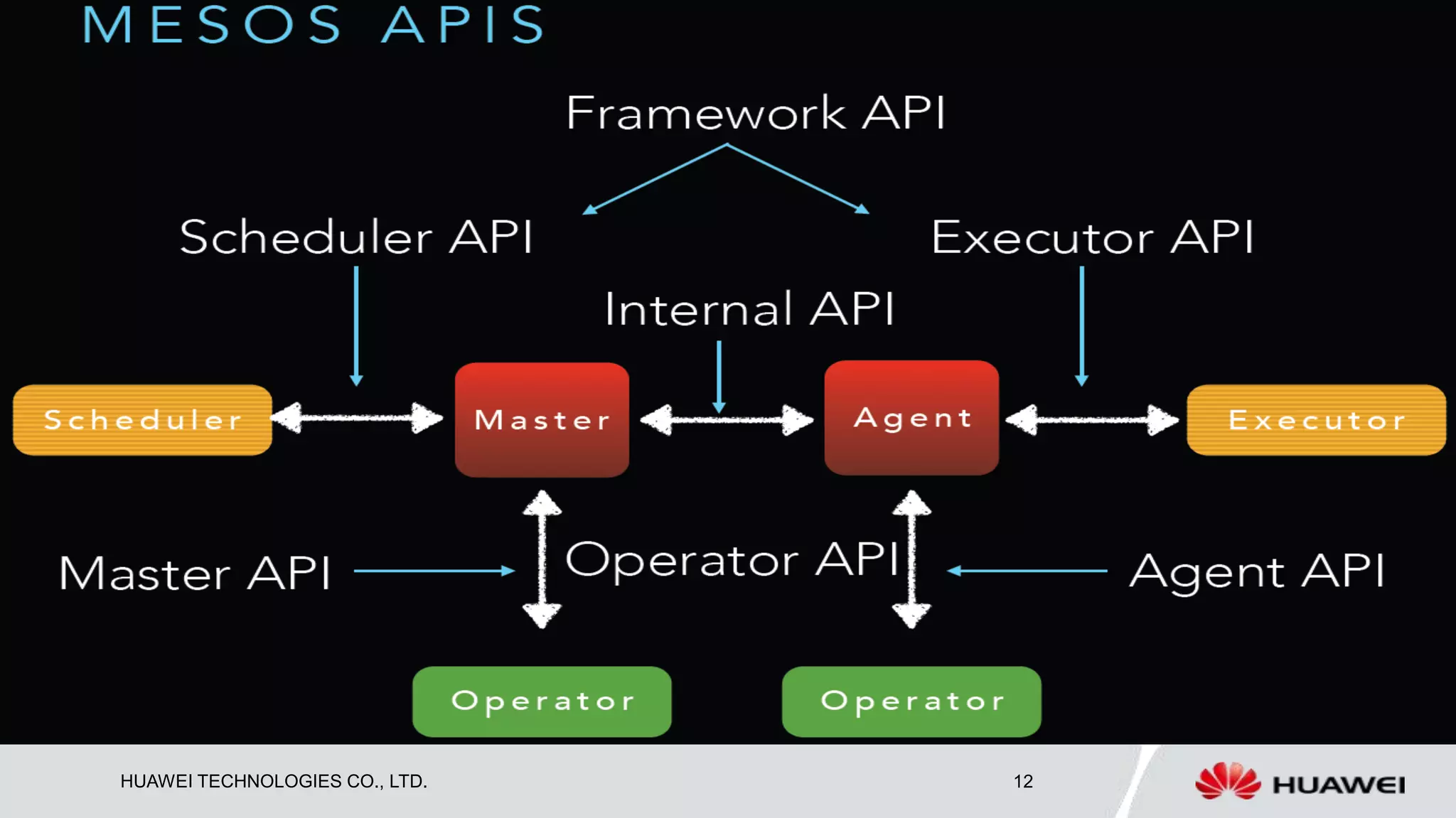

The Components in the Architecture System

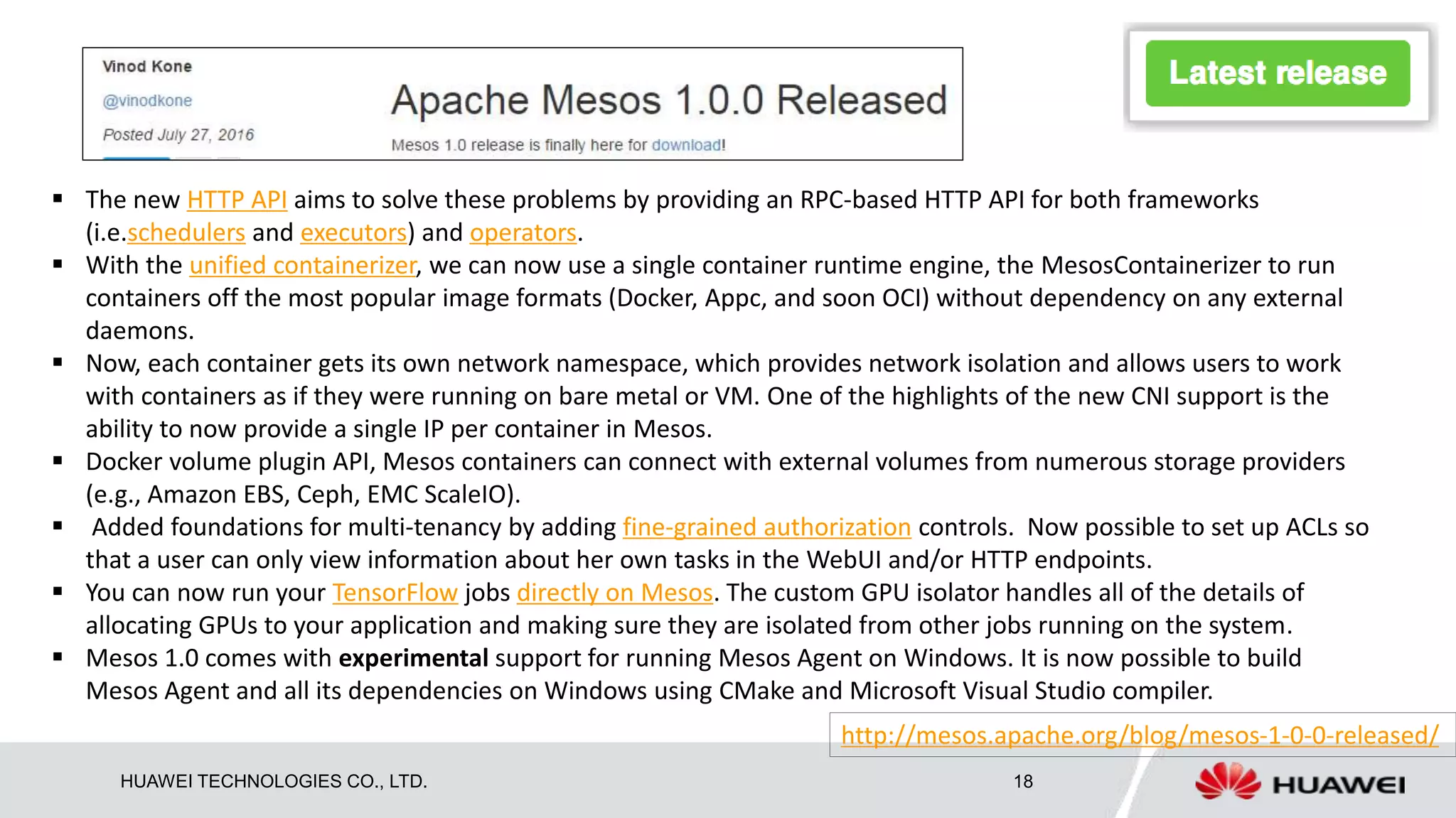

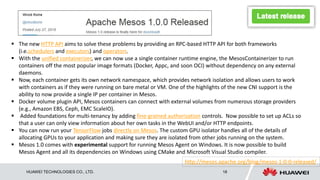

 The new HTTP API aims to solve these problems by providing an RPC-based HTTP API for both frameworks
(i.e.schedulers and executors) and operators.
 With the unified containerizer, we can now use a single container runtime engine, the MesosContainerizer to run
containers off the most popular image formats (Docker, Appc, and soon OCI) without dependency on any external
daemons.
 Now, each container gets its own network namespace, which provides network isolation and allows users to work
with containers as if they were running on bare metal or VM. One of the highlights of the new CNI support is the
ability to now provide a single IP per container in Mesos.
 Docker volume plugin API, Mesos containers can connect with external volumes from numerous storage providers
(e.g., Amazon EBS, Ceph, EMC ScaleIO).
 Added foundations for multi-tenancy by adding fine-grained authorization controls. Now possible to set up ACLs so
that a user can only view information about her own tasks in the WebUI and/or HTTP endpoints.
 You can now run your TensorFlow jobs directly on Mesos. The custom GPU isolator handles all of the details of
allocating GPUs to your application and making sure they are isolated from other jobs running on the system.
 Mesos 1.0 comes with experimental support for running Mesos Agent on Windows. It is now possible to build
Mesos Agent and all its dependencies on Windows using CMake and Microsoft Visual Studio compiler.
http://mesos.apache.org/blog/mesos-1-0-0-released/

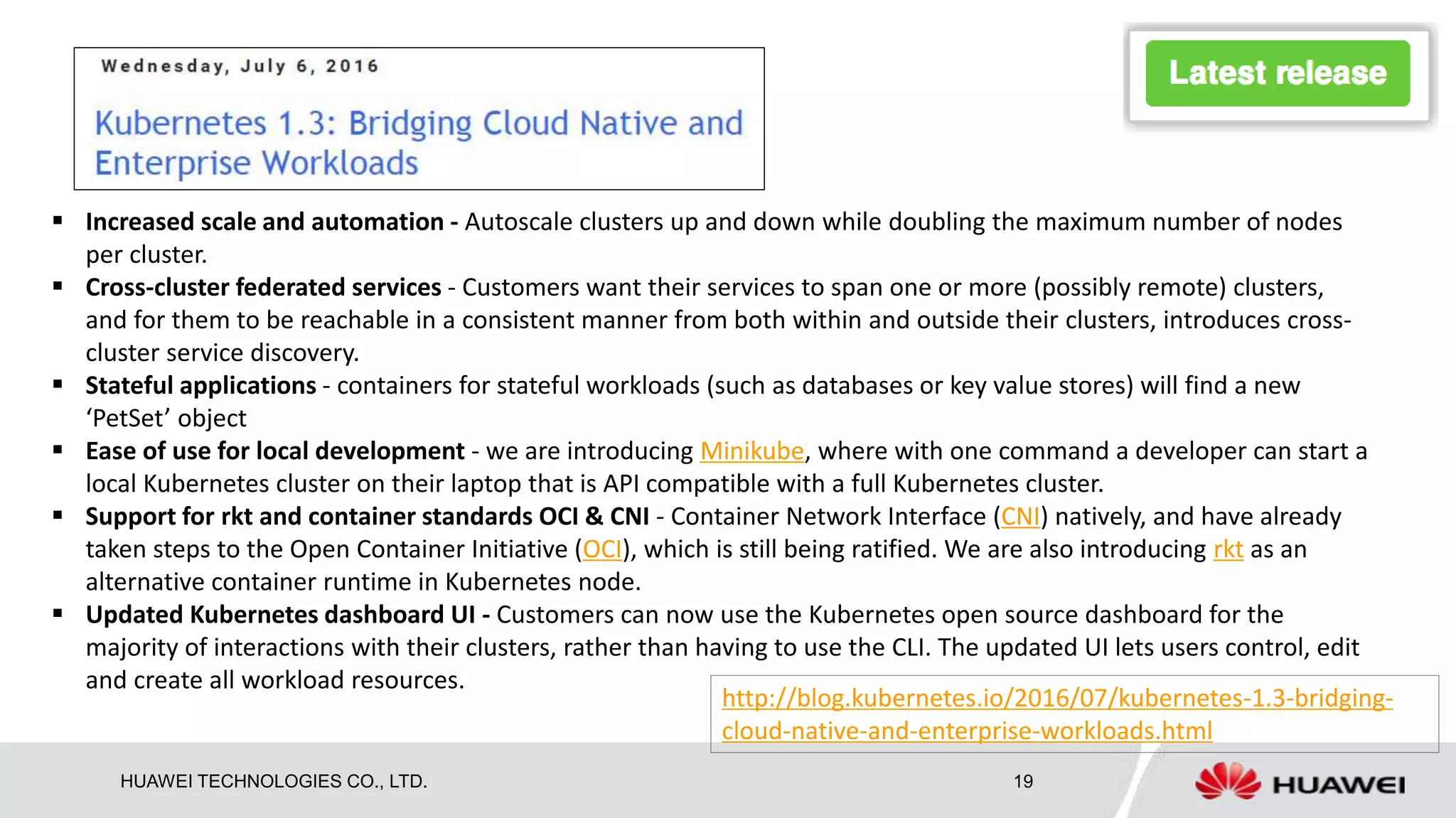

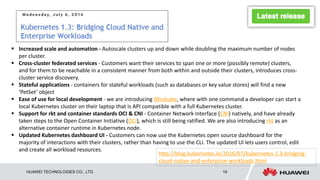

 Increased scale and automation - Autoscale clusters up and down while doubling the maximum number of nodes
per cluster.
 Cross-cluster federated services - Customers want their services to span one or more (possibly remote) clusters,
and for them to be reachable in a consistent manner from both within and outside their clusters, introduces cross-
cluster service discovery.
 Stateful applications - containers for stateful workloads (such as databases or key value stores) will find a new
‘PetSet’ object
 Ease of use for local development - we are introducing Minikube, where with one command a developer can start a
local Kubernetes cluster on their laptop that is API compatible with a full Kubernetes cluster.
 Support for rkt and container standards OCI & CNI - Container Network Interface (CNI) natively, and have already
taken steps to the Open Container Initiative (OCI), which is still being ratified. We are also introducing rkt as an
alternative container runtime in Kubernetes node.
 Updated Kubernetes dashboard UI - Customers can now use the Kubernetes open source dashboard for the
majority of interactions with their clusters, rather than having to use the CLI. The updated UI lets users control, edit
and create all workload resources.
http://blog.kubernetes.io/2016/07/kubernetes-1.3-bridging-
cloud-native-and-enterprise-workloads.html

Contents
1.Overview
2.Architecture
3.Open Source
5.Competitors

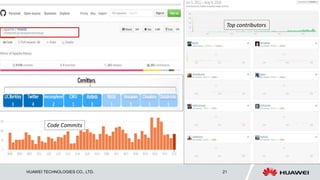

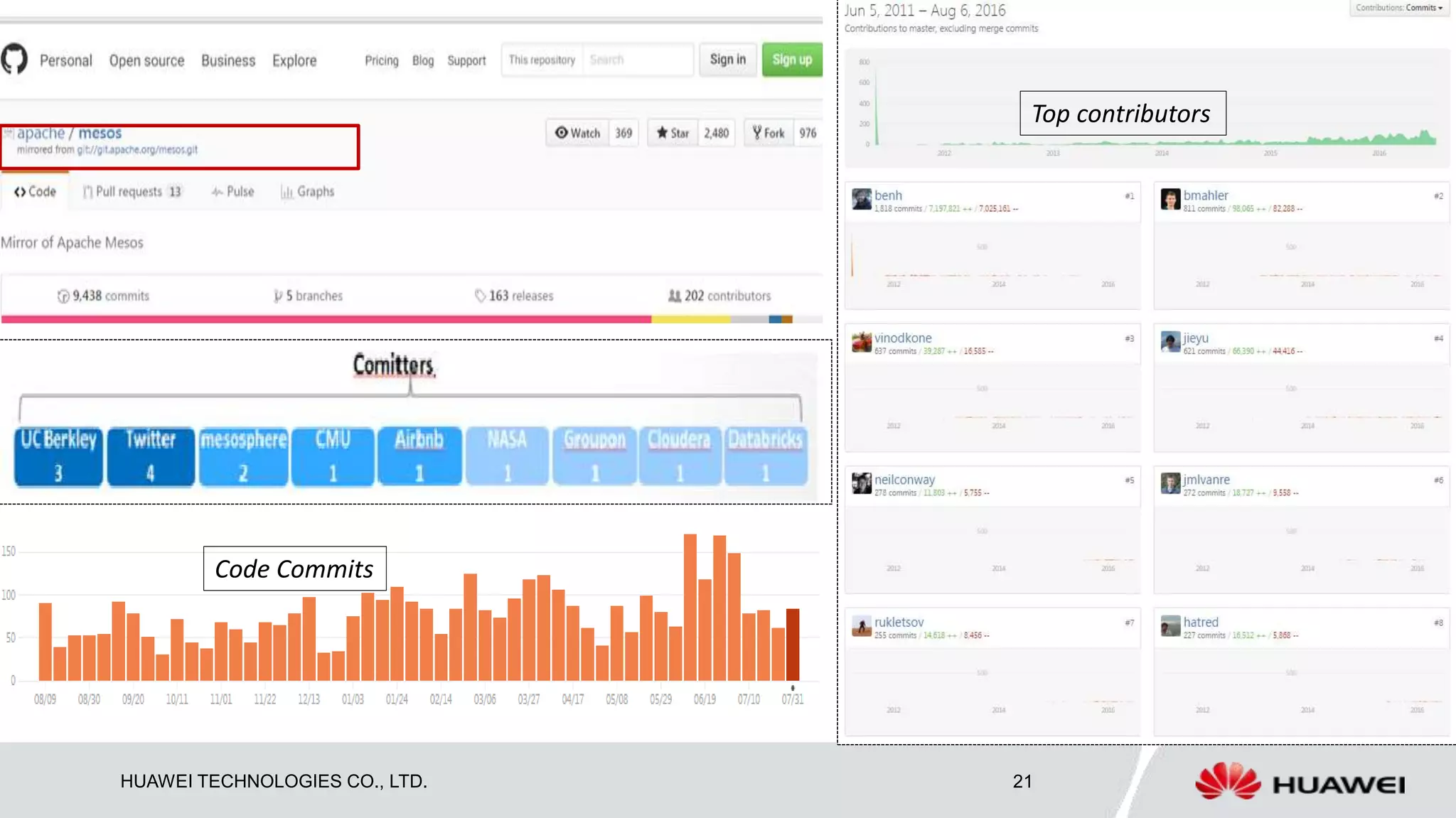

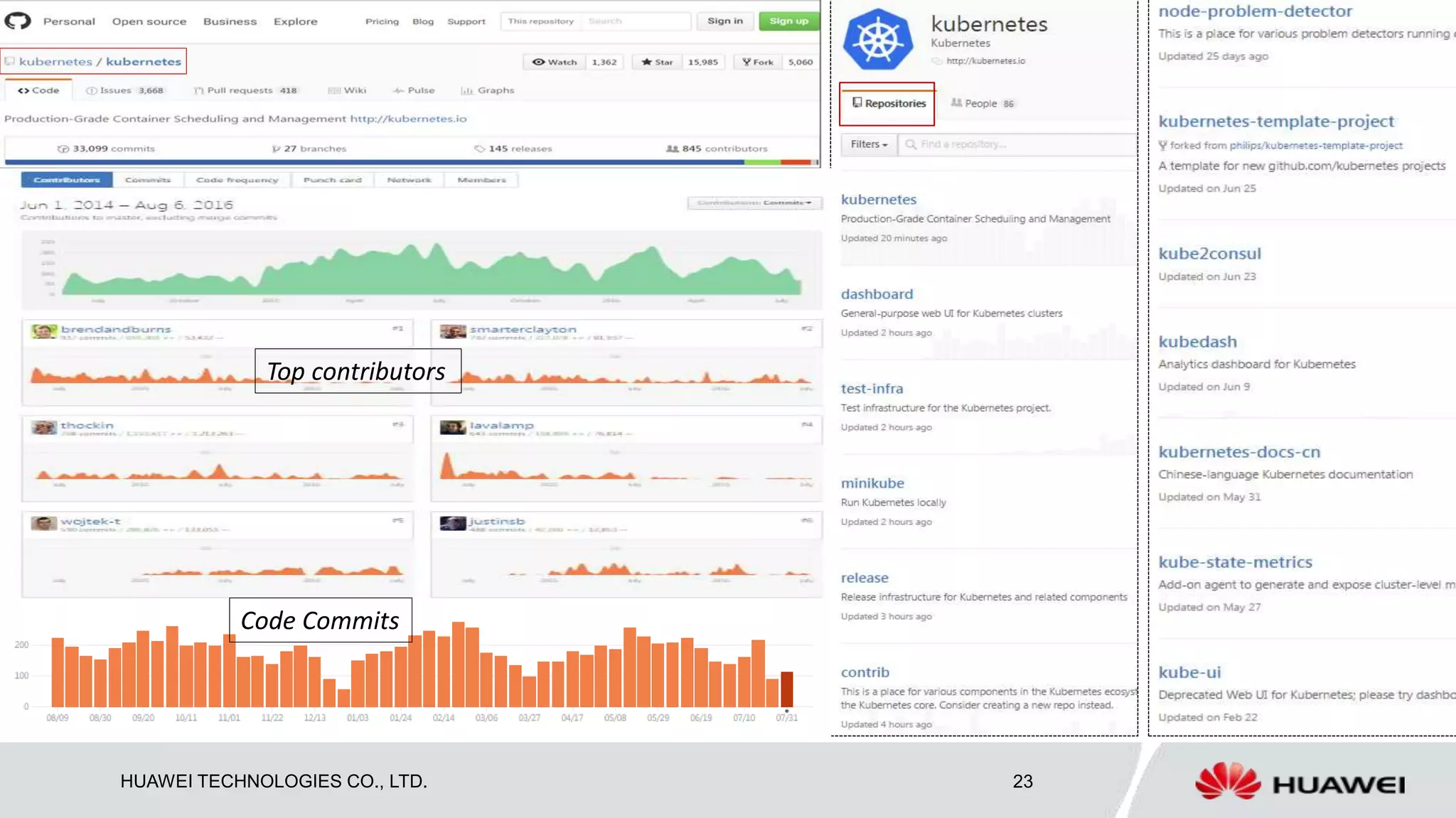

Top contributors
Code Commits

Code Commits
Top contributors

Contents
1.Overview
2.Architecture
3.Open Source
5.Competitors

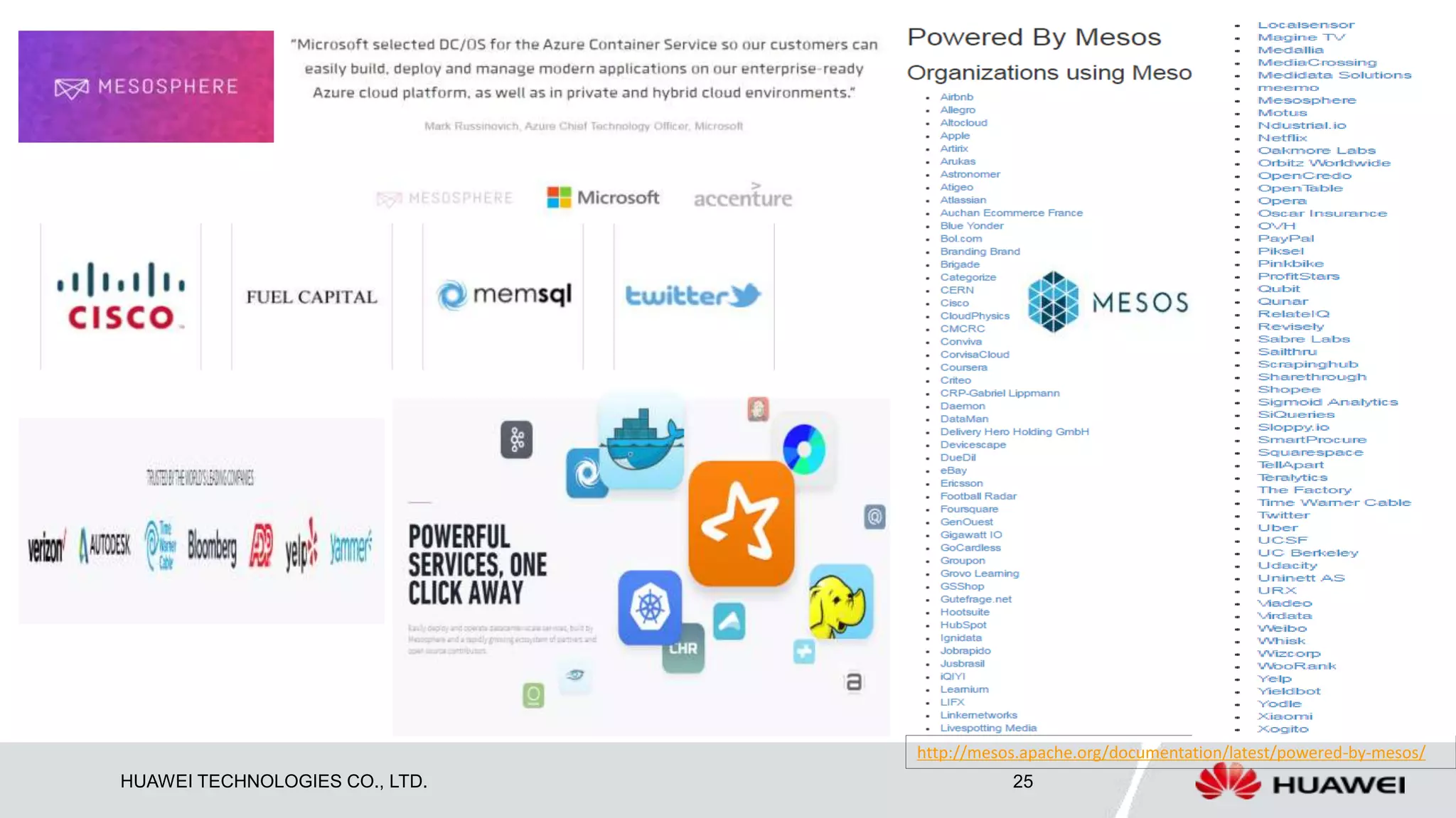

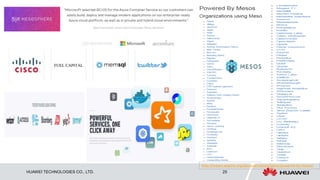

http://mesos.apache.org/documentation/latest/powered-by-mesos/

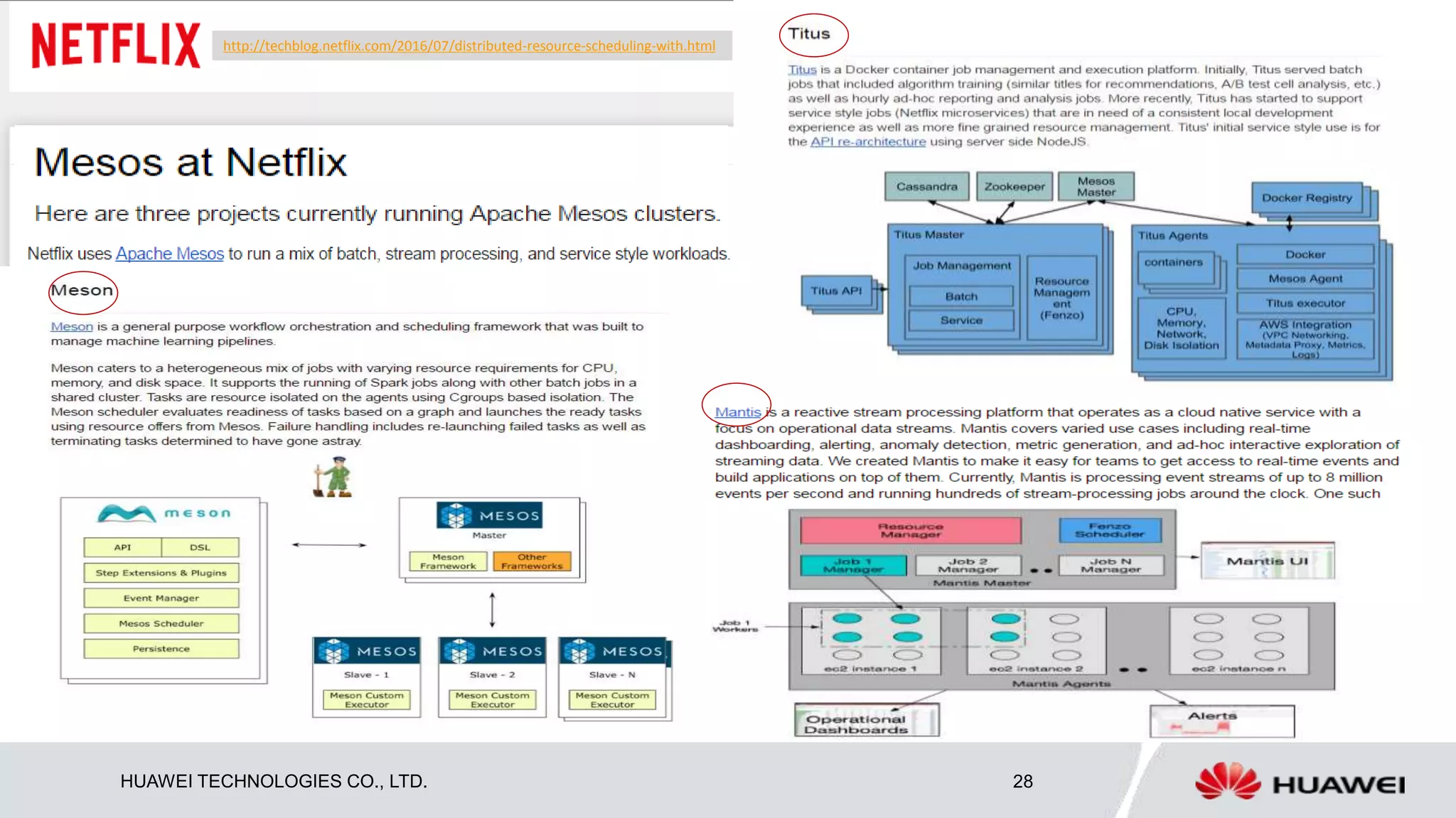

http://techblog.netflix.com/2016/07/distributed-resource-scheduling-with.html

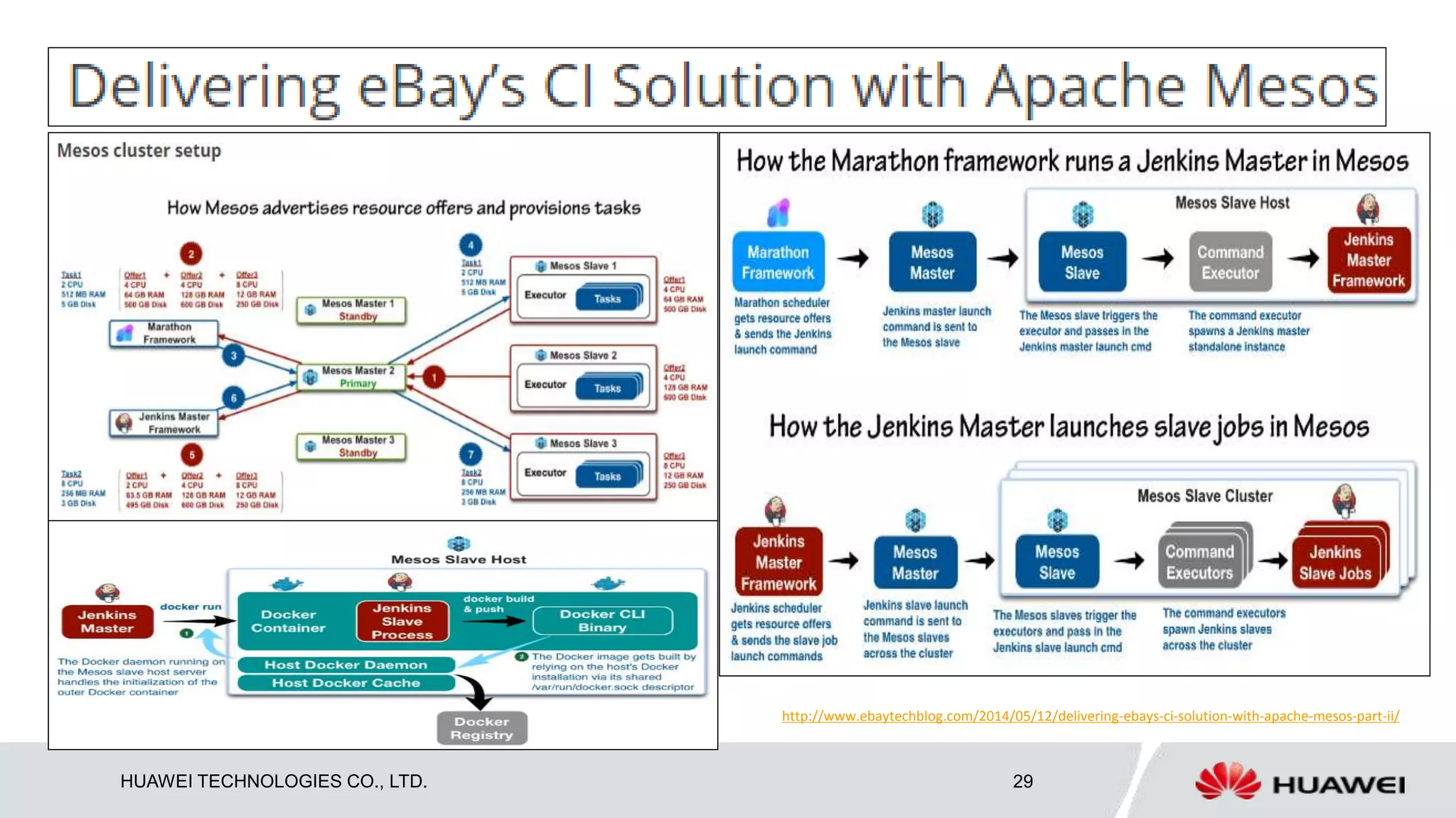

http://www.ebaytechblog.com/2014/05/12/delivering-ebays-ci-solution-with-apache-mesos-part-ii/

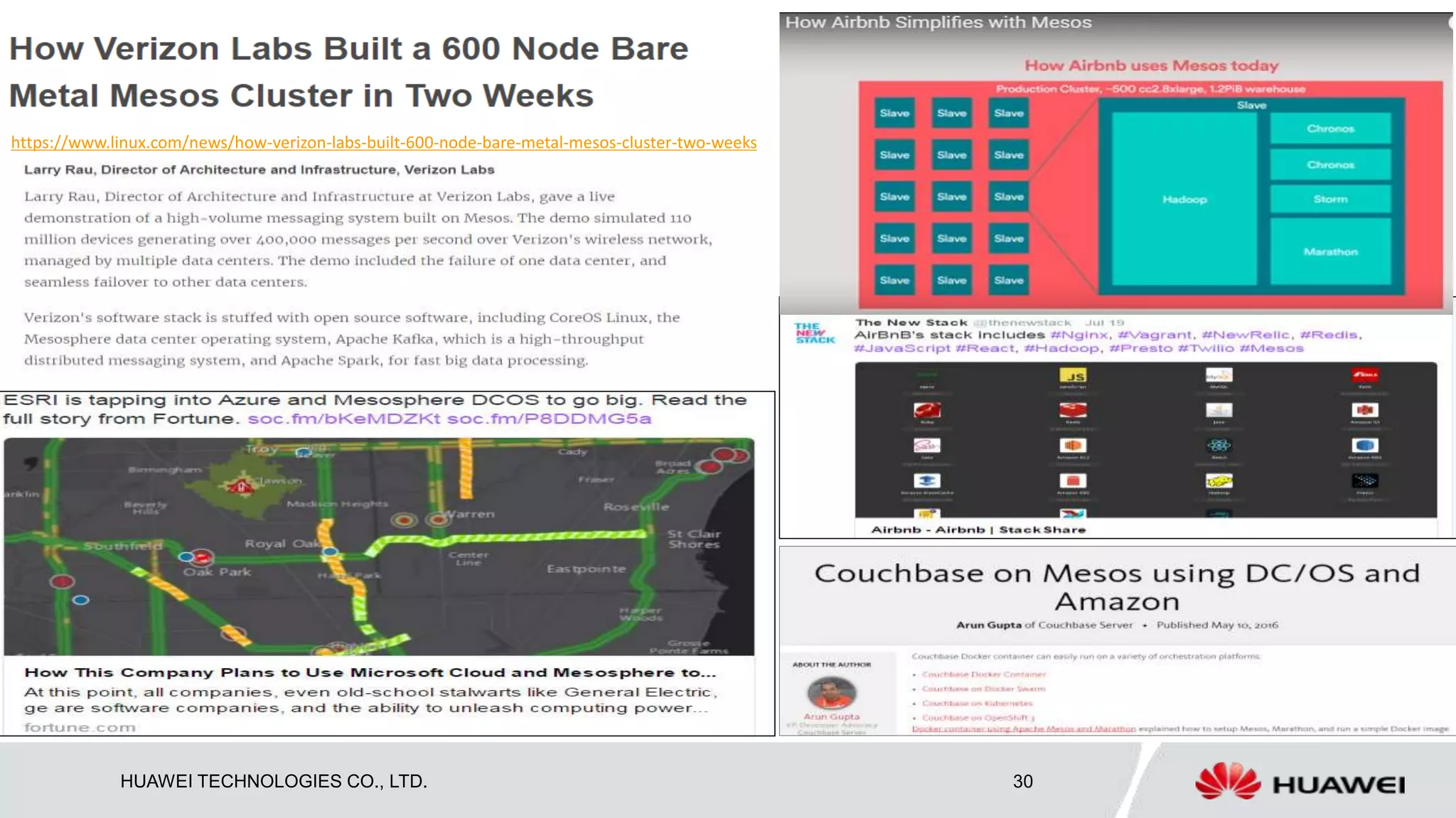

https://www.linux.com/news/how-verizon-labs-built-600-node-bare-metal-mesos-cluster-two-weeks

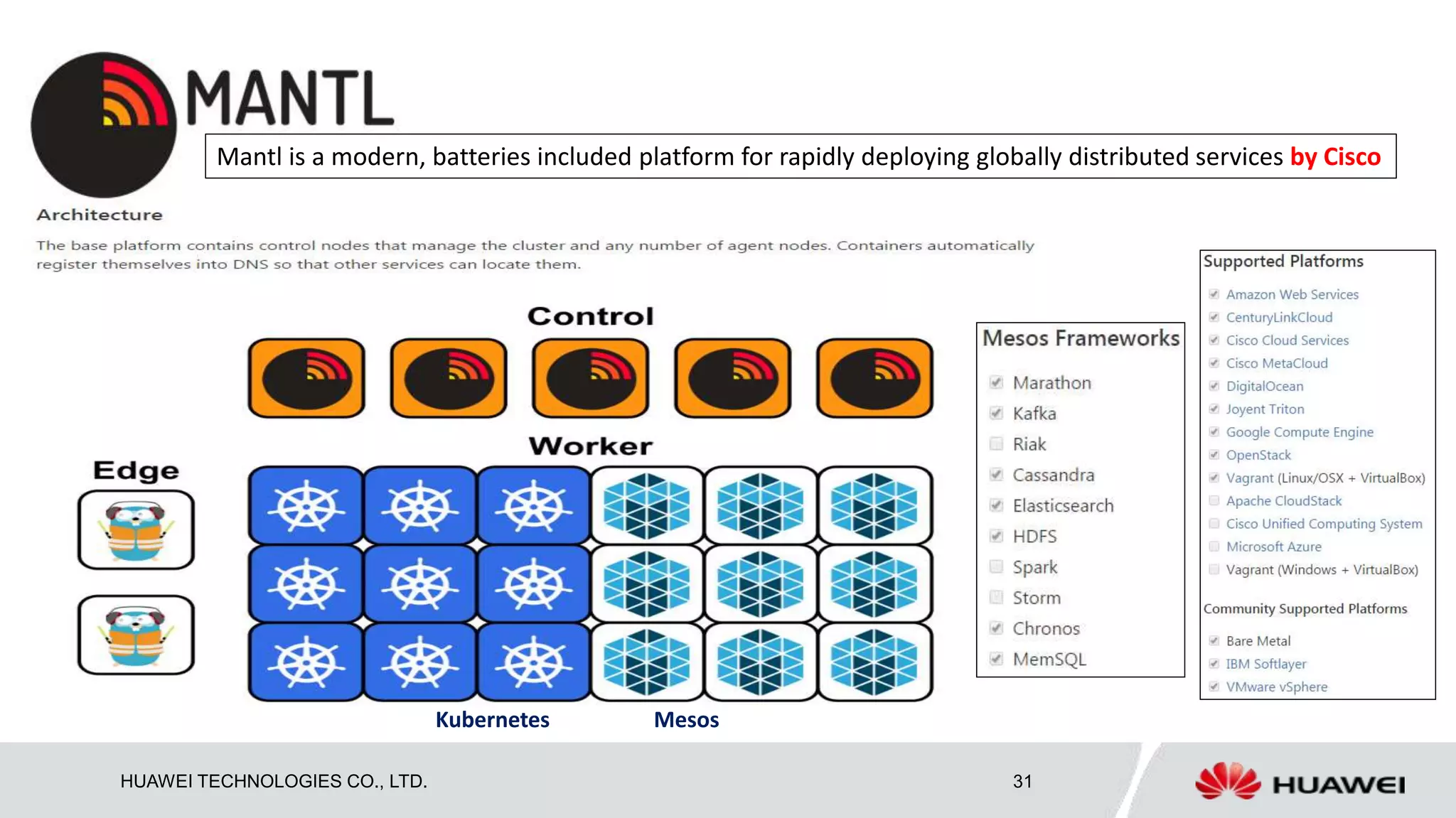

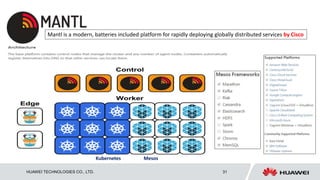

Mantl is a modern, batteries included platform for rapidly deploying globally distributed services by Cisco
Kubernetes Mesos

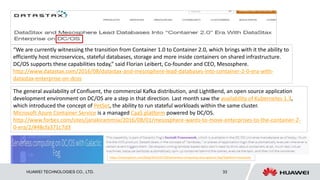

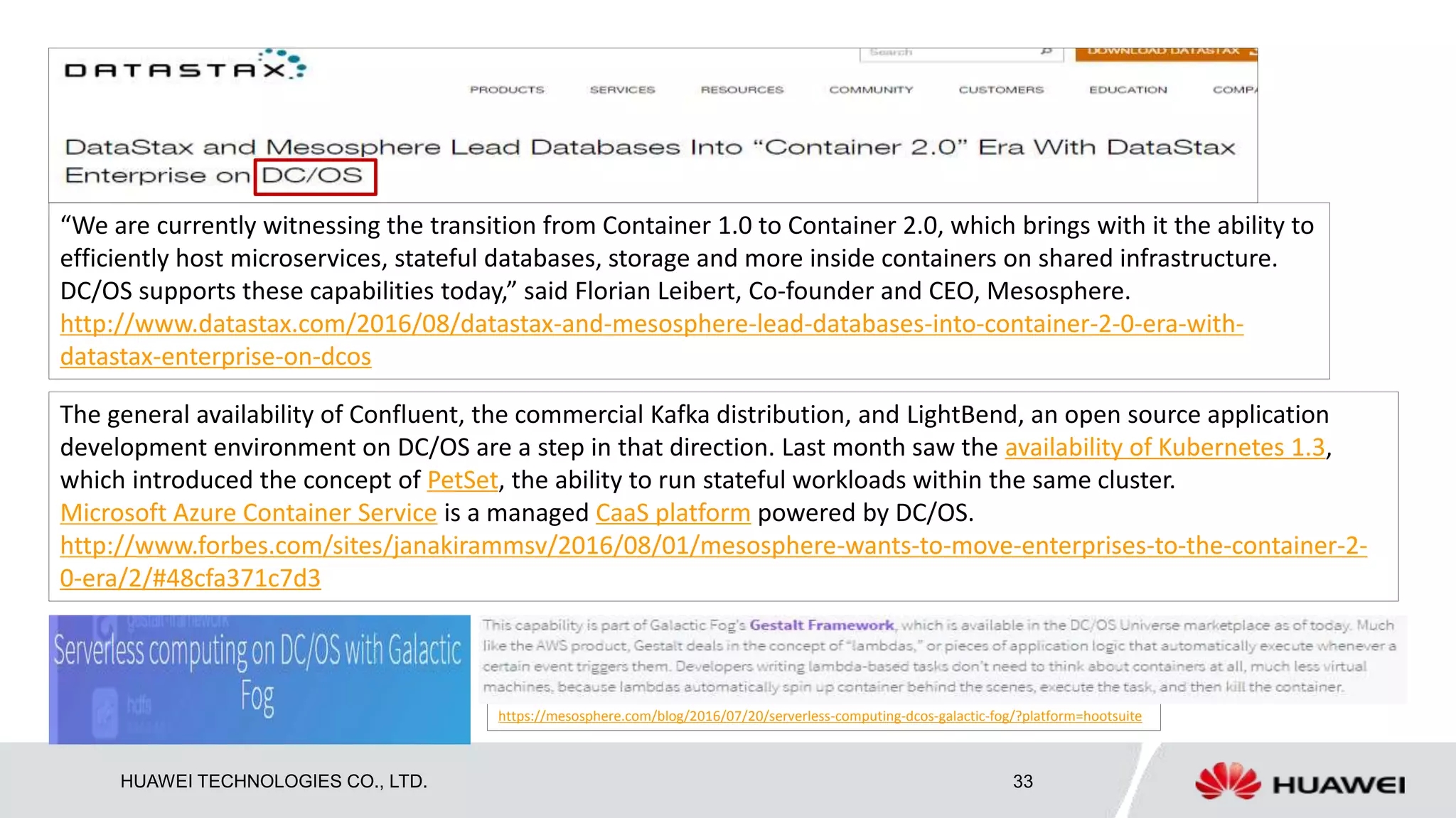

“We are currently witnessing the transition from Container 1.0 to Container 2.0, which brings with it the ability to
efficiently host microservices, stateful databases, storage and more inside containers on shared infrastructure.
DC/OS supports these capabilities today,” said Florian Leibert, Co-founder and CEO, Mesosphere.
http://www.datastax.com/2016/08/datastax-and-mesosphere-lead-databases-into-container-2-0-era-with-
datastax-enterprise-on-dcos
The general availability of Confluent, the commercial Kafka distribution, and LightBend, an open source application
development environment on DC/OS are a step in that direction. Last month saw the availability of Kubernetes 1.3,
which introduced the concept of PetSet, the ability to run stateful workloads within the same cluster.

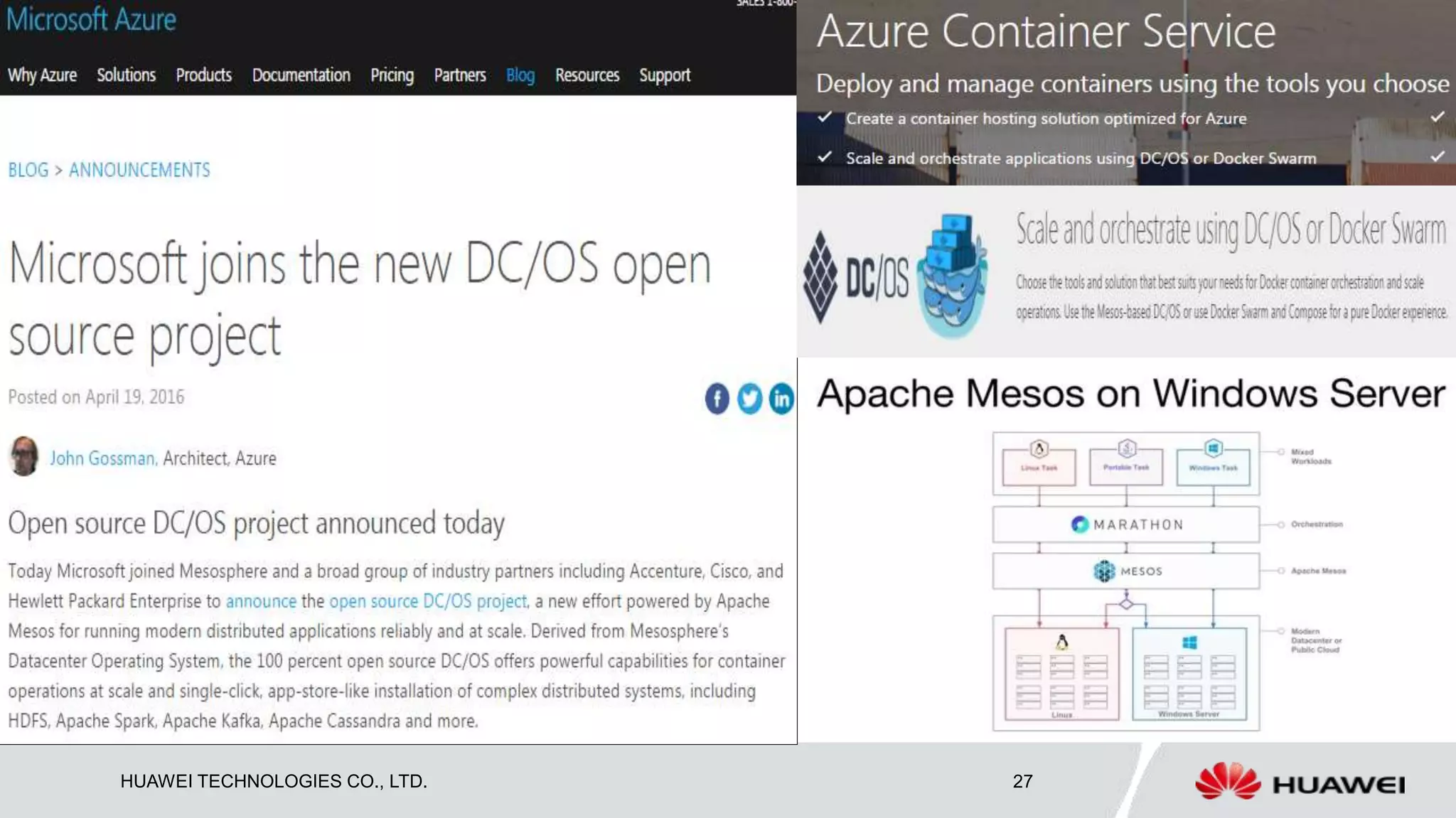

Microsoft Azure Container Service is a managed CaaS platform powered by DC/OS.
http://www.forbes.com/sites/janakirammsv/2016/08/01/mesosphere-wants-to-move-enterprises-to-the-container-2-
0-era/2/#48cfa371c7d3
https://mesosphere.com/blog/2016/07/20/serverless-computing-dcos-galactic-fog/?platform=hootsuite

Contents
1.Overview
2.Architecture
3.Open Source
5.Competitors

The Competitors

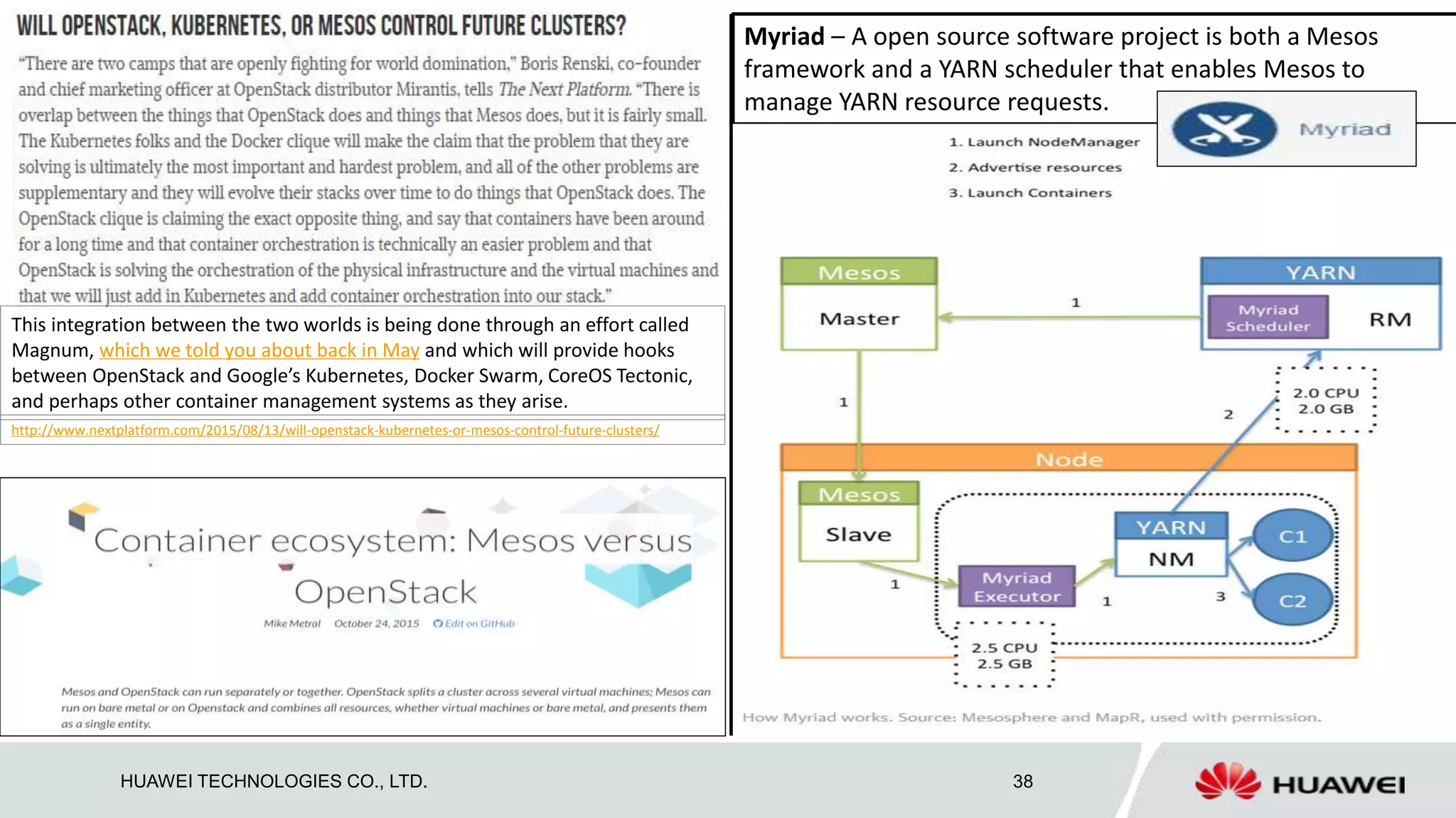

http://www.nextplatform.com/2015/08/13/will-openstack-kubernetes-or-mesos-control-future-clusters/
This integration between the two worlds is being done through an effort called
Magnum, which we told you about back in May and which will provide hooks
between OpenStack and Google’s Kubernetes, Docker Swarm, CoreOS Tectonic,
and perhaps other container management systems as they arise.
Myriad – A open source software project is both a Mesos
framework and a YARN scheduler that enables Mesos to
manage YARN resource requests.

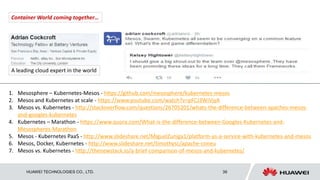

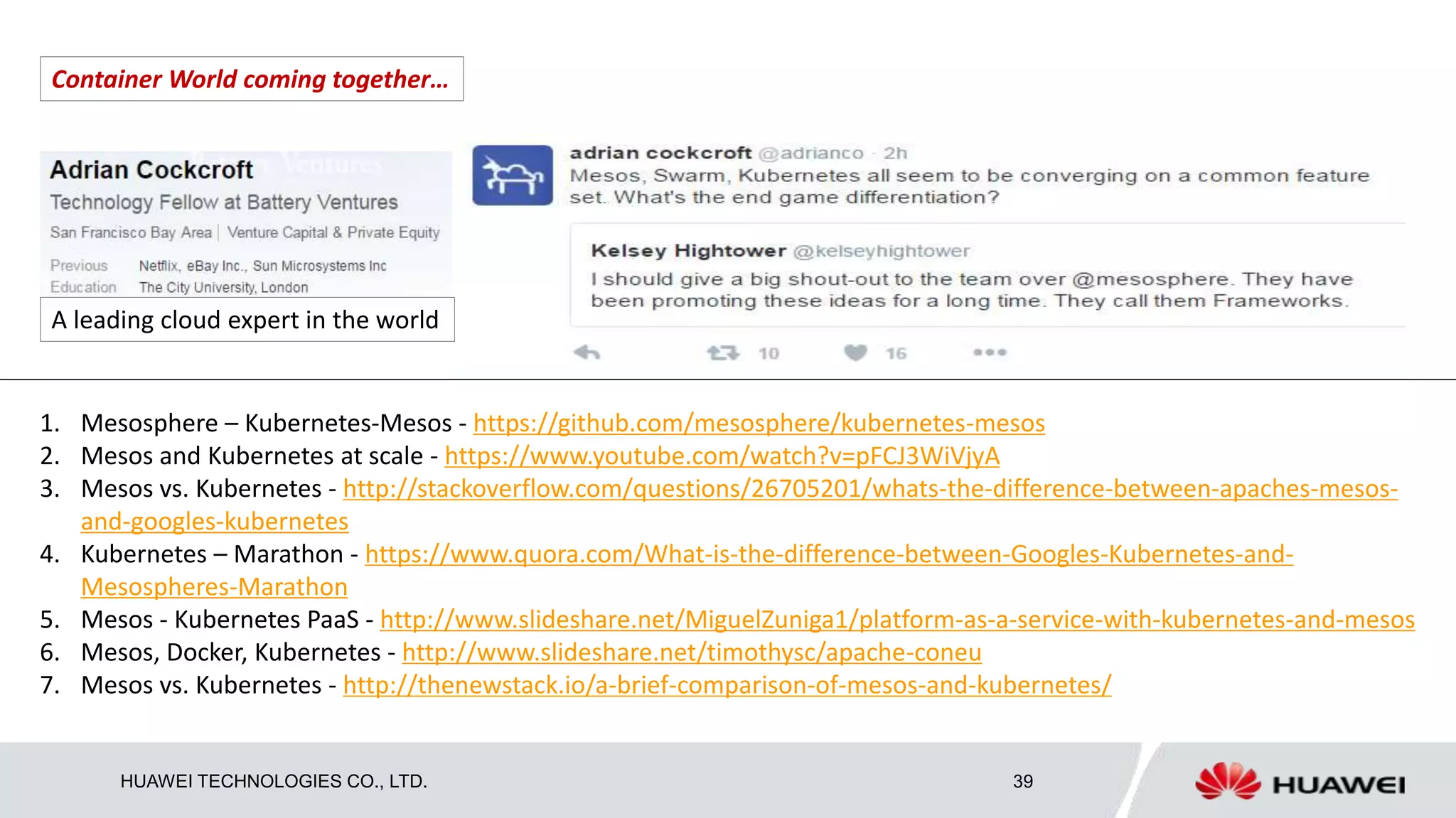

A leading cloud expert in the world
Container World coming together…

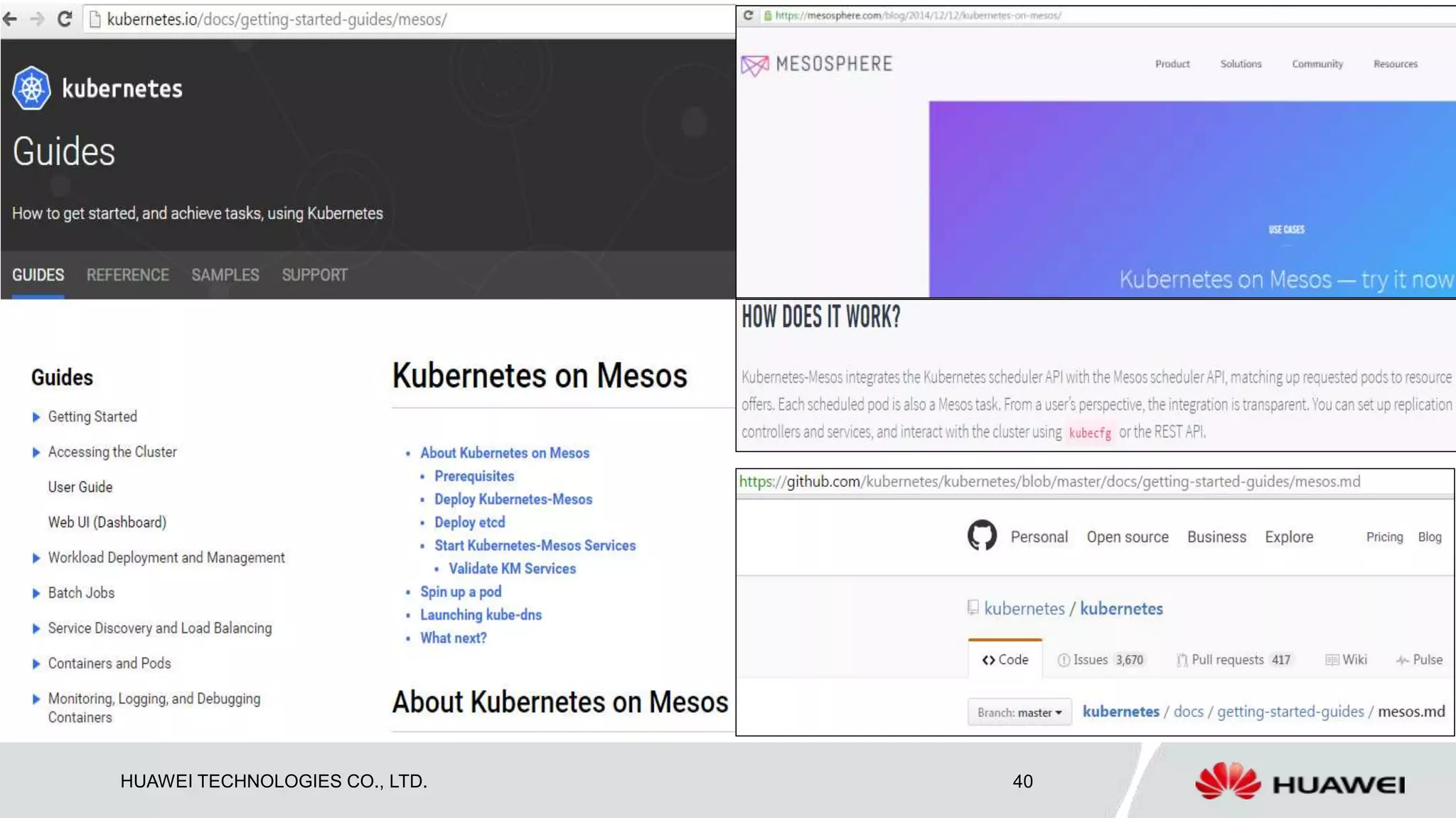

1. Mesosphere – Kubernetes-Mesos - https://github.com/mesosphere/kubernetes-mesos
2. Mesos and Kubernetes at scale - https://www.youtube.com/watch?v=pFCJ3WiVjyA
3. Mesos vs. Kubernetes - http://stackoverflow.com/questions/26705201/whats-the-difference-between-apaches-mesos-
and-googles-kubernetes
4. Kubernetes – Marathon - https://www.quora.com/What-is-the-difference-between-Googles-Kubernetes-and-
Mesospheres-Marathon
5. Mesos - Kubernetes PaaS - http://www.slideshare.net/MiguelZuniga1/platform-as-a-service-with-kubernetes-and-mesos
6. Mesos, Docker, Kubernetes - http://www.slideshare.net/timothysc/apache-coneu
7. Mesos vs. Kubernetes - http://thenewstack.io/a-brief-comparison-of-mesos-and-kubernetes/

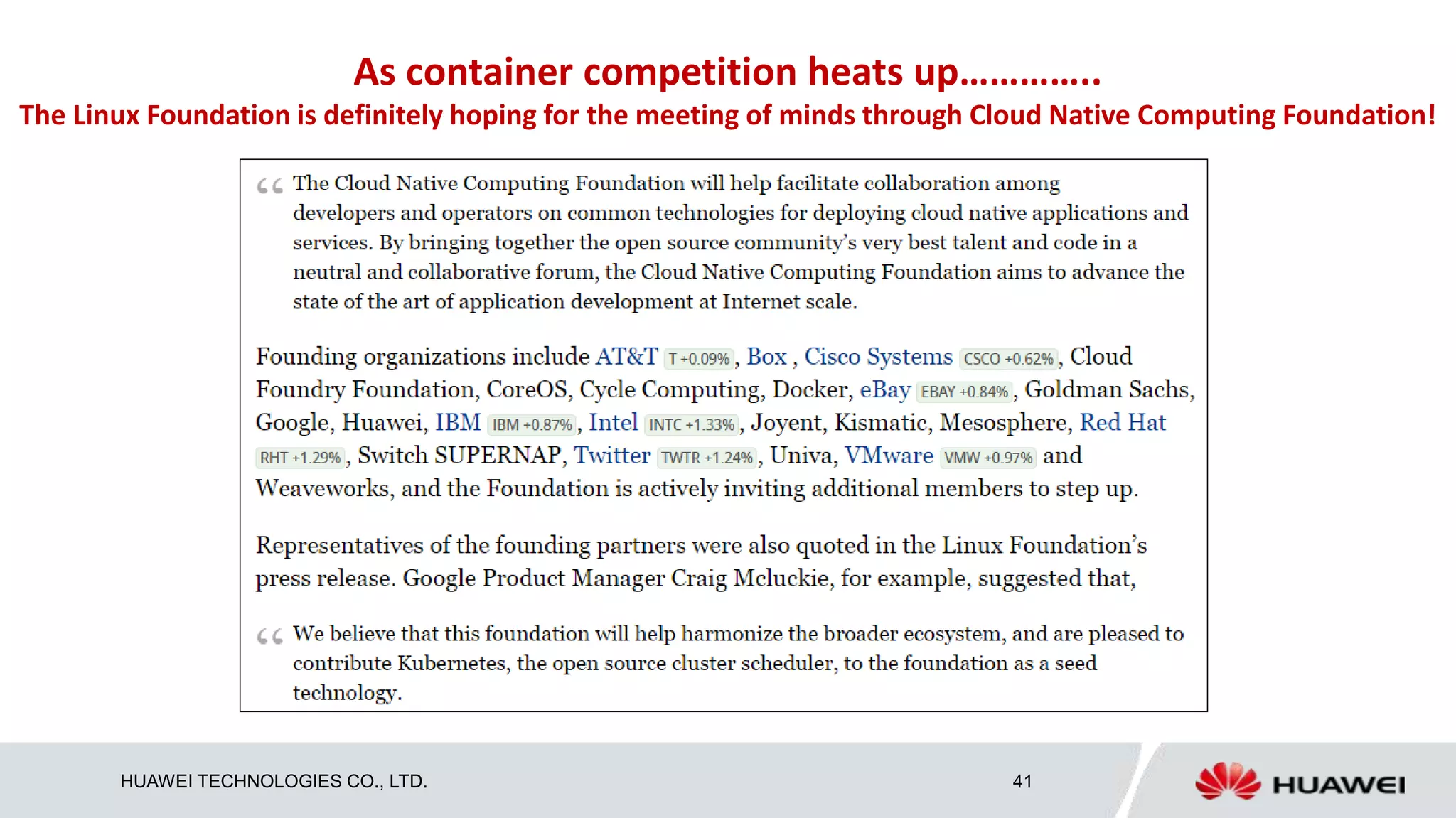

As container competition heats up…………..

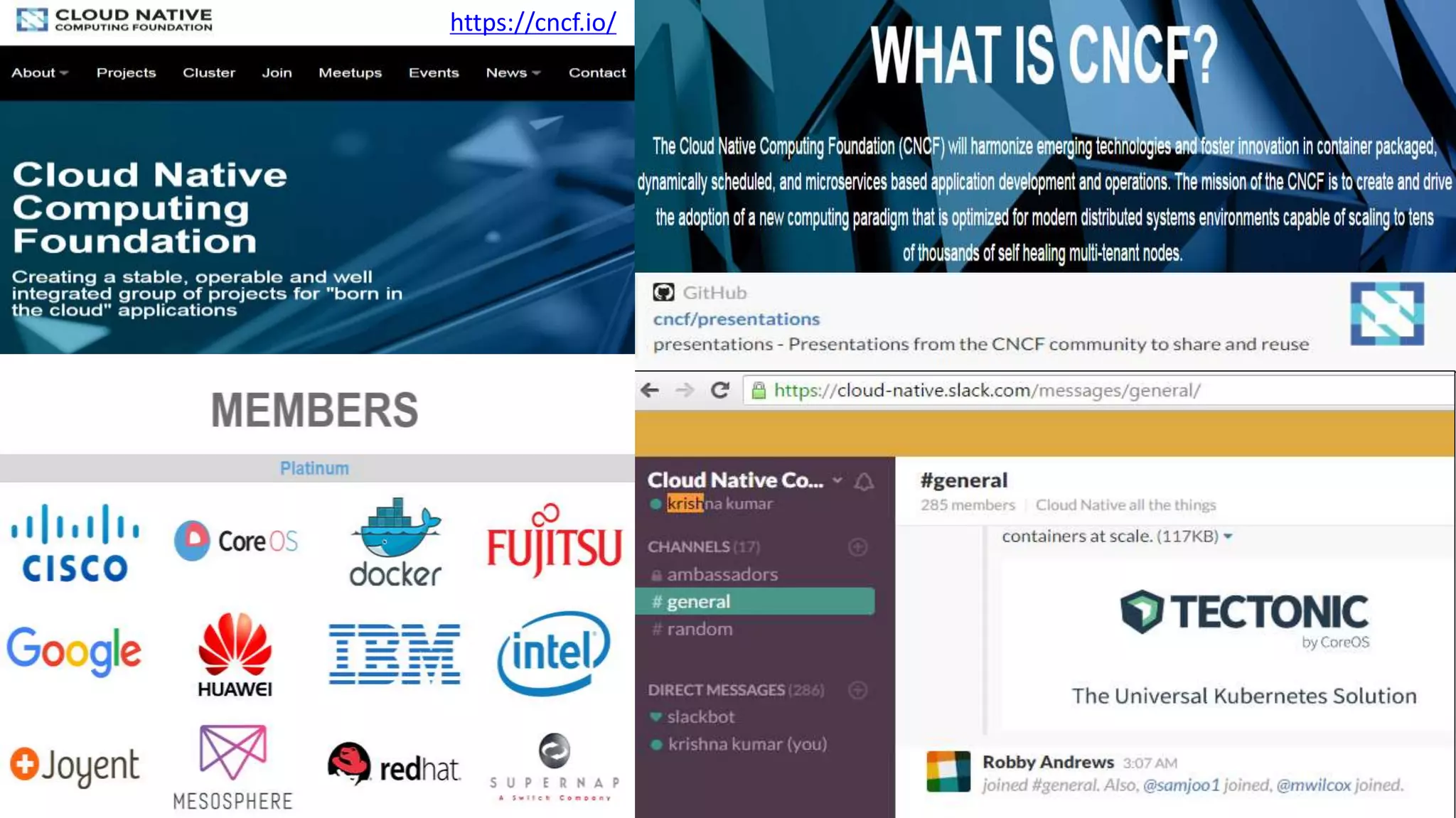

The Linux Foundation is definitely hoping for the meeting of minds through Cloud Native Computing Foundation!

Thank you
www.huawei.com
*All the materials are pulled out from web. Thanks to all for posting those 
