Monitoring microservices: Docker, Mesos and Kubernetes visibility at scale
This document discusses monitoring microservices running in containers at scale. It introduces Sysdig, an open source tool that captures system events and provides visibility into containers, processes, files, and more through a curses UI. Sysdig addresses the challenges of getting monitoring data out of orchestrated applications running in containers across nodes and making sense of that data. It collects kernel-level data without adding dependencies to containers. Sysdig Cloud provides correlated monitoring data at scale. The document also introduces Falco, an anomaly detection system built on Sysdig that monitors for security threats through behavior rules.
More Related Content
Similar to Monitoring microservices: Docker, Mesos and Kubernetes visibility at scale
Monitoring microservices: Docker, Mesos and Kubernetes visibility at scale
- 1. Monitoring microservices: Docker, Mesosand Kubernetes visibility at scale
- 2. Me Alessandro Gallotta Software Engineer@sysdig @alex_gallotta @sysdig
- 3. Introducing Sysdig • Capturesystem events, filter them, run useful scripts • Lua scripting • Open Source • Nice curses UI lsof netstat tcpdump htop ps strace
- 4. and more • trackuser activity • top files/processes/connections by • cpu • bytes • … • logs • containers • tracers • you name it, we track it
- 5. Design Goals • Production-ready •Simple • lightweight • Rich data • Natural workflow • Native support for containers • Native support for and more…
- 6.
- 7. Containers are Great… •Simple • Scalable • Isolated • Service-oriented • Elastic • Flexible • Separation of concerns

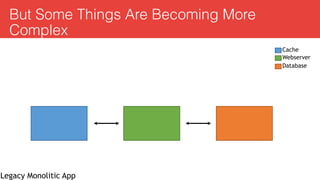

- 8. But Some ThingsAre Becoming More Complex Cache Webserver Database Legacy Monolitic App
- 9. But Some ThingsAre Becoming More Complex Computing Node Computing Node Computing Node Service1 Service2 Service3 Computing Node Computing Node Computing Node Container-based App

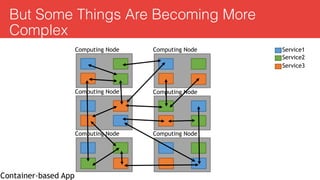

- 10. But Some ThingsAre Becoming More Complex Computing Node Computing Node Computing Node Computing Node Computing Node Computing Node Container-based App Service1 Service2 Service3

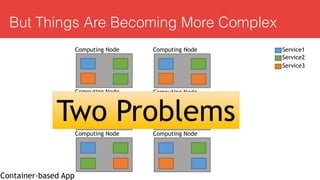

- 11. But Things AreBecoming More Complex Computing Node Computing Node Computing Node Service1 Service2 Service3 Computing Node Computing Node Computing Node Container-based App Two Problems

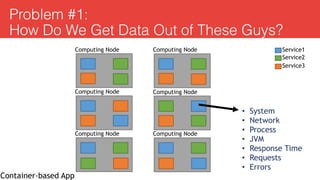

- 12. Problem #1: HowDo We Get Data Out of These Guys? Computing Node Computing Node Computing Node Service1 Service2 Service3 Computing Node Computing Node Computing Node Container-based App • System • Network • Process • JVM • Response Time • Requests • Errors

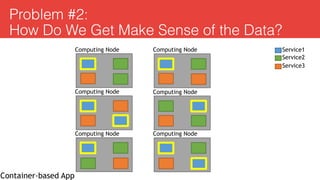

- 13. Problem #2: HowDo We Get Make Sense of the Data? Computing Node Computing Node Computing Node Service1 Service2 Service3 Computing Node Computing Node Computing Node Container-based App

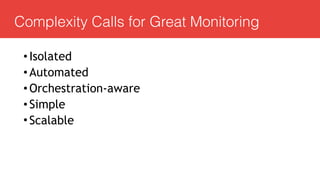

- 14. Complexity Calls forGreat Monitoring •Isolated •Automated •Orchestration-aware •Simple •Scalable
- 15. The Orchestrated Versionof This
- 16. Complexity Also Callsfor Great Troubleshooting What‘s the network activity of my Marathon group? What’s using the CPU the Wordpress task? How the hell does my Mesos task work?! Where’s the bottleneck? What’s the response time of my login service? What transactions is my Redis service serving?
- 17. Hypervisor How Do IGet Data Out of These Things: VMs VM1 VM3VM2

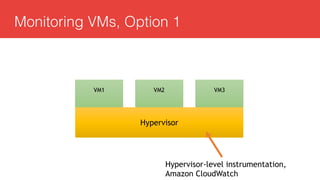

- 18. Hypervisor Monitoring VMs, Option1 VM1 VM3VM2 Hypervisor-level instrumentation, Amazon CloudWatch

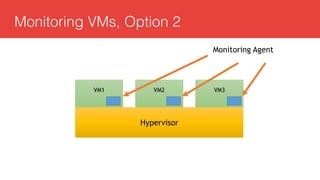

- 19. Hypervisor Monitoring VMs, Option2 VM1 VM3VM2 Monitoring Agent

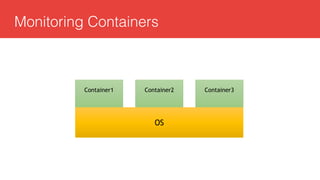

- 20.

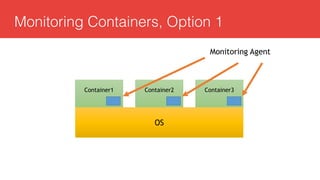

- 21. OS Monitoring Containers, Option1 Container1 Container3Container2 Monitoring Agent
- 22. OS Monitoring Containers, Option1 Container1 Container3Container2 Monitoring Agent • Not scalable • Not composable • Adds dependencies/size • Kills the concept of one process per container

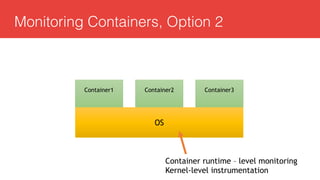

- 23. OS Monitoring Containers, Option2 Container1 Container3Container2 Container runtime – level monitoring Kernel-level instrumentation
- 24. OS Monitoring Containers, Option3 Container1 Monitoring Container Container2
- 25.
- 26.
- 27.
- 28. Sky cloud isthe limit • Correlate data • Scale with your infrastructure • Alerts, notifications, visualization tools • Continuous data collection and retention from production systems

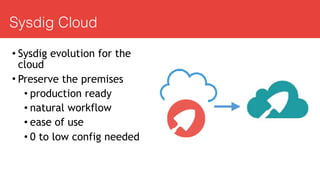

- 29. Sysdig Cloud • Sysdigevolution for the cloud • Preserve the premises • production ready • natural workflow • ease of use • 0 to low config needed
- 30. Out of thebox support
- 31.
- 32. How About Security? Didsomeone log into one of our containers? Has something been installed in one of the containers? Have we been hacked? Were configuration files changed?
- 33. How About Security? Didsomeone log into one of our containers? Have we been hacked? Were configuration files changed? Has something been installed in one of the containers?
- 34. An anomaly detectionsystem built on top of the sysdig engine

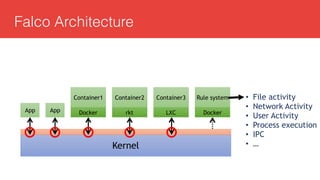

- 35. Falco Architecture Kernel Container1 Docker Container2 rkt Container3 LXCAppApp Rule system Docker •File activity • Network Activity • User Activity • Process execution • IPC • …

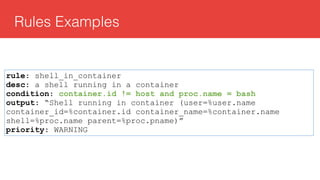

- 36. Rules Examples rule: shell_in_container desc:a shell running in a container condition: container.id != host and proc.name = bash output: “Shell running in container (user=%user.name container_id=%container.id container_name=%container.name shell=%proc.name parent=%proc.pname)” priority: WARNING

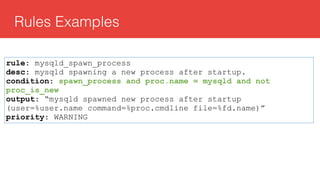

- 37. Rules Examples rule: mysqld_spawn_process desc:mysqld spawning a new process after startup. condition: spawn_process and proc.name = mysqld and not proc_is_new output: “mysqld spawned new process after startup (user=%user.name command=%proc.cmdline file=%fd.name)” priority: WARNING

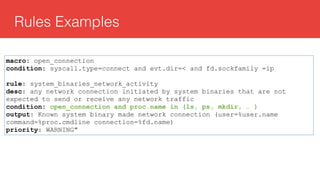

- 38. Rules Examples macro: open_connection condition:syscall.type=connect and evt.dir=< and fd.sockfamily =ip rule: system_binaries_network_activity desc: any network connection initiated by system binaries that are not expected to send or receive any network traffic condition: open_connection and proc.name in (ls, ps, mkdir, … ) output: Known system binary made network connection (user=%user.name command=%proc.cmdline connection=%fd.name) priority: WARNING"
- 39.
