Introducing Apache Mesos
Matthias Furrer
Bruno Fuss
A modern cluster manager optimizing resource utilization

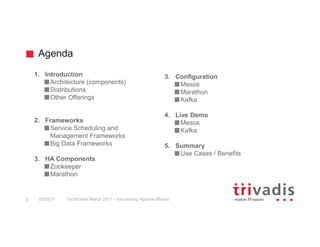

2. Agenda

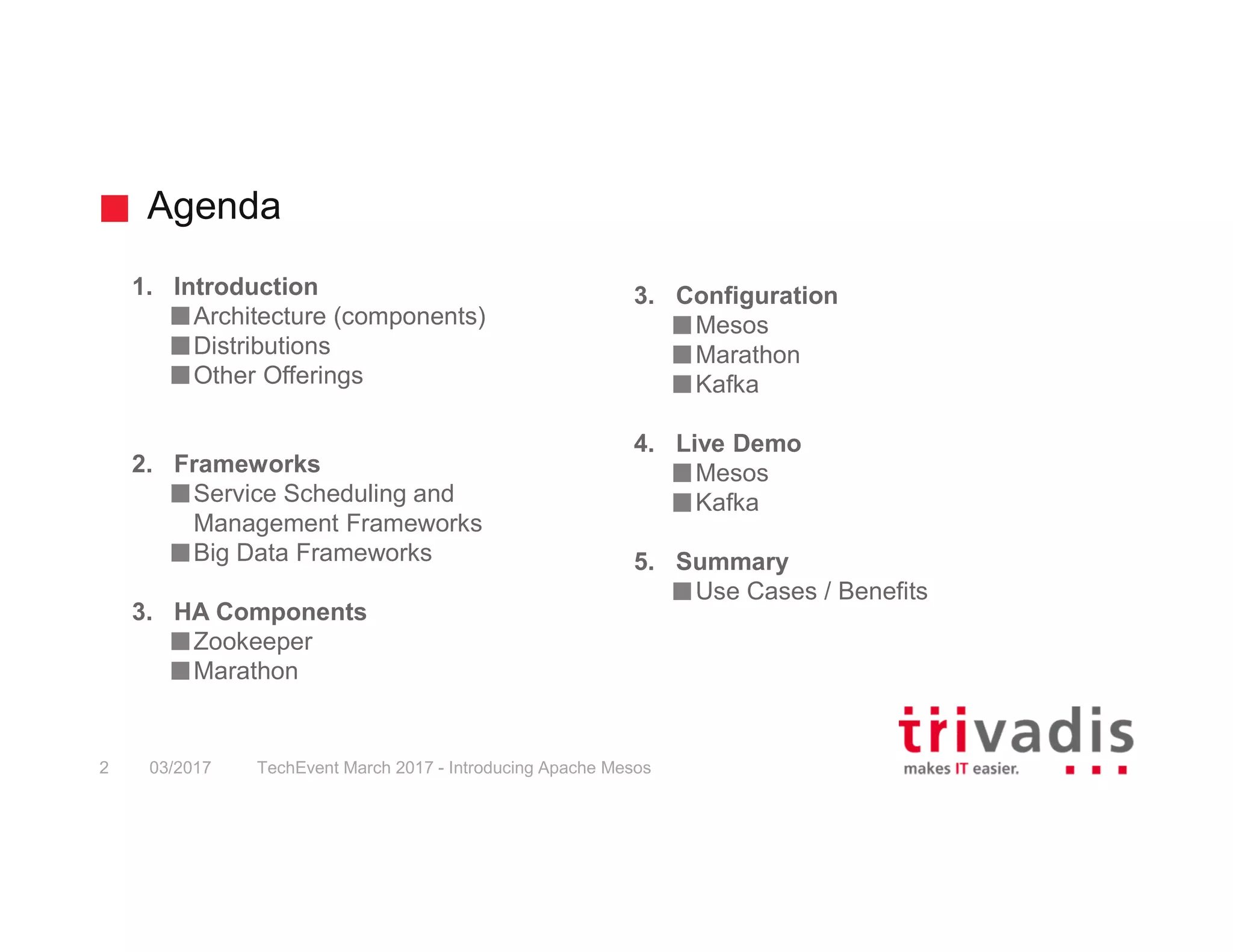

TechEvent March 2017 - Introducing Apache Mesos2 03/2017
1. Introduction
Architecture (components)
Distributions
Other Offerings
2. Frameworks
Service Scheduling and
Management Frameworks
Big Data Frameworks
3. HA Components
Zookeeper
Marathon
3. Configuration
Mesos
Marathon
Kafka
4. Live Demo
Mesos
Kafka
5. Summary
Use Cases / Benefits

3. TechEvent March 2017 - Introducing Apache Mesos3 03/2017
Introduction

4. Introducing Apache Mesos
A software layer to aggregate servers into one processing unit
TechEvent March 2017 - Introducing Apache Mesos4 03/2017
Distributed Cluster Management Software
System Resources (Memory, Storage) abstraction from Hardware
Metascheduler („scheduler of schedulers“)
Distributed Systems Kernel / Distributed Datacenter OS
Supports Mesos and Docker Containers
Open Source
– Runs under Apache License 2.0
Cross Plattform
– Written in C++
– Runs on Linux/Posix systems, Experimental for Windows

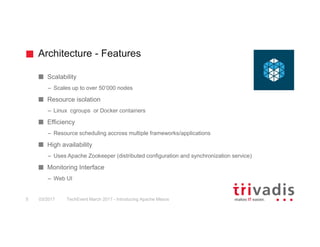

5. Architecture - Features
TechEvent March 2017 - Introducing Apache Mesos5 03/2017
Scalability
– Scales up to over 50‘000 nodes
Resource isolation
– Linux cgroups or Docker containers
Efficiency
– Resource scheduling accross multiple frameworks/applications
High availability
– Uses Apache Zookeeper (distributed configuration and synchronization service)
Monitoring Interface
– Web UI

6. Components
TechEvent March 2017 - Introducing Apache Mesos6 03/2017
Master
– Mediating agent resources
Agents
– Manage resources on individual nodes and executes
tasks
Frameworks
Applications
– Systems running on mesos consisting of a scheduler and an
executor (e.g. Spark, Storm ,Cassandra)
Chronos
– Fault tolerant job scheduler, can handle dependencies - acts
as a cron for mesos
Marathon
– Framework for running long-running services – init.d for
mesos

7. Architecture – High Level Overview
TechEvent March 2017 - Introducing Apache Mesos7 03/2017

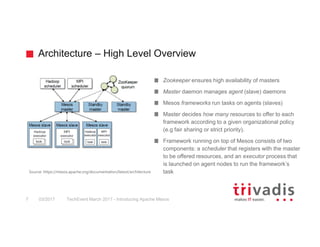

Zookeeper ensures high availability of masters
Master daemon manages agent (slave) daemons
Mesos frameworks run tasks on agents (slaves)
Master decides how many resources to offer to each
framework according to a given organizational policy
(e.g fair sharing or strict priority).
Framework running on top of Mesos consists of two
components: a scheduler that registers with the master
to be offered resources, and an executor process that
is launched on agent nodes to run the framework’s
taskSource: https://mesos.apache.org/documentation/latest/architecture

8. Architecture – Resource Offering
TechEvent March 2017 - Introducing Apache Mesos8 03/2017

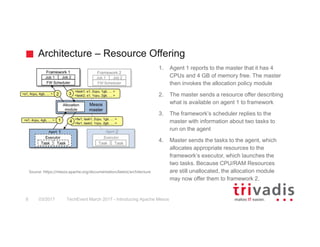

1. Agent 1 reports to the master that it has 4
CPUs and 4 GB of memory free. The master
then invokes the allocation policy module
2. The master sends a resource offer describing
what is available on agent 1 to framework
3. The framework’s scheduler replies to the
master with information about two tasks to
run on the agent
4. Master sends the tasks to the agent, which
allocates appropriate resources to the
framework’s executor, which launches the
two tasks. Because CPU/RAM Resources
are still unallocated, the allocation module
may now offer them to framework 2.
Source: https://mesos.apache.org/documentation/latest/architecture

9. Distributions– Mesosphere DC/OS
TechEvent March 2017 - Introducing Apache Mesos9 03/2017
Commercial version: Mesosphere Datacenter Operating System
Open Source version: DC/OS available - derived from Mesosphere’s Datacenter
Operating System
Based on Mesos and Marathon
Supports Docker as well as native Mesos containers
Container orchestration capabilities for Docker and Mesos containers including
automatic workload recovery, security, networking, service discovery
“Push-button installation” of complex distributed systems (including HDFS, Apache
Spark, Apache Kafka, Apache Cassandra and more) with DC/OS Universe
Runs on bare-metal, virtual (vSphere or OpenStack) and cloud (AWS, Azure, GCE)

10. Other Offerings
TechEvent March 2017 - Introducing Apache Mesos10 03/2017

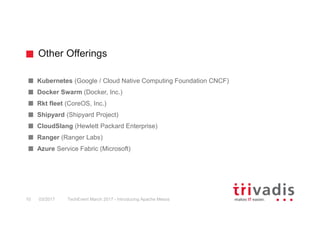

Kubernetes (Google / Cloud Native Computing Foundation CNCF)
Docker Swarm (Docker, Inc.)
Rkt fleet (CoreOS, Inc.)
Shipyard (Shipyard Project)
CloudSlang (Hewlett Packard Enterprise)
Ranger (Ranger Labs)
Azure Service Fabric (Microsoft)

11. TechEvent March 2017 - Introducing Apache Mesos11 03/2017
Frameworks

12. Service Scheduling and Management Frameworks
TechEvent March 2017 - Introducing Apache Mesos12 03/2017
Marathon
– Launch and monitor long-running applications. Controlling a high availability
environment, checking the applications' health and restarting services if nodes go
down
Chronos
– Distributed, fully fault-tolerant job scheduler. Can interact with systems (e.g.
Hadoop) even if the Mesos worker machine does not have the system installed
Apache Aurora
– Manages long-running services, cron jobs, and ad-hoc jobs
Consul
– Service Discovery and orchestration

13. Big Data Frameworks
TechEvent March 2017 - Introducing Apache Mesos13 03/2017
Apache Hadoop
– Distributed Data Processing, MapReduce and Distributed File System (HDFS)
Apache Spark
– Execution engine for large-scale data processing. Batch processing, iterative
processing, near real-time processing, and stream processing. Caching data in
memory with Resilient Distributed Datasets (RDD)
Apache Storm
– Real-time distributed stream event-processing engine
Apache Cassandra
– Open source scalable NoSQL database. Provides query language Cassandra
Query Language or CQL to communicate with database

14. Big Data Frameworks (II)
TechEvent March 2017 - Introducing Apache Mesos14 03/2017
Apache Kafka
– distributed publish-subscribe messaging system designed for speed, scalability,
reliability, and durability
Apache Samza
– Distributed stream processing framework. Using Kafka for messaging and Hadoop
YARN for resource management
Elasticsearch-Logstash-Kibana (ELK) stack
– End-to-End log analytics solution: Elasticsearch for search capabilities, Logstash
as a log management software and Kibana as the visualization layer
Mesos API
– Develop custom frameworks – schedulers and executors

15. TechEvent March 2017 - Introducing Apache Mesos15 03/2017
High Availability
Components

16. Apache Zookeeper
TechEvent March 2017 - Introducing Apache Mesos16 03/2017
ZooKeeper
– is a centralized service for maintaining configuration information, naming, providing distributed
synchronization, and providing group services.
Independent Apache Project
Characteristics
– Central Key/Value Store
– Containing additional Information like time stamps, versioning, …
– Simple
– Fast
– Designed for High Availability

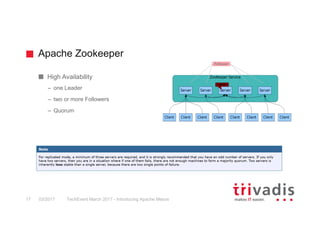

17. Apache Zookeeper
TechEvent March 2017 - Introducing Apache Mesos17 03/2017
High Availability
– one Leader
– two or more Followers
– Quorum
Follower

18. Apache Zookeeper
TechEvent March 2017 - Introducing Apache Mesos18 03/2017

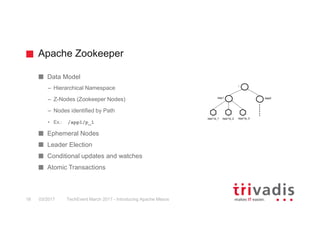

Data Model
– Hierarchical Namespace
– Z-Nodes (Zookeeper Nodes)
– Nodes identified by Path
• Ex.: /app1/p_1
Ephemeral Nodes
Leader Election
Conditional updates and watches
Atomic Transactions

19. Apache Zookeeper on Mesos
Zookeeper takes hand in everywhere Mesos needs to store and call up distributed
dynamic information
– Service Locations
– Service States
– Client Notifications
– Leader election for Mesos Masters and Frameworks (e.g. Marathon, etc.)
03/2017 TechEvent March 2017 - Introducing Apache Mesos19

20. Marathon
Marathon is a Apache Mesos framework for container orchestration
– designed for long running and stateful Apps (e.g. Database, App. Server, etc.)
Marathon is a meta framework
– used for managing other Mesos Frameworks (Chronos, Storm, …)
Container Support
– Mesos Containers (default)
– Docker Constainers (must be configured)
03/2017 TechEvent March 2017 - Introducing Apache Mesos20

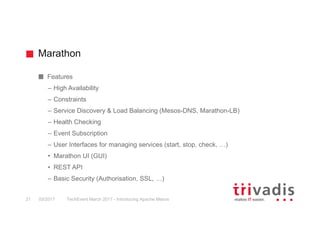

21. Marathon
Features
– High Availability
– Constraints
– Service Discovery & Load Balancing (Mesos-DNS, Marathon-LB)
– Health Checking
– Event Subscription
– User Interfaces for managing services (start, stop, check, …)
• Marathon UI (GUI)
• REST API
– Basic Security (Authorisation, SSL, …)
03/2017 TechEvent March 2017 - Introducing Apache Mesos21

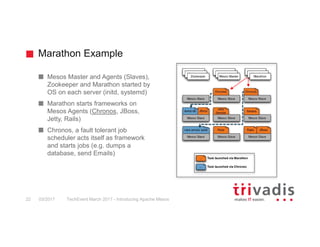

22. Marathon Example
Mesos Master and Agents (Slaves),
Zookeeper and Marathon started by
OS on each server (initd, systemd)
Marathon starts frameworks on
Mesos Agents (Chronos, JBoss,
Jetty, Rails)
Chronos, a fault tolerant job
scheduler acts itself as framework
and starts jobs (e.g. dumps a
database, send Emails)
03/2017 TechEvent March 2017 - Introducing Apache Mesos22

23. TechEvent March 2017 - Introducing Apache Mesos23 03/2017
Installation & Configuration

24. Installing and Configuring Apache Mesos
Installation
– http://mesos.apache.org/gettingstarted
– Different between CentOS 6 / 7
• Different Requirements (OS Packages, Libraries, …)
– configure / make / make install
– Zookeeper included
03/2017 TechEvent March 2017 - Introducing Apache Mesos24

25. Installing and Configuring Apache Mesos
Configuration
– http://mesos.apache.org/documentation/latest/configuration
– Provide parameters by config file or as startup parameter
– Required parameters (M: on Master, A: on Agent)
--zk="zk://mesos1:2181,mesos2:2181,mesos3:2181/mesos" (M,A)
--quorum=2 (M)
--work_dir=<workdir_path> (M,A)
--containerizers=mesos,docker (A)
03/2017 TechEvent March 2017 - Introducing Apache Mesos25

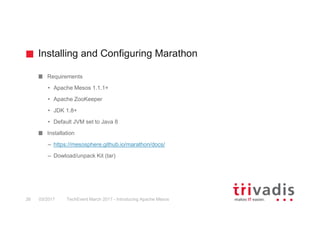

26. Installing and Configuring Marathon
Requirements
• Apache Mesos 1.1.1+
• Apache ZooKeeper
• JDK 1.8+
• Default JVM set to Java 8
Installation
– https://mesosphere.github.io/marathon/docs/
– Dowload/unpack Kit (tar)
03/2017 TechEvent March 2017 - Introducing Apache Mesos26

27. Installing and Configuring Marathon
Configuration
– Library: MESOS_NATIVE_JAVA_LIBRARY
• searches the common installation paths, /usr/lib and /usr/local/lib, for the Mesos native library.
If the library lives elsewhere in your configuration, set the environment variable
MESOS_NATIVE_JAVA_LIBRARY to its full path.
– Parameters: Marathon uses --master to find the Mesos masters, and --zk to find
ZooKeepers for storing state
--master="zk://mesos1:2181,mesos2:2181,mesos3:2181/mesos"
--zk="zk://mesos1:2181,mesos2:2181,mesos3:2181/marathon"
03/2017 TechEvent March 2017 - Introducing Apache Mesos27

28. Installing and Configuring Apache Kafka for Mesos
TechEvent March 2017 - Introducing Apache Mesos28 03/2017

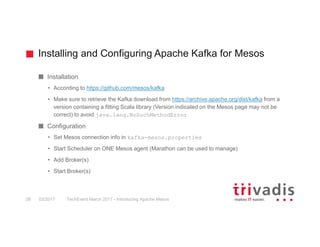

Installation
• According to https://github.com/mesos/kafka
• Make sure to retrieve the Kafka download from https://archive.apache.org/dist/kafka from a
version containing a fitting Scala library (Version indicated on the Mesos page may not be
correct) to avoid java.lang.NoSuchMethodError
Configuration
• Set Mesos connection info in kafka-mesos.properties
• Start Scheduler on ONE Mesos agent (Marathon can be used to manage)
• Add Broker(s)
• Start Broker(s)

29. TechEvent March 2017 - Introducing Apache Mesos29 03/2017
Demo

30. mesos1 mesos2
mesos3 mesos4 mesosn
…
mesosn-1
TVD Mesos Platform / Server
extendable
• additional Servers (on-premise)
• Cloud
• …
03/2017 TechEvent March 2017 - Introducing Apache Mesos30
BF2

31. Slide 30
BF2 Bruno Fuss, 3/8/2017

32. mesos1 mesos2
mesos3 mesos4 mesosn
…
mesosn-1
Mesos
Master
Mesos
Master
Mesos
Agent
Mesos
Agent
TVD Mesos Platform / Mesos Components
Mesos
Agent
Mesos
Agent
HA concept Master: active/passive
03/2017 TechEvent March 2017 - Introducing Apache Mesos31

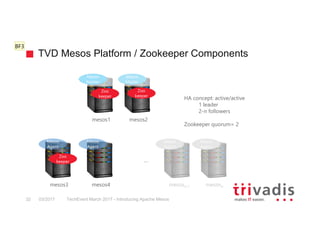

33. mesos1 mesos2
mesos3 mesos4
Mesos
Master
Mesos
Master
Mesos
Agent
Mesos
Agent
Zoo
keeper
Zoo
keeper
Zoo
keeper
TVD Mesos Platform / Zookeeper Components
HA concept: active/active
1 leader
2-n followers
Zookeeper quorum= 2
mesosn
…
mesosn-1
Mesos
Agent
Mesos
Agent
03/2017 TechEvent March 2017 - Introducing Apache Mesos32
BF3

34. Slide 32
BF3 Bruno Fuss, 3/8/2017

35. TechEvent March 2017 - Introducing Apache Mesos33 03/2017
Summary

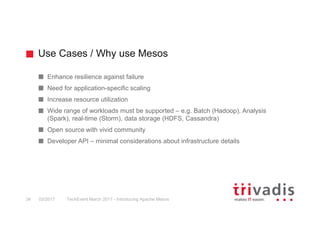

36. Use Cases / Why use Mesos
TechEvent March 2017 - Introducing Apache Mesos34 03/2017
Enhance resilience against failure
Need for application-specific scaling
Increase resource utilization
Wide range of workloads must be supported – e.g. Batch (Hadoop), Analysis
(Spark), real-time (Storm), data storage (HDFS, Cassandra)
Open source with vivid community
Developer API – minimal considerations about infrastructure details

37. Matthias Furrer
Principal Consultant, Application Integration & SOA
matthias.furrer@trivadis.com
03/2017 TechEvent March 2017 - Introducing Apache Mesos35
Bruno Fuss
Senior Consultant, Infrastructure Managed Services
Bruno.fuss@trivadis.com

38. Session Feedback – now
TechEvent March 2017 - Introducing Apache Mesos36 03/2017
Please use the Trivadis Events mobile app to give feedback on each session
Use "My schedule" if you have registered for a session
Otherwise use "Agenda" and the search function
If the mobile app does not work (or if you have a Windows smartphone), use your
smartphone browser
– URL: http://trivadis.quickmobileplatform.eu/
– User name: <your_loginname> (such as “svv”)
– Password: sent by e-mail...
