This document discusses integrating Docker containers with Mesos and Marathon. It provides an overview of Mesos as a distributed systems kernel and cluster manager with a master-slave architecture. Marathon is described as an application scheduler and cluster-wide process supervisor. It explains that Mesos supports Docker containers and long-running tasks in Marathon can use Docker containers. Sample JSON scripts are provided to configure Docker containerized tasks to run on Mesos through Marathon's REST API. The architecture is revised to show Mesos masters and slaves with ZooKeeper and multiple Marathon schedulers.

1. Rishabh Chaudhary
Integrating Docker with Mesos
and Marathon

2. 2
Introduction to Mesos
 Distributed System's Kernel
 Cluster Manager
 Master-slave architecture

3. 3
Features of Mesos:
 Scalability
 Fault tolerance
 Multi resource scheduling
 GUI
 Fine grained resource sharing
 Supports docker containers

4. 4
Architecture
MASTER 3
SLAVE 1 SLAVE 2 SLAVE 3 SLAVE 4
MASTER 1 MASTER 2
ZOOKEEPER

5. 5

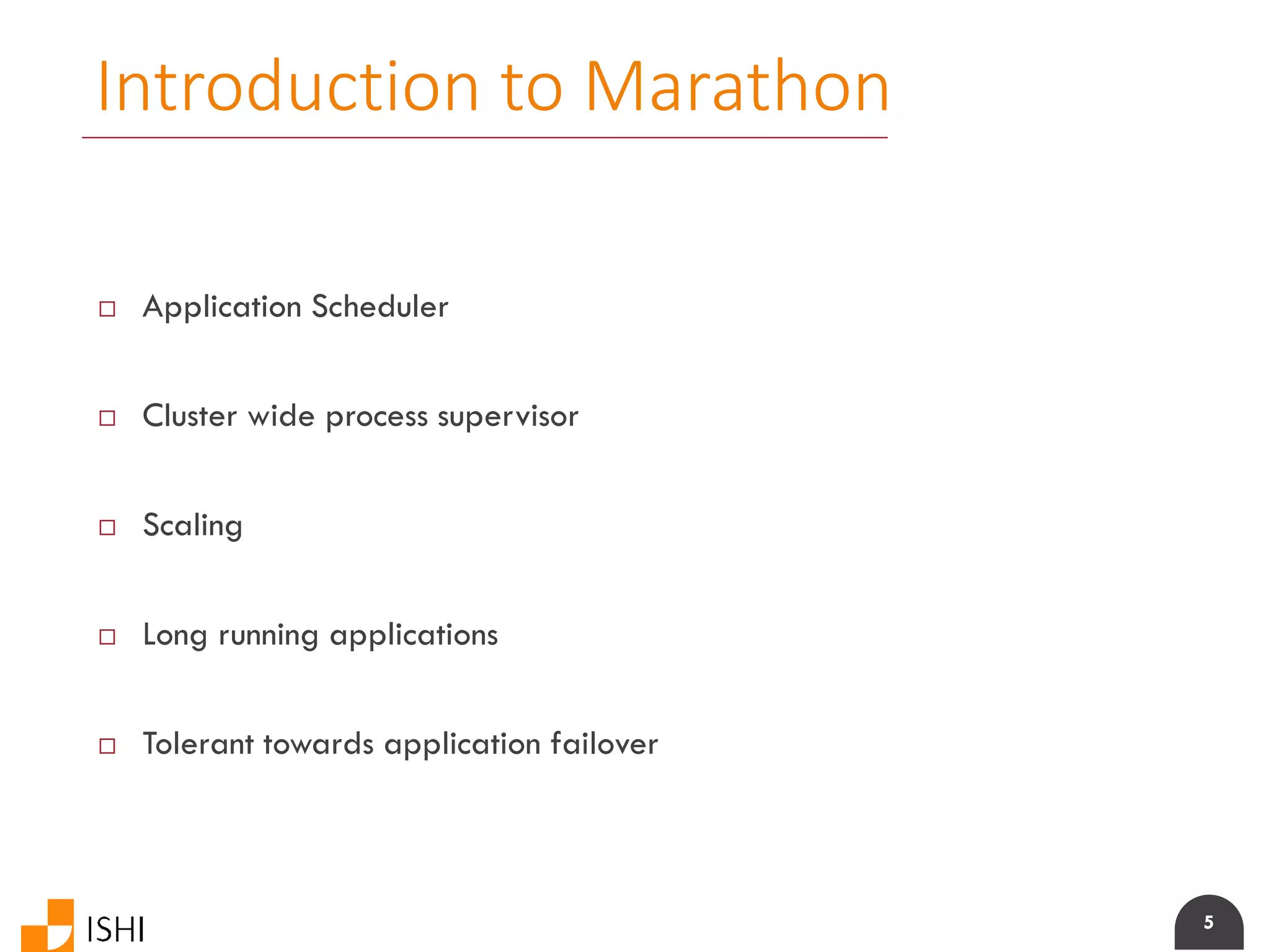

Introduction to Marathon
 Application Scheduler
 Cluster wide process supervisor
 Scaling
 Long running applications
 Tolerant towards application failover

6. 6

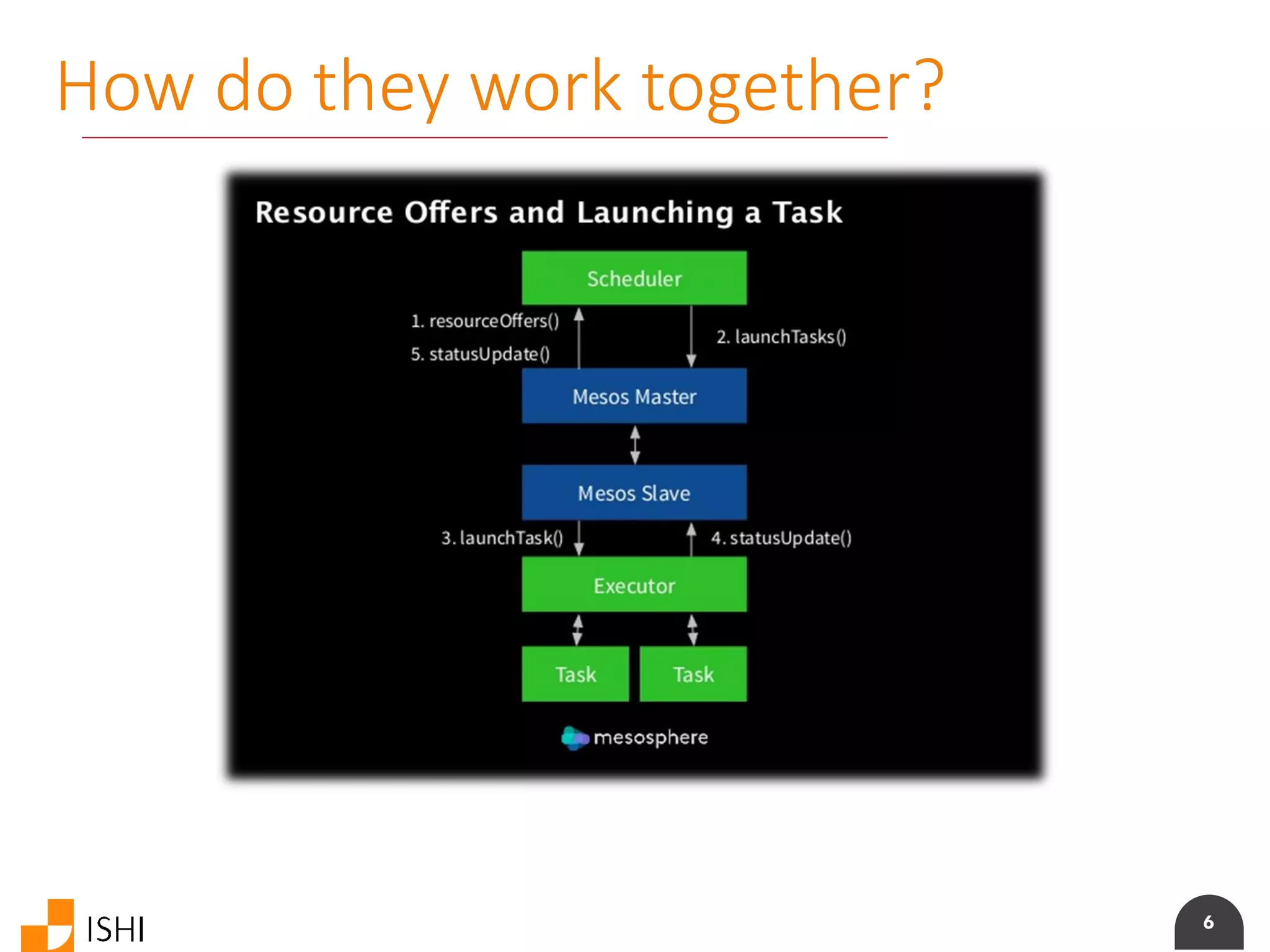

How do they work together?

7. 7

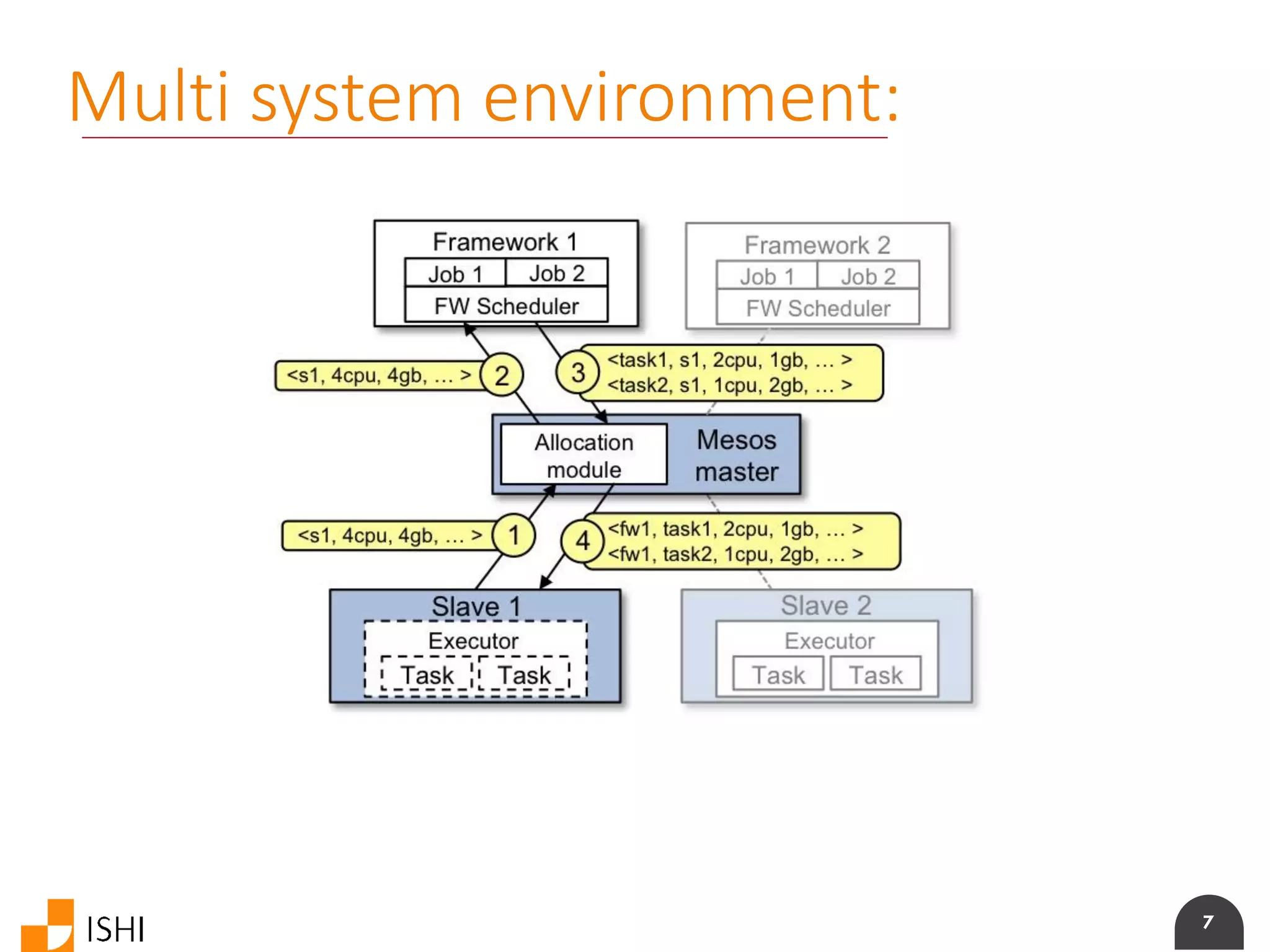

Multi system environment:

8. 8

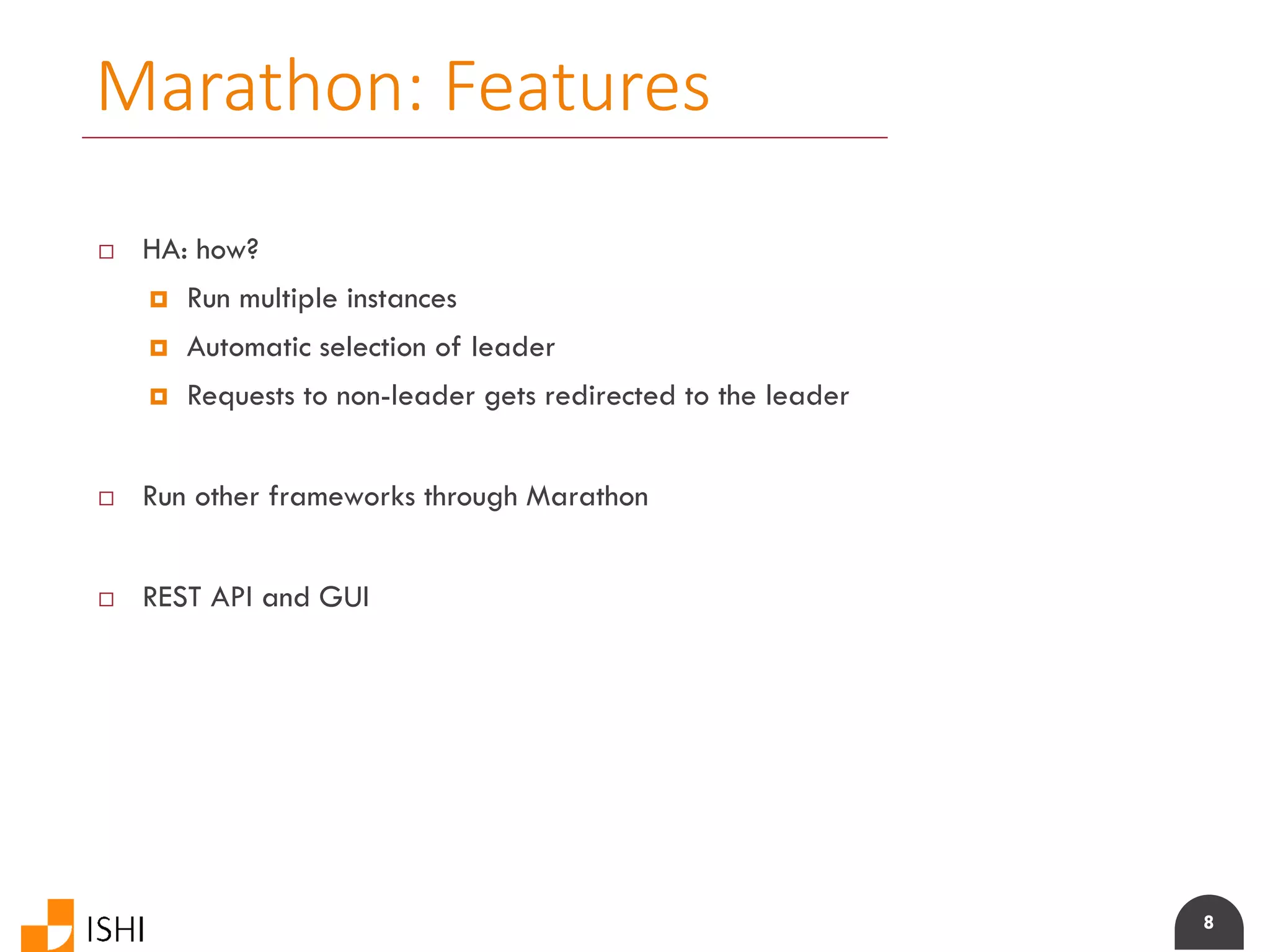

Marathon: Features
 HA: how?
 Run multiple instances
 Automatic selection of leader
 Requests to non-leader gets redirected to the leader
 Run other frameworks through Marathon
 REST API and GUI

9. 9

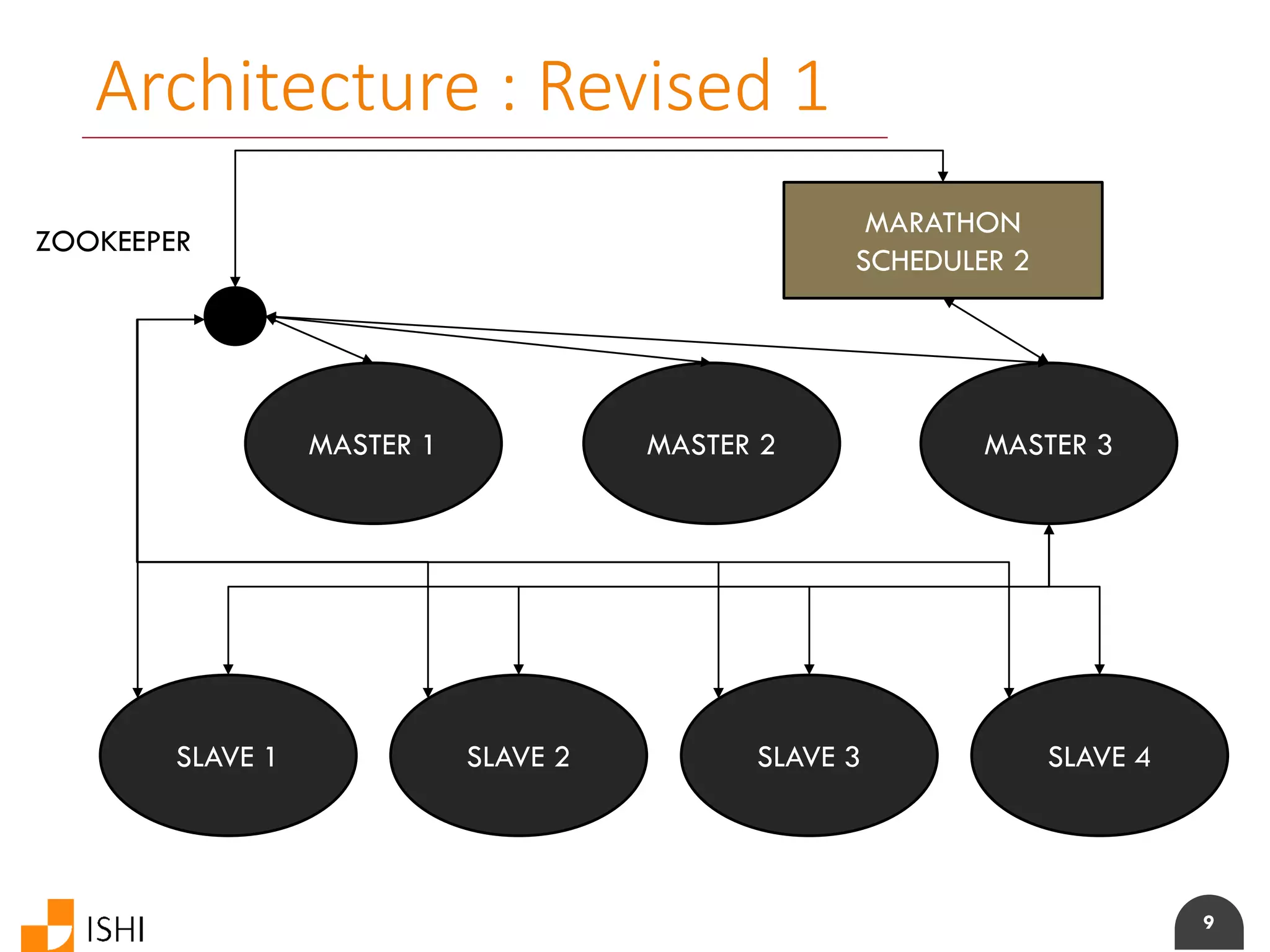

Architecture : Revised 1
MASTER 3
SLAVE 1 SLAVE 2 SLAVE 3 SLAVE 4
MASTER 1 MASTER 2
ZOOKEEPER
MARATHON
SCHEDULER 2

10. 10

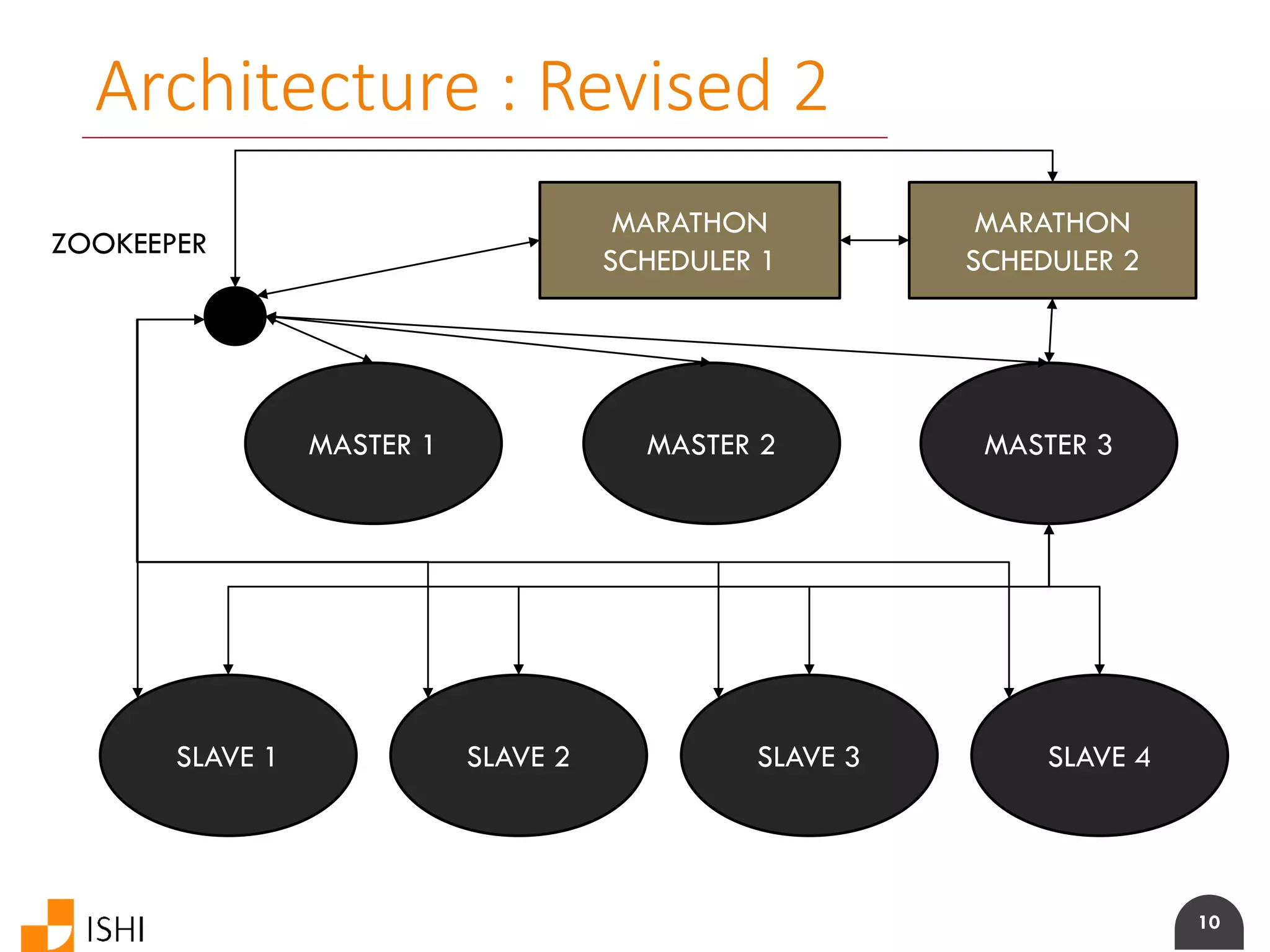

Architecture : Revised 2
MASTER 3
SLAVE 1 SLAVE 2 SLAVE 3 SLAVE 4
MASTER 1 MASTER 2
ZOOKEEPER
MARATHON
SCHEDULER 1
MARATHON
SCHEDULER 2

11. 11
The list goes on..

12. 12

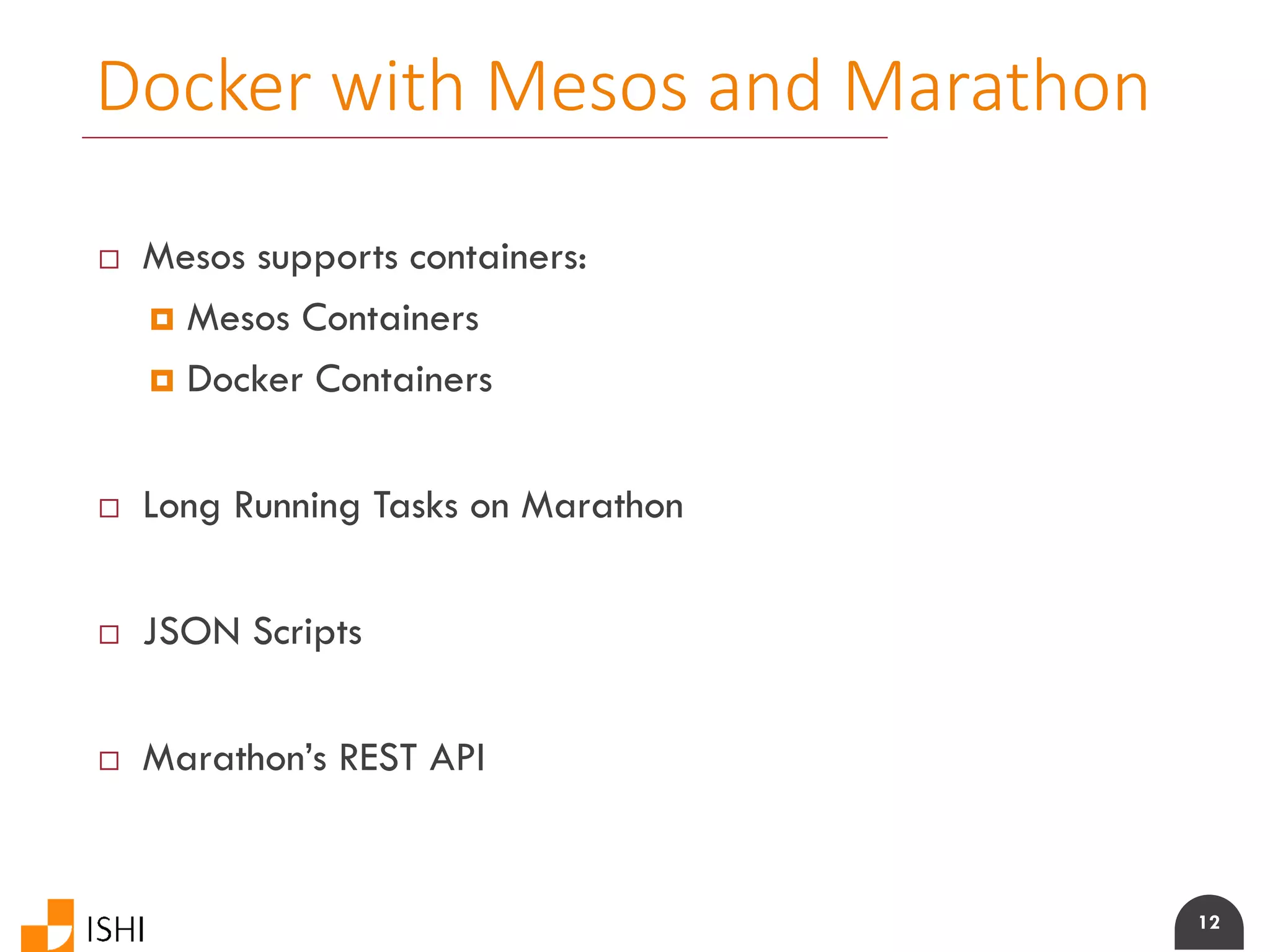

Docker with Mesos and Marathon
 Mesos supports containers:
 Mesos Containers
 Docker Containers
 Long Running Tasks on Marathon
 JSON Scripts
 Marathon’s REST API

13. 13

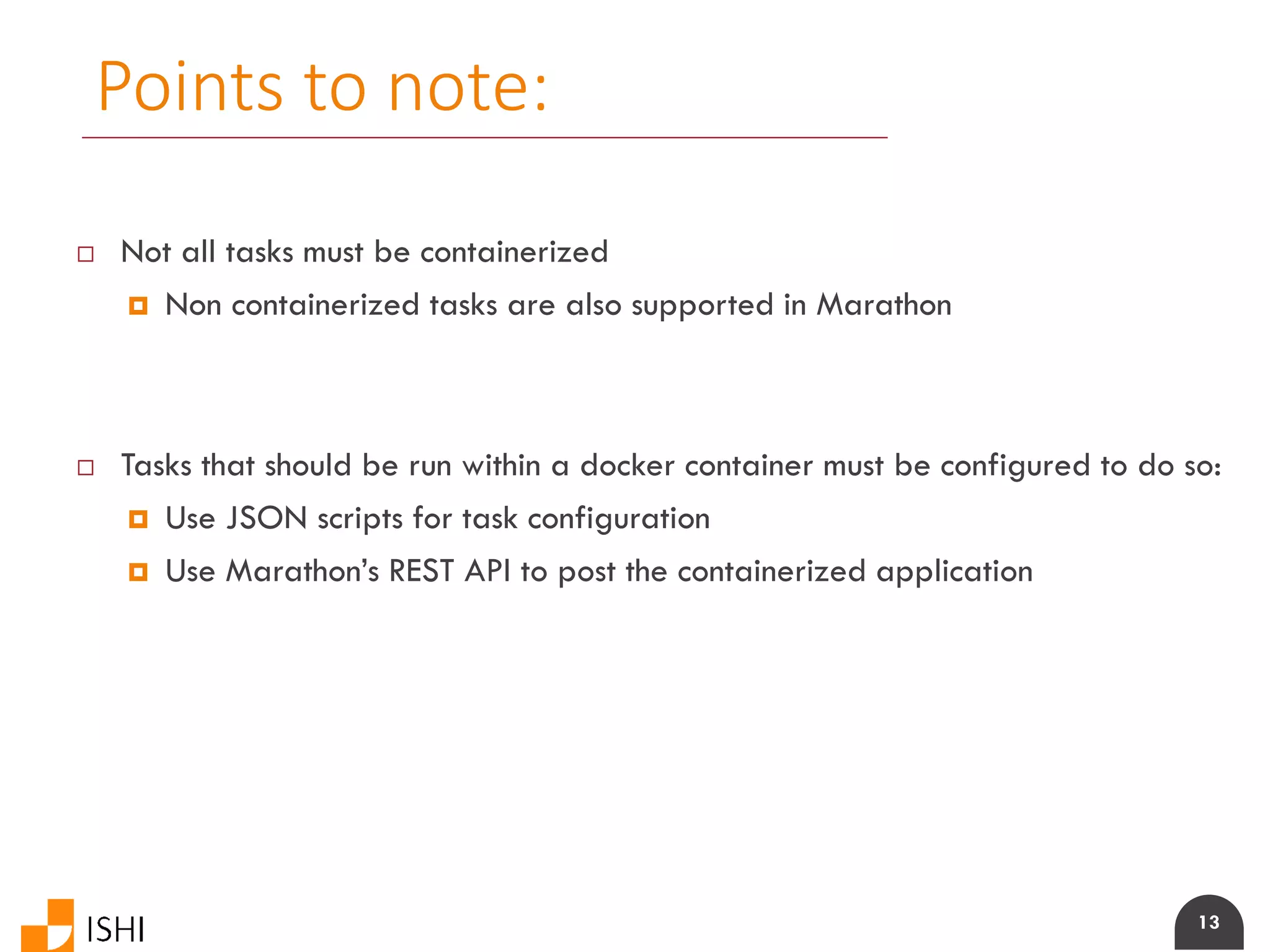

Points to note:
 Not all tasks must be containerized
 Non containerized tasks are also supported in Marathon
 Tasks that should be run within a docker container must be configured to do so:
 Use JSON scripts for task configuration
 Use Marathon’s REST API to post the containerized application

14. 14
Sample JSON:
{
"container": {
"type": "DOCKER",
"docker": {
"image": "autoscale",
"network": "BRIDGE"
}
},
"id": "relay",
"instances": 1,
"cpus": 0.5,
"mem": 512,
"uris": []
}

15. 15
Sample JSON 2:
{
"container": {
"type": "DOCKER",
"docker": {
"image": "loadcheck",
"network": "BRIDGE",
"portMappings": [
{ "containerPort":8080, "hostPort":0}
]
}
},
"env": {
"HOST_IP":"172.16.12.247:3306"
},
"id": "webapp",
"instances": 1,
"cpus": 0.5,
"mem": 512,
"cmd": "./bin/startup.sh && tail -f ./logs/catalina.out"
}

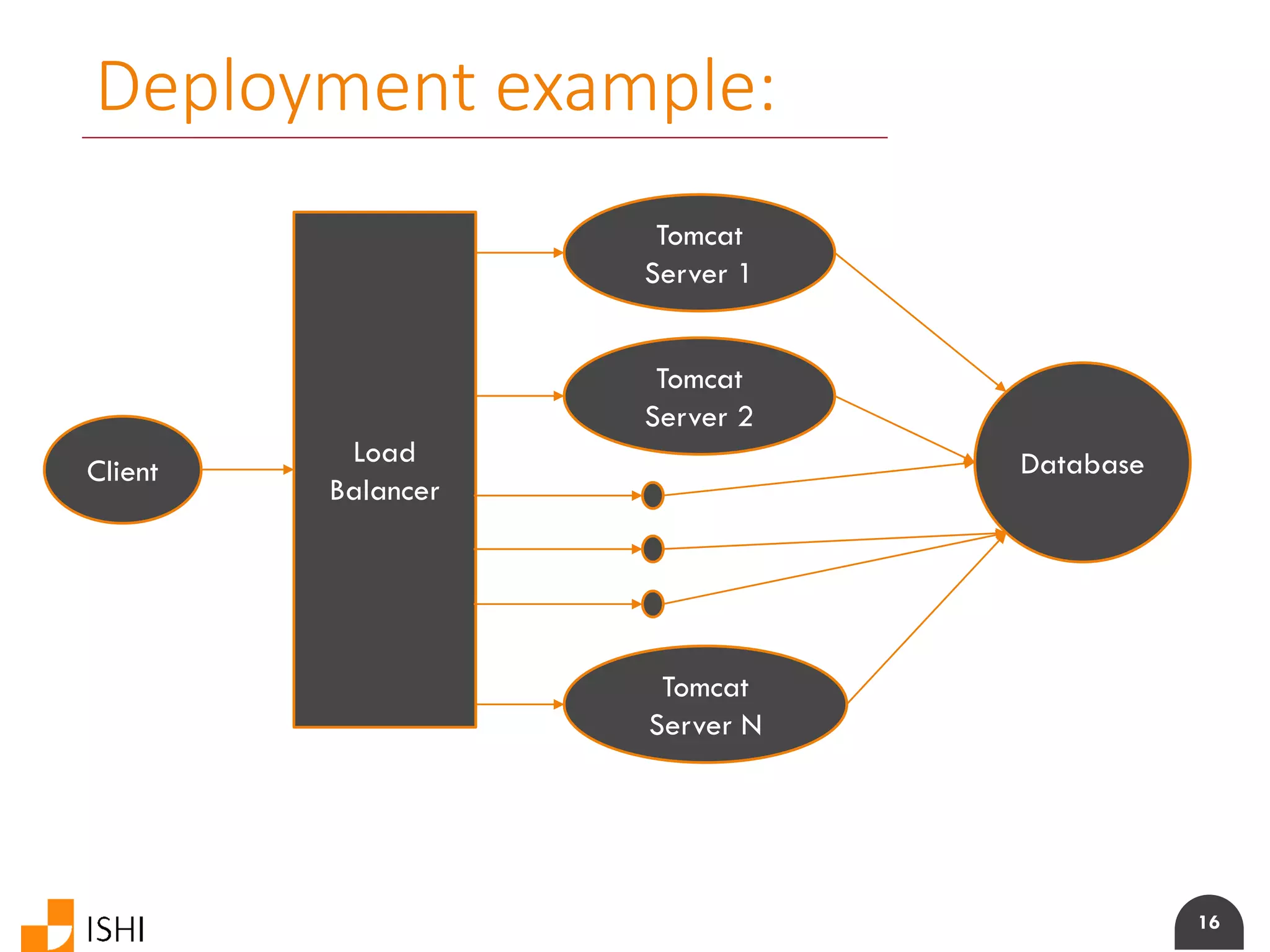

16. 16
Tomcat
Server 1
Tomcat
Server 2
Tomcat
Server N
Load
Balancer
DatabaseClient
Deployment example:

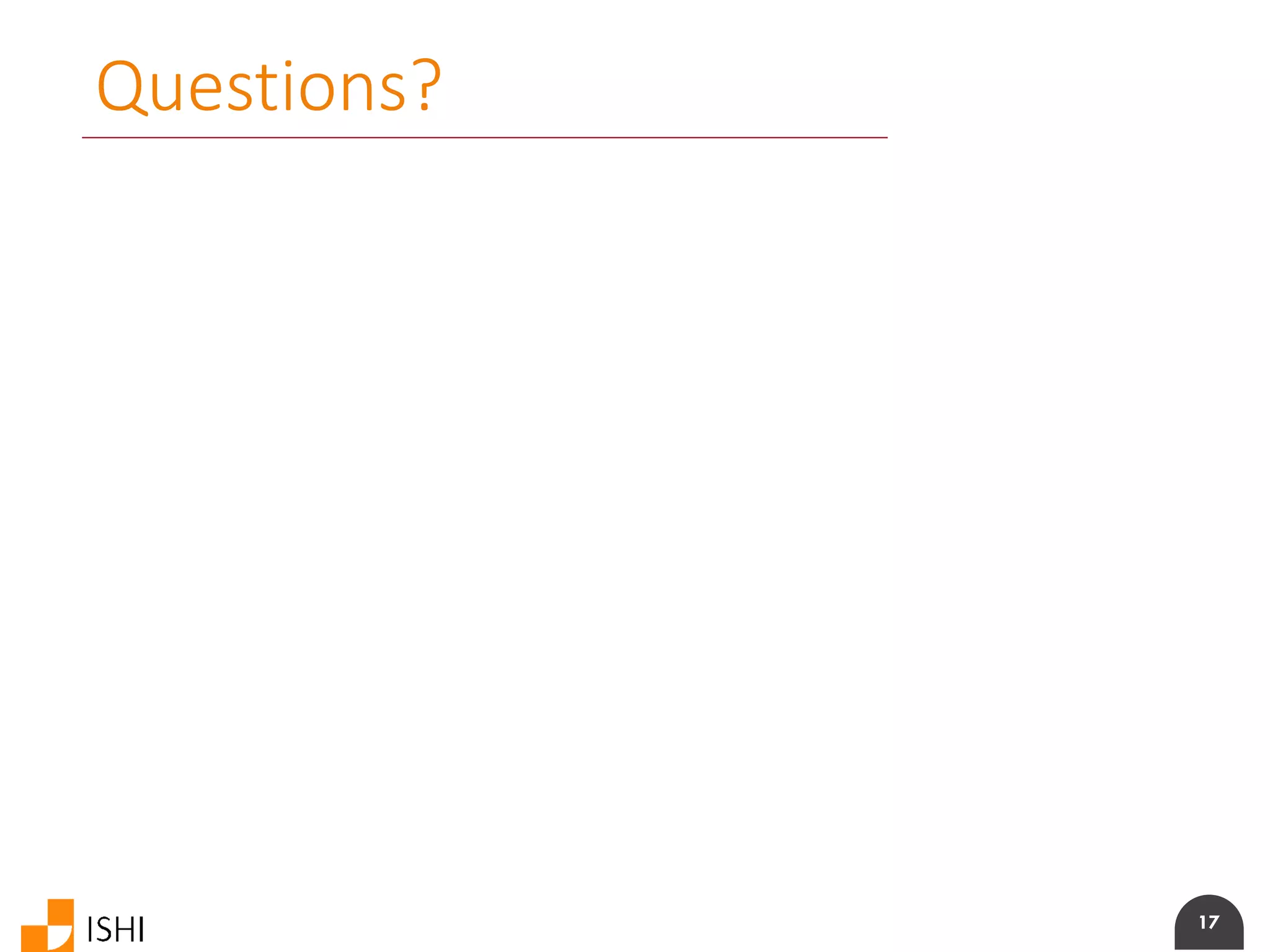

17. 17
Questions?
