Mesos is an open source cluster manager that provides resources (CPU, memory, storage, etc.) to distributed applications. It puts multiple machines together to behave like a single machine. Mesos supports frameworks like Marathon for deploying applications. Mesos Bay leverages Magnum to provision a Mesos cluster on OpenStack with high availability and fault tolerance features. It allows scheduling and launching applications on Mesos using Marathon.

1. www.huawei.com
HUAWEI TECHNOLOGIES CO., LTD.
Introduction to Mesos Bay
Hongbin Lu

2. HUAWEI TECHNOLOGIES CO., LTD. 2
Content
 Introduction to Mesos
 What is Mesos?
 Why Mesos?
 Architecture
 Ecosystem
 Marathon
 Mesos Bay
 Provisioning
 Usage
 Features

3. HUAWEI TECHNOLOGIES CO., LTD. 3

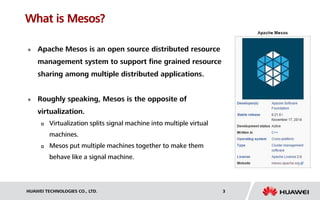

What is Mesos?
 Apache Mesos is an open source distributed resource
management system to support fine grained resource
sharing among multiple distributed applications.
 Roughly speaking, Mesos is the opposite of
virtualization.
 Virtualization splits signal machine into multiple virtual
machines.
 Mesos put multiple machines together to make them
behave like a signal machine.

4. HUAWEI TECHNOLOGIES CO., LTD. 4

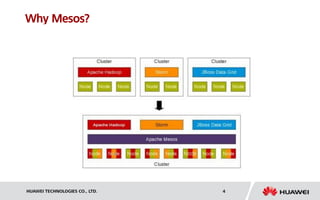

Why Mesos?

5. HUAWEI TECHNOLOGIES CO., LTD. 5

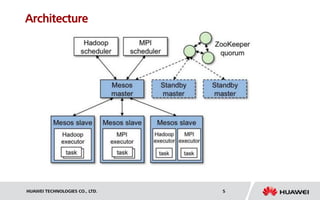

Architecture

6. HUAWEI TECHNOLOGIES CO., LTD. 6

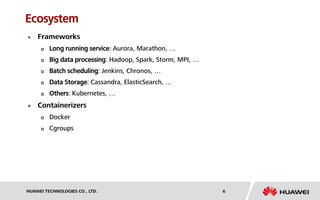

Ecosystem
 Frameworks
 Long running service: Aurora, Marathon, …
 Big data processing: Hadoop, Spark, Storm, MPI, …
 Batch scheduling: Jenkins, Chronos, …
 Data Storage: Cassandra, ElasticSearch, …
 Others: Kubernetes, …
 Containerizers
 Docker
 Cgroups

7. HUAWEI TECHNOLOGIES CO., LTD. 7

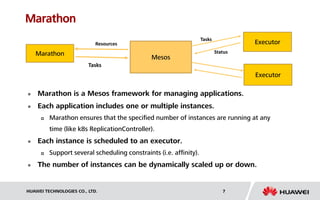

Marathon
 Marathon is a Mesos framework for managing applications.
 Each application includes one or multiple instances.
 Marathon ensures that the specified number of instances are running at any
time (like k8s ReplicationController).
 Each instance is scheduled to an executor.
 Support several scheduling constraints (i.e. affinity).
 The number of instances can be dynamically scaled up or down.
Mesos
Marathon
ExecutorResources
Tasks
Tasks
Executor
Status

8. HUAWEI TECHNOLOGIES CO., LTD. 8
Content
 Introduction to Mesos
 What is Mesos?
 Why Mesos?
 Architecture
 Ecosystem
 Marathon
 Mesos Bay
 Provisioning
 Usage
 Features

9. HUAWEI TECHNOLOGIES CO., LTD. 9

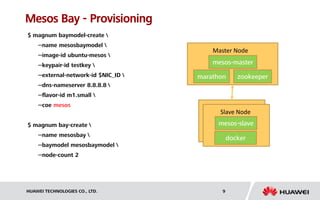

Mesos Bay - Provisioning
$ magnum baymodel-create
--name mesosbaymodel
--image-id ubuntu-mesos
--keypair-id testkey
--external-network-id $NIC_ID
--dns-nameserver 8.8.8.8
--flavor-id m1.small
--coe mesos
$ magnum bay-create
--name mesosbay
--baymodel mesosbaymodel
--node-count 2
mesos-master
Master Node
marathon
Docker
Slave Node
mesos-slave
Slave Node
docker
zookeeper

10. HUAWEI TECHNOLOGIES CO., LTD. 10
Mesos Bay - Usage
 Use Marathon to launch applications
 WebUI
 Restful API
 CLI or language binding (3rd party)
 Example
$ curl -X POST -H "Content-type: application/json" http://$MASTER_IP:8080/v2/apps -d
'{
"container": { "type": "DOCKER", "docker": { "image": "cirros" } },
"id": "ubuntu", "instances": 1, "cpus": 0.5, "mem": 512,
"cmd": "ping 8.8.8.8",
……
}'

11. HUAWEI TECHNOLOGIES CO., LTD. 11

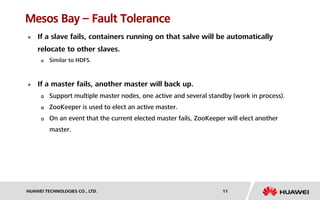

Mesos Bay – Fault Tolerance
 If a slave fails, containers running on that salve will be automatically
relocate to other slaves.
 Similar to HDFS.
 If a master fails, another master will back up.
 Support multiple master nodes, one active and several standby (work in process).
 ZooKeeper is used to elect an active master.
 On an event that the current elected master fails, ZooKeeper will elect another
master.

12. HUAWEI TECHNOLOGIES CO., LTD. 12

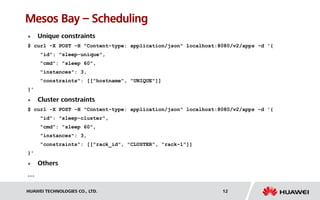

Mesos Bay – Scheduling
 Unique constraints
$ curl -X POST -H "Content-type: application/json" localhost:8080/v2/apps -d '{
"id": "sleep-unique",
"cmd": "sleep 60",
"instances": 3,
"constraints": [["hostname", "UNIQUE"]]
}'
 Cluster constraints
$ curl -X POST -H "Content-type: application/json" localhost:8080/v2/apps -d '{
"id": "sleep-cluster",
"cmd": "sleep 60",
"instances": 3,
"constraints": [["rack_id", "CLUSTER", "rack-1"]]
}'
 Others
…

13. HUAWEI TECHNOLOGIES CO., LTD. 13

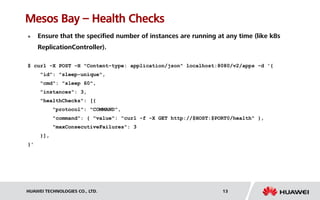

Mesos Bay – Health Checks
 Ensure that the specified number of instances are running at any time (like k8s
ReplicationController).
$ curl -X POST -H "Content-type: application/json" localhost:8080/v2/apps -d '{
"id": "sleep-unique",
"cmd": "sleep 60",
"instances": 3,
"healthChecks": [{
"protocol": "COMMAND",
"command": { "value": "curl -f -X GET http://$HOST:$PORT0/health" },
"maxConsecutiveFailures": 3
}],
}'

14. HUAWEI TECHNOLOGIES CO., LTD. 14

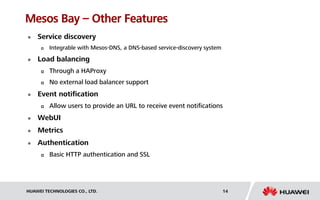

Mesos Bay – Other Features
 Service discovery
 Integrable with Mesos-DNS, a DNS-based service-discovery system
 Load balancing
 Through a HAProxy
 No external load balancer support
 Event notification
 Allow users to provide an URL to receive event notifications
 WebUI
 Metrics
 Authentication
 Basic HTTP authentication and SSL

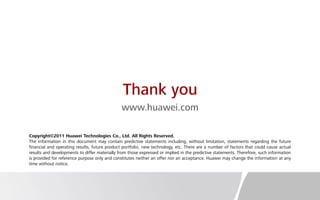

15. Thank you
