Multi-Container Apps spanning Docker, Mesos and OpenStack
- 1. Multi-Container Applications Spanning Docker, Mesosand OpenStack Andrew Kennedy Clocker Project Founder Cloudsoft Corporation

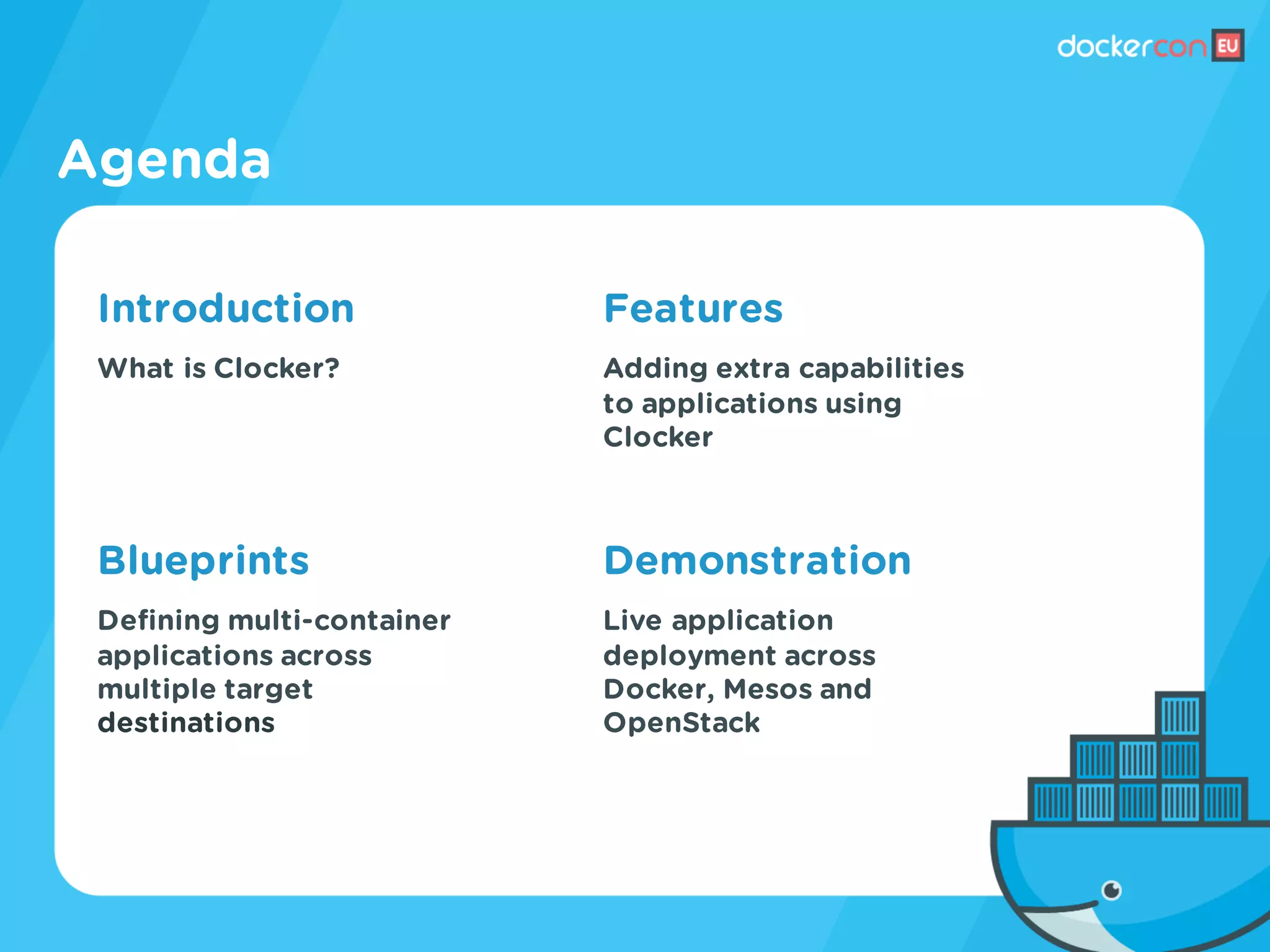

- 2. Agenda Features Adding extra capabilities toapplications using Clocker Demonstration Live application deployment across Docker, Mesos and OpenStack Introduction What is Clocker? Blueprints Defining multi-container applications across multiple target destinations
- 3. “Containers, not Virtual Machines, arethe Future Cloud.”
- 4.
- 5.

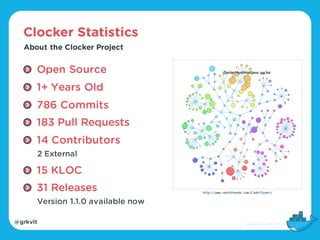

- 6. @grkvlt Clocker Statistics About theClocker Project Open Source 1+ Years Old 786 Commits 183 Pull Requests 14 Contributors 2 External 15 KLOC 31 Releases Version 1.1.0 available now http://www.redotheweb.com/CodeFlower/

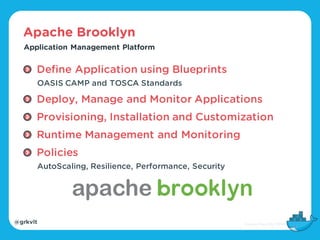

- 7. @grkvlt Application Management Platform DefineApplication using Blueprints OASIS CAMP and TOSCA Standards Deploy, Manage and Monitor Applications Provisioning, Installation and Customization Runtime Management and Monitoring Policies AutoScaling, Resilience, Performance, Security Apache Brooklyn

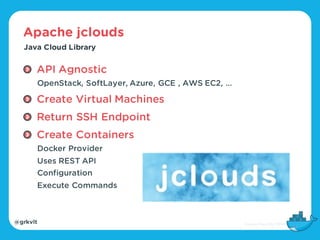

- 8. @grkvlt Apache jclouds Java CloudLibrary API Agnostic OpenStack, SoftLayer, Azure, GCE , AWS EC2, … Create Virtual Machines Return SSH Endpoint Create Containers Docker Provider Uses REST API Configuration Execute Commands

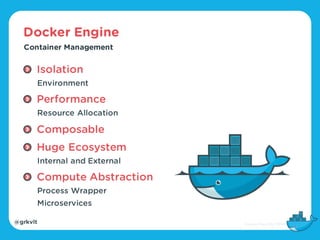

- 9. @grkvlt Docker Engine Isolation Environment Performance Resource Allocation Composable HugeEcosystem Internal and External Compute Abstraction Process Wrapper Microservices Container Management
- 10. @grkvlt Docker Extras Integrating MoreFeatures and Capabilities into Docker Software-Defined Networking Project Calico Weave Storage and Volume Management Flocker More Being Developed… Native Plugins Docker Tools Swarm Compose
- 11. @grkvlt Apache Mesos Distributed SystemsKernel Cluster Management Resource Sharing and Placement Calico SDN Support Frameworks Aurora, Chronos Marathon Riak, Spark, Storm Hadoop Tasks Marathon for Docker

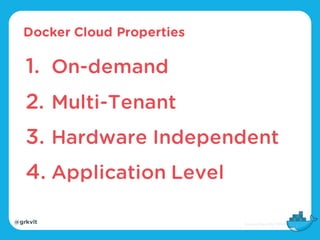

- 12. @grkvlt Docker Cloud Properties 1.On-demand 2. Multi-Tenant 3. Hardware Independent 4. Application Level
- 13.
- 14. Features Adding extra capabilitiesto applications using Clocker
- 15. @grkvlt Clocker Features 1. Spinsup and Manages Docker Clusters in the Cloud 2. Deploys Containers and Networks on Demand 3. Manages Multi-Container Application Deployments
- 16.
- 17.

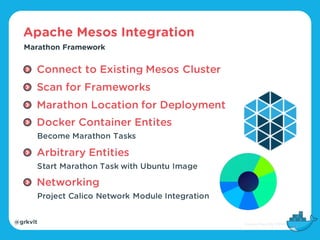

- 18. @grkvlt Apache Mesos Integration MarathonFramework Connect to Existing Mesos Cluster Scan for Frameworks Marathon Location for Deployment Docker Container Entites Become Marathon Tasks Arbitrary Entities Start Marathon Task with Ubuntu Image Networking Project Calico Network Module Integration
- 19. @grkvlt Networking Capabilities Security Policyfor Network Traffic Inter-Container and External Firewalling Wide Area and Multi Region SDN VPN or IPIP and NAT Configuration Cross Platform SDN Both VMs and Containers on a Private Network Name Resolution and Service Discovery Weave DNS or Similar Lightweight DNS Implementation Traditional BIND DNS Server via a Brooklyn Entity Brooklyn Injects Endpoint IP Addresses and Port Numbers

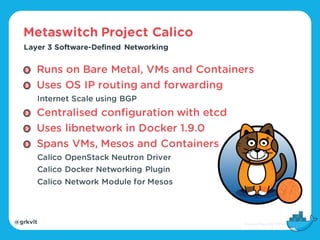

- 20. @grkvlt Metaswitch Project Calico Layer3 Software-Defined Networking Runs on Bare Metal, VMs and Containers Uses OS IP routing and forwarding Internet Scale using BGP Centralised configuration with etcd Uses libnetwork in Docker 1.9.0 Spans VMs, Mesos and Containers Calico OpenStack Neutron Driver Calico Docker Networking Plugin Calico Network Module for Mesos
- 21.
- 22. Blueprints Defining multi-container applicationsacross multiple target destinations

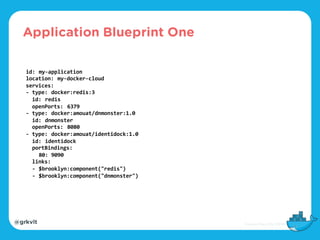

- 23. @grkvlt id: my-application location: my-docker-cloud services: -type: docker:redis:3 id: redis openPorts: 6379 - type: docker:amouat/dnmonster:1.0 id: dnmonster openPorts: 8080 - type: docker:amouat/identidock:1.0 id: identidock portBindings: 80: 9090 links: - $brooklyn:component("redis") - $brooklyn:component("dnmonster") Application Blueprint One

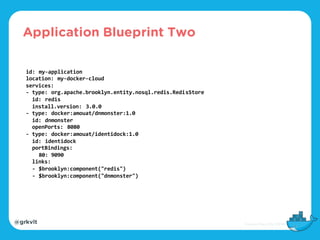

- 24. @grkvlt id: my-application location: my-docker-cloud services: -type: org.apache.brooklyn.entity.nosql.redis.RedisStore id: redis install.version: 3.0.0 - type: docker:amouat/dnmonster:1.0 id: dnmonster openPorts: 8080 - type: docker:amouat/identidock:1.0 id: identidock portBindings: 80: 9090 links: - $brooklyn:component("redis") - $brooklyn:component("dnmonster") Application Blueprint Two

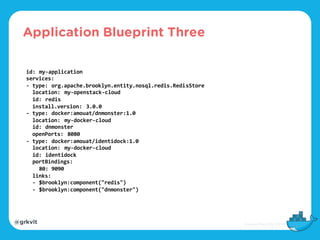

- 25. @grkvlt id: my-application services: - type:org.apache.brooklyn.entity.nosql.redis.RedisStore location: my-openstack-cloud id: redis install.version: 3.0.0 - type: docker:amouat/dnmonster:1.0 location: my-docker-cloud id: dnmonster openPorts: 8080 - type: docker:amouat/identidock:1.0 location: my-docker-cloud id: identidock portBindings: 80: 9090 links: - $brooklyn:component("redis") - $brooklyn:component("dnmonster") Application Blueprint Three
- 26. @grkvlt id: my-application services: - type:org.apache.brooklyn.entity.nosql.redis.RedisStore location: my-openstack-cloud id: redis install.version: 3.0.0 - type: docker:amouat/dnmonster:1.0 location: my-mesos-cluster id: dnmonster openPorts: 8080 - type: docker:amouat/identidock:1.0 location: my-docker-cloud id: identidock portBindings: 80: 9090 links: - $brooklyn:component("redis") - $brooklyn:component("dnmonster") Application Blueprint Four
- 27. Demonstration Live application deploymentacross Docker, Mesos and OpenStack
- 29. “Clocker solves: Docker CloudNetworking, Container Placement and Provisioning, and Composite Application Management.”
- 30.
- 31.
