This document discusses solving RLC series parallel circuits using Simulink. It introduces Kirchhoff's voltage law and differentiating the voltage equations to express the RLC response in general form. It provides a Simulink model for a series RLC circuit and instructs the reader to change component values and make a parallel RLC model. It also introduces the SimPowerSystems library for modeling electrical systems in Simulink and lists some commonly used blocks with an example circuit.

1. 11
Lecture Series – 8
Solving RLC Series Parallel
Circuits using SIMULINK
Shameer Koya

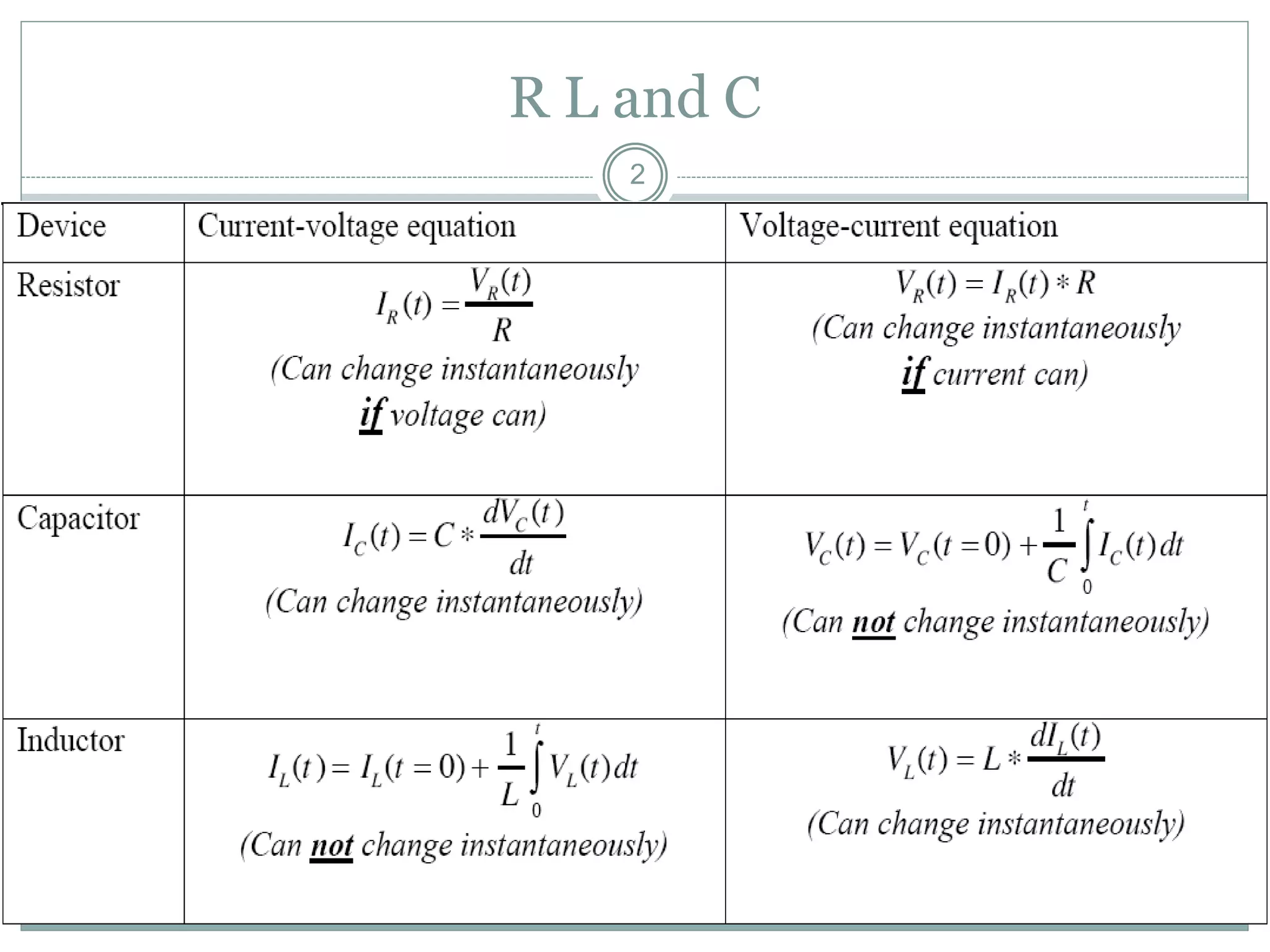

2. R L and C
2

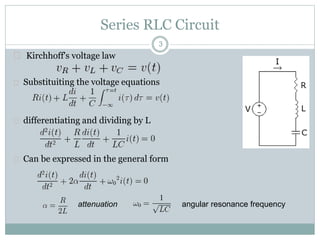

3. Series RLC Circuit
 Kirchhoff's voltage law
 Substituiting the voltage equations
 differentiating and dividing by L
 Can be expressed in the general form
3
attenuation angular resonance frequency

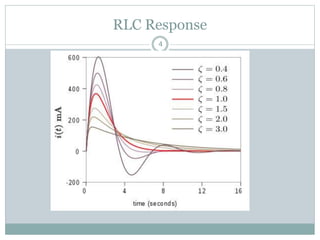

4. RLC Response
4

5. Series RLC Using Simulink
5

6. Simulink model
6

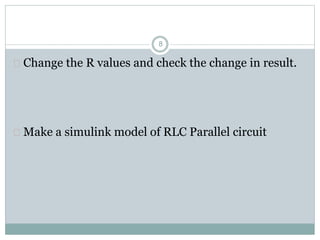

8.  Change the R values and check the change in result.
 Make a simulink model of RLC Parallel circuit
8

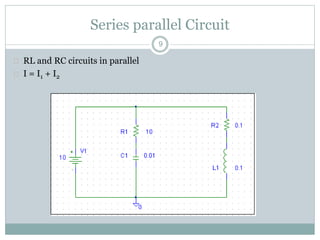

9. Series parallel Circuit
 RL and RC circuits in parallel
 I = I1 + I2
9

10. Simulink model
RL circuit RC circuit
10

12. Simpowersystem
 SimPowerSystems is physical modeling tools
for MATLAB Simulink to model electrical
systems.
 Library for simpowersystem is available in Simulink
Library Browser
 Alternate method:
 by entering the following command at the MATLAB®
prompt.
>>powerlib
 This command displays a Simulink window showing icons
of different block libraries.
12

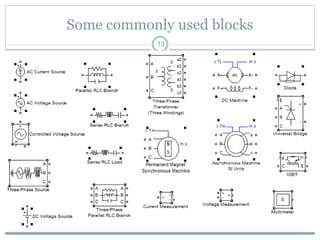

13. Some commonly used blocks
13

14. Example
14

15. 15
Thanks
Questions ??
