This document provides an overview of map literacy and the key elements of maps. It discusses the mapping process, major map elements like the title, scale, legend, and marginal information. It also covers other map elements such as location maps, grid lines, neat lines, and contour lines. The document differentiates between analogue and digital maps and provides examples of different map types like political, topographical, thematic, and land use maps. It concludes with a discussion of common color compositions used in maps.

1. 1 of 31

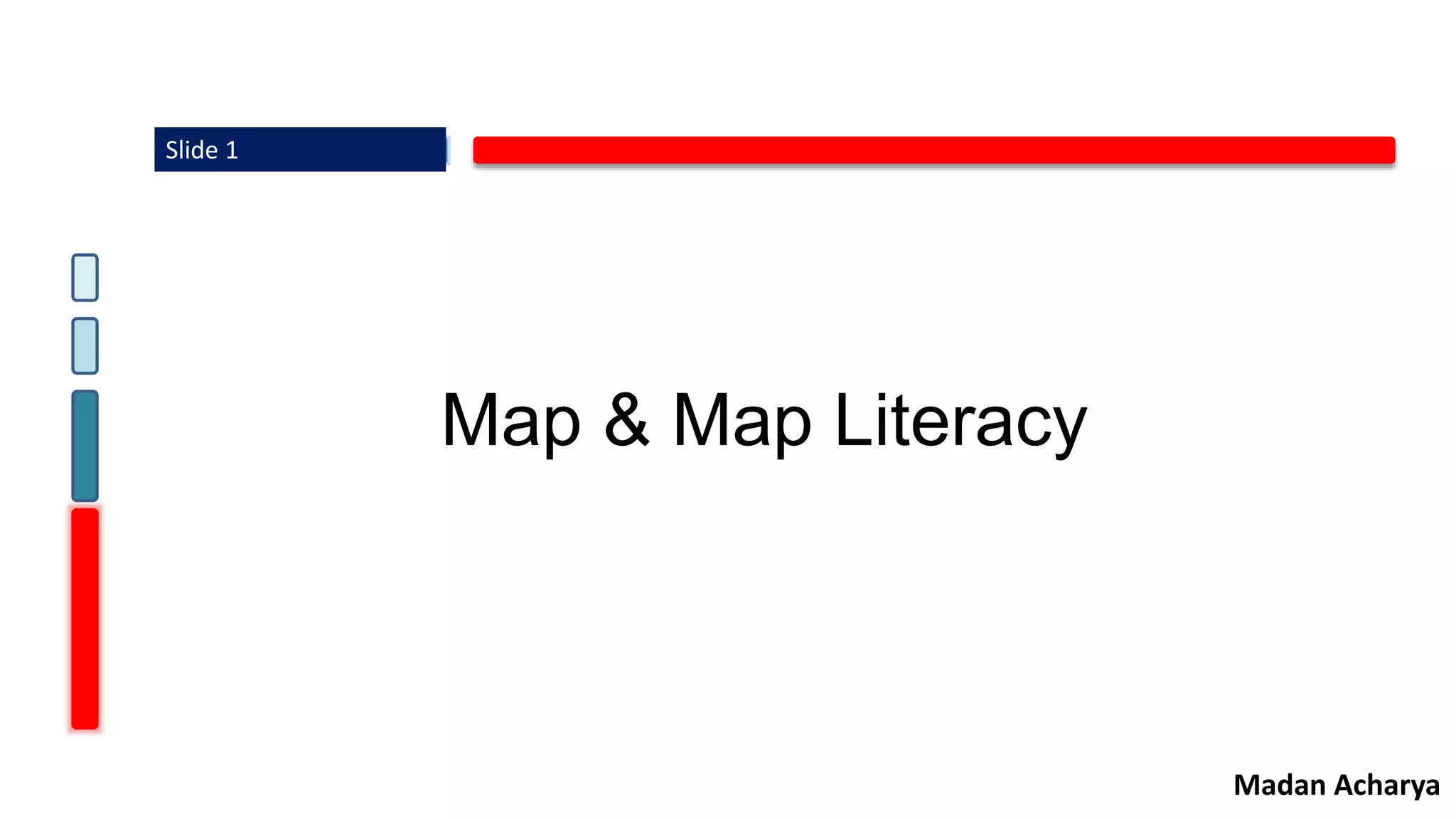

Map & Map Literacy
Madan Acharya
Slide 1

2. 2 of 31
A graphical representation of ground reality
Maps: Not a reality in itself
Slide 2
Map
के कह ाँ अवस्थित छ?

3. 3 of 31

4. 4 of 31
Mapping Process
 Be clear on the objective
 Area of interest
 Look for datasets -primary, secondary
 Which method ?
 Mapping - technical work
 Dissemination
Slide 4

5. 5 of 31
1. Title
2. North Arrow
3. Scale
4. Legend
5. Marginal Information
Major elements of a Map
Slide 5

6. 6 of 31
1. Map Title
Slide 6

7. 7 of 31
2. North Arrow
Slide 7

8. 8 of 31
3. Map Scale
Slide 8

9. 9 of 31
1. In words (One cm = One km)
2. Representative fraction. (RF)
1:10,000 to Large Scale
1:50,000 Small Scale
0 40 8020 Meters
3. Linear scale - scaled ruler.
Map Scale Representation
Slide 9

10. 10 of 31
Large-scale
Small-scale

11. 11 of 31
Legend represents the meaning
of the colors and symbols used in
a map.
Legend
M Police Station
Ward Boundary
ù Temple
School
ÆP Health Center
4 Campus
Major Road
Minor Road
River
Pond
Index Contour
Intermediate Contour
Cultivation
Forest
Settlement
4. Legend
Slide 11

12. 12 of 31
5. Marginal Information
Slide 12

13. 13 of 31
Other elements of a Map
1. Location Map
2. Grid Line
3. Neat Line
4. Data Frame
5. Contour Lines
Slide 13

14. 14 of 31
Location Map
Slide 14

15. 15 of 31
Grid Lines
Slide 15

16. 16 of 31

17. 17 of 31
• Find ‘02 easting’ first.
• Find ‘01 northing’ second.
01 02 03
03
02
01
00
Find your position
Slide 17

18. 18 of 31
Neat line
Slide 18

19. 19 of 31
Data frame
Slide 19

20. 20 of 31
• A contour is a line
that joins points of
equal elevation
• Contour interval is
the vertical distance
between contour
lines
• See legend for
contour interval
Contour lines
Slide 20

21. 21 of 31
• Contour lines close together show
steep slopes
• Contour lines far apart show gentle
slopes
• Contour lines evenly spaced show
uniform slope
Contour Patterns…
Slide 21

22. 22 of 31
Types of mapTypes of map
Slide 22

23. 23 of 31
 Rigid form of map where message is conveyed by
virtue of symbology.
 Measurable but not interactive.
 They are always projected.
 Difficult to integrate with other data.
 Maps in a digital media.
 Interactive options according to
map objective.
 Maps can be in both 2D and 3D format.
 Easy integration with other data.
Analogue Maps Digital Maps
Slide 23

24. 24 of 31
 Usually colored by
country or by state.
 Political colors make it
easy to compare size,
shape, and location
1. Political Map
 Information about the landscape, topography.
 Ground features (buildings, forests, roads,
rivers etc.) represented as map objects.
2. Topographical Map
Slide 24

25. 25 of 31
D:mapsDidi ko Mapsmap.png
3. Thematic Map
Slide 25

26. 26 of 31
4. Cadastral Map 5. Satellite Map

27. 27 of 31
6. Street Network Map 7. Land Use Map
PC: City of Dublin
PC: City of Mandaluyong
Slide 27

28. 28 of 31
General Color Compositions
Slide 28

29. 29 of 31
Green Color……….(Vegetation)
Slide 29

30. 30 of 31
Yellow Color……….(Cultivation area)
Slide 30

31. 31 of 31
Blue Color……….(Hydrographical features)
Slide 31

32. 32 of 31
Red Color.......... (Man made
structures/hotspots/danger)
Slide 32
