LTE TDD is a global standard for using unpaired spectrum for 4G networks. It has inherent interworking with LTE FDD networks and seamless integration with 3G networks. LTE TDD will be key to accessing higher spectrum bands above 3GHz and enabling technologies like carrier aggregation. It shares the same technology ecosystem and products as LTE FDD, including common chipsets, infrastructure and devices.

1. 1
LTE TDD—the global
solution for unpaired
spectrum
August 2013

2. 2
LTE TDD: the global solution for unpaired spectrum
LTE TDD
LTE is a common global standard
for paired and unpaired spectrum1
Inherent tight TDD/FDD
interworking and seamless 3G
interworking
2 Key to access higher spectrum
bands on the path to 1000x
3
Common FDD/TDD technology
ecosystem, common products 4

3. 3

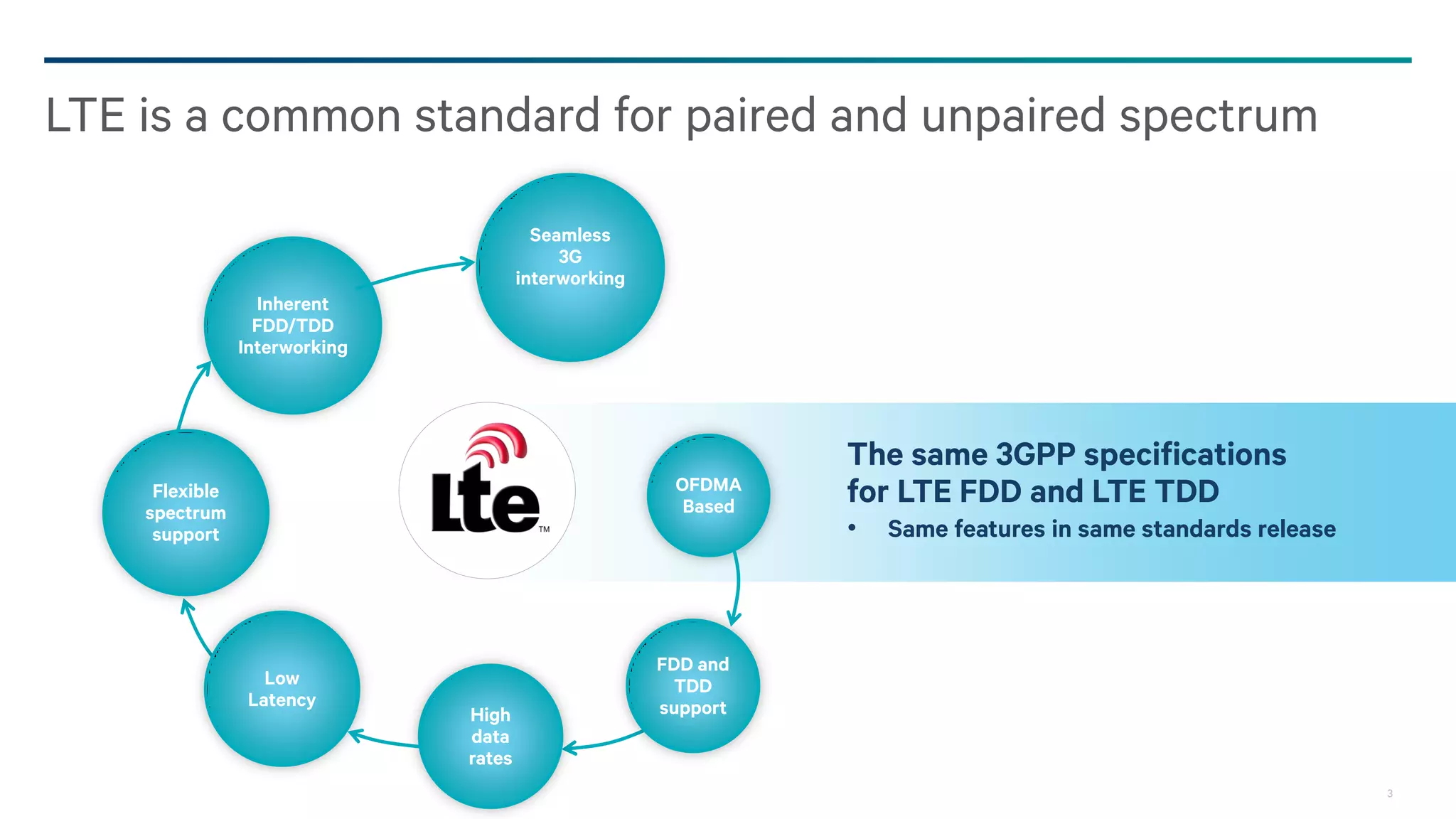

The same 3GPP specifications
for LTE FDD and LTE TDD
• Same features in same standards release
LTE is a common standard for paired and unpaired spectrum
OFDMA
Based
FDD and
TDD
supportHigh
data
rates
Low
Latency
Flexible
spectrum
support
Inherent
FDD/TDD
Interworking
Seamless
3G
interworking

4. 4

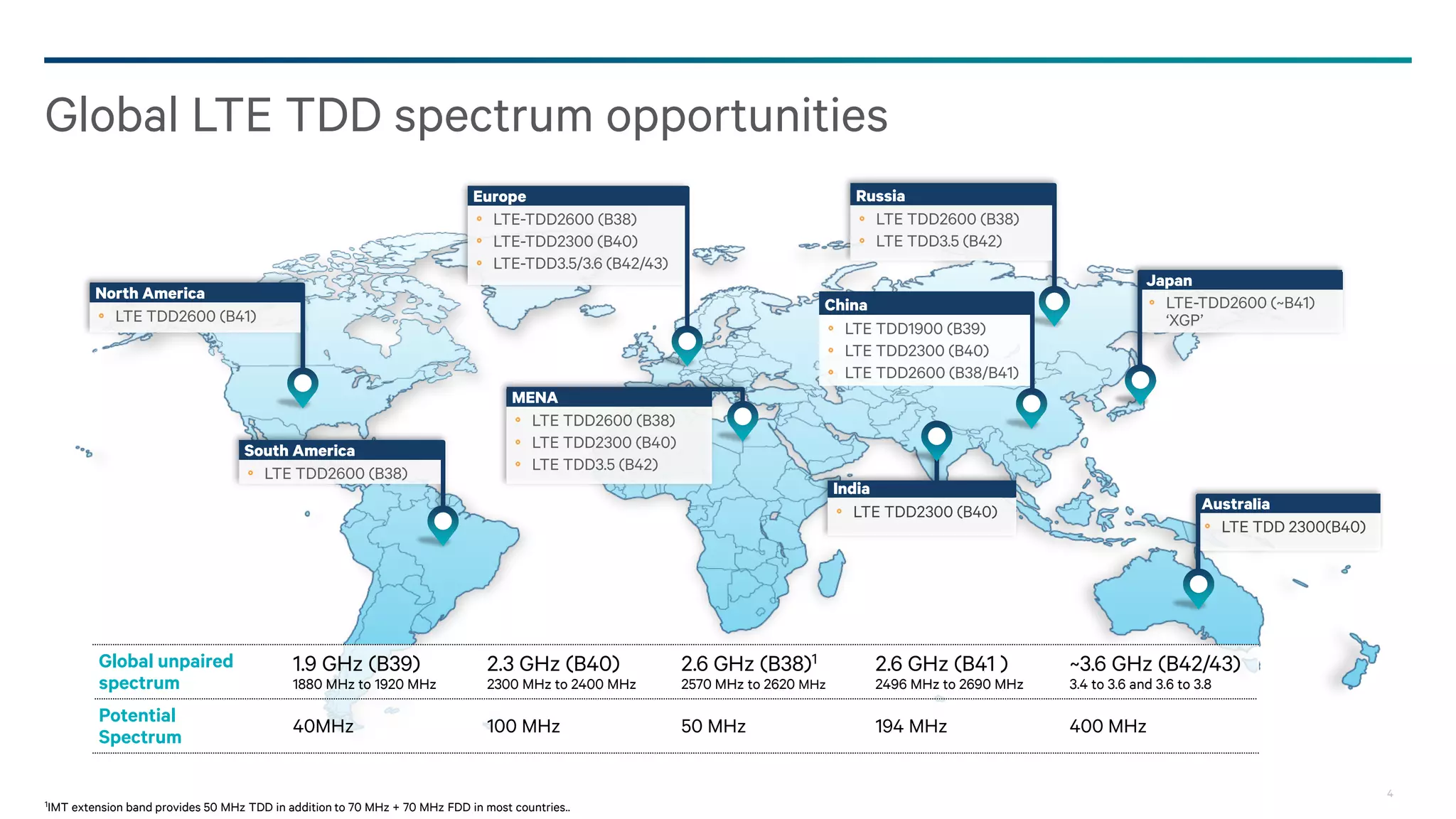

Global LTE TDD spectrum opportunities
1IMT extension band provides 50 MHz TDD in addition to 70 MHz + 70 MHz FDD in most countries..
LTE TDD2600 (B41)
North America
LTE TDD2600 (B38)
South America
LTE-TDD2600 (B38)
LTE-TDD2300 (B40)
LTE-TDD3.5/3.6 (B42/43)
Europe
LTE TDD2600 (B38)
LTE TDD3.5 (B42)
Russia
LTE TDD1900 (B39)
LTE TDD2300 (B40)
LTE TDD2600 (B38/B41)
China
LTE TDD2300 (B40)
India
LTE-TDD2600 (~B41)
‘XGP’
Japan
LTE TDD 2300(B40)
Australia
LTE TDD2600 (B38)
LTE TDD2300 (B40)
LTE TDD3.5 (B42)
MENA
Global unpaired
spectrum
1.9 GHz (B39)
1880 MHz to 1920 MHz
2.3 GHz (B40)
2300 MHz to 2400 MHz
2.6 GHz (B38)1
2570 MHz to 2620 MHz
2.6 GHz (B41 )
2496 MHz to 2690 MHz
~3.6 GHz (B42/43)
3.4 to 3.6 and 3.6 to 3.8
Potential
Spectrum
40MHz 100 MHz 50 MHz 194 MHz 400 MHz

5. 5

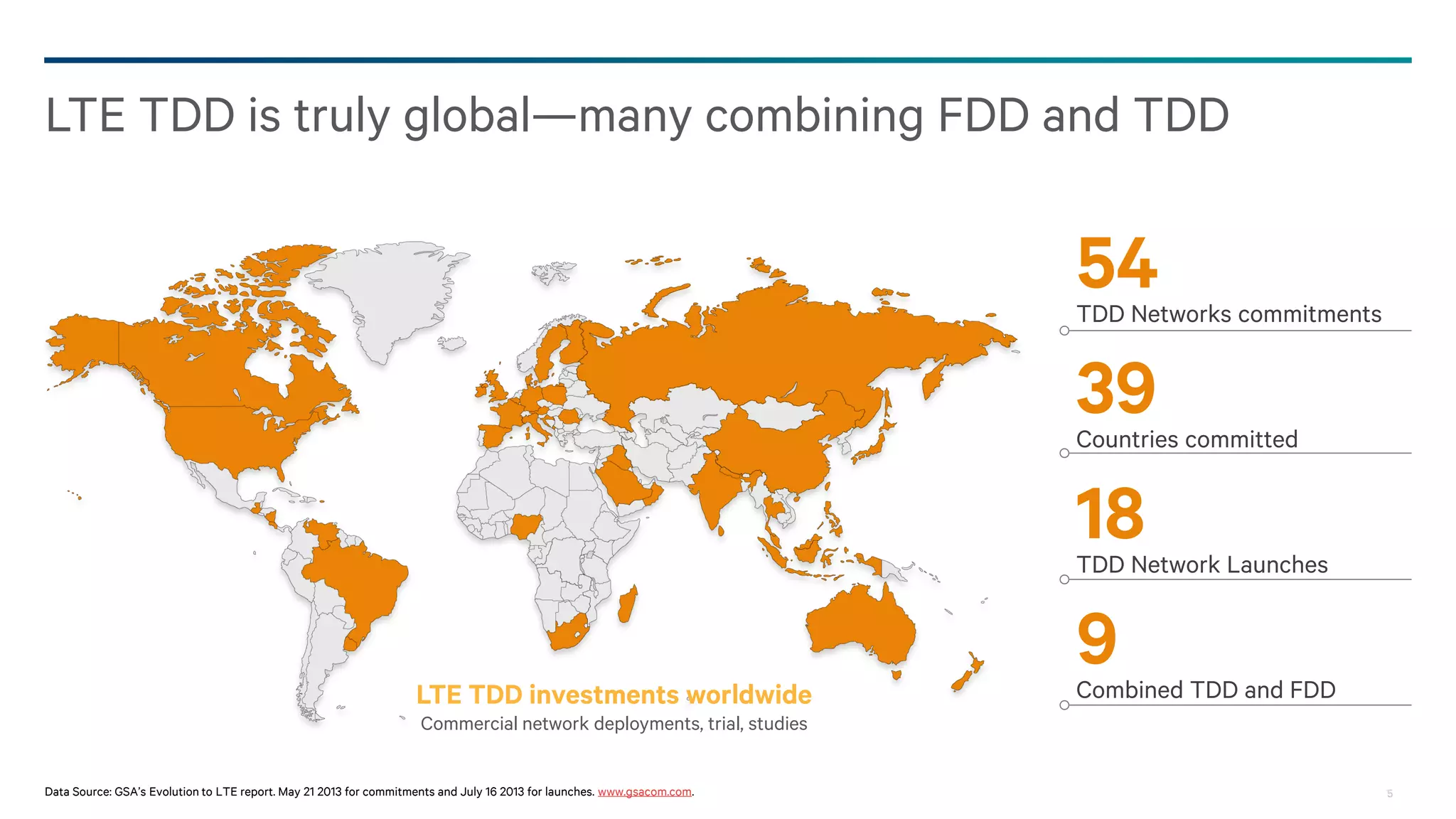

LTE TDD is truly global—many combining FDD and TDD
54TDD Networks commitments
LTE TDD investments worldwide
Commercial network deployments, trial, studies
39Countries committed
18TDD Network Launches
9Combined TDD and FDD
Data Source: GSA’s Evolution to LTE report. May 21 2013 for commitments and July 16 2013 for launches. www.gsacom.com.

6. 6

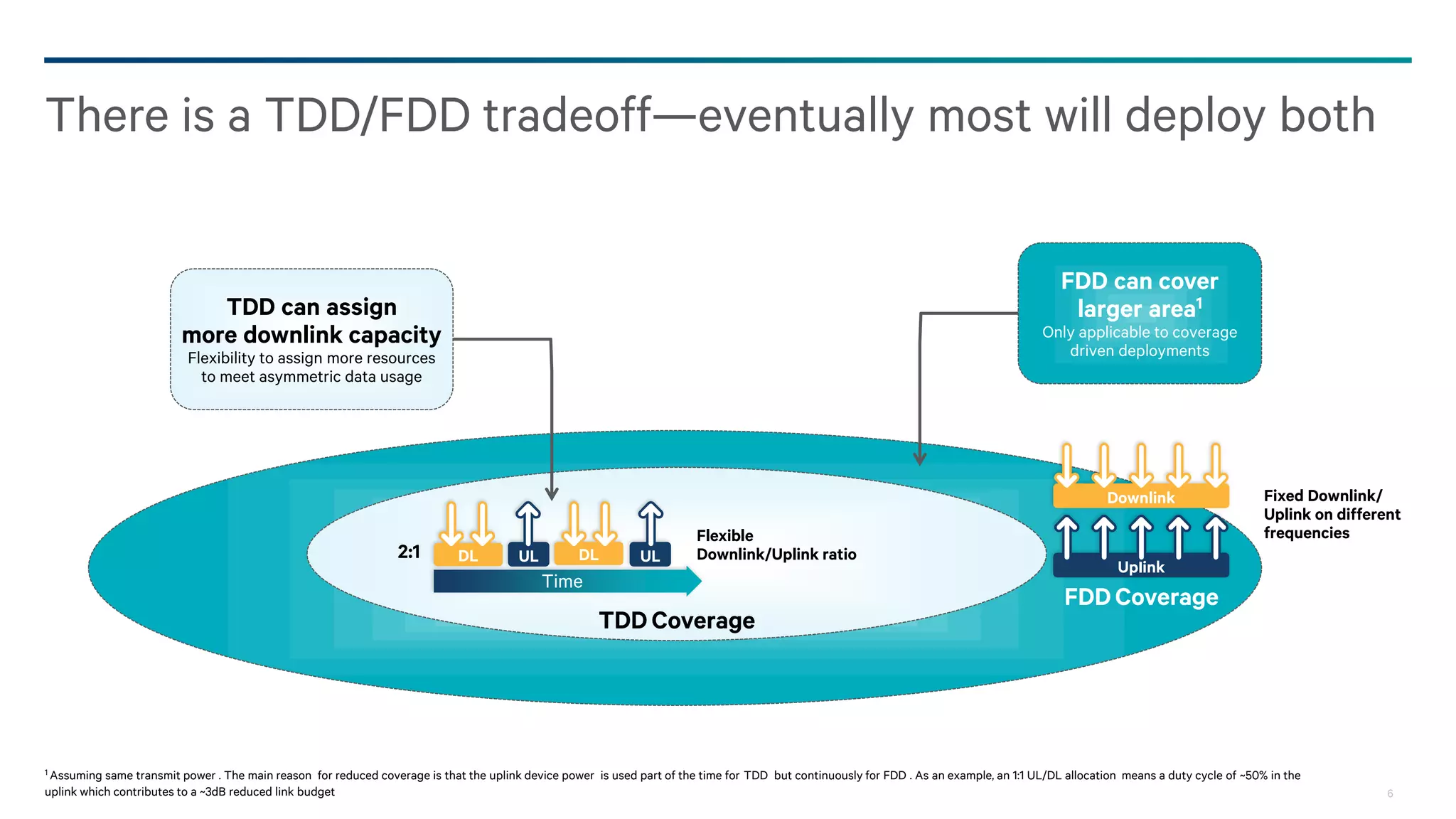

There is a TDD/FDD tradeoff—eventually most will deploy both
1 Assuming same transmit power . The main reason for reduced coverage is that the uplink device power is used part of the time for TDD but continuously for FDD . As an example, an 1:1 UL/DL allocation means a duty cycle of ~50% in the
uplink which contributes to a ~3dB reduced link budget
TDD Coverage
TDD can assign
more downlink capacity
Flexibility to assign more resources
to meet asymmetric data usage
2:1
FDDCoverage
Uplink
Downlink
Time
DL UL DL UL
Flexible
Downlink/Uplink ratio
Fixed Downlink/
Uplink on different
frequencies
FDD can cover
larger area1
Only applicable to coverage
driven deployments

7. 7
Common LTE FDD and LTE TDD
technology ecosystem,
common products

8. 8
LTE has a vibrant ecosystem with two flavors: FDD and TDD
Global LTE network launches
LTE TDD momentum
Large and growing device ecosystem
Source: www.gsacom.com July 17 2013 for networks and July 5, 2013 for devices
Global LTE/3G multimode connections reached 100 Million in May 2013 – Wireless Intelligence
194Launches
443Operators investing in LTE
19TDD Launches
200TDD Devices Announced
948Devices
100Vendors

9. 9

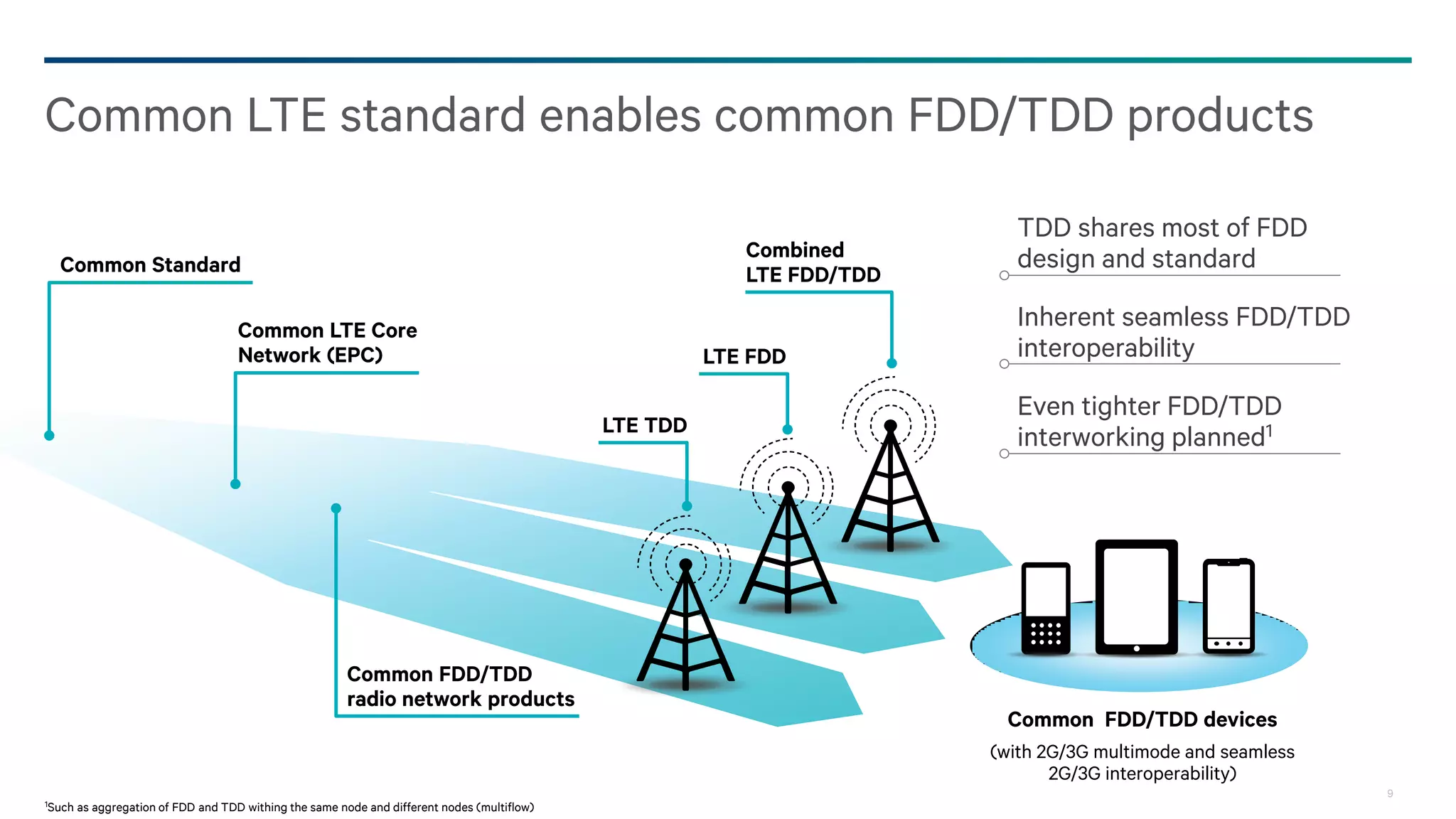

Common LTE standard enables common FDD/TDD products
Common LTE Core
Network (EPC)
Common Standard
Common FDD/TDD
radio network products
TDD shares most of FDD
design and standard
Inherent seamless FDD/TDD
interoperability
Even tighter FDD/TDD
interworking planned1
Common FDD/TDD devices
(with 2G/3G multimode and seamless
2G/3G interoperability)
Combined
LTE FDD/TDD
LTE FDD
LTE TDD
1Such as aggregation of FDD and TDD withing the same node and different nodes (multiflow)

10. 10

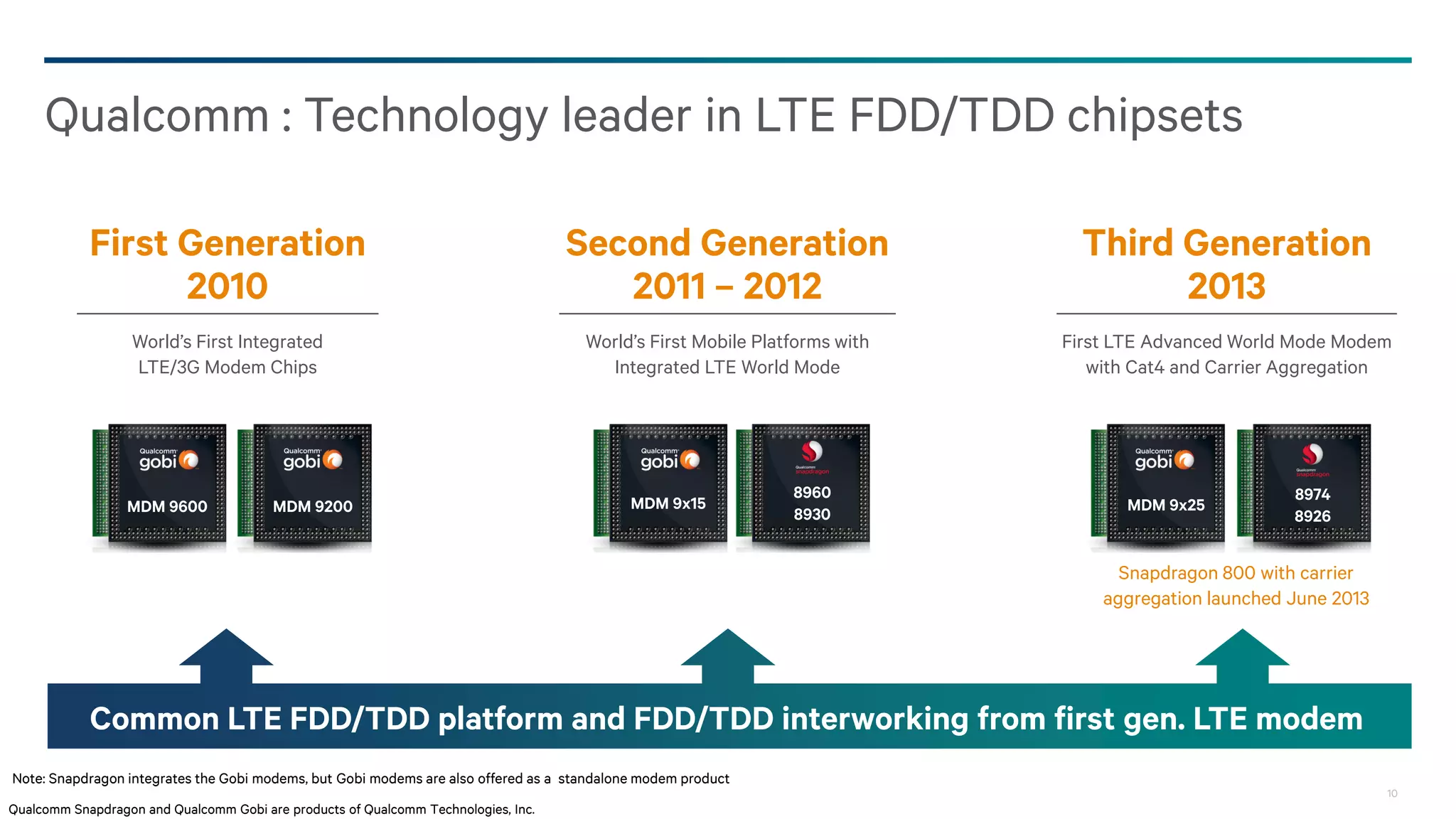

Qualcomm : Technology leader in LTE FDD/TDD chipsets
Common LTE FDD/TDD platform and FDD/TDD interworking from first gen. LTE modem
MDM 9x25
8974
8926
MDM 9600 MDM 9200
First Generation
2010
World’s First Integrated
LTE/3G Modem Chips
MDM 9x15
8960
8930
Second Generation
2011 – 2012
World’s First Mobile Platforms with
Integrated LTE World Mode
Third Generation
2013
First LTE Advanced World Mode Modem
with Cat4 and Carrier Aggregation
Snapdragon 800 with carrier
aggregation launched June 2013
Note: Snapdragon integrates the Gobi modems, but Gobi modems are also offered as a standalone modem product
Qualcomm Snapdragon and Qualcomm Gobi are products of Qualcomm Technologies, Inc.

11. 11
Qualcomm : extending mobile computing leadership to LTE
TDD
Tablets High-end
smartphones
High-volume
smartphones
#1in App Processors
The vast majority are multimode
LTE FDD/TDD, WCDMA/HSPA+, 1X, EV-DO, TD-SCDMA GSM/EDGE
#1in GPU & DSP
#1in 3G/LTE Modems
30 design wins at
China Mobile
LTE TDD trial1#1
Sources: Mobile AP Unit Shipment - Strategy Analytics; GPU Shipment - Jon Peddi Research; DSP shipment - Forward Concepts; 3G/4G/LTE - Strategy Analytics; RF iSuppli, Q1’12; 1As reported at earnings July 25th
Components of the type(s) mentioned in this slide are products of Qualcomm Technologies, Inc. and/or its subsidiaries.

12. 12
Inherent tight TDD/FDD
interworking
and seamless 3G interworking

13. 13

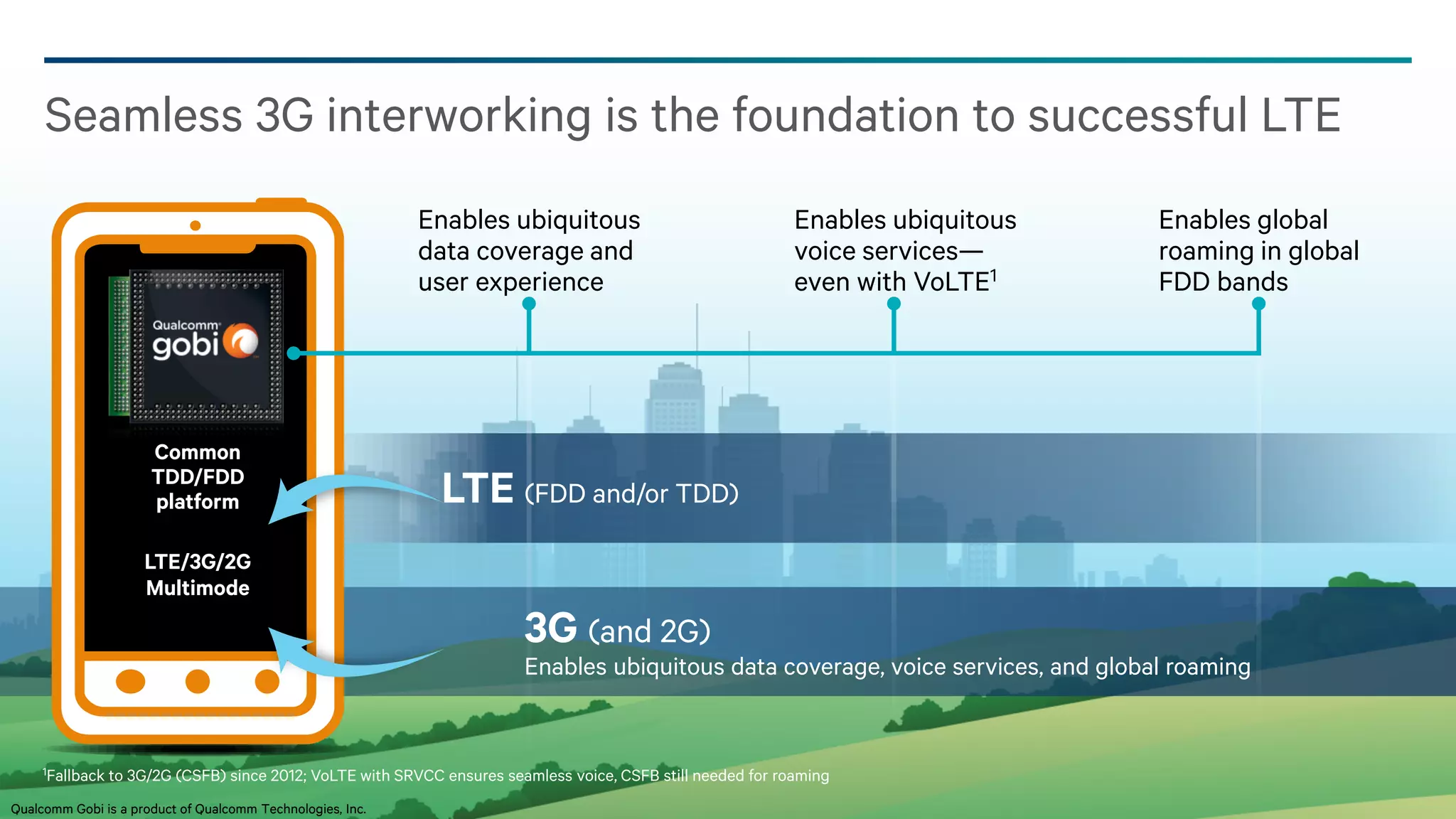

Seamless 3G interworking is the foundation to successful LTE
Enables ubiquitous
data coverage and
user experience
Enables global
roaming in global
FDD bands
Enables ubiquitous
voice services—
even with VoLTE1
3G (and 2G)
Enables ubiquitous data coverage, voice services, and global roaming
LTE (FDD and/or TDD)
Common
TDD/FDD
platform
LTE/3G/2G
Multimode
1Fallback to 3G/2G (CSFB) since 2012; VoLTE with SRVCC ensures seamless voice, CSFB still needed for roaming
Qualcomm Gobi is a product of Qualcomm Technologies, Inc.

14. 14

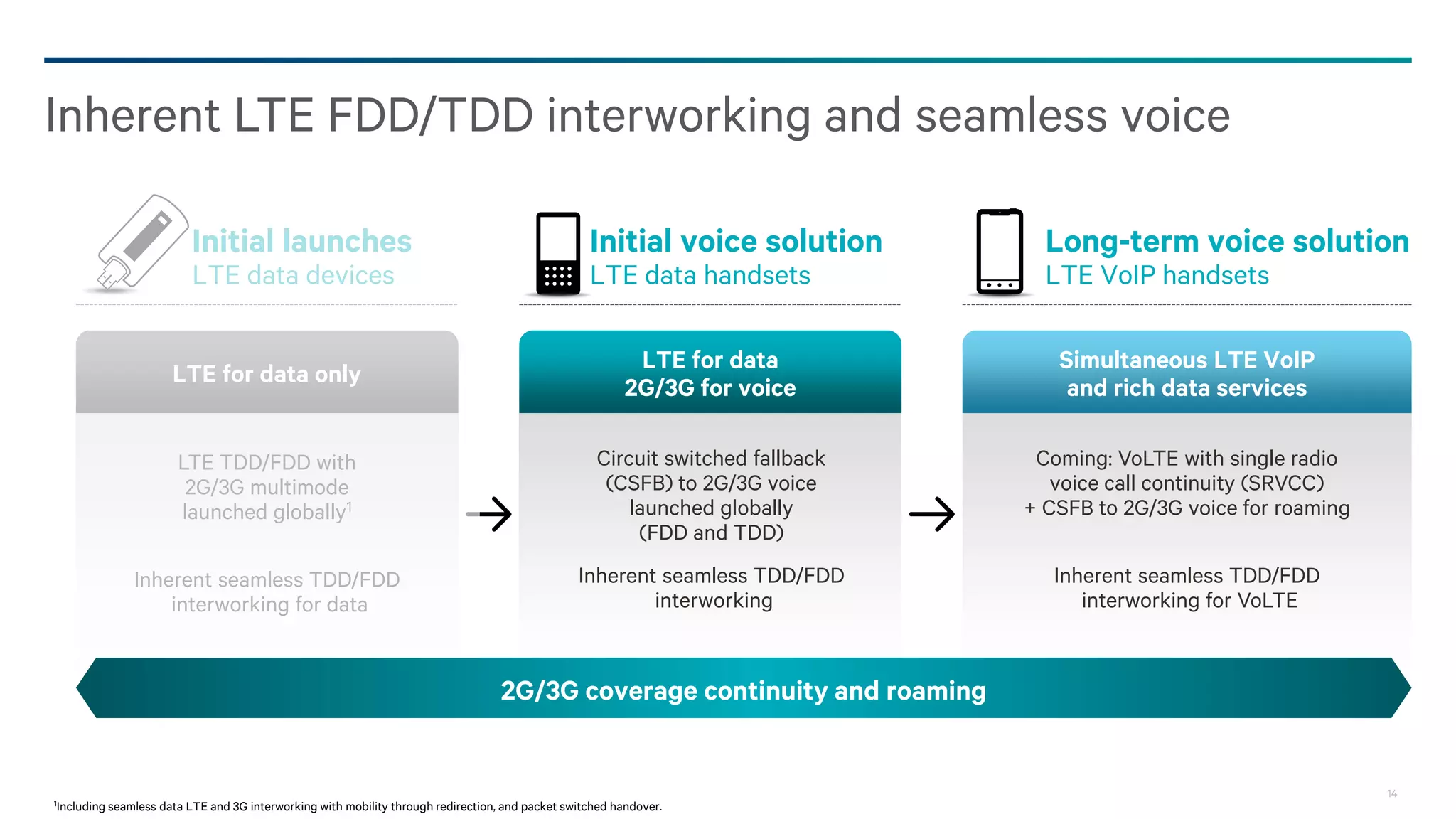

Inherent LTE FDD/TDD interworking and seamless voice
Initial launches
LTE data devices
Initial voice solution
LTE data handsets
Long-term voice solution
LTE VoIP handsets
2G/3G coverage continuity and roaming
LTE for data only
LTE for data
2G/3G for voice
Simultaneous LTE VoIP
and rich data services
LTE TDD/FDD with
2G/3G multimode
launched globally1
Inherent seamless TDD/FDD
interworking for data
Circuit switched fallback
(CSFB) to 2G/3G voice
launched globally
(FDD and TDD)
Inherent seamless TDD/FDD
interworking
Coming: VoLTE with single radio
voice call continuity (SRVCC)
+ CSFB to 2G/3G voice for roaming
Inherent seamless TDD/FDD
interworking for VoLTE
1Including seamless data LTE and 3G interworking with mobility through redirection, and packet switched handover.

15. 15

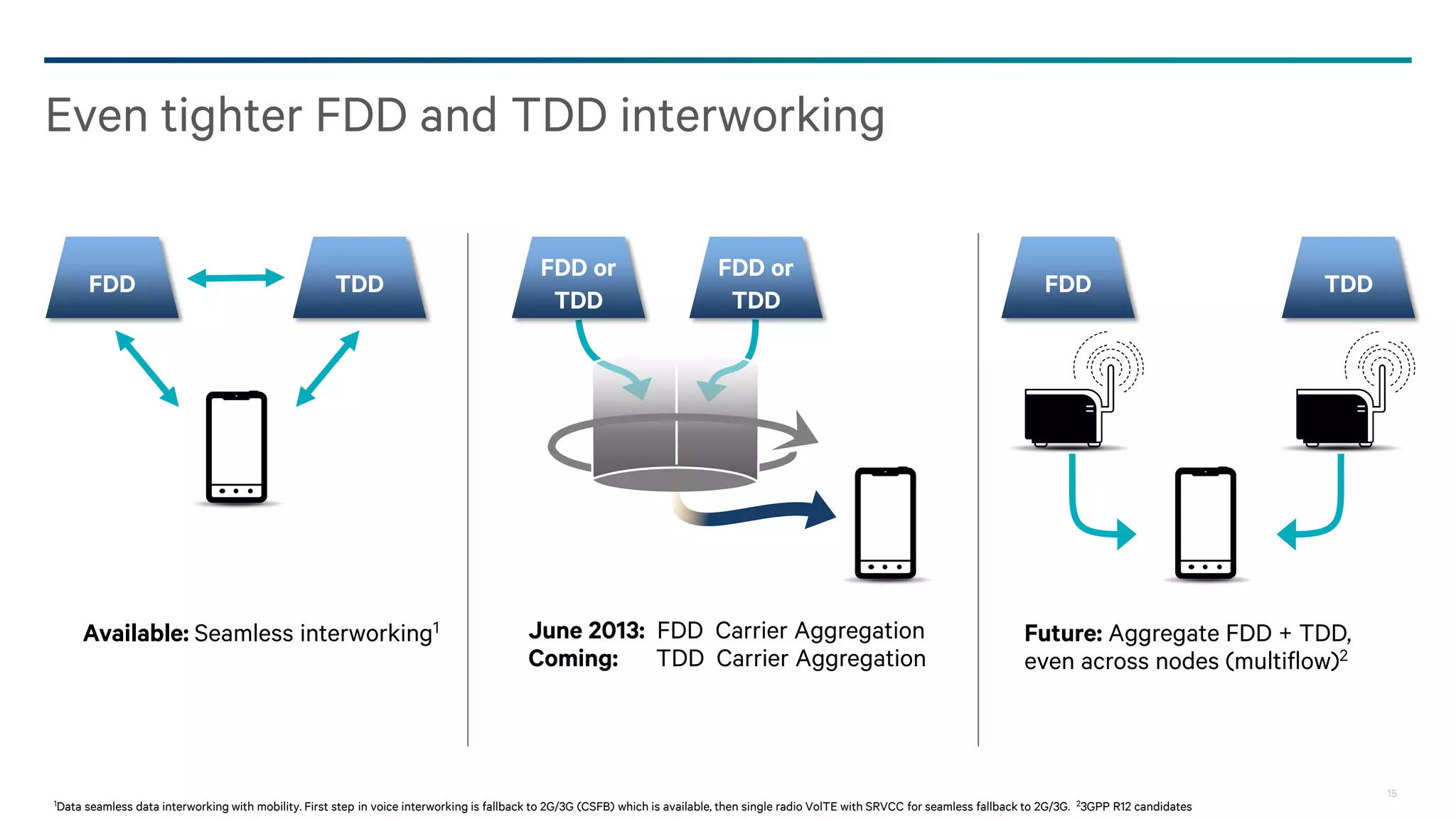

Even tighter FDD and TDD interworking
June 2013: FDD Carrier Aggregation
Coming: TDD Carrier Aggregation
FDD or
TDD
FDD or
TDD
FDD TDD
Available: Seamless interworking1 Future: Aggregate FDD + TDD,
even across nodes (multiflow)2
FDD TDD
1Data seamless data interworking with mobility. First step in voice interworking is fallback to 2G/3G (CSFB) which is available, then single radio VolTE with SRVCC for seamless fallback to 2G/3G. 23GPP R12 candidates

16. 16
Key to access higher spectrum
bands on the path to 1000x

17. 17

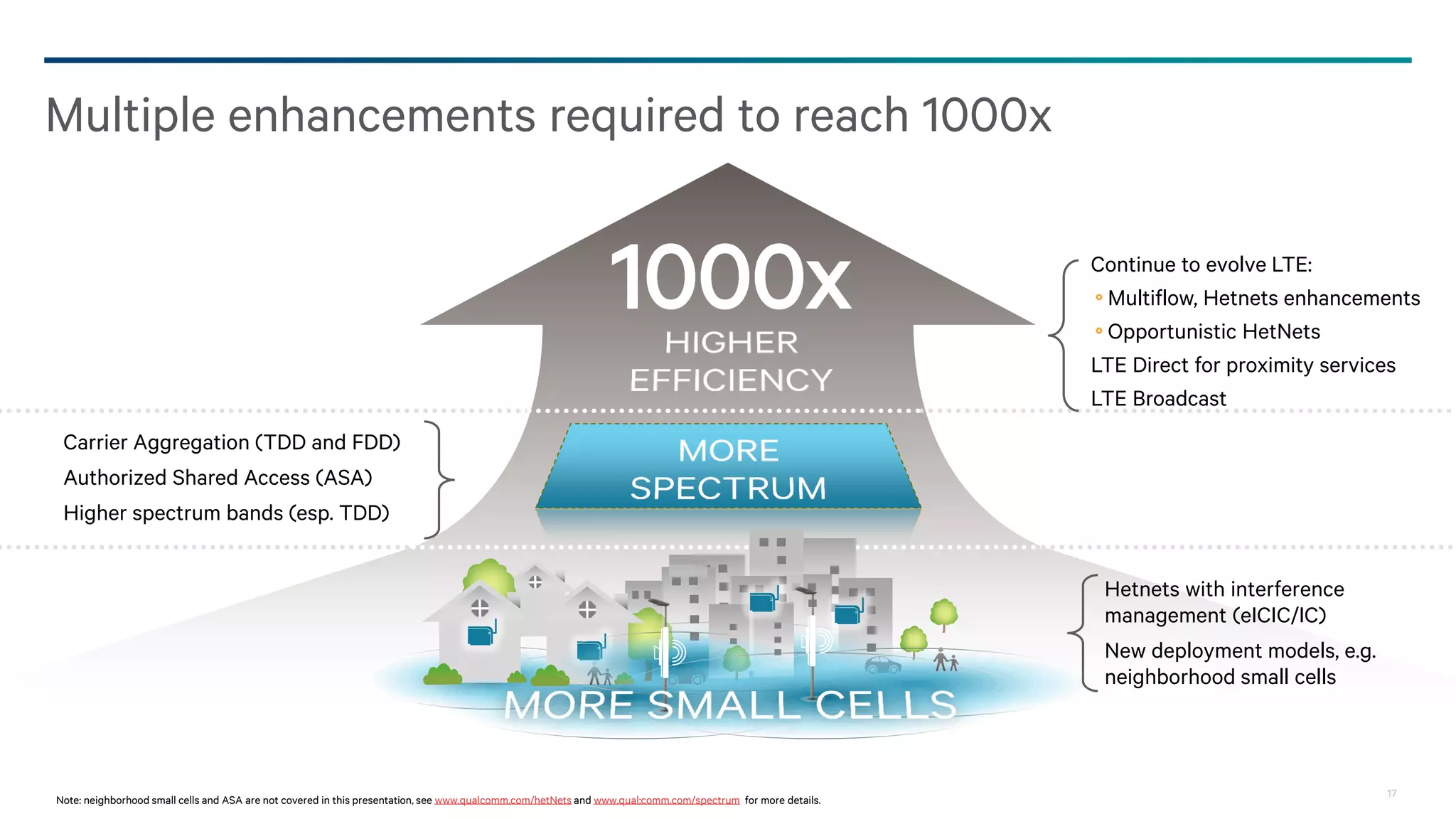

Multiple enhancements required to reach 1000x
1000x
Note: neighborhood small cells and ASA are not covered in this presentation, see www.qualcomm.com/hetNets and www.qual;comm.com/spectrum for more details.
Hetnets with interference
management (eICIC/IC)
New deployment models, e.g.
neighborhood small cells
Continue to evolve LTE:
Multiflow, Hetnets enhancements
Opportunistic HetNets
LTE Direct for proximity services
LTE Broadcast
Carrier Aggregation (TDD and FDD)
Authorized Shared Access (ASA)
Higher spectrum bands (esp. TDD)

18. 18

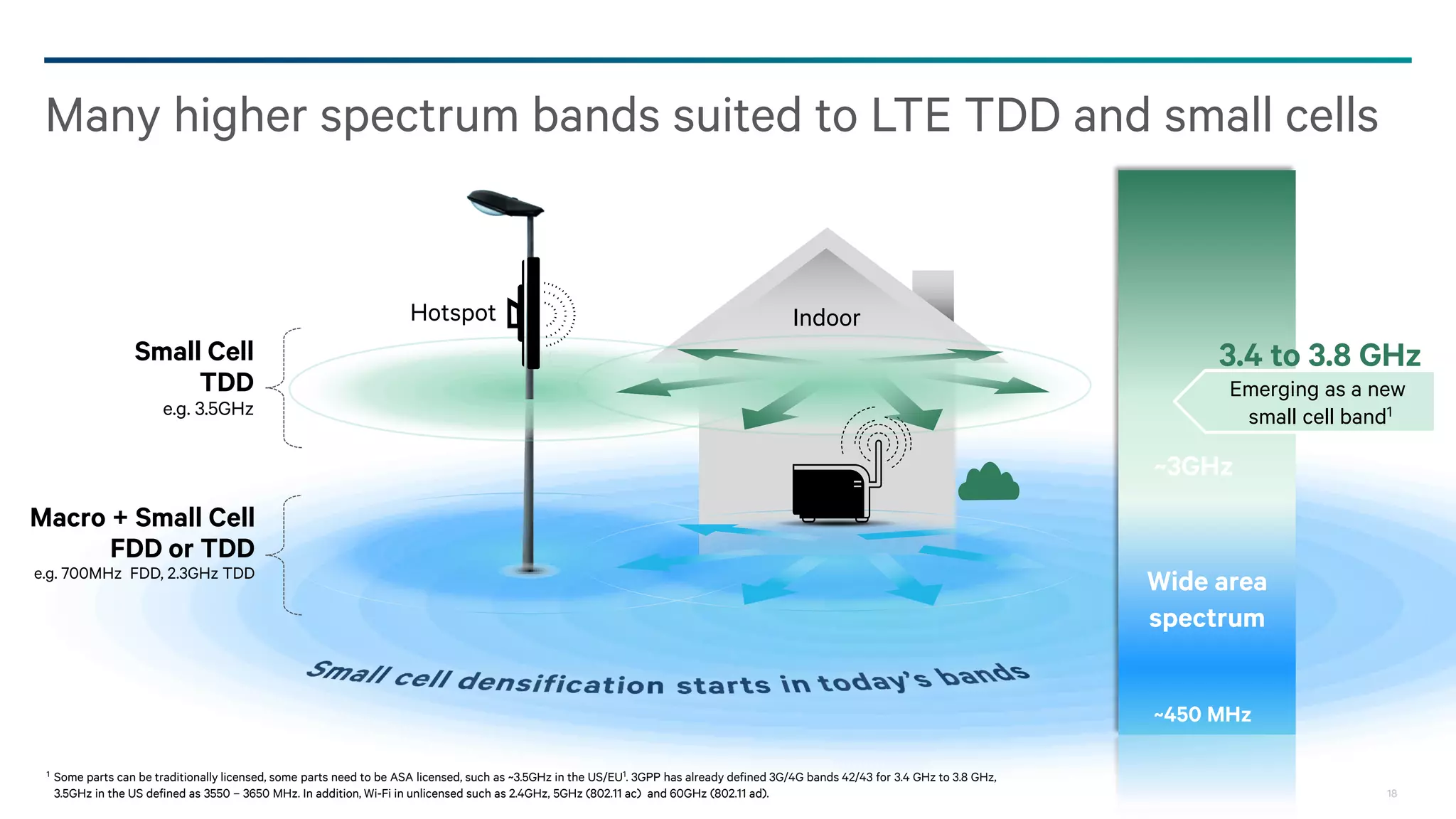

Many higher spectrum bands suited to LTE TDD and small cells
1 Some parts can be traditionally licensed, some parts need to be ASA licensed, such as ~3.5GHz in the US/EU1. 3GPP has already defined 3G/4G bands 42/43 for 3.4 GHz to 3.8 GHz,
3.5GHz in the US defined as 3550 – 3650 MHz. In addition, Wi-Fi in unlicensed such as 2.4GHz, 5GHz (802.11 ac) and 60GHz (802.11 ad).
~450 MHz
~3GHz
Wide area
spectrum
3.4 to 3.8 GHz
Emerging as a new
small cell band1
Macro + Small Cell
FDD or TDD
e.g. 700MHz FDD, 2.3GHz TDD
Small Cell
TDD
e.g. 3.5GHz
IndoorHotspot

19. 19
3G/4G Macro
base station

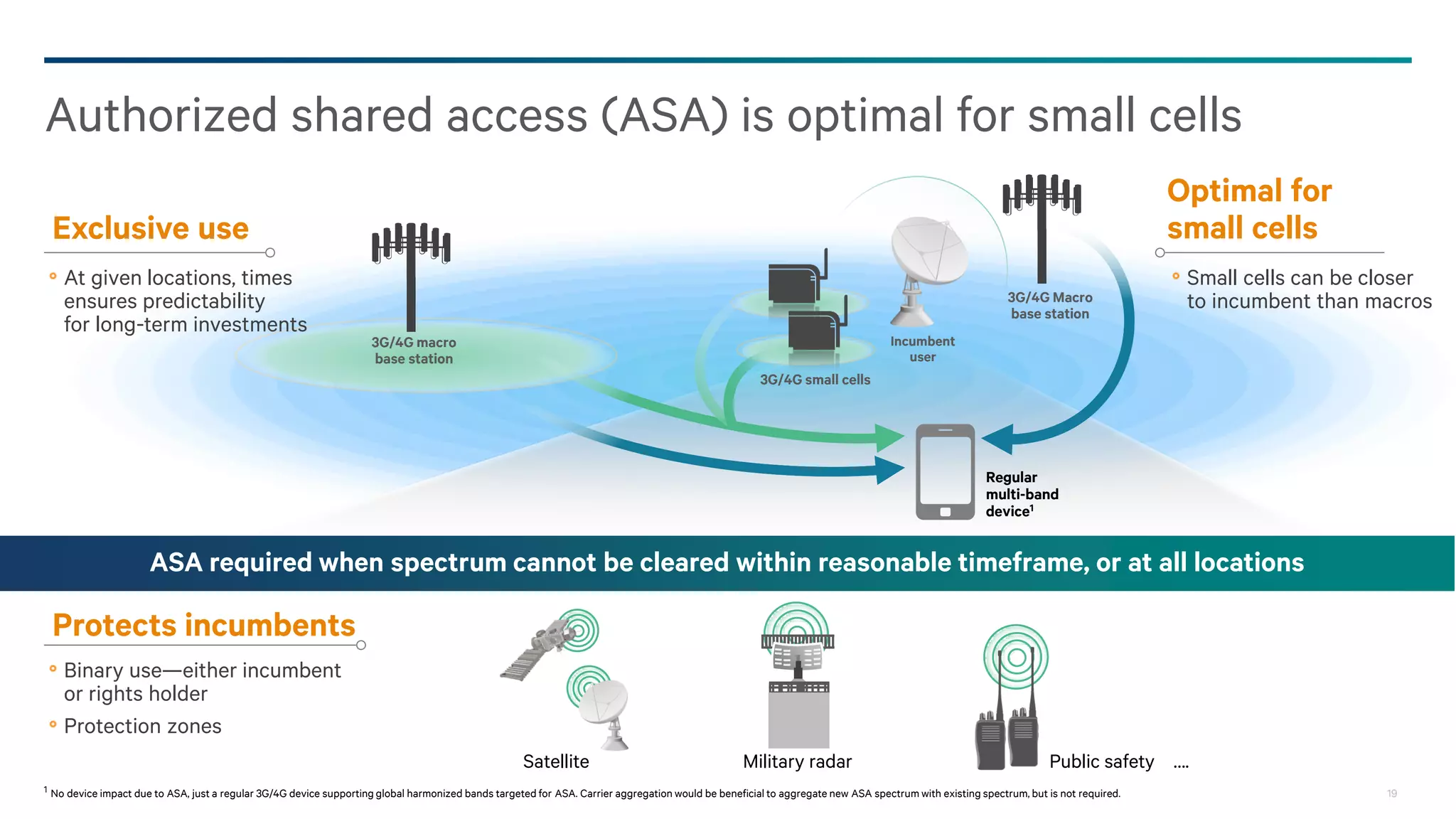

Authorized shared access (ASA) is optimal for small cells
Exclusive use
Incumbent
user
Optimal for
small cells
3G/4G macro
base station
Regular
multi-band
device1
ASA required when spectrum cannot be cleared within reasonable timeframe, or at all locations
3G/4G small cells
At given locations, times
ensures predictability
for long-term investments
Small cells can be closer
to incumbent than macros
Protects incumbents
Binary use—either incumbent
or rights holder
Protection zones
Satellite Public safety ….Military radar
1 No device impact due to ASA, just a regular 3G/4G device supporting global harmonized bands targeted for ASA. Carrier aggregation would be beneficial to aggregate new ASA spectrum with existing spectrum, but is not required.

20. 20

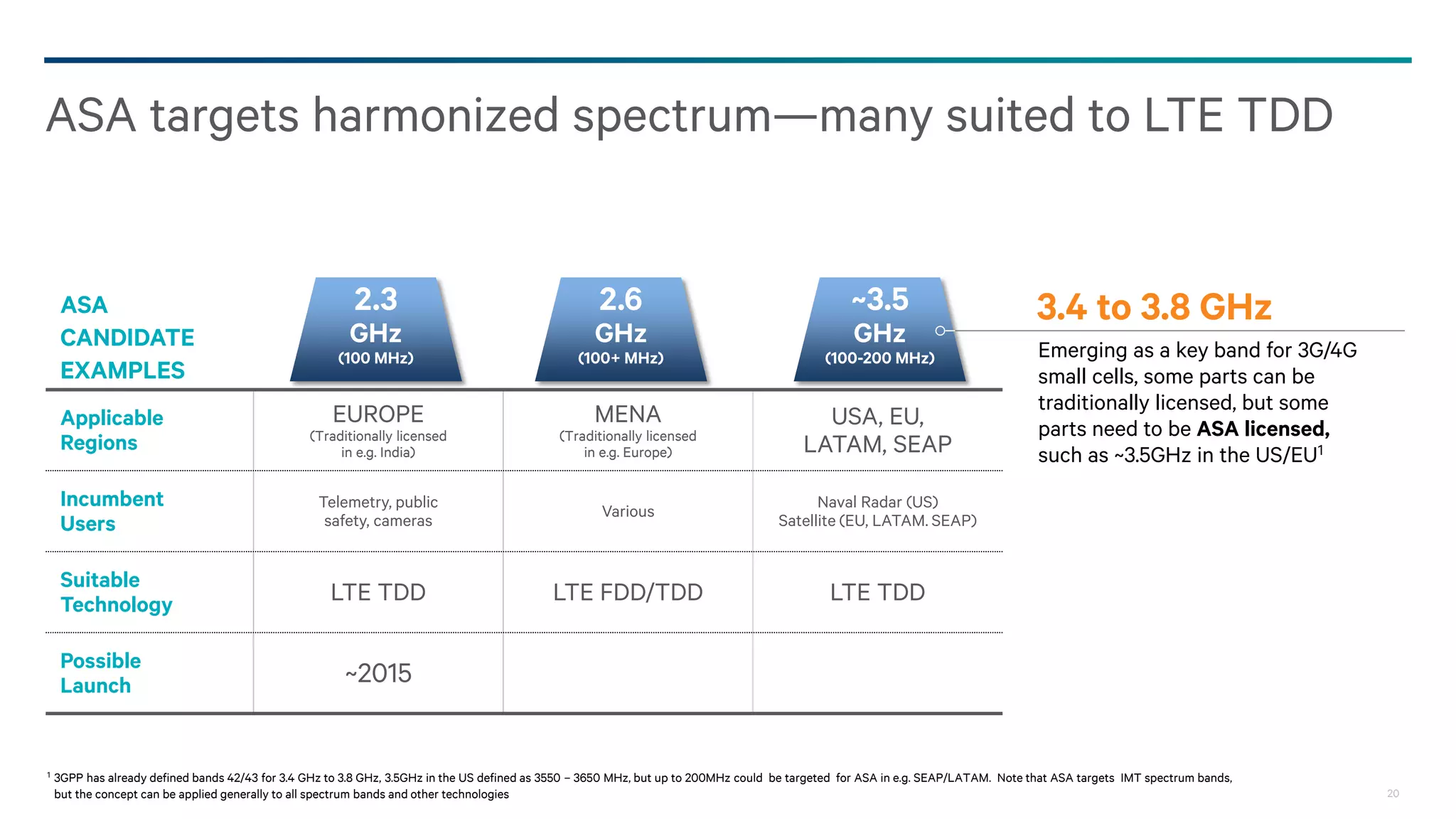

ASA
CANDIDATE
EXAMPLES
Applicable
Regions
EUROPE
(Traditionally licensed
in e.g. India)
MENA
(Traditionally licensed
in e.g. Europe)
USA, EU,
LATAM, SEAP
Incumbent
Users
Telemetry, public
safety, cameras
Various
Naval Radar (US)
Satellite (EU, LATAM. SEAP)
Suitable
Technology LTE TDD LTE FDD/TDD LTE TDD
Possible
Launch ~2015
ASA targets harmonized spectrum—many suited to LTE TDD
2.6
GHz
(100+ MHz)
2.3
GHz
(100 MHz)
~3.5
GHz
(100-200 MHz) Emerging as a key band for 3G/4G
small cells, some parts can be
traditionally licensed, but some
parts need to be ASA licensed,
such as ~3.5GHz in the US/EU1
3.4 to 3.8 GHz
1 3GPP has already defined bands 42/43 for 3.4 GHz to 3.8 GHz, 3.5GHz in the US defined as 3550 – 3650 MHz, but up to 200MHz could be targeted for ASA in e.g. SEAP/LATAM. Note that ASA targets IMT spectrum bands,
but the concept can be applied generally to all spectrum bands and other technologies

21. 21

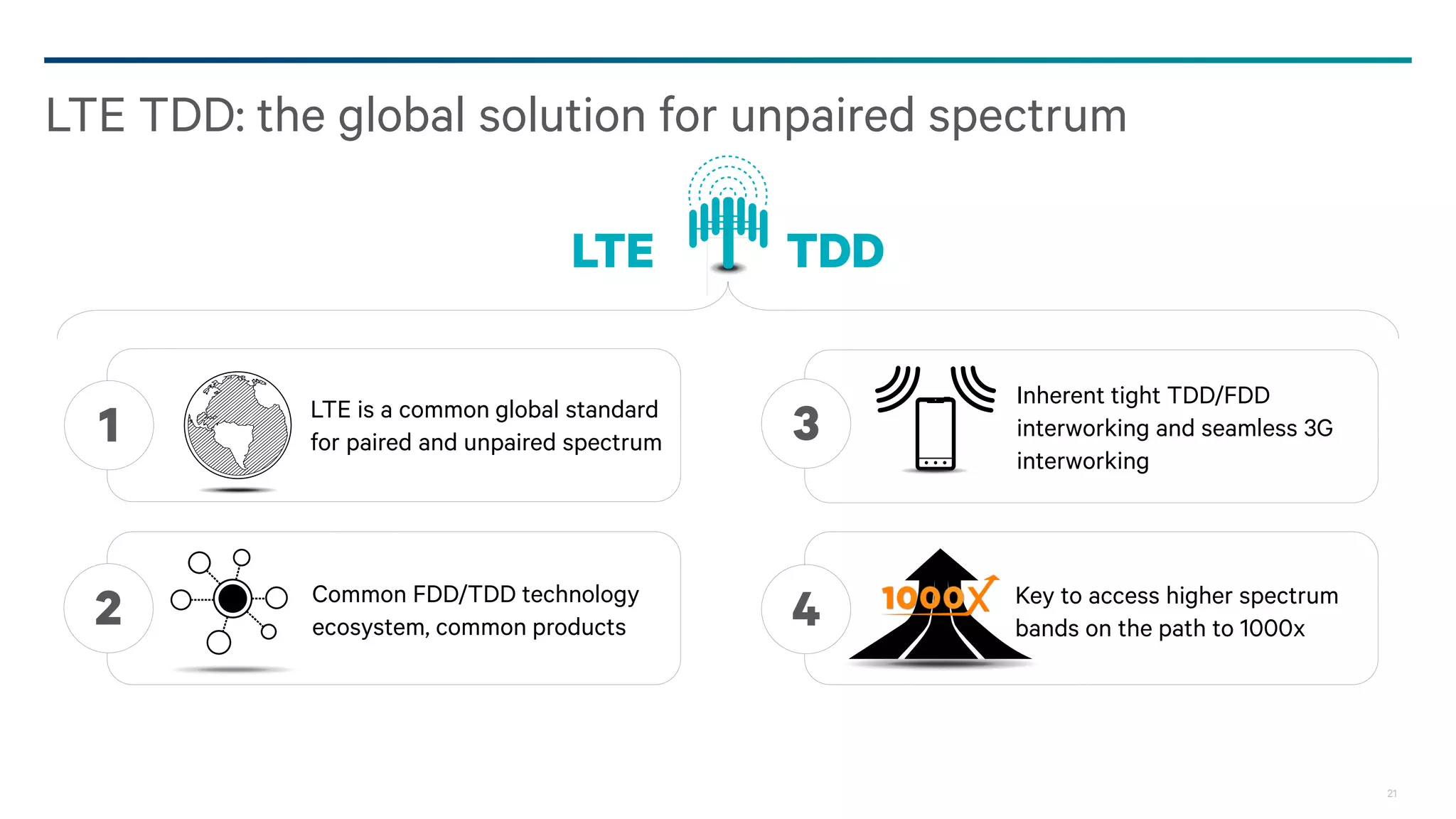

LTE TDD: the global solution for unpaired spectrum
LTE TDD
LTE is a common global standard
for paired and unpaired spectrum1
Inherent tight TDD/FDD
interworking and seamless 3G
interworking
2 Key to access higher spectrum
bands on the path to 1000x
3
Common FDD/TDD technology
ecosystem, common products 4

22. 22
@Qualcomm_tech
http://www.qualcomm.com/blog/contributors/prakash-sangam
http://www.slideshare.net/qualcommwirelessevolution
http://storify.com/qualcomm_tech
http://www.youtube.com/playlist?list=PL8AD95E4F585237C1&feature=plcp
www.qualcomm.com/technology
Questions? - Connect with Us
BLOG

23. 23
For more information on Qualcomm, visit us at:
www.qualcomm.com & www.qualcomm.com/blog
©2013 QUALCOMM Incorporated and/or its subsidiaries. All Rights Reserved.
References in this presentation to “Qualcomm” may mean Qualcomm Incorporated, Qualcomm Technologies, Inc., and/or other subsidiaries or business units within the
Qualcomm corporate structure, as applicable.
Qualcomm Incorporated includes Qualcomm’s licensing business, QTL, and the vast majority of its patent portfolio. Qualcomm Technologies, Inc., a wholly-owned subsidiary of
Qualcomm Incorporated, operates, along with its subsidiaries, substantially all of Qualcomm’s engineering, research and development functions, and substantially all of its
product and services businesses, including its semiconductor business, QMC.
Thank you
Follow us on:

24. 24

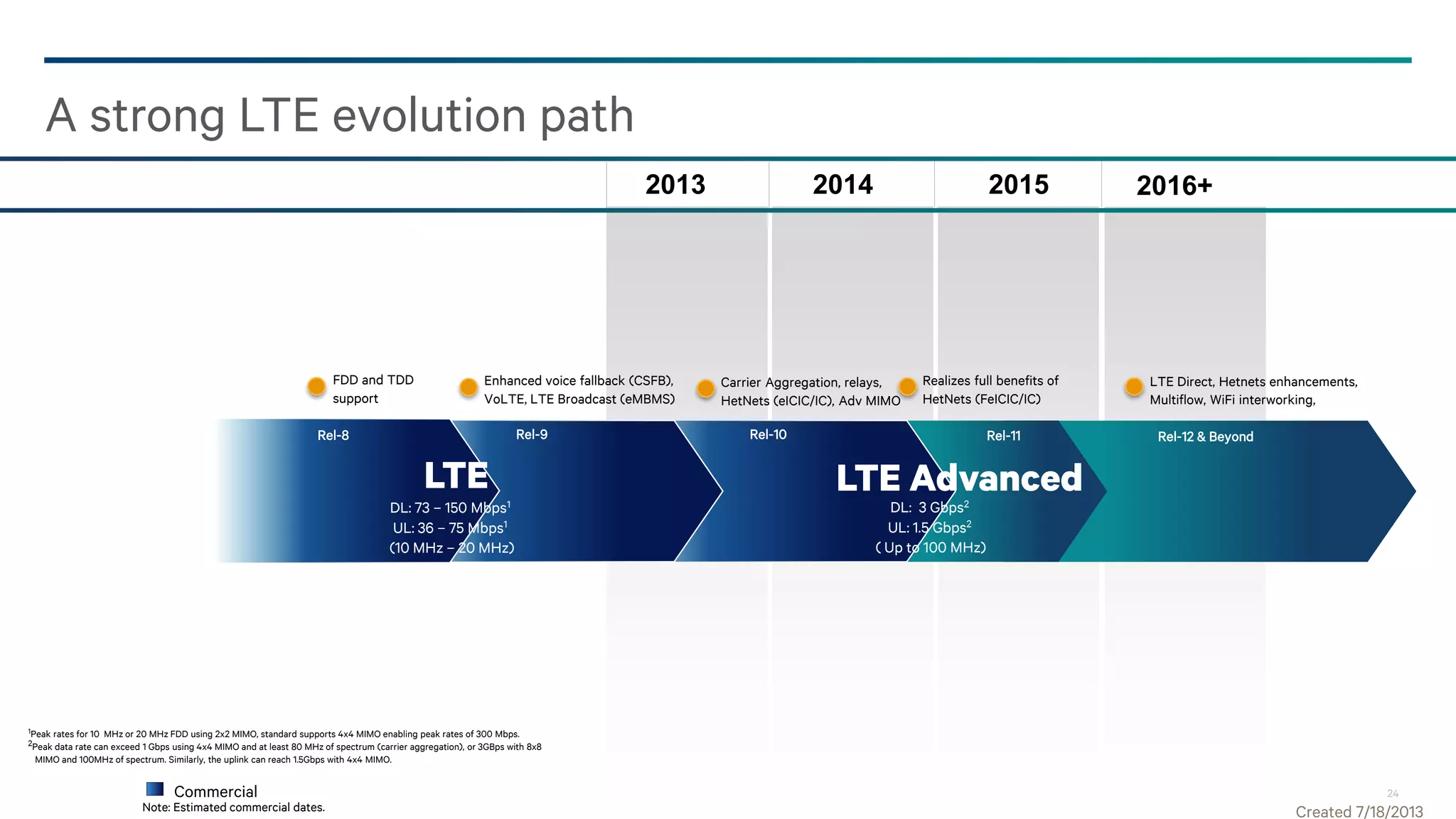

A strong LTE evolution path
Note: Estimated commercial dates.
LTE LTE Advanced
DL: 73 – 150 Mbps1
UL: 36 – 75 Mbps1
(10 MHz – 20 MHz)
DL: 3 Gbps2
UL: 1.5 Gbps2
( Up to 100 MHz)
Commercial
20142013 2015 2016+
Rel-12 & BeyondRel-10Rel-9Rel-8 Rel-11
FDD and TDD
support
Carrier Aggregation, relays,
HetNets (eICIC/IC), Adv MIMO
LTE Direct, Hetnets enhancements,
Multiflow, WiFi interworking,
Realizes full benefits of
HetNets (FeICIC/IC)
Enhanced voice fallback (CSFB),
VoLTE, LTE Broadcast (eMBMS)
1Peak rates for 10 MHz or 20 MHz FDD using 2x2 MIMO, standard supports 4x4 MIMO enabling peak rates of 300 Mbps.
2Peak data rate can exceed 1 Gbps using 4x4 MIMO and at least 80 MHz of spectrum (carrier aggregation), or 3GBps with 8x8
MIMO and 100MHz of spectrum. Similarly, the uplink can reach 1.5Gbps with 4x4 MIMO.
Created 7/18/2013
