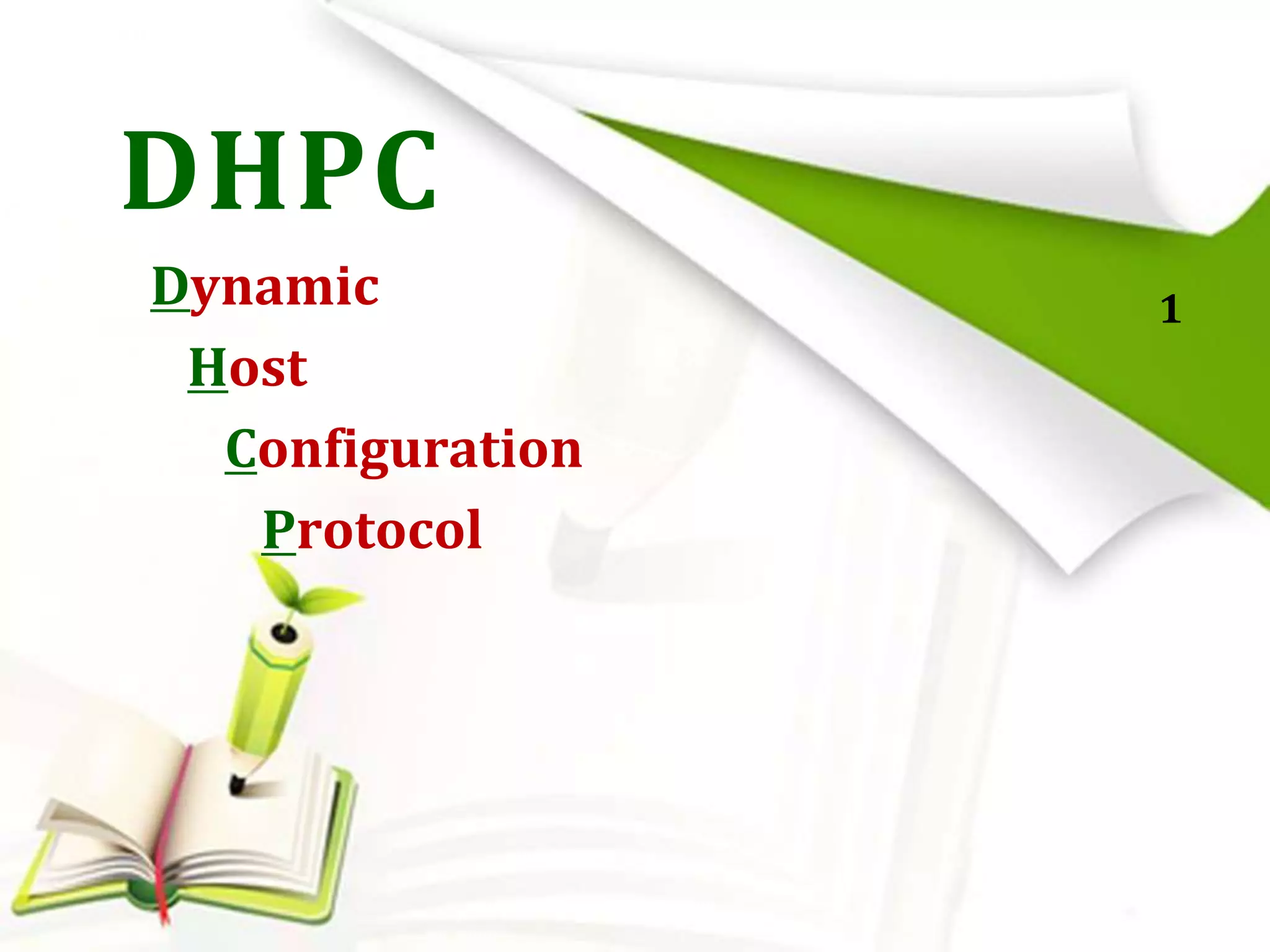

DHCP (Dynamic Host Configuration Protocol) automatically assigns IP addresses, subnet masks, default gateways and other network configuration parameters to devices on a TCP/IP network. A DHCP server centrally manages the IP address pool and configuration settings. When a new device joins the network, it broadcasts a DHCP request and the DHCP server responds with an offered IP address and other settings. The device then acknowledges the offer to complete the DHCP process. DHCP simplifies network administration by automating device addressing and configuration.

1. DHPC
Dynamic
Host
Configuration
Protocol
1

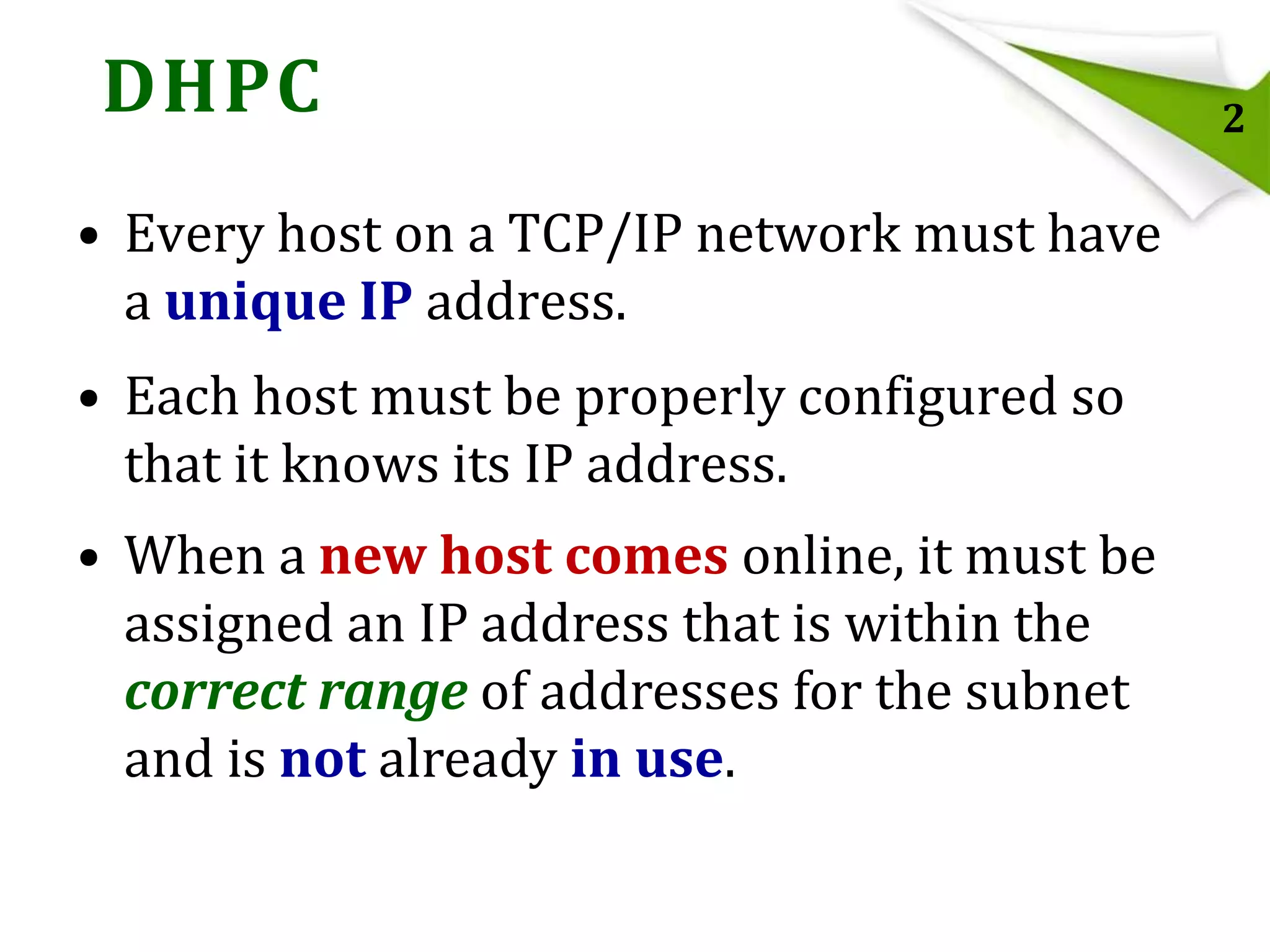

2. DHPC
• Every host on a TCP/IP network must have
a unique IP address.
• Each host must be properly configured so
that it knows its IP address.
• When a new host comes online, it must be
assigned an IP address that is within the
correct range of addresses for the subnet
and is not already in use.
2

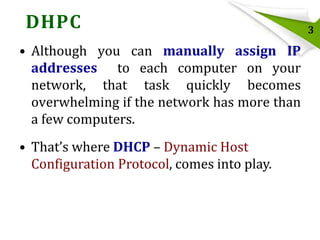

3. DHPC
• Although you can manually assign IP
addresses to each computer on your
network, that task quickly becomes
overwhelming if the network has more than
a few computers.
• That’s where DHCP – Dynamic Host
Configuration Protocol, comes into play.
3

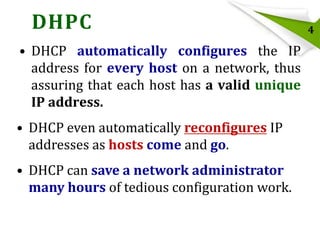

4. DHPC
• DHCP automatically configures the IP
address for every host on a network, thus
assuring that each host has a valid unique
IP address.
• DHCP even automatically reconfigures IP
addresses as hosts come and go.
• DHCP can save a network administrator
many hours of tedious configuration work.
4

5. DHPC Understanding DHCP:
• DHCP allows individual computer on a
TCP/IP
network
to
obtain
their
configuration information- in particular,
their IP address – from a server.
• The DHCP server keeps track of which IP
addresses have already been assigned so
that when a computer request an IP
address, the DHCP server will offer it an IP
address that is not already in use.
5

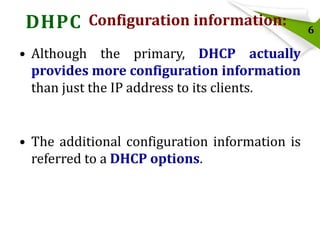

6. DHPC Configuration information:
• Although the primary, DHCP actually
provides more configuration information
than just the IP address to its clients.
• The additional configuration information is
referred to a DHCP options.
6

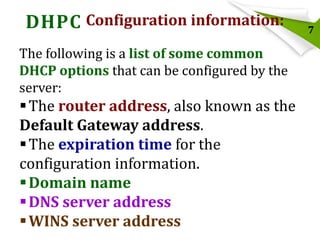

7. DHPC Configuration information:
The following is a list of some common
DHCP options that can be configured by the
server:
 The router address, also known as the
Default Gateway address.
 The expiration time for the
configuration information.
 Domain name
 DNS server address
 WINS server address
7

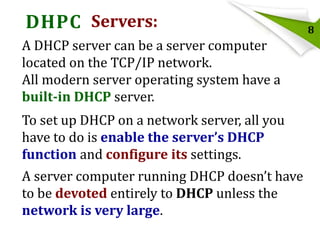

8. DHPC Servers:
A DHCP server can be a server computer
located on the TCP/IP network.
All modern server operating system have a
built-in DHCP server.
To set up DHCP on a network server, all you
have to do is enable the server’s DHCP
function and configure its settings.
A server computer running DHCP doesn’t have
to be devoted entirely to DHCP unless the
network is very large.
8

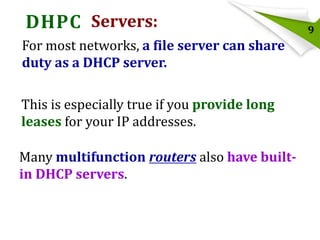

9. DHPC Servers:
For most networks, a file server can share
duty as a DHCP server.
This is especially true if you provide long
leases for your IP addresses.
Many multifunction routers also have builtin DHCP servers.
9

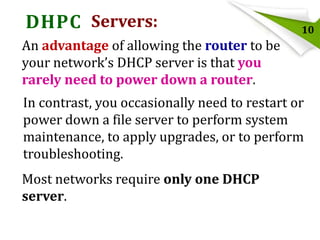

10. DHPC Servers:
10
An advantage of allowing the router to be
your network’s DHCP server is that you
rarely need to power down a router.
In contrast, you occasionally need to restart or
power down a file server to perform system
maintenance, to apply upgrades, or to perform
troubleshooting.
Most networks require only one DHCP
server.

11. DHPC Servers:
Setting up two or more servers on the
same network requires that you carefully
coordinate the IP address ranges (scope)
for which each server is responsible.
If you accidently set up two DHCP servers
for the same scope, you many end up with
duplicate address assignments if the servers
attempt to assign the same IP address to two
different hosts.
11

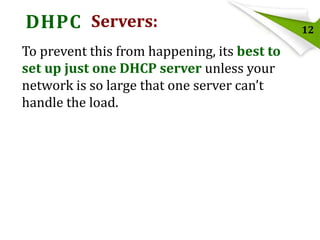

12. DHPC Servers:
To prevent this from happening, its best to
set up just one DHCP server unless your
network is so large that one server can’t
handle the load.
12

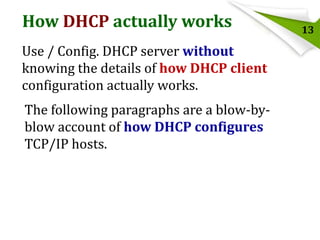

13. How DHCP actually works
Use / Config. DHCP server without
knowing the details of how DHCP client
configuration actually works.
The following paragraphs are a blow-byblow account of how DHCP configures
TCP/IP hosts.
13

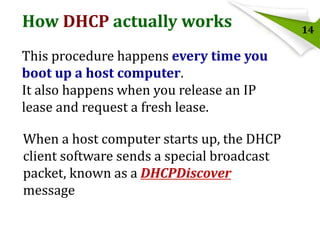

14. How DHCP actually works
This procedure happens every time you
boot up a host computer.
It also happens when you release an IP
lease and request a fresh lease.
When a host computer starts up, the DHCP
client software sends a special broadcast
packet, known as a DHCPDiscover
message
14

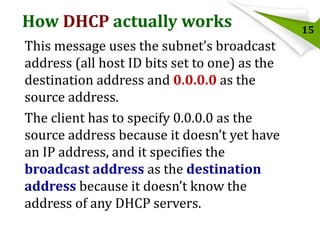

15. How DHCP actually works
This message uses the subnet’s broadcast
address (all host ID bits set to one) as the
destination address and 0.0.0.0 as the
source address.
The client has to specify 0.0.0.0 as the
source address because it doesn’t yet have
an IP address, and it specifies the
broadcast address as the destination
address because it doesn’t know the
address of any DHCP servers.
15

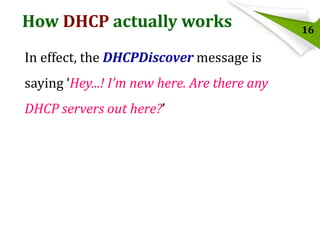

16. How DHCP actually works
In effect, the DHCPDiscover message is
saying ‘Hey...! I’m new here. Are there any
DHCP servers out here?’
16

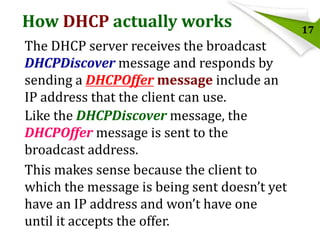

17. How DHCP actually works
The DHCP server receives the broadcast
DHCPDiscover message and responds by
sending a DHCPOffer message include an
IP address that the client can use.
Like the DHCPDiscover message, the
DHCPOffer message is sent to the
broadcast address.
This makes sense because the client to
which the message is being sent doesn’t yet
have an IP address and won’t have one
until it accepts the offer.
17

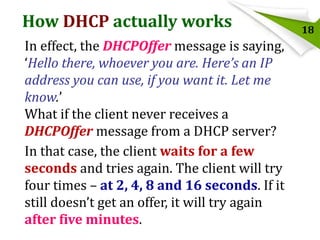

18. How DHCP actually works
In effect, the DHCPOffer message is saying,
‘Hello there, whoever you are. Here’s an IP
address you can use, if you want it. Let me
know.’
What if the client never receives a
DHCPOffer message from a DHCP server?
In that case, the client waits for a few
seconds and tries again. The client will try
four times – at 2, 4, 8 and 16 seconds. If it
still doesn’t get an offer, it will try again
after five minutes.
18

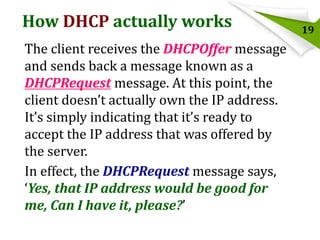

19. How DHCP actually works
The client receives the DHCPOffer message
and sends back a message known as a
DHCPRequest message. At this point, the
client doesn’t actually own the IP address.
It’s simply indicating that it’s ready to
accept the IP address that was offered by
the server.
In effect, the DHCPRequest message says,
‘Yes, that IP address would be good for
me, Can I have it, please?’
19

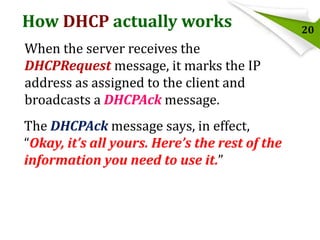

20. How DHCP actually works
When the server receives the
DHCPRequest message, it marks the IP
address as assigned to the client and
broadcasts a DHCPAck message.
The DHCPAck message says, in effect,
“Okay, it’s all yours. Here’s the rest of the
information you need to use it.”
20

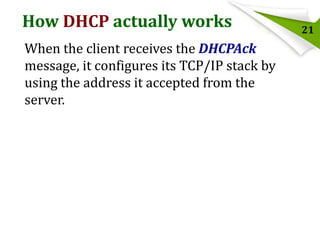

21. How DHCP actually works
When the client receives the DHCPAck
message, it configures its TCP/IP stack by
using the address it accepted from the
server.
21

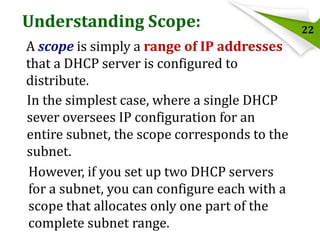

22. Understanding Scope:
A scope is simply a range of IP addresses
that a DHCP server is configured to
distribute.
In the simplest case, where a single DHCP
sever oversees IP configuration for an
entire subnet, the scope corresponds to the
subnet.
However, if you set up two DHCP servers
for a subnet, you can configure each with a
scope that allocates only one part of the
complete subnet range.
22

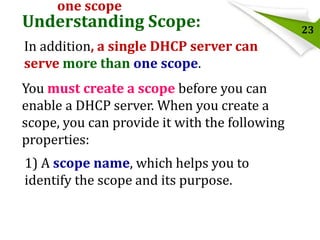

23. one scope
Understanding Scope:
In addition, a single DHCP server can
serve more than one scope.
You must create a scope before you can
enable a DHCP server. When you create a
scope, you can provide it with the following
properties:
1) A scope name, which helps you to
identify the scope and its purpose.
23

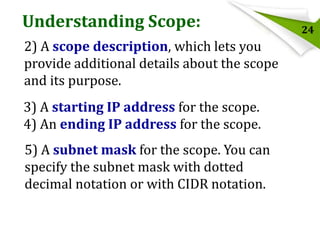

24. Understanding Scope:
2) A scope description, which lets you
provide additional details about the scope
and its purpose.
3) A starting IP address for the scope.
4) An ending IP address for the scope.
5) A subnet mask for the scope. You can
specify the subnet mask with dotted
decimal notation or with CIDR notation.
24

25. Understanding Scope:
6) One or more ranges of excluded
addresses. These addresses won’t be
assigned to clients.
7) One or more reserved addresses.
These are addresses that will always be
assigned to particular host devices.
8) The lease duration, which indicates
how long the host will be allowed to use
the IP address. ...
25

26. Understanding Scope:
8) ... The client will attempt to renew the
lease when half of the lease duration has
elapsed. For example, if you specify a lease
duration of eight days, the client will
attempt to renew the lease after four
days have passed. This allows the host
plenty of time to renew the lease before
the address is reassigned to some other
host.
26

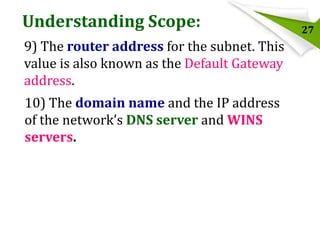

27. Understanding Scope:
9) The router address for the subnet. This
value is also known as the Default Gateway
address.
10) The domain name and the IP address
of the network’s DNS server and WINS
servers.
27

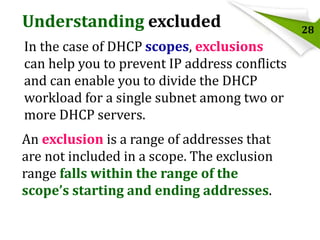

28. Understanding excluded
In the case of DHCP scopes, exclusions
can help you to prevent IP address conflicts
and can enable you to divide the DHCP
workload for a single subnet among two or
more DHCP servers.
An exclusion is a range of addresses that
are not included in a scope. The exclusion
range falls within the range of the
scope’s starting and ending addresses.
28

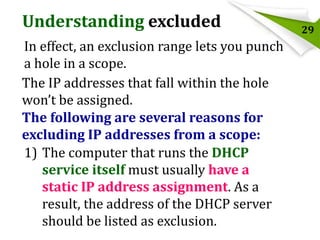

29. Understanding excluded
In effect, an exclusion range lets you punch
a hole in a scope.
The IP addresses that fall within the hole
won’t be assigned.
The following are several reasons for
excluding IP addresses from a scope:
1) The computer that runs the DHCP
service itself must usually have a
static IP address assignment. As a
result, the address of the DHCP server
should be listed as exclusion.
29

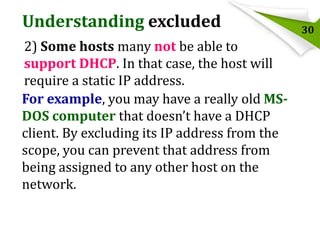

30. Understanding excluded
2) Some hosts many not be able to
support DHCP. In that case, the host will
require a static IP address.
For example, you may have a really old MSDOS computer that doesn’t have a DHCP
client. By excluding its IP address from the
scope, you can prevent that address from
being assigned to any other host on the
network.
30

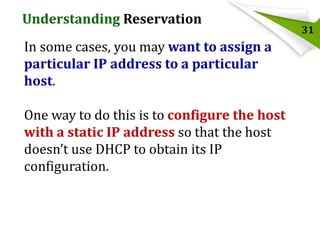

31. Understanding Reservation
In some cases, you may want to assign a
particular IP address to a particular
host.
One way to do this is to configure the host
with a static IP address so that the host
doesn’t use DHCP to obtain its IP
configuration.
31

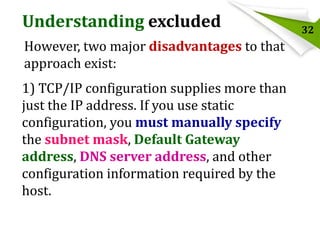

32. Understanding excluded
However, two major disadvantages to that
approach exist:
1) TCP/IP configuration supplies more than
just the IP address. If you use static
configuration, you must manually specify
the subnet mask, Default Gateway
address, DNS server address, and other
configuration information required by the
host.
32

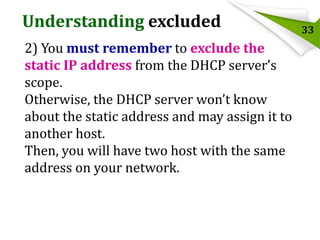

33. Understanding excluded
2) You must remember to exclude the
static IP address from the DHCP server’s
scope.
Otherwise, the DHCP server won’t know
about the static address and may assign it to
another host.
Then, you will have two host with the same
address on your network.
33

34. Understanding excluded
A better way to assign a fixed IP address to
a particular host is to create a DHCP
reservation.
A reservation simply indicates that
whenever a particular host requests an IP
address from the DHCP server, the server
should provide it the address that you
specify in the reservation.
34

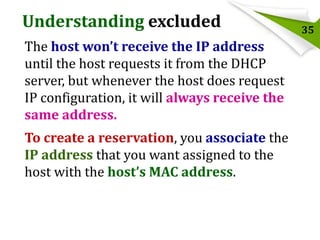

35. Understanding excluded
The host won’t receive the IP address
until the host requests it from the DHCP
server, but whenever the host does request
IP configuration, it will always receive the
same address.
To create a reservation, you associate the
IP address that you want assigned to the
host with the host’s MAC address.
35

36. Understanding excluded
As a result, you need to get the MAC
address from the host before you create
the reservation.
You can get the MAC address by running the
command
ipconfig /all
From command prompt.
36

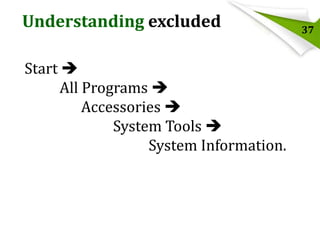

37. Understanding excluded
Start 
All Programs 
Accessories 
System Tools 
System Information.
37

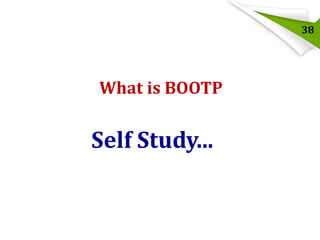

38. 38
What is BOOTP
Self Study...

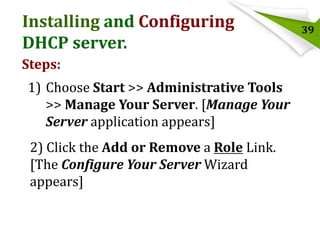

39. Installing and Configuring
DHCP server.
Steps:
1) Choose Start >> Administrative Tools
>> Manage Your Server. [Manage Your
Server application appears]
2) Click the Add or Remove a Role Link.
[The Configure Your Server Wizard
appears]
39

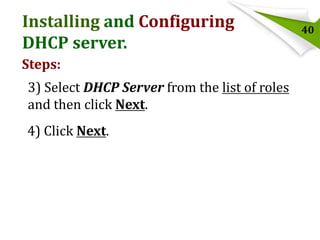

40. Installing and Configuring
DHCP server.
Steps:
3) Select DHCP Server from the list of roles
and then click Next.
4) Click Next.
40

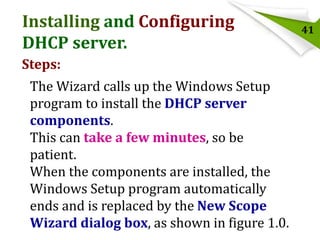

41. Installing and Configuring
DHCP server.
Steps:
The Wizard calls up the Windows Setup
program to install the DHCP server
components.
This can take a few minutes, so be
patient.
When the components are installed, the
Windows Setup program automatically
ends and is replaced by the New Scope
Wizard dialog box, as shown in figure 1.0.
41

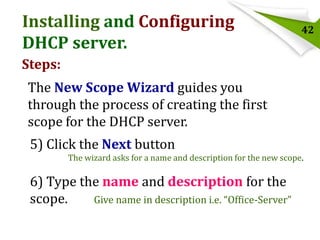

42. Installing and Configuring
DHCP server.
42
Steps:
The New Scope Wizard guides you
through the process of creating the first
scope for the DHCP server.
5) Click the Next button
The wizard asks for a name and description for the new scope.
6) Type the name and description for the
scope.
Give name in description i.e. “Office-Server”

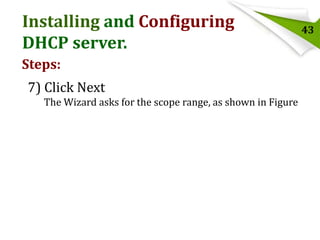

43. Installing and Configuring
DHCP server.
Steps:
7) Click Next
The Wizard asks for the scope range, as shown in Figure
43

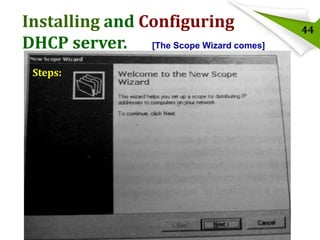

44. Installing and Configuring
DHCP server. [The Scope Wizard comes]
Steps:
44

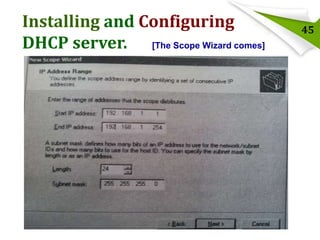

45. Installing and Configuring
DHCP server. [The Scope Wizard comes]
Steps:
45

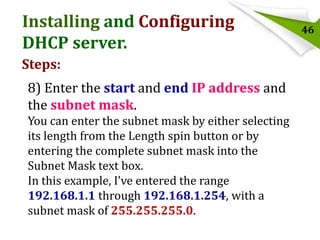

46. Installing and Configuring
DHCP server.
Steps:
8) Enter the start and end IP address and
the subnet mask.
You can enter the subnet mask by either selecting
its length from the Length spin button or by
entering the complete subnet mask into the
Subnet Mask text box.
In this example, I’ve entered the range
192.168.1.1 through 192.168.1.254, with a
subnet mask of 255.255.255.0.
46

47. Installing and Configuring
DHCP server.
Steps:
9) Click Next
The next screen of the wizard lets you
create exclusions, as shown in Figure
47

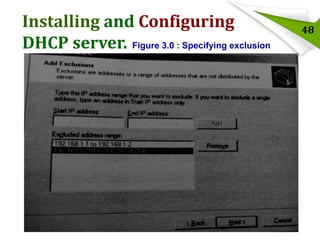

48. Installing and Configuring
DHCP server. Figure 3.0 : Specifying exclusion
48

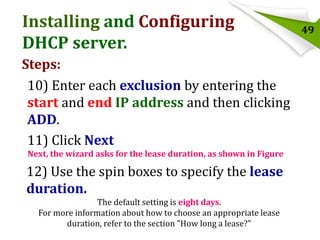

49. Installing and Configuring
DHCP server.
Steps:
10) Enter each exclusion by entering the
start and end IP address and then clicking
ADD.
11) Click Next
Next, the wizard asks for the lease duration, as shown in Figure
12) Use the spin boxes to specify the lease
duration.
The default setting is eight days.
For more information about how to choose an appropriate lease
duration, refer to the section "How long a lease?"
49

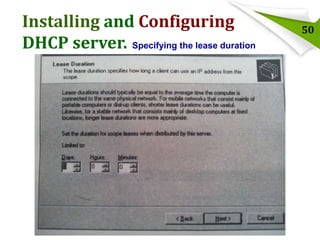

50. Installing and Configuring
DHCP server. Specifying the lease duration
50

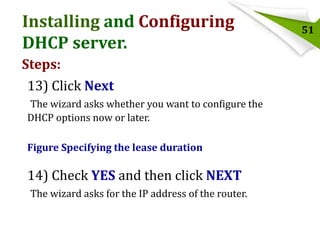

51. Installing and Configuring
DHCP server.
Steps:
13) Click Next
The wizard asks whether you want to configure the
DHCP options now or later.
Figure Specifying the lease duration
14) Check YES and then click NEXT
The wizard asks for the IP address of the router.
51

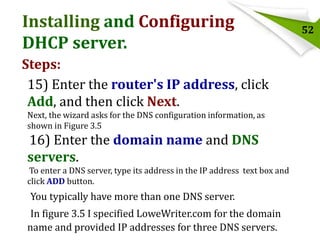

52. Installing and Configuring
DHCP server.
Steps:
15) Enter the router's IP address, click
Add, and then click Next.
Next, the wizard asks for the DNS configuration information, as
shown in Figure 3.5
16) Enter the domain name and DNS
servers.
To enter a DNS server, type its address in the IP address text box and
click ADD button.
You typically have more than one DNS server.
In figure 3.5 I specified LoweWriter.com for the domain
name and provided IP addresses for three DNS servers.
52

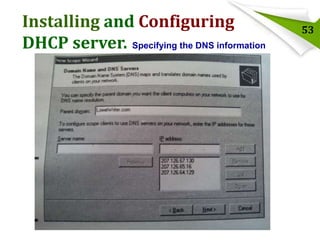

53. Installing and Configuring
DHCP server. Specifying the DNS information
53

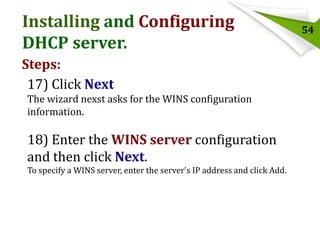

54. Installing and Configuring
DHCP server.
Steps:
17) Click Next
The wizard nexst asks for the WINS configuration
information.
18) Enter the WINS server configuration
and then click Next.
To specify a WINS server, enter the server's IP address and click Add.
54

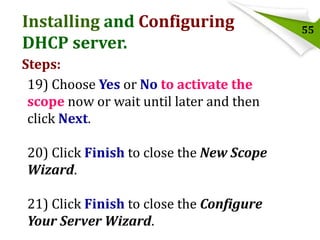

55. Installing and Configuring
DHCP server.
Steps:
19) Choose Yes or No to activate the
scope now or wait until later and then
click Next.
20) Click Finish to close the New Scope
Wizard.
21) Click Finish to close the Configure
Your Server Wizard.
55

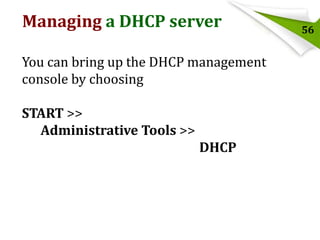

56. Managing a DHCP server
You can bring up the DHCP management
console by choosing
START >>
Administrative Tools >>
DHCP
56

57. Managing a DHCP server
-- OR -by clicking
Manage This DHCP Server
from the
Manage Your Server application.
57

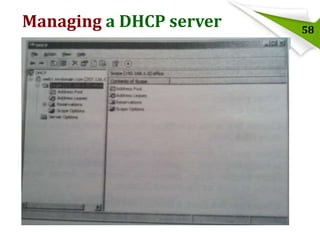

58. Managing a DHCP server
58

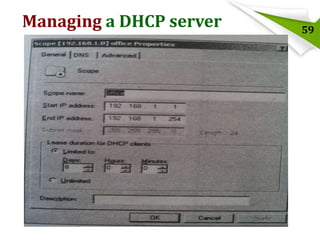

59. Managing a DHCP server
59

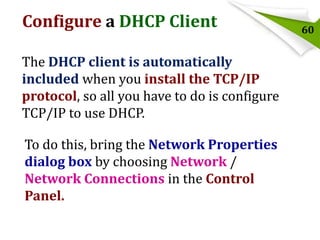

60. Configure a DHCP Client
The DHCP client is automatically
included when you install the TCP/IP
protocol, so all you have to do is configure
TCP/IP to use DHCP.
To do this, bring the Network Properties
dialog box by choosing Network /
Network Connections in the Control
Panel.
60

61. Configure a DHCP Client
Then, select the TCP/IP protocol and
click the Properties button.
This brings up the TCP/IP properties
dialog box, as shown in figure 3.8.
To configure the computer to use DHCP,
check
Obtain An IP Address Automatically and
Obtain DNS Server Address
Automatically
61

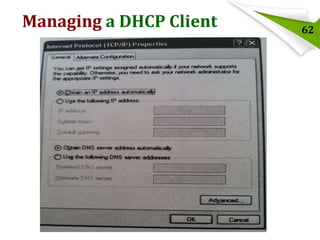

62. Managing a DHCP Client
62

63. 63
That’s All for DHCP
63
