The document discusses how to install SSH in an Ubuntu server. SSH (Secure Shell) provides encrypted data transfer between a client and server. There are three initial packages needed for SSH in Ubuntu: openssh-server contains the SSH server, openssh-client contains SSH clients, and a metapackage for both. The document then outlines the steps to install SSH using apt, including verifying the installation, checking that the SSH daemon is running, and testing SSH access from a client.

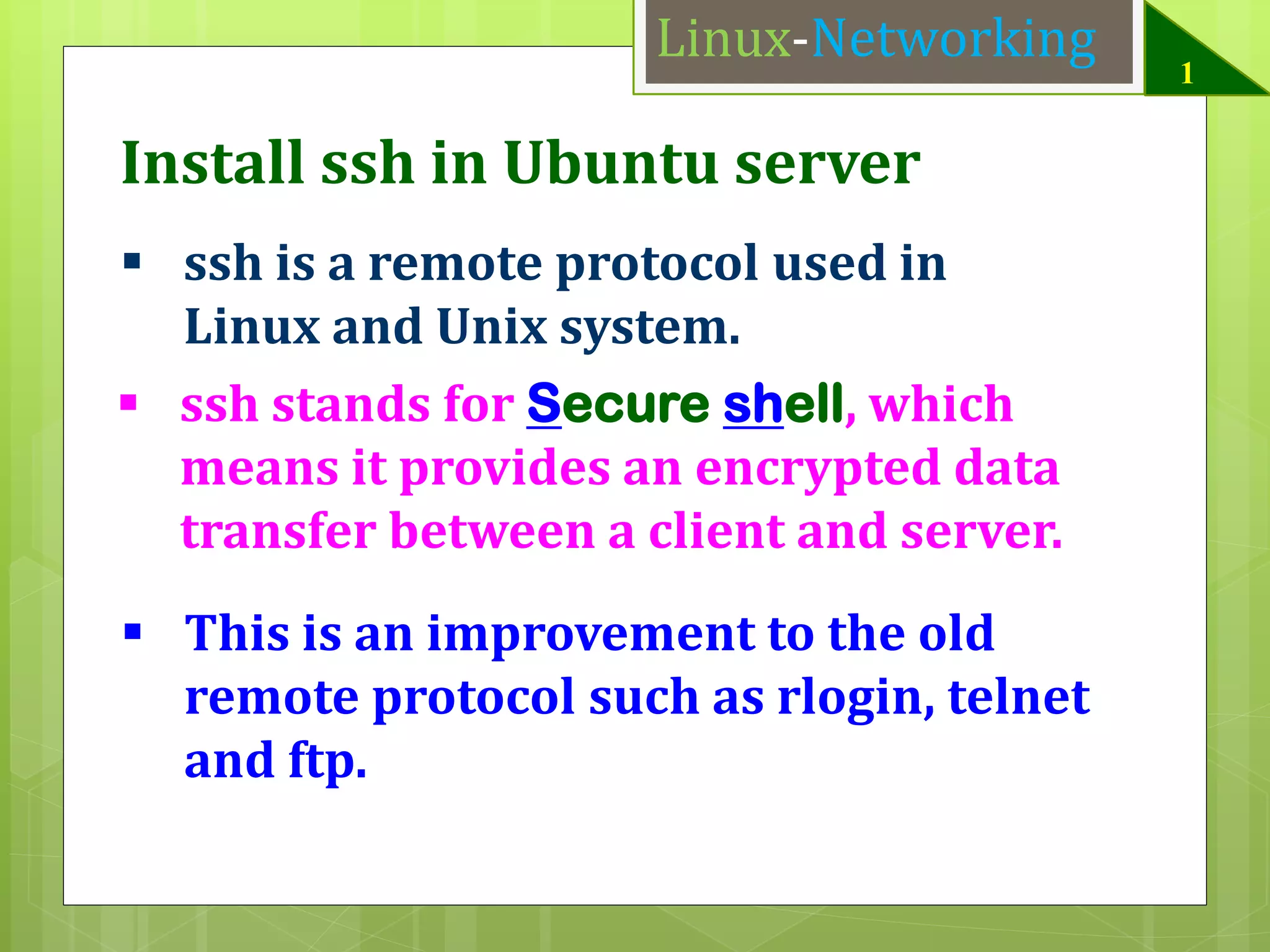

1. Linux-Networking
Install ssh in Ubuntu server
 ssh is a remote protocol used in
Linux and Unix system.
 ssh stands for Secure shell, which
means it provides an encrypted data
transfer between a client and server.
 This is an improvement to the old
remote protocol such as rlogin, telnet
and ftp.
1

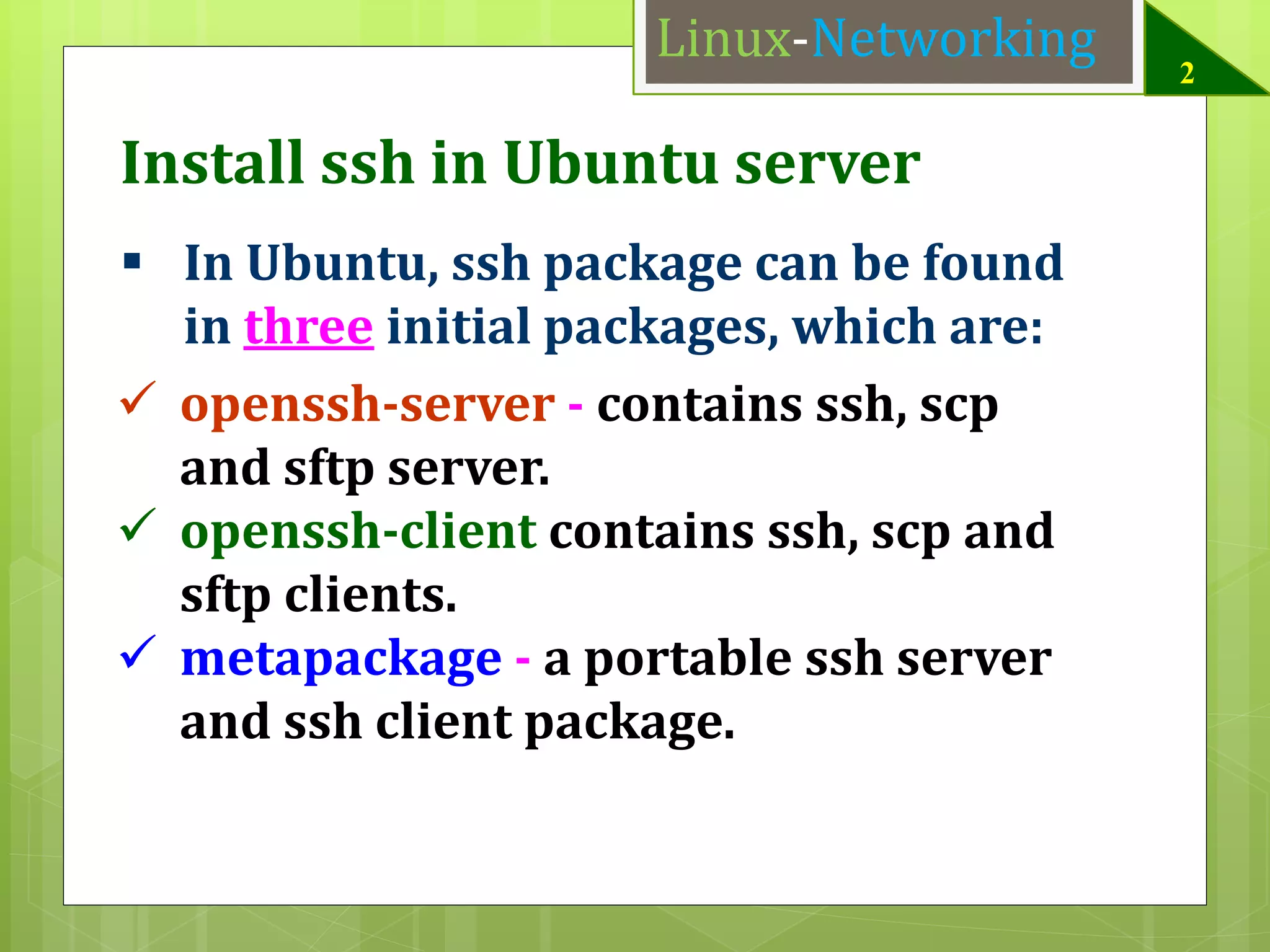

2. Linux-Networking
Install ssh in Ubuntu server
 In Ubuntu, ssh package can be found
in three initial packages, which are:
 openssh-server - contains ssh, scp
and sftp server.
 openssh-client contains ssh, scp and
sftp clients.
 metapackage - a portable ssh server
and ssh client package.
2

3. Linux-Networking
Install ssh in Ubuntu server
 how to install ssh package in Ubuntu
server 8.10 for beginner.
1. First, you have to check whether ssh
package has been installed in your
Ubuntu server system.

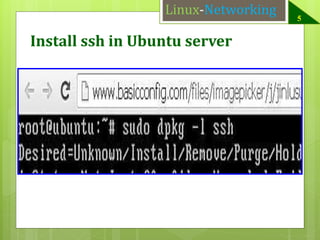

2. We can use dpkg command to list
installation package like the
screenshot below:
3

4. Linux-Networking
Install ssh in Ubuntu server
4

5. Linux-Networking
Install ssh in Ubuntu server
5

6. Linux-Networking
Install ssh in Ubuntu server
 We are going to install ssh package in
Ubuntu server through the Internet
using apt package management
system.
1. you need to check whether apt
package has been install in your
ubuntu server or not:
6

7. Linux-Networking
Install ssh in Ubuntu server
7

8. Linux-Networking
Install ssh in Ubuntu server
8

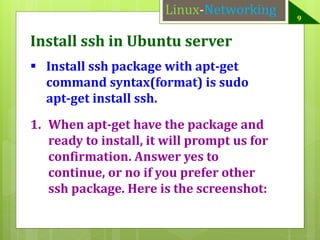

9. Linux-Networking
Install ssh in Ubuntu server
 Install ssh package with apt-get
command syntax(format) is sudo
apt-get install ssh.
1. When apt-get have the package and
ready to install, it will prompt us for
confirmation. Answer yes to
continue, or no if you prefer other
ssh package. Here is the screenshot:
9

10. Linux-Networking
Install ssh in Ubuntu server
10

11. Linux-Networking
Install ssh in Ubuntu server
11

12. Linux-Networking
Install ssh in Ubuntu server
 The ssh package installation is in
progress:
12

13. Linux-Networking
Install ssh in Ubuntu server

The ssh package installation is in progress:
13

14. Linux-Networking
Install ssh in Ubuntu server

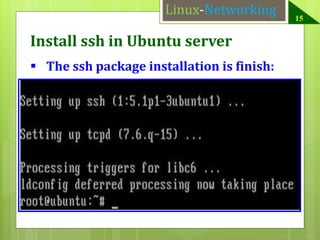

 The ssh package installation is finish:
14

15. Linux-Networking
Install ssh in Ubuntu server
 The ssh package installation is finish:
15

16. Linux-Networking
Install ssh in Ubuntu server
 We can check ssh package installation
once again with dpkg command to
verify:
16

17. Linux-Networking
Install ssh in Ubuntu server
17

18. Linux-Networking
Install ssh in Ubuntu server

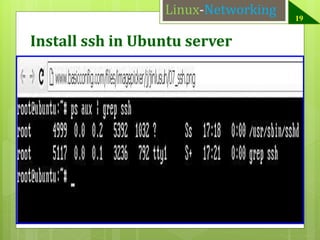

 Check whether ssh daemon (service) is
running with ps command like the
screenshot example below. If there is no
ssh daemon running, you can start ssh
with sudo /etc/init.d/ssh start
command
18

19. Linux-Networking
Install ssh in Ubuntu server
19

20. Linux-Networking
Install ssh in Ubuntu server
 When ssh daemon is running, you can
try ssh to your Ubuntu server from
client. Below are screenshot examples
of accessing ssh server.
20

21. Linux-Networking
Install ssh in Ubuntu server
 Accessing Ubuntu server using ssh from
Slackware Linux command line
terminal:
luzar@slackware:~$ ssh -l 192.168.0.47
usage: ssh [-1246AaCfgKkMNnqsTtVvXxY] [-b bind_address] [-c
cipher_spec]
[-D [bind_address:]port] [-e escape_char] [-F configfile]
[-i identity_file] [-L [bind_address:]port:host:hostport]
[-l login_name] [-m mac_spec] [-O ctl_cmd] [-o option] [-p port]
[-R [bind_address:]port:host:hostport] [-S ctl_path]
[-w local_tun[:remote_tun]] [user@]hostname [command]
luzar@slackware:~$ ssh -l luzar 192.168.0.47
luzar@192.168.0.47's password:
Linux ubuntu 2.6.27-14-server #1 SMP Wed Apr 15 19:44:38 UTC 2009
i686
21

22. Linux-Networking
Install ssh in Ubuntu server
The programs included with the Ubuntu system are free
software;
the exact distribution terms for each program are described
in the
individual files in /usr/share/doc/*/copyright.
Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by
applicable law.
To access official Ubuntu documentation, please visit:
http://help.ubuntu.com/
Last login: Wed Jun 24 04:49:59 2009 from 192.168.0.133
luzar@ubuntu:~$
22

23. Linux-Networking
Install ssh in Ubuntu server
 The first ssh command in the example
above shows ssh usage help message.
 This happens if we enter the wrong ssh
syntax. When we get the command right
such as in the second ssh command
example, we'll be prompted for the user
account password.
 Enter correct user account password and
we'll gain access into the Ubuntu server.
23

24. Linux-Networking
Install ssh in Ubuntu server
 We can also access Ubuntu server from
Windows operating system using ssh by
the help of a program called Putty.
 You'll find this kind of warning when you
first connecting into ssh server.
24

25. Linux-Networking
Install ssh in Ubuntu server
 This is an example screenshot of
successful login into your ssh server:
25

26. Linux-Networking
Install ssh in Ubuntu server
26

27. Linux-Networking
27

28. Linux-Networking
Install ssh in Ubuntu server
 That's all.
 Remember that ssh is a better choice if
you are going to connect remotely to
your server.
28
