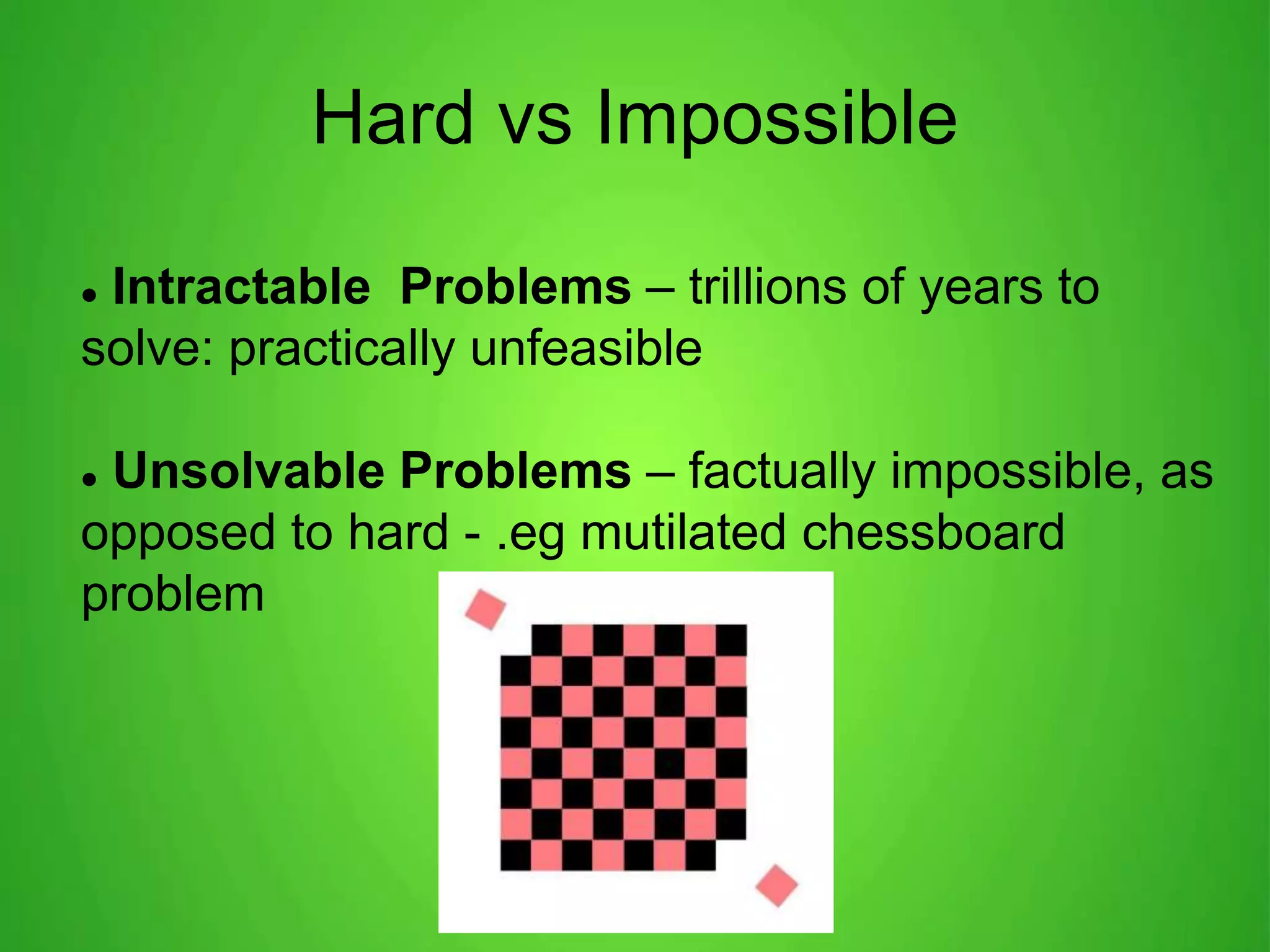

2. Hard vs Impossible
Intractable Problems – trillions of years to
solve: practically unfeasible
Unsolvable Problems – factually impossible, as
opposed to hard - .eg mutilated chessboard
problem
3. Hard vs Impossible
Intractable Problems – trillions of years to
solve: practically unfeasible
Unsolvable Problems – factually impossible, as
opposed to hard - .eg mutilated chessboard
problem

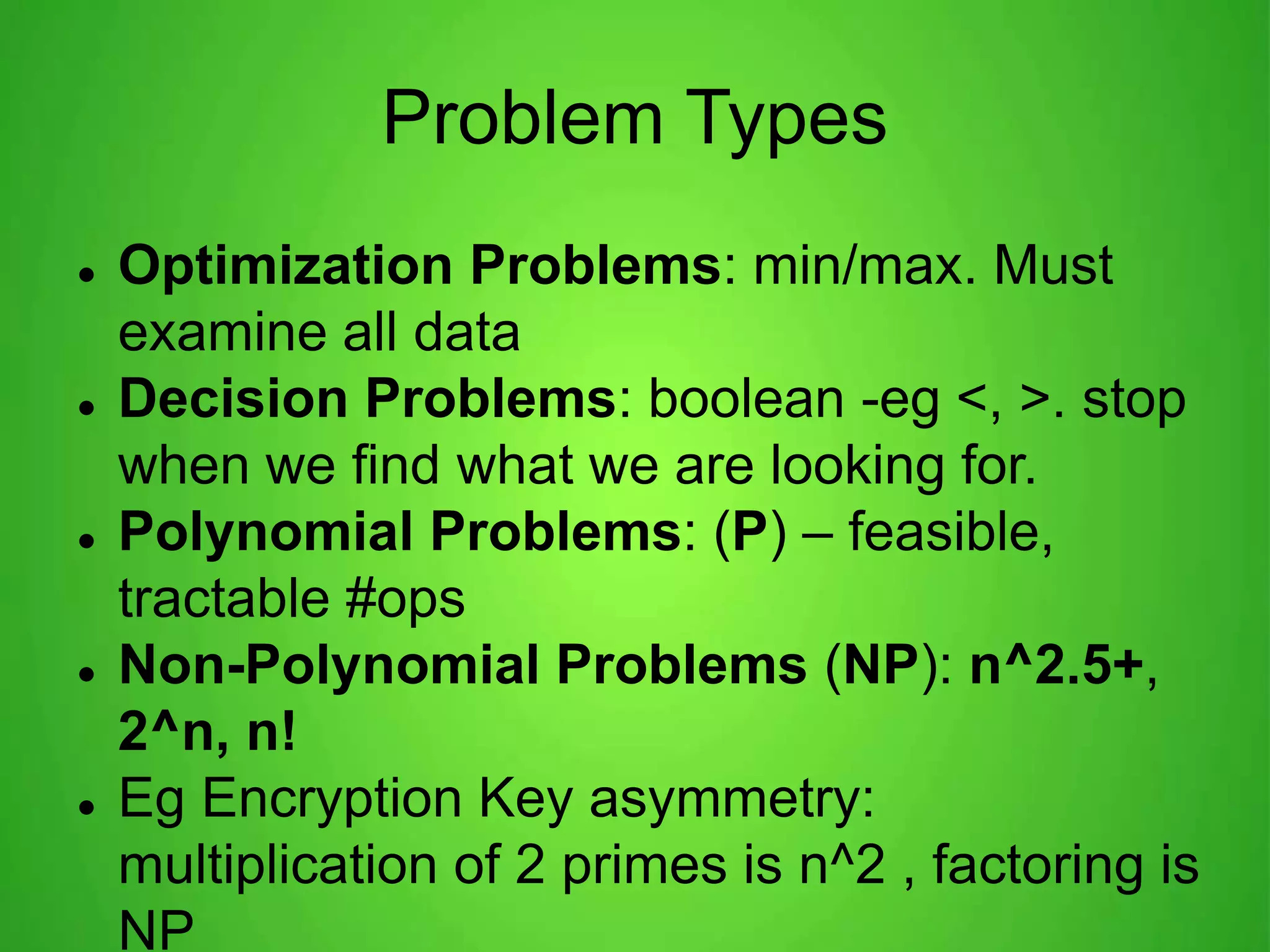

5. Problem Types
Optimization Problems: min/max. Must
examine all data
Decision Problems: boolean -eg <, >. stop
when we find what we are looking for.
Polynomial Problems: (P) – feasible,
tractable #ops
Non-Polynomial Problems (NP): n^2.5+,
2^n, n!
Eg Encryption Key asymmetry:
multiplication of 2 primes is n^2 , factoring is
NP

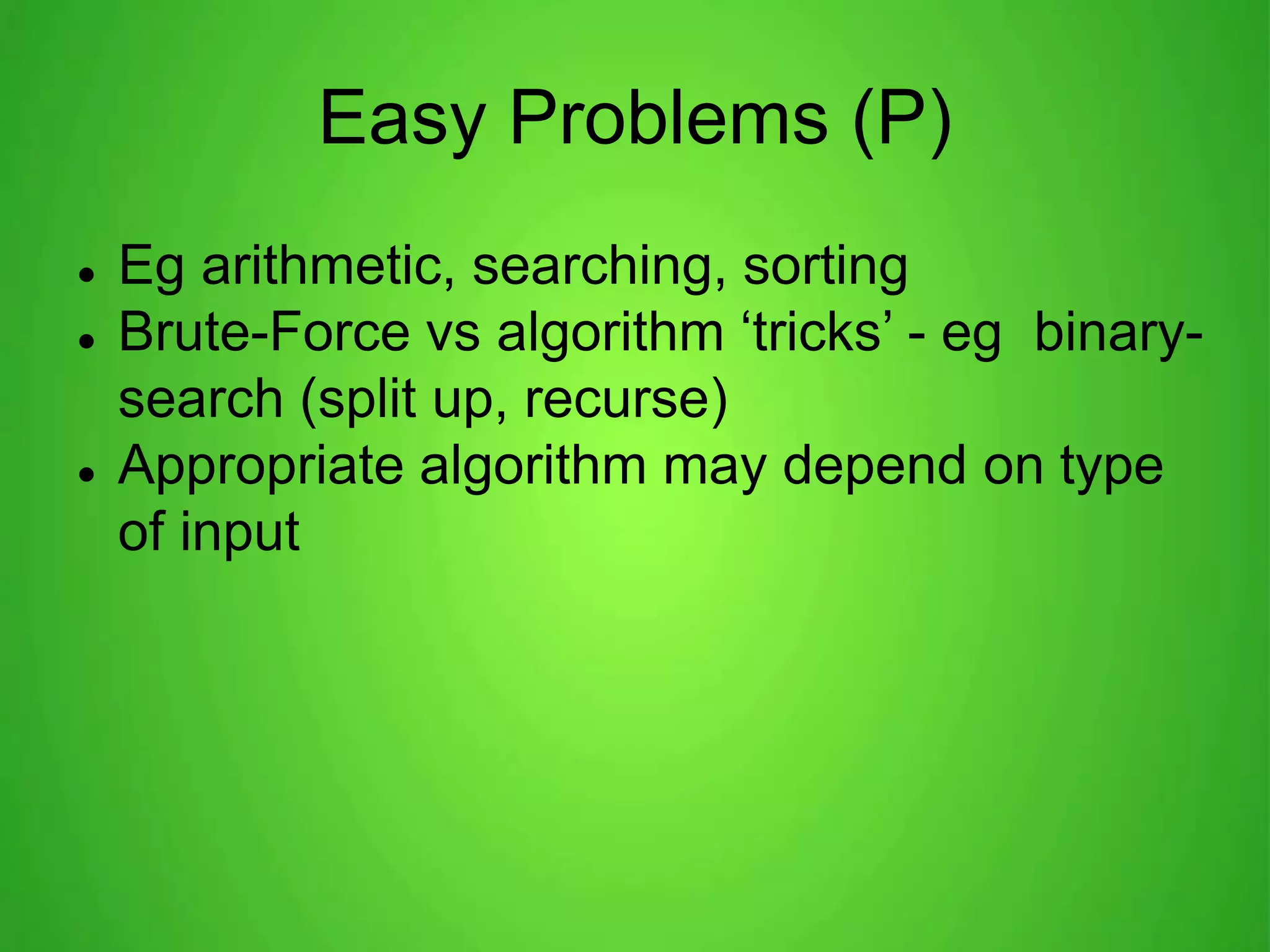

6. Easy Problems (P)
Eg arithmetic, searching, sorting
Brute-Force vs algorithm ‘tricks’ - eg binary-
search (split up, recurse)
Appropriate algorithm may depend on type
of input
7. Graph Theory
Eg 6 degrees of
separation
Max #edges that one
must traverse to
connect any 2
vertices
7 bridges of
Konigsberg
8. Easy Graph problems
Euler Cycle problem
Q: is there a path that starts & finishes at
same vertex that passes every edge exactly
once ?
A: if every vertex has an even number of
edges.

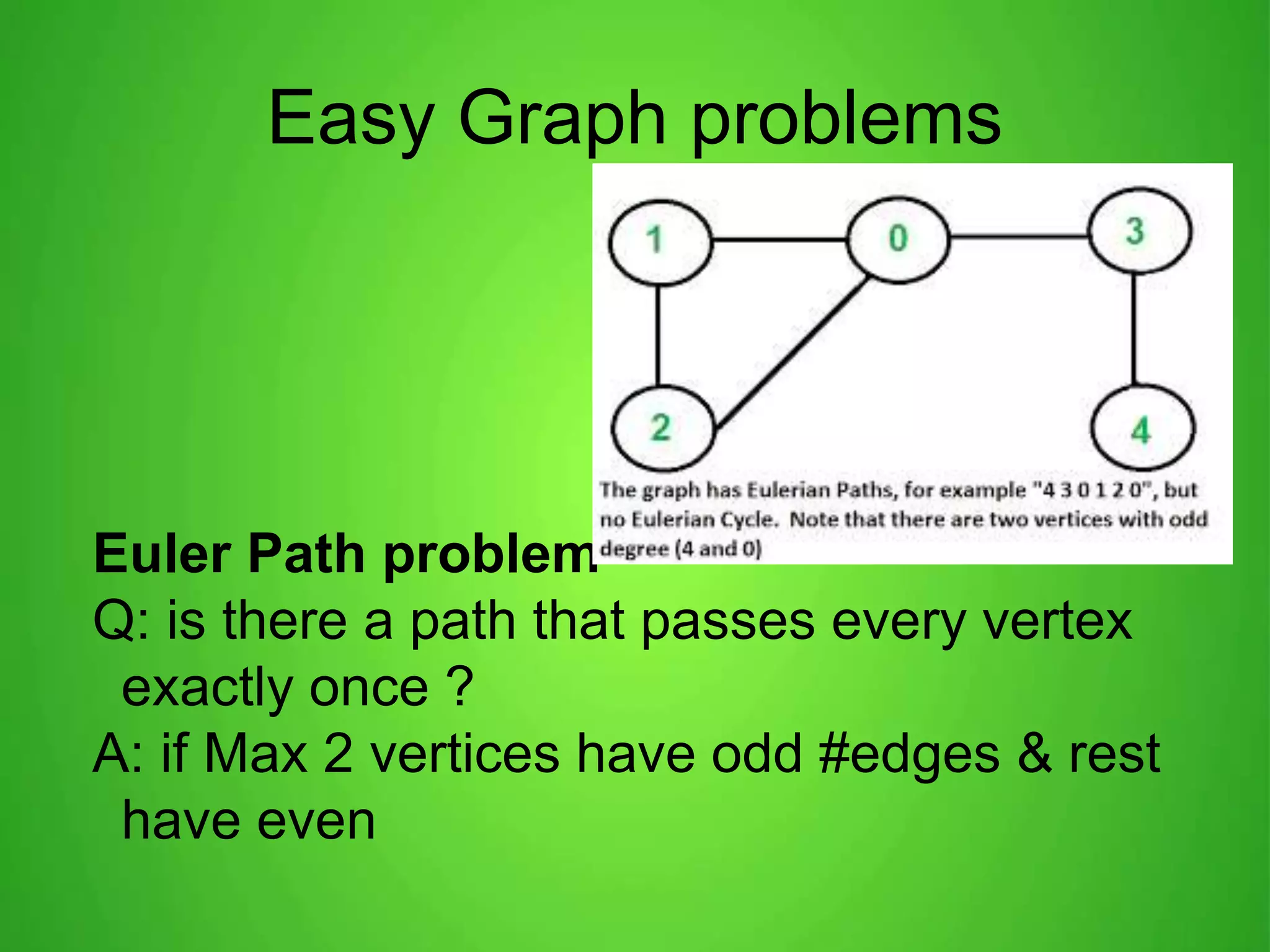

9. Easy Graph problems
Euler Path problem
Q: is there a path that passes every vertex
exactly once ?
A: if Max 2 vertices have odd #edges & rest
have even

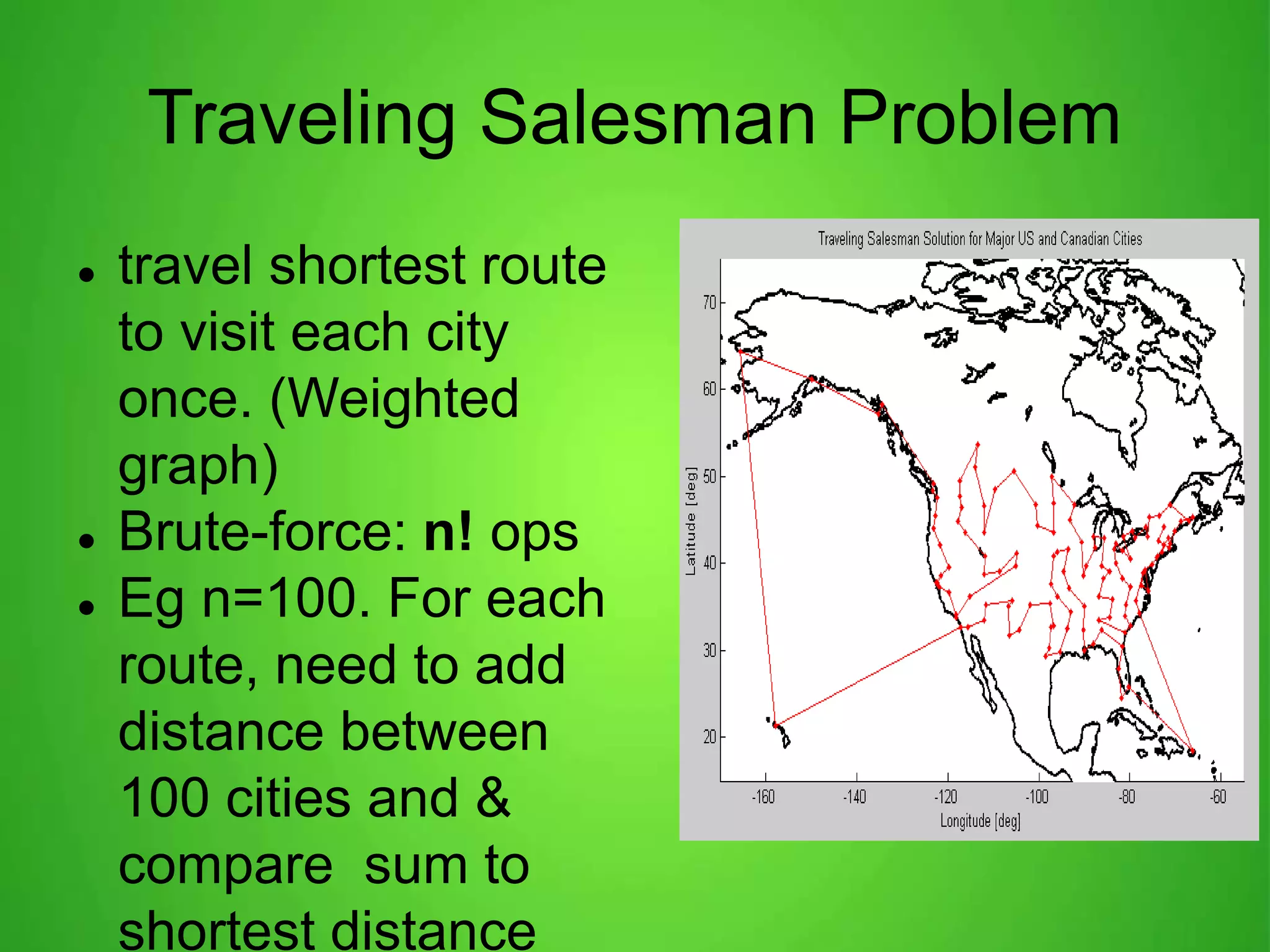

11. Traveling Salesman Problem
travel shortest route
to visit each city
once. (Weighted
graph)
Brute-force: n! ops
Eg n=100. For each
route, need to add
distance between
100 cities and &
compare sum to
shortest distance

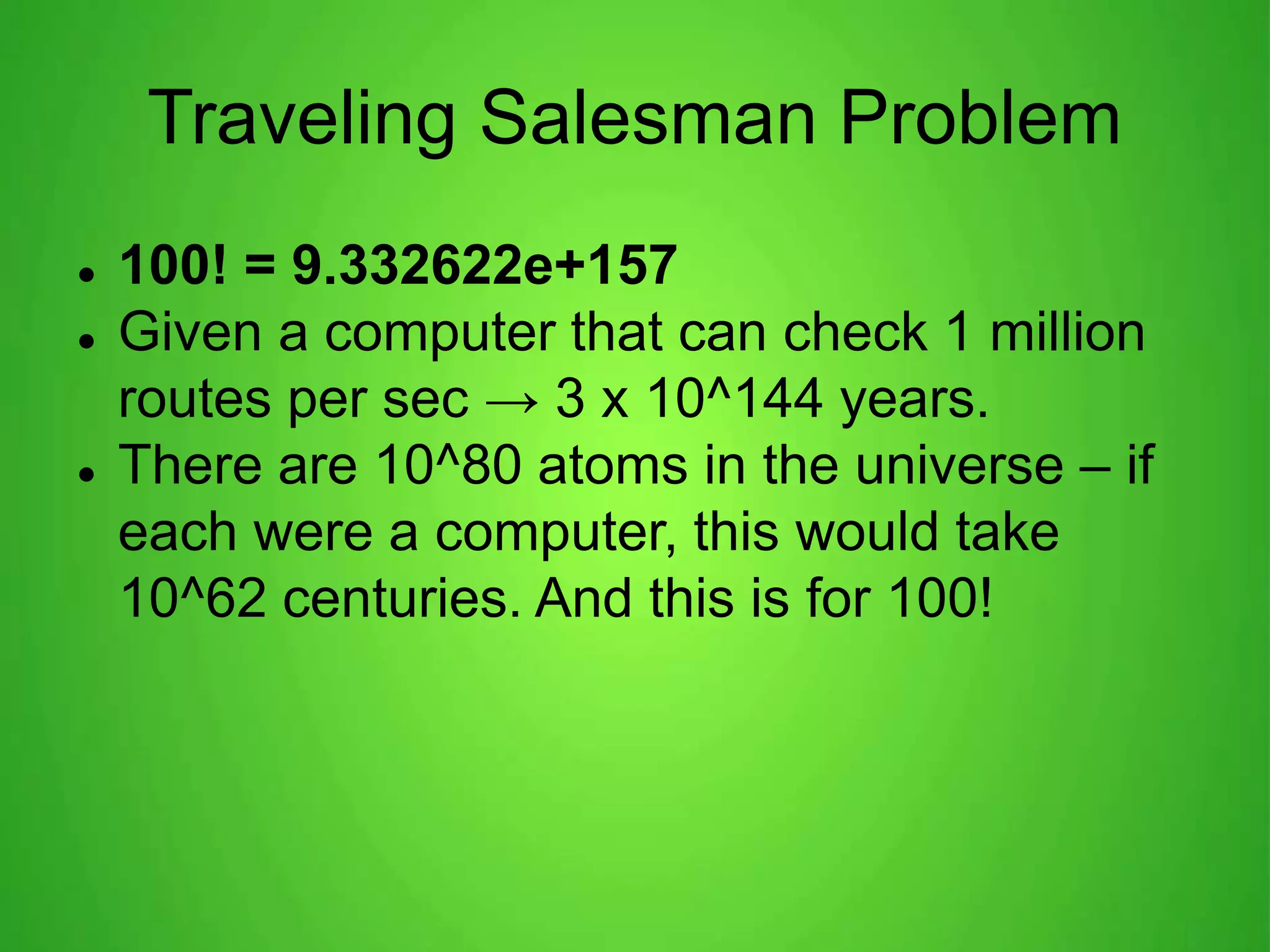

12. Traveling Salesman Problem
100! = 9.332622e+157
Given a computer that can check 1 million
routes per sec → 3 x 10^144 years.
There are 10^80 atoms in the universe – if
each were a computer, this would take
10^62 centuries. And this is for 100!

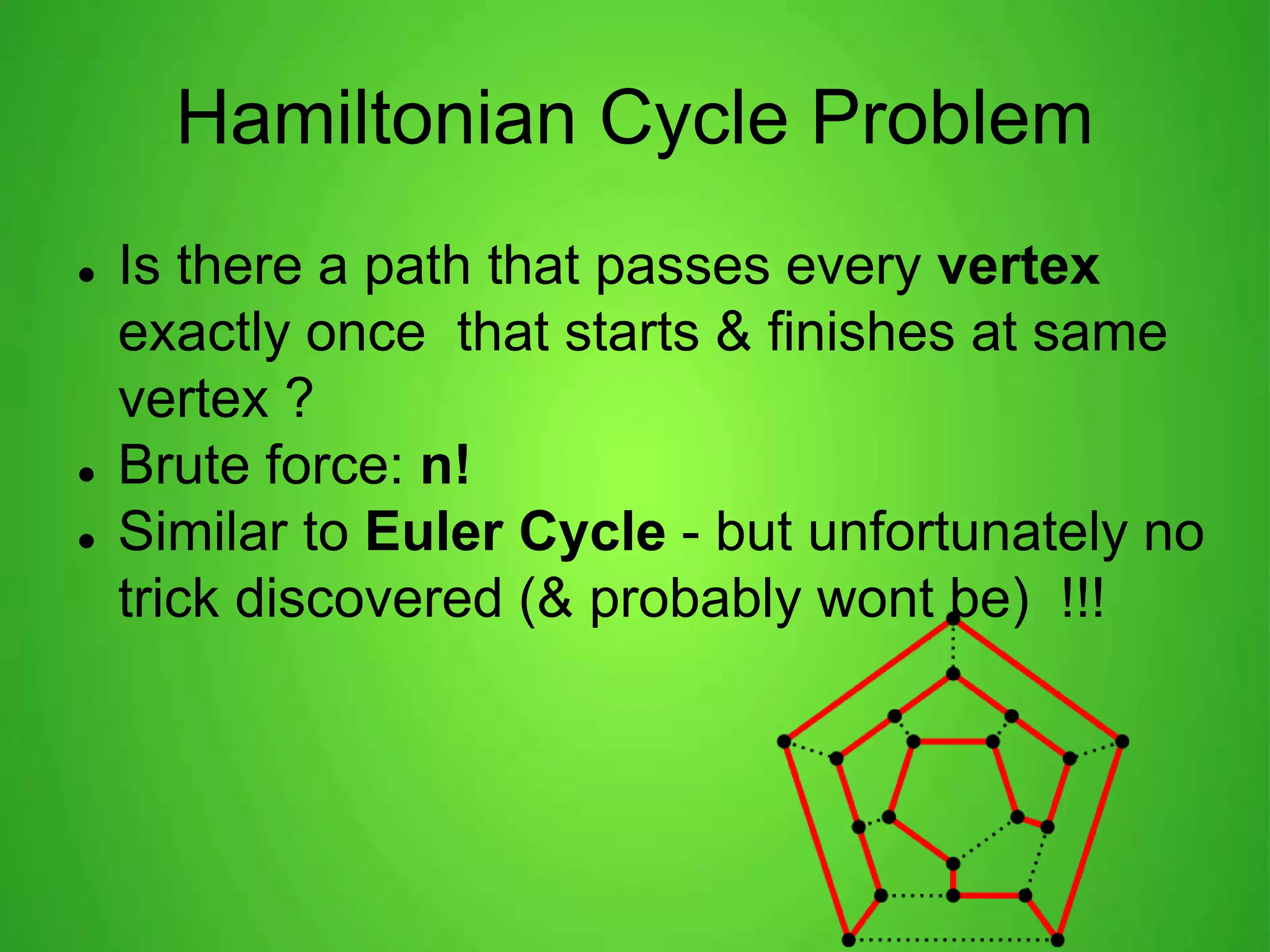

13. Hamiltonian Cycle Problem
Is there a path that passes every vertex
exactly once that starts & finishes at same
vertex ?
Brute force: n!
Similar to Euler Cycle - but unfortunately no
trick discovered (& probably wont be) !!!

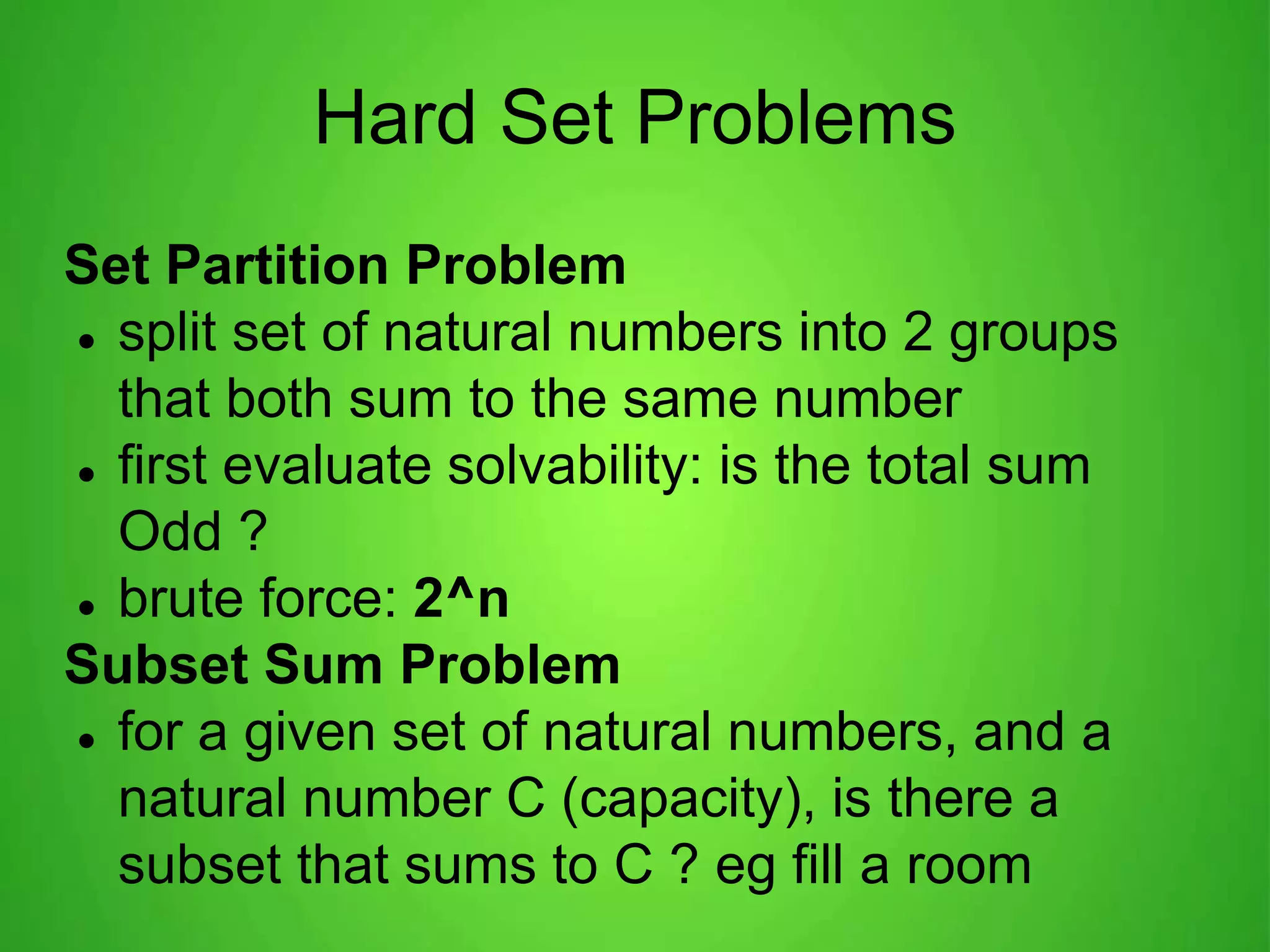

14. Hard Set Problems
Set Partition Problem
split set of natural numbers into 2 groups
that both sum to the same number
first evaluate solvability: is the total sum
Odd ?
brute force: 2^n
Subset Sum Problem
for a given set of natural numbers, and a
natural number C (capacity), is there a
subset that sums to C ? eg fill a room

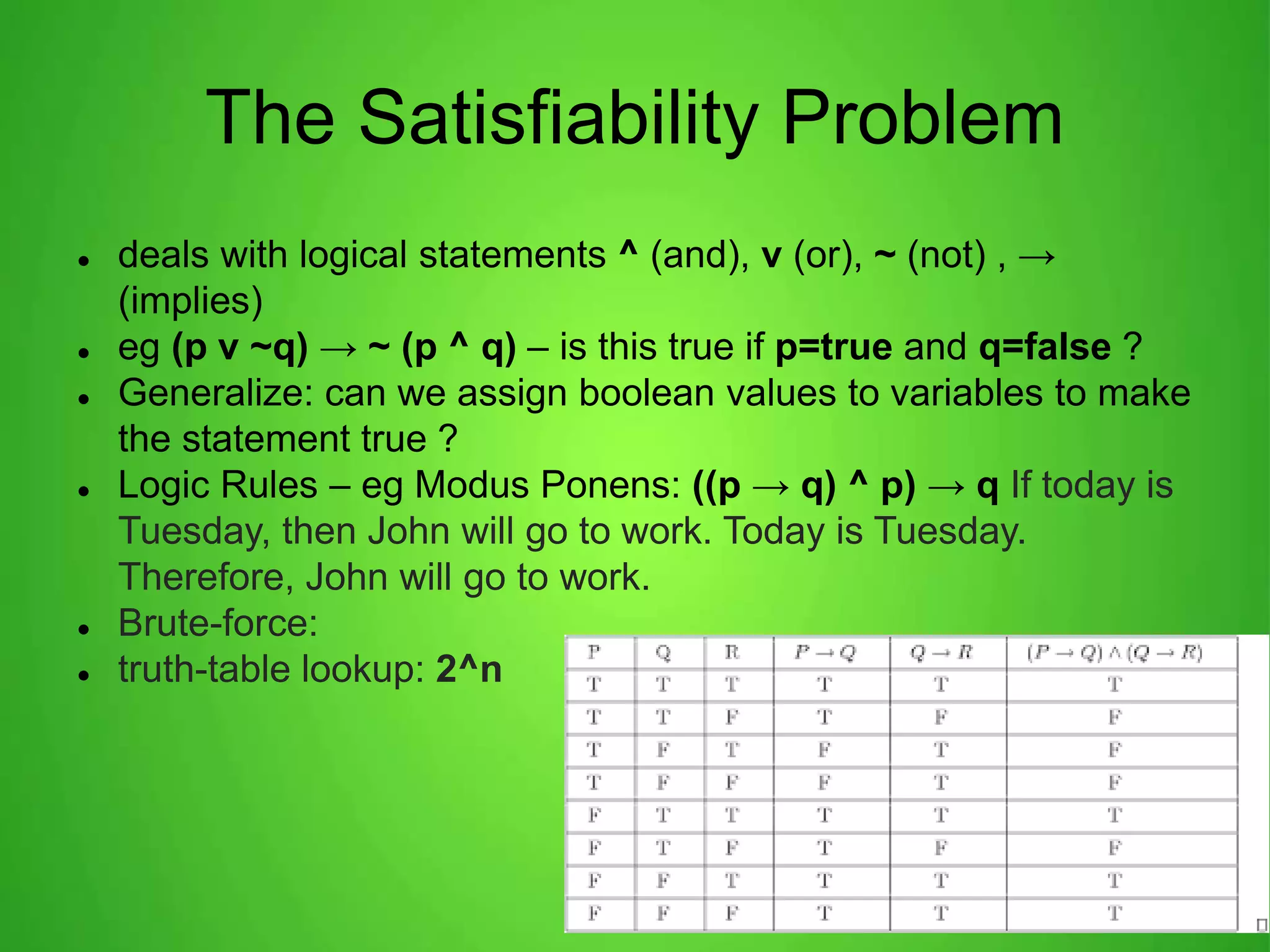

15. The Satisfiability Problem
deals with logical statements ^ (and), v (or), ~ (not) , →
(implies)
eg (p v ~q) → ~ (p ^ q) – is this true if p=true and q=false ?
Generalize: can we assign boolean values to variables to make
the statement true ?
Logic Rules – eg Modus Ponens: ((p → q) ^ p) → q If today is
Tuesday, then John will go to work. Today is Tuesday.
Therefore, John will go to work.
Brute-force:
truth-table lookup: 2^n

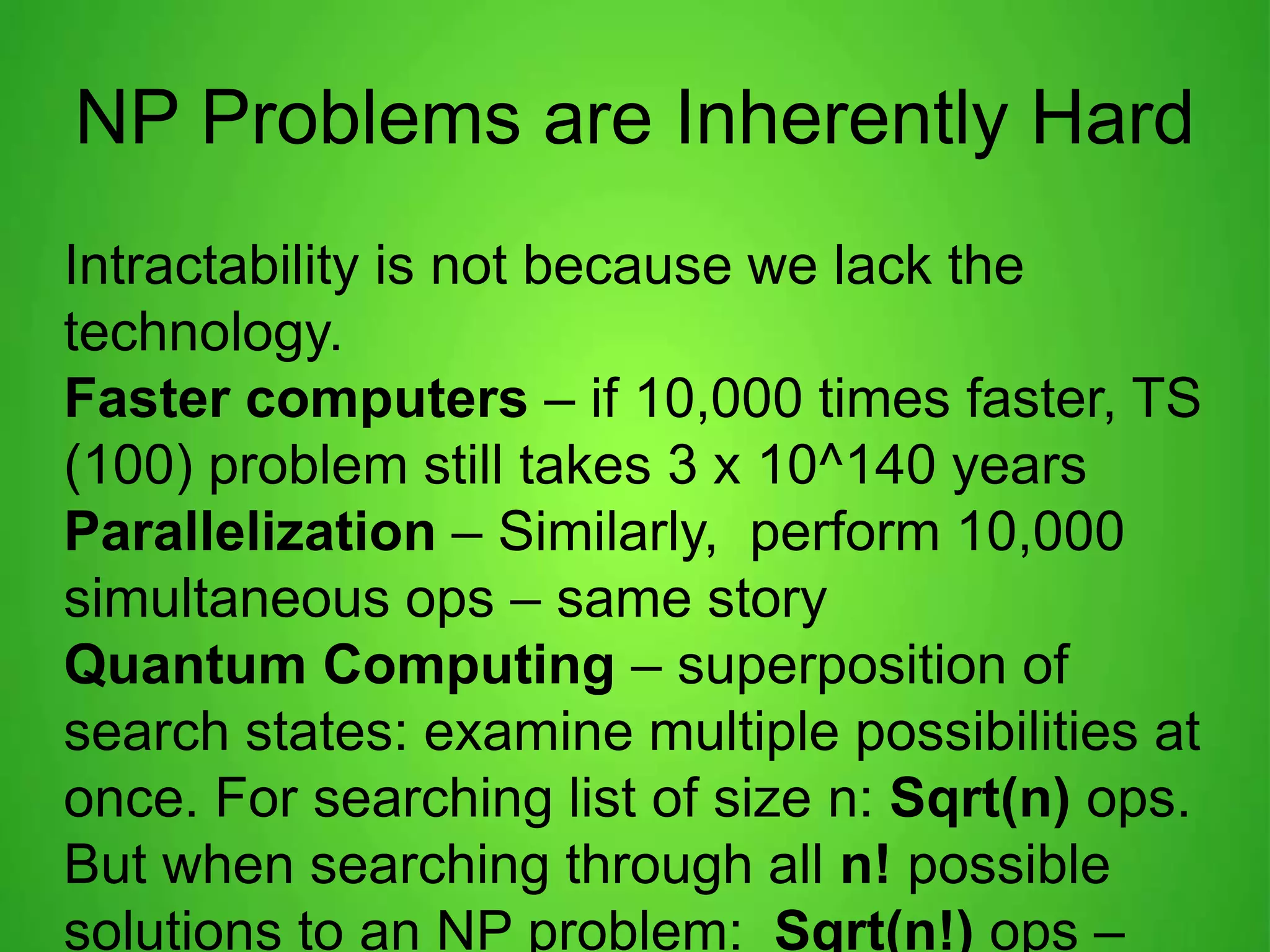

16. NP Problems are Inherently Hard
Intractability is not because we lack the
technology.
Faster computers – if 10,000 times faster, TS
(100) problem still takes 3 x 10^140 years
Parallelization – Similarly, perform 10,000
simultaneous ops – same story
Quantum Computing – superposition of
search states: examine multiple possibilities at
once. For searching list of size n: Sqrt(n) ops.
But when searching through all n! possible
solutions to an NP problem: Sqrt(n!) ops –

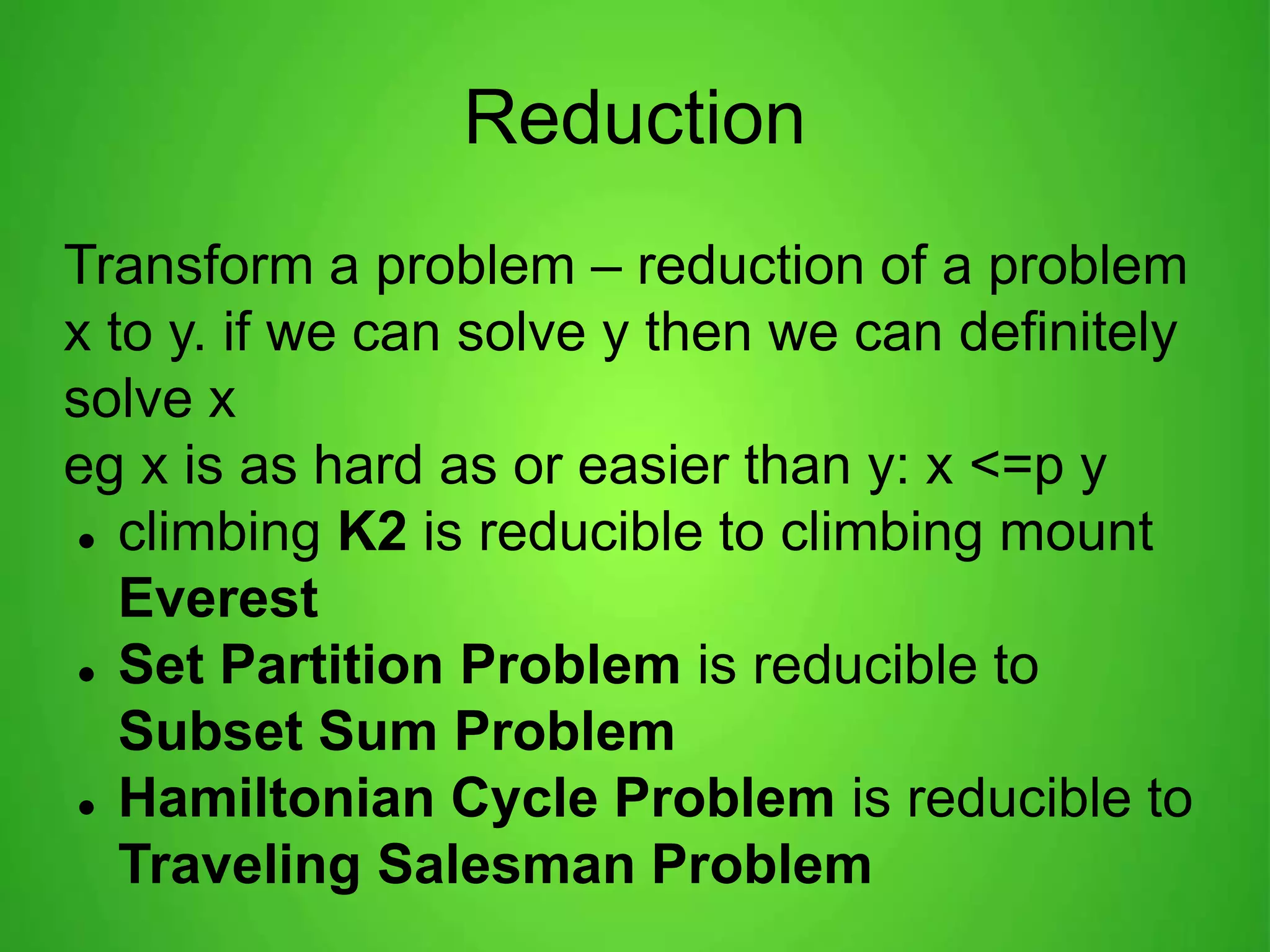

17. Reduction
Transform a problem – reduction of a problem
x to y. if we can solve y then we can definitely
solve x
eg x is as hard as or easier than y: x <=p y
climbing K2 is reducible to climbing mount
Everest
Set Partition Problem is reducible to
Subset Sum Problem
Hamiltonian Cycle Problem is reducible to
Traveling Salesman Problem

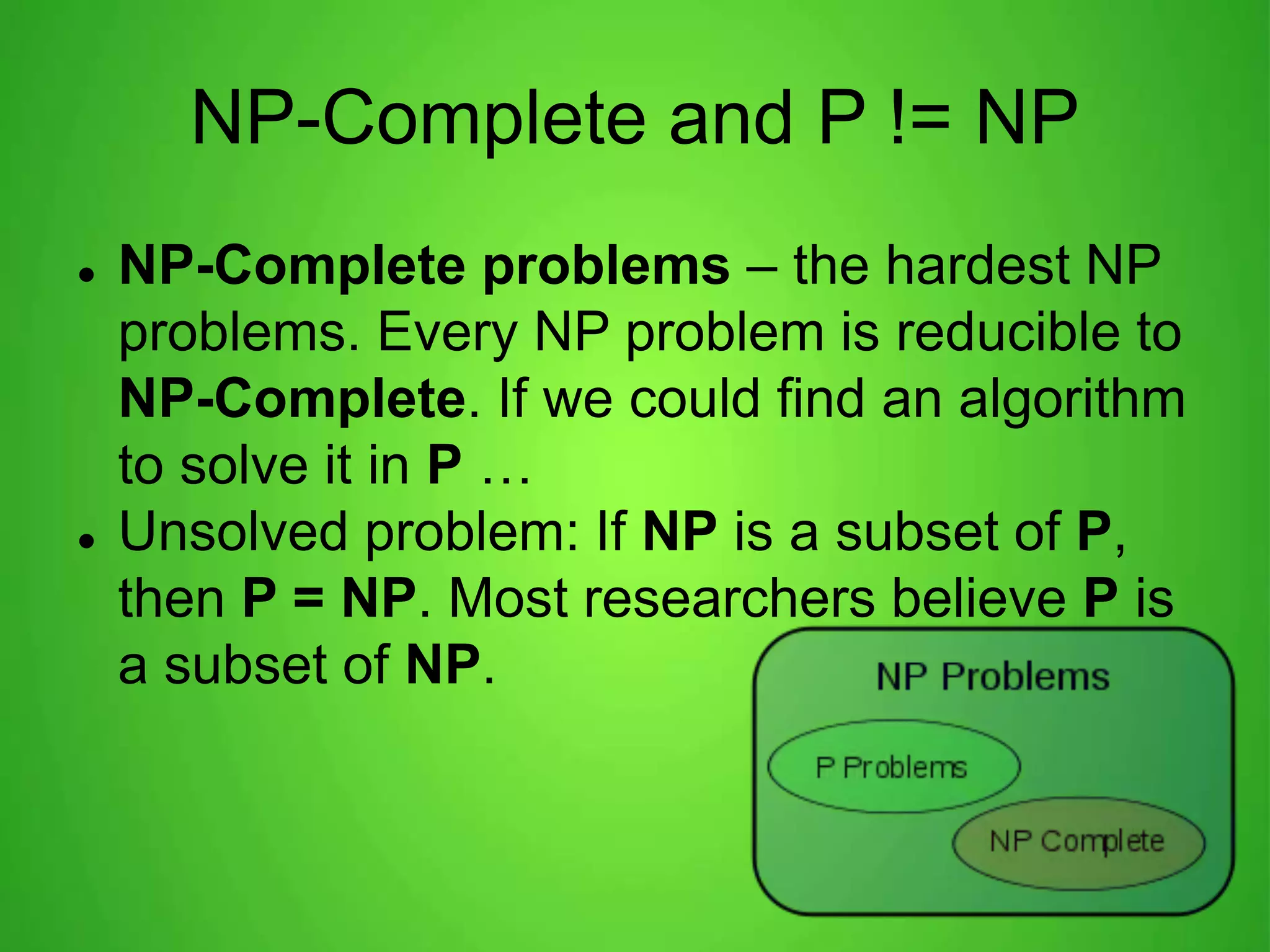

19. NP-Complete and P != NP
NP-Complete problems – the hardest NP
problems. Every NP problem is reducible to
NP-Complete. If we could find an algorithm
to solve it in P …
Unsolved problem: If NP is a subset of P,
then P = NP. Most researchers believe P is
a subset of NP.

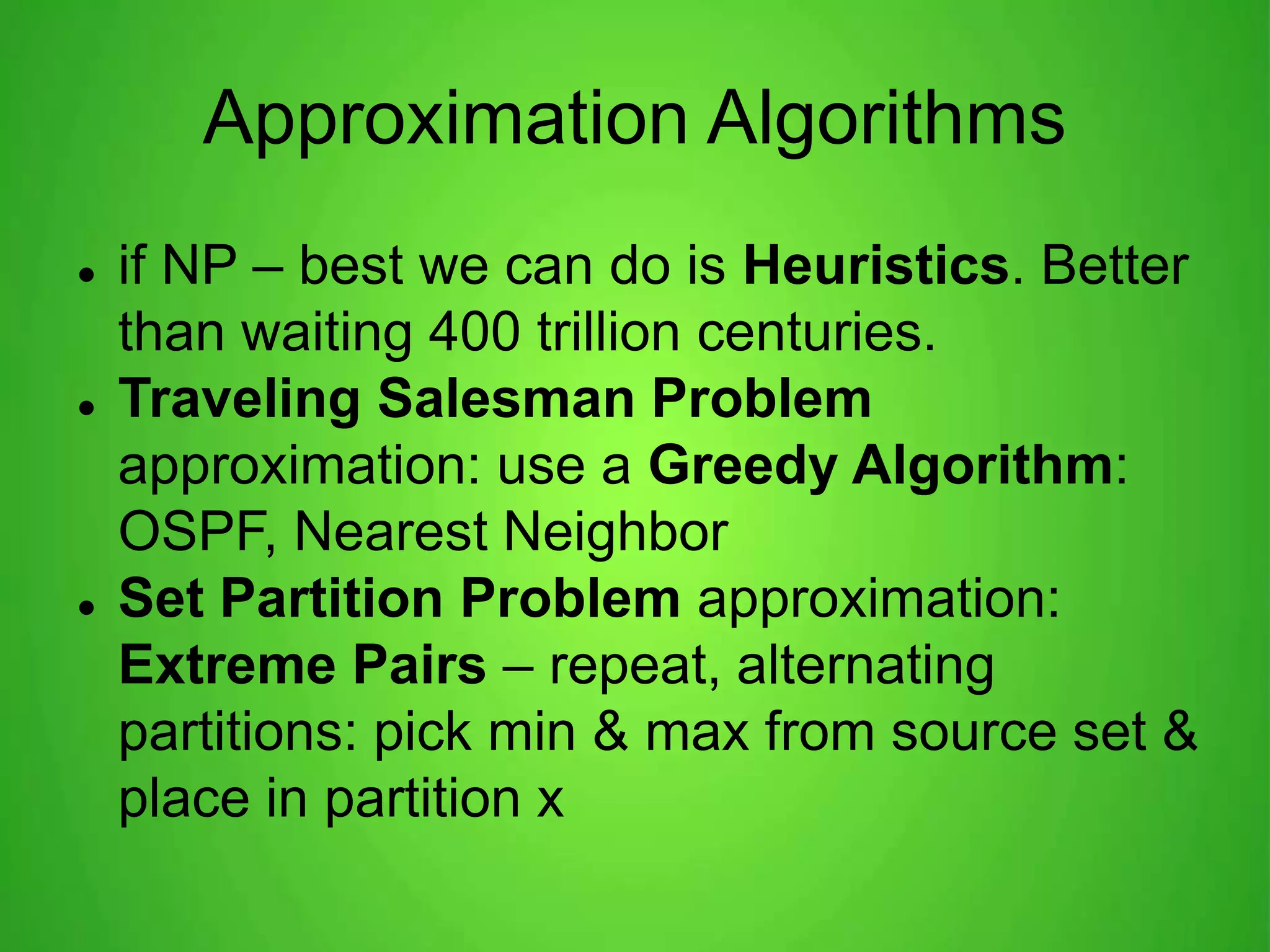

20. Approximation Algorithms
if NP – best we can do is Heuristics. Better
than waiting 400 trillion centuries.
Traveling Salesman Problem
approximation: use a Greedy Algorithm:
OSPF, Nearest Neighbor
Set Partition Problem approximation:
Extreme Pairs – repeat, alternating
partitions: pick min & max from source set &
place in partition x

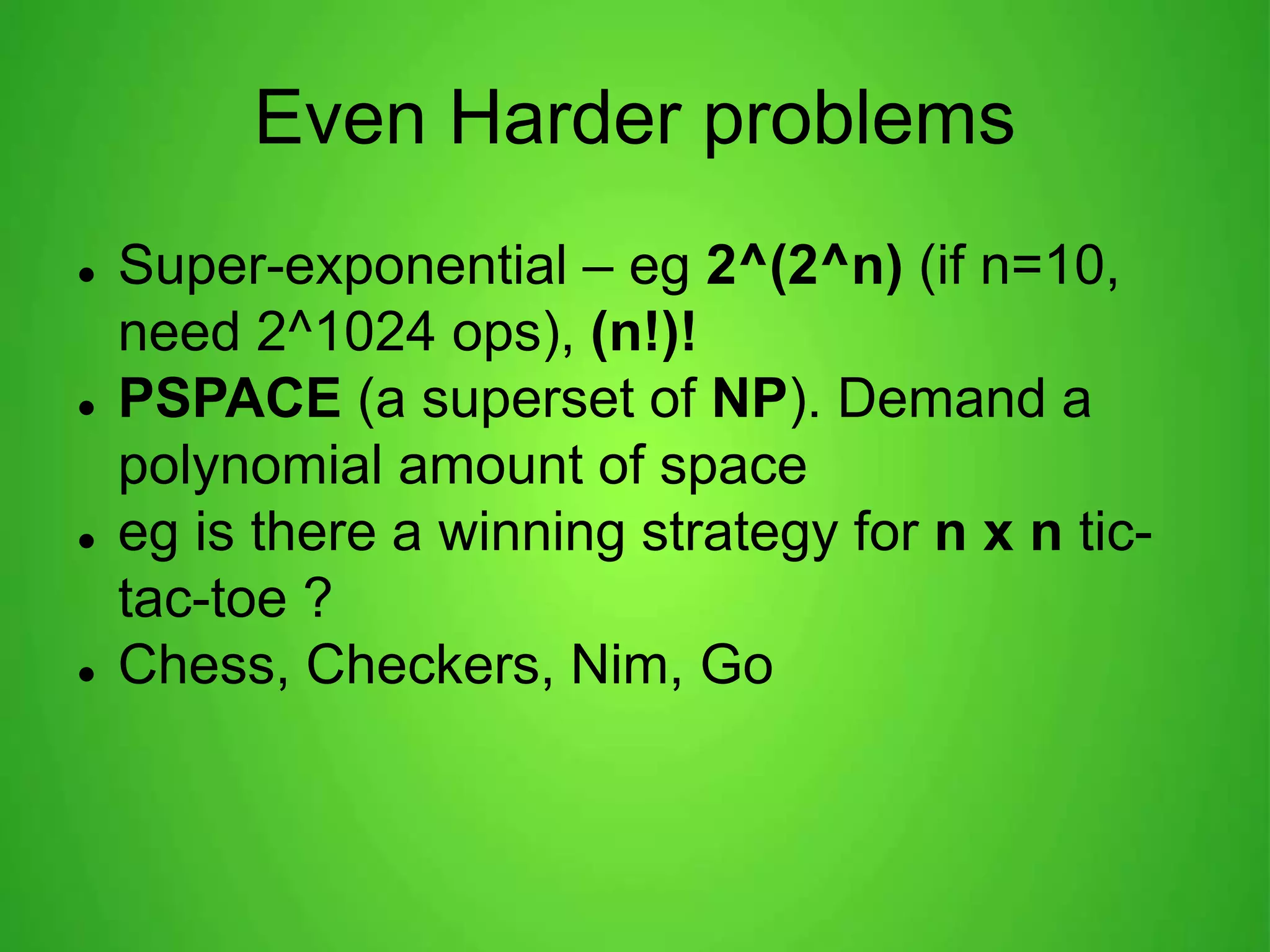

21. Even Harder problems
Super-exponential – eg 2^(2^n) (if n=10,
need 2^1024 ops), (n!)!
PSPACE (a superset of NP). Demand a
polynomial amount of space
eg is there a winning strategy for n x n tic-
tac-toe ?
Chess, Checkers, Nim, Go

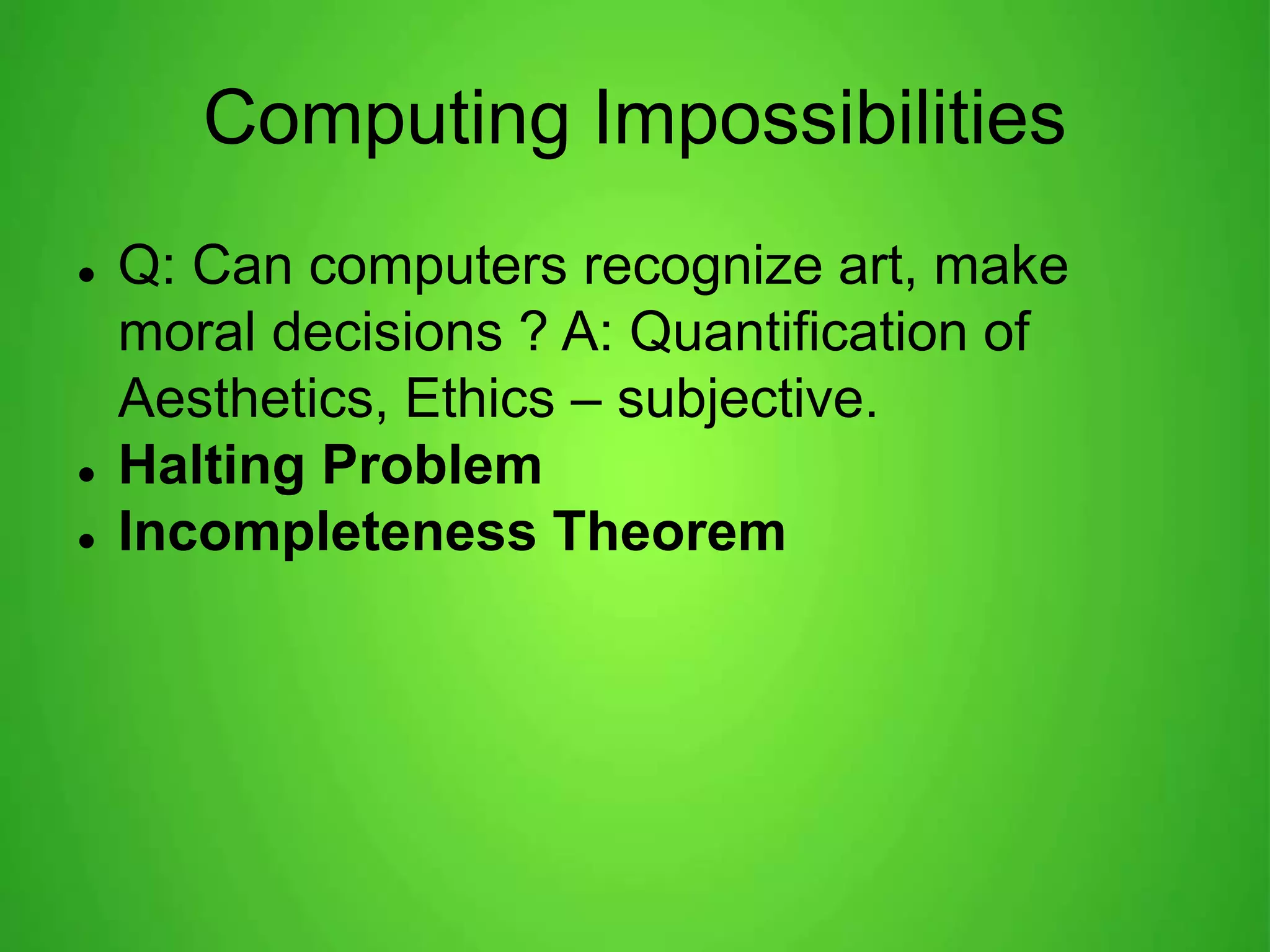

22. Computing Impossibilities
Q: Can computers recognize art, make
moral decisions ? A: Quantification of
Aesthetics, Ethics – subjective.
Halting Problem
Incompleteness Theorem

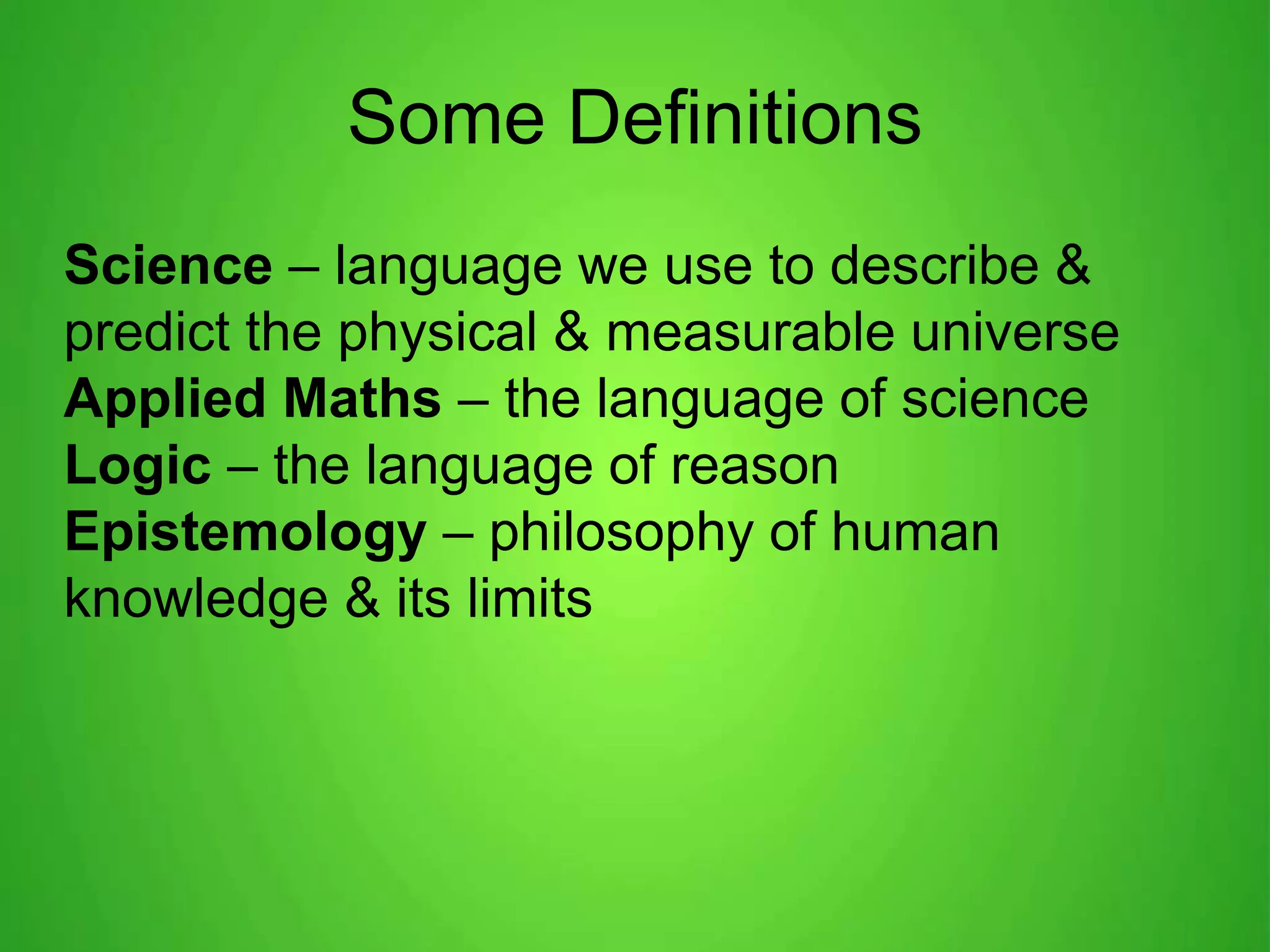

23. Some Definitions
Science – language we use to describe &
predict the physical & measurable universe
Applied Maths – the language of science
Logic – the language of reason
Epistemology – philosophy of human
knowledge & its limits
24. Logic
Use symbols to reason about structure of
proofs – set up axiom systems to put
mathematics on a firm foundation
Peano Arithmetic – Axiom system for natural
numbers
symbolization / arithmetization – conversion
between logical symbolic systems and
numeric systems

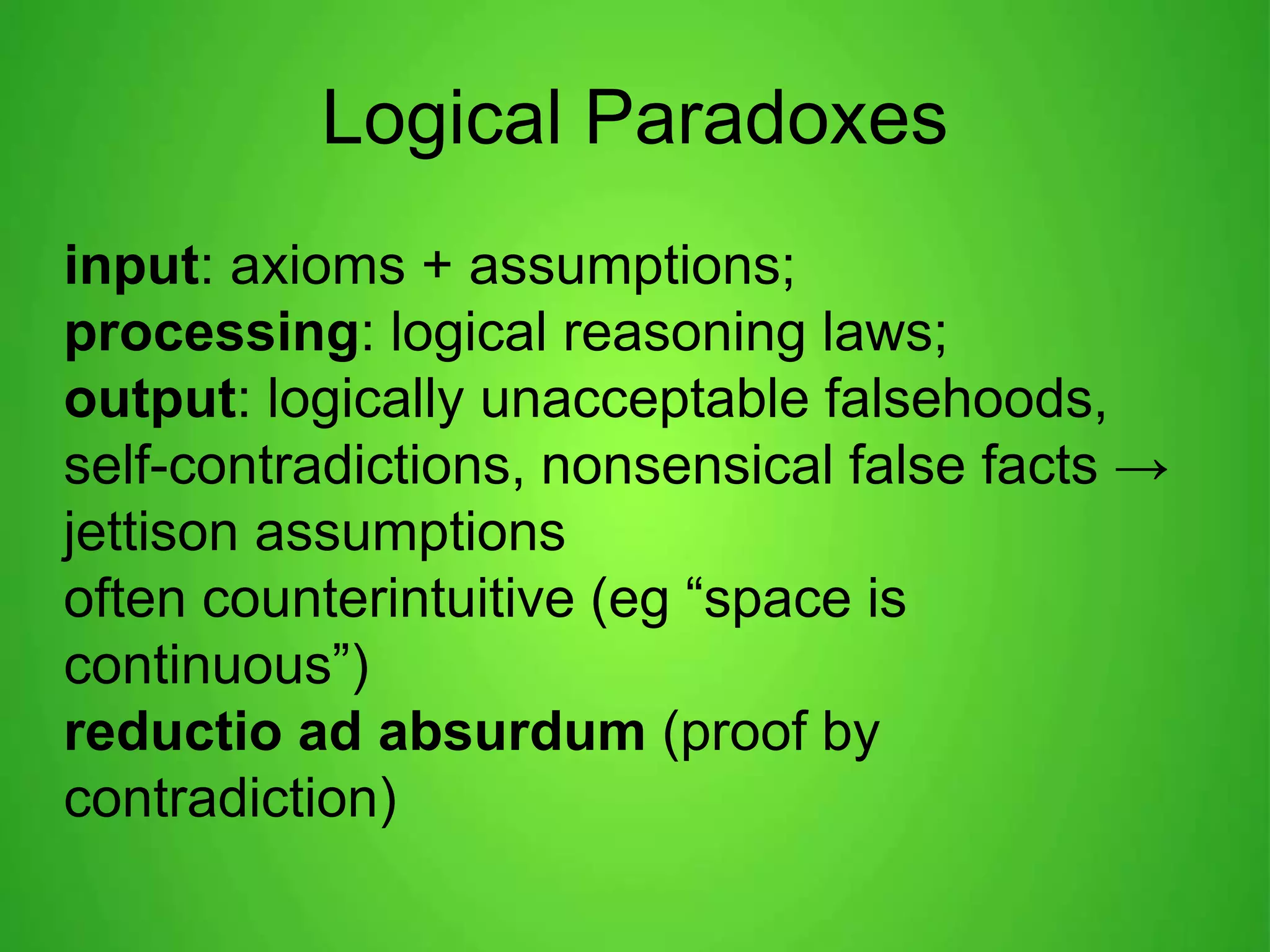

25. Logical Paradoxes
input: axioms + assumptions;
processing: logical reasoning laws;
output: logically unacceptable falsehoods,
self-contradictions, nonsensical false facts →
jettison assumptions
often counterintuitive (eg “space is
continuous”)
reductio ad absurdum (proof by
contradiction)

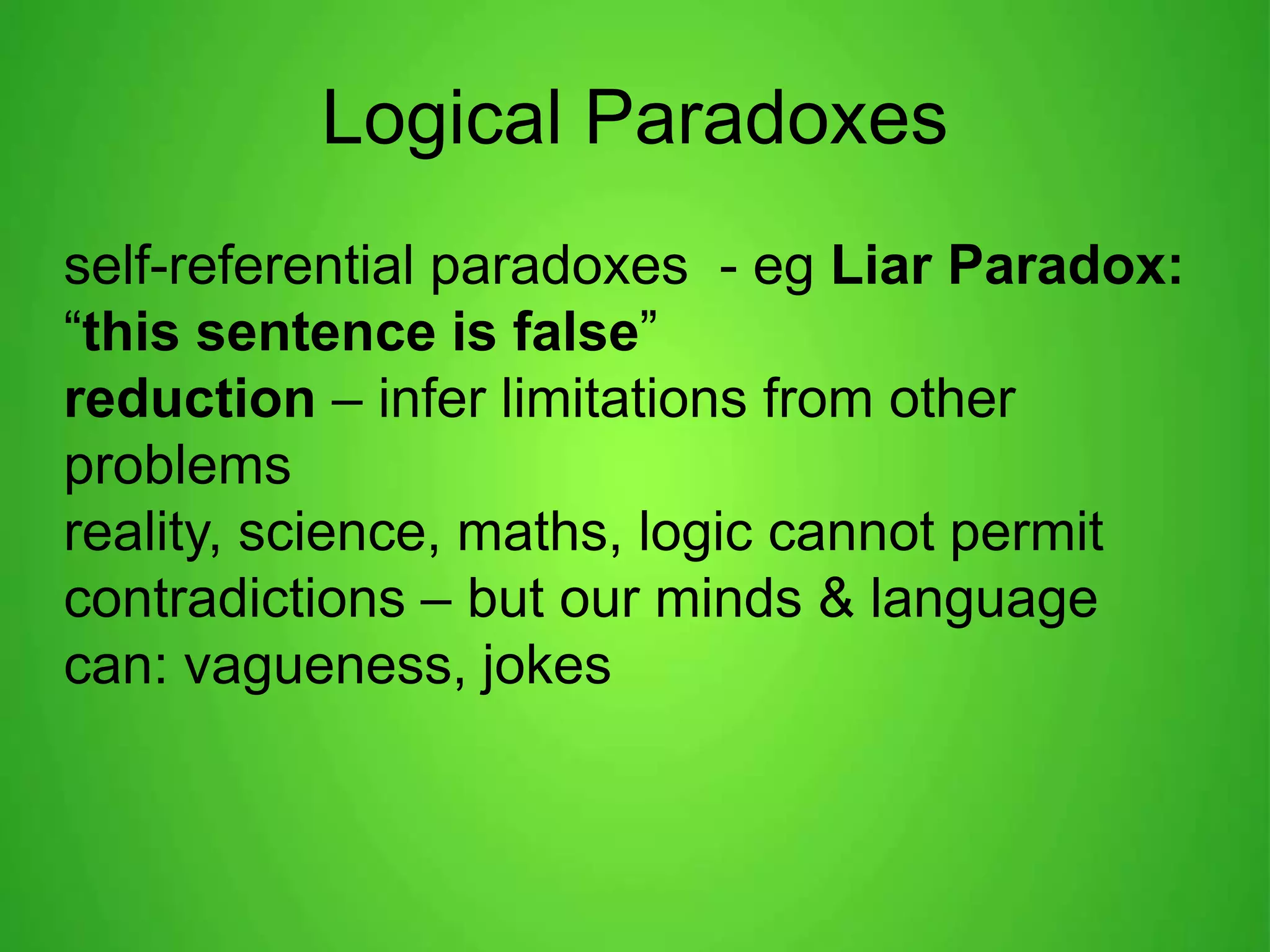

26. Logical Paradoxes
self-referential paradoxes - eg Liar Paradox:
“this sentence is false”
reduction – infer limitations from other
problems
reality, science, maths, logic cannot permit
contradictions – but our minds & language
can: vagueness, jokes

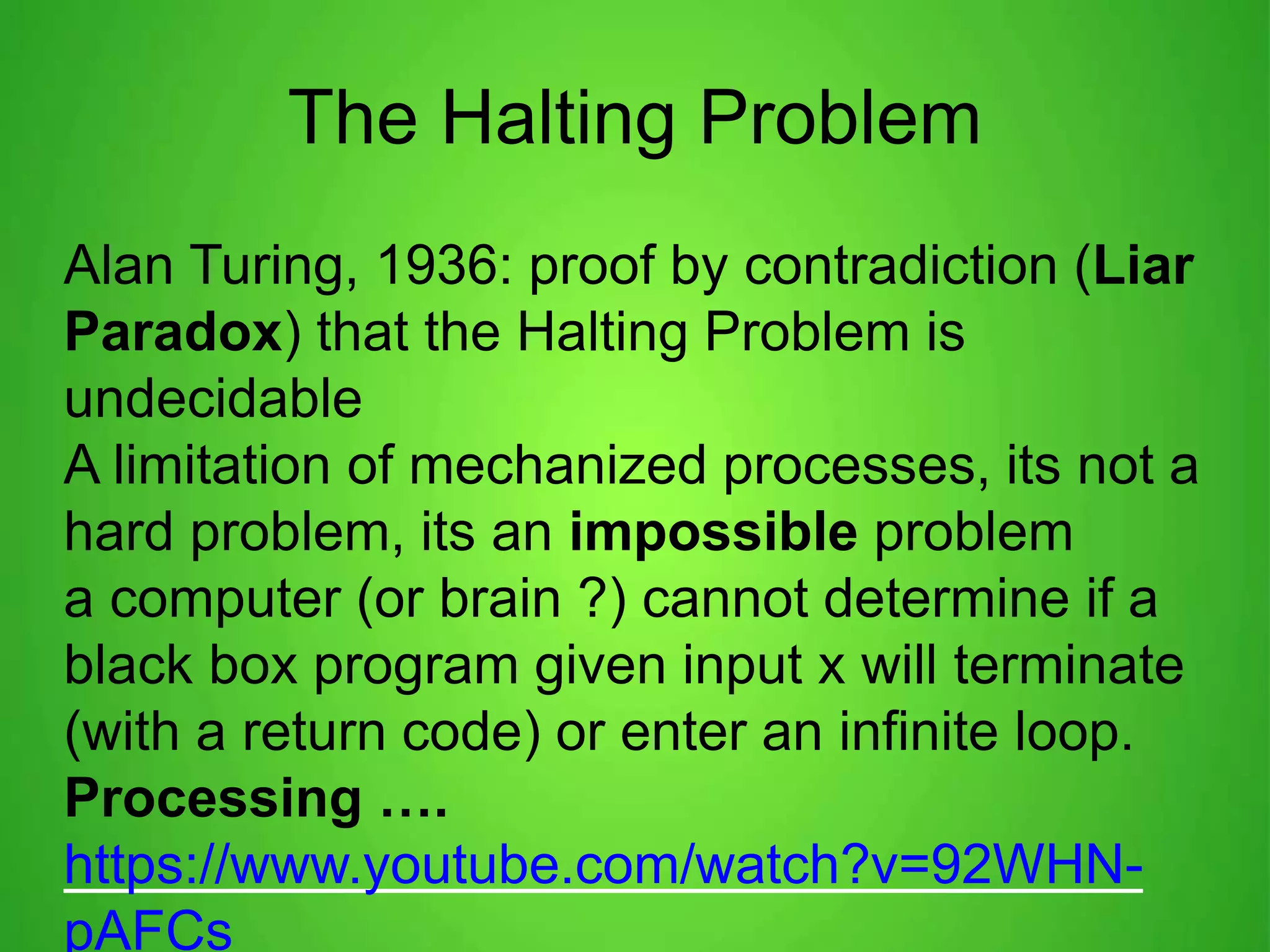

28. The Halting Problem
Alan Turing, 1936: proof by contradiction (Liar
Paradox) that the Halting Problem is
undecidable
A limitation of mechanized processes, its not a
hard problem, its an impossible problem
a computer (or brain ?) cannot determine if a
black box program given input x will terminate
(with a return code) or enter an infinite loop.
Processing ….
https://www.youtube.com/watch?v=92WHN-
pAFCs

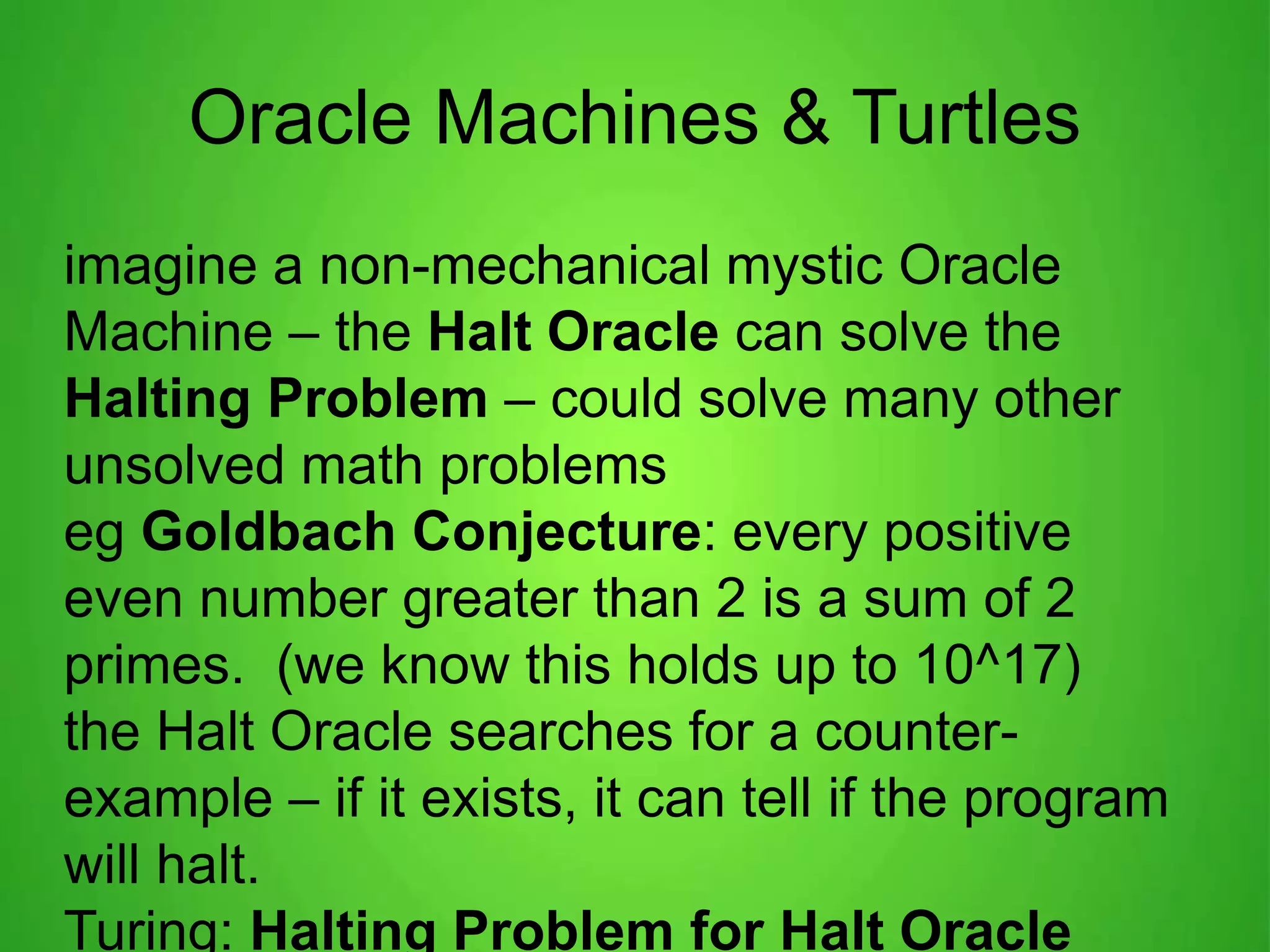

29. Oracle Machines & Turtles
imagine a non-mechanical mystic Oracle
Machine – the Halt Oracle can solve the
Halting Problem – could solve many other
unsolved math problems
eg Goldbach Conjecture: every positive
even number greater than 2 is a sum of 2
primes. (we know this holds up to 10^17)
the Halt Oracle searches for a counter-
example – if it exists, it can tell if the program
will halt.
Turing: Halting Problem for Halt Oracle

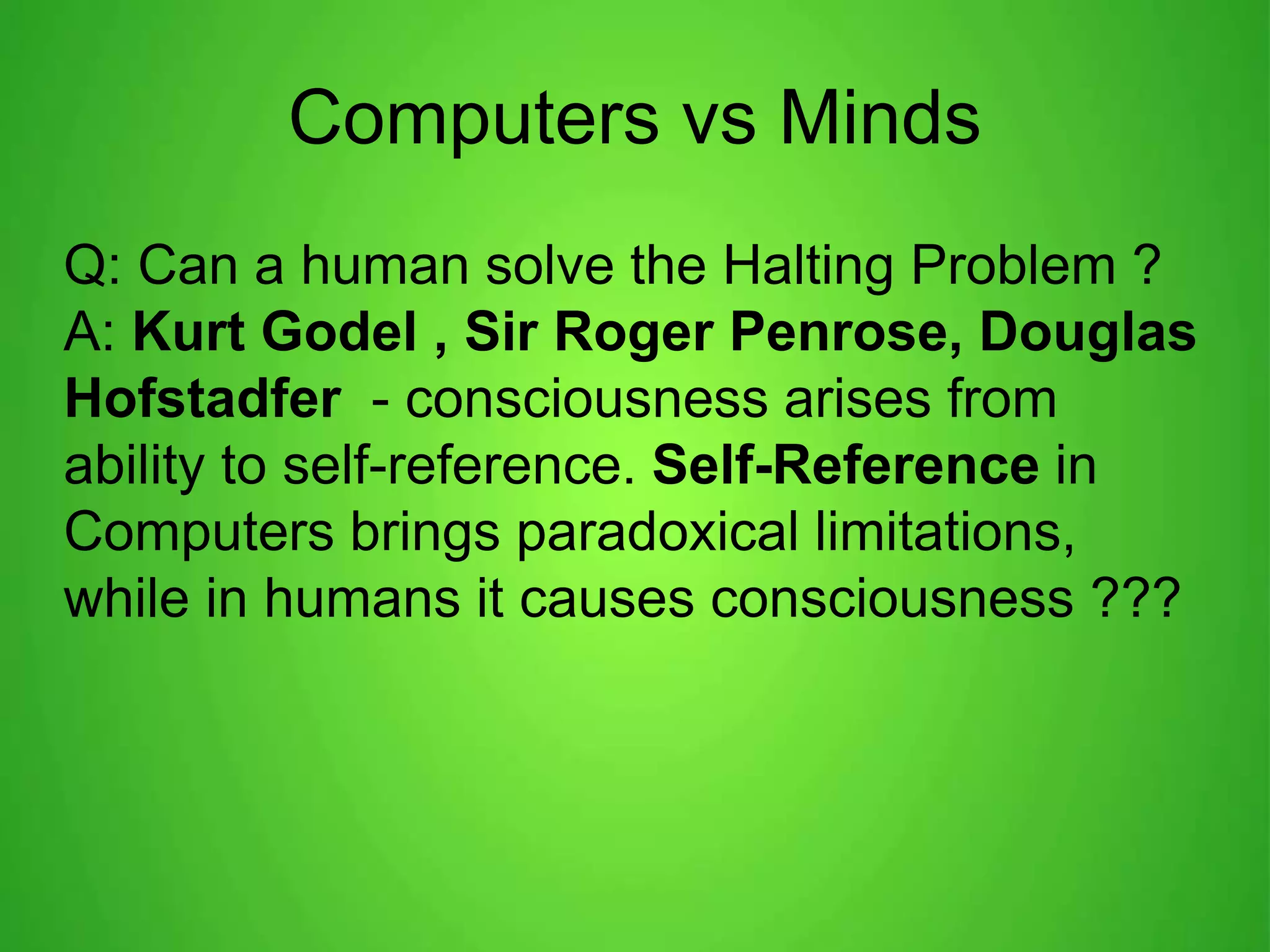

30. Computers vs Minds
Q: Can a human solve the Halting Problem ?
A: Kurt Godel , Sir Roger Penrose, Douglas
Hofstadfer - consciousness arises from
ability to self-reference. Self-Reference in
Computers brings paradoxical limitations,
while in humans it causes consciousness ???

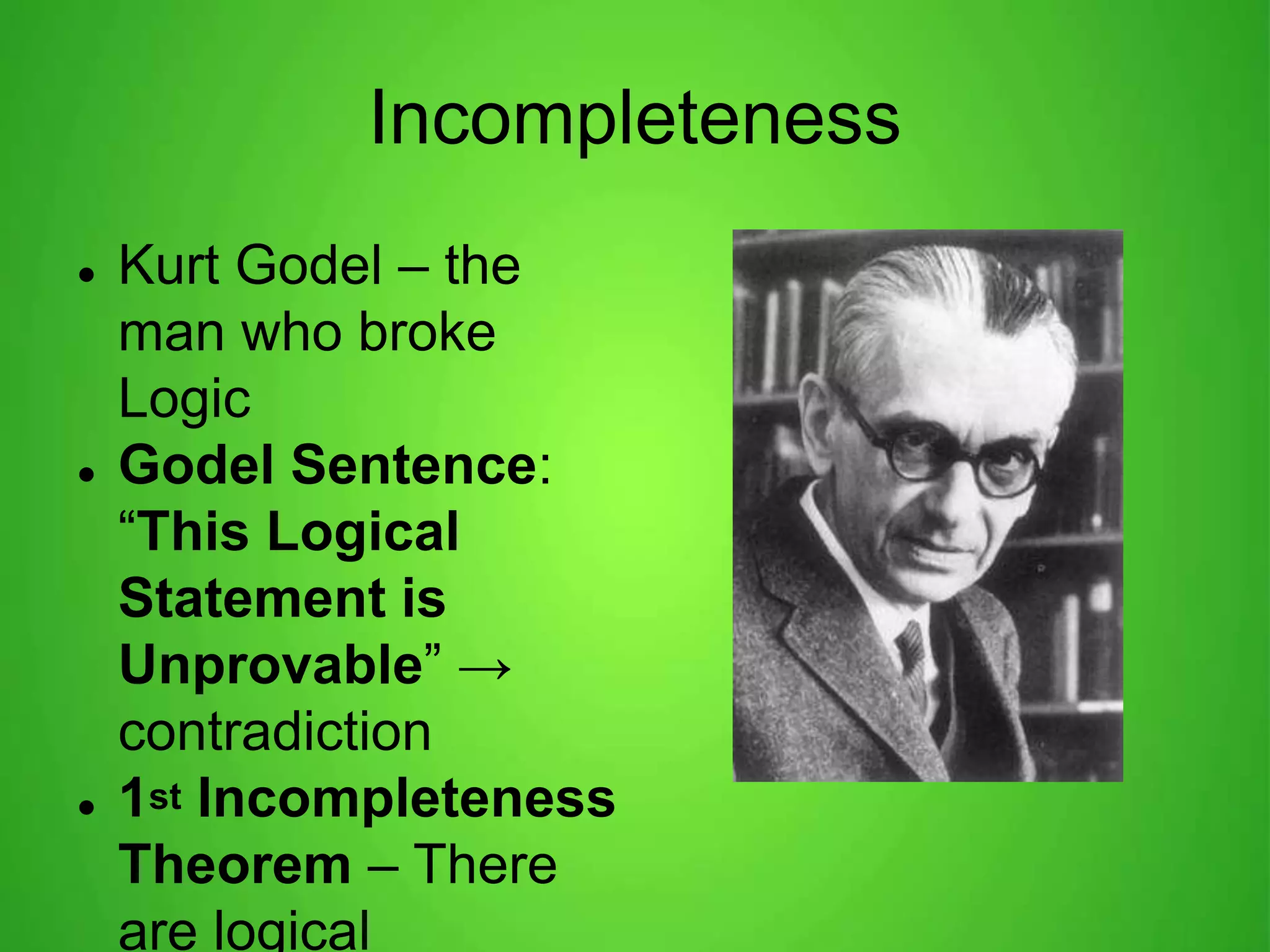

31. Incompleteness
Kurt Godel – the
man who broke
Logic
Godel Sentence:
“This Logical
Statement is
Unprovable” →
contradiction
1st Incompleteness
Theorem – There
are logical

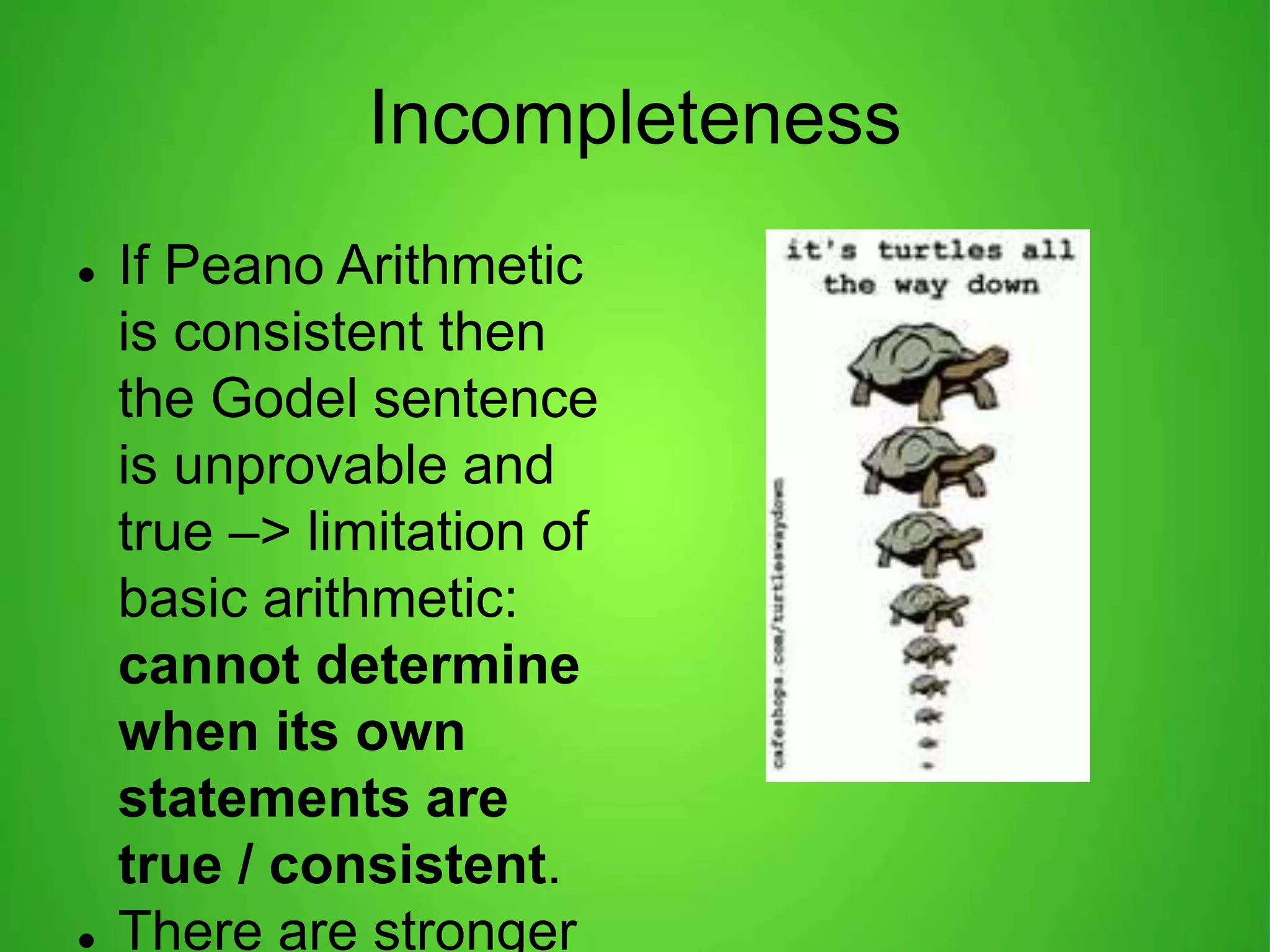

32. Incompleteness
If Peano Arithmetic
is consistent then
the Godel sentence
is unprovable and
true –> limitation of
basic arithmetic:
cannot determine
when its own
statements are
true / consistent.
There are stronger

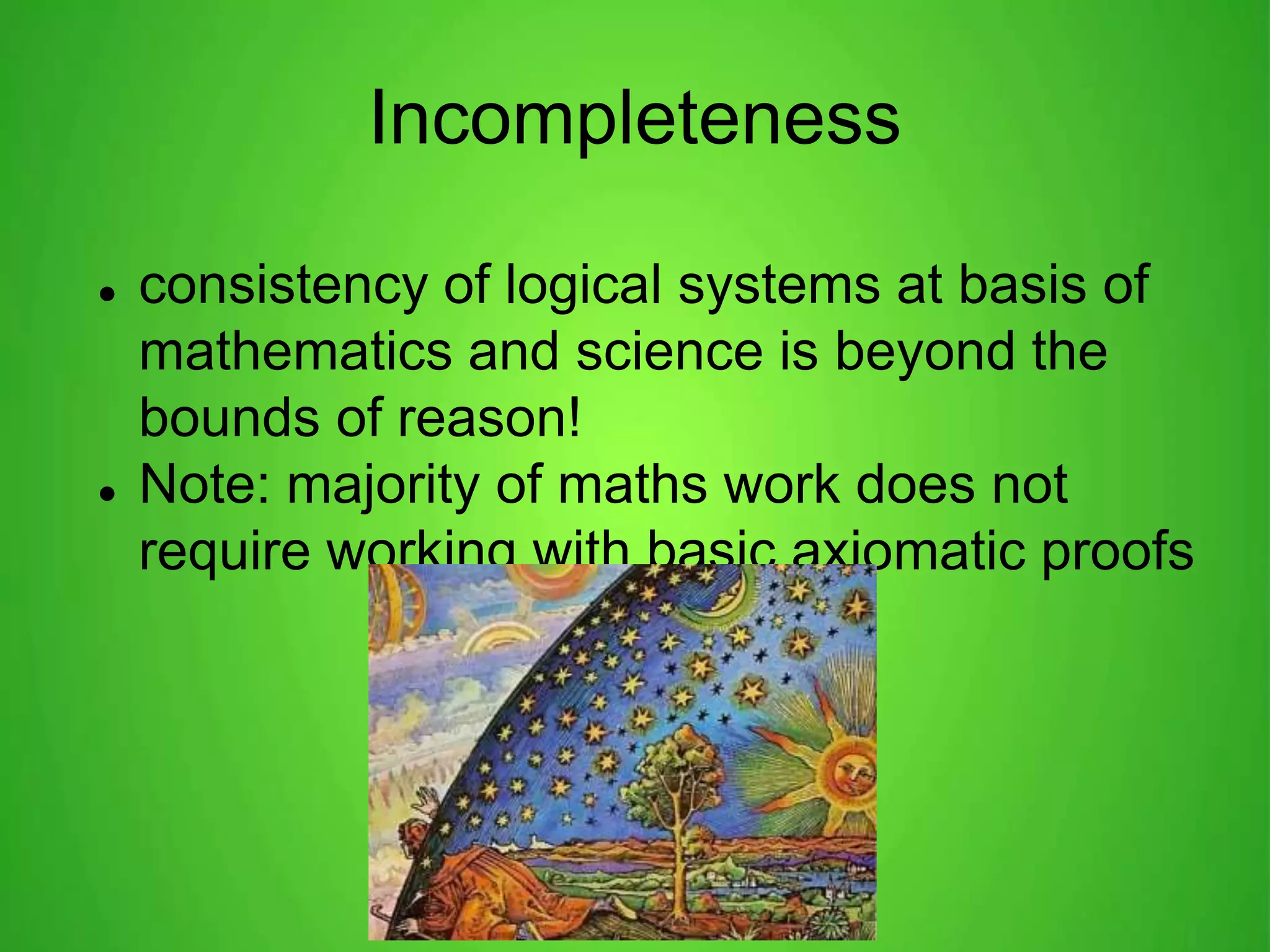

33. Incompleteness
consistency of logical systems at basis of
mathematics and science is beyond the
bounds of reason!
Note: majority of maths work does not
require working with basic axiomatic proofs
