1. LIGHTING , CASE STUDY &
SPECIFICATION
Made by :-
Anant Nautiyal

2. INCANDESCENT LIGHT BULB
Bulb contains gas filled or vacuum
HOT WIRE – FILAMENT SEALED IN A GLASS JAR (BULB)
Efficacy : 12 – 15 lu / watt
CRI : 1A
Colour Temperature 2500 – 2700 K
Operating life 1500 hour

3. INCANDESCENT LIGHT BULB
ADVANTAGES:
1. LESS EXPENSIVE
2. EASIER TO DIM WITH RHEOSTATS
3. WARMER COLOR THAN FLUORESCENT AND THUNGSTEN-HALOGEN LAMPS
4. LIGHT OUTPUT IS RELATIVELY HIGH
5. CAN BE DIMMED
DISADVANTAGES:
1. ENERGY INEFFICIENT
2. SHORT LAMP LIFE TIME
3. WARM SOURCE

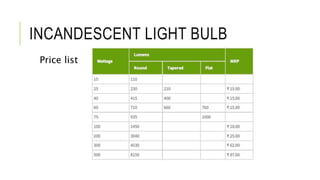

4. INCANDESCENT LIGHT BULB
Price list

5. FLUORESCENT TUBES
Fluorescent tube come in 2 dimension :
I. TL-D
II. TL-5

6. FLUORESCENT TUBES
I. TL-D
II. TL-5
Consumption Power Tube Length Lumen
18 Watt 60 cm 1200 Lumen
36 Watt 120 cm 3000 Lumen
58 Watt 150 cm 5000 Lumen
Consumption Power Tube Length Lumen
14 Watt 60 cm 1200 Lumen
28 Watt 120 cm 3000 Lumen
35 Watt 150 cm 5000 Lumen

7. FLUORESCENT TUBES
Final Comparison :
Type TL-5 TL-D
Lumen High Lm/W Low Lm/W
Size Diameter : 16 mm Diameter : 35 mm
life time 30,000 hours 10,000 hours
Watt Low power High power
Cost High Low

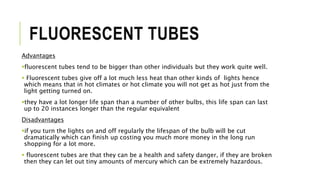

8. FLUORESCENT TUBES
Advantages
fluorescent tubes tend to be bigger than other individuals but they work quite well.
 Fluorescent tubes give off a lot much less heat than other kinds of lights hence
which means that in hot climates or hot climate you will not get as hot just from the
light getting turned on.
they have a lot longer life span than a number of other bulbs, this life span can last
up to 20 instances longer than the regular equivalent
Disadvantages
if you turn the lights on and off regularly the lifespan of the bulb will be cut
dramatically which can finish up costing you much more money in the long run
shopping for a lot more.
 fluorescent tubes are that they can be a health and safety danger, if they are broken
then they can let out tiny amounts of mercury which can be extremely hazardous.

9. FLUORESCENT TUBES
Price list

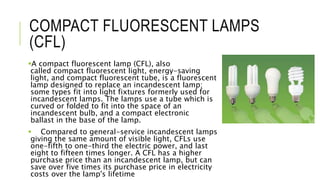

10. COMPACT FLUORESCENT LAMPS
(CFL)
A compact fluorescent lamp (CFL), also
called compact fluorescent light, energy-saving
light, and compact fluorescent tube, is a fluorescent
lamp designed to replace an incandescent lamp;
some types fit into light fixtures formerly used for
incandescent lamps. The lamps use a tube which is
curved or folded to fit into the space of an
incandescent bulb, and a compact electronic
ballast in the base of the lamp.
 Compared to general-service incandescent lamps
giving the same amount of visible light, CFLs use
one-fifth to one-third the electric power, and last
eight to fifteen times longer. A CFL has a higher
purchase price than an incandescent lamp, but can
save over five times its purchase price in electricity
costs over the lamp's lifetime

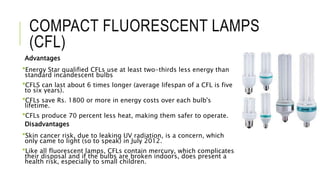

11. COMPACT FLUORESCENT LAMPS
(CFL)
Advantages
Energy Star qualified CFLs use at least two-thirds less energy than
standard incandescent bulbs
CFLS can last about 6 times longer (average lifespan of a CFL is five
to six years).
CFLs save Rs. 1800 or more in energy costs over each bulb's
lifetime.
CFLs produce 70 percent less heat, making them safer to operate.
Disadvantages
Skin cancer risk, due to leaking UV radiation, is a concern, which
only came to light (so to speak) in July 2012.
Like all fluorescent lamps, CFLs contain mercury, which complicates
their disposal and if the bulbs are broken indoors, does present a
health risk, especially to small children.

12. COMPACT FLUORESCENT LAMPS
(CFL)
Watt Philips Eveready
crompton greaves
osram
5 NA 127 140
8 155 150 145 155
11 NA NA 150 160
14 170 NA NA 180
15 NA 185 160 NA
20 NA 225 200 NA
23 273 NA NA 290
25 NA NA 225 NA
27 310 325 NA NA
32 390 NA NA NA

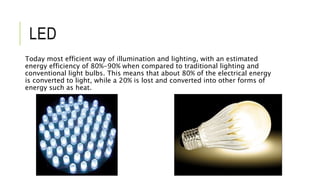

13. LED
Today most efficient way of illumination and lighting, with an estimated
energy efficiency of 80%-90% when compared to traditional lighting and
conventional light bulbs. This means that about 80% of the electrical energy
is converted to light, while a 20% is lost and converted into other forms of
energy such as heat.

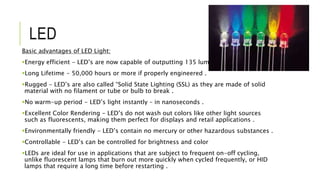

14. LED
Basic advantages of LED Light:
Energy efficient - LED’s are now capable of outputting 135 lumens/watt .
Long Lifetime - 50,000 hours or more if properly engineered .
Rugged - LED’s are also called “Solid State Lighting (SSL) as they are made of solid
material with no filament or tube or bulb to break .
No warm-up period - LED’s light instantly – in nanoseconds .
Excellent Color Rendering - LED’s do not wash out colors like other light sources
such as fluorescents, making them perfect for displays and retail applications .
Environmentally friendly - LED’s contain no mercury or other hazardous substances .
Controllable - LED’s can be controlled for brightness and color
LEDs are ideal for use in applications that are subject to frequent on-off cycling,
unlike fluorescent lamps that burn out more quickly when cycled frequently, or HID
lamps that require a long time before restarting .

15. LED
Type MRP
0.5-Watt LED Bulb (White and Pack of 6) Rs. 594
2.5-Watt LED Bulb (Warm White and Cool
Day Light) Rs. 375
4-Watt LED Bulb (Cool Day Light) Rs.449
5-Watt LED Bulb (Warm White) Rs. 469
7-Watt LED Bulb (Cool Day Light) Rs.599
7.5-Watt LED Bulb (Golden Yellow) Rs. 599
9W LED Bulb (Cool Daylight) Rs. 594
Ace Saver 9W LED Bulb (Crystal White) Rs. 699
9.5-Watt LED Bulb (Cool Day Light) Rs. 799
10-Watt LED Bulb (Cool Day Light) Rs. 699
Stellar Bright 12.5-Watt LED Bulb (Warm
White) Rs. 820
Stellar Bright 12.5-Watt LED Bulb (Cool
Day Light) Rs. 799
14-Watt LED Bulb (Warm White) Rs. 1149
14-Watt LED Bulb (Cool Day Light) Rs. 999
Philips

16. LED
Osra
m
Type MRP
Deco 0.5W White Rs. 100
STAR CLASSIC A60 Lamp Rs. 469
Class A 4W LED Lamp Rs. 499
9W LED Lamp Rs. 749
Star Classic A 10W Bulb Rs. 798
10 W/827 LED Lamp Rs. 799
STAR PAR 6W Lamp Rs. 899
SUPER STAR PAR 5W Lamp Rs. 999

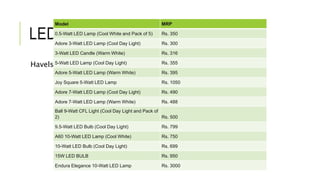

17. LED
Havels
Model MRP
0.5-Watt LED Lamp (Cool White and Pack of 5) Rs. 350
Adore 3-Watt LED Lamp (Cool Day Light) Rs. 300
3-Watt LED Candle (Warm White) Rs. 316
5-Watt LED Lamp (Cool Day Light) Rs. 355
Adore 5-Watt LED Lamp (Warm White) Rs. 395
Joy Square 5-Watt LED Lamp Rs. 1050
Adore 7-Watt LED Lamp (Cool Day Light) Rs. 490
Adore 7-Watt LED Lamp (Warm White) Rs. 488
Ball 9-Watt CFL Light (Cool Day Light and Pack of
2) Rs. 500
9.5-Watt LED Bulb (Cool Day Light) Rs. 799
A60 10-Watt LED Lamp (Cool White) Rs. 750
10-Watt LED Bulb (Cool Day Light) Rs. 699
15W LED BULB Rs. 950
Endura Elegance 10-Watt LED Lamp Rs. 3000

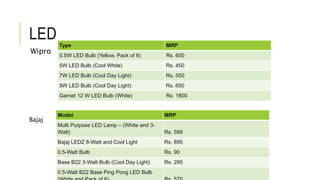

18. LED
Wipro
Type MRP
0.5W LED Bulb (Yellow, Pack of 6) Rs. 600
5W LED Bulb (Cool White) Rs. 450
7W LED Bulb (Cool Day Light) Rs. 550
9W LED Bulb (Cool Day Light) Rs. 650
Garnet 12 W LED Bulb (White) Rs. 1800
Bajaj
Model MRP
Multi Purpose LED Lamp – (White and 3-
Watt) Rs. 599
Bajaj LEDZ 8-Watt and Cool Light Rs. 895
0.5-Watt Bulb Rs. 90
Base B22 3-Watt Bulb (Cool Day Light) Rs. 295
0.5-Watt B22 Base Ping Pong LED Bulb

19. EFFICACY
(LUMEN/WATT)
COLOUR RENDERING
INDEX
LUMINANCE
INTENCITY
LIFE SPAN
(HOURS)
COLOUR
TEMPERATURE
(KELVIN)
Incandescent
lamps
12
lumen/watt
100 N.A. <2000Hrs. 2500-2700
Tungsten
halogen lamps
10-35 100 1500
CANDELA
1700-2500 3000
Fluorescent
lamps
86 80 2830
CANDELA
40000-
100000
4100
High pressure
sodium lamps
81
Lumen/watt
25 N.A. 20000-
36000
20000
Low pressure
sodium lamps
142
Lumen/watt
44 N.A. 6000-18000 1800
Mercury vapour
lamps
30-65 300 N.A. 24000-
175000
6800
Metal halide
lamps
65-115 60-90 N.A. 10000-
20000
3000-20000
Blended lamps 20-30 62 N.A. 5000 3600
LED lamps 28-15 70 N.A. 25000-
100000
2540-10000
