Lecture VLSI

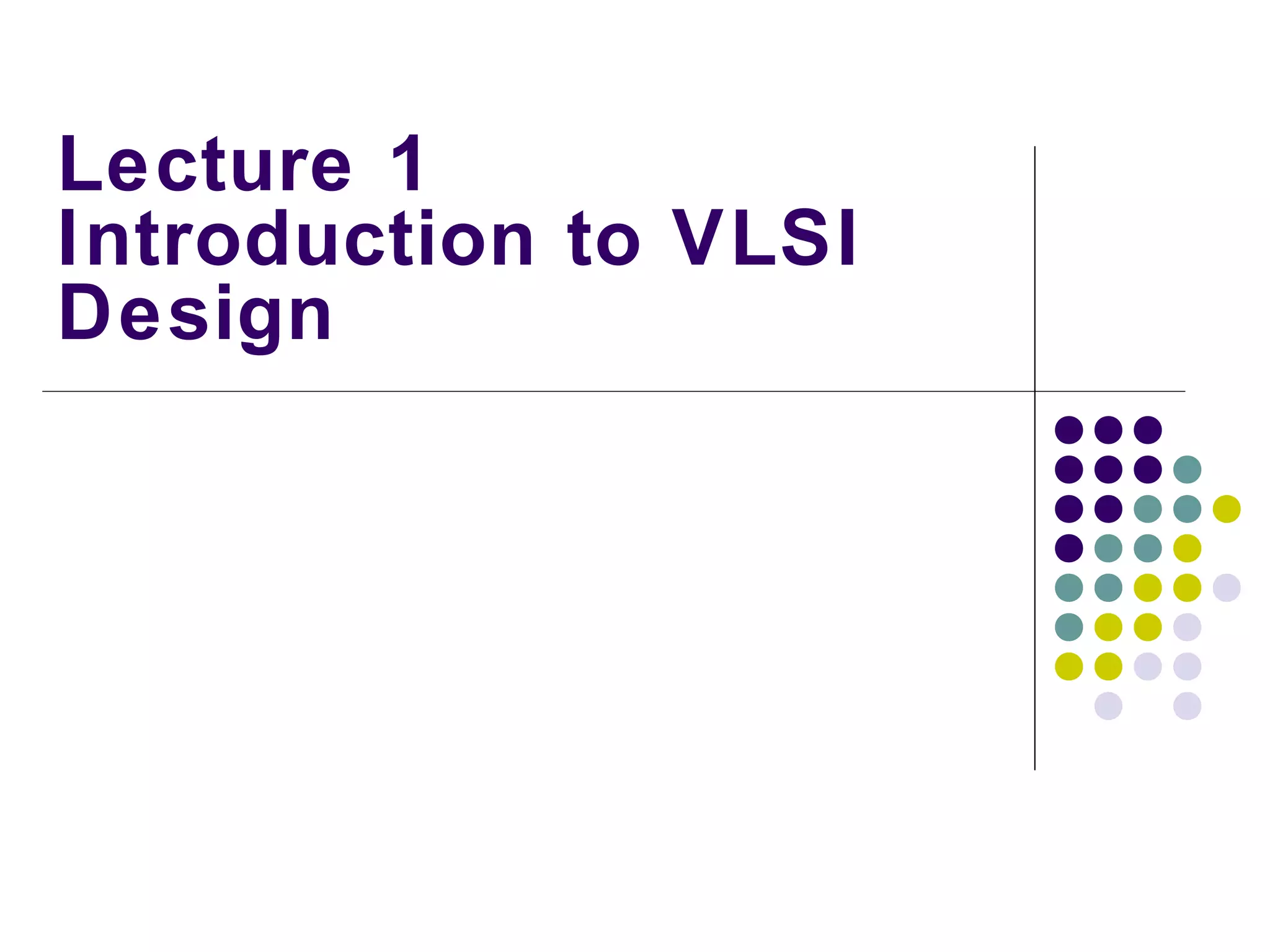

Lecture 1
Introduction to VLSI
Design

March 24, 2015204424 Digital Design Automation
2

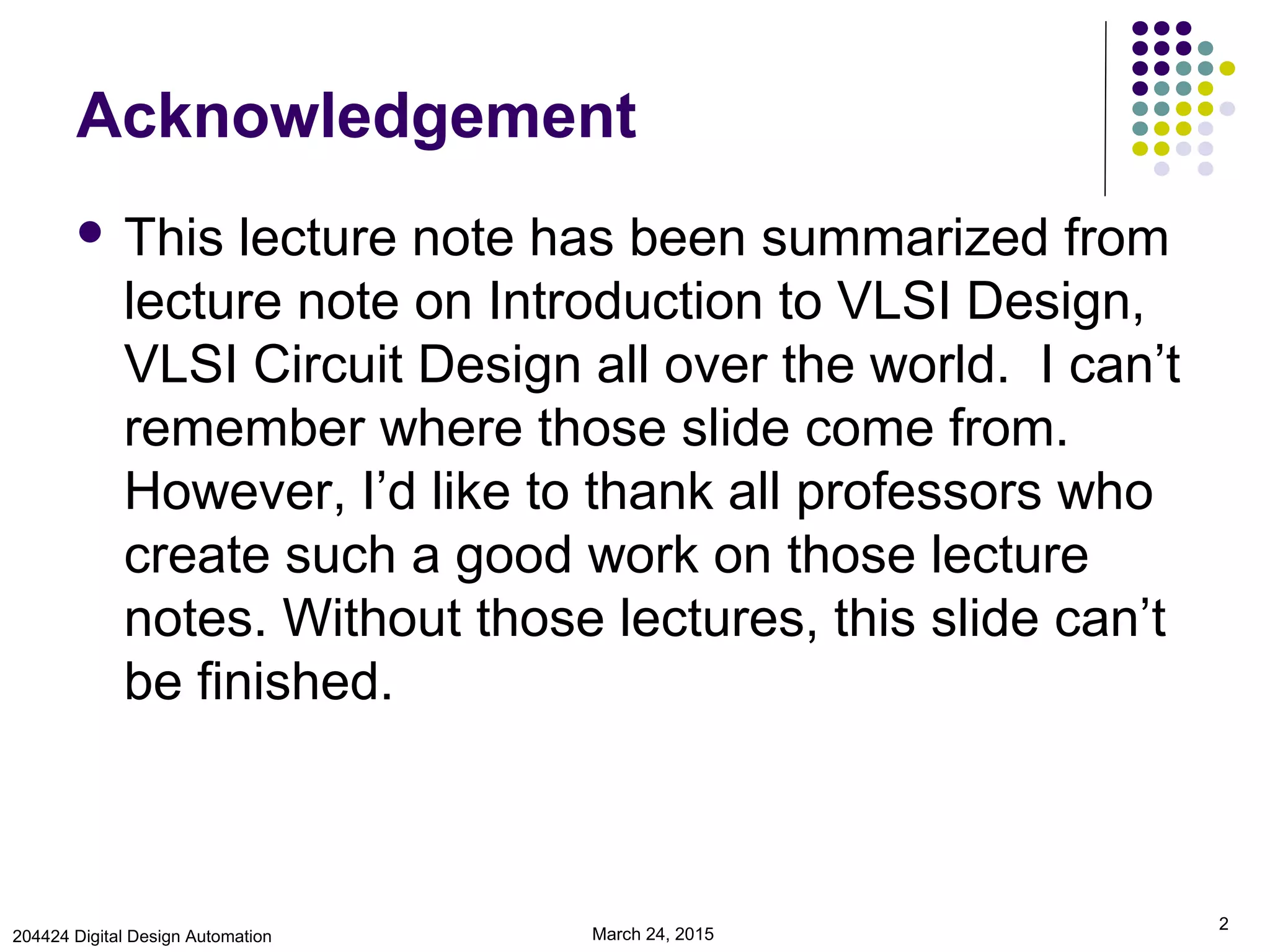

Acknowledgement
 This lecture note has been summarized from
lecture note on Introduction to VLSI Design,
VLSI Circuit Design all over the world. I can’t
remember where those slide come from.
However, I’d like to thank all professors who
create such a good work on those lecture
notes. Without those lectures, this slide can’t
be finished.

3

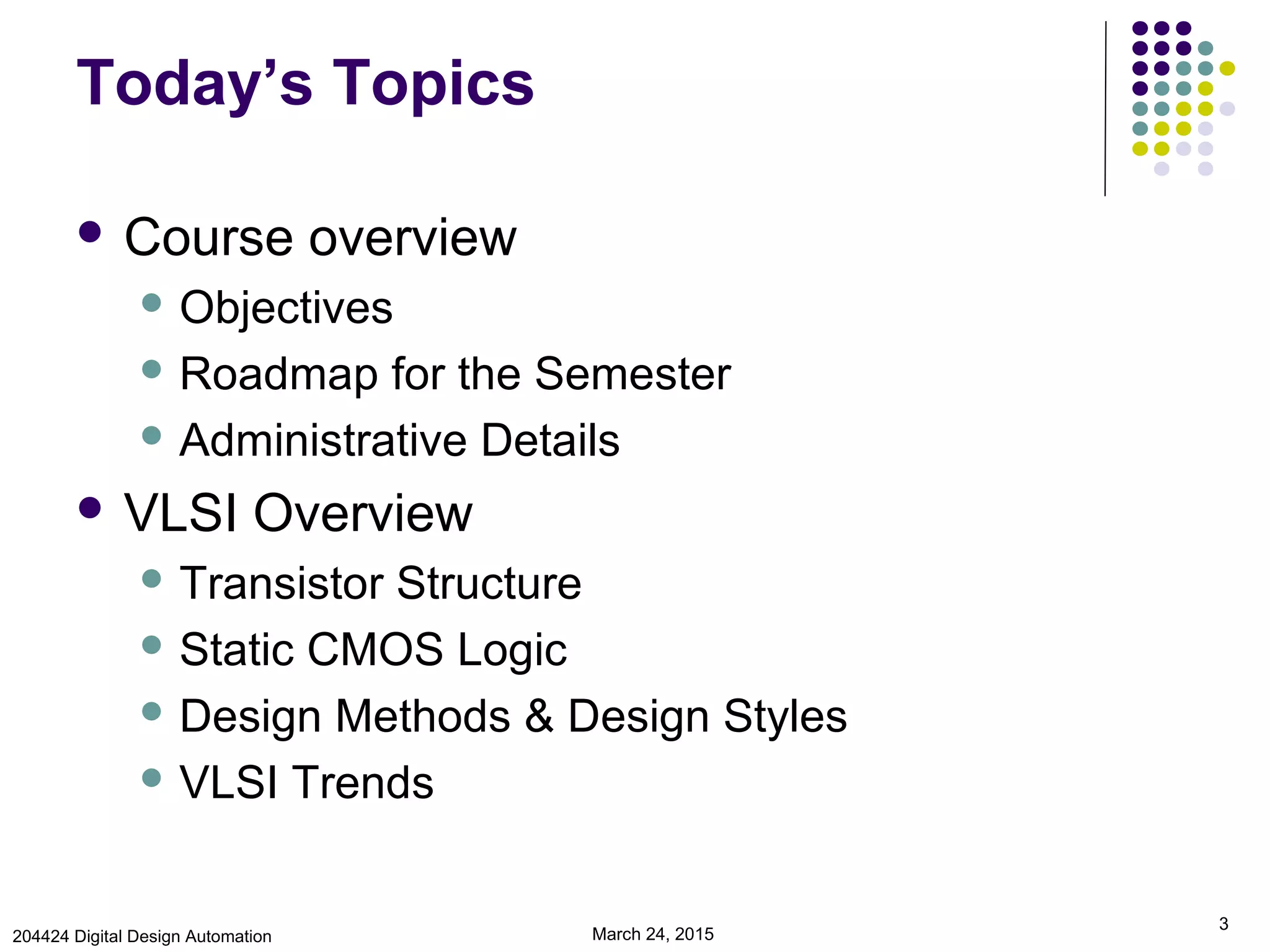

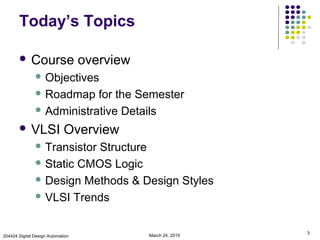

Today’s Topics
 Course overview
 Objectives
 Roadmap for the Semester
 Administrative Details
 VLSI Overview
 Transistor Structure
 Static CMOS Logic
 Design Methods & Design Styles
 VLSI Trends

4

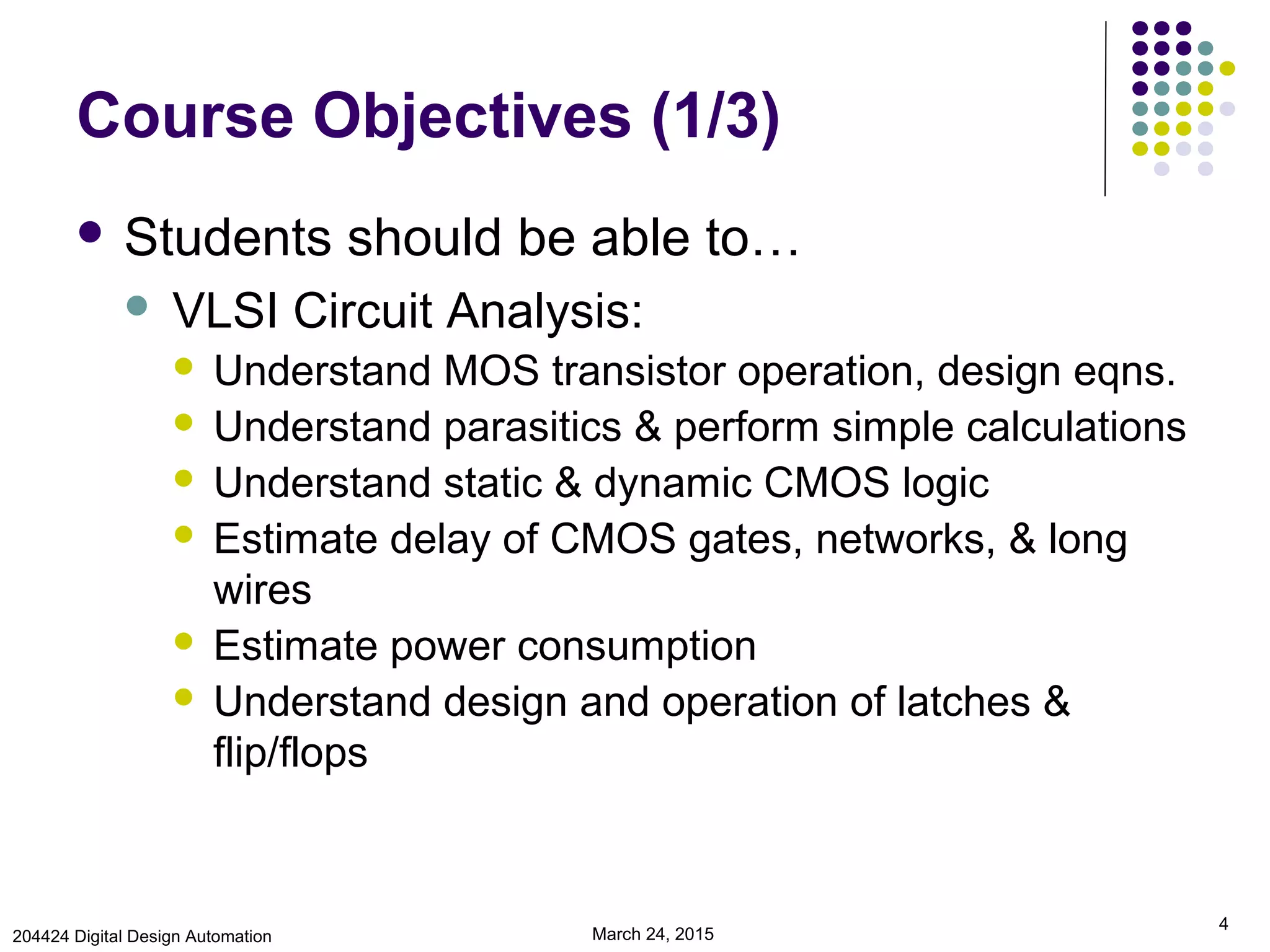

Course Objectives (1/3)
 Students should be able to…
 VLSI Circuit Analysis:
 Understand MOS transistor operation, design eqns.
 Understand parasitics & perform simple calculations
 Understand static & dynamic CMOS logic
 Estimate delay of CMOS gates, networks, & long
wires
 Estimate power consumption
 Understand design and operation of latches &
flip/flops

5

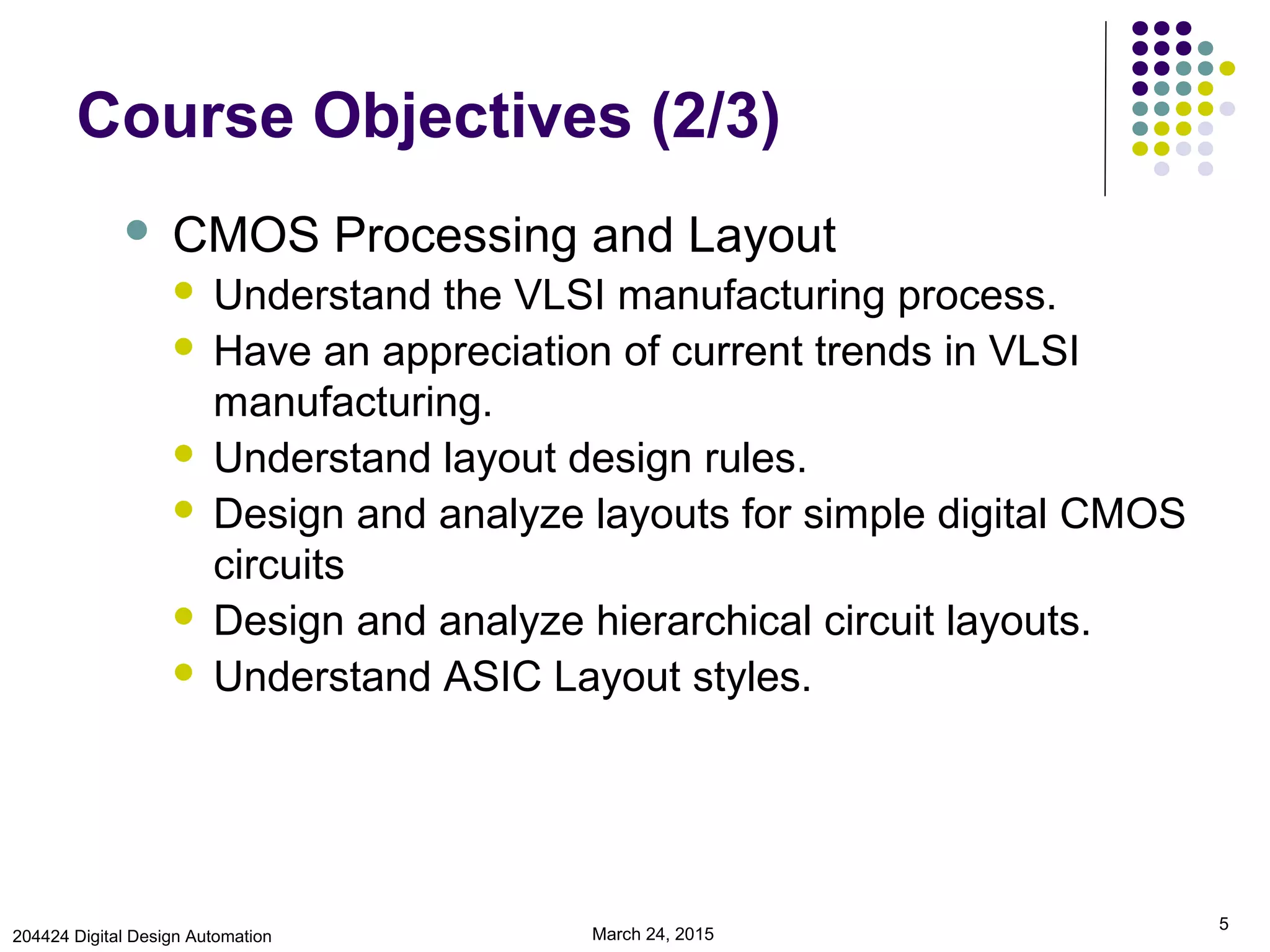

 CMOS Processing and Layout
 Understand the VLSI manufacturing process.
 Have an appreciation of current trends in VLSI
manufacturing.
 Understand layout design rules.
 Design and analyze layouts for simple digital CMOS
circuits
 Design and analyze hierarchical circuit layouts.
 Understand ASIC Layout styles.

6

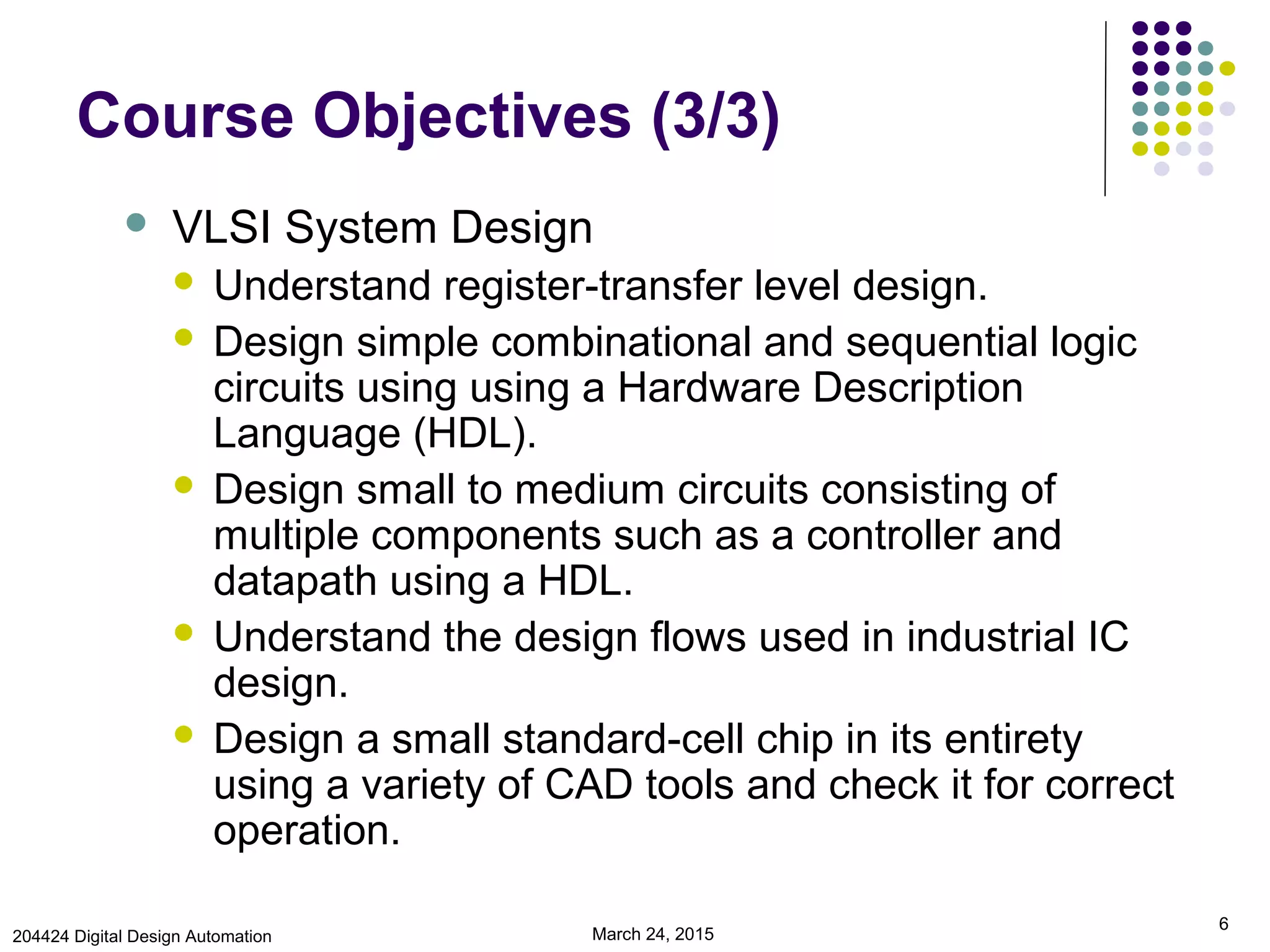

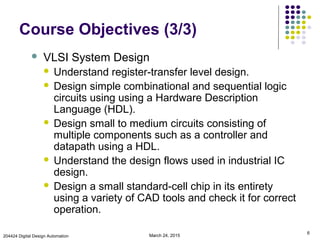

 VLSI System Design
 Understand register-transfer level design.
 Design simple combinational and sequential logic
circuits using using a Hardware Description
Language (HDL).
 Design small to medium circuits consisting of
multiple components such as a controller and
datapath using a HDL.
 Understand the design flows used in industrial IC
design.
 Design a small standard-cell chip in its entirety
using a variety of CAD tools and check it for correct
operation.

7

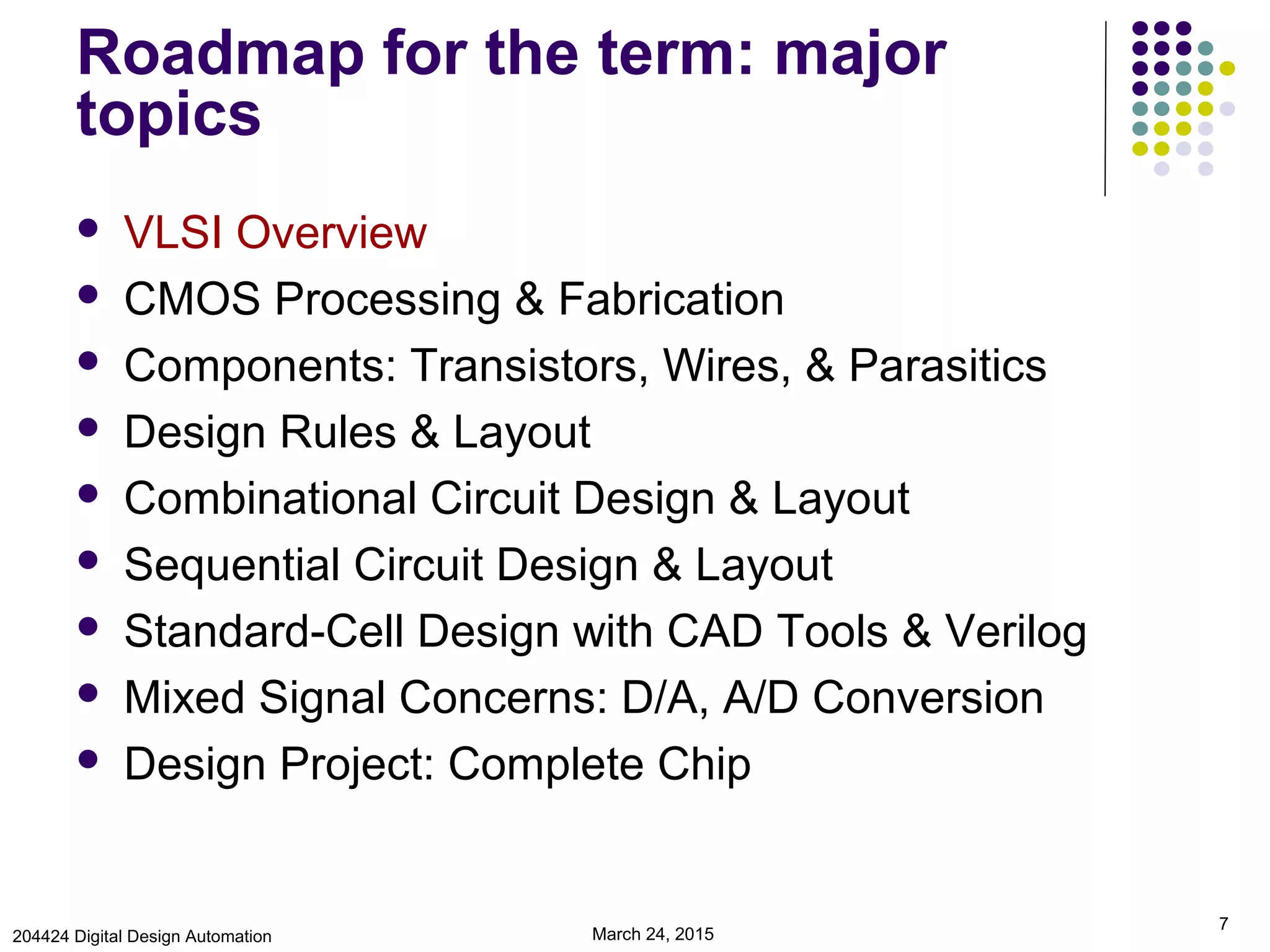

Roadmap for the term: major
topics
 VLSI Overview
 CMOS Processing & Fabrication
 Components: Transistors, Wires, & Parasitics
 Design Rules & Layout
 Combinational Circuit Design & Layout
 Sequential Circuit Design & Layout
 Standard-Cell Design with CAD Tools & Verilog
 Mixed Signal Concerns: D/A, A/D Conversion
 Design Project: Complete Chip

8

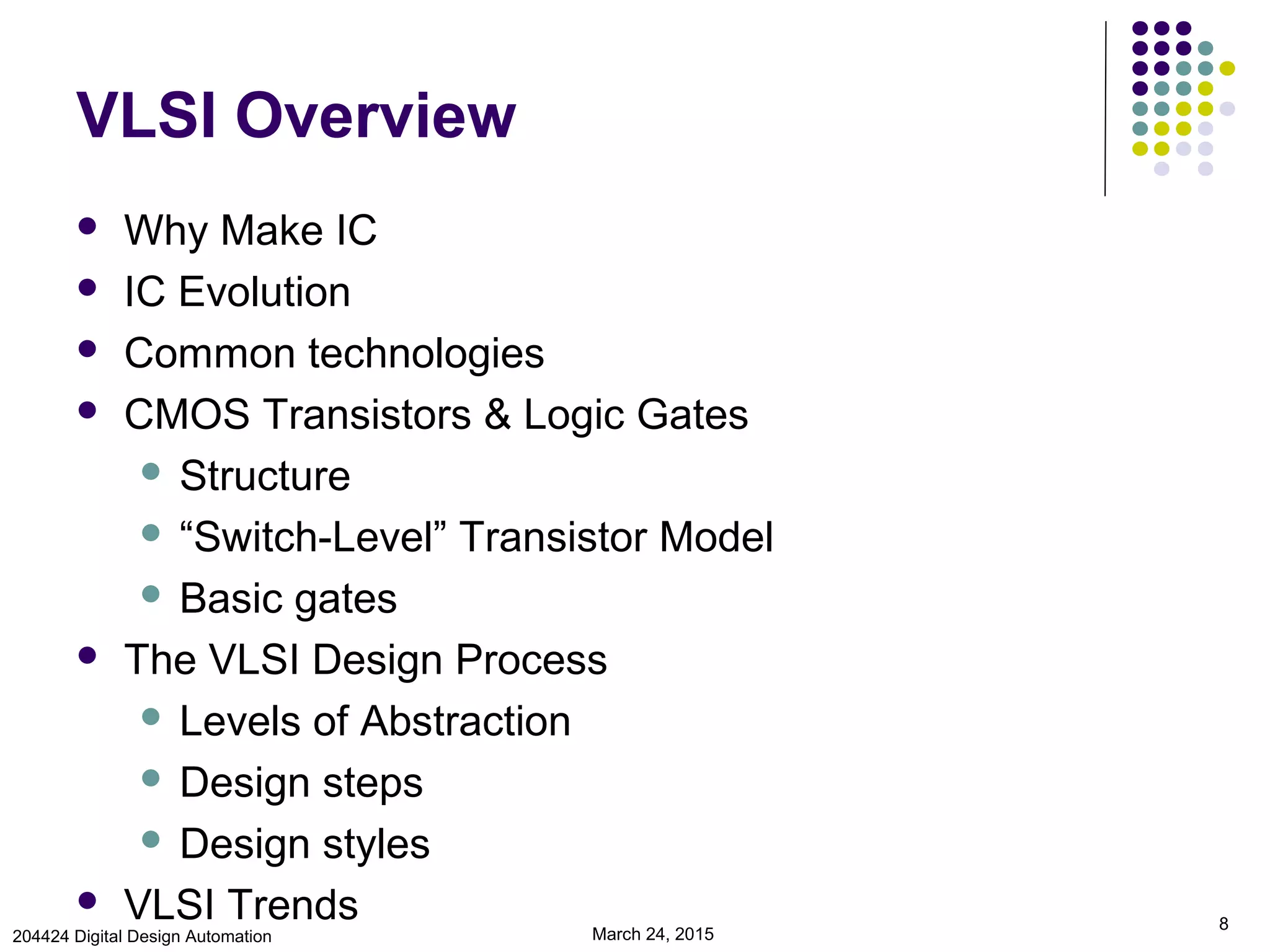

VLSI Overview
 Why Make IC
 IC Evolution
 Common technologies
 CMOS Transistors & Logic Gates
 Structure
 “Switch-Level” Transistor Model
 Basic gates
 The VLSI Design Process
 Levels of Abstraction
 Design steps
 Design styles
 VLSI Trends

9

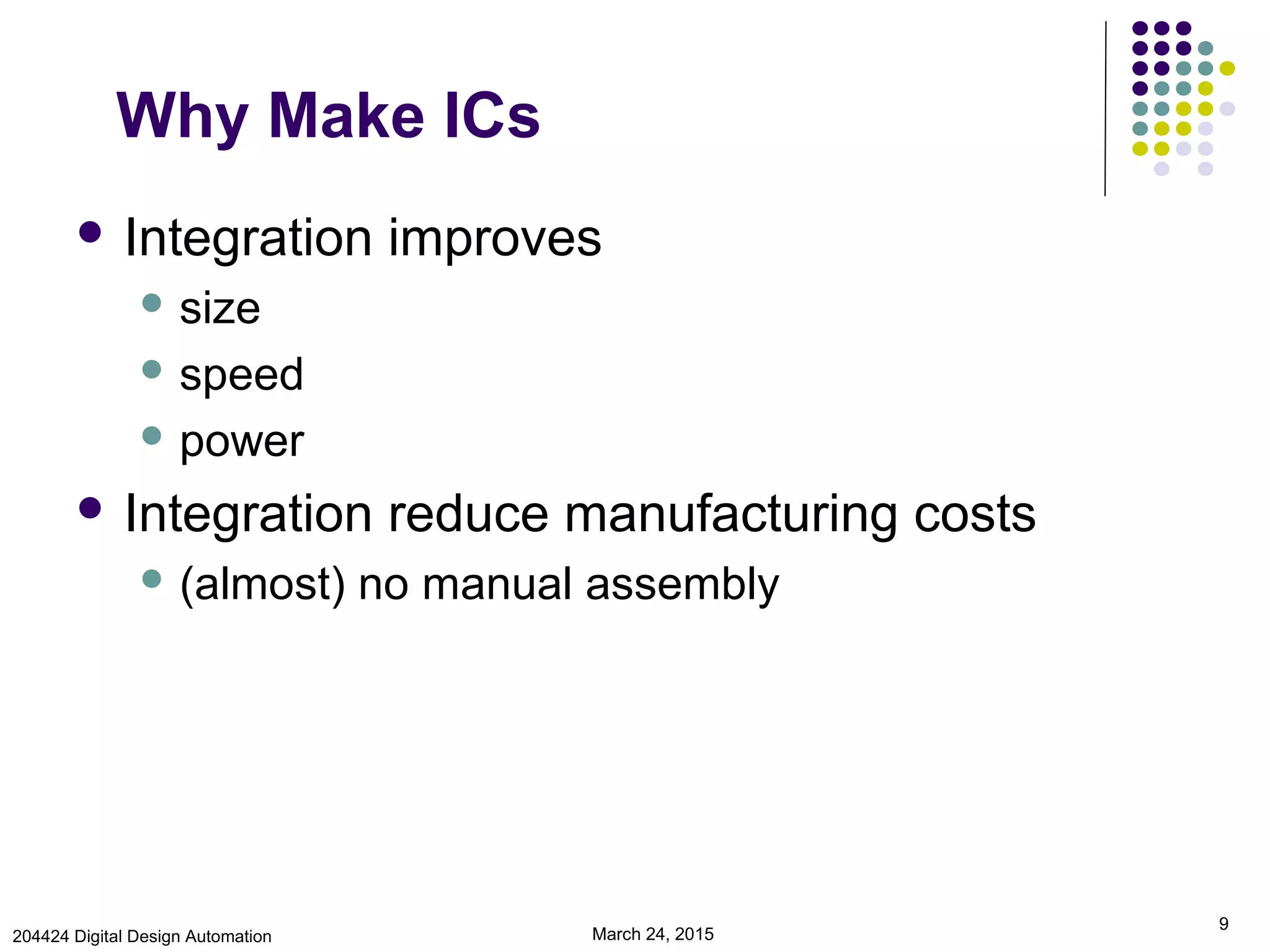

Why Make ICs
 Integration improves
 size
 speed
 power
 Integration reduce manufacturing costs
 (almost) no manual assembly

10

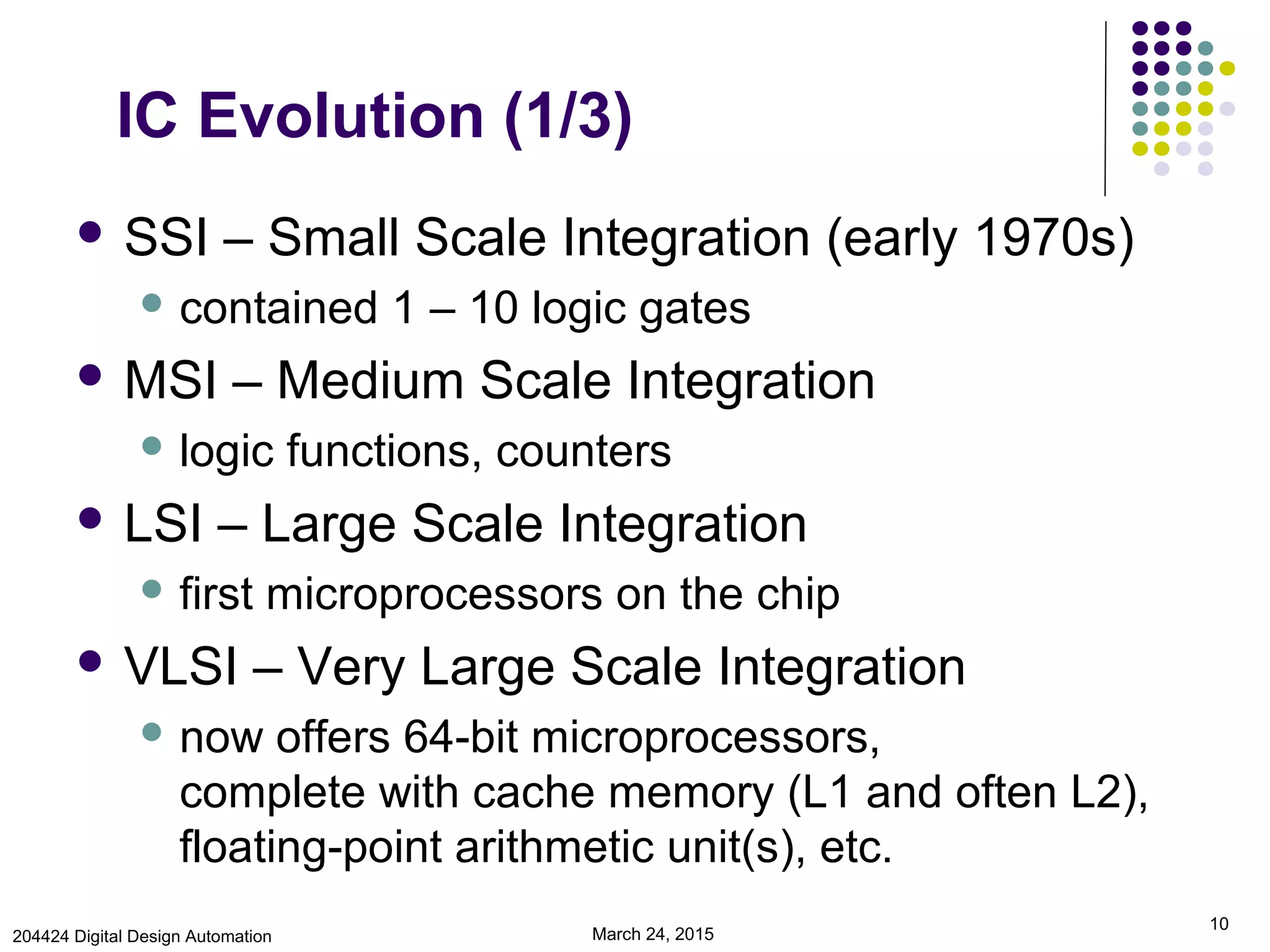

IC Evolution (1/3)
 SSI – Small Scale Integration (early 1970s)
 contained 1 – 10 logic gates
 MSI – Medium Scale Integration
 logic functions, counters
 LSI – Large Scale Integration
 first microprocessors on the chip
 VLSI – Very Large Scale Integration
 now offers 64-bit microprocessors,
complete with cache memory (L1 and often L2),
floating-point arithmetic unit(s), etc.

11

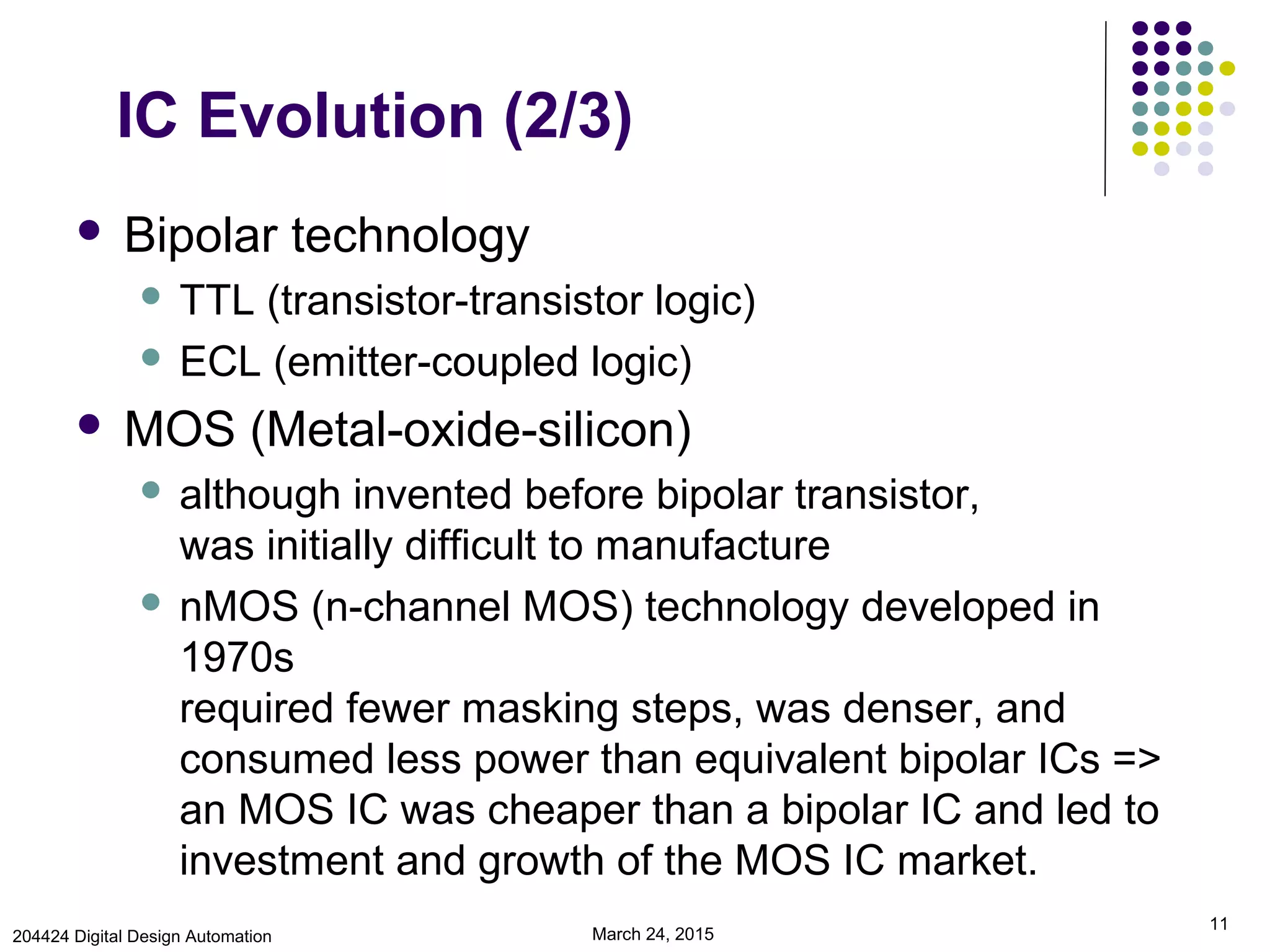

IC Evolution (2/3)
 Bipolar technology
 TTL (transistor-transistor logic)
 ECL (emitter-coupled logic)
 MOS (Metal-oxide-silicon)
 although invented before bipolar transistor,
was initially difficult to manufacture
 nMOS (n-channel MOS) technology developed in
1970s
required fewer masking steps, was denser, and
consumed less power than equivalent bipolar ICs =>
an MOS IC was cheaper than a bipolar IC and led to
investment and growth of the MOS IC market.

12

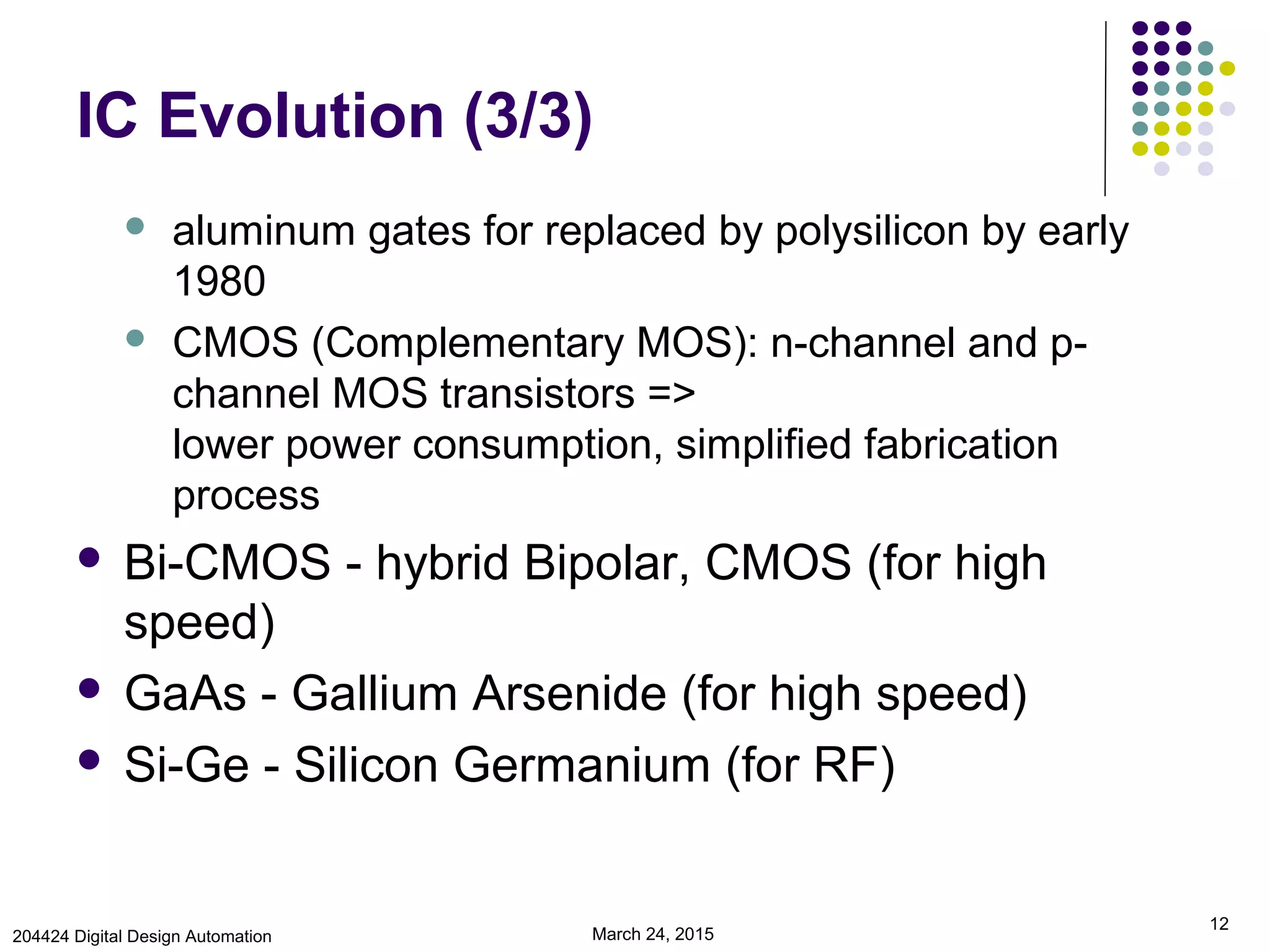

IC Evolution (3/3)
 aluminum gates for replaced by polysilicon by early
1980
 CMOS (Complementary MOS): n-channel and p-
channel MOS transistors =>
lower power consumption, simplified fabrication
process
 Bi-CMOS - hybrid Bipolar, CMOS (for high
speed)
 GaAs - Gallium Arsenide (for high speed)
 Si-Ge - Silicon Germanium (for RF)

13

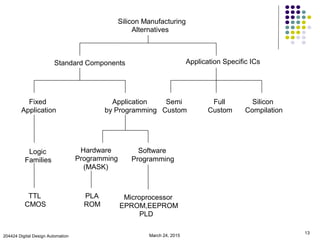

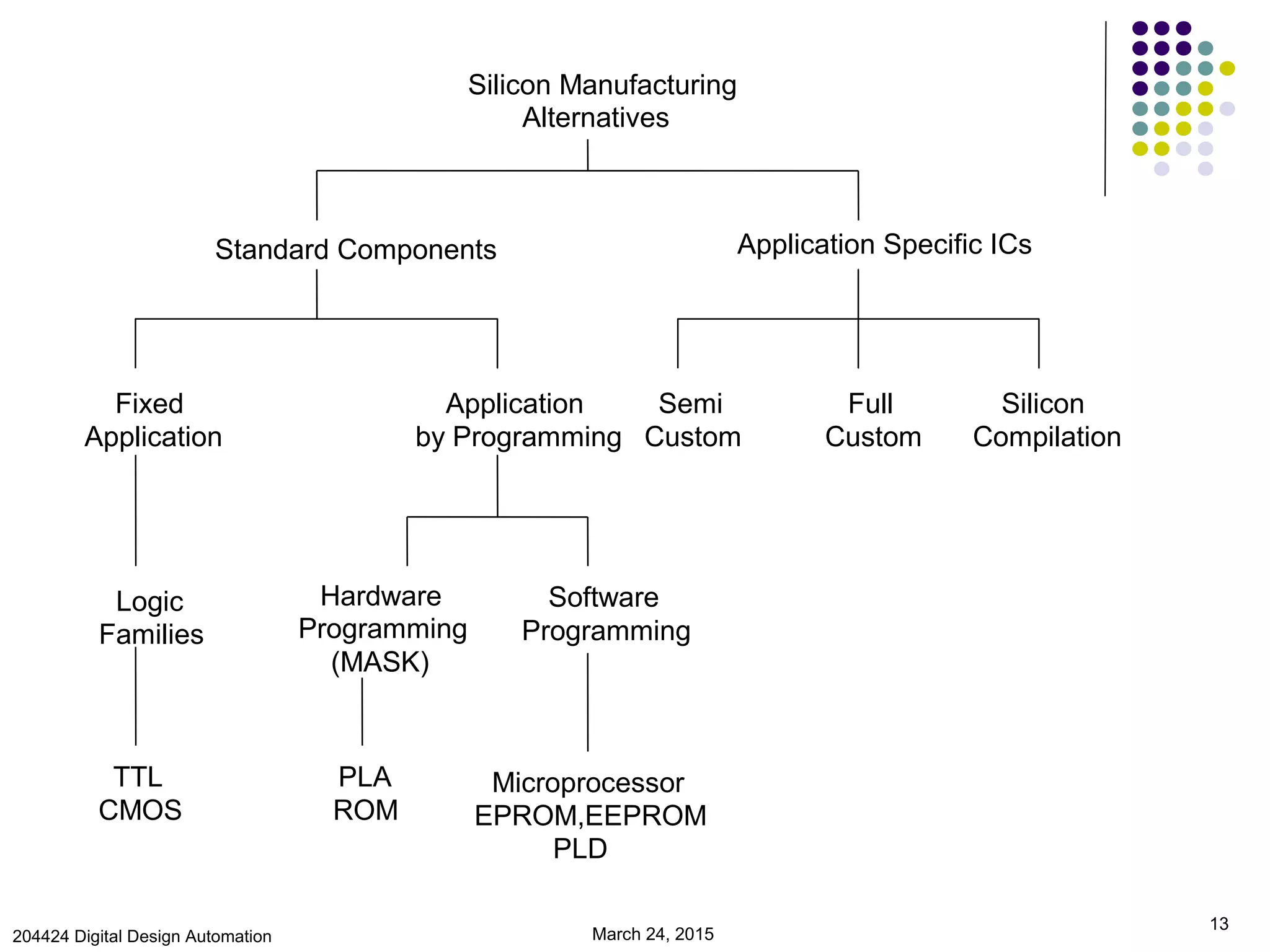

Silicon Manufacturing
Alternatives
Standard Components Application Specific ICs
Fixed
Application
Application
by Programming
Semi
Custom
Silicon
Compilation
Full
Custom
Logic
Families
Hardware
Programming
(MASK)
Software
Programming
TTL
CMOS
PLA
ROM
Microprocessor
EPROM,EEPROM
PLD

14

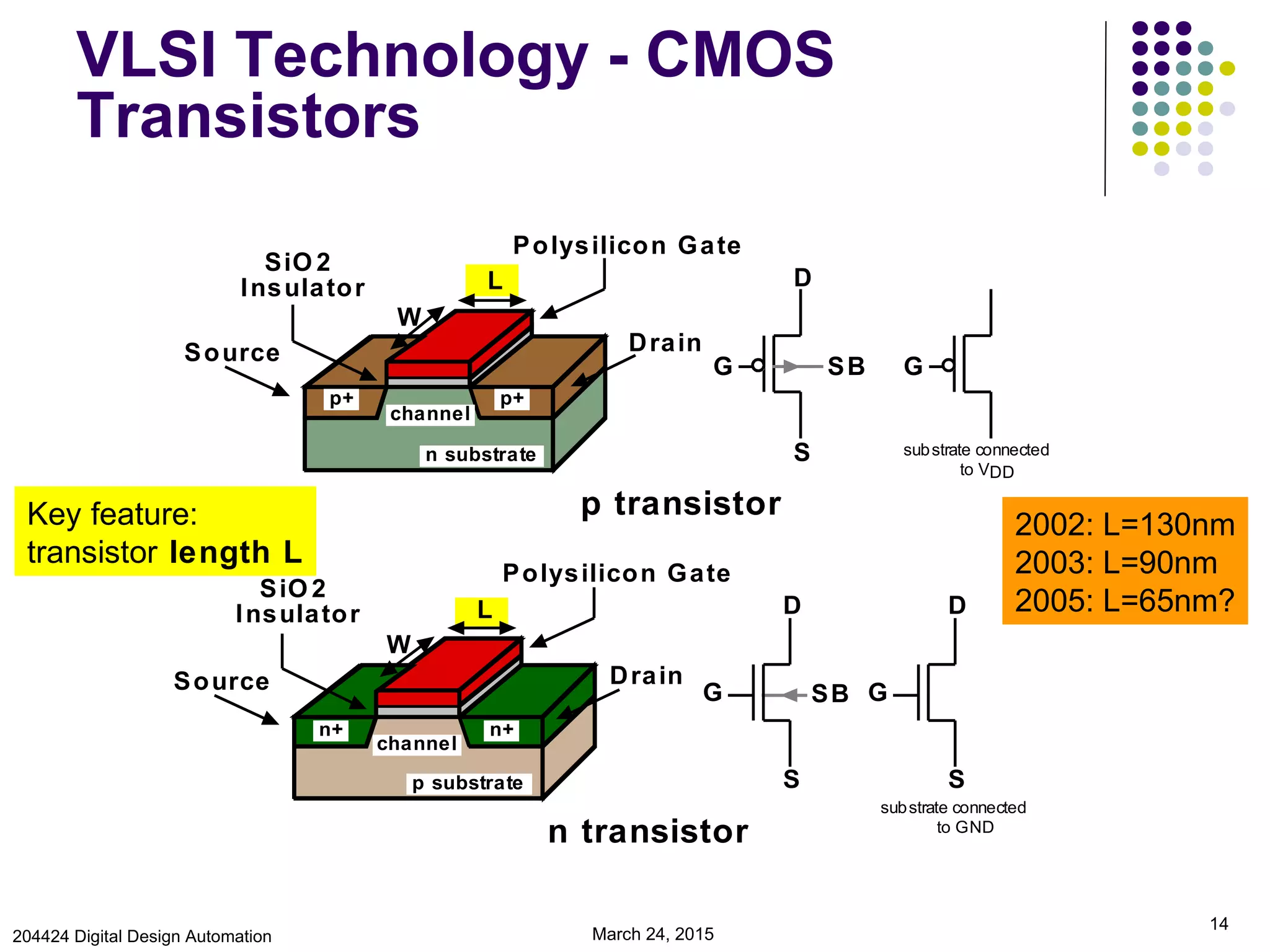

VLSI Technology - CMOS
Transistors
Key feature:
transistor length L
p+ p+
n substrate
channel
Source Drain
p transistor
G
S
D
SB
Polysilicon Gate
SiO 2
Insulator L
W
G
substrate connected
to VDD
Polysilicon Gate
SiO 2
Insulator
n+ n+
p substrate
channel
Source Drain
n transistor
G
S
D
SB
L
W
G
S
D
substrate connected
to GND
2002: L=130nm
2003: L=90nm
2005: L=65nm?

15

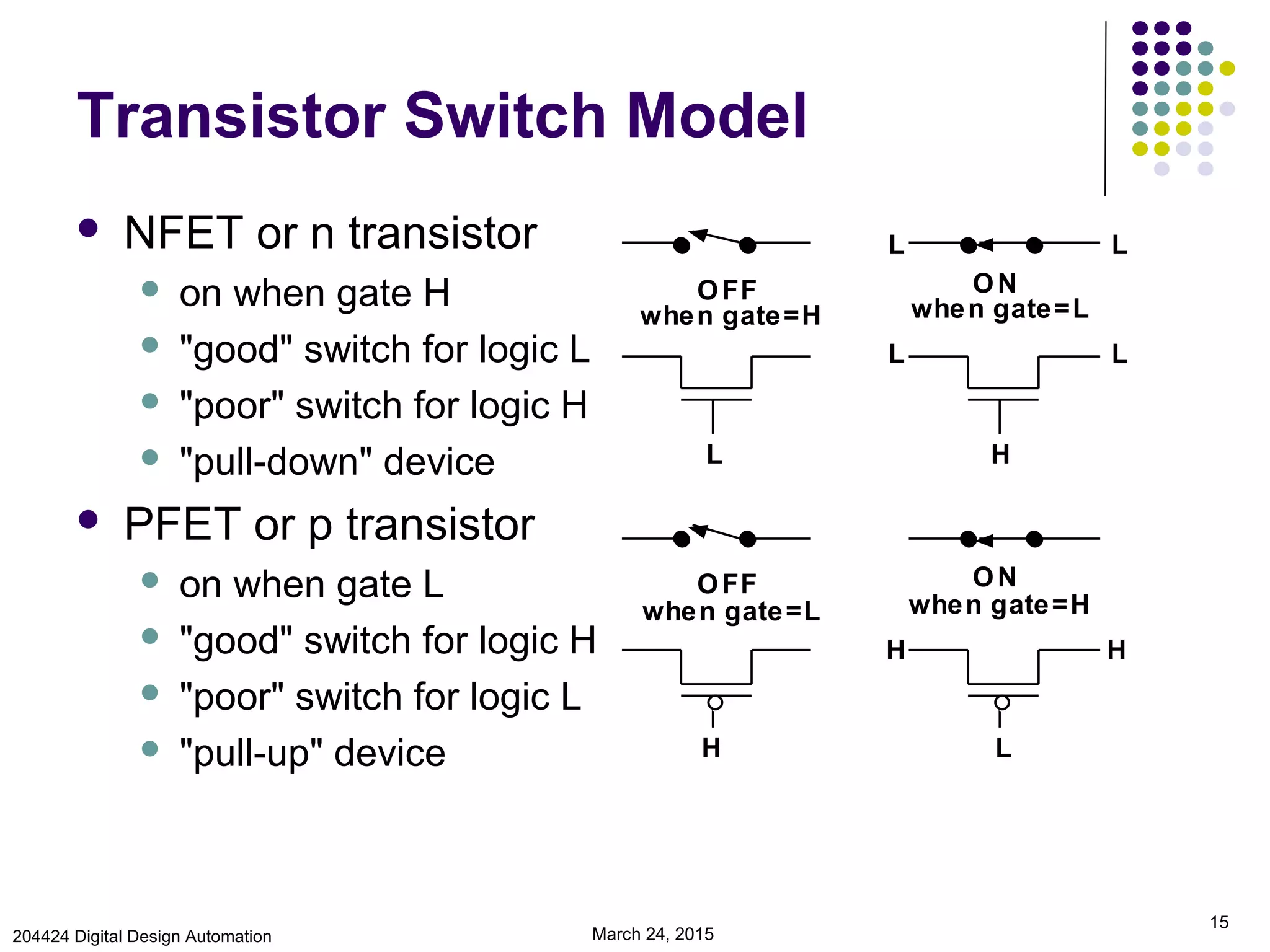

Transistor Switch Model
 NFET or n transistor
 on when gate H
 "good" switch for logic L
 "poor" switch for logic H
 "pull-down" device
 PFET or p transistor
 on when gate L
 "good" switch for logic H
 "poor" switch for logic L
 "pull-up" device
L H
L L
L L
H L
H H
OFF
when gate=L
ON
when gate=H
OFF
when gate=H
ON
when gate=L

16

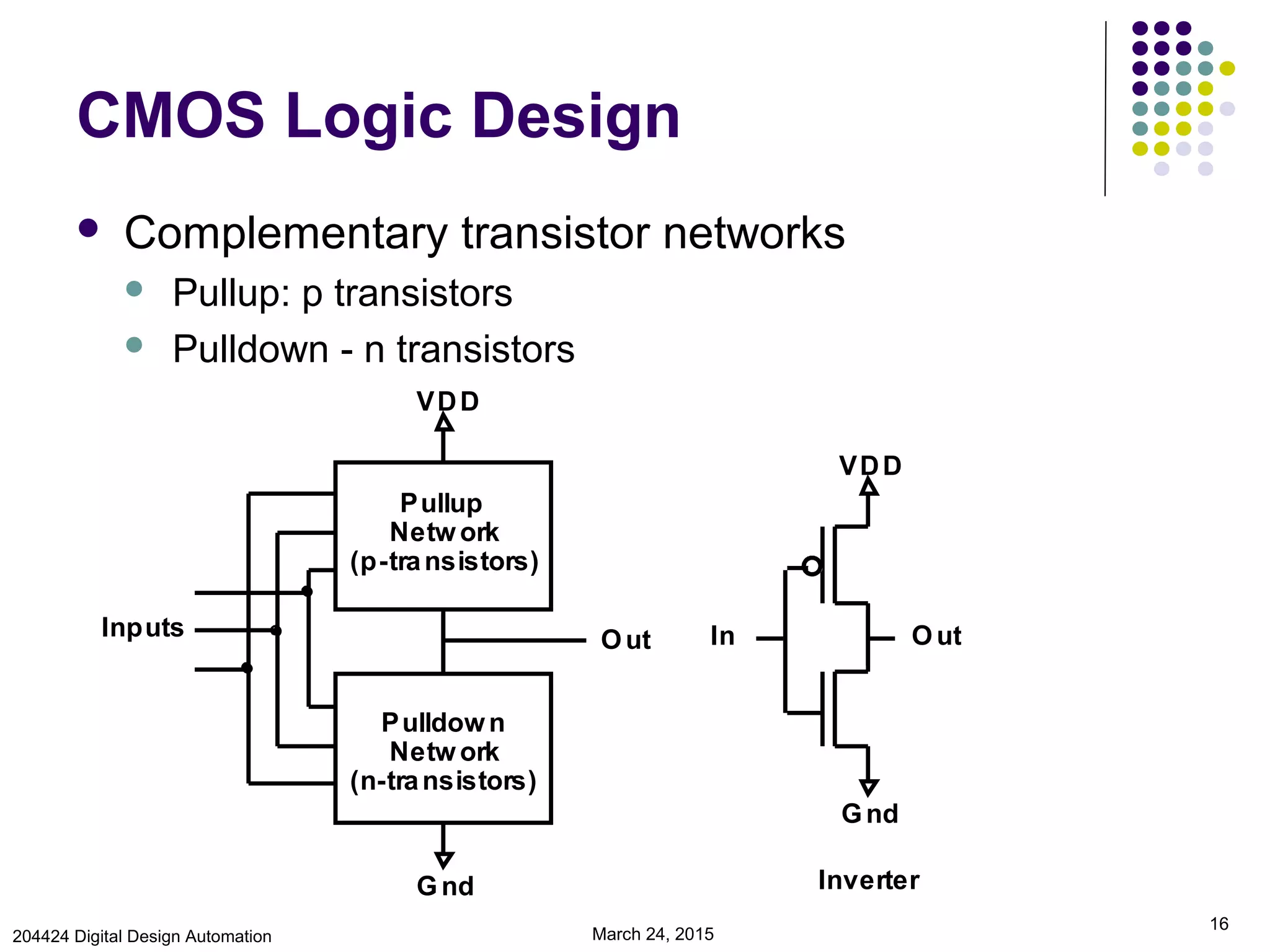

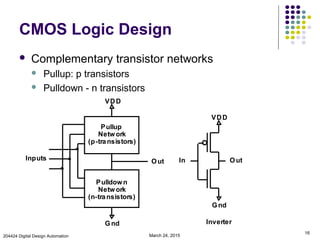

CMOS Logic Design
 Complementary transistor networks
 Pullup: p transistors
 Pulldown - n transistors
VDD
Out
Gnd
VDD
Out
Gnd
Pullup
Network
(p-transistors)
Pulldown
Network
(n-transistors)
InInputs
Inverter

17

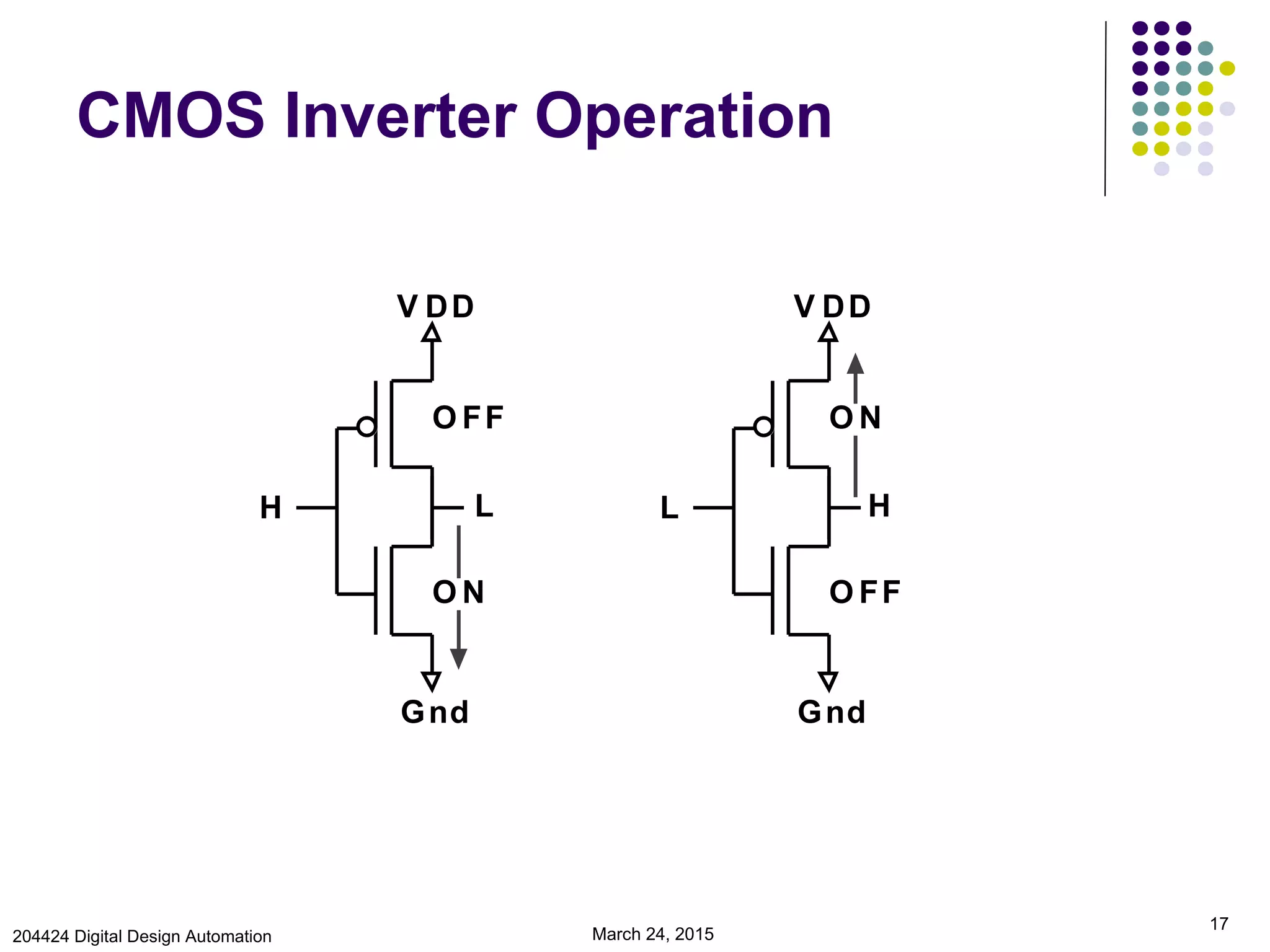

CMOS Inverter Operation
V DD
L
Gnd
H
O N
O FF
V DD
H
Gnd
L
O FF
O N

18

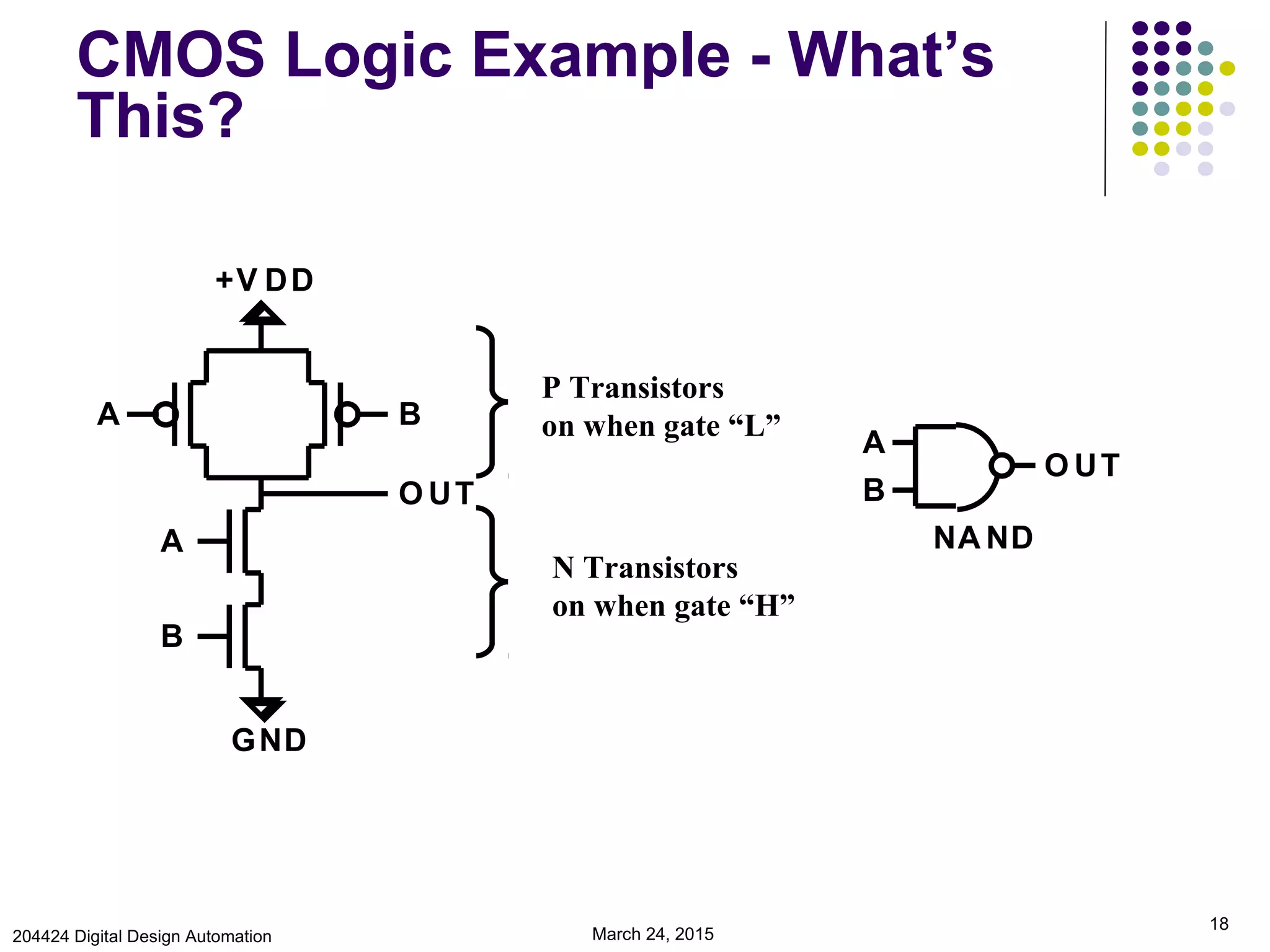

CMOS Logic Example - What’s
This?
A B
A
B
O UT
+V DD
GND
P Transistors
on when gate “L”
N Transistors
on when gate “H”
A
B
O UT
NA ND

19

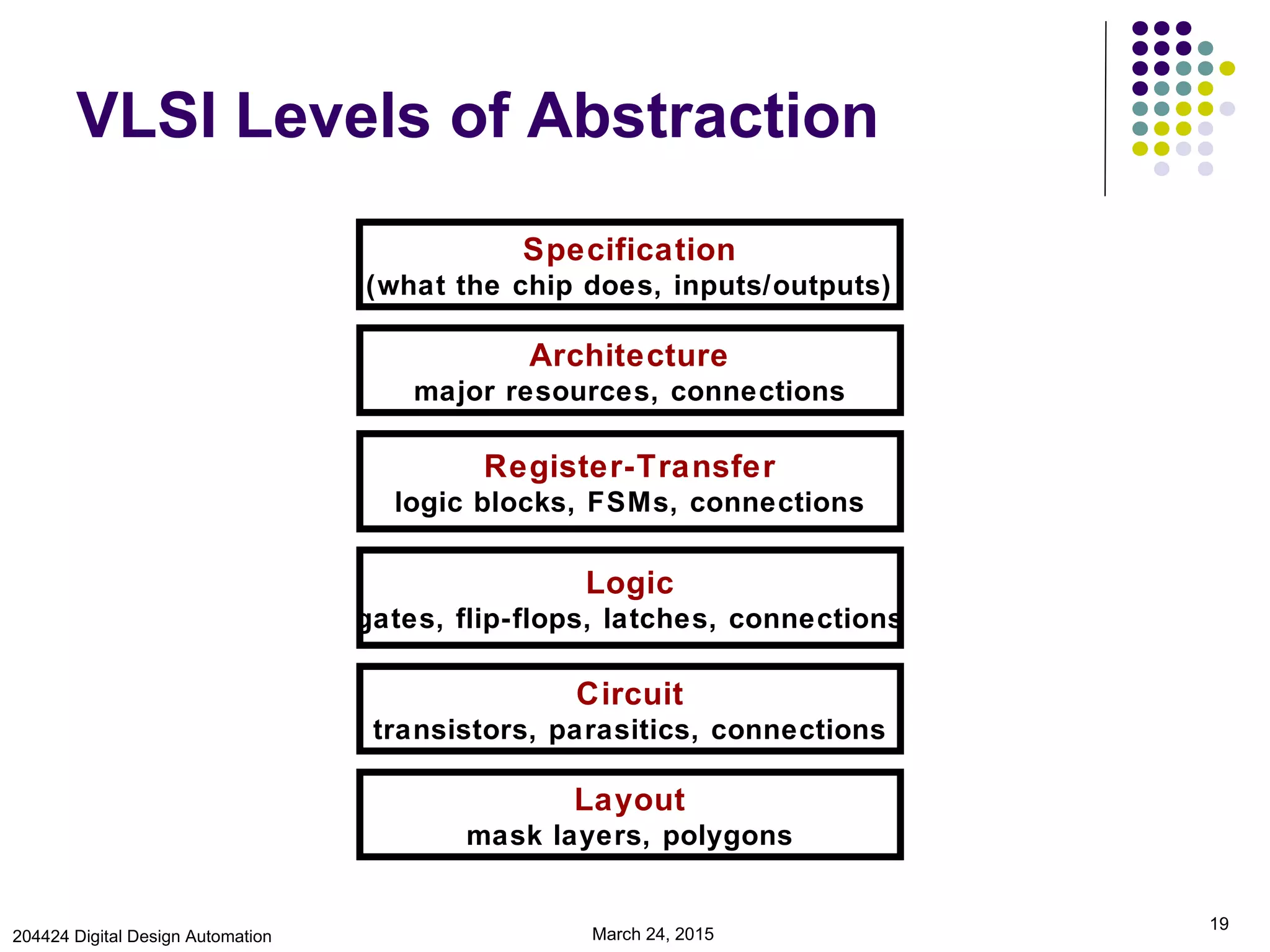

VLSI Levels of Abstraction
Specification
(what the chip does, inputs/outputs)
Architecture
major resources, connections
Register-Transfer
logic blocks, FSMs, connections
Circuit
transistors, parasitics, connections
Layout
mask layers, polygons
Logic
gates, flip-flops, latches, connections

20

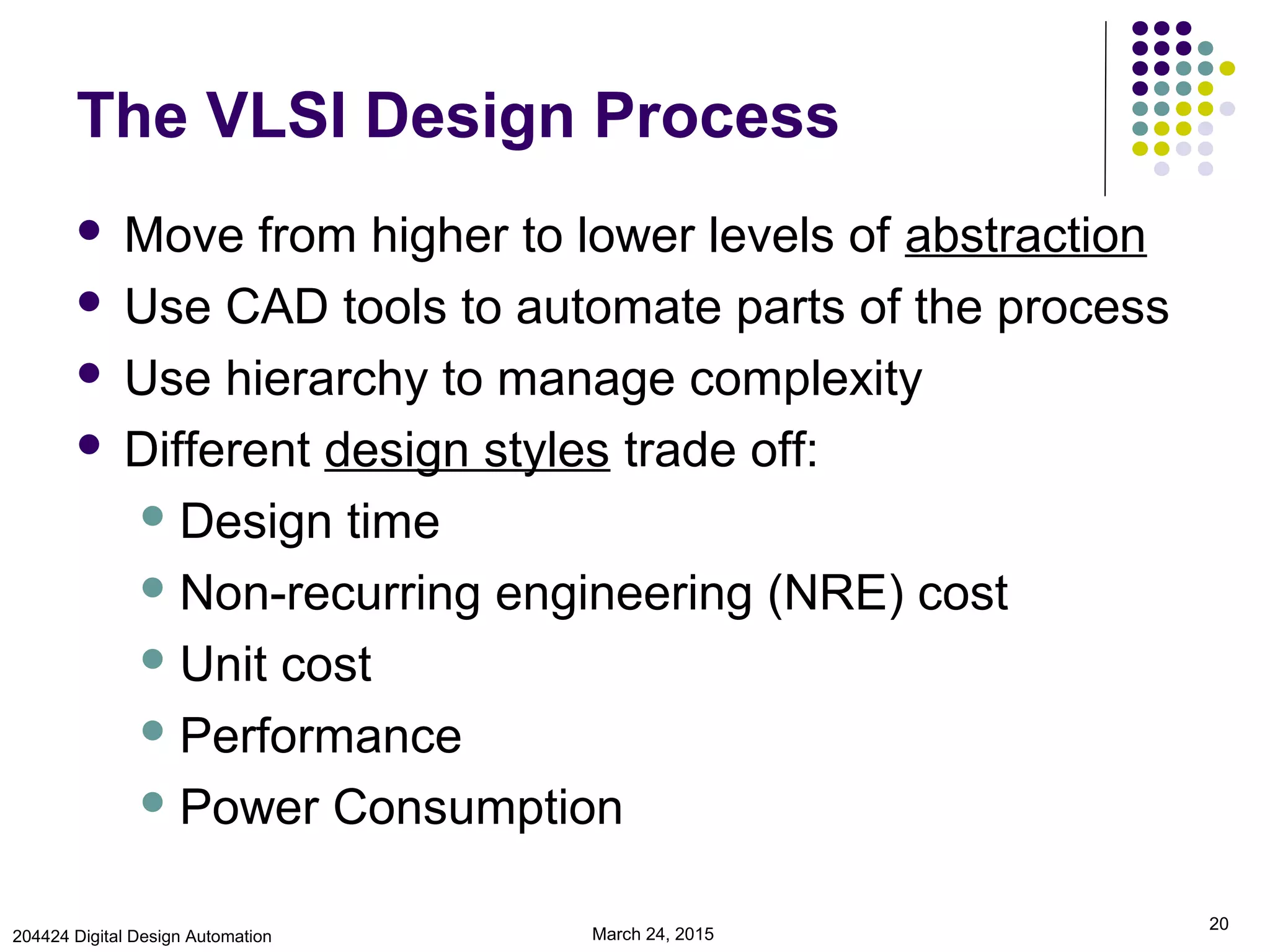

The VLSI Design Process
 Move from higher to lower levels of abstraction
 Use CAD tools to automate parts of the process
 Use hierarchy to manage complexity
 Different design styles trade off:
Design time
Non-recurring engineering (NRE) cost
Unit cost
Performance
Power Consumption

21

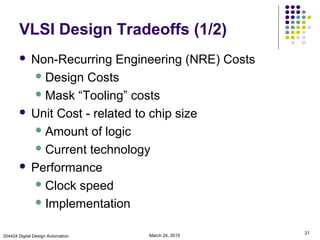

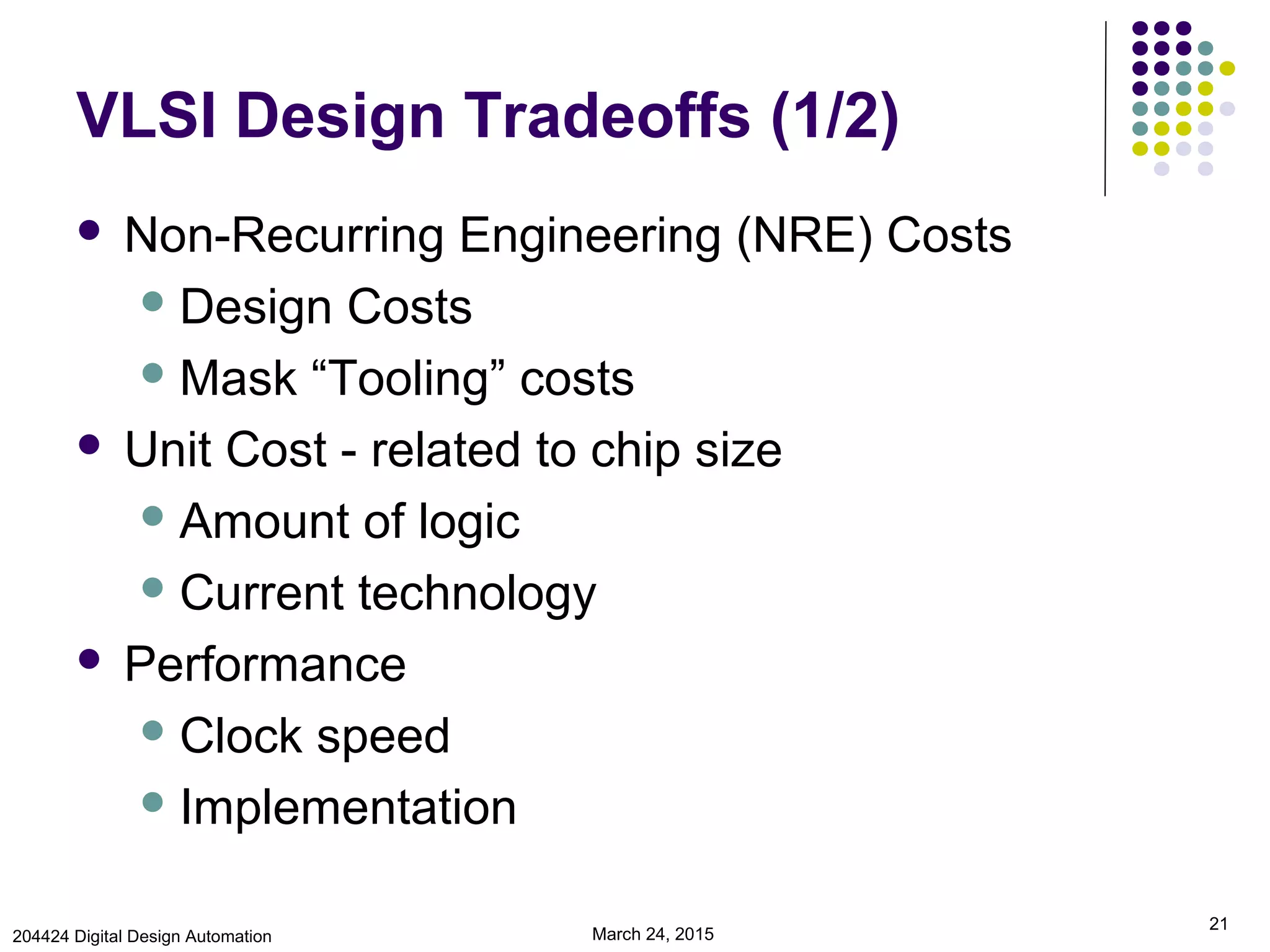

VLSI Design Tradeoffs (1/2)
 Non-Recurring Engineering (NRE) Costs
Design Costs
Mask “Tooling” costs
 Unit Cost - related to chip size
Amount of logic
Current technology
 Performance
Clock speed
Implementation

22

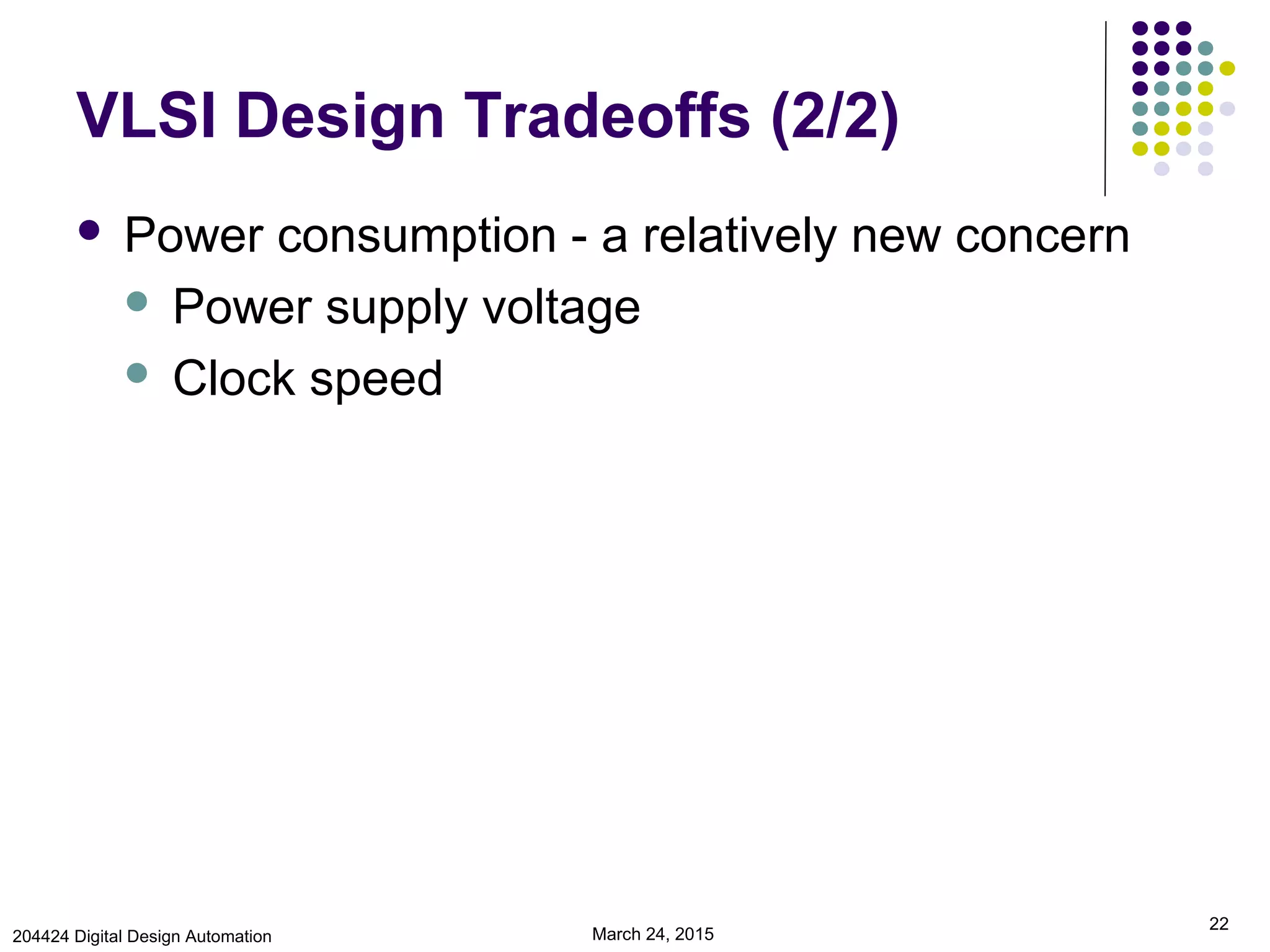

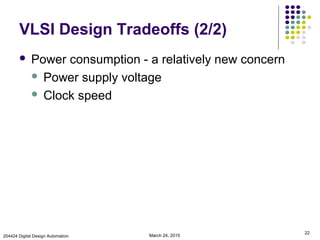

VLSI Design Tradeoffs (2/2)
 Power consumption - a relatively new concern
 Power supply voltage
 Clock speed

23

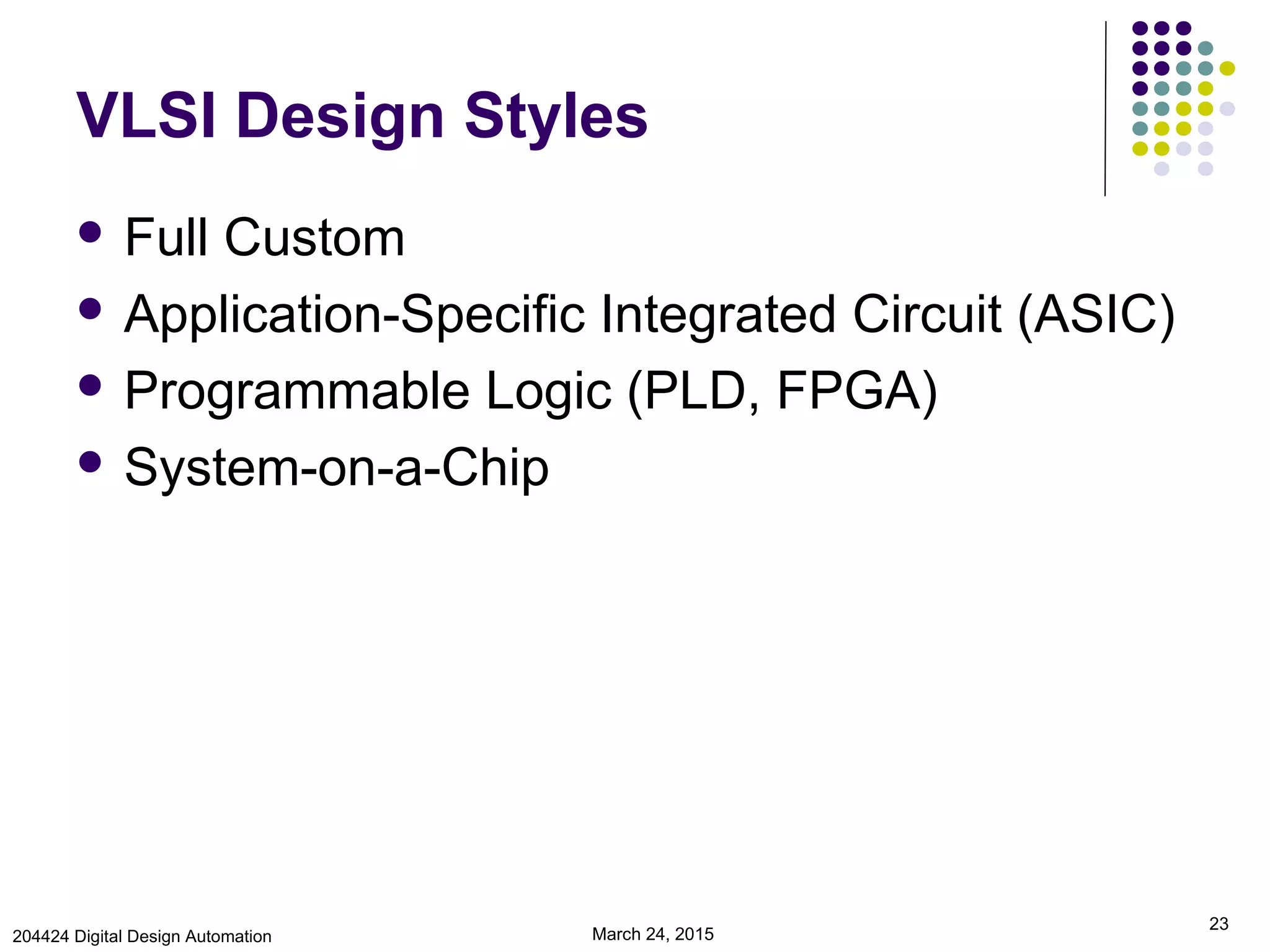

VLSI Design Styles
 Full Custom
 Application-Specific Integrated Circuit (ASIC)
 Programmable Logic (PLD, FPGA)
 System-on-a-Chip

24

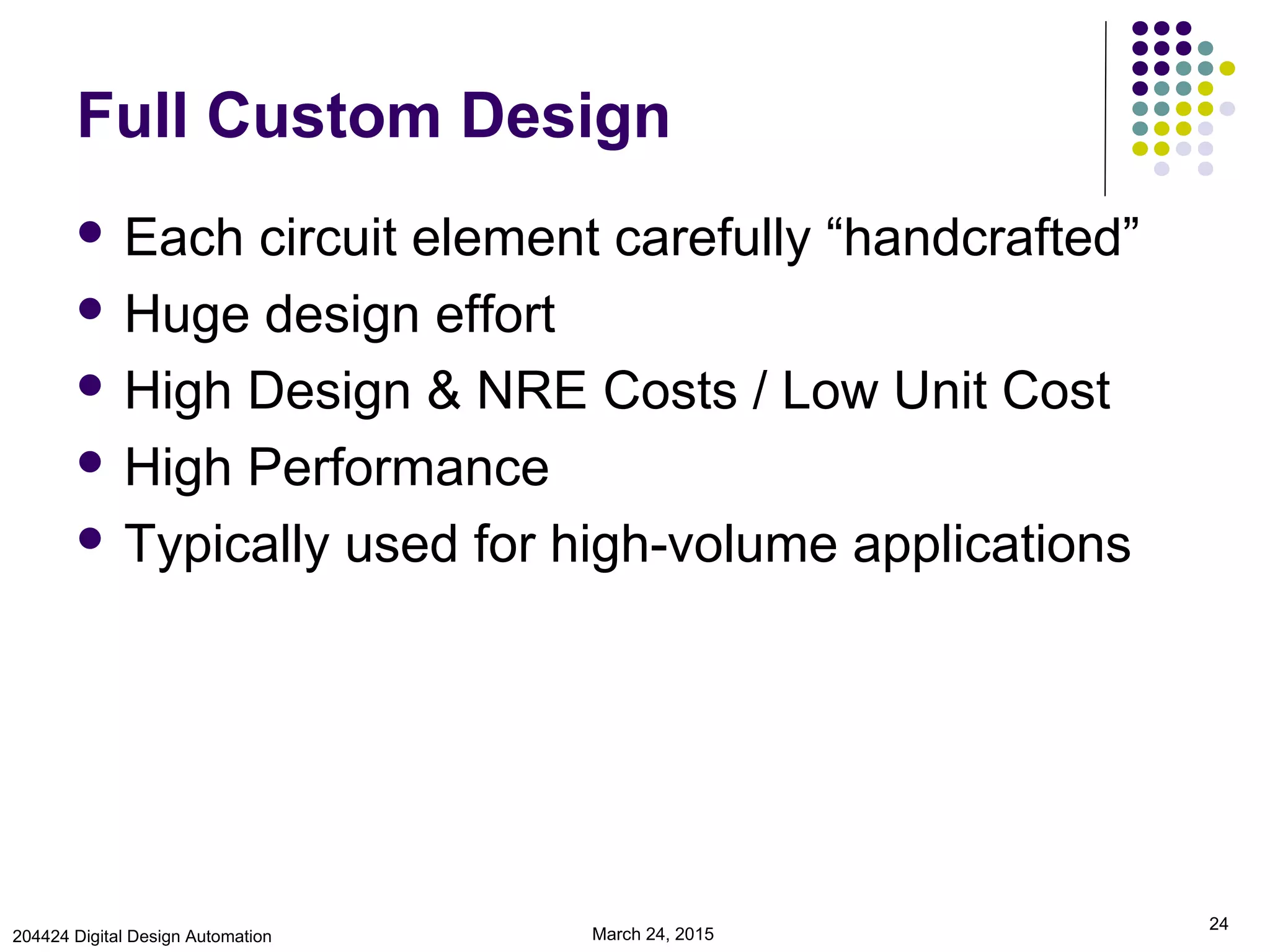

Full Custom Design
 Each circuit element carefully “handcrafted”
 Huge design effort
 High Design & NRE Costs / Low Unit Cost
 High Performance
 Typically used for high-volume applications

25

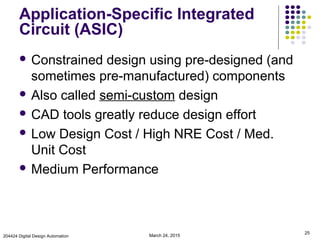

Application-Specific Integrated
Circuit (ASIC)
 Constrained design using pre-designed (and
sometimes pre-manufactured) components
 Also called semi-custom design
 CAD tools greatly reduce design effort
 Low Design Cost / High NRE Cost / Med.
Unit Cost
 Medium Performance

26

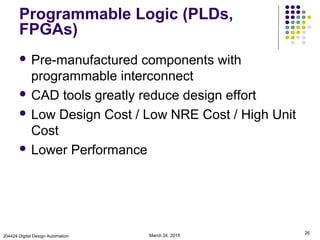

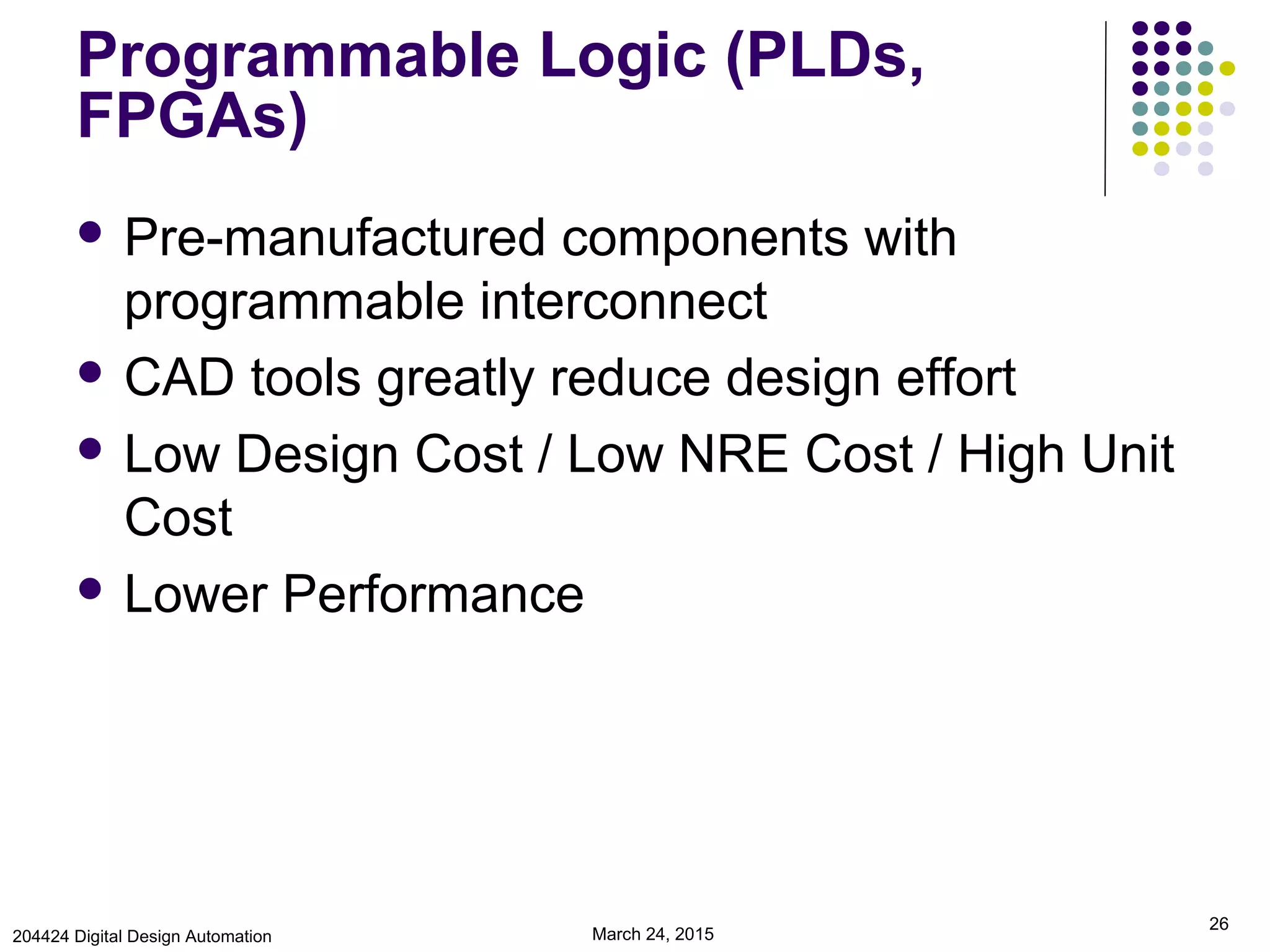

Programmable Logic (PLDs,
FPGAs)
 Pre-manufactured components with
programmable interconnect
 CAD tools greatly reduce design effort
 Low Design Cost / Low NRE Cost / High Unit
Cost
 Lower Performance

27

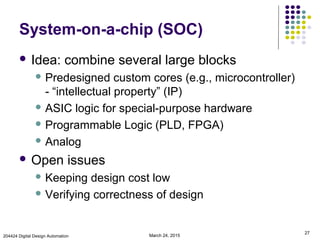

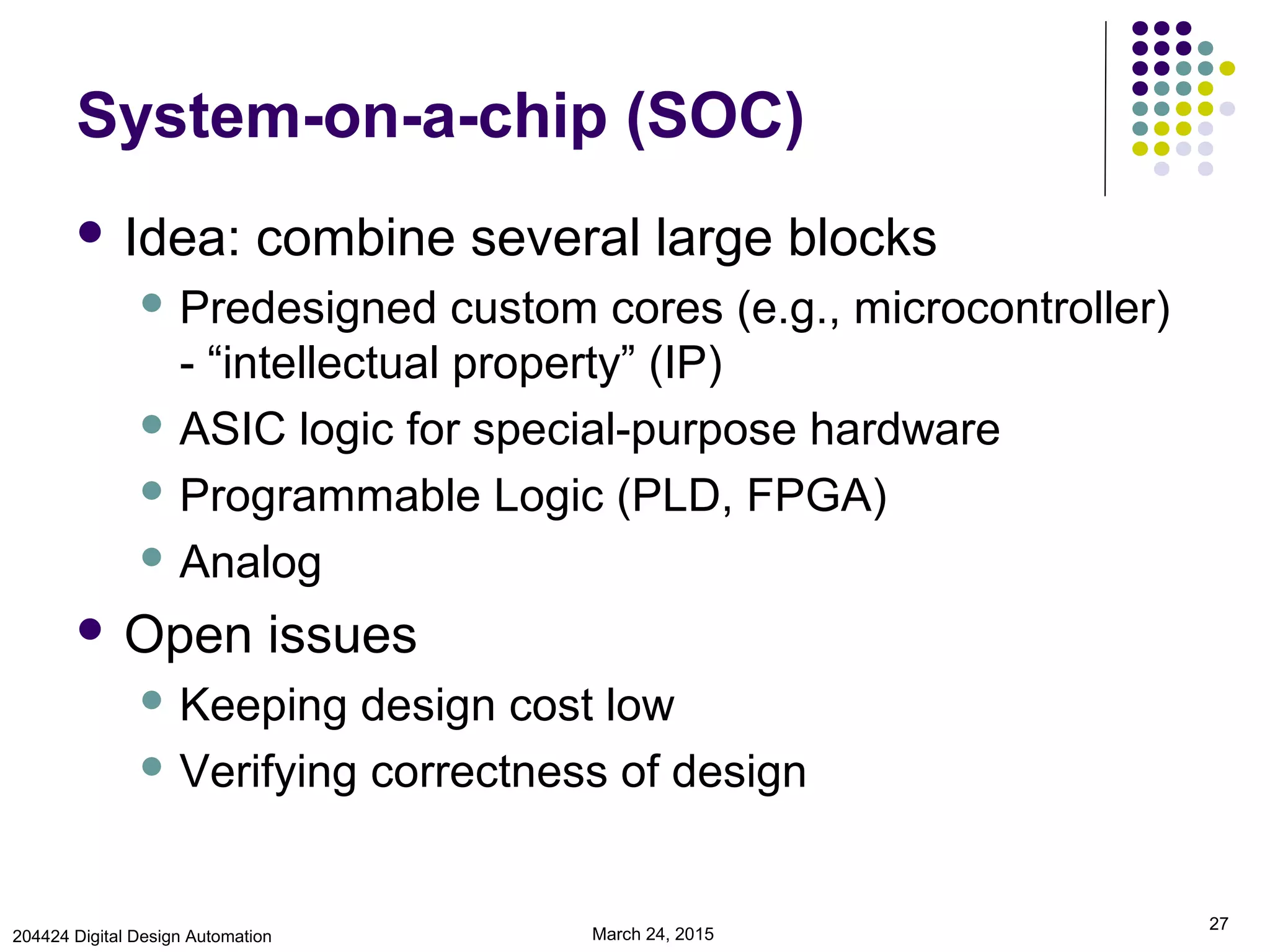

System-on-a-chip (SOC)
 Idea: combine several large blocks
 Predesigned custom cores (e.g., microcontroller)
- “intellectual property” (IP)
 ASIC logic for special-purpose hardware
 Programmable Logic (PLD, FPGA)
 Analog
 Open issues
 Keeping design cost low
 Verifying correctness of design

28

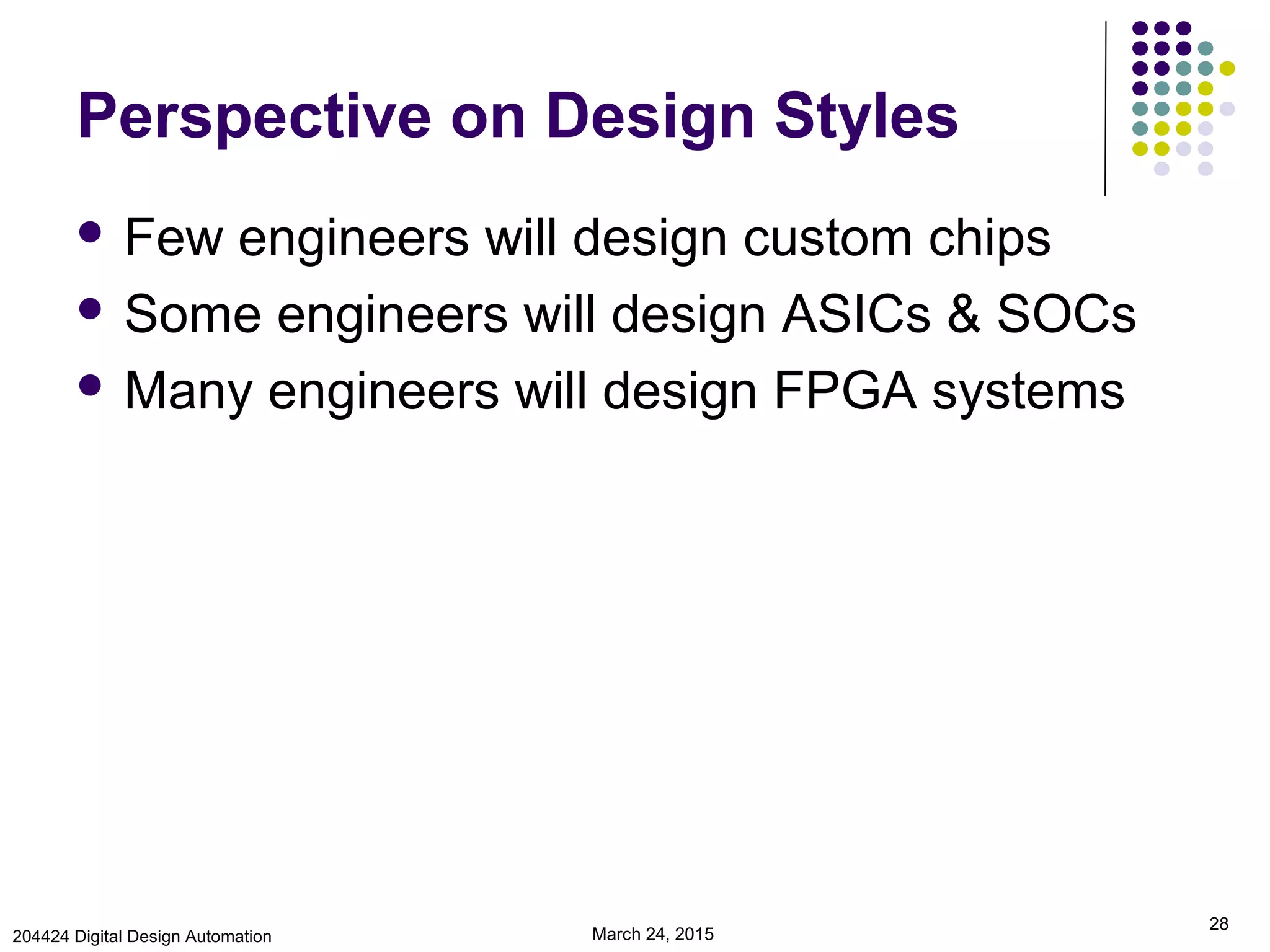

Perspective on Design Styles
 Few engineers will design custom chips
 Some engineers will design ASICs & SOCs
 Many engineers will design FPGA systems

29

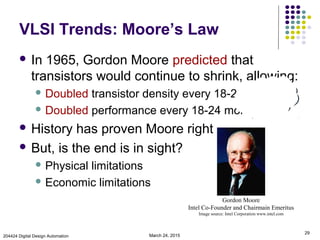

VLSI Trends: Moore’s Law
 In 1965, Gordon Moore predicted that
transistors would continue to shrink, allowing:
 Doubled transistor density every 18-24 months
 Doubled performance every 18-24 months
 History has proven Moore right
 But, is the end is in sight?
 Physical limitations
 Economic limitations
I’m smiling
because I
was right!
Gordon Moore
Intel Co-Founder and Chairmain Emeritus
Image source: Intel Corporation www.intel.com

30

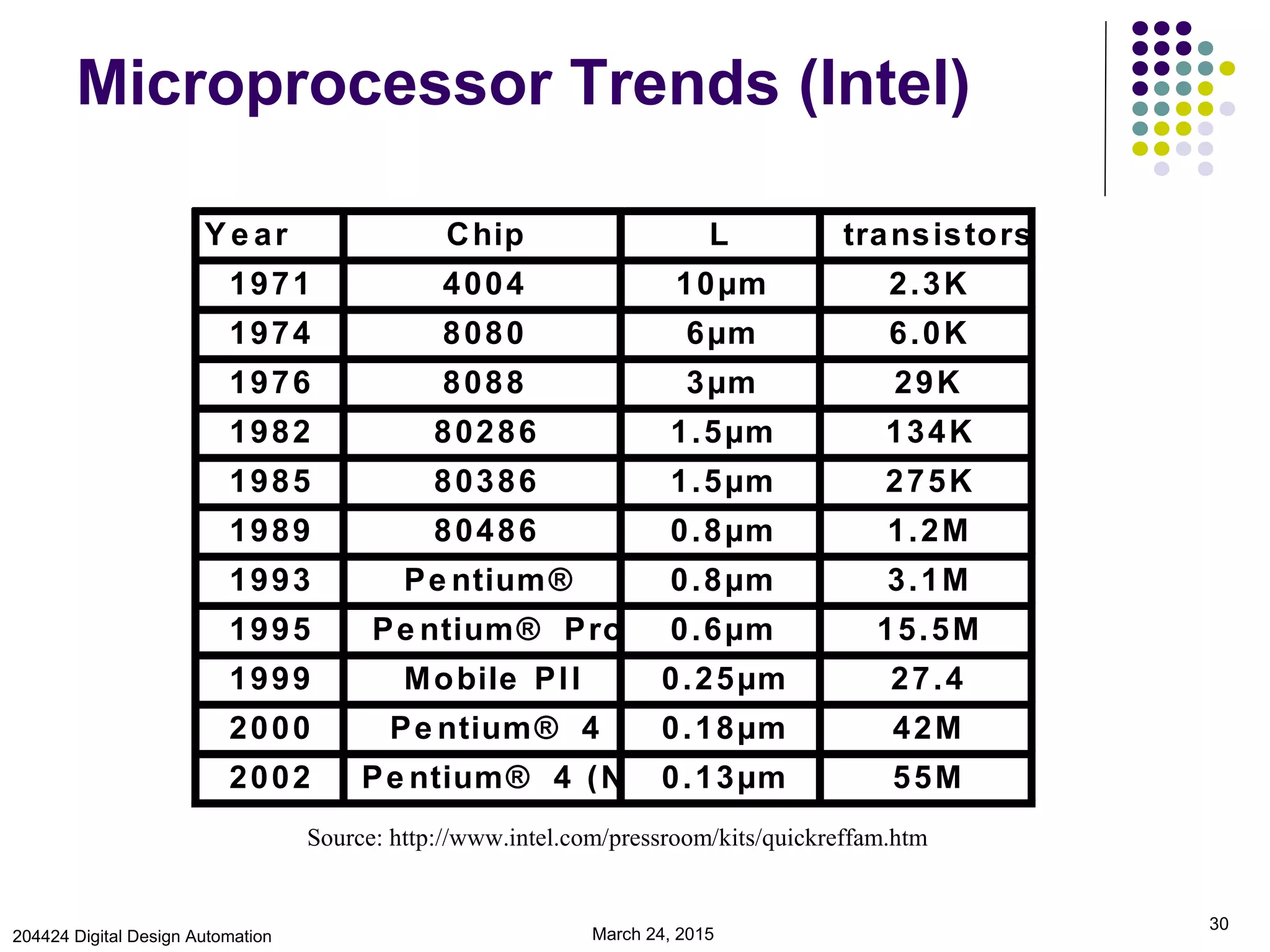

Microprocessor Trends (Intel)
Y e ar Chip L transistors
1971 4004 10µm 2.3K
1974 8080 6µm 6.0K
1976 8088 3µm 29K
1982 80286 1.5µm 134K
1985 80386 1.5µm 275K
1989 80486 0.8µm 1.2M
1993 Pe ntium® 0.8µm 3.1M
1995 Pe ntium® Pro 0.6µm 15.5M
1999 Mobile PII 0.25µm 27.4
2000 Pe ntium® 4 0.18µm 42M
2002 Pe ntium® 4 (N) 0.13µm 55M
Source: http://www.intel.com/pressroom/kits/quickreffam.htm

31

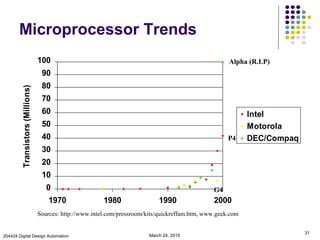

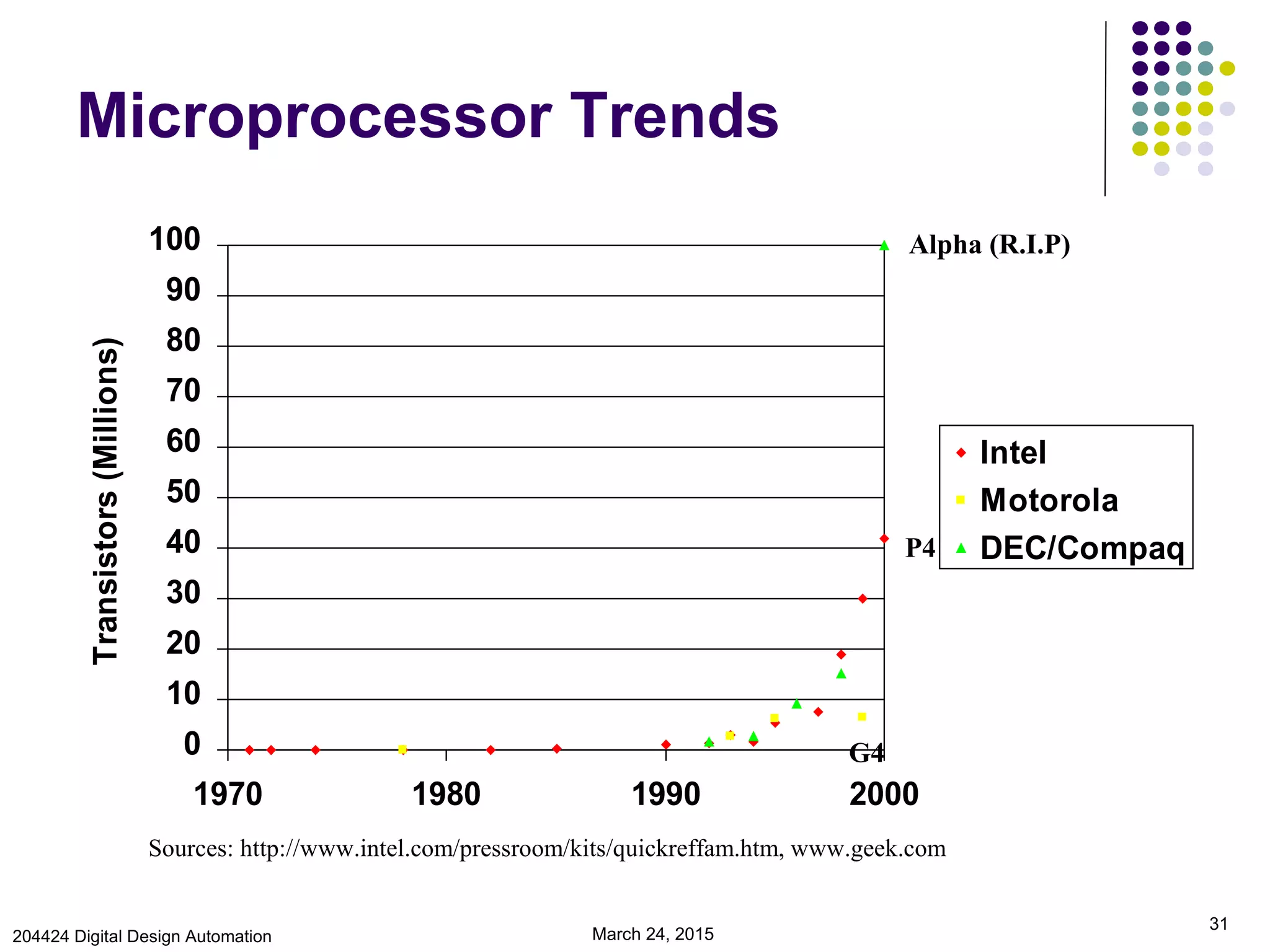

Microprocessor Trends
0
10
20
30
40
50
60
70
80
90
100
1970 1980 1990 2000
Transistors(Millions)
Intel
Motorola
DEC/Compaq
Alpha (R.I.P)
P4
G4
Sources: http://www.intel.com/pressroom/kits/quickreffam.htm, www.geek.com

32

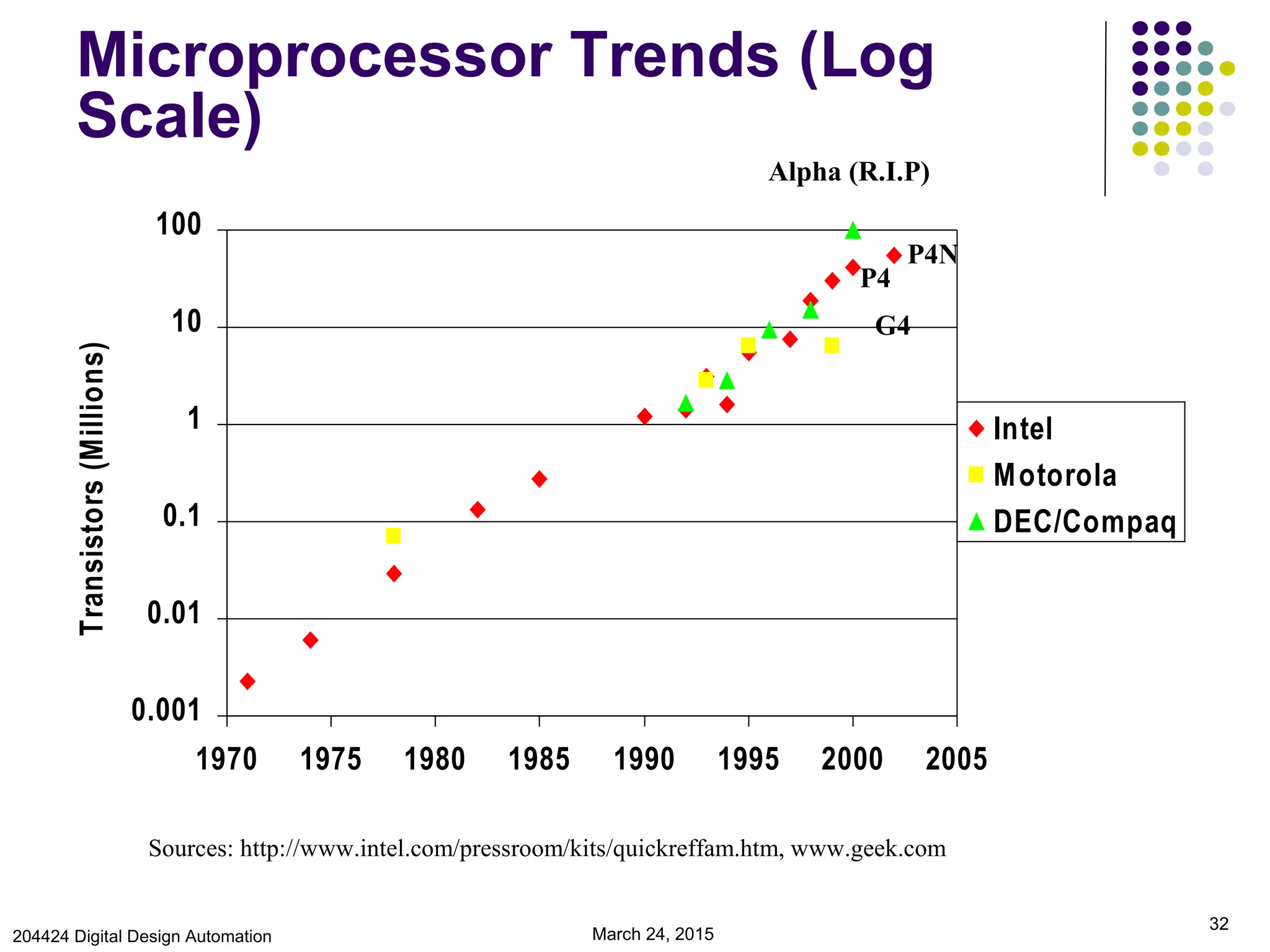

Microprocessor Trends (Log
Scale)
Sources: http://www.intel.com/pressroom/kits/quickreffam.htm, www.geek.com
0.001
0.01
0.1
1
10
100
1970 1975 1980 1985 1990 1995 2000 2005
Transistors(Millions)
Intel
Motorola
DEC/Compaq
Alpha (R.I.P)
P4N
G4
P4

33

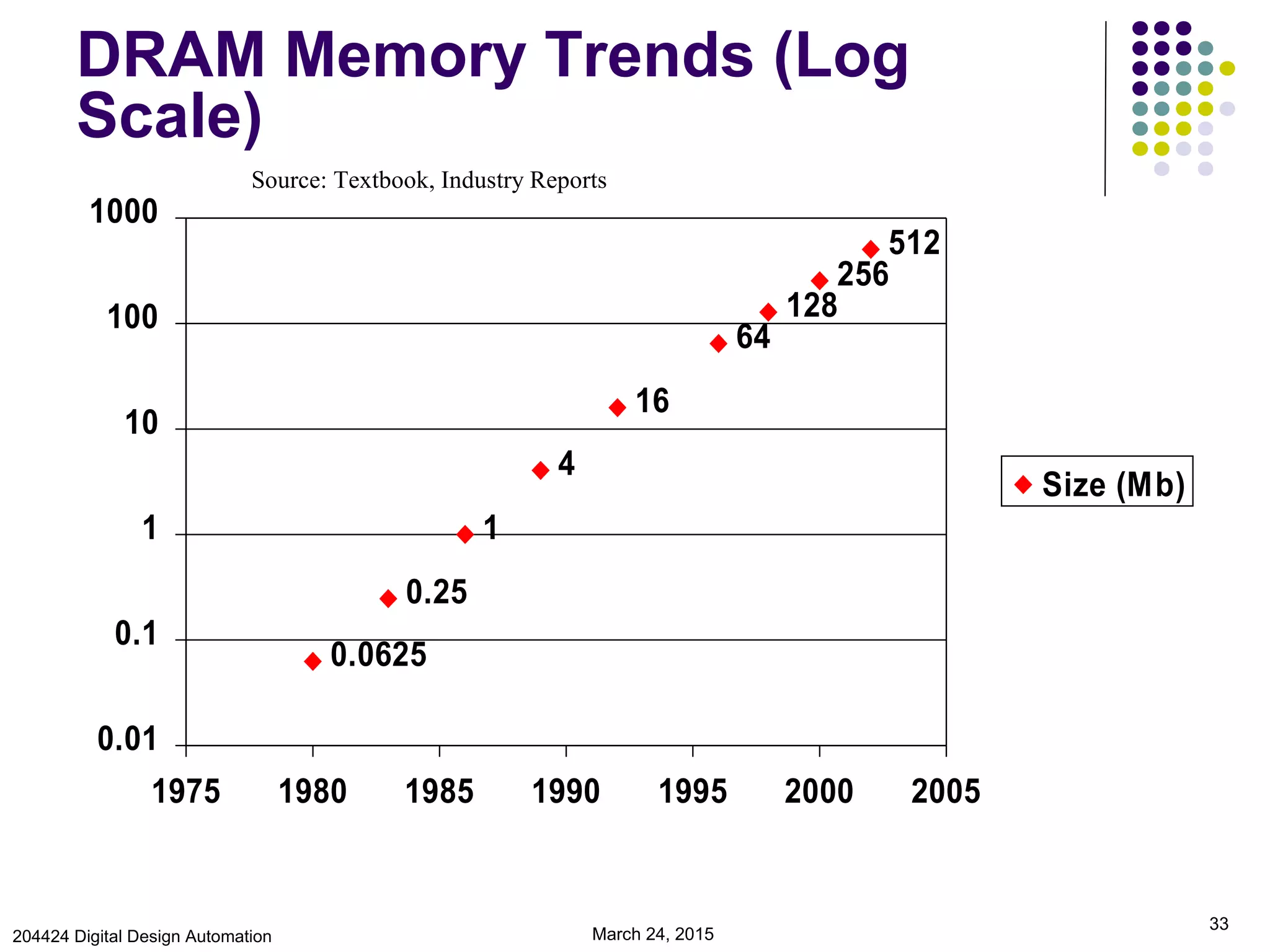

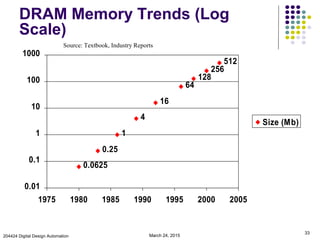

DRAM Memory Trends (Log
Scale)
Source: Textbook, Industry Reports
0.0625
0.25
1
4
16
64
128
256
512
0.01
0.1
1
10
100
1000
1975 1980 1985 1990 1995 2000 2005
Size (Mb)

34

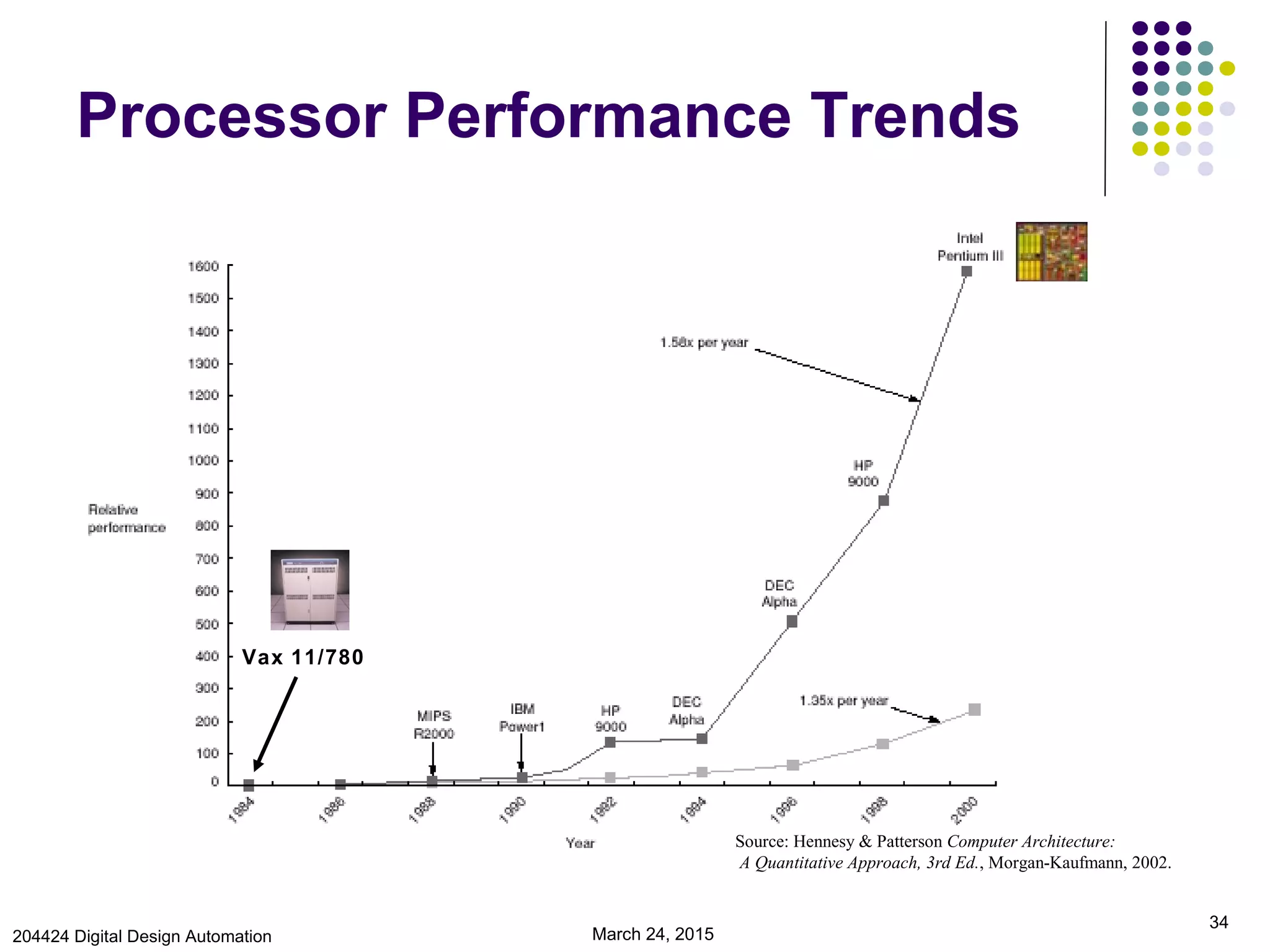

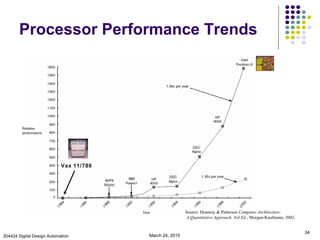

Processor Performance Trends
Source: Hennesy & Patterson Computer Architecture:
A Quantitative Approach, 3rd Ed., Morgan-Kaufmann, 2002.
Vax 11/780

35

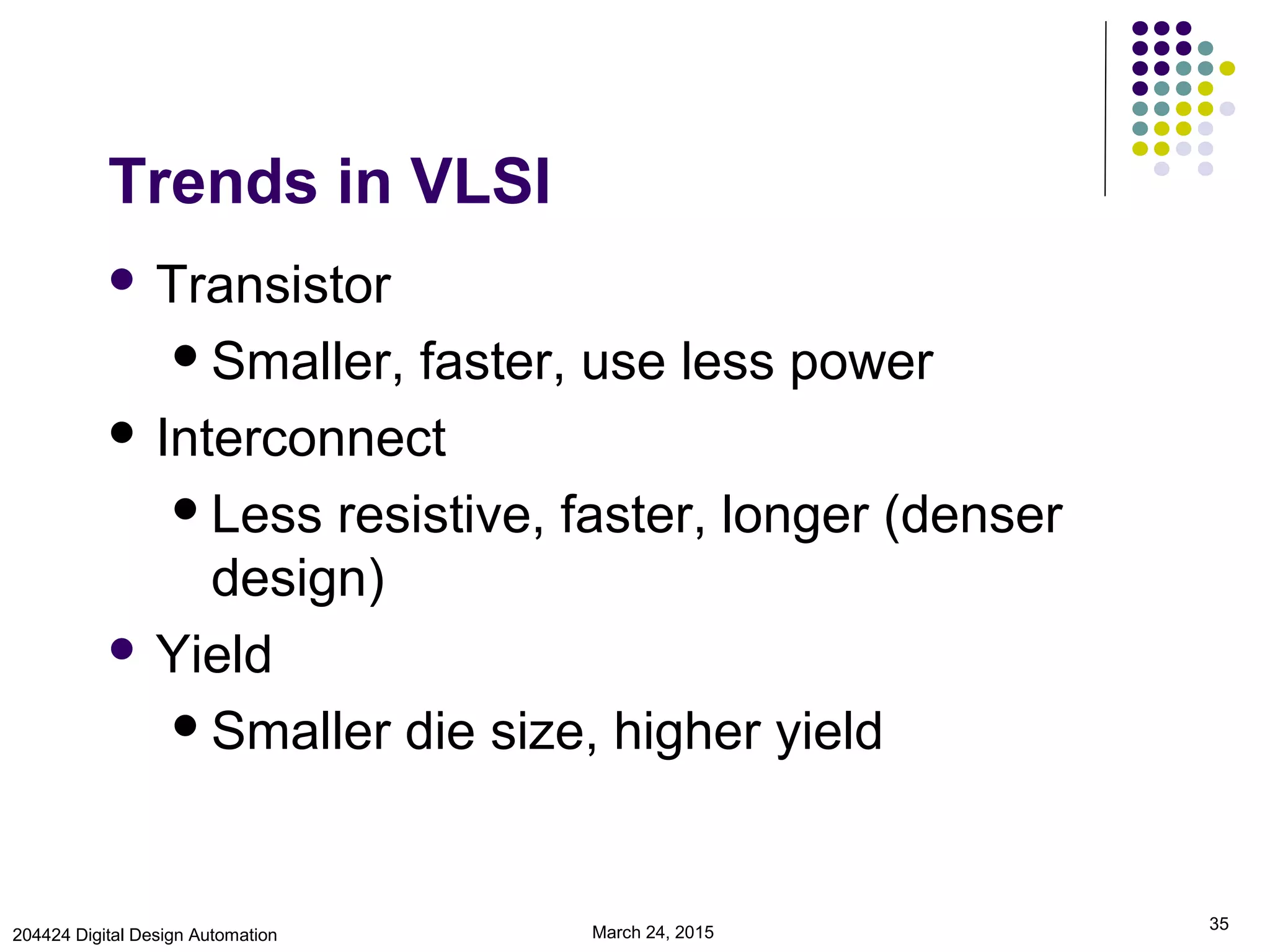

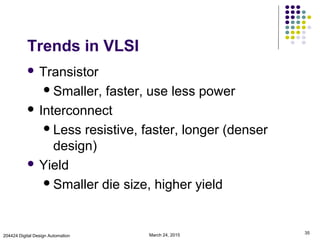

Trends in VLSI
 Transistor
Smaller, faster, use less power
 Interconnect
Less resistive, faster, longer (denser
design)
 Yield
Smaller die size, higher yield

36

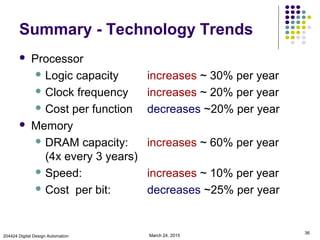

Summary - Technology Trends
 Processor
 Logic capacity increases ~ 30% per year
 Clock frequency increases ~ 20% per year
 Cost per function decreases ~20% per year
 Memory
 DRAM capacity: increases ~ 60% per year
(4x every 3 years)
 Speed: increases ~ 10% per year
 Cost per bit: decreases ~25% per year

37

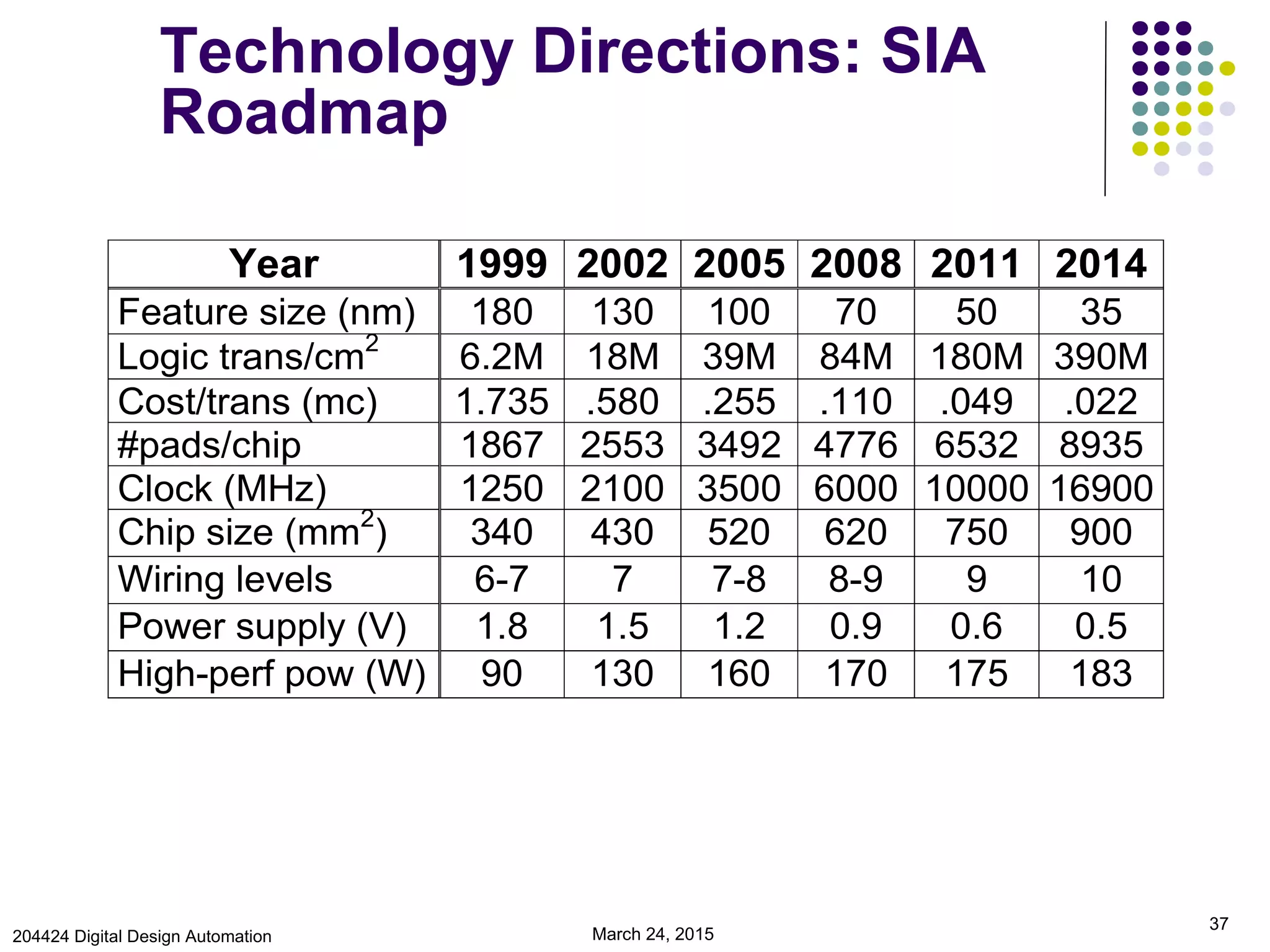

Technology Directions: SIA
Roadmap
Year 1999 2002 2005 2008 2011 2014
Feature size (nm) 180 130 100 70 50 35
Logic trans/cm2
6.2M 18M 39M 84M 180M 390M
Cost/trans (mc) 1.735 .580 .255 .110 .049 .022
#pads/chip 1867 2553 3492 4776 6532 8935
Clock (MHz) 1250 2100 3500 6000 10000 16900
Chip size (mm2
) 340 430 520 620 750 900
Wiring levels 6-7 7 7-8 8-9 9 10
Power supply (V) 1.8 1.5 1.2 0.9 0.6 0.5
High-perf pow (W) 90 130 160 170 175 183

38

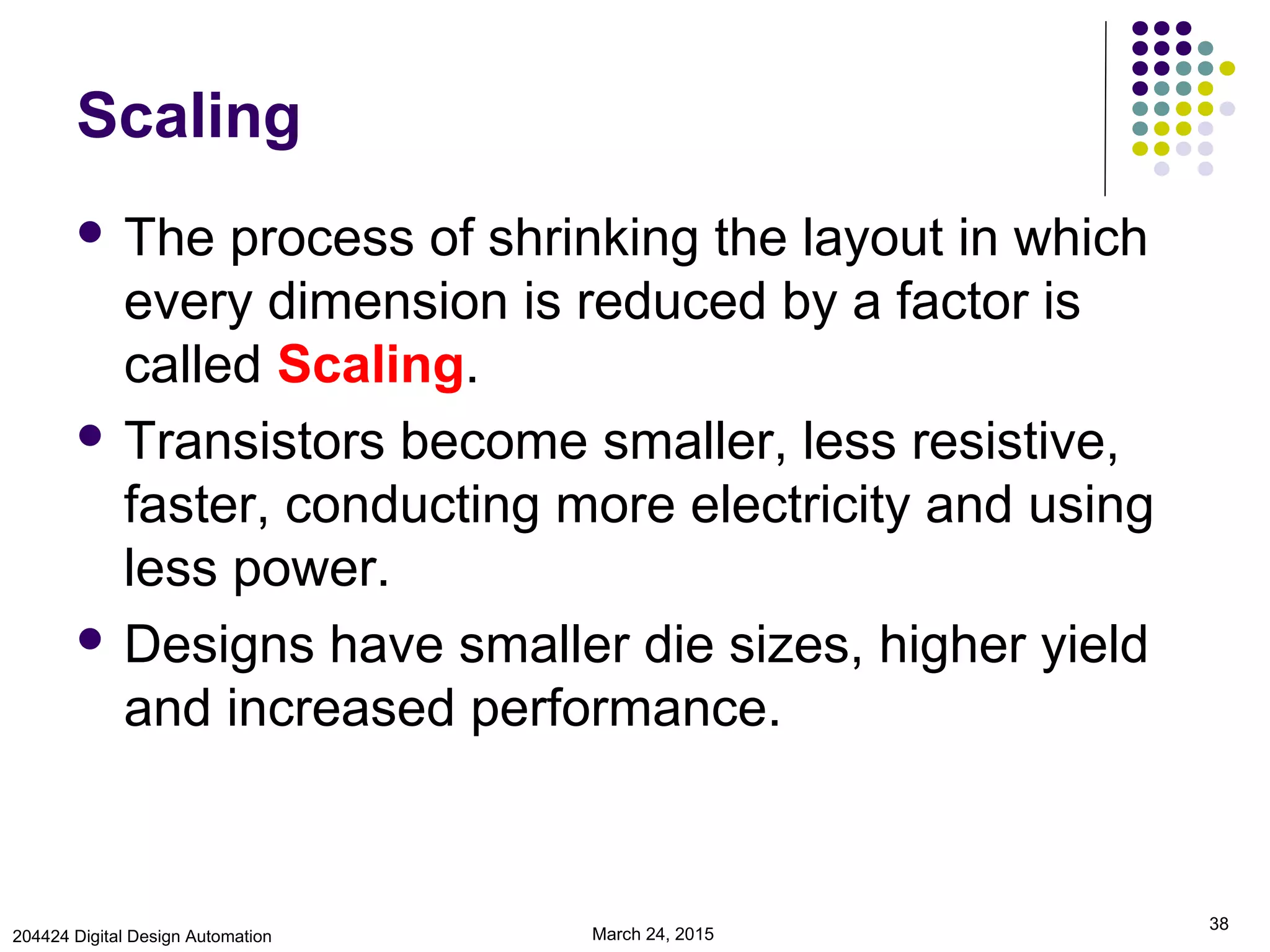

Scaling
 The process of shrinking the layout in which
every dimension is reduced by a factor is
called Scaling.
 Transistors become smaller, less resistive,
faster, conducting more electricity and using
less power.
 Designs have smaller die sizes, higher yield
and increased performance.

39

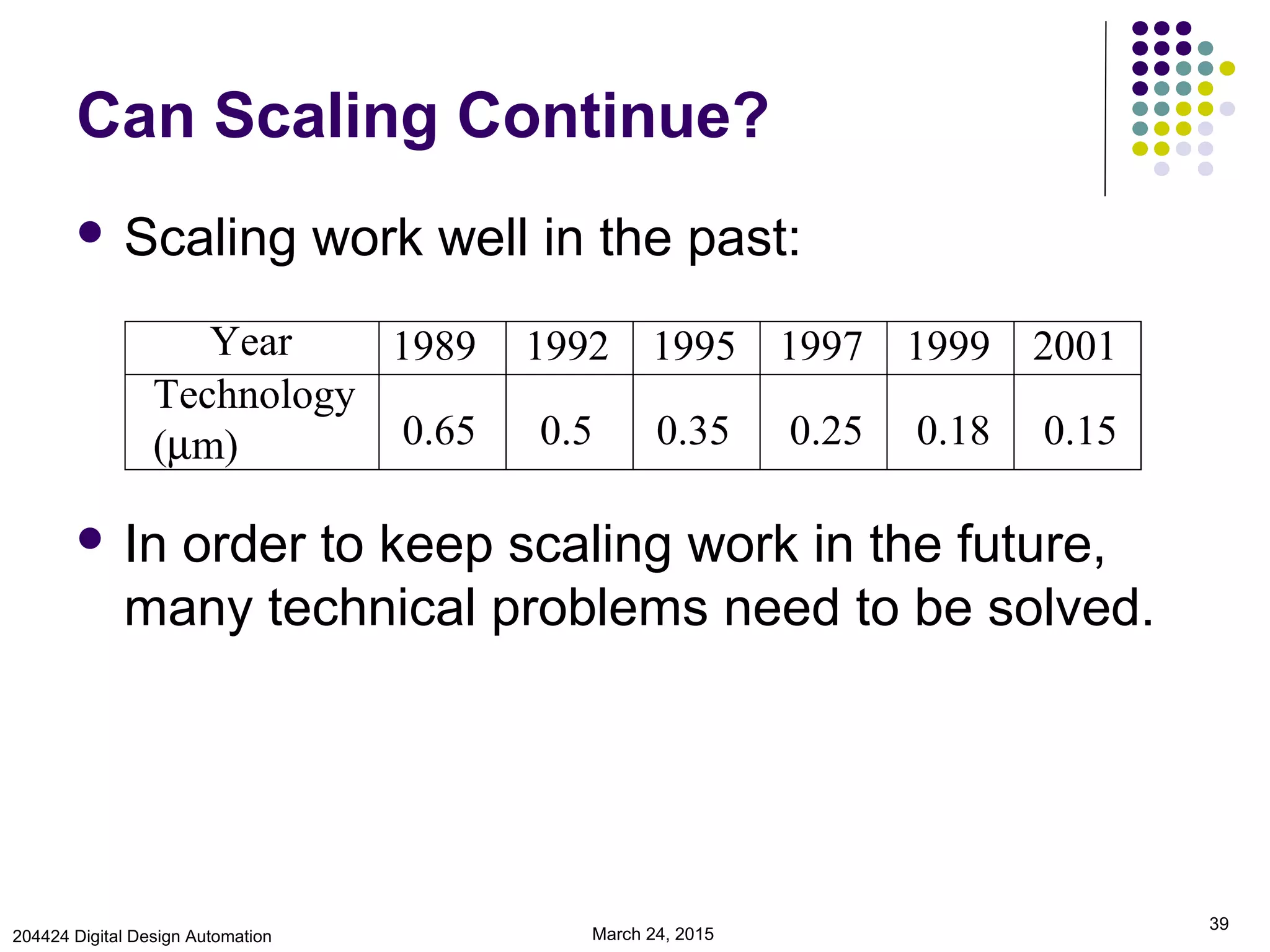

Can Scaling Continue?
 Scaling work well in the past:
 In order to keep scaling work in the future,
many technical problems need to be solved.
Year 1989 1992 1995 1997 1999
Technology
(µm) 0.65 0.5 0.35 0.25 0.18
2001
0.15

40

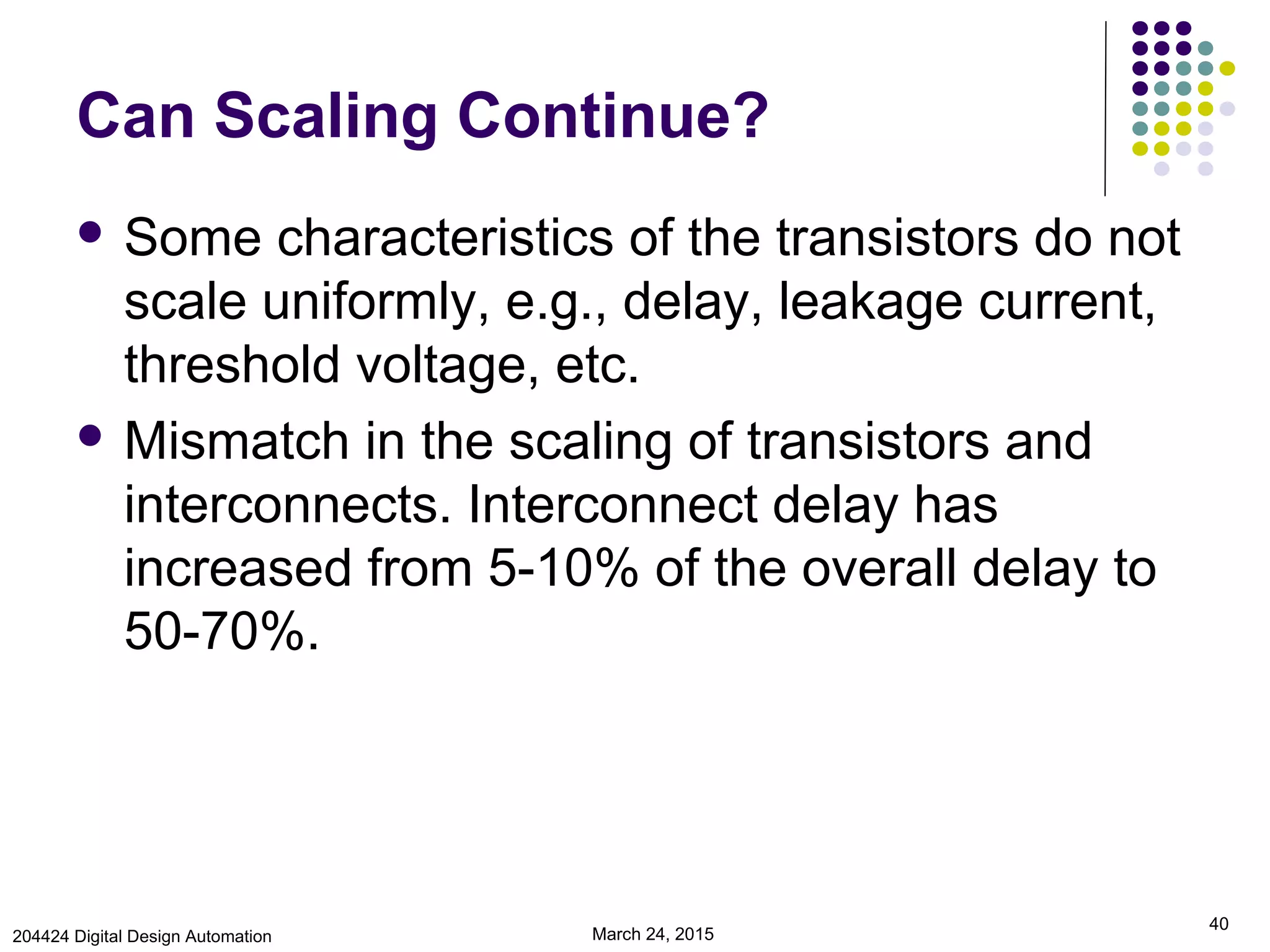

Can Scaling Continue?
 Some characteristics of the transistors do not
scale uniformly, e.g., delay, leakage current,
threshold voltage, etc.
 Mismatch in the scaling of transistors and
interconnects. Interconnect delay has
increased from 5-10% of the overall delay to
50-70%.

41

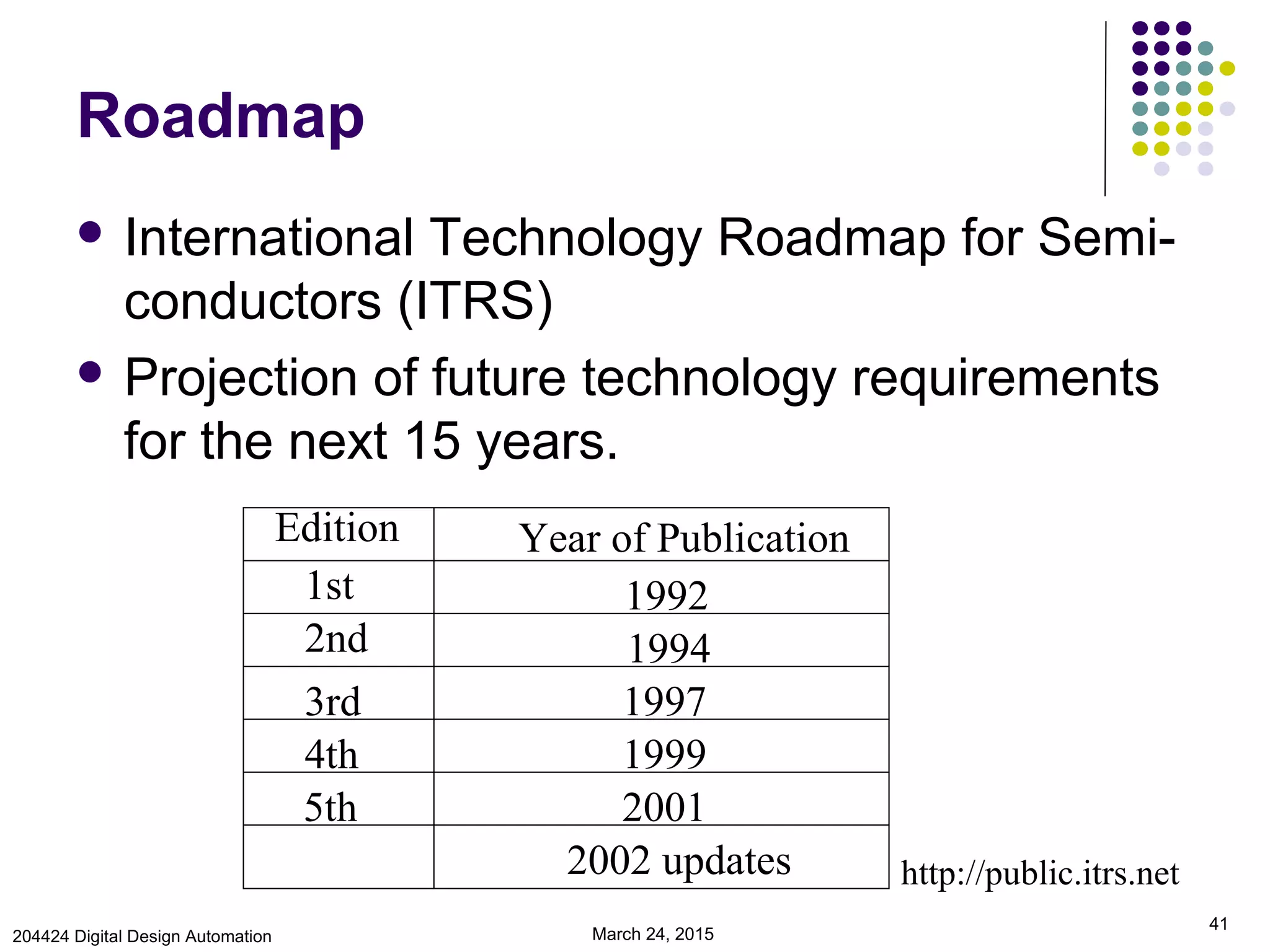

Roadmap
 International Technology Roadmap for Semi-
conductors (ITRS)
 Projection of future technology requirements
for the next 15 years.
Edition Year of Publication
1st
2nd
3rd
4th
1992
1994
1997
1999
http://public.itrs.net
5th 2001
2002 updates

42

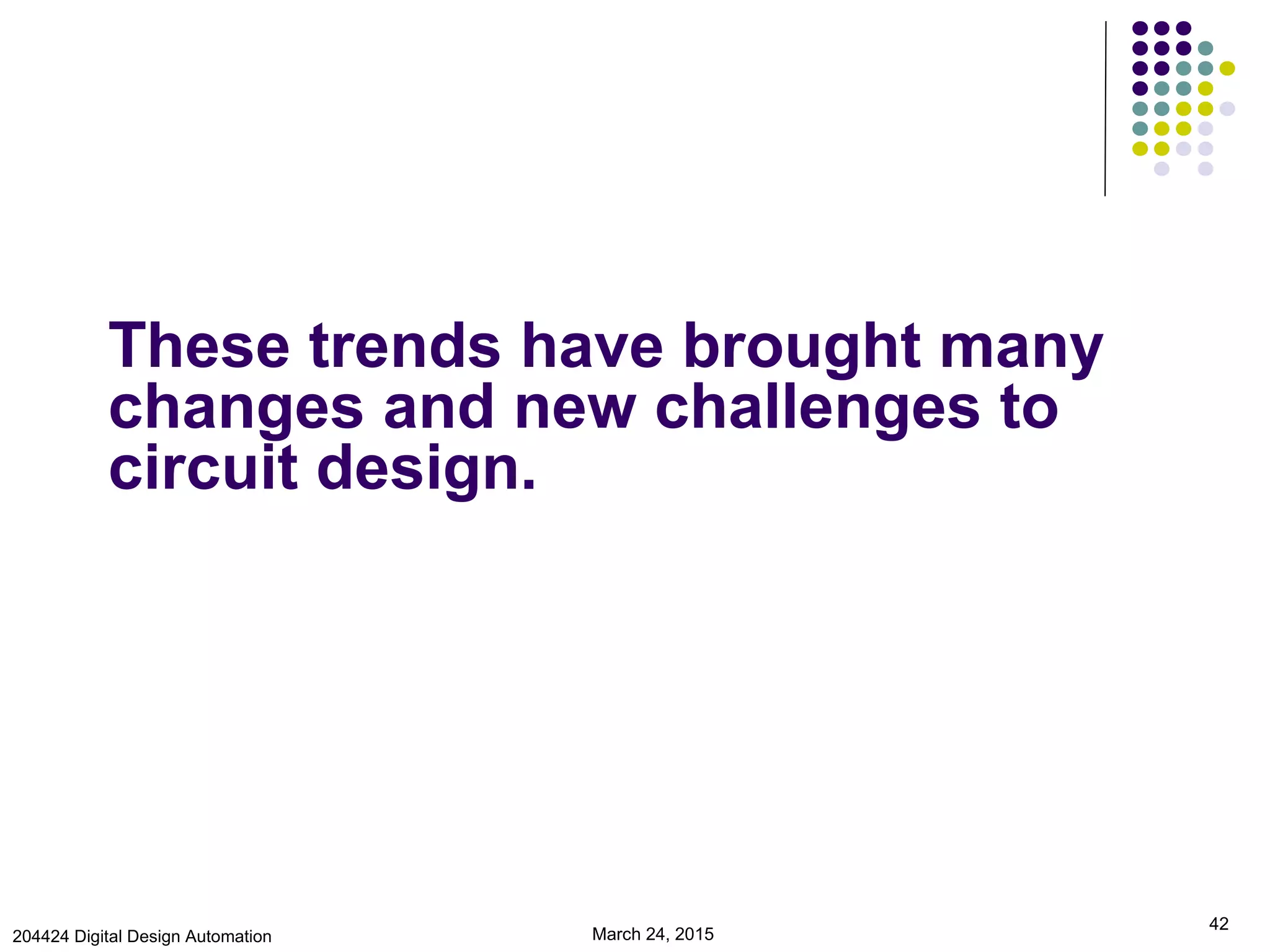

These trends have brought many
changes and new challenges to
circuit design.

43

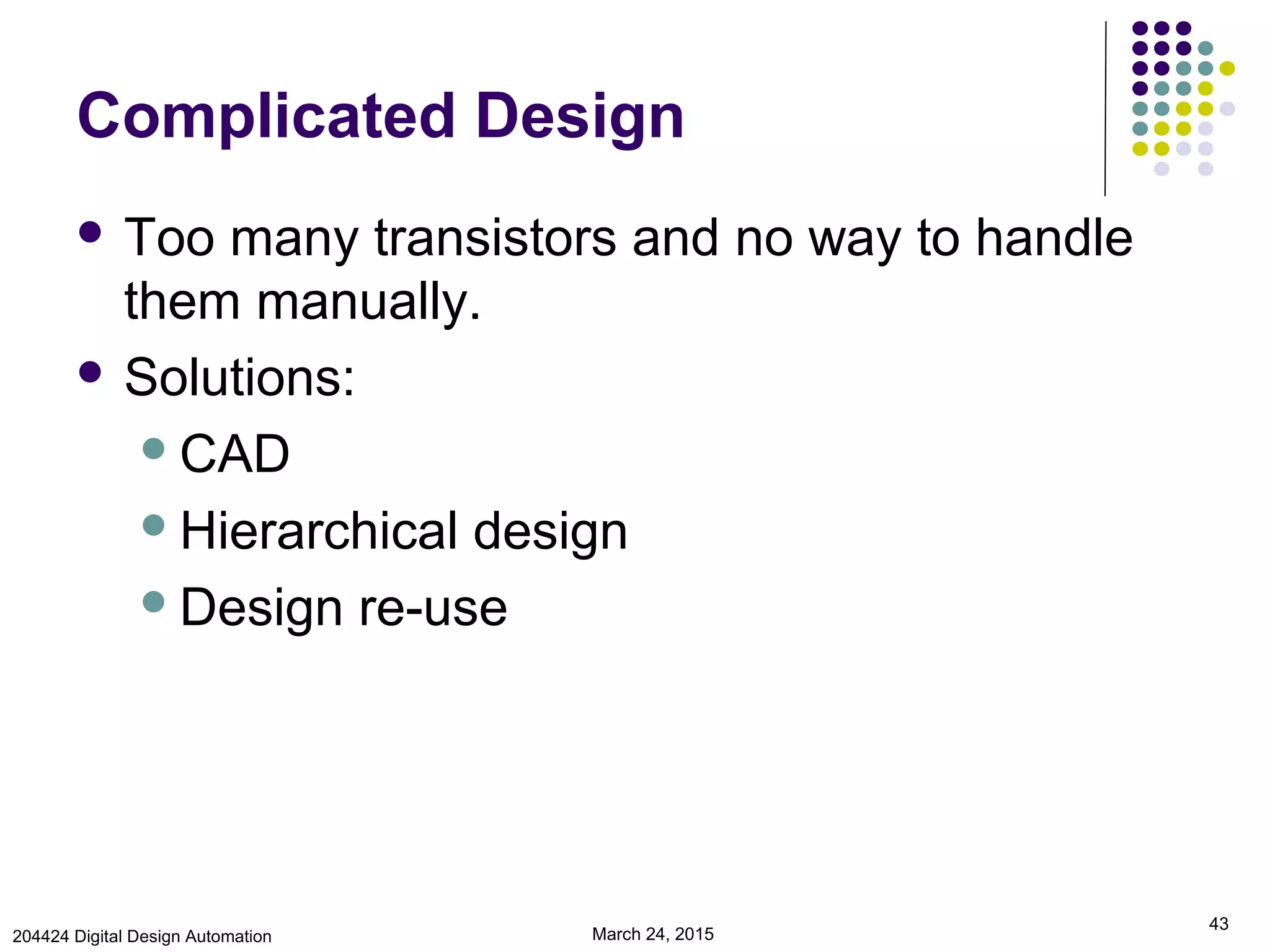

Complicated Design
 Too many transistors and no way to handle
them manually.
 Solutions:
CAD
Hierarchical design
Design re-use

44

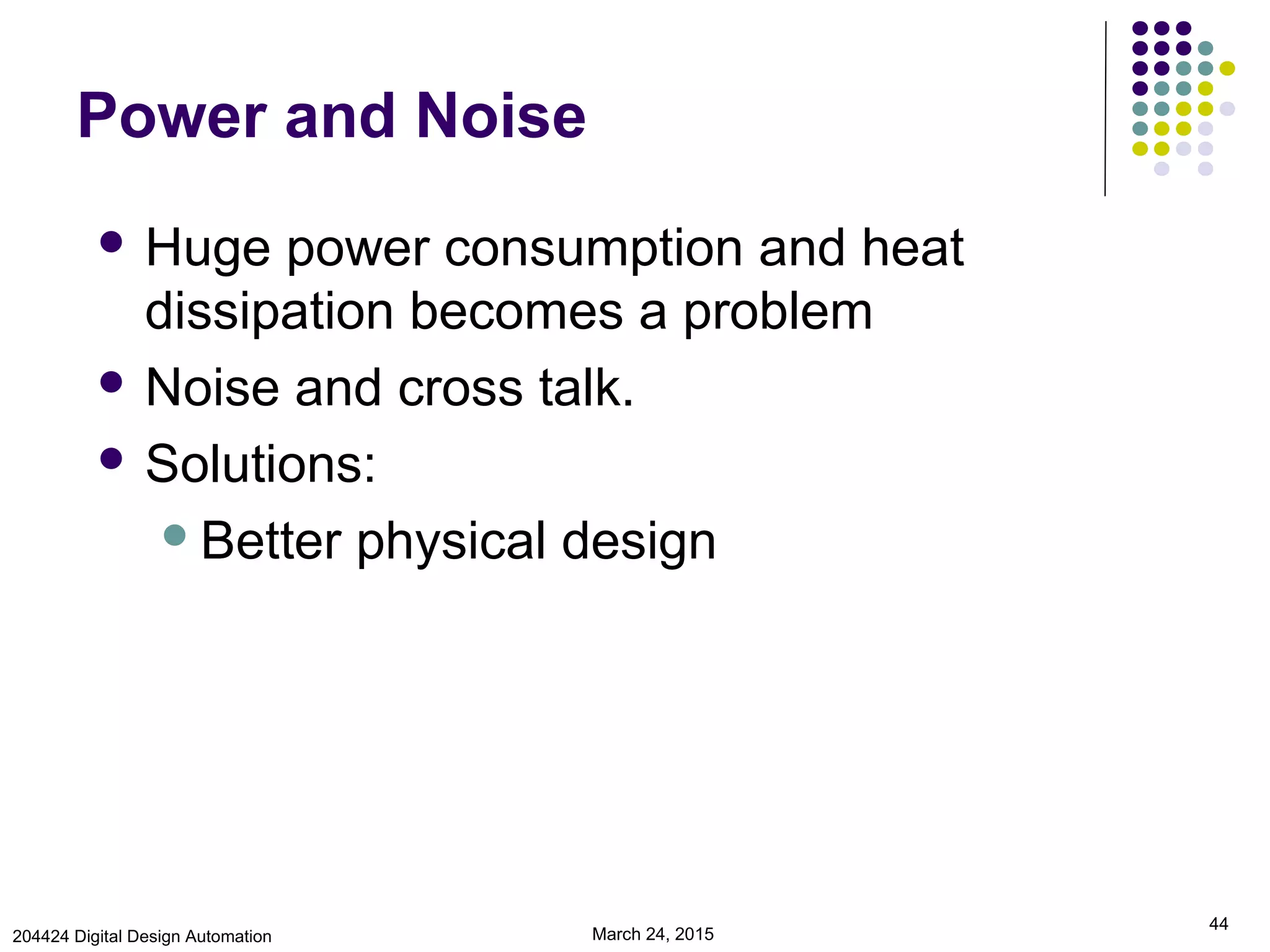

Power and Noise
 Huge power consumption and heat
dissipation becomes a problem
 Noise and cross talk.
 Solutions:
Better physical design

45

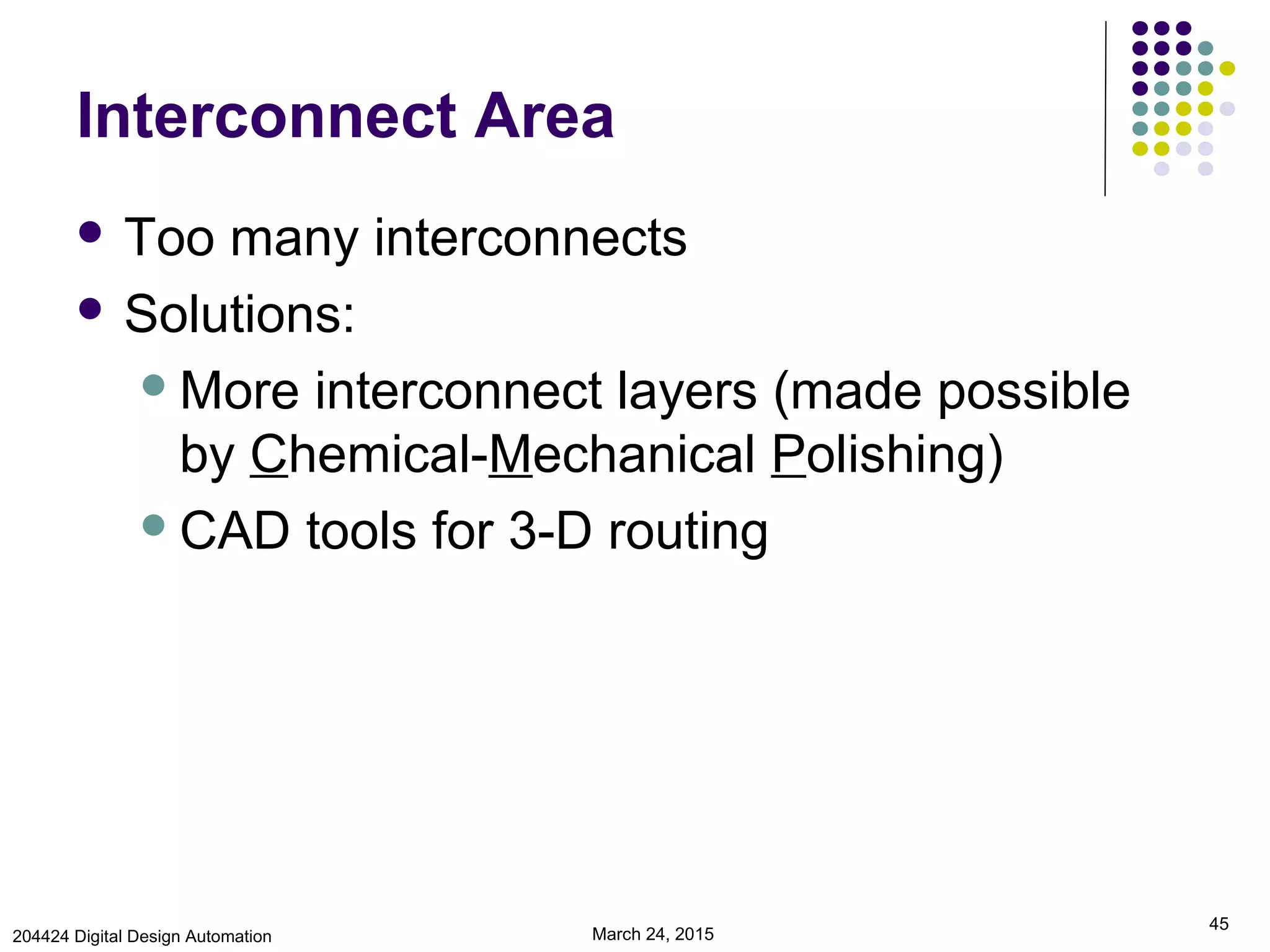

Interconnect Area
 Too many interconnects
 Solutions:
More interconnect layers (made possible
by Chemical-Mechanical Polishing)
CAD tools for 3-D routing

46

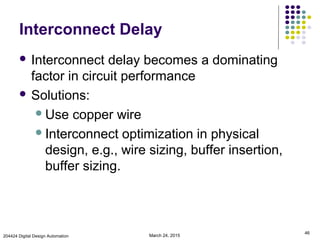

Interconnect Delay
 Interconnect delay becomes a dominating
factor in circuit performance
 Solutions:
Use copper wire
Interconnect optimization in physical
design, e.g., wire sizing, buffer insertion,
buffer sizing.

47

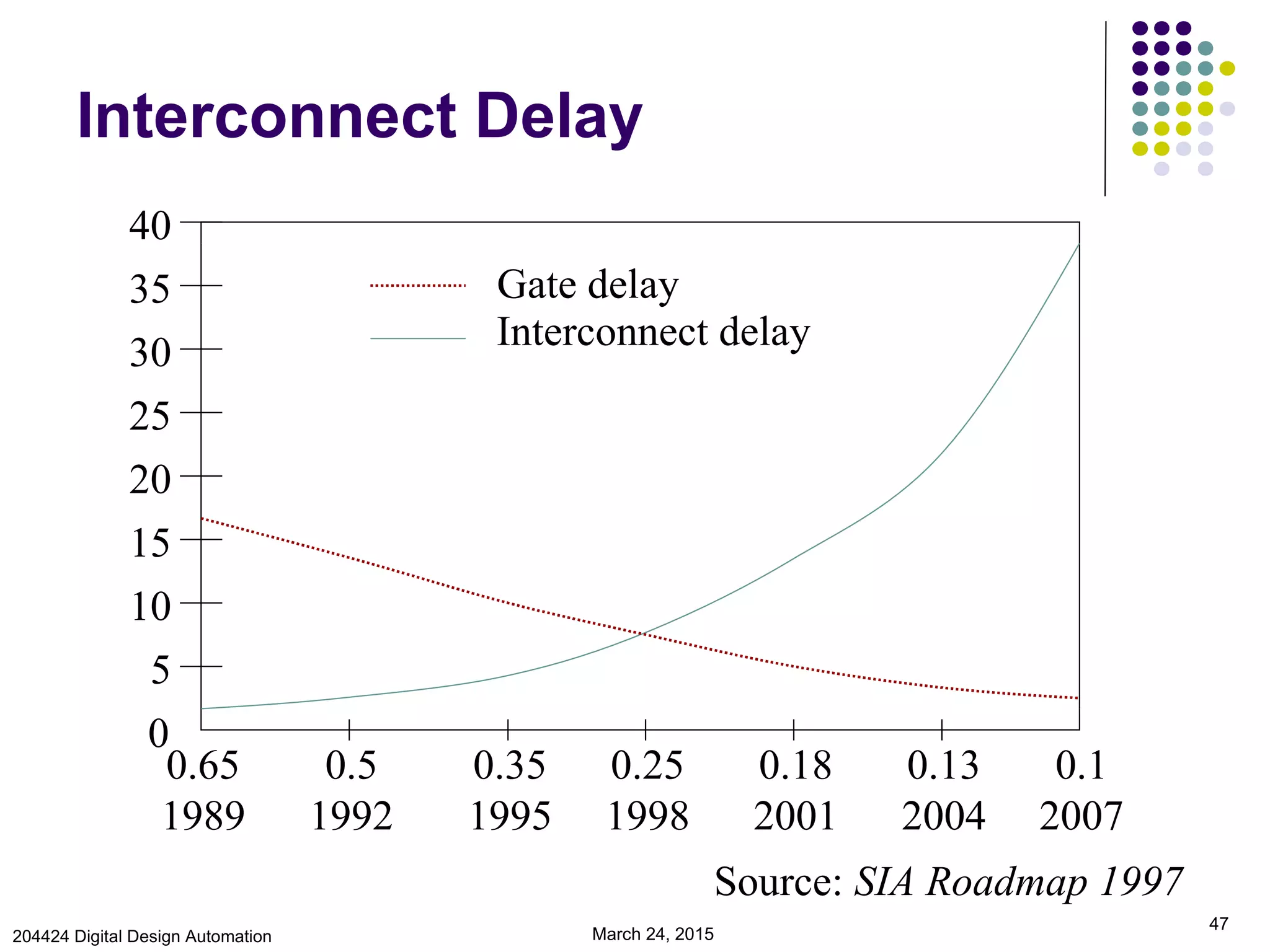

Interconnect Delay
0.65
1989
0.5
1992
0.35
1995
0.25
1998
0.18
2001
0.13
2004
0.1
2007
0
5
10
15
20
25
30
35
40
Gate delay
Interconnect delay
Source: SIA Roadmap 1997

48

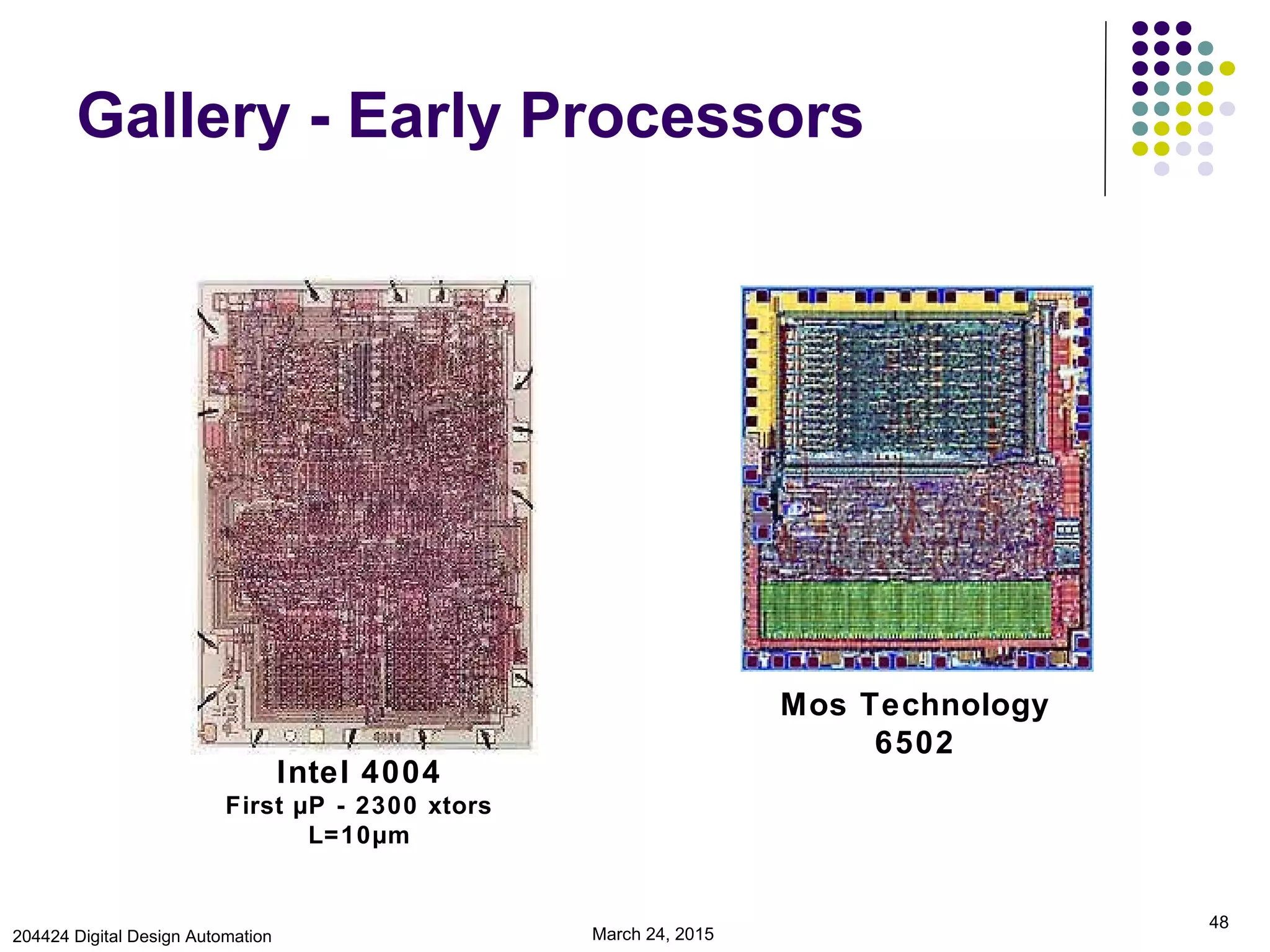

Gallery - Early Processors
Mos Technology
6502
Intel 4004
First µP - 2300 xtors
L=10µm

49

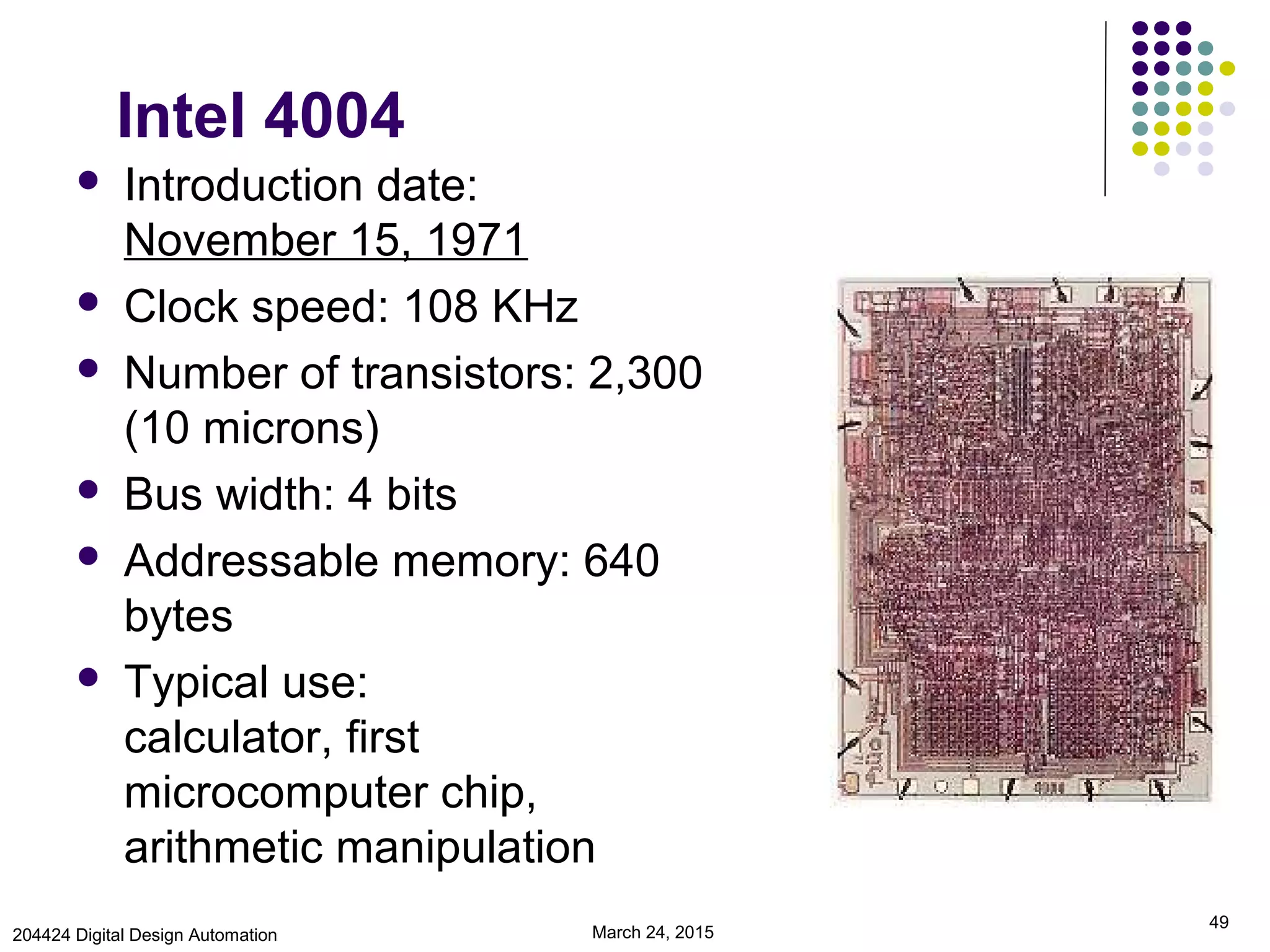

Intel 4004
 Introduction date:
November 15, 1971
 Clock speed: 108 KHz
 Number of transistors: 2,300
(10 microns)
 Bus width: 4 bits
 Addressable memory: 640
bytes
 Typical use:
calculator, first
microcomputer chip,
arithmetic manipulation

50

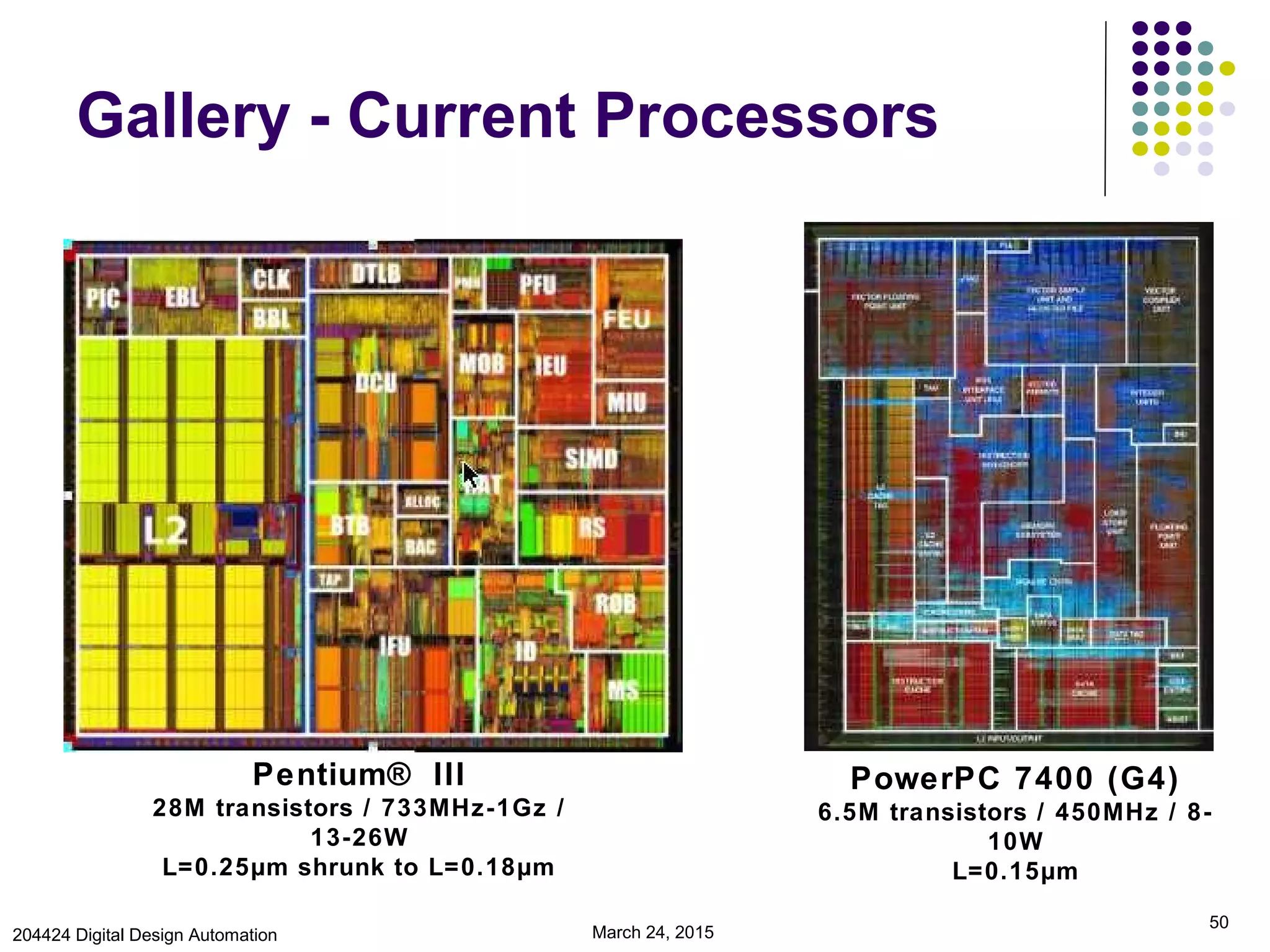

Gallery - Current Processors
PowerPC 7400 (G4)
6.5M transistors / 450MHz / 8-
10W
L=0.15µm
Pentium® III
28M transistors / 733MHz-1Gz /
13-26W
L=0.25µm shrunk to L=0.18µm

51

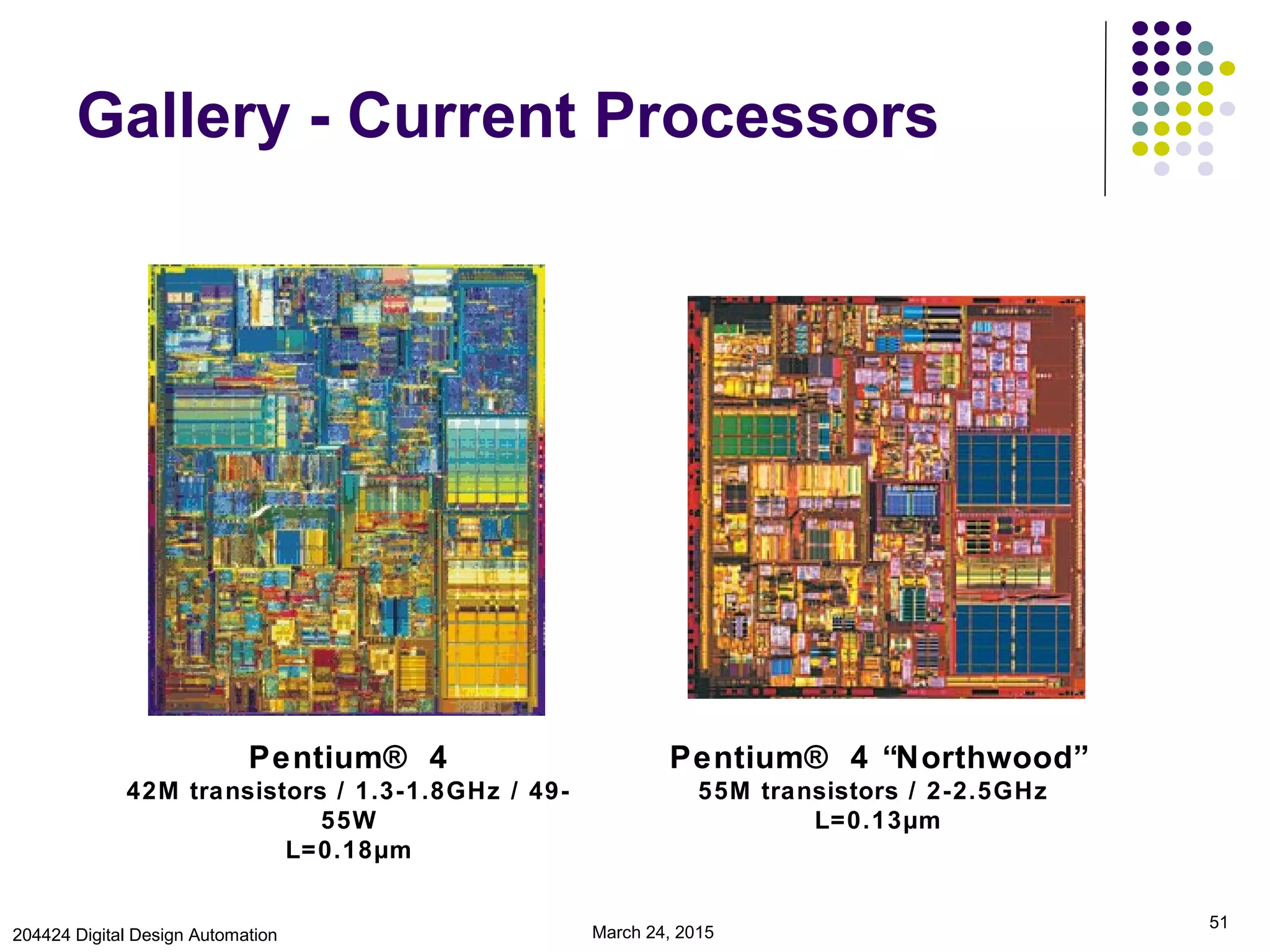

Gallery - Current Processors
Pentium® 4
42M transistors / 1.3-1.8GHz / 49-
55W
L=0.18µm
Pentium® 4 “Northwood”
55M transistors / 2-2.5GHz
L=0.13µm

52

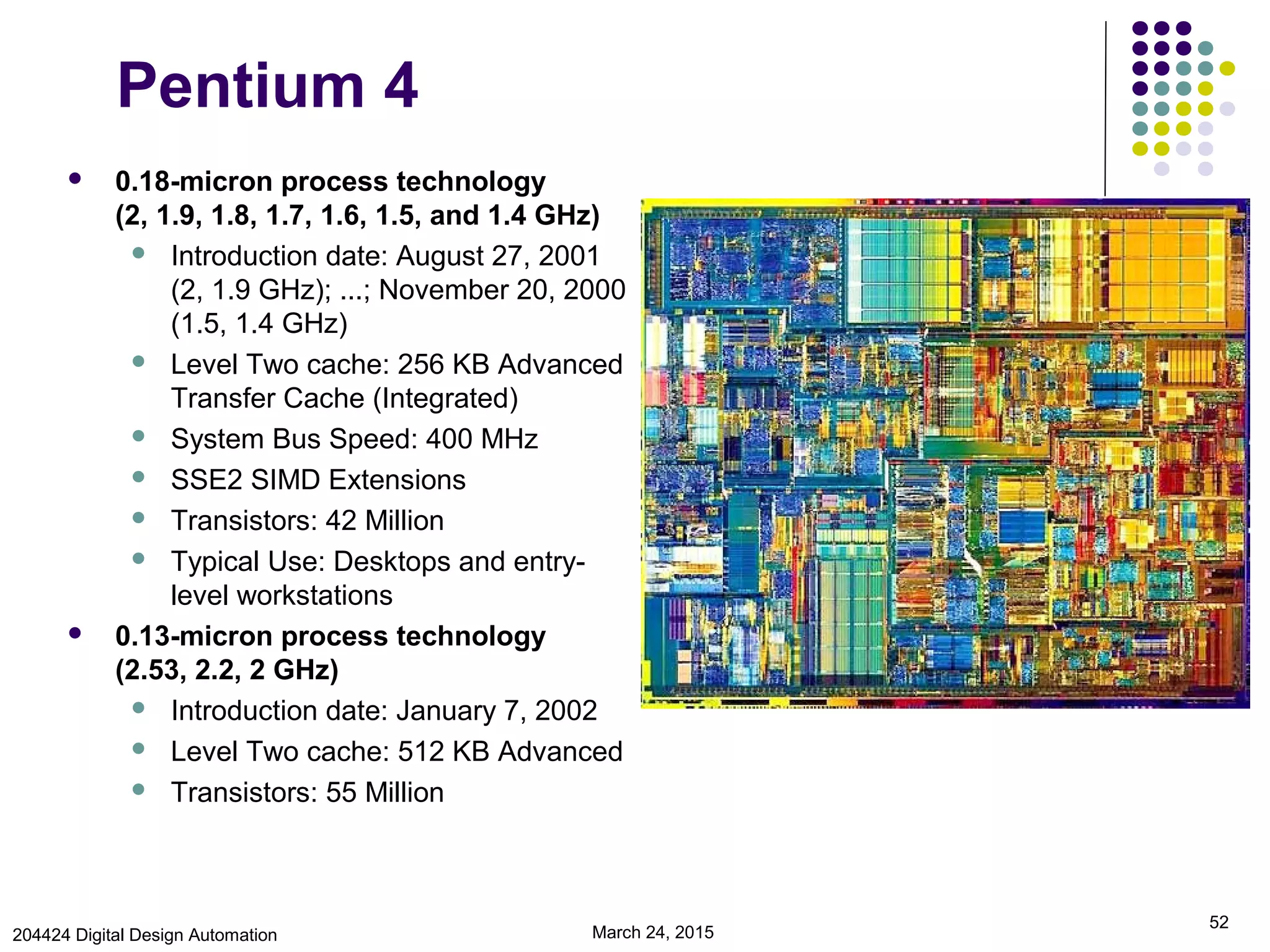

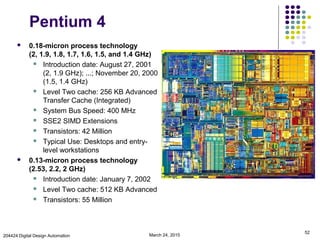

Pentium 4
 0.18-micron process technology
(2, 1.9, 1.8, 1.7, 1.6, 1.5, and 1.4 GHz)
 Introduction date: August 27, 2001
(2, 1.9 GHz); ...; November 20, 2000
(1.5, 1.4 GHz)
 Level Two cache: 256 KB Advanced
Transfer Cache (Integrated)
 System Bus Speed: 400 MHz
 SSE2 SIMD Extensions
 Transistors: 42 Million
 Typical Use: Desktops and entry-
level workstations
 0.13-micron process technology
(2.53, 2.2, 2 GHz)
 Introduction date: January 7, 2002
 Level Two cache: 512 KB Advanced

53

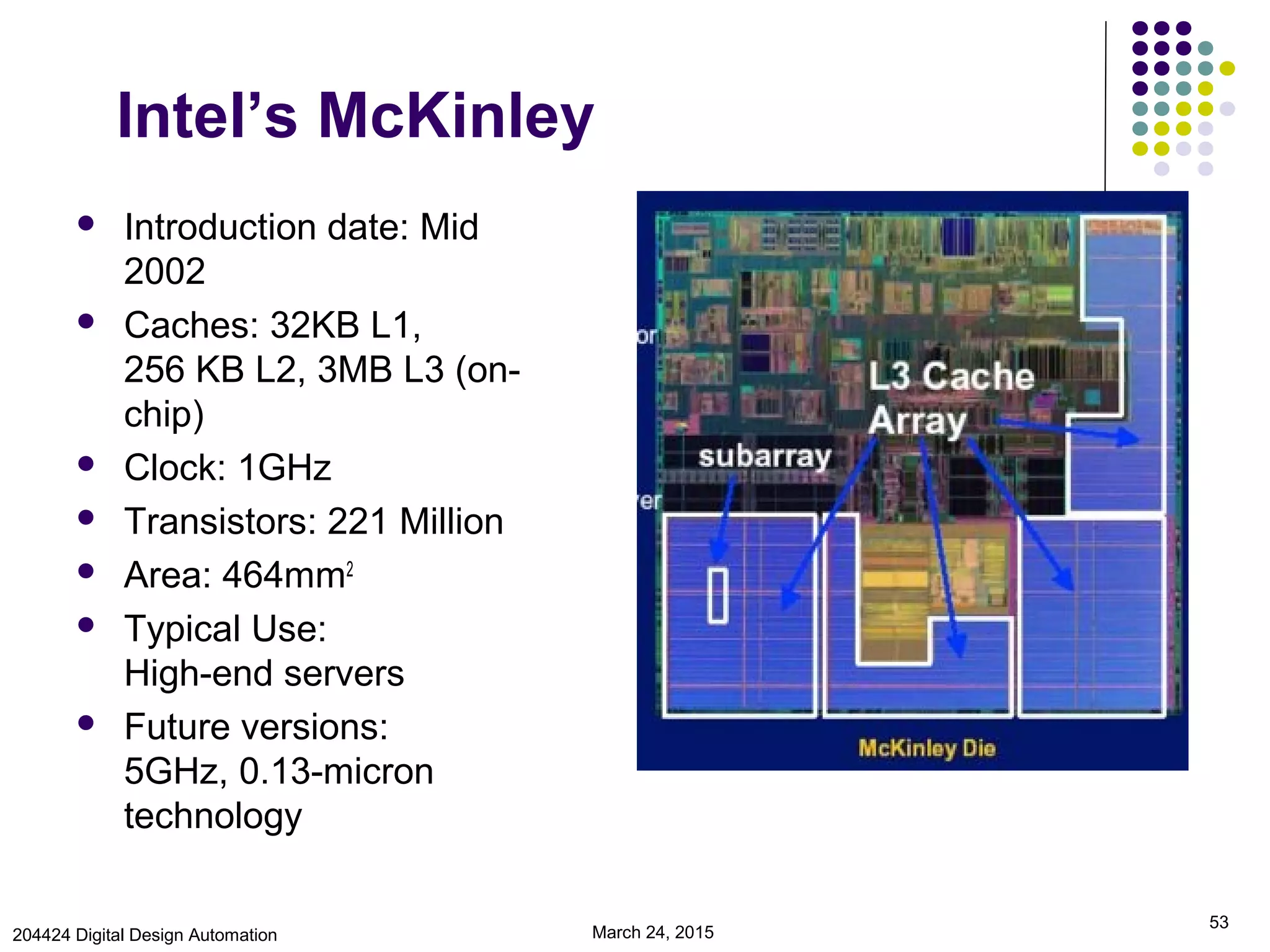

Intel’s McKinley
 Introduction date: Mid
2002
 Caches: 32KB L1,
256 KB L2, 3MB L3 (on-
chip)
 Clock: 1GHz
 Area: 464mm2
 Typical Use:
High-end servers
 Future versions:
5GHz, 0.13-micron
technology

54

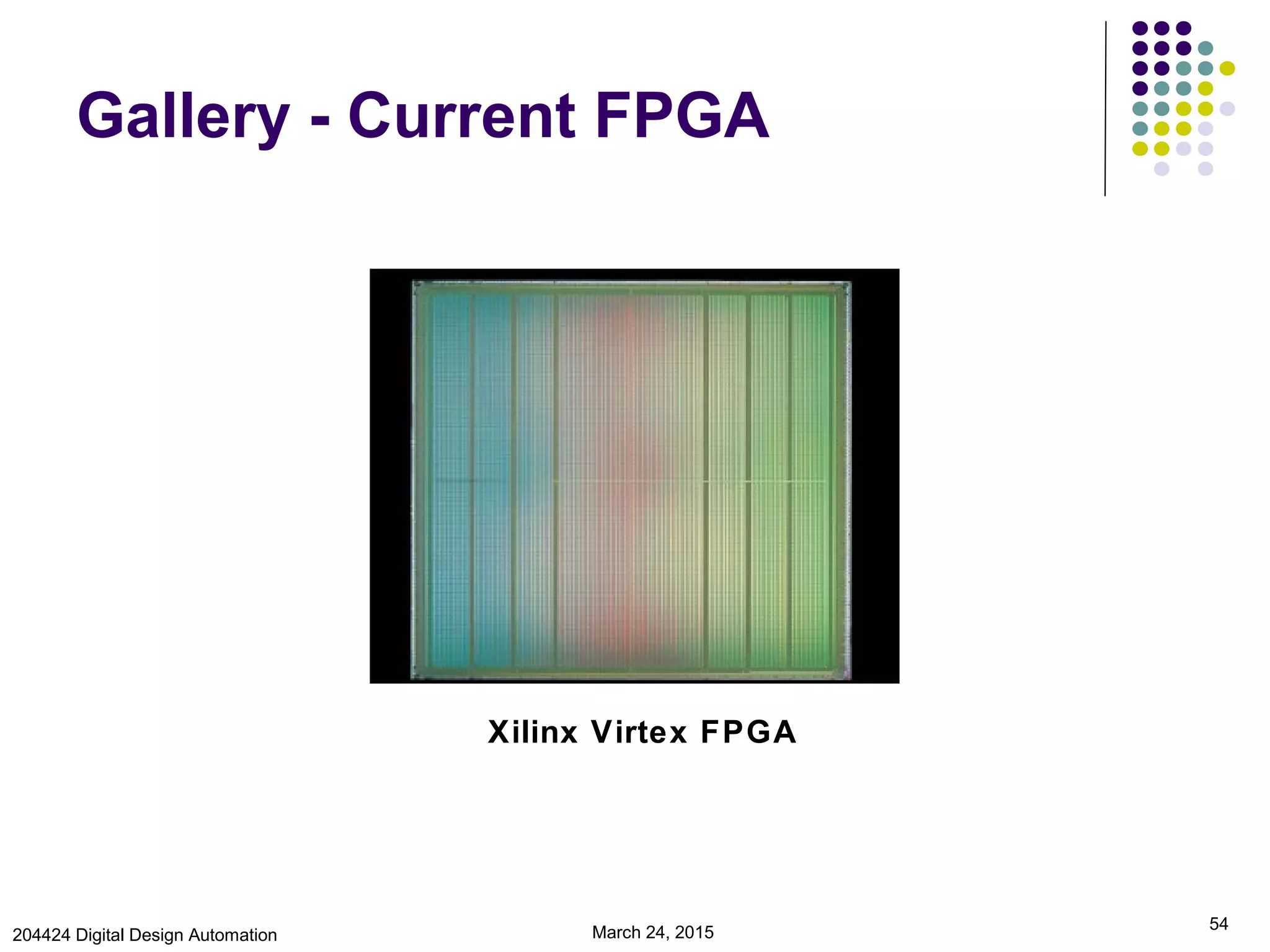

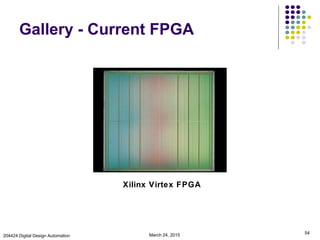

Gallery - Current FPGA
Xilinx Virtex FPGA

55

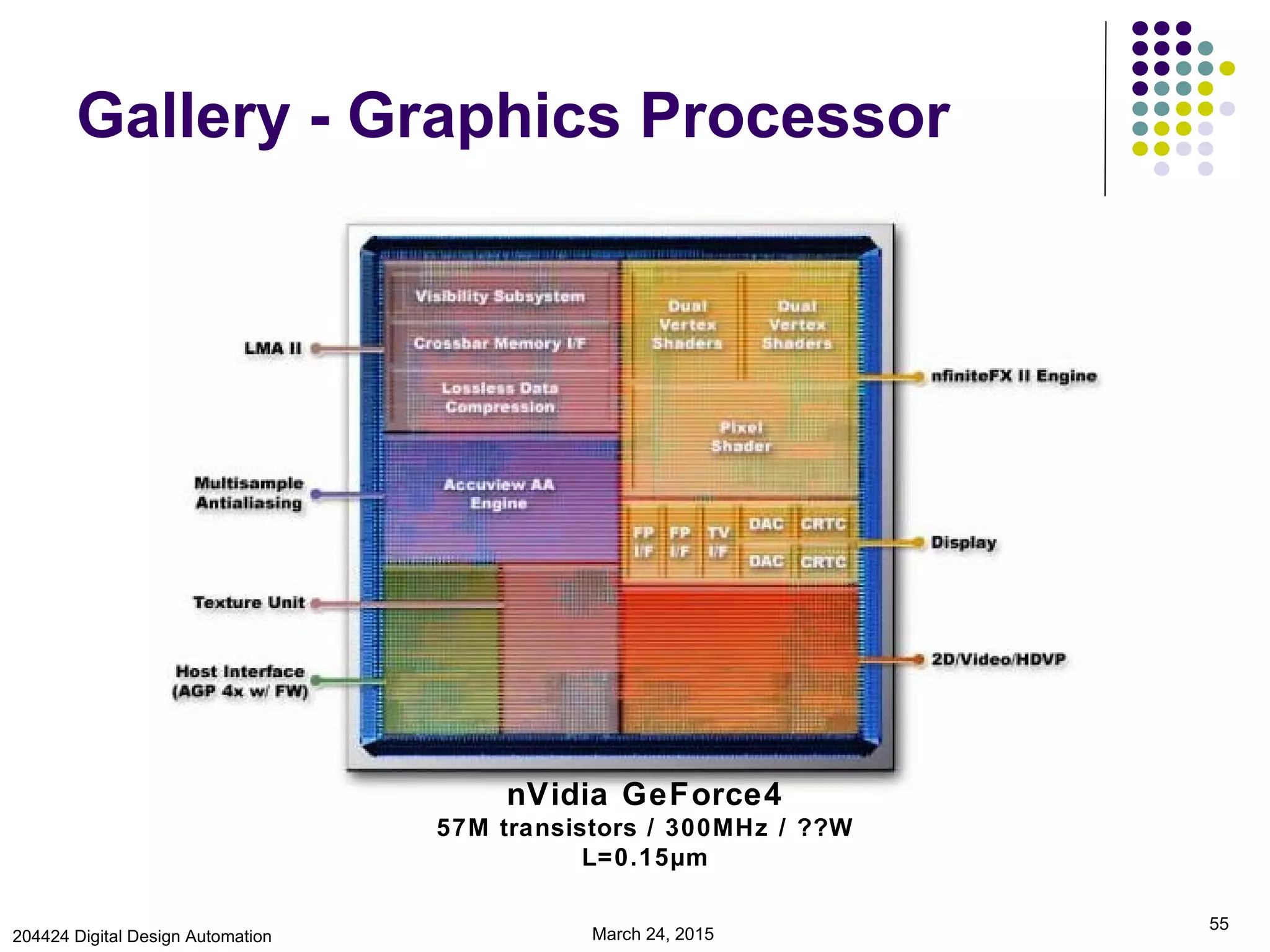

Gallery - Graphics Processor
nVidia GeForce4
57M transistors / 300MHz / ??W
L=0.15µm

56

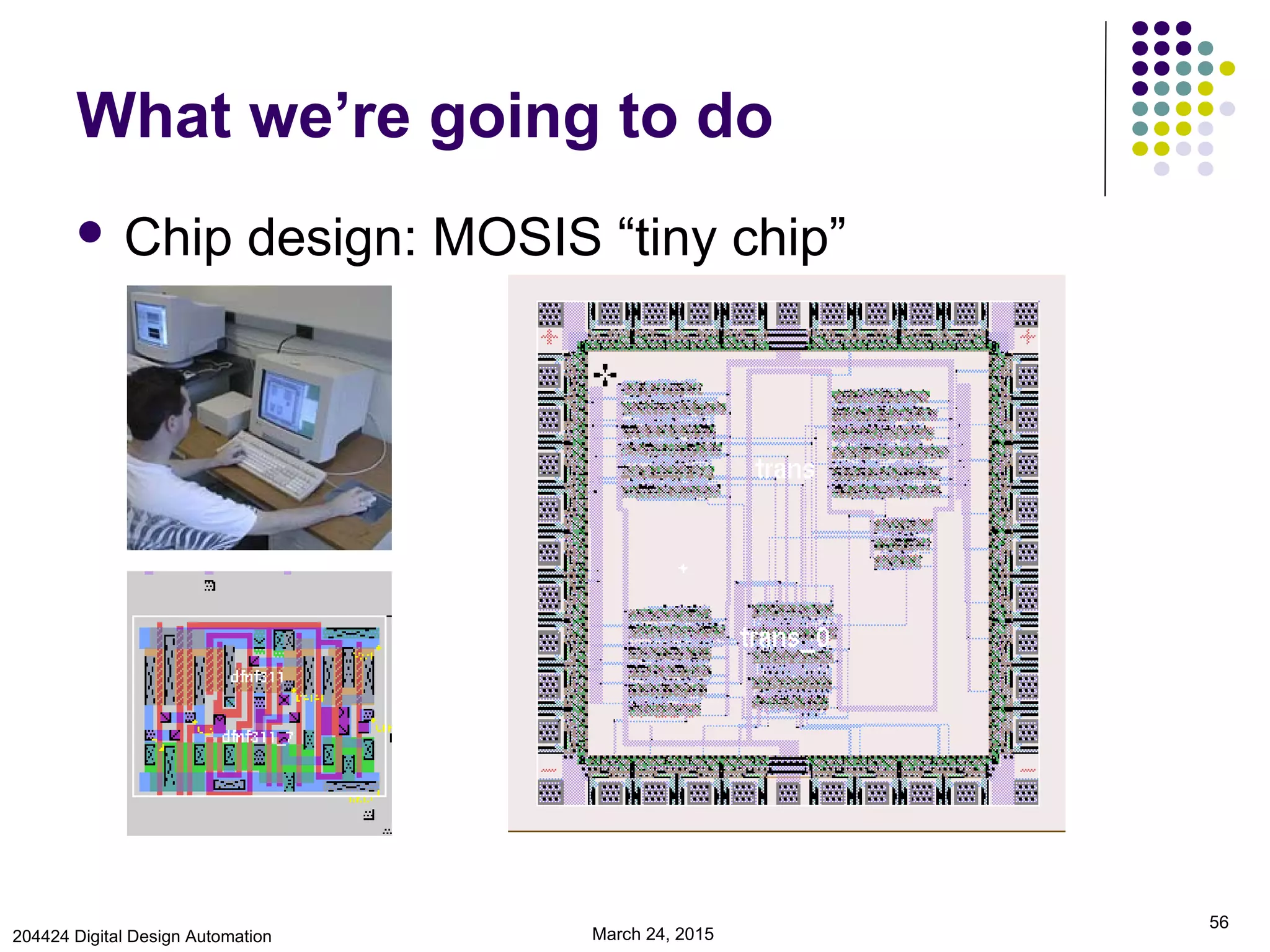

What we’re going to do
 Chip design: MOSIS “tiny chip”

57

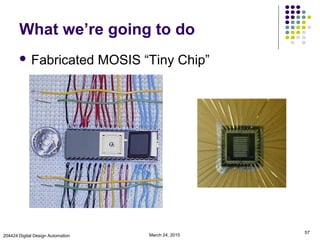

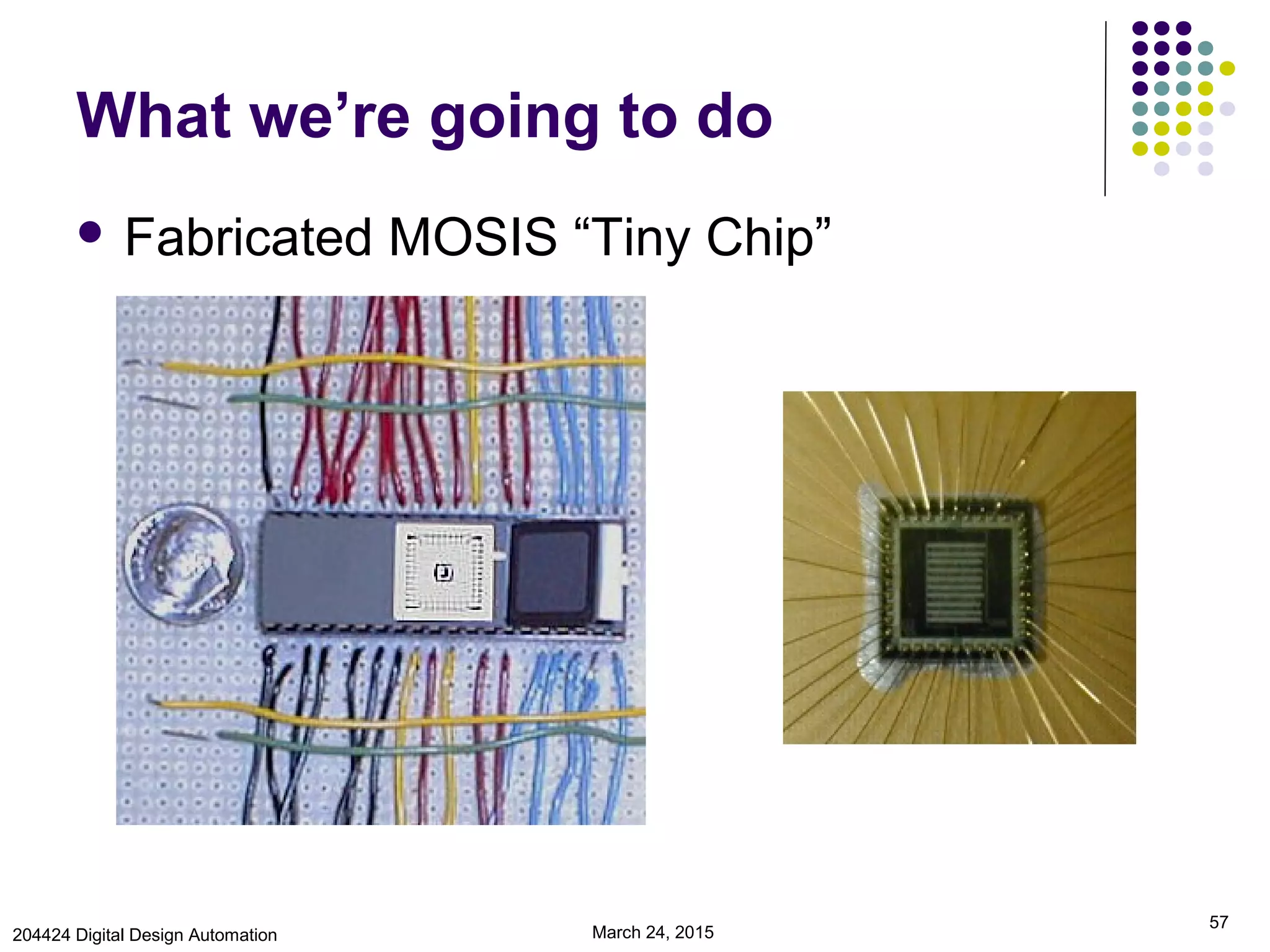

What we’re going to do
 Fabricated MOSIS “Tiny Chip”

58

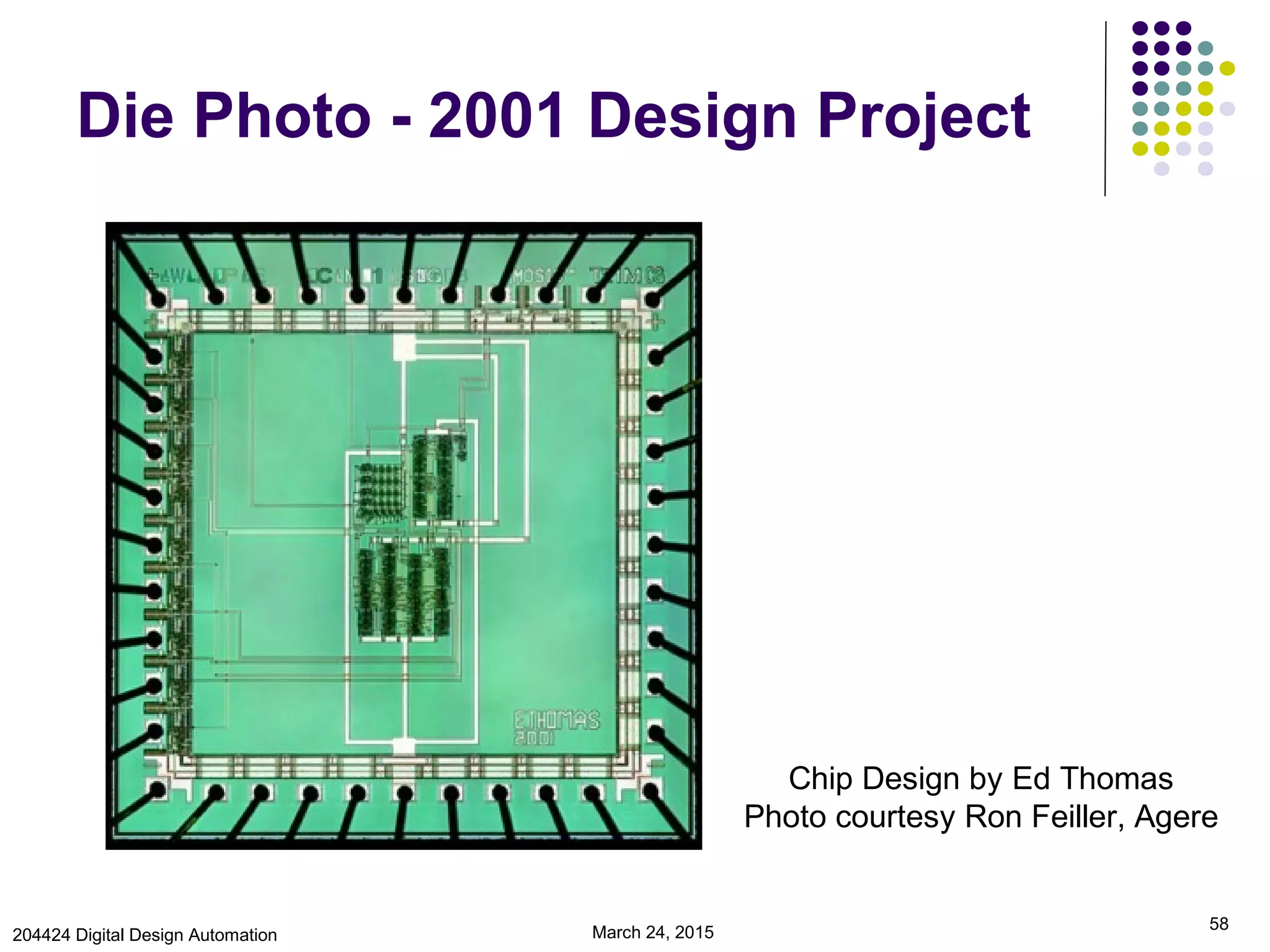

Die Photo - 2001 Design Project
Chip Design by Ed Thomas
Photo courtesy Ron Feiller, Agere

Lecture VLSI

More Related Content

What's hot

Similar to Lecture VLSI

Recently uploaded

Lecture VLSI
