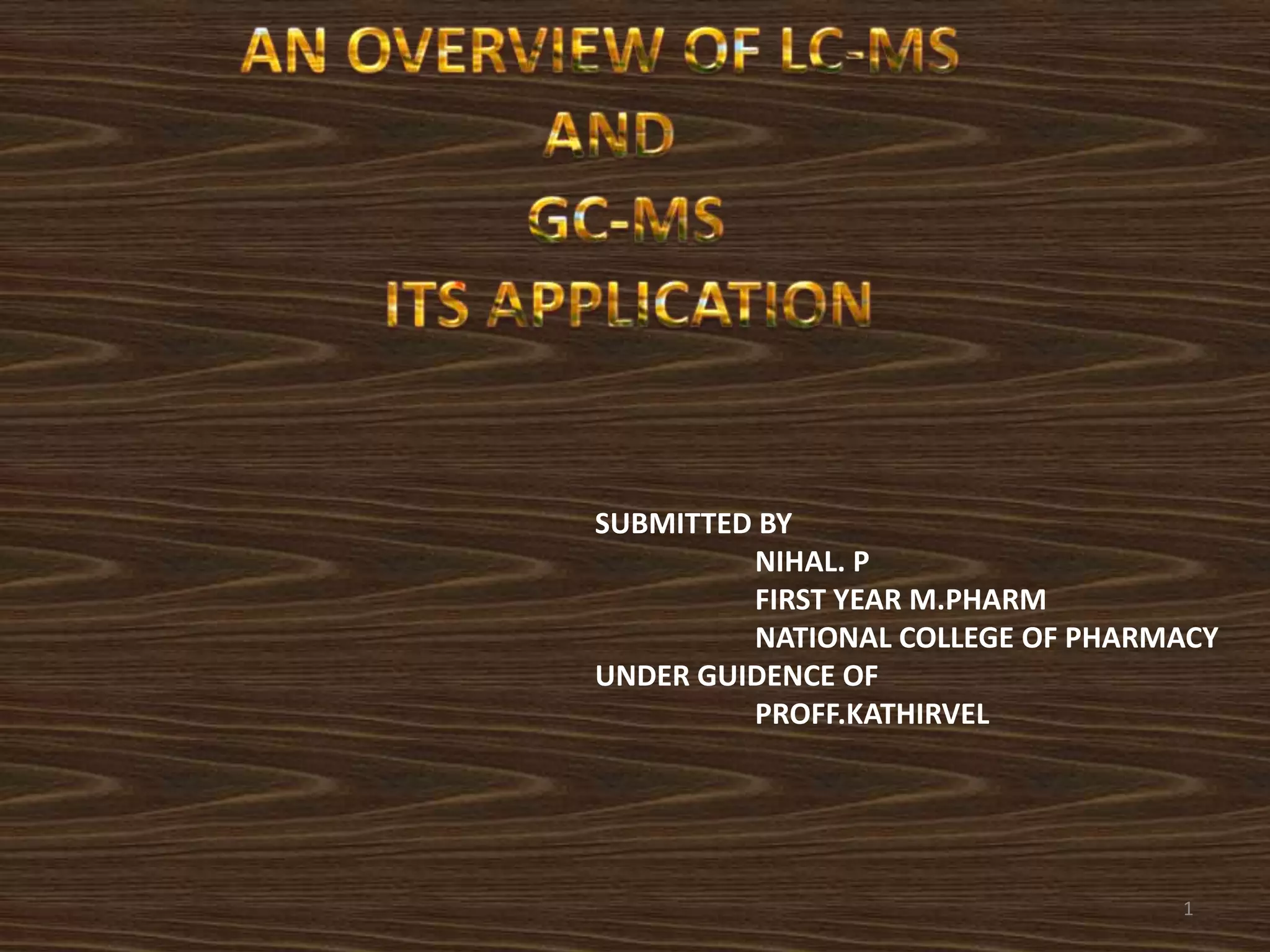

an overview of lcms and gcms and its applications....

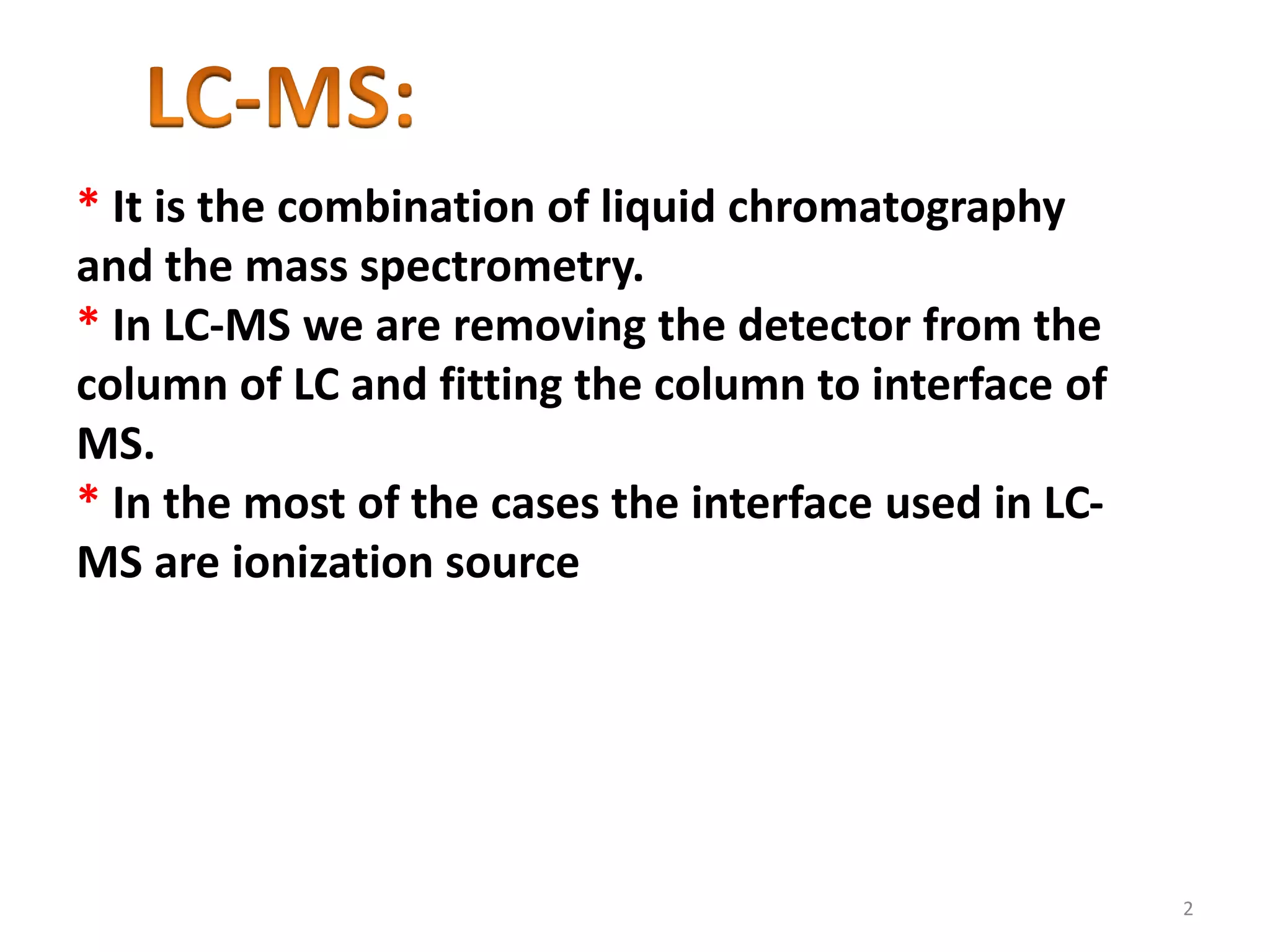

LC-MS:
It is the combination of liquid chromatography and the mass spectrometry.
* In LC-MS we are removing the detector from the column of LC and fitting the column to interface of MS.
* In the most of the cases the interface used in LC-MS are ionization source
INTERFACE
Apart from being an inlet system for the
MS, an LC–MS interface is also the coupling
of a detector (MS) to a chromatograph.
The choice of LC–MS interface strongly
influences the characteristics of the MS as
a detector for LC. Therefore, we should
keep in mind what characteristics are ideal
for an LC detector
1. Direct liquid introduction (DLI):
The DLI interface was developed in order to solve the problems with in-capillary evaporation in the capillary inlet.
In a DLI interface, the column effluent is nebulized by the disintegration into small droplets of a liquid jet formed at a small diaphragm After desolvation of the droplets in a desolvation chamber, the analytes can be analysed using solvent-mediated CI with the LC solvents as the reagent gas.
Advantages:
• No heat is applied to the interface and it is therefore able to deal with thermally labile materials better than the moving-belt interface.
• The interface contains no moving parts and is cheap and simple to construct and operate and is inherently more reliable than the moving-belt interface.
• Both positive- and negative-ion CI spectra can be generated and the interface provides molecular weight information, plus it can also be used for sensitive quantitative and semi-quantitative procedures.
Disadvantages:
• Involatile compounds are not usually ionized with good efficiency.
• The pinhole is prone to blockage and therefore the system must be kept completely free of solid materials.
• Only a small proportion of the flow from a conventional HPLC column is able to enter the source of the mass spectrometer and sensitivity is consequently low
2. Moving belt/wire:
In a moving-belt interface (MBI), the column effluent is deposited onto an endless moving belt from which the solvent is evaporated by means of gentle heating and efficiently exhausting the solvent vapours. After removal of the solvents, the analyte molecules are (thermally) desorbed from the belt into the ion source and mass analysed.
The MBI for LC.MS was used in a wide variety of applications, including the analysis of drugs and their metabolites, pesticides, steroids, alkaloids, polycyclic, aromatic hydrocarbons and others.
Advantages:
• The interface can be used with a wide range of HPLC conditions.
• The analyst does have some choice of the ionization method to be used; EI, CI and FAB are available, subject to certain limitations, and thus both molecular weight and structural information may be obtained from the analyte(s) under investigation.
fluid chromatography (SFC) can be used on an analytical
scale.
It is a combination of High performance liquid chromatography (HPLC)
and Gas chromatography (GC).
It can be used with non-volatile and thermally labile analytes.
It can be used with the universal flame ionization detector.
It is important to producing narrower peaks due to rapid diffusion.
It is important for the chiral separations and analysis of high-molecularweight
hydrocarbons.
Supercritical fluids are suitable as a substitute for organic solvents in a
range of industrial and laboratory processes.
Gas chromatography and its instrumentationArgha Sen
Gas chromatography is an unique technology which helps us in separating volatile analytes. Its is an easy and reproduciple method for detecting residual solvents found in APIs.
Interfaces in chromatography [LC-MS, GC-MS, HPTLC, LC, GC]Shikha Popali
THE INTERFACES OF CHROMATOGRAPHY INCLUDES THE CHROMATOGRAPHY CRITEREA WHERE THE DIFFERENT CHROMATOGRAPHY ARE EXPLAINED IN DETAIL WITH PRACTICAL EXAMPLES AND THEIR IMAGES.
1. It is one of the type of Hyphenated technique.
2. It is a combination of gas chromatographic technique and spectroscopic technique.
3. It is having a high resolution capacity.
4. It is used has volatile and Non-volatile compounds.
5. It is used for qualitative and quantitative analysis.
fluid chromatography (SFC) can be used on an analytical
scale.
It is a combination of High performance liquid chromatography (HPLC)
and Gas chromatography (GC).
It can be used with non-volatile and thermally labile analytes.
It can be used with the universal flame ionization detector.
It is important to producing narrower peaks due to rapid diffusion.
It is important for the chiral separations and analysis of high-molecularweight
hydrocarbons.
Supercritical fluids are suitable as a substitute for organic solvents in a
range of industrial and laboratory processes.
Gas chromatography and its instrumentationArgha Sen
Gas chromatography is an unique technology which helps us in separating volatile analytes. Its is an easy and reproduciple method for detecting residual solvents found in APIs.
Interfaces in chromatography [LC-MS, GC-MS, HPTLC, LC, GC]Shikha Popali
THE INTERFACES OF CHROMATOGRAPHY INCLUDES THE CHROMATOGRAPHY CRITEREA WHERE THE DIFFERENT CHROMATOGRAPHY ARE EXPLAINED IN DETAIL WITH PRACTICAL EXAMPLES AND THEIR IMAGES.
1. It is one of the type of Hyphenated technique.
2. It is a combination of gas chromatographic technique and spectroscopic technique.
3. It is having a high resolution capacity.
4. It is used has volatile and Non-volatile compounds.
5. It is used for qualitative and quantitative analysis.
GAS CHROMATOGRAPHY-MASS SPECTROSCOPY [GC-MS]Shikha Popali
THIS PRESENTATION GIVES A DETAIL ACCOUNT ON THE GC-MS WITH ITS INTRODUCTION, BASIC PRINCIPLE OF BOTH COMBINED AND INDIVIDUALLY WITH ITS INSTRUMENTATION, APPLICATION AND EXAMPLES, MAKES EASY TO COLLECT ALL THE DATA AT A PLACE ACCORDING TO THE M.PHARM SYLLABUS S PER PCI
Gas chromatography-mass spectrometry (GC-MS) is the synergistic combination of two analytical method to separate and identify different substances within a test sample.
Gas chromatography separates the components of a mixture in time.
Mass spectrometer provides information that aids in the identification and structural elucidation of each component.
Introduction to gas Chromatography
,Principle of gas chromatography
Instrumentation of gas Chromatography
Type of detectors of gas chromatography
Advantages of gas chromatography
Disadvantages of gas chromatography
Applications of gas chromatography
Gas chromatography-Mass spectrometry (GC-MS)Saira Fatima
PRESENTED BY
SAIRA FATIMA
SABAHAT MEHMOOD
SANA USMAN
MSc 4 (2018-2020)
Department of MicroBiology & Molecular Genetics
University of the Punjab
Lahore, Pakistan
GAS CHROMATOGRAPHY-MASS SPECTROSCOPY [GC-MS]Shikha Popali
THIS PRESENTATION GIVES A DETAIL ACCOUNT ON THE GC-MS WITH ITS INTRODUCTION, BASIC PRINCIPLE OF BOTH COMBINED AND INDIVIDUALLY WITH ITS INSTRUMENTATION, APPLICATION AND EXAMPLES, MAKES EASY TO COLLECT ALL THE DATA AT A PLACE ACCORDING TO THE M.PHARM SYLLABUS S PER PCI
Gas chromatography-mass spectrometry (GC-MS) is the synergistic combination of two analytical method to separate and identify different substances within a test sample.
Gas chromatography separates the components of a mixture in time.
Mass spectrometer provides information that aids in the identification and structural elucidation of each component.
Introduction to gas Chromatography
,Principle of gas chromatography
Instrumentation of gas Chromatography
Type of detectors of gas chromatography
Advantages of gas chromatography
Disadvantages of gas chromatography
Applications of gas chromatography
Gas chromatography-Mass spectrometry (GC-MS)Saira Fatima
PRESENTED BY
SAIRA FATIMA
SABAHAT MEHMOOD
SANA USMAN
MSc 4 (2018-2020)
Department of MicroBiology & Molecular Genetics
University of the Punjab
Lahore, Pakistan
GCMS & LCMS
htps://youtube.com/vishalshelke99
https://instagram.com/vishal_stagram
Sub :- Advanced Analytical Techniques
M.Pharmacy Sem1
Savitribai Phule Pune University
Contents :-
GC-MS
Introduction
Principle
Instrumentation
Application
LC-MS
Introduction
Principle
Instrumentation
Application
Introduction to Gas chromatography-Mass spectroscopy
Gas chromatography-Mass spectroscopy is one of the so-called hyphenated analytical techniques. It is actually two techniques that are combined to form a single method of analyzing mixtures of chemicals
GC-MS is an instrumental technique, comprising a gas chromatograph coupled to a mass spectrometer by which complex mixtures of chemicals may be separated, identified & quantified. In order to a compound to be analysed by GC-MS it must be sufficiently volatile & thermally stable.
Principle :-
The Sample solution is injected into the GC inlet where it is vapourized & swept onto a chromatographic column by the carrier gas ( usually helium). The sample flows through the column & compounds comprising the mixture of interest are separated by virtue of their relative interaction with the coating of the column (stationery phase) & the carrier gas (mobile phase). The later part of the column passes through a heated transfer line & ends at the entrance to ion source where compounds eluting from the column are converted to ions
LC/MS is a technique that combines physical separation capabilities of LC with mass analysis capability of MS.
It is a method that combines separation power of HPLC with detection power of MS.
In LC-MS we remove the detector from the column of LC and fit the column to interface of MS.
In the most of the cases the interface used in LC-MS are ionization source.
Gas chromatography- “It is a process of separating component(s) from the given crude drug by using a gaseous mobile phase.”
Principle- The principle of separation in GC is “partition.”
The mixture of components to be separated is converted to vapor and mixed with the gaseous mobile phase.
The component which is more soluble in the stationary phase travels slower and eluted later.
The component which is less soluble in the stationary phase travels faster and eluted out first.
No two components have the same partition coefficient conditions.
So the components are separated according to their partition coefficient.
The partition coefficient is “the ratio of solubility of a substance distributed between two immiscible liquids at a constant temperature.’
It involves a sample being vaporized and injected onto the head of the chromatographic column.
The sample is transported through the column by the flow of inert, gaseous mobile phase.
The column itself contains a liquid stationary phase which is adsorbed onto the surface of an inert solid.
Two major types:
1. gas-solid chromatography: Here, the mobile phase is a gas while the stationary phase is a solid.
Used for separation of low molecular gases,
e.g., air components, H2S, CS2, CO2, rare gases, CO, and oxides of nitrogen.
2.Gas-liquid chromatography: The mobile phase is a gas while the stationary phase is a liquid retained on the surface as an inert solid by adsorption or chemical bonding.
Advantages-
Both qualitative and quantitative analyses are possible.
The instrument is simple, time of analysis is short.
High sensitivity.
The method is applicable to about 60% of organic compounds.
Very small sample sizes can be used.
Analysis can be highly accurate and precise.
Applications-
Quality control and analysis of drug products like antibiotics (penicillin), antivirals (amantadine), general anesthetics (chloroform, ether), sedatives/hypnotics (barbiturates), etc.
Assay of drugs – purity of a compound can be determined for drugs like :
Atropine sulfate
Clove oil
Stearic acid
In determining the levels of metabolites in body fluids like plasma, serum, urine, etc
Estimation of spoilage components, such as histamine and carbonyls, that cause rancidity.
Gas chromatography–mass spectrometry (GC-MS) is an analytical method that combines the features of gas-chromatography and mass spectrometry to identify different substances within a test sample.[1] Applications of GC-MS include drug detection, fire investigation, environmental analysis, explosives investigation, food and flavor analysis, and identification of unknown samples, including that of material samples obtained from planet Mars during probe missions as early as the 1970s. GC-MS can also be used in airport security to detect substances in luggage or on human beings. Additionally, it can identify trace elements in materials that were previously thought to have disintegrated beyond identification. Like liquid chromatography–mass spectrometry, it allows analysis and detection even of tiny amounts of a substance.[2]
GC-MS has been regarded as a "gold standard" for forensic substance identification because it is used to perform a 100% specific test, which positively identifies the presence of a particular substance. A nonspecific test merely indicates that any of several in a category of substances is present. Although a nonspecific test could statistically suggest the identity of the substance, this could lead to false positive identification. However, the high temperatures (300°C) used in the GC-MS injection port (and oven) can result in thermal degradation of injected molecules,[3] thus resulting in the measurement of degradation products instead of the actual molecule(s) of interest.The first on-line coupling of gas chromatography to a mass spectrometer was reported in the late 1950s.[4][5] An interest in coupling the methods had been suggested as early as December 1954.
