Natural processes like weathering, erosion, deposition, landslides, volcanic eruptions, earthquakes and floods shape Earth's landforms and oceans in both constructive and destructive ways. Key ocean landforms include the continental shelf, slope, mid-ocean ridge, rift zone, trench, and ocean basin. Waves, currents, tides and storms continually change coastal features such as beaches, barrier islands, estuaries and inlets through erosion and deposition.

1. LANDFORMS AND
OCEANS
Science Standard 5-3
The student will demonstrate an
understanding of features,
processes, and changes in Earth's
land and oceans.

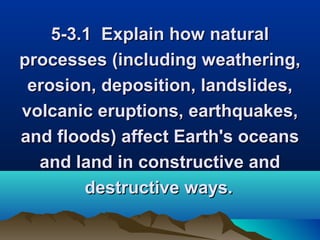

2. 5-3.1 Explain how natural
processes (including weathering,
erosion, deposition, landslides,
volcanic eruptions, earthquakes,
and floods) affect Earth's oceans
and land in constructive and
destructive ways.

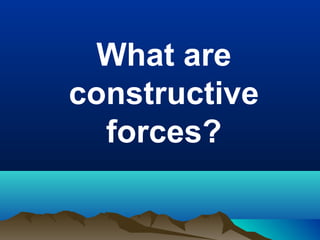

3. What are
constructive
forces?

4. Constructive forces
are processes that
create or build up
landforms.

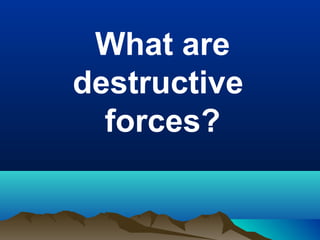

5. What are
destructive
forces?

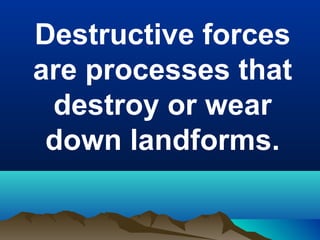

6. Destructive forces
are processes that
destroy or wear
down landforms.

7. What are some
examples of
landforms?

8. pinker.wjh.harvard.edu/.../Grand%20Canyon.htm

9. gsbwww.uchicago.edu/.../porcupines.html

11. media.vacationeasttennessee.org/pfoutdoorattr...

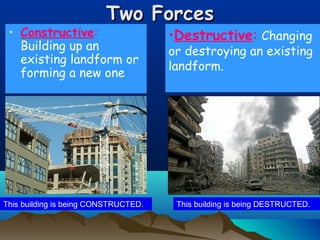

12. Two Forces
• Constructive:
Building up an
existing landform or
forming a new one
This building is being CONSTRUCTED.
•Destructive: Changing
or destroying an existing
landform.
This building is being DESTRUCTED.

13. What are natural
processes?
How do they affect
land and oceans?

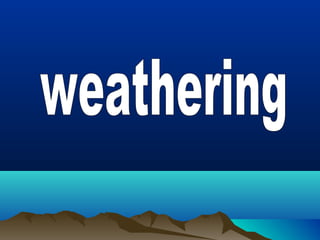

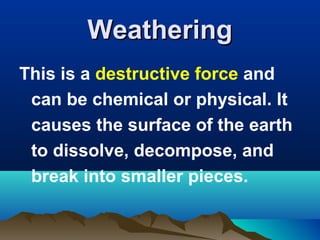

16. Weathering
This is a destructive force and
can be chemical or physical. It
causes the surface of the earth
to dissolve, decompose, and
break into smaller pieces.

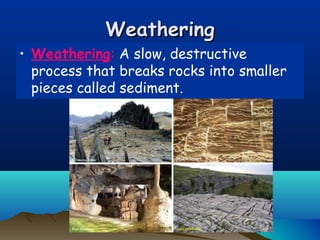

17. Weathering
• Weathering: A slow, destructive
process that breaks rocks into smaller
pieces called sediment.

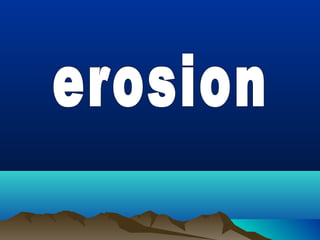

20. Erosion
This is a destructive force. It is
the movement of sediments
and soil by wind, water, and
gravity.

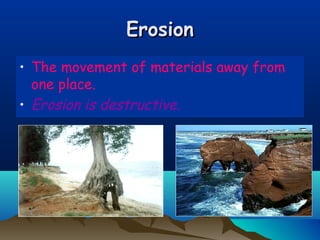

21. Erosion
• The movement of materials away from
one place.
• Erosion is destructive.

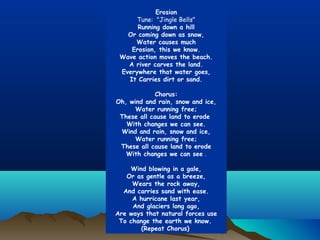

22. Erosion
Tune: "Jingle Bells"
Running down a hill
Or coming down as snow,
Water causes much
Erosion, this we know.
Wave action moves the beach.
A river carves the land.
Everywhere that water goes,
It Carries dirt or sand.
Chorus:
Oh, wind and rain, snow and ice,
Water running free;
These all cause land to erode
With changes we can see.
Wind and rain, snow and ice,
Water running free;
These all cause land to erode
With changes we can see .
Wind blowing in a gale,
Or as gentle as a breeze,
Wears the rock away,
And carries sand with ease.
A hurricane last year,
And glaciers long ago,
Are ways that natural forces use
To change the earth we know.
(Repeat Chorus)

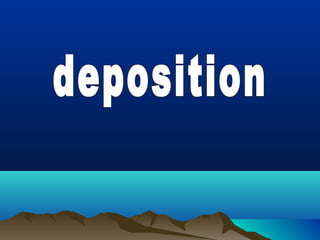

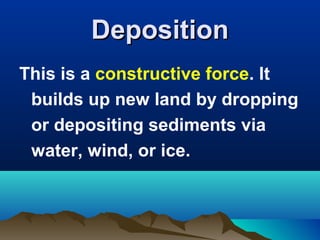

25. Deposition
This is a constructive force. It
builds up new land by dropping
or depositing sediments via
water, wind, or ice.

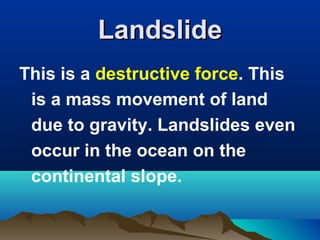

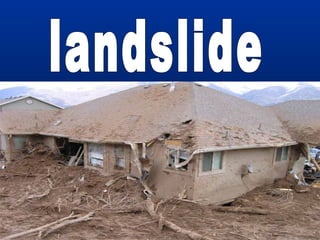

28. Landslide
This is a destructive force. This
is a mass movement of land
due to gravity. Landslides even
occur in the ocean on the
continental slope.

29. Landslide
Landslides
can cause
buildings to
fall, or power
and gas lines
to break.

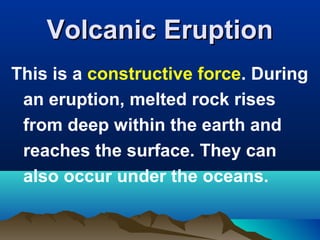

32. Volcanic Eruption
This is a constructive force. During
an eruption, melted rock rises
from deep within the earth and
reaches the surface. They can
also occur under the oceans.

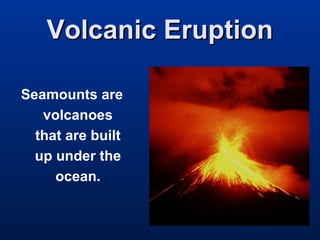

33. Volcanic Eruption
Seamounts are
volcanoes
that are built
up under the
ocean.

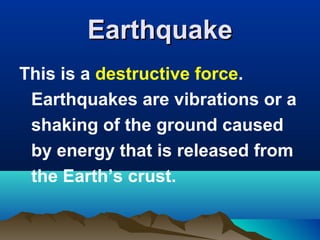

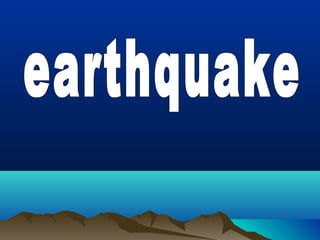

36. Earthquake
This is a destructive force.
Earthquakes are vibrations or a
shaking of the ground caused
by energy that is released from
the Earth’s crust.

37. Earthquake
Earthquakes under the ocean
can cause huge waves
(tsunamis) that cause great
damage if they come ashore.

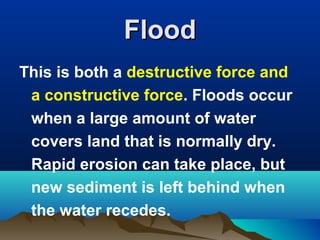

40. Flood
This is both a destructive force and
a constructive force. Floods occur
when a large amount of water
covers land that is normally dry.
Rapid erosion can take place, but
new sediment is left behind when
the water recedes.

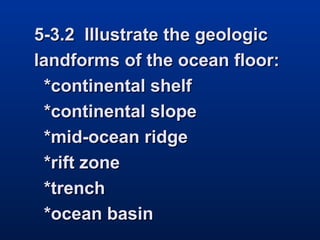

41. 5-3.2 Illustrate the geologic
landforms of the ocean floor:
*continental shelf
*continental slope
*mid-ocean ridge
*rift zone
*trench
*ocean basin

42. Journey to Bottom of the
Ocean

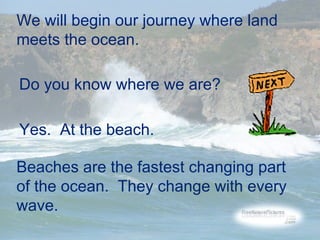

43. We will begin our journey where land
meets the ocean.
Do you know where we are?
Yes. At the beach.
Beaches are the fastest changing part
of the ocean. They change with every
wave.

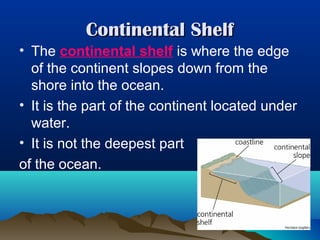

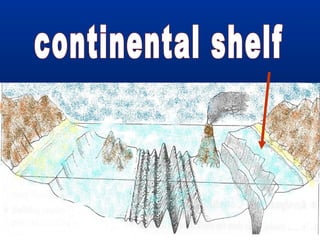

45. Continental Shelf
• The continental shelf is where the edge
of the continent slopes down from the
shore into the ocean.
• It is the part of the continent located under
water.
• It is not the deepest part
of the ocean.

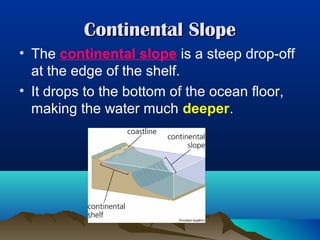

47. Continental Slope
• The continental slope is a steep drop-off
at the edge of the shelf.
• It drops to the bottom of the ocean floor,
making the water much deeper.

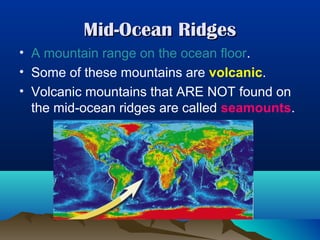

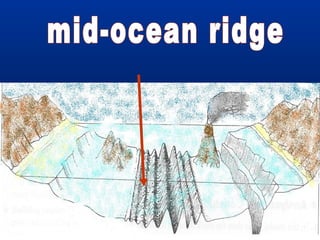

49. Mid-Ocean Ridges
• A mountain range on the ocean floor.
• Some of these mountains are volcanic.
• Volcanic mountains that ARE NOT found on
the mid-ocean ridges are called seamounts.

50. For more information on the ridges, visit
http://www.waterencyclopedia.com/MiOc/Mid-Ocean-Ridges.html

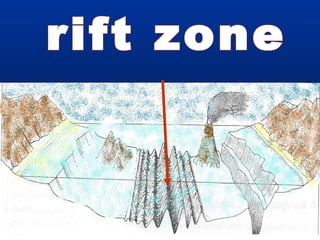

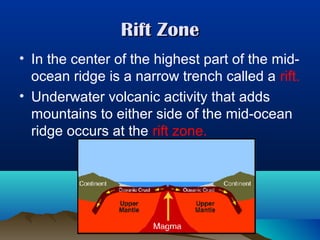

52. Rift Zone
• In the center of the highest part of the midocean ridge is a narrow trench called a rift.
• Underwater volcanic activity that adds
mountains to either side of the mid-ocean
ridge occurs at the rift zone.

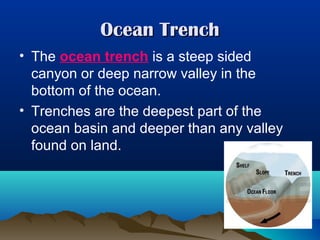

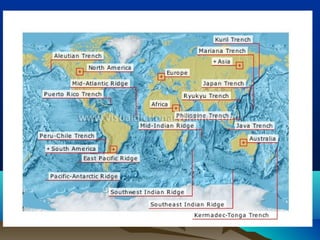

54. Ocean Trench
• The ocean trench is a steep sided
canyon or deep narrow valley in the
bottom of the ocean.
• Trenches are the deepest part of the
ocean basin and deeper than any valley
found on land.

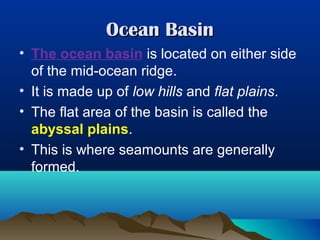

57. Ocean Basin
• The ocean basin is located on either side
of the mid-ocean ridge.
• It is made up of low hills and flat plains.
• The flat area of the basin is called the
abyssal plains.
• This is where seamounts are generally
formed.

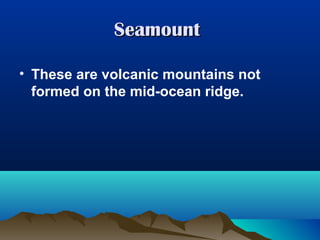

60. Seamount
• These are volcanic mountains not
formed on the mid-ocean ridge.

61. 5-3.3
Compare continental and
oceanic landforms.

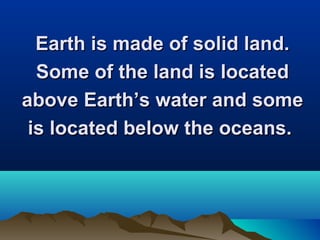

62. Earth is made of solid land.
Some of the land is located
above Earth’s water and some
is located below the oceans.

63. Explain how landforms above
the oceans are similar to
those found below the oceans.

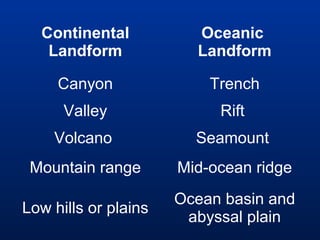

64. Continental
Landform
Oceanic
Landform
Canyon
Trench
Valley
Rift
Volcano
Seamount
Mountain range
Mid-ocean ridge
Low hills or plains
Ocean basin and
abyssal plain

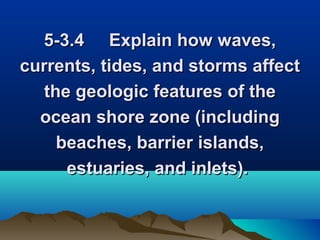

65. 5-3.4 Explain how waves,
currents, tides, and storms affect
the geologic features of the
ocean shore zone (including
beaches, barrier islands,
estuaries, and inlets).

66. Beaches
http://www.virtualtourist.com/travel/North_America/United_States_of_America/South_Carolina/Charleston864816/Things_To_Do-Charleston-Beaches-BR-1.html

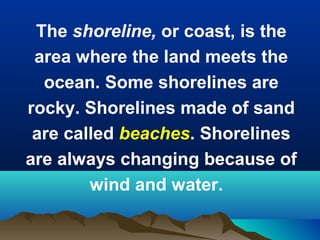

67. The shoreline, or coast, is the
area where the land meets the
ocean. Some shorelines are
rocky. Shorelines made of sand
are called beaches. Shorelines
are always changing because of
wind and water.

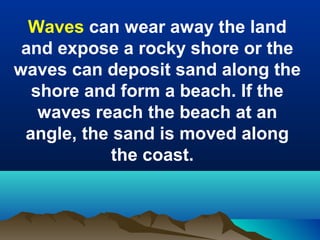

68. Waves can wear away the land
and expose a rocky shore or the
waves can deposit sand along the
shore and form a beach. If the
waves reach the beach at an
angle, the sand is moved along
the coast.

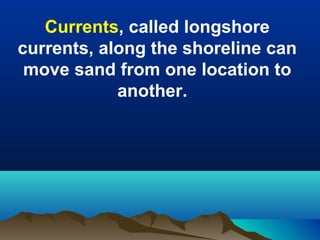

69. Currents, called longshore
currents, along the shoreline can
move sand from one location to
another.

70. Tides can bring in sand, shells,
and ocean sediments at high tide
and leave them behind when the
tide goes out.

71. Barrier Islands
www.dnr.sc.gov/.../river/stewardship_gallery.htm

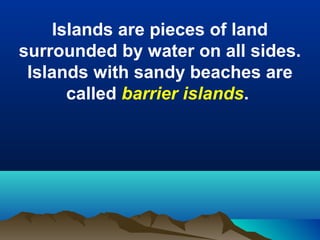

72. Islands are pieces of land
surrounded by water on all sides.
Islands with sandy beaches are
called barrier islands.

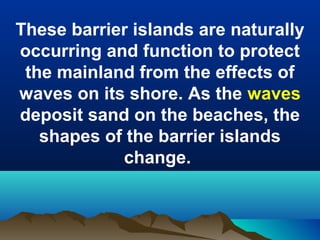

73. These barrier islands are naturally
occurring and function to protect
the mainland from the effects of
waves on its shore. As the waves
deposit sand on the beaches, the
shapes of the barrier islands
change.

74. Currents can move the sand from
one end of the island to the other.

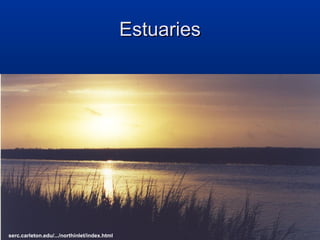

75. Estuaries
serc.carleton.edu/.../northinlet/index.html

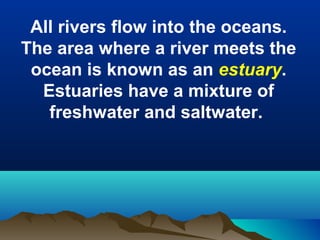

76. All rivers flow into the oceans.
The area where a river meets the
ocean is known as an estuary.
Estuaries have a mixture of
freshwater and saltwater.

77. Waves can deposit sand in the
estuaries. At high tide ocean
water brings in sediments and
sea life that feed and nourish life
in the estuary.

78. Inlets
www.ncsu.edu/.../sc/hunting2/hunting2.html

79. Inlets are the water-filled spaces
between the barrier islands.

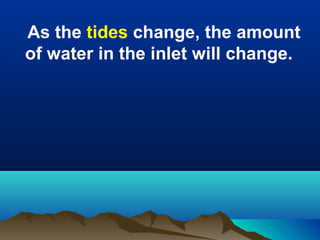

80. As the tides change, the amount
of water in the inlet will change.

81. Ocean currents and storms can
change the shape of an inlet
opening.

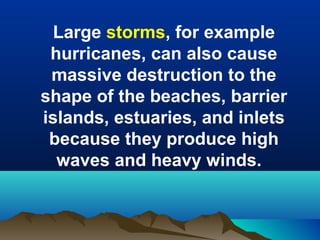

82. Large storms, for example
hurricanes, can also cause
massive destruction to the
shape of the beaches, barrier
islands, estuaries, and inlets
because they produce high
waves and heavy winds.

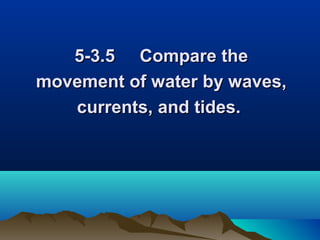

83. 5-3.5 Compare the
movement of water by waves,
currents, and tides.

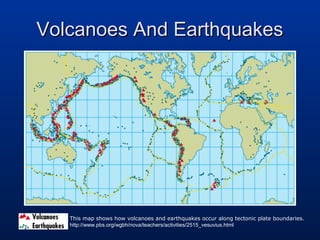

84. Volcanoes And Earthquakes
This map shows how volcanoes and earthquakes occur along tectonic plate boundaries.
http://www.pbs.org/wgbh/nova/teachers/activities/2515_vesuvius.html

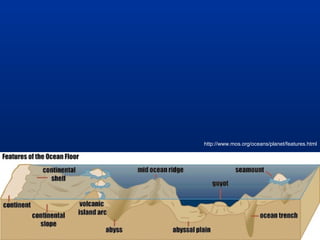

85. http://www.mos.org/oceans/planet/features.html

86. Resources
Magic School Bus Blows Its Top, The. Scholastic. 1995.
unitedstreaming. 13 September 2006
<http://www.unitedstreaming.com/> (23:56)
