The document discusses multi-threading in Java. It defines multi-threading as allowing multiple threads within a process to execute concurrently. It explains that threads share resources of the process but have their own call stacks and program counters. The document outlines the life cycle of a thread in Java and describes how to create threads by implementing the Runnable interface or extending the Thread class. It provides examples of creating and running threads concurrently in Java.

1. Programming in Java
Topic: Multi-threading

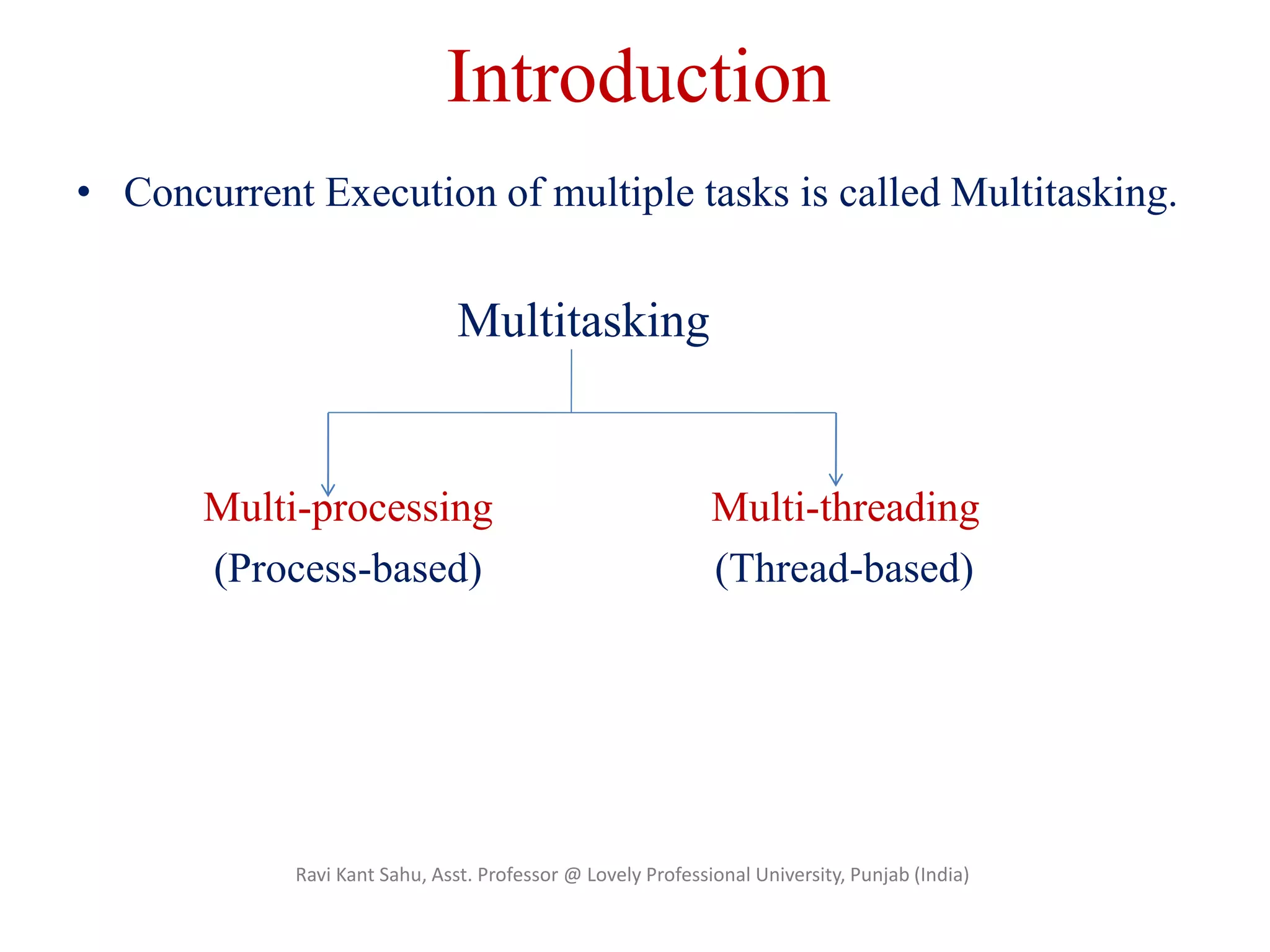

2. Introduction
• Concurrent Execution of multiple tasks is called Multitasking.
Multitasking
Multi-processing Multi-threading
(Process-based) (Thread-based)
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

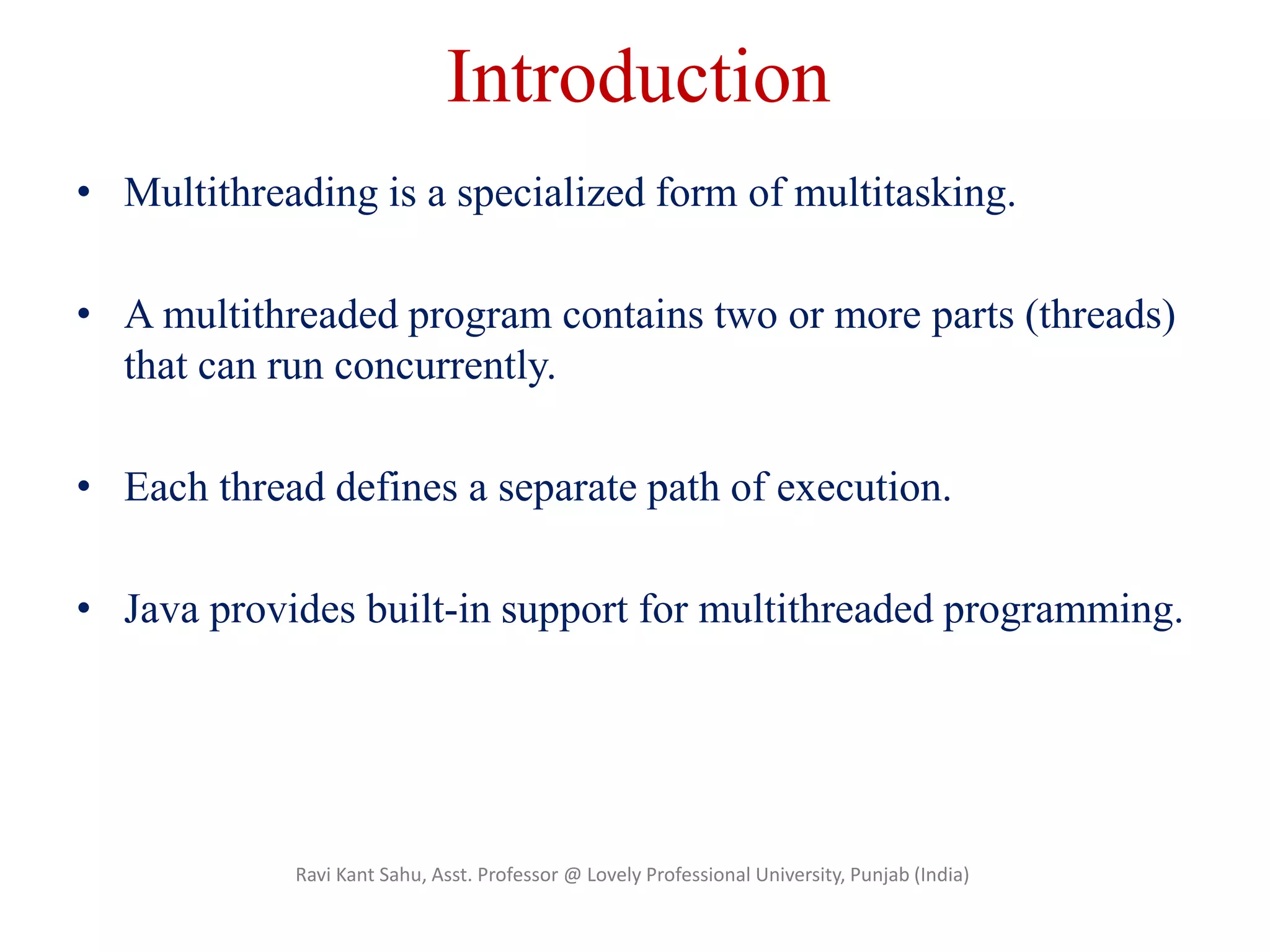

3. Introduction
• Multithreading is a specialized form of multitasking.
• A multithreaded program contains two or more parts (threads)
that can run concurrently.
• Each thread defines a separate path of execution.
• Java provides built-in support for multithreaded programming.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

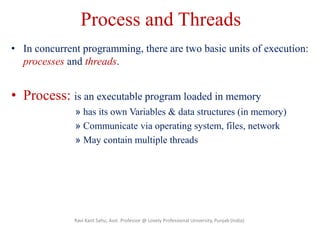

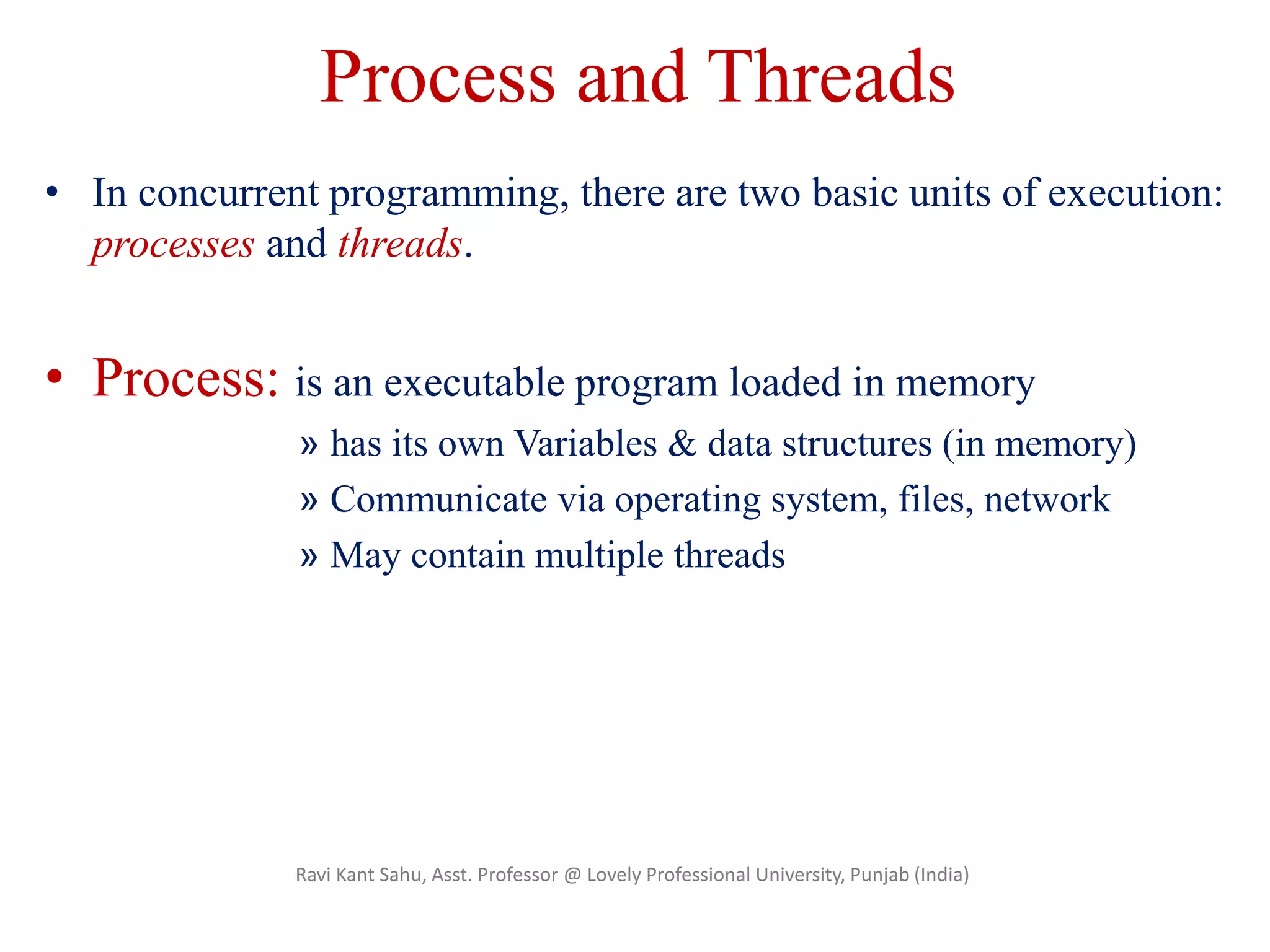

4. Process and Threads
• In concurrent programming, there are two basic units of execution:
processes and threads.
• Process: is an executable program loaded in memory
» has its own Variables & data structures (in memory)
» Communicate via operating system, files, network
» May contain multiple threads
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

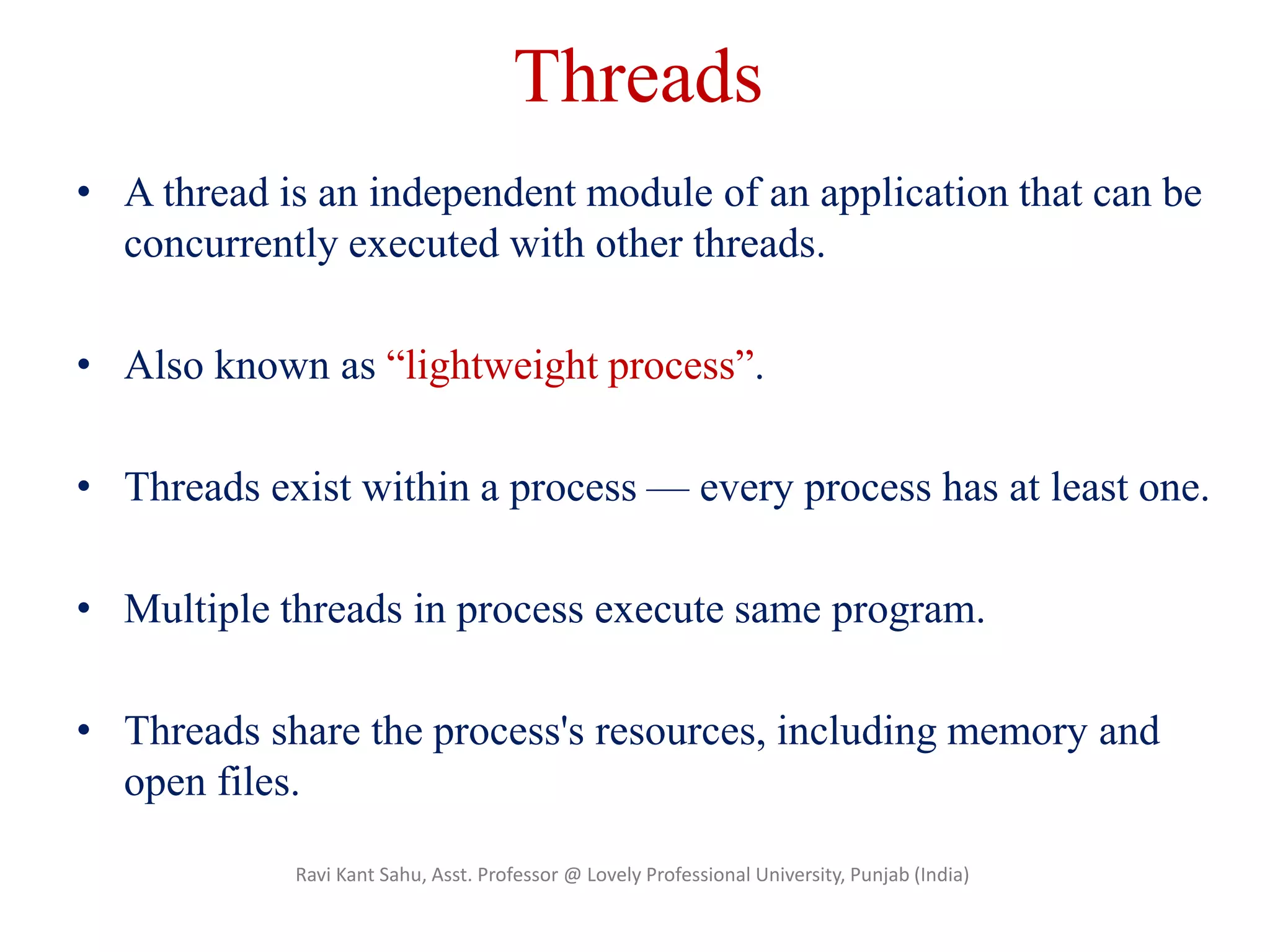

5. Threads
• A thread is an independent module of an application that can be
concurrently executed with other threads.
• Also known as “lightweight process”.
• Threads exist within a process — every process has at least one.
• Multiple threads in process execute same program.
• Threads share the process's resources, including memory and
open files.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

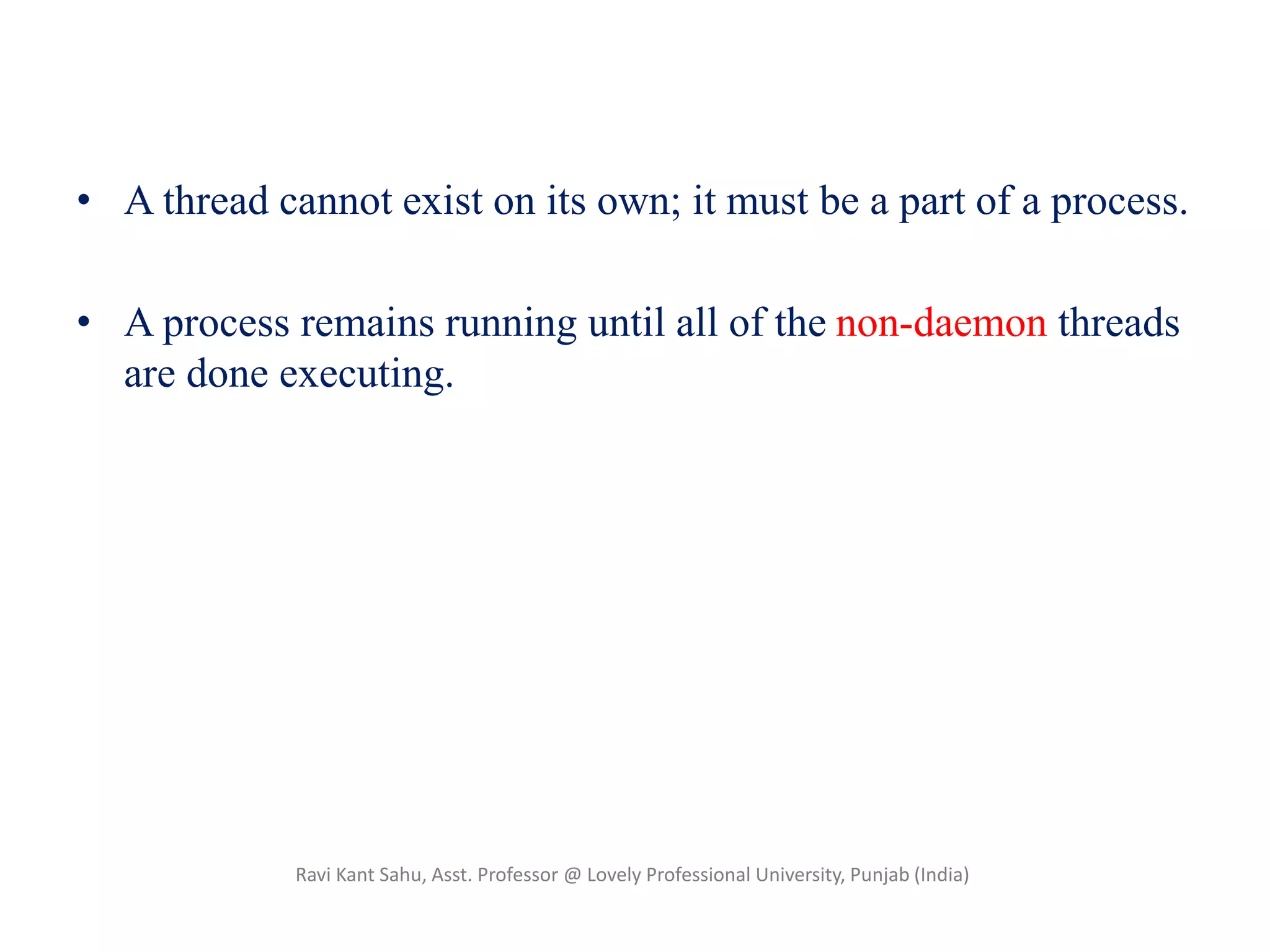

6. • A thread cannot exist on its own; it must be a part of a process.
• A process remains running until all of the non-daemon threads
are done executing.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

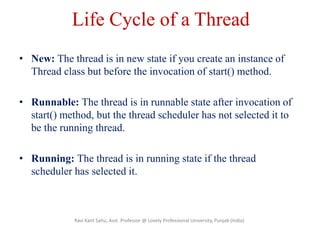

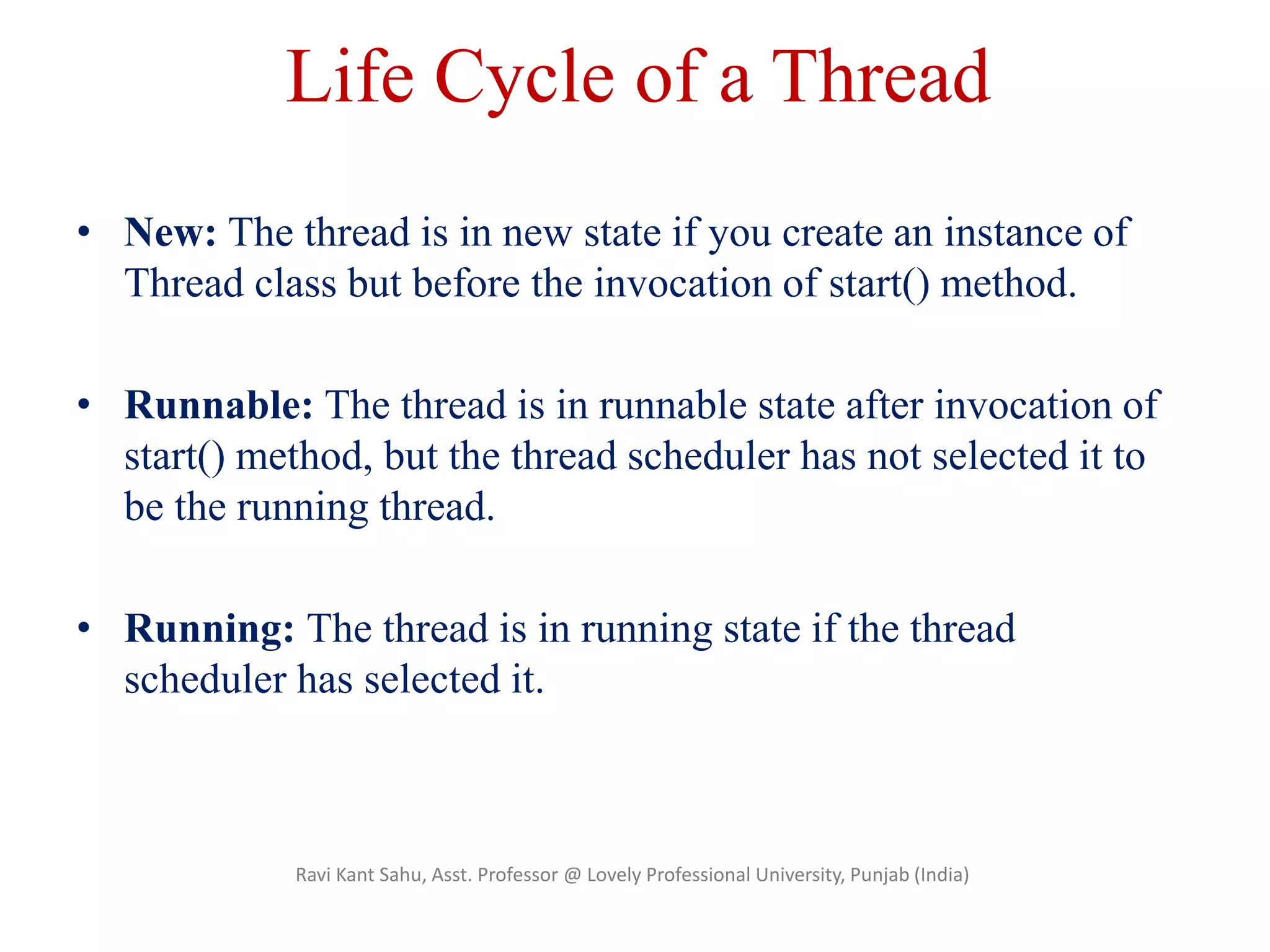

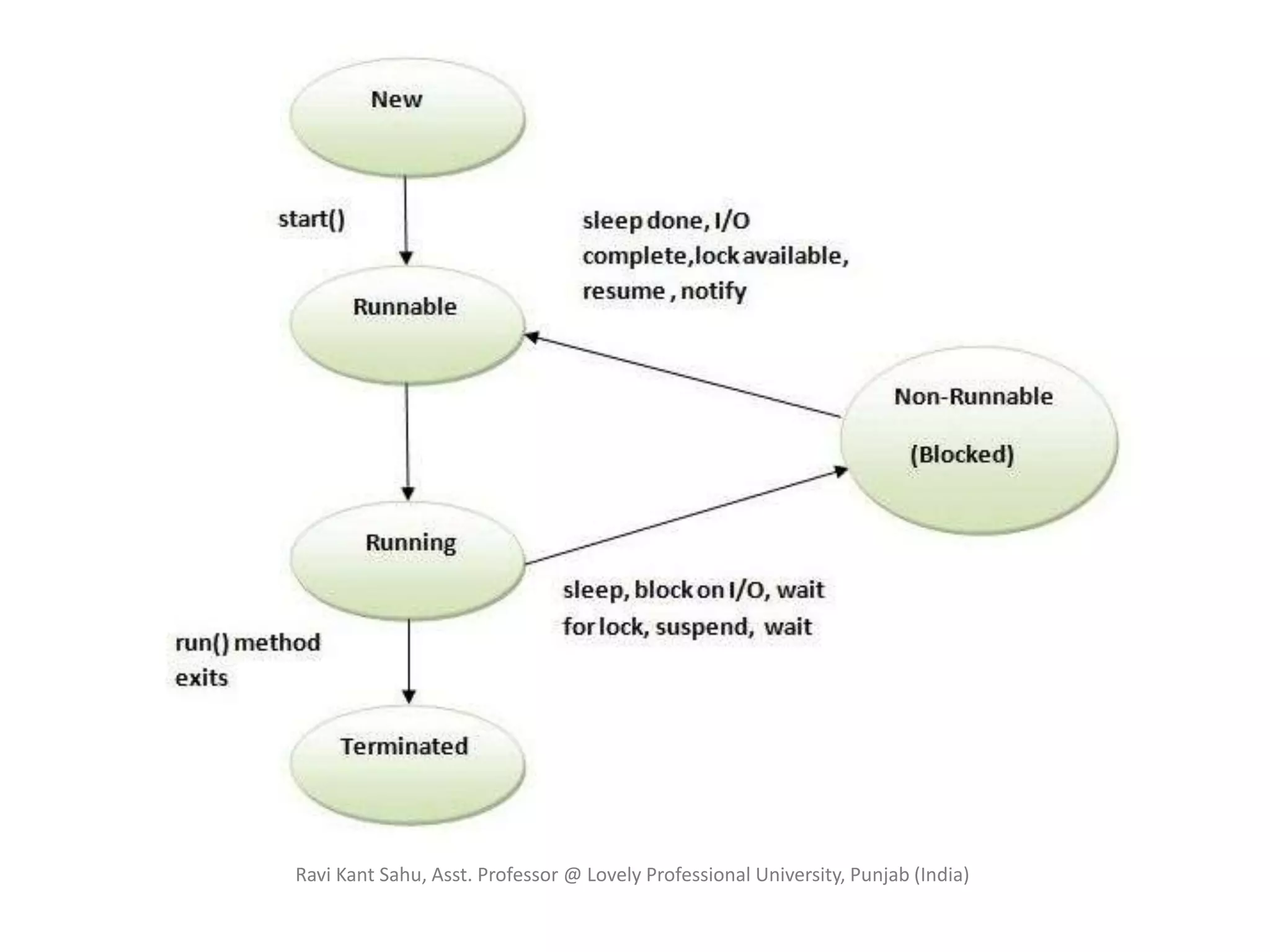

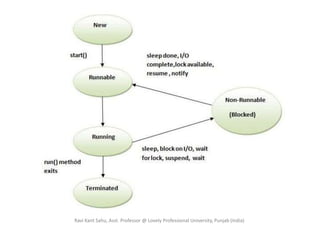

7. Life Cycle of a Thread
• New: The thread is in new state if you create an instance of
Thread class but before the invocation of start() method.
• Runnable: The thread is in runnable state after invocation of
start() method, but the thread scheduler has not selected it to
be the running thread.
• Running: The thread is in running state if the thread
scheduler has selected it.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

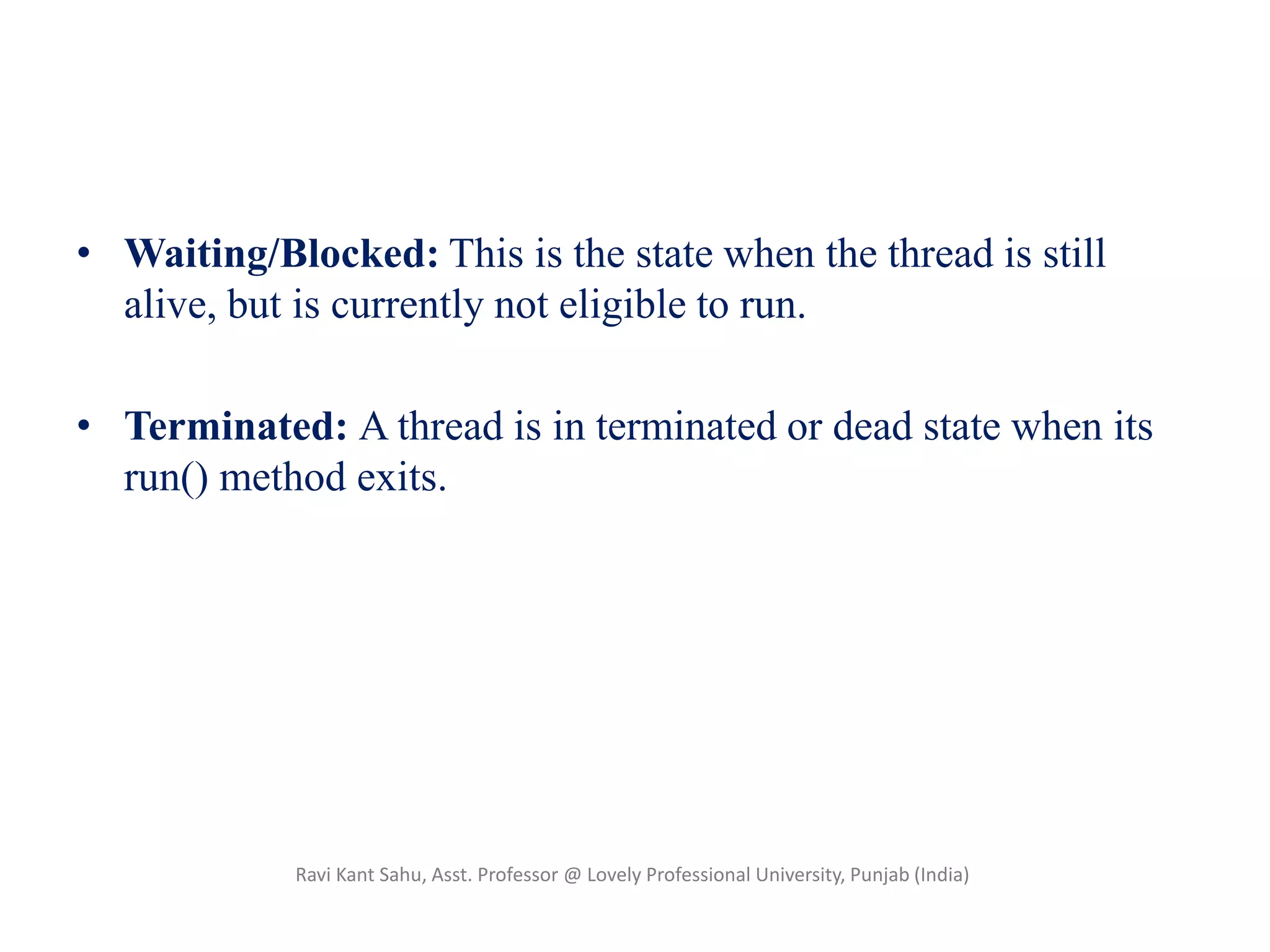

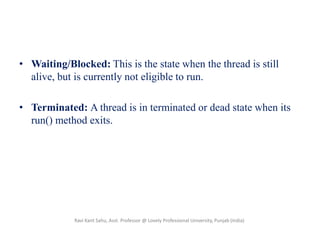

8. • Waiting/Blocked: This is the state when the thread is still
alive, but is currently not eligible to run.
• Terminated: A thread is in terminated or dead state when its
run() method exits.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

9. Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

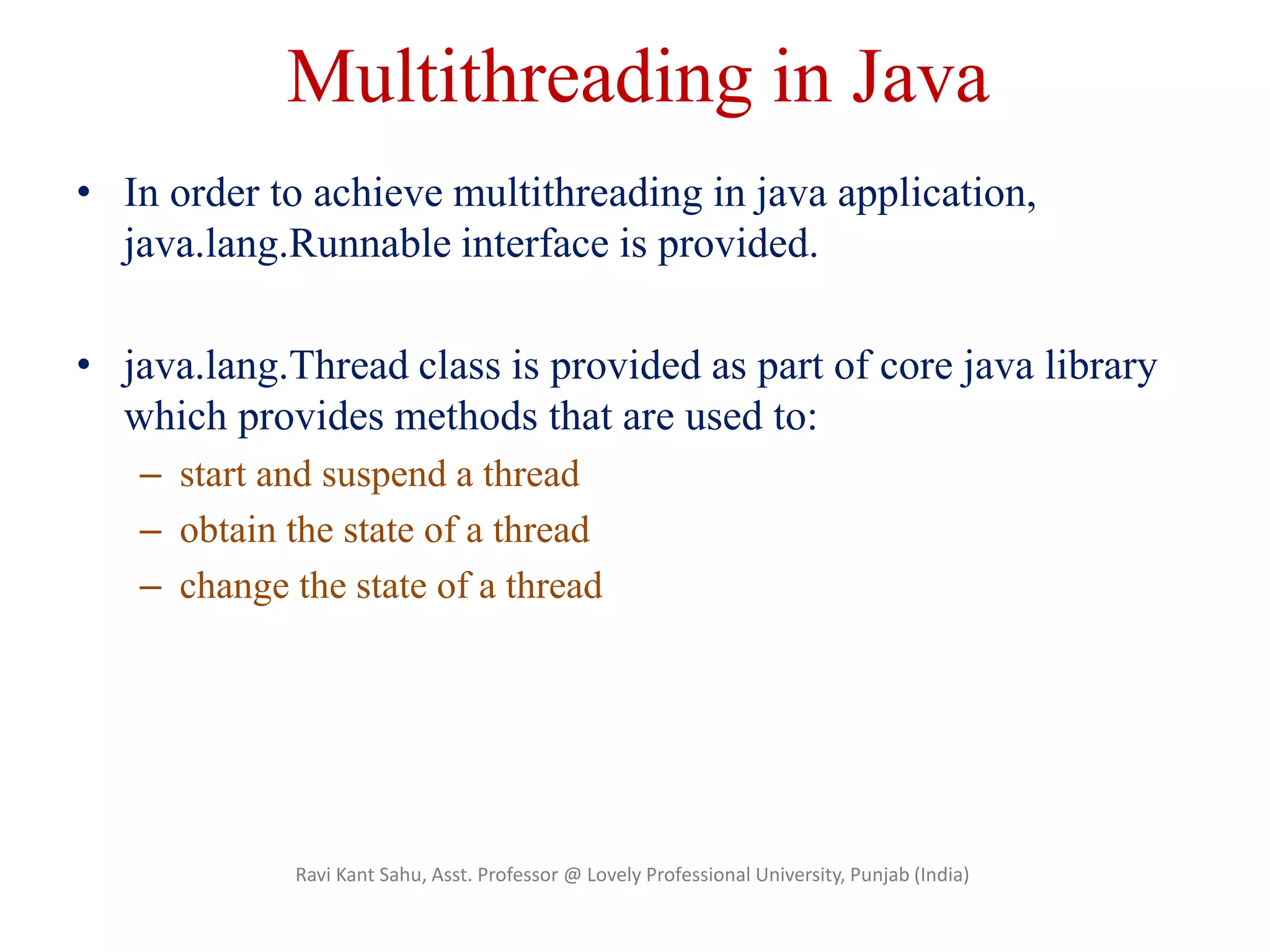

10. Multithreading in Java
• In order to achieve multithreading in java application,
java.lang.Runnable interface is provided.
• java.lang.Thread class is provided as part of core java library
which provides methods that are used to:
– start and suspend a thread
– obtain the state of a thread
– change the state of a thread
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

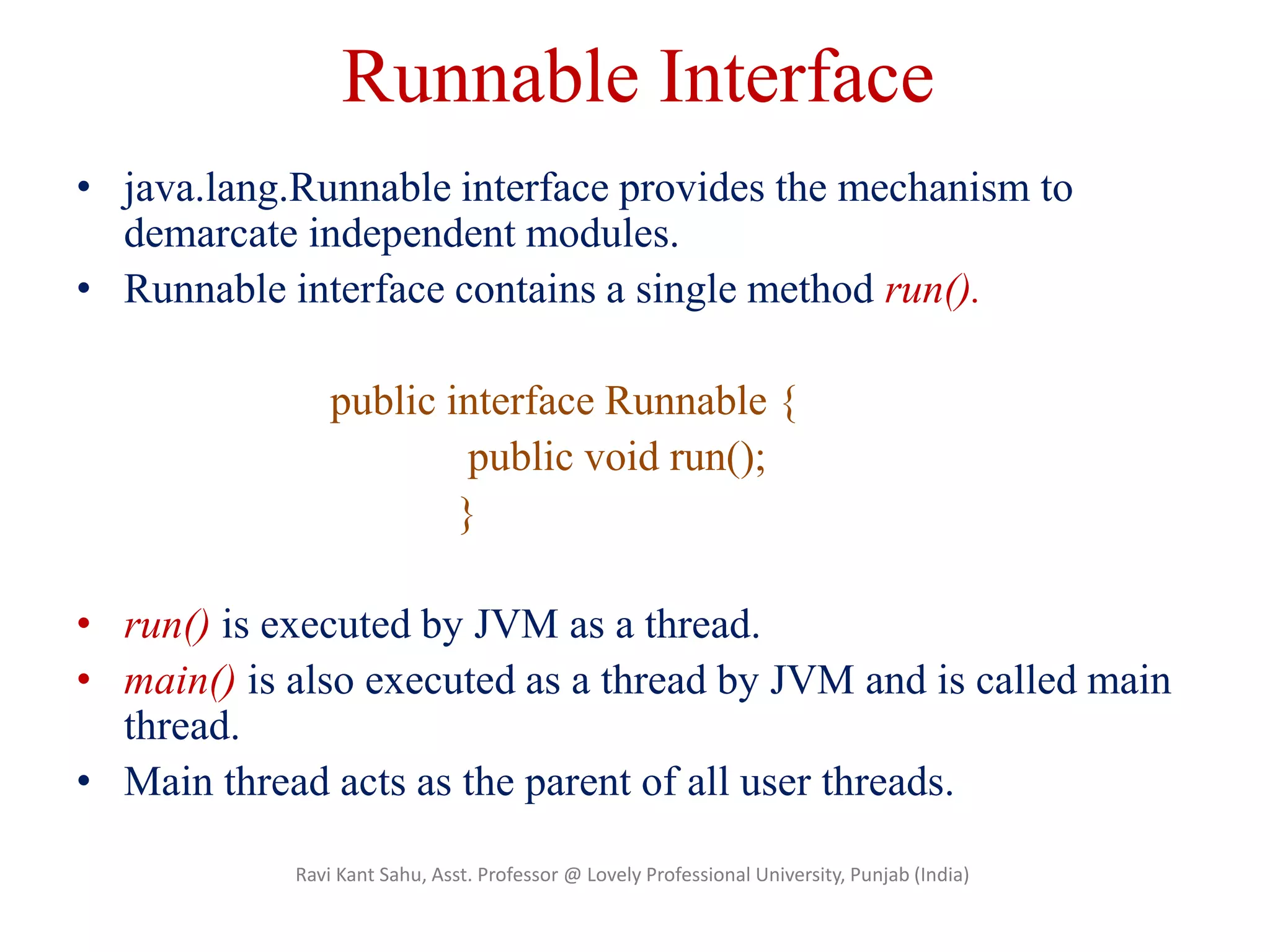

11. Runnable Interface
• java.lang.Runnable interface provides the mechanism to
demarcate independent modules.
• Runnable interface contains a single method run().
public interface Runnable {
public void run();
}
• run() is executed by JVM as a thread.
• main() is also executed as a thread by JVM and is called main
thread.
• Main thread acts as the parent of all user threads.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

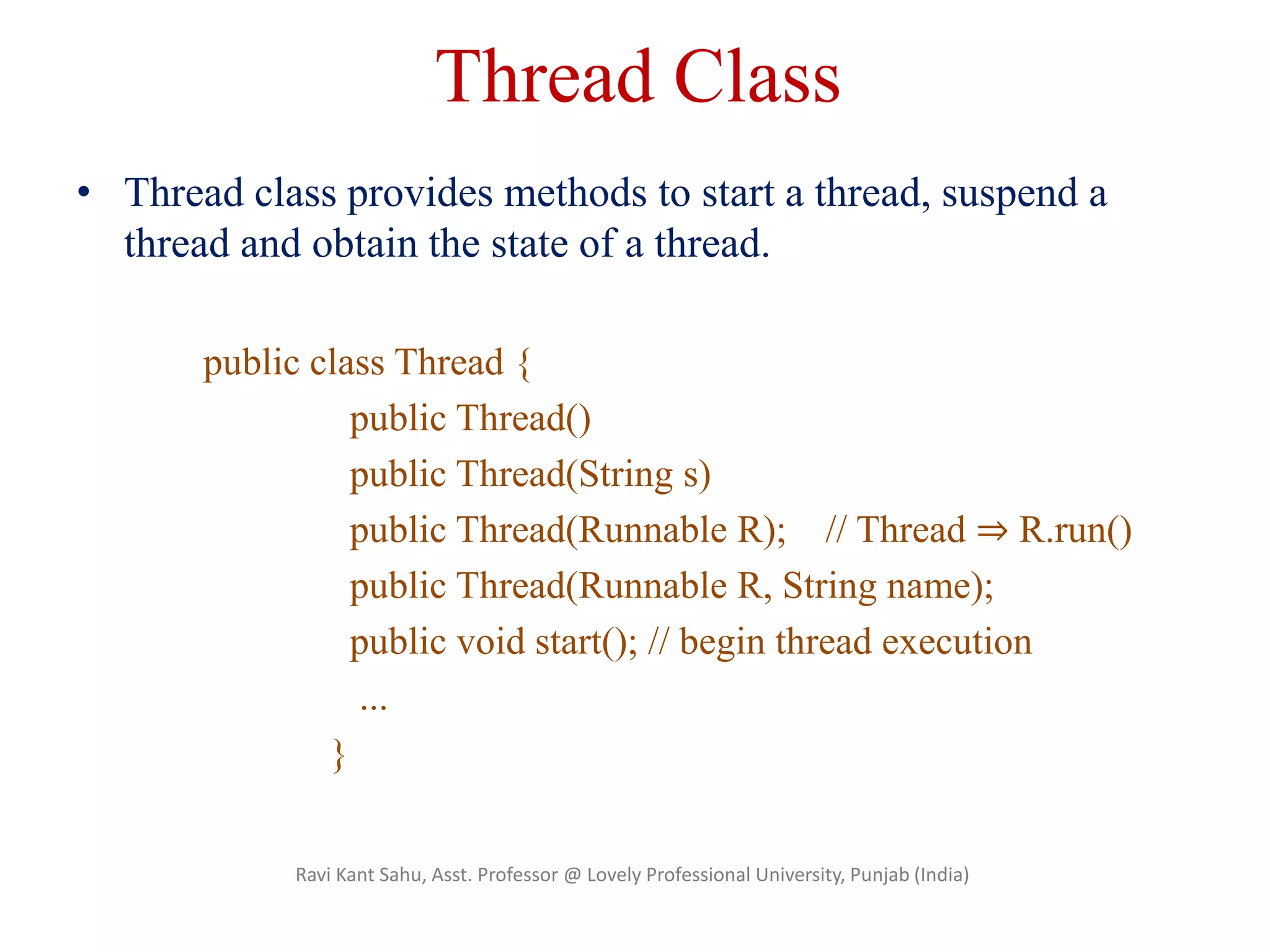

12. Thread Class
• Thread class provides methods to start a thread, suspend a
thread and obtain the state of a thread.
public class Thread {
public Thread()
public Thread(String s)
public Thread(Runnable R); // Thread ⇒ R.run()
public Thread(Runnable R, String name);
public void start(); // begin thread execution
...
}
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

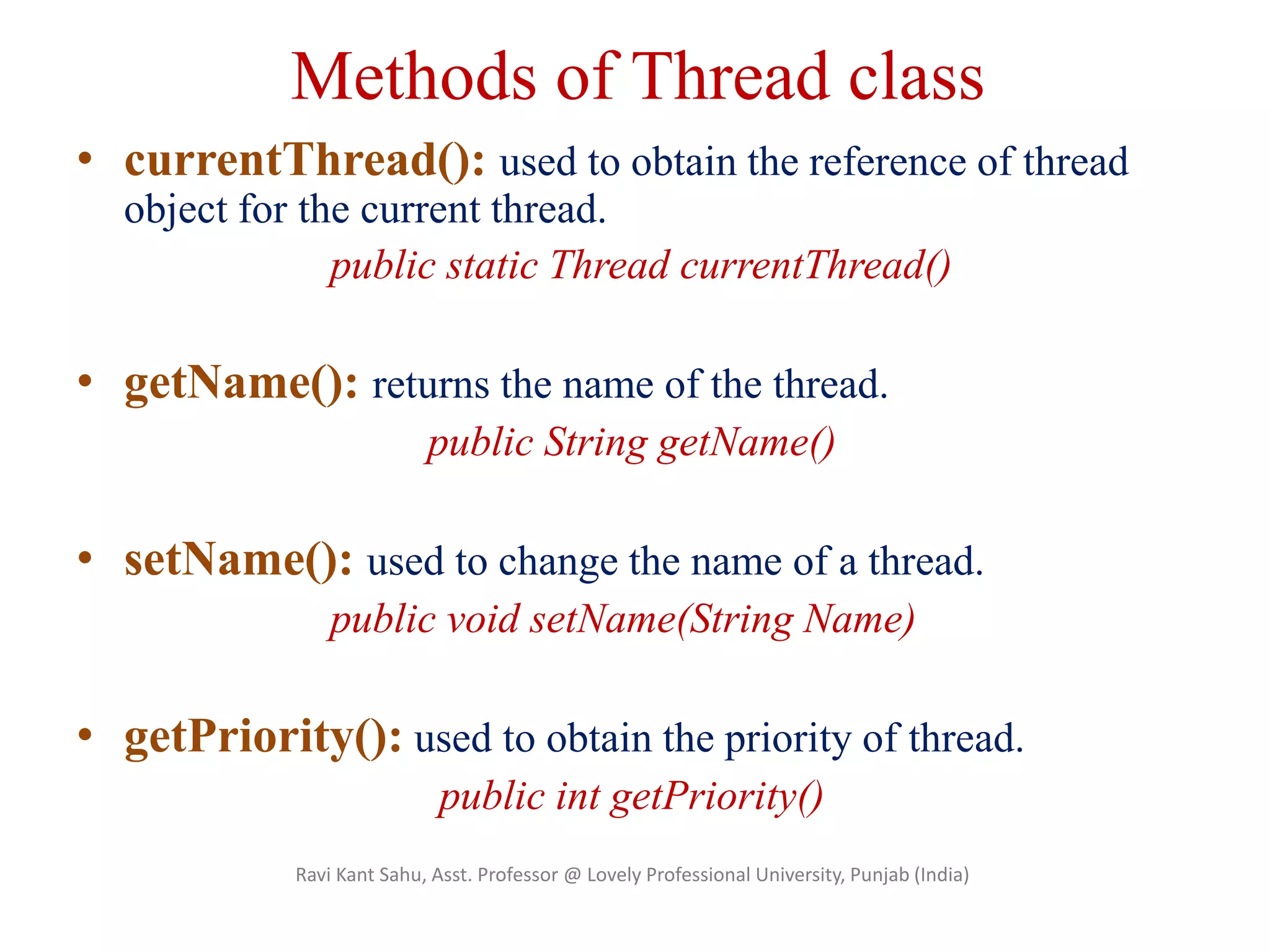

13. Methods of Thread class
• currentThread(): used to obtain the reference of thread
object for the current thread.
public static Thread currentThread()
• getName(): returns the name of the thread.
public String getName()
• setName(): used to change the name of a thread.
public void setName(String Name)
• getPriority(): used to obtain the priority of thread.
public int getPriority()
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

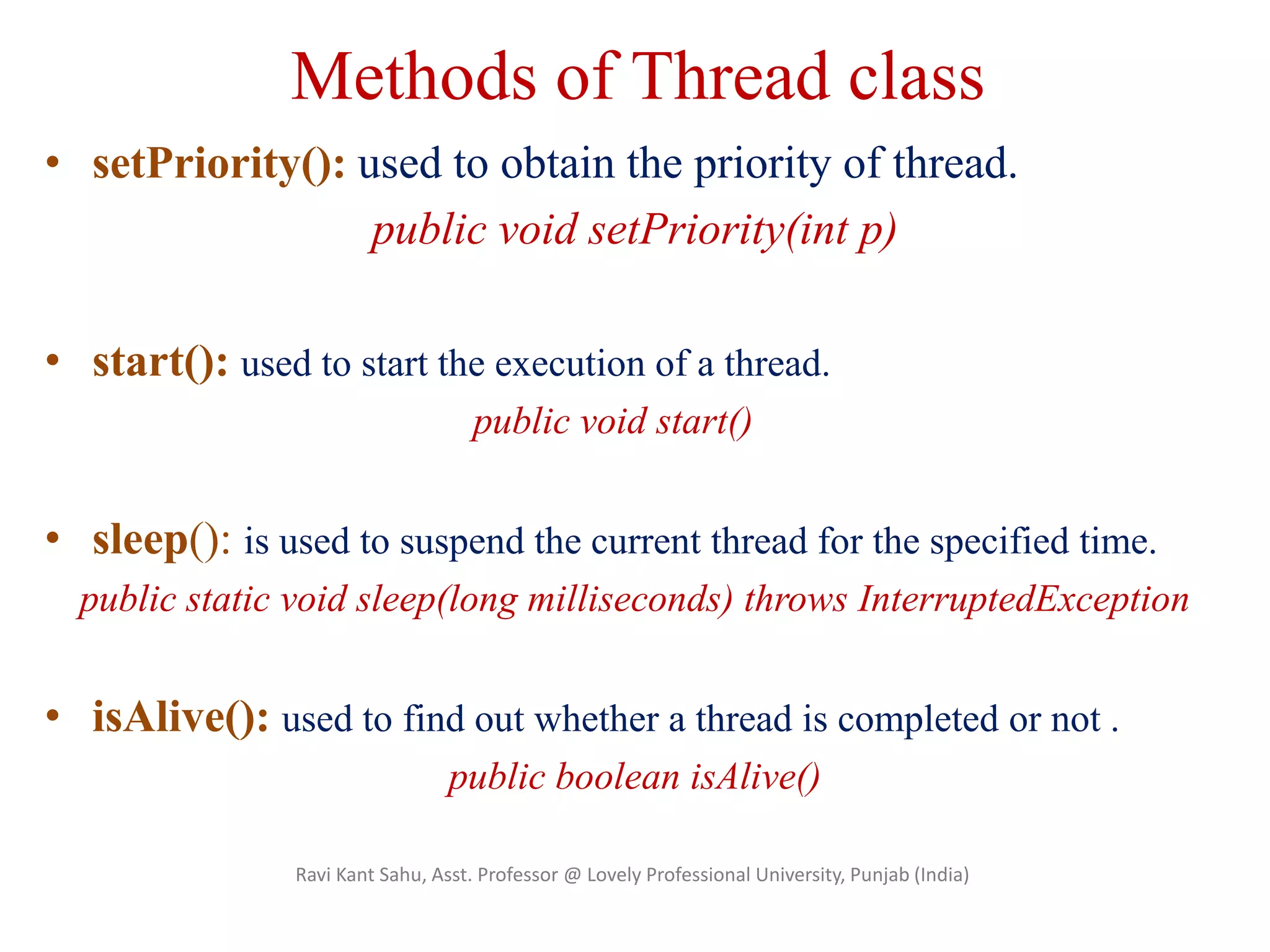

14. Methods of Thread class
• setPriority(): used to obtain the priority of thread.
public void setPriority(int p)
• start(): used to start the execution of a thread.
public void start()
• sleep(): is used to suspend the current thread for the specified time.
public static void sleep(long milliseconds) throws InterruptedException
• isAlive(): used to find out whether a thread is completed or not .
public boolean isAlive()
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

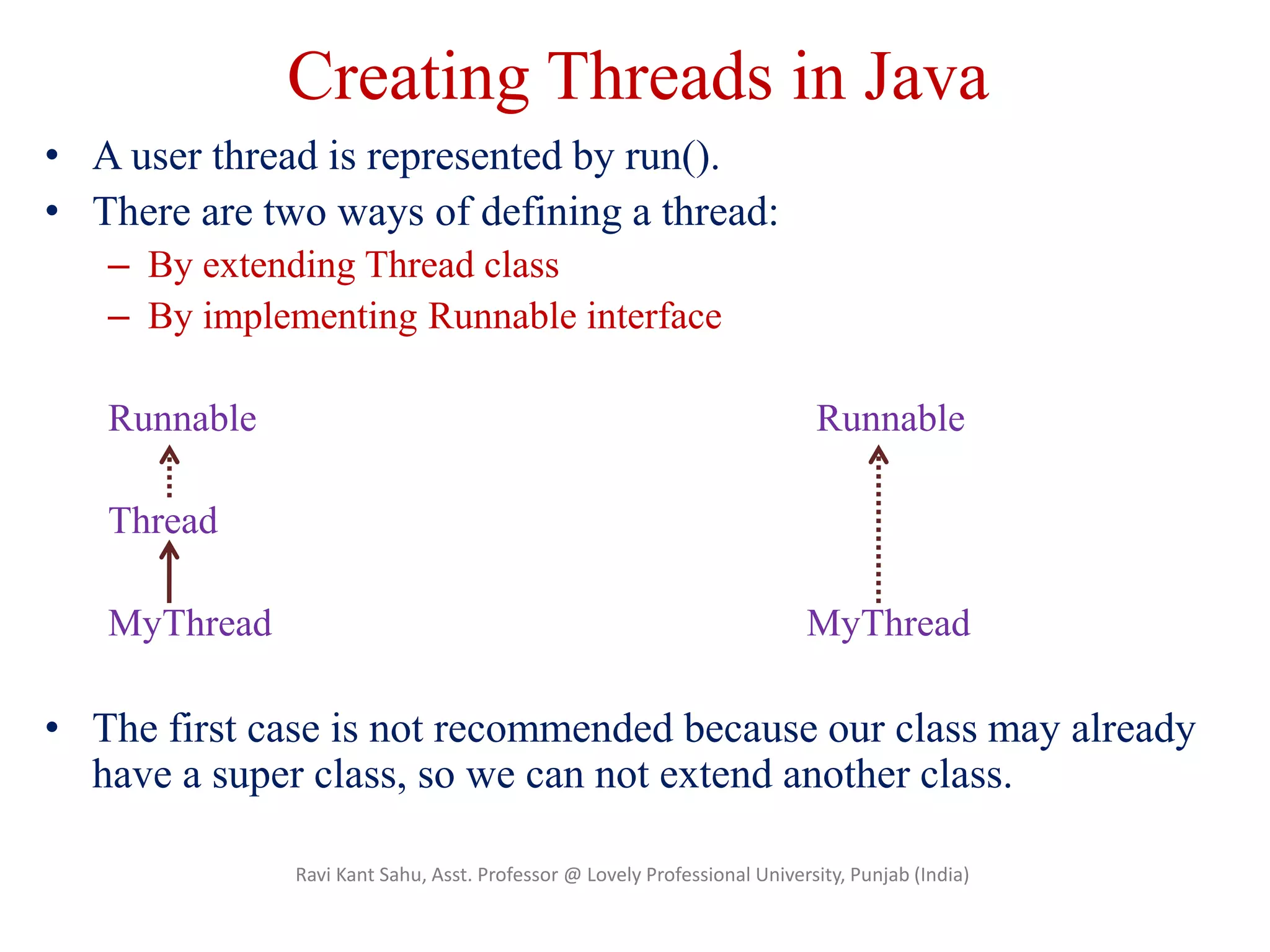

15. Creating Threads in Java
• A user thread is represented by run().
• There are two ways of defining a thread:
– By extending Thread class
– By implementing Runnable interface
Runnable Runnable
Thread
MyThread MyThread
• The first case is not recommended because our class may already
have a super class, so we can not extend another class.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

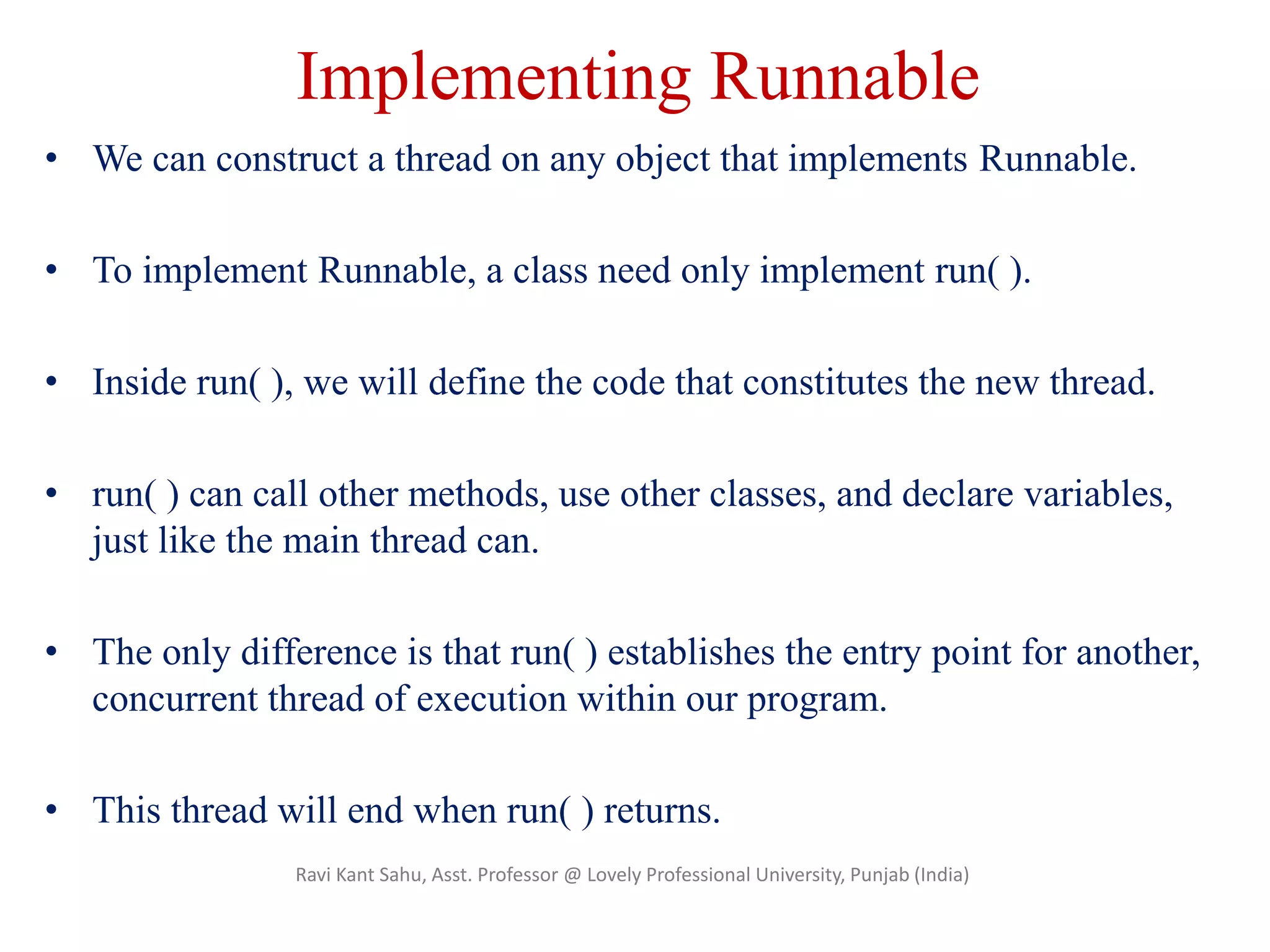

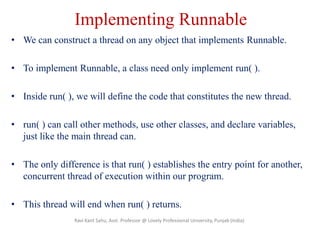

16. Implementing Runnable
• We can construct a thread on any object that implements Runnable.
• To implement Runnable, a class need only implement run( ).
• Inside run( ), we will define the code that constitutes the new thread.
• run( ) can call other methods, use other classes, and declare variables,
just like the main thread can.
• The only difference is that run( ) establishes the entry point for another,
concurrent thread of execution within our program.
• This thread will end when run( ) returns.
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

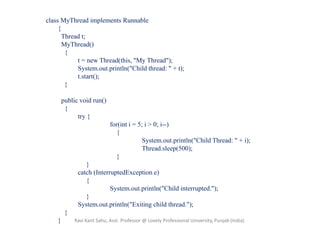

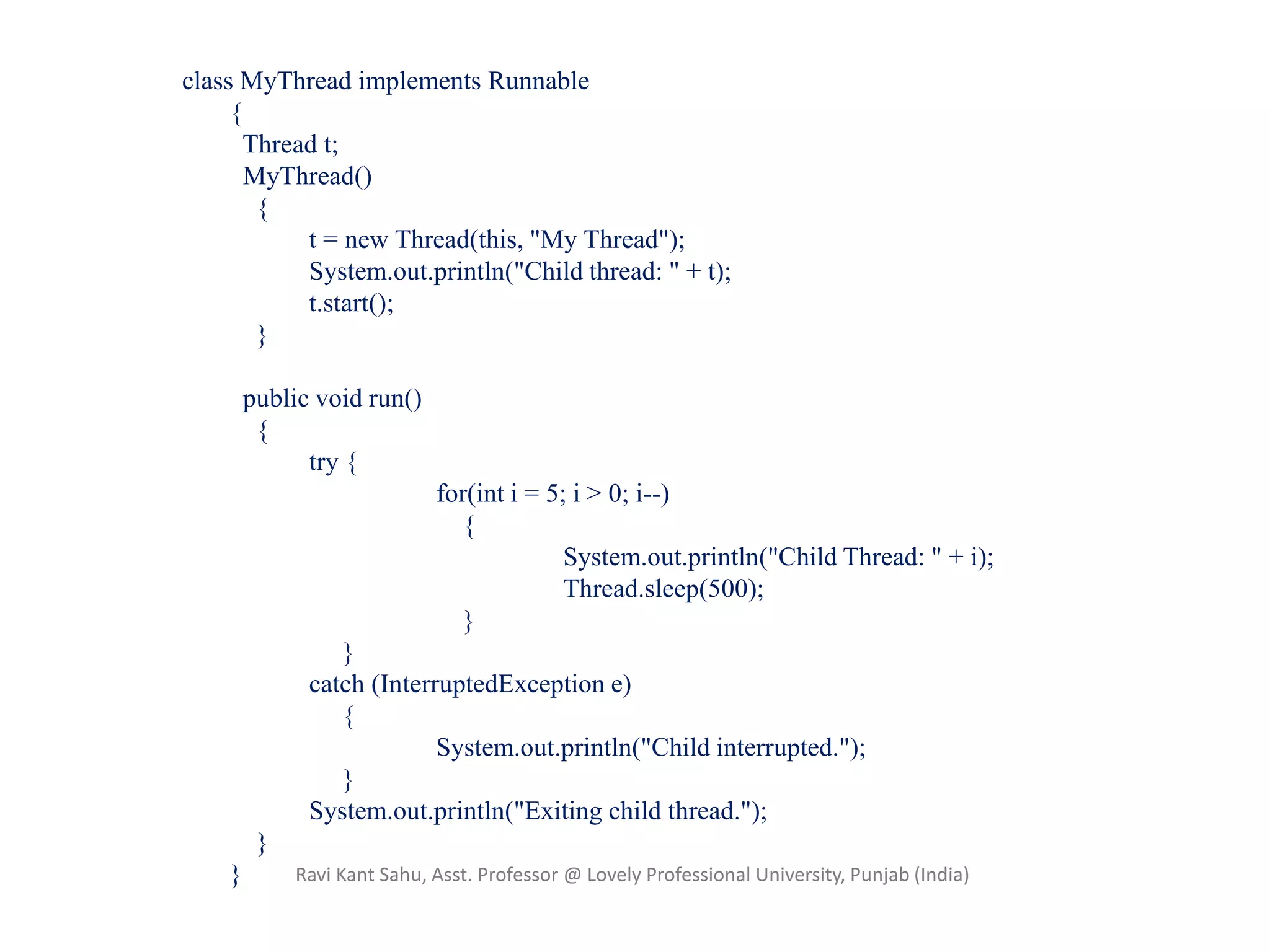

17. class MyThread implements Runnable
{
Thread t;
MyThread()
{
t = new Thread(this, "My Thread");
System.out.println("Child thread: " + t);
t.start();
}
public void run()
{
try {
for(int i = 5; i > 0; i--)
{
System.out.println("Child Thread: " + i);
Thread.sleep(500);
}
}
catch (InterruptedException e)
{
System.out.println("Child interrupted.");
}
System.out.println("Exiting child thread.");
}
} Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)

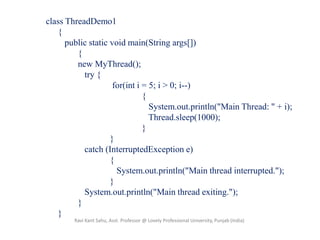

18. class ThreadDemo1
{
public static void main(String args[])
{
new MyThread();
try {
for(int i = 5; i > 0; i--)
{
System.out.println("Main Thread: " + i);
Thread.sleep(1000);
}
}
catch (InterruptedException e)
{
System.out.println("Main thread interrupted.");
}
System.out.println("Main thread exiting.");
}
}
Ravi Kant Sahu, Asst. Professor @ Lovely Professional University, Punjab (India)
