Cloud native applications are popular these days – applications that run in the cloud reliably und scale almost arbitrarily. They follow three key principles: they are built and composed as micro services. They are packaged and distributed in containers. The containers are executed dynamically in the cloud. Kubernetes is an open-source cluster manager for the automated deployment, scaling and management of cloud native applications. In this hands-on session we will introduce the core concepts of Kubernetes and then show how to build, package and operate a cloud native showcase application on top of Kubernetes step-by-step. Throughout this session we will be using an off-the-shelf MIDI controller to demonstrate and visualize the concepts and to remote control Kubernetes. This session has been presented at the ContainerCon Europe 2016 in Berlin. #qaware #cloudnativenerd #LinuxCon #ContainerCon

1. Kubernetes 101
and Fun
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 1

2. About me
Mario-Leander Reimer
Chief Technologist, QAware GmbH
mario-leander.reimer@qaware.de
twitter://@LeanderReimer
http://github.com/lreimer
http://speakerdeck.com/lreimer
http://www.qaware.de
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 2

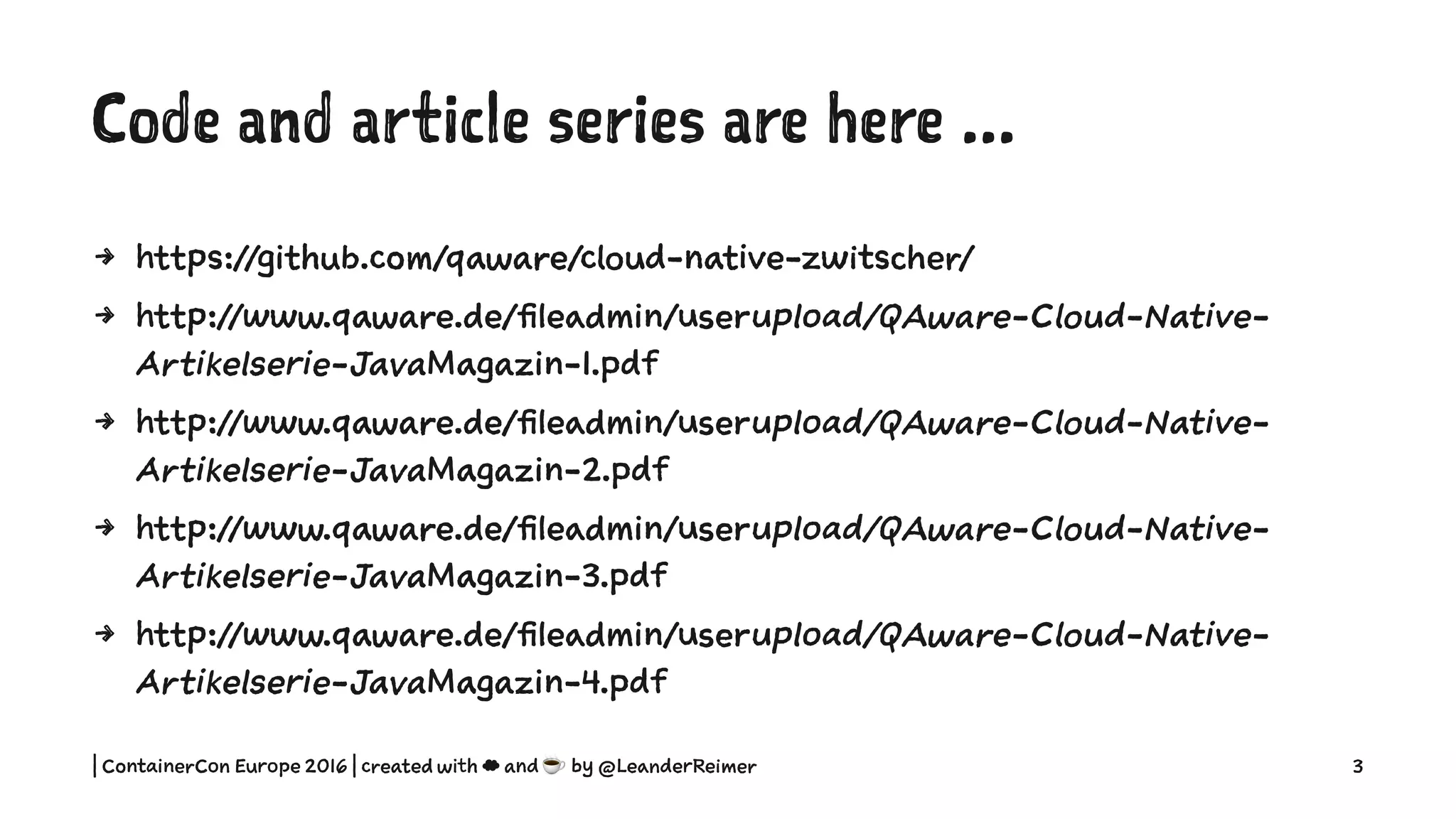

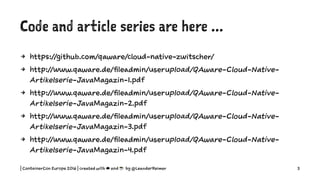

3. Code and article series are here ...
4 https://github.com/qaware/cloud-native-zwitscher/
4 http://www.qaware.de/fileadmin/userupload/QAware-Cloud-Native-
Artikelserie-JavaMagazin-1.pdf
4 http://www.qaware.de/fileadmin/userupload/QAware-Cloud-Native-
Artikelserie-JavaMagazin-2.pdf
4 http://www.qaware.de/fileadmin/userupload/QAware-Cloud-Native-
Artikelserie-JavaMagazin-3.pdf
4 http://www.qaware.de/fileadmin/userupload/QAware-Cloud-Native-
Artikelserie-JavaMagazin-4.pdf
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 3

4. | ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 4

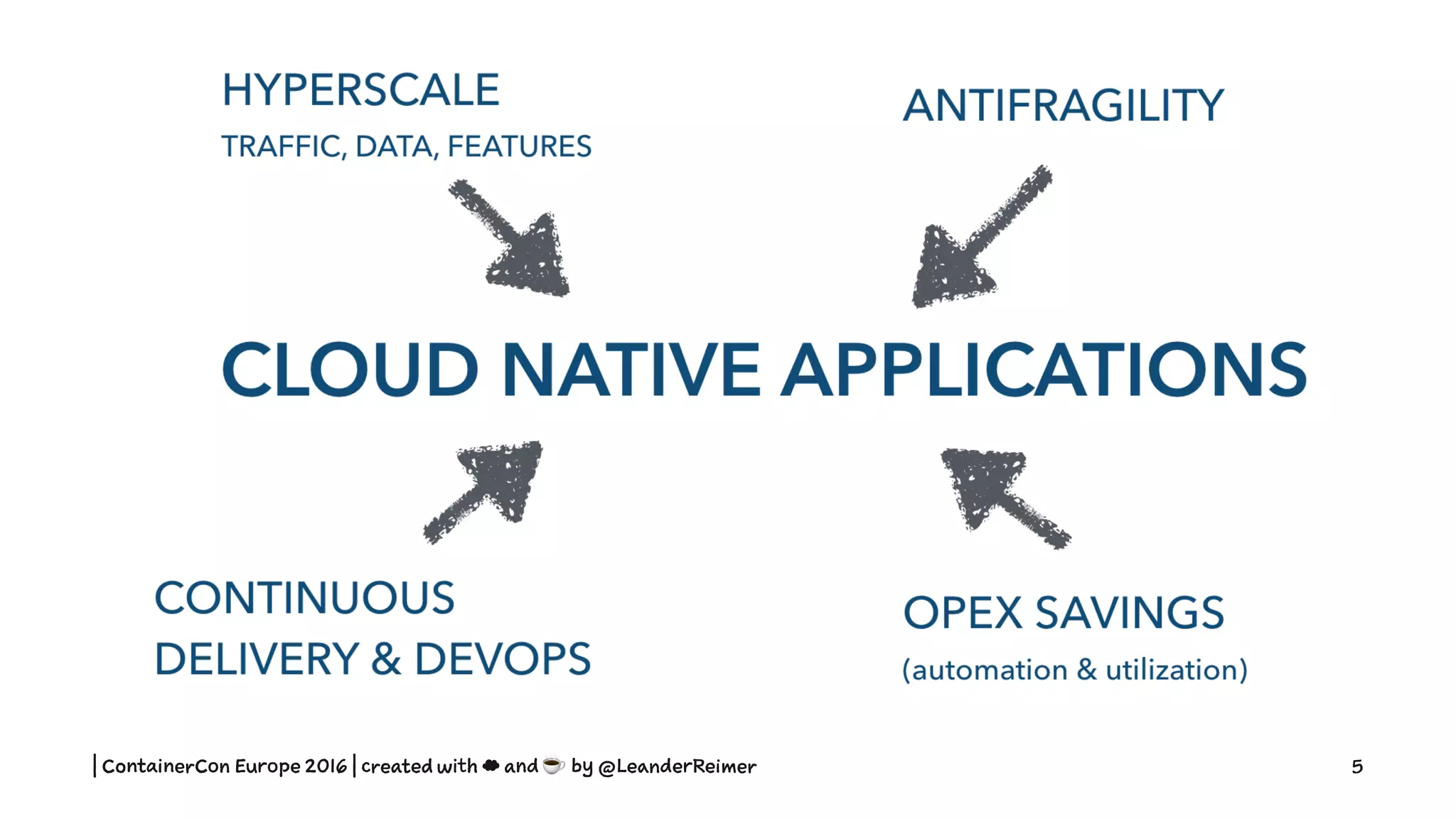

5. | ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 5

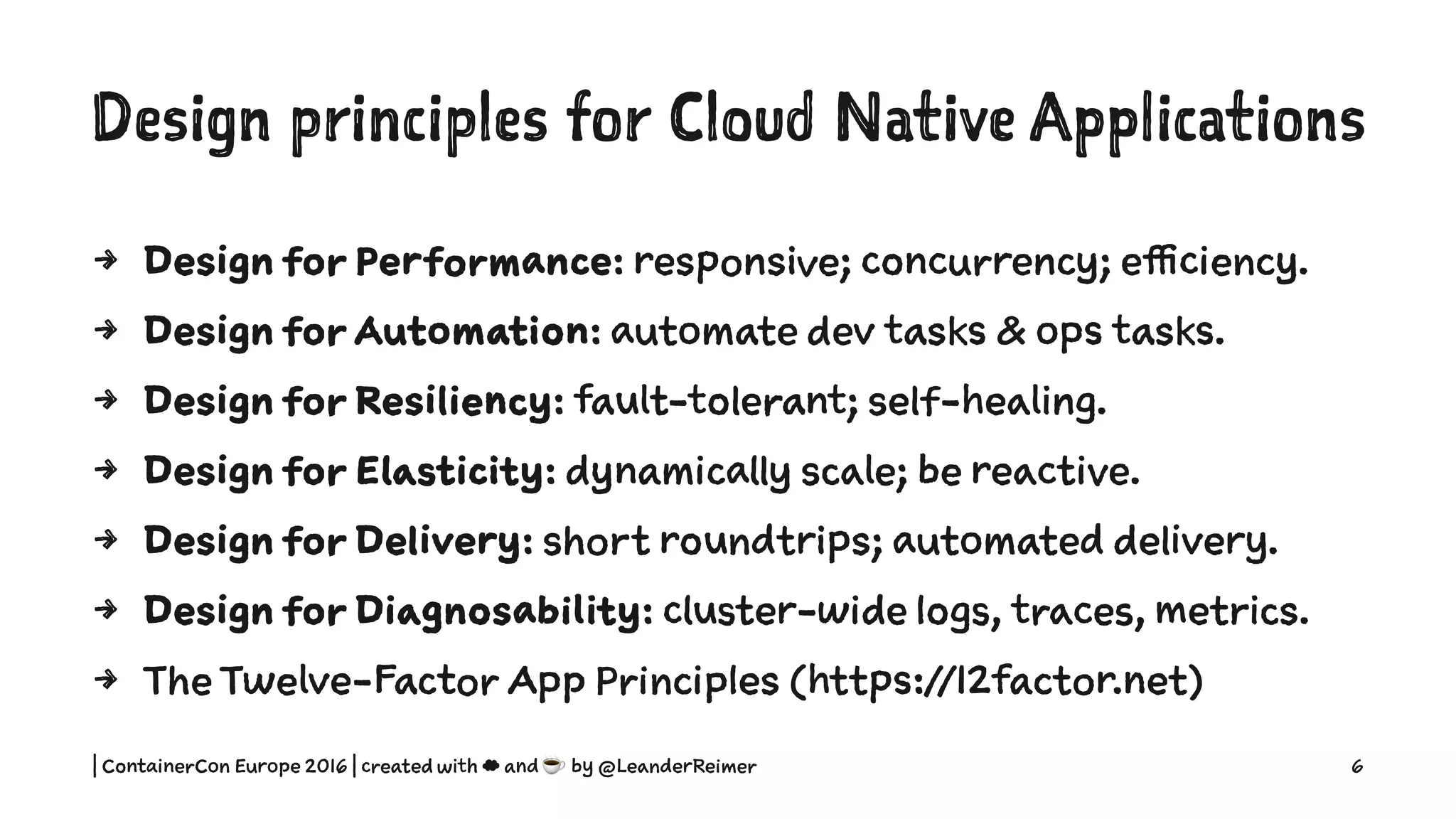

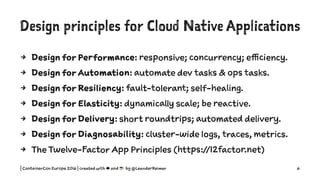

6. Design principles for Cloud Native Applications
4 Design for Performance: responsive; concurrency; efficiency.
4 Design for Automation: automate dev tasks & ops tasks.
4 Design for Resiliency: fault-tolerant; self-healing.
4 Design for Elasticity: dynamically scale; be reactive.
4 Design for Delivery: short roundtrips; automated delivery.
4 Design for Diagnosability: cluster-wide logs, traces, metrics.
4 The Twelve-Factor App Principles (https://12factor.net)
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 6

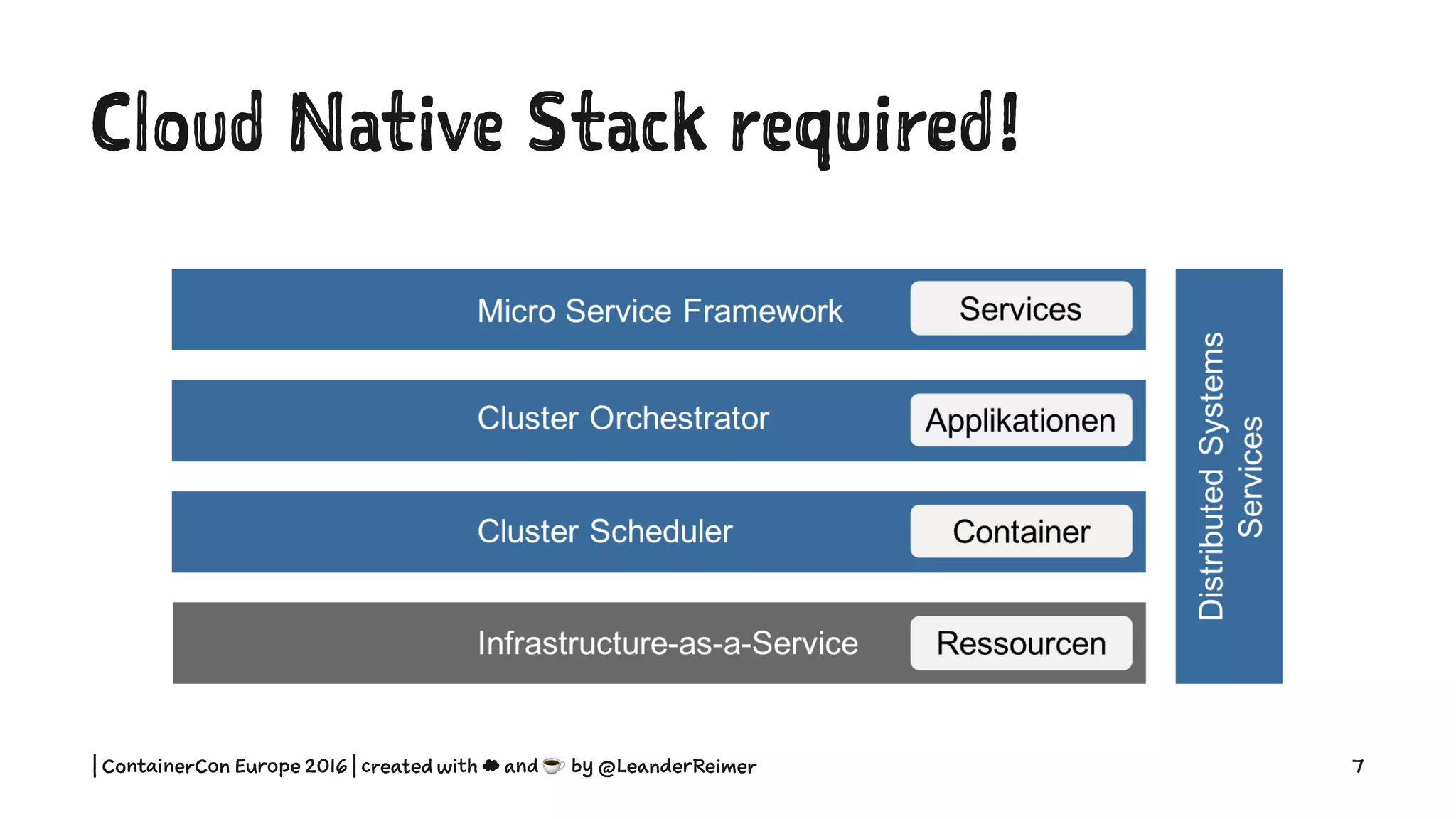

7. Cloud Native Stack required!
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 7

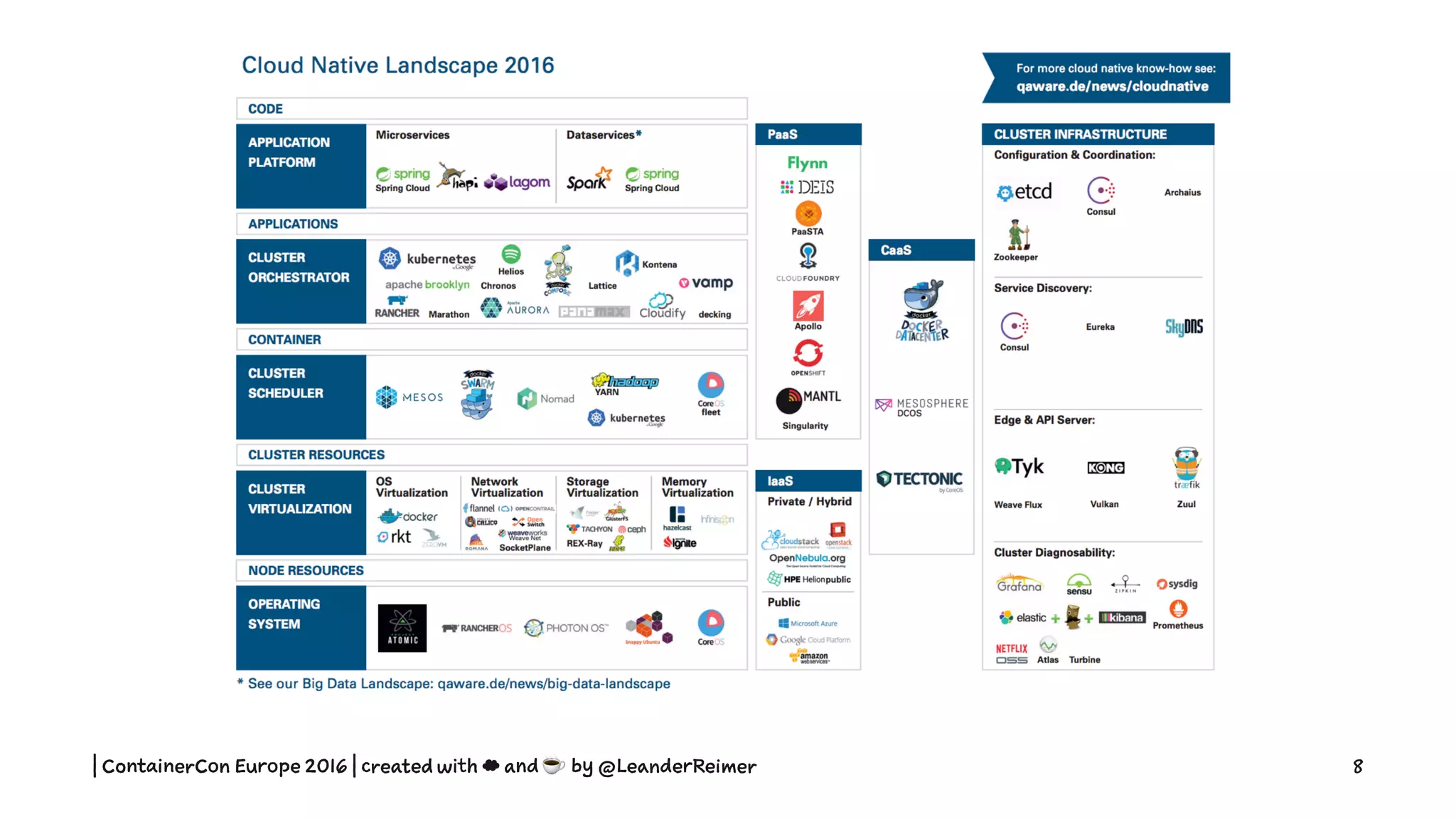

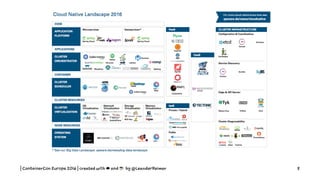

8. | ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 8

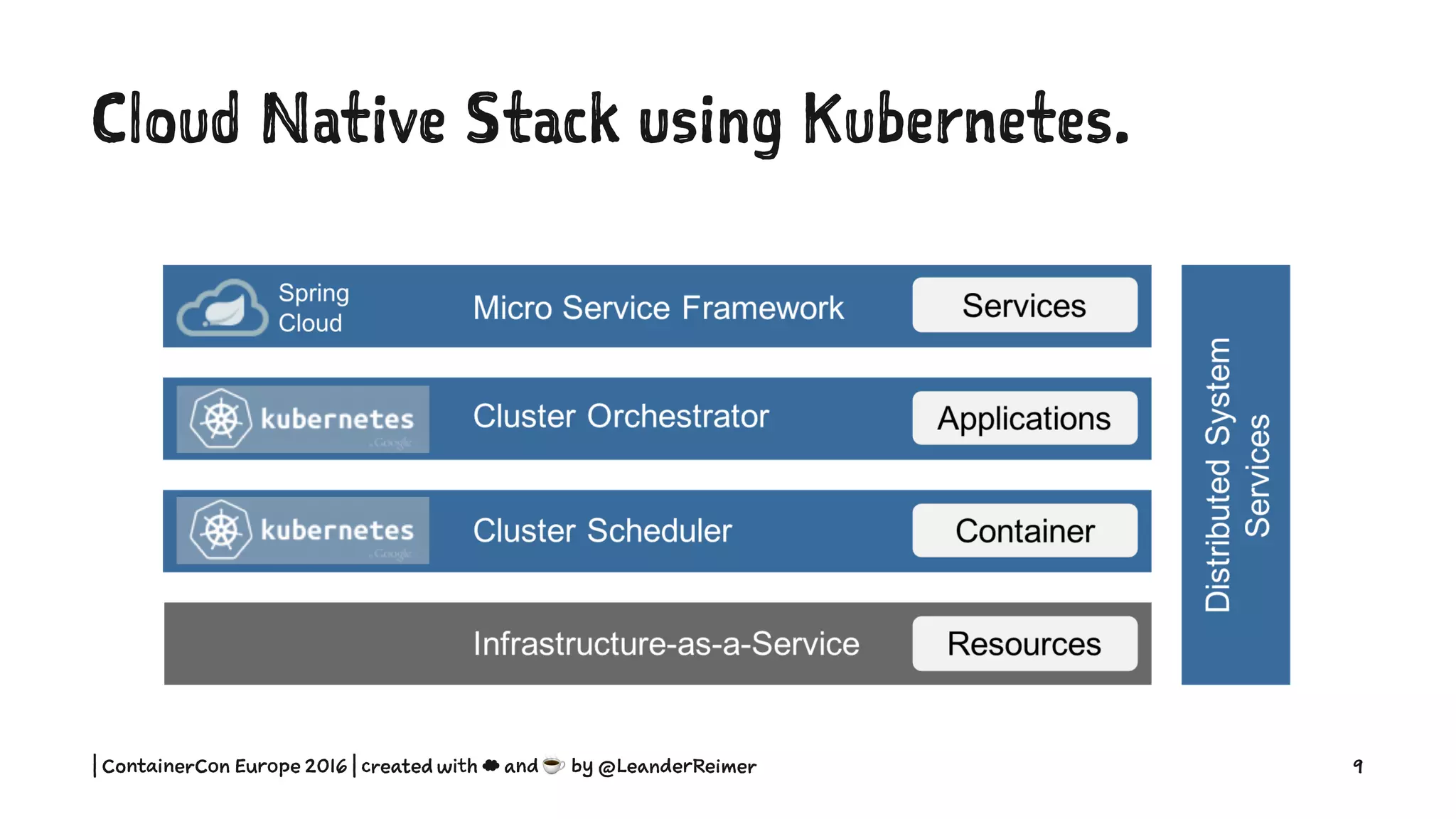

9. Cloud Native Stack using Kubernetes.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 9

10. Kubernetes 101
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 10

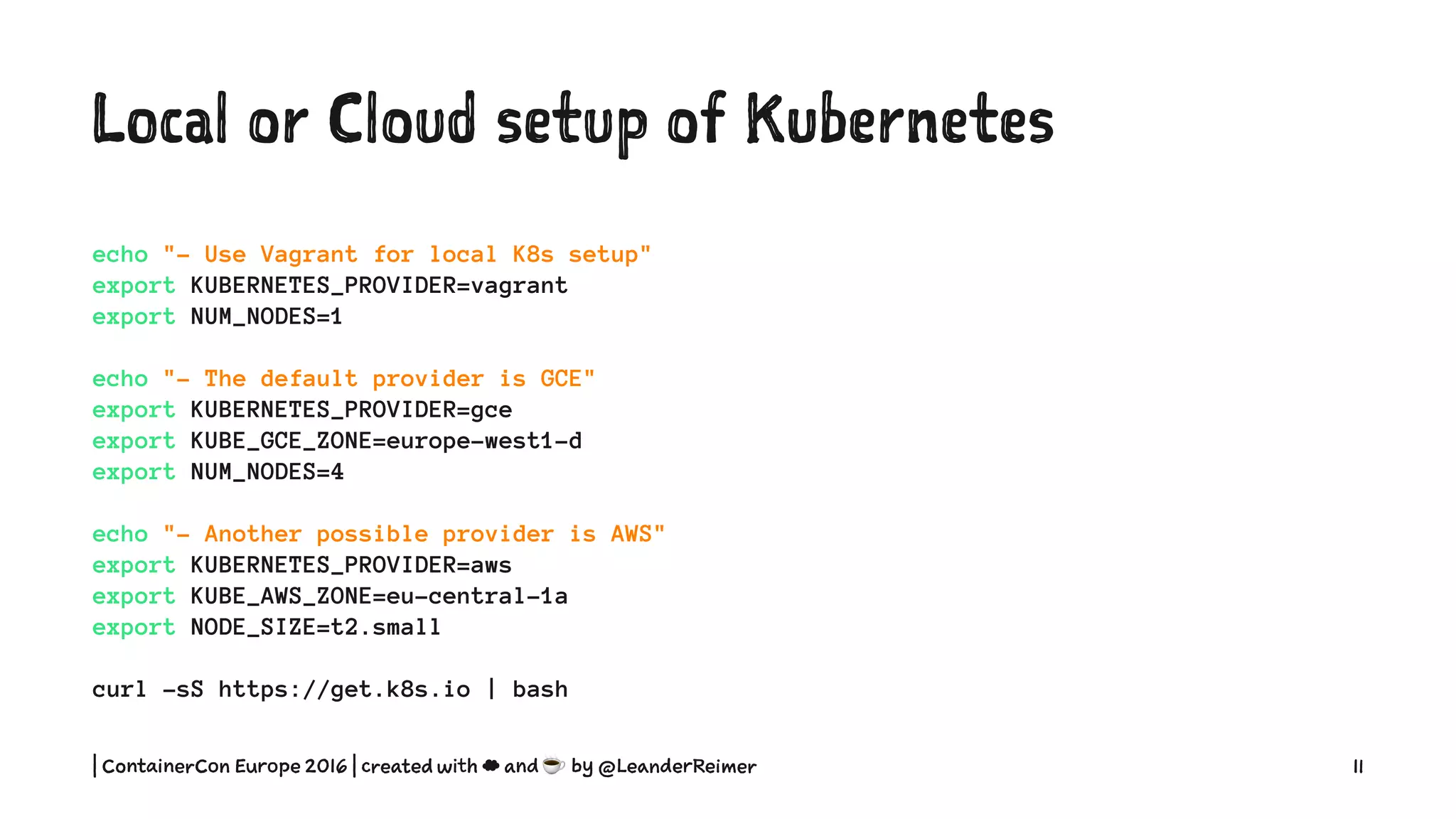

11. Local or Cloud setup of Kubernetes
echo "- Use Vagrant for local K8s setup"
export KUBERNETES_PROVIDER=vagrant
export NUM_NODES=1
echo "- The default provider is GCE"
export KUBERNETES_PROVIDER=gce
export KUBE_GCE_ZONE=europe-west1-d
export NUM_NODES=4
echo "- Another possible provider is AWS"
export KUBERNETES_PROVIDER=aws
export KUBE_AWS_ZONE=eu-central-1a
export NODE_SIZE=t2.small
curl -sS https://get.k8s.io | bash
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 11

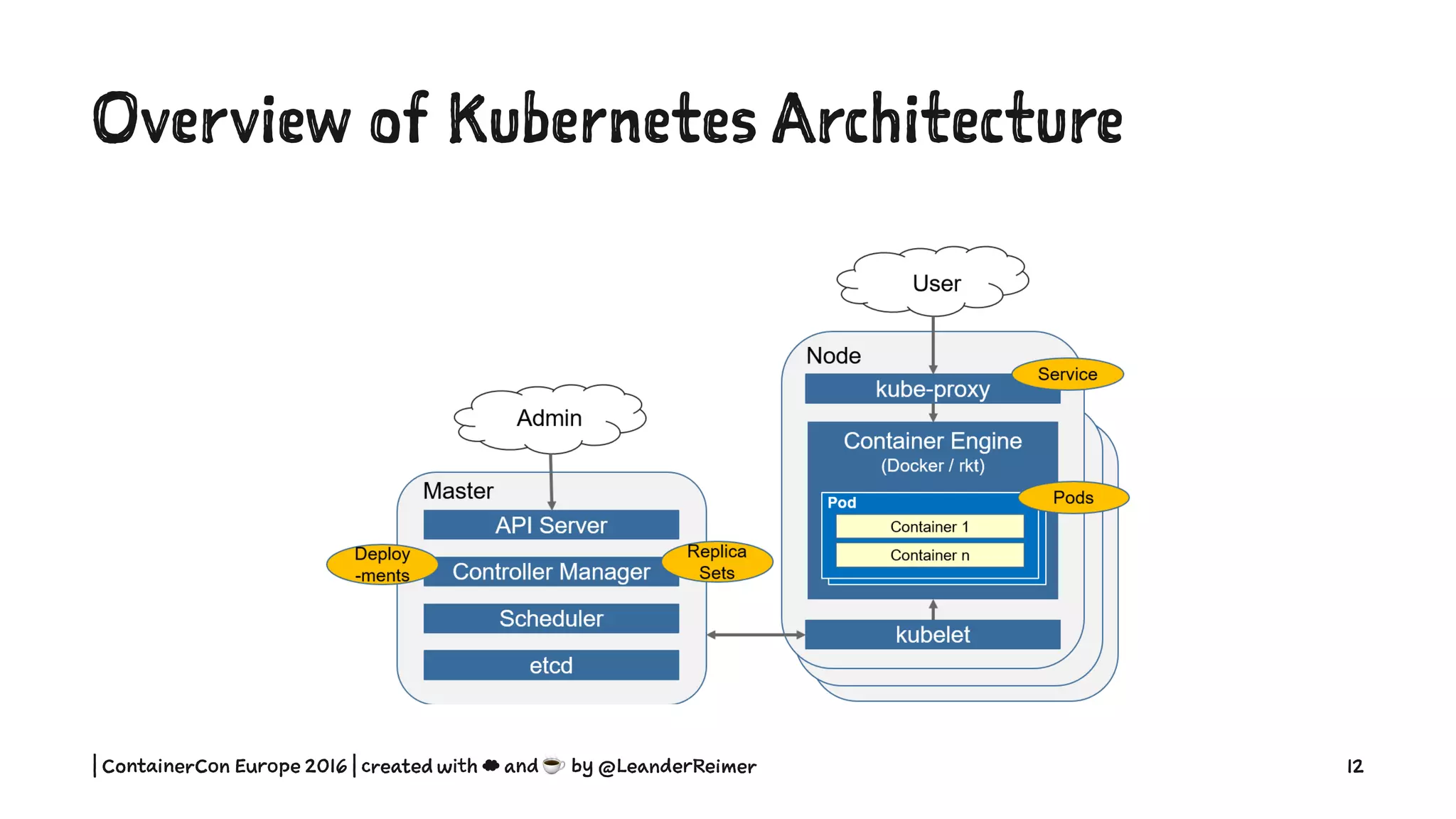

12. Overview of Kubernetes Architecture
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 12

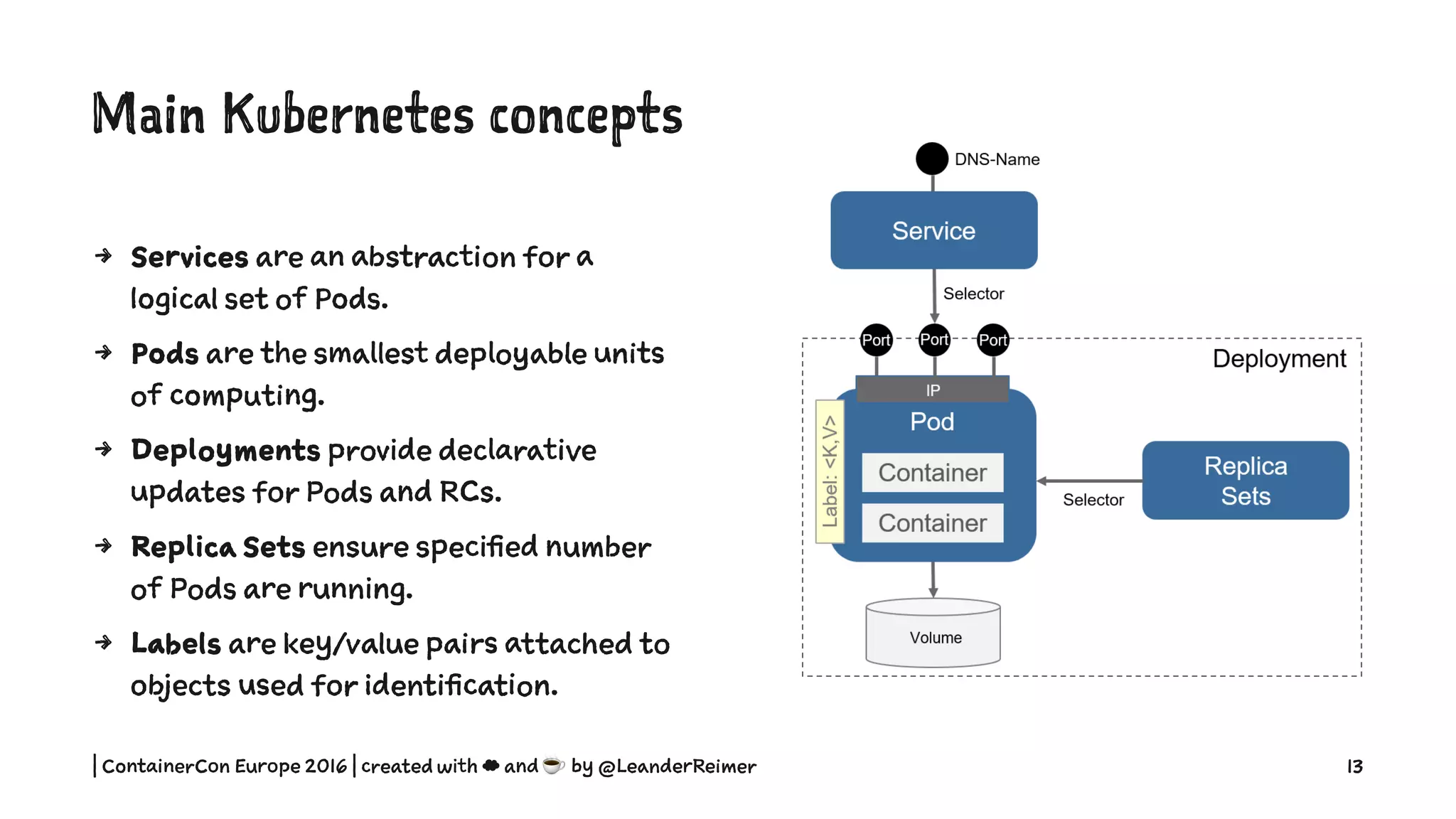

13. Main Kubernetes concepts
4 Services are an abstraction for a
logical set of Pods.
4 Pods are the smallest deployable units
of computing.
4 Deployments provide declarative
updates for Pods and RCs.
4 Replica Sets ensure specified number
of Pods are running.
4 Labels are key/value pairs attached to
objects used for identification.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 13

14. Deployment definition as YAML
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: hello-world
spec:
replicas: 1
template:
metadata:
labels:
tier: web
spec:
containers:
- name: hello-world
image: "nginx"
ports:
- containerPort: 80
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 14

15. Service definition as YAML
apiVersion: v1
kind: Service
metadata:
name: hello-world
labels:
tier: web
spec:
# use NodePort here to be able to access the port on each node
# use LoadBalancer for external load-balanced IP if supported
type: NodePort
ports:
- port: 80
selector:
tier: web
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 15

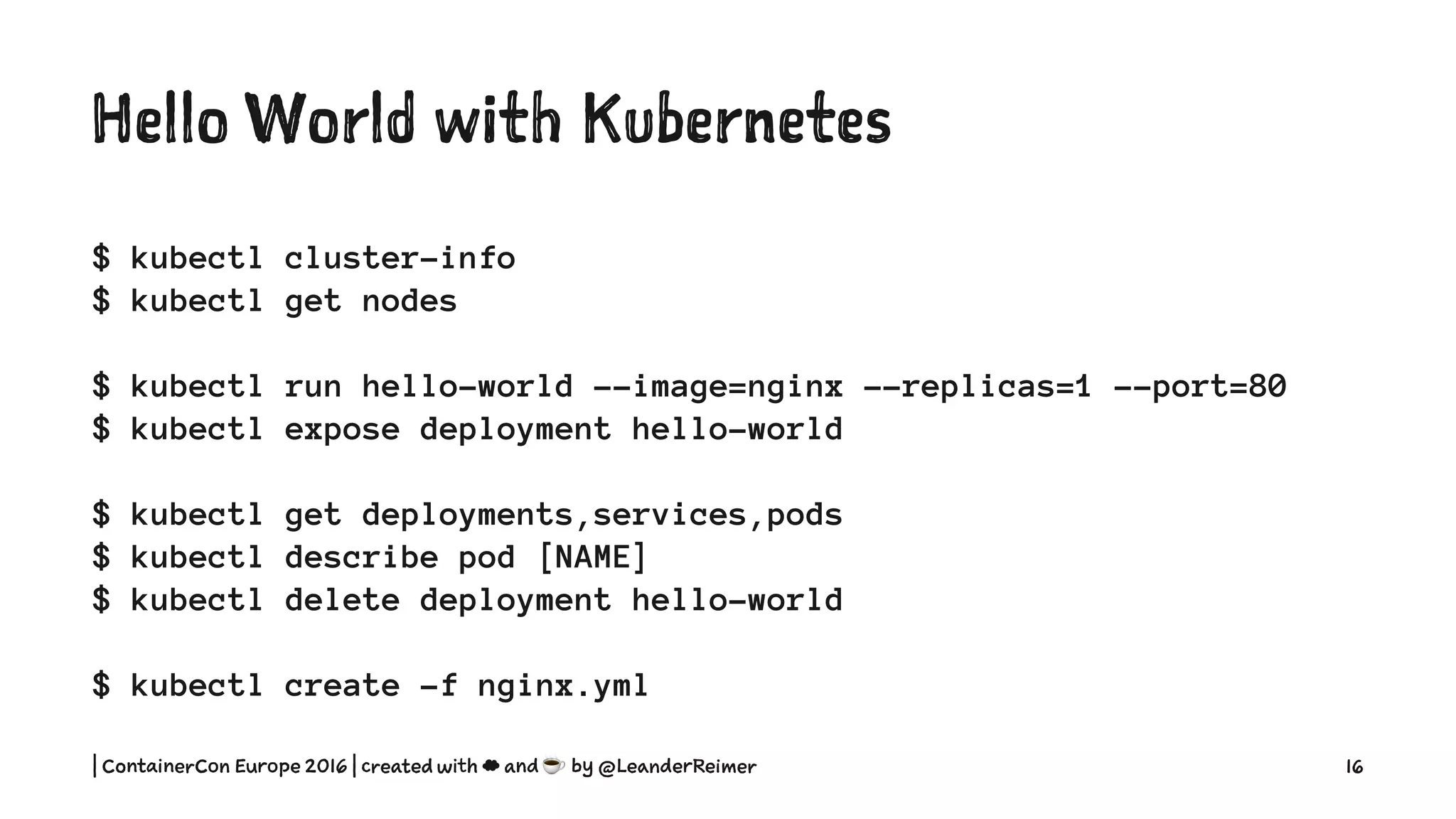

16. Hello World with Kubernetes
$ kubectl cluster-info
$ kubectl get nodes
$ kubectl run hello-world --image=nginx --replicas=1 --port=80
$ kubectl expose deployment hello-world
$ kubectl get deployments,services,pods
$ kubectl describe pod [NAME]
$ kubectl delete deployment hello-world
$ kubectl create -f nginx.yml
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 16

17. Demo time.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 17

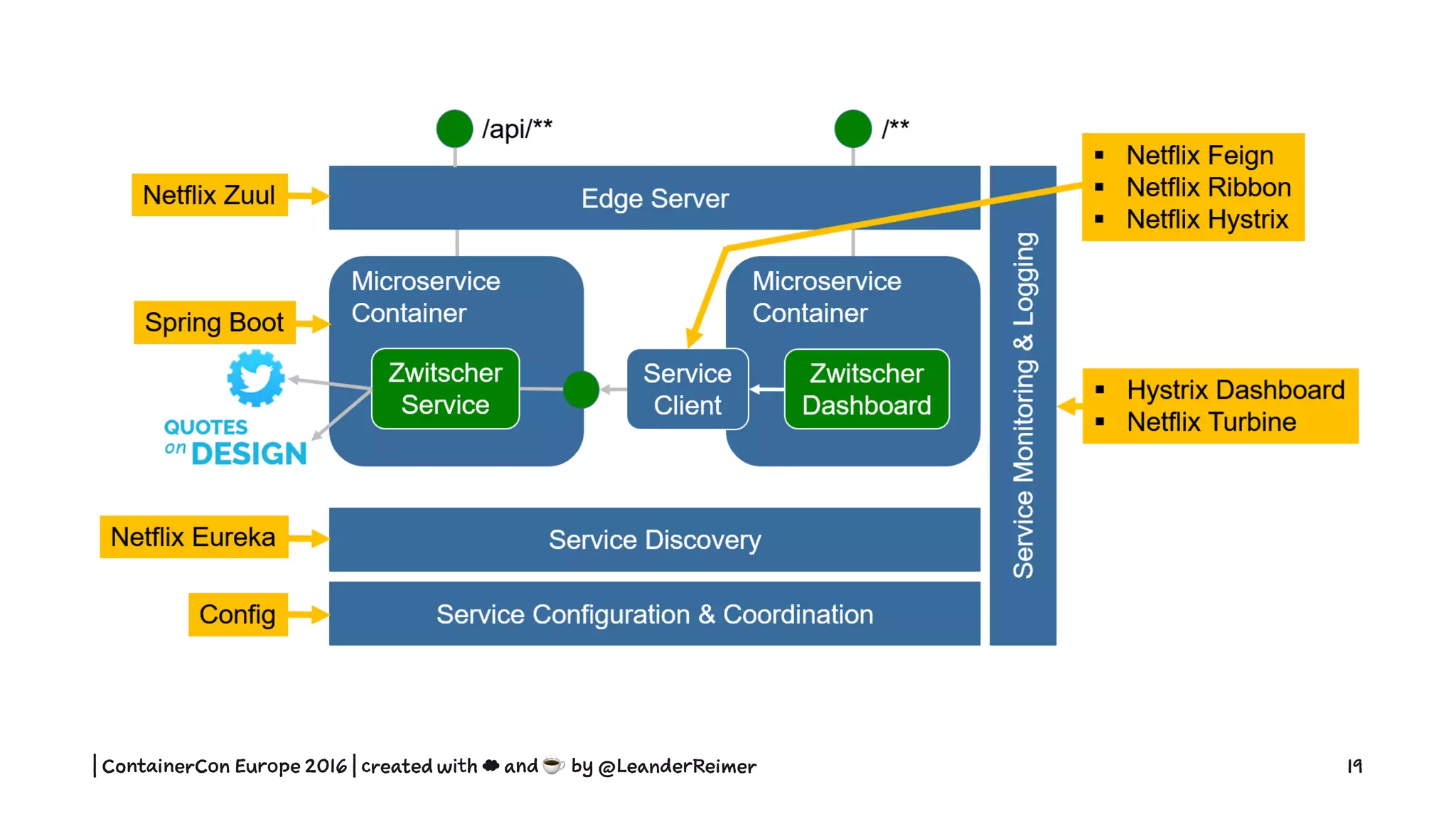

18. The Cloud Native Zwitscher
Showcase
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 18

19. | ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 19

20. The source code.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 20

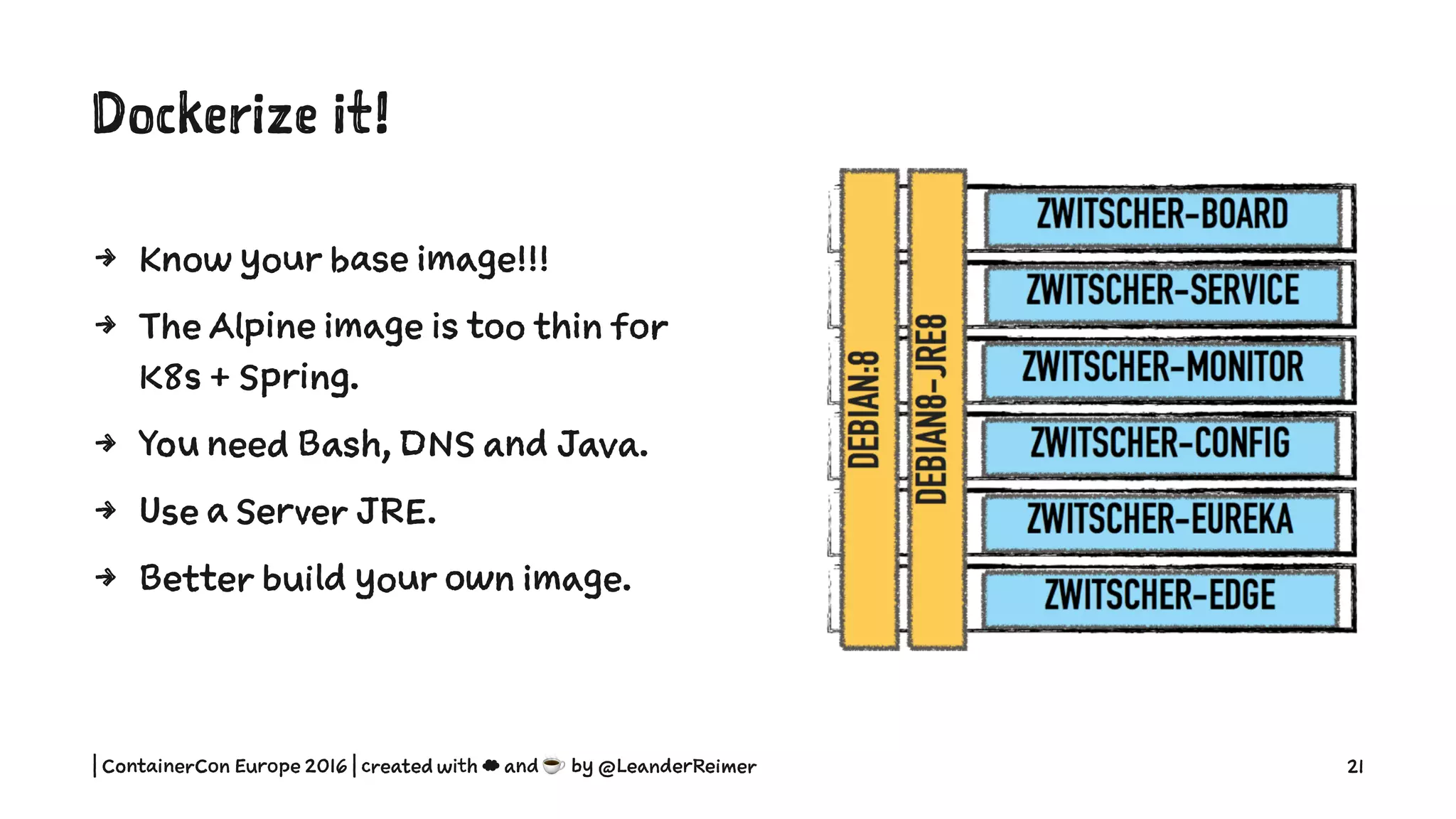

21. Dockerize it!
4 Know your base image!!!
4 The Alpine image is too thin for
K8s + Spring.
4 You need Bash, DNS and Java.
4 Use a Server JRE.
4 Better build your own image.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 21

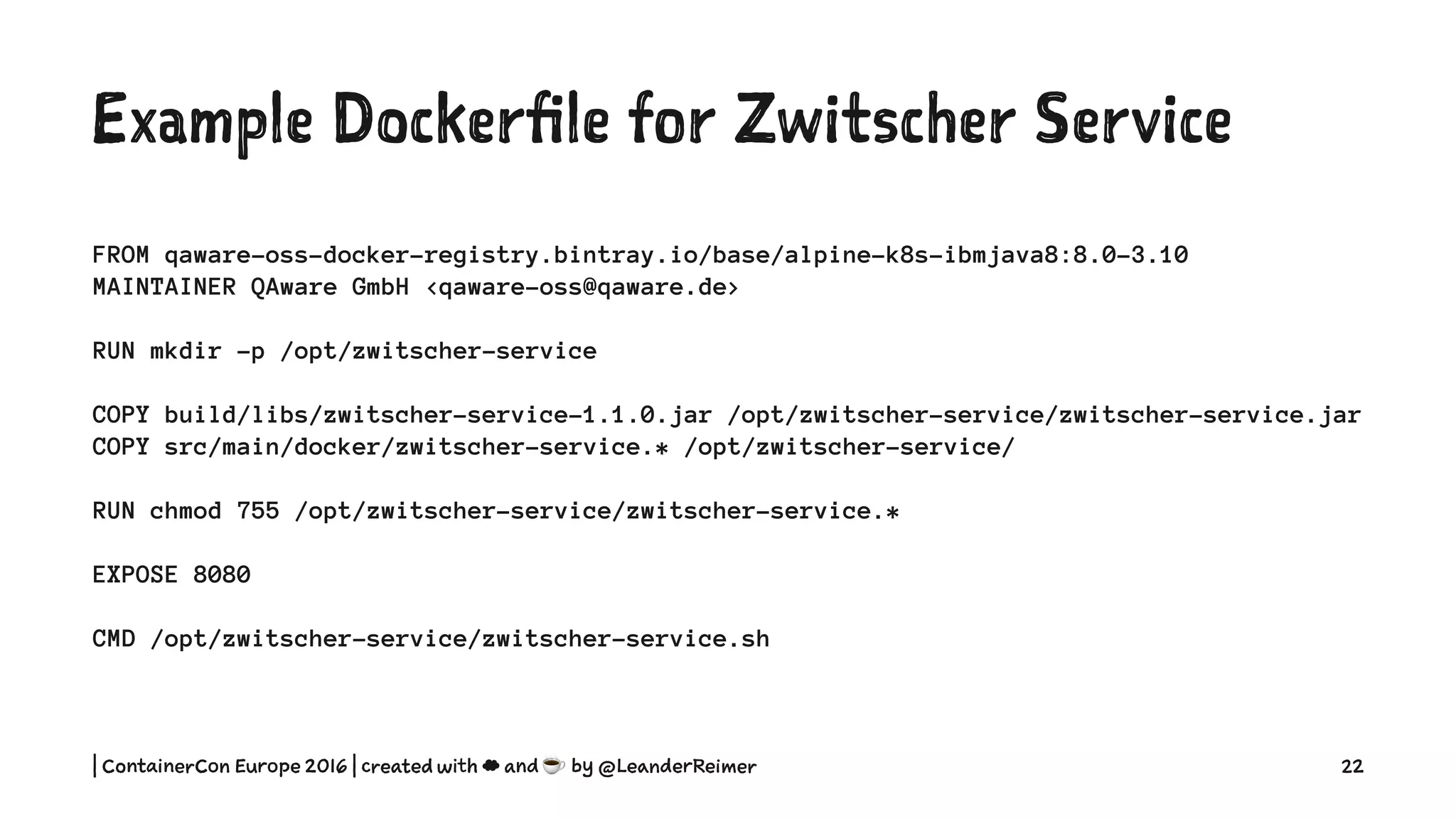

22. Example Dockerfile for Zwitscher Service
FROM qaware-oss-docker-registry.bintray.io/base/alpine-k8s-ibmjava8:8.0-3.10
MAINTAINER QAware GmbH <qaware-oss@qaware.de>
RUN mkdir -p /opt/zwitscher-service
COPY build/libs/zwitscher-service-1.1.0.jar /opt/zwitscher-service/zwitscher-service.jar
COPY src/main/docker/zwitscher-service.* /opt/zwitscher-service/
RUN chmod 755 /opt/zwitscher-service/zwitscher-service.*
EXPOSE 8080
CMD /opt/zwitscher-service/zwitscher-service.sh
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 22

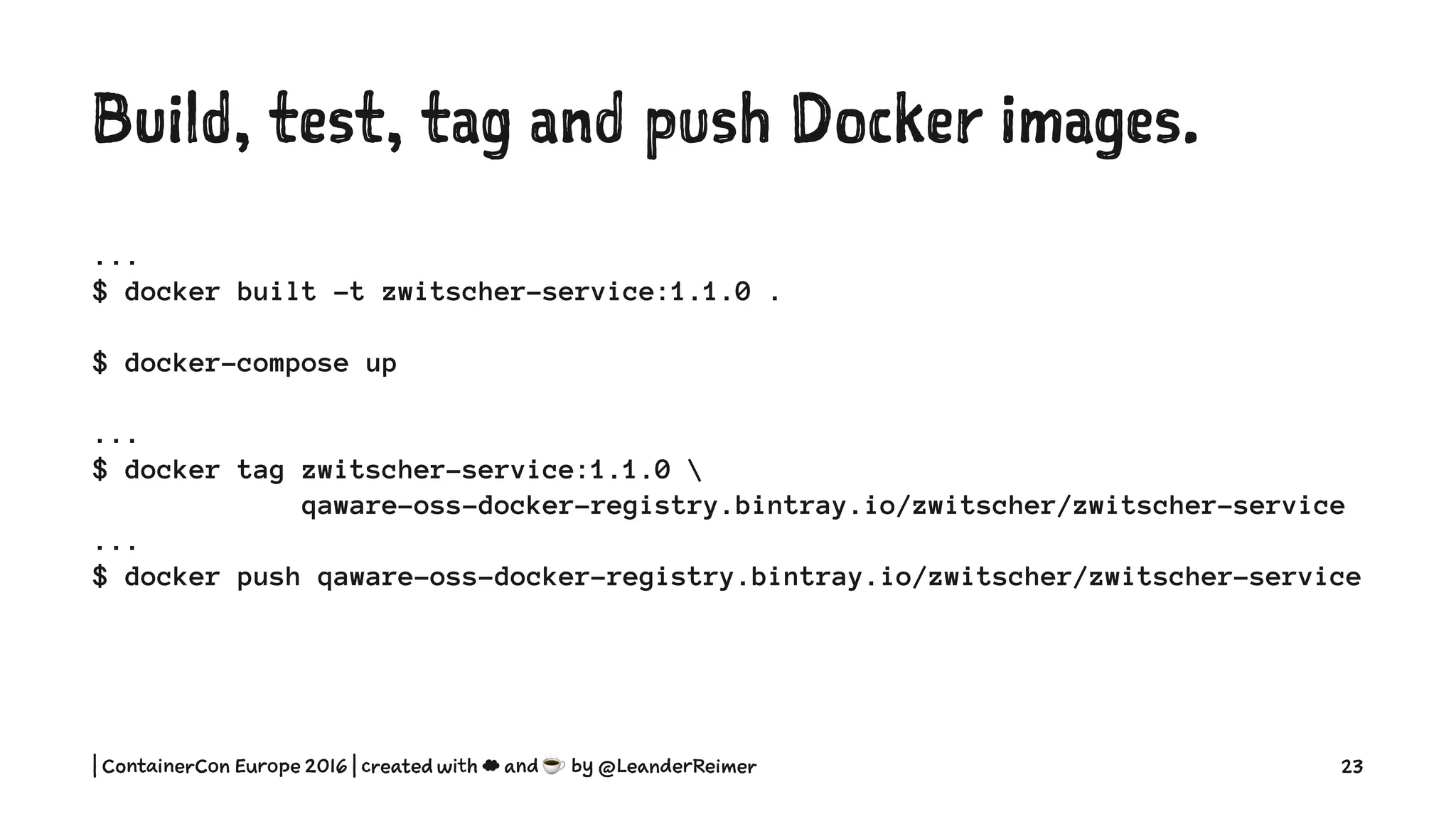

23. Build, test, tag and push Docker images.
...
$ docker built -t zwitscher-service:1.1.0 .
$ docker-compose up
...
$ docker tag zwitscher-service:1.1.0
qaware-oss-docker-registry.bintray.io/zwitscher/zwitscher-service
...
$ docker push qaware-oss-docker-registry.bintray.io/zwitscher/zwitscher-service
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 23

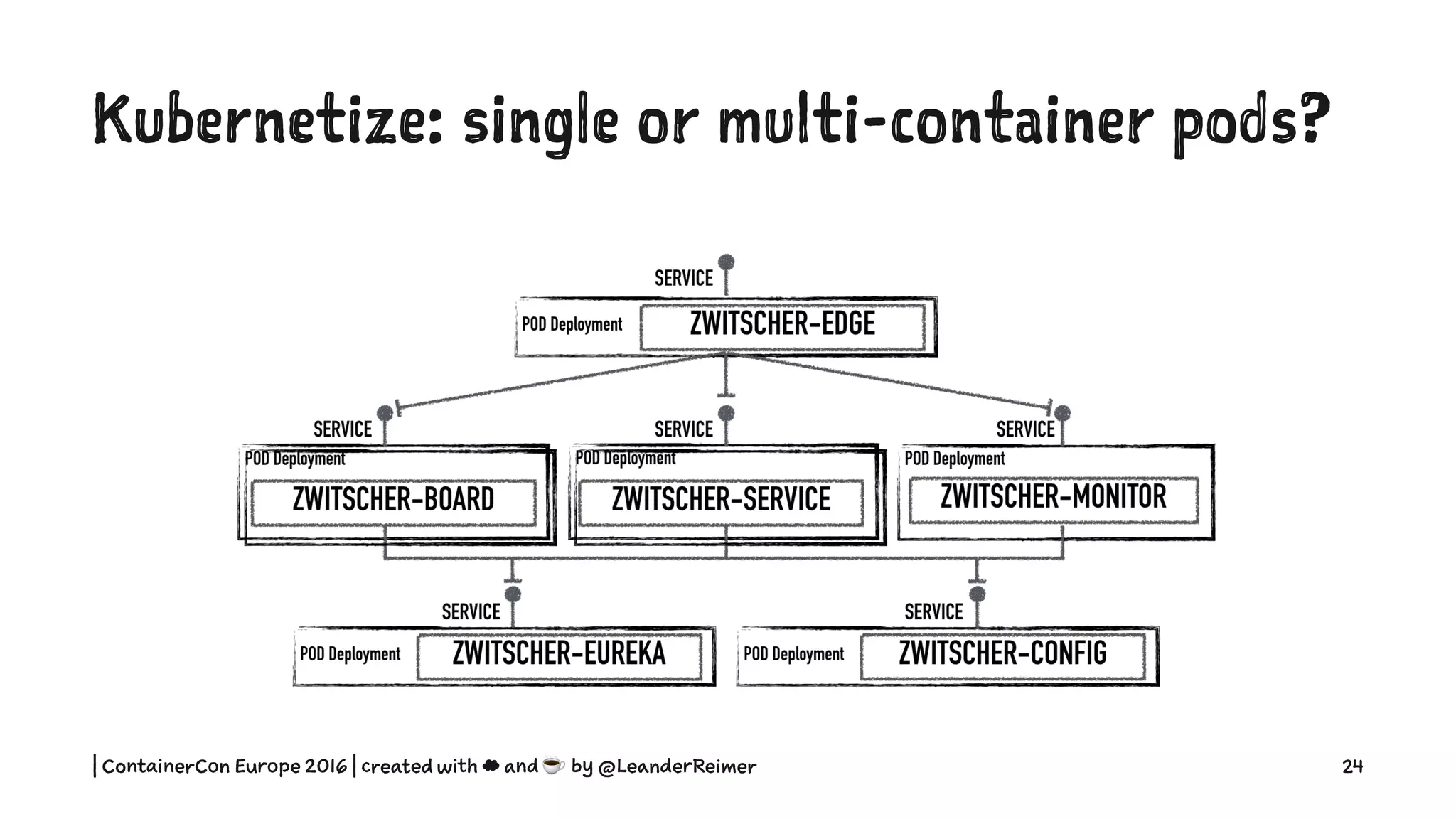

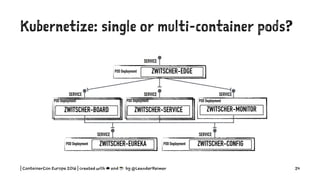

24. Kubernetize: single or multi-container pods?
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 24

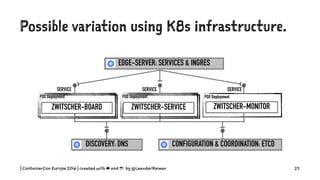

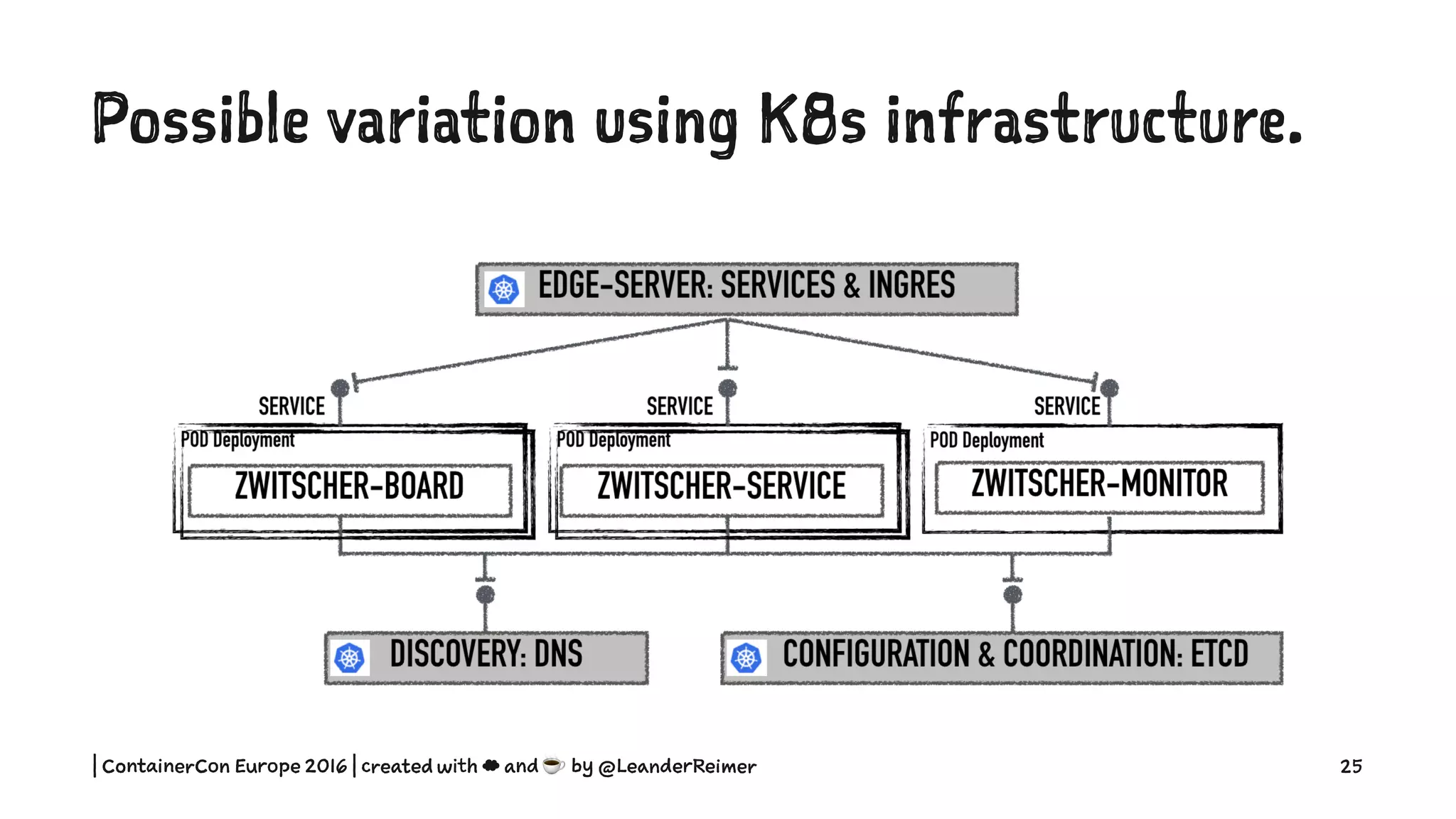

25. Possible variation using K8s infrastructure.
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 25

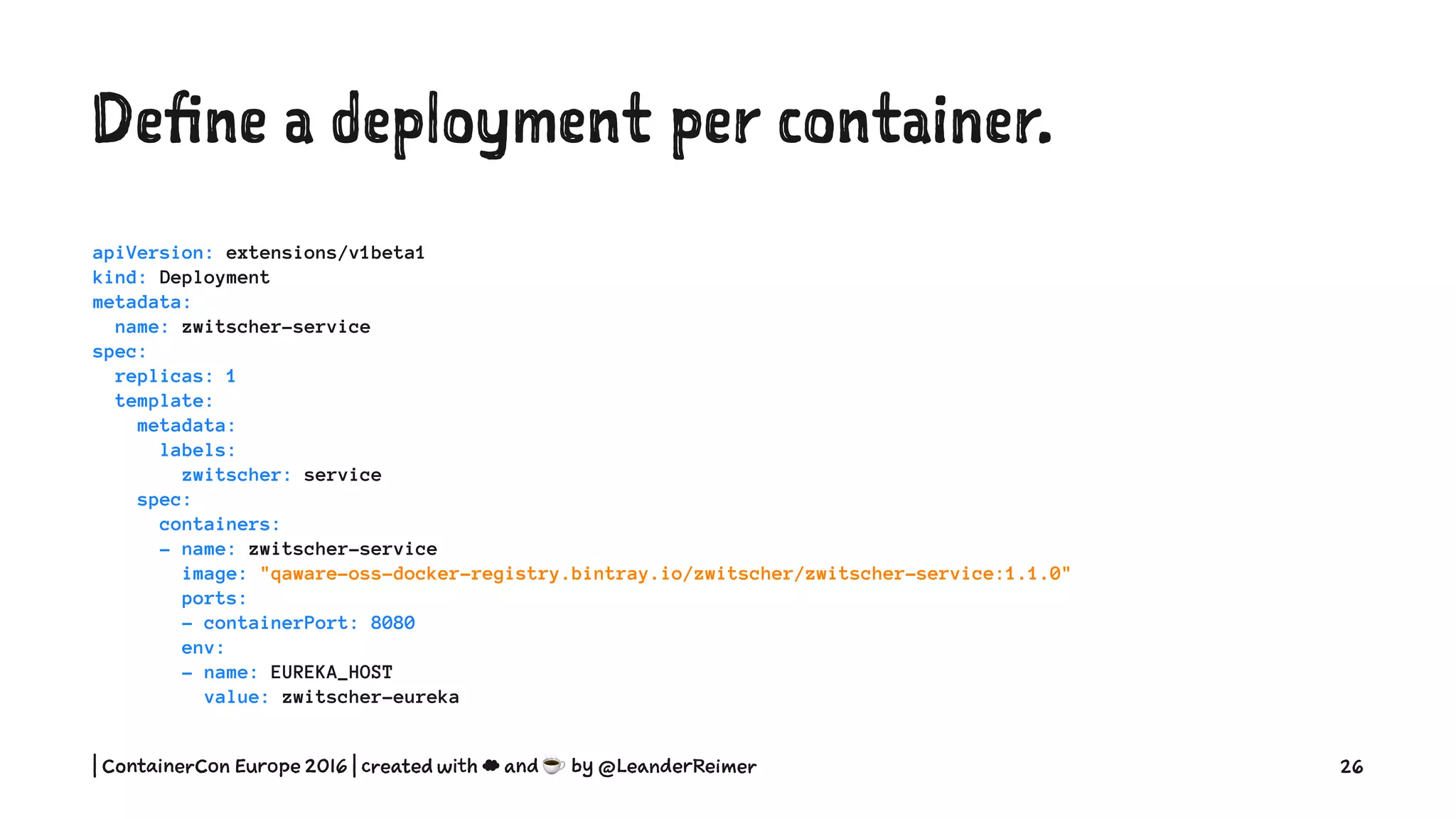

26. Define a deployment per container.
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: zwitscher-service
spec:
replicas: 1
template:
metadata:
labels:
zwitscher: service
spec:
containers:
- name: zwitscher-service
image: "qaware-oss-docker-registry.bintray.io/zwitscher/zwitscher-service:1.1.0"
ports:
- containerPort: 8080
env:
- name: EUREKA_HOST
value: zwitscher-eureka
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 26

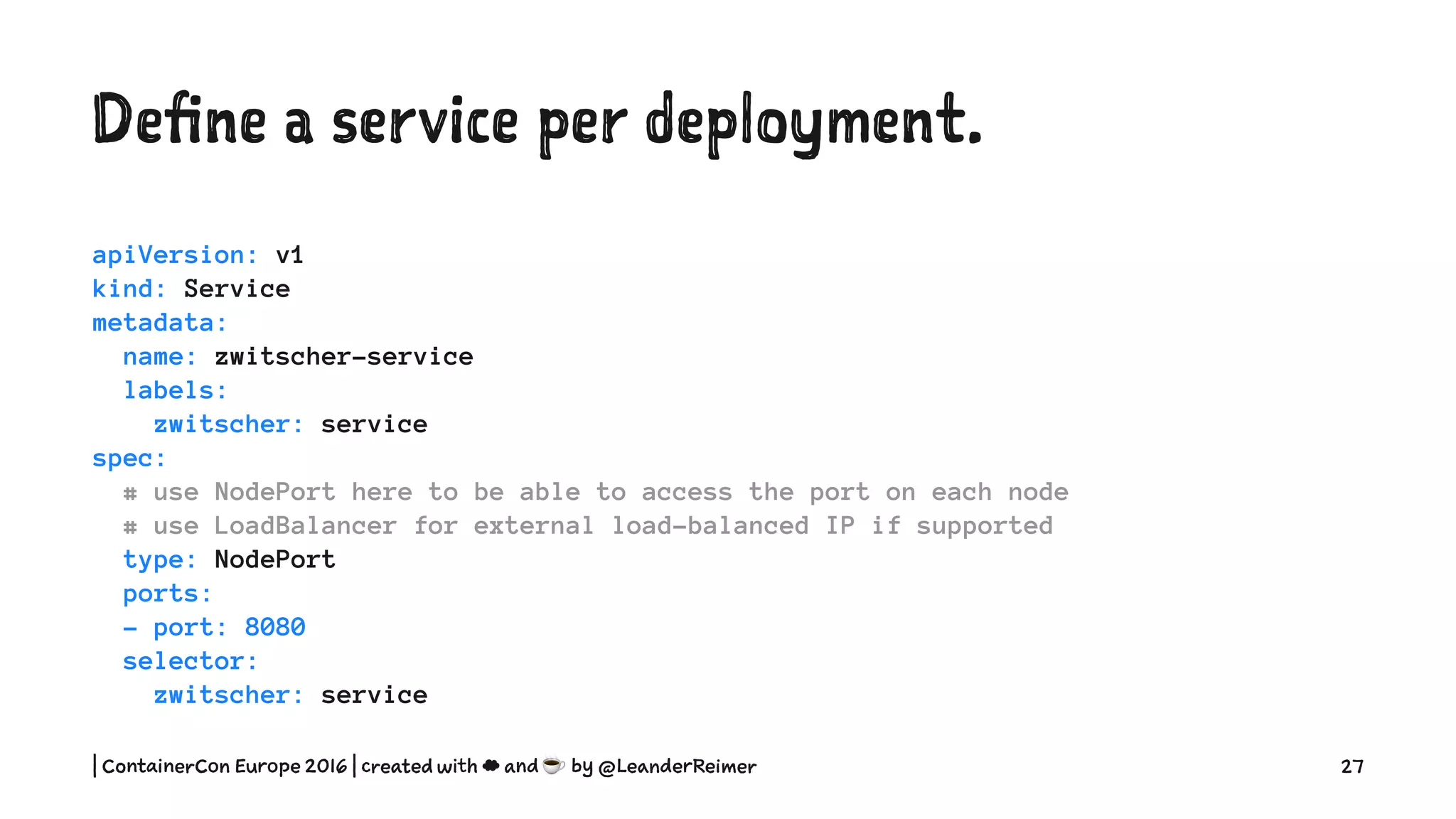

27. Define a service per deployment.
apiVersion: v1
kind: Service
metadata:
name: zwitscher-service
labels:
zwitscher: service
spec:
# use NodePort here to be able to access the port on each node
# use LoadBalancer for external load-balanced IP if supported
type: NodePort
ports:
- port: 8080
selector:
zwitscher: service
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 27

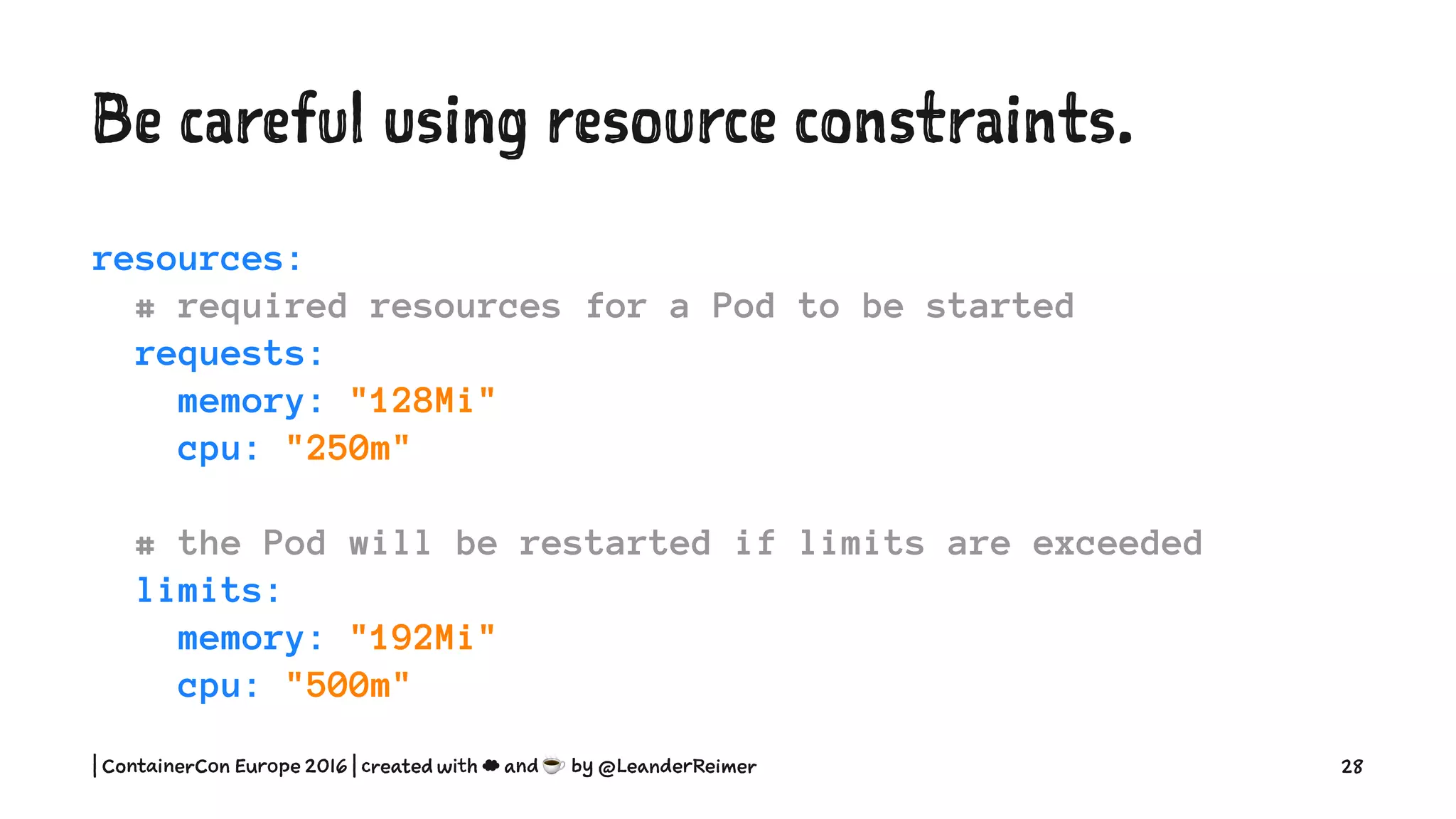

28. Be careful using resource constraints.
resources:
# required resources for a Pod to be started
requests:
memory: "128Mi"
cpu: "250m"
# the Pod will be restarted if limits are exceeded
limits:
memory: "192Mi"
cpu: "500m"
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 28

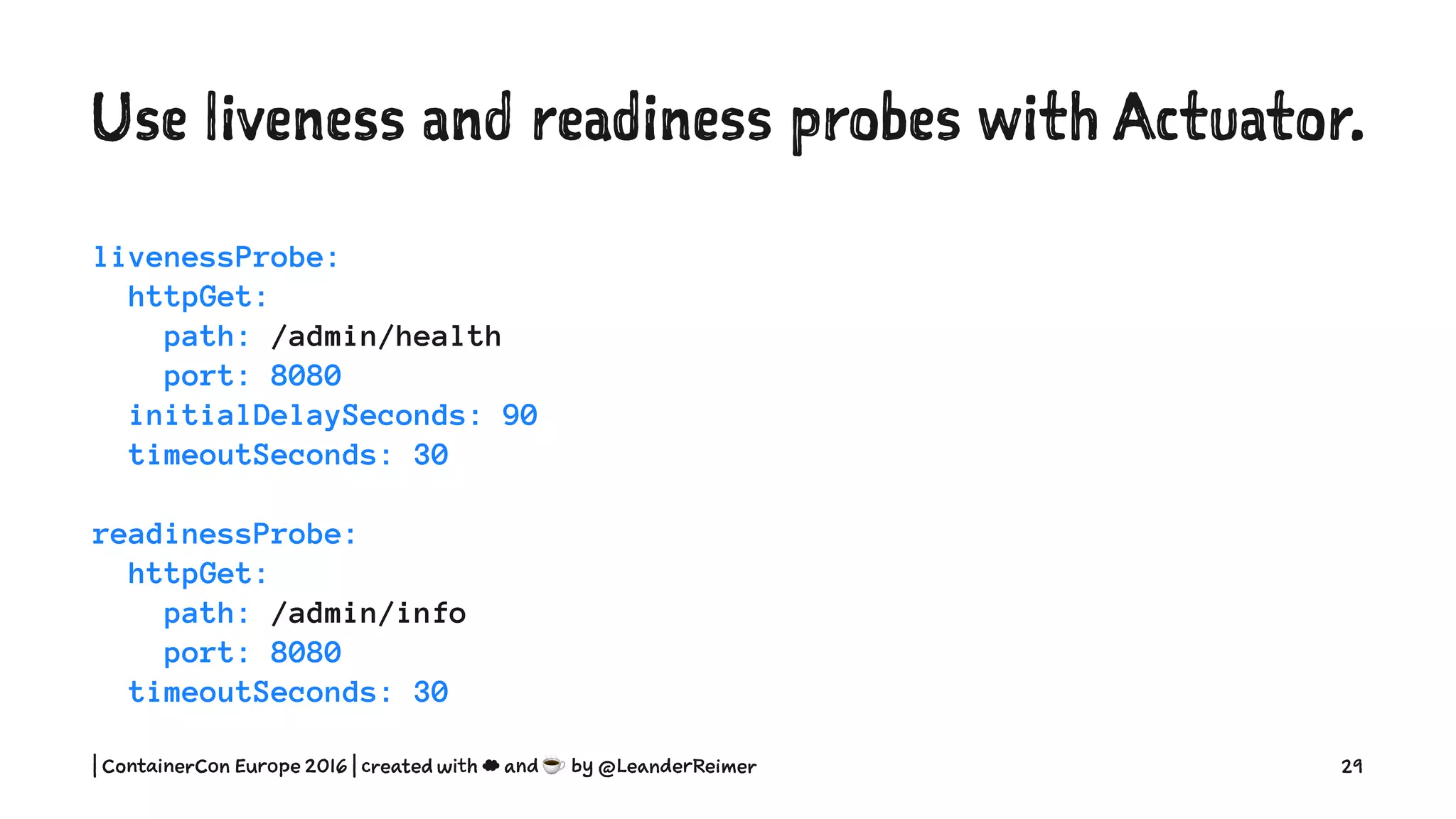

29. Use liveness and readiness probes with Actuator.
livenessProbe:
httpGet:
path: /admin/health
port: 8080
initialDelaySeconds: 90
timeoutSeconds: 30
readinessProbe:
httpGet:
path: /admin/info
port: 8080
timeoutSeconds: 30
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 29

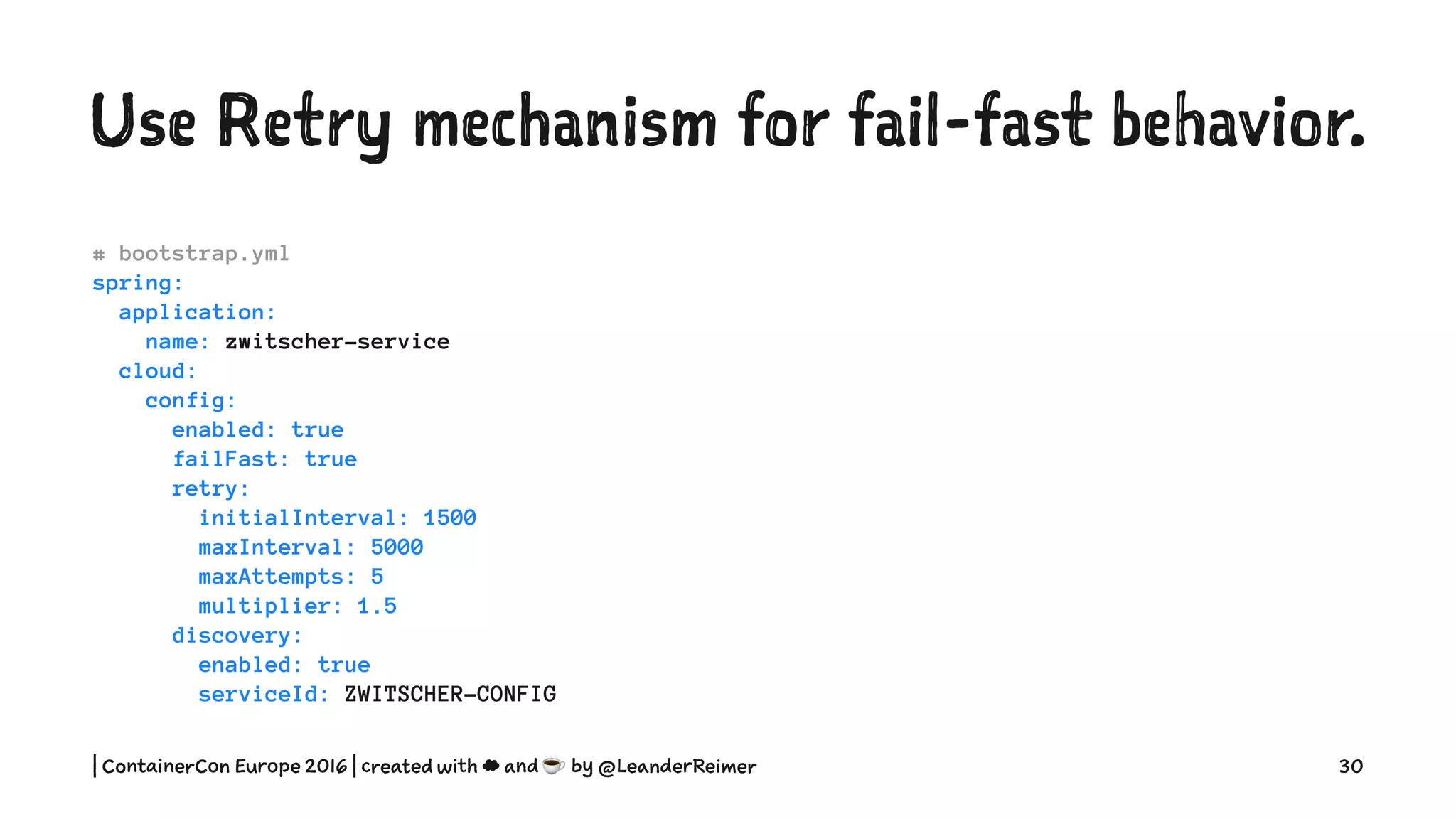

30. Use Retry mechanism for fail-fast behavior.
# bootstrap.yml
spring:
application:
name: zwitscher-service
cloud:
config:
enabled: true
failFast: true
retry:
initialInterval: 1500
maxInterval: 5000
maxAttempts: 5
multiplier: 1.5
discovery:
enabled: true
serviceId: ZWITSCHER-CONFIG
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 30

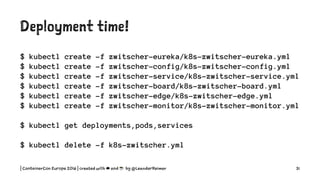

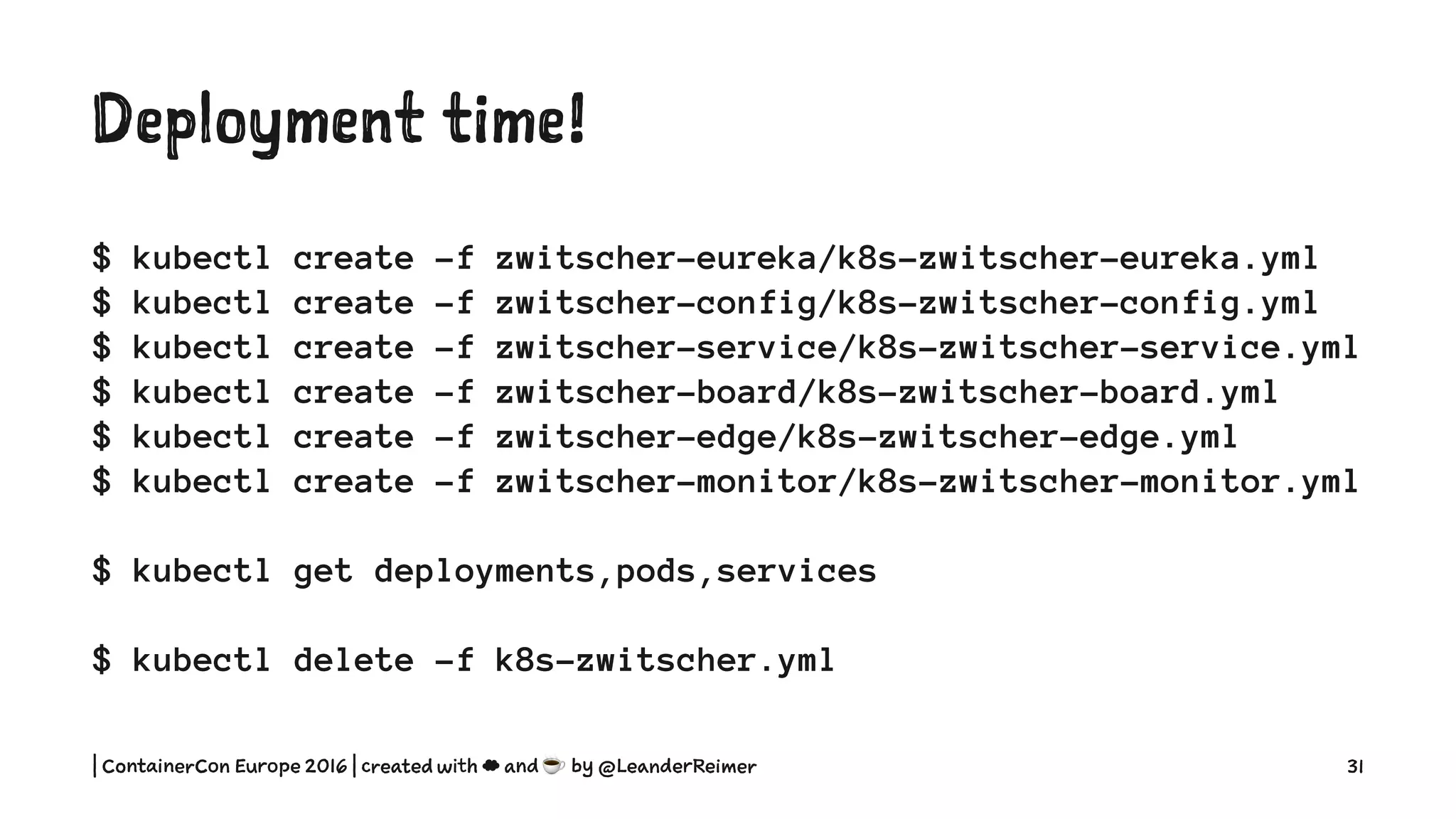

31. Deployment time!
$ kubectl create -f zwitscher-eureka/k8s-zwitscher-eureka.yml
$ kubectl create -f zwitscher-config/k8s-zwitscher-config.yml
$ kubectl create -f zwitscher-service/k8s-zwitscher-service.yml
$ kubectl create -f zwitscher-board/k8s-zwitscher-board.yml
$ kubectl create -f zwitscher-edge/k8s-zwitscher-edge.yml
$ kubectl create -f zwitscher-monitor/k8s-zwitscher-monitor.yml
$ kubectl get deployments,pods,services
$ kubectl delete -f k8s-zwitscher.yml
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 31

32. Let's have some fun!
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 32

33. The Kubepad in action
4 A MIDI controller
4 Display deployments and pods
4 Scale deployments
4 Written in fancy Kotlin
4 Also works for DC/OS
4 https://github.com/qaware/
kubepad
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 33

34. | ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 34

35. Q & A
| ContainerCon Europe 2016 | created with ☁ and ☕ by @LeanderReimer 35
