The document discusses container orchestration tools on AWS including Amazon ECS and Amazon EKS. It provides an overview of ECS, describing it as a fully managed container orchestration platform. It also summarizes EKS, noting that it is fully managed Kubernetes that allows users to run Kubernetes on AWS. The document compares ECS and EKS, noting differences in cost, ease of use, support, and compatibility between the two services.

1. © 2021 DXC Technology Company. All rights reserved.
AWS ECS vs EKS

2. March 12, 2021 2
© 2020 DXC Technology Company. All rights reserved.
Agenda
Tópico
Microservices Architecture
Orchestrating your containers
Container Orchestration Tools
AWS ECS vs EKS
ECS
Kubernetes Architecture – k8s
EKS

3. March 12, 2021 3
© 2021 DXC Technology Company. All rights reserved.
Microservices
Architecture

4. March 12, 2021 4
© 2020 DXC Technology Company. All rights reserved.
Microservices Architeture

5. March 12, 2021 5
© 2021 DXC Technology Company. All rights reserved.
Orchestrating your
containers

6. March 12, 2021 6
© 2020 DXC Technology Company. All rights reserved.
Orchestrating your containers

7. March 12, 2021 7
© 2021 DXC Technology Company. All rights reserved.
Container
Orchestration Tools

8. March 12, 2021 8
© 2020 DXC Technology Company. All rights reserved.
Container Orchestration Tools
Managing, scaling and deploying containers

9. March 12, 2021 9
© 2021 DXC Technology Company. All rights reserved.
AWS ECS vs EKS

10. March 12, 2021 10
© 2020 DXC Technology Company. All rights reserved.
EKS vs ECS
Image registry
Amazon Elastic
Container Registry
(Amazon ECR)
Orchestration
Amazon Elastic
Container Service
(Amazon ECS)
Amazon Elastic
Kubernetes
Service (Amazon
EKS)
Compute
Amazon Elastic
Compute Cloud
(Amazon EC2)
AWS Fargate

11. March 12, 2021 11
© 2021 DXC Technology Company. All rights reserved.
ECS

12. March 12, 2021 12
© 2020 DXC Technology Company. All rights reserved.
ECS
Fully managed container orchestration platform
Amazon ECR Amazon ECS scales
your application and
manages your
containers for
availability
Build images and
store using ECR or
any other repository
Amazon ECS
Define your
application
Manage
containers
Select container
images and
resources needed for
application
Amazon EC2
AWS Fargate

13. March 12, 2021 13
© 2020 DXC Technology Company. All rights reserved.
ECS
ECS cluster
EC2 instance EC2 instance EC2 instance
Amazon CloudWatch
IAM
Amazon EC2
Auto Scaling
Containers Containers Containers
AWS Cloud
Amazon ECS

14. March 12, 2021 14
© 2020 DXC Technology Company. All rights reserved.
ECS
internet Elastic Load
Balancing
Amazon EC2 instance
Task Task Amazon ECS
container
agent
Container Container
Amazon EC2 instance
Task Task Amazon ECS
container
agent
Container Container
Amazon EC2 instance
Task Task
Containers Container
Amazon ECS
container
agent
Amazon ECS
• Agent
communication
service
• API
• Cluster management
engine
• Key and value store
Elastic Load
Balancing

15. March 12, 2021 15
© 2020 DXC Technology Company. All rights reserved.
AWS Fargate Advantages

16. March 12, 2021 16
© 2021 DXC Technology Company. All rights reserved.
Arquitetura
Kubernetes – K8s

17. March 12, 2021 17
© 2020 DXC Technology Company. All rights reserved.
Kubernetes – K8s
Helps run
containers at scale
Open sourcecontainer
orchestration platform
Provides primitives
(building blocks)for
building modern
applications

18. March 12, 2021 18
© 2020 DXC Technology Company. All rights reserved.

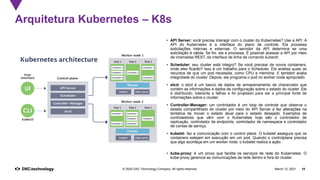

• API Server: você precisa interagir com o cluster do Kubernetes? Use a API. A
API do Kubernetes é a interface do plano de controle. Ela processa
solicitações internas e externas. O servidor da API determina se uma
solicitação é válida. Se for, ela a processa. É possível acessar a API por meio
de chamadas REST, da interface de linha de comando kubectl;
• Scheduler: seu cluster está íntegro? Se você precisar de novos containers,
onde eles ficarão? Isso é um trabalho para o Scheduler. Ele analisa quais os
recursos de que um pod necessita, como CPU e memória. E também avalia
integridade do cluster. Depois, ele programa o pod no worker node apropriado.
• etcd: o etcd é um banco de dados de armazenamento de chave/valor que
contém as informações e dados de configuração sobre o estado do cluster. Ele
é distribuído, tolerante a falhas e foi projetado para ser a principal fonte de
informações sobre o cluster.
• Controller-Manager: um controlador é um loop de controle que observa o
estado compartilhado do cluster por meio do API Server e faz alterações na
tentativa de mover o estado atual para o estado desejado. Exemplos de
controladores que vêm com o Kubernetes hoje são o controlador de
replicação, controlador de endpoints, controlador de namespace e controlador
de contas de serviço.
• kubelet: faz a comunicação com o control plane. O kubelet assegura que os
containers estejam em execução em um pod. Quando o controlplane precisa
que algo aconteça em um worker node, o kubelet realiza a ação.
• kube-proxy: é um proxy que facilita os serviços de rede do Kubernetes. O
kube-proxy gerencia as comunicações de rede dentro e fora do cluster.
Arquitetura Kubernetes – K8s

19. March 12, 2021 19
© 2021 DXC Technology Company. All rights reserved.
EKS

20. March 12, 2021 20
© 2020 DXC Technology Company. All rights reserved.
EKS is fully managed Kubernetes
Amazon EKS helps customer run Kubernetes.
Amazon EKS makes it
easy to run
Kubernetes on AWS
Provision an
EKS cluster
Amazon EC2
Deploy worker
nodes for you
EKS cluster
Amazon EKS
Connect to EKS Run Kubernetes apps

21. March 12, 2021 21
© 2020 DXC Technology Company. All rights reserved.
EKS is Kubernetes certifiedconformant
• Customers can use existing tooland
plugins.
• Applications can run on anystandard
Kubernetes environment.
• Application can be easily migratedto
Amazon EKS.

22. March 12, 2021 22
© 2020 DXC Technology Company. All rights reserved.
Kubernetes components
us-east-1a
masters
etcd
worker nodes
Controller
manager
Cloud
controller
Scheduler
API Server
Pod Pod
kubelet
kube-proxy
Pod

23. March 12, 2021 23
© 2020 DXC Technology Company. All rights reserved.
Kubectl command line interface
masters
worker nodes
Controller
manager
Cloud
controller
Scheduler
API Server
Pod Pod
kubelet
kube-proxy
Pod
kubectl
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-4293833666-20vr8 1/1 Running 0 2m
nginx-4293833666-3gzfw 1/1 Running 0 2m
nginx-4293833666-7nBiH 1/1 Running 0 2m

24. March 12, 2021 24
© 2020 DXC Technology Company. All rights reserved.
Kubernetes with high availability
masters
etcd
masters
etcd
masters
etcd
worker nodes
us-east-1a
© 2019 Amazon Web Services, Inc. or its Affiliates. All rights reserved.
worker nodes
us-east-1b
worker nodes
us-east-1c 148

25. March 12, 2021 25
© 2020 DXC Technology Company. All rights reserved.
Amazon EKS architecture
etcd etcd etcd
VPC
API Server Auto Scaling group
Etcd Auto Scaling group
master nodes master nodes
us-east-1c
us-east-1b
master nodes
us-east-1a

26. March 12, 2021 26
© 2020 DXC Technology Company. All rights reserved.
EKS – Hibrid Architecture: EC2 and Fargate

27. March 12, 2021 27
© 2020 DXC Technology Company. All rights reserved.
Sample architecture: Reliability
Public subnet Private subnet
Private subnet
AWS Cloud
Users
Amazon EKS
Amazon EKS
Application
Load Balancer
Amazon EKS
Amazon EKS
Amazon RDS
Amazon RDS
Network
Load Balancer
Amazon VPC
Auto Scaling group Auto Scaling group
Availability
Zones

28. March 12, 2021 28
© 2020 DXC Technology Company. All rights reserved.
Amazon ECS AWS Fargate Amazon EKS
Cost
Free Amazon service Pay for the amount of
memory and vCPU used by
the containers
Fee of $0.10 per cluster per
hour, around $72 per cluster
per month
Where it runs
Only available on AWS Only available on AWS as
part of Amazon ECS
Runs based on Kubernetes
and can be migrated in and
out of AWS anytime
Ease of use
Learning curve of Amazon
ECS architecture is lower
than that of Amazon EKS
Same learning curve as
Amazon ECS, but easier to
deploy and manage
More complex to use and
deploy containers.
What it supports
Supports AWS Management
Console, to access and
manage AWS through a
simple and intuitive web user
interface (WUI)
Supports AWS Management
Console, as ECS does
Supports Kubernetes plugins
integration
Compatibility
Windows containers
compatibility
Limited compatibility with
some Amazon services (e.g.,
you can’t attach persistent
storage to Fargate)
Every configuration needs to
be done using kubectl
ECS vs EKS vs Fargate

29. March 12, 2021 29
© 2020 DXC Technology Company. All rights reserved.
Microservice | API and Container Based Management Strategy
Container
Presentation
Layer
Application
Runtime
OS
Agent
API
Gateway
API
Mapping
Gateway
Account
Cloud Platform
Microservice A
Container
Application
Runtime
OS
Agent
Microservice B
Container
Application
Runtime
OS
Agent
Application Service Containers
Microservice C
Container
Application
Runtime
OS
Agent
Microservice D
Container
Application
Runtime
OS
Agent
DevOps Platform
System Monitoring
and Dashboards
Resource
Monitoring
Resource
Monitoring
Data Management
& Analytics
Visualization
API
API
API API
API
API
Container based deployment
Serverless Architecture
Unikernels Technologies
Continuous
Assessment
Continuous
Assessment
12 Factor Methodology
Shift Left Testing
Testing Automation
Monitoring and
Logging
Intelligent Alerts
Dynamic, Hybrid
Infrastructure
Security compliance and
patching
Infrastructure as Code
Shift Left Monitoring
Continuous Improvement
Data Services DB Services
Docker Stackato
Cloud Foundry
Kubernetes Service Fabric
PaaS and Container Platform
Mesos

30. March 12, 2021 30
© 2020 DXC Technology Company. All rights reserved.
