Kubernetes Networking

  1. 1. Kubernetes Networking Seattle Kubernetes Meetup CJ Cullen <cjcullen@google.com> Software Engineer @cj_cullen github.com/cjcullen
  2. 2. Docker Networking

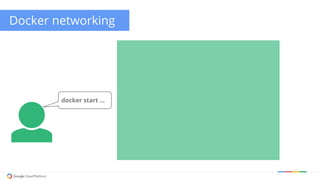

  3. 3. Docker networking docker start ...

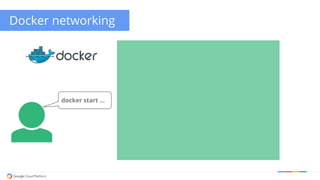

  4. 4. Docker networking docker start ...

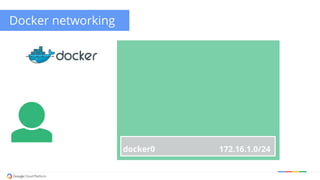

  5. 5. Docker networking docker0 172.16.1.0/24

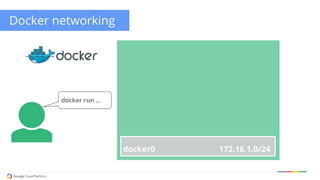

  6. 6. Docker networking docker0 172.16.1.0/24 docker run ...

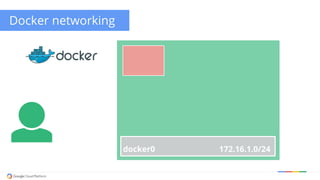

  7. 7. Docker networking docker0 172.16.1.0/24

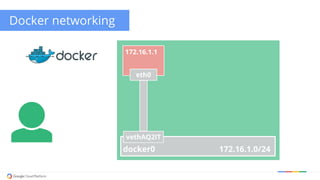

  8. 8. Docker networking docker0 172.16.1.0/24 172.16.1.1 vethAQ2IT eth0
  9. 9. Docker networking docker0 172.16.1.0/24 172.16.1.1 vethAQ2IT eth0 docker run ...

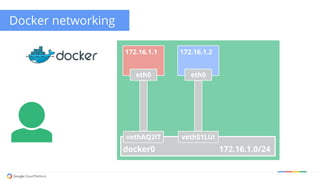

  10. 10. Docker networking docker0 172.16.1.0/24 172.16.1.1 vethAQ2IT eth0 172.16.1.2 vethS1LUI eth0

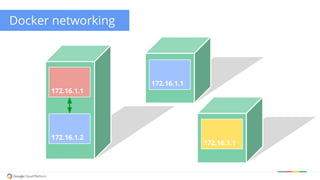

  11. 11. 172.16.1.1 172.16.1.2 Docker networking 172.16.1.1 172.16.1.1

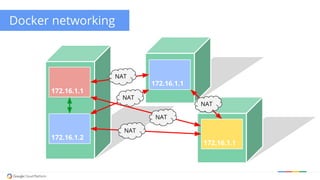

  12. 12. 172.16.1.1 172.16.1.2 Docker networking 172.16.1.1 172.16.1.1 NAT NAT NAT NAT NAT

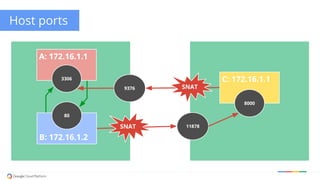

  13. 13. Host ports A: 172.16.1.1 3306 B: 172.16.1.2 80 9376 11878SNAT SNAT C: 172.16.1.1 8000

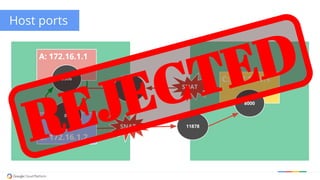

  14. 14. Host ports A: 172.16.1.1 3306 B: 172.16.1.2 80 9376 11878SNAT SNAT C: 172.16.1.1 8000 REJECTED
  15. 15. Kubernetes Networking

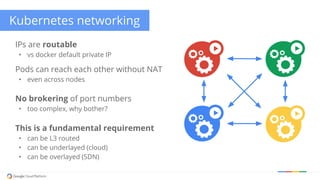

  16. 16. Kubernetes networking IPs are routable • vs docker default private IP Pods can reach each other without NAT • even across nodes No brokering of port numbers • too complex, why bother? This is a fundamental requirement • can be L3 routed • can be underlayed (cloud) • can be overlayed (SDN)

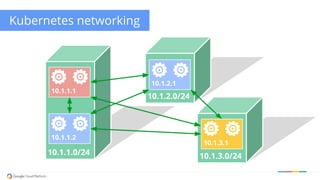

  17. 17. 10.1.1.0/24 10.1.1.1 10.1.1.2 Kubernetes networking 10.1.2.0/24 10.1.2.1 10.1.3.0/24 10.1.3.1

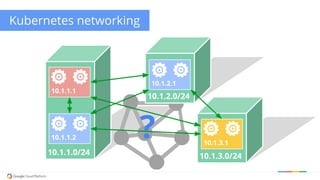

  18. 18. 10.1.1.0/24 10.1.1.1 10.1.1.2 Kubernetes networking 10.1.2.0/24 10.1.2.1 10.1.3.0/24 10.1.3.1 ?

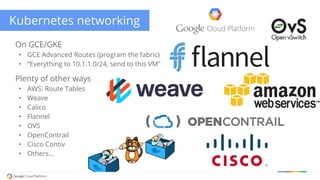

  19. 19. Kubernetes networking On GCE/GKE • GCE Advanced Routes (program the fabric) • “Everything to 10.1.1.0/24, send to this VM” Plenty of other ways • AWS: Route Tables • Weave • Calico • Flannel • OVS • OpenContrail • Cisco Contiv • Others...

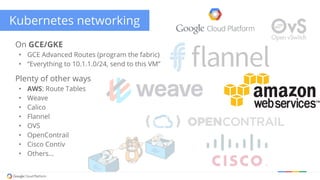

  20. 20. Kubernetes networking On GCE/GKE • GCE Advanced Routes (program the fabric) • “Everything to 10.1.1.0/24, send to this VM” Plenty of other ways • AWS: Route Tables • Weave • Calico • Flannel • OVS • OpenContrail • Cisco Contiv • Others...

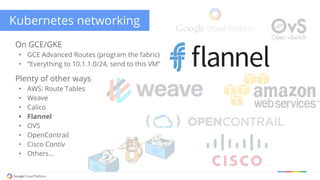

  21. 21. Kubernetes networking On GCE/GKE • GCE Advanced Routes (program the fabric) • “Everything to 10.1.1.0/24, send to this VM” Plenty of other ways • AWS: Route Tables • Weave • Calico • Flannel • OVS • OpenContrail • Cisco Contiv • Others...
  22. 22. Pods

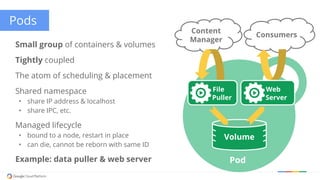

  23. 23. Pods Small group of containers & volumes Tightly coupled The atom of scheduling & placement Shared namespace • share IP address & localhost • share IPC, etc. Managed lifecycle • bound to a node, restart in place • can die, cannot be reborn with same ID Example: data puller & web server Consumers Content Manager File Puller Web Server Volume Pod

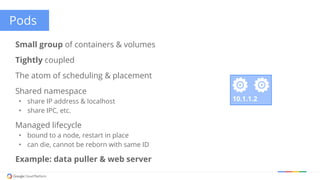

  24. 24. Pods Small group of containers & volumes Tightly coupled The atom of scheduling & placement Shared namespace • share IP address & localhost • share IPC, etc. Managed lifecycle • bound to a node, restart in place • can die, cannot be reborn with same ID Example: data puller & web server 10.1.1.2

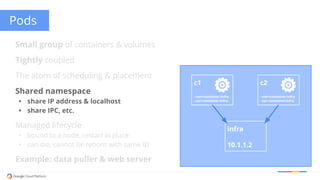

  25. 25. Pods Small group of containers & volumes Tightly coupled The atom of scheduling & placement Shared namespace • share IP address & localhost • share IPC, etc. Managed lifecycle • bound to a node, restart in place • can die, cannot be reborn with same ID Example: data puller & web server c1 --net=container:infra --ipc=container:infra infra 10.1.1.2 c2 --net=container:infra --ipc=container:infra
  26. 26. Services

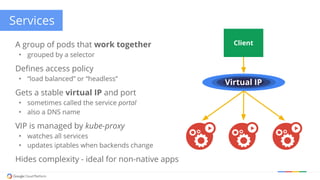

  27. 27. Services A group of pods that work together • grouped by a selector Defines access policy • “load balanced” or “headless” Gets a stable virtual IP and port • sometimes called the service portal • also a DNS name VIP is managed by kube-proxy • watches all services • updates iptables when backends change Hides complexity - ideal for non-native apps Client Virtual IP
  28. 28. kube-proxy

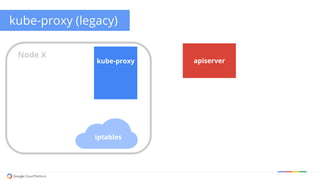

  29. 29. kube-proxy (legacy) iptables kube-proxy apiserver Node X

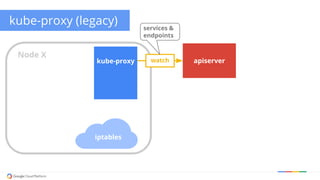

  30. 30. iptables apiserver Node X watch services & endpoints kube-proxy (legacy) kube-proxy

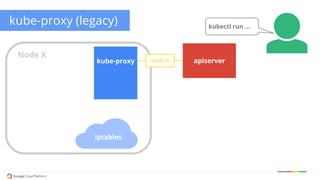

  31. 31. iptables apiserver Node X kubectl run ... watch kube-proxy (legacy) kube-proxy

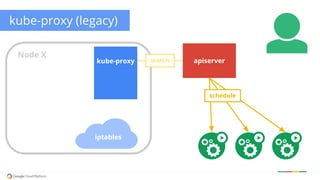

  32. 32. iptables apiserver Node X schedule watch kube-proxy (legacy) kube-proxy

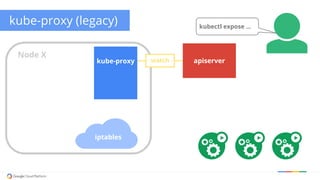

  33. 33. iptables apiserver Node X watch kubectl expose ... kube-proxy (legacy) kube-proxy

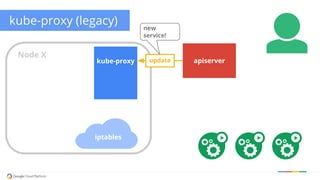

  34. 34. iptables apiserver Node X new service! update kube-proxy (legacy) kube-proxy

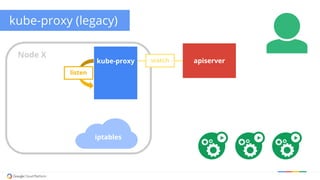

  35. 35. iptables apiserver Node X watch kube-proxy (legacy) kube-proxy listen
  36. 36. iptables apiserver Node X watch kube-proxy (legacy) kube-proxy listen

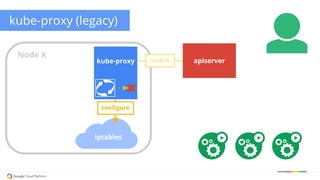

  37. 37. iptables apiserver Node X watch configure kube-proxy (legacy) kube-proxy

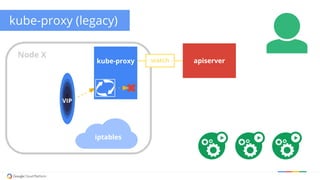

  38. 38. iptables apiserver Node X watch VIP kube-proxy (legacy) kube-proxy

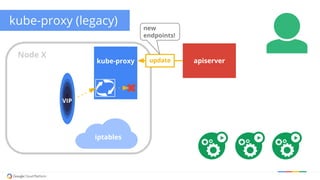

  39. 39. iptables apiserver Node X new endpoints! update VIP kube-proxy (legacy) kube-proxy
  40. 40. iptables apiserver Node X VIP watch kube-proxy (legacy) kube-proxy

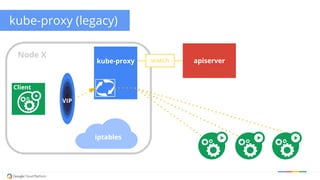

  41. 41. iptables apiserver Node X VIP watch kube-proxy (legacy) kube-proxy Client
  42. 42. iptables apiserver Node X VIP watch kube-proxy (legacy) kube-proxy Client

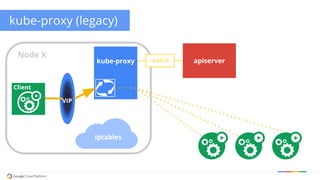

  43. 43. iptables apiserver Node X VIP watch kube-proxy (legacy) kube-proxy Client
  44. 44. iptables apiserver Node X VIP watch kube-proxy (legacy) kube-proxy Client

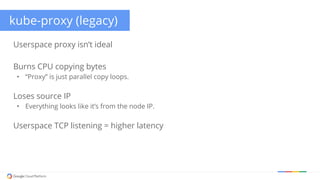

  45. 45. kube-proxy (legacy) Userspace proxy isn’t ideal Burns CPU copying bytes • “Proxy” is just parallel copy loops. Loses source IP • Everything looks like it’s from the node IP. Userspace TCP listening = higher latency
  46. 46. iptables kube-proxy
  47. 47. iptables kube-proxy iptables kube-proxy apiserver Node X

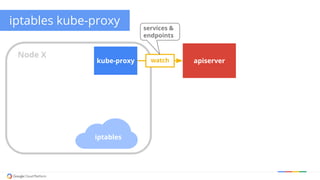

  48. 48. iptables kube-proxy iptables kube-proxy apiserver Node X watch services & endpoints

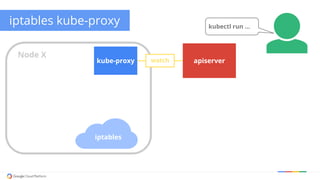

  49. 49. iptables kube-proxy iptables kube-proxy apiserver Node X kubectl run ... watch

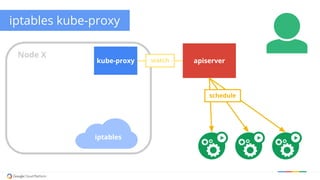

  50. 50. iptables kube-proxy iptables kube-proxy apiserver Node X schedule watch

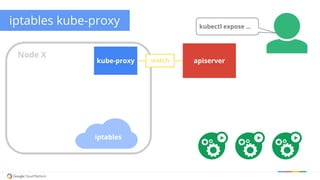

  51. 51. iptables kube-proxy iptables kube-proxy apiserver Node X watch kubectl expose ...

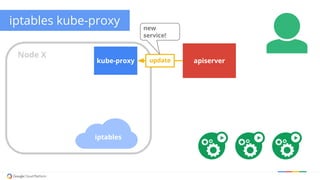

  52. 52. iptables kube-proxy iptables kube-proxy apiserver Node X new service! update
  53. 53. iptables kube-proxy iptables kube-proxy apiserver Node X watch configure
  54. 54. iptables kube-proxy iptables kube-proxy apiserver Node X watch VIP

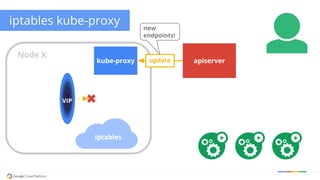

  55. 55. iptables kube-proxy iptables kube-proxy apiserver Node X new endpoints! update VIP

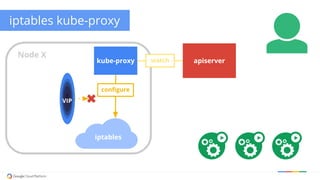

  56. 56. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch configure
  57. 57. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch
  58. 58. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch Client

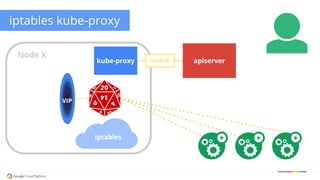

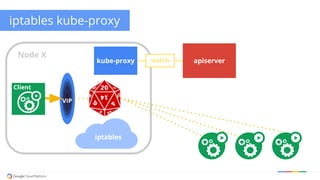

  59. 59. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch Client

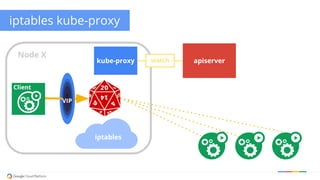

  60. 60. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch Client
  61. 61. iptables kube-proxy iptables kube-proxy apiserver Node X VIP watch Client

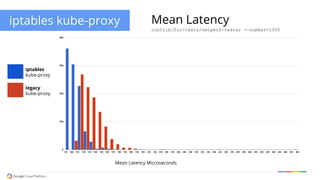

  62. 62. iptables kube-proxy Mean Latency contrib/for-tests/netperf-tester --number=1000 Mean Latency Microseconds iptables kube-proxy legacy kube-proxy

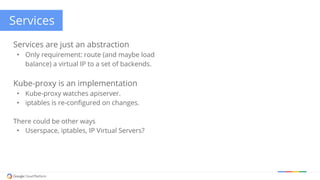

  63. 63. Services are just an abstraction • Only requirement: route (and maybe load balance) a virtual IP to a set of backends. Kube-proxy is an implementation • Kube-proxy watches apiserver. • iptables is re-configured on changes. There could be other ways • Userspace, iptables, IP Virtual Servers? Services

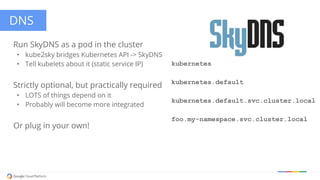

  64. 64. DNS Run SkyDNS as a pod in the cluster • kube2sky bridges Kubernetes API -> SkyDNS • Tell kubelets about it (static service IP) Strictly optional, but practically required • LOTS of things depend on it • Probably will become more integrated Or plug in your own! kubernetes kubernetes.default kubernetes.default.svc.cluster.local foo.my-namespace.svc.cluster.local

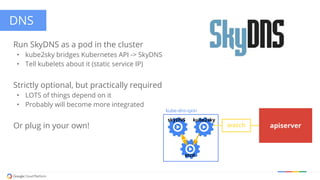

  65. 65. DNS Run SkyDNS as a pod in the cluster • kube2sky bridges Kubernetes API -> SkyDNS • Tell kubelets about it (static service IP) Strictly optional, but practically required • LOTS of things depend on it • Probably will become more integrated Or plug in your own! apiserverwatch etcd kube-dns-qxin kube2skyskyDNS

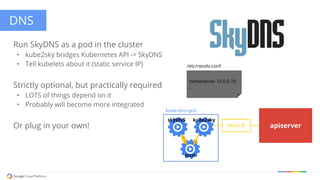

  66. 66. DNS Run SkyDNS as a pod in the cluster • kube2sky bridges Kubernetes API -> SkyDNS • Tell kubelets about it (static service IP) Strictly optional, but practically required • LOTS of things depend on it • Probably will become more integrated Or plug in your own! nameserver 10.0.0.10 ... /etc/resolv.conf apiserverwatch etcd kube-dns-qxin kube2skyskyDNS
  67. 67. DNS Run SkyDNS as a pod in the cluster • kube2sky bridges Kubernetes API -> SkyDNS • Tell kubelets about it (static service IP) Strictly optional, but practically required • LOTS of things depend on it • Probably will become more integrated Or plug in your own! nameserver 10.0.0.10 ... /etc/resolv.conf apiserverwatch etcd kube-dns-qxin kube2skyskyDNS 10.0.0.10

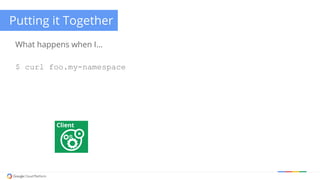

  68. 68. Putting it Together What happens when I... $ curl foo.my-namespace Client
  69. 69. What happens when I... $ curl foo.my-namespace Putting it Together nameserver 10.0.0.10 ... /etc/resolv.conf Client 10.1.0.1
  70. 70. 10.1.0.1 Putting it Together What happens when I... $ curl foo.my-namespace etcd kube-dns-qxin kube2skyskyDNS 10.0.0.10 foo.my-namespace? Client

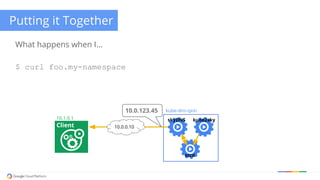

  71. 71. Putting it Together What happens when I... $ curl foo.my-namespace etcd kube-dns-qxin kube2skyskyDNS 10.0.0.10 10.0.123.45 Client 10.1.0.1
  72. 72. Putting it Together What happens when I... $ curl foo.my-namespace 10.0.123.45Client 10.1.0.1

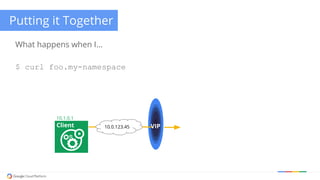

  73. 73. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 10.1.0.1

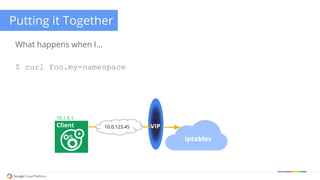

  74. 74. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.0.1

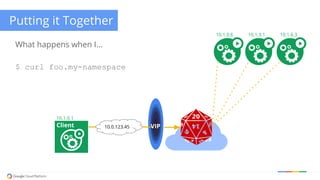

  75. 75. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3

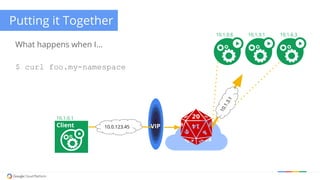

  76. 76. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.3.1 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3

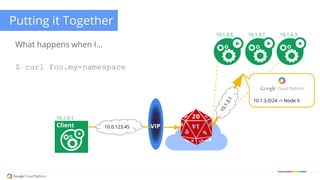

  77. 77. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.3.1 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 10.1.3.0/24 -> Node X
  78. 78. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.3.1 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3
  79. 79. Putting it Together What happens when I... $ curl foo.my-namespace Client VIP10.0.123.45 iptables 10.1.3.1 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 Hello World!

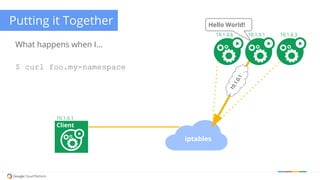

  80. 80. Putting it Together What happens when I... $ curl foo.my-namespace Client iptables Hello World! 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 10.1.0.1
  81. 81. Putting it Together What happens when I... $ curl foo.my-namespace Client iptables Hello World! 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 10.1.0.0/24 -> Node Y 10.1.0.1
  82. 82. Putting it Together What happens when I... $ curl foo.my-namespace Client iptables Hello World! 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 10.1.0.0/24 -> Node Y 10.1.0.1

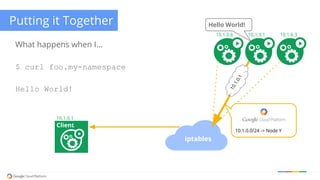

  83. 83. Putting it Together What happens when I... $ curl foo.my-namespace Hello World! Client iptables Hello World! 10.1.0.1 10.1.0.6 10.1.3.1 10.1.6.3 10.1.0.0/24 -> Node Y 10.1.0.1
  84. 84. What about external?

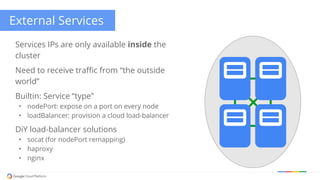

  85. 85. External Services Services IPs are only available inside the cluster Need to receive traffic from “the outside world” Builtin: Service “type” • nodePort: expose on a port on every node • loadBalancer: provision a cloud load-balancer DiY load-balancer solutions • socat (for nodePort remapping) • haproxy • nginx
  86. 86. The Bleeding Edge

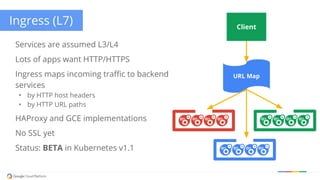

  87. 87. Ingress (L7) Services are assumed L3/L4 Lots of apps want HTTP/HTTPS Ingress maps incoming traffic to backend services • by HTTP host headers • by HTTP URL paths HAProxy and GCE implementations No SSL yet Status: BETA in Kubernetes v1.1 URL Map Client
  88. 88. Ingress (L7) Services are assumed L3/L4 Lots of apps want HTTP/HTTPS Ingress maps incoming traffic to backend services • by HTTP host headers • by HTTP URL paths HAProxy and GCE implementations No SSL yet Status: BETA in Kubernetes v1.1 URL Map Client api.company.com api.company.com/foo api.company.com/bar othercompany.com/*
  89. 89. Network Plugins

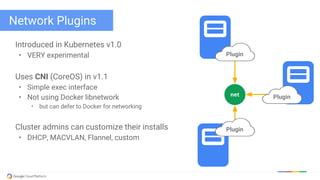

  90. 90. Network Plugins Introduced in Kubernetes v1.0 • VERY experimental Uses CNI (CoreOS) in v1.1 • Simple exec interface • Not using Docker libnetwork • but can defer to Docker for networking Cluster admins can customize their installs • DHCP, MACVLAN, Flannel, custom net Plugin Plugin Plugin

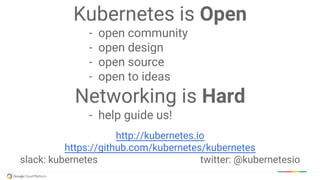

  91. 91. Kubernetes is Open - open community - open design - open source - open to ideas Networking is Hard - help guide us! http://kubernetes.io https://github.com/kubernetes/kubernetes slack: kubernetes twitter: @kubernetesio

×
