1. Puppies or muffins?
Easily leverage machine learning in your apps
Sara Robinson
@SRobTweets
Bret McGowen
@bretmcg

2. 2@SRobTweets @bretmcg
Who are we?
Developer Advocate, Google Cloud Platform
Sara Robinson / @SRobTweets
● New York, NY
● Swift fan (Taylor and language)
● Harry Potter aficionado
Developer Advocate, Google Cloud Platform
Bret McGowen / @bretmcg
● New York, NY
● U2 fan (band and plane)
● Lord of the Rings aficionado

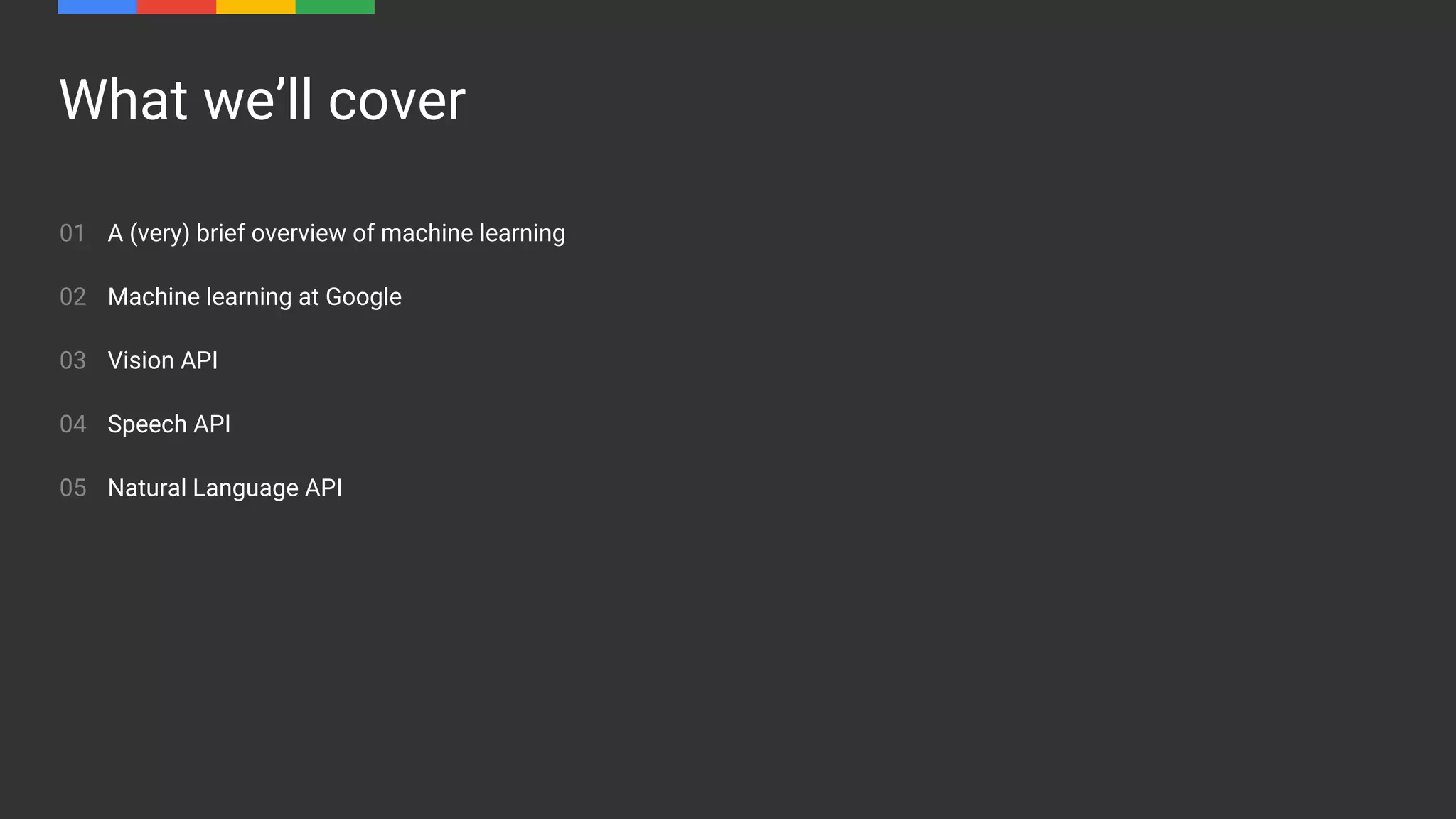

3. What we’ll cover
01
02
03
04
05
A (very) brief overview of machine learning
Machine learning at Google
Vision API
Speech API
Natural Language API

4. 01 A (very) brief overview of machine learning

5. 5@SRobTweets @bretmcg

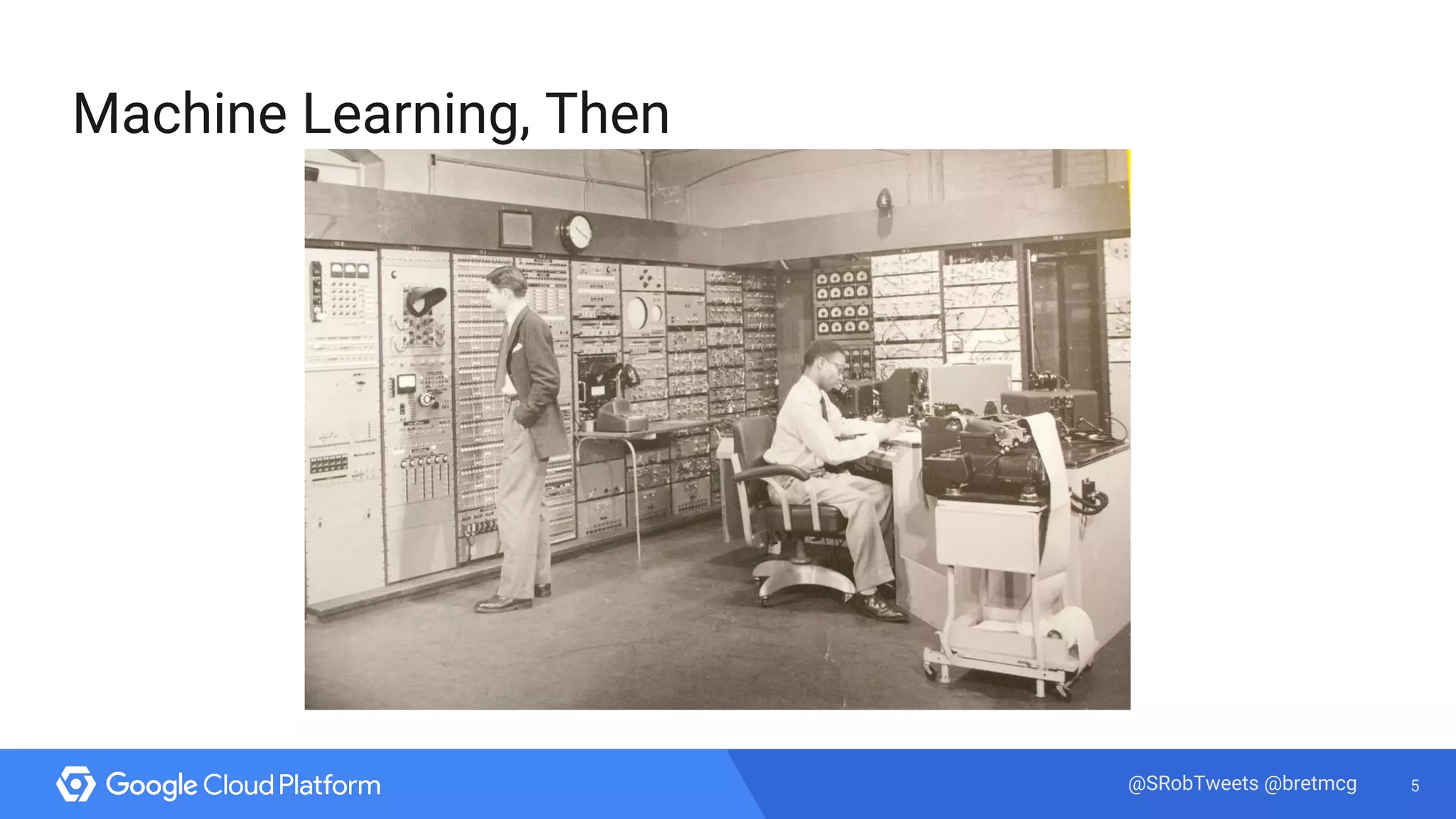

Machine Learning, Then

6. 6@SRobTweets @bretmcg
Machine Learning, Now

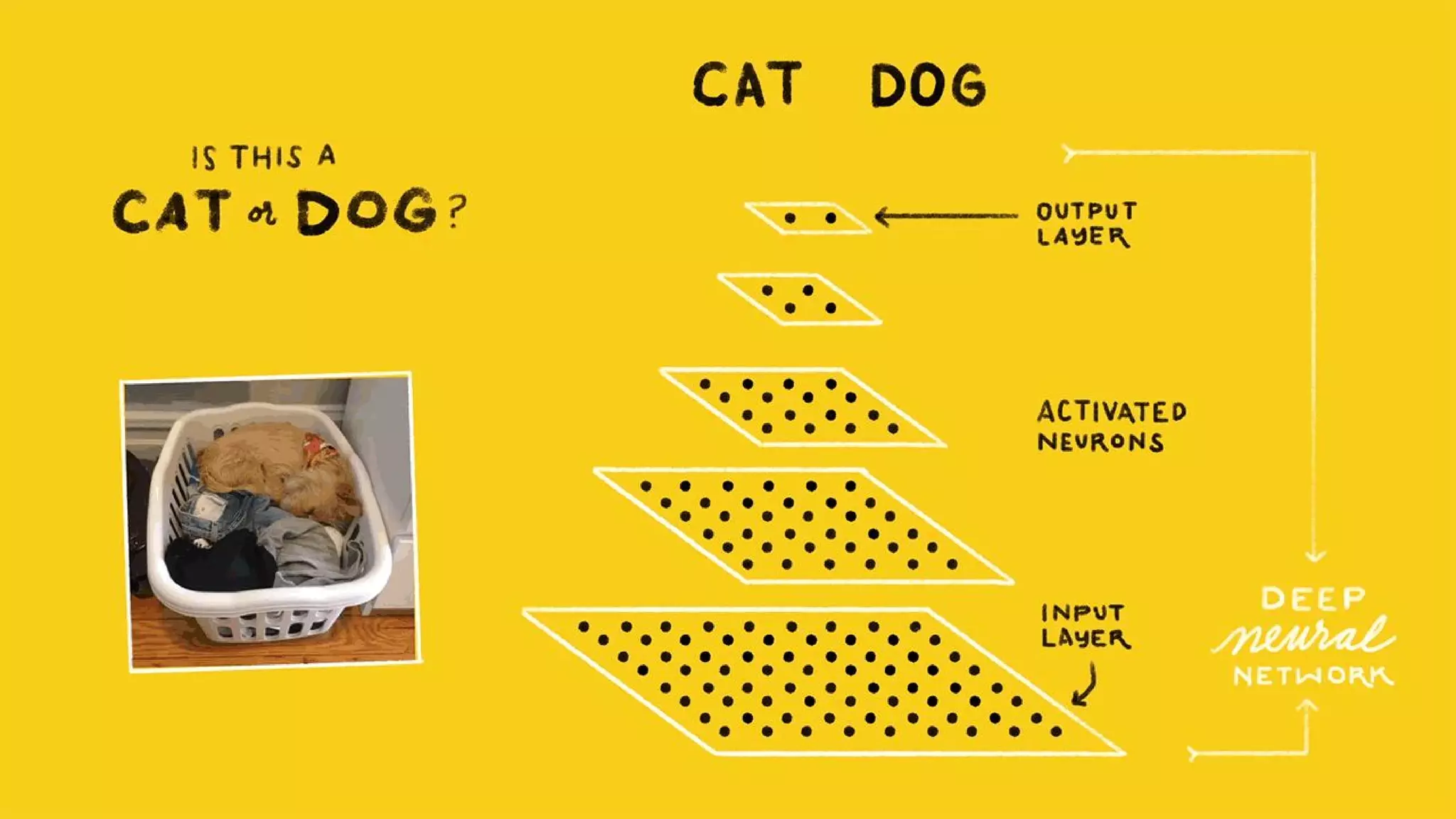

7. 7@SRobTweets @bretmcg

8. 02 Machine Learning at Google

13. Combined vision and translation

15. 15@SRobTweets @bretmcg
Image Search

16. 16@SRobTweets @bretmcg
Google Photos

17. Google Cloud Platform 17
Doesn't seem THAT hard...

18. Images: Wikimedia
Source: https://commons.wikimedia.org/wiki/File:Red_Apple.jpg
https://en.wikipedia.org/wiki/Orange_(fruit)#/media/File:Orange-Whole-%26-Split.jpg

19. Google Cloud Platform 19
What if I'm not a machine learning expert?

20. 20@SRobTweets @bretmcg

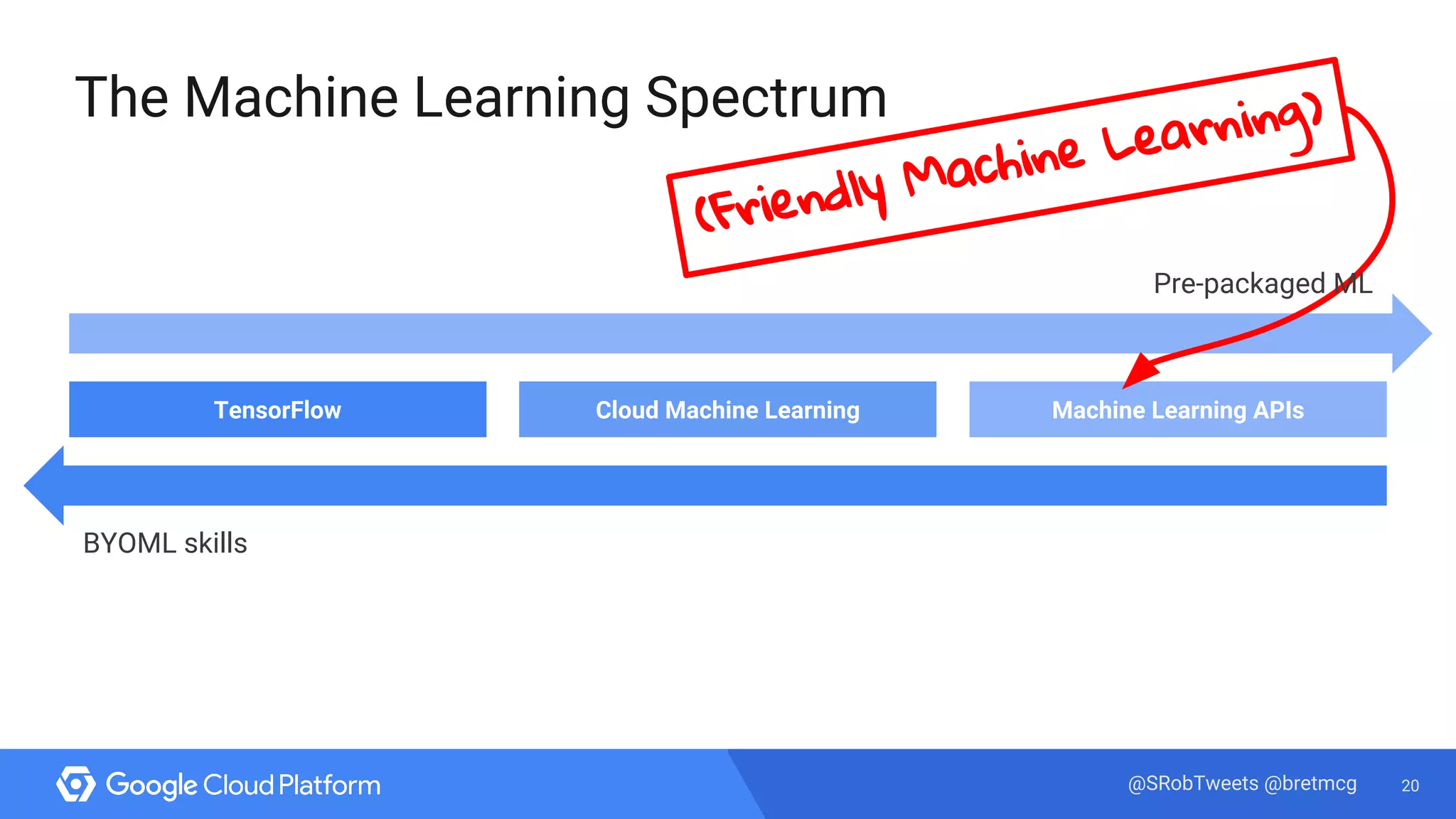

The Machine Learning Spectrum
TensorFlow Cloud Machine Learning Machine Learning APIs
BYOML skills
(Friendly Machine Learning)
Pre-packaged ML

21. 02 The Cloud Vision API
Complex image detection with a simple REST request

23. 03 Making an API request

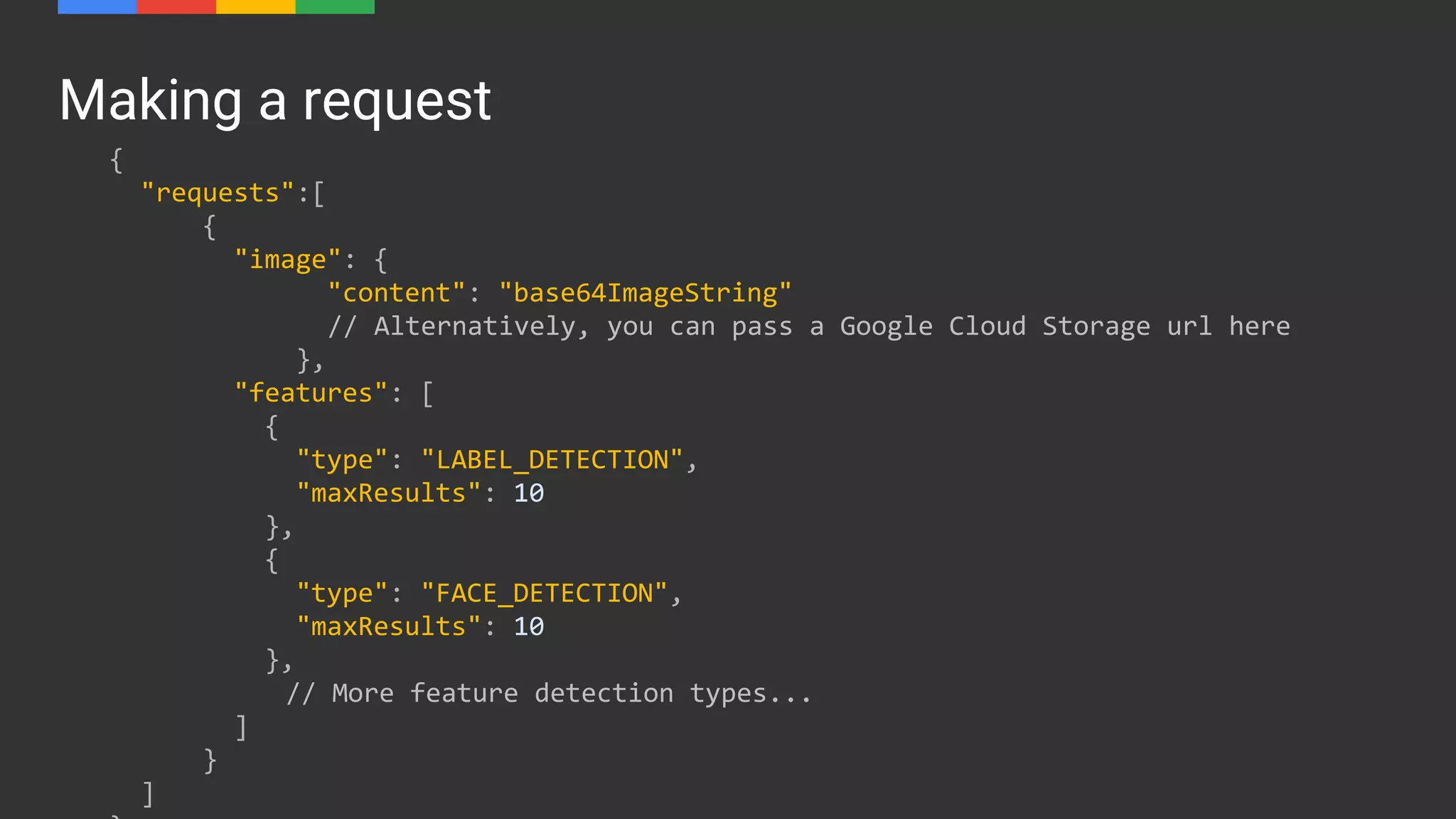

24. Making a request
{
"requests":[
{
"image": {
"content": "base64ImageString"
// Alternatively, you can pass a Google Cloud Storage url here
},
"features": [
{
"type": "LABEL_DETECTION",
"maxResults": 10
},
{
"type": "FACE_DETECTION",
"maxResults": 10
},
// More feature detection types...
]
}
]

25. Google Cloud Platform 25
Let’s see some JSON responses

26. 26
{
"labelAnnotations" : [
{
"mid" : "/m/01wydv",
"score" : 0.92442685,
"description" : "beignet"
},
{
"mid" : "/m/0270h",
"score" : 0.90845567,
"description" : "dessert"
},
{
"mid" : "/m/033nb2",
"score" : 0.74553984,
"description" : "profiterole"
},
{
"mid" : "/m/01dk8s",
"score" : 0.71415579,
"description" : "powdered sugar"
}
]
}
Label Detection
26

27. "landmarkAnnotations": [
{
"mid": "/m/0c7ln",
"description": "Navy Pier",
"score": 36,
"boundingPoly": {
"vertices": [
{
"x": 275,
"y": 102
}, //...
]
},
"locations": [
{
"latLng": {
"latitude": 41.888685,
"longitude": -87.601311
}
}
], //...
},
{
"mid": "/m/01_d4",
"description": "Chicago",
"score": 31,
Landmark Detection
27

28. 28
...
"itemListElement": [
{
"@type": "EntitySearchResult",
"result": {
"@id": "kg:/m/0c7ln",
"name": "Navy Pier",
"@type": [
"Thing", "Place", "LandmarksOrHistoricalBuildings",
"TouristAttraction"
],
...
"detailedDescription": {
"articleBody": "Navy Pier is a 3,300-foot-long
pier on the Chicago shoreline of Lake Michigan. It
is located in the Streeterville neighborhood of
the Near North Side community area.",
"url": "http://en.wikipedia.org/wiki/Navy_Pier"
...

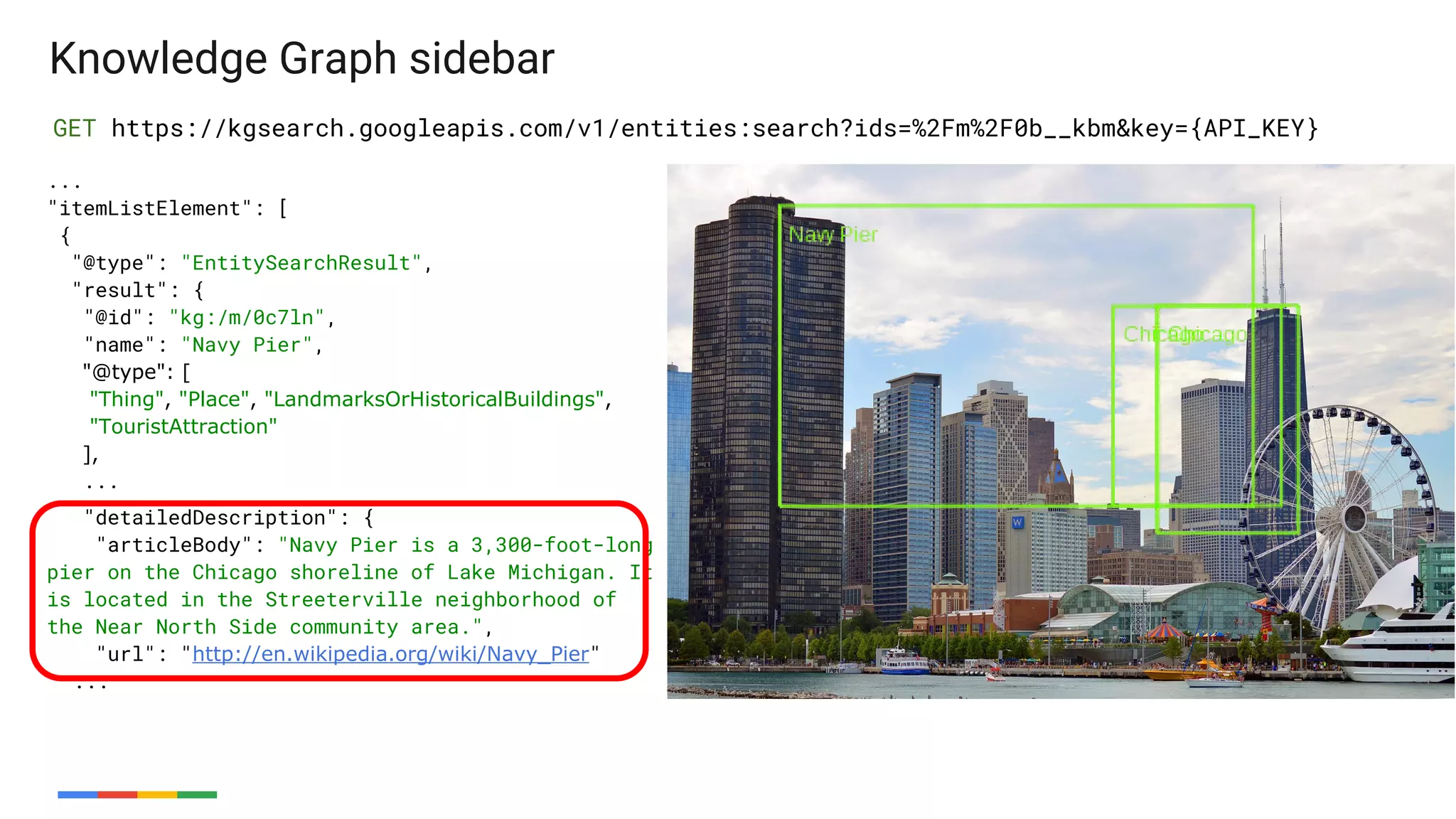

Knowledge Graph sidebar
GET https://kgsearch.googleapis.com/v1/entities:search?ids=%2Fm%2F0b__kbm&key={API_KEY}

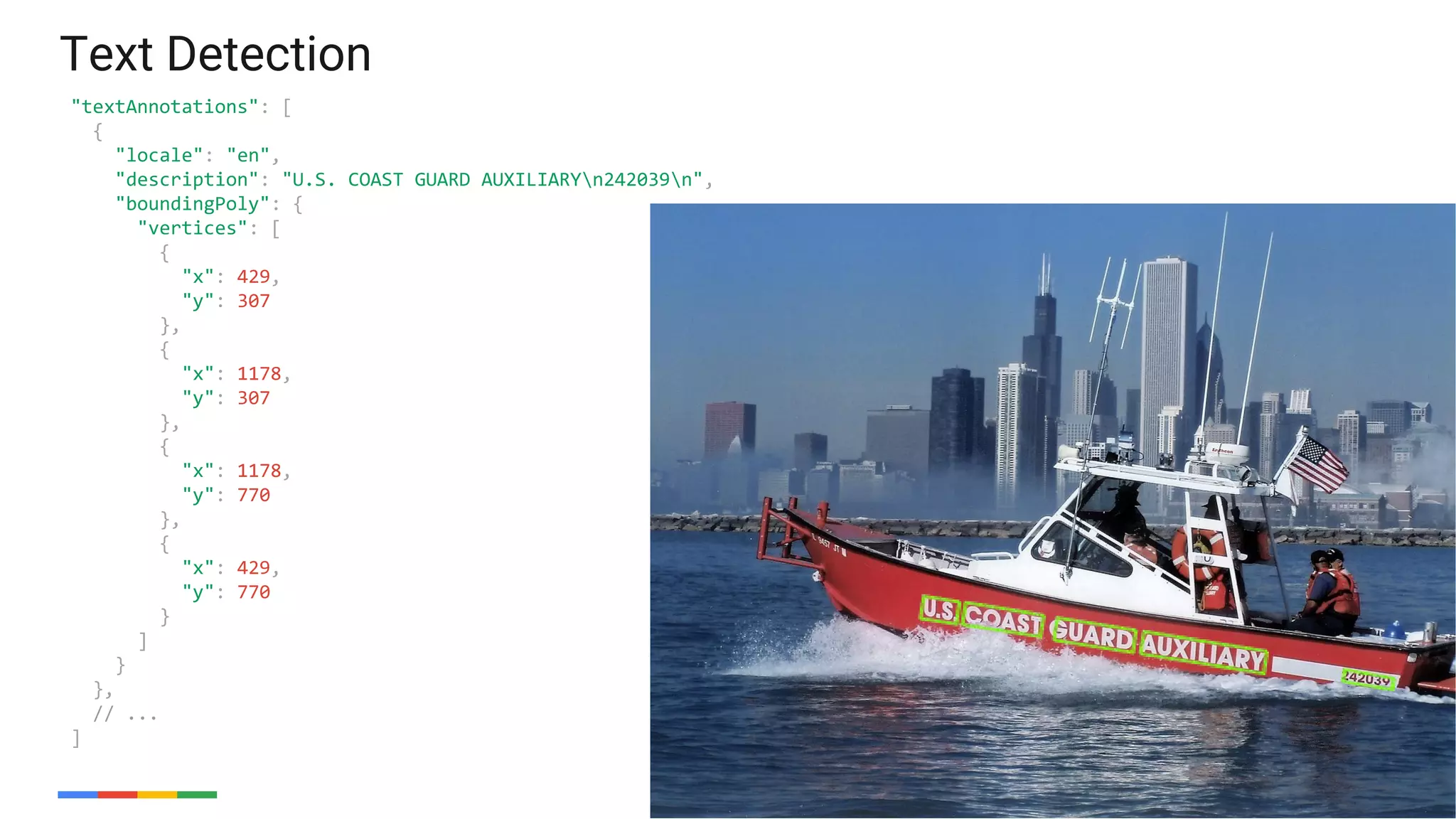

29. 29
"textAnnotations": [
{
"locale": "en",
"description": "U.S. COAST GUARD AUXILIARYn242039n",
"boundingPoly": {
"vertices": [
{
"x": 429,
"y": 307
},
{
"x": 1178,
"y": 307
},
{
"x": 1178,
"y": 770
},
{
"x": 429,
"y": 770
}
]
}
},
// ...
]
Text Detection

30. 30
"faceAnnotations" : [
{
"headwearLikelihood" : "VERY_LIKELY",
"surpriseLikelihood" : "VERY_UNLIKELY",
"rollAngle" : 2.8030474,
"angerLikelihood" : "VERY_UNLIKELY",
"landmarks" : [
{
"type" : "LEFT_EYE",
"position" : {
"x" : 221.60617,
"y" : 638.263,
"z" : 0.0017568493
}
},
...
],
"boundingPoly" : {
"vertices" : [
{
"x" : 89,
"y" : 436
},
...
Face Detection
"detectionConfidence" : 0.98838496,
"joyLikelihood" : "VERY_LIKELY",
"panAngle" : -1.0822374,
"sorrowLikelihood" : "VERY_UNLIKELY",
"tiltAngle" : -2.5003448,
"underExposedLikelihood" : "VERY_UNLIKELY",
"blurredLikelihood" : "VERY_UNLIKELY"

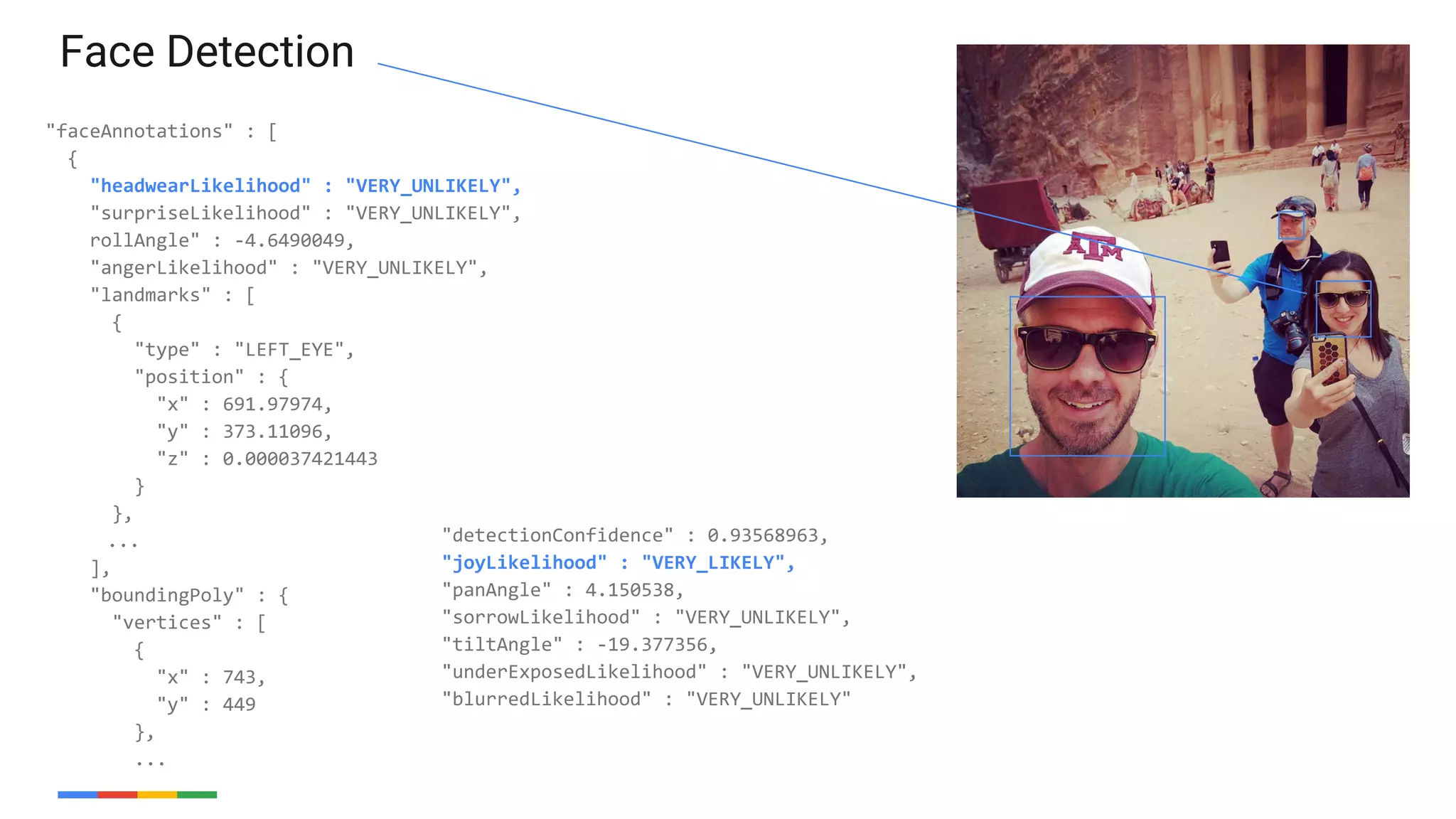

31. 31
"faceAnnotations" : [
{
"headwearLikelihood" : "VERY_UNLIKELY",
"surpriseLikelihood" : "VERY_UNLIKELY",
rollAngle" : -4.6490049,
"angerLikelihood" : "VERY_UNLIKELY",
"landmarks" : [
{
"type" : "LEFT_EYE",
"position" : {
"x" : 691.97974,
"y" : 373.11096,
"z" : 0.000037421443
}
},
...
],
"boundingPoly" : {
"vertices" : [
{
"x" : 743,
"y" : 449
},
...
Face Detection
"detectionConfidence" : 0.93568963,
"joyLikelihood" : "VERY_LIKELY",
"panAngle" : 4.150538,
"sorrowLikelihood" : "VERY_UNLIKELY",
"tiltAngle" : -19.377356,
"underExposedLikelihood" : "VERY_UNLIKELY",
"blurredLikelihood" : "VERY_UNLIKELY"

32. 32
"labelAnnotations" : [
{
"mid" : "/m/01fklc",
"score" : 0.9337945,
"description" : "pink"
},
{
"mid" : "/m/09g5pq",
"score" : 0.83878618,
"description" : "people"
},
{
"mid" : "/m/017ftj",
"score" : 0.71847415,
"description" : "sunglasses"
},
{
"mid" : "/m/019nj4",
"score" : 0.69381392,
"description" : "smile"
}
]
Putting it all together: face + label + landmark
"landmarkAnnotations" : [
{
"boundingPoly" : {
"vertices" : [
{
"x" : 153,
"y" : 64
},
...
]
},
"mid" : "/m/0c7zy",
"score" : 0.56636304,
"description" : "Petra",
"locations" : [
{
"latLng" : {
"longitude" : 35.449361,
"latitude" : 30.323975
}
}
]
}
]

33. 33

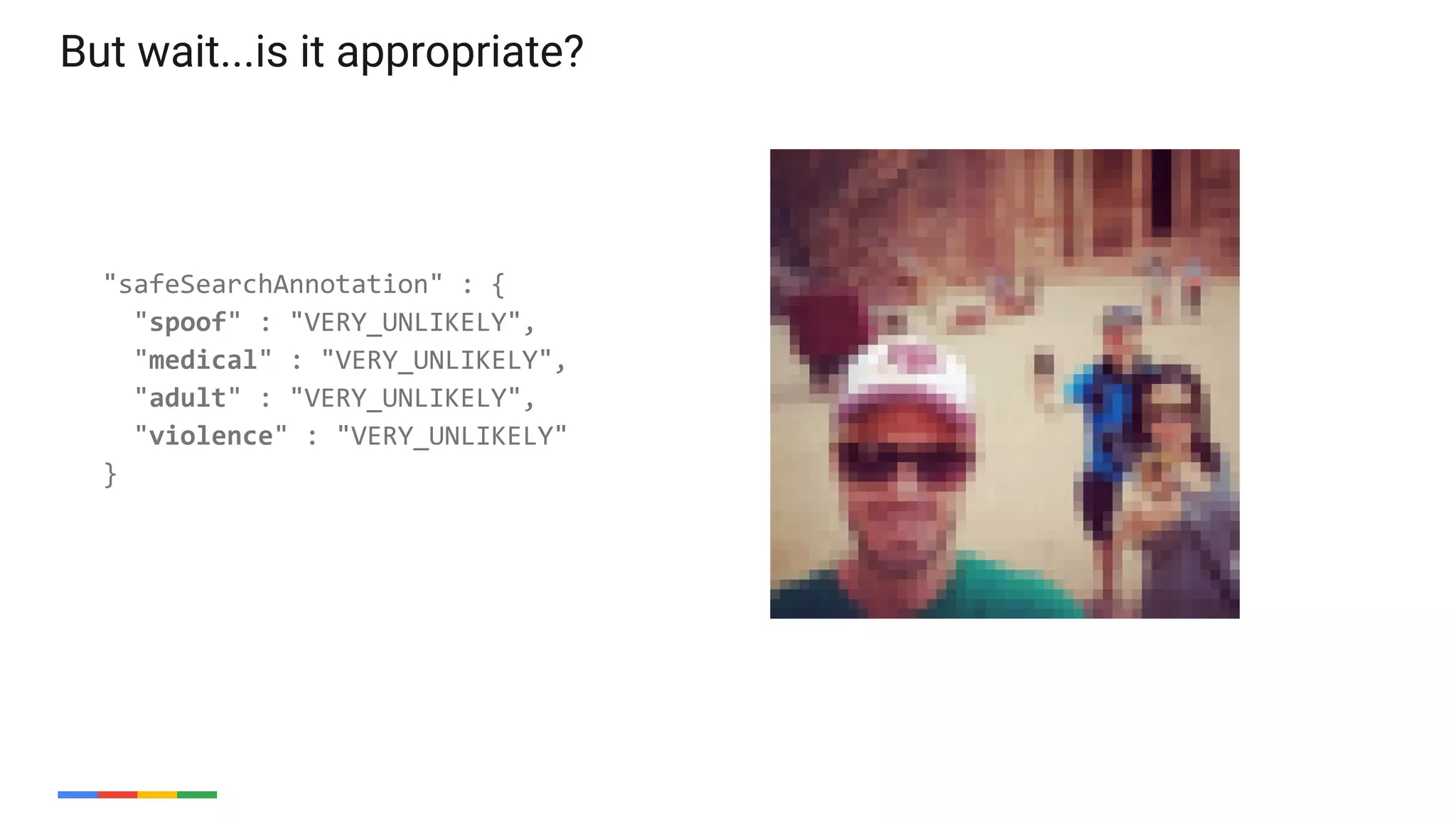

"safeSearchAnnotation" : {
"spoof" : "VERY_UNLIKELY",
"medical" : "VERY_UNLIKELY",
"adult" : "VERY_UNLIKELY",
"violence" : "VERY_UNLIKELY"
}
But wait...is it appropriate?

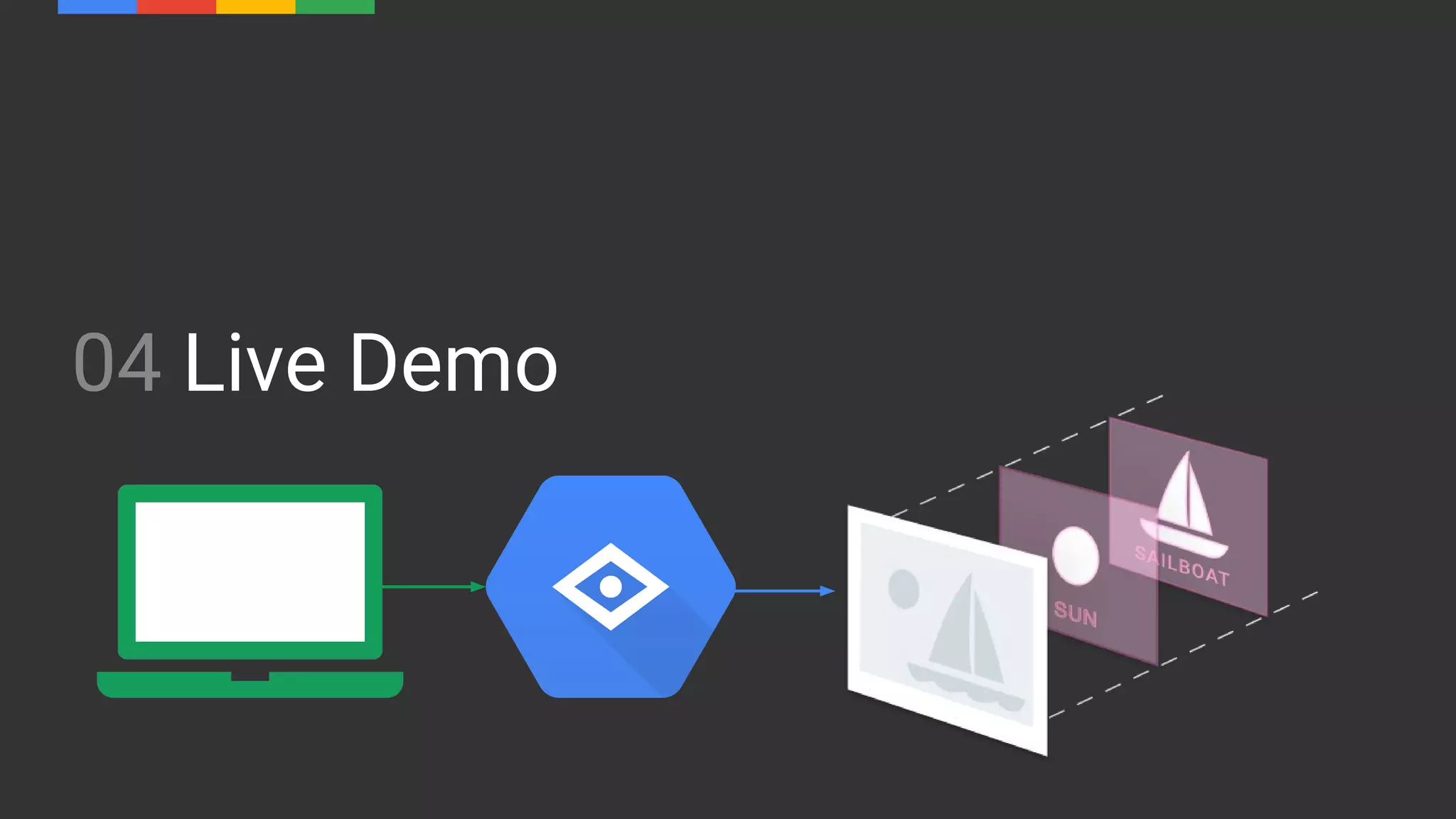

34. 04 Live Demo

35. 03 The Speech API
Speech to text transcription in over 80 languages

36. 36@SRobTweets @bretmcg

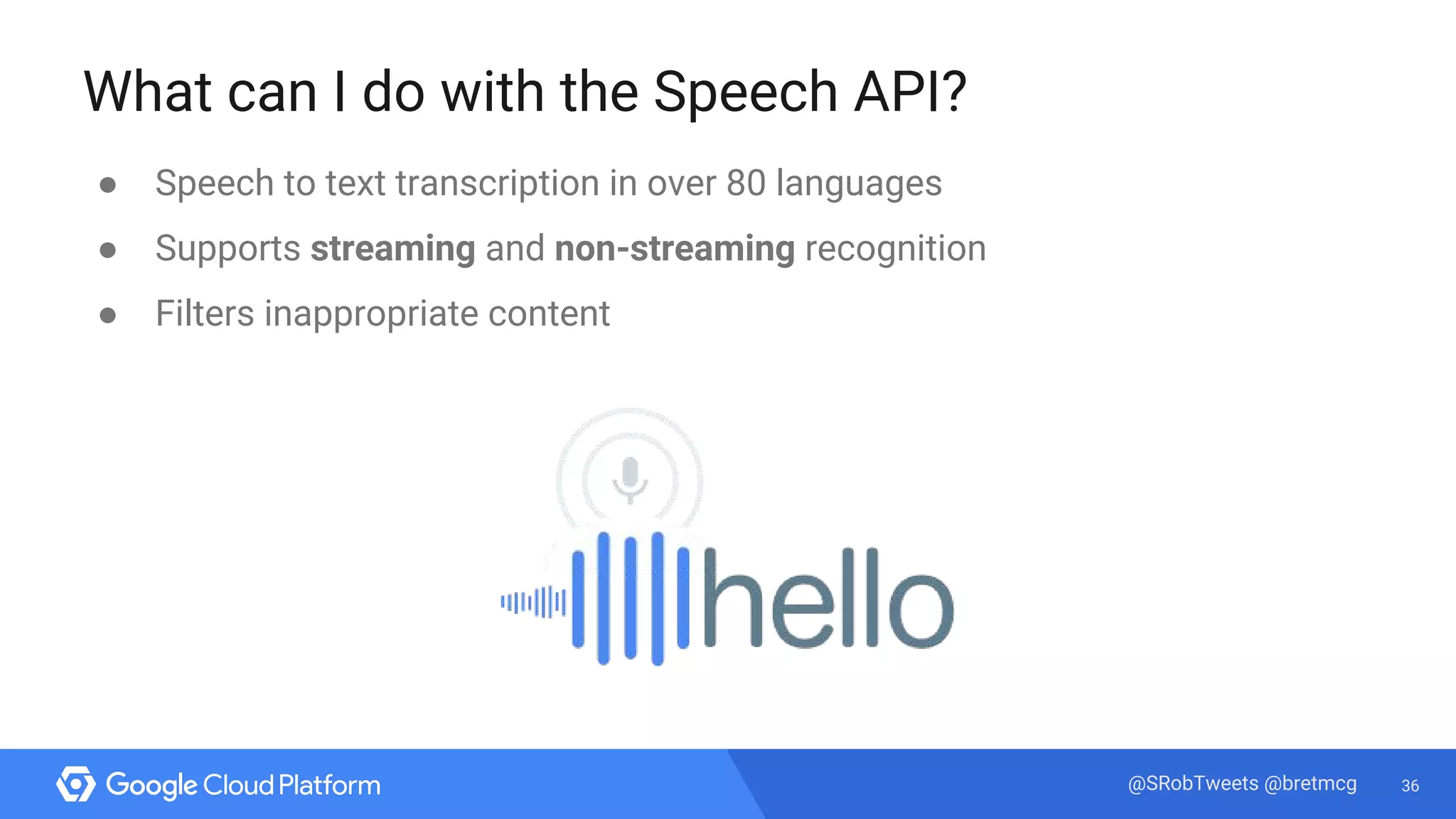

What can I do with the Speech API?
● Speech to text transcription in over 80 languages
● Supports streaming and non-streaming recognition
● Filters inappropriate content

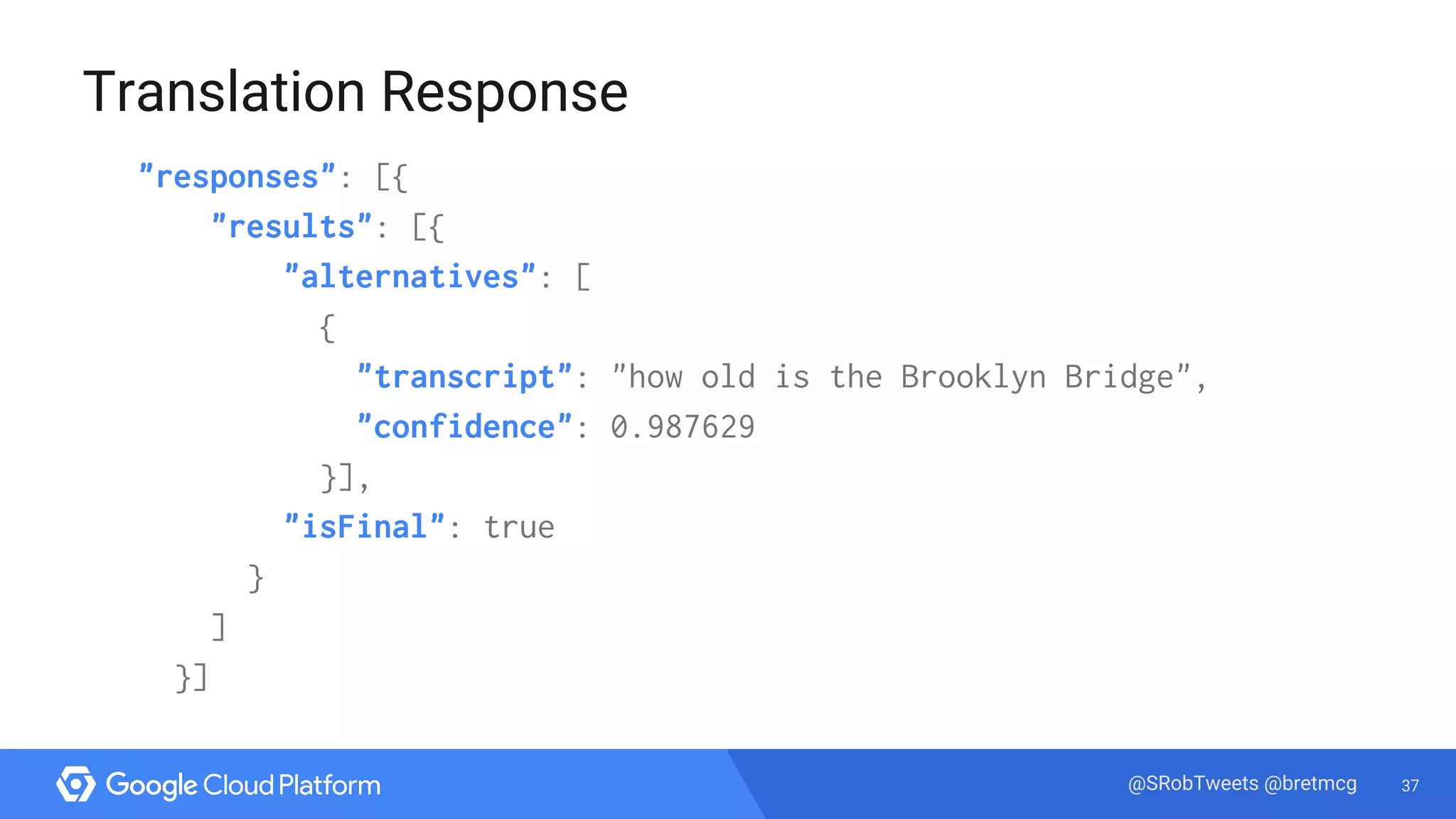

37. 37@SRobTweets @bretmcg
Translation Response
"responses": [{
"results": [{
"alternatives": [
{
"transcript": "how old is the Brooklyn Bridge",
"confidence": 0.987629
}],
"isFinal": true
}
]
}]

38. 38@SRobTweets @bretmcg
Let’s make a recording!
1. Make a recording using SoX, a command line utility for audio files
2. Base64 encode the recording
3. Build our API request in a JSON file
4. Send the JSON request to the Speech API
Bash script for this: bit.ly/speech-request-script

39. 04 Cloud Natural Language API
Perform sentiment analysis and entity recognition on text

40. 40@SRobTweets @bretmcg
What can I do with the Natural Language API?
Three methods:
1. Analyze entities - The Cubs are an MLB team from Chicago
2. Analyze sentiment - I love Chicago
3. Analyze syntax - Michelle Obama is married to Barack Obama

41. 41@SRobTweets @bretmcg
Analyze Entities
Chicago is
The Wrigley Building, Chicago is
The Union Stockyard, Chicago is
One town that won't let you down
It's my kind of town
-- Frank Sinatra

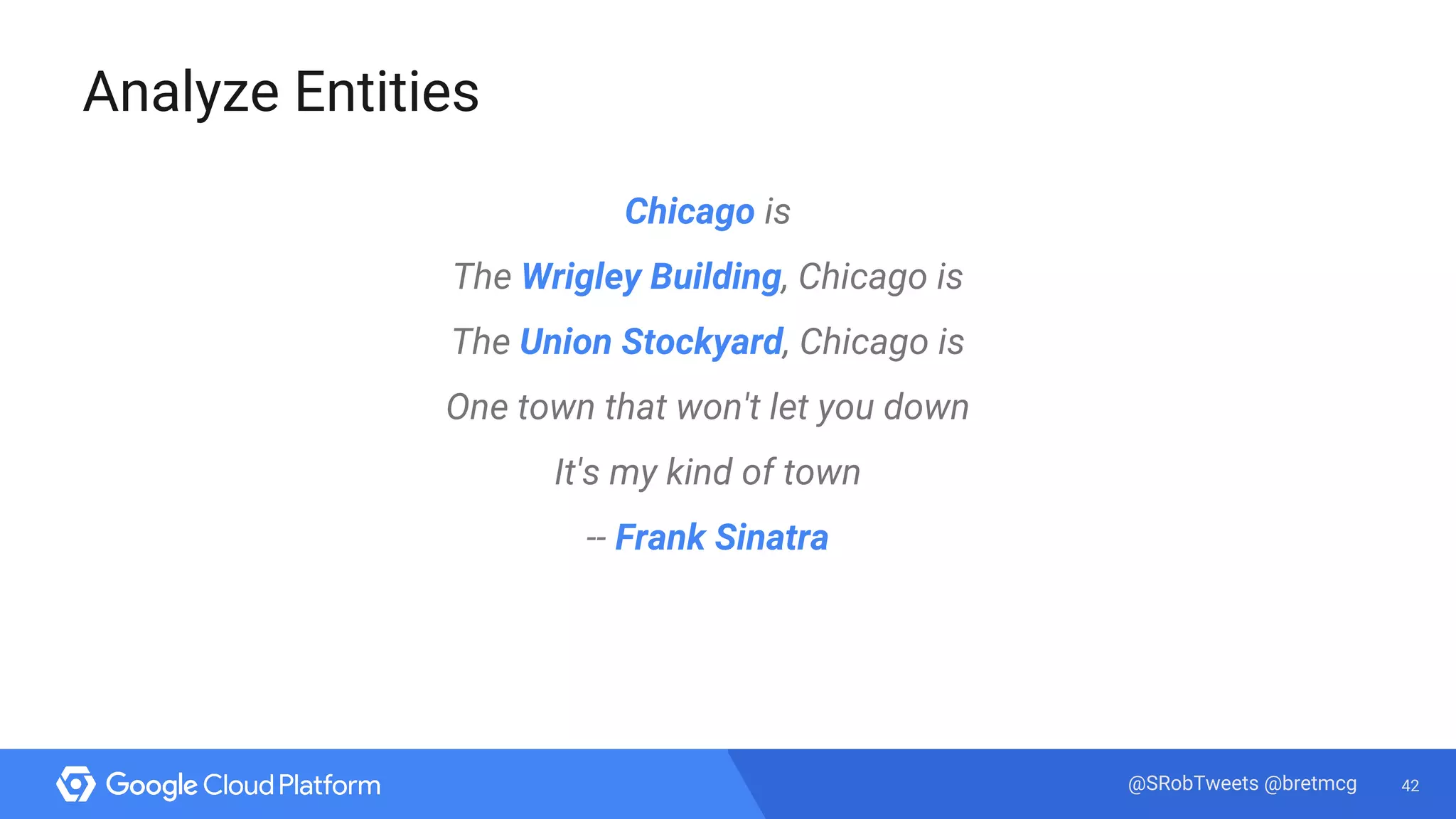

42. 42@SRobTweets @bretmcg
Analyze Entities
Chicago is
The Wrigley Building, Chicago is
The Union Stockyard, Chicago is
One town that won't let you down
It's my kind of town
-- Frank Sinatra

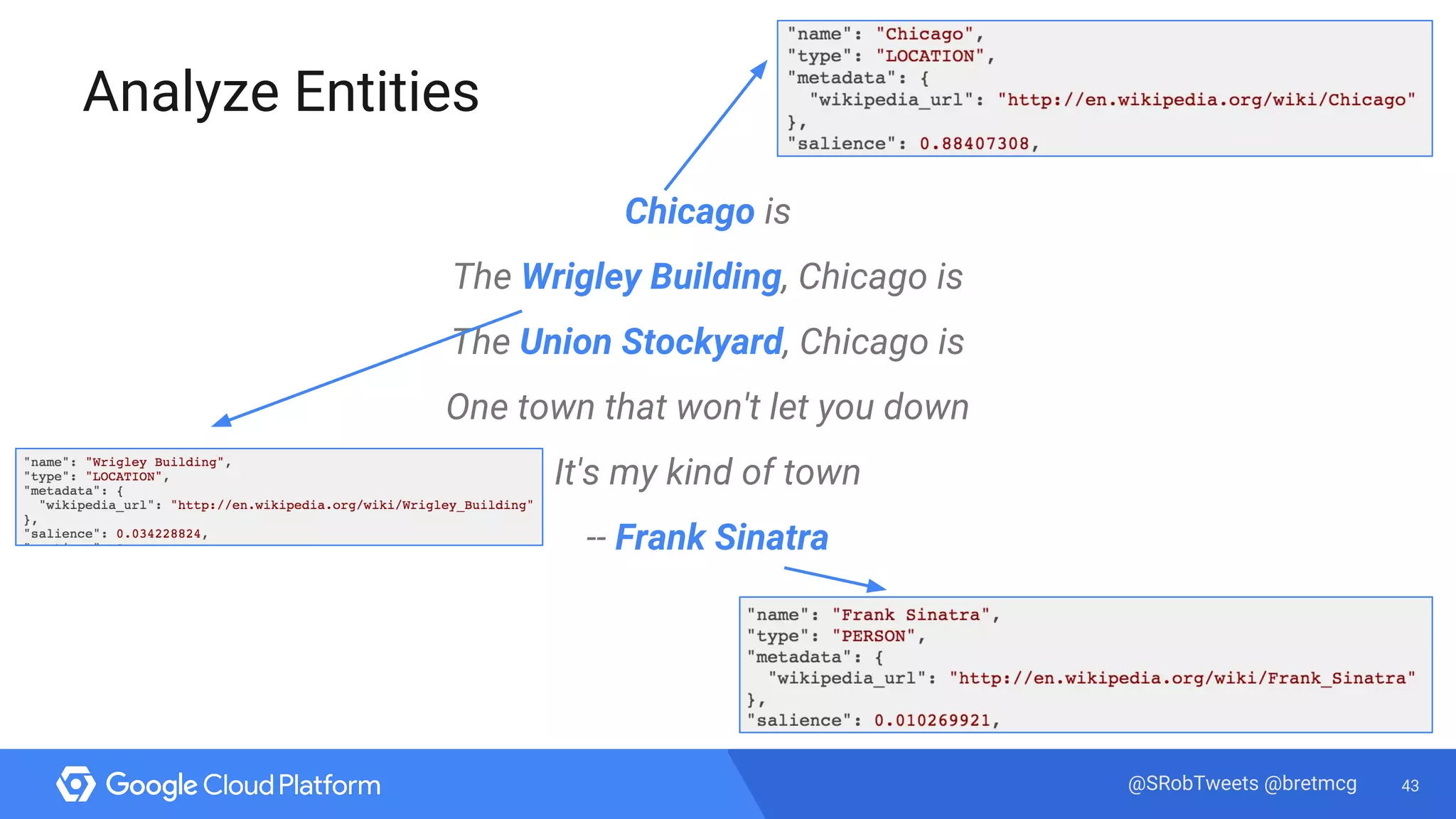

43. 43@SRobTweets @bretmcg
Analyze Entities
Chicago is
The Wrigley Building, Chicago is
The Union Stockyard, Chicago is
One town that won't let you down
It's my kind of town
-- Frank Sinatra

44. 44@SRobTweets @bretmcg

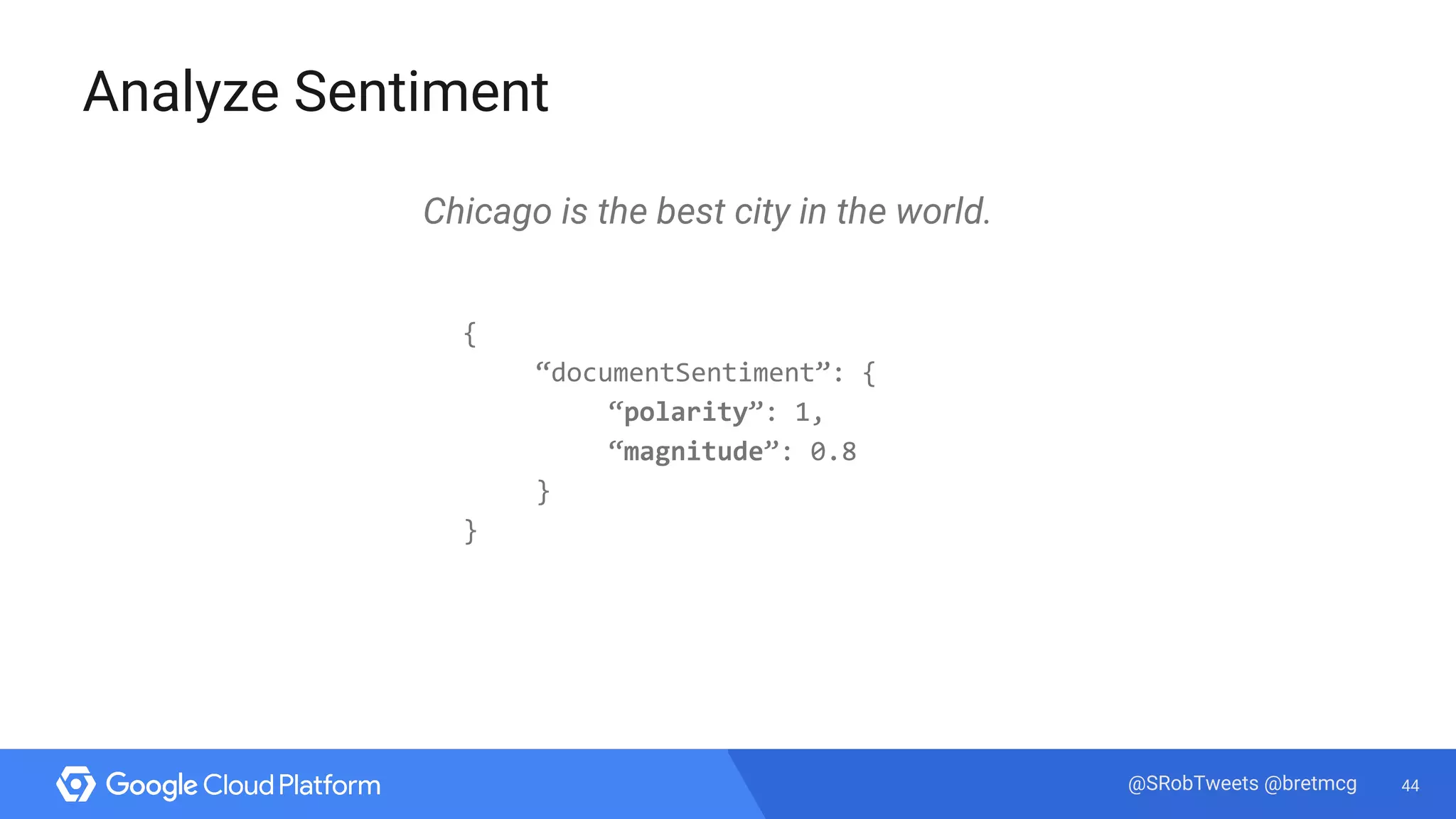

Analyze Sentiment
Chicago is the best city in the world.
{
“documentSentiment”: {
“polarity”: 1,
“magnitude”: 0.8
}
}

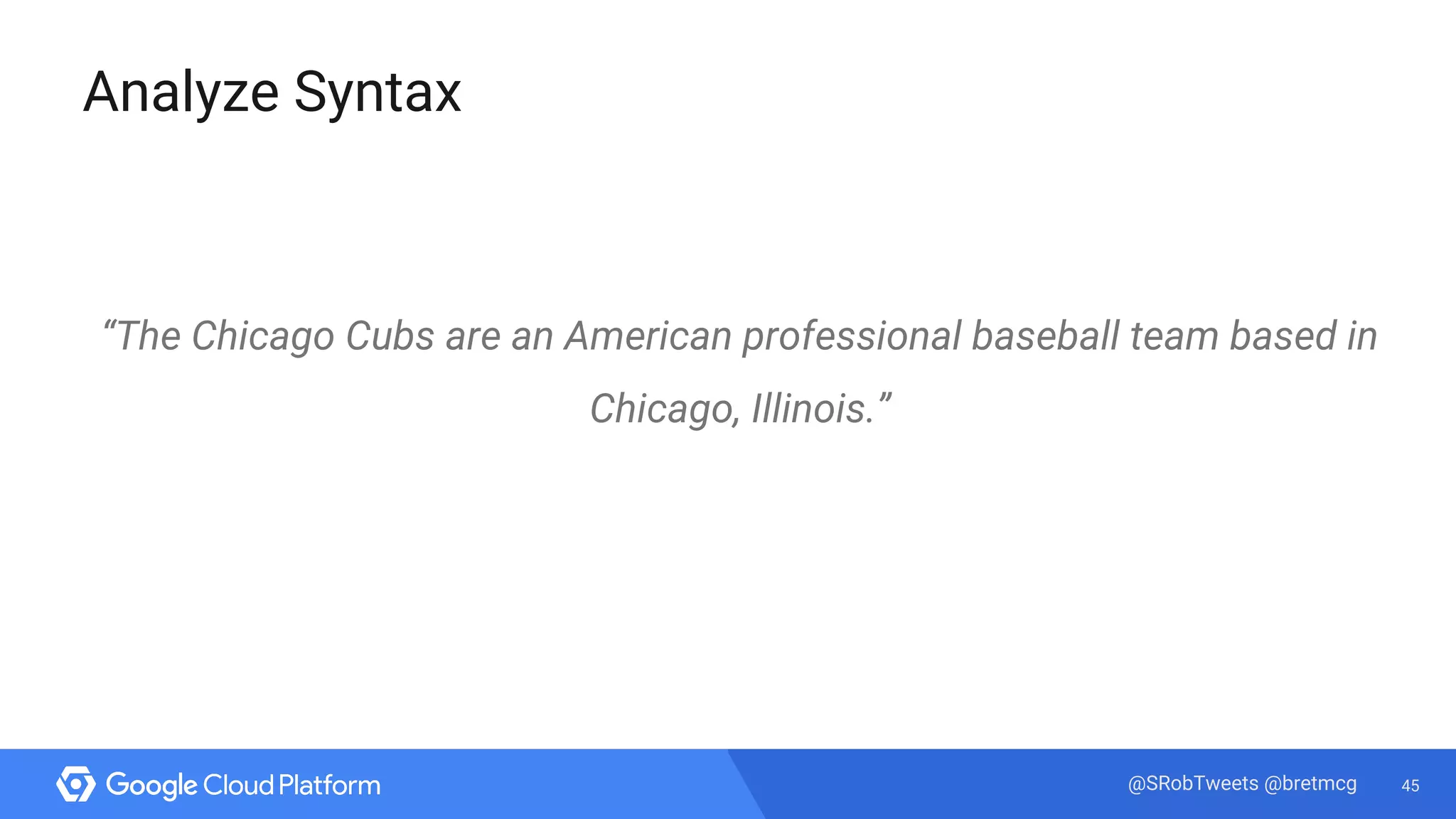

45. 45@SRobTweets @bretmcg
Analyze Syntax
“The Chicago Cubs are an American professional baseball team based in
Chicago, Illinois.”

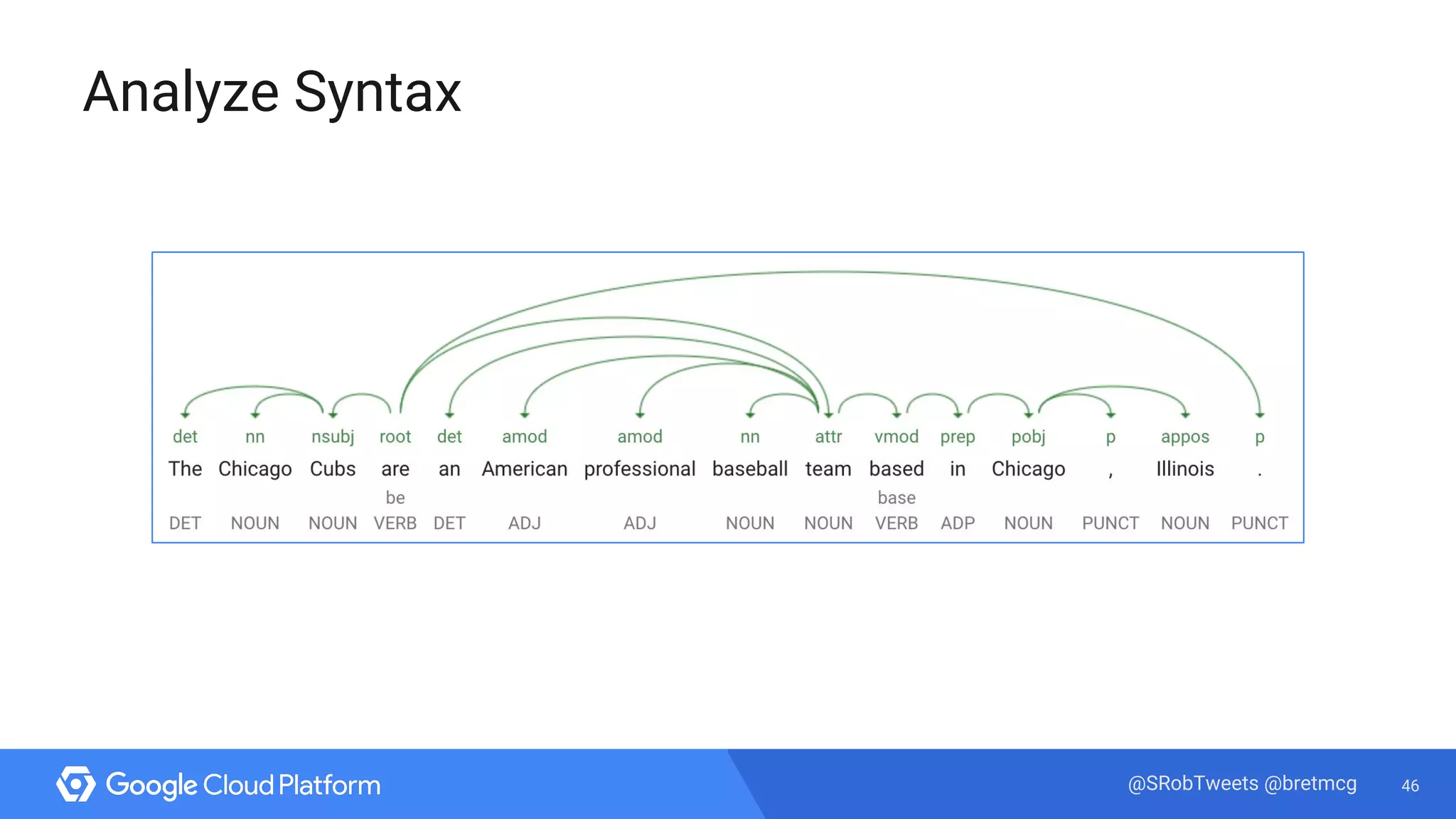

46. 46@SRobTweets @bretmcg
Analyze Syntax

47. 47@SRobTweets @bretmcg

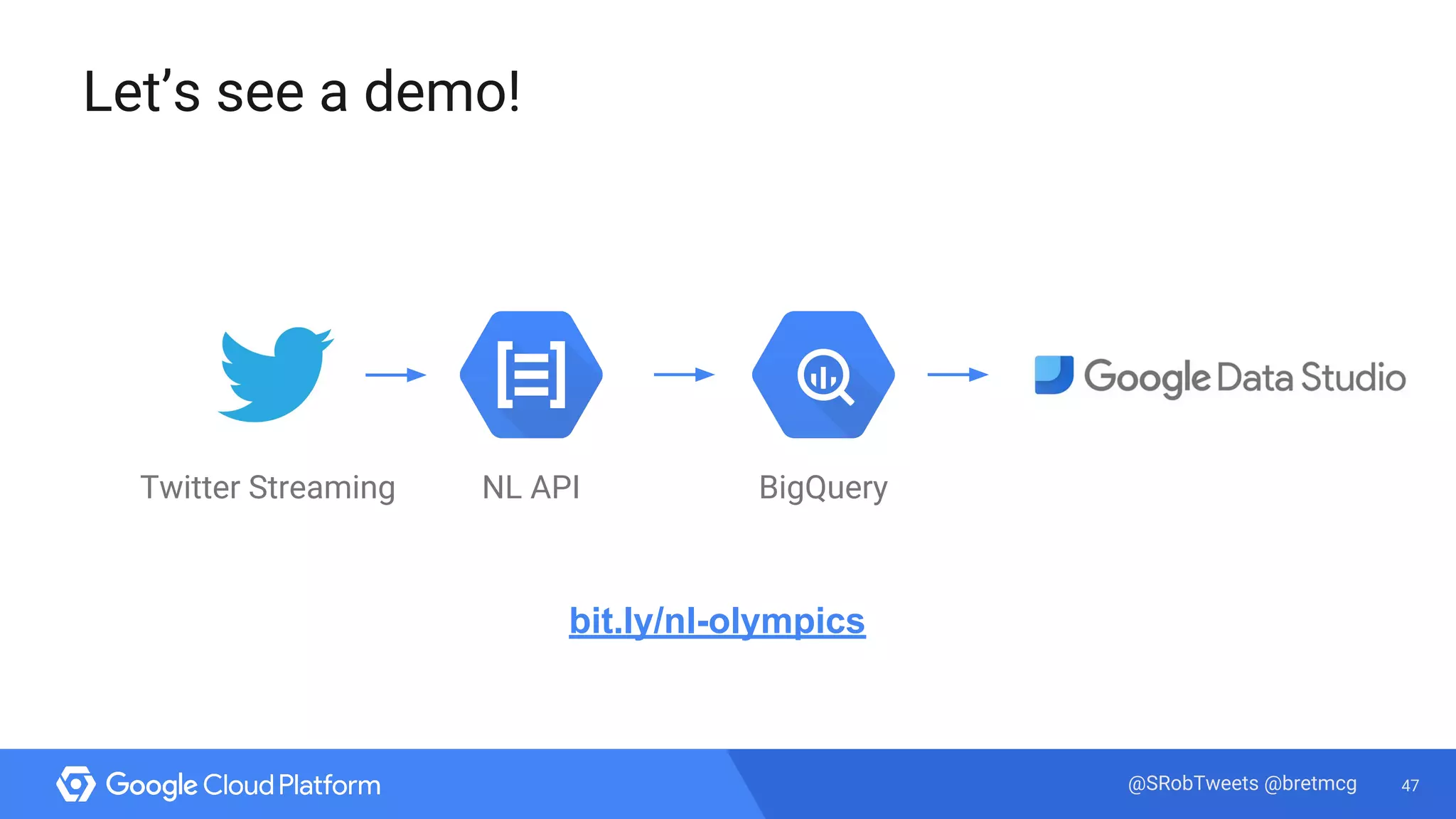

Let’s see a demo!
Twitter Streaming NL API BigQuery
bit.ly/nl-olympics

48. 48@SRobTweets @bretmcg
APIs we covered
● Vision: cloud.google.com/vision
● Speech: cloud.google.com/speech
● Natural Language: cloud.google.com/natural-language
Related APIs:
● Translate: cloud.google.com/translate
● Prediction: cloud.google.com/prediction
● Knowledge Graph API: developers.google.com/knowledge-graph

49. Thank You
Sara Robinson
@SRobTweets
Bret McGowen
@bretmcg
