The document provides information about the Kota Super Thermal Power Station (KSTPS) in Kota, India. It discusses the power generation capacity of KSTPS in stages from 2x110 MW initially to a final stage of 1x195 MW. It describes the basic layout and circuits of the power station including the fuel and ash circuit, air and gas circuit, feedwater and steam circuit, and cooling water circuit. It also provides details about the coal handling plant, ash handling plant, and location, land, water, and coal requirements of KSTPS.
A Presentation on Kota Super Thermal Power StationLekhraJ Meena
The document provides information about the Kota Super Thermal Power Plant in India including its establishment, generation capacity, units and their installation details. It describes the main components of the plant including the coal handling plant, boiler, superheater, steam turbine, generator, water treatment plant, ash handling plant and control room. The coal handling plant section explains the wagon unloading, crushing and conveying systems. The document also provides diagrams to illustrate the layout and processes of the power plant.
A best ppt on kota super thermal power stationNaveen Kumar
Kota Super Thermal Power Station (KSTPS) is located in Kota, Rajasthan. It has a total generation capacity of 1240 MW across 7 stages of power production. Coal is used as fuel and is supplied by Coal India Limited. The presentation discusses the general layout and various key components of the power plant including the coal handling plant, boiler, ash handling plant, steam turbine, electricity generator, cooling system, transformer, and control panel. KSTPS uses a water tube boiler and produces electricity through a steam turbine connected to a generator.
The document is a presentation on a practical training and industrial visit to the Kota Super Thermal Power Station in India. It summarizes the key details of the power station in 3 points:
1) The power station has a total installed capacity of 1240 MW and uses coal as its fuel source, sourced from nearby mines. It employs a steam turbine generator system to convert the heat from combustion into electrical power.
2) The power station's operations include a coal handling plant to receive and transport coal via rail, a boiler to produce high pressure steam from coal combustion, a steam turbine to convert steam power into rotational energy, and generators to convert this into electrical power.
3) Ash handling is also
This document provides an overview of the Kota Thermal Power Station (KSTPS) in India. It discusses the power generation units and auxiliaries used at KSTPS. The station uses coal from nearby mines as fuel and water from the Chambal River for cooling. It has a total installed capacity of 1240MW across 7 units of varying sizes installed in stages. The document describes the key components and processes of the coal handling plant and ash handling plant that supply fuel and remove waste from the power generation process.
A thermal power station is a power station in which heat energy is converted to electric power. In most of the places in the world the turbine is steam-driven. Water is heated, turns into steam and spins a steam turbine which drives an electrical generator.
This document provides an overview of the Kota Super Thermal Power Station located on the Chambal river in Kota, India. It has a total installed capacity of 1240MW across 7 units of varying sizes commissioned between 1983-2009. The power station uses a coal-fired thermal process, with key components including the coal handling plant, boiler, superheater, steam turbine, economizer, generator, water treatment plant, and ash handling plant. It benefits from abundant cooling water from the river and good transportation access for coal and industry in the local region.
A Presentation on Kota Super Thermal Power StationLekhraJ Meena
The document provides information about the Kota Super Thermal Power Plant in India including its establishment, generation capacity, units and their installation details. It describes the main components of the plant including the coal handling plant, boiler, superheater, steam turbine, generator, water treatment plant, ash handling plant and control room. The coal handling plant section explains the wagon unloading, crushing and conveying systems. The document also provides diagrams to illustrate the layout and processes of the power plant.
A best ppt on kota super thermal power stationNaveen Kumar
Kota Super Thermal Power Station (KSTPS) is located in Kota, Rajasthan. It has a total generation capacity of 1240 MW across 7 stages of power production. Coal is used as fuel and is supplied by Coal India Limited. The presentation discusses the general layout and various key components of the power plant including the coal handling plant, boiler, ash handling plant, steam turbine, electricity generator, cooling system, transformer, and control panel. KSTPS uses a water tube boiler and produces electricity through a steam turbine connected to a generator.
The document is a presentation on a practical training and industrial visit to the Kota Super Thermal Power Station in India. It summarizes the key details of the power station in 3 points:
1) The power station has a total installed capacity of 1240 MW and uses coal as its fuel source, sourced from nearby mines. It employs a steam turbine generator system to convert the heat from combustion into electrical power.
2) The power station's operations include a coal handling plant to receive and transport coal via rail, a boiler to produce high pressure steam from coal combustion, a steam turbine to convert steam power into rotational energy, and generators to convert this into electrical power.
3) Ash handling is also
This document provides an overview of the Kota Thermal Power Station (KSTPS) in India. It discusses the power generation units and auxiliaries used at KSTPS. The station uses coal from nearby mines as fuel and water from the Chambal River for cooling. It has a total installed capacity of 1240MW across 7 units of varying sizes installed in stages. The document describes the key components and processes of the coal handling plant and ash handling plant that supply fuel and remove waste from the power generation process.
A thermal power station is a power station in which heat energy is converted to electric power. In most of the places in the world the turbine is steam-driven. Water is heated, turns into steam and spins a steam turbine which drives an electrical generator.
This document provides an overview of the Kota Super Thermal Power Station located on the Chambal river in Kota, India. It has a total installed capacity of 1240MW across 7 units of varying sizes commissioned between 1983-2009. The power station uses a coal-fired thermal process, with key components including the coal handling plant, boiler, superheater, steam turbine, economizer, generator, water treatment plant, and ash handling plant. It benefits from abundant cooling water from the river and good transportation access for coal and industry in the local region.
This document describes the key components and processes involved in a thermal power plant. Water is heated to produce steam, which spins turbines connected to generators to produce electricity. The main components are the boiler, turbines, condenser, cooling tower and auxiliary systems. Coal is pulverized and burned in the boiler to heat water and produce high pressure steam. The steam powers high, intermediate and low pressure turbines in succession to generate electricity before being condensed back into water in the condenser. The water is cooled in the cooling tower and recycled to the boiler to repeat the process.
The Kota Super Thermal Power Station is a coal-based steam plant located on the left bank of the Chambal River in Kota, Rajasthan. It has a total generation capacity of 1240MW from 7 units and requires 250 hectares of land. The first unit was commissioned in 1983. Coal is transported by rail from nearby mines and handles about 3074 tonnes per day. The plant has a coal handling system, boilers, turbines, generators, cooling system, water treatment plant, and ash handling facilities. It supplies power to various cities in Rajasthan.
The document provides an overview of the practical training completed at the Government Engineering College in Jhalawar, India. It summarizes the key components of the 1200 MW Kalisindh Super Thermal Power Project, including: (1) the coal handling plant that processes 56 lakh tons of coal per year, (2) the 600 ton per hour boiler that converts water to high pressure steam, and (3) the 600 MW steam turbine powered generator that produces electricity. It concludes with brief descriptions of other essential parts of the power plant like the ash handling system, cooling towers, and electrical switchyard.
This presentation summarizes information about the Thermal Power Station in Muzafargarh, Pakistan. The key points are:
- The power station has a total installed capacity of 1350 MW generated across 6 units powered by natural gas and furnace oil.
- It uses a Rankine cycle to generate steam from heated water to power turbines and generate electricity.
- The presentation describes the typical components and processes within a thermal power plant, including boilers, turbines, generators, and cooling systems.
- Muzafargarh power station is a major source of electricity in Pakistan's national grid and is operated by the Pakistan Electric Power Company.
This document provides information about Harsh Kumar's summer training project at the National Thermal Power Corporation (NTPC) Dadri power plant in India. It includes:
- An overview of NTPC as the largest power company in India, operating coal and gas-fired thermal power plants.
- Details of the NTPC Dadri plant, which has both coal and gas-fired units totaling 2,642 MW capacity.
- Descriptions of the key components and processes within a thermal power plant, including the coal handling plant, mills, boilers, turbines and generators.
- An explanation of the basic thermal power plant cycle that converts fuel energy to electrical energy.
Presentation on Kota super Thermal Power Stationpukhraj palariya
The document provides information about the Kota Super Thermal Power Station (KSTPS) in Kota, Rajasthan. It discusses the key stages and features of the power station, including that it began operations in 1983, has a total generation capacity of 1240 MW from 7 units, and sources coal from local mines to power its boilers. The power station uses a steam turbine generator process to convert the thermal energy of steam into electrical energy.
vocational training report on CSPGCL korba, chhattisgarhsahilthakur03
This document provides details about a vocational training project on thermal power plants conducted at the Hasdev Thermal Power Station in Korba, India from July 3rd to August 2nd, 2017. It includes an introduction to the power station, indexes various sections to be covered, and acknowledges those who supported and guided the training project.
The document discusses the Kalisindh Thermal Power Station (KaTPP) located in Jhalawar district, Rajasthan, India. It has an installed capacity of 1200 MW from two 600 MW coal-based units. Coal is sourced from nearby mines and water comes from the Kalisindh Dam. The coal is crushed and fed into boilers to produce steam, which powers turbines connected to generators to produce electricity. The electricity is transmitted through a switchyard before being distributed.
This document provides an overview of the Kota Super Thermal Power Station located in Kota, Rajasthan, India. It discusses the key reasons for locating the power station in Kota, including the availability of cooling water from the Chambal River and proximity to coal fields. The presentation describes the design and layout of the power station and its various units. It also provides details on the coal handling plant, turbines, generators, transformers, and other major components. The document aims to educate about the functioning and components of the thermal power station.
A thermal power plant converts the heat energy of coal into electrical energy. Coal is burnt in a boiler to produce steam which drives a steam turbine connected to a generator. Thermal power plants provide the majority of electricity in India. The key components of a thermal power plant include the coal handling system, pulverizers, draft fans, boiler, turbine, condenser, cooling towers, feedwater heaters and others. Thermal power has advantages of using cheap fuel and low initial costs but has disadvantages of polluting the atmosphere. Large thermal power plants in Gujarat include Mundra, Wanakbori and Ukai.
The Vindhyachal Thermal Power Station is located in Singrauli district in the Indian state of Madhya Pradesh. One of the coal-fired power stations of NTPC, it is the largest power station in India, with an installed capacity of 4,760 MW. The coal for the power plant is sourced from Nigahi mines, and the water is sourced from the discharge canal of Singrauli Super Thermal Power Station
Ntpc (national thermal power corporation) sipat mechanical vocational trainin...haxxo24
This document is a summer training project report submitted by Dinesh Kumar, a mechanical engineering student, on his vocational training at the National Thermal Power Corporation Sipat power plant in Chhattisgarh, India. The report provides an overview of NTPC Sipat, including its location, installed capacity, use of supercritical technology, and environmental management practices. It also describes the basic Rankine cycle used in thermal power plants, the major sub-systems of a power plant such as the coal handling plant, mills, water treatment plant and boiler, and includes diagrams of a typical power plant layout and the interior of a bowl mill.
TPS training report Gandhinagar, coal base power plant vishal patel
This document provides an overview of a practical training report submitted by two students for their Bachelor of Engineering degree in Mechanical Engineering. It includes an introduction to the power plant where they conducted their training, describing its key components like the boiler, coal mill, draught system and more. Diagrams are provided to illustrate the typical processes used in a coal-fired thermal power station.
CESC, established in 1899, was the first thermal power generation company in India. It supplies power to the city of Kolkata and surrounding areas, serving over 2.4 million people. One of CESC's generating stations is the Southern Generating Station (SGS), located in Kolkata. SGS has two units with a generating capacity of 67.5 MW each, for a total capacity of 135 MW. It uses pulverized coal to power its boilers and generate electricity, which is then supplied to CESC's distribution network. SGS has achieved several performance milestones and certifications related to efficiency, environmental standards, and safety. It utilizes modern equipment and control systems to optimize power generation.
This document provides an overview of a summer training presentation on the Kota Super Thermal Power Station (KSTPS) in Kota, India. It describes the key components of the power plant including its 1240 MW total generating capacity. It outlines the plant's four main circuits for coal/ash, air/flue gas, feed water/steam, and cooling water. It also provides details on the boiler, water treatment plant, economizer, air preheater, superheater, condenser, deaerator, steam turbine, and generator.
Project report of kota super thermal power plantHîmãńshu Mêęńä
This document provides a summary of a practical training report submitted by Himanshu Derwal at the Kota Super Thermal Power Station from June 1-30, 2013. The report describes the power station's layout and key components including the coal handling plant, ash handling plant, boiler, steam turbine, turbo generator, cooling system, water treatment plant, and control room. It provides technical details and specifications of the various units and aims to document the practical experience and knowledge gained during the training.
Thermal Power plant visit Report by Amit Hingeamit307
The document is an industrial visit report on Paras Thermal Power Plant in Akola, India. It provides an overview of the key components and processes of a coal-fired thermal power plant, including coal preparation, boilers, turbines, generators, condensers and cooling towers. Paras Thermal Power Plant is one of the oldest power plants owned by Maharashtra State Power Generation Company, with the first units installed in 1961. It has since been upgraded with newer 250MW units. The report serves to explain the functioning and technical aspects of thermal power generation to students who visited the plant.
This training report summarizes Pratik Gupta's vocational training at the SIPAT Super Thermal Power Project. It provides details on the production of electricity at a thermal power plant. Coal is ground and blown into boilers where it burns, heating water in tubes to produce high pressure steam. The steam powers turbines connected to generators, producing electricity. The steam is then condensed back into water in condensers to be reused in the cycle. The report outlines the key components and processes involved in electricity generation at a coal-fired thermal power station.
SUMMER INTERNSHIP(INDUSTRAIL REPORT) ON THERMAL POWER PLANT Amit Gupta
The document describes the key components and processes involved in a typical coal-fired thermal power plant, including coal handling, pulverizing, combustion in the boiler, steam generation, power generation in the turbine, and condensing spent steam. It also provides details on equipment like draft fans, superheaters, reheaters, the ash handling system, feedwater heaters, and installed capacity of thermal power plants in Rajasthan.
1. The presentation summarizes the key features of the Kota Super Thermal Power Station (KSTPS) located in Sakatpura, Kota. KSTPS has a total installed capacity of 1240 MW and uses coal as its primary fuel source.
2. The power station operates via five stages, with the first two units producing 110 MW each and subsequent units producing 210 MW and 195 MW. It utilizes various equipment for coal handling, crushing, pulverizing, steam generation, and power production.
3. KSTPS feeds power into the electrical grid through its switchyard, which includes components like isolators, lightning arresters, busbars, and transformers to handle and distribute the generated electricity
Kota super thermal power plant training reportAvinash Kumawat
Kota Thermal Power Station (KTPS) has a total installed capacity of 1240 MW across 5 stages. Coal is the primary fuel and is supplied by rail from mines located 800-950 km away. The coal handling plant receives coal by train, unloads it using wagon triplers, and uses crushers and conveyor belts to transport the crushed coal to the boilers. The plant has 4 main circuits - fuel and ash, air and gas, feedwater and steam, and cooling water. Coal is the key fuel source and its efficient handling and processing is crucial to the operation of the thermal power station.
The document provides an overview of the Kota Super Thermal Power Station (KSTPS) in India. It discusses the power generation capacity of KSTPS in multiple stages totaling 1,195 MW. The key components described include the coal handling plant, ash handling plant, electrostatic precipitator, boiler, and draft system. The coal handling plant conveys and stores coal delivered by train. The boiler converts the chemical energy of coal into steam using a pulverized fuel system. The electrostatic precipitator removes fly ash from flue gases before emission. Forced draft and induced draft fans provide air flow into and out of the boiler furnace.
This document describes the key components and processes involved in a thermal power plant. Water is heated to produce steam, which spins turbines connected to generators to produce electricity. The main components are the boiler, turbines, condenser, cooling tower and auxiliary systems. Coal is pulverized and burned in the boiler to heat water and produce high pressure steam. The steam powers high, intermediate and low pressure turbines in succession to generate electricity before being condensed back into water in the condenser. The water is cooled in the cooling tower and recycled to the boiler to repeat the process.
The Kota Super Thermal Power Station is a coal-based steam plant located on the left bank of the Chambal River in Kota, Rajasthan. It has a total generation capacity of 1240MW from 7 units and requires 250 hectares of land. The first unit was commissioned in 1983. Coal is transported by rail from nearby mines and handles about 3074 tonnes per day. The plant has a coal handling system, boilers, turbines, generators, cooling system, water treatment plant, and ash handling facilities. It supplies power to various cities in Rajasthan.
The document provides an overview of the practical training completed at the Government Engineering College in Jhalawar, India. It summarizes the key components of the 1200 MW Kalisindh Super Thermal Power Project, including: (1) the coal handling plant that processes 56 lakh tons of coal per year, (2) the 600 ton per hour boiler that converts water to high pressure steam, and (3) the 600 MW steam turbine powered generator that produces electricity. It concludes with brief descriptions of other essential parts of the power plant like the ash handling system, cooling towers, and electrical switchyard.
This presentation summarizes information about the Thermal Power Station in Muzafargarh, Pakistan. The key points are:
- The power station has a total installed capacity of 1350 MW generated across 6 units powered by natural gas and furnace oil.
- It uses a Rankine cycle to generate steam from heated water to power turbines and generate electricity.
- The presentation describes the typical components and processes within a thermal power plant, including boilers, turbines, generators, and cooling systems.
- Muzafargarh power station is a major source of electricity in Pakistan's national grid and is operated by the Pakistan Electric Power Company.
This document provides information about Harsh Kumar's summer training project at the National Thermal Power Corporation (NTPC) Dadri power plant in India. It includes:
- An overview of NTPC as the largest power company in India, operating coal and gas-fired thermal power plants.
- Details of the NTPC Dadri plant, which has both coal and gas-fired units totaling 2,642 MW capacity.
- Descriptions of the key components and processes within a thermal power plant, including the coal handling plant, mills, boilers, turbines and generators.
- An explanation of the basic thermal power plant cycle that converts fuel energy to electrical energy.
Presentation on Kota super Thermal Power Stationpukhraj palariya
The document provides information about the Kota Super Thermal Power Station (KSTPS) in Kota, Rajasthan. It discusses the key stages and features of the power station, including that it began operations in 1983, has a total generation capacity of 1240 MW from 7 units, and sources coal from local mines to power its boilers. The power station uses a steam turbine generator process to convert the thermal energy of steam into electrical energy.
vocational training report on CSPGCL korba, chhattisgarhsahilthakur03
This document provides details about a vocational training project on thermal power plants conducted at the Hasdev Thermal Power Station in Korba, India from July 3rd to August 2nd, 2017. It includes an introduction to the power station, indexes various sections to be covered, and acknowledges those who supported and guided the training project.
The document discusses the Kalisindh Thermal Power Station (KaTPP) located in Jhalawar district, Rajasthan, India. It has an installed capacity of 1200 MW from two 600 MW coal-based units. Coal is sourced from nearby mines and water comes from the Kalisindh Dam. The coal is crushed and fed into boilers to produce steam, which powers turbines connected to generators to produce electricity. The electricity is transmitted through a switchyard before being distributed.
This document provides an overview of the Kota Super Thermal Power Station located in Kota, Rajasthan, India. It discusses the key reasons for locating the power station in Kota, including the availability of cooling water from the Chambal River and proximity to coal fields. The presentation describes the design and layout of the power station and its various units. It also provides details on the coal handling plant, turbines, generators, transformers, and other major components. The document aims to educate about the functioning and components of the thermal power station.
A thermal power plant converts the heat energy of coal into electrical energy. Coal is burnt in a boiler to produce steam which drives a steam turbine connected to a generator. Thermal power plants provide the majority of electricity in India. The key components of a thermal power plant include the coal handling system, pulverizers, draft fans, boiler, turbine, condenser, cooling towers, feedwater heaters and others. Thermal power has advantages of using cheap fuel and low initial costs but has disadvantages of polluting the atmosphere. Large thermal power plants in Gujarat include Mundra, Wanakbori and Ukai.
The Vindhyachal Thermal Power Station is located in Singrauli district in the Indian state of Madhya Pradesh. One of the coal-fired power stations of NTPC, it is the largest power station in India, with an installed capacity of 4,760 MW. The coal for the power plant is sourced from Nigahi mines, and the water is sourced from the discharge canal of Singrauli Super Thermal Power Station
Ntpc (national thermal power corporation) sipat mechanical vocational trainin...haxxo24
This document is a summer training project report submitted by Dinesh Kumar, a mechanical engineering student, on his vocational training at the National Thermal Power Corporation Sipat power plant in Chhattisgarh, India. The report provides an overview of NTPC Sipat, including its location, installed capacity, use of supercritical technology, and environmental management practices. It also describes the basic Rankine cycle used in thermal power plants, the major sub-systems of a power plant such as the coal handling plant, mills, water treatment plant and boiler, and includes diagrams of a typical power plant layout and the interior of a bowl mill.
TPS training report Gandhinagar, coal base power plant vishal patel
This document provides an overview of a practical training report submitted by two students for their Bachelor of Engineering degree in Mechanical Engineering. It includes an introduction to the power plant where they conducted their training, describing its key components like the boiler, coal mill, draught system and more. Diagrams are provided to illustrate the typical processes used in a coal-fired thermal power station.
CESC, established in 1899, was the first thermal power generation company in India. It supplies power to the city of Kolkata and surrounding areas, serving over 2.4 million people. One of CESC's generating stations is the Southern Generating Station (SGS), located in Kolkata. SGS has two units with a generating capacity of 67.5 MW each, for a total capacity of 135 MW. It uses pulverized coal to power its boilers and generate electricity, which is then supplied to CESC's distribution network. SGS has achieved several performance milestones and certifications related to efficiency, environmental standards, and safety. It utilizes modern equipment and control systems to optimize power generation.
This document provides an overview of a summer training presentation on the Kota Super Thermal Power Station (KSTPS) in Kota, India. It describes the key components of the power plant including its 1240 MW total generating capacity. It outlines the plant's four main circuits for coal/ash, air/flue gas, feed water/steam, and cooling water. It also provides details on the boiler, water treatment plant, economizer, air preheater, superheater, condenser, deaerator, steam turbine, and generator.
Project report of kota super thermal power plantHîmãńshu Mêęńä
This document provides a summary of a practical training report submitted by Himanshu Derwal at the Kota Super Thermal Power Station from June 1-30, 2013. The report describes the power station's layout and key components including the coal handling plant, ash handling plant, boiler, steam turbine, turbo generator, cooling system, water treatment plant, and control room. It provides technical details and specifications of the various units and aims to document the practical experience and knowledge gained during the training.
Thermal Power plant visit Report by Amit Hingeamit307
The document is an industrial visit report on Paras Thermal Power Plant in Akola, India. It provides an overview of the key components and processes of a coal-fired thermal power plant, including coal preparation, boilers, turbines, generators, condensers and cooling towers. Paras Thermal Power Plant is one of the oldest power plants owned by Maharashtra State Power Generation Company, with the first units installed in 1961. It has since been upgraded with newer 250MW units. The report serves to explain the functioning and technical aspects of thermal power generation to students who visited the plant.
This training report summarizes Pratik Gupta's vocational training at the SIPAT Super Thermal Power Project. It provides details on the production of electricity at a thermal power plant. Coal is ground and blown into boilers where it burns, heating water in tubes to produce high pressure steam. The steam powers turbines connected to generators, producing electricity. The steam is then condensed back into water in condensers to be reused in the cycle. The report outlines the key components and processes involved in electricity generation at a coal-fired thermal power station.
SUMMER INTERNSHIP(INDUSTRAIL REPORT) ON THERMAL POWER PLANT Amit Gupta
The document describes the key components and processes involved in a typical coal-fired thermal power plant, including coal handling, pulverizing, combustion in the boiler, steam generation, power generation in the turbine, and condensing spent steam. It also provides details on equipment like draft fans, superheaters, reheaters, the ash handling system, feedwater heaters, and installed capacity of thermal power plants in Rajasthan.
1. The presentation summarizes the key features of the Kota Super Thermal Power Station (KSTPS) located in Sakatpura, Kota. KSTPS has a total installed capacity of 1240 MW and uses coal as its primary fuel source.
2. The power station operates via five stages, with the first two units producing 110 MW each and subsequent units producing 210 MW and 195 MW. It utilizes various equipment for coal handling, crushing, pulverizing, steam generation, and power production.
3. KSTPS feeds power into the electrical grid through its switchyard, which includes components like isolators, lightning arresters, busbars, and transformers to handle and distribute the generated electricity
Kota super thermal power plant training reportAvinash Kumawat
Kota Thermal Power Station (KTPS) has a total installed capacity of 1240 MW across 5 stages. Coal is the primary fuel and is supplied by rail from mines located 800-950 km away. The coal handling plant receives coal by train, unloads it using wagon triplers, and uses crushers and conveyor belts to transport the crushed coal to the boilers. The plant has 4 main circuits - fuel and ash, air and gas, feedwater and steam, and cooling water. Coal is the key fuel source and its efficient handling and processing is crucial to the operation of the thermal power station.
The document provides an overview of the Kota Super Thermal Power Station (KSTPS) in India. It discusses the power generation capacity of KSTPS in multiple stages totaling 1,195 MW. The key components described include the coal handling plant, ash handling plant, electrostatic precipitator, boiler, and draft system. The coal handling plant conveys and stores coal delivered by train. The boiler converts the chemical energy of coal into steam using a pulverized fuel system. The electrostatic precipitator removes fly ash from flue gases before emission. Forced draft and induced draft fans provide air flow into and out of the boiler furnace.
Kota Super Thermal Power Station (KSTPS) in Kota, India has four stages with a total generation capacity of 1,045 MW. Stage I has two 110 MW units, Stage II has two 210 MW units, Stage III has one 210 MW unit, and Stage IV has one 195 MW unit. A fifth 195 MW unit in Stage V is under construction. KSTPS uses coal from nearby mines to produce steam that drives turbines to generate electricity. Cooling water is drawn from the Chambal River reservoir. The plant has four main circuits: fuel and ash, air and gas, feedwater and steam, and cooling water.
The document provides an overview of the Kota Thermal Power Station (KSTPS) in India. Key points:
1. KSTPS has a total generation capacity of 1240 MW across 5 stages, with coal being its primary fuel source transported via rail.
2. The plant layout consists of 4 main circuits - fuel and ash, air and gas, feedwater and steam, and cooling water.
3. The coal handling process involves unloading coal from trains via wagon tipplers, crushing the coal, and conveying it via belts to the boilers for combustion.
(1) The document discusses the Chhabra Thermal Power Plant located in Baran, Rajasthan, India. It has a total installed capacity of 1000 MW across 4 units, with 2 additional supercritical units of 660 MW each under construction.
(2) The plant uses a coal handling system to transport coal via railway to the plant where it is pulverized and fired into the boiler to produce steam. This steam powers the steam turbine which drives the generator to produce electricity.
(3) The plant also has various auxiliary systems including water treatment, ash handling, flue gas cleaning, and switchyard systems to transmit the generated power.
The document provides technical details about Mejia Thermal Power Station (MTPS) in Bankura, West Bengal, India. MTPS has a total installed capacity of 2340MW generated across 8 units, with 4 units of 210MW each, 2 units of 250MW each, and 2 units of 500MW each. The document describes the various components that make up the thermal power generation process at MTPS, including the coal handling plant, water treatment plant, boilers, turbines, generators, transformers, and cooling towers.
The Kota Super Thermal Power Station is a 1240MW coal power plant located in Kota, Rajasthan. It uses a steam turbine generator system fueled by coal. Coal is transported via a conveyor system to the boiler, where it is burned to produce steam that drives the turbine generator. The steam is then condensed in condensers using cooling water from the Chambal River. Fly ash from combustion is captured and can be used for products like cement or road construction. The power station began operating in 1983 and has since expanded in stages to its current capacity.
Ppt on power generation(thermal), transmission & distributionSuvamSahu2
The document provides information about electrical power generation at a thermal power plant (KTPS). It discusses the working principle, layout, main equipment, waste generated and their control, advantages and disadvantages. The main equipment discussed includes the coal handling plant, pulverizing plant, boiler, turbine, condenser, cooling towers/ponds, feed water heater, economizer, and air preheater. It also provides additional data about KTPS such as its generating capacity and types of circuit breakers used.
The document provides information about the Sanjay Gandhi Thermal Power Station located in Birsinghpur, India. It has a total installed capacity of 1340 MW distributed across 5 units ranging from 210-500 MW each. The power plant uses coal as its primary fuel sourced from local mines via rail. Water for the plant is sourced from the nearby Johila River and Dam. The plant has conventional systems for coal handling, steam generation in the boiler, power generation in the turbine, and effluent management. It provides key specifications and details of the various units and systems to run the thermal power generation process.
This document provides a summary of the vocational training report for Bakreswar Thermal Power Station submitted by Avijit Chowdhury. It begins with an acknowledgment and then provides details on the mechanical and electrical operations of the power plant over 7 pages, including sections on the coal handling plant, raw water system, demineralization plant, boiler and auxiliaries, electrostatic precipitator, ash handling plant, steam turbine, cooling water system, chimney, turbo generator, excitation system, transformers, switchyard, switchgear, protection system, unit auxiliary power, DC power system, and pollution and environment. The document concludes with an overview of the vocational training.
The document summarizes the key components and processes of the Kota Super Thermal Power Station in Rajasthan, India. It describes how coal is crushed and fed into boilers to produce superheated steam. The steam then rotates turbines connected to generators, producing electricity. The exhausted steam is condensed and recycled, and fly ash is captured. The power station has a total generation capacity of 1240 MW distributed across multiple stages and units.
1. The document provides an acknowledgement and thanks to various individuals and departments at NTPC Tanda for allowing the training and providing support and knowledge.
2. It then outlines the content which will be covered, including a brief description of the Tanda thermal project, production of electricity, description of the thermal plant, basic cycle of a power plant, control and instrumentation unit, and important equipment of the plant.
3. It begins describing the Tanda thermal project, providing its geographical location, features such as its installed capacity and suppliers, and performance metrics like its designed boiler efficiency.
Half of the electricity produced by CEB is produced by this Lakvijaya power plant
900MW power is generated from this plant.
Coal is exported from these countries such as indonesia, south africa, and Russiya.
Coal is transported from the jetty to the coal yard and from there to the main plant by a belt system.
Water spray methods are used to maintain moisture in coal
The coal bundles coming from the coal yard are pulverized well by some machines, mixed with air and released into the boiler.
There, the thermal energy generated by the combustion is absorbed by the tubes in the boiler and turns into steam
The electricity produced by the generators connected to the turbines is transmitted to the power stations through an h2 plant.
The gas coming out of coal combustion is first removed by ESP and then the harmful sulfur dioxide in the gas is removed by a device called FGD
The document provides information about Kolaghat Thermal Power Station located in West Bengal, India. It has six units totaling 1,260 MW capacity. The power plant uses a steam turbine process to convert the heat from burning coal into electrical energy. It describes the main equipment used including the coal handling plant, boiler, turbine, condenser, and electrical equipment like transformers and generators. The document provides technical specifications for many of the major components.
suratgarh thermal power station by mk yadavmukesh yadav
Suratgarh Thermal Power Station is a 1500 MW coal-fired power plant located in Rajasthan, India. It has 6 existing 250 MW units and 2 new 660 MW units under construction. The document provides details about the plant's layout, equipment, and processes. Key components discussed include the boiler, turbines, condenser, coal and ash handling systems, and generator. The plant uses a once-through boiler design operating at high pressure and temperature to produce steam that drives steam turbines connected to the generator, producing electricity. Ash is removed from the boiler using a hydraulic system and disposed of properly.
MSEB was set up in 1960 to generate, transmit and distribute power to all consumers in
Maharashtra excluding Mumbai. MSEB was the largest SEB in the country. The generation
capacity of MSEB has grown from 760 MW in 1960-61 to 9771 MW in 2001-02. The customer
base has grown from 1,07,833 in 1960-61 to 1,40,09,089 in 2001-02.
C.S.T.P.S in contribution much in field of production of electricity. It is not only number
one thermal power station in Asia but also has occupied specific position on the international
map.
The first set was commission on August 1983 & was dedicated to nation by then PM
(late) Mrs. Indira Gandhi & second set commission on July 1984. The third & fourth units of
CSTPS under stage 2 were commissioned on the 3rd May 1985 & 8th March 1986 respectively.
The units 5 & 6 were commissioned on the 22nd March 1991 & 11th March 1992 respectively one
more units of 500MW was added to the CSTPS on making its generation to 2340 MW &
making “C.S.T.P.S.” as the giant in Power Generation of CSTPS.
(Keshav) report file on kali sindh thermal power project, jhalawarKeshav Meena
This document provides an introduction and overview of the Kali Sindh Thermal Power Project (KSTPP) located in Jhalawar City, India. It discusses the key factors that make the site suitable for a power plant, including access to water from the Kali Sindh river, proximity to a railway station and transmission lines, and available land for ash disposal. The KSTPP currently has 2 units generating 1200 MW of power, with plans for 2 additional 660 MW units. The document then goes on to describe the general layout and basic systems of the plant, including the fuel, air/gas, feedwater/steam, and cooling water circuits. It provides details on the coal handling plant, including unloading
The document provides information about the Kota Super Thermal Power Station located in Kota, Rajasthan, India. It discusses the key processes and components of the power station, including how coal is crushed and fed into boilers to produce steam, how the steam rotates turbines connected to generators to produce electricity, and how ash is handled. The power station has a total net power generation capacity of 1240 MW produced across 5 stages using coal supplied by rail.
Project Report on “WORKING MODEL OF POWER GRID/SMART GRIDPrasant Kumar
Over a century of years ago, the power system has been developed into one of the predominantly complicated network viewed in human history. Due to the mounting of consumption demand, the modern electrical power grids are now increasing into a huge structure with various interconnected regional grids, owned and operated by Power Corporation at every height and hierarchy.
Due to dense attention, management and operation among various power companies periodically complex the cross-region transmission work and more time results in poor coordination and inefficient power delivery. So the conventional power grid in today’s world is facing some upcoming challenges.
As the demand and category of consumption increases, various types of modern technologies are introduced in power system, like the electric component charging system, distributed renewable energy generation, smart meters etc, that all work towards the complication of modern power delivery.
The day to day increasing dependence on electricity and growing need for power quality have been regularly asking for better power delivery, faster power restoration and more flexible pricing among others.
An electrical grid is an interconnected network for delivering electricity from suppliers to consumers. It consists of three main components power generation transmission and distribution.
This document provides an overview of the vocational training seminar on the Durgapur Steel Thermal Power Station in Andal, India. It discusses the key components and processes of a thermal power plant, including the Rankine cycle used to convert heat from coal into electrical power. The main parts of the plant are the coal handling plant, boiler, condenser, turbine, and desalination plant. The coal handling plant receives and prepares coal for use in the boilers, which convert water into high-pressure steam. The steam then drives the turbine, which turns a generator to produce electricity.
Similar to Kota Super Thermal Power Station Training report (20)
Ultrasonic metal welding uses high-frequency vibrations to weld materials together without melting them. The process involves applying vibrational energy from a transducer through a sonotrode to the materials being bonded. Key variables include clamping force, welding time, frequency, and amplitude. Ultrasonic welding can join dissimilar metals and is used to assemble electronics, make electrical connections, encapsulate parts, and in aircraft and nuclear applications.
Its the technological advancement in the field of one of the automobile accessories i.e. Head Light. By this system we can rotate the headlights of automobile vehicle on curved roads so that driver can easily see the curved road..:)
The document provides details on the design features of a bogie, including its frame, materials used, imported bogie items, suspensions, wheels, brakes, and problems reported. It describes the bogie's primary and secondary suspensions, which use springs, dampers, and other components to connect the wheel set to the bogie frame and vehicle body. The document also lists specifications, dimensions, and condemning limits for various bogie parts.
Presentation on the 'Loco Workshop' ,i.e. fabrication , assembly of parts and various departments such as dismantling, fabrication , assembly,etc..:):)
Indian Railways has a long history dating back to the 1850s when the first passenger train ran between Bombay and Thane. Over time, the network expanded and was initially run by private companies until most were nationalized in the early 1900s. By the 1940s, India had over 55,000 km of track with 42 separate railway systems. After independence in 1947, the railways were reorganized into zones to standardize operations. The document then provides details on the evolution of various railway companies in India and their merger into the zonal structure still used today by Indian Railways.
The document discusses the bogie, which is an independent unit used under coaches that is mounted on wheels. It provides details on various types of bogies used in India, including IRS, SCHLIEREN, MAN-HAL, ICF All Coiled, IR-20, and FIAT bogies. The ICF bogie continues to be produced and used widely. Key components of the ICF bogie are described, including the bolster, side bearers, center pivot, bogie frame, wheel/axle, body-bogie joint, and primary/secondary suspension systems. Limitations are noted regarding flexibilities, vertical space constraints, and headstock yaw inertia.
The document discusses various types of CASNUB bogies used in Indian railways. It provides details of the components and features of CASNUB -22W, -22W(M), -22W(Retrofitted), -22NL, -22NLB, -22NLM, and -22HS bogies. The bogies comprise side frames, a bolster, springs, a centre pivot arrangement, friction plates, and other components. The document also outlines inspection and maintenance criteria for key bogie components like the adapter and side frames.
The document summarizes the design features and components of a FIAT bogie used in rail vehicles. The bogie uses springs and dampers to transmit vertical, lateral and longitudinal forces from the vehicle body to the axles. An articulated control arm provides flexibility for curve negotiation. Key bogie components include wheelsets with a maximum diameter of 915mm, tapered roller bearings, a welded frame, primary springs and a control arm, and a complex secondary suspension system with nested springs, dampers and other elements. The bogie can support speeds of up to 160kph without modification and up to 200kph with minor changes.
This document provides details on the design features of a FIAT bogie used in Indian railways. It describes the main sub-systems of the bogie including the Y-frame bogie, wheelset, primary and secondary suspensions, braking system, and principles of force transmission. It also provides specifications of materials used, dimensions of wheelsets, suspension variants for different coach types, and performance parameters like speed limit and ride index.
The document discusses various types of bogies and suspension systems used in Indian railways. It provides details of the CASNUB bogie, including its general description and features. The CASNUB bogie assembly consists of various components like side frames, bolster, spring plank, wheels, axles, axle boxes, and center pivot arrangement. Construction and maintenance details are provided for each of these components. Wear limits and tolerances for replacement are also specified.
The document discusses the Indian Railways' consideration of using biodiesel as a traction fuel. It notes that Indian Railways consumes approximately 2 billion liters of diesel fuel annually. Biodiesel blended with petrodiesel can serve as an alternative fuel. The document outlines Indian Railways' diesel locomotive fleet, the key advantages of biodiesel, land requirements and raw material sources to produce enough biodiesel to meet their needs. It also discusses quality standards, initiatives in other countries, policies needed in India, research and development areas, and expectations of the biodiesel industry to support adopting biodiesel use.
The document provides details about Hindustan Machine Tools (HMT), a major Indian manufacturing company. Some key points:
- HMT was established in 1953 by the Indian government to produce machine tools and help build India's industrial base. It now has 16 manufacturing units across various states.
- The Ajmer unit focuses on grinding machine tools and was established in 1964. It has various departments like manufacturing, assembly, heat treatment, and more.
- HMT aims to be a leader in engineering globally through high quality products and customer satisfaction. It produces a wide range of machine tools and components for sectors like automotive, bearings, engineering etc.
- The document discusses the various departments and operations
This document provides an overview of PHP classes and object-oriented programming. It defines what a class is conceptually and how to define a class in PHP, including defining attributes and methods. It explains how to instantiate class objects and use their methods. The document also covers class inheritance, constructors, and the differences between PHP4 and PHP5 object models.
This document discusses the design and analysis of a magnetic suspension system prototype. It provides background on early magnetic suspension systems from 1966. The major components of electromagnetic suspension systems are described as linear motors, electromagnets, thrust bearings and frames. There are three primary types of maglev technologies: superconducting magnets, feedback controlled electromagnets, and newer permanent magnet systems. The research aim is to design, analyze and compare a magnetic suspension system prototype to other suspension systems. Various analyses are presented on simulation of the system without and with a damper to stabilize the system. Results and comments on the modeling and a conclusion are also provided.
Cimmco is a public company in India that has been manufacturing railway wagons, coaches, and industrial machinery since 1957. It produces over 2,000 railway vehicles and 14,000 metric tons of machinery per year. The railway wagons it manufactures are used to transport freight on Indian Railways and for industrial customers like power plants. The bogies that support the railway vehicles consist of components like the bolster, side bearers, swing links, and axles that are connected through a system of primary and secondary suspensions using springs and dampers. This allows the wheels to move independently while maintaining stability of the vehicle body.
The document discusses the suspension system of a vehicle, describing its basic parts like control arms, ball joints, springs, and shock absorbers, and explaining how they work together to support the vehicle's weight, provide a smooth ride, and allow for steering and cornering. It also covers different types of suspension systems like independent and non-independent suspensions, as well as how to inspect and maintain key suspension components.
This document provides information about Bharat Heavy Electricals Limited (BHEL), a major Indian engineering and manufacturing company. It states that BHEL was established in 1964 and engages in design, engineering, manufacturing, construction, testing, servicing, commissioning, transmission, and renewable energy projects. It has over 42,600 employees working across its 15 manufacturing divisions, 2 repair units, 4 regional offices, 8 service centers, and 15 regional centers. The document also provides details about BHEL's Jhansi plant and its locomotive, transformer, and pneumatic braking system products and capabilities.
This document provides an introduction to object-oriented programming concepts. It defines objects as instances of classes that encapsulate both data and methods. The core concepts discussed include:
1. Classes define the structure and behavior of objects.
2. Objects are instances of classes that have physical existence.
3. Inheritance allows new classes to inherit properties from parent classes.
4. Polymorphism means the same operation can take different forms depending on the types of objects involved.
This document provides five rules for creating great presentations:
1. Treat your audience as king by focusing on their needs and what they need to know.
2. Spread ideas and move around the room instead of staying in one place.
3. Help the audience understand what you want them to do by clearly stating calls to action.
4. Practice your presentation instead of just decorating slides with text.
5. Cultivate community by mobilizing people to take meaningful action.
Automobile fluid coupling and torque converterDeepak Solanki
1) The document discusses fluid couplings and torque converters used to transmit power between shafts without a rigid connection.
2) A fluid coupling uses an impeller and turbine runner enclosed in a casing filled with fluid. Torque is transmitted from the impeller to the turbine via centrifugal force on the fluid.
3) A torque converter is similar but can vary the output torque through a reaction vanes between the impeller and turbine. This allows torque and speed transformation between input and output shafts.
A review of the growth of the Israel Genealogy Research Association Database Collection for the last 12 months. Our collection is now passed the 3 million mark and still growing. See which archives have contributed the most. See the different types of records we have, and which years have had records added. You can also see what we have for the future.
This presentation includes basic of PCOS their pathology and treatment and also Ayurveda correlation of PCOS and Ayurvedic line of treatment mentioned in classics.
বাংলাদেশের অর্থনৈতিক সমীক্ষা ২০২৪ [Bangladesh Economic Review 2024 Bangla.pdf] কম্পিউটার , ট্যাব ও স্মার্ট ফোন ভার্সন সহ সম্পূর্ণ বাংলা ই-বুক বা pdf বই " সুচিপত্র ...বুকমার্ক মেনু 🔖 ও হাইপার লিংক মেনু 📝👆 যুক্ত ..
আমাদের সবার জন্য খুব খুব গুরুত্বপূর্ণ একটি বই ..বিসিএস, ব্যাংক, ইউনিভার্সিটি ভর্তি ও যে কোন প্রতিযোগিতা মূলক পরীক্ষার জন্য এর খুব ইম্পরট্যান্ট একটি বিষয় ...তাছাড়া বাংলাদেশের সাম্প্রতিক যে কোন ডাটা বা তথ্য এই বইতে পাবেন ...
তাই একজন নাগরিক হিসাবে এই তথ্য গুলো আপনার জানা প্রয়োজন ...।
বিসিএস ও ব্যাংক এর লিখিত পরীক্ষা ...+এছাড়া মাধ্যমিক ও উচ্চমাধ্যমিকের স্টুডেন্টদের জন্য অনেক কাজে আসবে ...
How to Fix the Import Error in the Odoo 17Celine George
An import error occurs when a program fails to import a module or library, disrupting its execution. In languages like Python, this issue arises when the specified module cannot be found or accessed, hindering the program's functionality. Resolving import errors is crucial for maintaining smooth software operation and uninterrupted development processes.
This presentation was provided by Steph Pollock of The American Psychological Association’s Journals Program, and Damita Snow, of The American Society of Civil Engineers (ASCE), for the initial session of NISO's 2024 Training Series "DEIA in the Scholarly Landscape." Session One: 'Setting Expectations: a DEIA Primer,' was held June 6, 2024.
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...PECB
Denis is a dynamic and results-driven Chief Information Officer (CIO) with a distinguished career spanning information systems analysis and technical project management. With a proven track record of spearheading the design and delivery of cutting-edge Information Management solutions, he has consistently elevated business operations, streamlined reporting functions, and maximized process efficiency.
Certified as an ISO/IEC 27001: Information Security Management Systems (ISMS) Lead Implementer, Data Protection Officer, and Cyber Risks Analyst, Denis brings a heightened focus on data security, privacy, and cyber resilience to every endeavor.
His expertise extends across a diverse spectrum of reporting, database, and web development applications, underpinned by an exceptional grasp of data storage and virtualization technologies. His proficiency in application testing, database administration, and data cleansing ensures seamless execution of complex projects.
What sets Denis apart is his comprehensive understanding of Business and Systems Analysis technologies, honed through involvement in all phases of the Software Development Lifecycle (SDLC). From meticulous requirements gathering to precise analysis, innovative design, rigorous development, thorough testing, and successful implementation, he has consistently delivered exceptional results.
Throughout his career, he has taken on multifaceted roles, from leading technical project management teams to owning solutions that drive operational excellence. His conscientious and proactive approach is unwavering, whether he is working independently or collaboratively within a team. His ability to connect with colleagues on a personal level underscores his commitment to fostering a harmonious and productive workplace environment.
Date: May 29, 2024
Tags: Information Security, ISO/IEC 27001, ISO/IEC 42001, Artificial Intelligence, GDPR
-------------------------------------------------------------------------------
Find out more about ISO training and certification services
Training: ISO/IEC 27001 Information Security Management System - EN | PECB
ISO/IEC 42001 Artificial Intelligence Management System - EN | PECB
General Data Protection Regulation (GDPR) - Training Courses - EN | PECB
Webinars: https://pecb.com/webinars
Article: https://pecb.com/article
-------------------------------------------------------------------------------
For more information about PECB:
Website: https://pecb.com/
LinkedIn: https://www.linkedin.com/company/pecb/
Facebook: https://www.facebook.com/PECBInternational/
Slideshare: http://www.slideshare.net/PECBCERTIFICATION
it describes the bony anatomy including the femoral head , acetabulum, labrum . also discusses the capsule , ligaments . muscle that act on the hip joint and the range of motion are outlined. factors affecting hip joint stability and weight transmission through the joint are summarized.
Strategies for Effective Upskilling is a presentation by Chinwendu Peace in a Your Skill Boost Masterclass organisation by the Excellence Foundation for South Sudan on 08th and 09th June 2024 from 1 PM to 3 PM on each day.
The simplified electron and muon model, Oscillating Spacetime: The Foundation...RitikBhardwaj56
Discover the Simplified Electron and Muon Model: A New Wave-Based Approach to Understanding Particles delves into a groundbreaking theory that presents electrons and muons as rotating soliton waves within oscillating spacetime. Geared towards students, researchers, and science buffs, this book breaks down complex ideas into simple explanations. It covers topics such as electron waves, temporal dynamics, and the implications of this model on particle physics. With clear illustrations and easy-to-follow explanations, readers will gain a new outlook on the universe's fundamental nature.
A workshop hosted by the South African Journal of Science aimed at postgraduate students and early career researchers with little or no experience in writing and publishing journal articles.
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
How to Manage Your Lost Opportunities in Odoo 17 CRMCeline George
Odoo 17 CRM allows us to track why we lose sales opportunities with "Lost Reasons." This helps analyze our sales process and identify areas for improvement. Here's how to configure lost reasons in Odoo 17 CRM
Executive Directors Chat Leveraging AI for Diversity, Equity, and InclusionTechSoup
Let’s explore the intersection of technology and equity in the final session of our DEI series. Discover how AI tools, like ChatGPT, can be used to support and enhance your nonprofit's DEI initiatives. Participants will gain insights into practical AI applications and get tips for leveraging technology to advance their DEI goals.
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Kota Super Thermal Power Station Training report

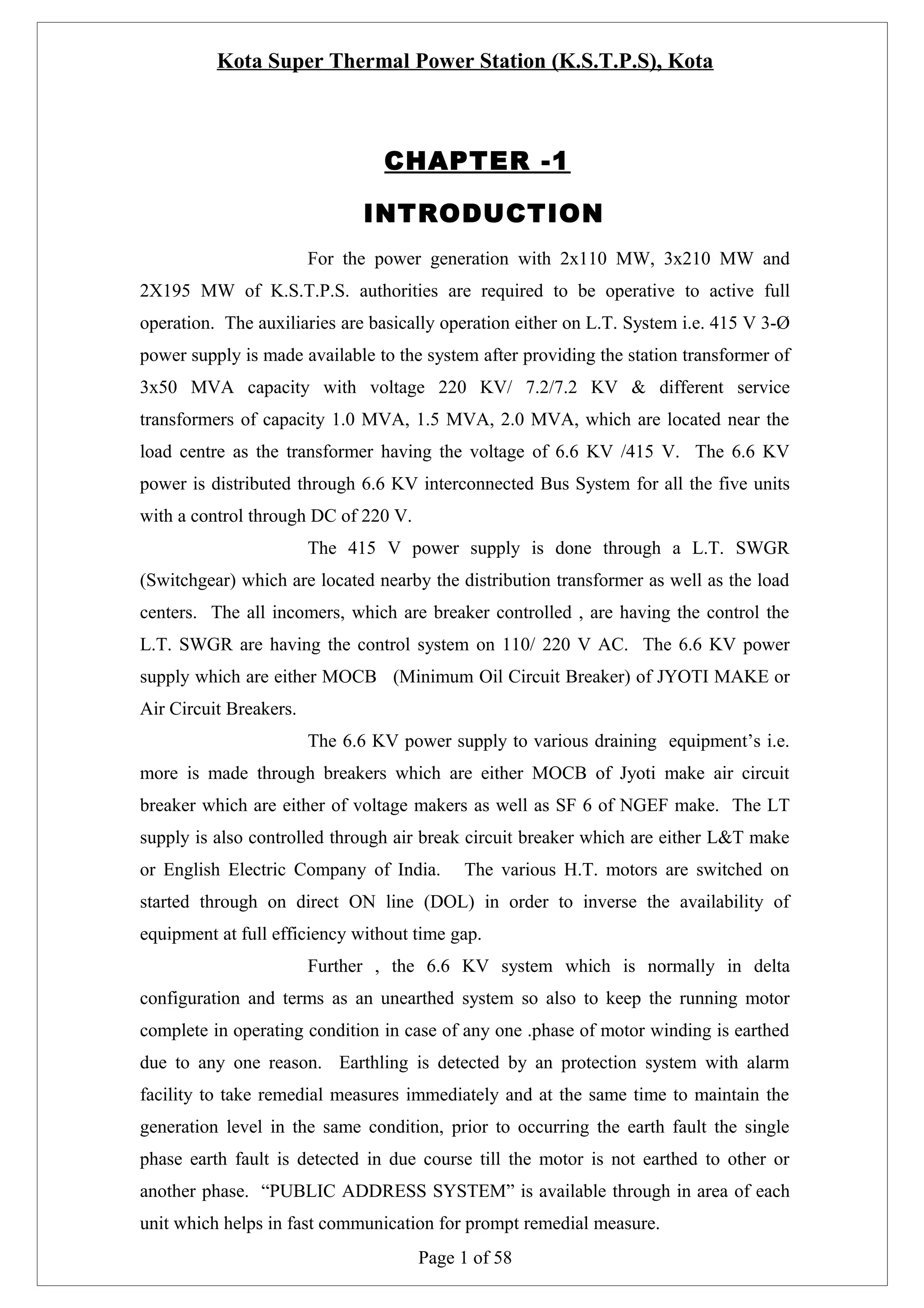

1. Kota Super Thermal Power Station (K.S.T.P.S), Kota
CHAPTER -1
INTRODUCTION
For the power generation with 2x110 MW, 3x210 MW and
2X195 MW of K.S.T.P.S. authorities are required to be operative to active full
operation. The auxiliaries are basically operation either on L.T. System i.e. 415 V 3-Ø
power supply is made available to the system after providing the station transformer of
3x50 MVA capacity with voltage 220 KV/ 7.2/7.2 KV & different service
transformers of capacity 1.0 MVA, 1.5 MVA, 2.0 MVA, which are located near the
load centre as the transformer having the voltage of 6.6 KV /415 V. The 6.6 KV
power is distributed through 6.6 KV interconnected Bus System for all the five units
with a control through DC of 220 V.
The 415 V power supply is done through a L.T. SWGR
(Switchgear) which are located nearby the distribution transformer as well as the load
centers. The all incomers, which are breaker controlled , are having the control the
L.T. SWGR are having the control system on 110/ 220 V AC. The 6.6 KV power
supply which are either MOCB (Minimum Oil Circuit Breaker) of JYOTI MAKE or
Air Circuit Breakers.
The 6.6 KV power supply to various draining equipment’s i.e.
more is made through breakers which are either MOCB of Jyoti make air circuit
breaker which are either of voltage makers as well as SF 6 of NGEF make. The LT
supply is also controlled through air break circuit breaker which are either L&T make
or English Electric Company of India.
The various H.T. motors are switched on
started through on direct ON line (DOL) in order to inverse the availability of
equipment at full efficiency without time gap.
Further , the 6.6 KV system which is normally in delta
configuration and terms as an unearthed system so also to keep the running motor
complete in operating condition in case of any one .phase of motor winding is earthed
due to any one reason. Earthling is detected by an protection system with alarm
facility to take remedial measures immediately and at the same time to maintain the
generation level in the same condition, prior to occurring the earth fault the single
phase earth fault is detected in due course till the motor is not earthed to other or
another phase. “PUBLIC ADDRESS SYSTEM” is available through in area of each
unit which helps in fast communication for prompt remedial measure.
Page 1 of 58
2. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Soot Blowers are there in the boiler area on the furnace side or
Zone which helps in blowing the soot / ash deposition regularly of the furnace wall /
economizer tubes to keep heat transfer at the required parameter.
In April 1973, Central Electricity Authority prepared a Project
Report for power station comprising of the two units of each of capacity 110 MW for
RSEB subsequently in September. 1975 this was revised by the Consultant Thermal
Design Organization , Central Electricity Authority for invention of 2x110 MW units
being manufactured by BHEL, Hyderabad in 1st Stage. The planning commission
cleared the project report in Sept., 1976 for installation of two units each of 110 MW
in first estimated cost of Rs. 143 Crores and finally stage fifth Unit #7 costed
approximately Rs. 961 Crores.
K.S.T.P.S. IS DESISIGNED IN FOLLOWING STAGES:-
STAGE I
-
2x110 MW
STAGE II
-
2X210 MW
STAGE III -
1X210 MW
STAGE IV -
1X195 MW
STAGE V
-
1X195MW
LOCATION:The Kota Thermal Power Station is ideally on the left bank of
Chambal River at Up Stream of Kota Barrage. The large expanse of water reached by
the barrage provides an efficient direct circulation of cooling system for the power
station. The 220 KV GSS is within ½ Kms. from the power station.
LAND:Land measuring approx. 250 hectares was required for the
project in 1976, For disposal of ash tank very near to power station is acquired which
the ash in slurry form is disposed off through ash and slurry disposal plants.
COAL:Coal India limited owns and operates all the major coal fields in
India through its coal producing subsidiary companies viz. Northern Coal Fields
Limited, South Eastern Coal Fields Limited, Coal India limited is supply coal from its
coal mines of coal producing subsidiaries SECL & NCL to Kota Thermal Power
Page 2 of 58
3. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Station through railway wagons. The average distances of SECL, NCL are 800, 950
Kms. respectively.
WATER:The source of water for power station is reservoir formed by
Kota Barrage on the Chambal River. In case of large capacity plants huge quantities
of coal and water is required. The cost of transporting coal and water is particularly
high. Therefore, as far as possible, the plant must be located near the pit rather than at
load centre for load above 200 MW and 375 MW. The transportation of electrical
energy is more economical as compared to the transportation of coal.
DESIGN FEATURES:The satisfactory design consists of the flowing steps.
•
Estimation of cost.
•
Selection of site.
•
Capacity of Power Station.
•
Selection of Boiler & Turbine.
•
Selection of Condensing Unit.
•
Selection of Electrical Generator.
•
Selection of Cooling System.
•
Design of Control and instrumentation system.
The design of steam power station requires wide experience as
the subsequent operation and maintenance are greatly affected by its design. The most
efficient design consist of properly sized component designed to operate safely and
conveniently along with its auxiliaries and installation.
Page 3 of 58
4. Kota Super Thermal Power Station (K.S.T.P.S), Kota
CHAPTER -2
General Layout & Basic Idea
A control system of station basically works on Rankin Cycle.
Steam is produced in Boiler is exported in prime mover and is condensed in condenser
to be fed into the boiler again. In practice of good number of modifications are
affected so as to have heat economy and to increase the thermal efficiency of plant.
The Kota Thermal Power Station is divided into four main circuits :
Fuel and Ash Circuit.
Air and Gas Circuit.
Feed water and Steam Circuit.
Cooling Water Circuit.
Page 4 of 58
5. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Fuel & Ash Circuit:Fuel from the storage is fed to the boiler through fuel
handling device. The fuel used in KSTPS is coal, which on combustion in the boiler
produced the ash. The quantity of ash produced is approximately 35-40% of coal
used. This ash is collected at the back of the boiler and removed to ash storage tank
through ash disposal equipment.
Air and Gas Circuit:Air from the atmosphere is supplied to the combustion
chamber of Boiler through the action of forced draft fan and induced draft fan. The
flue gas gases are first pass around the boiler tubes and super heated tubes in the
furnace, next through dust collector (ESP) & then economizer. Finally, they are
exhausted to the atmosphere through fans.
Feed Water and Steam Circuit:The condensate leaving the condenser is first heated in
low pressure (LP) heaters through extracted steam from the lower pressure extraction
of the turbine. Then its goes to dearator where extra air and non-condensable gases are
removed from the hot water to avoid pitting / oxidation. From deaerator it goes to
boiler feed pump which increases the pressure of the water. From the BFP it passes
through the high pressure heaters. A small part of water and steam is lost while
passing through different components therefore water is added in hot well. This water
is called the make up water. Thereafter, feed water enters into the boiler drum through
economizer. In boiler tubes water circulates because of density difference in lower and
higher temperature section of the boiler. The wet steam passes through superheated.
From superheated it goes into the HP turbine after expanding in the HP turbine. The
low pressure steam called the cold reheat steam (CRH) goes to the reheater (boiler).
From reheater it goes to IP turbine and then to the LP turbine and then exhausted
through the condenser into hot well.
Cooling Water Circuit:A large quantity of cooling water is required to
condense the steam in condenser and marinating low pressure in it. The water is
drawn from reservoir and after use it is drained into the river.
Page 5 of 58
6. Kota Super Thermal Power Station (K.S.T.P.S), Kota
COAL HANDLING PLANT
INTRODUCTION:It can be called the heart of thermal power plant because
it provided the fuel for combustion in boiler. The coal is brought to the KSTPS
through rails there are fourteen tracks in all for transportation of coal through rails.
The main coal sources for KSTPS are SECL (South Eastern Coalfields Limited), NCL
(Northern Coalfield Limited). Everyday 6 to 7 trains of coal are unloaded at KSTPS.
Each train consists of 58 wagons and each wagons consists of 50 tones of coal. The
approximate per day consumption at KSTPS is about 18000 metric tones. It costs
approximate 4.5 crores of rupees per day including transportation expenses. The coal
is firstly unloaded from wagon by wagon triplers then crushed by crushers and
magnetic pulley and pulverized to be transformed to the boiler.
The whole
transportation of coal is through conveyor belt operated by 3-Ø Induction motor.
The coal handling plant can broadly be divided into three sections :1)
Wagon Unloading System.
2)
Crushing System.
3)
Conveying System.
WAGON UNLOADING SYSTEM:Wagon Tripler:It unloads the coal from wagon to hopper. The hopper,
which is made of Iron , is in the form of net so that coal pieces of only equal to and
less than 200 mm. size pass through it. The bigger ones are broken by the workers
with the help of hammers. From the hopper coal pieces fall on the vibrator. It is a
mechanical system having two rollers each at its ends.
The rollers roll with the help of a rope moving on pulley
operated by a slip ring induction motor with specification:
Page 6 of 58
7. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Rated Output.
:
71 KW.
Rated Voltage.
:
415 V.
Rated Current.
:
14.22 Amp.
Rated Speed.
:
975 rpm.
No. of phases.
:
3
Frequency.
:
50 Hz.
The four rollers place themselves respectively behind the
first and the last pair of wheels of the wagon. When the motor operates the rollers roll
in forward direction moving the wagon towards the “Wagon Table”. On the Wagon
table a limit is specified in which wagon to be has kept otherwise the triple would not
be achieved.
CRUSHING SYSTEM:Crusher House:It consists of crushers which are used to crush the coal to
20 mm. size. There are mainly two type of crushers working in KSTPS:Primary Crushers i.e. i) Rail crushers or ii) Rotary breaker.
Secondary Crushers. i.e.
Ring granulators.
Page 7 of 58
8. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Primary Crushers:Primary crushers are provided in only CHP stage 3
system, which breaking of coal in CHO Stage 1 & Stage 2 system is done at wagon
tripler hopper jail up to the size (-) 250 mm.
Roll Crusher:Type
:
80” 5 A breakers.
Capacity
:
1350 TPH Rates/ 1500 TPH Design.
Feed material
:
Rom Coal.
Feed size.
:
(-) 1200 mm. (approx.)
End Product size
:
(-) 500 mm.
Motor rating.
:
2 Nos. 125 KW, 100 rpm.
Crushers.
:
225.
Type
:
12’ x 21o Rotary Breaker.
Capacity
:
800 TPH Rated/ 1000 TPH Design.
Feed Material.
:
Coal with rejects.
Feed size.
:
(-) 0-500 mm.
End product size
:
(-) 0-200 mm.
Motor rating.
:
125 HP, 1500 rpm.
Rotary Breaker:-
Secondary Crusher:Basically there are four ways to reduce material size : impact
attrition , Shearing and Compression. Most of the crushers employ a combination of
three crushing methods. Ring granulators crush by compressing accompanied by
impact and shearing.The unique feature of this granulator is the minimum power
required for tone for this type of material to be crushed compared to that of other type
of crushers.
Page 8 of 58
9. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Construction & Operation:Secondary crushers are ring type granulators crushing at the rate
of 550 TPH / 750 TPH for input size of 250 mm. and output size of 20 mm. The
crusher is coupled with motor and gearbox by fluid coupling.
Main parts of granulator like break plates, cages , crushing rings and other internal
parts are made of tough manganese (Mn) steel.
The rotor consists of four rows of crushing rings each set having
20 Nos. of toothed rings and 18 Nos. of plain rings. In CHP Stage 1 & 2 having 64
Nos. of ring hammers. These rows are hung on a pair of suspension shaft mounted on
rotor discs.
Crushers of this type employ the centrifugal force of swinging
rings stroking the coal to produce the crushing action. The coal is admitted at the top
and the rings stroke the coal downward. The coal discharges through grating at the
bottom.
CONVEYING SYSTEM:Stacker Reclaimer:The stacker re-claimer unit can stack the material on to the pipe
or reclaim the stack filed material and fed on to the main line conveyor. While
stacking material is being fed from the main line conveyor via tripler unit and
vibrating feeder on the intermediate conveyor which feds the boom conveyor of the
stacker cum reclaimer. During reclaiming the material dis discharged on to the boom
conveyor by the bucket fitted to the bucket wheel body and boom conveyor feeds the
material on the main line conveyor running in the reverse direction.
Conveyor belt Specification of Stacker / Reclaimer:Belt width.
:
1400 mm.
Speed.
:
2.2 m/second.
Schedule of motor
:
All 3-Ø induction motors.
Bucket wheel motor
:
90 KW.
Boom Conveyor motor
:
70 KW.
Intermediate Conveyor Motor
:
90 KW.
Boom Housing Motor
:
22 KW.
Page 9 of 58
10. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Slewing assembly.
:
10 KW.
Travel Motor
:
7.5 KW.
Vibrating Feeder.
:
2x6 KW.
Total installed power.
:
360 KW.
Conveyor Specification:Capacity.
1) 1350 tonne per hour.
2) 750 tonne per hour.
No. of conveyor.
:
38
:
28 meters.
Lift(M) (approx.)
:
Variable to suit the system.
Belt width.
:
1400 mm. specification of
Horizontal length
.
conveyor motor
FEEDERS:This structure is erected to serve the purpose of storage. Under ground machines are
installed known as plow feeder machines.
These machines collect the coal from conveyor and drop it to the
other from one conveyor with the help of jaws and this coal is taken to huge erected
structure from where the coal falls to the ground. Jali chutes are used to prevent dust.
Page 10 of 58
11. Kota Super Thermal Power Station (K.S.T.P.S), Kota
ASH HANDLING PLANT
This plant can be divided into 3 sub plants as follows:1)
Fuel and Ash Plant.
2)
Air and Gas Plant.
3)
Ash Disposal and & Dust Collection Plant.
Fuel and ash plant:Coal is used as combustion material in KTPS, In order to get an
efficient utilization of coal mills. The Pulverization also increases the overall
efficiency and flexibility of boilers. However for light up and with stand static load ,
oil burners are also used. Ash produced as the result of combustion of coal is
connected and removed by ash handling plant. Ash Handling Plant at KTPS consists
of specially designed bottom ash and fly ash in electro static precipitator economizer
and air pre-heaters hoppers.
Page 11 of 58
12. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Air & Gas Plant:Air from atmosphere is supplied to combustion chamber of
boiler through the action of forced draft fan. In KTPS there are two FD fans and three
ID fans available for draft system per unit. The air before being supplied to the boiler
passes through pre-heater where the flue gases heat it. The pre heating of primary air
causes improved and intensified combustion of coal.
The flue gases formed due to combustion of coal first passes
round the boiler tubes and then it passes through the super heater and then through
economizer . In re-heater the temperature of the steam (CRH) coming from the HP
turbines heated with increasing the number of steps of re-heater the efficiency of cycle
also increases. In economizer the heat of flue gases raises the temperature of feed
water. Finally the flue gases after passing through the Electro-Static Precipitator is
exhausted through chimney.
Ash Disposal & Dust Collection Plant:KSTPS has dry bottom furnace. Ash Handling Plant consists of
especially designed bottom and fly ash system for two path boiler. The system for
both units is identical and following description is applied to both the units the water
compounded bottom ash hopper receives the bottom ash from the furnace from where
it is stores and discharged through the clinker grinder. Two slurry pumps are provided
which is common to both units & used to make slurry and further transportation to ash
dyke through pipe line.
Dry free fly ash is collected in two number of 31 fly ash hoppers
which are handled by two independent fly ash system. The ash is removed from fly
ash hoppers in dry state is carried to the collecting equipment where it is mixed with
water and resulting slurry sump is discharged.
Utilisation:Utilisation of coal-ash is always practise than its disposal. There are various methods
of utilisation of coal-ash along with established engineering technologies some of them
are mentioned below:
1.
Manufacturing of building materials.
2.
Making of concrete.
Page 12 of 58
13. Kota Super Thermal Power Station (K.S.T.P.S), Kota
3.
Manufacturing of pozzuolana cement.
4.
Road construction etc.
In all the above cases financial constraint discourages the
entrepreneurs to take up the work. In view of the environmental impact of disposal,
Government may give attractive subsidy and create marketing facility so that
entrepreneurs may come forward to use as their raw material.
ELECTRO-STATIC PRECIPITATOR
Scope & Principle of Operation:For general mankind, today an Eco friendly
industry is must. As far as air pollution is concerned now a days various flue gases
filter are there in service. The choice depends on the size of suspended particle matter.
These filters are E.S.P. Fabric filter high efficiency cyclone separations and sitelling
room. Fop fly ash , where the particle size vary from 0.75 microns to 100 micron use
gradually use E.S.P. to purify the flue gases due to its higher efficiency & low running
cost etc. In an ESP the dust lidder gas is passed through an intense electric field,
which causes ionization of the gases & they changed into ion while traveling towards
opposite charged electrode get deposited as particles and thus dust is electric deposited
an electrode creating the field. It is continuous process.
CONTROLLER:Now a day micro-processor based intelligent controllers are
used to regulate the power fed to the HVR. The controls the firing / ignition angle of
the thyristor connected in parallel mode. Input out waves of the controller and HVR
are also shown above, which clearly indicates that average power fed to ESP field can
be controlled by variation of the firing angle of thyristor.
The output of controller with respect
to time is also
controlled by microprocessor, so that ESP operation is smooth and efficient . The
chars are as shown:
As can be seen in the event of spark between electrode the
output of controller is reduced to zero for few millisecond for quenching the spark.
Controller also takes place care of fault in KVR and gives a trapping and non-trapping
alarm as per the nature of fault.
Page 13 of 58
14. Kota Super Thermal Power Station (K.S.T.P.S), Kota
HIGH VOLTAGE RECTIFIER TRANSFORMER:HVR receives the regulated supply from controller. It steps
up to high voltage rectifier. The D.C. supply is fed to E.S.P. field through its negative
bushing. The positive bushing so connected to earth through small resistance which
forms a current feed back circuit. A very high resistance column is also connected
with negative bushing . It forms the voltage feed back circuit. These two feedback are
used in the controller for indication and control purpose.
E.S.P. FIELD:The field consists of emitting and collecting electrodes structure
which are totally isolated from each other and hanging with the top roof of field. The
emitting is also isolated from the roof through the support insulators which are
supporting the emitting electrode frame works and also the supply to these electrodes
is fed through support insulators. The collecting electrodes are of the shape of flat
plates. By several similar plates which the emitting electrodes are of the shape of
spring. Strong on the emitting frame work with the help of hooks in both the ends.
The ash depositing on these electrode is rapped down by separate
wrapping mechanism happens at the bottom of the field. From these hoppers ash is
evacuated by ash handling system and dispose to the disposal area. The wrapping
system is automatically controlled with the help of the programmable metal controller,
located in the ESP auxiliaries control panels.
Page 14 of 58
15. Kota Super Thermal Power Station (K.S.T.P.S), Kota
CHAPTER -3
BOILER
A boiler (or steam generator) is a closed vessel in which water,
under pressure is converted into steam. It is one of the major components of a thermal
power plant. A boiler is always designed to absorb maximum amount of heat released
in process of combustion. This is transferred to the boiler by all the three modes of
heat transfer i.e. conduction, convection and radiation.
Boilers are classified as:Fire
tube
boiler: In this type the products of combustion pass through the tubes
which are surrounded by water. These are economical for low pressure only.
Water tube boiler:In this type of boiler water flows inside the tubes and hot gases
flow outside the tubes. These tubes are interconnected to common water channels and
to steam outlet.
•
The water tube boilers have many advantages over the fire tube boilers
•
High evaporation capacity due to availability of large heating surface.
•
Better heat transfer to the mass of water.
•
Better efficiency of plant owing to rapid and uniform circulation of water in
tubes.
•
Better overall control.
•
Easy removal of scale from inside the tubes.
Page 15 of 58
16. Kota Super Thermal Power Station (K.S.T.P.S), Kota
In KSTPS, Natural circulation, tangentially fired, over hanged
type, Water tube boilers are used. Oil burners are provided between coal burners for
initial start up and flame stabilization. Firstly, light oil (diesel oil) is sprayed for
initialization then heavy oil (high speed diesel oil) is used for stabilization of flame.
Pulverized coal is directly fed from the coal mills to the burners at the four corners of
the furnace through coal pipes with the help of heated air coming from PA fan. Four
nos. of ball mills of 34MT/hr. capacity each have been installed for each boiler. The
pressure inside boiler is -ive so as to minimized the pollution and looses & to prevent
the accidents outside the boiler.
For ensuring safe operation of boilers, furnace safe guard
supervisory system (FSSS) of combustion engineering USA designed has been
installed. This equipment systematically feed fuel to furnace as per load requireme.
The UV flame scanners installed in each of the four corners of the furnace, scan the
flame conditions and in case of unsafe working conditions trip the boiler and
consequently the turbine. Turbine - boiler interlocks safe guarding the boiler against
possibility furnace explosion owing to flame failure.
Page 16 of 58
17. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Furnace:Furnace is primary part of the boiler where the chemical energy available
in the fuel is converted into thermal energy by combustion. Furnace is designed for
efficient and
complete combustion. Major factors that assist for efficient combustion are the
temperature inside the furnace and turbulance, which causes rapid mixing of fuel and
air. In modern boilers, water-cooled furnaces are used.
Page 17 of 58
18. Kota Super Thermal Power Station (K.S.T.P.S), Kota
PULVERISED FUEL SYSTEM:The boiler fuel firing system is tangentially firing system in which the fuel is
introduced from wind nozzle located in the four corners inside the boiler.
The crushed coal from the coal crusher is transferred into the
unit coalbunkers where the coal is stored for feeding into
pulverizing mill through rotary feeder The rotary feeders feed
the coal to pulverize mill at a definite rate. Then coal burners
are employed to fire the pulverized coal along with primary air
into furnace. These burners are placed in the corners of the
furnace and they send horizontal streams of air and fuel tangent
to an imaginary circle in the center of the furnace.
Fuel Oil System:The functional requirement of the fuel burning system is to supply a
controllable and uninterrupted flammable furnace input of fuel and air and to
continuously ignite and burn the fuel as rapidly as it is introduced into the furnace.
This system provides efficient conversion of chemical energy of fuel into heat energy.
The fuel burning system should function such that fuel and air input is ignited
continuously and immediately upon its entry into furnace.
The Fuel air (secondary air) provided FD fan, surrounds the fuel nozzles.
Since this air provides covering for the fuel nozzles so it is called as mantle air.
Dampers are provided so that quantity of air can be modulated. Coal burners distribute
the fuel and air evenly in the furnace.
Ignition takes place when the flammable furnace input is heated above the
ignition temperature. No flammable mixture should be allowed to accumulate in the
furnace. Ignition energy is usually supplied in the form of heat. This ignition
energy is provided by oil guns and by igniters.
Page 18 of 58
19. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Boiler Drum:The drum is a pressure vessel. Its function is to separate water and steam from mixture
(of steam & water) generated in the furnace walls. It provides water storage for
preventing the saturation of tubes. It also houses the equipment needed for purification
of steam. The steam purification primarily depends on the extent of moisture removal,
since solids in steam are carried by the moisture associated with it. The drum internals
reduce the dissolved solids content of the steam to below the acceptable limit. drum is
made up of two halves of carbon steel plates having thickness of 133 mm.
The top half and bottom half are heated in a plate heating
furnace at a very high temperature and are pressured to form a semi cylindrical shape.
The top and bottom semi cylinders with hemispherical dished ends are fusion welded
to form the boiler drum. The drum is provided with stubs for welding all the
connecting tubes i.e. down comer stubs, riser tubes stubs and super-heater outlet tube
stubs.
Page 19 of 58
20. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Boiler drum is located at a height of 53m from ground. The
drum is provided with manholes and manhole covers. Manhole is used for facilitating
the maintenance person to go inside the drum for maintenance.
The drum form the part of boiler circulating system i.e.
movement of fluid from the drum to the combustion zone and back to boiler drum.
Feed water is supplied to the drum from the economizer through feed nozzles. Water
from the drum goes to water walls through six down comers.
Main parts of boiler drum are:•
Feed pipe
•
Riser tube
•
Down comer
•
Baffle plate
•
Chemical dosing pipe
•
Turbo separation
•
Screen dryer
•
Drum level gauge
Draft System:The combustion process in a furnace can take place only when it
receives a steady flow of air and has the combustion gases continuously removed.
Theoretically balanced draft means keeping furnace pressure equal to atmospheric
pressure, but in practice the furnace is kept slightly below atmospheric pressure. It
ensures that there is no egress of air or hot gas and ash into boiler house.
Draught Fans:A fan can be defined as volumetric machine which like pumps
moves quantities of air or gas from one place to another. In doing this it overcomes
Page 20 of 58
21. Kota Super Thermal Power Station (K.S.T.P.S), Kota
resistance to flow by supplying the fluid with the energy necessary for contained
motion. The following fans are used in boiler house.
Primary air fan (P.A. fan) or Exhauster fanPulverized coal is directly fed from coal mills to the burners at
the four corners of the furnace through coal pipes with the help of heated air coming
from PA fan. Secondly, this fan also dries the coal. Usually sized for 1500 RPM due to
high pressure.
Forced draught fan (F.D. fan):The combustion process in the furnace can take place only when
it receives a steady flow of air. This air is supplied by FD fan. Thus FD fan takes air
from atmosphere at ambient temperature & so provides additional draught. Its speed
varies from 600-1500 RPM.
Specification of Force Draft fan:
3φ,6.6KV,700KW
Rated.current-74A
RPM-1500
Discharge- 408 T/Hr
Induced draught fan (I.D. fan):-
Page 21 of 58
22. Kota Super Thermal Power Station (K.S.T.P.S), Kota
The flue gases coming out of the boiler are passed to the ESP &
then dust free gases are discharged up by the chimney to the atmosphere through the
ID fan.
•
Specification of ID fan: 3φ,6.6KV,1750KW
Rated.current-192.1A
RPM-745
Discharge- 720 T/Hr
Igniter air fan:It is used to
provide necessary combustion air to igniter. Two fans are usually provided. One will
run and 2nd will remain as stand by. A control damper is provided on the discharge
which modulates to maintain a constant differential pressure across igniter when any
igniter is in service. Typical speed is 1460 RPM.
Scanner Air Fan:Used to provide necessary cooling air to the flame scanners. Two air fans
are usually provided. One will run and other will remain as stand by. When F.D. fans
trip the scanner air fan will draw air from
atmosphere through emergency damper. Typical speed 3000 RPM.
Economizer:-
Page 22 of 58
23. Kota Super Thermal Power Station (K.S.T.P.S), Kota
T
he
flue gases coming out of the boiler
carry lot of heat. An economiser extracts a part of this heat from the flue gases and
uses it for heating the feed water before it enters into the steam drum. The use of
economiser results in saving fuel consumption and higher boiler efficiency but needs
extra investment. In an economizer, a large number of small diameter thin walled tubes
are placed between two headers. Feed water enters the tubes through the other. The
flue gases flow outside the tubes.
Air preheaters:Air preheaters are employed to recover the heat from the flue
gases leaving the economiser and are used to heat the incoming air for combustion.
This raises the temperature of the furnace gases, improves combustion rates and
efficiency and lowers the stack (chimney) temperature, thus improving the overall
efficiency of the boiler. Cooling of flue gases by 20% raises the plant efficiency by
1%.
In KSTPS regenerative type of preheater is used. They use a
cylindrical rotor made of corrugated steel plate. The rotor is placed in a drum which is
divided into two compartments, i.e. air compartment (primary air coming from
primary air fan and secondary air for air coming from FD fan with + ive pressure) and
flue gases (from economizer with – ive pressure) compartments. To avoid leakage
from one compartment to other seals are provided.
The rotor is fixed on an electrical shaft rotating at a speed of 2
to 4 rpm. As the rotor rotates the flue gases, are pass through alternatively gas and air
zone. The rotor elements are heated by flue gases in their zone and transfer the heat to
Page 23 of 58
24. Kota Super Thermal Power Station (K.S.T.P.S), Kota
air when they are in air zone. The air temperature required for drying in the case of
coal-fired boiler decided the size of the air heaters
Super heater:Superheated steam is that steam, which contains more heat than
the saturated steam at the same pressure i.e. it, has been heated above the temperature
corresponding to its pressure. This additional heat provides more energy to the turbine
and thus the electrical power output is more.
A superheater is a device which removes the last traces of
moisture from the saturated steam leaving the boiler tubes and also increases its
temperature above the saturation temperature.
The steam is superheated to the highest economical temperature
not only to increase the efficiency but also to have following advantages –
•
Reduction in requirement of steam quantity for a given output of energy owing
to its high internal energy reduces the turbine size.
•
Superheated steam being dry, turbine blades remain dry so the mechanical
resistance to the flow of steam over them is small resulting in high efficiency.
•
No corrosion and pitting at the turbine blades occur owing to dryness of steam.
Re-heater:Re-heaters are provided to raise the temperature of the steam
from which part of energy has already been extracted by HP turbine. This is done so
that the steam remains dry as far as possible through the last stage of the turbine. A reheater can also be convection, radiation or combination of both.
Circulation System:In natural circulation system, water delivered to steam generator
from header, which are at a temperature well below the saturation value corresponding
to that pressure. After header, it is delivered to economizer, which heated to above the
saturation temperature.
Page 24 of 58
25. Kota Super Thermal Power Station (K.S.T.P.S), Kota
From economizer the water enters the drum and thus joins the
circulation system through down covering water wall tubes. In water wall tubes a part
of the water is converted to steam due to boiler and the mixture flows back to the
drum. In the drum, the steam is separated out through the steam separators and passed
to the super heater. After the super heater when the steam temperature becomes high
and pressure upto 150 Kg./cm3 steam is allowed to enter the turbine to convert
potential energy to kinetic energy.
Soot Blower:The boiler tubes are cleaned with the help of steam by the
process called soot blowing. We are well known that a greater no. of tubes are
presented inside the boiler. Slowly and slowly the fine ash particles are collected on
the tube surface and from a layer this is called soot. Soot is a thermal insulating
material.
There are mainly three types of soot blower are used in KSTPS: •
Water wall soot blower
•
Super heater soot blower
•
Air pre heater soot blower
TECHNICAL SPECIFICATION OF BOILER
1.Type
:
Direct fired, natural circulation
balance draft water tube boiler.
2. No. of Units.
:
Two.
3.Make
:
BHEL.
4.Capacity.
:
375 tonnes per hour.
5.Steam Pressure.
:
139 Kg./Cm2
6.Efficiency
:
86.6 %.
a) ID fans.
:
2 Nos.
b) FD fans.
:
2 Nos.
7.No. of fans in service.
Page 25 of 58
26. Kota Super Thermal Power Station (K.S.T.P.S), Kota
c) PA fans.
:
2 Nos.
d) Seal Air fan.
:
1 No.
e) Scanner Air fan.
:
1 No.
f) Igniter fan.
:
1 No.
8. Steam Temperature
:
540oC.
9. No. of coal mills in
:
3 Nos. service.
10. No. of soot blowers
:
70 Nos.
Type
:
Slack Coal.
Quantity consumed
:
3074 tones per day.
Type of handing.
:
Conveyor.
Ash disposal
:
Wet system.
Type.
:
HSD and fuel oil.
Quantity.
:
a) HSD – 5520 KL per year.
FUEL :a) COAL:-
B) OIL:-
b) Furnace Oil : 28800 KL per year.
No. of chimney / stack.
:
1 / 2.
Height of Chimney.
:
180 Meters.
Volume of flue Gas/
:
198 M3/ Sec. Air emitted.
Temp. of flue gas.
:
140oC.
ESP
:
One for each unit.
GENERAL DESCRIPTION:Boilers are tangentially fired, balance draft, natural
circulation , radiant type, dry bottom with direct fired pulverized coal from bowl mills.
Page 26 of 58
27. Kota Super Thermal Power Station (K.S.T.P.S), Kota
They are designed for burning low grade coal with high ash content. Oil burners are
located between coal burners for flame stabilization. Pulverized coal is directly fed
from the coal mills to the burners at the four corners of the furnace through coal pipes.
The pulverized fuel pipes from the mills to the bunkers are provided with basalt lined
bends to reduce erosion and to improve the life of these pipes owing to poor grade of
coal there is a high percentage of mill rejects. The mill rejects are conveyed in a sluice
way to an under-ground tank. From this tank the mixture is taken to an overhead
hydro-bin where water is decanted and the mill reject are disposed off by trucking.
ESP with collection efficiency of 99.8% have been provided to reduce environmental
pollution and to minimize induce draft fan wear. A multi-flue reinforced concrete stack
with two internal flues has been provided.
Two boiler feed pumps each of 100 % capacity are
driven by AC motor through hyd. coupling with scoop tube arrangement for regulating
feed water pressure for each unit.
The air required for combustion is supplied by two
forced
draft
fans.
Due to anticipated high abrasion of ID fans impellers. Three ID fans each of 60%
capacity have been provided one ID fan to serve as standby.
The UV flame scanners installed at two elevation in each
of the four corners of the furnace, scan the flame conditions and in case of unsafe
working conditions but out fuel and trip the boiler and consequently the turbine.
Turbine – boiler interlocks safe guarding the boiler against possibility furnace
explosion owing to flame failure.
Facilities have been provided to simultaneously unload
and transfer 10 light oil and 40 heavy oil tankers to the designated tanks.
preheating arrangement is provided on the tanks
Oil
floors for the heavy oil tanks.
Superheated steam temperature is controlled by attemperation.
Re-heater steam temperature is primarily by tilting fuel burners through + 30 o and
further control if necessary is done by attemperation.
CHAPTER - 4
STEAM TURBINE
INTRODUCTION:Page 27 of 58
28. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Turbine is a machine in which a shaft is rotated steadily by impact
or reaction of current or stream of working substance (steam, air, water, gases etc)
upon blades of a wheel. It converts the potential or kinetic energy of the working
substance into mechanical power by virtue of dynamic action of working substance.
When the working substance is steam it is called the steam turbine.
PRINCIPAL OF OPERATION OF STEAM TURBINE:(1.)
Working of the steam turbine depends wholly upon the dynamic action of
Steam. The steam is caused to fall in pressure in a passage of nozzle: doe to this fall in
pressure a certain amount of heat energy is converted into mechanical kinetic energy
and the steam is set moving with a greater velocity. The rapidly moving particles of
steam, enter the moving part of the turbine and here suffer a change in direction of
motion which gives rose to change of momentum and therefore to a force. This
constitutes the driving force of the machine. The processor of expansion and direction
changing may occur once or a number of times in succession and may be carried out
with difference of detail. The passage of steam through moving part of the commonly
called the blade, may take place in such a manner that the pressure at the outlet side of
the blade is equal to that at the inlet inside. Such a turbine is broadly termed as
impulse turbine. On the other hand the pressure of the steam at outlet from the moving
(2.)
blade may be less than that at the inlet side of the blades; the drop in
pressure suffered by the steam during its flow through the moving causes a further
generation of kinetic energy within the blades and adds to the propelling force which is
Page 28 of 58
29. Kota Super Thermal Power Station (K.S.T.P.S), Kota
applied to the turbine rotor. Such a turbine is broadly termed as impulse reaction
turbine.
The majority of the steam turbine have, therefore two
important elements, or Sets of such elements . These are (1) the nozzle in which the
system expands from high pressure end a state of comparative rest to a lower pressure
end a status of comparatively rapid motion.
(2.) The blade or deflector , in which the steam particles changes its directions and
hence its momentum changes . The blades are attach to the rotating elements are
attached to the stationary part of the turbine which is usually termed the stator, casing
or cylinder.
Although the fundamental principles on which all steam
turbine operate the same, yet the methods where by these principles carried into effect
very end as a result, certain types of turbine have come into existence.
1. Simple impulse steam turbine.
2. The pressure compounded impulse turbine.
3. Simple velocity compounded impulse turbine.
4. Pressure-velocity compounded turbine.
5. Pure reaction turbine.
6. Impulse reaction turbine.
TECHNICAL DATA OF TURBINES :The main technical data of 110 MW turbine is given below:Rated output.
110 MW.
Economic output
95 MW.
Rated speed.
3000 rpm
Direction of rotation viewing from
Clockwise
the front bearing pedestal.
Rated steam pressure before
130 ata
stop valve.
Maximum steam pressure before
146 ata
stop valve.
535oC
Rated temperature of steam before
Page 29 of 58
30. Kota Super Thermal Power Station (K.S.T.P.S), Kota
the stop valve.
545oC
Maximum temperature of steam before
the stop valve.
Rated pressure of steam
31.6 ata
MP Casing.
Rated pressure of steam before
35 ata
MP Casing:535oC.
Rated Temp. of steam before
MP Casing.
545oC.
Maximum Temp. of steam before
MP Casing.
Informative heat flow at the economic output
2135 K cal/Kwh
Informative heat rate at the rated output
2152.5 K Cal/Kwh.
HP Cylinder
2 row carts wheel
+ 8 moving wheels.
MP Cylinder
12 moving wheels.
LP cylinder
4 moving wheels of
Double row design.
Quantity of oil for first filling.
1800 liters.
for the turbine.
•
Single flow HP turbine with 25 reaction stages.
•
Double flow IP turbine with 20 reaction stages per flow.
•
Double flow LP turbine with 8 reaction stages per flow.
2 main stop & control valves.
&
2 steam check valve in CRH.
2 reheat stop & control valves.
&
2 bypass stop & control valve.
At KSTPS there are 2x110 MW
TECHNICAL DATA OF 210 MW TURBINE
Page 30 of 58
31. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Rated Output
210 MW.
Rated Speed.
3000 rpm.
Main steam pressure.
150 Kg./Cm2
Main steam temperature.
535oC.
Reheat steam temperature.
535oC.
Weight of turbine.
475 T approx.
Overall length.
16.975 Mtrs. approx.
Single flow HP turbine with 25 reaction stages.
Double flow IP turbine with 20 reaction stages per flow.
Double flow LP turbine with 8 reaction stages per flow.
2 main stop & control valves.
2
steam
check
valve
in
CRH.
2 reheat stop & control valves,.
2
bypass
stop &
control
valve.
turbines installed for unit 1 & 2 and 210 MW turbines installed for units 3, 4 & 5 &
two 195 MW turbine installed for unit 6 & 7.
Description of Steam Turbines:1) Steam flow:Page 31 of 58
32. Kota Super Thermal Power Station (K.S.T.P.S), Kota
210 MW steam turbine is a tandem compound machine with HP, IP & LP
parts. The HP part is single flow cylinder and HP & LP parts are double flow
cylinders. The individual turbine rotors and generator rotor are rigidly coupled. The
HP cylinder has a throttle control. Main steam is admitted before blending by two
combined main stop and control valves. The HP turbine exhaust (CRH) leading to
reheated have tow swing check valves that prevent back flow of hot steam from
reheated, into HP turbine. The steam coming from reheated called HRH is passed to
turbine via two combined stop and control valves. The IP turbine exhausts directly
goes to LP turbine by cross ground pipes.
2) HP Turbine:The HP casing is a barrel type casing without axial joint. Because of its rotation
symmetry the barrel type casing remain constant in shape and leak proof during quick
change in temperature. The inner casing too is cylinder in shape as horizontal joint
flange are relieved by higher pressure arising outside and this can kept small. Due to
this reason barrel type casing are especially suitable for quick start up and loading.The
HP turbine consists of 25 reaction stages. The moving and stationary blades are
inserted into appropriately shapes into inner casing and the shaft to reduce leakage
losses at blade tips.
3) IP Turbine:The IP part of turbine is of double flow construction. The casing of IP turbine
is split horizontally and is of double shell construction. The double flow inner casing is
supported kinematically in the outer casing. The steam from HP turbine after reheating
enters the inner casing from above and below through two inlet nozzles. The centre
flows compensates the axial thrust and prevent steam inlet temperature affecting
brackets, bearing etc. The arrangements of inner casing confines high steam inlet
condition to admission branch of casing, while the joints of outer casing is subjected
only to lower pressure and temperature at the exhaust of inner casing. The pressure in
outer casing relieves the joint of inner casing so that this joint is to be sealed only
against resulting differential pressure.
The IP turbine consists of 20 reaction stages per flow. The moving and
stationary blades are inserted in appropriately shaped grooves in shaft and inner
casing.
4) LP Turbine:-
Page 32 of 58
33. Kota Super Thermal Power Station (K.S.T.P.S), Kota
The casing of double flow type LP turbine is of three shell design. The shells
are axially split and have rigidly welded construction. The outer casing consist of the
front and rear walls , the lateral longitudinal support bearing and upper part.
The outer casing is supported by the ends of longitudinal beams on the base
plates of foundation. The double flow inner casing consist of outer shell and inner
shell.
The inner shell is attached to outer shell with provision of free thermal
movement.
Steam admitted to LP turbine from IP turbine flows into the inner casing from
both sides through steam inlet nozzles.
Page 33 of 58
34. Kota Super Thermal Power Station (K.S.T.P.S), Kota
ELECTRICITY GENERATOR
Thermal power station burns the fuel and use the resultant heat
to raise the steam which drives the turbo-generator. The fuel may be “Fossil” (Coal,
Oil and Natural Gas) whichever fuel is used the object is same to convert the heat into
mechanical energy to electrical energy by rotating a magnet inside the set of winding.
In a coal fired thermal power station other raw materials are air and water. The coal is
brought to station by train or other means travels from the coal handling system.
i) By conveyer belts to coal bunkers from where it is fed to pulverizing mills.
ii) Mills grind it fine as face powder.
iii) Then this powdered coal mixed with preheated air is blow into boiler by a
Fan known as primary air fan (PA fan).
iv) When it burns more like a gas as solid in conventional domestic or
industrial grate with additional amount of air called secondary air supplied by
“Forced Draft Fan”. As the coal has been grinded so resultant ash is also as
fine as powder. Some of its fine particles blinds together to form a lump which
falls into the ash pit at the bottom of furnace.
v) The water quenched ash from the bottom of furnace is carried out boiler to pit
for subsequent disposal.
vi) Most of ash still in fine particles form is carried out to electrostatic
precipitators where it is trapped by electrode charged with high voltage
electricity. The dust is then conveyed to the disposal area or to bunkers for
sale.
vii) Now after passing through ESP few gases are discharged up to chimney
Meanwhile the heat reloaded from the coal has been absorbed by kilometers a
long tube which lies in boiler walls inside the tubes “Boiler Feed Water” which is
transferred into turbine blades and makes them rotate. To the end of the turbine
rotor of generator is coupled, so that when turbine rotates the rotor turns with it.
The rotor is housed inside the stator having coil of copper bars in which electric is
produced through the movement of magnetic field created by rotor The electricity
passes from the stator winding to the transformer which steps up the voltage so that
it can be transmitted effectively over the power line of grid
The steam which has given up its heat energy in changed back into a
condenser so that it is ready for reuse. The cold water continuously pumped in
Page 34 of 58
35. Kota Super Thermal Power Station (K.S.T.P.S), Kota
condenser. The steam passing around the tubes loose heat and rapidly change into
water. But these two types of water (boiler feed water and cooling water) must
never mix together. The cooling water is drawn from the river but the Boiler Feed
Water must be pure than potable water (DM Water).
TURBO GENERATOR
THEORY :TURBO GENERATOR manufactured by B.H.E.L. and incorporated
with most modern design concepts and constructional features, which ensures
reliability, with constructional & operational economy. The generator stator is a tight
construction, supporting & enclosing the stator windings, core and hydrogen coolers.
Cooling medium hydrogen is contained within frame & circulated by fans mounted at
either ends of rotor. The generator is driven by directly coupled steam turbine at a
speed of 3000 r. p. m. the Generator is designed for continuous operation at the rated
output. Temperature detectors and other devices installed or connected within then
machine, permit the windings, teeth core & hydrogen temperature, pressure & purity in
machine under the conditions. The source of excitation of rotor windings is thyristor
controlled D.C. supply.
The auxiliary equipment’s supplied with the machine
suppresses and enables the control of hydrogen pressure and purity, shaft sealing
lubricating oils. There is a provision for cooling water in order to maintain a constant
temperature of coolant (hydrogen) which controls the temperature of windings
Main parts of generator:(A) STATOR:i.
STATOR FRAME:The stator frame of welded steel frame construction, which
gives sufficient & necessary rigidity to minimize the vibrations and to withstand the
thermal gas pressure. Heavy end shields enclose the ends of frame and form mounting
of generator bearings and radial shaft seals. Ribs subdivide the frame and axial
members to form duct from which the cooling gas to & fro radial ducts in the core and
is re-circulated through internally mounted coolers. All the gas ducts are designed so
as to secure the balanced flow of hydrogen to all parts of the core.
Page 35 of 58
36. Kota Super Thermal Power Station (K.S.T.P.S), Kota
The stator constructed in a single piece houses the core and
windings. The horizontally mounted water cooled gas coolers being so arranged that it
may be cleaned on the water side without opening the machine to atmosphere. All
welded joints exposed to hydrogen are specially made to prevent leakage.
The
complete frame is subjected to hydraulic test at a pressure of 7 ATA.
ii. STATOR CORE:It is built up of special sheet laminations and whose assembly is
supported by a special guide bass. The method of construction ensures that the core is
firmly supported at a large number of points on its periphery. The laminations of high
quality silicon steel which combines high permeability with low hysterias and eddy
current losses. After stamping each lamination is varnished on both sides with two
coats. The segment of insulating material is inserted at frequent intervals to provide
additional insulation.
The laminations are stamped out with accurately fine
combination of ties. Laminations are assembled on guide bass of group separated by
radial ducts to provide ventilation passage. The ventilation ducts are disposed so as to
distribute the gas evenly over the core & in particularly to give adequate supports to
the teeth. At frequent intervals during stacking the assembled laminations are passed
Page 36 of 58
37. Kota Super Thermal Power Station (K.S.T.P.S), Kota
together in powerful hydraulic press to ensure tight core which is finally kept between
heavy clamping plates which are non-magnetic steel. Use of non-magnetic steel
reduces considerably by heating of end iron clamping. The footed region of the core is
provided by pressing figures of non-magnetic steel, which are welded to the inner
periphery of the clamping plates. In order to reduce the losses in the ends packets
special dampers are provided at either ends of core. Mostly dampers are provided to
prevent hunting in ac machines.
iii.
STATOR BARS:Stator bars are manufactured as half bars. Each stator half coil is
composed of double glass cover and bars of copper transposed in straight portion of
“Robill Method” so that each strip occupies every radial portion in the bar. For an
equal length along the bar. They are made in strips to reduce skin effect. The winding
overhead is in volute shape. The overhung portion of the bar is divided into four
quadrants & insulated. The arrangement reduces additional losses due to damping
currents which otherwise be present due to self-induced non-uniform flux distribution
in the coil slots. The main distribution for the bar consists of resin rich mica loosed
thermosetting epoxy. This has excellent mechanical and electrical properties & does
not require any impregnation. Its moisture absorbing tendency is very low and
behavior of mica is for superior than any other conventional tape insulation system.
Semi-conductor coating is also applied to a part of overhung with a straight overlap of
conductive coil in the sides to reduce eddy currents to minimum. Conductor material is
electrolytic copper connections brazed with free coating silver alloy to obtain joints ,
which are both electrically & mechanically sound.
iv.
STATOR WINDINGS:Stator windings are double star layers , lap wound, three phase,
short pitch type. The top & bottom are brazed and insulated at either end to form
turns. Several such turns form a phase . Phases are connected to form a double star
winding. The arrangement of complete stator winding electrical circuit is viewed from
turbine end of generator & rotor windings. Slot numbering is clockwise from turbine
end. A thick line identifies the top bar in slot No.1 . End windings will be sealed
against movement of short circuit by both axial & peripheral bracing. The later
consists of hardened glass laminated blocks inserted between adjacent coil sides in coil
overhangs, so that with the coils , they form a continuous rigid ring. Glass cord or top
is used lashing the packing of blocks. The complete assembly is secured by high
Page 37 of 58
38. Kota Super Thermal Power Station (K.S.T.P.S), Kota
tensile brass blots. The winding is designed to withstand short circuit stresses. The
exposed portion of windings are finally coated. Insulation of individual bars & stator
windings at various stress is tested with applied high voltages of AC of Hz.
v.
TERMINAL BUSHINGS:Six output leads (3 long,3 short) have been brought out of the
coming on the exciter side. External connections are to be made to the three shorter
terminals, which are phase terminals. The large terminals are of neutral & current
transformer is inserted. The conductor of Generator terminal bushing having hollow
copper tubes with Copper brazed at the ends to avoid leakage of hydrogen. Hollow
portions enables bushings to be hydrogen cooled. Ends of bushings are Silver-plated :
middle portion of the bushing is adequately insulated & has a circular flange for
bolting the stator casing.
Gaskets are provided between the Flange of terminal
bushings and castings to make it absolutely gas tight.
iv.
BEARINGS:Generator bearings have electrical seats of consists of steel
bodies with removable steel pads. The bearings are formed for forced lubrication of oil
at a pressure of 2-3 ATM/ From the same pump that supplies oils to the turbine ,
bearings & governing gears. There is a provision to ensure & measure the rotor
bearing temperature by inserting a resistance thermometer in the oil pockets.
vii.
VENTILATION SYSTEM:The machine is designed with ventilation system having 2 atm
rated hydrogen pressure. Two axial fans mounted on either side of the rotor to ensure
circulation of hydrogen. The stator is designed for radial ventilation by stem. The end
stator core packets & core clamping & plates are intensively cooled by Hydrogen
through special ventilation system. Design of special ventilation is so as to ensure
almost uniform temperature of rotor windings and stator core. Rated load operating
temperature is well within the limits corresponding to the Class B operation.
Embedded Resistance Temperature Detectors do continuous monitoring of Hydrogen
temperature at active parts of Generator.
HYDROGEN COOLERS:Three Hydrogen Coolers each comprising of two individual
units are mounted inside the stator frame. The inlet and outlet of cooling water from
both of machine i.e. from non-driving side as well as turbine side. The Clearing of the
Page 38 of 58
39. Kota Super Thermal Power Station (K.S.T.P.S), Kota
individual cooler element can be carried out from both ends of the Generator even
during operation.
The assembly of individual cooler elements in stator frame is
however carried out only from the non-driving side.
(B) ROTOR :Rotor shaft consists of single piece alloy steel forging of high
mechanical and magnetic properties performance test includes :1.
Tensile test on specimen piece.
2.
Surface examination.
3.
Sulfur prist tests.
4.
Magnetic crack detection .
5.
Visual examination of bore.
6.
Ultrasonic examination.
Slots are milled on the rotor gorging to receive the rotor
winding. Transverse slots machined in the pole faces of the rotor to equalize the
moment of inertia in direct and quadrilateral axis of rotor with a view minimizing the
double frequency.
VIBRATION OF ROTOR:-
The fully brazed rotor is dynamically balanced and
subject to 120 % over speed test at the work balancing tunnel so as to ensure reliable
operation.
Page 39 of 58
40. Kota Super Thermal Power Station (K.S.T.P.S), Kota
ROTOR WINDINGS:Rotor winding is of direct coil type and consists of parallel strips of very high
conductivity Silver Bearing Copper, bent on edge to form coil. The coils are placed in
impregnated glass, laminated short shells; using glass strips inter turn insulation and
will be brazed at the end to form continuous winding. The complete winging will be
packed at high temperature and pressed to size by heavy steel damping rings. When
the windings have cooled, heavy dove tail wedges of non-magnetic materials will seal
the insulation at the top of slot portion. The cooling medium hydrogen gas will be
brought in direct contact with copper by means of radial slots in embedded portion.
Treated glass spacers inserted between the coils and solid ring prevent lateral
movement of coil overhang. The formation and description of glass spacer is such as
to leave ample space for ventilation.
BEARINGS:The bearings are self-aligned & consist of slip steel shells linked
with special bearing metal having very low coefficient of friction.
The bore is
machined on an elliptical shape so as to increase the mechanical stability of the rotor.
The bearing are pressure lubricated from the turbine oil supply. Special precautions
are taken to prevent oil & oil vapor from shaft seals and bearing along the shaft. The
circulation of shaft current is liable to damage. The bearing surface is protected by
insulation so placed that the bearings, seals & necessary pipes are inclined from the
frame.
SLIP RINGS:The slip rings are made of forged steel. They are located at
either side of Generator Shaft. The slip ring towards the exciter side is given +ve
polarity initially. They have helical grooves and skewed holes in the body for cooling
purpose by air. Calibrated mica is first built up to required thickness on the shaft
where slip rings are located.
The slip rings are insulated from the rotor shaft.
Excitation current is supplied to the rotor winding. Through the slip rings, which are
connected to the winding. On one end and to the slip ring on the other end with
insulated ( terminal) studs passing ‘though’ the radial holes in the rotor shaft. The
terminal studs at both the ends of excitation leads are fitted gas cat seals to prevent
leakage.
Page 40 of 58
41. Kota Super Thermal Power Station (K.S.T.P.S), Kota
BUSH GEAR ASSEMBLY:Generator bushes are made from the various compositions of
natural graphite and binding material. They have a low coefficient of friction and are
self lubricating. The brushes are provided with a double flexible copper or pigtails. A
helical spring is mounted rapidly over each bush so that pressure is applied on the
centerline of bush. A metal cap is riveted to the brass bead and is provided with a hole
to maintain the position of the spring plug. Several brush holder, each carrying on
brush in radial position are fixed to a silver plated copper studs mounted on the
collecting arm concentric with each slip rings. The collecting arm is made out of a
copper strip.
DRYING OF WINDING:Generator stator bars are insulated with mica insulation , which
is homogeneous in nature and practically impervious to moisture, and reduce time
required to draught. The insulation resistance of the stator phase winging against earth
and with reference to other phases under hot condition shall not be less than the value
obtained automatically.
Rin
=
µ/(s/100+1000) m 52
U
=
rated winding Voltage under test.
Rin
=
insulation resistance under hot conditions Rated o/p of turbo generator.
The insulation resistance of entire excitation system circuit. In hot
condition must not fall below 0.5 m 52. The insulation resistance in
calculated as per the formula
Rin
=
Rv (U1 +U2) / (U-1)
Rin
=
Insulation resistance of exciter
Rv
=
Internal resistance of voltmeter
U1
=
Voltage measured btw. Slip ring & shaft/ earth (volts).
TECHNICAL DATA:(A)
Generator (110 MW):Type
:
t.g.p. 2,34,602
Continuous apparent power
:
1,37,500 KVA.
Active power
:
7,10,000 KW.
Power factor
:
0.8 (lagging).
Page 41 of 58
42. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Rated voltage
:
1000 + 5% rated.
Current
:
7,220 A
Critical speed
:
3000 r. p. m. at
frequency
:
50 Hz.
Phase connection
:
double star.
No. of terminals
:
6.
Main diameter of slip rings
:
420 mm.
Voltage regulation
:
39%.
Reactance
:
Informative.
HYDROGEN COOLER:Nos. of elements
:
6
Cooling medium
:
Water, H2 at 2 ATM.
Discharge losses
:
Quantity of H2
:
Quantity of water Temp
:
Cooling cold H2 Temp.
:
How resistance(H2 side)
:
1500 KW.
30 M3/ sec.
34oC,
400C
12 mm. of peak.
Inherent voltage regulation
:
39%
Short circuit ratio
:
0.5%.
Type
:
HC-WLL-BS/C46.
COOLING SYSTEM
a) GENERAL:In KSTPS hydrogen cooling system is employed for generator
cooling. Hydrogen is used for cooling medium primarily because of its superior
cooling properties & low density. Thermal conductivity of hydrogen 7.3 times of air.
It also has higher transfer co-efficient . Its ability to transfer heat through forced
convection is about 75% better than air. Density of hydrogen is approx. 7/14 of the air
at a given temperature and pressure. This reduces the wind age losses in high speed
machine like turbo-generator. Increasing the hydrogen pressure the machine improve
its capacity to absorb & remote heat. Relative cooling properties of air and hydrogen
are given below :Page 42 of 58
43. Kota Super Thermal Power Station (K.S.T.P.S), Kota
1)
Elimination of fire risk because hydrogen will not support combustion.
2)
Corona discharge is not harmful to insula. since oxidation is not possible.
3)
Smooth operation of machine in view of vertical elimination of wind age noise
& the use of heavy gas light enclosure and dirty probe casing.
At pressure 0.035 atm. of hydrogen heat carrying capacity is 1. But
at 2.0atm. of hydrogen heat carrying capacity is 1.95 to overcome the serious
possibility of hydrogen explosion with in the machine and to ensure the safety of
operation purity of hydrogen on the generator. Casing must be maintained as high as
possible. The purity of hydrogen should be 98% above but should not be less than
98% . In case of hydrogen purity drops below 98% an alarm is provided.
b)
HYDROGEN DRYERS:Two nos. of dryers are provided to absorb the hydrogen in the
Generator. Moisture in this gas is absorbed by silica gel in the dryer as the absorbed
gas passes through it. The satural of silica gel is indicated by change in its color from
blue to pink. The silica gel is reactivated by heating. By suitable change over from
drier
to
the
other
on
un-interrupted
Page 43 of 58
dryingisachieve
44. Kota Super Thermal Power Station (K.S.T.P.S), Kota
HYDROGEN COOLED ALTERNATOR
CHAPTER - 5
EXCITATION SYSTEM
The electric power Generators requires direct current excited magnets for its
field system. The excitation system must be reliable, stable in operation and must
response quickly to excitation current requirements. When excitation system response
is controlled by fast acting regulators, it is chiefly dependent on exciter. Exciter
supply is given from transformer and then rectified.
(A)
Function of excitation system:The main function of excitation system is to supply required
excitation current at rated load condition of turbo Generator. It should be able to
adjust the field current of the Generator, either by normal controller automatic control
so that for all operation & between no load and rated load. The terminal voltage of the
system machine is maintained at its value. The excitation system makes contribution
improving power system stability steady state condition. The excitation system that
are commonly termed quick response system and have following principal feature :Exciter of quick response & high voltage of not less than 1.4 times the rated filed
voltage and nominal exciter response of minimum 0.5.
(B)Type of Excitation System:There have been many developments in excitation system design. There has been
continuing reach among the design and the use alike from improving the excitation
system performance. The ultimate is to achieve stability; accuracy etc. the modern
excitation system adopted presently on BHEL makes turbo-generator I. Conventional
DC excitation system. Brushes excitation system.
STATIC EXCITATION SYSTEM :In KSTPS static excitation system is provided it mainly consists of the
following:1)
Rectifier transformer.
Page 44 of 58
45. Kota Super Thermal Power Station (K.S.T.P.S), Kota
2)
Nos. of thyristor converters.
3)
An automatic voltage regulator (AVR).
4)
Field suppression equipment.
5)
Field flashing equipment.
GENERAL ARRANGEMENT:In the excitation system the power required for
excitation of Generation are tapped from 11 KV bus ducts through a step down
rectifier transformer. After rectification in thermistor, converter, the DC power is fed
to the Generator field winding through a field breaker. The AVR control the o/p from
thyristor converter by adjusting the firing angle depending upon Generator voltages.
The field flashing system facilitates initial built up of the Generator voltage from the
static AC or DC supply.
(I) RECTIFIER TRANSFORMER :This transformer steps down the bus voltage 11 KV to
640 V and has a rating of 1360 KVA. It is dry type, it is however provided with
current relays and two temperature sensors.
(II) A THYRISTOR CONVERTOR :The thyristor panel and are intended for controlled
rectification of AC Input power. 6. Thyristor converter are connected in parallel each
rates for continuous current o/p of 20 % of the rated capacity i.e. 20 % reserve. Each
thyristor converter consists of 6 thyristor connected in 3-3 , full wave, 6-pulse bridge
from and they are cooled by fans provided with a fuse for protection against short
circuit.
(III)
AUTOMATIC VOLTAGE CONTROLS :The AVR is transistorized thyristor controlled equipment
with very fast response. The AVR is also having provision of stator and rotor currents
limits and load angle limits for optimum utilization of lagging and leading reactive
capacities of generator.
(IV) FIELD SUPRESSION EQUIPMENT:-
Page 45 of 58
46. Kota Super Thermal Power Station (K.S.T.P.S), Kota
The field equipment consists of a field breaker with
discharge resistors. The field breakers have 4 main breaking contacts and two
discharge contacts, which close before main contact break.
(a)
A very fast response.
(b)
Extremely reliable in view of static components.
(c)
Low maintenance cost.
(d)
High efficiency.
(e)
Fast field suppression through field and discharge resistance as well as through
Thyristor Bridge, feeding the Generator field.
OPERATION:After bringing the speed to operation speed say 3000
r.p.m. , the voltage is slowly built up with the help of excitation system. This action is
taken for synchronizing the Generator.
(A)
SYNCHRONIZING:For synchronizing the Generator to the grid system
5
condition of equality have to be satisfied. These are (I)_Voltage (II) Frequency (III)
Phase displacement (IV) Phase sequence (V) Wave form. Wave form and phase
sequence of the Generator are determined at the design of each connection
SYNCHRONIZING of the generator.
WATER TREATMENT PLANT
The principle problem in high pressure boiler is to
control corrosion and steam quality. Internal corrosion costs power station crores of
rupees in repair without strict control impurities in steam also form deposit over
turbine blades and nozzles. The impurities present in water are as follows :1)
Un-dissolved and suspended solid materials.
2)
Dissolved slats and minerals.
3)
Dissolved gases
4)
Other minerals ( oil, acid etc.).
5).
a) Turbidity & Sediment.
b) Silica.
Page 46 of 58
47. Kota Super Thermal Power Station (K.S.T.P.S), Kota
c) Micro Biological.
d) Sodium & Potassium Salt.
e) Dissolved Sales Minerals.
6).
a) O2gas.
b) CO2 gas.
D.M. PLANT:In this plant process water is fed from all these dissolved
salts. Equipment for demineralization cum softening plant is supplied and erected by
M/s. Wanson (India) Ld., Pune. This plant consists of two streams each stream with
activated carbon filter, weak acid , cation exchanger and mixed bed exchanger. The
filter water to DM plant through 250 dia. header from where a heater top off has been
taken to softening plant. Two filtered water booster pumps are provided on filtered
water line for meeting the pressure requirement in DM Plant.
Sodium Sulphate solution of required strength is dosed
into different filtered water by mean of dosing pump to neutralize chlorine prior to
activated carbon filter. When water passed an activated carbon filter will remove
residual chlorine from water. Provision is made for back washing the activated carbon
filter. When pressure drop across filter exceeds a prescribed limit from the activated
carbon filter the works acid cation unit. The deception water the weak base anion
exchanger unit water then enters de-gasified unit where free CO 2 is scrubbed out of
water by upward counter flow of low pr. air flow through degasified lower and
degassed water is pumped to strong base exchanger ( anion exchanger).
Arrangement for dosing ammonia solution into demineralized water after mixed bed unit has been provided p+1 correction before water
is taken in de-condensate transfer pump the DM water to unit condensor as make up.
C.W. PLANT:Circulating water pump house has pumps for condensing
the steam for condensor. Five pumps are used for condensing Unit No.1 & 2 and after
condensing this water is discharged back into the river. Each pump has capacity of
8275 M3/Hr, and develop pressure about 1.94 Kg./Cm2.Three seal water pump are used
for sealing circulating water pump shaft at pr. 4.5 kg./cm2.
Page 47 of 58
48. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Two pump for unit 1 & 2 with one stand by is used for
supplying raw water to chlrofied chemical dosing is tone between and chlorified water
is taken through main line. From main line water passes through filter bed to filter the
water. Chlorified water is pumped to 42 m elevation by two pumps of capacity 270
M3/Inch at discharge pressure of 6.9 Kg./Cm2. At 42 M elevation the water is stored in
tank and used for cooling the oil coolers and returned back to river. Oil coolers are
situated on ground and there are no. of tress for each unit.
B.C.W. PUMP HOUSE:Filter water after demineralization is used for bearing
cooling from BCW pump house after passing through strainer and heat exchanger it
enters at 30-32oC and leave exchanger at 38oC. The raw water used in ash handling
plant and remaining quantity is stored in sumps of BCW Pump House. From here the
water is pumped to CW Pump by TWS (Traveling water screens) pumps are run by
motors of 90 KW and has a capacity of 240 Cum/hr/pump at pressure of 5 kg/cm2.
BCW here stand for water used for cooling oil used for
cooling the bearing.
In CW pump house water is discharged from nozzle and
impinged for traveling water screens for cleaning it.
Page 48 of 58
49. Kota Super Thermal Power Station (K.S.T.P.S), Kota
CHAPTER-6
TRANSFORMER
Transformer is a static device which is used to change the voltage level
keeping the power and frequency same. In the plant transformer is one of the most
important equipment. In the whole plant, there are about 83 transformer installed at
various places to operate the auxiliaries.
Main transformers, which are necessary:
1. To step up the generated voltage.
2. To supply power to the auxiliaries from the generator.
3. To start the plant by taking the supply from the grid.
Are installed in a transformer yard. It is located in between the main
plant and the switchyard. The main transformers installed in the transformer yard
are:
1. GENERATOR TRANSFORMER (GT – A):It steps up the voltage from 16.5 KV to 220 KV. It connects the plant
with the 220 KV switchyard.
2. GENERATOR TRANSFORMER (GT – B):It steps up the voltage from 16.5 KV to 400 KV. It connects the plant
with the 400 KV switchyard.
3. STATION TRANSFORMER (ST):It is a step down transformer with 50 MVA capacities. It is used to step
down 220 KV from the grid to 6.9 KV.
4. UNIT AUXILIARY TRANSFORMER (UAT):-
Page 49 of 58
50. Kota Super Thermal Power Station (K.S.T.P.S), Kota
It is a step down transformer with 20 MVA capacities. It steps down the
voltage from 16.5 KV to 6.9 KV.
5. STATION SERVICE TRANSFORMER (SST):It is a step down transformer with 2MVA capacity. It is used to step
down from 6.6 KV to 0.4333 KV.
6. UNIT SERVICE TRANSFORMER (UST):It is a step down transformer with 2 MVA capacity. It is used to step
down from 6.6 kV to 0.4333 KV.
GENERATOR TRANSFORMER :Type of cooling
Rating HV (in MVA)
ONAN
160
ONAF
240
OFAF
315
Rating LV (in MVA)
Line Current HV
Line Current LV
Temperature rise in oil (°C)
Temperature rise in wdg (°C)
160
219.9
5598.5
45
50
240
329.9
8397.8
45
50
315
433.0
11022
45
50
No load voltage HV (KV)
-
420KV
No Load voltage LV (KV)
-
16.5 KV
Connection symbol
–
Ynd11
Oil
-
65300 Liters
There are 5 generator transformers in the plant, one for each unit. The output from the
generator is fed to the generator transformer, which step up the voltage from 16.5 KV
to 400 KV and supplies power to grid. Generator transformer winding connected in
stardelta with a phase displacement of 30 degrees. Three – phase supply from the
generator is connected to the low voltage side bushings and the output is taken from
the opposite side. Neutral point on the H.V. side is provided at the side of the tank.
Neutral is solidly grounded.
In case neutral is solidly connected to the earth a very small current flowing through
the neutral causes the tripling of the transformer. So in this case more care is to be
taken.
STATION TRANSFORMER:-
Page 50 of 58
51. Kota Super Thermal Power Station (K.S.T.P.S), Kota
When the unit is to be started, power supplied to the auxiliaries
is taken from the station transformer. The rating of the station transformer is 50 MVA.
It takes power from the grid at 220 kV and steps it down to 6.6 kV. At the time of
starting all the auxiliaries are supplied from the station transformer. When the
generator is synchronized and starts producing power, about 80% of the load is shifted
on to the unit auxiliary transformer. The load that requires uninterrupted supply is left
connected on the station transformer.
There are 5 S.T’s in the plant, one for each stage.
Type of cooling
MVA rating
ONAN
ONAF
H.V.
40
50
L.V.
Current (line)
26
31.05
H.V.
105
131
L.V.
3351
4189
Voltage (line):H.V.
220 Kv
L.V.
6.9 Kv
UNIT AUXILIARY TRANSFORMER:Each unit has two unit auxiliary transformers. When the unit
starts generating electricity these transformers are energized and then supplies power
to the auxiliaries. Before starting of the unit, UAT bus is connected to the station bus.
Auxiliaries of one unit take about 20MW of power. UAT is connected between the
generator and the GT. A tapping is taken from the power coming from the generator to
the GT. UAT relieves GT from extra load of about 20 MW which is to be supplied to
the auxiliaries via GT and ST thus increasing the efficiency. It is a step down
transformer, which steps down the voltage from 16.5 kV to 6.9kV. The rating of UAT
is 20 MVA. UAT bus supplies only those auxiliaries, which are not necessary to be
energized in case of sudden tripping of generator.
UNIT STATION TRANSFORMER:-
Page 51 of 58
52. Kota Super Thermal Power Station (K.S.T.P.S), Kota
It is a step down transformer, which is connected to the station
bus. It steps down the voltage from 6.6 kV to 0.433 kV it is used to supply the low
voltage auxiliaries.
UNIT SERVICE TRANSFORMER:It is also a 66-kV/ 415 V transformers which is used to supply
the auxiliaries connected to the unit secondary switchgear bus.
SWITCH YARD
220 KV SYSTEM :Two 220 KV bus bars have been provided in switch yard and
are inter-connected through a bus coupler. Each of the two 110 MW generator is
connected to this system through a step up of 125 MVA 240/ 11 KV yard generator
transformer.
There are two step down transformer each feeding 6.6 KV system
( Station Switchyard ) viz. BS-IS & SB-IB. Each station transformer has two windings
one secondary side and is rated for 50/25/25 mva, 270/7/7.2 kva four feeder take off
from 220 switch yard, two to SKATPURA GSS and other to HEERAPURA , Jaipur
GSS. Each of four feeder are provided with bypass isolators which is connected across
line breaker and breaker isolator. By closing bus coupler between 220 KV buses and
putting line feeders whose breaker required maintenance of any one bus through by
pass isolators and all other line feeders whose breaker is by passed is then transformed
to bus coupler breaker. A brief description of equipments of 220 KV system is as
follows.
CIRCUIT BREAKERS :Each of generator transformer, station transformer, line feeder
and bus coupler is provided with minimum oil circuit breaker of BHEL make. It is
rated for 245 KW, 2500 A and 13400 MVA circuit breaker is used to break the circuit
either in load condition or in no load condition.
ISOLATOR:All the isolators are provided in 220KV switchyard and are
motor operated. Triple pole double breaker type and power switch yard L&T make
Page 52 of 58
53. Kota Super Thermal Power Station (K.S.T.P.S), Kota
these and are rates for 245 KV and 1250 A. The four isolators are provided with earth
switch.
CIRCUIT TRANSFORMER:All the 220 KV current transformers are provided for measuring
and protection. They are BHEL make, single phase, oil filled nitrogen sealed outdoor
type. All the E.T.S. are multi-cored with each core having specification upon duty it is
to perform. Feeder circuit have 5 cores.
1)
Bus bar protection core I 1250/250/IA.
2)
Distance protection core II 600-300/IA.
3)
O/C and E/F protection core 600-300 /IA.
4)
For metering and measuring 600-300/ IA.
POTENTIAL TRANSFORMER:Each of 220 KV buses is provided with three P.T.’S are core for
each phase of BHEL make. There are single phase , oil filled outdoor. N 2 sealed ,
elicitor magnetic type P.T. has two secondary windings on secondary side and selected
for 220/53 KV, 10/53 KV.
LIGHTENING ARRESTOR:For protection against lightening each of line feeder, generator
transformer , station transformer has been provided with three L.A. (one for each
phase). All the L.A. are 2 Ø outdoor type and are rated for 198 KV these are
manufactured by W.S. insulator. The L.A. of generator transformer and station
transformer are located near them.
It has larger value of capacitance and will change upto line
voltage. If we have to do some work on line, first earth line through earthing isolator
for discharging the line capacitance and then work.
220 KV MOCB:Manufacturer
: BHEL, Hyderabad.
Total Nos.
: 9
Type
: HLR 245/2503 B-I.
Rated Frequency.
: 50 Hz.
Nominal Current.
: 2240 Amp.
Page 53 of 58
54. Kota Super Thermal Power Station (K.S.T.P.S), Kota
Type of operating mechanism.
: Motor charging Spring Closed.
220 KV ISOLATORS:Manufacturer
: A&S Power SWGR LTD
Number
: 36
Type
: Double break operated.
Rated Current.
: 1250 Amp.
No. of Phase.
: 3Ø
Rated Voltage.
: 245 KV.
220 KV Current Transformer:Manufacturer.
:
BHEL, Trichy.
Type
:
Outdoor, Oil filled.
Rated Voltage.
:
220 KV.
Nominal
:
220 KV.
Max.
:
245 KV.
Rated Frequency.
:
50 Hz.
No. of Phase.
:
1-Ø
Class of Insulation
:
A.
Rated Primary Voltage.
:
2220/ 53 V.
Secondary Voltage Wdg.I
:
110/53 V.
:
110/53 V.
Make
:
L&T Circuit Breaker Ltd.
Type
:
Air Circuit Breaker.
Maximum Continuous Voltage
:
500 V.for circuit breaker operation.
No. of Phase.
:
3-Ø
Rated Voltage.
:
415 V.
Wdg.II.
CIRCUIT BREAKER:-
POWER CAPACITOR:Page 54 of 58
55. Kota Super Thermal Power Station (K.S.T.P.S), Kota
M
:
L&T Limited.
Type.
:
ML1,ML2,ML3,ML4, ML8, ML12,.
No. of Poles.
:
3.
Rated Voltage for main Contacts.
:
500 V.
220 KV LIGNTENING ARRESTOR:Manufacturer.
:
W-S Isolators India Ltd. Chennai.
Type
:
Heavy Duty CPL II.
No. of Phases.
:
3-Ø
Rated Voltage.
:
198 KV.
Nominal Discharge Current.
:
10 KA.
High Current Impulse.
:
100 KA.
Long Duration Rating.
:
500 KA.
Page 55 of 58
56. Kota Super Thermal Power Station (K.S.T.P.S), Kota
CHAPTER -7
PROTECTION
1.
Field Protection.
2.
Pole Slipping.
3.
Plane Overload Protection.
4.
Inter-turn Fault
5.
Negative Phase Sequence Protection.
6.
Reverse Power Protection.
7.
Forward Power Protection.
8.
Under Frequency & Over Frequency Protection.
9.
Generator Voltage Protection.
10.
Rotor Earth Fault Protection.
General Protection:
It is most important electrical equipment of many generating
station. Tripping of even a generating unit may cause overloading of associated
machines and even to system un-stability . The basis function of protection applied to
generator is to reduce voltage to minimum by rapid discrimination clearance of faults.
Unlike other apparatus the opening of C.B. to isolate faulty generator is not sufficient
to prevent future damage.
SALIENT FEATURE OF K.S.T.P.S.
1.
LOCATION
Sakatpura, Kota.
Page 56 of 58
57. Kota Super Thermal Power Station (K.S.T.P.S), Kota
2.
CAPACITY
A) 1ST Stage.
2x110 MW.
B) 2nd Stage.
2x210 MW.
C) 3rd Stage.
1x210 MW.
D) 4th Stage.
1x195 MW.
E) 5th Stage
1x195 MW
3. SOURCE OF WATER.
4.
Chambal River.
BOILER
a) type.
tangentially fired natural
circulation, balance draft ,
direct fired radiant reheat,
water tube boiler.
b) No. of units.
7
c) Max. efficiency.
BHEL (86.6 + 1) %
d) Capacity.
375 t/Hr , 710 t/hr
(110 MW) / (210 MW)
e) Steam Pressure
139 Kg/cm2 / 150 Kg/cm2
f) Steam Temp.
540oC,
g) No. of draft fans in
i) FD fans 2 Unit ( Each boiler)
Service.
ii) ID fan 2 Unit ( Each boiler ).
h) No. of Air fans in Service.
i) Primary
2 Unit.
ii)Seal Air fan.
1 Unit.
iii) Scanner.
1 Unit.
i) No. of coal mills in service.
j) No. of Soot blower in service.
68
k) No. of oil burners.
5.
3 Unit.
8
Fuels:-
A) COAL:Page 57 of 58
58. Kota Super Thermal Power Station (K.S.T.P.S), Kota
i)Type.
Stack Coal.
ii) Calorific Value.
3300 K.Cal./Kg.
iii) Qty. Used.
80 t/hr, 140 t/hr
iv) Ash contents.
40%
v) Sulphur contents.
0.5%.
vi)Type of Handling.
Belt Conveyor.
CONCLUSION
The first phase of practical training has proved to be quiet
fruitful. It provided an opportunity for encounter with such huge machines like wagon
tippler .110 MW, 210 MW & 195 MW turbines and generators.
The architecture of the power plant the way various units are
linked and the way working of whole plant is controlled make the student realize that
engineering is not just learning the structured description and working of various
machines, but the greater part is of planning proper management.
It also provides an opportunities to lean low technology used at
proper place and time can cave a lot of labour e.g. wagon Tripler (CHP).But there are
few factors that require special mention. Training is not carried out into its tree sprit.
It is recommended that there should be some project specially meant for students
where presence of authorities should be ensured. There should be strict monitoring of
the performance of students and system of grading be improved on the basis of work
done.
However training has proved to be quite fruitful. It has allowed
an opportunity to get an exposure of the practical implementation to theoretical
fundamentals.
Page 58 of 58
59. Kota Super Thermal Power Station (K.S.T.P.S), Kota
REFERENCE
1)
http://www.rvunl.com/kota thermal power station.php
2)
B.R Gupta ‘Generation of electrical Power’ india 2009
Page 109-126 S.CHAND publications
3)
Notes given during training period
4)
123engineers.com
5)
K.C.Kasliwal Institute
Page 59 of 58
