Jaipur, the capital of Rajasthan, was founded in 1727 by Maharaja Sawai Jai Singh II. It has a population of over 3 million people and is known as the "Pink City" due to its distinctive pink-colored buildings. Jaipur has a hot dry climate with average temperatures ranging from 45°C in the summer to 5°C in the winter. The city was planned according to principles of Hindu architecture and town planning. It has since grown significantly and faces issues with housing, transportation infrastructure, and waste management to support its increasing population.

1. jaipurEXISTING CITY PROFILE
Suchetana chakravarty
114AR0025 ,sem-VII

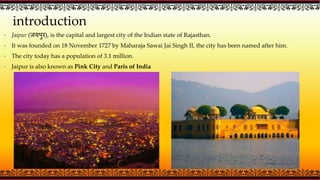

2. introduction
• Jaipur (जयपुर), is the capital and largest city of the Indian state of Rajasthan.
• It was founded on 18 November 1727 by Maharaja Sawai Jai Singh II, the city has been named after him.
• The city today has a population of 3.1 million.
• Jaipur is also known as Pink City and Paris of India

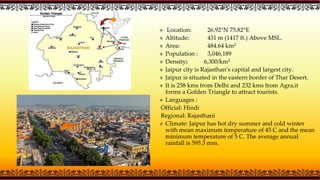

3.  Location: 26.92°N 75.82°E
 Altitude: 431 m (1417 ft.) Above MSL.
 Area: 484.64 km2
 Population : 3,046,189
 Density: 6,300/km2
 Jaipur city is Rajasthan’s capital and largest city.
 Jaipur is situated in the eastern border of Thar Desert.
 It is 258 kms from Delhi and 232 kms from Agra,it
forms a Golden Triangle to attract tourists.
 Languages :
Official: Hindi
Regional: Rajasthani
 Climate: Jaipur has hot dry summer and cold winter
with mean maximum temperature of 45 C and the mean
minimum temperature of 5 C. The average annual
rainfall is 595.3 mm.

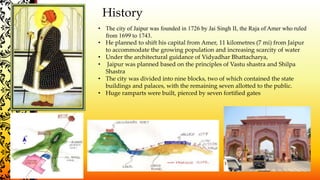

4. History
• The city of Jaipur was founded in 1726 by Jai Singh II, the Raja of Amer who ruled
from 1699 to 1743.
• He planned to shift his capital from Amer, 11 kilometres (7 mi) from Jaipur
to accommodate the growing population and increasing scarcity of water
• Under the architectural guidance of Vidyadhar Bhattacharya,
• Jaipur was planned based on the principles of Vastu shastra and Shilpa
Shastra
• The city was divided into nine blocks, two of which contained the state
buildings and palaces, with the remaining seven allotted to the public.
• Huge ramparts were built, pierced by seven fortified gates

5. Conceptual prastara plan
• it is a model of town planning- the first planned city in
india. it is based on hindu systems of town planning and
followed the principles prescribed in the shilpa-shastra.
according to this shastra the site should be divided into
grids or mandalas ranging from 2x 2 to 10 x 10.
planned according to the prastara type of layout,
which gives prominence to the cardinal directions.
thus plan of jaipur is a grid of 3x3 with gridlines being
the city’s main streets.

6. • The city’s division into nine wards was
also in conformity with the Hindu caste
system, which necessitated the segregation
of people belonging to different
communities and ranks.
Following the directions of the Hindu
Shilpa shastra, width of the main streets &
other lanes were fixed. Thus the main
streets of the city were 111ft. wide,
secondary streets 55 ft. wide & the smaller
ones 27ft. wide.

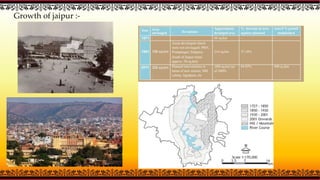

7. Growth of jaipur :-

8. Demographic profile
 Population:
• Jaipur city population (as per 2001
census): 23.23 lakh
• Population(as per 2011 census): 36.02
lakh
• Projected population(2025): 64.95 lakhs
 Natural growth and In-migration

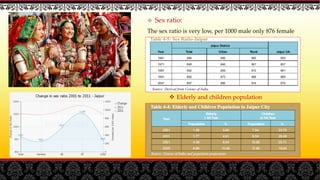

9.  Sex ratio:
The sex ratio is very low, per 1000 male only 876 female
 Elderly and children population

10.  Literacy rate : the city does not give a healthy picture when it comes to
literacy rate though at present there is increment in literacy rate

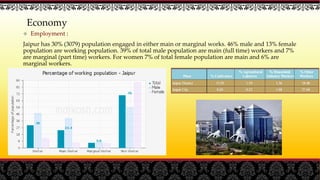

11.  Employment :
Jaipur has 30% (3079) population engaged in either main or marginal works. 46% male and 13% female
population are working population. 39% of total male population are main (full time) workers and 7%
are marginal (part time) workers. For women 7% of total female population are main and 6% are
marginal workers.
Economy

12. Housing
 Households & housing units :
4.2 % of housing are semi-permanent and .94% are temporary
 Housing supply in jaipur:
 Housing shortage :
The housing shortage for 2001 is 1,44,042

13. Industry
• Organized Industrial areas- V.K.I.A.,
Jhotwara, Kanakpura, Bindayaka Sitapura and
Sanganer.
• Unorganized Industrial areas- mainly
concentrated in the Sanganer town
• Household Industry- mostly in walled city.
• Master Plan 1991 proposed 1805 Ha, however
development could be
taken place in 1007 Ha.
• Master Plan 2011 proposed 1862 Ha. however
1600 Ha. Developed.

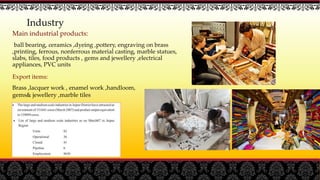

14. Main industrial products:
ball bearing, ceramics ,dyeing ,pottery, engraving on brass
,printing, ferrous, nonferrous material casting, marble statues,
slabs, tiles, food products , gems and jewellery ,electrical
appliances, PVC units
Industry
Export items:
Brass ,lacquer work , enamel work ,handloom,
gems& jewellery ,marble tiles

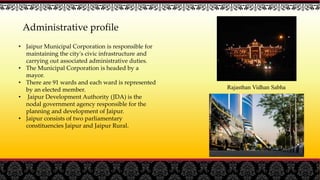

15. Administrative profile
• Jaipur Municipal Corporation is responsible for
maintaining the city's civic infrastructure and
carrying out associated administrative duties.
• The Municipal Corporation is headed by a
mayor.
• There are 91 wards and each ward is represented
by an elected member.
• Jaipur Development Authority (JDA) is the
nodal government agency responsible for the
planning and development of Jaipur.
• Jaipur consists of two parliamentary
constituencies Jaipur and Jaipur Rural.
Rajasthan Vidhan Sabha

16. Existing
land use

17. Transportation
road network :-
• the transport system of Jaipur city is mainly road based.
• The road network inside the walled city is different from outside
areas.
• The walled city has a grid pattern of roads
• Road follows a hierarchy
• Major roads are east-west(surajpol-Chandrapol),they are 33 m
wide
• Following the major roads,16.5 m wide roads runs through north
to south ,linking internal areas
• jaipur city has around 10 major arterial spines that criss-cross the
entire city. tonk road is a major arterial road that connects some
of the major employment centers like sanganer, durgapura and
lal kothi.

18. CHAUPAR – It’s a square that occurs at the intersection of east west roads with three north south
roads. Each chaupar is around 100m x 100m. Were used for public gathering on festive occasions. The
distance between two chaupars is about 700m which is ideal for pedestrian movement.

19. Transportation
Vehicle Growth :-
Modal split of the Jaipur city :-

20. Transportation
TRANSPORT DATA ANALYSIS
• Public transport buses are operated by Rajasthan State Road
Transport Corporation(RSRTC)
• RSRTC operates all rajasthan more than 5000 buses and over
13,000 buses to al important places in rajasthan adjoin states
Gujrat, Haryana, Punjab, Delhi, Uttar Pradesh.
• 4 gov. bus depos namely vaishali, sanganer,jhalana, vidhyadhar
nagar
• At present 185 bus routes operating in the city.
PUBLIC TRANSPORTATION SYSTEM AND OPERATION
• A road network of 600 km lenghth including arterial, sub-arterial and
other important roads.
• 18% ROW less than 30 m
• 32% have 30m ROW
• 50% have ROW in acess of 30 m.
• Footpath has been found missing in majority of the roads

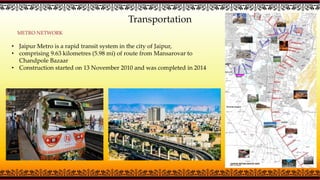

21. Transportation
METRO NETWORK
• Jaipur Metro is a rapid transit system in the city of Jaipur,
• comprising 9.63 kilometres (5.98 mi) of route from Mansarovar to
Chandpole Bazaar
• Construction started on 13 November 2010 and was completed in 2014

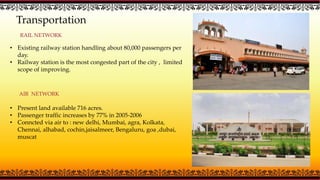

22. Transportation
AIR NETWORK
• Existing railway station handling about 80,000 passengers per
day.
• Railway station is the most congested part of the city , limited
scope of improving.
• Present land available 716 acres.
• Passenger traffic increases by 77% in 2005-2006
• Conncted via air to : new delhi, Mumbai, agra, Kolkata,
Chennai, alhabad, cochin,jaisalmeer, Bengaluru, goa ,dubai,
muscat
RAIL NETWORK

23. Social infrastructure

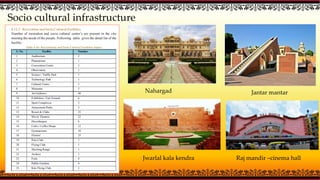

24. Socio cultural infrastructure
Nahargad Jantar mantar
Raj mandir –cinema hallJwarlal kala kendra

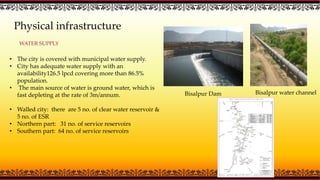

25. Physical infrastructure
WATER SUPPLY
• The city is covered with municipal water supply.
• City has adequate water supply with an
availability126.5 lpcd covering more than 86.5%
population.
• The main source of water is ground water, which is
fast depleting at the rate of 3m/annum.
• Walled city: there are 5 no. of clear water reservoir &
5 no. of ESR
• Northern part: 31 no. of service reservoirs
• Southern part: 64 no. of service reservoirs
Bisalpur Dam Bisalpur water channel

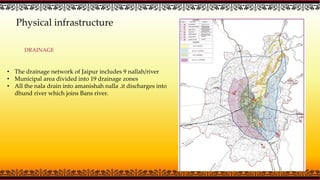

26. Physical infrastructure
DRAINAGE
• The drainage network of Jaipur includes 9 nallah/river
• Municipal area divided into 19 drainage zones
• All the nala drain into amanishah nalla .it discharges into
dhund river which joins Bans river.

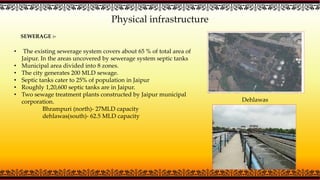

27. Physical infrastructure
SEWERAGE :-
• The existing sewerage system covers about 65 % of total area of
Jaipur. In the areas uncovered by sewerage system septic tanks
• Municipal area divided into 8 zones.
• The city generates 200 MLD sewage.
• Septic tanks cater to 25% of population in Jaipur
• Roughly 1,20,600 septic tanks are in Jaipur.
• Two sewage treatment plants constructed by Jaipur municipal
corporation.
Bhrampuri (north)- 27MLD capacity
dehlawas(south)- 62.5 MLD capacity
Dehlawas

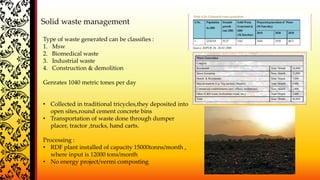

28. Solid waste management
Type of waste generated can be classifies :
1. Msw
2. Biomedical waste
3. Industrial waste
4. Construction & demolition
Genrates 1040 metric tones per day
• Collected in traditional tricycles,they deposited into
open sites,round cement concrete bins
• Transportation of waste done through dumper
placer, tractor ,trucks, hand carts.
Processing :
• RDF plant installed of capacity 15000tonns/month ,
where input is 12000 tons/month
• No energy project/vermi composting

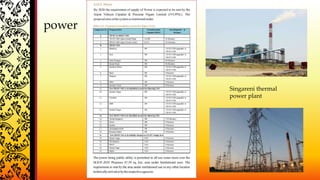

30. power
Singareni thermal
power plant
