This document summarizes ischemic heart disease and coronary artery disease. It discusses the coronary circulation and arteries, myocardial ischemia, coronary artery diseases including angina and myocardial infarction. It covers causes such as atherosclerosis, risk factors, signs and symptoms, diagnoses using tests like ECG, treatment including medications, angioplasty, bypass surgery and prevention strategies.

1. Ischemic heart disease(Coronaryartery disease)
Coronary circulation
Coronary circulation: is the circulation of blood in the blood vessels of the heart
muscle (myocardium).
Cardiac arteries include
 Left coronary arteries
 Right coronary arteries
As they run on the surface of the heart, they can be called:
 Epicardial coronary arteries
The coronary arteries that run deep within the myocardium are referred to as
 Subendocardial
The coronary arteries are classified as "end circulation", since they represent the
only source of blood supply to the myocardium; there is very little redundant blood
supply, which is why blockage of these vessels can be so critical.

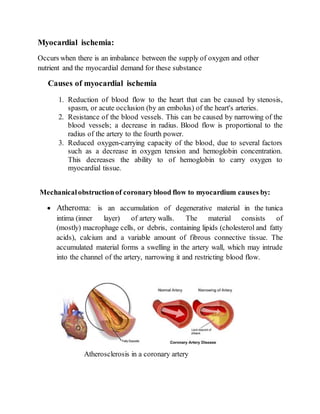

2. Myocardial ischemia:
Occurs when there is an imbalance between the supply of oxygen and other
nutrient and the myocardial demand for these substance
Causes of myocardial ischemia
1. Reduction of blood flow to the heart that can be caused by stenosis,
spasm, or acute occlusion (by an embolus) of the heart's arteries.
2. Resistance of the blood vessels. This can be caused by narrowing of the
blood vessels; a decrease in radius. Blood flow is proportional to the
radius of the artery to the fourth power.
3. Reduced oxygen-carrying capacity of the blood, due to several factors
such as a decrease in oxygen tension and hemoglobin concentration.
This decreases the ability to of hemoglobin to carry oxygen to
myocardial tissue.
Mechanicalobstructionof coronaryblood flow to myocardium causes by:
 Atheroma: is an accumulation of degenerative material in the tunica
intima (inner layer) of artery walls. The material consists of
(mostly) macrophage cells, or debris, containing lipids (cholesterol and fatty
acids), calcium and a variable amount of fibrous connective tissue. The
accumulated material forms a swelling in the artery wall, which may intrude
into the channel of the artery, narrowing it and restricting blood flow.
Atherosclerosis in a coronary artery

3. Veins do not develop atheroma , unless surgically moved to function as an artery,
as inbypass surgery.
 Thrombosis
 Spasm
 Embolus
 Coronary ostial stenosis
 Coronary arteritis
 Decrease flow of the oxygenated blood to the myocardium
 Anemia
 Hypotension
Coronary artery diseases(Ischemic heart diseases)
Group of heart disease causes narrowing of the coronary arteries,
leading to inadequate blood supply to the myocardium
They includes:
 Stable angina
 Unstable angina
 Myocardial infarction
 Suddencoronary death
Pathophysiology
 Limitation of blood flow to the heart causes ischemia (cell starvation
secondary to a lack of oxygen) of the myocardial cells. Myocardial cells may
die from lack of oxygen and this is called a myocardial infarction
(commonly called a heart attack).
 It leads to heart muscle damage, heart muscle death and later myocardial
scarring without heart muscle regrowth.
 Chronic high-grade stenosis of the coronary arteries can induce
transient ischemia which leads to the induction of a ventricular arrhythmia,
which may terminate into ventricular fibrillation leading to death.

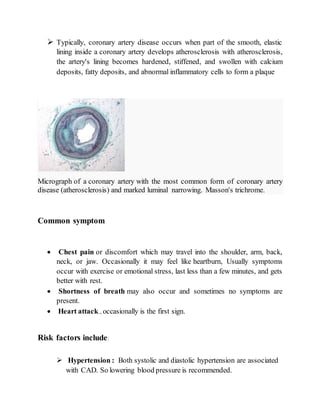

4.  Typically, coronary artery disease occurs when part of the smooth, elastic
lining inside a coronary artery develops atherosclerosis with atherosclerosis,
the artery's lining becomes hardened, stiffened, and swollen with calcium
deposits, fatty deposits, and abnormal inflammatory cells to form a plaque
Micrograph of a coronary artery with the most common form of coronary artery
disease (atherosclerosis) and marked luminal narrowing. Masson's trichrome.
Common symptom
 Chest pain or discomfort which may travel into the shoulder, arm, back,
neck, or jaw. Occasionally it may feel like heartburn, Usually symptoms
occur with exercise or emotional stress, last less than a few minutes, and gets
better with rest.
 Shortness of breath may also occur and sometimes no symptoms are
present.
 Heart attack., occasionally is the first sign.
Risk factors include:
 Hypertension : Both systolic and diastolic hypertension are associated
with CAD. So lowering blood pressure is recommended.

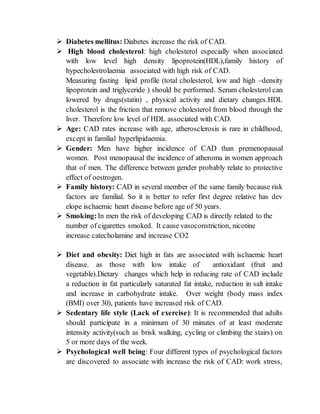

5.  Diabetes mellitus: Diabetes increase the risk of CAD.
 High blood cholesterol: high cholesterol especially when associated
with low level high density lipoprotein(HDL),family history of
hypecholestrolaemia associated with high risk of CAD.
Measuring fasting lipid profile (total cholesterol, low and high –density
lipoprotein and triglyceride ) should be performed. Serum cholesterol can
lowered by drugs(statin) , physical activity and dietary changes.HDL
cholesterol is the friction that remove cholesterol from blood through the
liver. Therefore low level of HDL associated with CAD.
 Age: CAD rates increase with age, atherosclerosis is rare in childhood,
except in familial hyperlipidaemia.
 Gender: Men have higher incidence of CAD than premenopausal
women. Post menopausal the incidence of atheroma in women approach
that of men. The difference between gender probably relate to protective
effect of oestrogen.
 Family history: CAD in several member of the same family because risk
factors are familial. So it is better to refer first degree relative has dev
elope ischaemic heart disease before age of 50 years.
 Smoking:In men the risk of developing CAD is directly related to the
number of cigarettes smoked. It cause vasoconstriction, nicotine
increase catecholamine and increase CO2
 Diet and obesity: Diet high in fats are associated with ischaemic heart
disease. as those with low intake of antioxidant (fruit and
vegetable).Dietary changes which help in reducing rate of CAD include
a reduction in fat particularly saturated fat intake, reduction in salt intake
and increase in carbohydrate intake. Over weight (body mass index
(BMI) over 30), patients have increased risk of CAD.
 Sedentary life style (Lack of exercise): It is recommended that adults
should participate in a minimum of 30 minutes of at least moderate
intensity activity(such as brisk walking, cycling or climbing the stairs) on
5 or more days of the week.
 Psychological well being: Four different types of psychological factors
are discovered to associate with increase the risk of CAD: work stress,

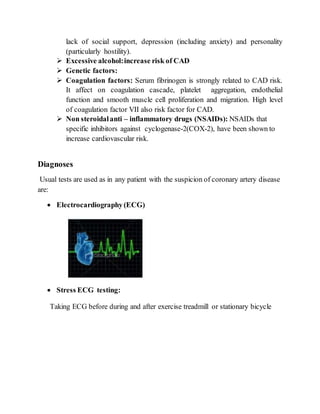

6. lack of social support, depression (including anxiety) and personality
(particularly hostility).
 Excessive alcohol:increase risk of CAD
 Genetic factors:
 Coagulation factors: Serum fibrinogen is strongly related to CAD risk.
It affect on coagulation cascade, platelet aggregation, endothelial
function and smooth muscle cell proliferation and migration. High level
of coagulation factor VII also risk factor for CAD.
 Non steroidalanti – inflammatory drugs (NSAIDs): NSAIDs that
specific inhibitors against cyclogenase-2(COX-2), have been shown to
increase cardiovascular risk.
Diagnoses
Usual tests are used as in any patient with the suspicion of coronary artery disease
are:
 Electrocardiography (ECG)
 Stress ECG testing:
Taking ECG before during and after exercise treadmill or stationary bicycle

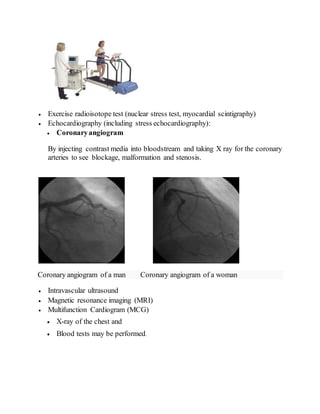

7.  Exercise radioisotope test (nuclear stress test, myocardial scintigraphy)
 Echocardiography (including stress echocardiography):
 Coronaryangiogram
By injecting contrast media into bloodstream and taking X ray for the coronary
arteries to see blockage, malformation and stenosis.
Coronary angiogram of a man Coronary angiogram of a woman
 Intravascular ultrasound
 Magnetic resonance imaging (MRI)
 Multifunction Cardiogram (MCG)
 X-ray of the chest and
 Blood tests may be performed.

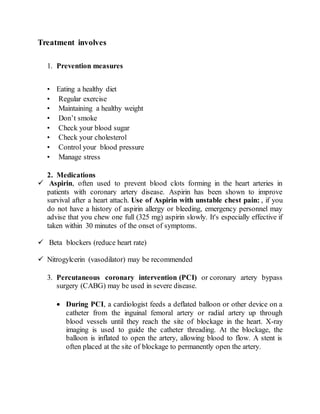

8. Treatment involves
1. Prevention measures
• Eating a healthy diet
• Regular exercise
• Maintaining a healthy weight
• Don’t smoke
• Check your blood sugar
• Check your cholesterol
• Control your blood pressure
• Manage stress
2. Medications
 Aspirin, often used to prevent blood clots forming in the heart arteries in
patients with coronary artery disease. Aspirin has been shown to improve
survival after a heart attach. Use of Aspirin with unstable chest pain: , if you
do not have a history of aspirin allergy or bleeding, emergency personnel may
advise that you chew one full (325 mg) aspirin slowly. It's especially effective if
taken within 30 minutes of the onset of symptoms.
 Beta blockers (reduce heart rate)
 Nitrogylcerin (vasodilator) may be recommended
3. Percutaneous coronary intervention (PCI) or coronary artery bypass
surgery (CABG) may be used in severe disease.
 During PCI, a cardiologist feeds a deflated balloon or other device on a
catheter from the inguinal femoral artery or radial artery up through
blood vessels until they reach the site of blockage in the heart. X-ray
imaging is used to guide the catheter threading. At the blockage, the
balloon is inflated to open the artery, allowing blood to flow. A stent is
often placed at the site of blockage to permanently open the artery.

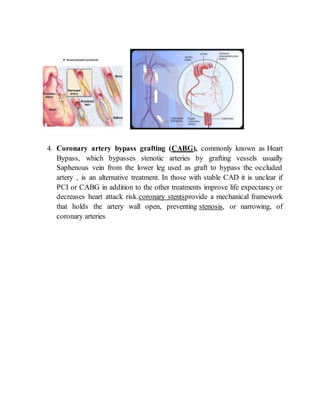

9. 4. Coronary artery bypass grafting (CABG), commonly known as Heart
Bypass, which bypasses stenotic arteries by grafting vessels usually
Saphenous vein from the lower leg used as graft to bypass the occluded
artery , is an alternative treatment. In those with stable CAD it is unclear if
PCI or CABG in addition to the other treatments improve life expectancy or
decreases heart attack risk.coronary stentsprovide a mechanical framework
that holds the artery wall open, preventing stenosis, or narrowing, of
coronary arteries

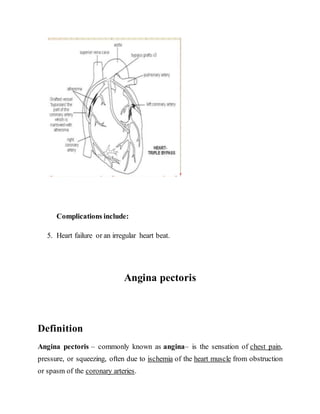

10. Complications include:
5. Heart failure or an irregular heart beat.
Angina pectoris
Definition
Angina pectoris – commonly known as angina– is the sensation of chest pain,
pressure, or squeezing, often due to ischemia of the heart muscle from obstruction
or spasm of the coronary arteries.

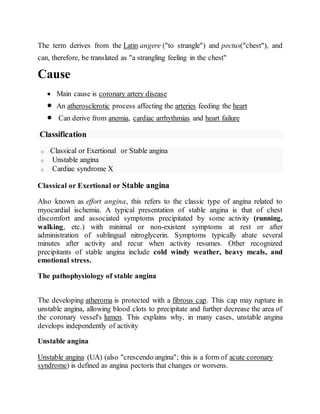

11. The term derives from the Latin angere ("to strangle") and pectus("chest"), and
can, therefore, be translated as "a strangling feeling in the chest"
Cause
 Main cause is coronary artery disease
 An atherosclerotic process affecting the arteries feeding the heart
 Can derive from anemia, cardiac arrhythmias and heart failure
Classification
o Classical or Exertional or Stable angina
o Unstable angina
o Cardiac syndrome X
Classical or Exertional or Stable angina
Also known as effort angina, this refers to the classic type of angina related to
myocardial ischemia. A typical presentation of stable angina is that of chest
discomfort and associated symptoms precipitated by some activity (running,
walking, etc.) with minimal or non-existent symptoms at rest or after
administration of sublingual nitroglycerin. Symptoms typically abate several
minutes after activity and recur when activity resumes. Other recognized
precipitants of stable angina include cold windy weather, heavy meals, and
emotional stress.
The pathophysiology of stable angina
The developing atheroma is protected with a fibrous cap. This cap may rupture in
unstable angina, allowing blood clots to precipitate and further decrease the area of
the coronary vessel's lumen. This explains why, in many cases, unstable angina
develops independently of activity
Unstable angina
Unstable angina (UA) (also "crescendo angina"; this is a form of acute coronary
syndrome) is defined as angina pectoris that changes or worsens.

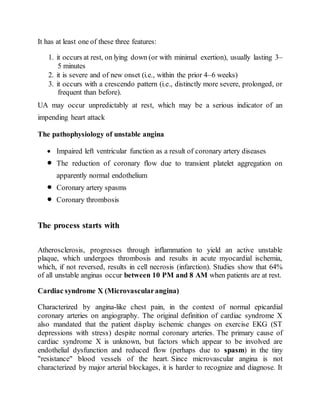

12. It has at least one of these three features:
1. it occurs at rest, on lying down (or with minimal exertion), usually lasting 3–
5 minutes
2. it is severe and of new onset (i.e., within the prior 4–6 weeks)
3. it occurs with a crescendo pattern (i.e., distinctly more severe, prolonged, or
frequent than before).
UA may occur unpredictably at rest, which may be a serious indicator of an
impending heart attack
The pathophysiology of unstable angina
 Impaired left ventricular function as a result of coronary artery diseases
 The reduction of coronary flow due to transient platelet aggregation on
apparently normal endothelium
 Coronary artery spasms
 Coronary thrombosis
The process starts with
Atherosclerosis, progresses through inflammation to yield an active unstable
plaque, which undergoes thrombosis and results in acute myocardial ischemia,
which, if not reversed, results in cell necrosis (infarction). Studies show that 64%
of all unstable anginas occur between 10 PM and 8 AM when patients are at rest.
Cardiac syndrome X (Microvascularangina)
Characterized by angina-like chest pain, in the context of normal epicardial
coronary arteries on angiography. The original definition of cardiac syndrome X
also mandated that the patient display ischemic changes on exercise EKG (ST
depressions with stress) despite normal coronary arteries. The primary cause of
cardiac syndrome X is unknown, but factors which appear to be involved are
endothelial dysfunction and reduced flow (perhaps due to spasm) in the tiny
"resistance" blood vessels of the heart. Since microvascular angina is not
characterized by major arterial blockages, it is harder to recognize and diagnose. It

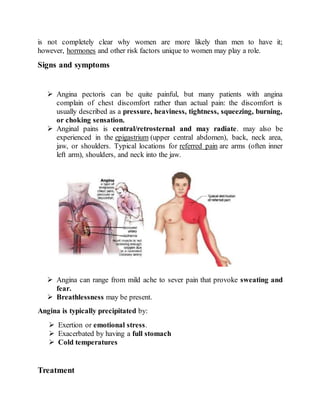

13. is not completely clear why women are more likely than men to have it;
however, hormones and other risk factors unique to women may play a role.
Signs and symptoms
 Angina pectoris can be quite painful, but many patients with angina
complain of chest discomfort rather than actual pain: the discomfort is
usually described as a pressure, heaviness, tightness, squeezing, burning,
or choking sensation.
 Anginal pains is central/retrosternal and may radiate. may also be
experienced in the epigastrium (upper central abdomen), back, neck area,
jaw, or shoulders. Typical locations for referred pain are arms (often inner
left arm), shoulders, and neck into the jaw.
 Angina can range from mild ache to sever pain that provoke sweating and
fear.
 Breathlessness may be present.
Angina is typically precipitated by:
 Exertion or emotional stress.
 Exacerbated by having a full stomach
 Cold temperatures
Treatment

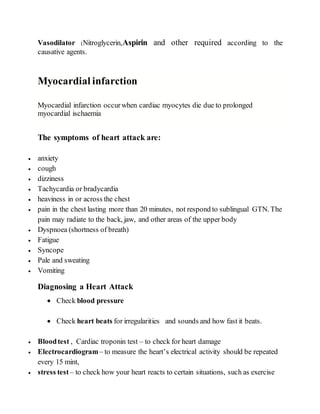

14. Vasodilator (Nitroglycerin,Aspirin and other required according to the
causative agents.
Myocardial infarction
Myocardial infarction occurwhen cardiac myocytes die due to prolonged
myocardial ischaemia
The symptoms of heart attack are:
 anxiety
 cough
 dizziness
 Tachycardia or bradycardia
 heaviness in or across the chest
 pain in the chest lasting more than 20 minutes, not respond to sublingual GTN. The
pain may radiate to the back, jaw, and other areas of the upper body
 Dyspnoea (shortness of breath)
 Fatigue
 Syncope
 Pale and sweating
 Vomiting
Diagnosing a Heart Attack
 Check blood pressure
 Check heart beats for irregularities and sounds and how fast it beats.
 Bloodtest , Cardiac troponin test – to check for heart damage
 Electrocardiogram– to measure the heart’s electrical activity should be repeated
every 15 mint,
 stress test – to check how your heart reacts to certain situations, such as exercise

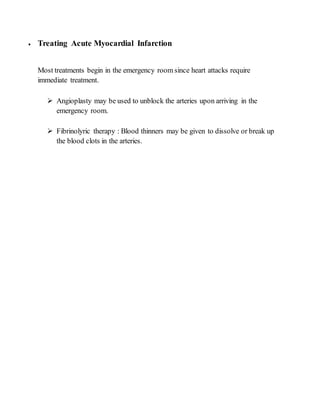

15.  Treating Acute Myocardial Infarction
Most treatments begin in the emergency room since heart attacks require
immediate treatment.
 Angioplasty may be used to unblock the arteries upon arriving in the
emergency room.
 Fibrinolyric therapy : Blood thinners may be given to dissolve or break up
the blood clots in the arteries.
