IPSec_VPN_Final_

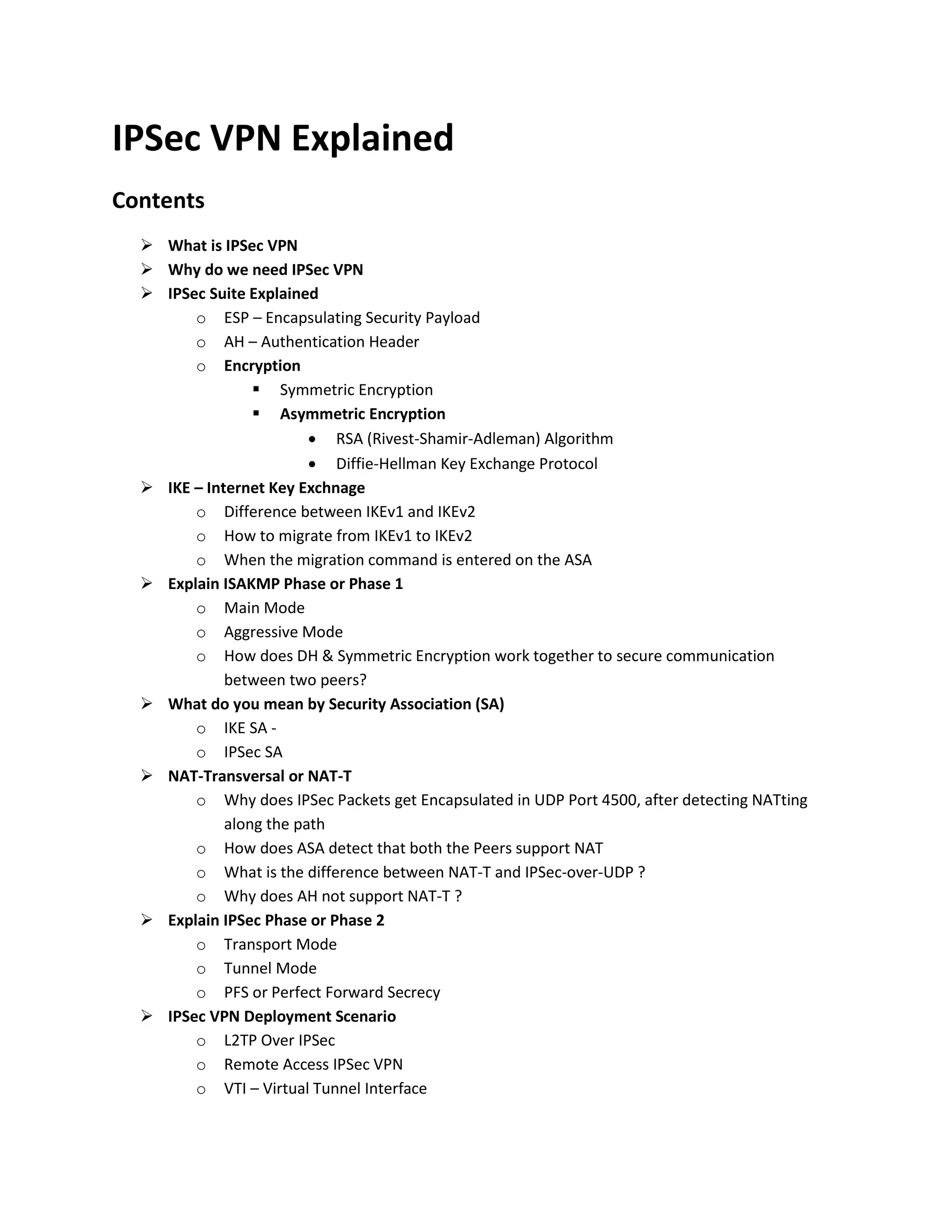

1. IPSec VPN Explained
Contents
What is IPSec VPN
Why do we need IPSec VPN
IPSec Suite Explained
o ESP – Encapsulating Security Payload
o AH – Authentication Header
o Encryption
Symmetric Encryption
Asymmetric Encryption
RSA (Rivest-Shamir-Adleman) Algorithm
Diffie-Hellman Key Exchange Protocol
IKE – Internet Key Exchnage
o Difference between IKEv1 and IKEv2
o How to migrate from IKEv1 to IKEv2
o When the migration command is entered on the ASA
Explain ISAKMP Phase or Phase 1
o Main Mode
o Aggressive Mode
o How does DH & Symmetric Encryption work together to secure communication
between two peers?
What do you mean by Security Association (SA)
o IKE SA -
o IPSec SA
NAT-Transversal or NAT-T
o Why does IPSec Packets get Encapsulated in UDP Port 4500, after detecting NATting
along the path
o How does ASA detect that both the Peers support NAT
o What is the difference between NAT-T and IPSec-over-UDP ?
o Why does AH not support NAT-T ?
Explain IPSec Phase or Phase 2
o Transport Mode
o Tunnel Mode
o PFS or Perfect Forward Secrecy
IPSec VPN Deployment Scenario
o L2TP Over IPSec
o Remote Access IPSec VPN
o VTI – Virtual Tunnel Interface
2. SVTI
DVTI
o Point-To-Point GRE over IPSec
o DMVPN – Dynamic Multipoint VPN
o VRF Aware IPSec
o V3PN - Voice and Video Enabled IPSec VPN
How does the traffic get Encrypted, in simple terms
Steps to configure IPSec Site-To-Site VPN on ASA
Troubleshooting IPSec Site-To-Site VPN
o Verification command
o Phase 1
o Phase 2
FAQ – Frequently Asked Questions
3. IPSec VPN Explained
What is IPSec VPN ?
IPsec VPN is used to connect 2 or more sites securely over the internet. It forms a Tunnel between the
peers and makes sure that the data is safe. IPsec VPN provides data integrity, keeps the data
confidential and makes sure the data is sent to the correct user.
Why do we need it ?
Consider this; you have 2 sites located at different location. You want users to able to work with the
users at the other sites so what will you do? You have multiple options Leased Line, Frame-Relay, MPLS
etc but all of these options will cost you a fortune. So the easiest and the cheapest way to connect these
sites is by IPSec Site-To-Site VPN. For this to work you just need an internet connection at both the sites.
Explain IPSec Suite
IPsec is a framework of open standards that provides data confidentiality, data integrity, and data
authentication between participating peers. IPsec provides these security services at the IP layer; it uses
IKE (ISAKMP) to handle negotiation of protocols and algorithms based on the local policy, and to
generate the encryption and authentication keys to be used by IPsec. IPSec protocol (RFC 1825) provides
IP network-layer encryption and defines a new set of headers to be added to IP datagram’s. IPsec works
with the following serial encapsulations: High-Level Data-Links Control (HDLC), PPP, and Frame Relay.
IPsec also works with Generic Routing Encapsulation (GRE) and IPinIP Layer 3, Layer 2 Forwarding (L2F),
Layer 2 Tunneling Protocol (L2TP), Data Link Switching+ (DLSw+), and SRB tunneling protocols.
4. Encapsulating Security Payload (ESP)
Encapsulating Security Payload is a member of the IPSec protocol suite. ESP operates directly on top of
IP, using IP protocol number 50. ESP is primarily designed to provide encryption and authentication for
the data that is being transferred over the internet. ESP header is inserted after the IP Header and
before the next layer protocol header.
Authentication Header (AH)
Authentication Header is a member of the IPSec protocol suite. AH is used to authenticate the IP Packets
and make sure the data integrity is intact. AH does not provide confidentiality, which means it does not
encrypt tha data. AH operates directly on top of IP, using IP protocol number 51.
Encryption
Encryption is the process of encoding messages or information in such a way that only authorized
parties can read it. In an encryption scheme, the intended communication information or message,
referred to as plaintext, is encrypted using an encryption algorithm, generating cipher text that can only
be read if decrypted. There are two types of encryption i.e. Symmetric Encryption and Asymmetric
Encryption.
Symmetric Encryption - Uses the same cryptographic key for both encryption of plain text and
decryption of cipher text. For symmetric key cryptography to work for online communications,
the secret key must be securely shared with authorized communicating parties and protected
from discovery and use by unauthorized parties. Public key cryptography can be used to provide
a secure method for exchanging secret keys online. Two of the most common key exchange
algorithms are DH and RSA. Example - DES, 3DES, AES.
5. Asymmetric Encryption or public-key cryptography is cryptography in which a pair of keys is
used to encrypt and decrypt a message so that it arrives securely. Initially, a network user
receives a public and private key pair from a certificate authority. Any other user who wants to
send an encrypted message can get the intended recipient's public key from a public directory.
They use this key to encrypt the message, and they send it to the recipient. When the recipient
gets the message, they decrypt it with their private key, which no one else should have access
to. Example - DH, RSA
RSA (Rivest-Shamir-Adleman) Algorithm
RSA involves a public key and a private key. The public key can be known by everyone and is used for
encrypting messages. Messages encrypted with the public key can only be decrypted using the private
key. Let’s say we have 2 peers, Peer A and Peer B. Both the peers generate a public key and private key.
Now only the public key is shared to each other keeping the private key to itself. If Peer A wants to send
data to Peer B, it will use B's Public key to encrypt traffic, only B can decrypt the traffic as nobody else
has the private key.
DH (Diffie-Hellman Key Exchange Protocol)
Diffie-Helman is a way of generating a shared secret between two people in such a way that the secret
can't be seen by observing the communication. You’re not sharing information during the key exchange;
you're creating a key together. There is absolutely no way of figuring out the key, even if someone is
watching over the traffic. It is primarily used as a method of exchanging cryptography keys for use in
symmetric encryption algorithms like AES.
The below diagram will give you a basic understanding how DH generates shared secrert key.
(Source – Wikipedia)
6. Hashing
Hashing is the transformation of a string of characters into a usually shorter fixed-length value or key
that represents the original string. Hashes play a role in security systems where they're used to ensure
that transmitted messages have not been tampered with. The sender generates a hash of the message,
encrypts it, and sends it with the message itself. The recipient then decrypts both the message and the
hash, produces another hash from the received message, and compares the two hashes. If they're the
same, there is a very high probability that the message was transmitted intact.
Example – If you see below I have hash value for word “Hello”.
And now I will just change the CAPS ‘H’ to small ‘h’. What do I get is completely different hash. So even
if you change a single letter or add anything, the hash will change.
7. IKE – Internet Key Exchnage
A hybrid protocol that implements Oakley and SKEME key exchanges inside the Internet Security
Association and Key Management Protocol (ISAKMP) framework. While IKE can be used with other
protocols, its initial implementation is with the IPsec protocol. IKE provides authentication of the IPsec
peers, negotiates IPsec security associations, and establishes IPsec keys. ISAKMP/Oakley uses UDP port
500 for negotiation. We have 2 flavours of IKE i.e. IKEv1 and IKEv2
Diffrence between IKEv1 and IKEv2
IKev1 Does not support EAP authentication
IKev2 introduced a feature called MOBIKE, to be used on mobile platforms and by users with
milti homed setups
IKEv2 less bandwidth consumption
IKEv2 has built in NAT-T & DPD, whearas IKEv1 has an extention of it.
Each peer can use a different authentication method (Asymmetrical authentication)
(e.g.Initiator: PSK and Responder: RSA-Sig)
Each peer can delete SAs anytime by exchanging DELETE payloads.
How to migrate from IKEv1 to IKEv2
If your IKEv1, or even SSL, configuration already exists, the ASA makes the migration process simple. On
the command line, enter the migrate command:
hostname(config)# migrate {l2l | remote-access {ikev2 | ssl} | overwrite}
L2L - This converts current IKEv1 l2l tunnels to IKEv2.
Remote access - This converts the remote access configuration. You can convert either the IKEv1
or the SSL tunnel groups to IKEv2.
Overwrite - If you have a IKEv2 configuration that you wish to overwrite, then this keyword
converts the current IKEv1 configuration and removes the superfluous IKEv2 configuration.
When the migration command is entered on the ASA
The current IKEv1 configurations are not deleted
IKEv1 and IKEv2 configurations run in parallel and on the same crypto map.
The ASA always prefers to initiate IKEv2, but if it cannot, it falls back to IKEv1.
When both IKEv1 and IKEv2 run in parallel, ASA uses a module called tunnel manager/IKE
common on the initiator to determine the crypto map and IKE protocol version to use for a
connection.
8. Explain ISAKMP Phase or Phase 1
Both the peers identify each other and negotiate a common policy on which the IKE SA's would be
formed. The phase 1 encryption & hashing algorithm is used to protect negotiation messages between
the peers & not the data. Phase 1 IKEv1 negotiations can use either main mode or aggressive mode.
Aggressive mode requires only two exchanges between the peers totaling three messages and Main
Mode requires three exchanges totaling six messages. Aggressive mode is faster, but does not provide
identity protection for the communicating parties.
Main Mode
Note - First 4 messages are sent in plain text
1st Message - When IKE negotiations begin, the peer that initiates the negotiation sends all of
its policies to the remote peer, and the remote peer tries to find a match.
2nd Message - The remote peer checks all of the peer's policies against each of its configured
policies until it discovers a match. A match exists when both policies from the two peers contain
the same encryption, hash, authentication, and Diffie-Hellman parameter values.
Note - Lifetime configured in Phase 1 is not mandatory to match on both the sides. The peer having the
lower value is agreed upon during negotiation. Rest all of the components like, encryption,
authentication, group and hash should match.
3rd Message - Key Exchange payload that contains public information exchanged in a Deffie-
Hellman exchange in order to generate a DH shared key. Nonce payload used as an input in key
generation algorithm and is also used as an ant replay mechanism to prevent an attacker to
replay an old message.
9. 4th Message - This fourth packet as you would expect comes from the remote endpoint back to
initiator and contains the remote endpoints Key Exchange and Nonce payload.
Note - After the 4th Message both the peers generate 4 secret keys (SKEYID, SKEYID_d, SKEYID_a, and
SKEYID_e)
Session Key(SKEY ID) - Is a string derived from secret material known only to the active players in the
exchange
SKEYID_d - Used to calculate IPSec Keying Material (For Phase 2)
SKEYID_a - Used to provide data integrity and authentication to IKE Messages
SKEYID_e - Used to encrypt IKE Messages
The result of either Main Mode or Aggressive Mode is three groups of authenticated keying material:
SKEYID_d = prf(SKEYID, g^xy | CKY-I | CKY-R | 0)
SKEYID_a = prf(SKEYID, SKEYID_d | g^xy | CKY-I | CKY-R | 1)
SKEYID_e = prf(SKEYID, SKEYID_a | g^xy | CKY-I | CKY-R | 2)
SKEYID_e is used to encrypt the payloads of 5th and 6th message
5th Message - It contains the Identity payload and Hash Payload of the initiator. The identity can
be IPv4 address, IPv6 address or FQDN. Hash payload would contain the hash value of Pre-
Shared Key and sent across to the other peer.
6th Message - It contains the Identity payload and Hash Payload of the responder.
Note - Peers get authenticated in the 5th and 6th message. Both the peer’s exchange the Hash Payload,
which contains the hash value of the pre-shared key. Once the responder gets the 5th message, it
calculates the hash value of the pre-shred configured on its side and matches it with the hash value in
the 5th message. If both the hash value matches the peer is authenticated. Same process happens in 6th
message and the other side is authenticated.
Aggressive Mode
The purpose of the Aggressive mode is the same as Main mode. It exchanges 3 messages in total, which
makes it less secure compared to Main mode. The identities are not protected as they are sent in plain
text.
1st Message - The initiator sends a list of ISAKMP Policy, DH public value, nonce and the identity
in the first message.
2nd Message - The responder reply back with the ISAKMP Policy selected, his DH public value,
his identity, authentication payload for pre-shared key and encrypted nonce authentication
payload.
3rd Message - The initiator sends his authentication payload as the final message
10. How does DH & Symmetric Encryption work together to secure communication between two peers ?
Think of it like this: You create a coded message to send to a friend in which each letter is substituted
with the letter that is two down from it in the alphabet. So A becomes "C," and "B" becomes "D". You
have already told a trusted friend that the code is "Shift by 2". Your friend gets the encrypted message
and decrypts it with the help of the secret code. Anyone else who sees the message will see only
nonsense.
What do you mean by Security Association (SA)
An SA is a relationship between two VPN endpoints, which describes how those endpoints will use
security services (technologies and protocols) to communicate securely.
IKE SA - The IKE SA governs negotiation of the IPSec SA as specified in the "crypto isakmp
policy". IKE SA is bi-directional in nature, it simply means that a single SA is agreed upon and
used to send and receive to the remote peer.
IPSec SA - The two IPSec peers must determine exactly which algorithms to use (for example,
DES or 3DES for encryption, MD5 or SHA for integrity).As you can see, there is quite a bit of
information to manage. The security association is the method that IPSec uses to track all the
particulars concerning a given IPSec communication session. The IPsec SA must be unidirectional
(each peer has 2 SAs with separate keying material), 1 SA to send and 1 SA to receive from the
remote peer.
NAT-Transversal or NAT-T
What if there is NATing Device along the path ? Enable IPsec over NAT-T
NAT-T lets IPsec peers establish a connection through a NAT device. It does this by encapsulating IPsec
traffic in UDP datagram’s, using port 4500, which provides NAT devices with port information. NAT-T
auto-detects any NAT devices and only encapsulates IPsec traffic when necessary. This feature is
disabled by default.
NAT Traversal performs two tasks:
Detects if both ends support NAT-T
Detects NAT devices along the transmission path (NAT-Discovery)
Enter the following command to enable IPsec over NAT-T globally on the ASA:
Hostname(config)#crypto isakmp nat-traversal natkeepalive
Note - When you enable NAT-T, the ASA automatically opens port 4500 on all IPsec-enabled interfaces
11. Why does IPSec Packets get Encapsulated in UDP Port 4500, after detecting NATting along the path
ESP is an IP Protocol just like TCP and UDP but it does not have any port information. Because there is no
port to change in the ESP packet, the binding database can't assign a unique port to the packet at the
time it changes its RFC 1918 address to the publically routable address. If the packet can't be assigned a
unique port then the database binding won't complete and there is no way to tell which inside host
sourced this packet. As a result there is no way for the return traffic to be untranslated successfully.
How does ASA detect that both the Peers support NAT
Main Mode: Message 1 & 2: It checks if both the devises support NAT-T
Main Mode: Message 3 & 4: If both the devices support NAT-T, then NAT-Discovery messages
are exchanged. The NAT-D payload sent is a hash of the original IP address and port. Devices
exchange two NAT-D packets, one with source IP and port, and another with destination IP and
port. The receiving device recalculates the hash and compares it with the hash it received; if
they don't match a NAT device exists
Main Mode: Message 5 & 6: If NAT device has been determined to exist - all ISAKMP packets
change from UDP port 500 to UDP port 4500.
What is the difference between NAT-T and IPSec-over-UDP ?
When NAT-T is enabled, it encapsulates the ESP packet with UDP only when it encounters a NAT device.
Otherwise, no UDP encapsulation is done. But, IPSec Over UDP, always encapsulates the packet with
UDP. NAT-T always use the standard port, UDP-4500. It is not configurable. IPSec over UDP normally
uses UDP-10000 but this could be any other port based on the configuration on the VPN server.
Why does AH not support NAT-T ?
AH is incompatible with Network Address Translation (NAT) because NAT changes the source IP address,
which breaks the AH header and causes the packets to be rejected by the IPSec peer.
Explain IPSec Phase or Phase 2
In phase 2 you still specify parameters such as encryption and hashing algorithms which are quite similar
to those in Phase 1. However, these parameters configured in Phase 2 are used to protect the "data"
itself & not the negotiation messages. In IKE phase 2, we don’t need to do DiffieHellman key exchange
again, as the peers already have the keys setup (which they did in IKE phase 1 during the Diffie-Hellman
exchange). It is possible to tell the peers to run DH again, during IKE phase 2, to generate new keys, but
this isn't the default. You need to configure PFS (Perfect Forward Secrecy) if you want different DH keys
in Phase 2. Phase 2 is also called as Quick mode and 3 messages are exchanged between the peers. All
the 3 messages are protected by SKEYID_e generated in Phase 1.
12. Note -
If PFS is not needed, and KE payloads are not exchanged, the new keying material is defined as
KEYMAT = prf(SKEYID_d, protocol | SPI | Ni_b | Nr_b).
If PFS is desired and KE payloads were exchanged, the new keying material is defined as
KEYMAT = prf(SKEYID_d, g(qm)^xy | protocol | SPI | Ni_b | Nr_b)
where g(qm)^xy is the shared secret from the ephemeral Diffie-Hellman exchange of this Quick Mode.
We can configure Phase 2 in Tunnel Mode or Transport Mode as per the network requirement. Each of
these modes has its own particular uses and care should be taken to ensure that the correct one is
selected for the solution
Transport Mode
In transport mode, only the payload of the IP packet is usually encrypted and/or authenticated. The
routing is intact, since the IP header is neither modified nor encrypted; however, when the
authentication header is used, the IP addresses cannot be translated, as this always will invalidate the
hash value. NAT traversal IS NOT supported with the transport mode. MSS is higher, when compared to
Tunnel mode, as no additional headers are required.
Tunnel Mode
In Tunnel Mode, the entire IP Packet is encrypted and /or authenticated. It is encapsulated with new IP
Packet with a new IP Header. Tunnel mode is most commonly used between gateways, or at an end-
station to a gateway, the gateway acting as a proxy for the hosts behind it. NAT traversal is supported
with the tunnel mode. Additional headers are added to the packet; so the payload MSS is less. The
transport mode is usually used when another tunneling protocol (such as GRE, L2TP) is used to first
encapsulate the IP data packet, then IPsec is used to protect the GRE/L2TP tunnel packets.
13. PFS or Perfect Forward Secrecy
During the initial IKE Phase 1 negotiation, public DH key values are exchanged to derive the shared
secret DH value. These public and private DH values are used to generate the session key used to
encrypt the 5th and 6th main mode exchanges. If you do not specify PFS, the same public and private
DH values derived in Phase 1 are used to generate the subsequent keying material that protects IPSEC
traffic. When PFS is used, there is an additional DH key exchanged performed in IKE Phase 2. These new
public/private DH values are then used to generate the keying material for the encrypted IPSEC traffic.
IPSec VPN Deployment Scenario
It gives you an overview of various design topologies, features and services currently used with IPSec.
Each technology uses IPsec as the underlying transport mechanism for each VPN.
L2TP Over IPSec
Layer Two Tunneling Protocol (L2TP) is a combination of PPTP and Layer 2 Forwarding (L2F), a
technology proposed by Cisco® Systems, Inc. Rather than having two incompatible tunneling protocols
competing in the marketplace and causing customer confusion, the IETF mandated that the two
technologies be combined into a single tunneling protocol that represents the best features of PPTP and
L2F. L2TP is documented in RFC 2661. The primary benefit of configuring L2TP with IPSec in a remote
access scenario is that remote users can access a VPN over a public IP network without a gateway or a
dedicated line, enabling remote access from virtually anyplace with POTS. An additional benefit is that
the only client requirement for VPN access is the use of Windows 2000 with Microsoft Dial-Up
Networking (DUN). No additional client software, such as Cisco VPN client software, is required. The
Windows 2000 L2TP/IPSec client uses IPSec transport mode—only the IP payload is encrypted, and the
14. original IP headers are left intact. In order for Windows 2000 L2TP/IPSec clients to connect to the
security appliance, you must configure IPSec transport mode
More on this
(http://www.cisco.com/c/en/us/td/docs/security/asa/asa90/configuration/guide/asa_90_cli_config/vpn
_l2tp_ipsec.html)
Remote Access IPSec VPN
Remote access VPNs allow users to connect to a central site through a secure connection over a TCP/IP
network such as the Internet. The Internet Security Association and Key Management Protocol, also
called IKE, is the negotiation protocol that lets two hosts agree on how to build an IPSec Security
Association. Each ISAKMP negotiation is divided into two sections called Phase1 and Phase2. Phase 1
creates the first tunnel to protect later ISAKMP negotiation messages. Phase 2 creates the tunnel that
protects data travelling across the secure connection. The security appliance requires a method for
assigning IP addresses to users by configuring Address Pool. To identify remote access users to the
security appliance, configure usernames and passwords and Set the connection type to IPSec remote
access. We configure dynamic crypto maps that let the security appliance receive connections from
peers that have unknown IP addresses. Remote access clients fall in this category.
More on this
(http://www.cisco.com/c/en/us/td/docs/security/asa/asa72/configuration/guide/conf_gd/vpnrmote.ht
ml)
VTI – Virtual Tunnel Interface
With IPSec VTIs, users can provide highly secure connectivity for site-to-site VPNs and can be combined
with Cisco AVVID (Architecture for Voice, Video and Integrated Data) to deliver converged voice, video,
and data over IP networks. The IPsec VTI allows for the flexibility of sending and receiving both IP
unicast and multicast encrypted traffic on any physical interface, such as in the case of multiple paths.
VTI comes in two flavors, SVTI (tunnel interface) and DVTI (virtual-template interface).
SVTI - It is used to have static "on-all-the-time" IPSec tunnels and typically should be thought of as a lan
to lan tunnel. The advantage of using SVTIs as opposed to crypto map configurations is that users can
enable dynamic routing protocols on the tunnel interface without the extra 4 bytes required for GRE
headers, thus reducing the bandwidth for sending encrypted data.
DVTI - It is used to provide "on-demand" connectivity. DVTI would be used in case of ezvpn (both server
and client!) and recently webvpn. The DVTI technology replaces dynamic crypto maps and the dynamic
15. hub-and-spoke method for establishing tunnels. Dynamic VTIs function like any other real interface so
that you can apply QoS, firewall, other security services as soon as the tunnel is active.
More on this (http://www.cisco.com/en/US/docs/ios/12_3t/12_3t14/feature/guide/gtIPSctm.html)
Point-To-Point GRE over IPSec
Generic Routing Encapsulation (GRE) is a tunneling protocol developed by Cisco Systems that
can encapsulate a wide variety of network layer protocols inside virtual point-to-point links over
an Internet Protocol network. By default IPSec VPN cannot send multicast traffic between the peers, so
that means we cannot use dynamic protocols inside a tunnel. To overcome this issue, cisco developed
GRE so that we can run dynamic protocols (like – OSPF, EIGRP, RIP) between the sites.
More on This (http://www.cisco.com/c/en/us/support/docs/security/vpn-5000-series-
concentrators/3969-vpn5k-stat.html)
DMVPN – Dynamic Multipoint VPN
The Dynamic Multipoint VPN (DMVPN) feature allows users to better scale large and small IPSec VPNs
by combining generic routing encapsulation (GRE) tunnels, IPSec encryption, and Next Hop Resolution
Protocol (NHRP) to provide users with easy configuration through crypto profiles, which override the
requirement for defining static crypto maps, and dynamic discovery of tunnel endpoints.
We have 3 Phases in DMVPN, those are
DMVPN Phase 1: All the spokes are static tunnels so you won’t get any dynamic spoke-to-spoke
connectivity.
DMVPN Phase 2: This phase involves everysite being configured with mGRE interface so you get
your dynamic spoke-to-spoke connectivity.
DMVPN Phase 3: This involve summarizing into the DMVPN cloud to provide.
NHRP – Next Hop Resolution Protocol
NHRP is a layer two resolution protocol and cache like ARP or Reverse ARP (Frame Relay). It is used in
DMVPN to map a tunnel IP address to an NBMA address.
More on this (http://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-
mt/sec-conn-dmvpn-15-mt-book.pdf)
16. VRF Aware IPSec
One obstacle to successfully deploying peer-to-peer VPNs is the separation of routing tables, and the
use of overlapping addresses, which usually results from using private IP addresses in customer
networks. The VRF-Aware IPsec feature, which introduces IPsec tunnel mapping to Multiprotocol Label
Switching (MPLS) VPNs, solves this problem. The VRF-Aware IPsec feature, known as VRF mode, allows
you to map IPsec tunnels to VPN routing and forwarding instances (VRFs) using a single public-facing
address. Each IPsec tunnel is associated with two VRF domains. The outer encapsulated packet belongs
to one VRF domain, called the front door VRF (FVRF), while the inner, protected IP packet belongs to
another domain called the inside VRF (IVRF)
The Cisco VPN Services Port Adapter (VSPA) is the next-generation VPN module designed to support
next-generation VPN technologies such as Virtual Routing and Forwarding (VRF)-Aware IPsec VPN.
Although the Cisco VSPA does not have physical WAN or LAN interfaces, it takes advantage of the
breadth of LAN and WAN interfaces in the Cisco Catalyst 6500 Series Switches, making it very attractive
for enterprises deploying the Cisco Catalyst 6500 Series Switch.
More on this
(http://www.cisco.com/c/en/us/td/docs/interfaces_modules/services_modules/vspa/configuration/gui
de/ivmsw_book/ivmvpna.html#wp1055559)
V3
PN - Voice and Video Enabled IPSec VPN
It is nothing but Voice and Video Enabled IPSec VPN, which integrates three core Cisco technologies: IP
Telephony, Quality of Service (QoS), and IP Security (IPSec) VPN. The Cisco V3PN solution outlines a VPN
architecture that accommodates voice and video over IPsec. Because IP multicast is a key component of
many voice and video streaming technologies, V3PN requires the use of IPsec+GRE.
More on this
(http://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/WAN_and_MAN/V3PN_SRND/V3PN_SRN
D/v3p_intr.html)
How does the traffic get Encrypted, in simple terms
Router has a packet that is about to be forwarded, and it notices that it matches a crypto ACL.
Router looks to see if there is an IPSec SA in place, if not....
Router looks to see if there is an IKE Phase 1 SA in place, if not...
Router becomes initiator, and sends over all of its IKE phase 1 policies.
Remote router responds, by specifying which IKE phase 1 policy is a match.
Both peers run DH, and generate shared secret keying material.
17. Both peer authenticate with each other, using authentication method agreed to in IKE phase 1
negotiations. (IKE phase 1 tunnel is now up.)
Using the IKE phase 1 tunnel as a cloak of security, they two peers negotiate the details of IKE
Phase 2.
DH is not run again, and shared secret keying material is used from the DH in IKE phase 1, unless
PFS is used.
IKE phase 2 tunnel (AKA, the IPSec tunnel) is now in place, and the data is encapsulated and sent
through the tunnel.
Steps to configure IPSec Site-To-Site VPN on ASA
Access-list - This is the interesting traffic or the traffic which you want to protect
Configure Phase 1 parameters
o Encryption – DES, 3DES or AES
o Hashing – MD5 or SHA
o DH Group – DH 2 , DH 5 etc
o Authentication – Pre-Shared Key, RSA,
o Lifetime – Default 24 Hours
Configure Phase 2 parameters
o Transform-set – AH or ESP, what encryption and hash to use
o Mode – Transport or Tunnel
Configure Tunnel-group
o Peer IP
o Pre-Shared Key
Configure Crypto-map – We call all the parameters we configured earlier
o Access-list
o Peer IP
o Transform-set
o NAT-T (Optional)
o PFS (Optional)
o Lifetime (Optional)
Apply that crypto-map to the outside interface
Enable Crypto to the outside Interface
18. Troubleshooting IPSec VPN
Troubleshooting IPSec Site-To-Site VPN is quite simple. It’s always better to start your troubleshooting
by checking the Phase 1 and Phase 2 configs on both the side match exactly the same.
Verification Commands
To check Phase 1 - ASA# show crypto isakmp sa detail | be <Peer IP>
To check Phase 2 - ASA# show crypto ipsec sa peer <Peer IP>
To check Phase 1 and Phase 2 parameters - ASA# show vpn-sessiondb detail l2l filter ipaddress
<Peer IP>
To check Pre-Shared Key – ASA# more: system running-config | begin Tunnel-group <Peer IP>
Phase 1
Check Phase 1 policies on both the side
You see nothing when you hit “Show Crypto ISAKMP SA”
o What to Check
Check access-list to see if you see any hit counts increasing when you try to
initiate the traffic
Check internal Routing
Do a Trace-route, to see where the packet is getting dropped
If you see MM_WAIT_MSG2 error message that means, you have initiated the traffic and sent
him the Phase 1 polices to match on his side but he is not able to reach your peer IP
o What to Check
Weather crypto-map is enabled on outside interface
Probably ISP Routing Issue on his side
Phase 1 Policies do not match
You would probably not able to ping the Peer IP ( ISP Routing Issue)
If you see MM_WAIT_MSG4 error message
o What to check
Probably pre-shared key mis-match on both side
If You see MM_WAIT_MSG6 error message
o What to check
Probably Pre-Shared Key is not configured
Phase 1 is not stable, I mean it is continuously going round and round from message 1 o 6
o What to check
Access-list mis-match
PFS is enabled on one side only
Transform-set missing on one side
NAT-T enabled on one side only
o
19. After this Phase 1 will get established and you will see "MM_WAIT_Active" message
Note – MM is Main Mode and AM is Aggressive Mode
Phase 2
Check Phase 2 configs on both the side
When the phase 2 is good, you will see encaps and decaps increasing, if ether is not then there is
an issue.
If Encaps increasing on your side and Decaps 0 - That means the issue is on the other side.
o What to check
Check the NAT statement, if they are properly configured
Check the internal routing
Check if the Severs are up and running
Check the FW rules and see if the required services are allowed access
Ask the other side to ping the servers from the Peer IP Device or do a trace
route and see where the packets are getting dropped
If Encaps 0 on your side and Decaps increasing – That means the issue is on our side
o What to check
Do the same steps mentioned above
20. FAQ – Frequently Asked Questions
Does ASA support IPSec Site-To-Site VPN in multi context mode ?
o ASA 9.0(1) introduced support for IPsec site-to-site VPN in multi-context mode
What if the IPSec Peer is dynamically assigned, what is the solution to this problem.
o Configure dynamic crypto map
o crypto dynamic-map DMAP 1 set transform-set myset
o crypto dynamic-map DMAP 1 set reverse-route
o crypto map CMAP 10 ipsec-isakmp dynamic DMAP
o crypto map CMAP interface outside
How to check the Pre-Shared Key configured?
o ASA# more system: running config | begin tunnel-group <Peer IP>
Can i use dynamic routing with IPSec VPN?
o IPSec only supports unicast traffic. The common solution for this is to create a GRE
tunnel and have that encapsulated within the IPSec tunnel. GRE supports multicast
traffic.
Does ASA support GRE Tunnel?
o The ASA does not support GRE tunnels, so unless you have routers behind the ASAs
which could host these GRE tunnels, this option is not viable.
Can I terminate VPN connections on my FWSM?
o VPN functionality is not supported on the FWSM. Termination of VPN connections is the
responsibility of the switch and/or VPN Services Module
