This document discusses the IPC mechanisms in 4.3BSD Unix. It describes the socket abstraction layer that provides a unified interface for communication. The key IPC primitives for both connection-oriented and connectionless communication are socket(), bind(), connect(), listen(), accept(), sendto(), and recvfrom(). Connection-oriented communication uses stream sockets and establishes connections between clients and servers, while connectionless communication uses datagram sockets for quick exchanges without establishing connections.

1. Case Study:
4.3BSD Unix IPC Mechanism
By Group 1 :
Pooja B.R.
Renuka
Spoorthi Sham
Vani D.

2. What is Unix BSD 4.3?
An Introduction..
5/12/2015
2
PESIT, M.Tech SSE, 1st
Sem

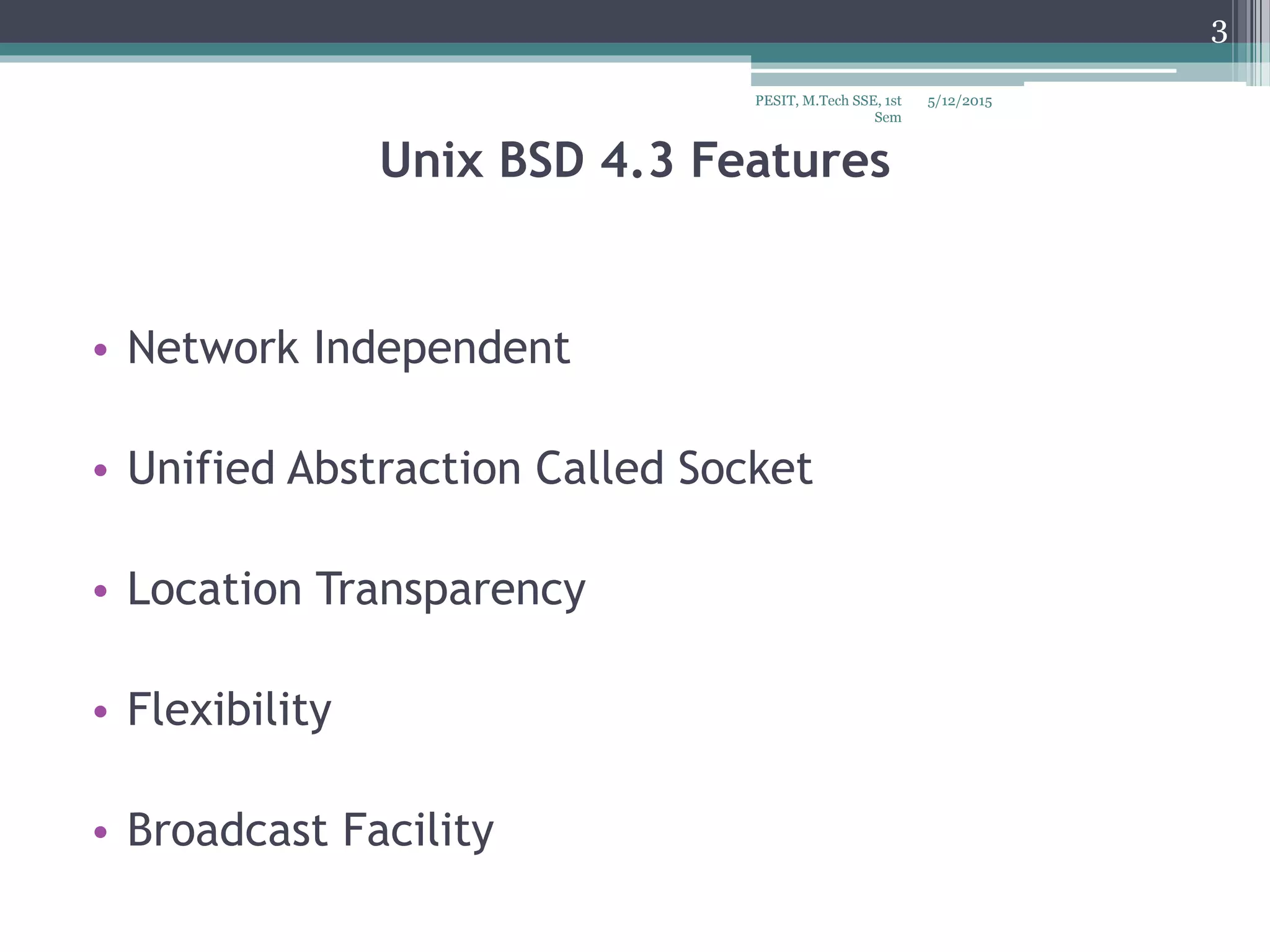

3. Unix BSD 4.3 Features
• Network Independent
• Unified Abstraction Called Socket
• Location Transparency
• Flexibility
• Broadcast Facility
5/12/2015
3
PESIT, M.Tech SSE, 1st
Sem

4. IPC Primitives
Application Layer
• The basic building block for communication is the
socket
Sockets
Transport Layer
Internet Layer
Network Access Layer
5/12/2015
4
PESIT, M.Tech SSE, 1st
Sem

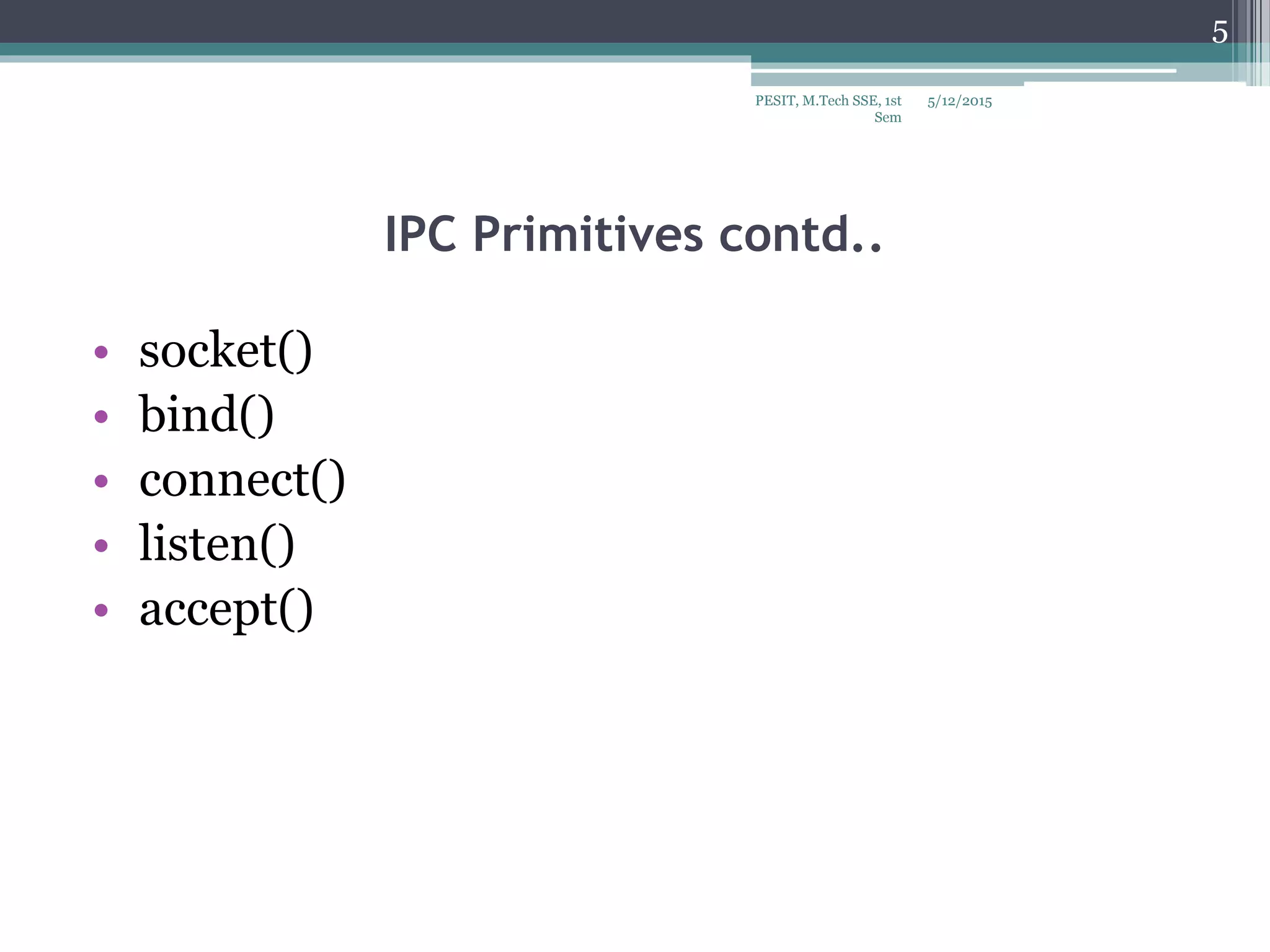

5. IPC Primitives contd..
• socket()
• bind()
• connect()
• listen()
• accept()
5/12/2015PESIT, M.Tech SSE, 1st
Sem
5

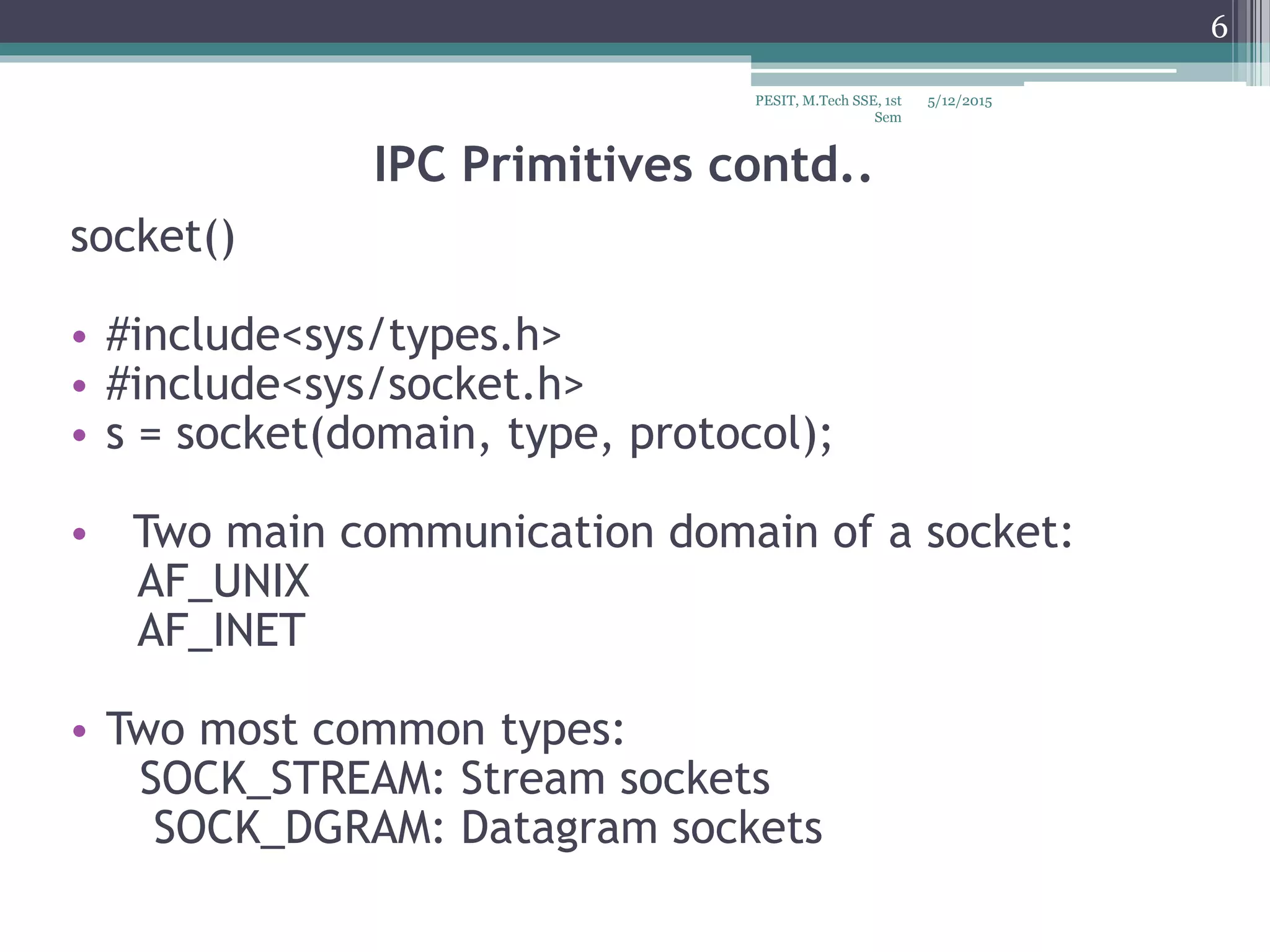

6. IPC Primitives contd..
socket()
• #include<sys/types.h>
• #include<sys/socket.h>
• s = socket(domain, type, protocol);
• Two main communication domain of a socket:
AF_UNIX
AF_INET
• Two most common types:
SOCK_STREAM: Stream sockets
SOCK_DGRAM: Datagram sockets
5/12/2015
6
PESIT, M.Tech SSE, 1st
Sem

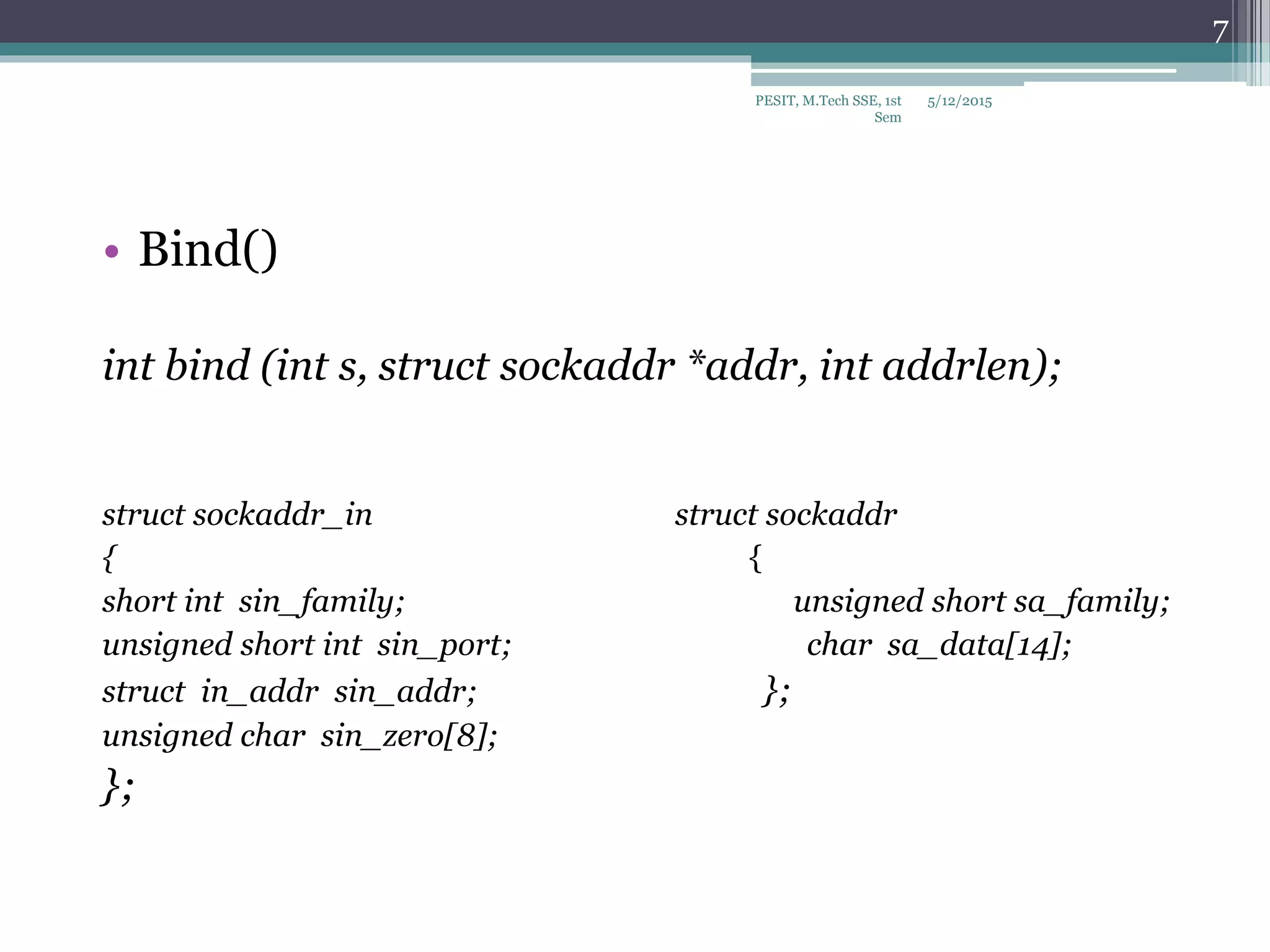

7. • Bind()
int bind (int s, struct sockaddr *addr, int addrlen);
struct sockaddr_in struct sockaddr
{ {
short int sin_family; unsigned short sa_family;
unsigned short int sin_port; char sa_data[14];
struct in_addr sin_addr; };
unsigned char sin_zero[8];
};
5/12/2015
7
PESIT, M.Tech SSE, 1st
Sem

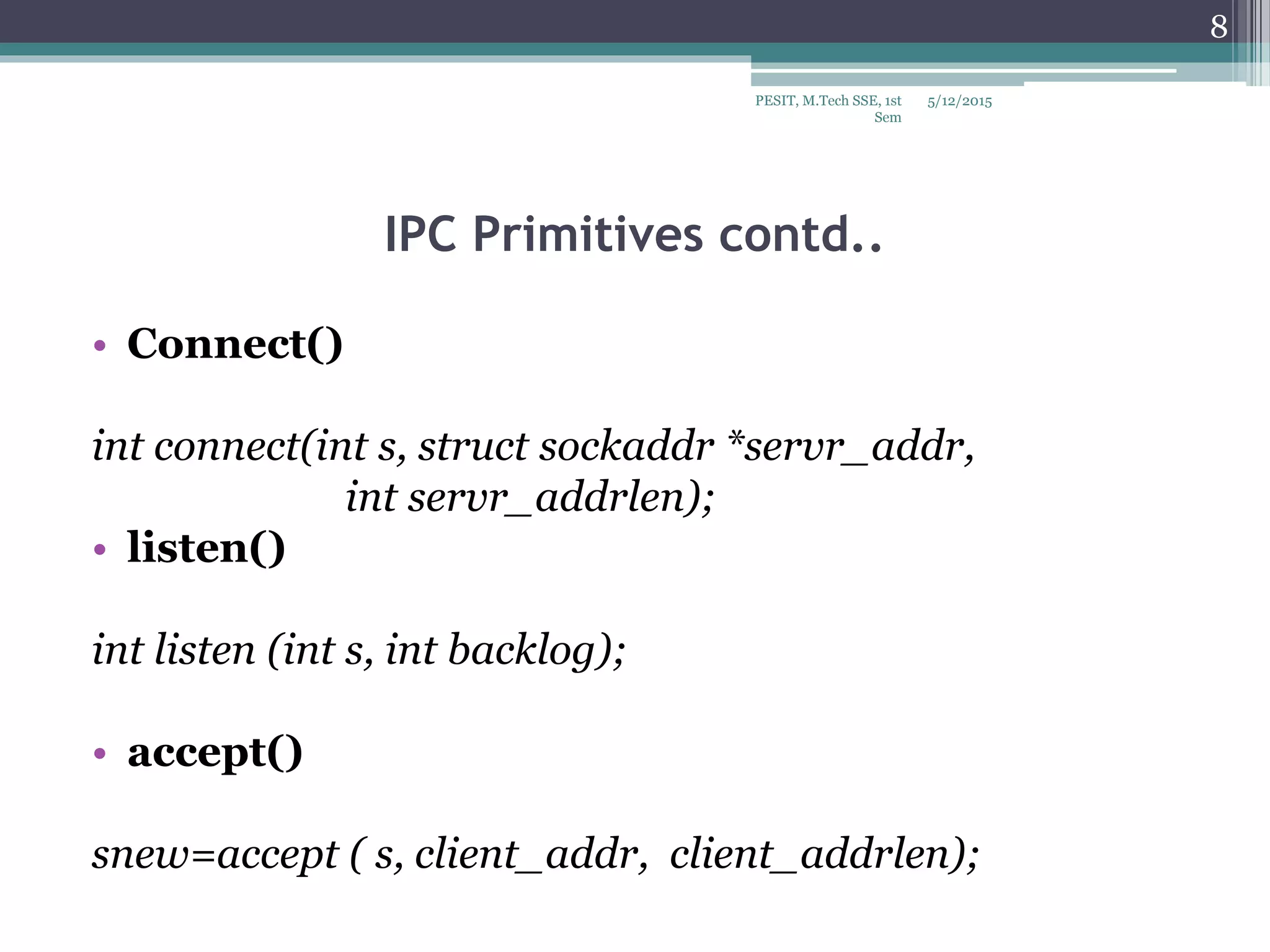

8. IPC Primitives contd..
• Connect()
int connect(int s, struct sockaddr *servr_addr,
int servr_addrlen);
• listen()
int listen (int s, int backlog);
• accept()
snew=accept ( s, client_addr, client_addrlen);
5/12/2015
8
PESIT, M.Tech SSE, 1st
Sem

9. Connection oriented communication
• Stream based communication.
• Connection establish process is asymmetric.
• Useful in client – server applications.
• Acknowledgement after successful delivery.
5/12/2015
9
PESIT, M.Tech SSE, 1st
Sem

10. System Calls for connection oriented communication
s= socket (AF_INET,
SOCK_STREAM,0);
connect(s, server_addr,
server_addr_length);
www
write(s,”Hello..”,
msg_length);
close(s);
s=socket(AF_NET,
SOCK_STREAM,0);
bind(s,sever_addr,
server_addr_length);
listen(s,backlog);
snew=accept(s,client_ad
dr,client_addr_length);
nbytes=read(snew,buffe
r,amount);
close(snew);
close(s);
5/12/2015
10
PESIT, M.Tech SSE, 1st
Sem

11. Connectionless Communication
• Provides symmetric Interface to data
exchange.
• Good for short , quick communication.
5/12/2015
11
PESIT, M.Tech SSE, 1st
Sem

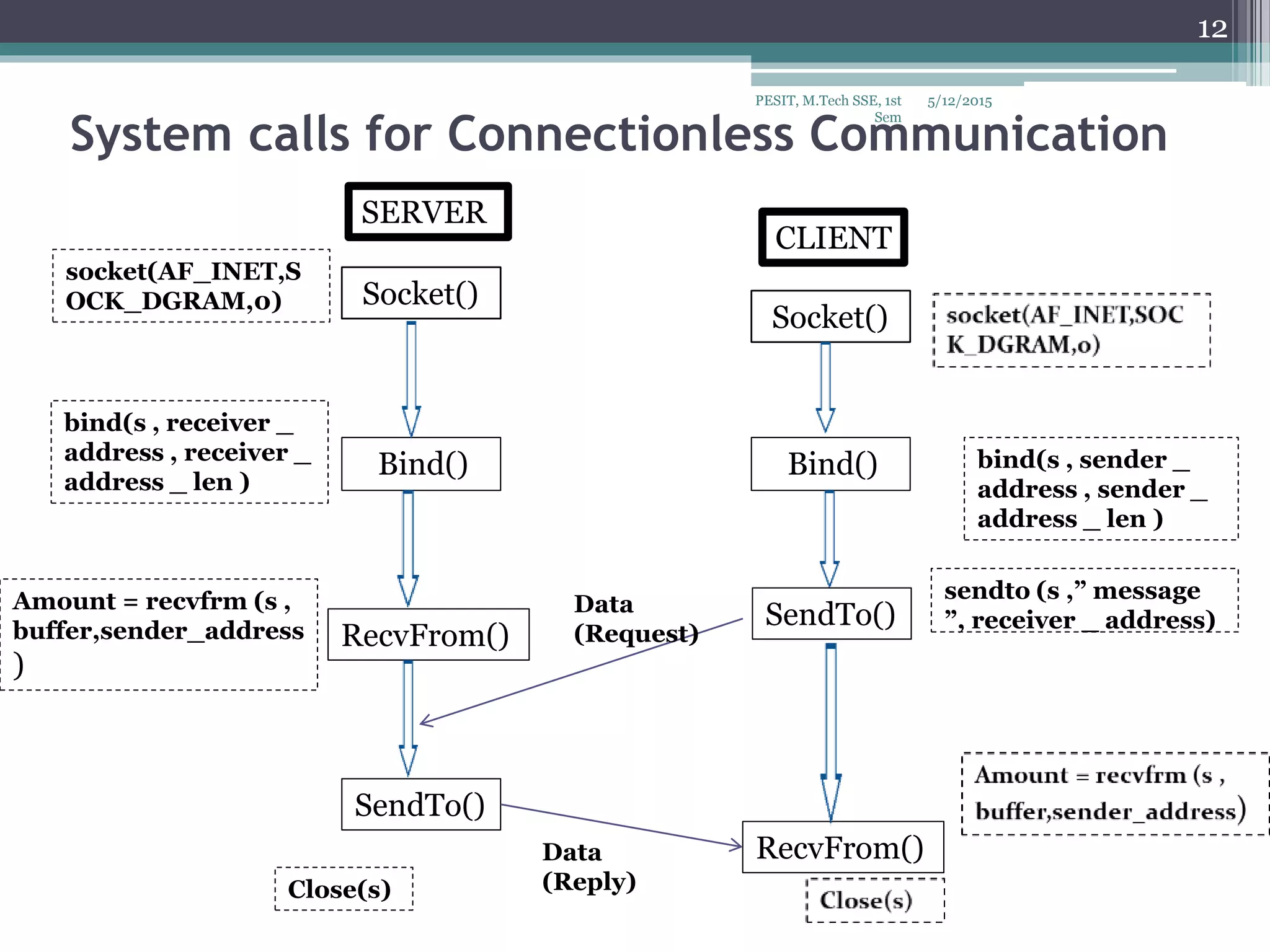

12. System calls for Connectionless Communication
Socket()
Bind()
RecvFrom()
SendTo()
bind(s , receiver _
address , receiver _
address _ len )
Amount = recvfrm (s ,
buffer,sender_address
)
socket(AF_INET,S
OCK_DGRAM,0)
Socket()
Bind()
SendTo()
RecvFrom()
sendto (s ,” message
”, receiver _ address)
bind(s , sender _
address , sender _
address _ len )
Close(s)
Data
(Request)
Data
(Reply)
SERVER
CLIENT
5/12/2015
12
PESIT, M.Tech SSE, 1st
Sem

13. Thank You
4.3 BSD Unix IPC Mechanism
